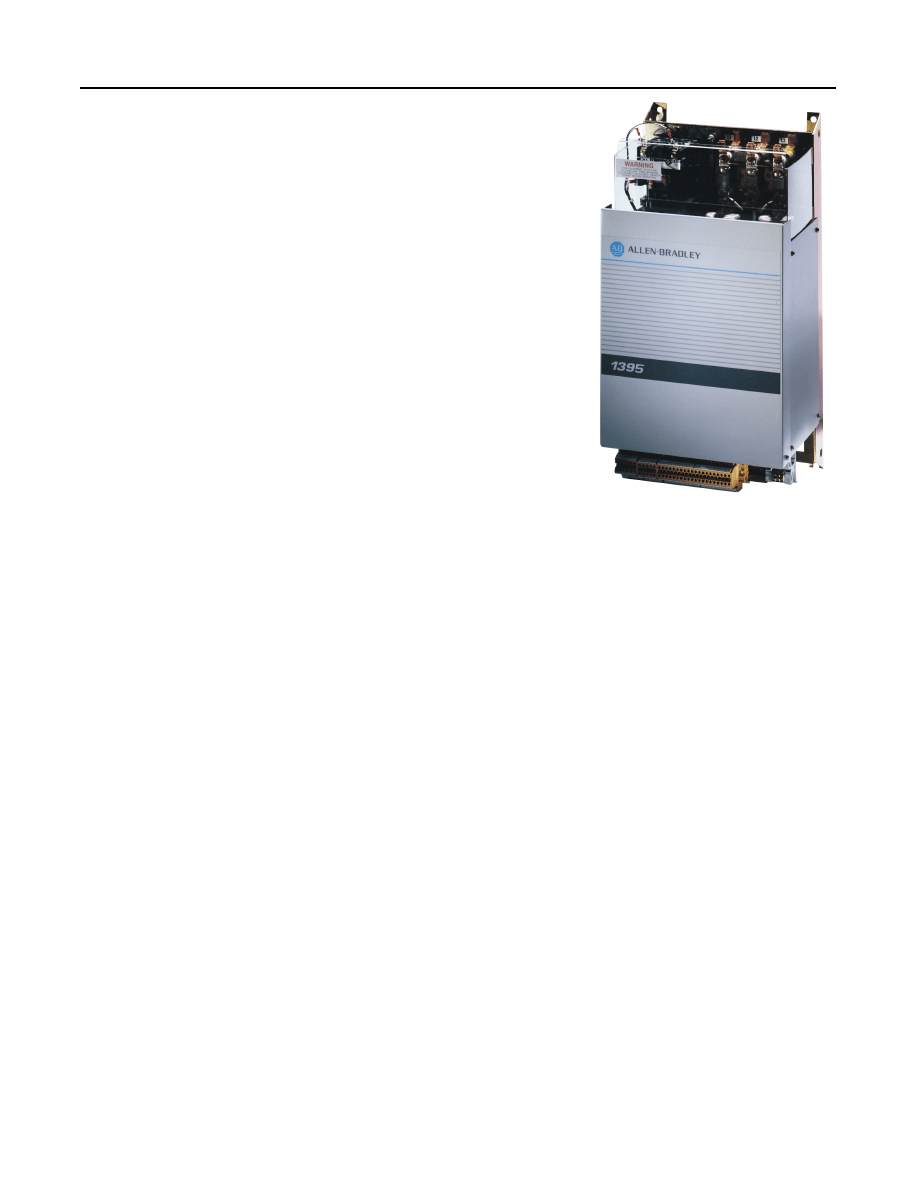

Bulletin 1395

Microprocessor Based Digital DC Drive

Allen-Bradley

251

Standard and Pre-Engineered
Pricing

Providing the performance, communication and the flexibility
required for demanding applications. The 1395 Digital DC drive
employs advanced microprocessor technology which can provide the
performance, communication and flexibility required for demanding
applications. Parameters are stored in EEPROM to provide precise
digital accuracy and repeatability. The drive may be programmed
from a hand held or door mounted programming terminal. Different
interface boards are available depending upon your application.

The 1395 Standard Drives Program. The 1395 Standard Drives
Program offers basic drive modules from 1 to 600 HP in both regener-
ative and non-regenerative configurations. The standard hardware
offering consists of an open type enclosure, incoming line overcurrent
protection devices, armature converter, field converter, DC contactor
and regulator boards. Medium range controllers include a DC contac-
tor, 3 auxiliary contacts (one N.O. and two N.C.), and an optional
auxiliary contact as standard. Specialized adapter boards allow the
drive to communicate with an Allen-Bradley Programmable Control-
ler, discrete devices (such as pushbuttons and potentiometers), and
analog signal devices.

Bulletin 1395 QuickShip Program. This is a special selection of cat-
alog items held in a minimal stocking program designed to help those
customers with a critical need.

The 1395 Pre-Engineered Drives Program. The 1395 Pre-Engi-
neered Drives program provides the same basic hardware as the stan-
dard drives program, but with an expanded list of factory installed
options. Product definition for order entry is still accomplished by a
standard catalog number.

Bulletin 1395

Microprocessor Based Digital DC Drive

252

Allen-Bradley

Standard Drives Program

Catalog Number Code Explanation

An explanation of the catalog numbering system for the 1395 DC
drives and their options for 1 – 200 HP is presented here:

1. BULLETIN NUMBER

The Allen-Bradley reference number identifying the type or product
family.

2. DRIVE RATING and TYPE

A group of four characters coded to indicate the input voltage and
the output power rating and power structure.

If the first character is A it indicates = 230V AC, 50/60 Hz 3 phase,
AC Line Fuses.
If the first character is B it indicates = 460V AC, 50/60 Hz 3 phase,
AC Line Fuses.

The second and third characters indicate the power rating of the
drive.
For example; 63 = 2 HP, 64 = 3 HP, 65 = 5 HP.

The fourth character represents the power structure type:
N = Non-Regenerative; No character = Regenerative
Refer to page 255 for a complete listing of the drives rating.

3. CONTACTOR TYPES

The third group represents the contactor type, standard type or
contactor with DB pole for dynamic braking in specific ratings.
For Example; C1 = Standard contactor for 15 HP 230V
For Example; D2 = Contactor DB pole for dynamic braking for
40 HP, 460V.
Refer to pages 254, 255 and 256 for a complete listing of the drives
rating.

4. OPTIONS

All additional characters indicate drive options that were originally
installed at the factory. Each option code is added to the catalog
number:
PZ = Less Adapter Boards
P10 = Discrete adapter board 115V AC
P11 = Discrete adapter board 24V DC
P12 = Digital reference adapter 24V DC
P50 = Node adapter board
P51 = Multi Communication Adapter Board
X1 = Auxiliary Contact

5. REVERSING

All reversing applications will require a regenerative 1395.

1395

–

A73

–

C3

–

P12

Bulletin Number

➊

Rating

➋

Type

➌➎

Options

➍

Bulletin 1395

Microprocessor Based Digital DC Drive

Allen-Bradley

253

1. BULLETIN NUMBER

The Allen-Bradley reference number identifying the type or family
of products.

2. DRIVE RATING and TYPE

A group of four characters coded to indicate the input voltage and
the output power rating and power structure.

If the first character is A it indicates = 230V AC, 50/60 Hz 3 phase,
AC Line Fuses.
If the first character is B it indicates = 460V AC, 50/60 Hz 3 phase,
AC Line Fuses.

The second and third characters indicate the power rating of the
drive.
For example; 80 = 250 HP, 81 = 300 HP, 82 = 400 HP.

The fourth character represents the power structure type:
N = Non-Regenerative;
No character = Regenerative
Refer to page 256 for a complete listing of the drives rating.

3. ARMATURE SHUNT

A group of two characters coded to select an armature shunt for
remote current indication:
EN = No Shunt Supplied
E1, E2 and E3 = The shunt for a certain horsepower rating.

4. OPTIONS

All additional characters indicate drive options that were originally
installed at the factory. Each option code is added to the catalog
number and separated by a dash:
P30 = Less Adapter Boards
P31 = Discrete adapter board 115V AC
P32 = Discrete adapter board 24V DC
P12 = Digital reference adapter board 24V DC
P50 = Node adapter board
P51 = Multi Communication adapter board
X2 = Lug Kit (Compression type for AC power and DC armature

output)

5. REVERSING

All reversing applications will require a regenerative 1395.

1395

–

B82N

–

E2

–

P50 - X2

Bulletin Number

➊

Rating

➋

Armature Shunt

➌➎

Options

➍

Bulletin 1395

Microprocessor Based Digital DC Drive

254

Allen-Bradley

230 Volt AC Input (1 – 100 HP)

1395

–

A61

–

C1

–

P10 - X1

First Position
Bulletin No.

Second Position
Horsepower
Non-Regenerative

Third Position
Contactor Type

Fourth Position
Options*

No

Letter

HP

Letter

HP

Letter

Type

1395

A61N

1 HP

Standard

P1Z

Less Adapter Boards

A62N

1.5 HP

C1

1 – 15 HP

P10

Discrete Adapter 115V AC (Port A)

A63N

2 HP

C2

20 – 30 HP

P11

Discrete Adapter 24V DC (Port A)

A64N

3 HP

C3

40 – 50 HP

P12

Digital Reference Adapter 24V DC (Port A)

A65N

5 HP

C4

60 – 75 HP

P50

Node Adapter (Port B)

A66N

7.5 HP

C5

100 HP

P51

Multi Comm Adapter (Port B)

A67N

10 HP

X1

Auxiliary Contact (1-N.O. – N.C.)

A68N

15 HP

Dynamic Braking

(Standard on 100 HP)

A69N

20 HP

D1

1 – 15 HP

A70N

25 HP

D2

20 – 30 HP

FIELD INSTALLATION KITS

A71N

30 HP

D3

40 – 50 HP

1395-KP10 115V AC Discrete Adapter Kit (Loose)

D4

60 – 75 HP

1395-KP11 24V DC Discrete Adapter Kit (Loose)

Regenerative

D5

100 HP

1395-KP12 Digital Reference Adapter Kit (Loose)

Letter

HP

1395-KP50 Node Adapter Kit (Loose)

A61

1 HP

1395-KP51 Multi-Comm Adapter Kit (Loose)

A62

1.5 HP

A63

2 HP

A64

3 HP

* Multiple options are separated by dashes

A65

5 HP

* Limited to one board in Port A or Port B

A66

7.5 HP

A67

10 HP

A68

15 HP

A69

20 HP

A70

25 HP

A71

30 HP

A72

40 HP

A73

50 HP

A74

60 HP

A75

75 HP

A76

100 HP

❋

Prices – Consult Sales Office or price list

Bulletin 1395

Microprocessor Based Digital DC Drive

Allen-Bradley

255

460 Volt AC Input (2 – 200 HP)

1395

–

B63

–

C1

–

P12 - P50

First Position
Bulletin No.

Second Position
Horsepower
Non-Regenerative

Third Position
Contactor Type

Fourth Position
Options*

No

Letter

HP

Letter

HP

Letter

Type

1395

B63N

2 HP

Standard

PZ

Less Adapter Boards

B64N

3 HP

C1

2 – 30 HP

P10

Discrete Adapter 115V AC (Port A)

B65N

5 HP

C2

40 – 60 HP

P11

Discrete Adapter 24V DC (Port A)

B66N

7.5 HP

C3

75 – 100 HP

P12

Digital Reference Adapter 24V DC (Port A)

B67N

10 HP

C4

125 – 150 HP

P50

Node Adapter (Port B)

B68N

15 HP

C5

200 HP

P51

Multi Comm Adapter (Port B)

B69N

20 HP

X1

Auxiliary Contact (1-N.O – 1-N.C.)

B70N

25 HP

Dynamic Braking

(Standard on 200 HP)

B71N

30 HP

D1

2 – 30 HP

B72N

40 HP

D2

40 – 60 HP

FIELD INSTALLATION KITS

B73N

50 HP

D3

75 – 100 HP

1395-KP10 115V AC Discrete Adapter Kit (Loose)

B74N

60 HP

D4

125 – 150 HP

1395-KP11 24V DC Discrete Adapter Kit (Loose)

D5

200 HP

1395-KP12 Digital Reference Adapter Kit (Loose)

Regenerative

1395-KP50 Node Adapter Kit (Loose)

Letter

HP

1395-KP51 Multi Comm Adapter Kit (Loose)

B63

2 HP

B64

3 HP

B65

5 HP

* Multiple options are separated by dashes

B66

7.5 HP

* Limited to one board in Port A or Port B

B67

10 HP

B68

15 HP

B69

20 HP

B70

25 HP

B71

30 HP

B72

40 HP

B73

50 HP

B74

60 HP

B75

75 HP

B76

100 HP

B77

125 HP

B78

150 HP

B79

200 HP

❋

Prices – Consult Sales Office or price list

Bulletin 1395

Microprocessor Based Digital DC Drive

256

Allen-Bradley

230 Volt AC Input (125 – 300 HP)

460 Volt AC Input (250 – 600 HP)

1395 – A77

– E1

– P30 - P50 - X2

First Position
Bulletin No.

Second Position
Horsepower

Third Position
Armature Shunt

Fourth Position
Options*

No

Letter

HP

Type

Letter

Type

Letter

Type

1395

A77N

125 HP

230V Non-Regen

PZ

Less Adapter Boards

A78N

150 HP

230V Non-Regen

EN

No Shunt

P30

Discrete Adapter115V AC (Port A)

A79N

200 HP

230V Non-Regen

P31

Discrete Adapter 24V DC (Port A)

A80N

250 HP

230V Non-Regen

E1

1000A for

P32

Digital Reference Adapter 24V DC (Port A)

A81N

300 HP

230V Non-Regen

125 HP

P50

Node Adapter (Port B)

P51

Multi-Communication Adapter (Port B)

A77

125 HP

230V Regenerative

E2

1500A for

X2

Lug Kit

A78

150 HP

230V Regenerative

150 – 200 HP

A79

200 HP

230V Regenerative

FIELD INSTALLATION KITS

A80

250 HP

230V Regenerative

E3

2000A for

1395-KP30 115V AC Discrete Adapter Kit (Loose)

A81

300 HP

230V Regenerative

250 – 300 HP

1395-KP31 24V DC Discrete Adapter Kit (Loose)

1395-KP32 Digital Reference Adapter Kit (Loose)

1395-KP50 Node Adapter Kit (Loose)

1395-KP51 Multi-Comm Adapter Kit (Loose)

* Multiple options are separated by dashes

* Limited to one board in Port A and on adapter in Port B

1395 – B82N

– E2

– P30 - P50 - X2

First Position
Bulletin No.

Second Position
Horsepower

Third Position
Armature Shunt

Fourth Position
Options*

No

Letter

HP

Type

Letter

Type

Letter

Type

1395

B80N

250 HP

460V Non-Regen

PZ

Less Adapter Boards

B81N

300 HP

460V Non-Regen

EN

No Shunt

P30

Discrete Adapter115V AC (Port A)

B82N

400 HP

460V Non-Regen

P31

Discrete Adapter 24V DC (Port A)

B83N

500 HP

460V Non-Regen

E1

1000A for

P32

Digital Reference Adapter 24V DC (Port A)

B84N

600 HP

460V Non-Regen

250 HP

P50

Node Adapter (Port B)

P51

Multi-Communication Adapter (Port B)

B80

250 HP

460V Regenerative

E2

1500A for

X2

Lug Kit

B81

300 HP

460V Regenerative

300 – 400 HP

B82

400 HP

460V Regenerative

FIELD INSTALLATION KITS

B83

500 HP

460V Regenerative

E3

2000A for

1395-KP30 115V AC Discrete Adapter Kit (Loose)

B84

600 HP

460V Regenerative

500 – 600 HP

1395-KP31 24V DC Discrete Adapter Kit (Loose)

1395-KP32 Digital Reference Adapter Kit (Loose)

1395-KP50 Node Adapter Kit (Loose)

1395-KP51 Multi-Comm Adapter Kit (Loose)

* Multiple options are separated by dashes

* Limited to one board in Port A and on adapter in Port B

❋

Prices – Consult Sales Office or price list

Bulletin 1395

Microprocessor Based Digital DC Drive

Allen-Bradley

257

Non-Regenerative 230 Volt Input

➊

Non-Regenerative 460 Volt Input

➊

230 & 460 Volt Input Factory Installed Options*

*

Multiple Options are separated by Dash

*

Limited to one board in Port A and one board in Port B

➊

Reversing Applications require a regenerative 1395.

Standard Contactor

Dynamic Braking Pole on Contactor

HP

Basic Catalog Number

❋

HP

Basic Catalog Number

❋

1

1395-A61N-C1-

1

1395-A61N-D1-

1.5

1395-A62N-C1-

1.5

1395-A62N-D1-

2

1395-A63N-C1-

2

1395-A63N-D1-

3

1395-A64N-C1-

3

1395-A64N-D1-

5

1395-A65N-C1-

5

1395-A65N-D1-

7.5

1395-A66N-C1-

7.5

1395-A66N-D1-

10

1395-A67N-C1-

10

1395-A67N-D1-

15

1395-A68N-C1-

15

1395-A68N-D1-

20

1395-A69N-C2-

20

1395-A69N-D2-

25

1395-A70N-C2-

25

1396-A70N-D2-

30

1395-A71N-C2-

30

1396-A71N-D2-

Standard Contactor

Dynamic Braking Pole on Contactor

HP

Basic Catalog Number

❋

HP

Basic Catalog Number

❋

2

1395-B63N-C1-

2

1395-B63N-D1-

3

1395-B64N-C1-

3

1395-B64N-D1-

5

1395-B65N-C1-

5

1395-B65N-D1-

7.5

1395-B66N-C1-

7.5

1395-B66N-D1

10

1395-B67N-C1-

10

1395-B67N-D1-

15

1395-B68N-C1-

15

1395-B68N-D1-

20

1395-B69N-C1-

20

1395-B69N-D1-

25

1395-B70N-C1-

25

1395-B70N-D1-

30

1395-B71N-C1-

30

1395-B71N-D1-

40

1395-B72N-C2-

40

1395-B72N-D2-

50

1395-B73N-C2-

50

1395-B73N-D2-

60

1395-B74N-C2-

60

1395-B74N-D2-

Letter

Description

❋

PZ

Less Adapter Boards

P10

Discrete Adapter Board 115V AC (Port A)

P11

Discrete Adapter 24V DC (Port A)

P12

Digital Reference Adapter Board 24V DC (Port A)

P50

Node Adapter Board (Port B)

P51

Multi-Communication Adapter (Port B)

X1

Auxiliary Contact

FIELD INSTALLATION KITS

1395-KP10 115V AC Discrete Adapter Kit (Loose)
1395-KP11 24V DC Discrete Adapter Kit (Loose)
1395-KP12 Digital Reference Adapter Kit (Loose)
1395-KP50 Node Adapter Kit (Loose)
1395-KP51 Multi-Comm Adapter Kit (Loose)

❋

Prices – Consult Sales Office or price list

Bulletin 1395

Microprocessor Based Digital DC Drive

258

Allen-Bradley

Regenerative 230 Volt Input

Regenerative 460 Volt Input

230 & 460 Volt Input Factory Installed Options*

*

Multiple Options are separated by Dashes

*

Limited to one board in Port A and one board in Port B

Standard Contactor

Dynamic Braking Pole on Contactor

HP

Basic Catalog Number

❋

HP

Basic Catalog Number

❋

1

1395-A61-C1-

1

1395-A61-D1-

1.5

1395-A62-C1-

1.5

1395-A62-D1-

2

1395-A63-C1-

2

1395-A63-D1-

3

1395-A64-C1-

3

1395-A64-D1-

5

1395-A65-C1-

5

1395-A65-D1-

7.5

1395-A66-C1-

7.5

1395-A66-D1-

10

1395-A67-C1-

10

1395-A67-D1-

15

1395-A68-C1-

15

1395-A68-D1-

20

1395-A69-C2-

20

1395-A69-D2-

25

1395-A70-C2-

25

1395-A70-D2-

30

1395-A71-C2-

30

1395-A71-D2-

40

1395-A72-C3-

40

1395-A72-D3-

50

1395-A73-C3-

50

1395-A73-D3-

60

1395-A74-C4-

60

1395-A74-D4-

75

1395-A75-C4-

75

1395-A75-D4-

100

1395-A76-C5-

100

1395-A76-D5-

Standard Contactor

Dynamic Braking Pole on Contactor

HP

Basic Catalog Number

❋

HP

Basic Catalog Number

❋

2

1395-B63-C1-

2

1395-B63-D1-

3

1395-B64-C1-

3

1395-B64-D1-

5

1395-B65-C1-

5

1395-B65-D1-

7.5

1395-B66-C1-

7.5

1395-B66-D1-

10

1395-B67-C1-

10

1395-B67-D1-

15

1395-B68-C1-

15

1395-B68-D1-

20

1395-B69-C1-

20

1395-B69-D1-

25

1395-B70-C1-

25

1395-B70-D1-

30

1395-B71-C1-

30

1395-B71-D1-

40

1395-B72-C2-

40

1395-B72-D2-

50

1395-B73-C2-

50

1395-B73-D2-

60

1395-B74-C2-

60

1395-B74-D2-

75

1395-B75-C3-

75

1395-B75-D3-

100

1395-B76-C3-

100

1395-B76-D3-

125

1395-B77-C4-

125

1395-B77-D4-

150

1395-B78-C4-

150

1395-B78-D4-

200

1395-B79-C5-

200

1395-B79-D5-

Letter

Description

❋

PZ

Less Adapter Boards

P10

Discrete Adapter Board 115V AC (Port A)

P11

Discrete Adapter 24V DC (Port A)

P12

Digital Reference Adapter Board 24V DC (Port A)

P50

Node Adapter Board (Port B)

P51

Multi-Communication Adapter (Port B)

X1

Auxiliary Contact

FIELD INSTALLATION KITS

1395-KP10 115V AC Discrete Adapter Kit (Loose)
1395-KP11 24V DC Discrete Adapter Kit (Loose)
1395-KP12 Digital Reference Adapter Kit (Loose)
1395-KP50 Node Adapter Kit (Loose)

❋

Prices – Consult Sales Office or price list

Bulletin 1395

Microprocessor Based Digital DC Drive

Allen-Bradley

259

230 Volt Input

460 Volt Input

-

230 & 460 Volt Input Factory Installed Options*

230 & 460 Volt Input Factory Installed Options

*

Multiple Options are separated by Dashes

*

Limited to one board in Port A and one board in Port B

Additional Ratings

➊

Reversing Applications require a regenerative 1395.

Non-Regenerative

➊

Regenerative

HP

Basic Catalog Number

❋

HP

Basic Catalog Number

❋

125

1395-A77N-EN-

125

1395-A77-EN-

125

1395-A77N-E1-

125

1395-A77-E1-

150

1395-A78N-EN-

150

1395-A78-EN-

150

1395-A78N-E2-

150

1395-A78-E2-

200

1395-A79N-EN-

200

1395-A79-EN-

200

1395-A79N-E2-

200

1395-A79-E2-

250

1395-A80N-EN-

250

1395-A80-EN-

250

1395-A80N-E3-

250

1395-A80-E3-

300

1395-A81N-EN-

300

1395-A81-EN-

300

1395-A81N-E3-

300

1395-A81-E3-

Non-Regenerative

➊

Regenerative

HP

Basic Catalog Number

❋

HP

Basic Catalog Number

❋

250

1395-B80N-EN-

250

1395-B80-EN-

250

1395-B80N-E1-

250

1395-B80-E1-

300

1395-B81N-EN-

300

1395-B81-EN-

300

1395-B81N-E2-

300

1395-B81-E2-

400

1395-B82N-EN-

400

1395-B82-EN-

400

1395-B82N-E2-

400

1395-B82-E2-

500

1395-B83N-EN-

500

1395-B83-EN-

500

1395-B83N-E3-

500

1395-B83-E3-

600

1395-B84N-EN-

600

1395-B84-EN-

600

1395-B84N-E3-

600

1395-B84-E3-

Letter

Description

❋

PZ

Less Adapter Boards

P30

Discrete Adapter Board 115V AC (Port A)

P31

Discrete Adapter 24V DC (Port A)

P32

Digital Reference Adapter Board 24V DC (Port A)

P50

Node Adapter Board (Port B)

P51

Multi-Communication Adapter Board (Port B)

X2

Lug Kit

FIELD INSTALLATION KITS

1395-KP30 115V AC Discrete Adapter Kit (Loose)
1395-KP31 24V DC Discrete Adapter Kit (Loose)
1395-KP32 Digital Reference Adapter Kit (Loose)
1395-KP50 Node Adapter Kit (Loose)
1395-KP51 Multi-Comm Adapter Kit (Loose)

230V AC Input

400 to 600 HP

Consult Factory

460V AC Input

700 to 1250 HP

Consult Factory

660V AC Input

1000 to 2000 HP

Consult Factory

❋

Prices – Consult Sales Office or price list

Bulletin 1395

Microprocessor Based Digital DC Drive

260

Allen-Bradley

Programming Terminals

The programming terminal is available in a hand held style for remote
use, or a door mounted style to install in the cabinet door.

Intelligent Terminal System

The Intelligent Terminal System (ITS) is a personal computer based soft-
ware package for use in troubleshooting and configuring a 1395 or 1336
drive.

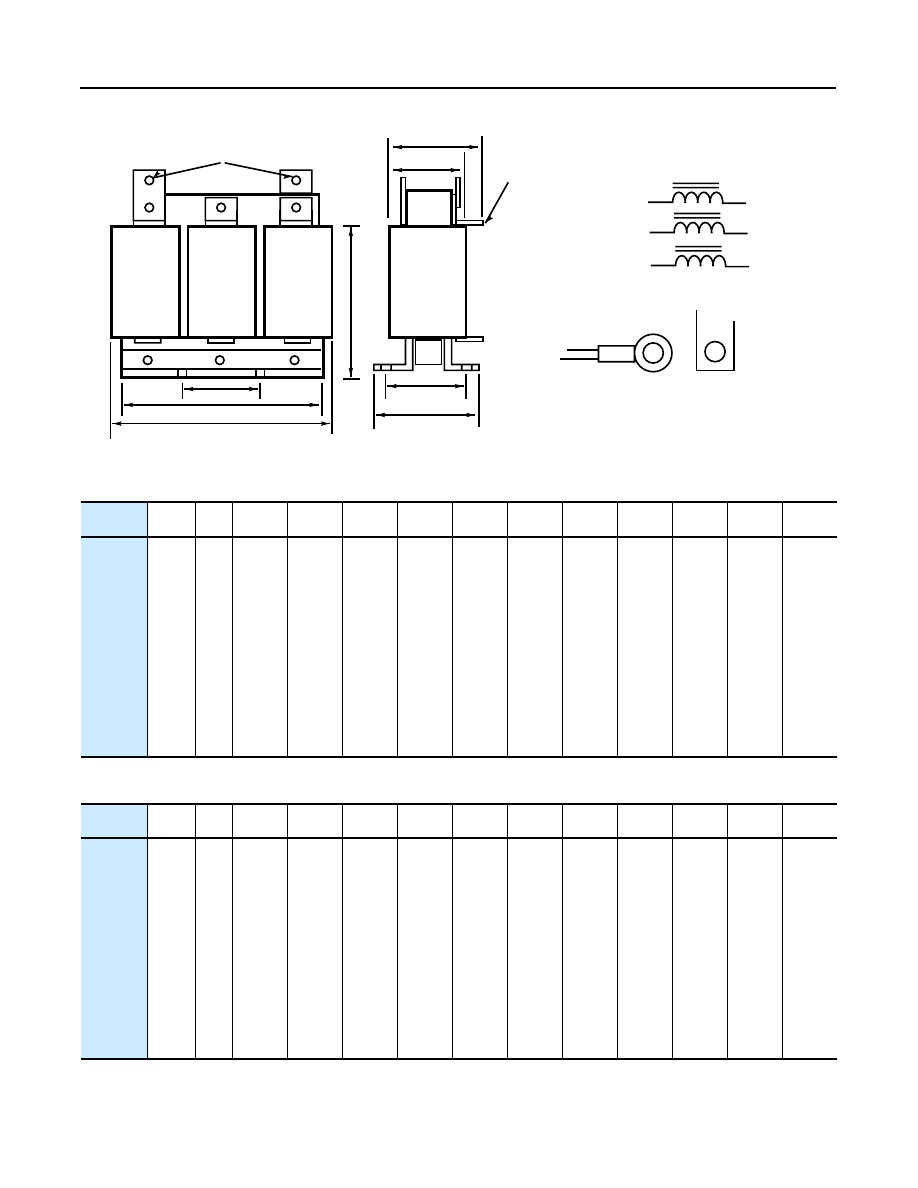

Line Reactor

➊

➊

Open Type Construction

Type

Basic Catalog Number

❋

Remote, hand held style — Standard

1300-DHT

Door Mounted style — Standard with 10 ft Cable and bezel

1300-DMT10

Door Mounted style — Standard with 20 ft Cable and bezel

1300-DMT20

Remote, hand held style — Enhanced

1300-EHT

Door Mounted style — Enhanced with10 ft Cable and bezel

1300-EMT10

Door Mounted style — Enhanced with 20 ft Cable and bezel

1300-EMT20

HP

Drive Input Voltage

Catalog Number

❋

1 – 5

230V AC

1321-R019A

7.5 – 15

230V AC

1321-R055A

20

230V AC

1321-R080A

25 – 30

230V AC

1321-R110A

40 – 50

230V AC

1321-R180A

60 – 75

230V AC

1321-R260A

100

230V AC

1321-R345A

2 – 10

460V AC

1321-R019B

15 – 30

460V AC

1321-R055B

40

460V AC

1321-R080B

50 – 60

460V AC

1321-R110B

75 – 100

460V AC

1321-R180B

125 – 150

460V AC

1321-R260B

200

460V AC

1321-R345B

❋

Prices – Consult Sales Office or price list

Bulletin 1395

Microprocessor Based Digital DC Drive

Allen-Bradley

261

Dynamic Braking Resistor Kits

Contactor Crimp Lug Kits

240V DC Motor Armature Voltage

500V DC Motor Armature Voltage

HP

Basic Catalog Number

❋

HP

Basic Catalog Number

❋

1

1370-DBL61

2

1370-DBH63

1.5

1370-DBL62

3

1370-DBH64

2

1370-DBL63

5

1370-DBH65

3

1370-DBL64

7.5

1370-DBH66

5

1370-DBL65

10

1370-DBH67

7.5

1370-DBL66

15

1370-DBH68

10

1370-DBL67

20

1370-DBH69

15

1370-DBL68

25

1370-DBH70

20

1370-DBL69

30

1370-DBH71

25

1370-DBL70

40

1370-DBH72

30

1370-DBL71

50

1370-DBH73

40

1370-DBL72

60

1370-DBH74

50

1370-DBL73

75

1370-DBH75

60

1370-DBL74

100

1370-DBH76

75

1370-DBL75

125

1370-DBH77

100

1370-DBL76

150

1370-DBH78

200

1370-DBH79

Rating

Catalog Number

❋

40 Amp

1370-LG40

52 Amp

1370-LG52

56 Amp

1370-LG56

68 Amp

1370-LG68

92 Amp

1370-LG92

104 Amp

1370-LG104

110 Amp

1370-LG110

120 Amp

1370-LG120

140 Amp

1370-LG140

160 Amp

1370-LG160

180 Amp

1370-LG180

204 Amp

1370-LG204

228 Amp

1370-LG228

248 Amp

1370-LG248

268 Amp

1370-LG268

280 Amp

1370-LG280

❋

Prices – Consult Sales Office or price list

Bulletin 1395

Microprocessor Based Digital DC Drive

262

Allen-Bradley

Isolation Transformers — NEMA 1 Enclosure

Three-Phase Primary Voltage

Three-Phase Secondary Voltage

HP

KVA

Voltage

230V AC Catalog
Number

460V AC Catalog
Number

❋

1 – 3

5

230

1321-3T005-AA

—

460

1321-3T005-BA

—

5

7.5

230

1321-3T007-AA

1321-3T007-AB

460

1321-3T007-BA

1321-3T007-BB

7.5

11

230

1321-3T011-AA

1321-3T011-AB

460

1321-3T011-BA

1321-3T011-BB

10

14

230

1321-3T014-AA

1321-3T014-AB

460

1321-3T014-BA

1321-3T014-BB

15

20

230

1321-3T020-AA

1321-3T020-AB

460

1321-3T020-BA

1321-3T020-BB

20

27

230

1321-3T027-AA

1321-3T027-AB

460

1321-3T027-BA

1321-3T027-BB

25

34

230

1321-3T034-AA

1321-3T034-AB

460

1321-3T034-BA

1321-3T034-BB

30

40

230

1321-3T040-AA

1321-3T040-AB

460

1321-3T040-BA

1321-3T040-BB

40

51

230

1321-3T051-AA

1321-3T051-AB

460

1321-3T051-BA

1321-3T051-BB

50

63

230

1321-3T063-AA

1321-3T063-AB

460

1321-3T063-BA

1321-3T063-BB

60

75

230

1321-3T075-AA

1321-3T075-AB

460

1321-3T075-AB

1321-3T075-BB

75

93

230

1321-3T093-AA

1321-3T093-AB

460

1321-3T093-BA

1321-3T093-BB

100

118

230

1321-3T118-AA

1321-3T118-AB

460

1321-3T118-BA

1321-3T118-BB

125

145

230

1321-3T145-AA

1321-3T145-AB

460

1321-3T145-BA

1321-3T145-BB

150

175

230

1321-3T175-AA

1321-3T175-AB

460

1321-3T175-BA

1321-3T175-BB

200

220

230

1321-3T220-AA

1321-3T220-AB

460

1321-3T220-BA

1321-3T220-BB

250

275

230

1321-3T275-AA

1321-3T275-AB

460

1321-3T275-BA

1321-3T275-BB

300

330

230

1321-3T330-AA

1321-3T330-AB

460

1321-3T330-BA

1321-3T330-BB

400

440

230

—

1321-3T475-AB

460

—

1321-3T475-BB

500

550

230

—

1321-3T550-AB

460

—

1321-3T550-BB

600

660

230

—

1321-3T660-AB

460

—

1321-3T660-BB

❋

Prices – Consult Sales Office or price list

Bulletin 1395

Microprocessor Based Digital DC Drive

Allen-Bradley

263

Specifications

➊

Control with encoder or DC tachometer.

Electrical:

Input Voltages:

230V AC

±

10%, 3 phase

380 – 460V AC

±

10%, 3 phase

Input Power:

1.5 kVA to 660 kVA

Input Frequency:

50/60Hz

±

3Hz

Output Voltage:

240V DC (230V AC Input)
400V DC (380 – 415V AC Input)
500V DC (460V AC Input)

Output Current:

3.6 to 980 Amps (see pages 270, 271 and 272)

Output Horsepower:
(Continuous)

1 to 300 HP, 240V DC
1.5 to 500 HP, 400V DC
2 to 600 HP, 500V DC

Field Voltage:

120 – 150V DC, 230V AC
200 – 250V DC, 380V AC
220 – 270V DC, 415V AC
240 – 300V DC, 460V AC
Field Voltage source is selectable between
internal or external supply.

Field Current:

1 – 30 HP, 230V; 2 – 60 HP, 460V Drive:
150mA – 10.0 Amperes (continuous)
40 – 100 HP, 230V; 75 – 200 HP, 460V Drive:
650mA – 20Amperes (continuous)
125 – 300 HP, 230V; 250 – 600 HP, 460V
Drive: 650mA – 40 Amperes (continuous)

Field Control:

6:1 speed range➊

Field Economy:

Programmable enable, time delay, power on
standby.

Armature Firing:

Phase sequence insensitive, Regen/non-regen

Output Waveform:

6 pulse, full wave, NEMA Code C

Controller Current
Output:

150% for one minute
200% for ten seconds
260% for five seconds

Armature Control:

Tapered current limit.
Instantaneous overcurrent
Programmable motor overload.

Speed Regulation:

Encoder:

0.01% of set speed (over a 10:1 speed range),
0.001% of top speed (over a 100:1 speed
range).

DC Tachometer:

0.5% of top speed with a 5PY tachometer.
0.1% of top speed with a BC42 tachometer.

Armature Voltage:

2% of top speed.

Bulletin 1395

Microprocessor Based Digital DC Drive

264

Allen-Bradley

Specifications, Continued

Electrical:

Feedback Devices:

Encoder:

Incremental, dual channel; 12 volts, 500mA,
isolated with differential transmitter, Allen-Bra-
dley 845H or equal.

DC Tachometer

5PY, BC42 or equal (50V DC or 100V DC).

Environmental:

Enclosure:

NEMA: Open Construction, IEC: IP00

Ambient Operating
Temperature:

0

°

to 55

°

C (32

°

– 131

°

F)

Relative Humidity: 5% to 95%, non-condensing
Altitude:

3,300 feet (1000 meters)

Heat Dissipation:
230V Rating —

1 – 5 HP, 100 watt heat dissipation
7.5 – 15 HP, 225 watt heat dissipation
20 HP, 295 watt heat dissipation
25 – 30 HP, 485 watt heat dissipation
40 – 50 HP, 675 watt heat dissipation
60 – 75 HP, 905 watt heat dissipation
100 HP, 1265 watt heat dissipation
125 – 200 HP, 2722 watt heat dissipation
250 – 300 HP, 3456 watt heat dissipation

460V Rating —

2 – 10 HP, 100 watt heat dissipation
15 – 30 HP, 225 watt heat dissipation
40 HP, 295 watt heat dissipation
50 – 60 HP, 485 watt heat dissipation
75 – 100 HP, 675 watt heat dissipation
125 – 150 HP, 905 watt heat dissipation
200 HP, 1265 watt heat dissipation
250 – 400 HP, 2722 watt heat dissipation
500 – 600 HP, 3456 watt heat dissipation

Standard Features:

Accel/Decel
Adjustment:

0.1 to 6653 seconds

Preset Speeds:

Five (5) programmable

Jog Speeds:

Two (2) programmable

“S” Ramp:

Programmable

AutoTuning:

Tunable Current loop, Velocity Loop and Field
Loop.

Process Trim Loop P.I. Loop, Filter & Limit Block, Used to trim

Velocity or Current Loop from a Process Trim
signal.

Trending

Four Channels, individually programmable

Certification

UL listed/CSA Approved

Bulletin 1395

Microprocessor Based Digital DC Drive

Allen-Bradley

265

Specifications, Continued

Drive Ready/Faulted
Output:

Relay. N.O. held closed, 0.6 amps @
115V AC.

Comm. Port Input:

RS422 for programming terminal.

Enable/Hard-Wired Stop
Input:

24V DC/115V AC, hardwired to DC
contactor.

System Reset Input:

24V DC/115V AC, Isolated.

Motor Thermostat Input:

24V DC/115V AC, Isolated.

Options:

Interface Adapter Boards: Discrete Adapter Board 115V AC

Discrete Adapter Board 24V DC –

4-Digital Inputs; 24V DC – 10mA,
115V AC – 10mA
2-Discrete Outputs; Dry relay contacts
rated at 0.6 Amps at 115V AC or 2.0
amps at 30V DC.
4-Analog Inputs; 0 to

±

10V DC, Differ-

ential Input Impedance – 20K ohms.
4-Analog Outputs; –10 to +10V DC,
1mA maximum output impedance – 200
ohms.
1-Power Supply; +10V DC, 4mA maxi-
mum –10V DC, 4mA maximum.

Digital Reference Adapter Board –

1-Digital Reference Input; Current
source and sink input for improved
common mode noise immunity. Nomi-
nal 5V DC or 12V DC interface (inter-
nal hardware configurable),

±

10mA

nominal source/sink requirements.
10-Digital Inputs; 24V DC nominal;
18V DC minimum, 28V DC maximum;
10mA 5-Discrete Outputs; 24V DC
Nominal; Current sourcing type driver;
Diode clamped for inductive load; 18V
DC minimum, 28V DC maximum;
1.5V DC saturation, 100mA maximum
load.
2-Analog Inputs; 0 to (

±

) 10V DC,

Differential input impedance –
Differential> 1M ohm; 20K ohms
(single ended to analog common).

Bulletin 1395

Microprocessor Based Digital DC Drive

266

Allen-Bradley

Specifications, Continued

Options, continued:

2-Analog Outputs; –10 to +10V DC,
2.5 mA maximum output impedance –
200 ohms.
1-Power Supply; +10V DC, 4mA
maximum –10V DC, 4mA maximum.

Node Adapter Board – For use on

Remote I/O with PLC5



and PLC3



families.
Multi Communication Adapter Board –

For use on Data Highway Plus (DH+



),

and on Remote I/O with PLC5



and

PLC3



families.

Accessories:

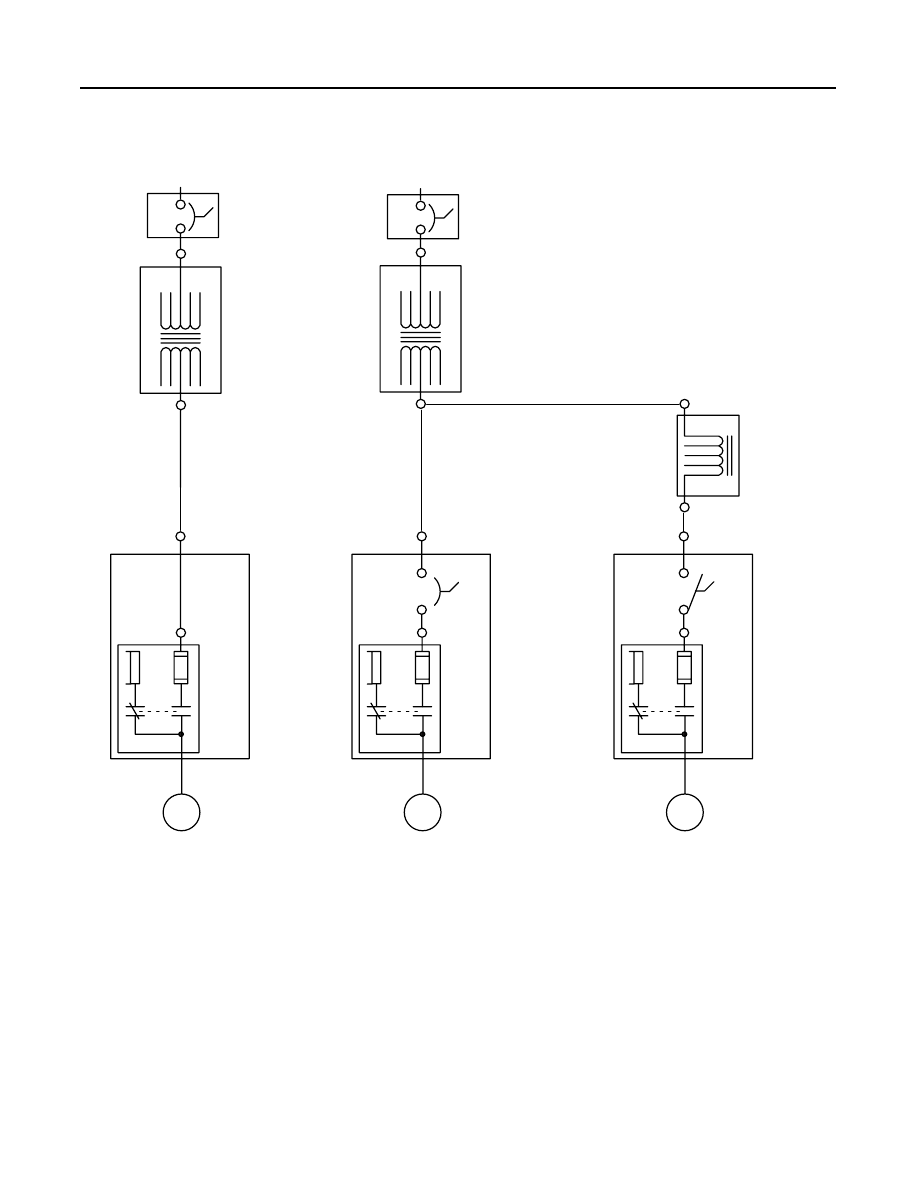

Line Reactor:

When connecting a 1395 directly to
the main distribution system, a line
reactor may be used in place of an iso-
lation transformer to guard against
line disturbance. The line reactor for
drives 1 to 200 HP are supplied in an
open construction, having the same
environmental specification as the
1395. The following tables list line
reactor heat dissipation:

230V:
1 – 5 HP

19 watt dissipation

7.5 – 15 HP

55 watt dissipation

20 HP

79 watt dissipation

25 – 30 HP

110 watt dissipation

40 – 50 HP

176 watt dissipation

60 – 75 HP

254 watt dissipation

100 HP

337 watt dissipation

460V:
2 – 10 HP

37 watt dissipation

15 – 30 HP

110 watt dissipation

40 HP

158 watt dissipation

50 – 60 HP

215 watt dissipation

75 – 100 HP

352 watt dissipation

125 – 150 HP

510 watt dissipation

200 HP

689 watt dissipation

Bulletin 1395

Microprocessor Based Digital DC Drive

Allen-Bradley

267

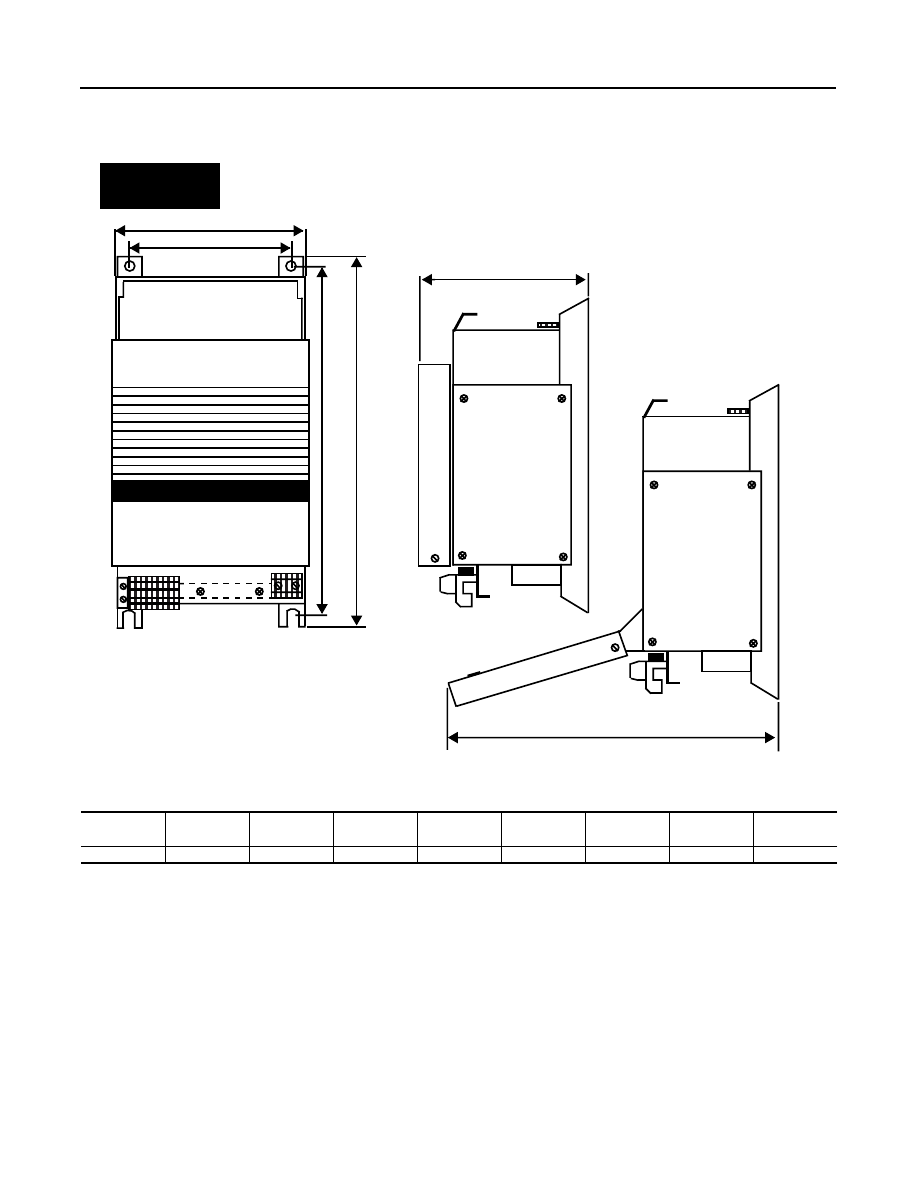

Dimensions

230V

460V

Weight

Lbs (kg)

A

Inches (mm)

B

Inches (mm)

C

Inches (mm)

D

Inches (mm)

E

Inches (mm)

F

Inches (mm)

1 – 30 HP

2 – 60 HP

45 (20.4)

11.9 (302.2)

11.0 (279.4)

22.5 (571.5)

23.5 (596)

10.75 (273)

24.0 (609.6)

B

A

C

Front

Side

Side (Door Open)

D

E

F

1 – 30 HP 230V AC
2 – 60 HP 460V AC

Note: Dimension drawings are for estimation only, do not
use for construction. Contact factory for certified prints.

Bulletin 1395

Microprocessor Based Digital DC Drive

268

Allen-Bradley

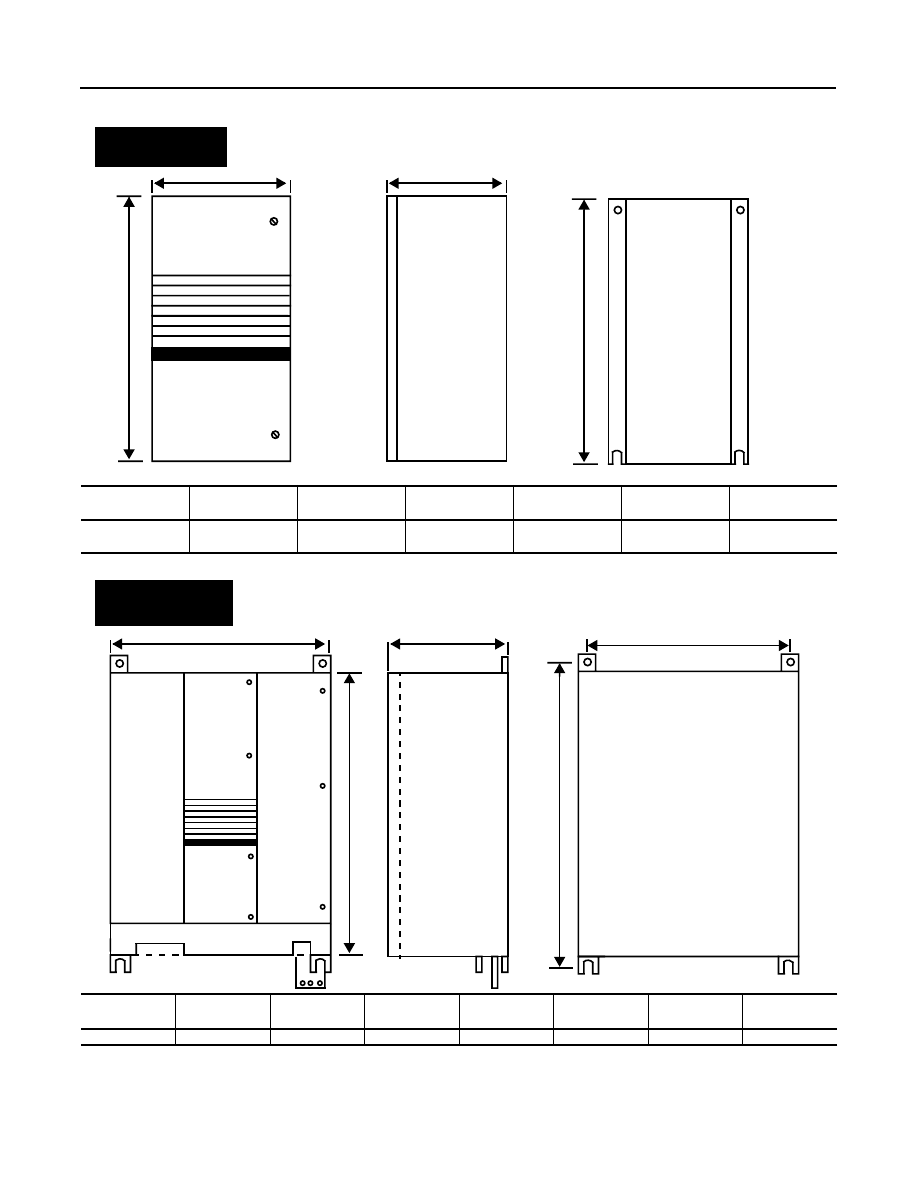

Dimensions, Continued

230V

460V

Weight

Lbs (Kg)

A

Inches (mm)

B

Inches (mm)

C

Inches (mm)

D

Inches (mm)

40 – 50 HP

75 – 100 HP

110 (49.9)

29 (736)

12.25 (311)

12.1 (307)

27.5 (698)

60 – 100 HP

125 – 200 HP

165 (74.8)

34 (863)

15.50 (393)

12.7 (322)

33 (838)

40 – 100 HP 230V AC
75 – 200 HP 460V AC

B

A

Side

Front

C

Rear

D

230V

460V

Weight

Lbs (Kg)

A

Inches (mm)

B

Inches (mm)

C

Inches (mm)

D

Inches (mm)

E

Inches (mm)

125 – 300 HP

250 – 600 HP

515 (234)

51.19 (1300)

32 (812)

18.5 (469)

44 (1117)

28 (711)

125 – 300 HP 230V AC
250 – 600 HP 460V AC

A

C

Front

Side

Rear

E

D

B

Bulletin 1395

Microprocessor Based Digital DC Drive

Allen-Bradley

269

Line Reactor Dimensions

230 Volt

380/415/460 Volt

H

B
D

F

G

Lift Rings (45 lbs (20 kg) & above)

E

A

C

Terminal
See Detail

L3

Type A

L3

Type B

L2

L5

L3

L6

L1

L4

Terminal Detail

All dimensions are in inches
and (millimeters)

Catalog No.

Rated

Current

kVA

Terminal

A

B

C

D

E

Max.

F

Max.

G

Max.

H

Max.

Weight

lbs (Kg)

Terminal

Hole

1321-R019A

15.5

0.185

A

2.00

(50.8)

2.00

(50.8)

3.00

(76.2)

4.8

(121.9)

2.375

(60.3)

6.0

(152.4)

5.5

(139.7)

4.0

(101.6)

9

(4.08)

0.266

(6.76)

1321-R055A

45.7

0.55

A

2.88

(73.2)

2.40

(61.0)

3.88

(98.6)

6.00

(152.4)

3.30

(83.8)

7.30

(185.4)

5.75

(146.1)

5.00

(127.0)

18

(8.2)

0.266

(6.76)

1321-R080A

65.3

0.79

A

3.00

(76.2)

3.00

(76.2)

4.50

(114.3)

7.50

(190.5)

3.27

(83.06)

8.88

(225.5)

7.25

(184.1)

4.50

(114.3)

22

(10.0)

0.266

(6.76)

1321-R110A

89.8

1.10

A

3.13

(79.5)

3.00

(76.2)

4.13

(104.9)

7.50

(190.5)

3.38

(85.9)

9.00

(228.6)

7.00

(177.8)

4.50

(114.3)

31

(14.1)

0.266

(6.76)

1321-R180A

147

1.76

A

4.13

(104.9)

3.00

(76.2)

5.13

(130.3)

7.50

(190.5)

5.00

(127.0)

9.25

(235.0)

7.20

(182.9)

6.50

(165.1)

45

(20.4)

0.328

(8.33)

1321-R260A

212.3

2.54

B

4.63

(117.6)

3.60

(91.4)

6.13

(155.7)

9.00

(228.6)

5.00

(127.0)

11.00

(279.4)

8.75

(222.3)

6.63

(168.4)

80

(36.3)

0.328

(8.33)

1321-R345A

286.7

3.37

B

5.63

(143.0)

3.60

(91.4)

7.13

(181.1)

9.00

(228.6)

6.00

(152.4)

12.0

(304.8)

9.0

(228.6)

7.63

(143.8)

100

(45.36)

0.385

(9.78)

Catalog No.

Rated

Current

kVA

Terminal

A

B

C

D

E

Max.

F

Max.

G

Max.

H

Max.

Weight

lbs (Kg)

Terminal

Hole

1321-R019B

15.5

0.371

A

2.50

(63.5)

2.00

(50.8)

3.50

(88.9)

4.80

(121.9)

3.5

(88.9)

6.0

(152.4)

5.50

(139.7)

4.875

(123.83)

12

(5.44)

0.266

(6.76)

1321-R055B

45.7

1.10

A

4.43

(112.5)

2.40

(61.0)

5.43

(137.9)

6.00

(152.4)

4.43

(112.5)

7.10

(180.3)

5.75

(146.1)

6.50

(165.1)

34

(15.4)

0.266

(6.76)

1321-R080B

65.3

1.58

A

4.63

(117.6)

3.00

(76.2)

6.13

(155.7)

7.50

(190.5)

4.63

(117.6)

9.00

(228.6)

7.25

(184.1)

7.00

(177.8)

46

(20.9)

0.266

(6.76)

1321-R110B

89.8

2.15

A

5.13

(130.3)

3.00

(76.2)

6.63

(168.4)

7.50

(190.5)

5.50

(139.7)

9.00

(228.6)

7.00

(177.8)

8.00

(203.2)

55

(24.9)

0.266

(6.76)

1321-R180B

147

3.52

A

5.25

(133.4)

3.00

(76.2)

6.75

(171.5)

7.50

(190.5)

5.50

(1139.7)

11.0

(279.4)

8.75

(222.3)

7.25

(164.1)

76

(34.5)

0.328

(8.33)

1321-R260B

212.3

5.10

A

6.25

(158.8)

3.60

(91.4)

7.75

(196.9)

9.00

(228.6)

6.50

(165.1)

11.00

(279.4)

8.75

(222.3)

8.25

(209.6)

100

(45.4)

0.328

(8.33)

1321-R345B

286.7

6.89

B

11.0

(279.4)

3.60

(91.4)

12.25

(311.1)

12.0

(304.8)

7.50

(190.5)

12.0

(304.8)

13.0

(330.2)

12.0

(304.8)

120

(54.4)

0.385

(9.78)

Bulletin 1395

Microprocessor Based Digital DC Drive

270

Allen-Bradley

Table 1:
Rated Armature Bridge Current for the 1–600 HP Range of the 1395

Rated Arm Brdg I (Parm 615)

HP 230V AC

HP 460V AC

Rated Armature Bridge Current
(D.C. Amps)

1

2

5

1.5

3

5

2

5

10

3

7.5

20

5

10

20

7.5

15

40

10

20

40

–

25

56

15

30

56

20

40

110

25

50

110

30

60

110

40

75

160

50

100

180

60

125

260

75

150

260

100

200

345

125

250

670

150

300

670

200

400

670

250

500

980

300

600

980

Bulletin 1395

Microprocessor Based Digital DC Drive

Allen-Bradley

271

Table 2:
230V AC Input — Armature Current Ratings

Power Output

Armature

Field

AC Input

DC Output

AC Input

DC Output

Volts

Max A

Volts

Max A

Volts

Max A

Volts

Max A

.75KW/1 HP

230

3.85

240

4.7

230

10

150

10

1.2KW/1.5 HP

230

5.4

240

6.6

230

10

150

10

1.5KW/2 HP

230

7.0

240

8.5

230

10

150

10

2.2KW/3 HP

230

10.0

240

12.2

230

10

150

10

3.7KW/5 HP

230

16.4

240

20

230

10

150

10

5.6KW/7.5 HP

230

23.7

240

29

230

10

150

10

7.5KW/10 HP

230

31.0

240

38

230

10

150

10

11.2KW/15 HP

230

45.0

240

55

230

10

150

10

15KW/20 HP

230

65.3

240

80

230

10

150

10

18.7KW/25 HP

230

80.0

240

98

230

10

150

10

22.4KW/30 HP

230

89.8

240

110

230

10

150

10

29.9KW/40 HP

230

135.3

240

140

230

20

150

20

37.3KW/50 HP

230

168.0

240

180

230

20

150

20

44.8KW/60 HP

230

193.0

240

215

230

20

150

20

56KW/75 HP

230

233.3

240

260

230

20

150

20

74.6KW/100 HP

230

302.7

240

345

230

20

150

20

93.3KW/125 HP

230

416

240

472

230

40

150

20

112KW/150 HP

230

497

240

564

230

40

150

40

149.2KW/200 HP

230

591

240

670

230

40

150

40

186.5KW/250 HP

230

810

240

918

230

40

150

40

223.8KW/300 HP

230

864

240

980

230

40

150

40

Bulletin 1395

Microprocessor Based Digital DC Drive

272

Allen-Bradley

Table 3:
460V AC Input — Armature Current Ratings

Power Output

Armature

Field

AC Input

DC Output

AC Input

DC Output

Volts

Max A

Volts

Max A

Volts

Max A

Volts

Max A

1.5KW/2 HP

380/415/460

3.35

400/400/500

4.1

380/415/460

10

250/270/300

10

2.24KW/3 HP

380/415/460

4.82

400/400/500

5.9

380/415/460

10

250/270/300

10

3.75KW5 HP

380/415/460

7.84

400/400/500

9.6

380/415/460

10

250/270/300

10

5.6KW/7.5 HP

380/415/460

11.35

400/400/500

13.9

380/415/460

10

250/270/300

10

7.5KW/10 HP

380/415/460

14.95

400/400/500

18.3

380/415/460

10

250/270/300

10

11.2KW/15 HP

380/415/460

22.9

400/400/500

28

380/415/460

10

250/270/300

10

15KW/20 HP

380/415/460

29.4

400/400/500

36

380/415/460

10

250/270/300

10

18.7KW25 HP

380/415/460

36.8

400/400/500

45

380/415/460

10

250/270/300

10

22.4KW/30 HP

380/415/460

41.7

400/400/500

51

380/415/460

10

250/270/300

10

29.9KW/40 HP

380/415/460

54.9

400/400/500

67.2

380/415/460

10

250/270/300

10

37.3KW/50 HP

380/415/460

71.9

400/400/500

88

380/415/460

10

250/270/300

10

44.8KW/60 HP

380/415/460

86.6

400/400/500

106

380/415/460

10

250/270/300

10

56KW/75 HP

380/415/460

135.5

400/400/500

140

380/415/460

20

250/270/300

20

74.6KW/100 HP

380/415/460

168.0

400/400/500

180

380/415/460

20

250/270/300

20

93.3KW/125 HP

380/415/460

193.0

400/400/500

215

380/415/460

20

250/270/300

20

112KW/150 HP

380/415/460

233.3

400/400/500

260

380/415/460

20

250/270/300

20

149.2KW/200 HP

380/415/460

302.7

400/400/500

345

380/415/460

20

250/270/300

20

186.5KW/250 HP

380/415/460

390

400/400/500

442

380/415/460

40

250/270/300

40

223.8KW/300 HP

380/415/460

466

400/400/500

529

380/415/460

40

250/270/300

40

298.4KW/400 HP

380/415/460

591

400/400/500

670

380/415/460

40

250/270/300

40

373KW/500 HP

380/415/460

805

400/400/500

913

380/415/460

40

250/270/300

40

448KW/600 HP

380/415/460

864

400/400/500

980

380/415/460

40

250/270/300

40

Bulletin 1395

Microprocessor Based Digital DC Drive

Allen-Bradley

273

QuickShip Program

This is a special selection of catalog items held in a minimal stocking pro-
gram designed to help those customers with a critical need.

The following drive modules are Regenerative style controllers that ship
with a Standard style contactor and no adapter boards. These items are
available to ship in three days.

Customer Installed Options

Programming Terminals

Line Reactor

Bulletin 1395 Digital DC Drive

Regenerative 230V AC Input

Bulletin 1395 Digital DC Drive

Regenerative 460V AC Input

HP

Catalog Number

❋

HP

Catalog Number

❋

1

1395-A61-C1-PZ

2

1395-B63-C1-PZ

2

1395-A62-C1-PZ

5

1395-B65-C1-PZ

5

1395-A65-C1-PZ

10

1395-B67-C1-PZ

10

1395-A67-C1-PZ

20

1395-B69-C1-PZ

15

1395-A68-C1-PZ

30

1395-B71-C1-PZ

20

1395-A69-C2-PZ

40

1395-B72-C2-PZ

30

1395-A71-C2-PZ

60

1395-B74-C2-PZ

40

1395-A72-C3-PZ

75

1395-B75-C3-PZ

30

1395-A73-C3-PZ

100

1395-B76-C3-PZ

HP

Catalog Number

❋

Discrete Adapter, 115V AC (loose kit)

1395-KP10

Discrete Adapter, 24V DC (loose kit)

1395-KP11

Digital Reference Adapter, 24V DC (loose kit)

1395-KP12

Node Adapter (loose kit)

1395-KP50

Multi Communication Adapter (loose kit)

1395-KP51

Description

Catalog Number

❋

Remote, hand held style, Standard

1300-DHT

Remote, hand held style, Enhanced

1300-EHT

Door mounted style, Standard with 10 ft cable and bezel

1300-DMT10

Door mounted style, Enhanced with 10 ft cable and bezel

1300-EMT10

HP

Drive Input
Voltage

Construction

Catalog Number

❋

1 – 5

230V AC

Open Core & Coil

1321-R019A

7.5 – 15

230V AC

Open Core & Coil

1321-R055A

20

230V AC

Open Core & Coil

1321-R080A

25 – 30

230V AC

Open Core & Coil

1321-R110A

40 – 50

230V AC

Open Core & Coil

1321-R180A

2 – 10

460V AC

Open Core & Coil

1321-R019A

15 – 30

460V AC

Open Core & Coil

1321-R055A

40

460V AC

Open Core & Coil

1321-R080A

50 – 60

460V AC

Open Core & Coil

1321-R110A

75 – 100

460V AC

Open Core & Coil

1321-R180A

❋

Prices – Consult Sales Office or price list

Bulletin 1395

Microprocessor Based Digital DC Drive

274

Allen-Bradley

The catalog number string that must be used when ordering a Pre-Engi-
neered Drive is specified below:

The Pre-Engineered drive covered here is available as a 36" or 48" wall
mounted enclosure with the following standard features:

•

230 VAC Input

•

240 VDC Output

•

Bulletin 1395 Power Module

•

DC Output Contactor

•

Control Power Transformer

➍

•

115 VAC Discrete Board

•

Enclosure or Sub-Panel Mounting

36" Wall Mounted Enclosures

➊

As many options as required may be strung together with a dash between each option code number

➋

Panel Dimensions are 35" and 27"

➌

Enclosure Dimensions are 36" x 31" x 16"

➍

Primary and Secondary Fusing Included

1395

– A005R –

EADP

–

5CBB

–

1CHA

–

L1A

➊

Bulletin No.

(

Constant Torque Drive)

Rating

(

must be specified)

Enclosure Type

(

must be specified)

Branch Protection

(

must be specified)

Line Impedance

(

must be specified)

First Option

Drive Rating
230 VAC-
Nominal HP

Module
Type

Sub-Panel

➋

Mounting

❋

Nema 1

➌

Enclosure

❋

1

Regenerative

A001R-SADP

A001R-EADP

Non-Regenerative

A001N-SADP

A001N-EADP

1.5

Regenerative

AF15R-SADP

AF15R-EADP

Non-Regenerative

AF15N-SADP

AF15N-EADP

2

Regenerative

A002R-SADP

A002R-EADP

Non-Regenerative

A002N-SADP

A002N-EADP

3

Regenerative

A003R-SADP

A003R-EADP

Non-Regenerative

A003N-SADP

A003N-EADP

5

Regenerative

A005R-SADP

A005R-EADP

Non-Regenerative

A005N-SADP

A005N-EADP

7.5

Regenerative

AF75R-SADP

AF75R-EADP

Non-Regenerative

AF75N-SADP

AF75N-EADP

10

Regenerative

A010R-SADP

A010R-EADP

Non-Regenerative

A010N-SADP

A010N-EADP

15

Regenerative

A015R-SADP

A015R-EADP

Non-Regenerative

A015N-SADP

A015N-EADP

20

Regenerative

A020R-SADP

A020R-EADP

Non-Regenerative

A020N-SADP

A020N-EADP

25

Regenerative

A025R-SADP

A025R-EADP

Non-Regenerative

A025N-SADP

A025N-EADP

30

Regenerative

A030R-SADP

A030R-EADP

Non-Regenerative

A030N-SADP

A030N-EADP

❋

Prices – Consult Sales Office or price list

Bulletin 1395

Microprocessor Based Digital DC Drive

Allen-Bradley

275

48" Wall Mounted Enclosures

➊

As many options as required may be strung together with a dash between each option code number

➋

Panel Dimensions are 45" x 33"

➌

Enclosure dimensions are 48" x 36" x 16"

Drive Rating
230 VAC-
Nominal HP

Module
Type

Sub-Panel

➋

Mounting

❋

Nema 1

➌

Enclosure

❋

1

Regenerative

A001R-SAFD

A001R-EAFP

Non-Regenerative

A001N-SAFD

A001N-EAFP

1.5

Regenerative

AF15R-SAFD

AF15R-EAFP

Non-Regenerative

AF15N-SAFD

AF15N-EAFP

2

Regenerative

A002R-SAFD

A002R-EAFP

Non-Regenerative

A002N-SAFD

A002N-EAFP

3

Regenerative

A003R-SAFD

A003R-EAFP

Non-Regenerative

A003N-SAFD

A003N-EAFP

5

Regenerative

A005R-SAFD

A005R-EAFP

Non-Regenerative

A005N-SAFD

A005N-EAFP

7.5

Regenerative

AF75R-SAFD

AF75R-EAFP

Non-Regenerative

AF75N-SAFD

AF75N-EAFP

10

Regenerative

A010R-SAFD

A010R-EAFP

Non-Regenerative

A010N-SAFD

A010N-EAFP

15

Regenerative

A015R-SAFD

A015R-EAFP

Non-Regenerative

A015N-SAFD

A015N-EAFP

20

Regenerative

A020R-SAFD

A020R-EAFP

Non-Regenerative

A020N-SAFD

A020N-EAFP

25

Regenerative

A025R-SAFD

A025R-EAFP

Non-Regenerative

A025N-SADP

A025N-EAFP

30

Regenerative

A030R-SADP

A030R-EAFP

Non-Regenerative

A030N-SADP

A030N-EAFP

❋

Prices – Consult Sales Office or price list

Bulletin 1395

Microprocessor Based Digital DC Drive

276

Allen-Bradley

The Pre-Engineered drive covered here is available as a 36" or 48" wall
mounted enclosure with the following standard features:

•

460 VAC Input

•

500 VDC Output

•

Bulletin 1395 Power Module

•

DC Output Contactor

•

Control Power Transformer

➍

•

115 VAC Discrete Board

•

Enclosure or Sup-Panel Mounting

36" Wall Mounted Enclosures

➊

As many options as required may be strung together with a dash between each option code number

➋

Panel Dimensions are 35" x 27"

➌

Enclosure Dimensions are 36" x 31" x 16"

➍

Primary and Secondary Fusing Included

1395

– B005R –

SADP

–

5CBB

–

1CHA

–

L1A

➊

Bulletin No.

(

Constant Torque Drive)

Rating

(

must be specified)

Enclosure Type

(

must be specified)

Branch Protection

(

must be specified)

Line Impedance

(

must be specified)

First Option

Drive Rating
460 VAC
Nominal HP

Module Type

Sub-Panel

➋

Mounting

❋

Nema 1

➌

Enclosure

❋

2

Regenerative

B002R-SADP

B002R-EADP

Non-Regenerative

B002N-SADP

B002N-EADP

3

Regenerative

B003R-SADP

B003R-EADP

Non-Regenerative

B003N-SADP

B003N-EADP

5

Regenerative

B005R-SADP

B005R-EADP

Non-Regenerative

B005N-SADP

B005N-EADP

7.5

Regenerative

BF75R-SADP

BF75R-EADP

Non-Regenerative

BF75N-SADP

BF75N-EADP

10

Regenerative

B010R-SADP

B010R-EADP

Non-Regenerative

B010N-SADP

B010N-EADP

15

Regenerative

B015R-SADP

B015R-EADP

Non-Regenerative

B015N-SADP

B015N-EADP

20

Regenerative

B020R-SADP

B020R-EADP

Non-Regenerative

B020N-SADP

B020N-EADP

25

Regenerative

B025R-SADP

B025R-EADP

Non-Regenerative

B025N-SADP

B025N-EADP

30

Regenerative

B030R-SADP

B030R-EADP

Non-Regenerative

B030N-SADP

B030N-EADP

40

Regenerative

B040R-SADP

B040R-EADP

Non-Regenerative

B040N-SADP

B040N-EADP

50

Regenerative

B050R-SADP

B050R-EADP

Non-Regenerative

B050N-SADP

B050N-EADP

60

Regenerative

B060R-SADP

B060R-EADP

Non-Regenerative

B060N-SADP

B060N-EADP

❋

Prices – Consult Sales Office or price list

Bulletin 1395

Microprocessor Based Digital DC Drive

Allen-Bradley

277

48" Wall Mounted Enclosures

➊

As many options as required may be strung together with a dash between each option code number

➋

Panel Dimensions are 45" x33"

➌

Enclosure dimensions are 48" x 36" x 16"

Drive Rating
460 VAC
Nominal HP

Module Type

Sub-Panel

➋

Mounting

❋

Nema 1

➌

Enclosure

❋

2

Regenerative

B002R-SAFP

B002R-EAFP

Non-Regenerative

B002N-SAFP

B002N-EAFP

3

Regenerative

B003R-SAFP

B003R-EAFP

Non-Regenerative

B003N-SAFP

B003N-EAFP

5

Regenerative

B005R-SAFP

B005R-EAFP

Non-Regenerative

B005N-SAFP

B005N-EAFP

7.5

Regenerative

BF75R-SAFP

BF75R-EAFP

Non-Regenerative

BF75N-SAFP

BF75N-EAFP

10

Regenerative

B010R-SAFP

B010R-EAFP

Non-Regenerative

B010N-SAFP

B010N-EAFP

15

Regenerative

B015R-SAFP

B015R-EAFP

Non-Regenerative

B015N-SAFP

B015N-EAFP

20

Regenerative

B020R-SAFP

B020R-EAFP

Non-Regenerative

B020N-SAFP

B020N-EAFP

25

Regenerative

B025R-SAFP

B025R-EAFP

Non-Regenerative

B025N-SAFP

B025N-EAFP

30

Regenerative

B030R-SAFP

B030R-EAFP

Non-Regenerative

B030N-SAFP

B030N-EAFP

40

Regenerative

B040R-SAFP

B040R-EAFP

Non-Regenerative

B040N-SAFP

B040N-EAFP

50

Regenerative

B050R-SAFP

B050R-EAFP

Non-Regenerative

B050N-SAFP

B050N-EAFP

60

Regenerative

B060R-SADP

B060R-EAFP

Non-Regenerative

B060N-SADP

B060N-EAFP

❋

Prices – Consult Sales Office or price list

Bulletin 1395

Microprocessor Based Digital DC Drive

278

Allen-Bradley

Power Options (Factory
Installed)

You may string together as many valid factory installed options as
required. A dash must be used between each option code when specifying
options.

230 VAC Input, 240 VDC Output Power Options

➊

As many options as required may be strung together with a dash between each option code number

➋

Reactors are panel mounted in 48" enclosures only. Do Not use reactor string number on 36" enclosures
(or panels) or when a reactor is not needed. Loose reactor or isolation transformers may be offered as
a catalog item on 260 or 262 in the “Standard Drives Program” section of this price sheet.

➌

Options include flange mounted operator. This option must be used with the 48" high enclosure offering.

Options
230 VAC
Drive Rating

Reactor

➋

Option Code

❋

Circuit

➌

Breaker
Option Code

❋

Disc Switch

➌

Non-Fusible
Option Code

❋

Blower
Starter Option
Code

❋

Dynamic
Braking
Option Code

❋

A001R

-1CHA

-1CBA

-1DSA

-1BSA

-1DBA

A00IN

-1CHA

-1CBA

-1DSA

-1BSA

-1DBA

AF15R

-F15CHA

-F15CBA

-F15DSA

-F15BSA

-F15DBA

AF15N

-F15CHA

-F15CBA

-F15DSA

-F15BSA

-F15DBA

A002R

-2CHA

-2CBA

-2DSA

-2BSA

-2DBA

A002N

-2CHA

-2CBA

-2DSA

-2BSA

-2DBA

A003R

-3CHA

-3CBA

-3DSA

-3BSA

-3DBA

A003N

-3CHA

-3CBA

-3DSA

-3BSA

-3DBA

A005R

-5CHA

-5CBA

-5DSA

-5BSA

-5DBA

A005N

-5CHA

-5CBA

-5DSA

-5BSA

-5DBA

AF75R

-F75CHA

-F75CBA

-F75DSA

-F75BSA

-F75DBA

AF75N

-F75CHA

-F75CBA

-F75DSA

-F75BSA

-F75DBA

A010R

-10CHA

-10CBA

-10DSA

-10BSA

-10DBA

A010N

-10CHA

-10CBA

-10DSA

-10BSA

-10DBA

A015R

-15CHA

-15CBA

-15DSA

-15BSA

-15DBA

A015N

-15CHA

-15CBA

-15DSA

-15BSA

-15DBA

A020R

-20CHA

-20CBA

-20DSA

-20BSA

-20DBA

A020N

-20CHA

-20CBA

-20DSA

-20BSA

-20DBA

A025R

-25CHA

-25CBA

-25DSA

-25BSA

-25DBA

A025N

-25CHA

-25CBA

-25DSA

-25BSA

-25DBA

A030R

-30CHA

-30CBA

-30DSA

-30BSA

-30DBA

A030N

-30CHA

-30CBA

-30DSA

-30BSA

-30DBA

❋

Prices – Consult Sales Office or price list

Bulletin 1395

Microprocessor Based Digital DC Drive

Allen-Bradley

279

460 VAC Input, 500 VAC Output Power Options

➊

As many options as required may be strung together with a dash between each option code number

➋

Reactors are panel mounted in 48" enclosures only. Do Not use reactor string number on 36" enclosures
(or panels) or when a reactor is not needed. Loose reactor or isolation transformers may be offered as
a catalog item on 260 or 262 in the “Standard Drives Program” section of this price sheet.

➌

Options include flange mounted operator. This option must be used with the 48" high enclosure offering.

Options
460 VAC
Drive Rating

Reactor

➋

Option Code

❋

Circuit

➌

Breaker
Option Code

❋

Disc Switch

➌

Non-Fusible
Option Code

❋

Blower
Starter
Option Code

❋

Dynamic
Braking
Option Code

❋

B002R

-2CHB

-2CBB

-2DSB

-2BSB

-2DBB

B002N

-2CHB

-2CBB

-2DSB

-2BSB

-2DBB

B003R

-3CHB

-3CBB

-3DSB

-3BSB

-3DBB

B003N

-3CHB

-3CBB

-3DSB

-3BSB

-3DBB

B005R

-5CHB

-5CBB

-5DSB

-5BSB

-5DBB

B005N

-5CHB

-5CBB

-5DSB

-5BSB

-5DBB

BF75R

-F75CHB

-F75CBB

-F75DSB

-F75BSB

-F75DBB

BF75N

-F75CHB

-F75CBB

-F75DSB

-F75BSB

-F75DBB

B010R

-10CHB

-10CBB

-10DSB

-10BSB

-10DBB

B010N

-10CHB

-10CBB

-10DSB

-10BSB

-10DBB

B015R

-15CHB

-15CBB

-15DSB

-15BSB

-15DBB

B015N

-15CHB

-15CBB

-15DSB

-15BSB

-15DBB

B020R

-20CHB

-20CBB

-20DSB

-20BSB

-20DBB

B020N

-20CHB

-20CBB

-20DSB

-20BSB

-20DBB

B025R

-25CHB

-25CBB

-25DSB

-25BSB

-25DBB

B025N

-25CHB

-25CBB

-25DSB

-25BSB

-25DBB

B030R

-30CHB

-30CBB

-30DSB

-30BSB

-30DBB

B030N

-30CHB

-30CBB

-30DSB

-30BSB

-30DBB

B040R

-40CHB

-40CBB

-40DSB

-40DSB

-40DBB

B040N

-40CHB

-40CBB

-40DSB

-40BSB

-40DBB

B050R

-50CHB

-50CBB

-50DSB

-40BSB

-50DBB

B050N

-50CHB

-50CBB

-50DSB

-50BSB

-50DBB

B060R

-60CHB

-60CBB

-60DSB

-60BSB

-60DBB

B060N

-60CHB

-60CBB

-60DSB

-60BSB

-60DBB

❋

Prices – Consult Sales Office or price list

Bulletin 1395

Microprocessor Based Digital DC Drive

280

Allen-Bradley

Suggested Power Distribution
Schemes

1 Customer supplied or purchased separately
2 Customer supplied, purchased separately or panel mounted in 48” enclosure.

1395

Circuit Breaker

DC

Motor

Figure No. 4

1395

No Disconnect

DC

Motor

Figure No. 3

1395

Non-Fusible
Disconnect

DC

Motor

Figure No. 5

Figure No. 1

1

Reactor

Isolation – Transformer

Figure No. 2 2

Isolation – Transformer (Multiple Drives)

Figure No. 1

1

Branch Circuit Protection

Branch Circuit Protection

Bulletin 1395

Microprocessor Based Digital DC Drive

Allen-Bradley

281

Interface & Feedback Options
(Factory Installed)

As many valid options as required may be strung together with a dash
between each option code.

Description

Option Code

❋

Isolated Signal Conditioner 0 – 10 VDC

-PN1

Isolated Signal Conditioner 4 – 20ma

-PN2

Node Adapter

-P50

Multi-Communicator Adapter

-P51

Encoder Feedback

-PEN

Tachometer Feedback

–

50 VDC / 1000 RPM Tach

-PY5

100 VDC / 1000 RPM Tach

-PY1

Armature Voltage Feedback

-PV

❋

Prices – Consult Sales Office or price list

Bulletin 1395

Microprocessor Based Digital DC Drive

282

Allen-Bradley

Door Mounted Operator
Devices (Factory Installed)

Valid option combinations may be strung together with a dash between
each option code. Door mounted devices are Bulletin 800T devices.

Select any Combination of option codes from the LR1 option set

➀

.

Select One of the option codes from the LR2 option set. Remote option
code selection for documentation purposes only. Loose devices are not
available.

➊

Option Code L1C is provided automatically when a disconnect is not provided.

➋

Analog meters and door mounted DHT’s are mutually exclusive.

➌

Remote Options provide and device schematically represented as a “Remote Device”.

➍

Loose operators not provided.

Option Set

Description

VAC Control Interface

S.S=Selector Switch P.L.=Pilot Light
P.B.=Push Button POT=Potentiometer

Option Code
Local

Option Code

➌

Remote

➍

❋

LR1

Select any COMBINATION of the following

Start — Stop PB’s

L1A

R1A

Speed Reference Pot, 1 Turn

L1B

R1B

Control Power On/Off S.S

L1C

➊

R1C

“Fault” P.L.

L1D

R1D

Analog Speed Meter

LPM1

➋

RPM1

Analog Load Meter

LPM2

➋

RPM2

Door Mounted DHT

PD1

➋

N/A

LR2

Select any ONE of the following:

Jog Forward P.B.

L2A

R2A

Jog Reverse P.B.

L2B

R2B

Preset S.S.

L2C

R2C

For - Rev S.S.

L2D

R2D

Auto - Man. S.S.

L2E

R2E

Jog Forward / Jog Reverse P.B.

L2F

R2F

Jog Forward P.B. / Forward-Reverse S.S.

L2G

R2G

Jog Forward P.B. / Preset S.S.

L2H

R2H

Jog Forward P.B. / Auto-Manual S.S.

L2I

R2I

Jog Reverse P.B / Forward-Reverse S.S.

L2J

R2J

Jog Reverse P.B. / Preset S.S.

L2K

R2K

Jog Reverse P.B. / Auto-Manual S.S.

L2L

R2L

❋

Prices – Consult Sales Office or price list

Bulletin 1395

Microprocessor Based Digital DC Drive

Allen-Bradley

283

Enclosure Dimensions

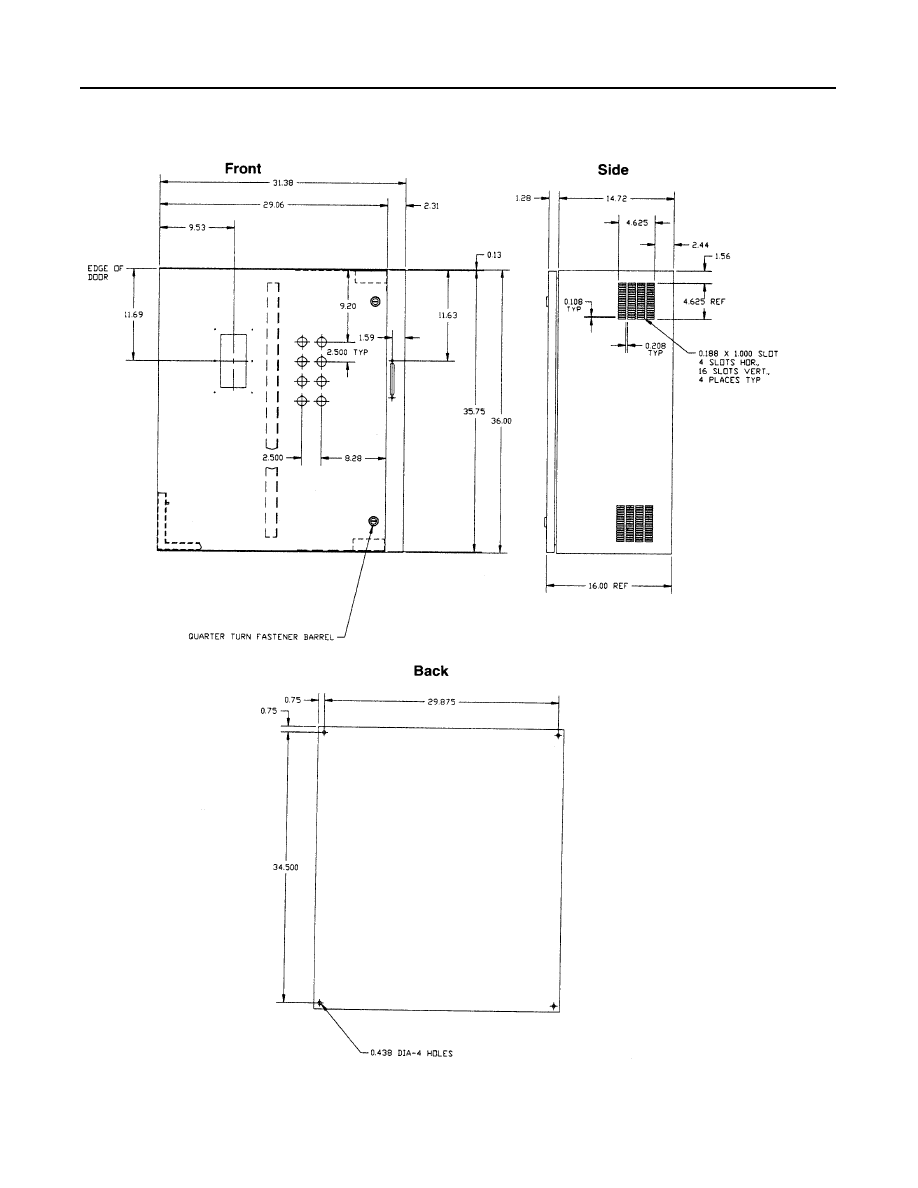

36" Enclosure Dimensions

Bulletin 1395

Microprocessor Based Digital DC Drive

284

Allen-Bradley

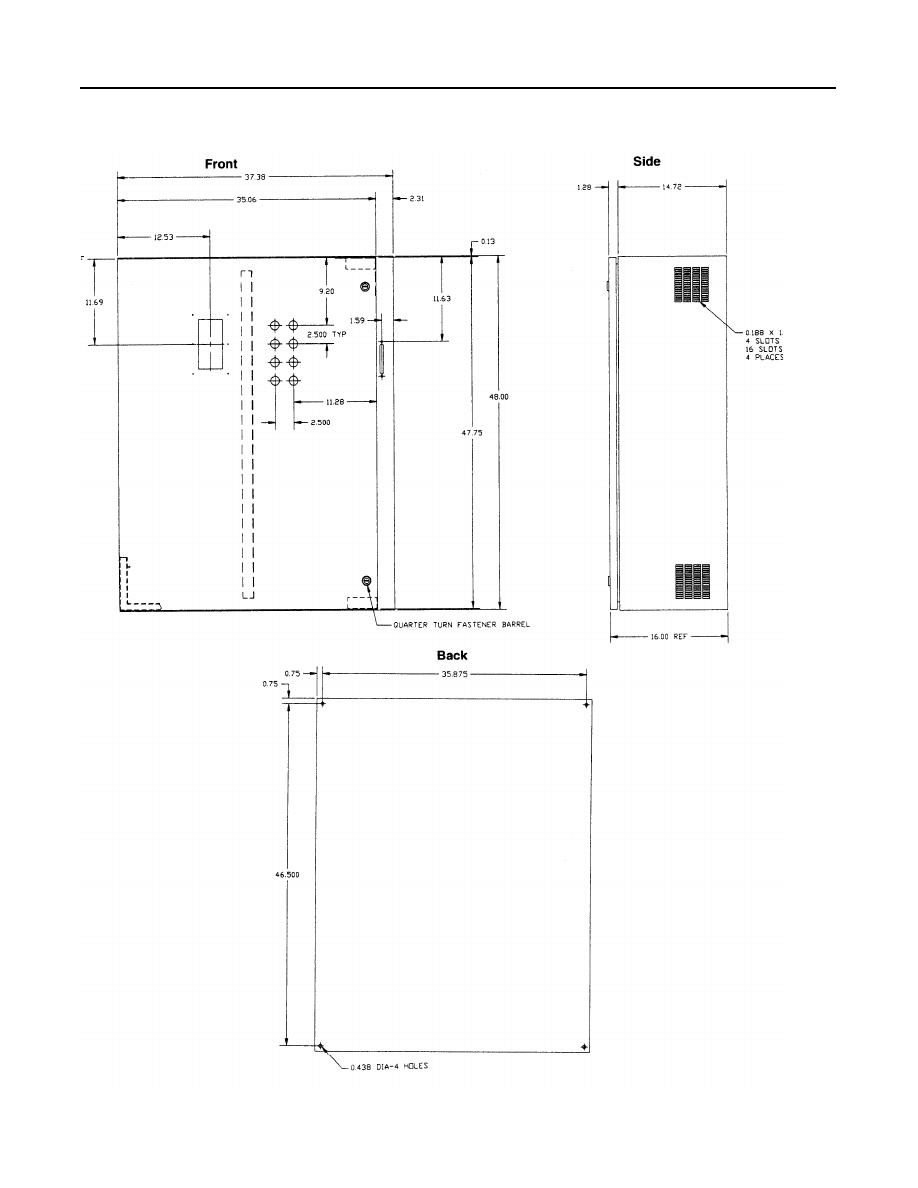

48" Enclosure Dimensions

Bulletin 1395

Microprocessor Based Digital DC Drive

Allen-Bradley

285

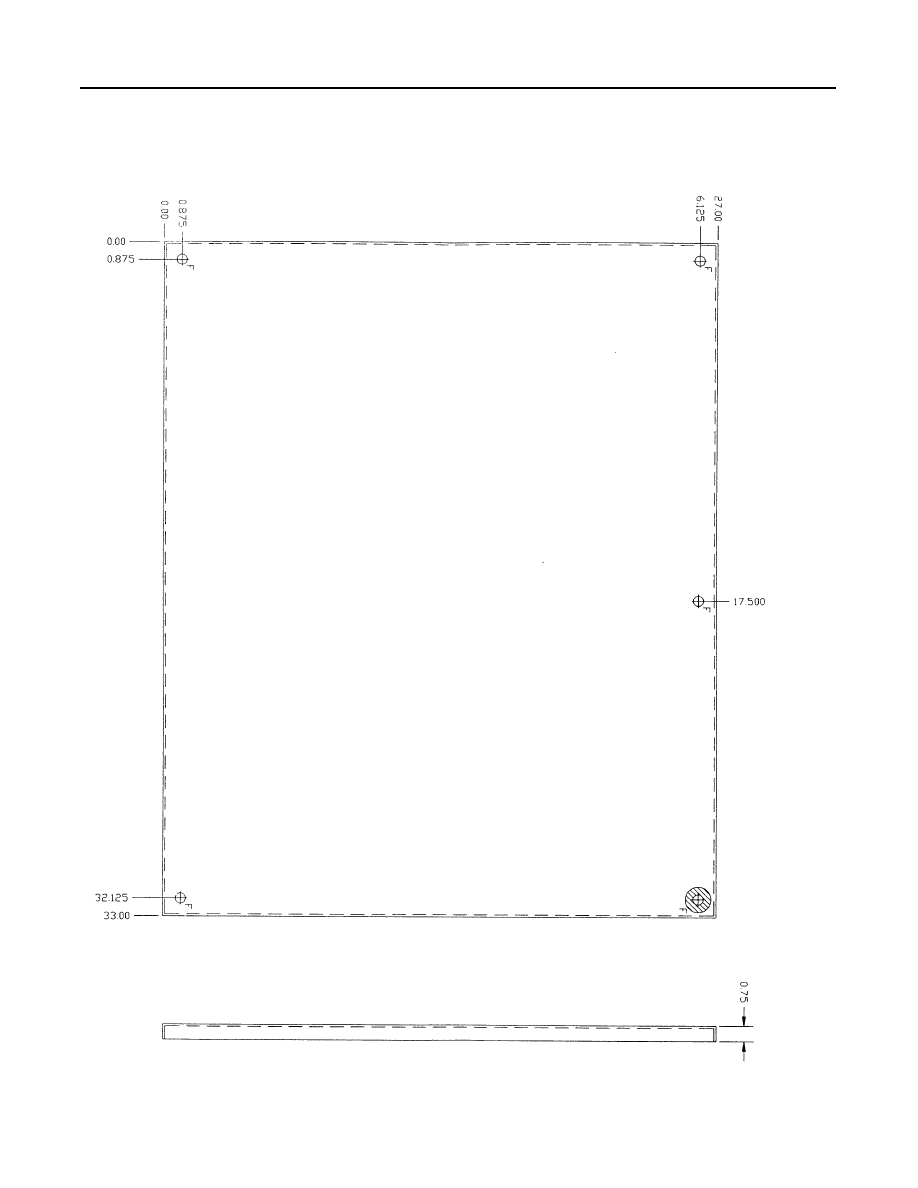

36" Subpanel Dimensions

Bulletin 1395

Microprocessor Based Digital DC Drive

286

Allen-Bradley

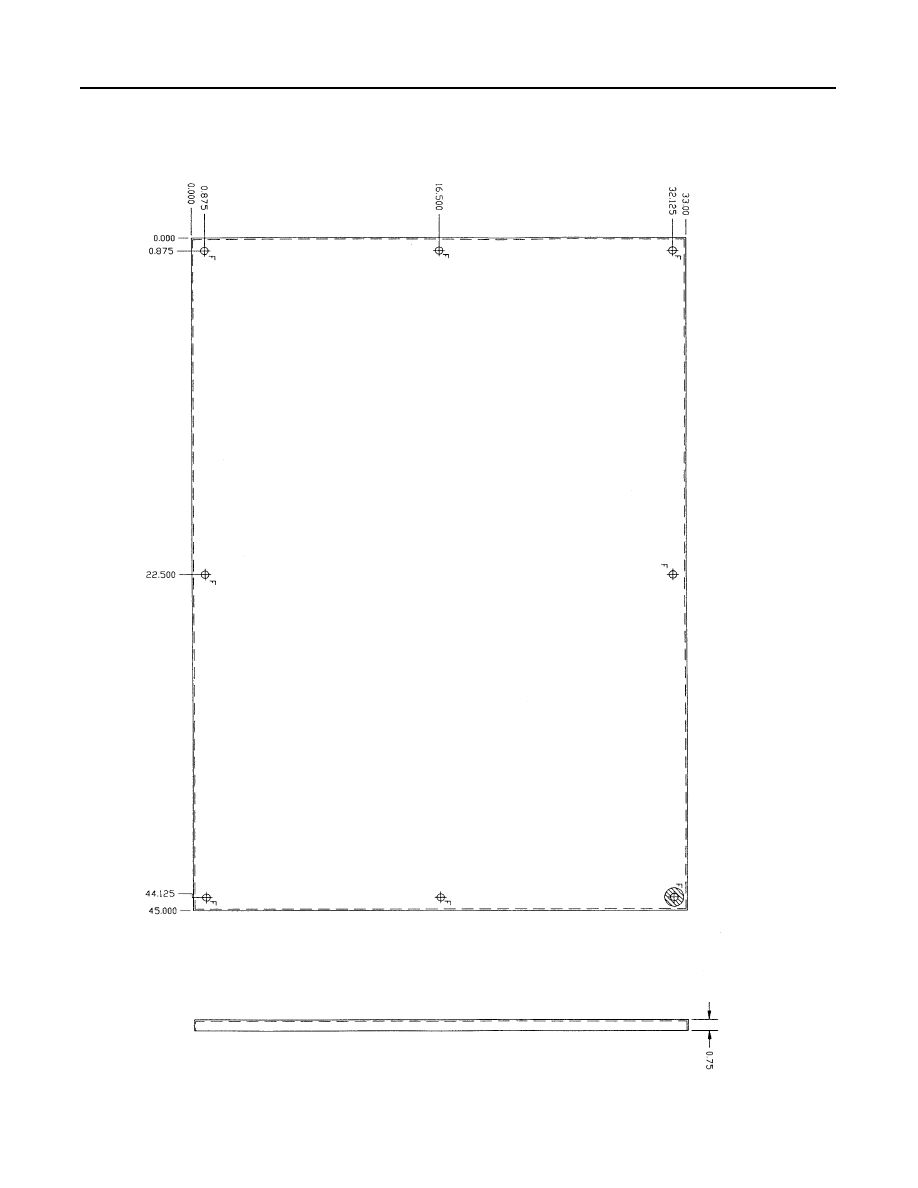

48" Subpanel Dimensions
