			E2			P			q		u
czas	czujnik odkształ	Dl	e=Dl/l	1-e	czujnik dynamometru			P/A0	s1-s3=(1-e)(P/A0)	s3		s1	ciśnienie w porach		s3`	s1`	0,5*(s1`+s3`)	0,5*(s1+s3)	0,5*(s1-s3)	s3`/s1`
					odczyt	poprawione							odczyt
	mm	mm	%		mm	kG	kN	kPa	kPa	kG/cm^2	kPa	kPa	KG/cm^2	kPa	kPa	kPa	kPa	kPa	kPa	%
00:00	0,000	0	0,000%	1,000	0,000	0,000	0,000	0,000	0	0,5	49,035	49,035	0,070	6,865	42,170	42,170	42,170	49,035	0,000	100,000%
00:15	0,530	0,530	0,697%	0,993	0,150	7,500	0,074	64,861	64,409	0,5	49,035	113,444	0,080	7,846	41,189	105,598	73,394	81,239	32,204	39,006%
00:30	1,080	0,550	0,724%	0,993	0,265	13,250	0,130	114,588	113,759	0,5	49,035	162,794	0,100	9,807	39,228	152,987	96,107	105,914	56,879	25,641%
00:45	1,671	0,591	0,778%	0,992	0,355	17,750	0,174	153,505	152,311	0,5	49,035	201,346	0,130	12,749	36,286	188,597	112,441	125,190	76,155	19,240%
01:00	2,270	0,599	0,788%	0,992	0,430	21,500	0,211	185,935	184,470	0,5	49,035	233,505	0,130	12,749	36,286	220,756	128,521	141,270	92,235	16,437%
01:15	2,900	0,630	0,829%	0,992	0,488	24,400	0,239	211,015	209,266	0,5	49,035	258,301	0,150	14,711	34,325	243,590	138,957	153,668	104,633	14,091%
01:30	3,570	0,670	0,882%	0,991	0,532	28,356	0,278	245,223	243,062	0,5	49,035	292,097	0,140	13,730	35,305	278,367	156,836	170,566	121,531	12,683%
01:45	4,230	0,660	0,868%	0,991	0,571	30,434	0,298	263,200	260,915	0,5	49,035	309,950	0,150	14,711	34,325	295,239	164,782	179,492	130,457	11,626%
02:00	4,920	0,690	0,908%	0,991	0,595	31,714	0,311	274,263	271,773	0,5	49,035	320,808	0,140	13,730	35,305	307,078	171,192	184,922	135,887	11,497%
02:15	5,605	0,685	0,901%	0,991	0,611	32,566	0,319	281,638	279,100	0,5	49,035	328,135	0,120	11,768	37,267	316,366	176,816	188,585	139,550	11,780%
02:30	6,280	0,675	0,888%	0,991	0,621	33,099	0,325	286,248	283,705	0,5	49,035	332,740	0,090	8,826	40,209	323,914	182,061	190,888	141,853	12,413%
02:45	6,975	0,695	0,914%	0,991	0,630	33,579	0,329	290,396	287,741	0,5	49,035	336,776	0,090	8,826	40,209	327,949	184,079	192,905	143,870	12,261%
03:00	7,665	0,690	0,908%	0,991	0,639	34,059	0,334	294,545	291,871	0,5	49,035	340,906	0,080	7,846	41,189	333,060	187,125	194,970	145,935	12,367%
0	0,000	0	0,000%	1,000	0,000	0,000	0,000	0,000	0,000	2,0	196,14	196,140	0,310	30,402	165,738	165,738	165,738	196,140	0,000	100,000%
00:15	0,651	0,651	0,857%	0,991	0,105	5,250	0,051	45,403	45,014	2,0	196,14	241,154	0,310	30,402	165,738	210,752	188,245	218,647	22,507	78,641%
00:30	1,135	0,484	0,637%	0,994	0,321	16,050	0,157	138,803	137,919	2,0	196,14	334,059	0,390	38,247	157,893	295,812	226,852	265,099	68,959	53,376%
00:45	1,660	0,525	0,691%	0,993	0,481	24,050	0,236	207,988	206,551	2,0	196,14	402,691	0,460	45,112	151,028	357,579	254,303	299,416	103,276	42,236%
01:00	2,180	0,520	0,684%	0,993	0,625	33,313	0,327	288,091	286,120	2,0	196,14	482,260	0,540	52,958	143,182	429,302	286,242	339,200	143,060	33,352%
01:15	2,750	0,570	0,750%	0,993	0,751	40,028	0,393	346,171	343,574	2,0	196,14	539,714	0,600	58,842	137,298	480,872	309,085	367,927	171,787	28,552%
01:30	3,330	0,580	0,763%	0,992	0,860	45,838	0,450	396,414	393,389	2,0	196,14	589,529	0,640	62,765	133,375	526,764	330,069	392,834	196,694	25,320%
01:45	3,940	0,610	0,803%	0,992	0,942	50,209	0,492	434,211	430,726	2,0	196,14	626,866	0,660	64,726	131,414	562,140	346,777	411,503	215,363	23,377%
02:00	4,580	0,640	0,842%	0,992	0,995	53,034	0,520	458,642	454,779	2,0	196,14	650,919	0,640	62,765	133,375	588,155	360,765	423,530	227,390	22,677%
02:15	5,220	0,640	0,842%	0,992	1,055	55,071	0,540	476,262	472,252	2,0	196,14	668,392	0,610	59,823	136,317	608,569	372,443	432,266	236,126	22,400%
02:30	5,900	0,680	0,895%	0,991	1,080	56,376	0,553	487,548	483,186	2,0	196,14	679,326	0,590	57,861	138,279	621,464	379,872	437,733	241,593	22,250%
02:45	6,590	0,690	0,908%	0,991	1,090	56,898	0,558	492,062	487,595	2,0	196,14	683,735	0,550	53,939	142,202	629,796	385,999	439,937	243,797	22,579%
03:00	7,260	0,670	0,882%	0,991	1,119	58,412	0,573	505,154	500,701	2,0	196,14	696,841	0,540	52,958	143,182	643,883	393,532	446,490	250,350	22,237%
UWAGI:
								skalowanie dynamometru:				l=	76	mm
	zam 414/90-100							0,5 mm=25kG				A0=	0,001134	m^2
	"2"							1,0mm=53,3KG
								1,5mm=78,3kG

---

Sheet 2: wykresy

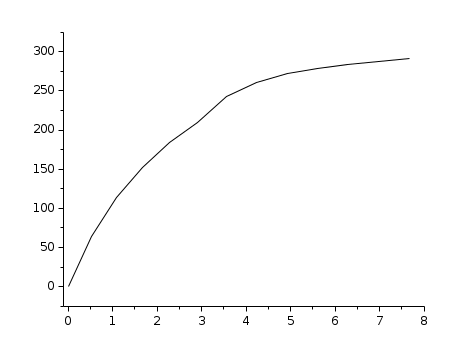

						Ez [mm]	q [kPa]
						0,000	0,000
						0,530	64,409
						1,080	113,759
						1,671	152,311
						2,270	184,470
						2,900	209,266
						3,570	243,062
						4,230	260,915
						4,920	271,773
						5,605	279,100
						6,280	283,705
						6,975	287,741
						7,665	291,871
						0	0
						0,651	45,014
						1,135	137,919
						1,660	206,551
						2,180	286,120
						2,750	343,574
						3,330	393,389
						3,940	430,726
						4,580	454,779
						5,220	472,252
						5,900	483,186
						6,590	487,595
						7,260	500,701
