Electrophilic Aromatic Substitution

The Nitration of Methyl Benzoate

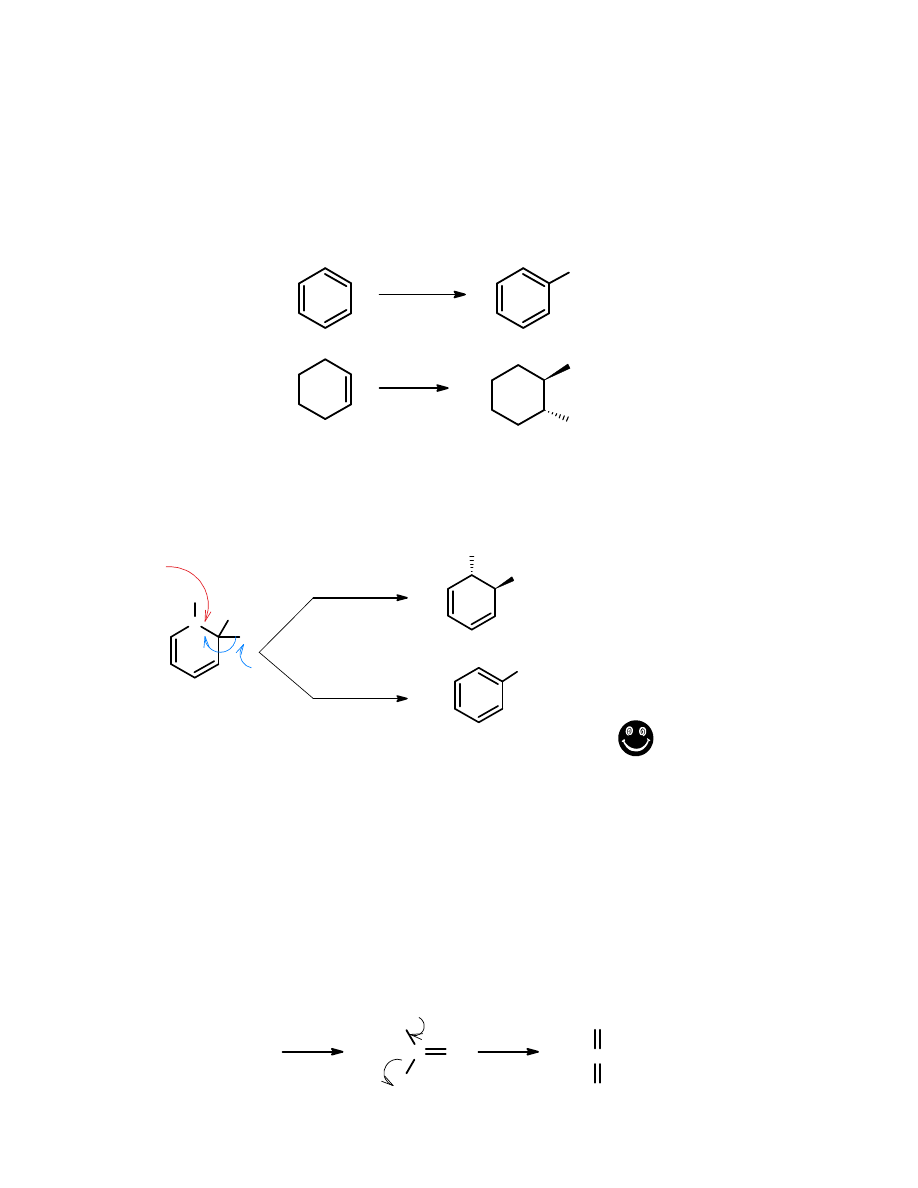

Aromatic compounds react with electrophiles to give products resulting in substitution of

a hydrogen atom by the electrophile. This is in contrast to the reaction of alkenes with

electrophiles, which typically give products of addition, rather than substitution.

Br

2

FeBr

3

Br

+

HBr

Br

2

Br

Br

The reaction of aromatic systems with electrophiles results in substitution because

abstraction of an H

+

from the intermediate resonance stabilized carbocation restores

aromaticity to the product. This aromaticity imparts ~ 36 kcal/mole stabilization energy

compared to non-aromatic systems.

If the aromatic ring is already substituted prior to the reaction with an electrophile, the

nature of the substituent affects not only the rate of reaction, but the location of the

attacking electrophile. In this week’s laboratory exercise, the aromatic ester, methyl

benzoate, will be nitrated with nitric acid in the presence of concentrated sulfuric acid.

The sulfuric acid is necessary because nitric acid alone is not a strong enough electrophile

to react with most aromatic rings. The sulfuric acid protonates the nitric acid, and the

resulting cation dehydrates, forming the nitronium ion which is the active electrophile in

this reaction.

HNO

3

+

H

2

SO

4

N

+

O

-

OH

2

+

O

N

+

O

O

+

O

H

2

+

HSO

4

-

C

+

Br

H

H

path A

path B

Br

-

A

Br

-

B

Br

Br

Br

aromatic- lower energy

non-aromatic-higher energy

(does not occur)

background image

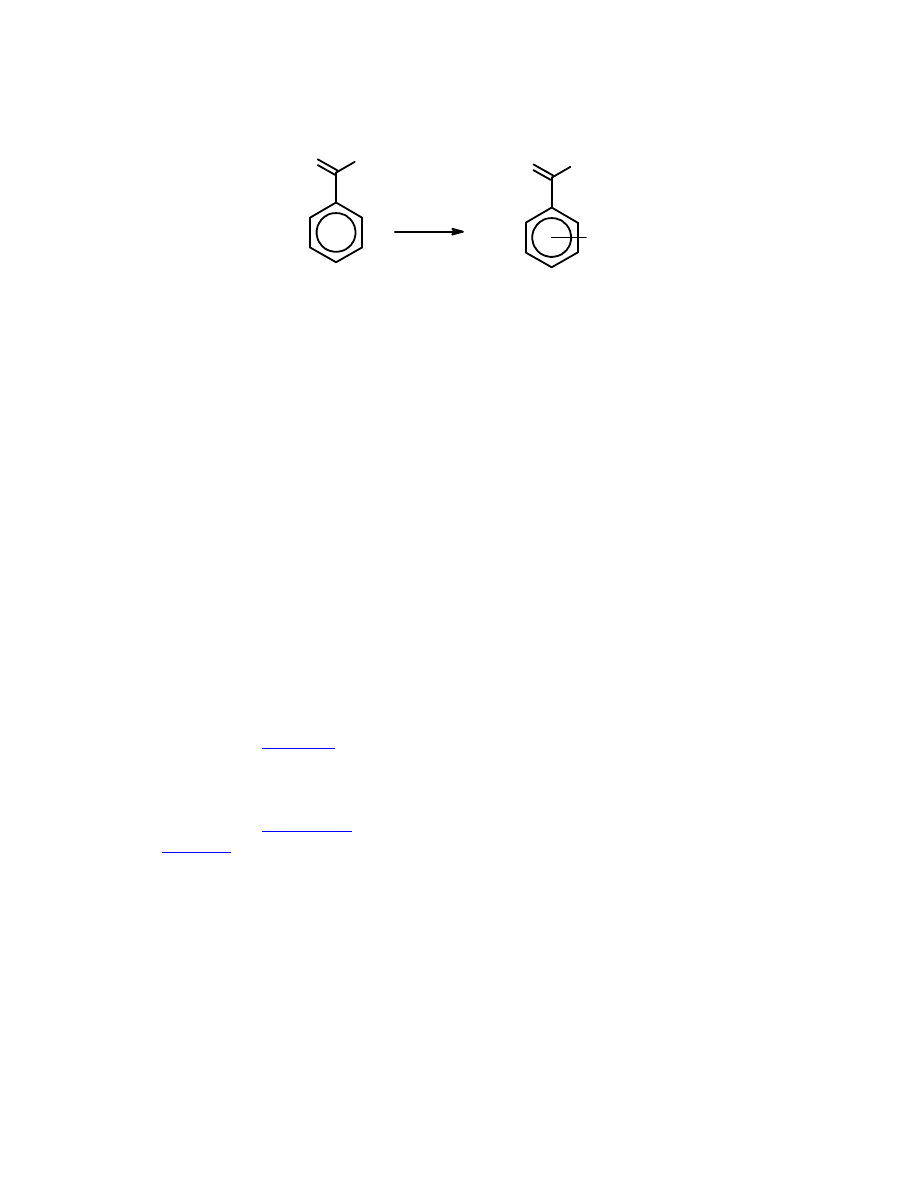

The nitronium ion reacts with methyl benzoate to produce the nitrated methyl benzoate as

shown below. Note that the position of the nitro group is unspecified in the drawing (the

nitro is shown attached to the aromatic ring, but the location of the bond is not specified).

O

OCH

3

NO

2

+

O

OCH

3

NO

2

Based on the stability of the resulting intermediate, draw the expected product of the

nitration of methyl benzoate as part of your pre-lab activity in the introduction to your lab

report. Also include the physical and chemical properties of methyl benzoate,

concentrated sulfuric acid, concentrated nitric acid and methanol.

Methyl benzoate is found naturally and is known as niobe oil, cananga, or ‘harsh

wintergreen’. It occurs naturally in various plants, including clove and black current.

You may find the aroma familiar and pleasant, but the concentrated material can irritate

the mucous membranes and skin.

This experiment consists of four major parts:

1.

The nitration of methyl benzoate

2.

Isolation of crude methyl nitrobenzoate (you should provide the required number

indicating the position of the nitro group)

3.

Purification of the crude product

4.

Characterization of the purified product. (mp, IR)

Experimental Details

Safety:

1.

Concentrated

nitric acid

is a strong oxidizer as well as a strong acid. Therefore it is

corrosive to skin, eyes, and mucous membranes. Contact with skin will result in the

formation of a yellow or yellow-brown color on the affected part which will not be

removed by washing.

2.

Concentrated

sulfuric acid

is corrosive to skin, eyes, and mucous membranes

3.

Methanol

is toxic, both by ingestion and inhalation.


Procedure:
1.

Place 12mL concentrated sulfuric acid in a 125mL Erlenmeyer flask and cool the

contents in an ice bath until the temperature is <5

o

C.

2.

Add 6.1mL methyl benzoate (calculate the amount in grams) to the contents of the

flask described in step 1. Cool the contents to 5

o

C in an ice bath.

3.

Place 4.0mL of concentrated sulfuric acid in a 25mL Erlenmeyer flask and cool the

contents in a beaker of ice water. Add 4.0 mL of concentrated nitric acid to the

sulfuric acid and keep the mixture of acids in the ice bath.

background image

4.

Using a Pasteur pipette, add the mixed acid reagent dropwise to the contents of the

125mL Erlenmeyer flask. Swirl the contents of the flask often to ensure good mixing.

Maintain the temperature during addition between 5

o

and 15

o

C. (The reaction is

exothermic and must be controlled by cooling and slow addition rate)

5.

After the addition of the nitric acid/sulfuric acid mixture is complete, remove the 125

mL Erlenmeyer flask from the ice bath and allow the reaction mixture to warm to

room temperature.

6.

After 15 minutes, pour the reaction mixture into a 250mL beaker containing ~50g ice

chips. After the ice has melted, isolate the solids by suction filtration. DO NOT

WASH THE PRODUCT UNTIL STEP 7 IS DONE.

7.

Transfer the acidic filtrate into the ‘waste acid’ container in the hood. Then replace

the filter on the filter flask and continue with step 8.

8.

Wash the isolated solid with 20 mL cold water; the clear filtrate can be disposed in

the sink with running water.

9.

Wash the filtrate with 10mL portions of cold methanol. Dispose of the filtrate in the

‘waste organic’ container in the hood. DO NOT COMBINE WITH THE WASTE

ACID.

10.

Save a small portion of ‘crude’ product for a melting point determination.

11.

Weigh the remainder of product and recrystallize from an equal weight of methanol.

Warm the methanol / product mixture on a hot plate until solution is achieved, then

remove from heat. Cool the solution in an ice bath.

12.

Isolate the purified product by suction filtration. Air dry for ~10 minutes, then place

the crude material in an oven at 60

o

C. Dispose of the filtrate in the ‘waste organic’

container.

13.

Weigh the dried material and obtain a melting point and IR.

14.

Calculate the per cent yield for the purified material.


Questions to be addressed as part of your conclusion:
• What evidence do you have that the purification procedure was effective in increasing

the purity of your product?

• Estimate the yield loss that occurred as a result of the purification steps. What caused

this loss?

• Does the spectral data support the proposed structure of your product?
• Would you expect the nitration of phenol to give the same substitution pattern? Why

or why not?




Created 1/2/06 by J. Neilan

Updated 3/11/07
