SYSTEM WIRING DIAGRAMS

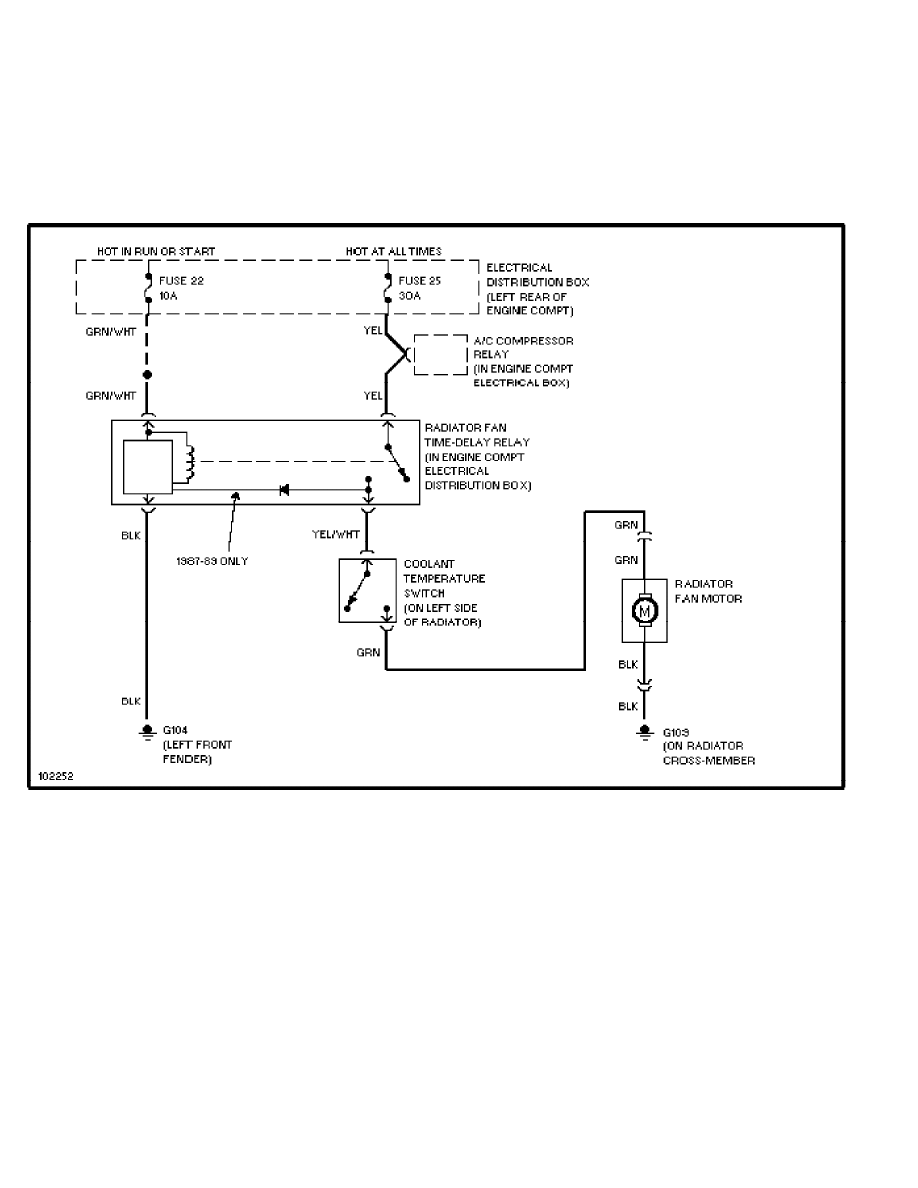

Cooling Fan Circuit, W/ A/C
1985 Saab 900
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, January 14, 2006 06:35PM
SYSTEM WIRING DIAGRAMS
Cooling Fan Circuit, W/O A/C (p. 2)
1985 Saab 900
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, January 14, 2006 06:35PM
SYSTEM WIRING DIAGRAMS

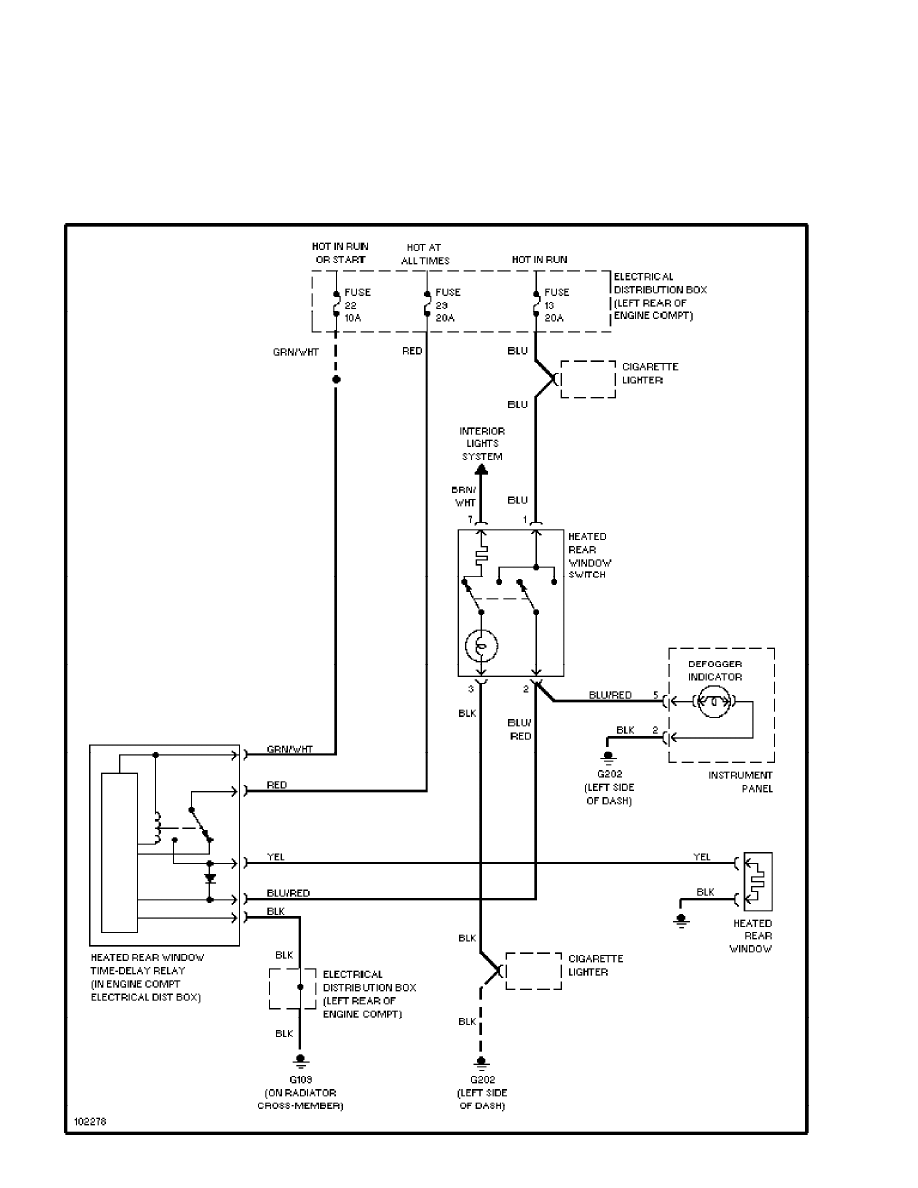

Defogger Circuit (p. 3)
1985 Saab 900
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, January 14, 2006 06:35PM
SYSTEM WIRING DIAGRAMS

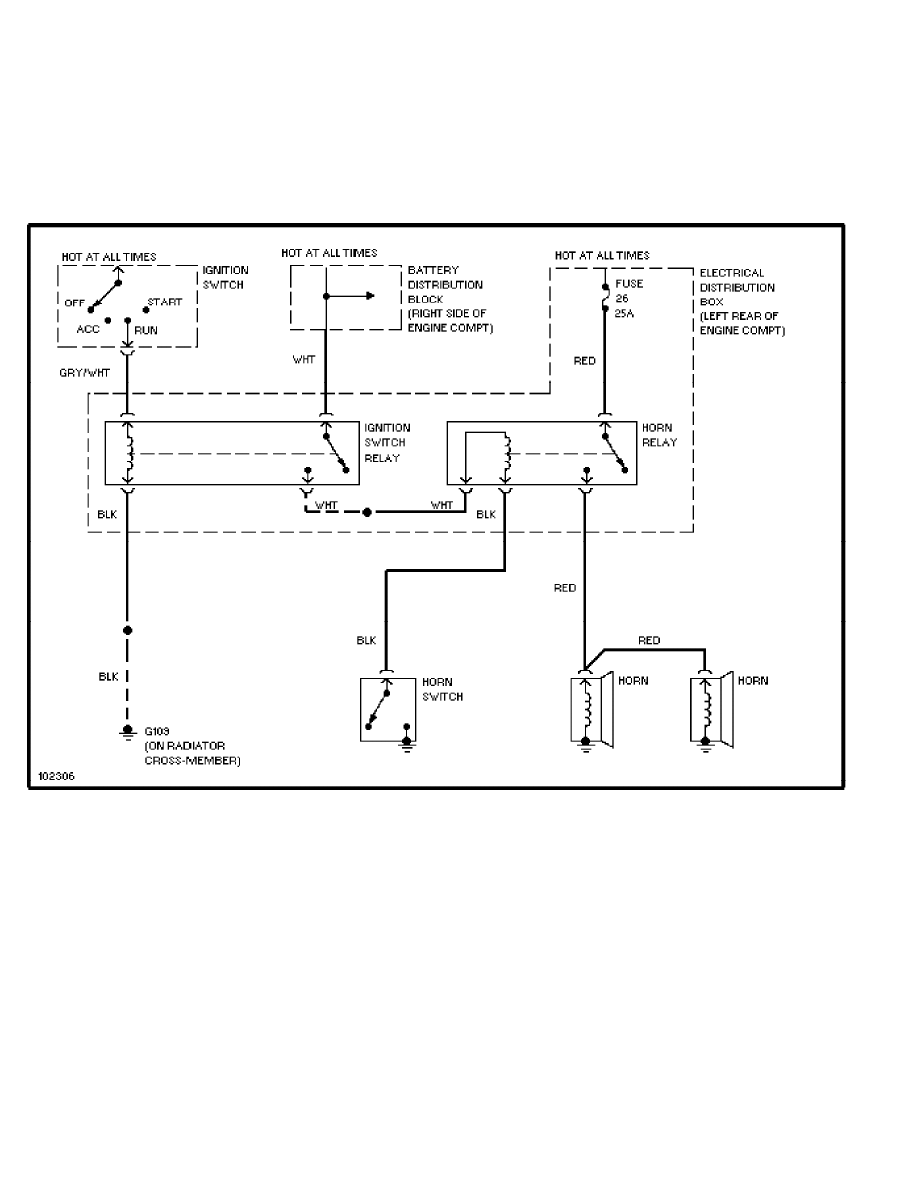

Horn Circuit (p. 4)
1985 Saab 900
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, January 14, 2006 06:35PM
SYSTEM WIRING DIAGRAMS

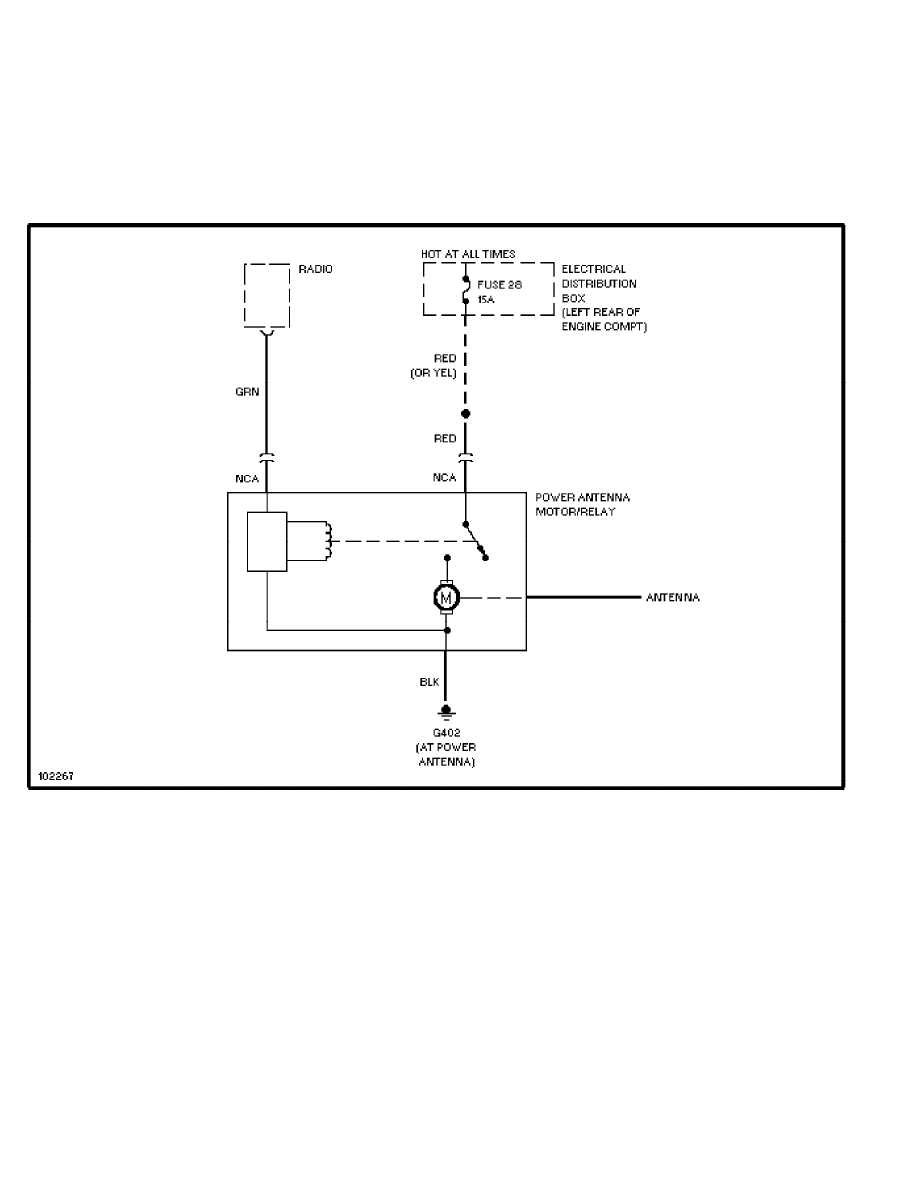

Power Antenna Circuit (p. 5)
1985 Saab 900
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, January 14, 2006 06:35PM
SYSTEM WIRING DIAGRAMS

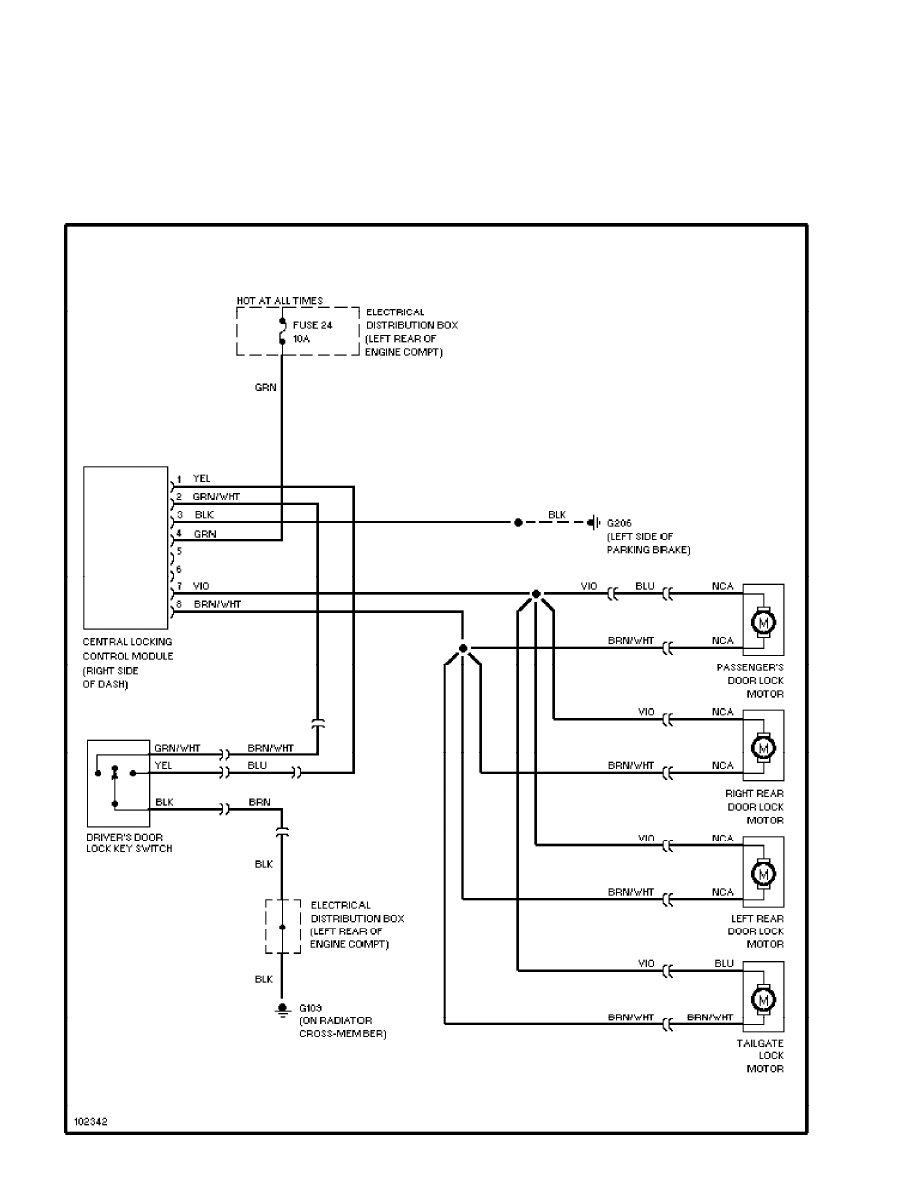

Power Door Lock Circuit (p. 6)
1985 Saab 900
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, January 14, 2006 06:35PM
SYSTEM WIRING DIAGRAMS

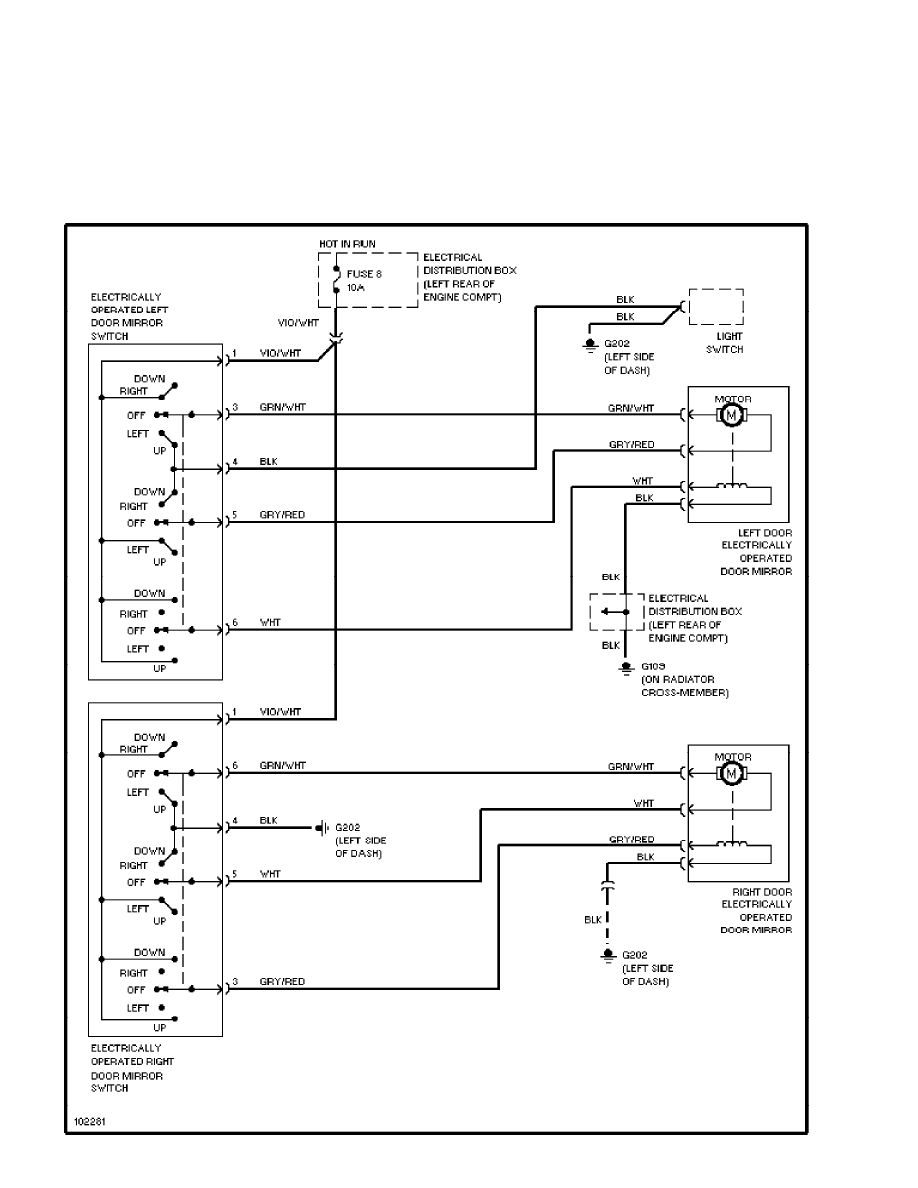

Power Mirror Circuit (p. 7)
1985 Saab 900
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, January 14, 2006 06:35PM
SYSTEM WIRING DIAGRAMS

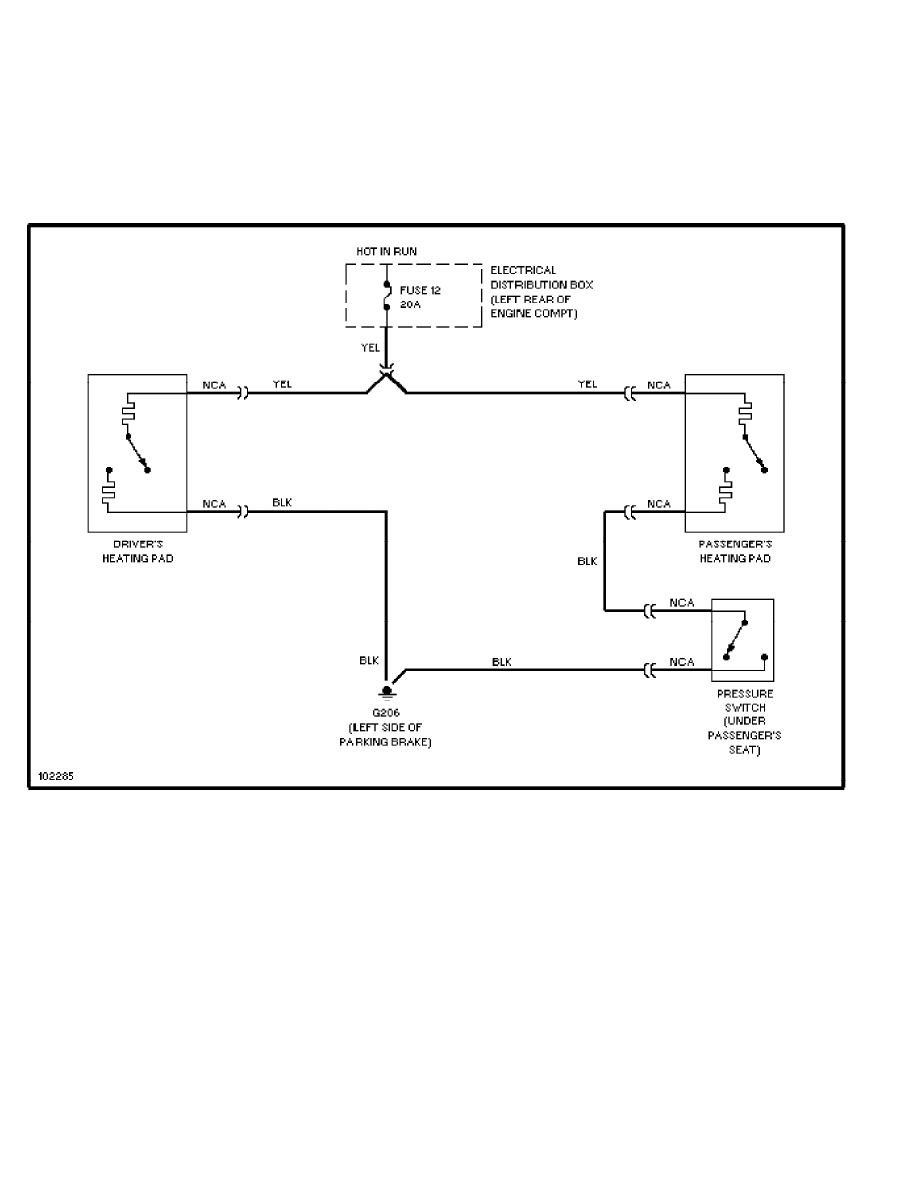

Heated Seats Circuit, W/O Rheostat Control (p. 8)
1985 Saab 900
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, January 14, 2006 06:35PM
SYSTEM WIRING DIAGRAMS

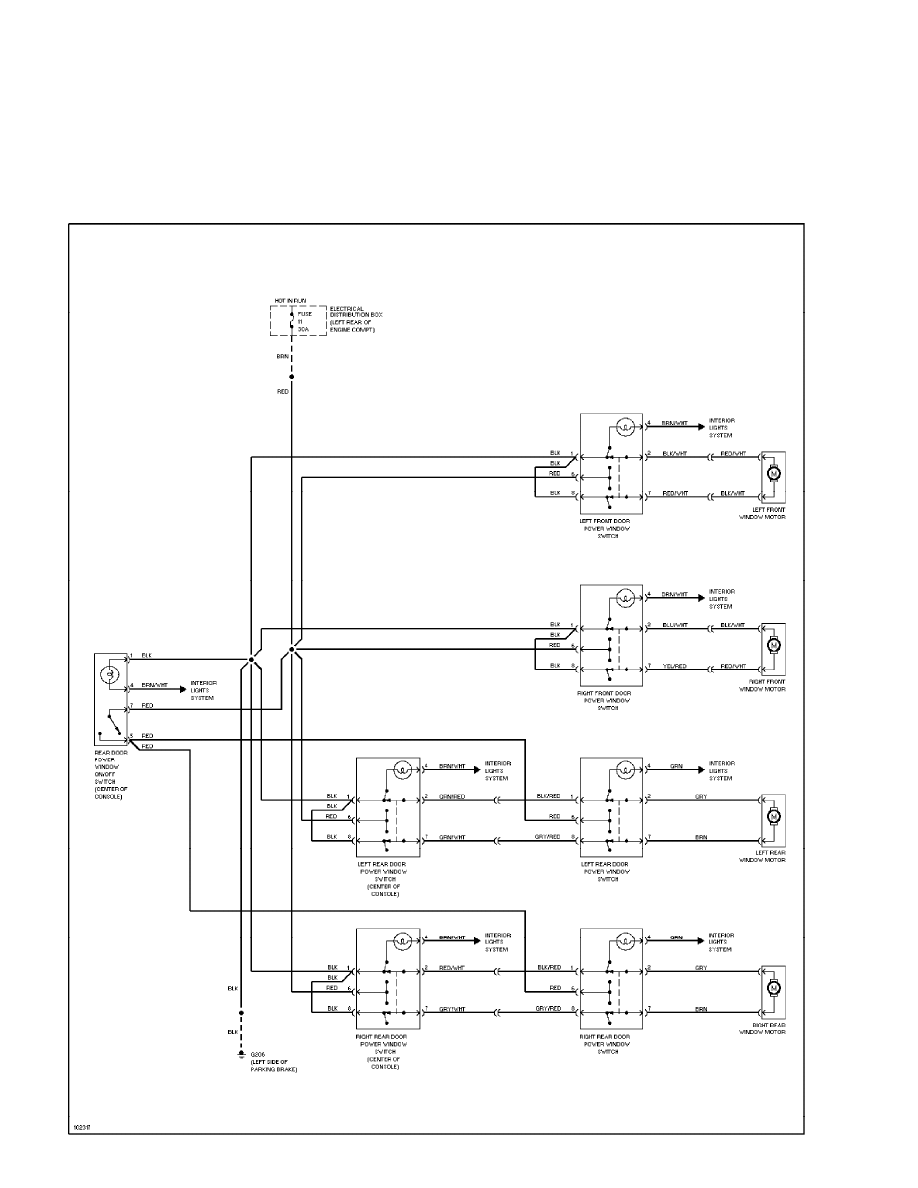

Power Window Circuit (p. 9)
1985 Saab 900
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, January 14, 2006 06:35PM
SYSTEM WIRING DIAGRAMS

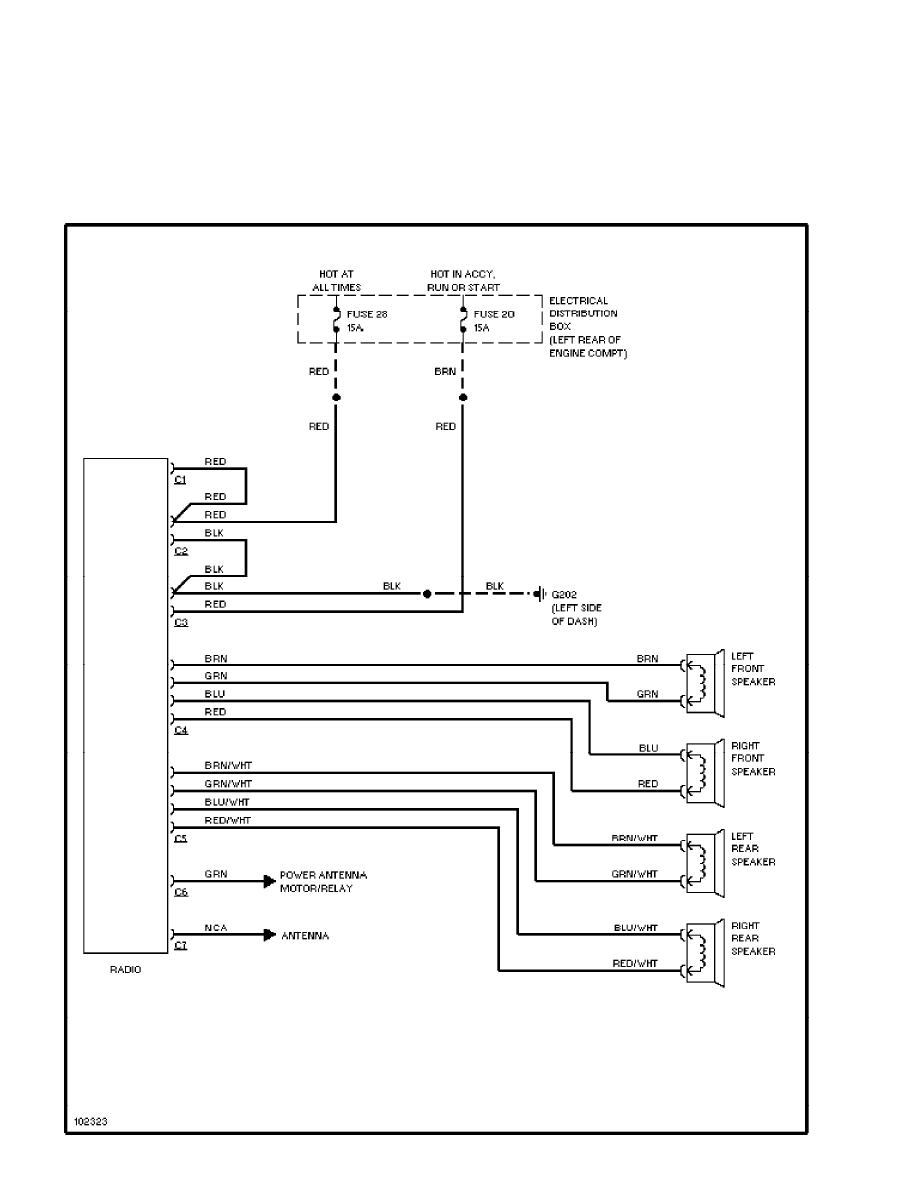

Radio Circuits (p. 10)
1985 Saab 900
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, January 14, 2006 06:35PM
SYSTEM WIRING DIAGRAMS

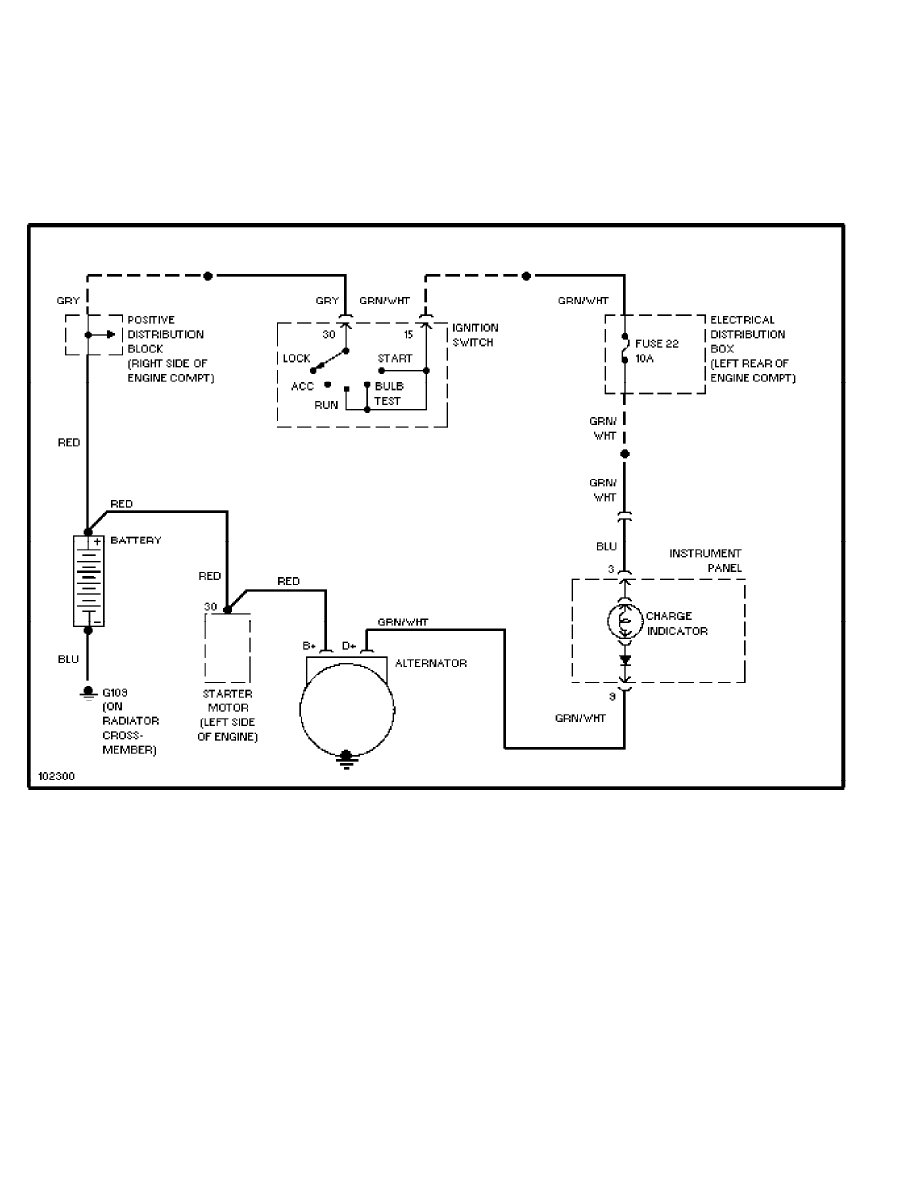

Charging Circuit (p. 11)
1985 Saab 900
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, January 14, 2006 06:35PM
SYSTEM WIRING DIAGRAMS

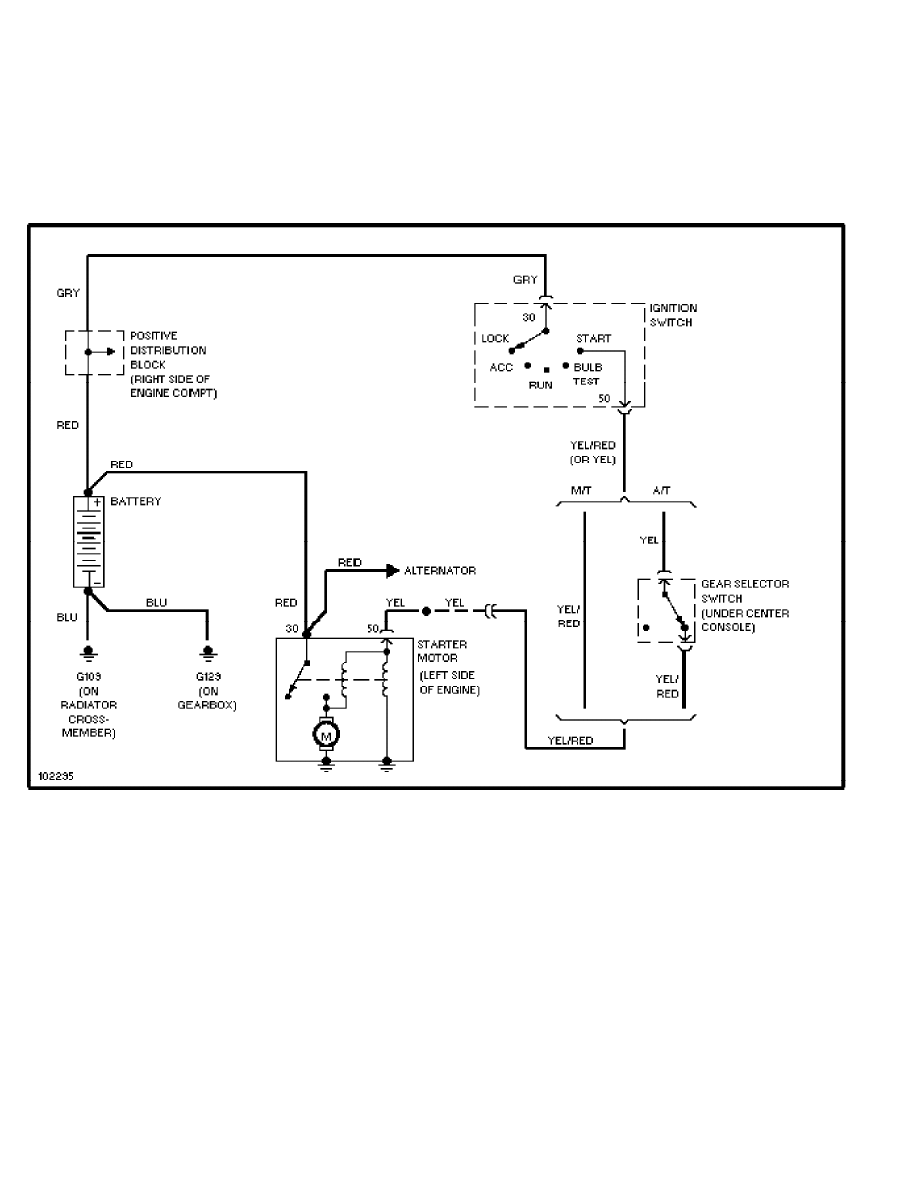

Starting Circuit (p. 12)
1985 Saab 900
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, January 14, 2006 06:35PM
SYSTEM WIRING DIAGRAMS

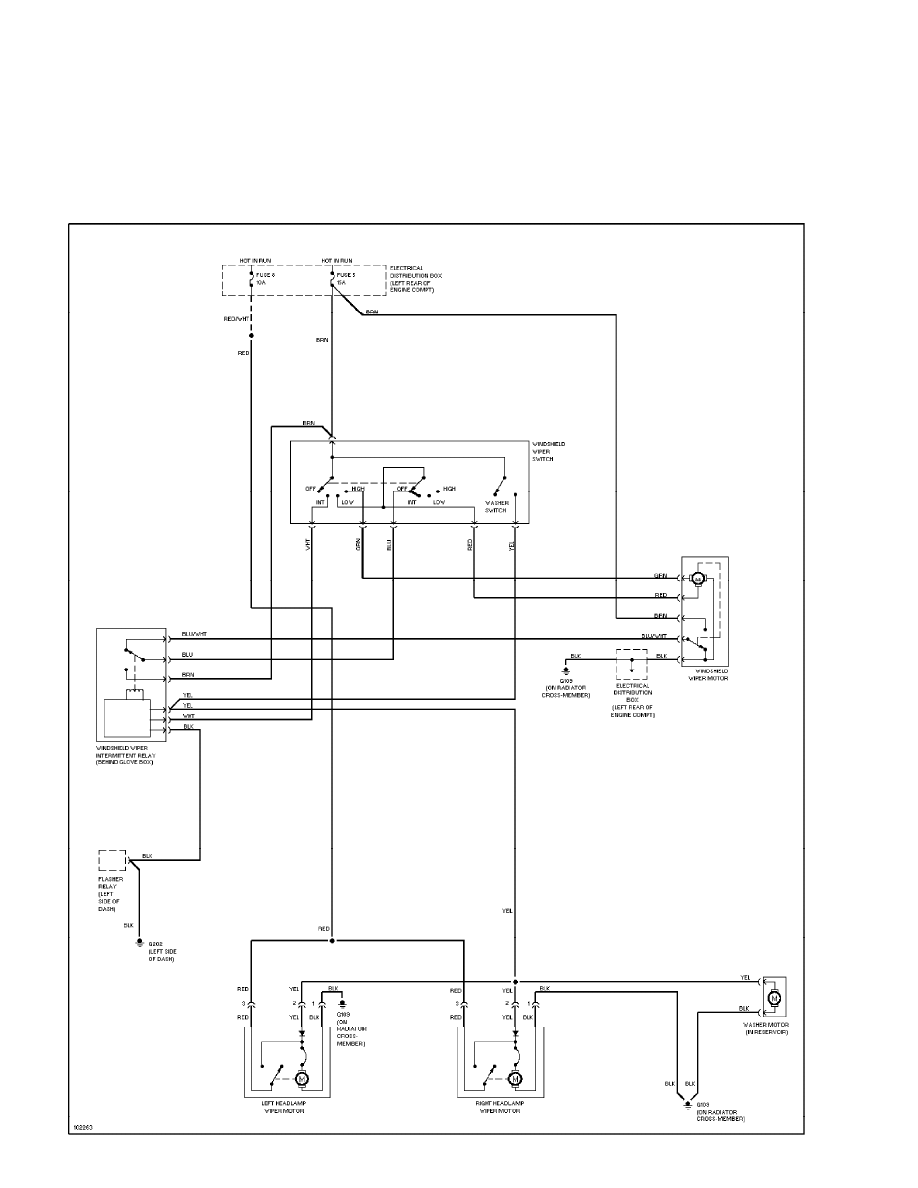

Wiper/Washer Circuit (p. 13)
1985 Saab 900
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, January 14, 2006 06:35PM
WIRING DIAGRAMS

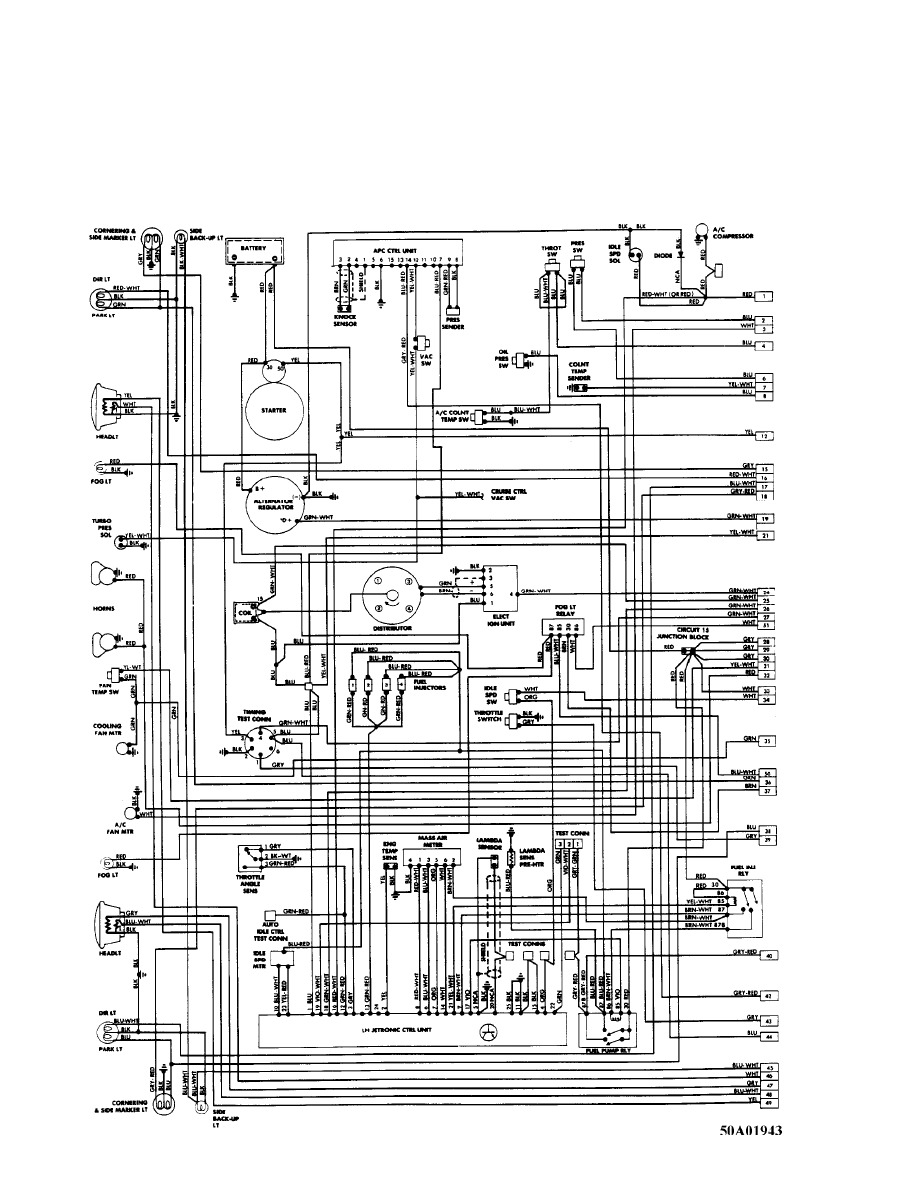

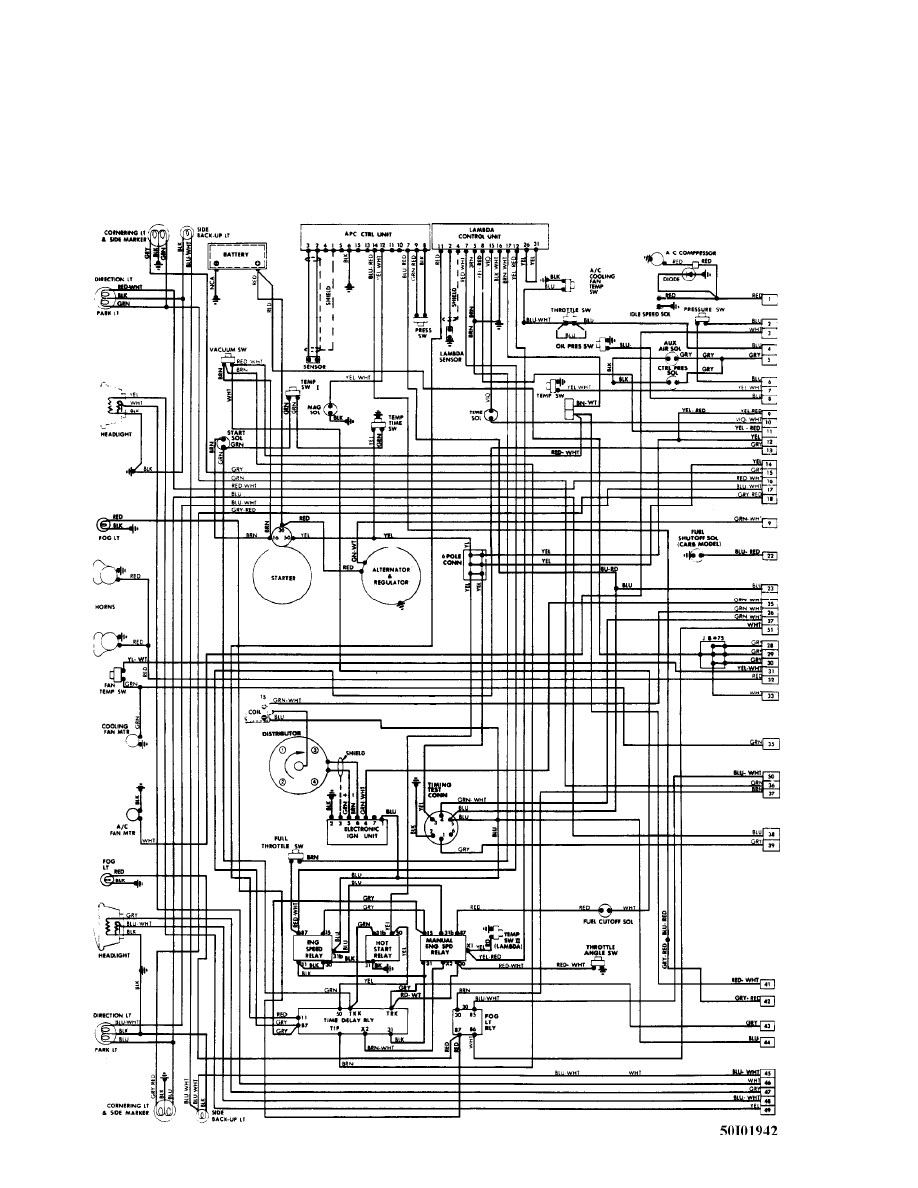

Fig. 1: 8-Valve Engine Compartment
1985 Saab 900
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, January 14, 2006 06:35PM
WIRING DIAGRAMS
Fig. 2: 16-Valve Engine Compartment (p. 2)
1985 Saab 900
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, January 14, 2006 06:35PM
WIRING DIAGRAMS

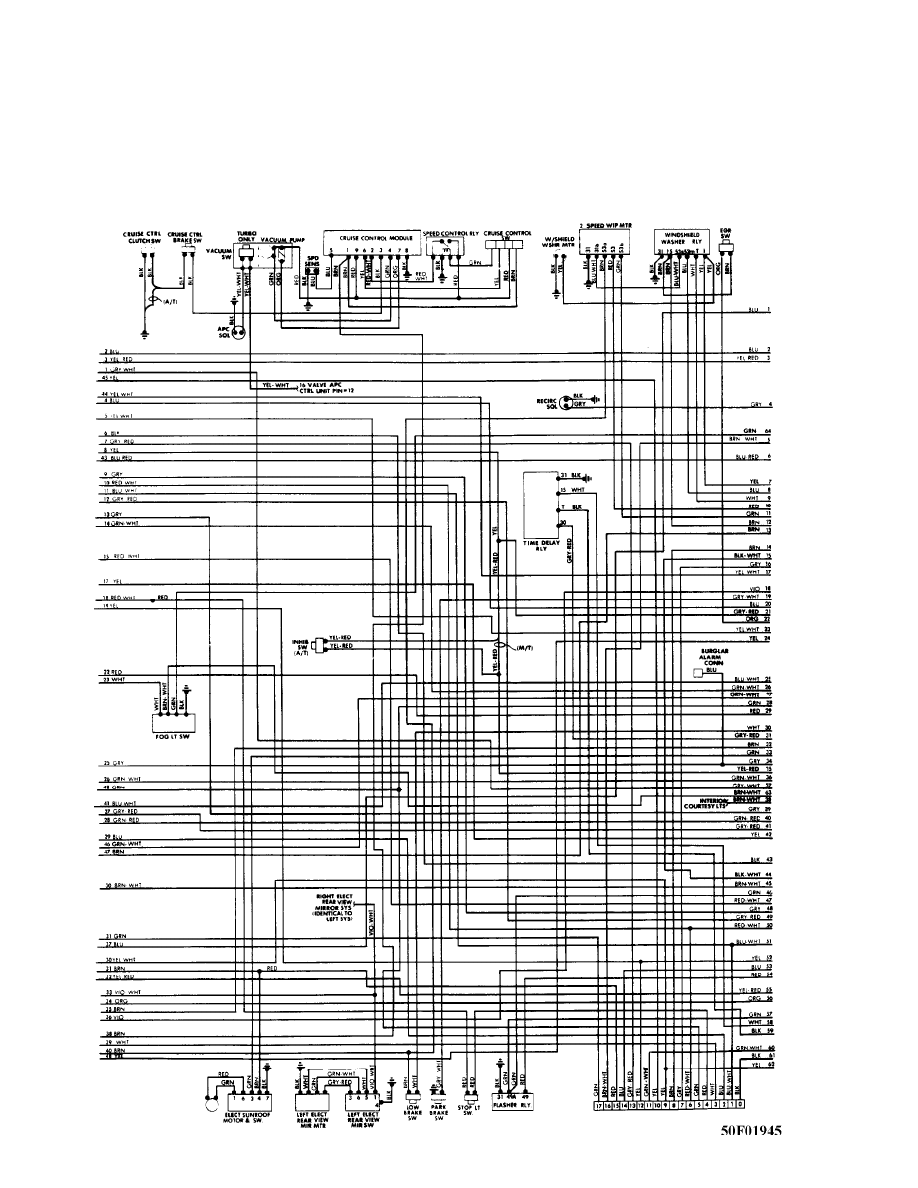

Fig. 3: Fuse Block & Underdash (p. 3)
1985 Saab 900
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, January 14, 2006 06:35PM
WIRING DIAGRAMS
Fig. 4: Underdash (p. 4)
1985 Saab 900
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, January 14, 2006 06:35PM
WIRING DIAGRAMS

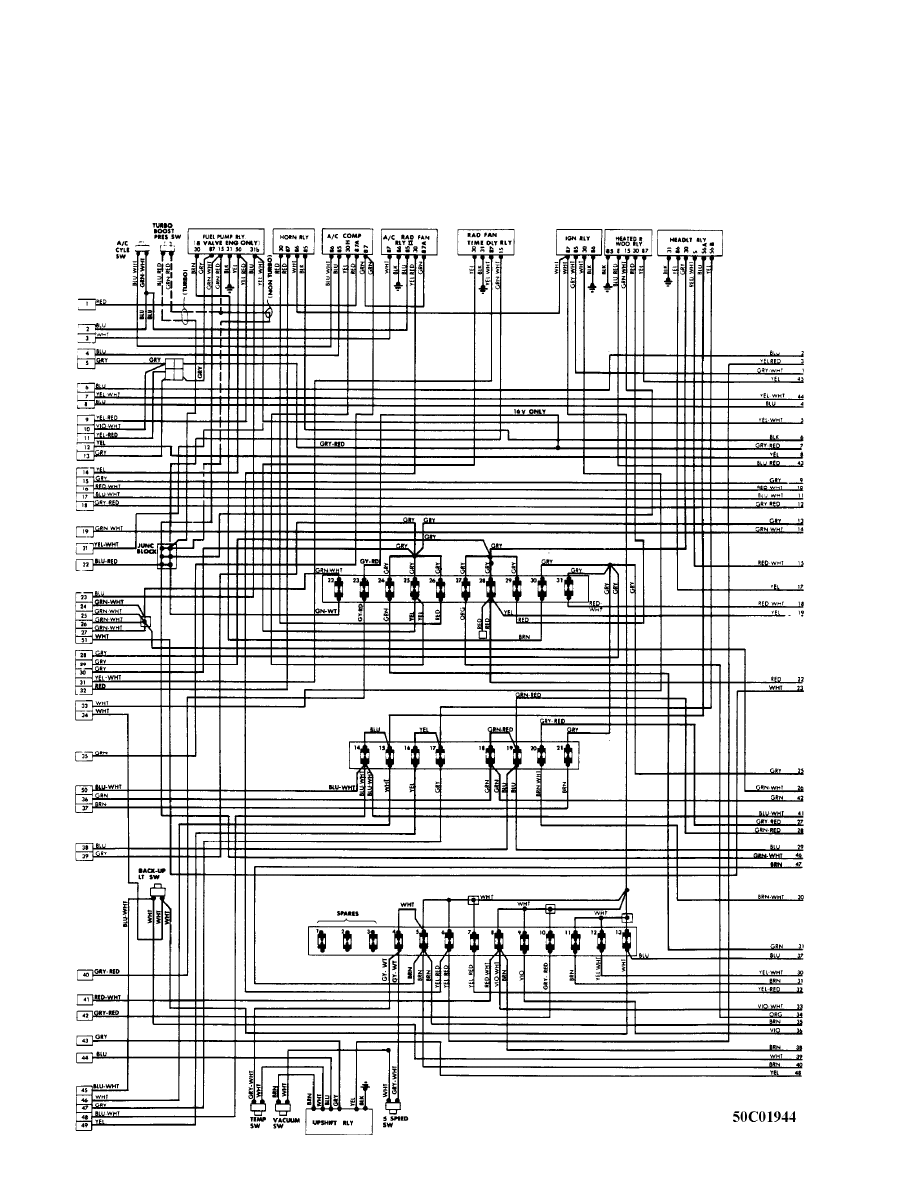

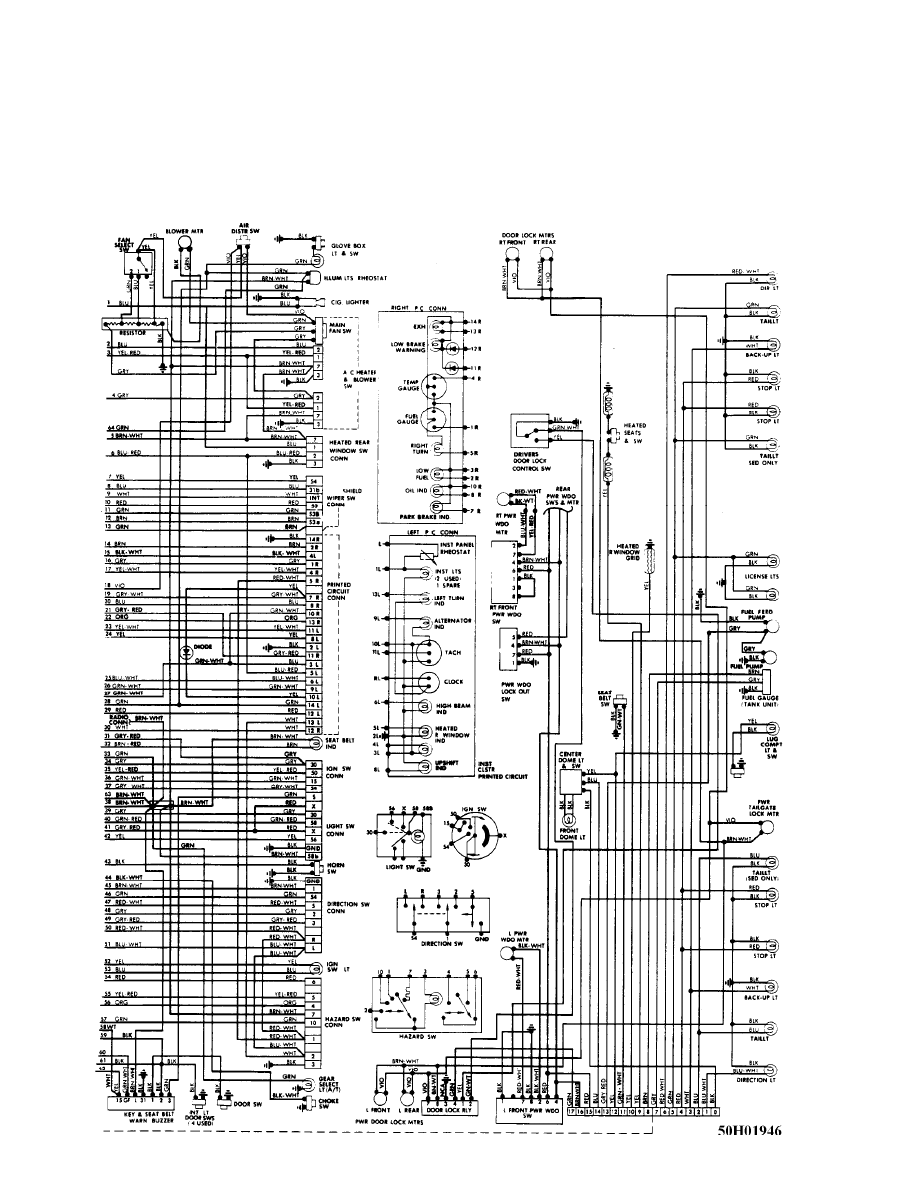

Fig. 5: Instrument Panel & Rear Compartment (p. 5)
1985 Saab 900
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, January 14, 2006 06:35PM
