SAAB 900 1991

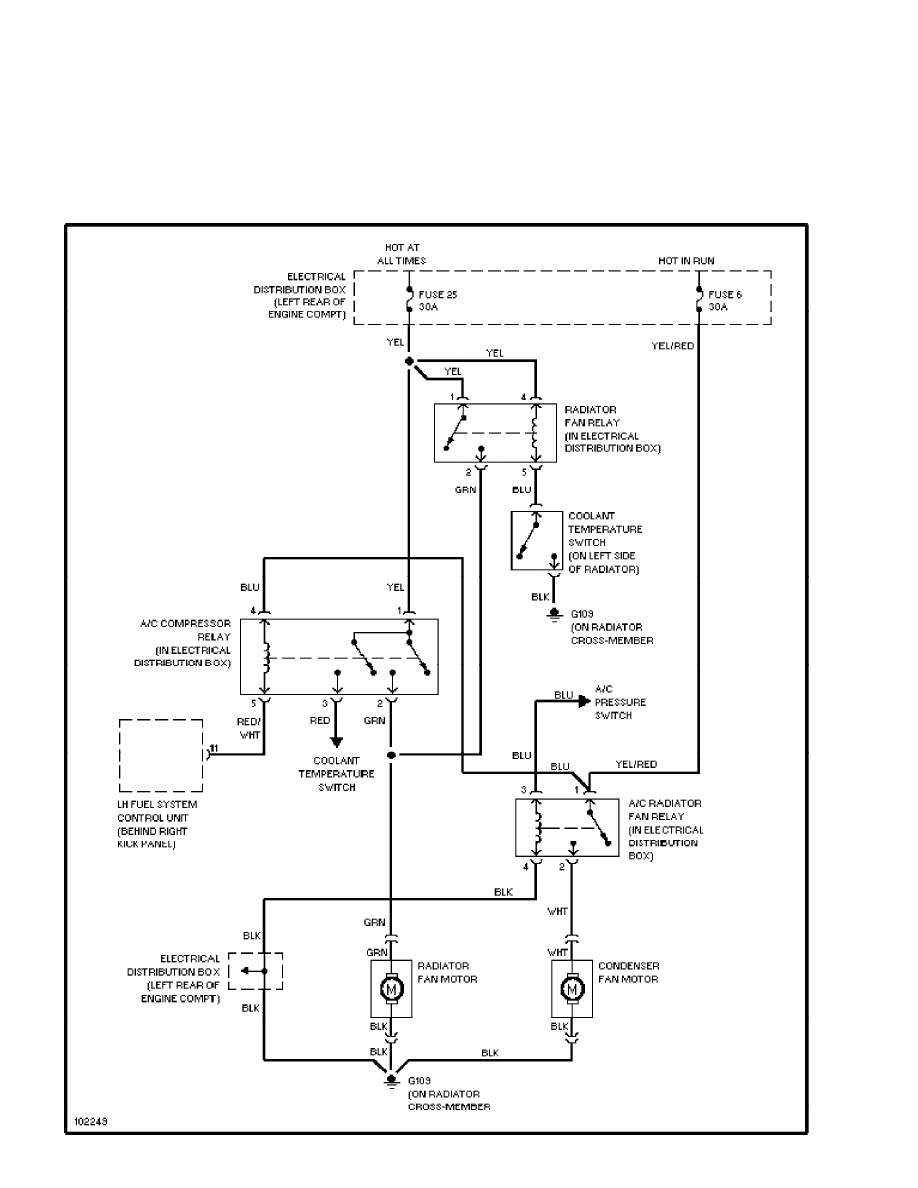

SYSTEM WIRING DIAGRAMS

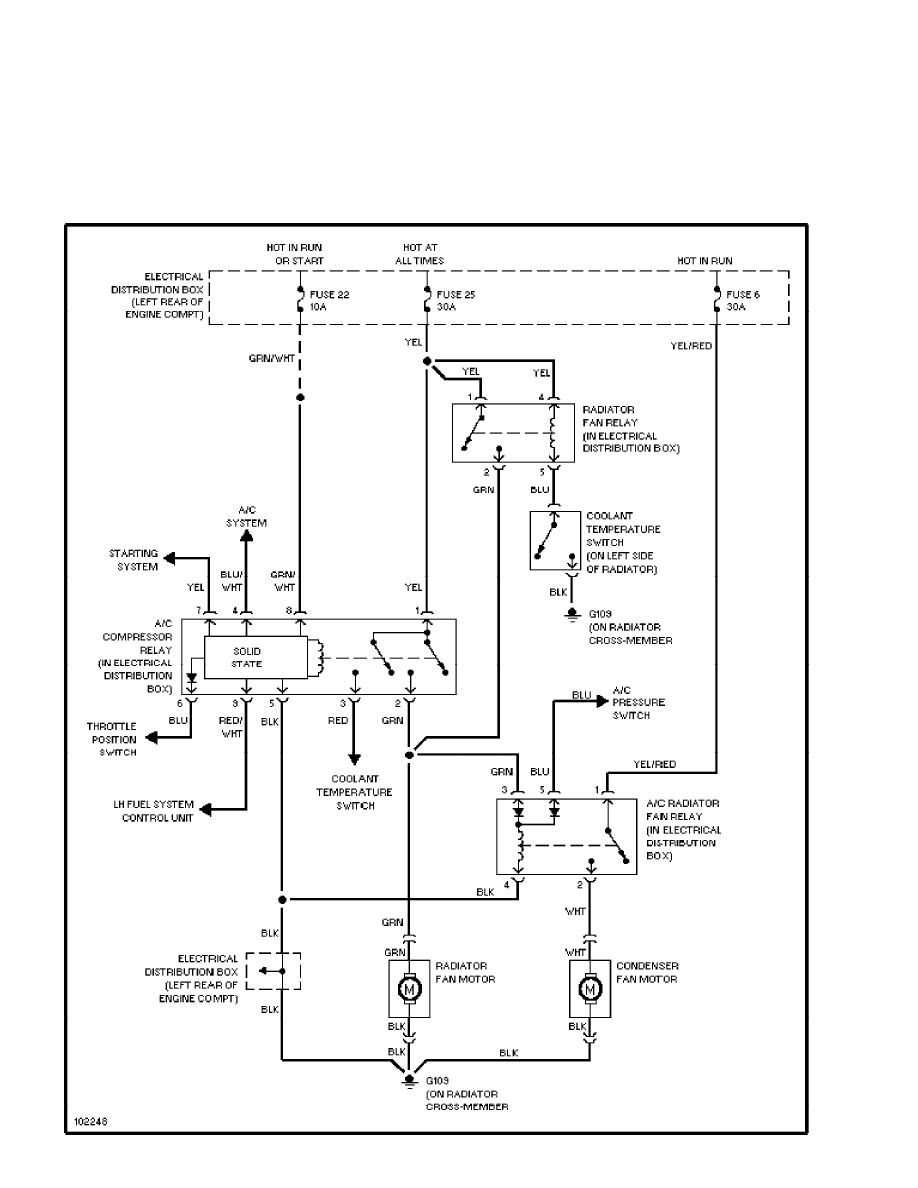

2.0L Turbo, Cooling Fan Circuit, W/ A/C

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

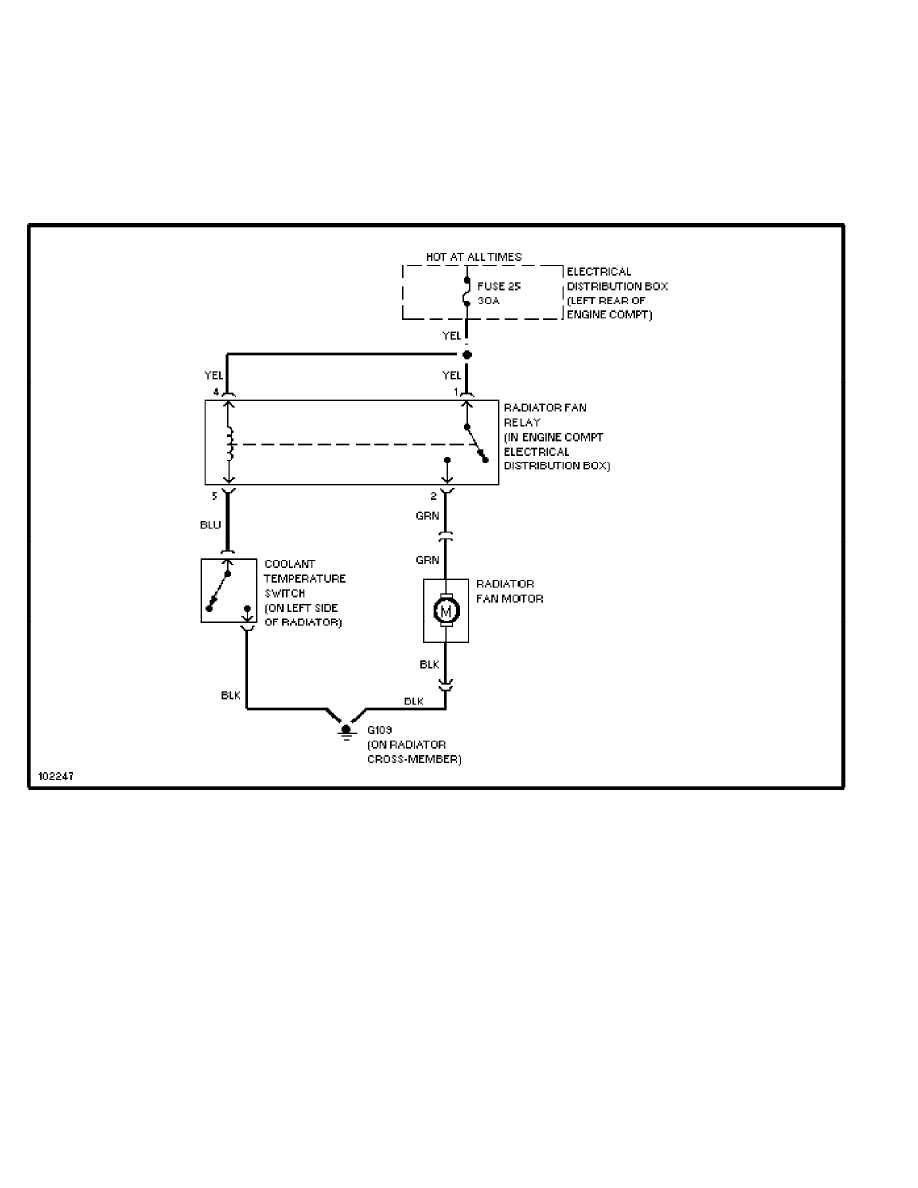

2.0L Turbo, Cooling Fan Circuit, W/O A/C (p. 2)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

2.1L, Cooling Fan Circuit, W/ A/C (p. 3)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

2.1L, Cooling Fan Circuit, W/O A/C (p. 4)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

Defogger Circuit (p. 5)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

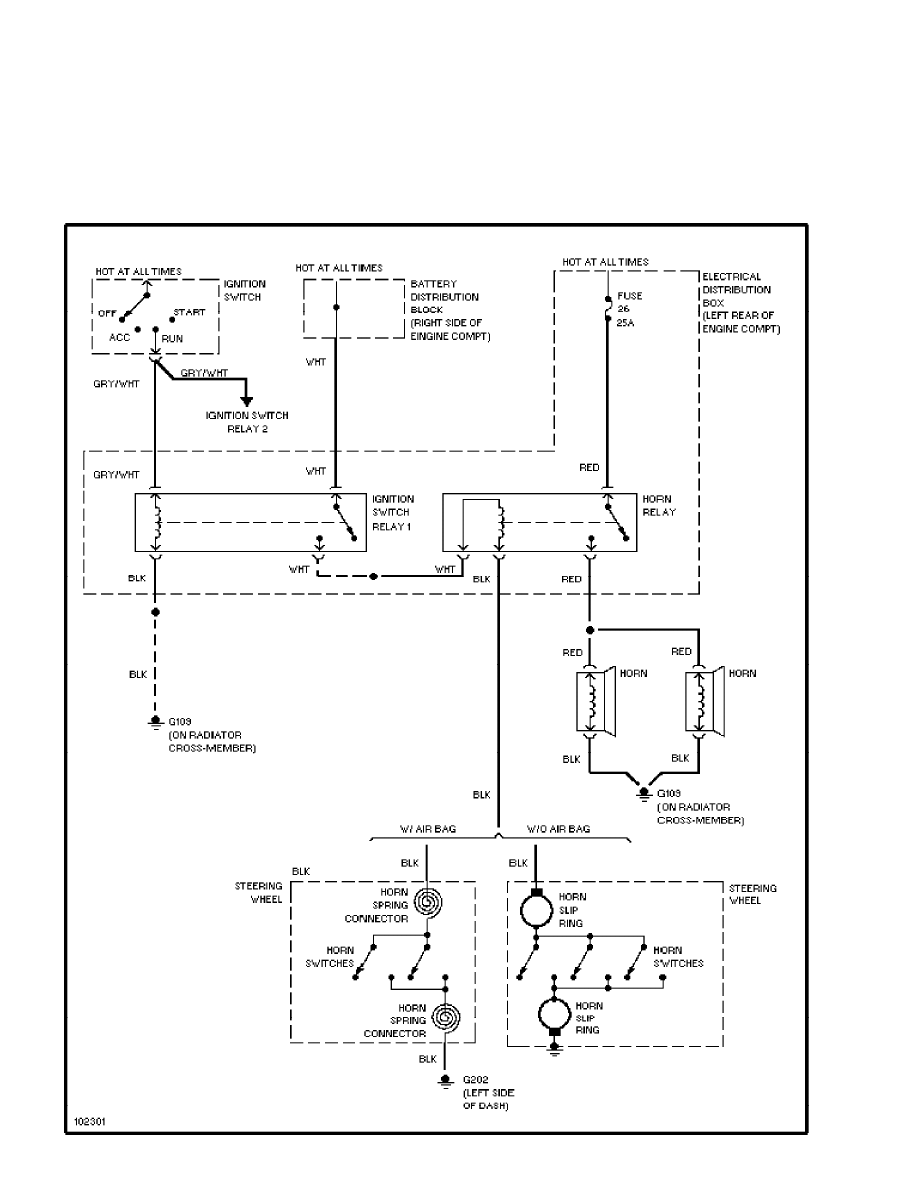

Horn Circuit (p. 6)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

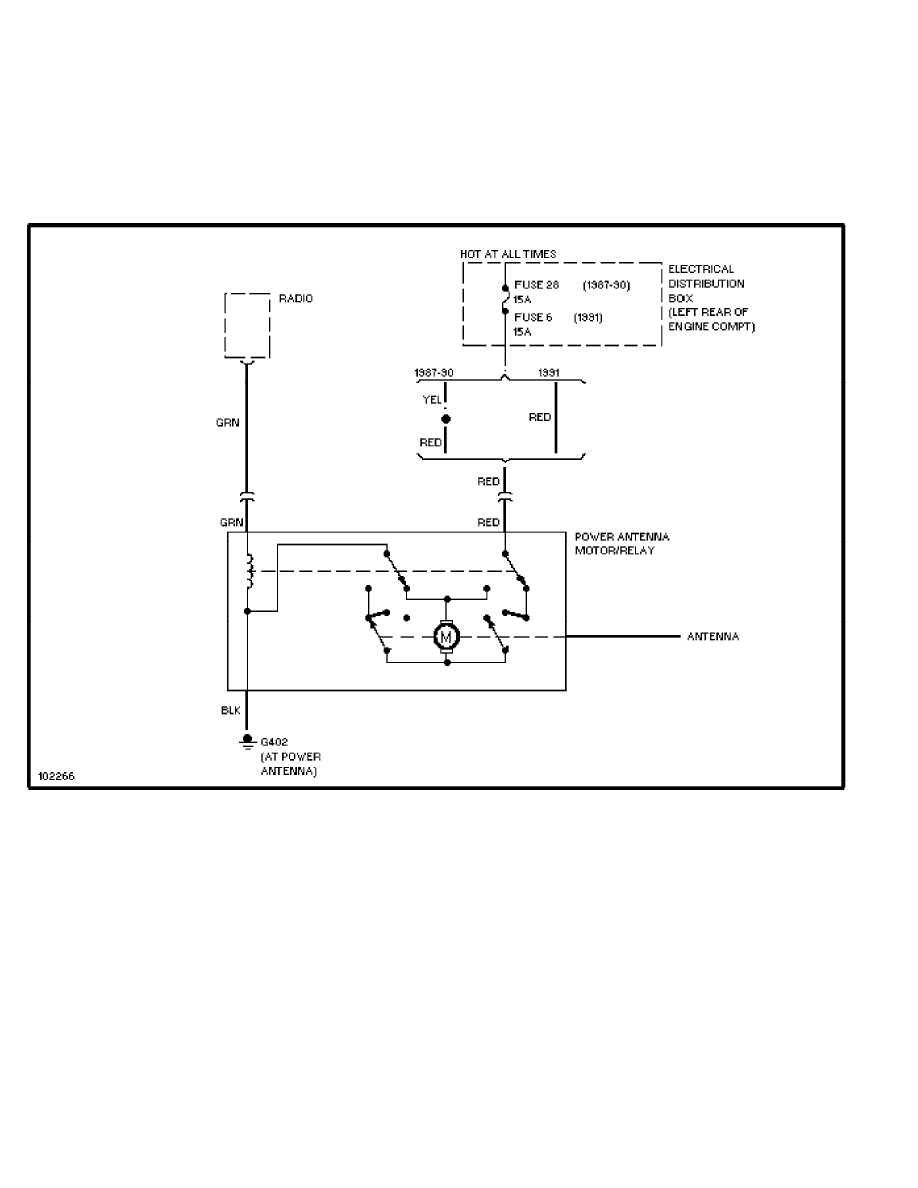

Power Antenna Circuit (p. 7)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

Power Door Lock Circuit, W/ Convertible (p. 8)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

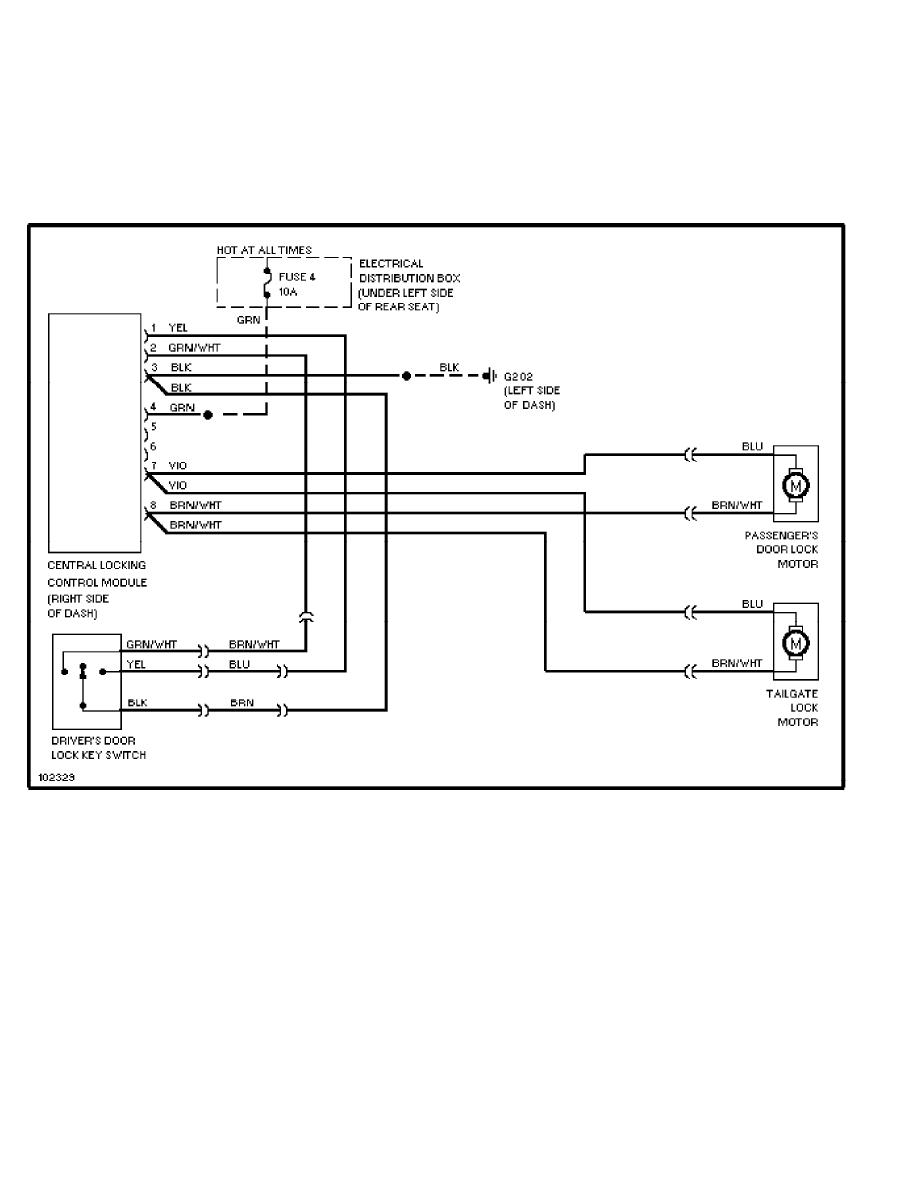

SYSTEM WIRING DIAGRAMS

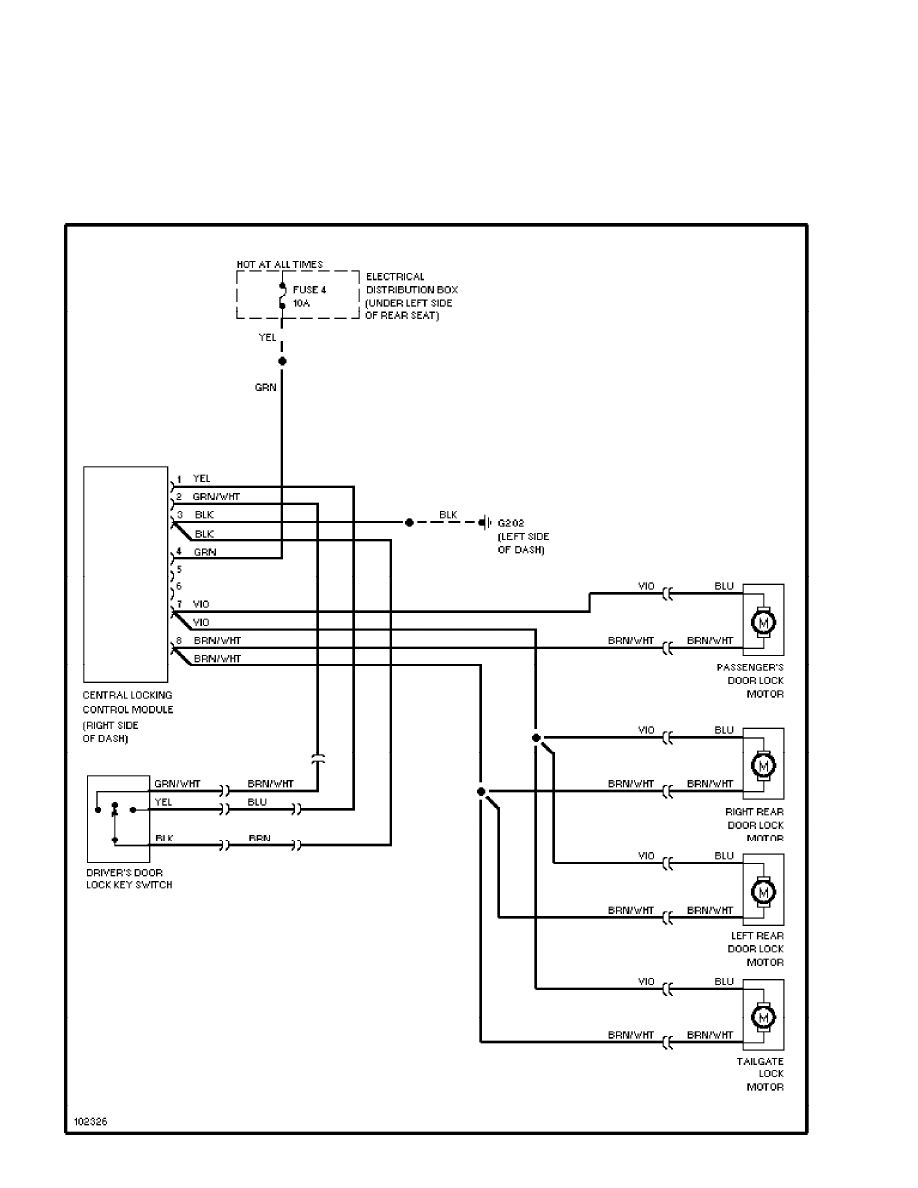

Power Door Lock Circuit, W/O Convertible (p. 9)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

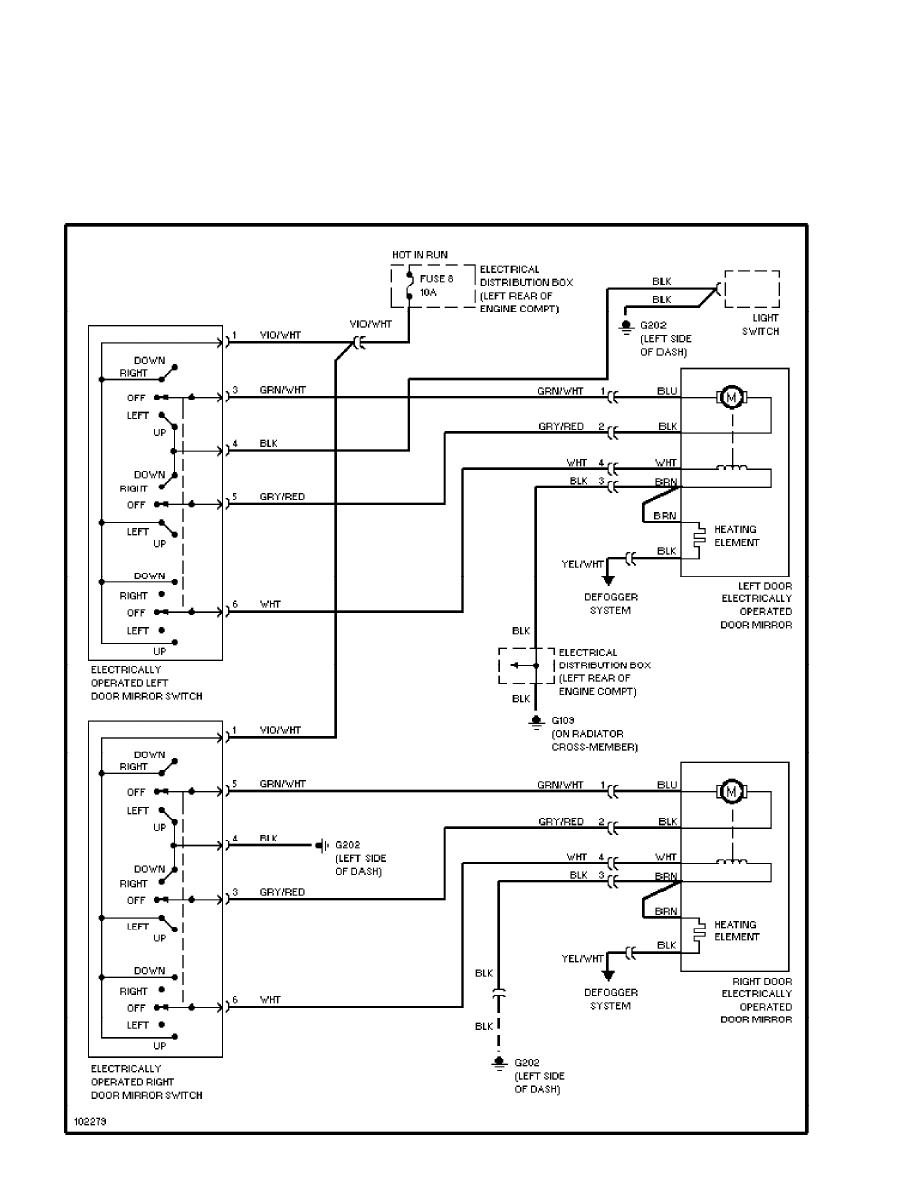

Power Mirror Circuit (p. 10)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

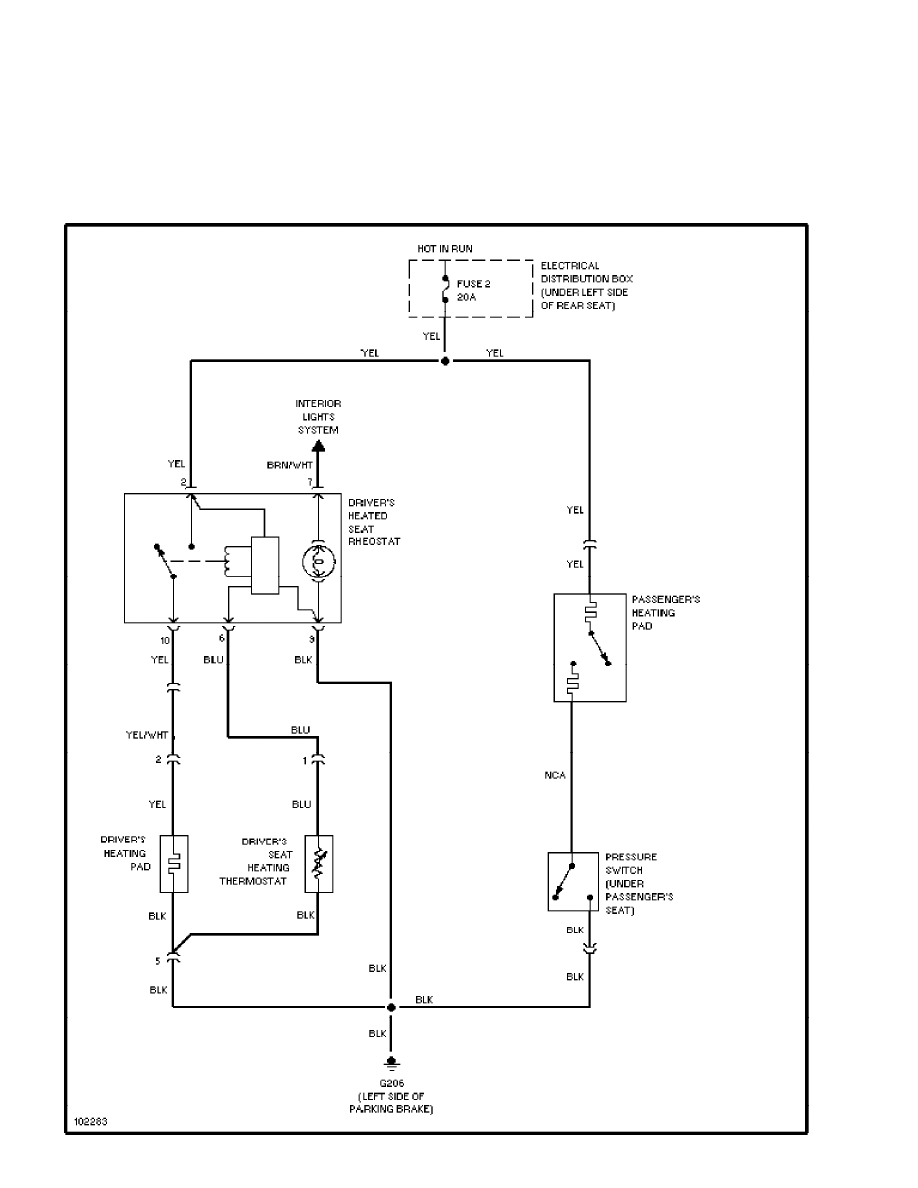

Heated Seats Circuit, W/ Rehostat Control (p. 11)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

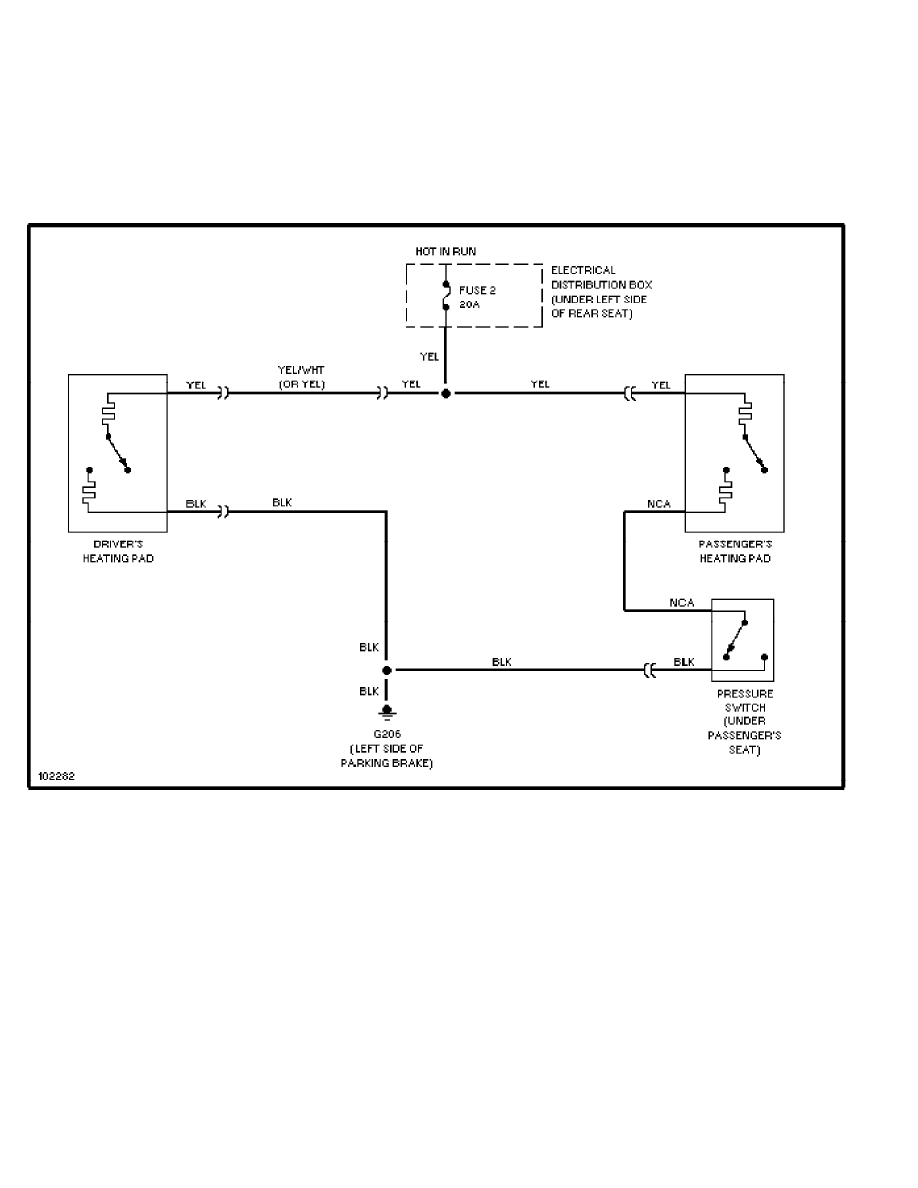

Heated Seats Circuit, W/O Rheostat Control (p. 12)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

Power Window Circuit, W/ Convertible (p. 13)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

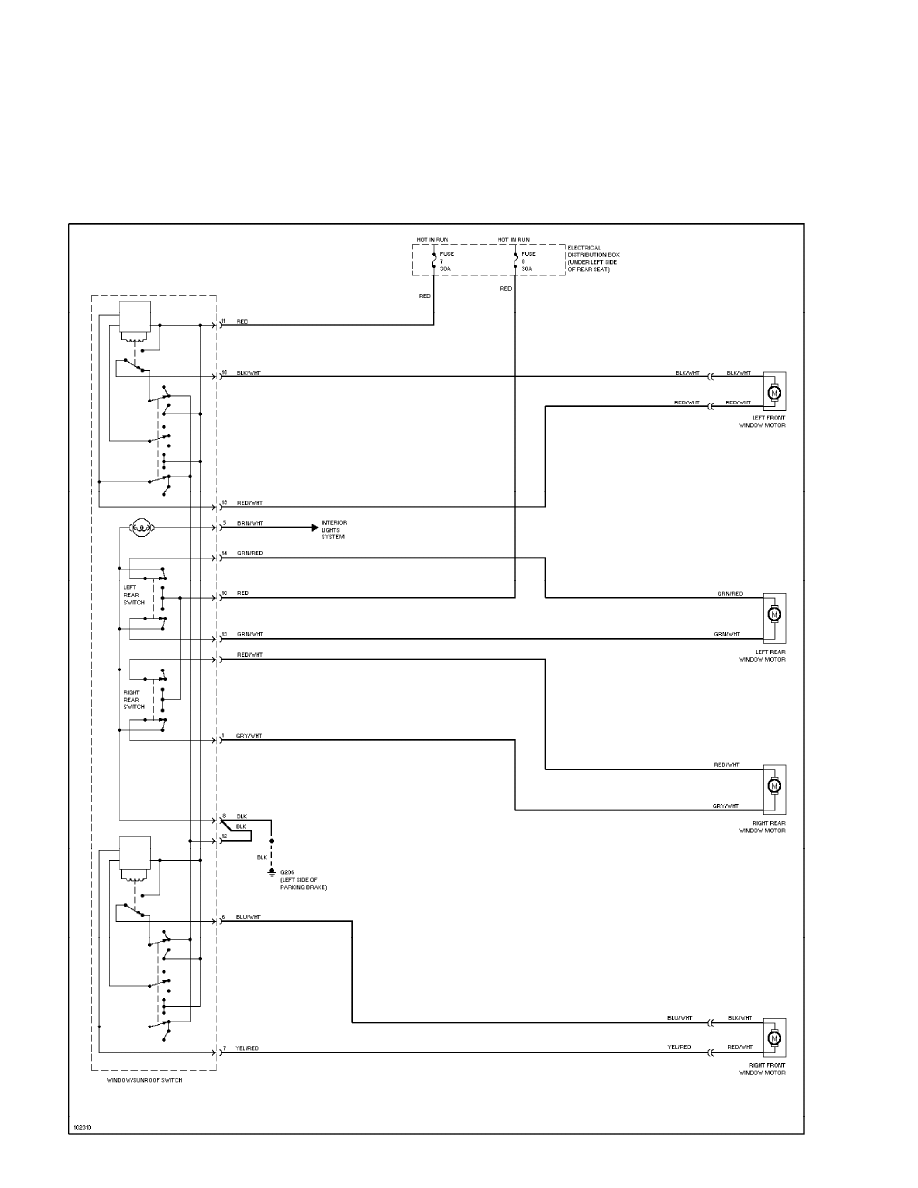

SYSTEM WIRING DIAGRAMS

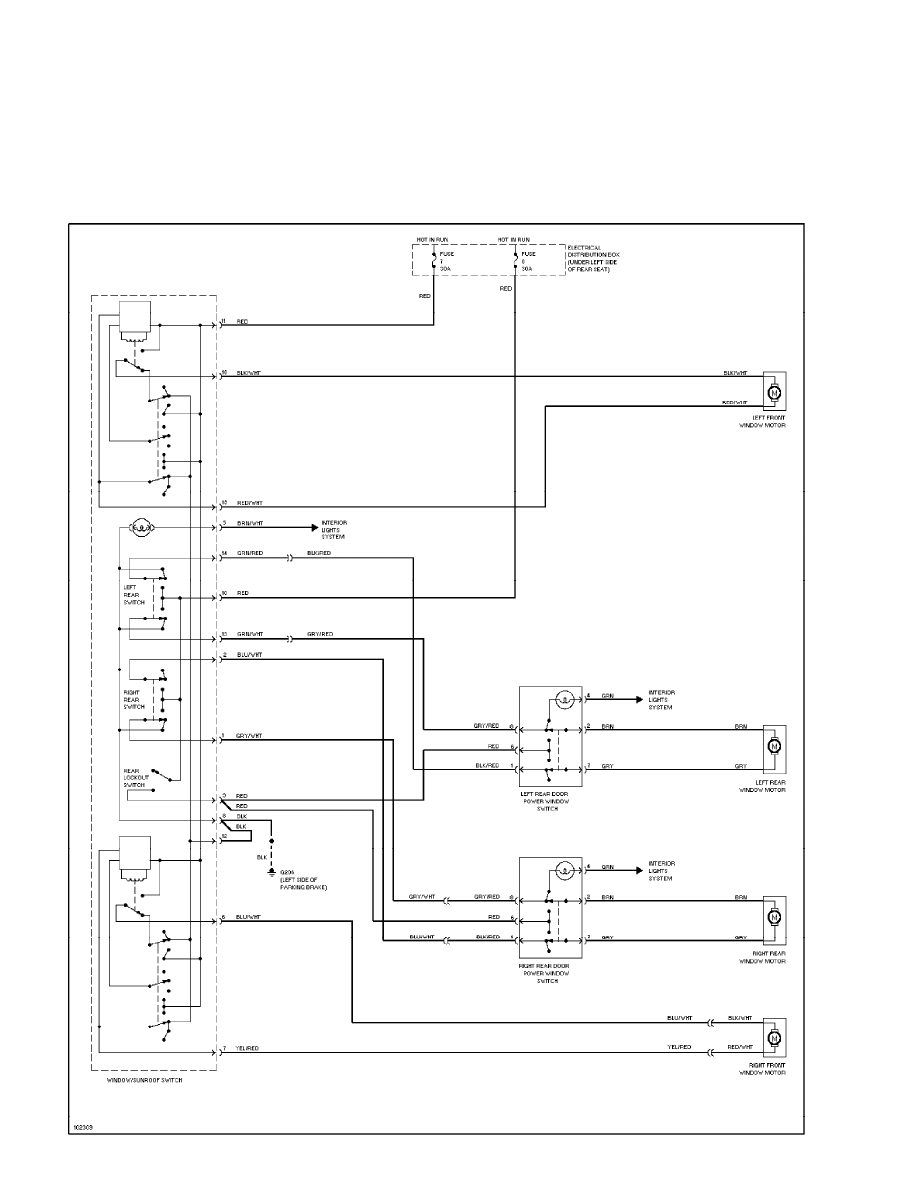

Power Window Circuit, W/O Convertible (p. 14)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

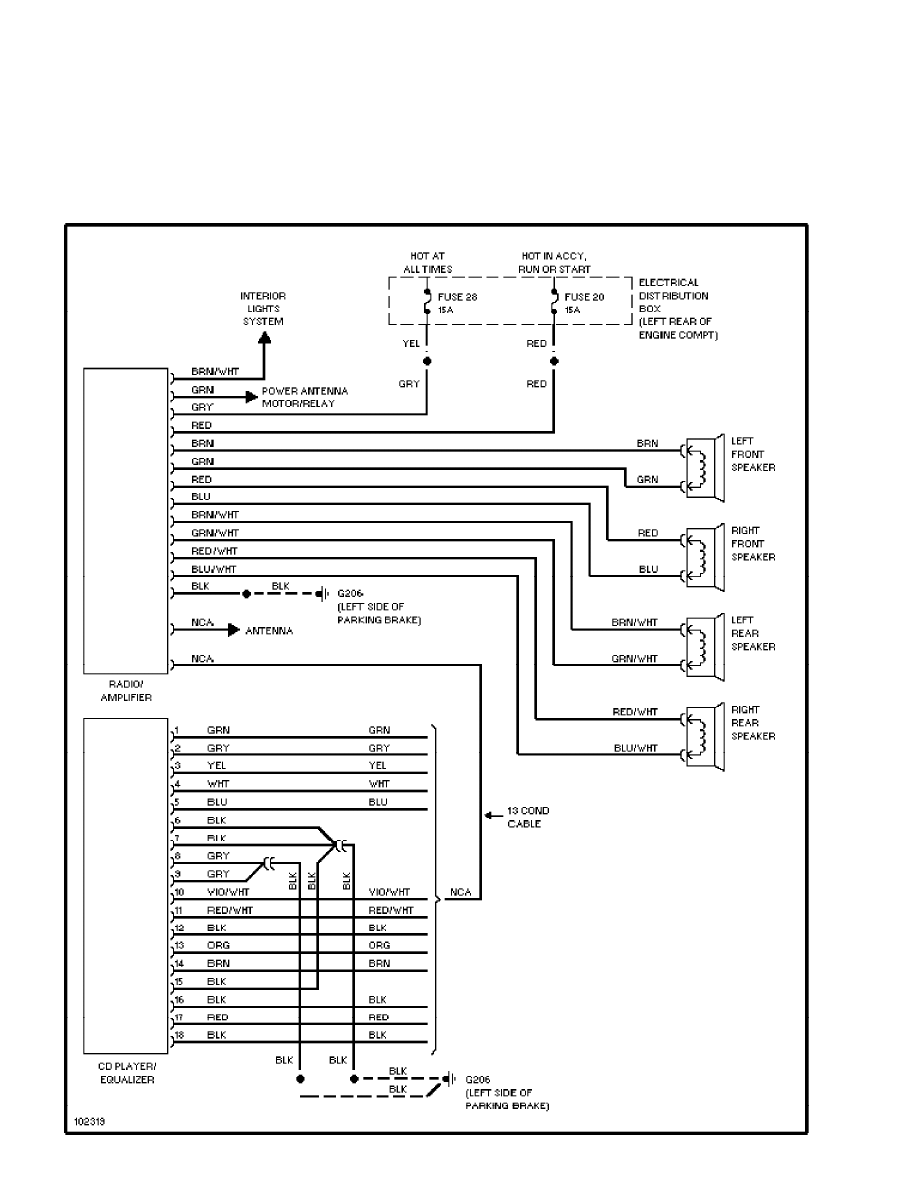

Radio Circuits (p. 15)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

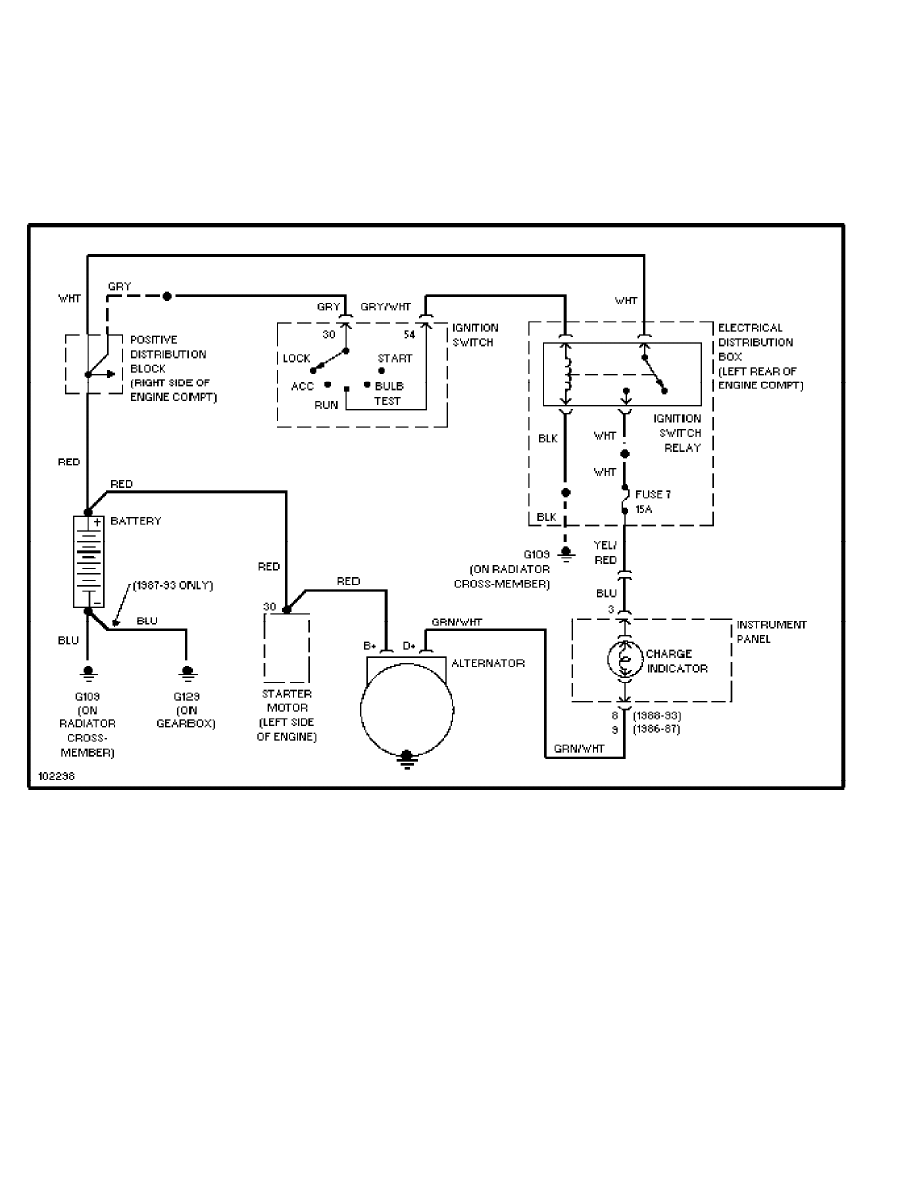

Charging Circuit (p. 16)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

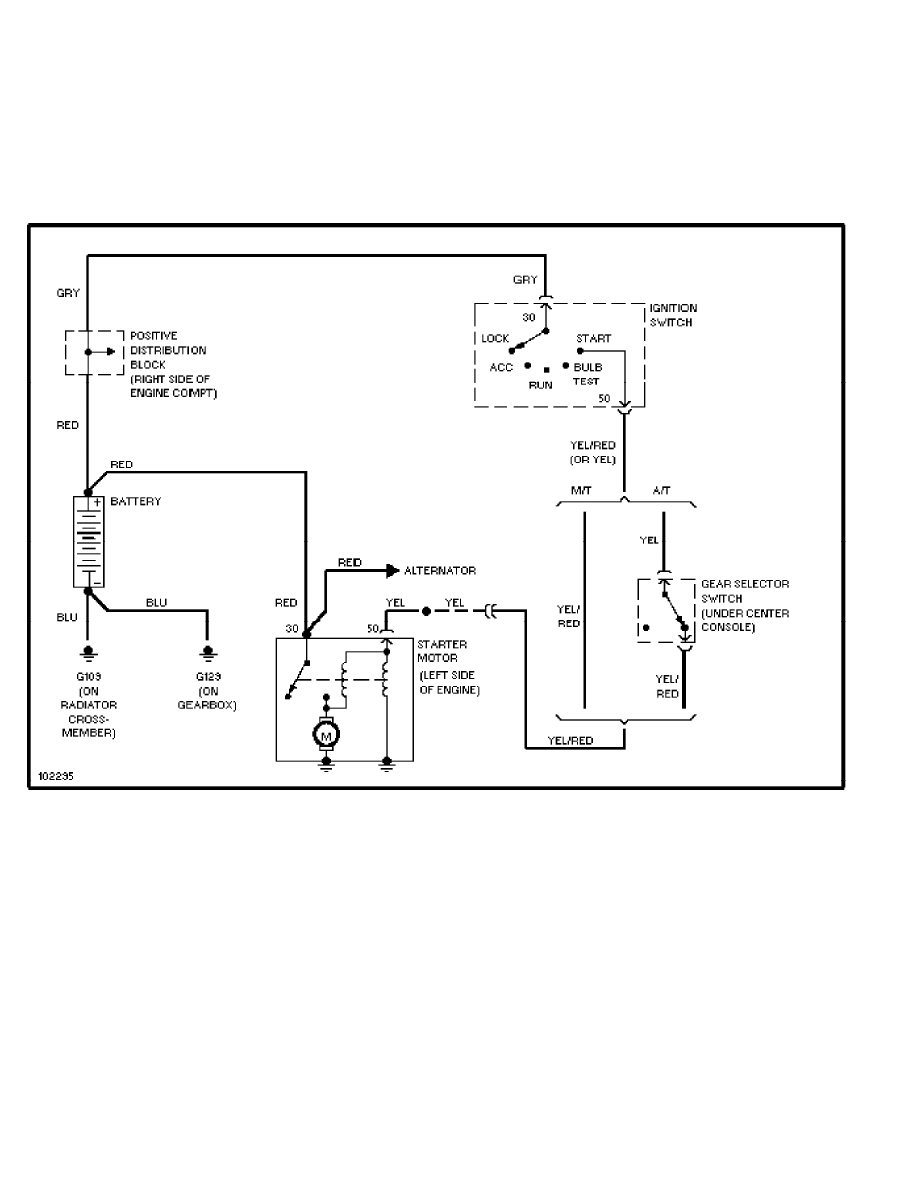

Starting Circuit (p. 17)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

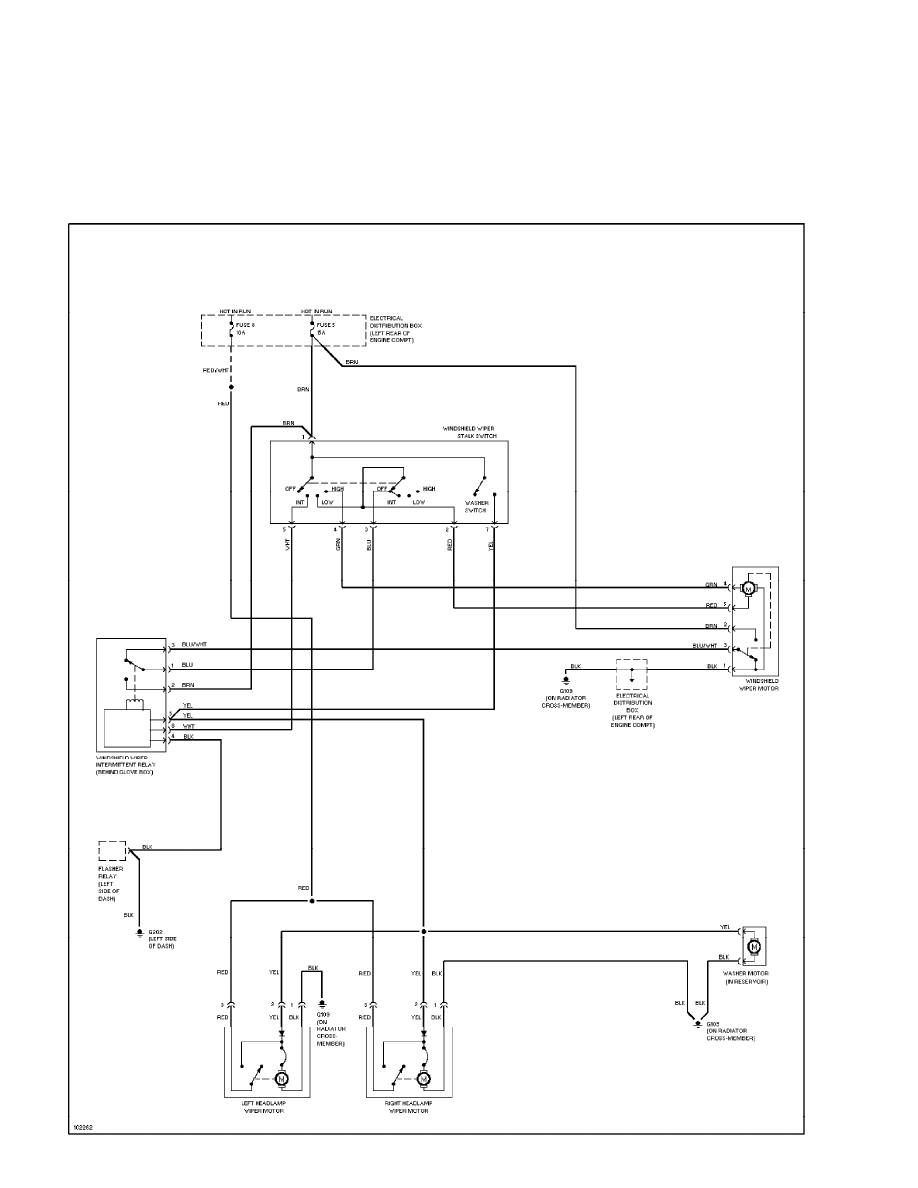

Wiper/Washer Circuit (p. 18)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

WIRING DIAGRAMS

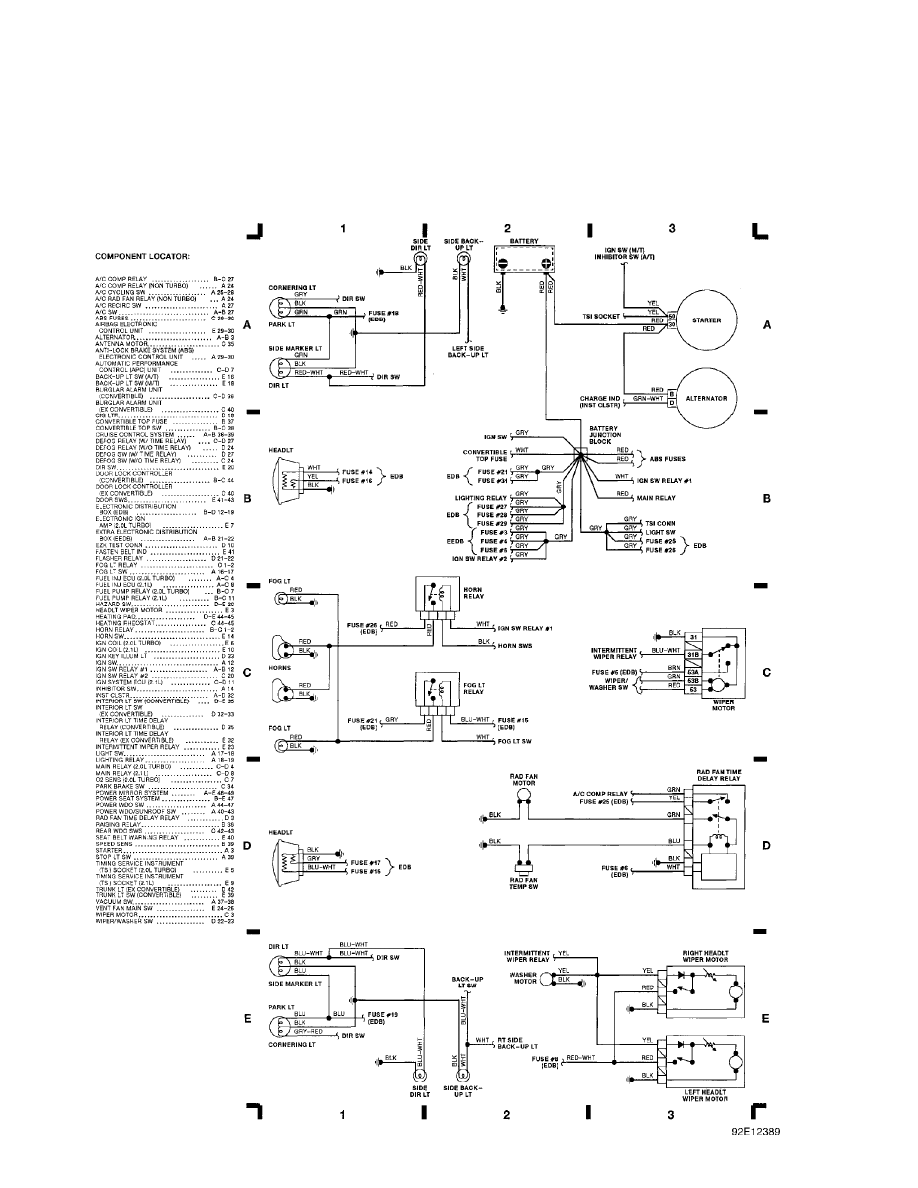

Fig. 1: Engine Compartment & Headlights (Grid 1-3)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

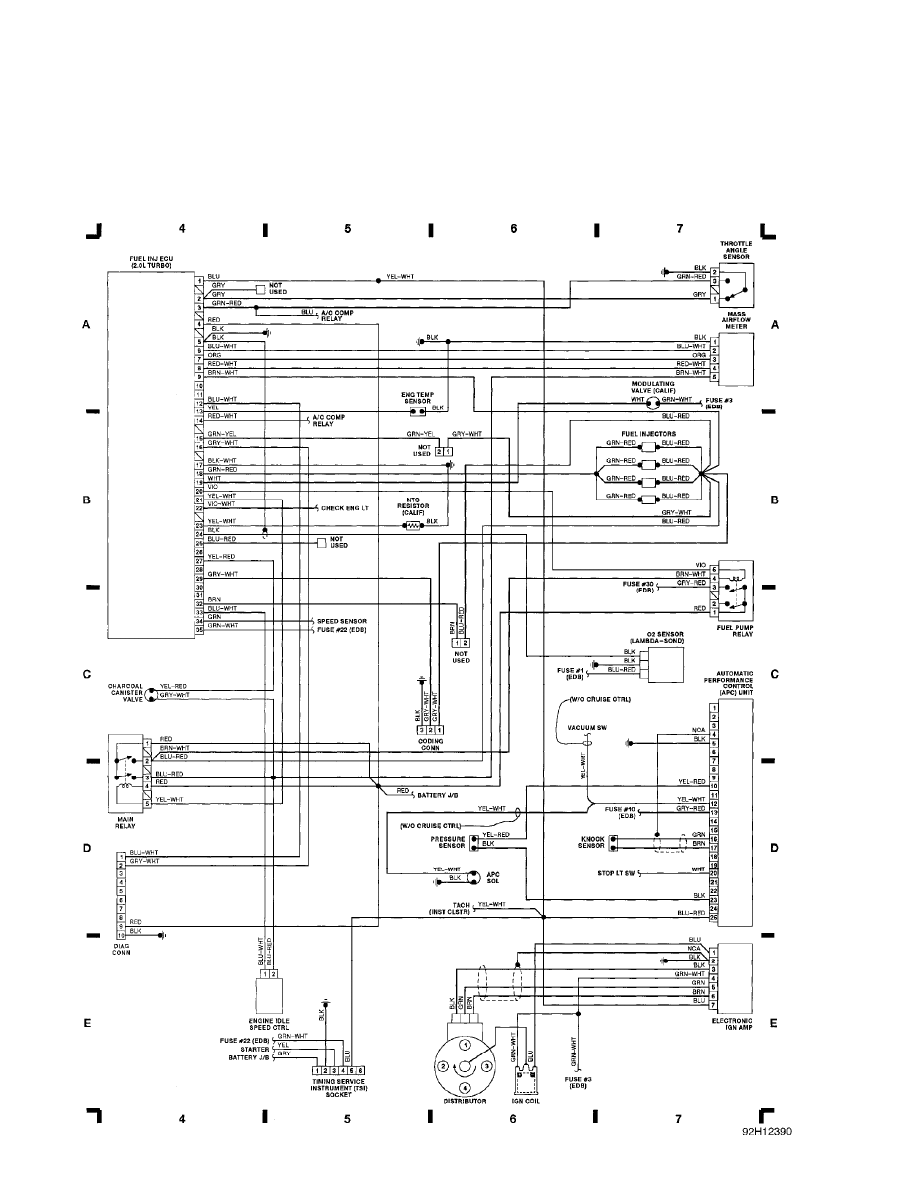

WIRING DIAGRAMS

Fig. 2: Computer Engine Control (2.0L Turbo), APC (Grid 4-7) (p. 2)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

WIRING DIAGRAMS

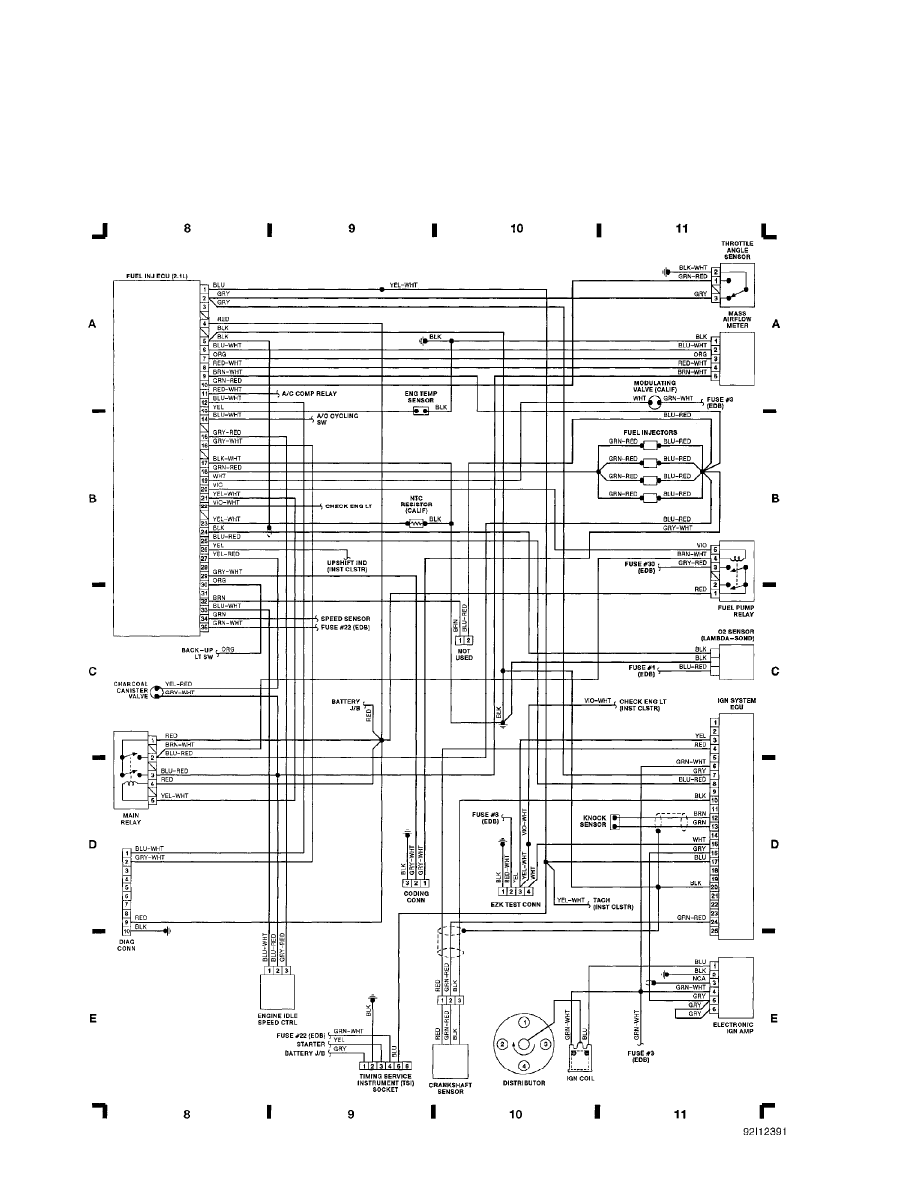

Fig. 3: Computer Engine Control (2.1L), Ign Sys ECU (Grid 8-11) (p. 3)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

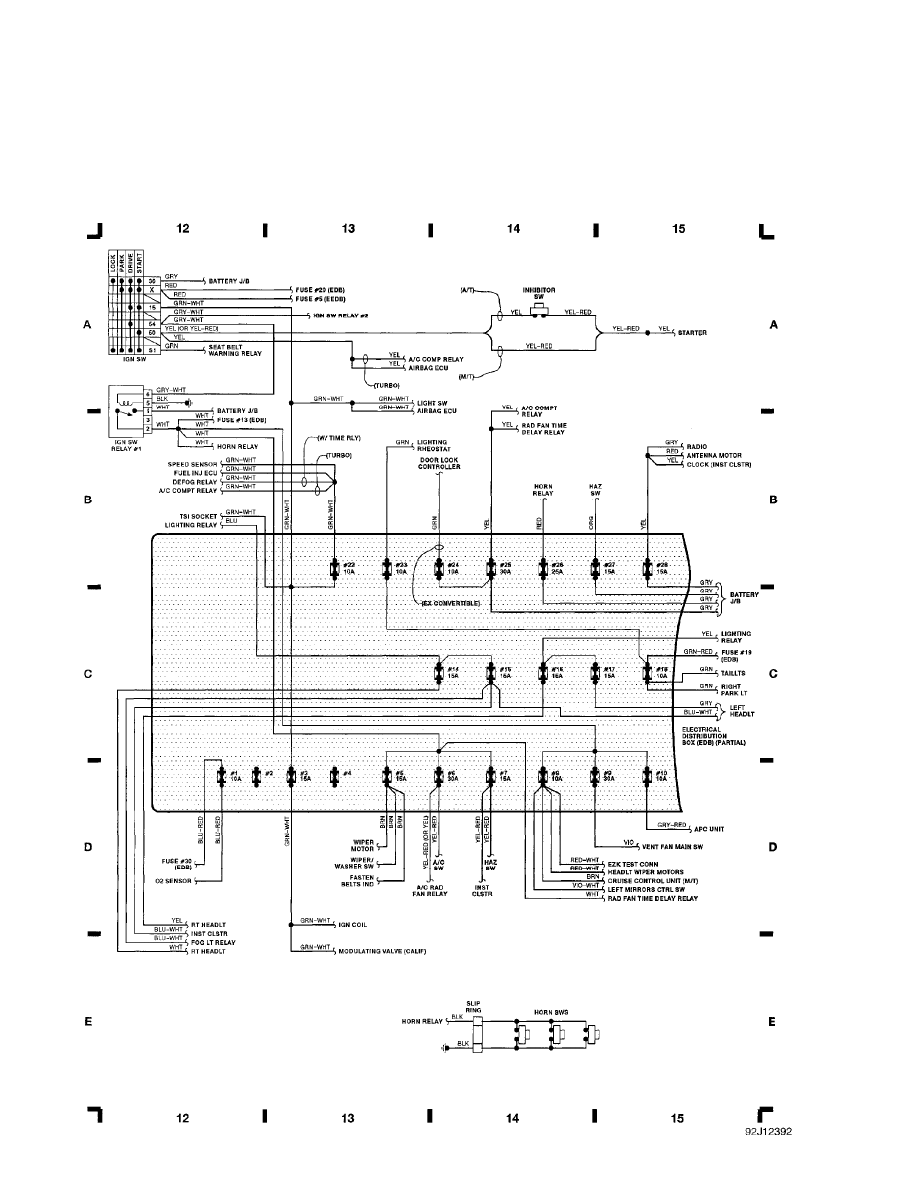

WIRING DIAGRAMS

Fig. 4: Elect Dist Box (Partial), Ignition Sw (Grid 12-15) (p. 4)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

WIRING DIAGRAMS

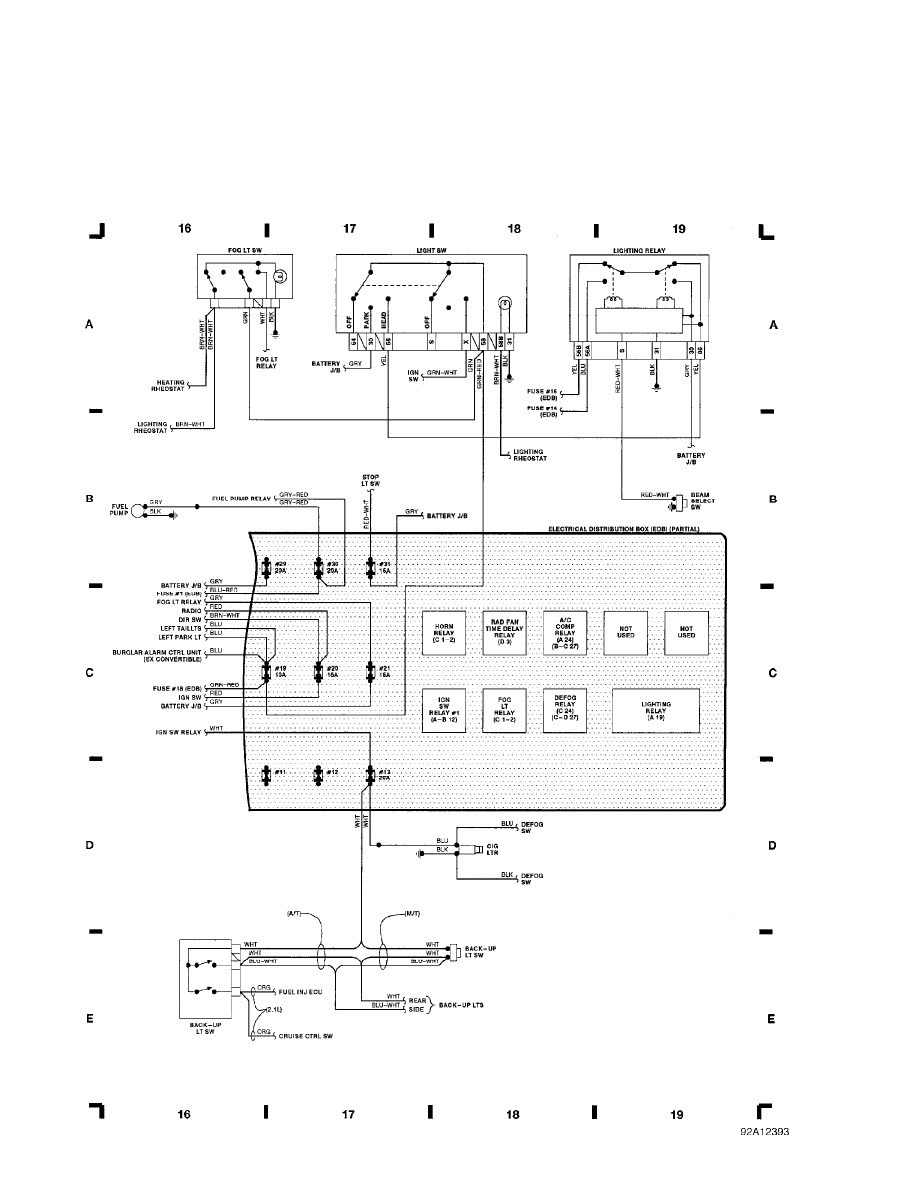

Fig. 5: Elect Dist Box (Partial), Lighting Rly (Grid 16-19) (p. 5)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

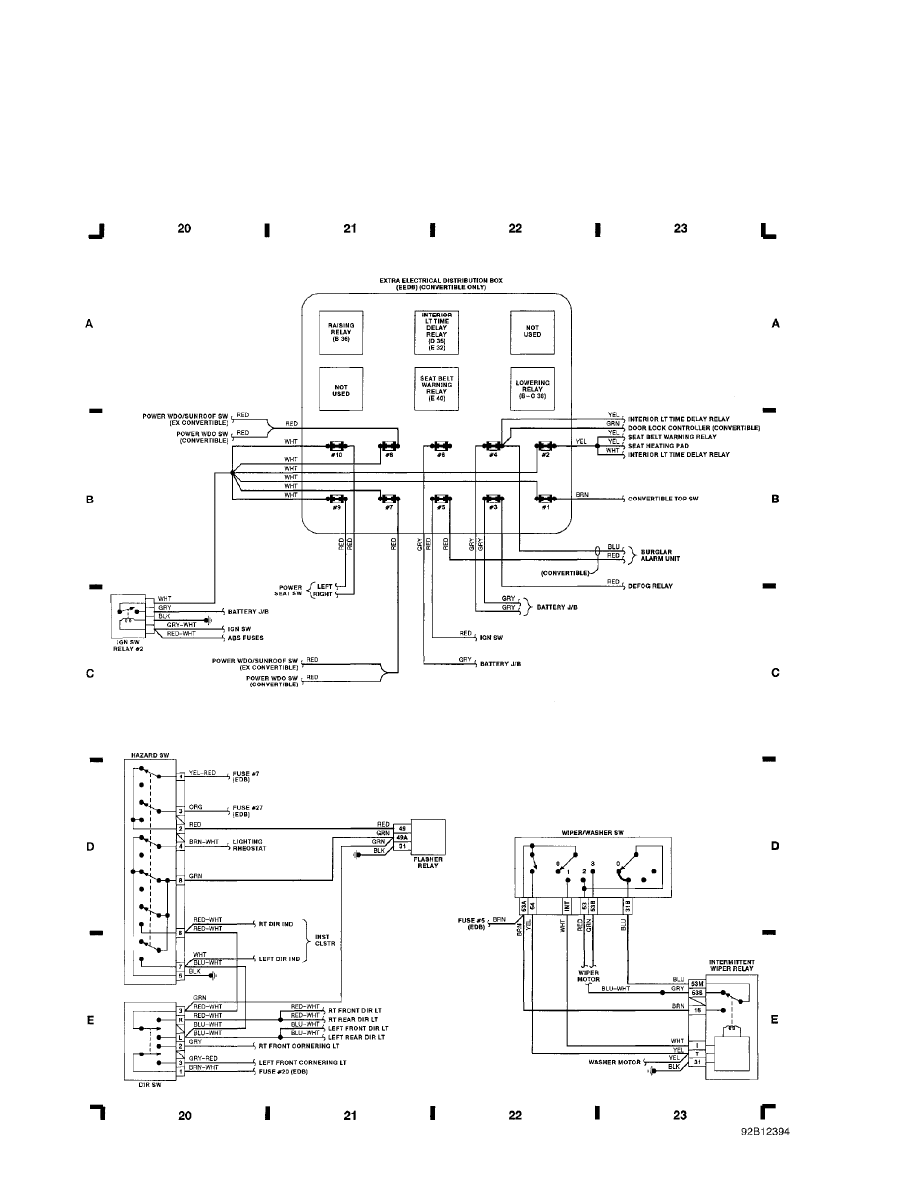

WIRING DIAGRAMS

Fig. 6: EEDB (Convt Only), Hazard Sw, Wiper/Washer Sw (Grid 20-23) (p. 6)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

WIRING DIAGRAMS

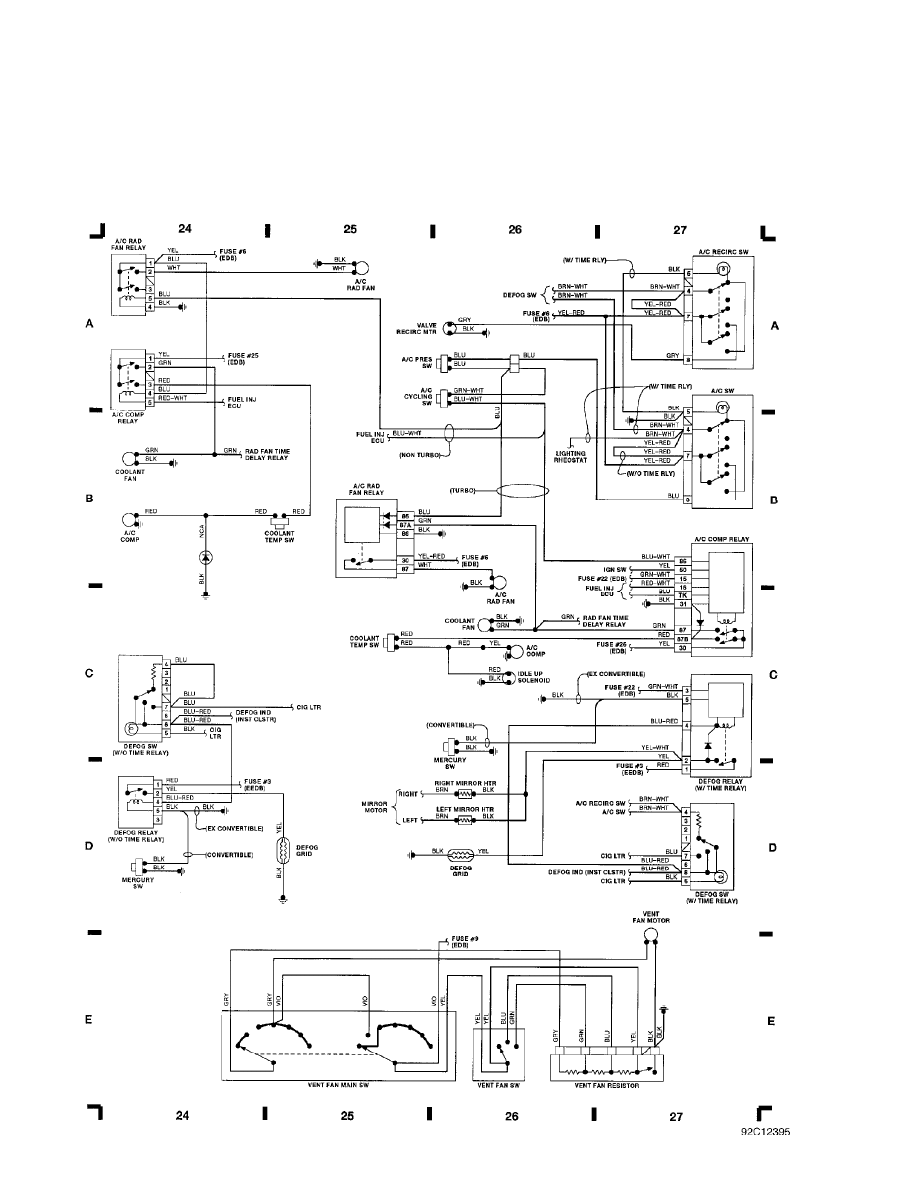

Fig. 7: A/C & Heater, Defog Sw & Relay, Vent Fan Sw (Grid 24-27) (p. 7)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

WIRING DIAGRAMS

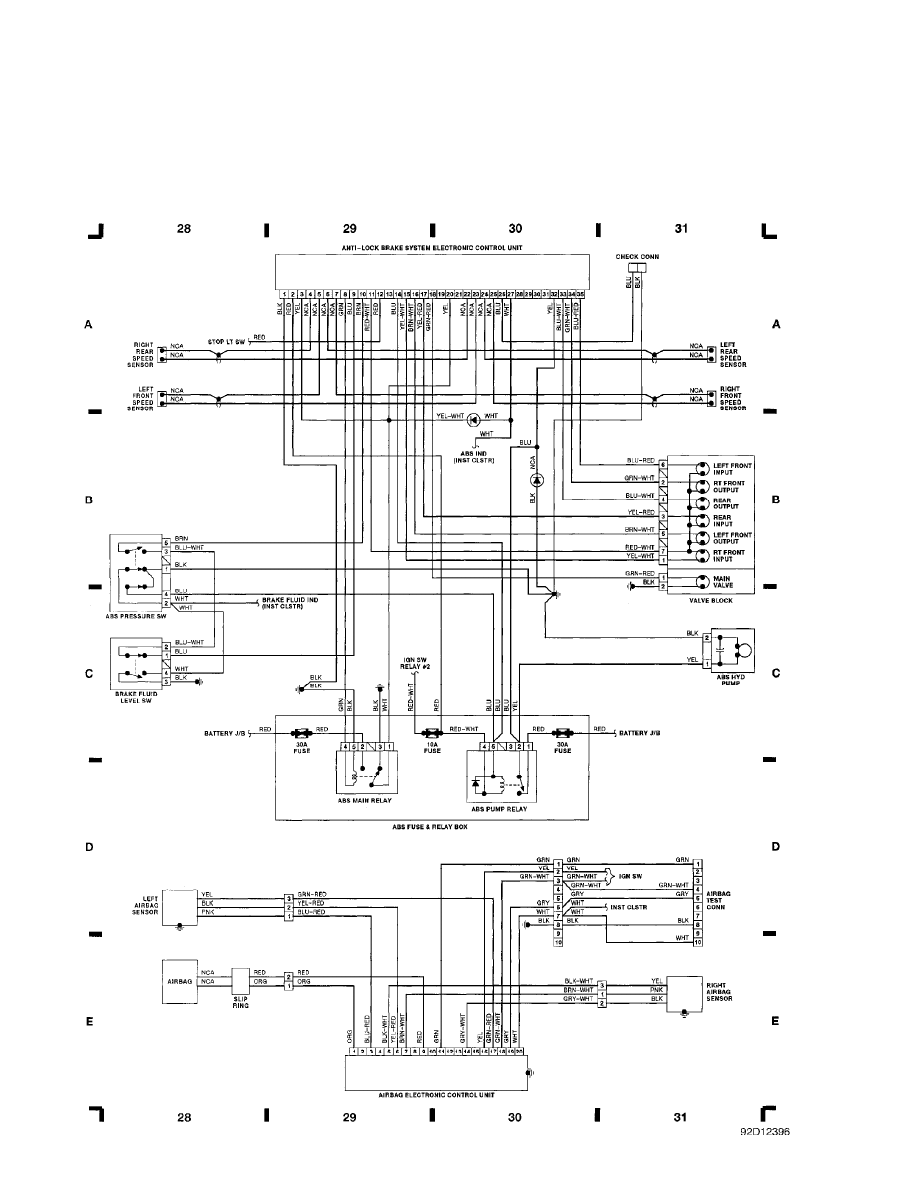

Fig. 8: ABS Sys, Airbag Elect Ctrl Unit (Grid 28-31) (p. 8)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

WIRING DIAGRAMS

Fig. 9: Inst Cluster, Interior Lts (Grid 32-35) (p. 9)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

WIRING DIAGRAMS

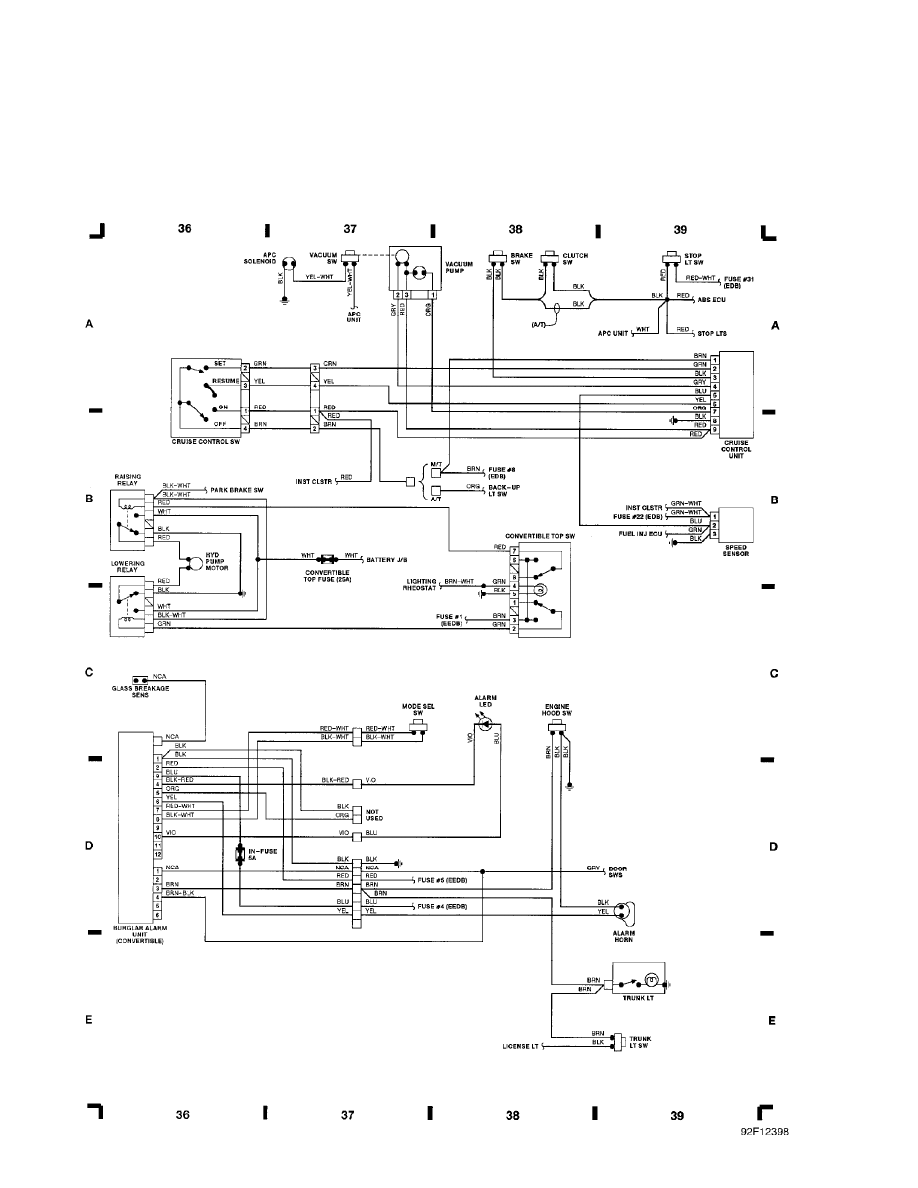

Fig. 10: Cruise Ctrl, Convt Top Sw, Burglar Alarm (Grid 36-39) (p. 10)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

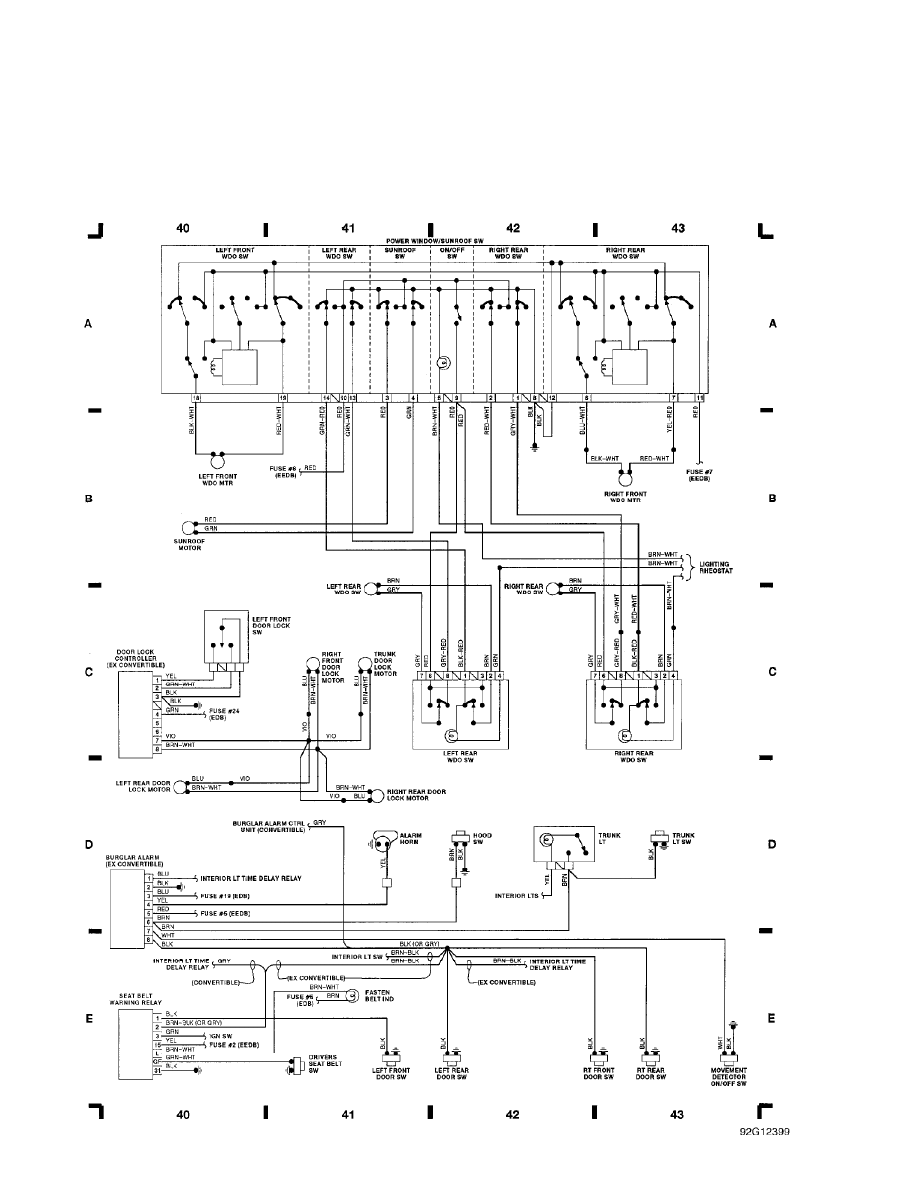

WIRING DIAGRAMS

Fig. 11: Power Wdo/Sunroof/Seats, Burglar Alarm (Grid 40-43) (p. 11)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

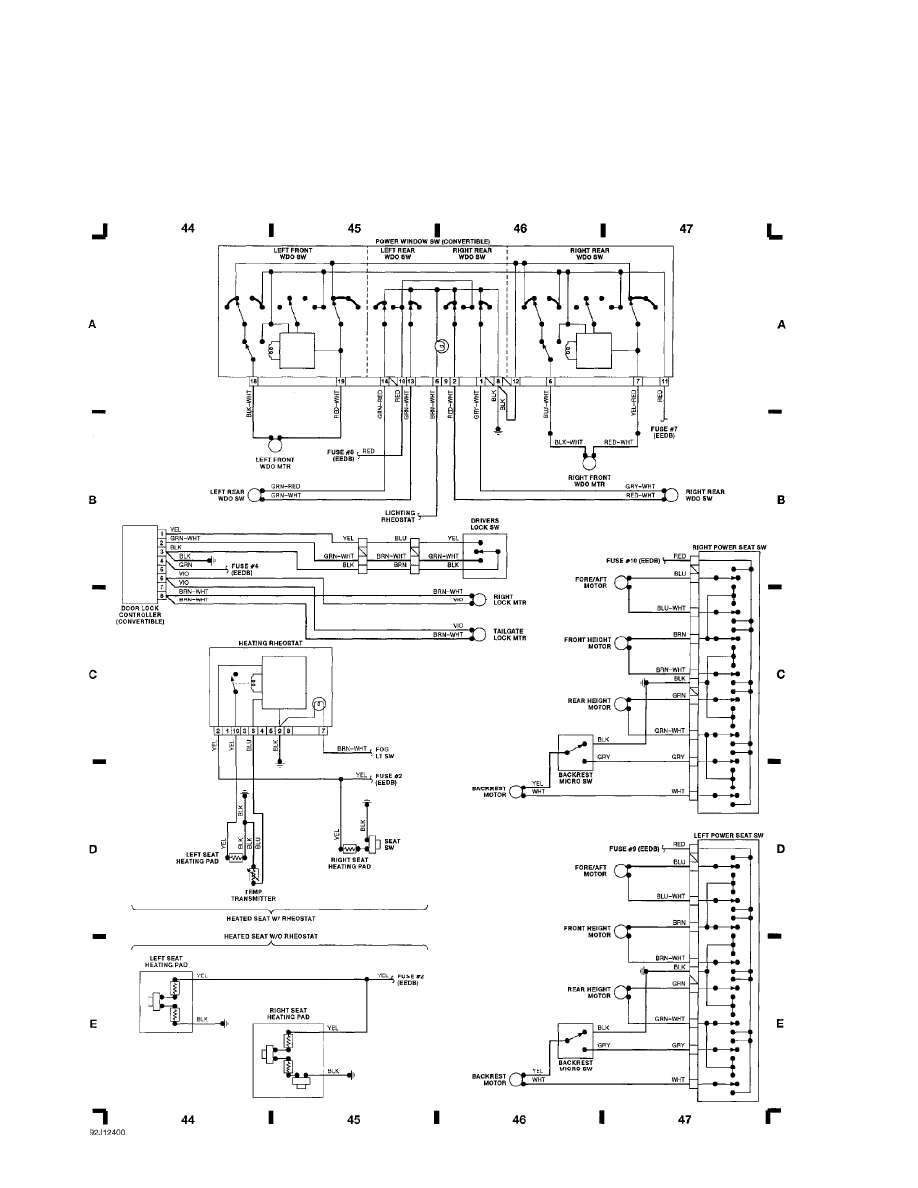

WIRING DIAGRAMS

Fig. 12: Power Wdo/Door/Seats (Convt)/ (Grid 44-47) (p. 12)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM

WIRING DIAGRAMS

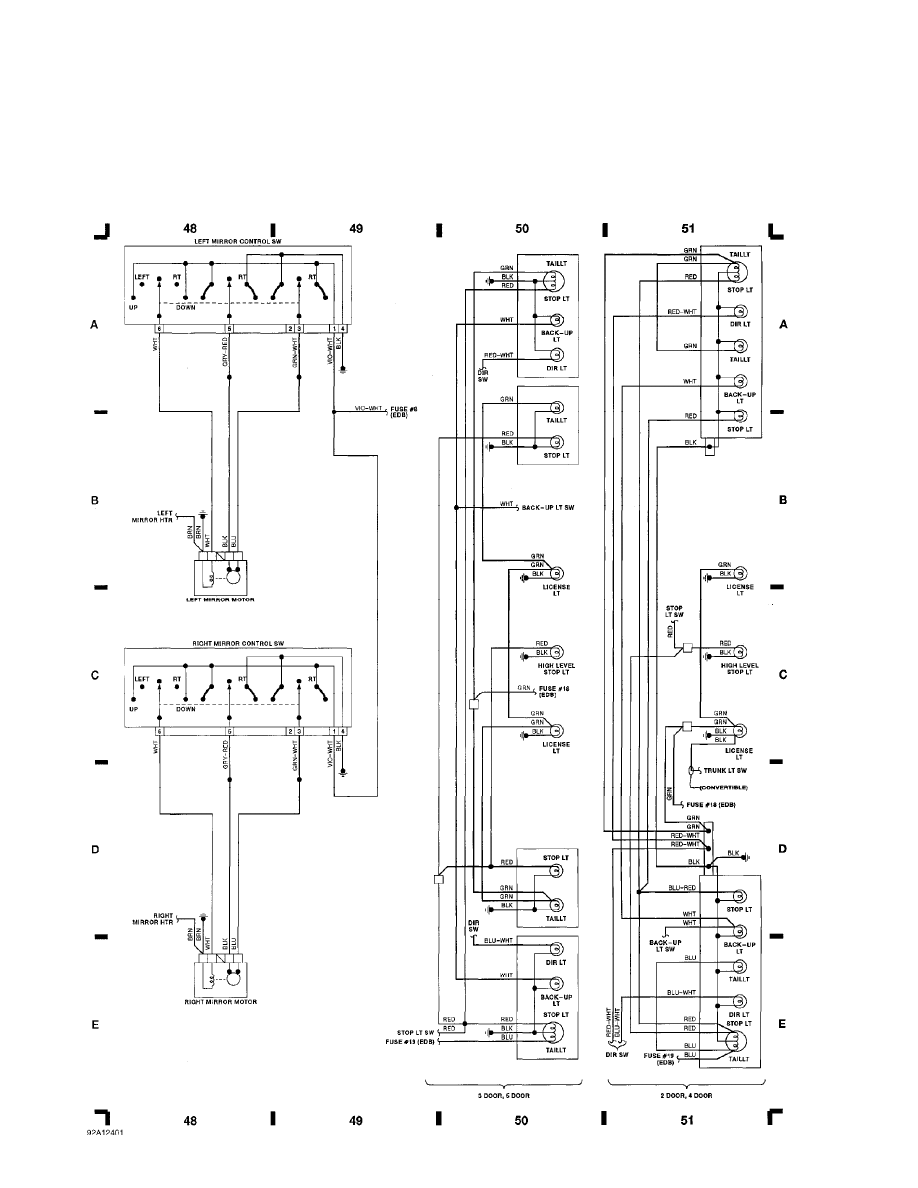

Fig. 13: Power Mirror, Taillights (Grid 48-51) (p. 13)

1991 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:29PM
