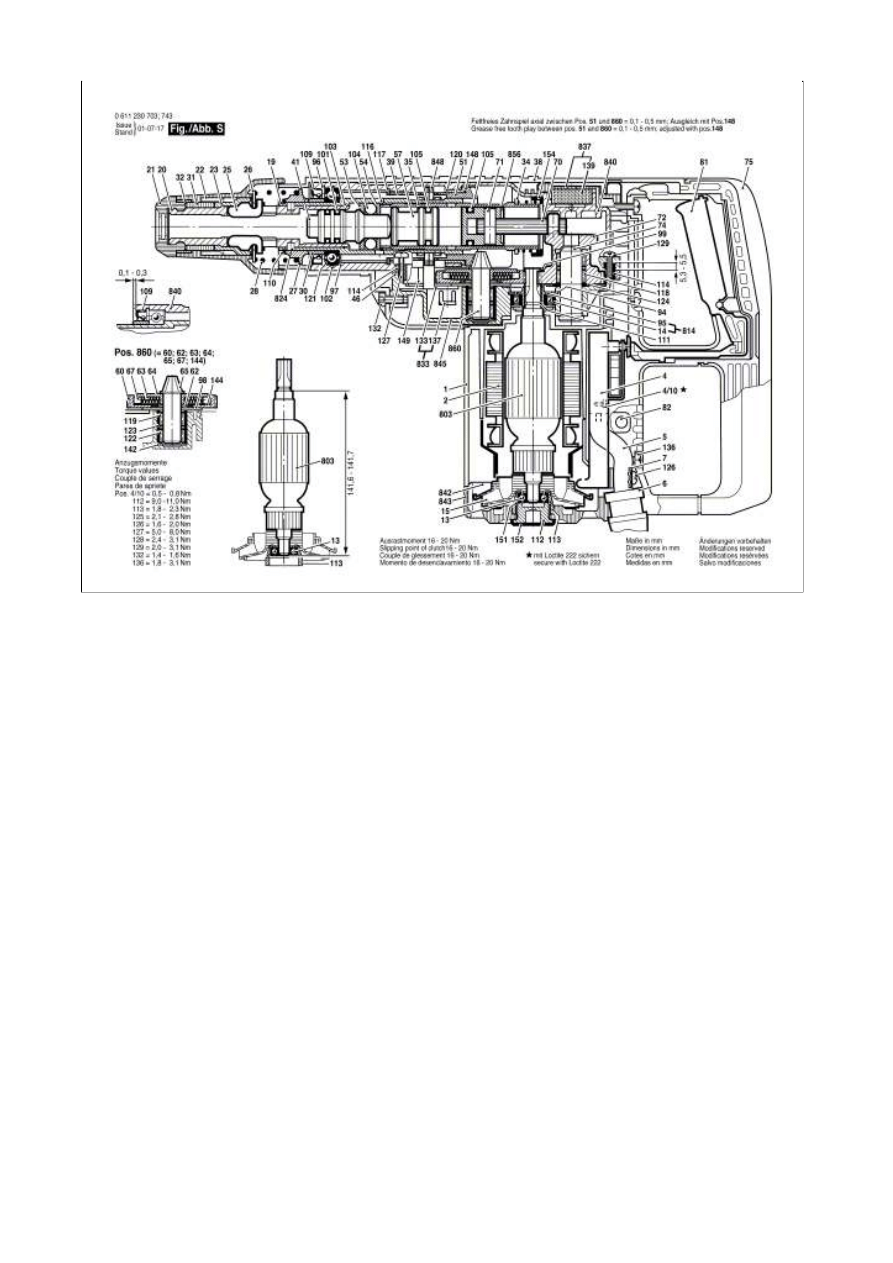

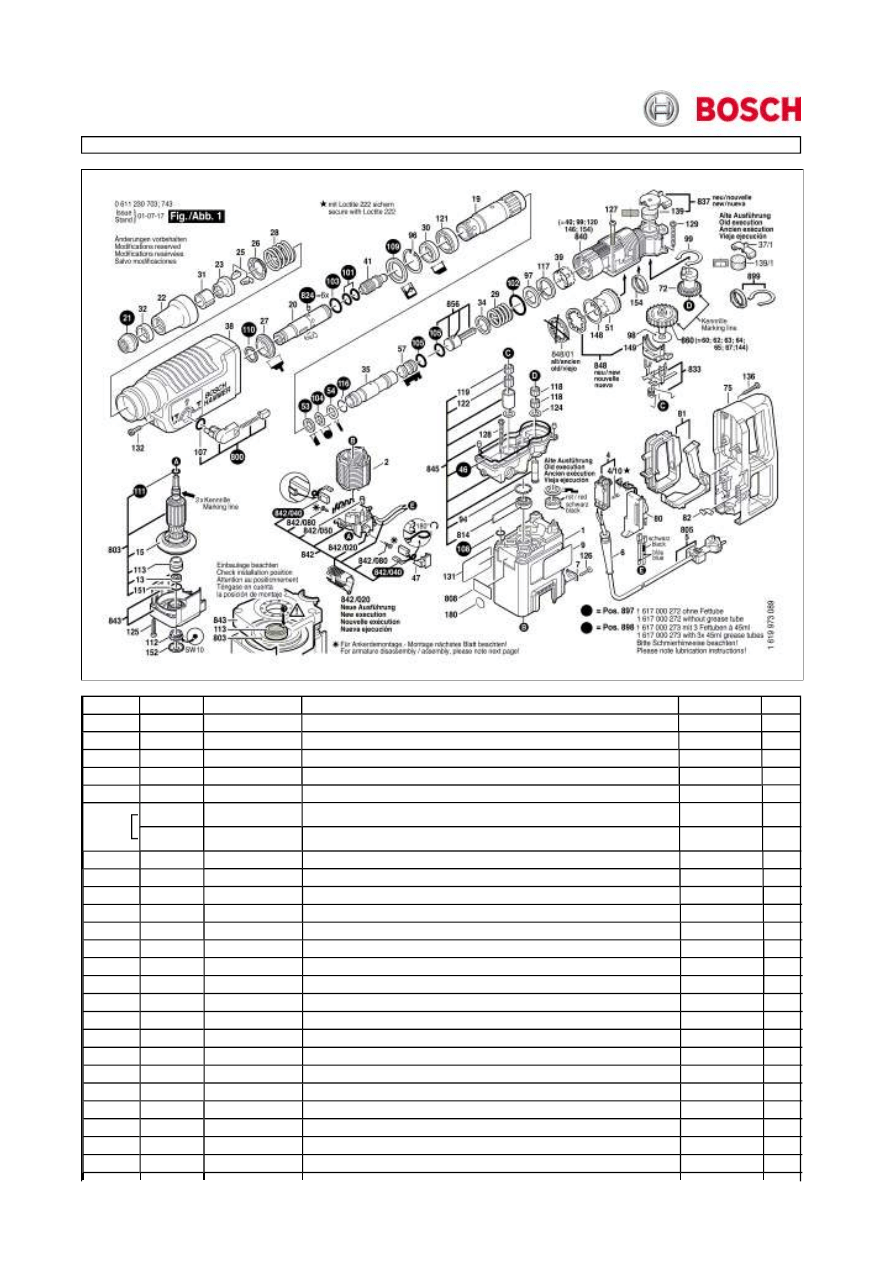

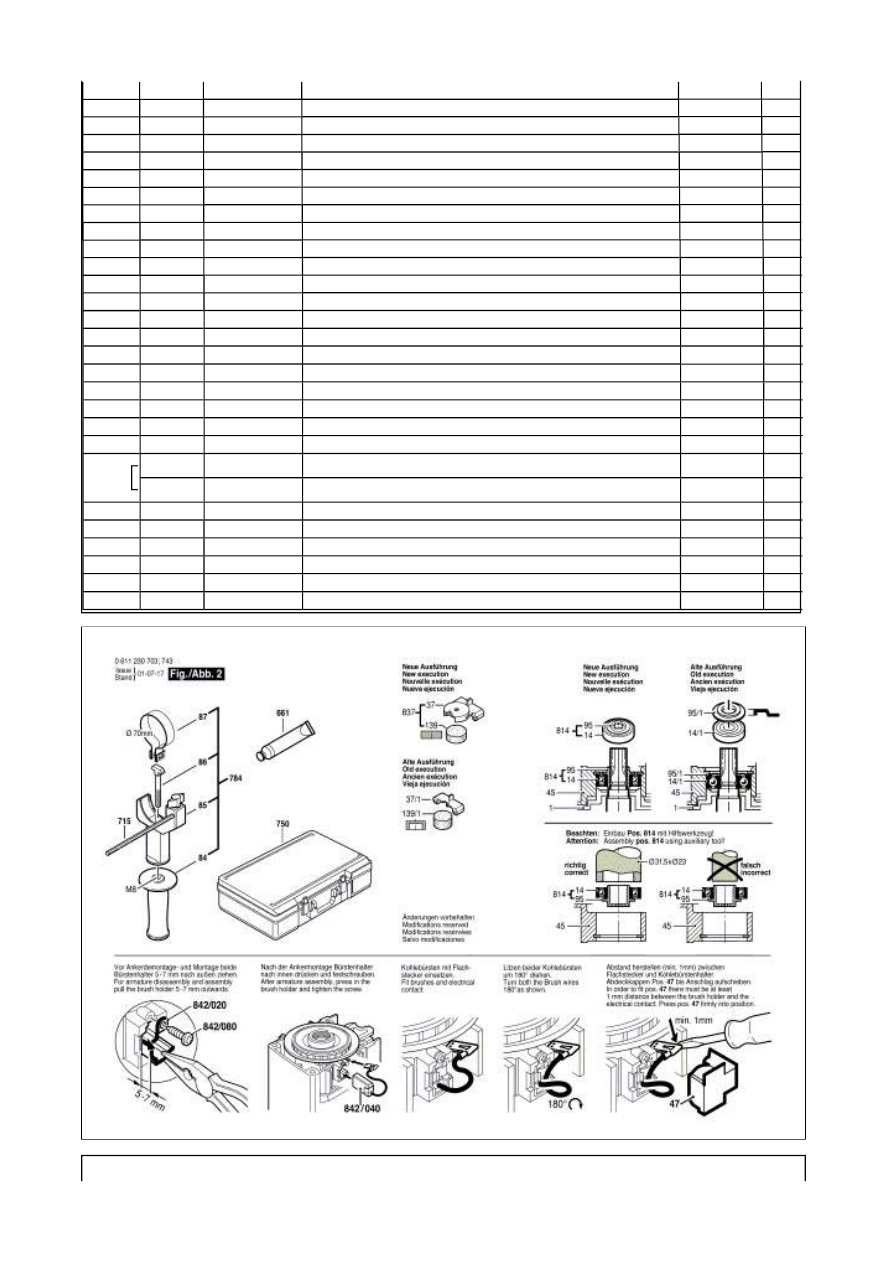

ROTARY HAMMER
0 611 230 741 GBH 5 DCE

Item

Quantity

Order No.

Designation

Price group

Page

1

1

1 615 102 142

MOTOR HOUSING / BLUE

0

1

2

1

1 614 220 132

FIELD / 100V

0

1

4

1

1 617 200 048

ON-OFF SWITCH

0

1

4/10

2

2 910 011 088

SOCKET HEAD SCREW / DIN 84-AM3,5x12-5.8

0

1

5

1

1 614 460 060

POWER SUPPLY CORD / GB 110V 4,15m 2 x 1,0mm H07RN-F

0

1

6

1

1 610 703 053

GROMMET / Ø9,7-Ø12x90 MM

0

1

1

3 600 703 011

GROMMET / Ø7,9-Ø12x120 MM

0

1

7

1

1 601 302 018

FASTENING CLAMP

0

1

9

1

1 611 110 765

MANUFACTURER'S NAMEPLATE

0

1

13

1

1 610 900 025

DEEP-GROOVE BALL BEARING / DIN 625-627-2Z

0

1

15

1

1 616 610 071

FAN

0

1

19

1

1 615 806 121

GUIDE TUBE

0

1

20

1

1 618 597 071

TOOLHOLDER

0

1

21

1

1 610 508 017

PROTECTIVE CAP

0

1

22

1

1 610 591 009

PROTECTION SLEEVE

0

1

23

1

1 610 520 001

STOP SLEEVE

0

1

25

2

1 612 300 027

STOPPING DEVICE

0

1

26

1

1 610 290 025

INDEXING DISK

0

1

27

1

1 610 222 008

RETAINING SNAP RING

0

1

28

1

1 614 621 000

COMPRESSION SPRING

0

1

29

1

1 614 616 008

COMPRESSION SPRING

0

1

30

1

1 610 250 007

BALL RACE

0

1

31

1

1 610 390 015

SPACER TUBE

0

1

32

1

1 610 202 016

CYLINDER SLEEVE

0

1

34

1

1 610 102 622

SUPPORTING DISC

0

1

35

1

1 615 806 089

HAMMER PIPE

0

1

37

1

1 617 000 291

RETAINING BRACKET / BLACK

0

2

38

1

1 615 190 074

COVERING HOOD / BLACK

0

1

1

1 611 110 801

STICKER

0

1

1

1 611 110 802

STICKER

0

1

39

1

1 610 290 024

CLUTCH RING

0

1

41

1

1 613 124 036

STRIKER PIN

0

1

46

1

1 611 015 036

SEALING FRAME

0

1

47

2

1 610 591 012

COVER

0

1

51

1

1 616 333 023

CROWN GEAR / Z=37

0

1

53

1

1 610 190 023

STOP DISC

0

1

54

1

1 610 101 014

STOP DISC

0

1

57

1

1 618 710 053

STRIKER

0

1

72

1

1 616 337 004

ECCENTRIC COG WHEEL / Z=35

0

1

75

1

1 615 132 045

HANDLE / BLACK

0

1

80

1

1 617 233 027

GOVERNOR / 100-120V

0

1

81

1

1 612 026 043

SWITCH-PAWL / GRAY

0

1

82

1

1 615 510 000

LIGHT CONDUCTOR

0

1

84

1

1 612 025 050

AUXILIARY HANDLE / M8 / BLACK

0

2

85

1

1 618 040 055

SUPPORT CLAMP / Ø 70 MM

0

2

86

1

1 613 490 001

T-HEAD BOLT / M 8x80 MM

0

2

87

1

1 611 316 008

CLAMPING BAND / Ø 70 MM

0

2

94

1

1 610 119 007

SPRING RETAINING RING

0

1

95

1

2 916 120 023

SEALING WASHER / 14,4-6201 ZJV NILOS

0

2

96

1

2 916 660 024

SPRING RETAINING RING / 55x2MM, DIN 472

0

1

97

1

2 916 190 284

SHIM DISC / DIN 988-45x55

0

1

98

1

1 610 101 622

FRICTION WASHER

0

1

99

1

1 610 190 030

HOLDING PLATE

0

1

101

2

1 610 210 094

O-RING / 19x3 MM

0

1

102

1

1 610 210 095

O-RING / 55x2 MM

0

1

103

1

1 610 210 100

O-RING / 26x1,5 MM

0

1

104

1

1 610 210 093

O-RING / 17x8 MM

0

1

105

2

1 610 210 096

O-RING / 21x3,5 MM

0

1

107

1

1 610 210 116

O-RING / 14x2 MM

0

1

108

2

1 900 210 103

O-RING / 8x1,5 MM

0

1

109

1

1 610 283 028

ROTARY SHAFT LIP SEAL / DIN 3760-BS, Ø40x55x7 MM

0

1

110

1

1 610 116 003

SPRING RETAINING RING

0

1

111

1

1 610 210 081

O-RING / 10x1 MM

0

1

112

1

1 613 461 001

THREADED RING / M24x1,5MM, SW10

0

1

113

1

1 610 501 036

BUSHING

0

1

116

1

1 610 116 004

SPRING RETAINING RING

0

1

117

1

1 610 119 008

SPRING RETAINING RING

0

1

118

2

1 610 913 009

NEEDLE-ROLLER ASSEMBLY

0

1

119

1

1 610 913 011

NEEDLE-ROLLER ASSEMBLY / Ø 10 MM

0

1

121

1

1 610 905 014

DEEP-GROOVE BALL BEARING

0

1

122

1

1 610 913 004

NEEDLE-ROLLER ASSEMBLY / Ø 13 MM

0

1

124

1

1 610 101 008

THRUST BEARING DISC / Ø15xØ28x1,0 MM

0

1

125

4

2 912 401 036

SELF-TAPPING SCREW / DIN7981-ST4,8x25-C-Z

0

1

126

1

2 910 211 019

SELF-TAPPING SCREW / DIN 7971-ST3,9x16-F

0

1

127

2

2 912 311 166

OVAL-HEAD SCREW / DIN 7985-M5x30-8.8

0

1

128

2

2 910 211 037

SELF-TAPPING SCREW / DIN 7971-BZ4,8x32

0

1

129

2

2 912 401 037

SELF-TAPPING SCREW / DIN 7981-ST4,8x32C-Z

0

1

131

1

1 611 110 766

MANUFACTURER'S NAMEPLATE

0

1

132

1

2 914 551 117

MICROENCAPSULATED SCREW / DIN 912-M 5x12-8.8

0

1

136

6

2 910 211 236

SELF-TAPPING SCREW / DIN 7971-ST4,8x25-C

0

1

139

1

1 610 005 002

FELT DISC / Ø 39x15 MM

0

1

148

1

1 610 102 633

SHIM / Ø 48xØ56x0,3 MM

0

1

2

1 610 102 627

SHIM / Ø48xØ56x0,2 MM

0

1

149

1

1 612 388 021

ADAPTING PIECE

0

1

0

151

1

2 600 210 028

O-RING / 21x2 MM

0

1

152

1

1 610 508 030

COVER

0

1

154

1

1 610 222 010

RETAINING SNAP RING

0

1

661

1

1 615 430 010

GREASE TUBE / 30 ML, RENOLIT DEP 2

0

2

715

1

1 613 001 003

DEPTH-GAUGE / SW 6x330 MM

0

2

750

1

2 605 438 261

CARRYING CASE

0

2

784

1

2 602 025 062

AUXILIARY HANDLE / Ø 70 MM, M8

0

2

800

1

1 617 000 945

CLAMP HANDLE / BLACK

0

1

803

1

1 614 010 187

ARMATURE / 100-110V

0

1

808

1

1 601 106 999

TYPE IDENTIFYING MARK / 26x52 MM

0

1

814

1

1 617 000 822

DEEP-GROOVE BALL BEARING

0

1

824

1

1 617 000 271

CYLINDRICAL ROLLER

0

1

833

1

1 617 000 949

CONTROL FORK

0

1

837

1

1 617 000 291

RETAINING BRACKET / BLACK

0

1

840

1

1 617 000 811

IMPACT MECHANISM HOUSING

0

1

842

1

1 614 336 009

BRUSH HOLDER

0

1

842/020

2

1 614 336 043

BRUSH GUIDE

0

1

842/040

1

1 617 014 122

CARBON-BRUSH SET

0

1

842/050

2

1 613 212 004

RUBBER BUFFER

0

1

842/080

2

2 912 401 005

SELF-TAPPING SCREW / DIN7981-ST2,9x9,5C-Z

0

1

843

1

1 615 808 078

BEARING END PLATE / BLUE

0

1

845

1

1 617 000 823

GEAR HOUSING

0

1

1

1 617 000 962

GEAR HOUSING

0

1

848

1

1 617 000 415

CLUTCH SLEEVE

0

1

856

1

1 617 000 999

HAMMER PISTON

0

1

860

1

1 617 000 817

SPUR WHEEL CLUTCH

0

1

897

1

1 617 000 272

SERVICE PACK

0

1

898

1

1 617 000 273

SERVICE PACK

0

1

899

1

1 617 000 293

HOLDING PLATE

0

1
