MERCEDES BENZ 560SEL 1990

background image

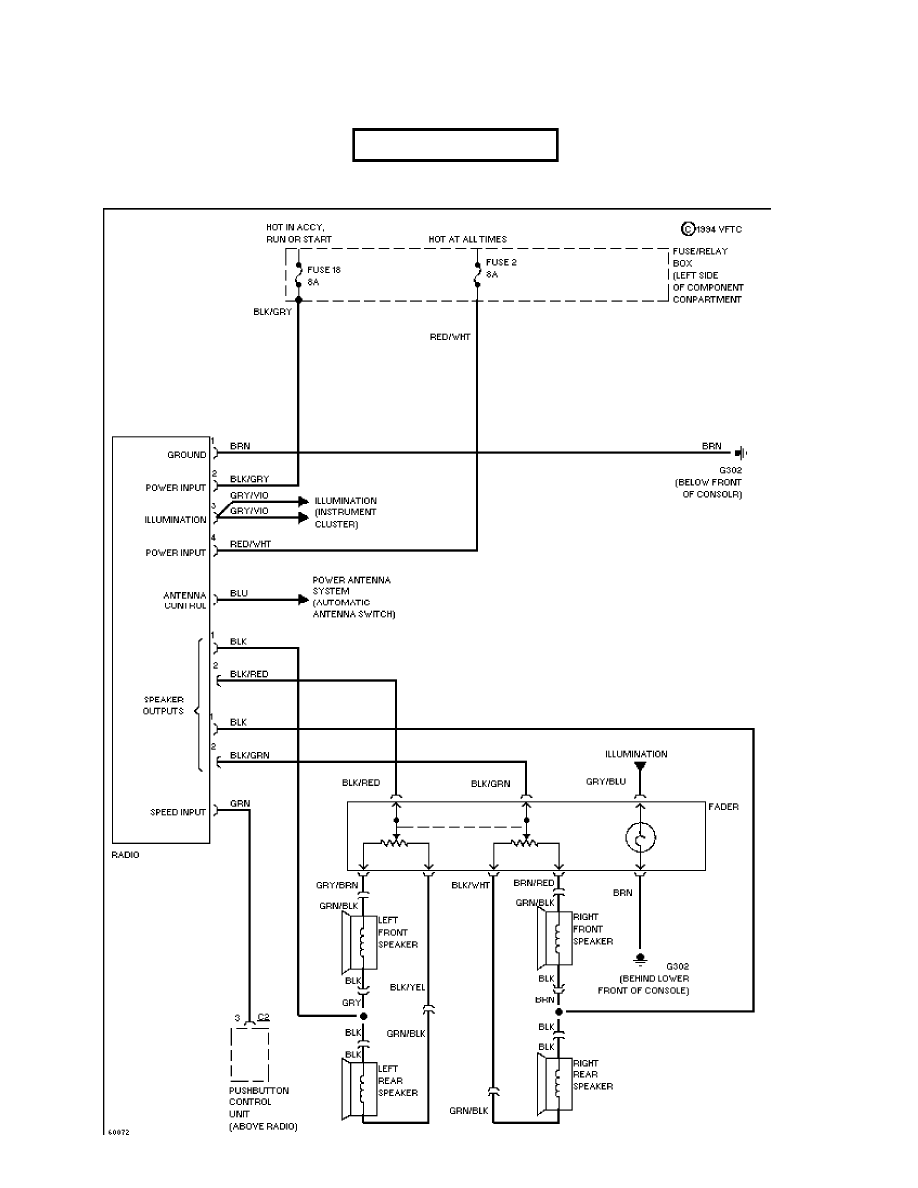

SYSTEM WIRING DIAGRAMS

Base Radio

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:44PM

cdr@wp.pl

background image

SYSTEM WIRING DIAGRAMS

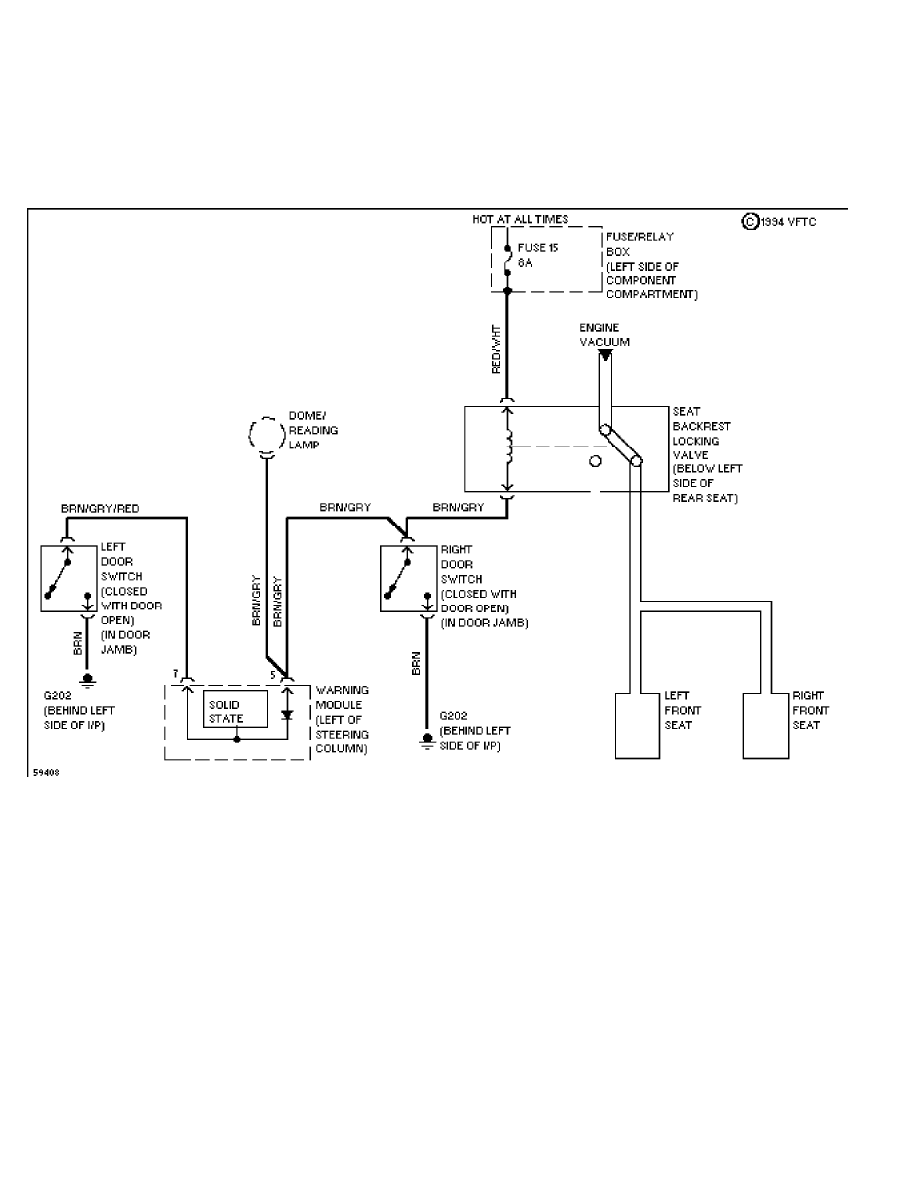

Seat Backrest Locking System, Coupe

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:44PM

background image

SYSTEM WIRING DIAGRAMS

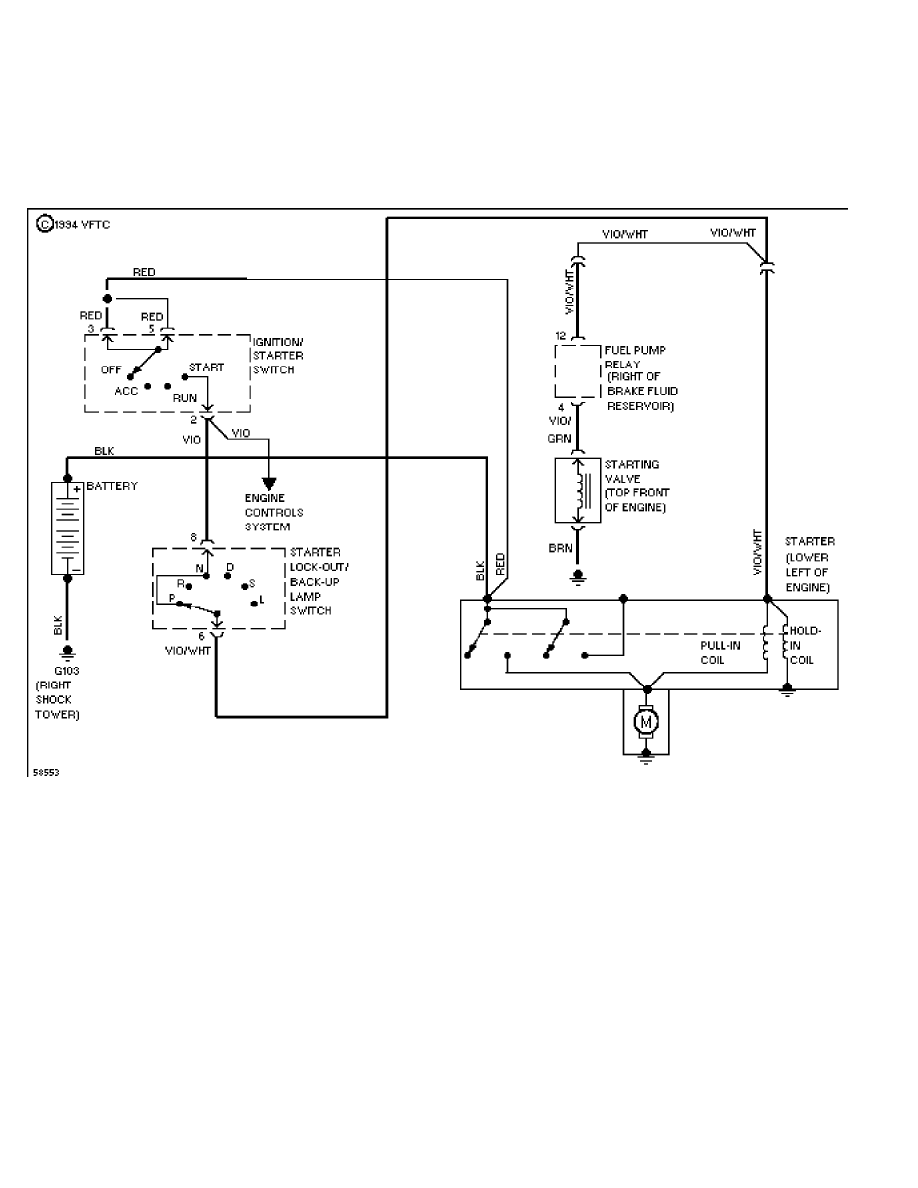

Starting Circuit

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:49PM

background image

SYSTEM WIRING DIAGRAMS

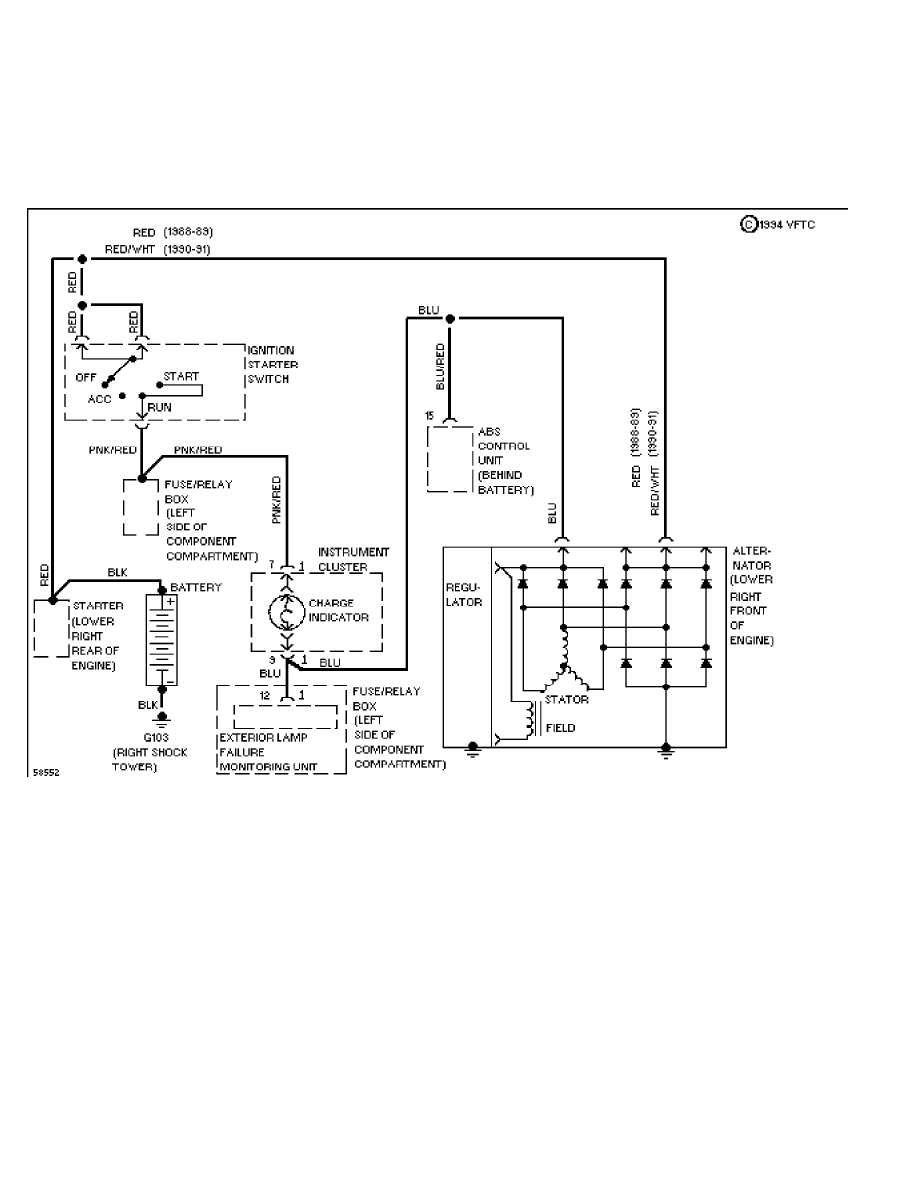

Charging Circuit

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:48PM

background image

SYSTEM WIRING DIAGRAMS

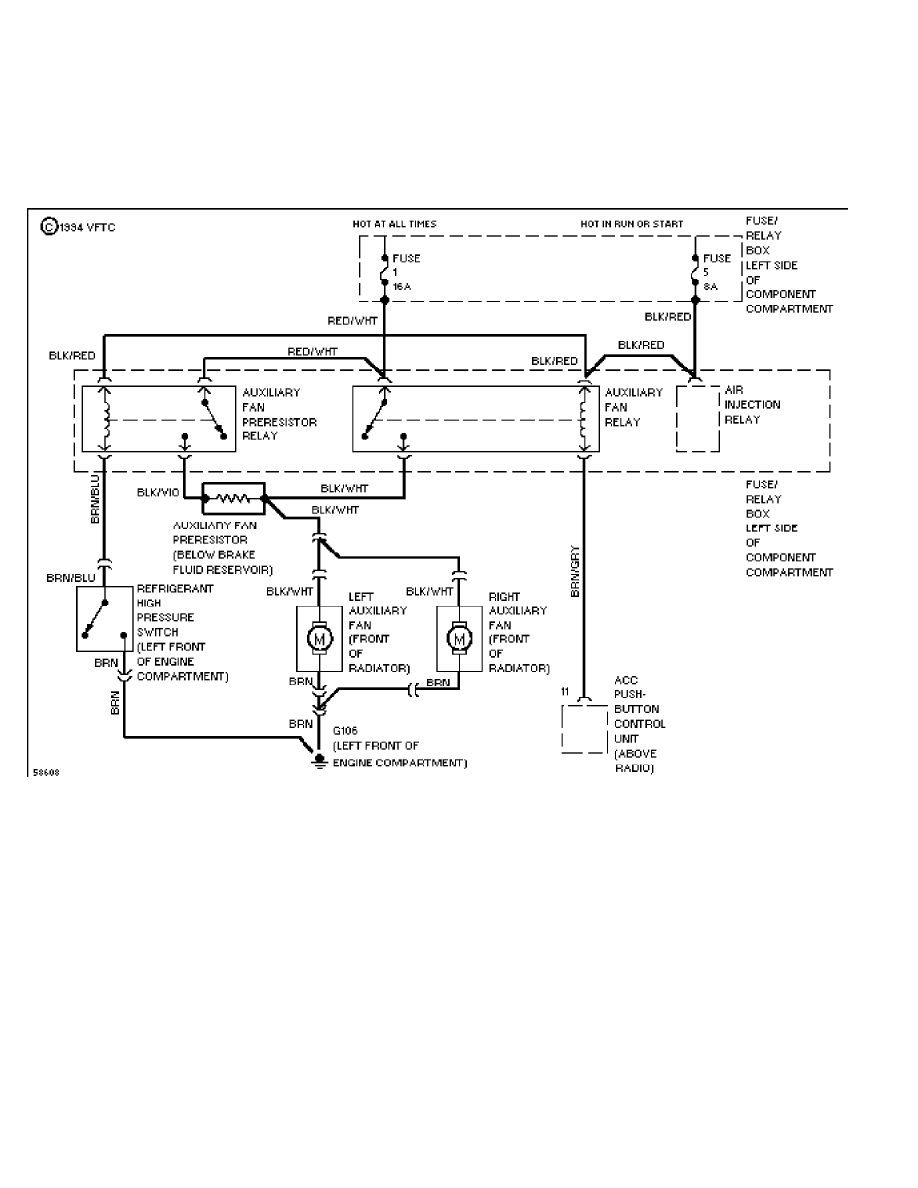

Cooling Fan Circuit

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:41PM

background image

SYSTEM WIRING DIAGRAMS

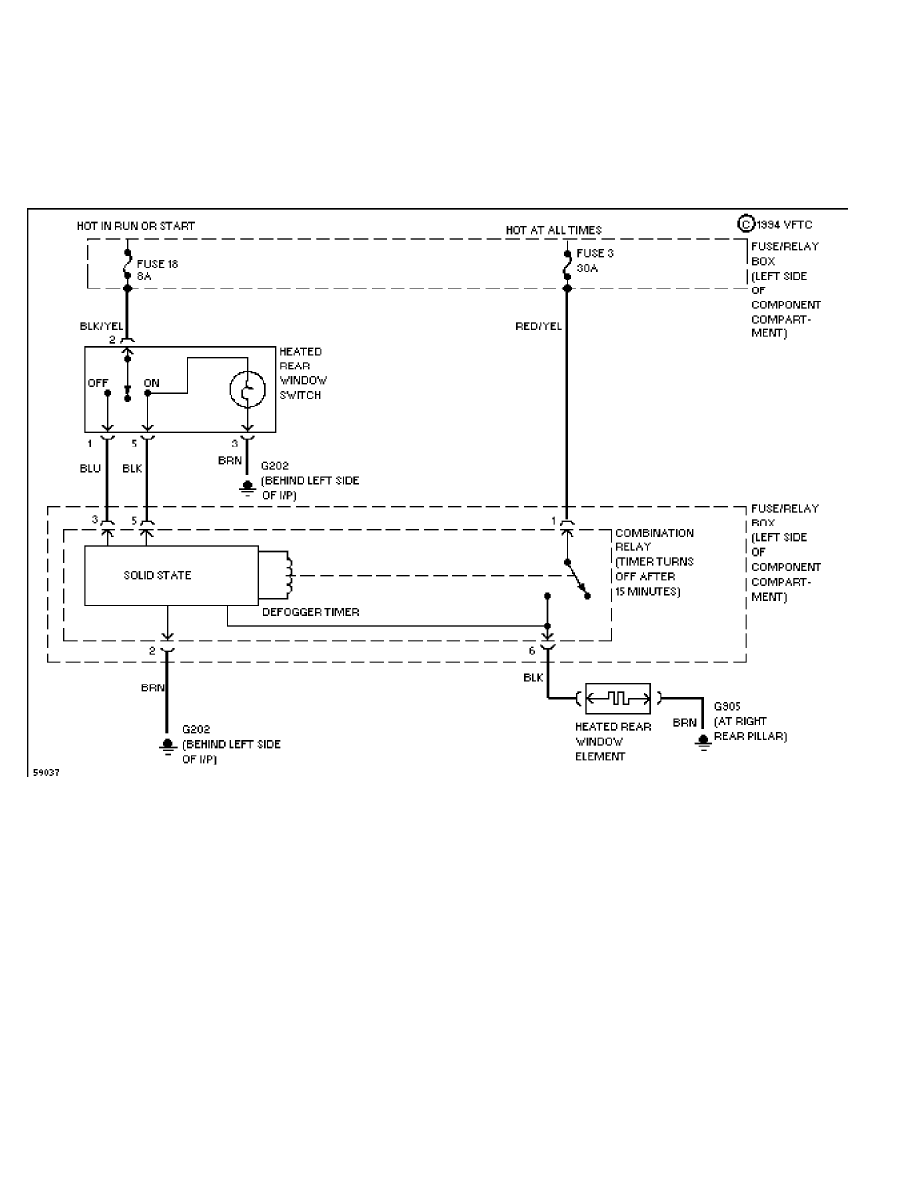

Defogger Circuit

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:41PM

background image

SYSTEM WIRING DIAGRAMS

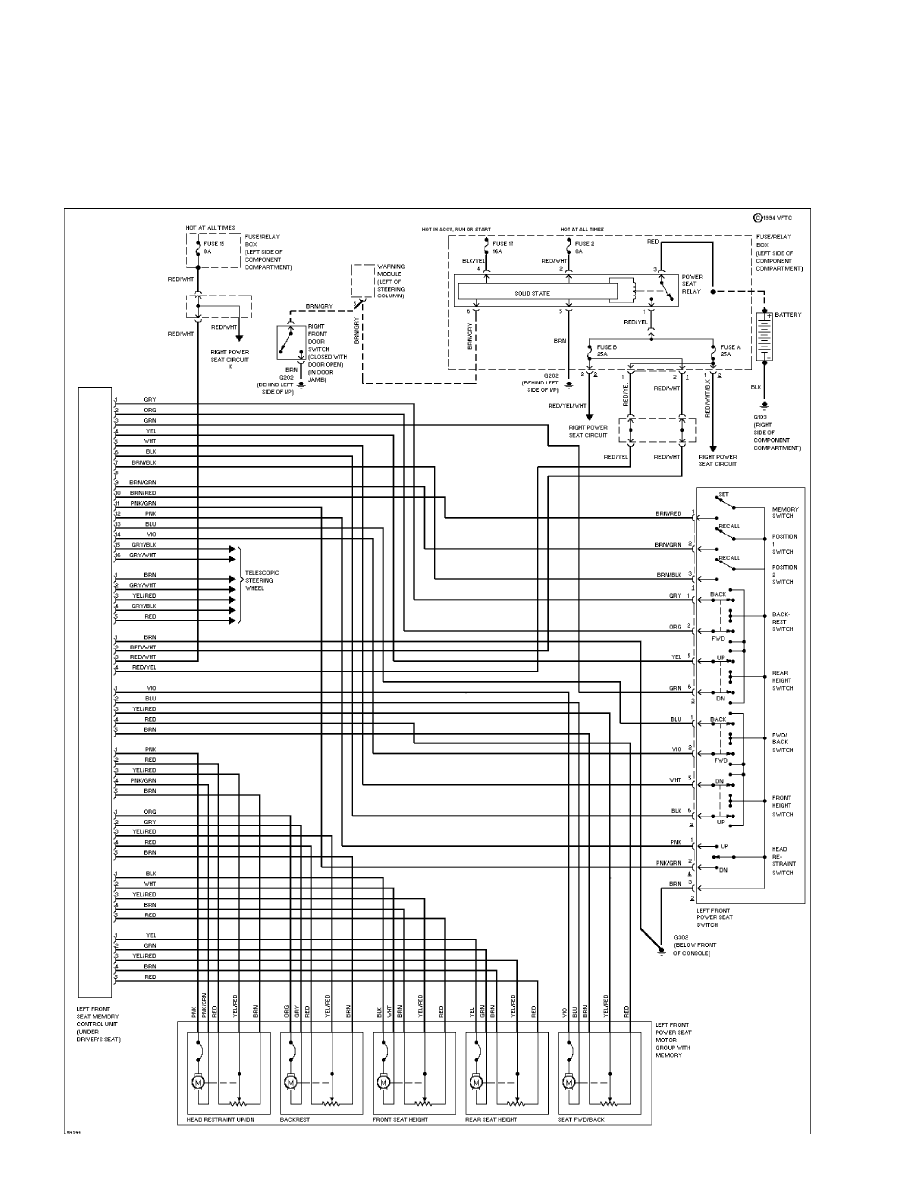

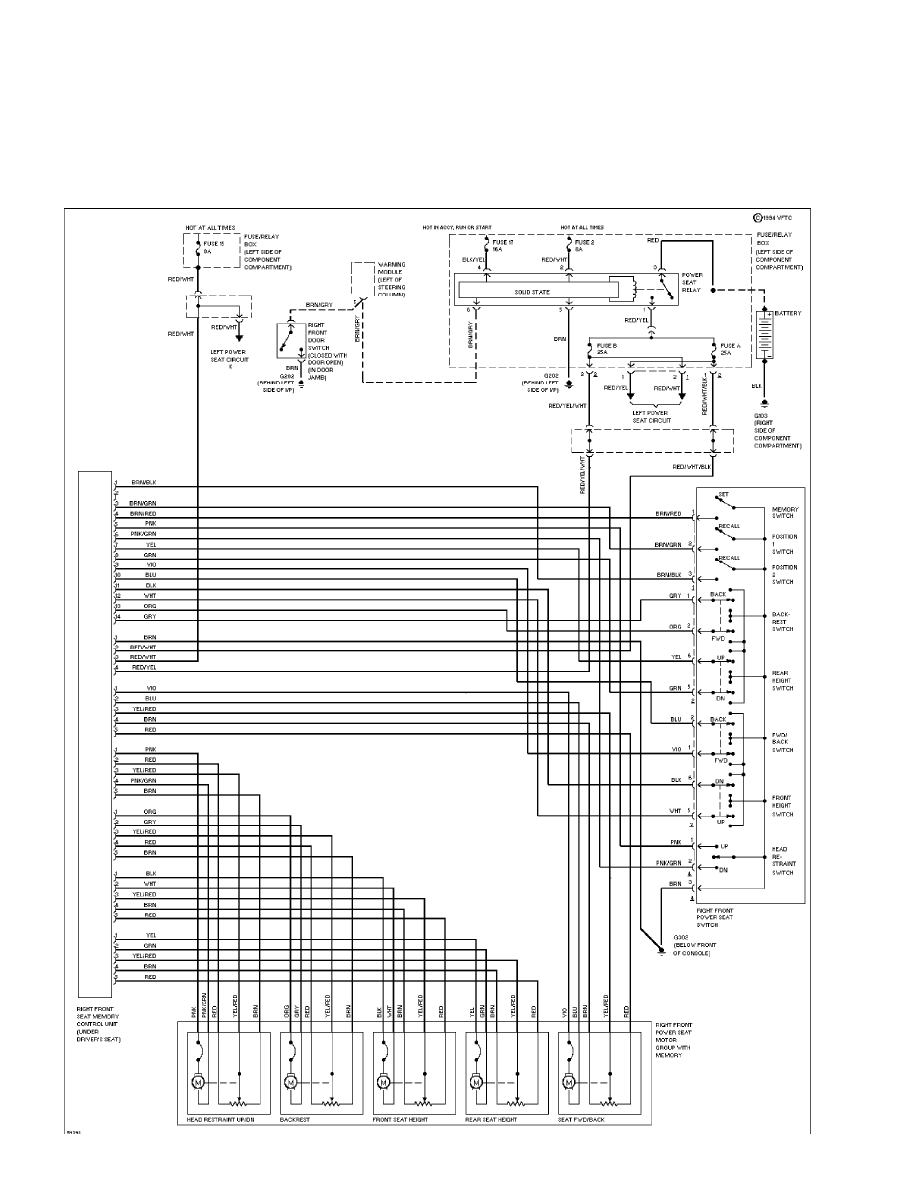

Driver Power Seat Circuit

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:43PM

background image

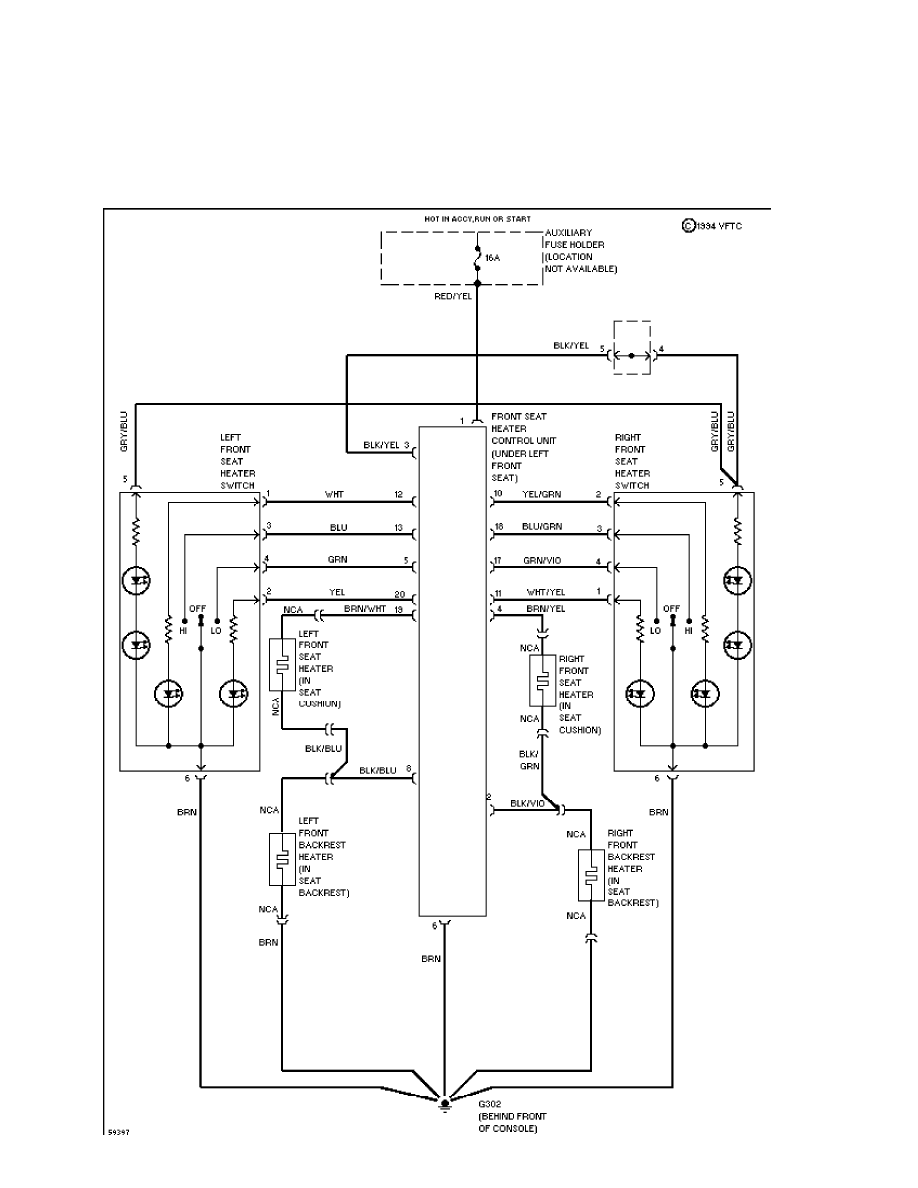

SYSTEM WIRING DIAGRAMS

Front Seat Heater Circuit

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:43PM

background image

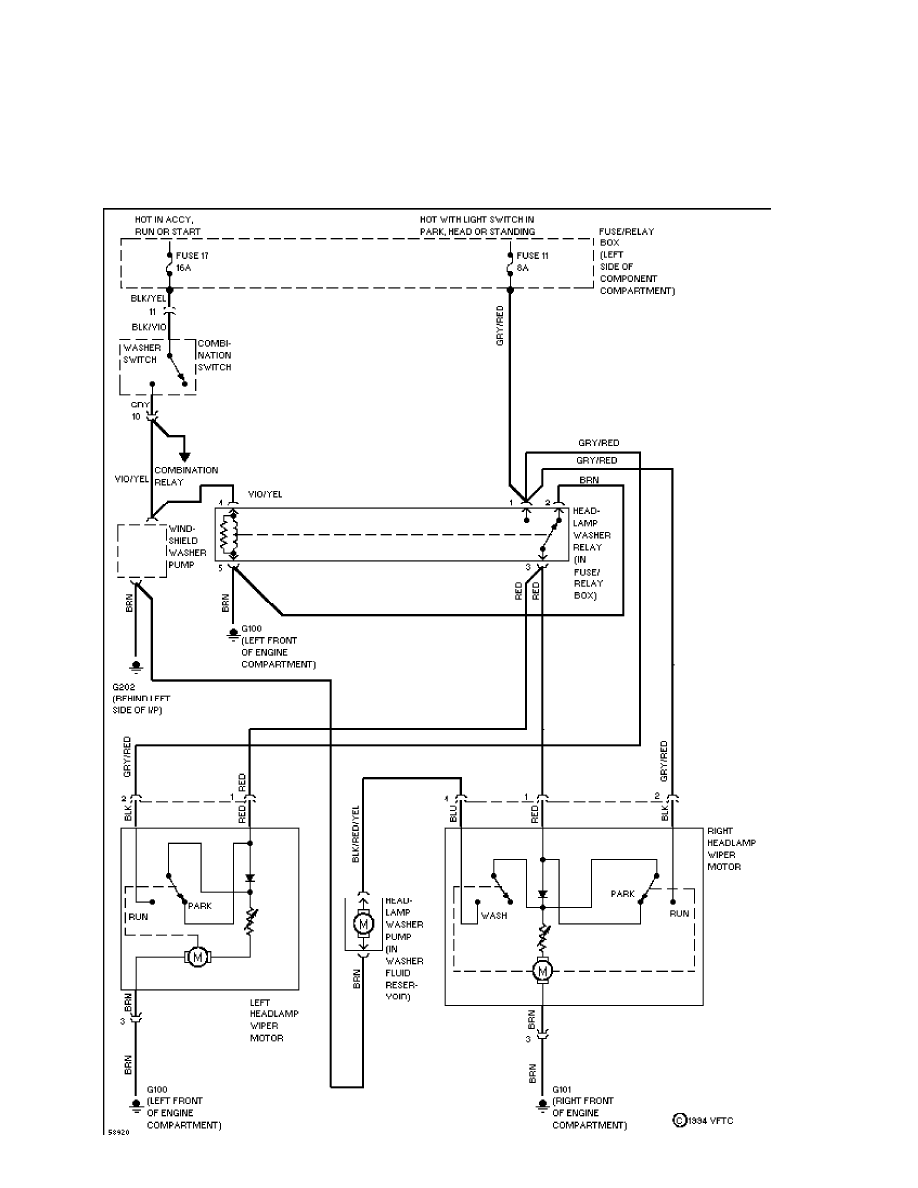

SYSTEM WIRING DIAGRAMS

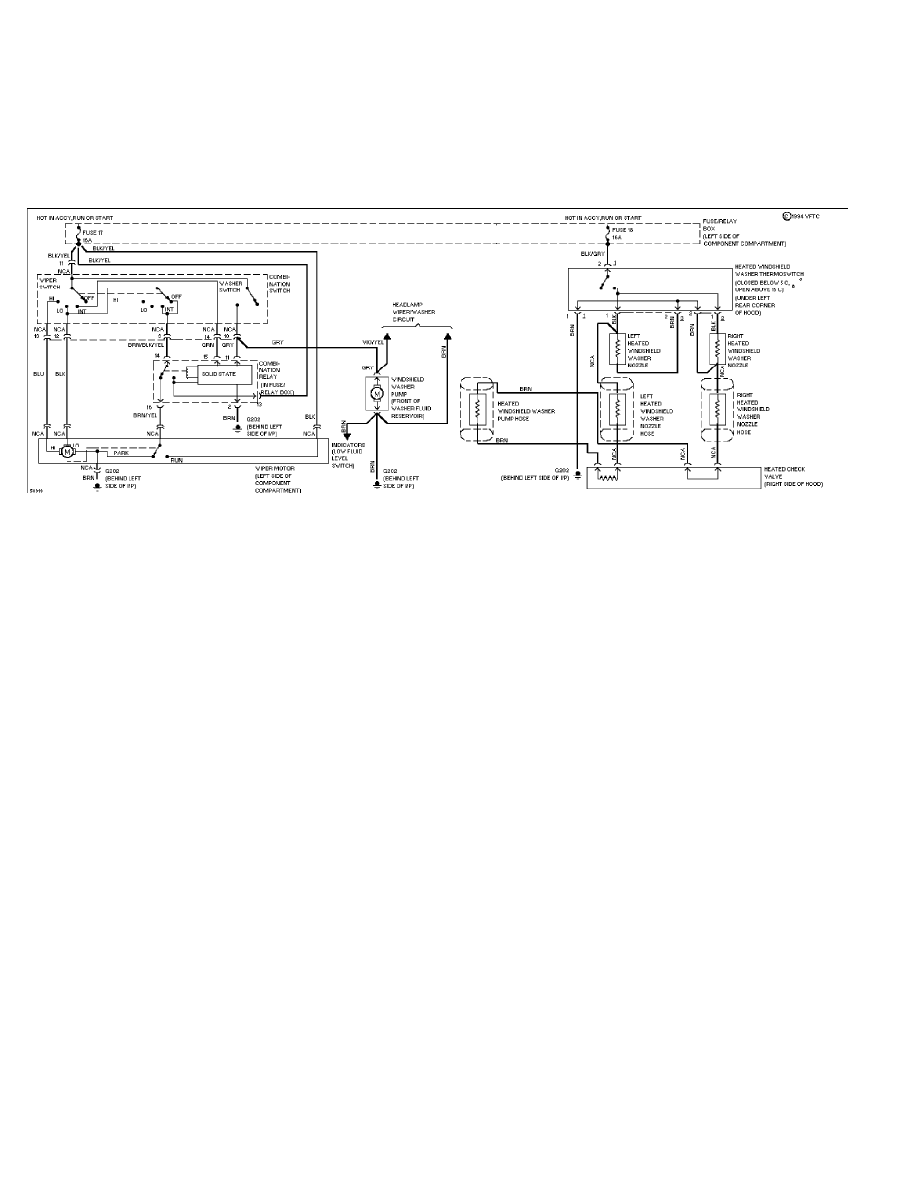

Headlight Washer/Wiper Circuit

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:49PM

background image

SYSTEM WIRING DIAGRAMS

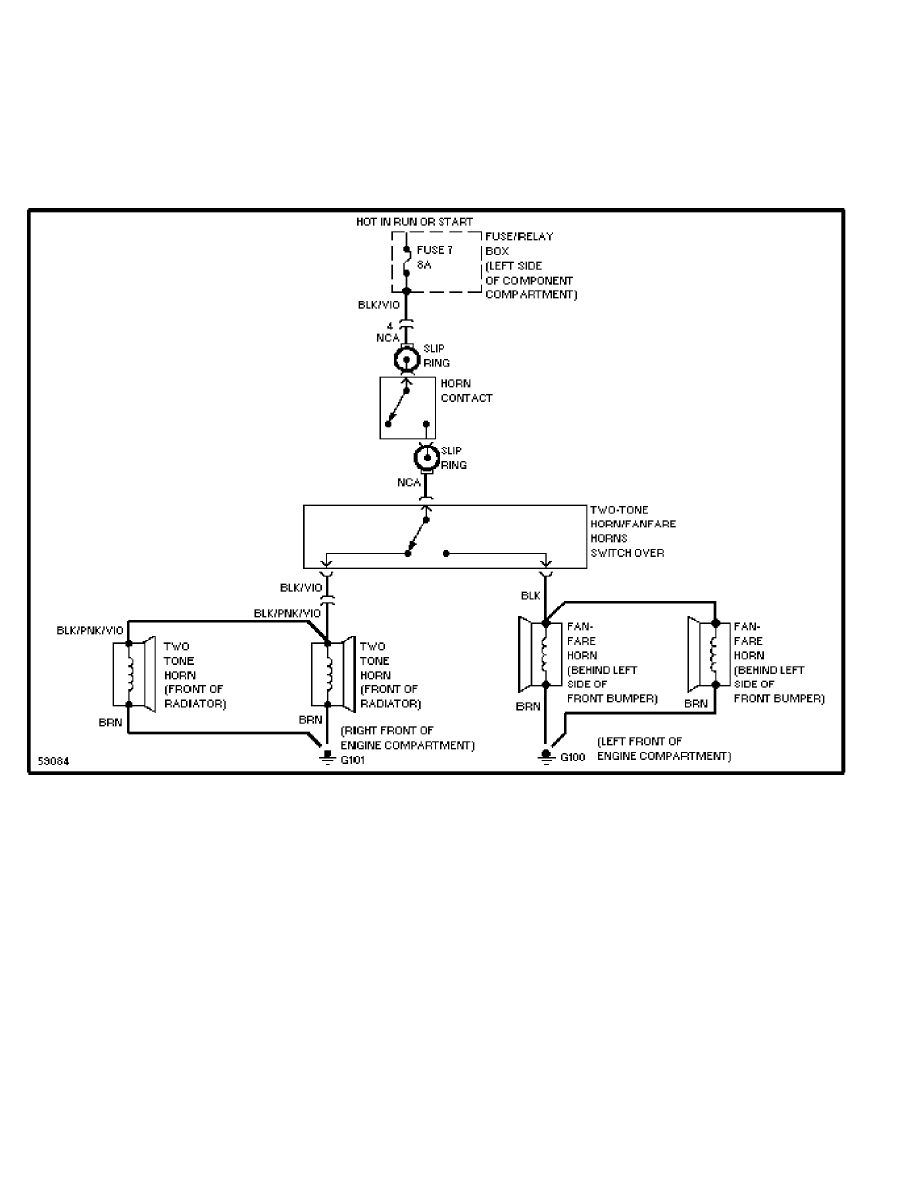

Horn Circuit

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:42PM

background image

SYSTEM WIRING DIAGRAMS

Interval Wiper/Washer Circuit

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:49PM

background image

SYSTEM WIRING DIAGRAMS

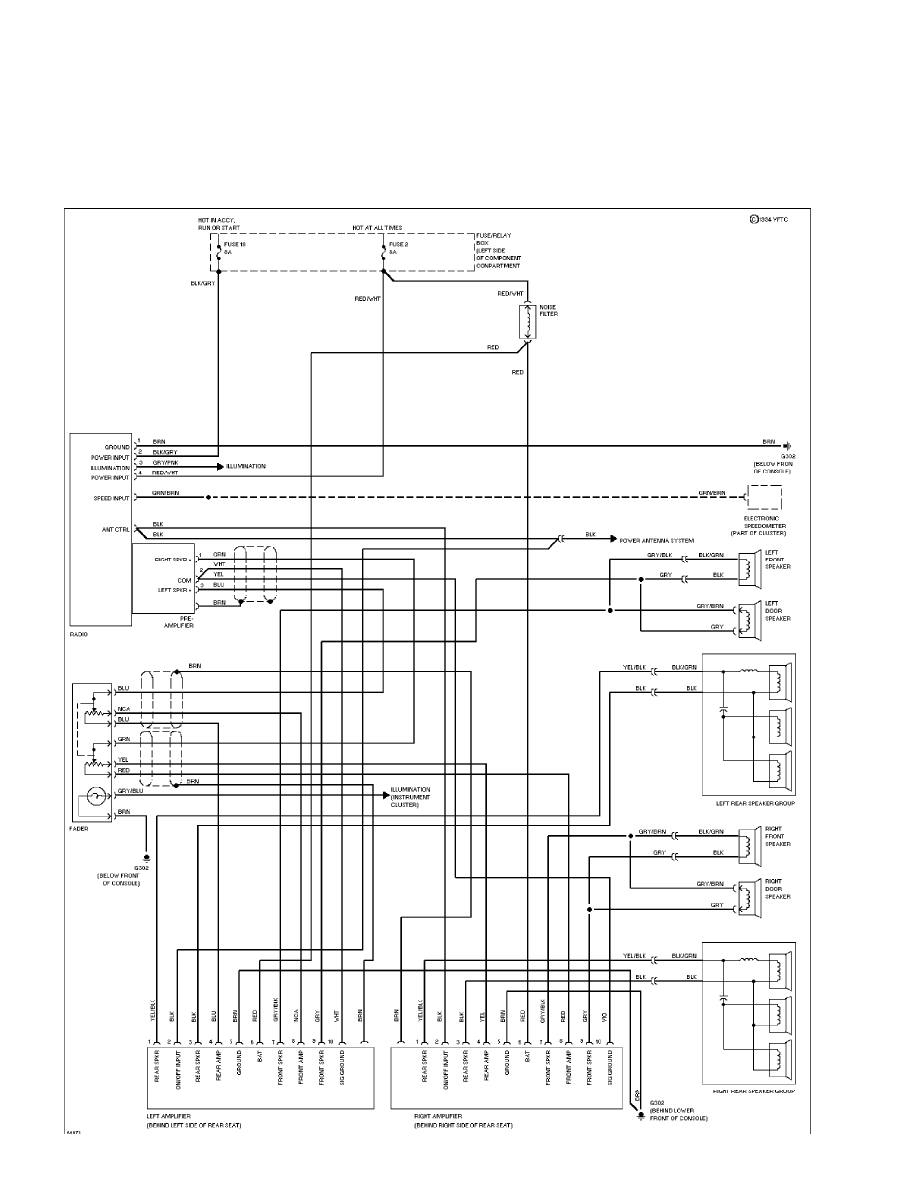

One Piece Radio, W/ Sound System

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:45PM

background image

SYSTEM WIRING DIAGRAMS

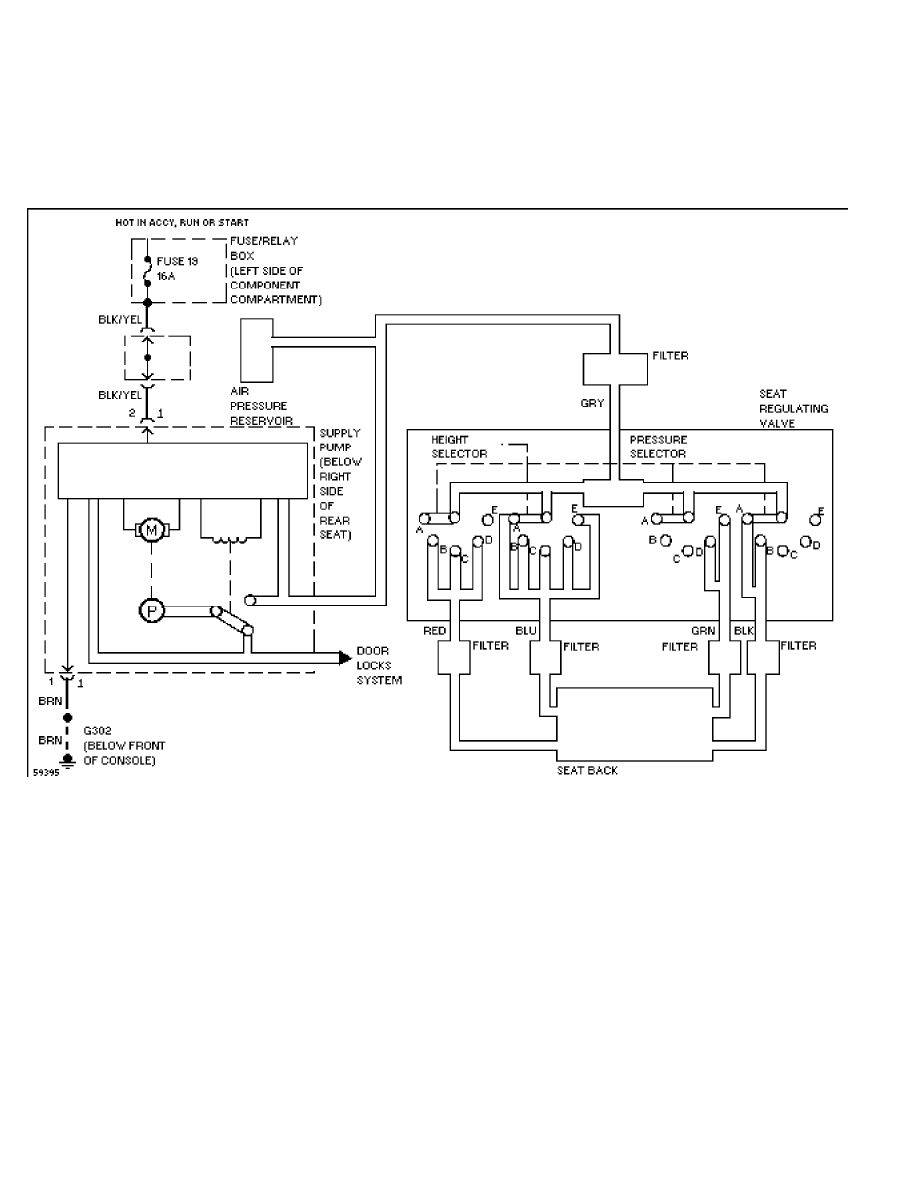

Orthopedic Seats

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:43PM

background image

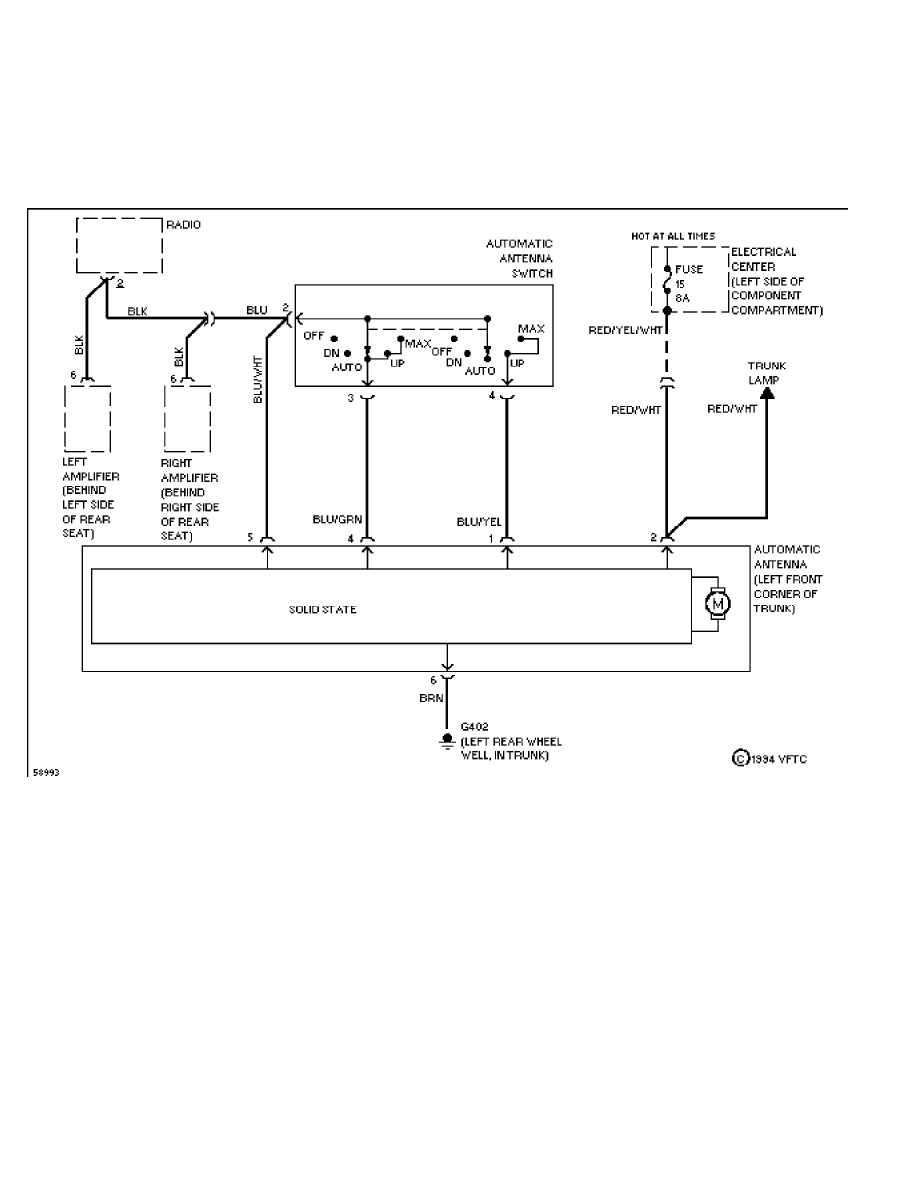

SYSTEM WIRING DIAGRAMS

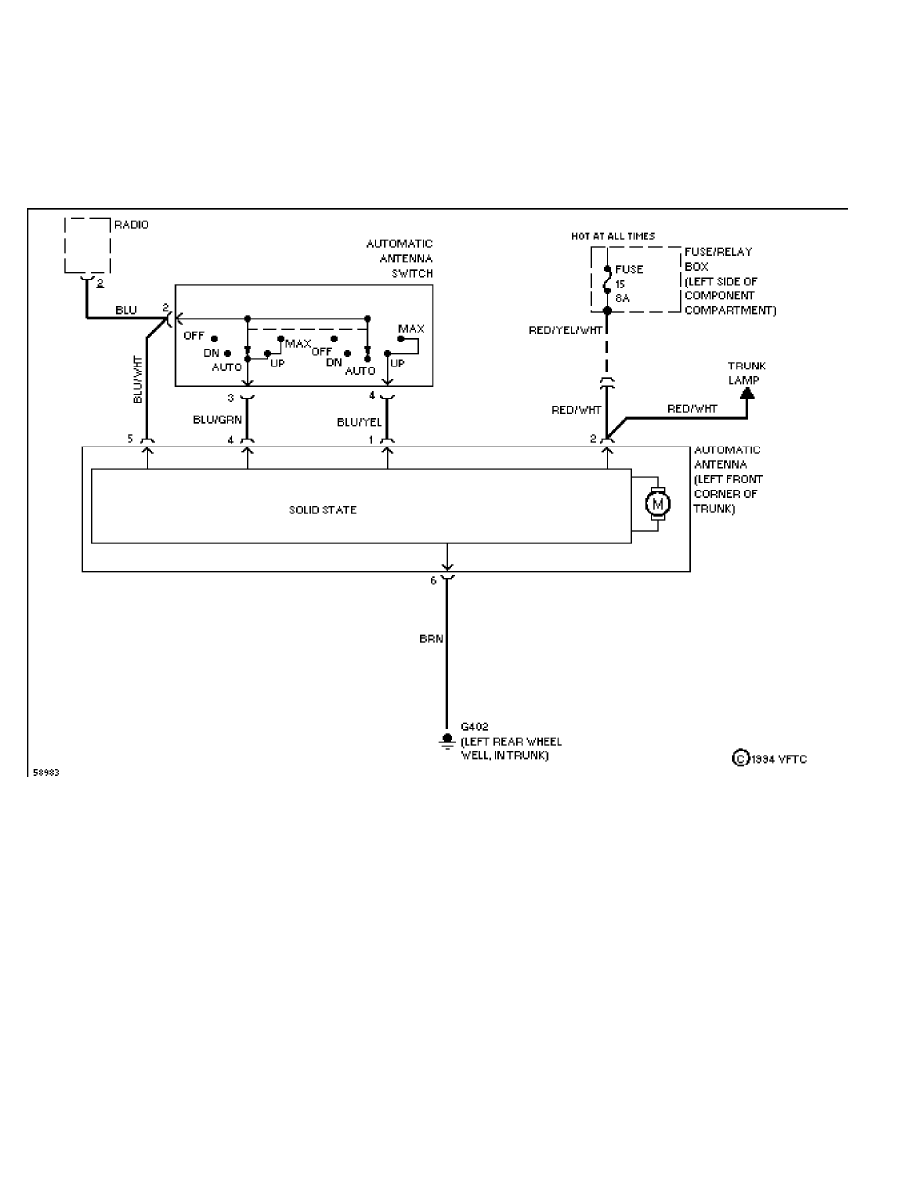

Power Antenna Circuit, Base Radio

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:42PM

background image

SYSTEM WIRING DIAGRAMS

Power Antenna Circuit, W/ Sound System

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:42PM

background image

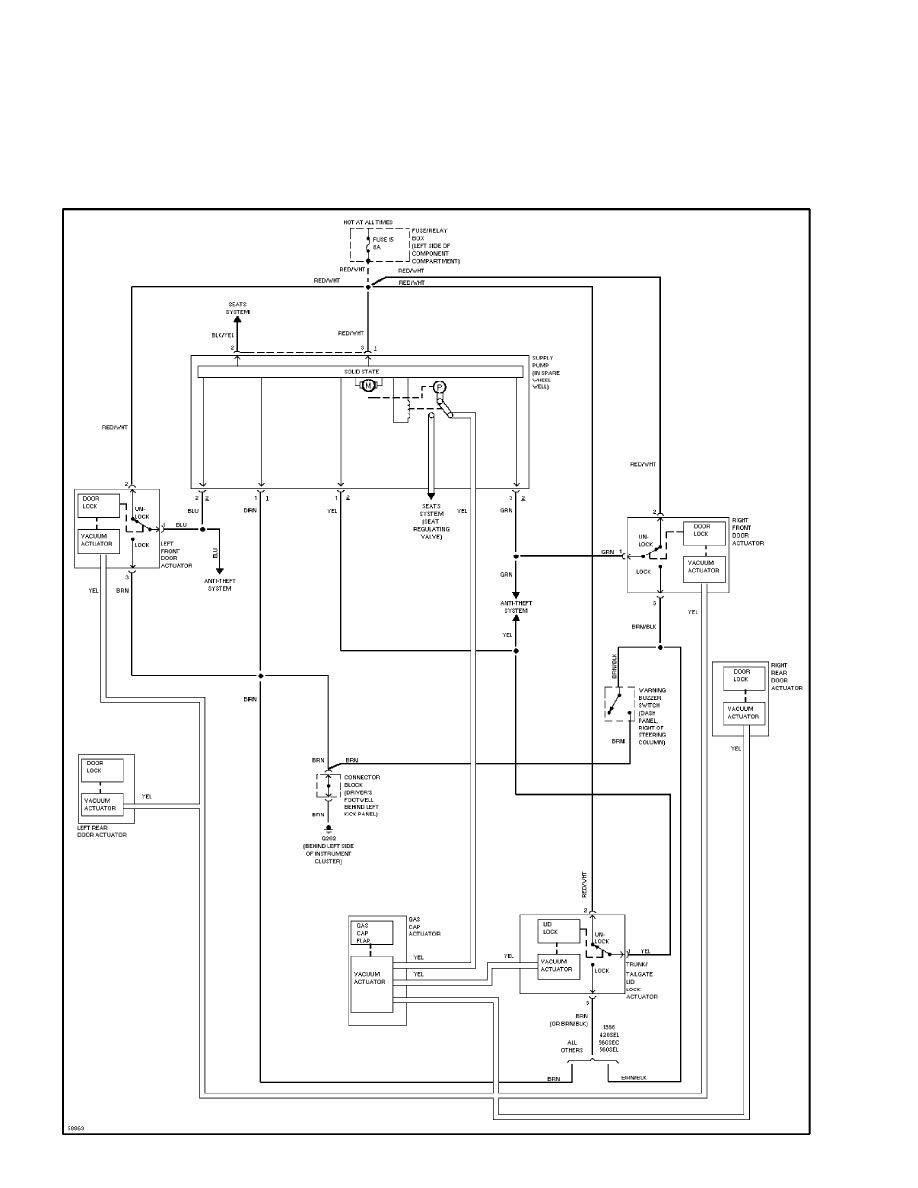

SYSTEM WIRING DIAGRAMS

Power Door Lock Circuit

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:42PM

background image

SYSTEM WIRING DIAGRAMS

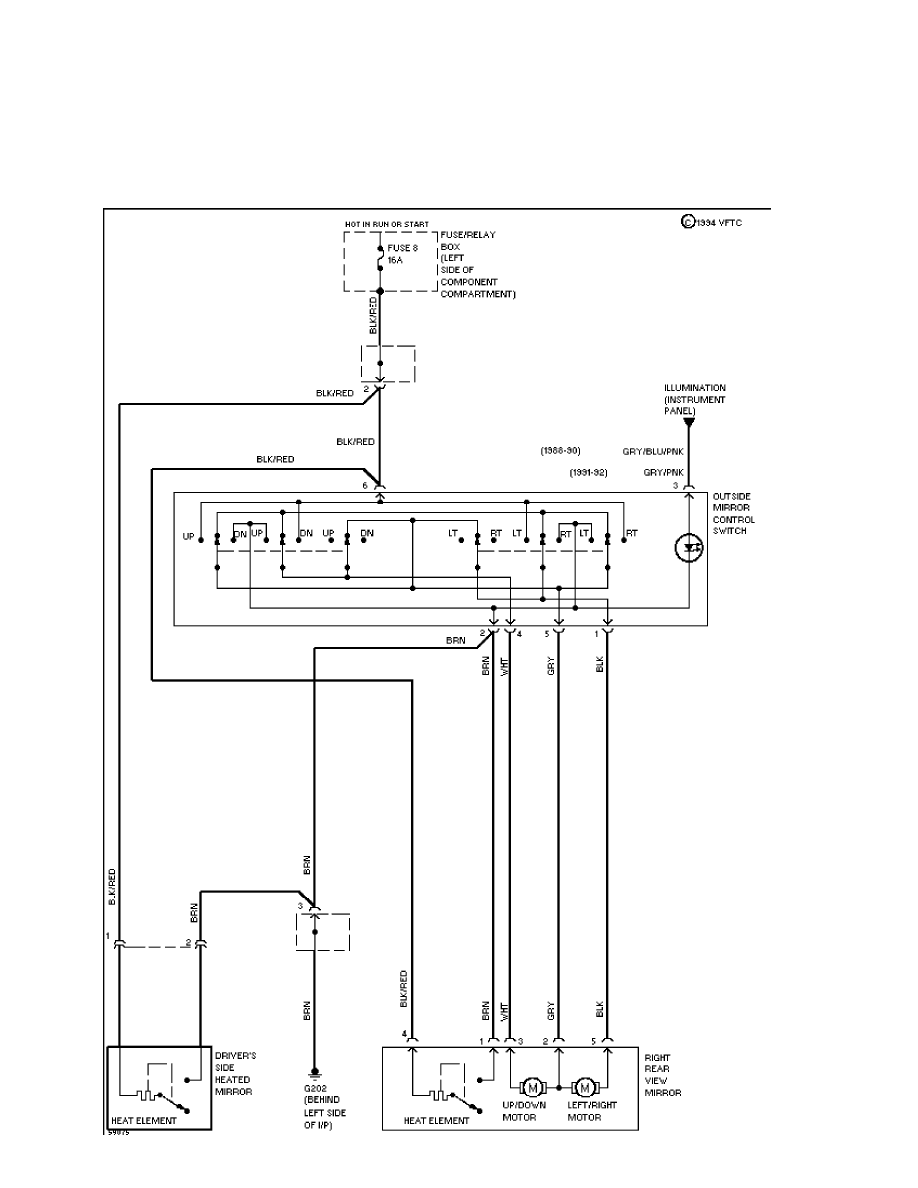

Power Mirror Circuit

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:42PM

background image

SYSTEM WIRING DIAGRAMS

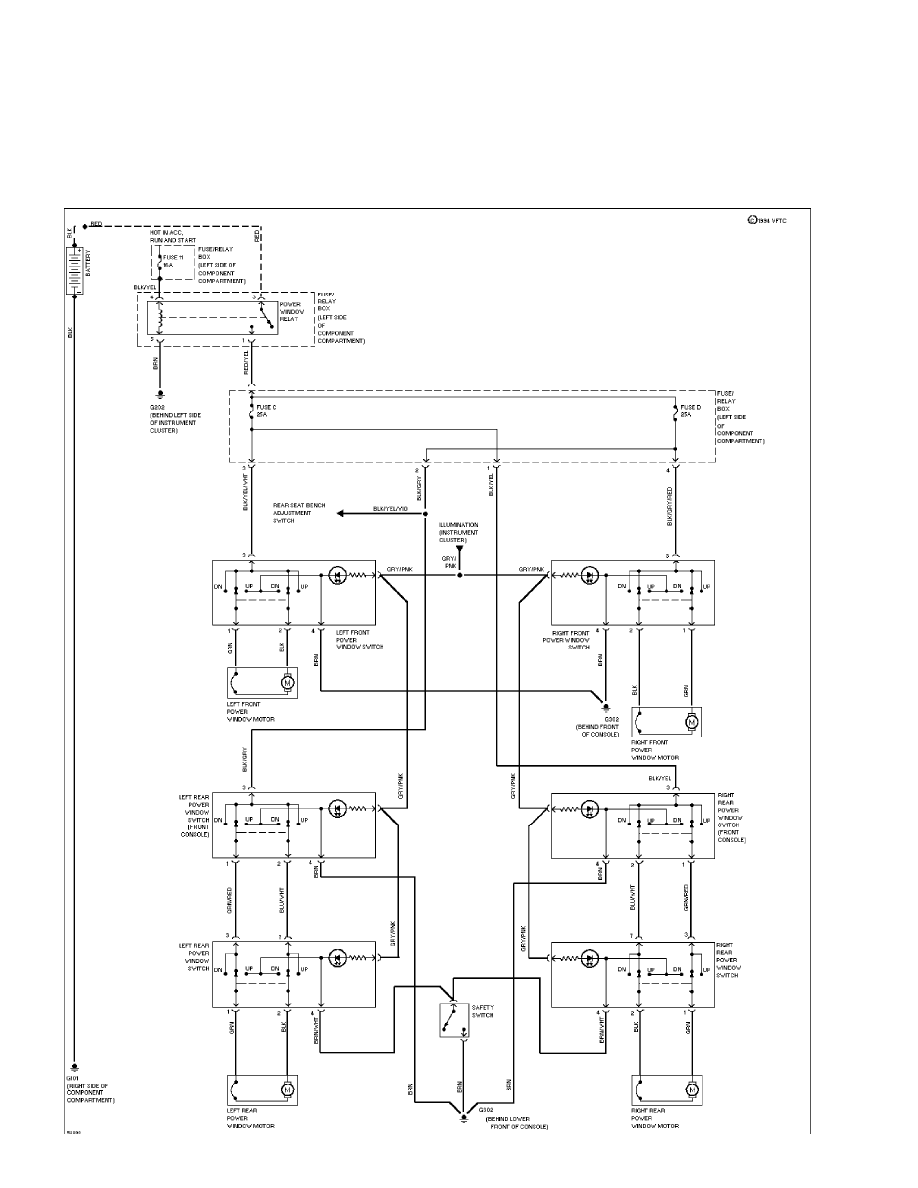

Power Window Circuit

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:44PM

background image

SYSTEM WIRING DIAGRAMS

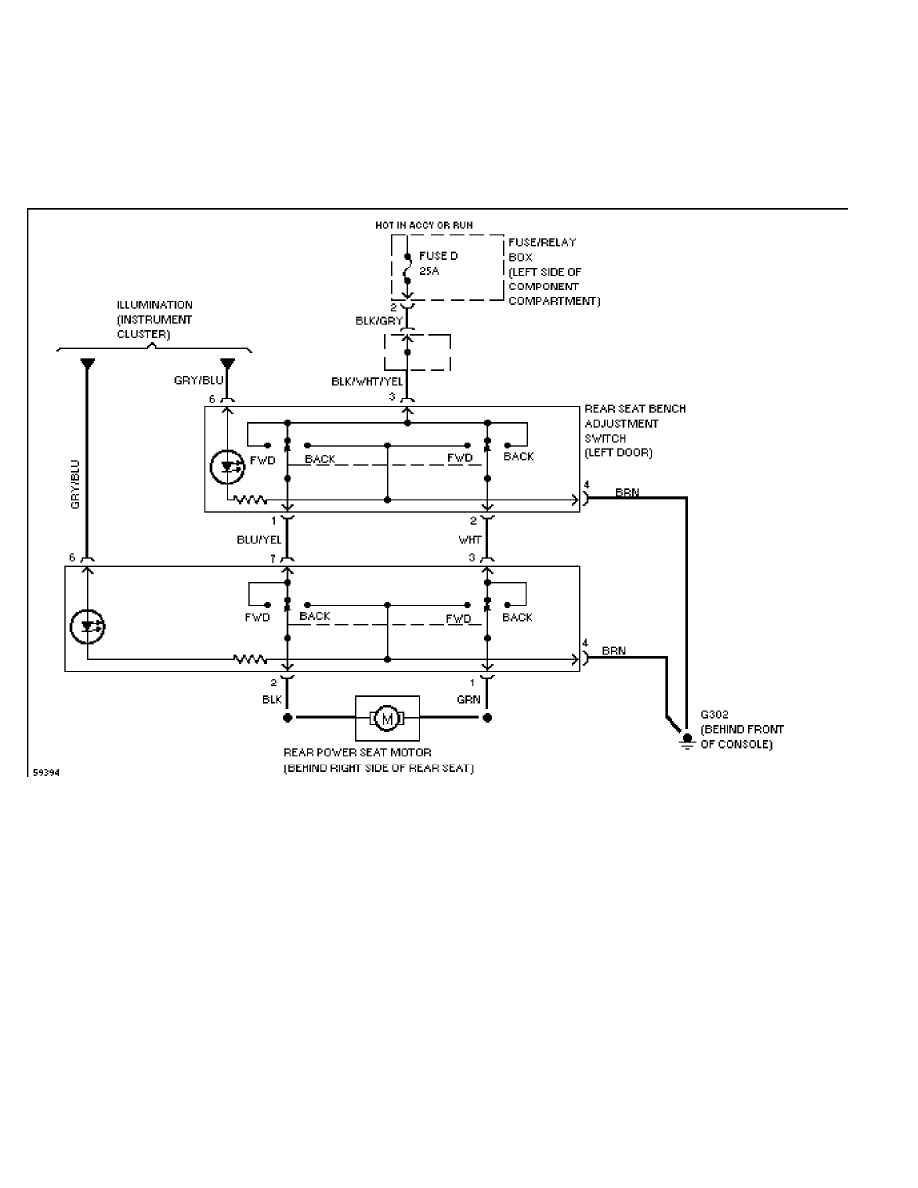

Rear Seat Adjuster Circuit, Sedan

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:43PM

background image

SYSTEM WIRING DIAGRAMS

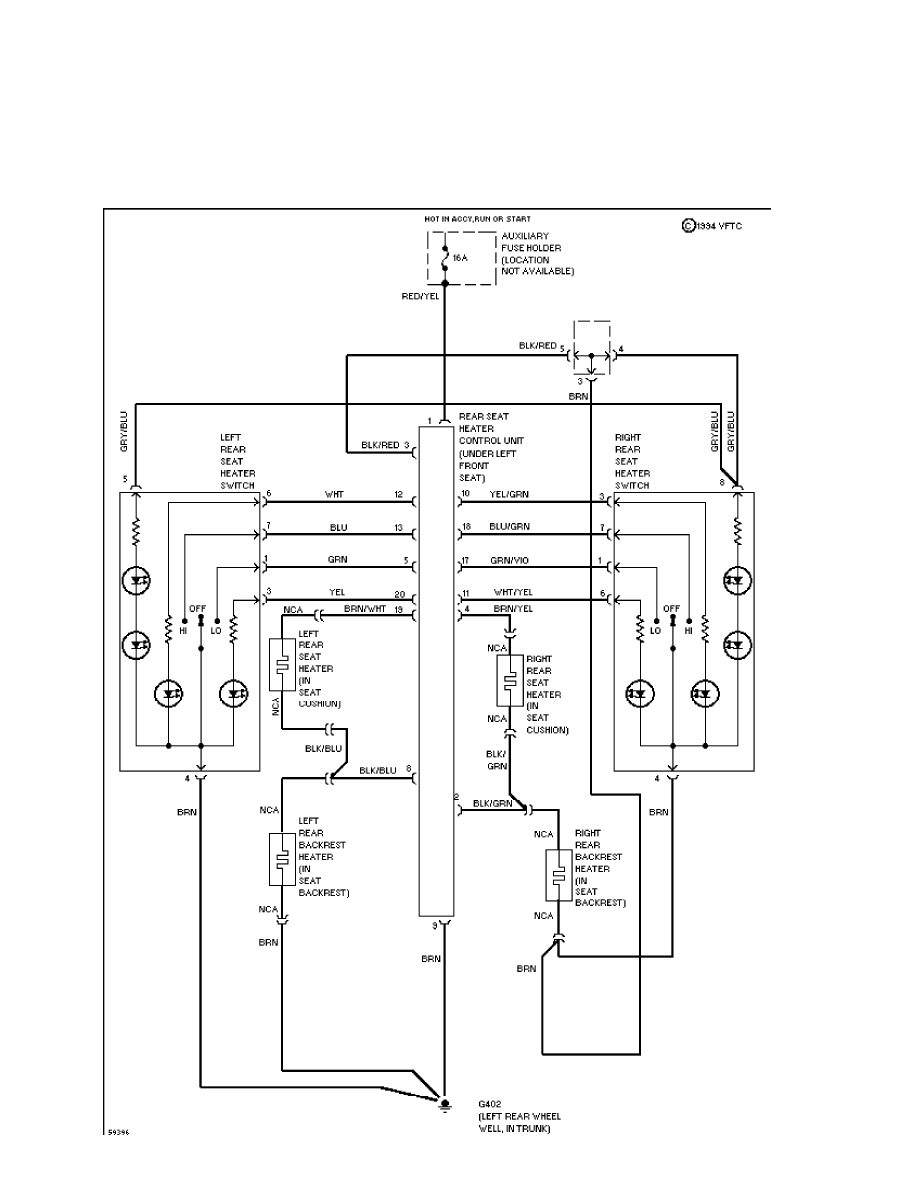

Rear Seat Heater Circuit

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:43PM

background image

SYSTEM WIRING DIAGRAMS

Right Seat Circuit

1990 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 30, 2000 12:44PM
