TOYOTA COROLLA RWD 1985

background image

SYSTEM WIRING DIAGRAMS

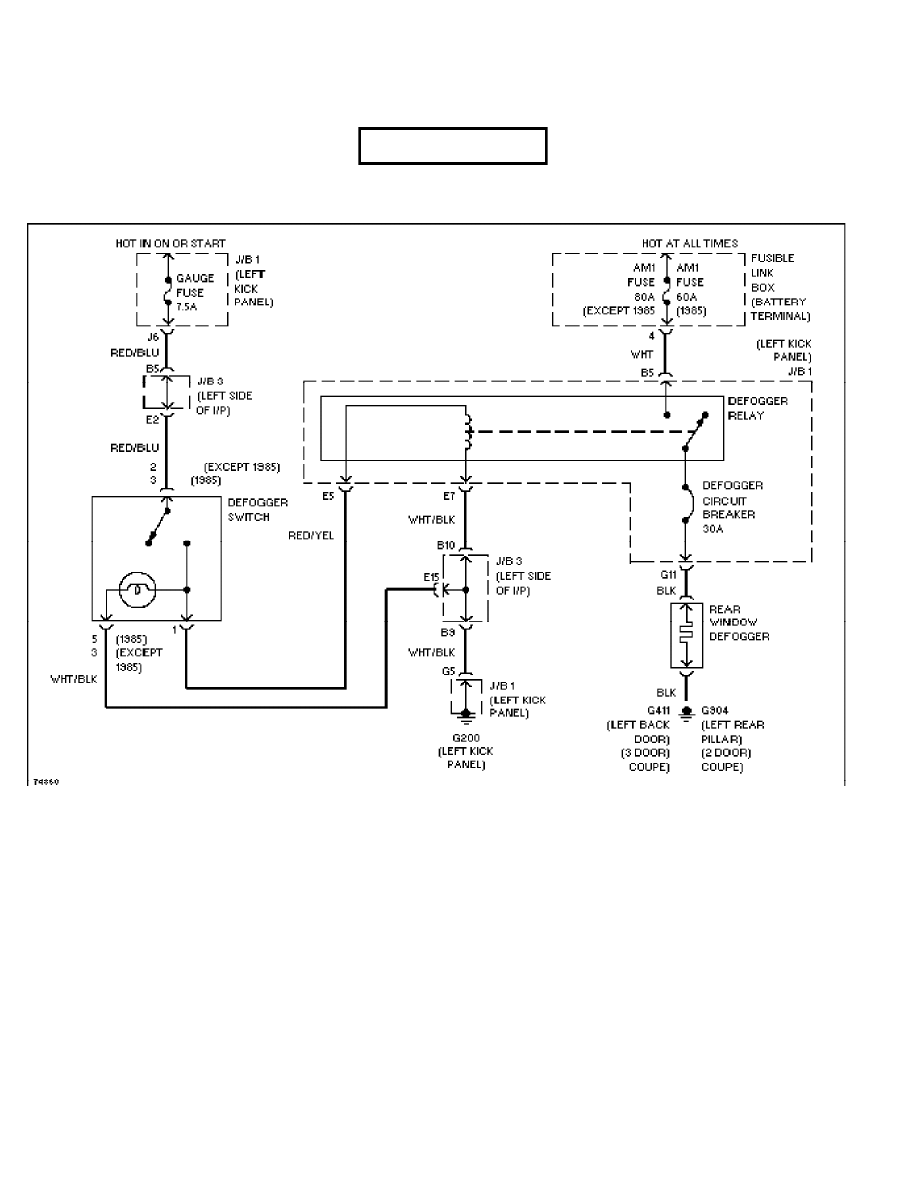

Defogger Circuit

1985 Toyota Corolla (RWD)

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 23, 2004 06:06PM

CDR@WP.PL

background image

WIRING DIAGRAMS (RWD)

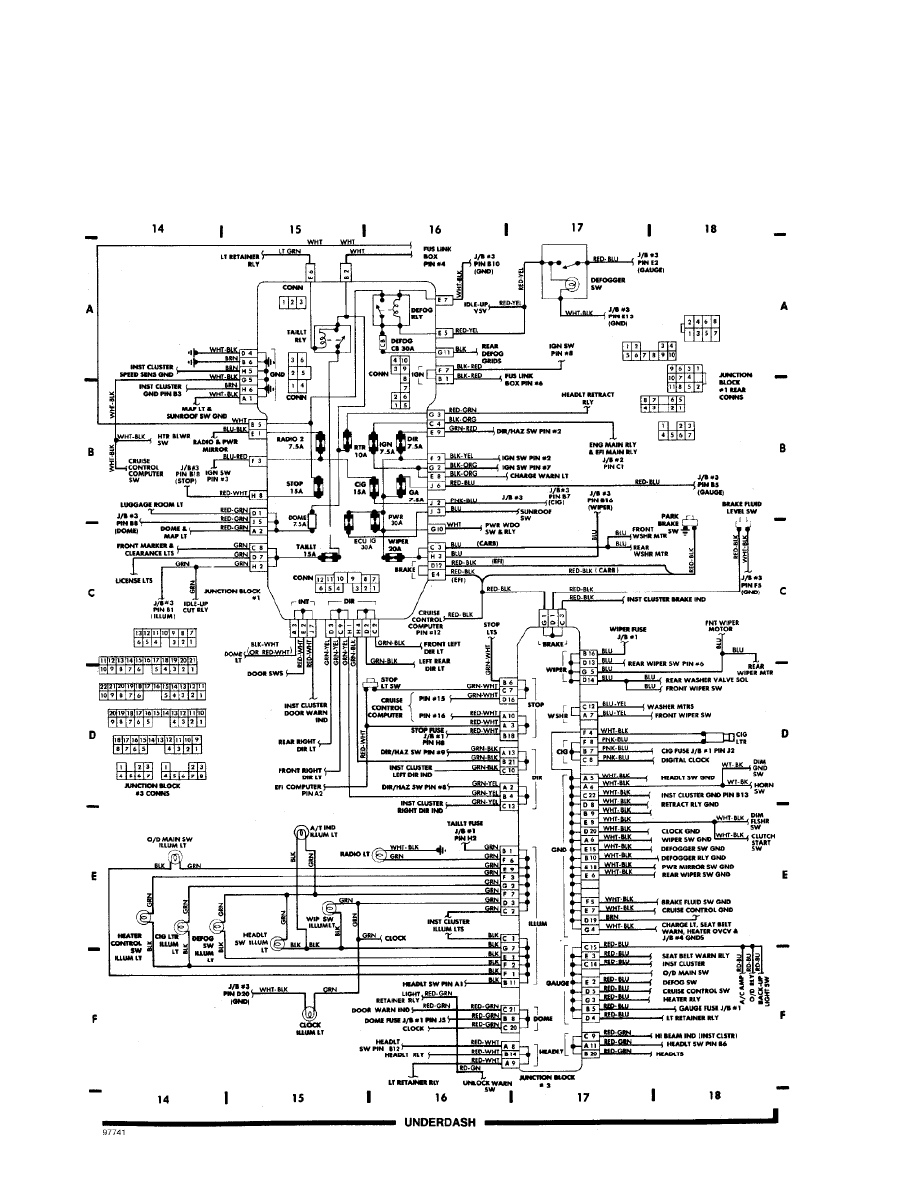

Fig. 3: Underdash

1985 Toyota Corolla (RWD)

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 23, 2004 06:07PM

background image

WIRING DIAGRAMS (RWD)

Fig. 4: Underdash (Cont.)

1985 Toyota Corolla (RWD)

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 23, 2004 06:07PM

background image

WIRING DIAGRAMS (RWD)

Fig. 5: Rear Compartment & Instrument Panel

1985 Toyota Corolla (RWD)

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 23, 2004 06:08PM

background image

SYSTEM WIRING DIAGRAMS

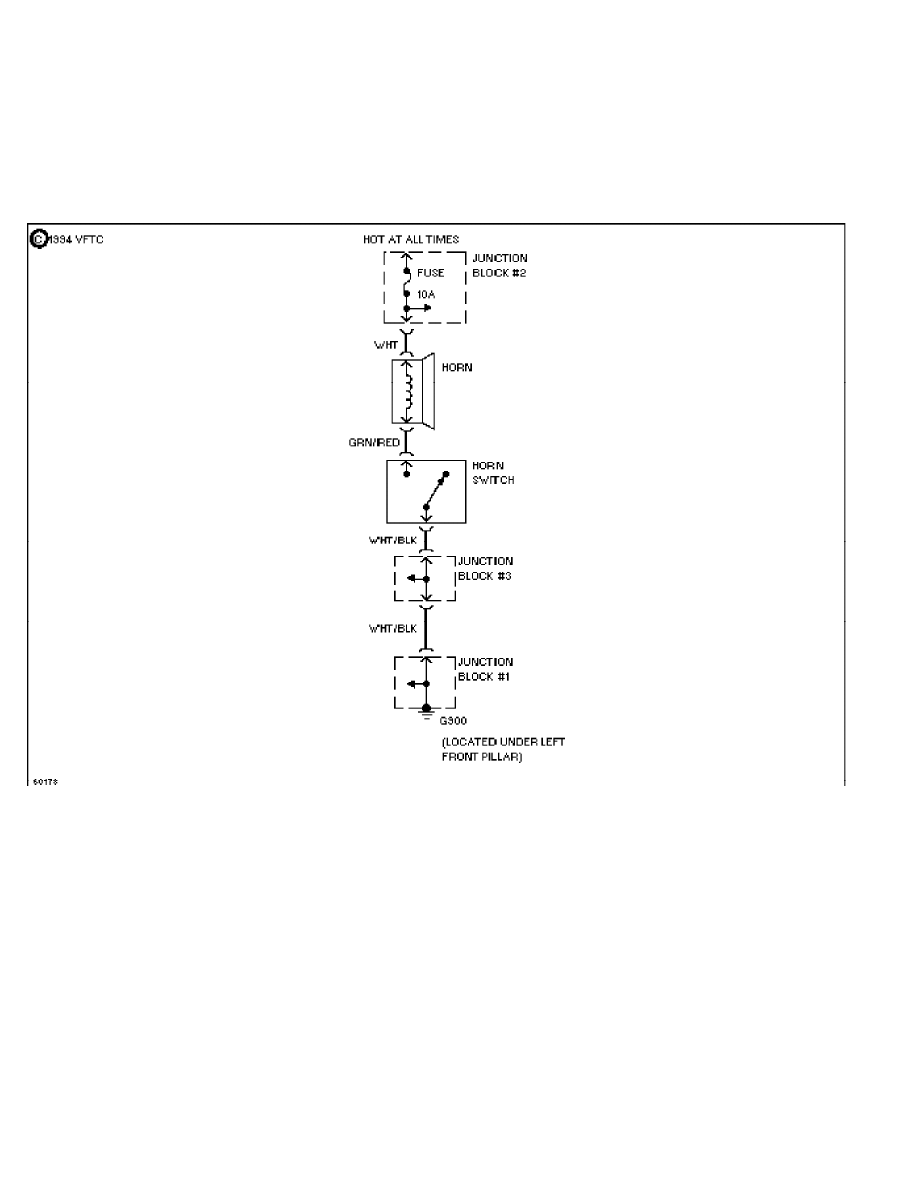

Horn Circuit

1985 Toyota Corolla (RWD)

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 23, 2004 06:06PM

background image

SYSTEM WIRING DIAGRAMS

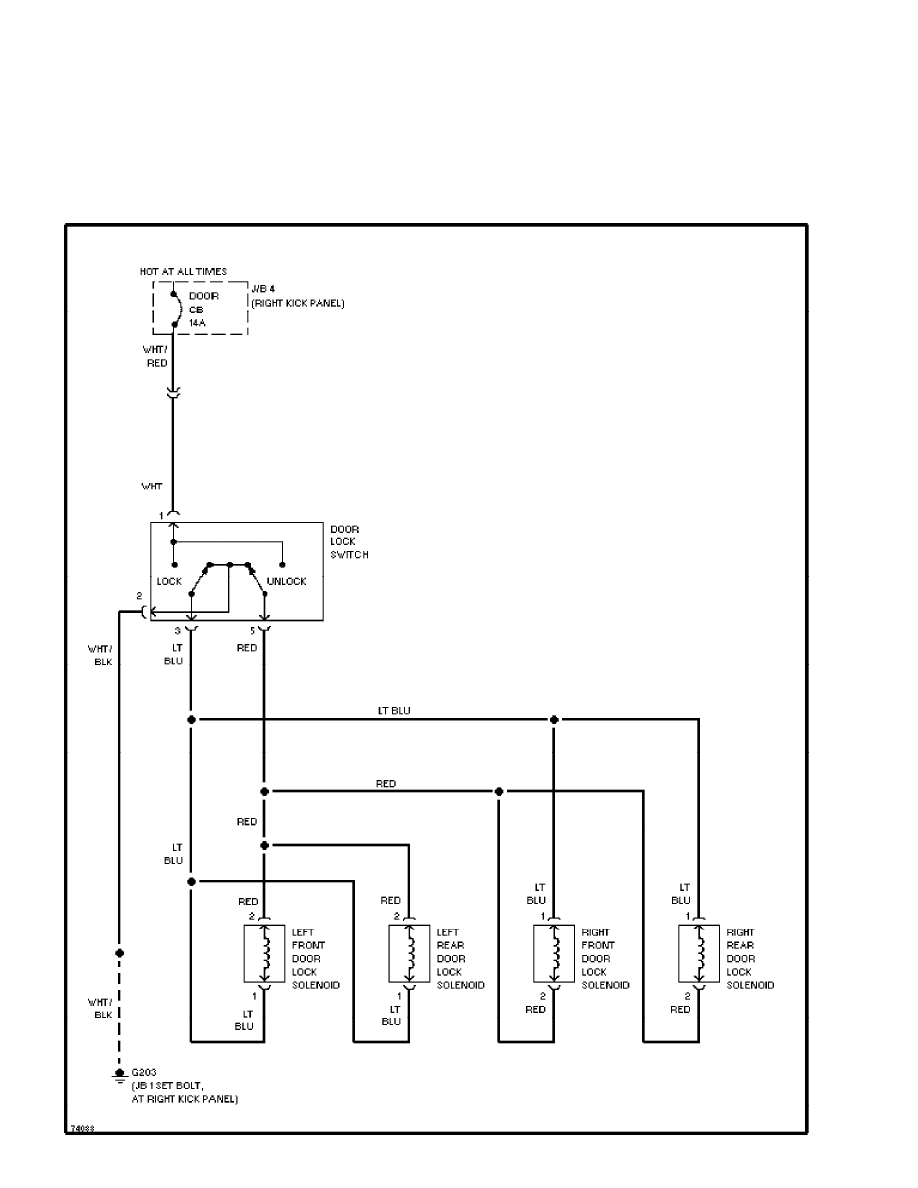

Power Door Lock Circuit

1985 Toyota Corolla (RWD)

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 23, 2004 06:06PM

background image

SYSTEM WIRING DIAGRAMS

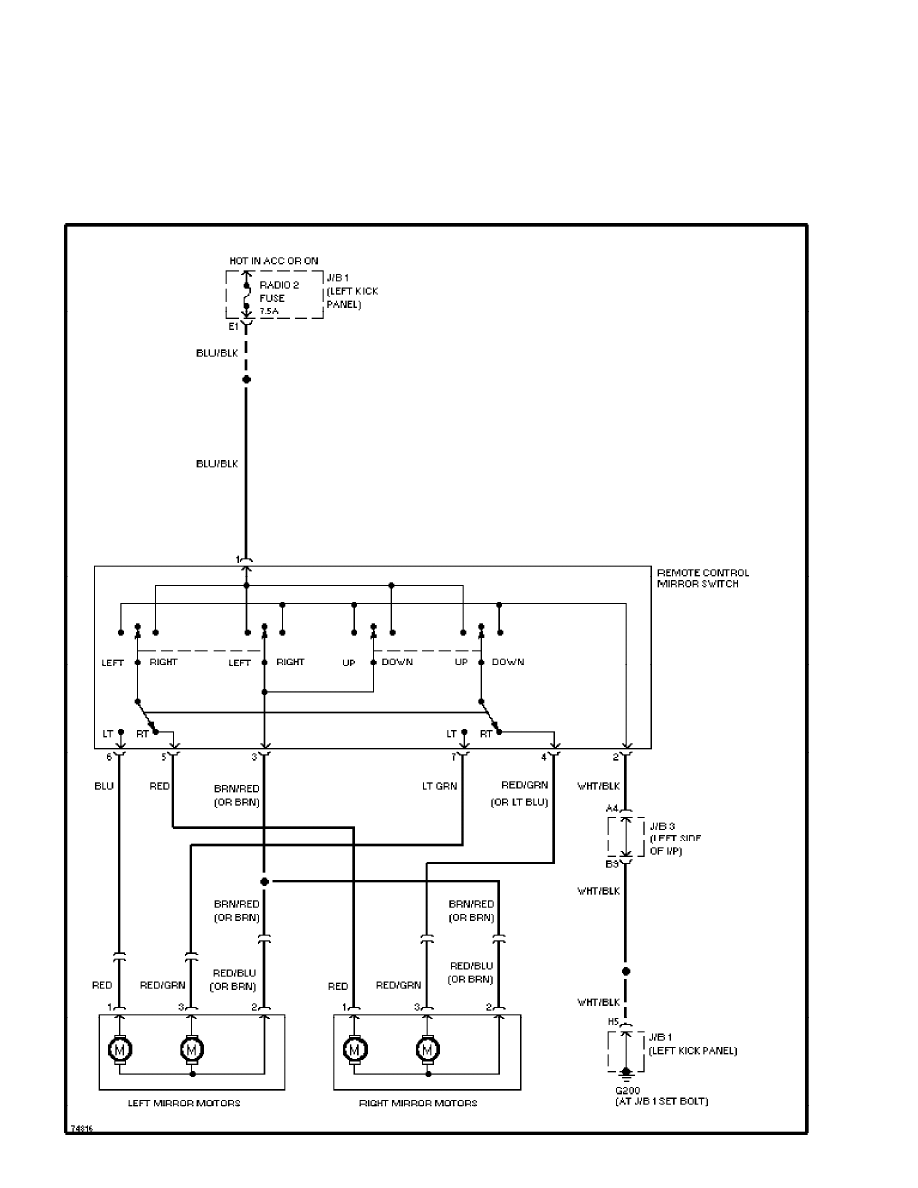

Power Mirror Circuit

1985 Toyota Corolla (RWD)

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 23, 2004 06:07PM

background image

SYSTEM WIRING DIAGRAMS

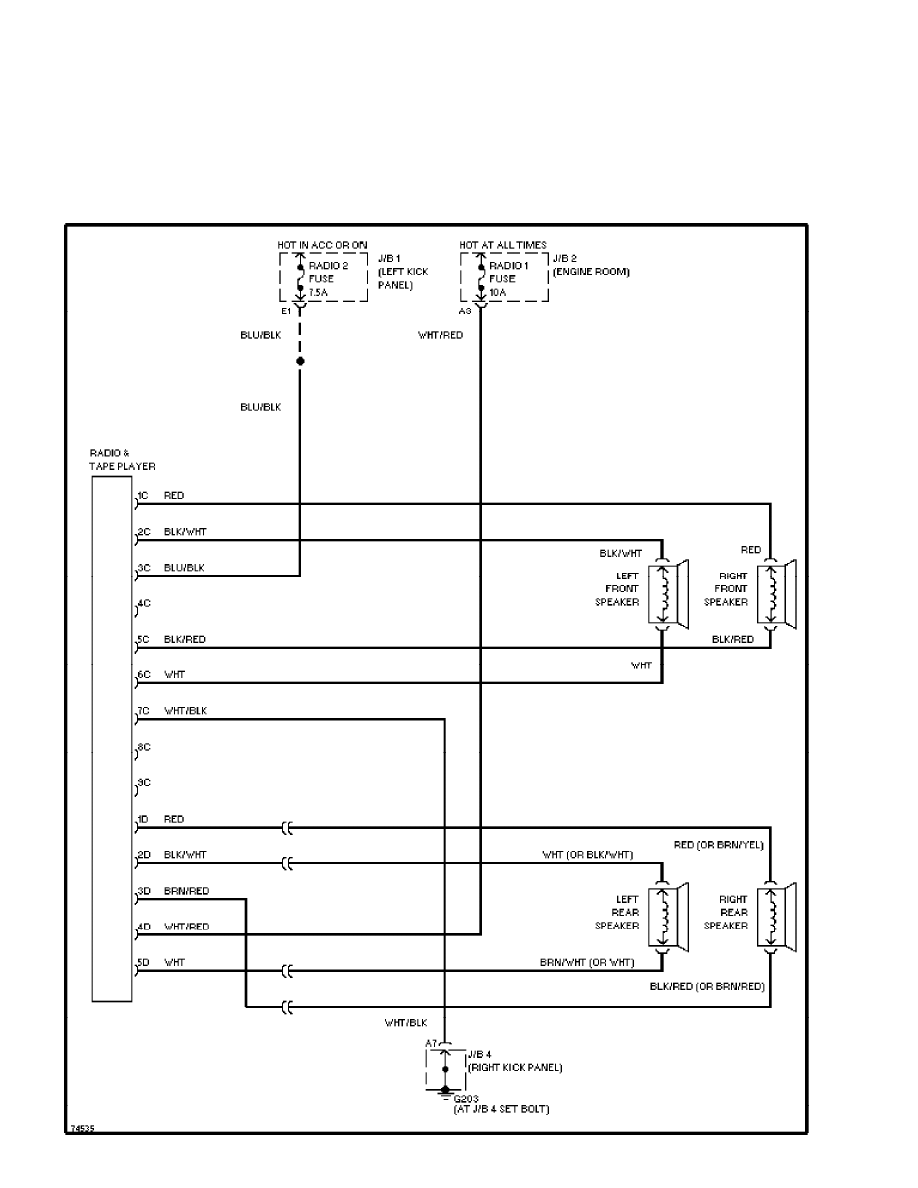

Radio Circuits

1985 Toyota Corolla (RWD)

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 23, 2004 06:07PM

background image

SYSTEM WIRING DIAGRAMS

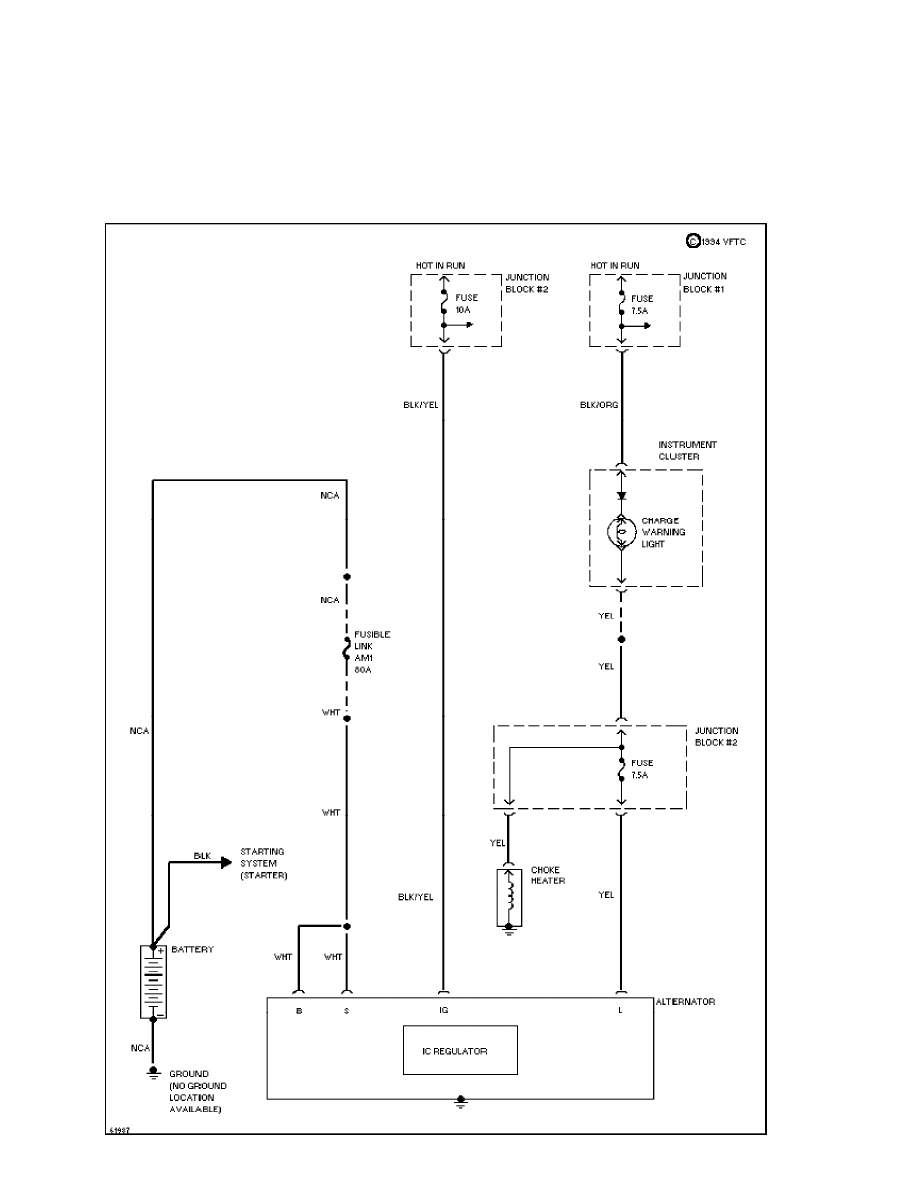

1.6L, Charging Circuit, 4A-C

1985 Toyota Corolla (RWD)

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 23, 2004 06:07PM

background image

SYSTEM WIRING DIAGRAMS

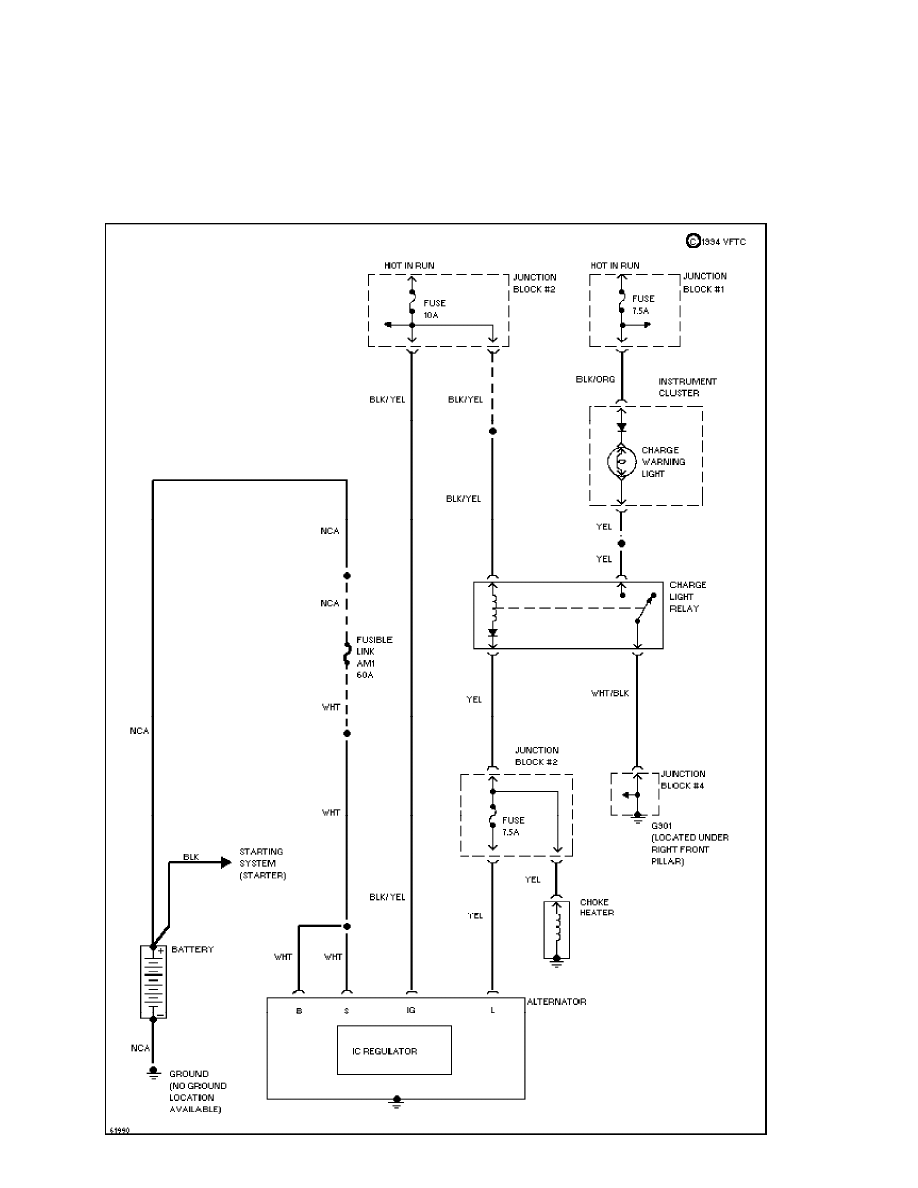

1.6L, Charging Circuit, 4A-GEC

1985 Toyota Corolla (RWD)

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 23, 2004 06:07PM

background image

SYSTEM WIRING DIAGRAMS

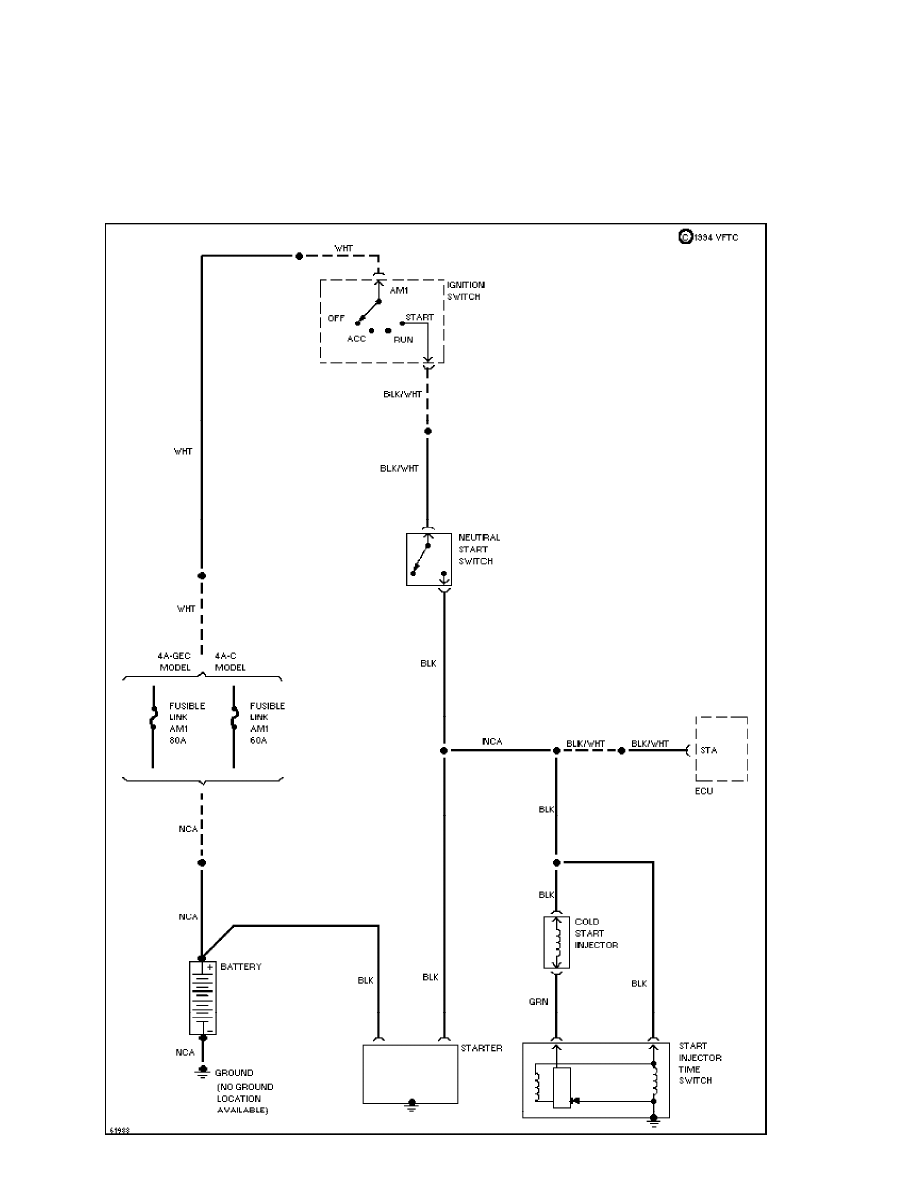

1.6L, Starting Circuit, Automatic

1985 Toyota Corolla (RWD)

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 23, 2004 06:07PM

background image

SYSTEM WIRING DIAGRAMS

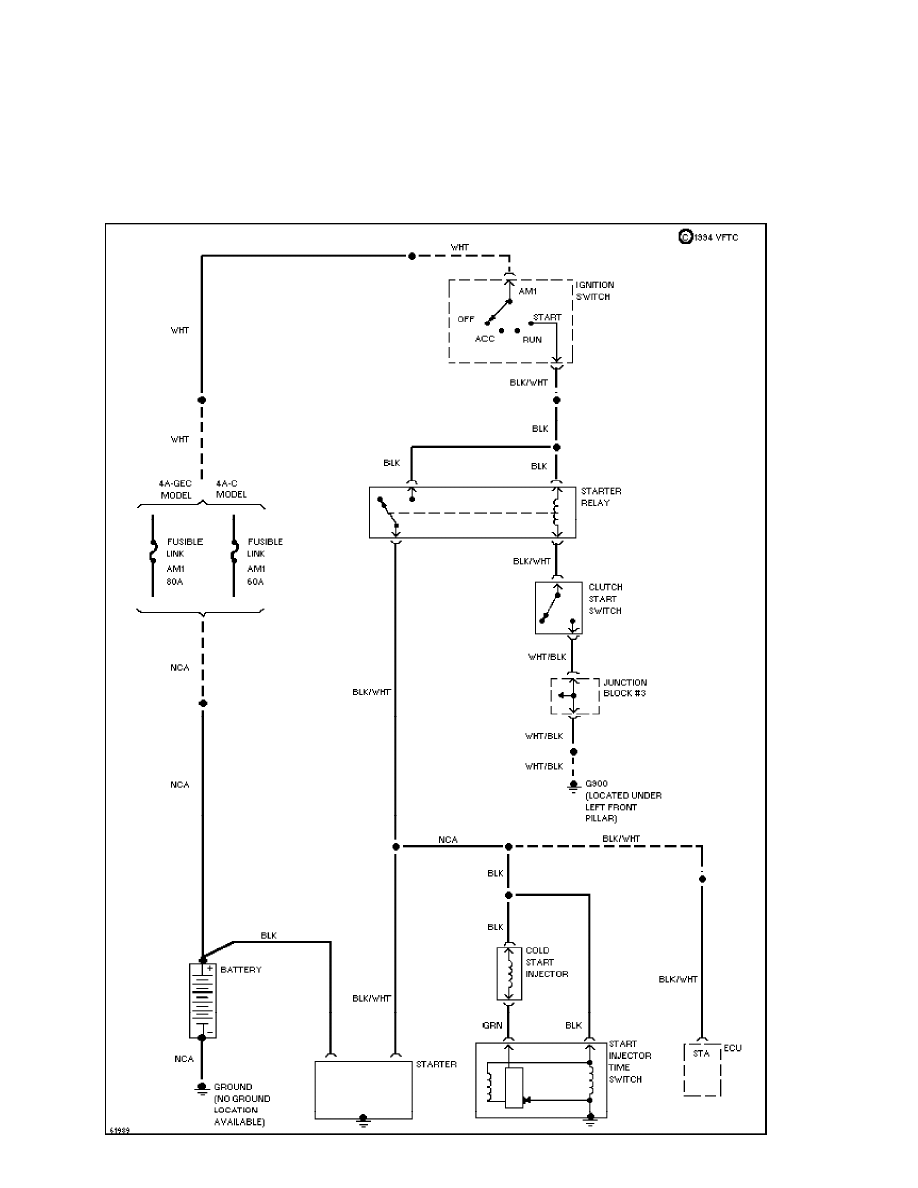

1.6L, Starting Circuit, Manual

1985 Toyota Corolla (RWD)

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 23, 2004 06:07PM

background image

SYSTEM WIRING DIAGRAMS

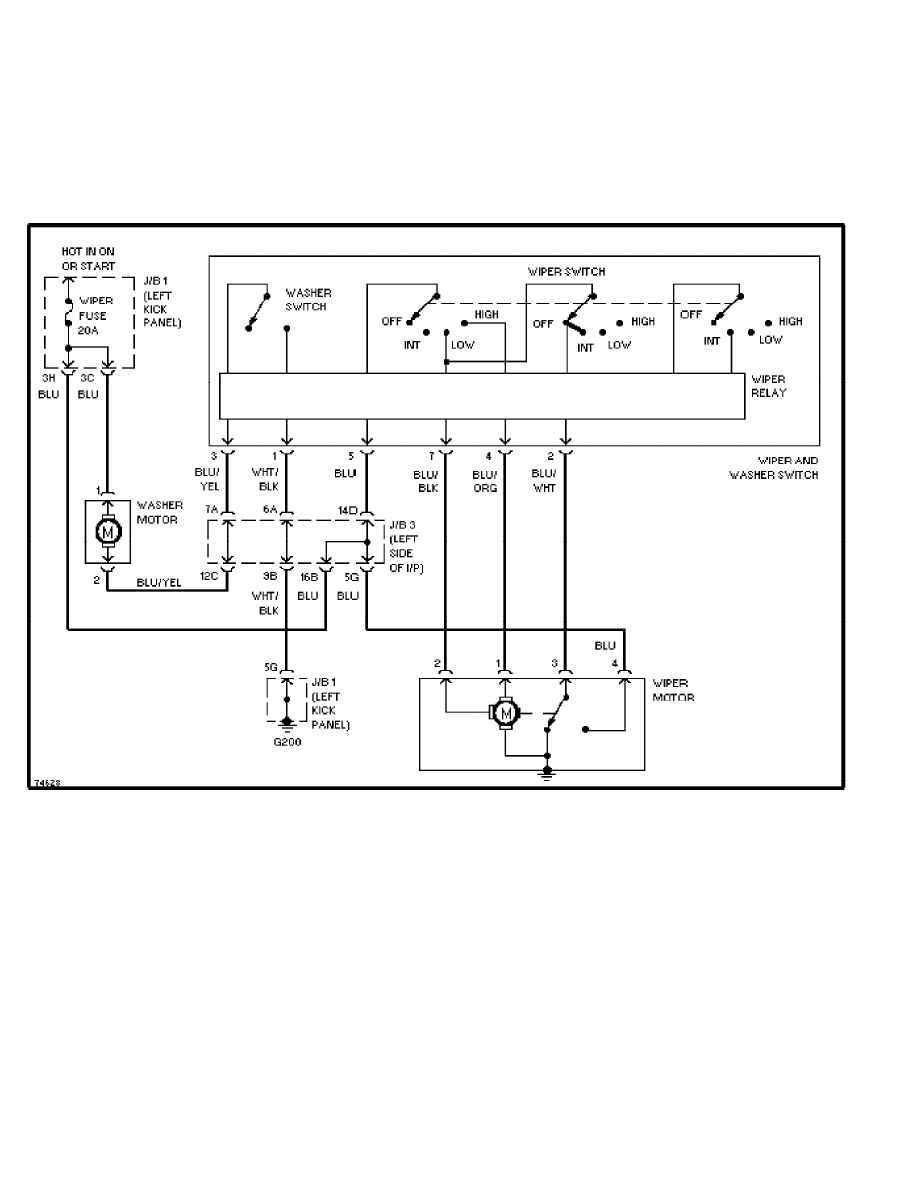

1.6L (Carb), Front Wiper/Washer Circuit

1985 Toyota Corolla (RWD)

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 23, 2004 06:07PM

background image

SYSTEM WIRING DIAGRAMS

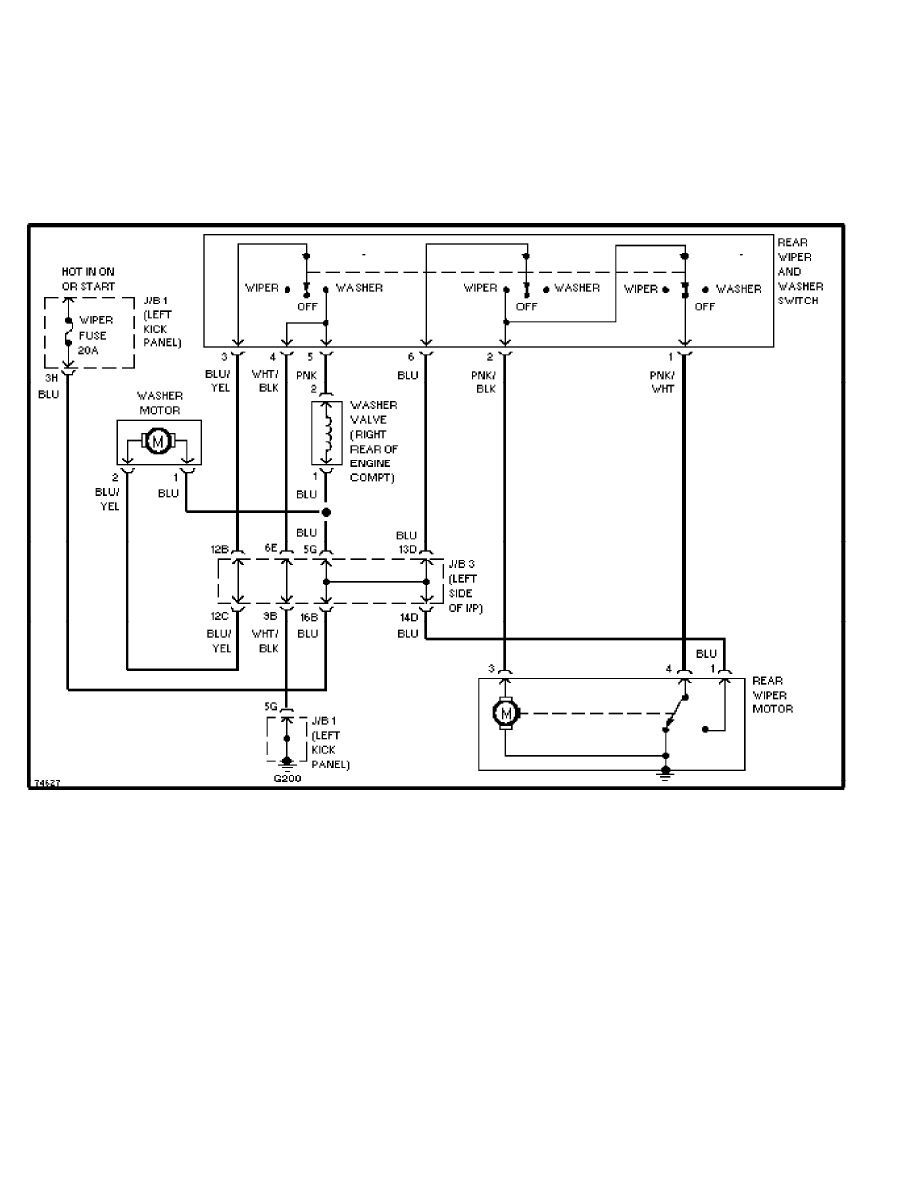

1.6L (Carb), Rear Wiper/Washer Circuit

1985 Toyota Corolla (RWD)

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 23, 2004 06:07PM

background image

SYSTEM WIRING DIAGRAMS

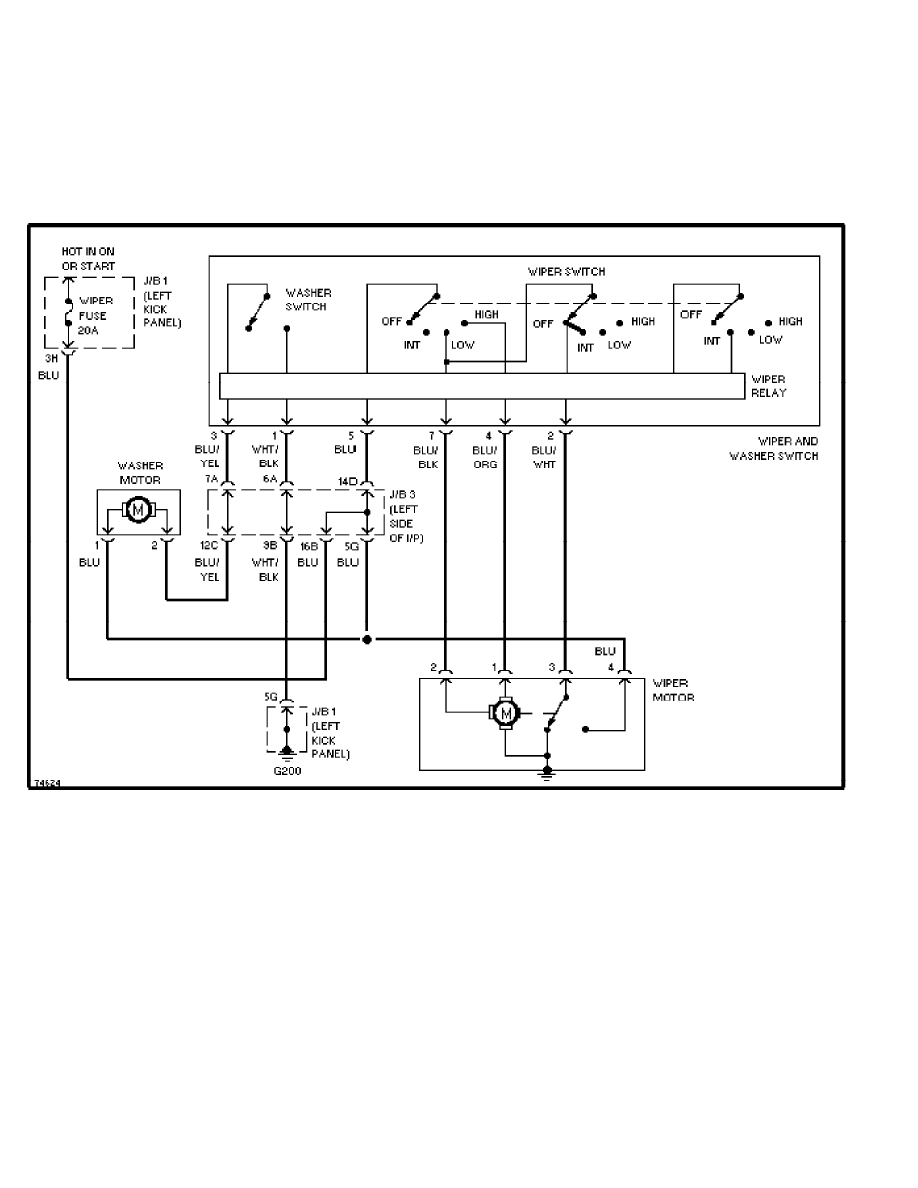

1.6L (EFI), Front Wiper/Washer Circuit

1985 Toyota Corolla (RWD)

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 23, 2004 06:07PM

background image

SYSTEM WIRING DIAGRAMS

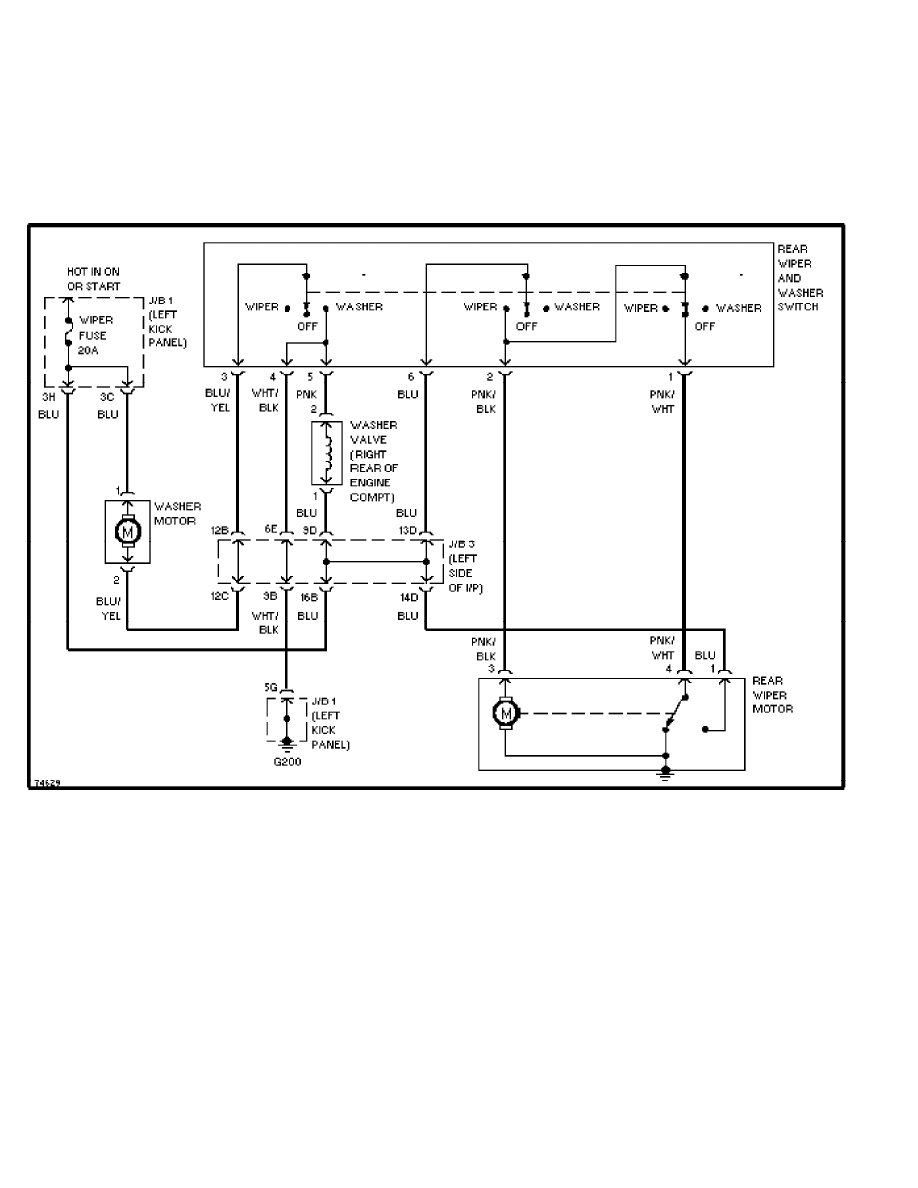

1.6L (EFI), Rear Wiper/Washer Circuit

1985 Toyota Corolla (RWD)

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 23, 2004 06:07PM

background image

WIRING DIAGRAMS (RWD)

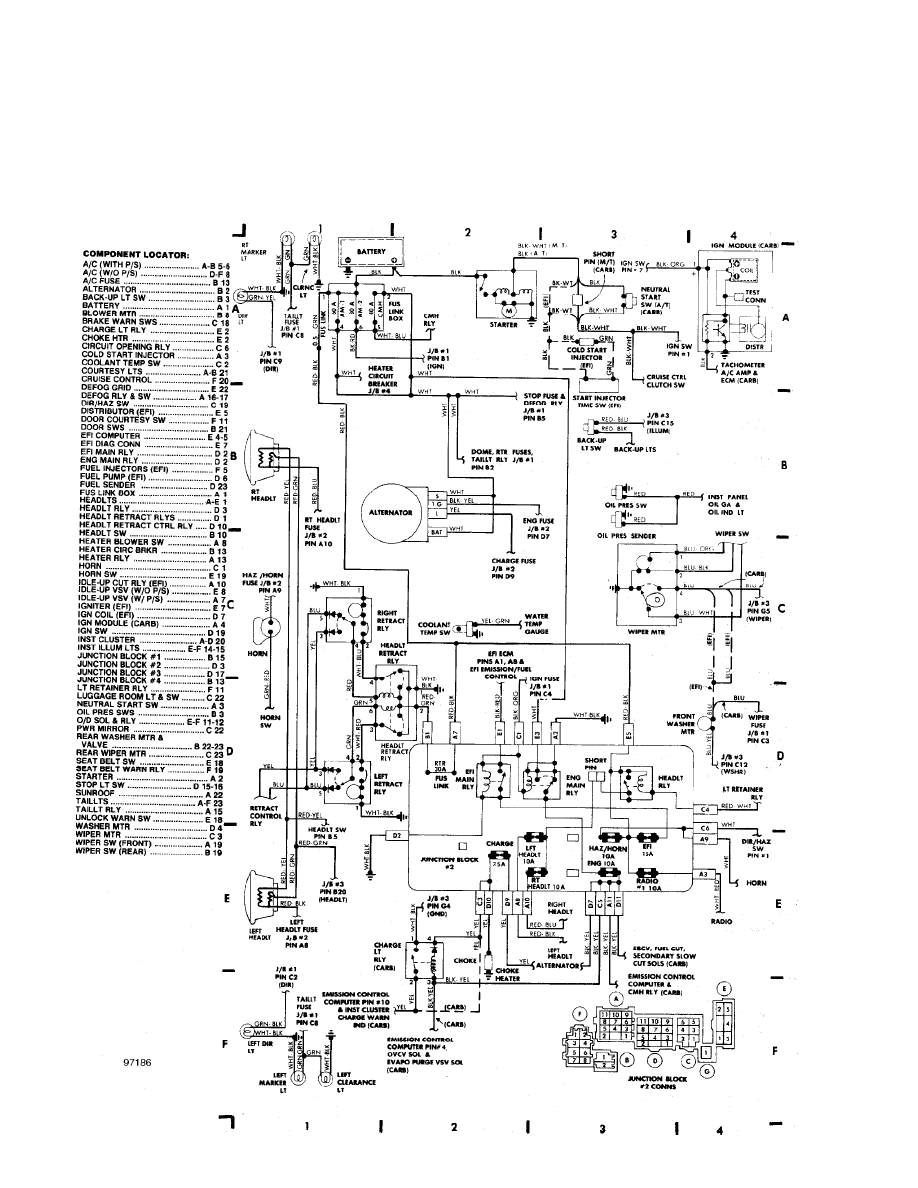

Fig. 1: Engine Compartment

1985 Toyota Corolla (RWD)

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 23, 2004 06:07PM

background image

WIRING DIAGRAMS (RWD)

Fig. 2: Engine Compartment (Cont.) & Underdash

1985 Toyota Corolla (RWD)

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 23, 2004 06:07PM
