TOYOTA COROLLA RWD 1986

SYSTEM WIRING DIAGRAMS

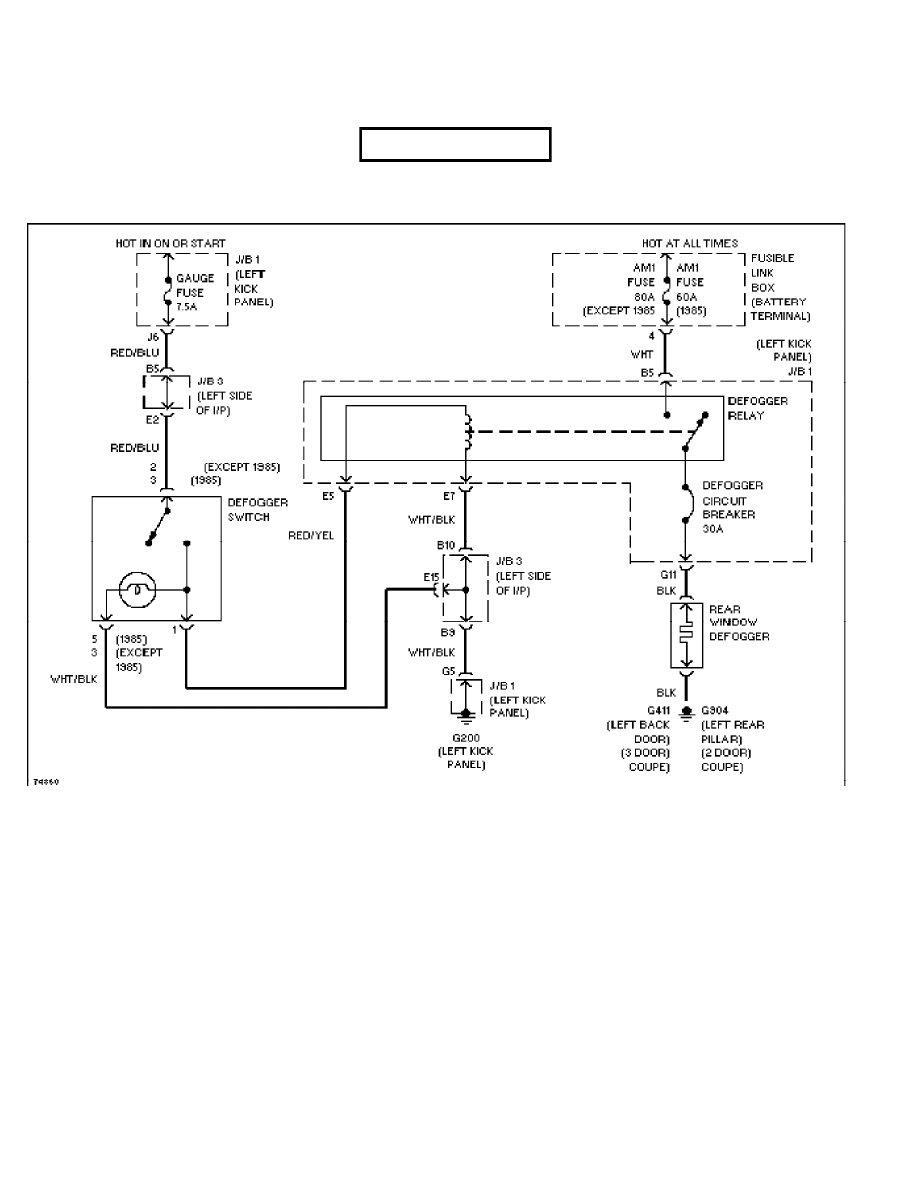

Defogger Circuit

1986 Toyota Corolla (RWD)

For x

Friday, July 23, 2004 06:17PM

CDR@WP.PL

WIRING DIAGRAMS (RWD)

Fig. 4: Underdash (Cont.) & Fuseblock No. 2 (Grids 14-18)

1986 Toyota Corolla (RWD)

For x

Friday, July 23, 2004 06:18PM

WIRING DIAGRAMS (RWD)

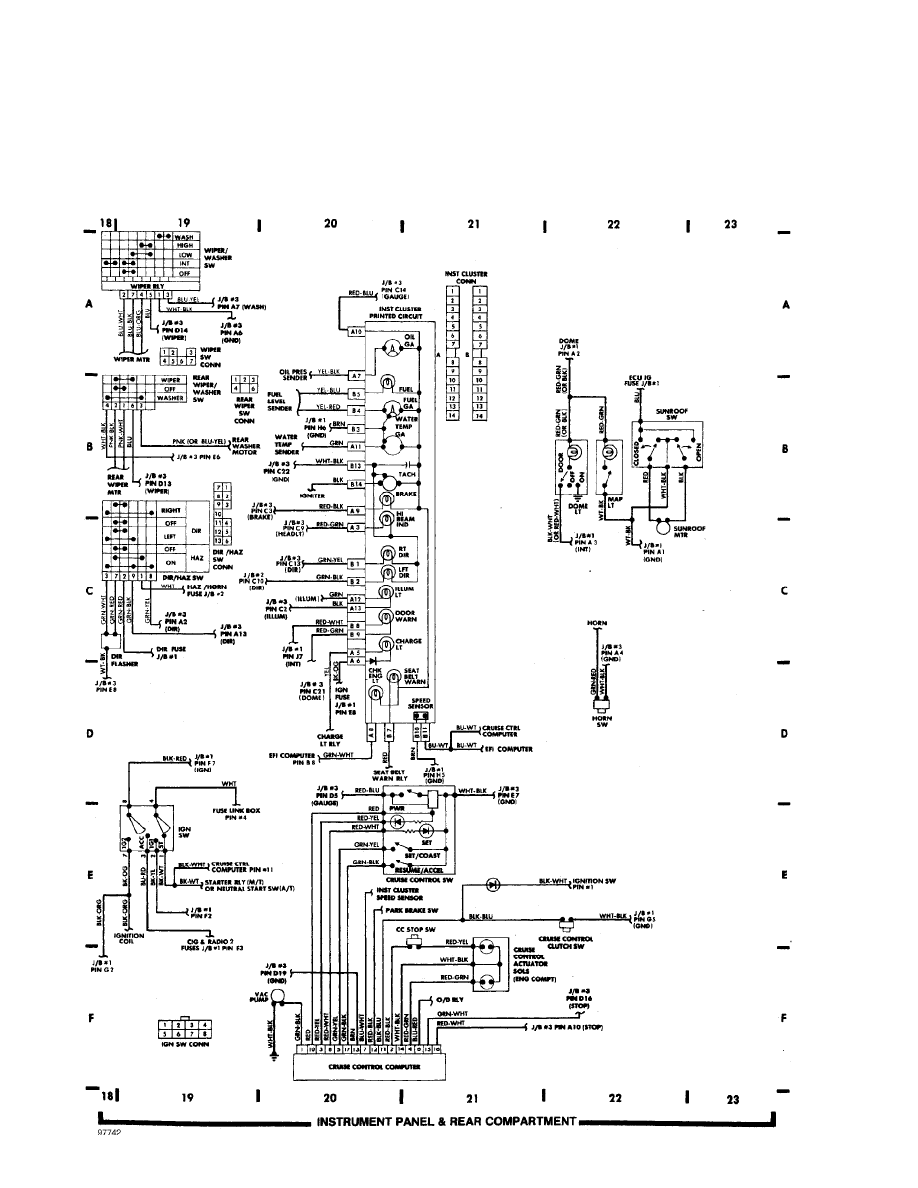

Fig. 5: Instrument Panel, Cruise Control & Passenger Compartment (Grids 18-23)

1986 Toyota Corolla (RWD)

For x

Friday, July 23, 2004 06:18PM

WIRING DIAGRAMS (RWD)

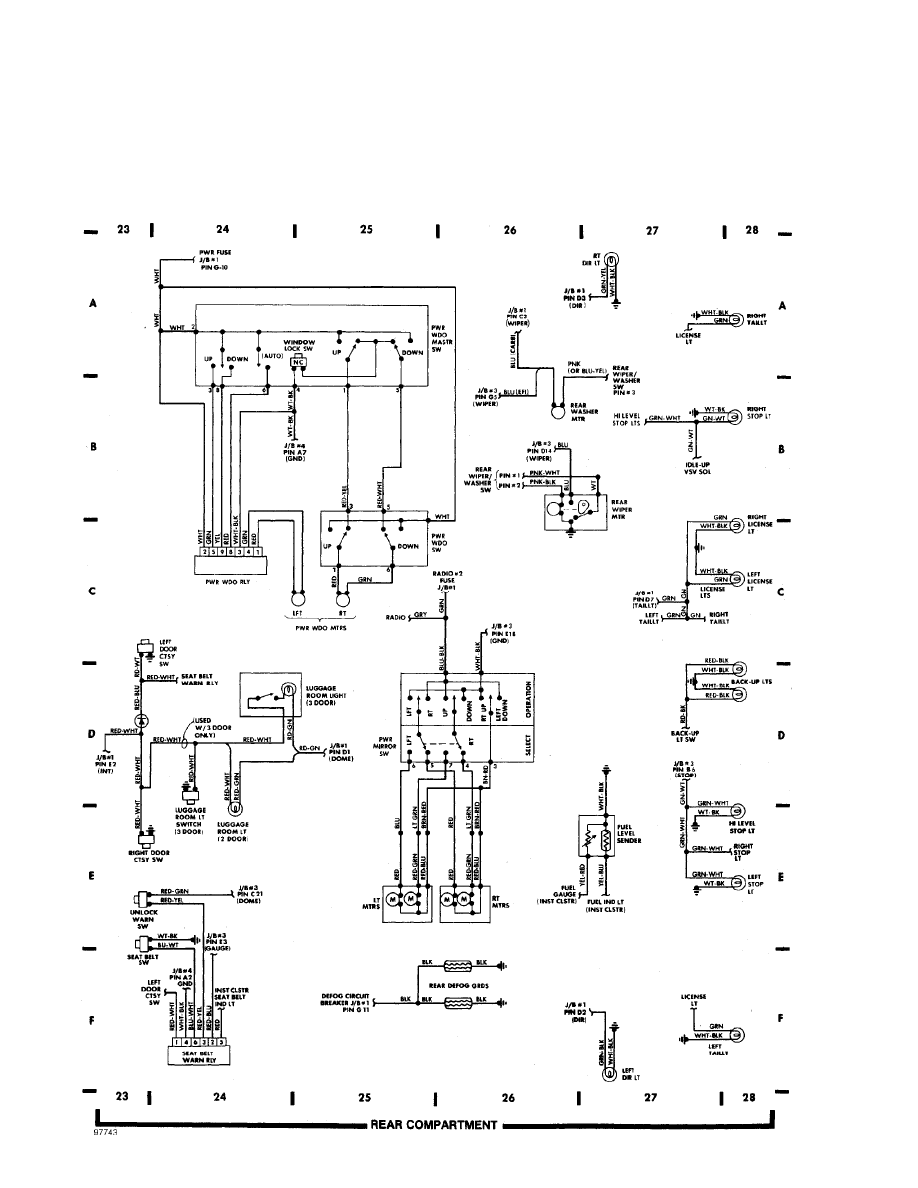

Fig. 6: Passenger Compartment (Cont.) & Taillights (Grids 23-28)

1986 Toyota Corolla (RWD)

For x

Friday, July 23, 2004 06:18PM

SYSTEM WIRING DIAGRAMS

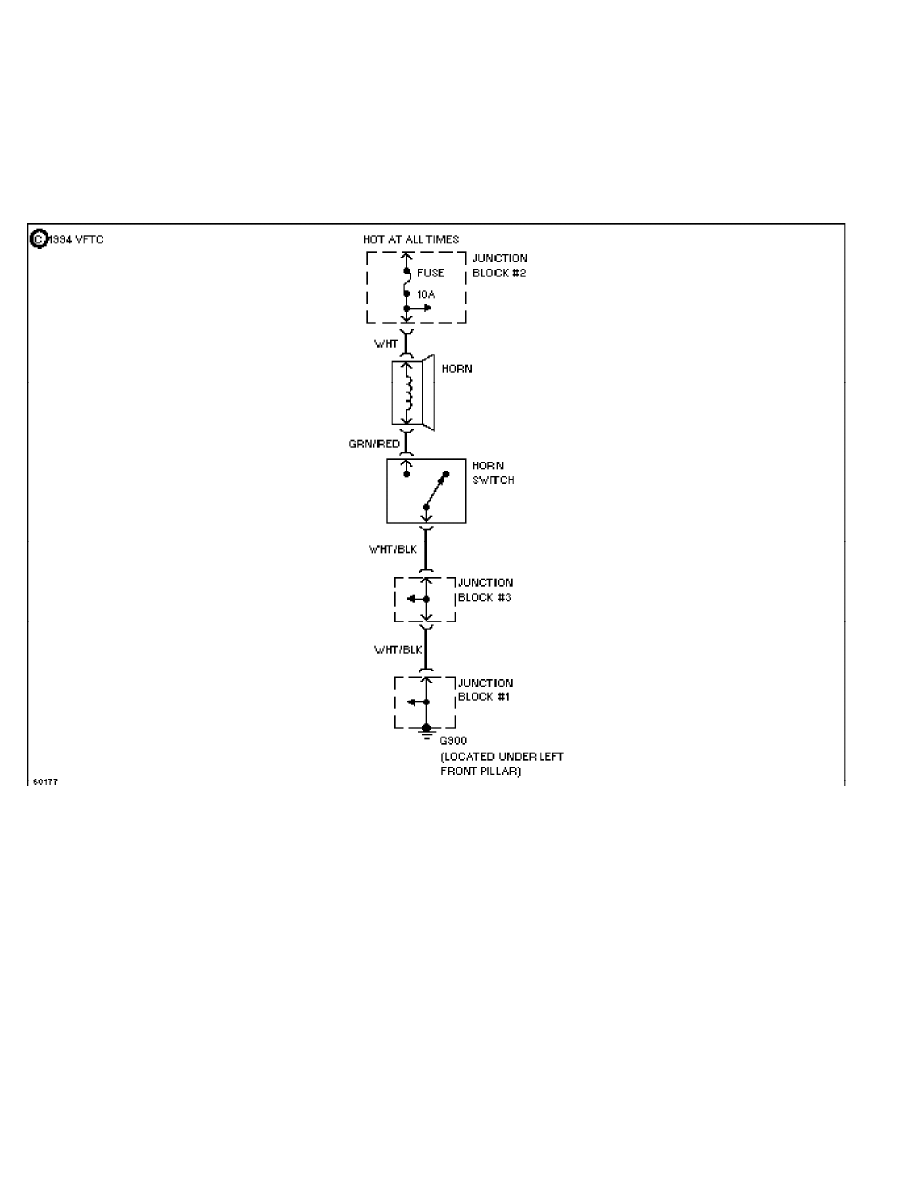

Horn Circuit

1986 Toyota Corolla (RWD)

For x

Friday, July 23, 2004 06:17PM

SYSTEM WIRING DIAGRAMS

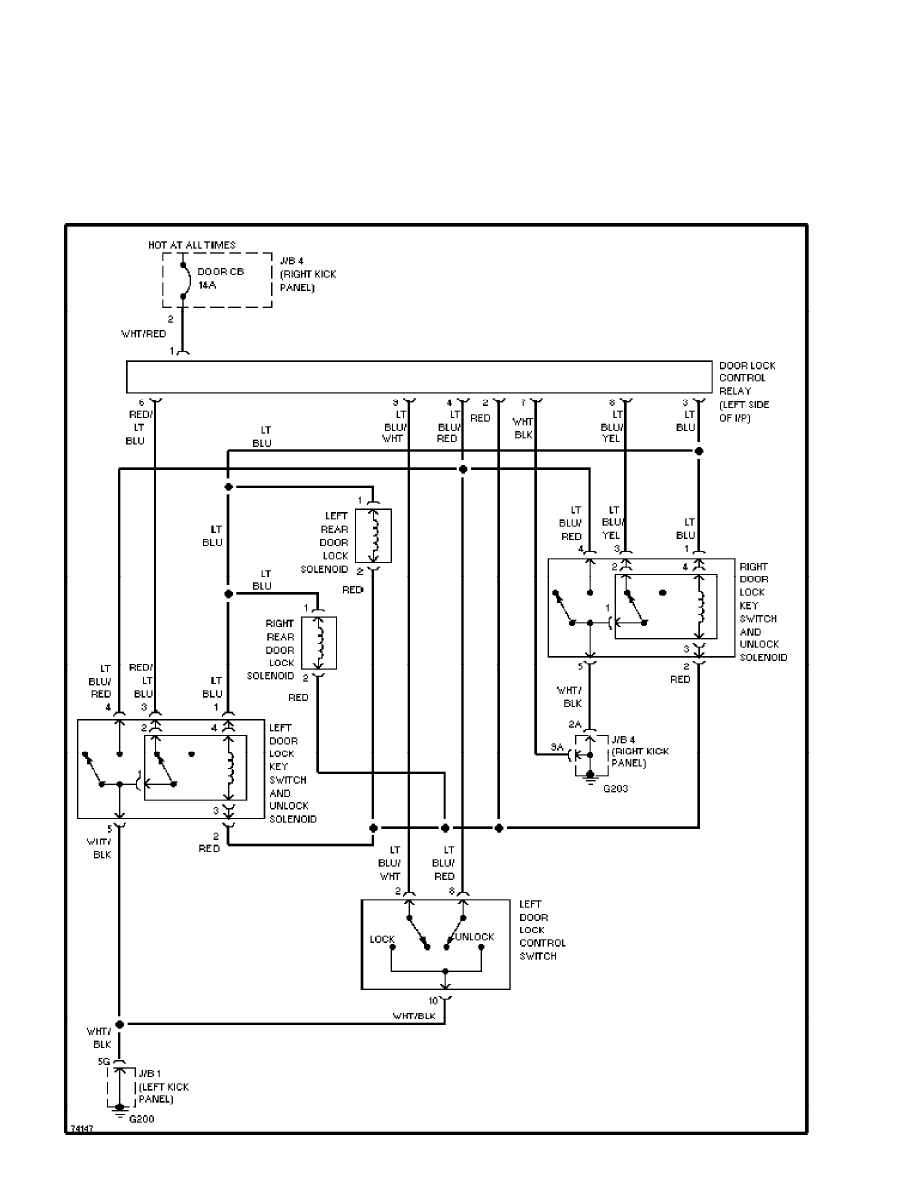

Power Door Lock Circuit

1986 Toyota Corolla (RWD)

For x

Friday, July 23, 2004 06:17PM

SYSTEM WIRING DIAGRAMS

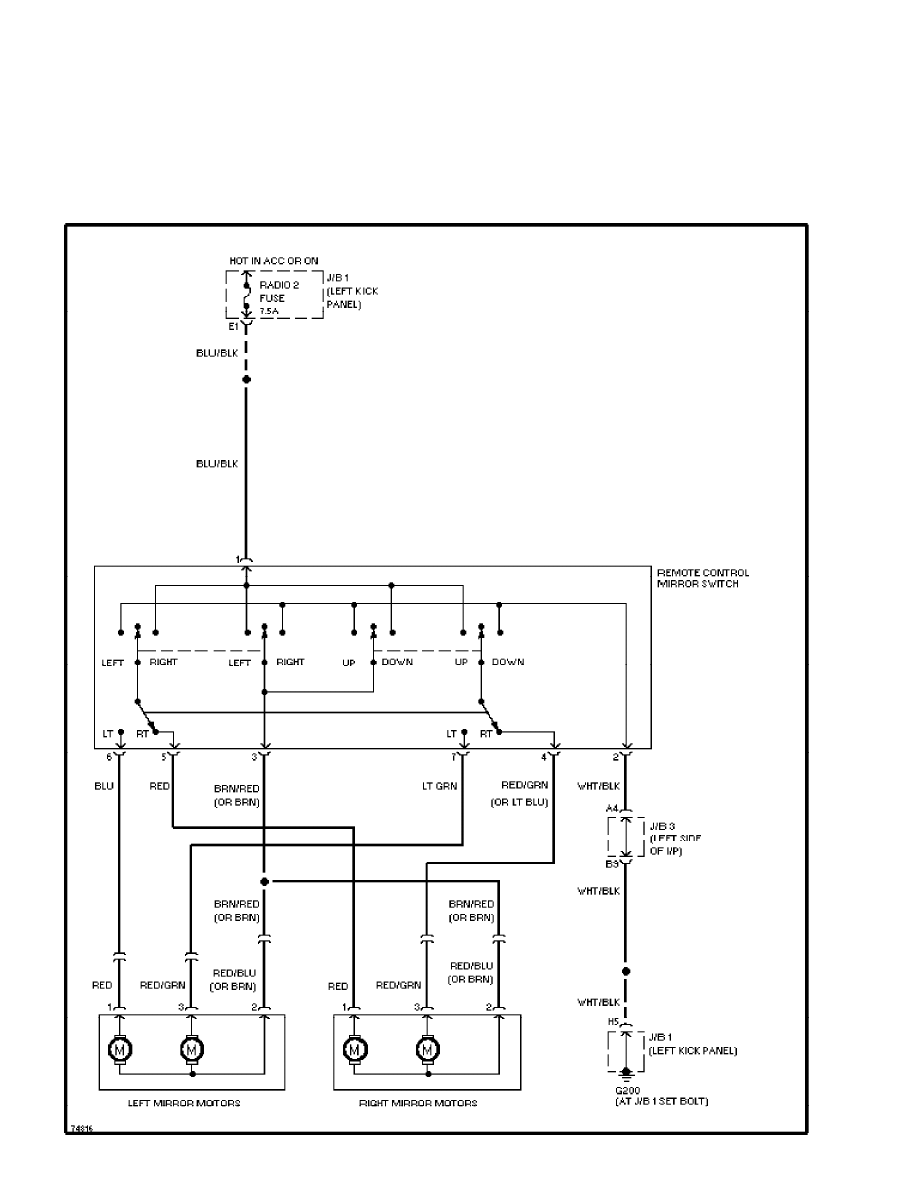

Power Mirror Circuit

1986 Toyota Corolla (RWD)

For x

Friday, July 23, 2004 06:17PM

SYSTEM WIRING DIAGRAMS

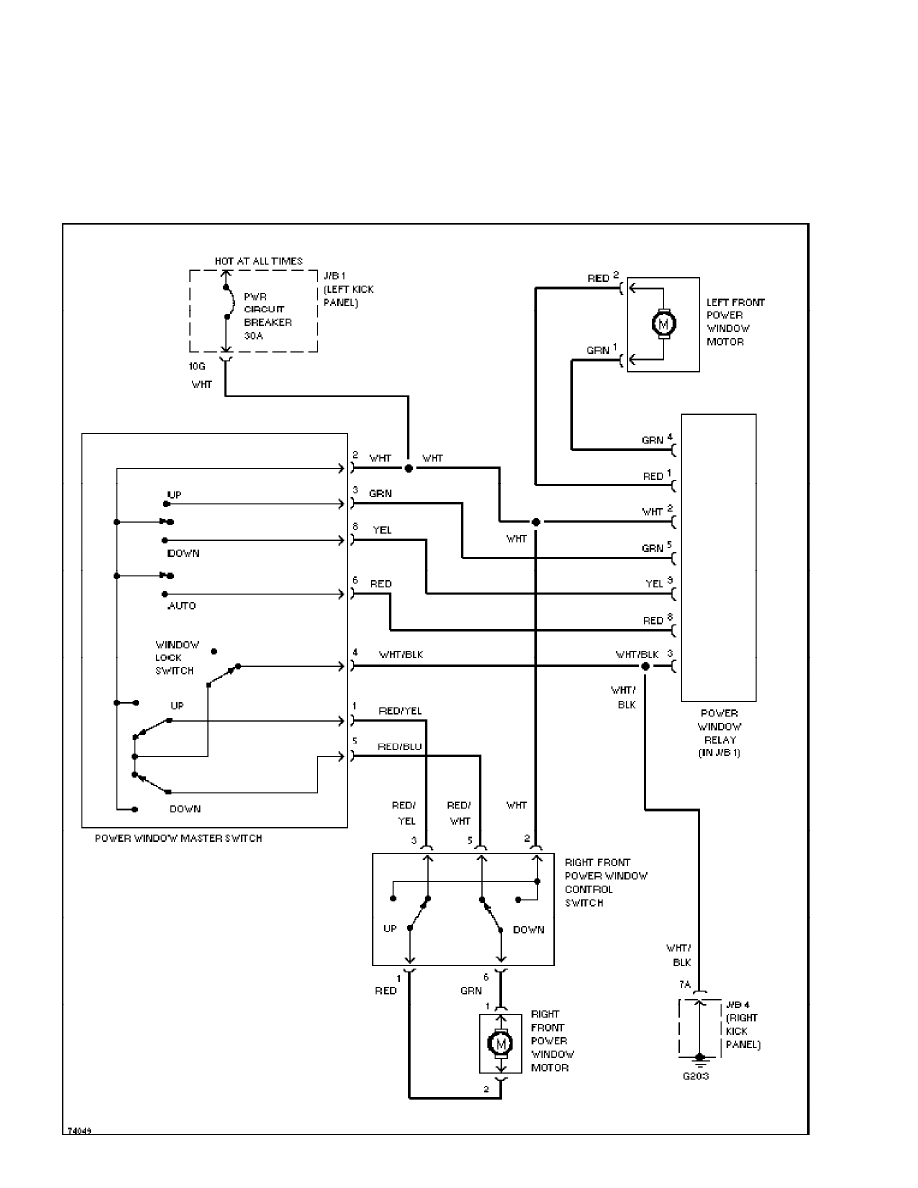

Power Window Circuit

1986 Toyota Corolla (RWD)

For x

Friday, July 23, 2004 06:17PM

SYSTEM WIRING DIAGRAMS

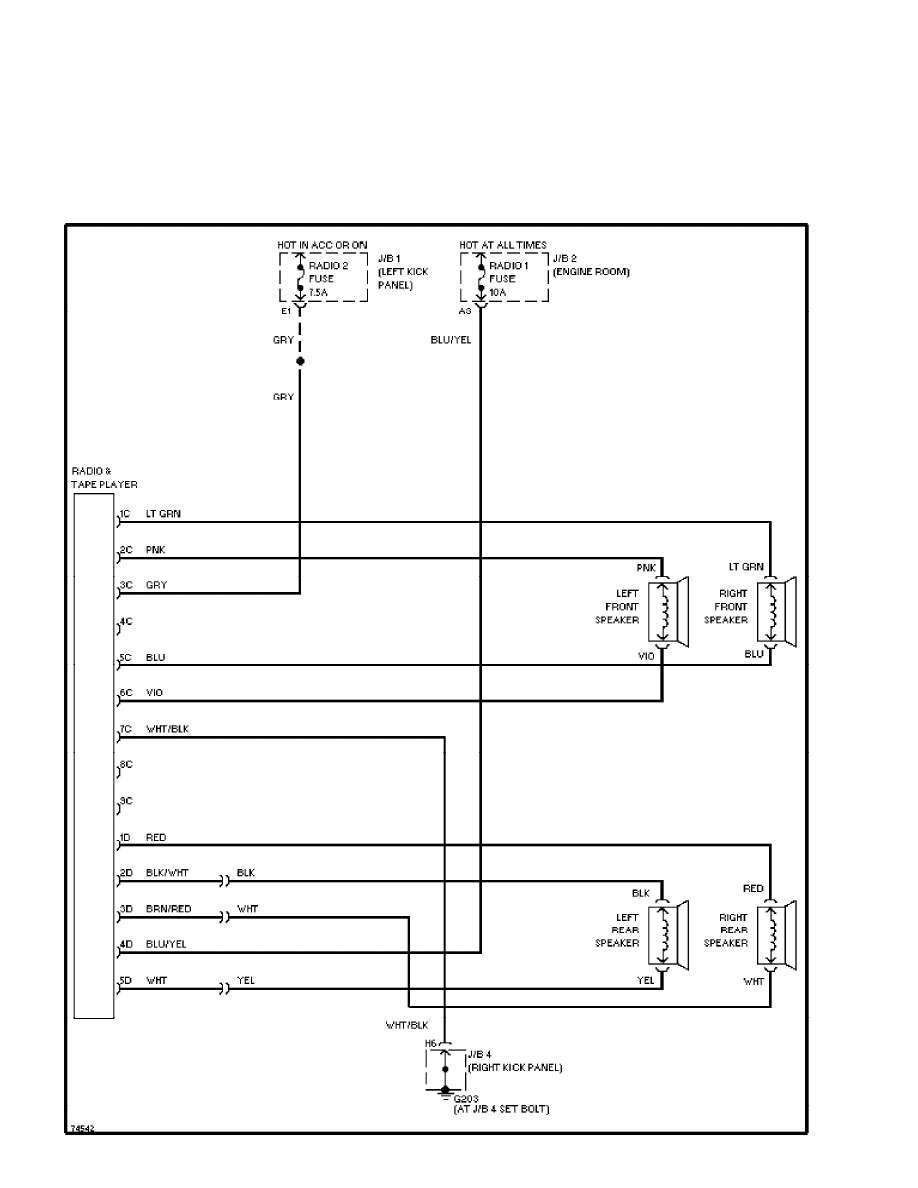

Radio Circuits

1986 Toyota Corolla (RWD)

For x

Friday, July 23, 2004 06:17PM

SYSTEM WIRING DIAGRAMS

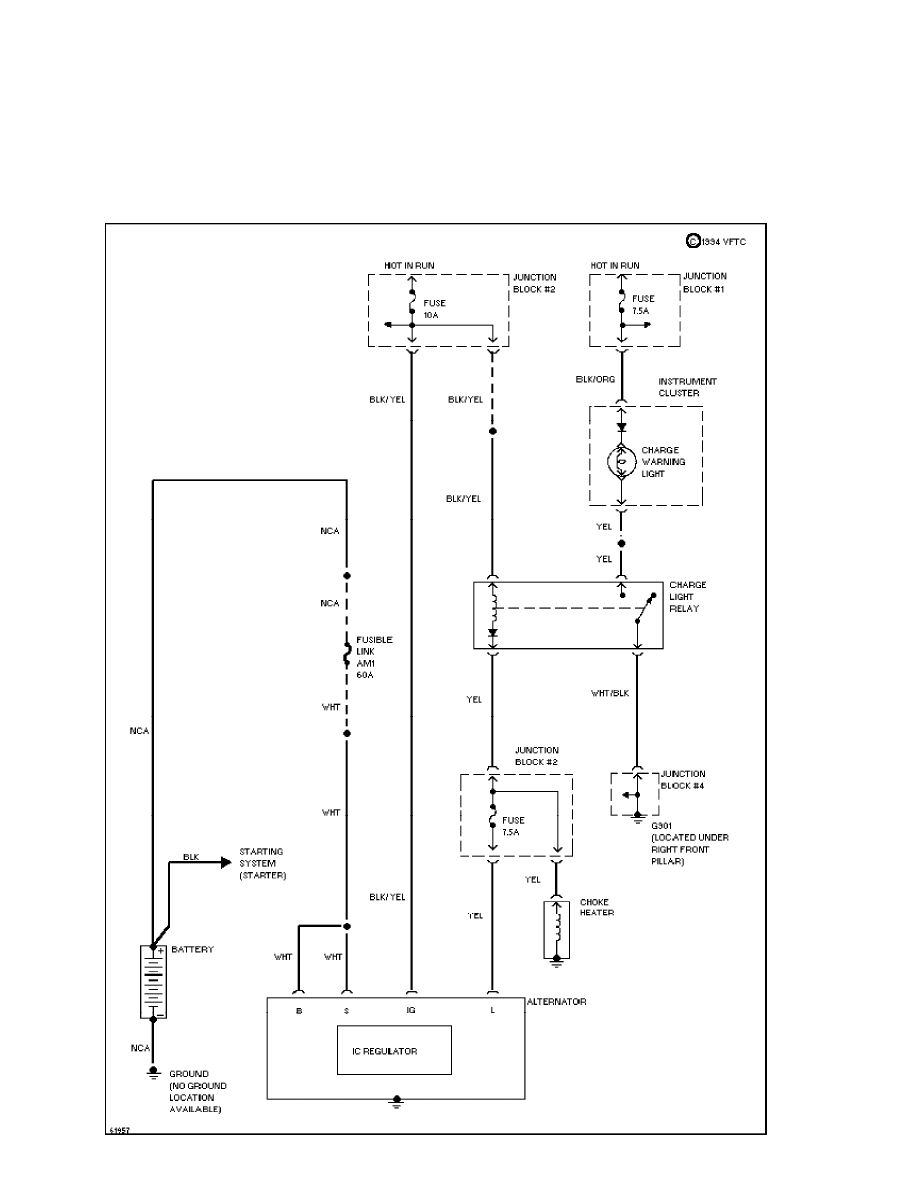

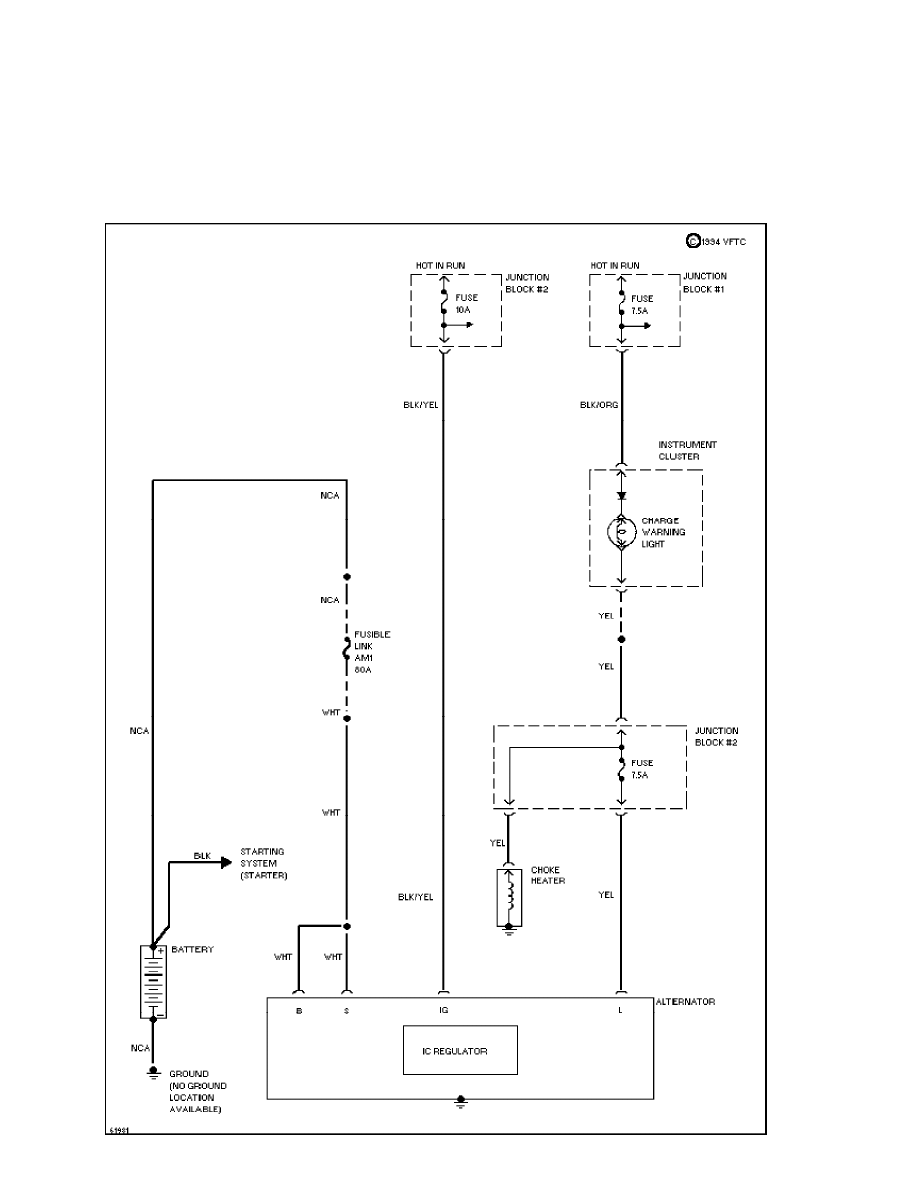

1.6L, Charging Circuit, 4A-C

1986 Toyota Corolla (RWD)

For x

Friday, July 23, 2004 06:18PM

SYSTEM WIRING DIAGRAMS

1.6L, Charging Circuit, 4A-GEC

1986 Toyota Corolla (RWD)

For x

Friday, July 23, 2004 06:18PM

SYSTEM WIRING DIAGRAMS

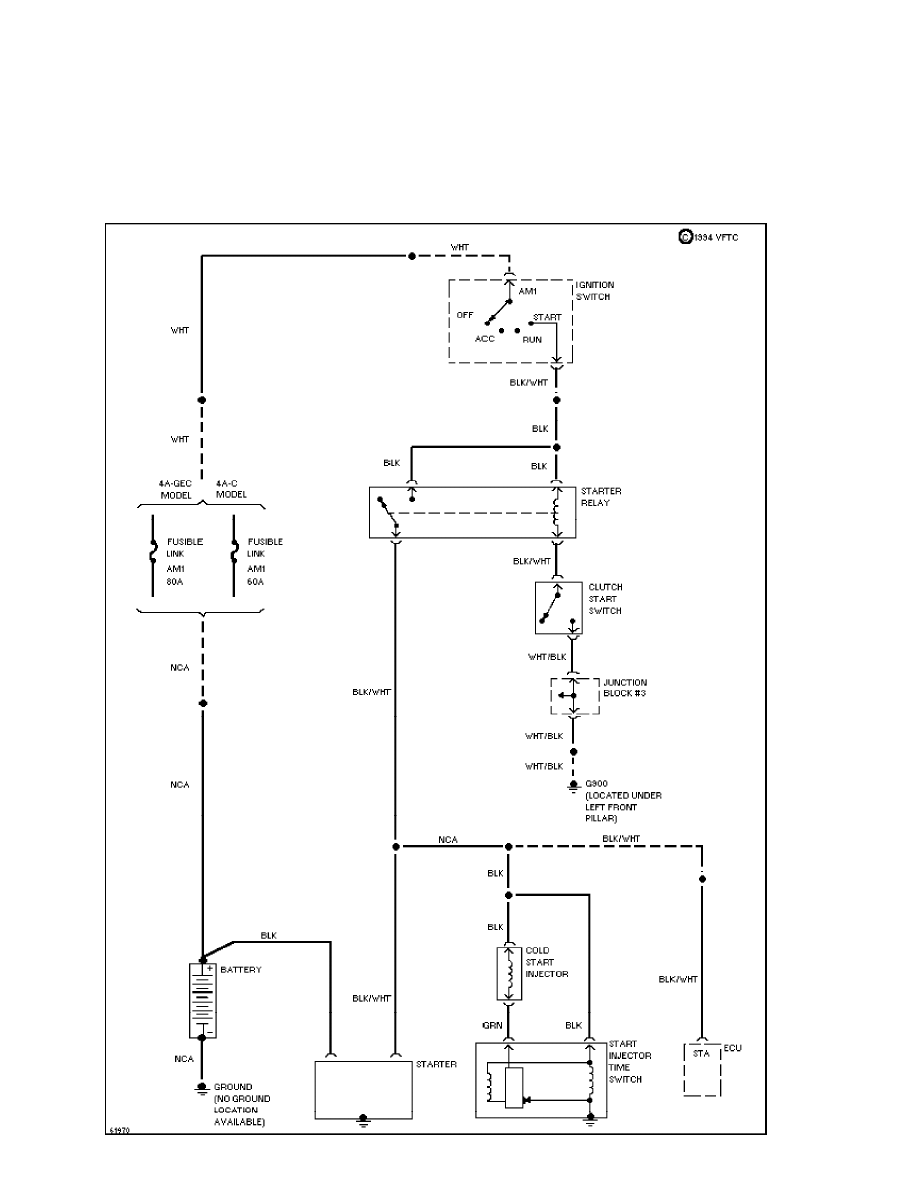

1.6L, Starting Circuit, Automatic

1986 Toyota Corolla (RWD)

For x

Friday, July 23, 2004 06:18PM

SYSTEM WIRING DIAGRAMS
1.6L, Starting Circuit, Manual

1986 Toyota Corolla (RWD)

For x

Friday, July 23, 2004 06:18PM

SYSTEM WIRING DIAGRAMS

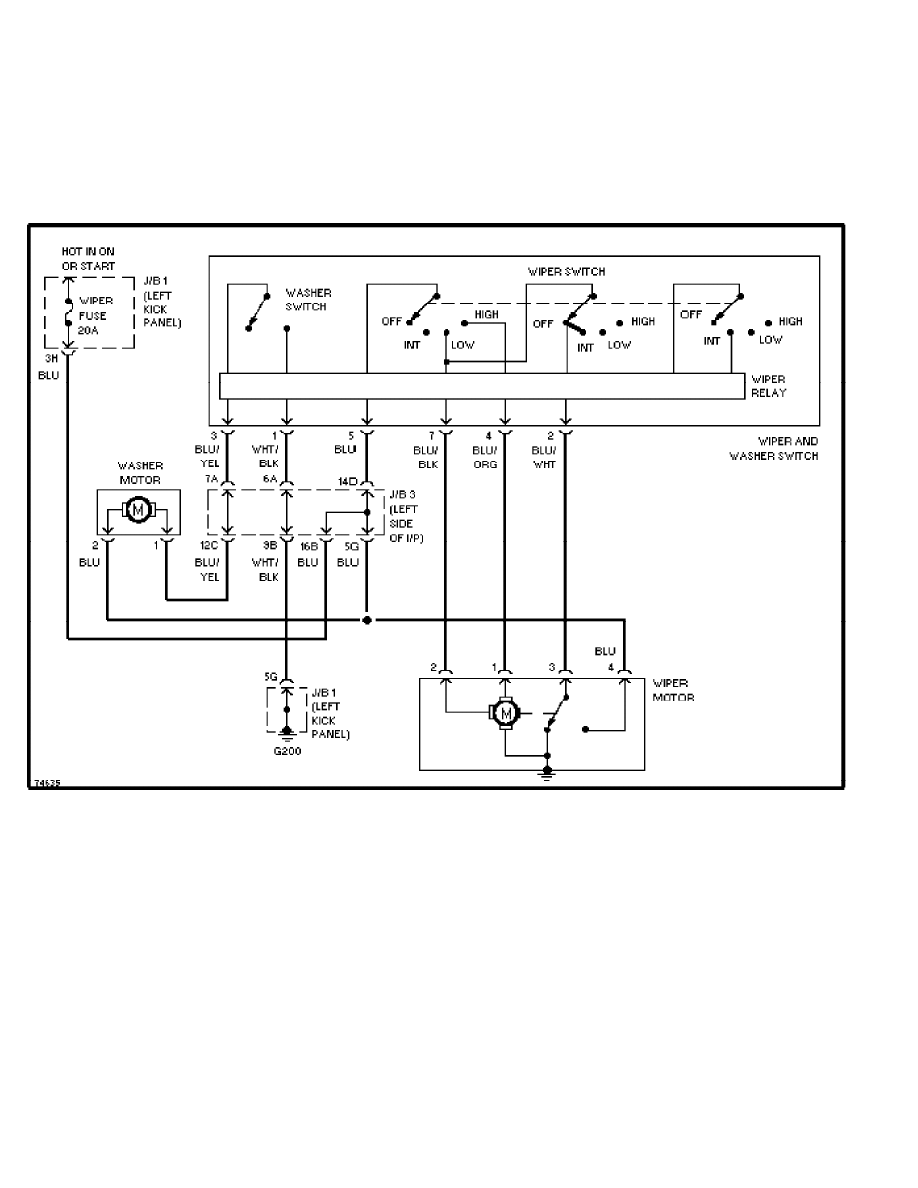

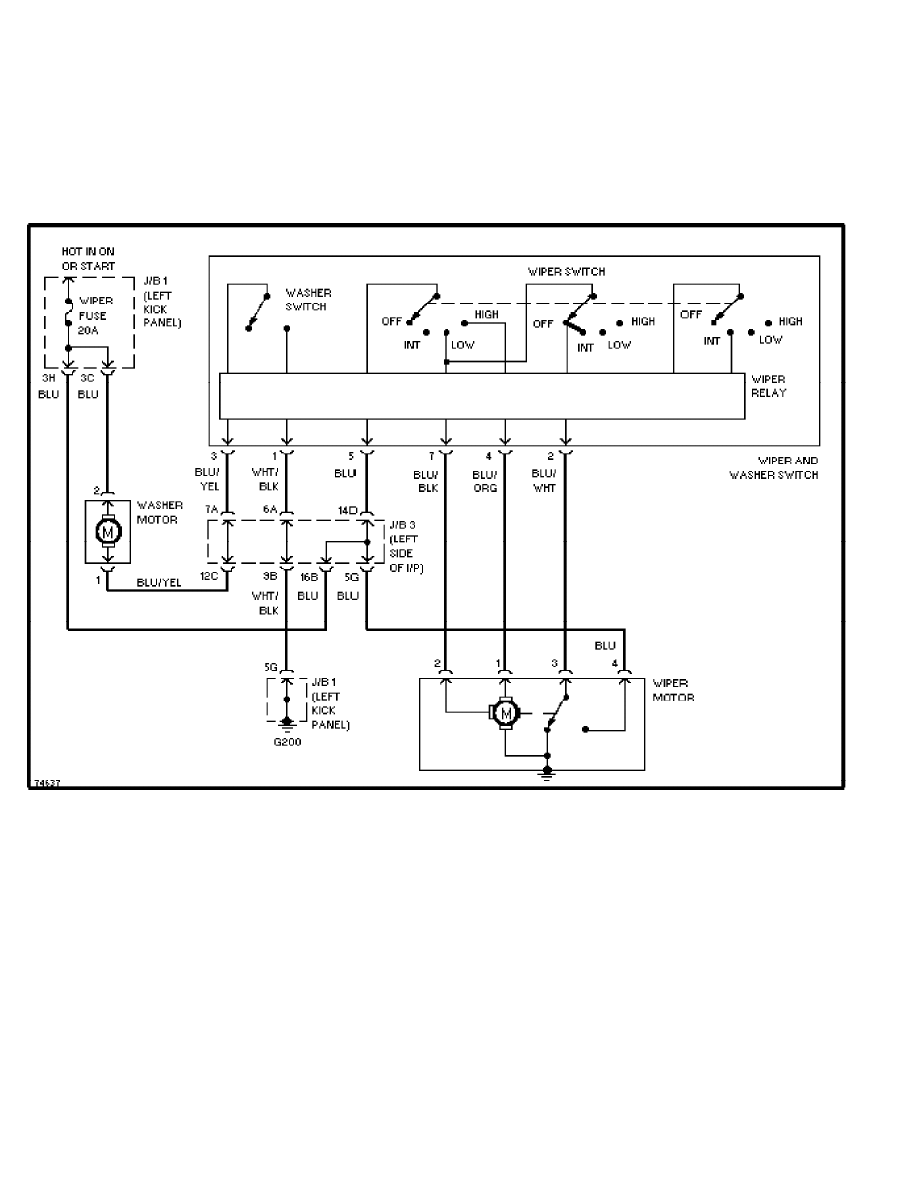

1.6L (Carb), Front Wiper/Washer Circuit

1986 Toyota Corolla (RWD)

For x

Friday, July 23, 2004 06:18PM

SYSTEM WIRING DIAGRAMS

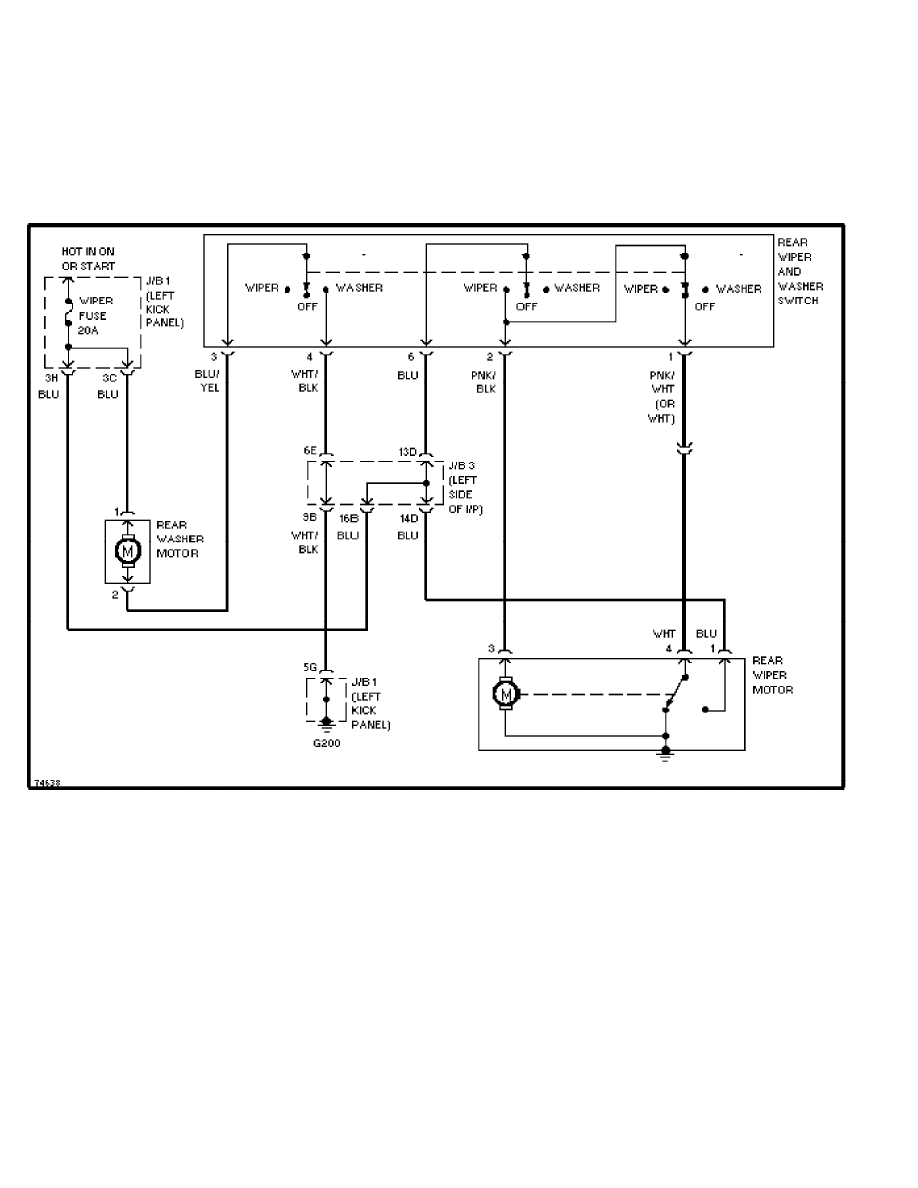

1.6L (Carb), Rear Wiper/Washer Circuit

1986 Toyota Corolla (RWD)

For x

Friday, July 23, 2004 06:18PM

SYSTEM WIRING DIAGRAMS

1.6L (EFI), Front Wiper/Washer Circuit

1986 Toyota Corolla (RWD)

For x

Friday, July 23, 2004 06:18PM

SYSTEM WIRING DIAGRAMS

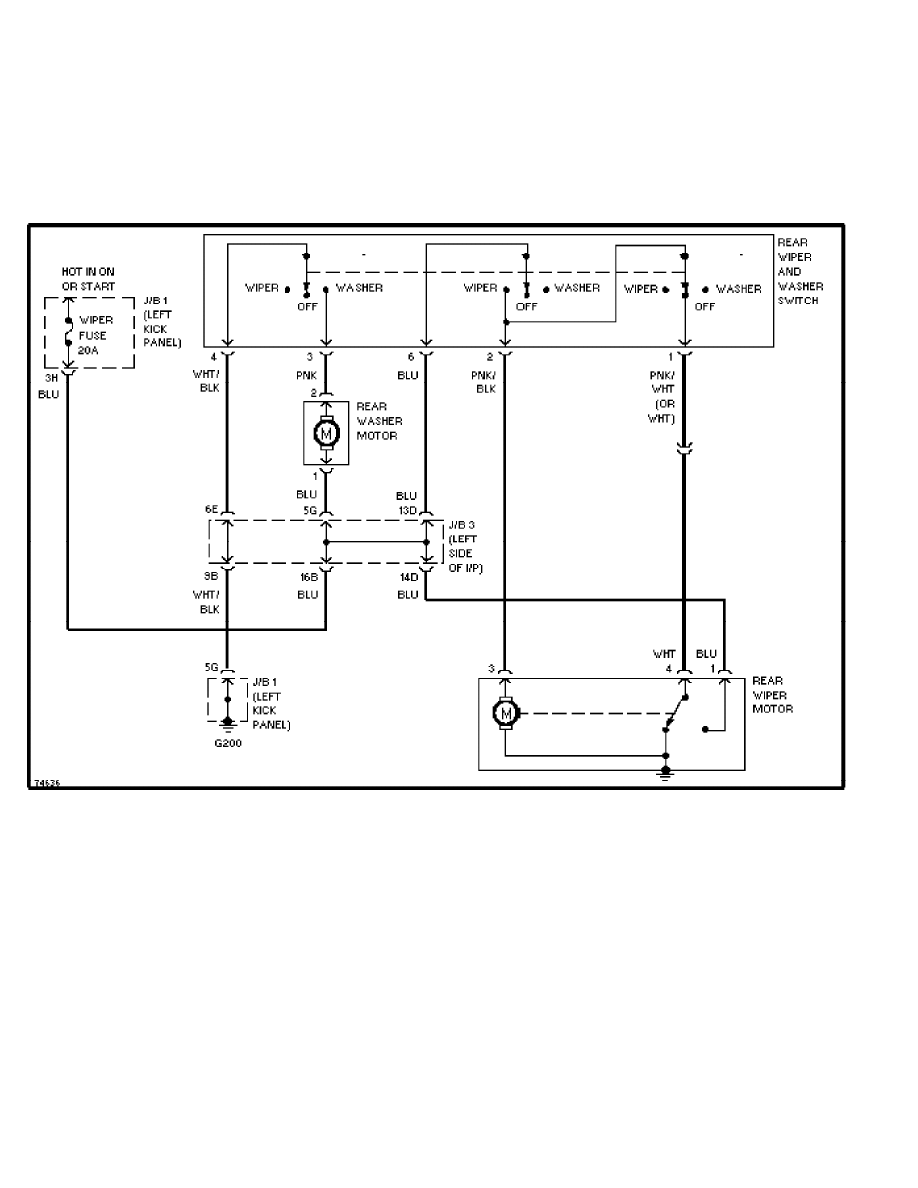

1.6L (EFI), Rear Wiper/Washer Circuit

1986 Toyota Corolla (RWD)

For x

Friday, July 23, 2004 06:18PM

WIRING DIAGRAMS (RWD)

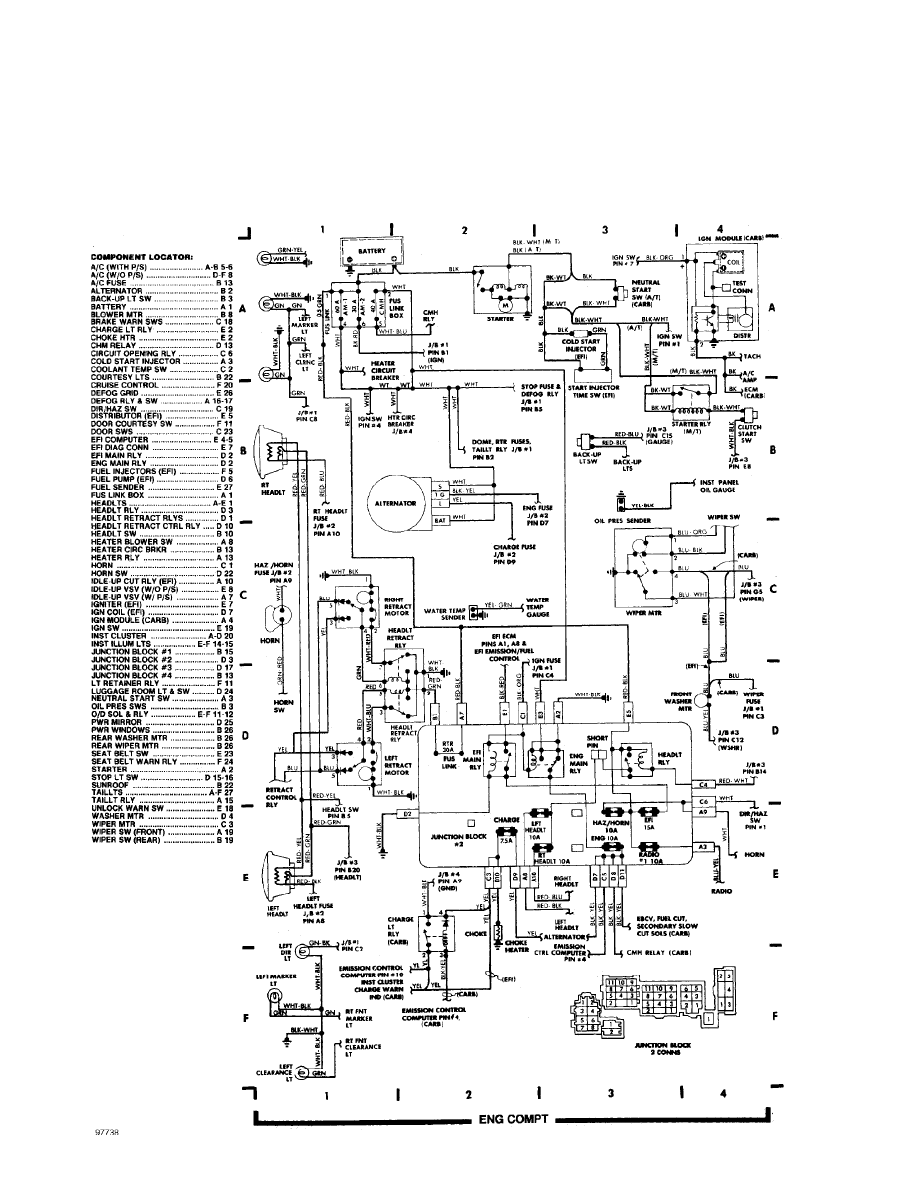

Fig. 1: Engine Compartment & Fuseblock No. 1 (Grids 1-4)

1986 Toyota Corolla (RWD)

For x

Friday, July 23, 2004 06:18PM

WIRING DIAGRAMS (RWD)

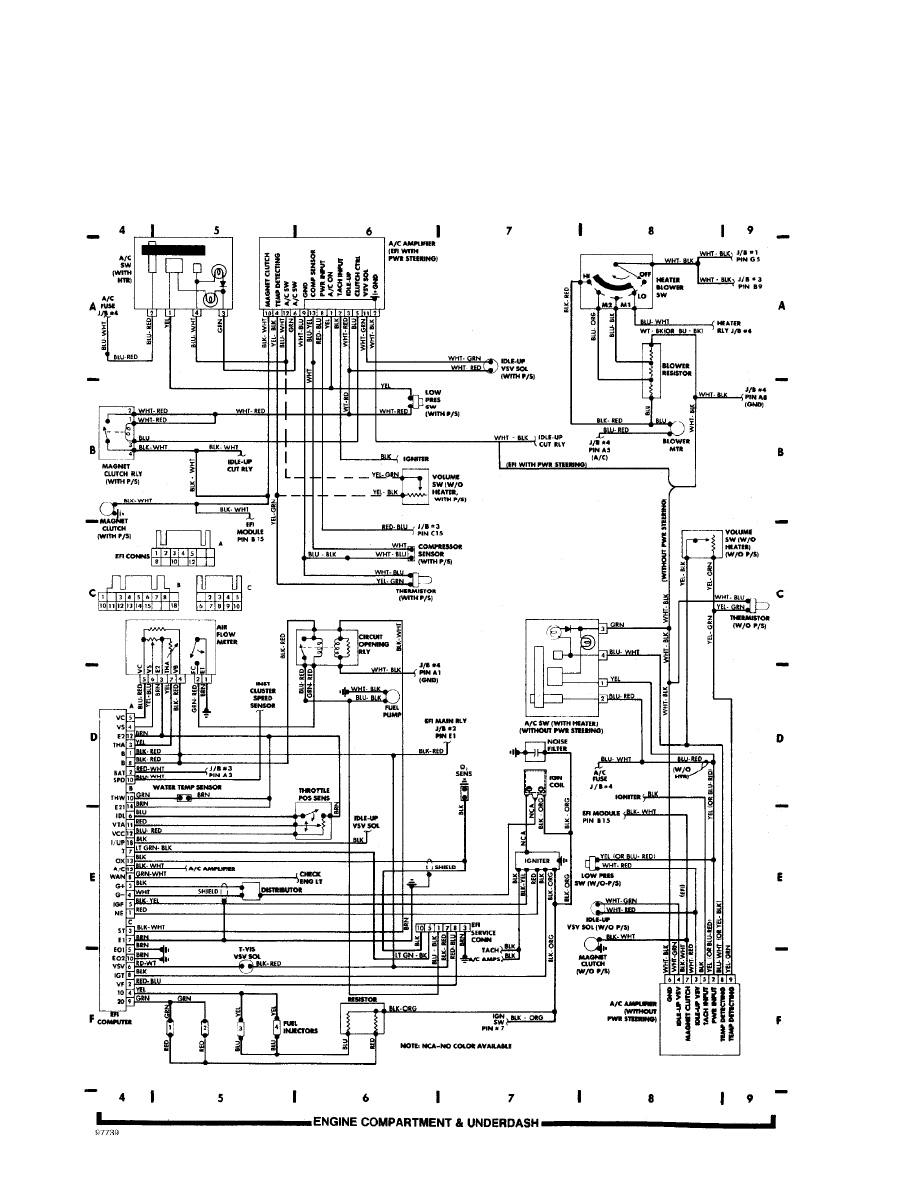

Fig. 2: Computer Engine Control & A/C System (Grids 4-9)

1986 Toyota Corolla (RWD)

For x

Friday, July 23, 2004 06:18PM

WIRING DIAGRAMS (RWD)

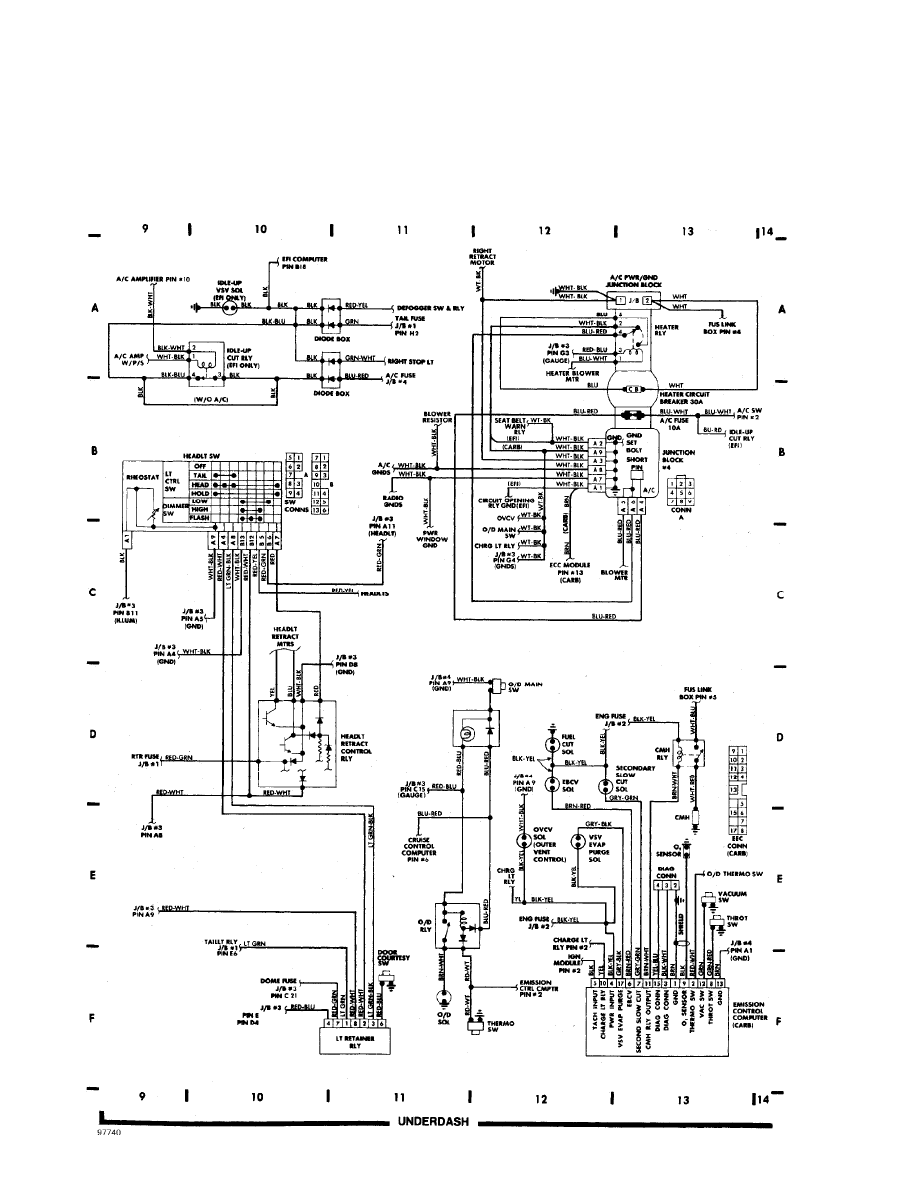

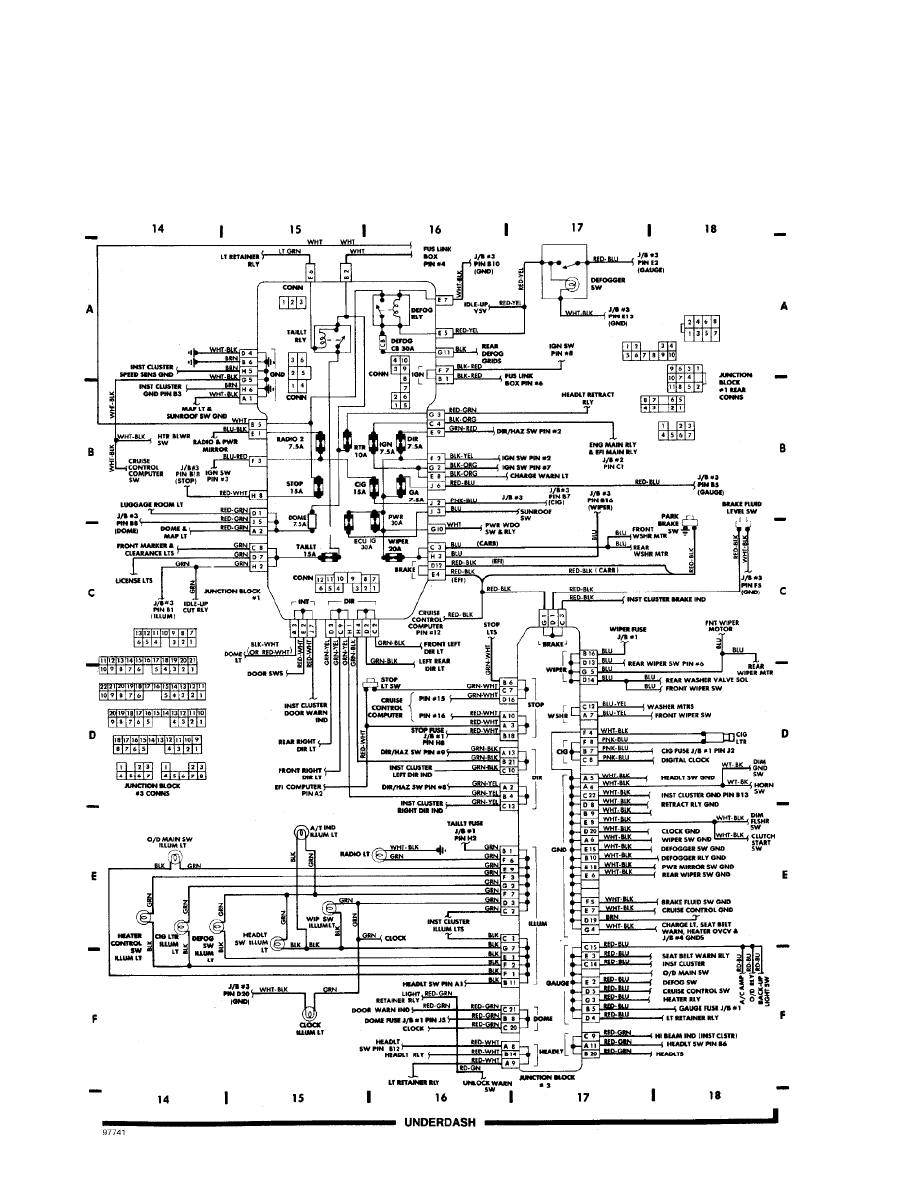

Fig. 3: Underdash (Grids 9-14)

1986 Toyota Corolla (RWD)

For x

Friday, July 23, 2004 06:18PM
