SYSTEM WIRING DIAGRAMS

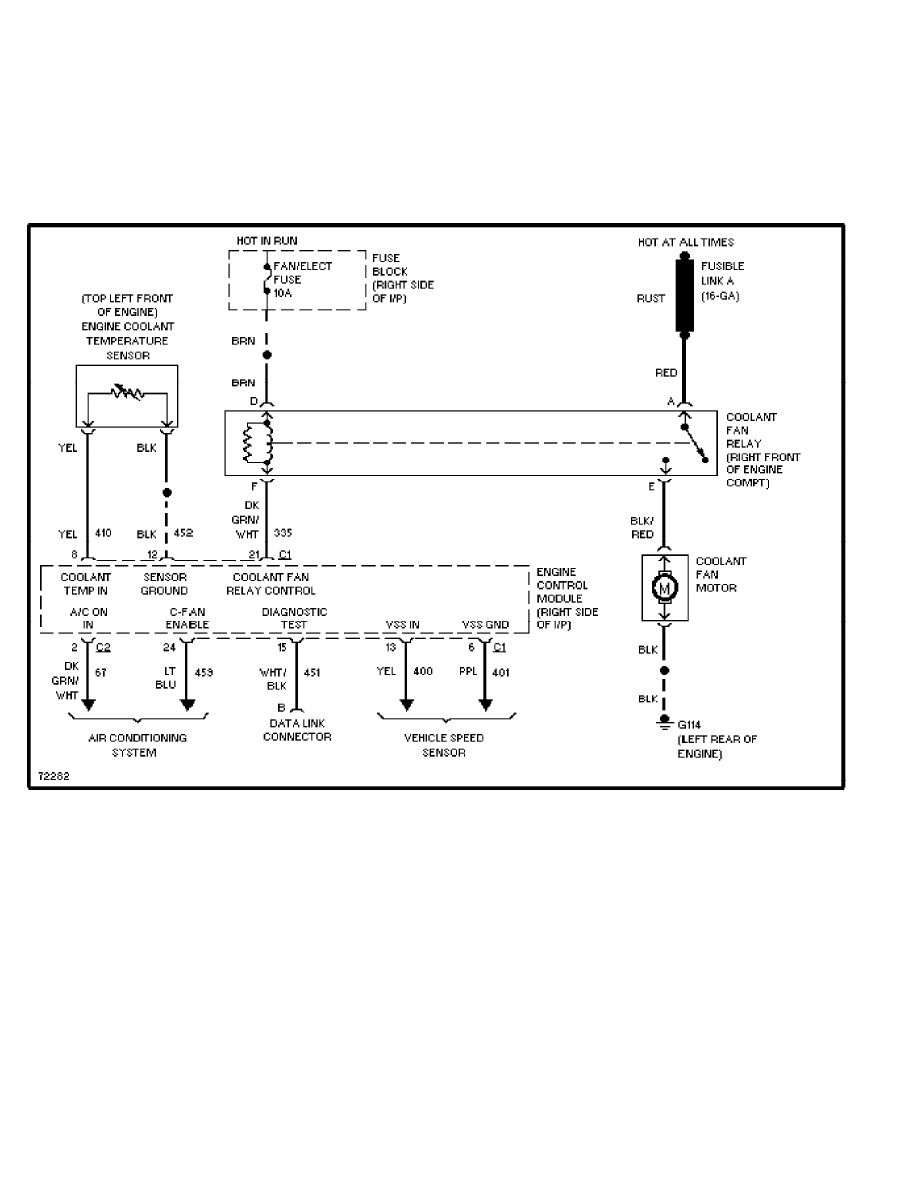

2.5L (VIN R), Cooling Fan Circuit
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:12PM
SYSTEM WIRING DIAGRAMS

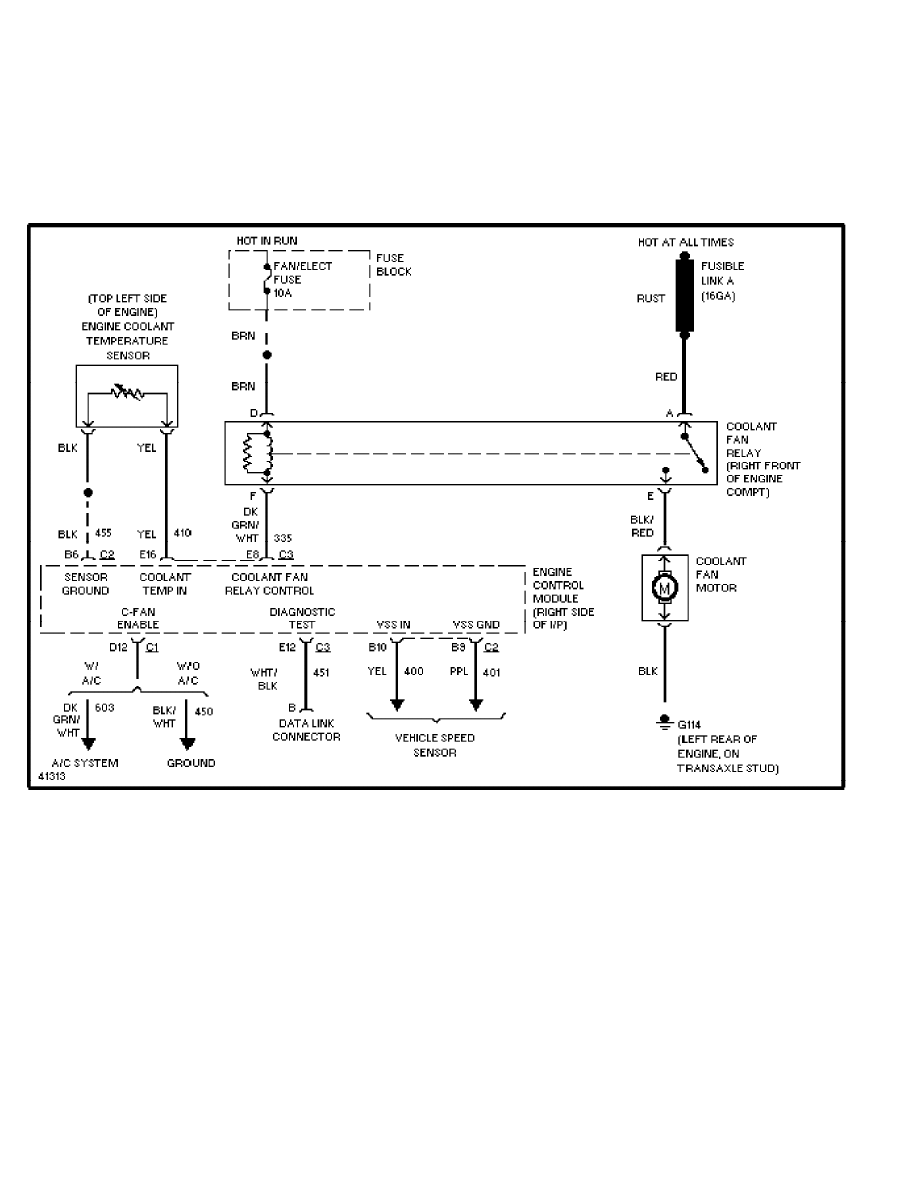

3.1L (VIN T), Cooling Fan Circuit (p. 2)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:12PM
SYSTEM WIRING DIAGRAMS

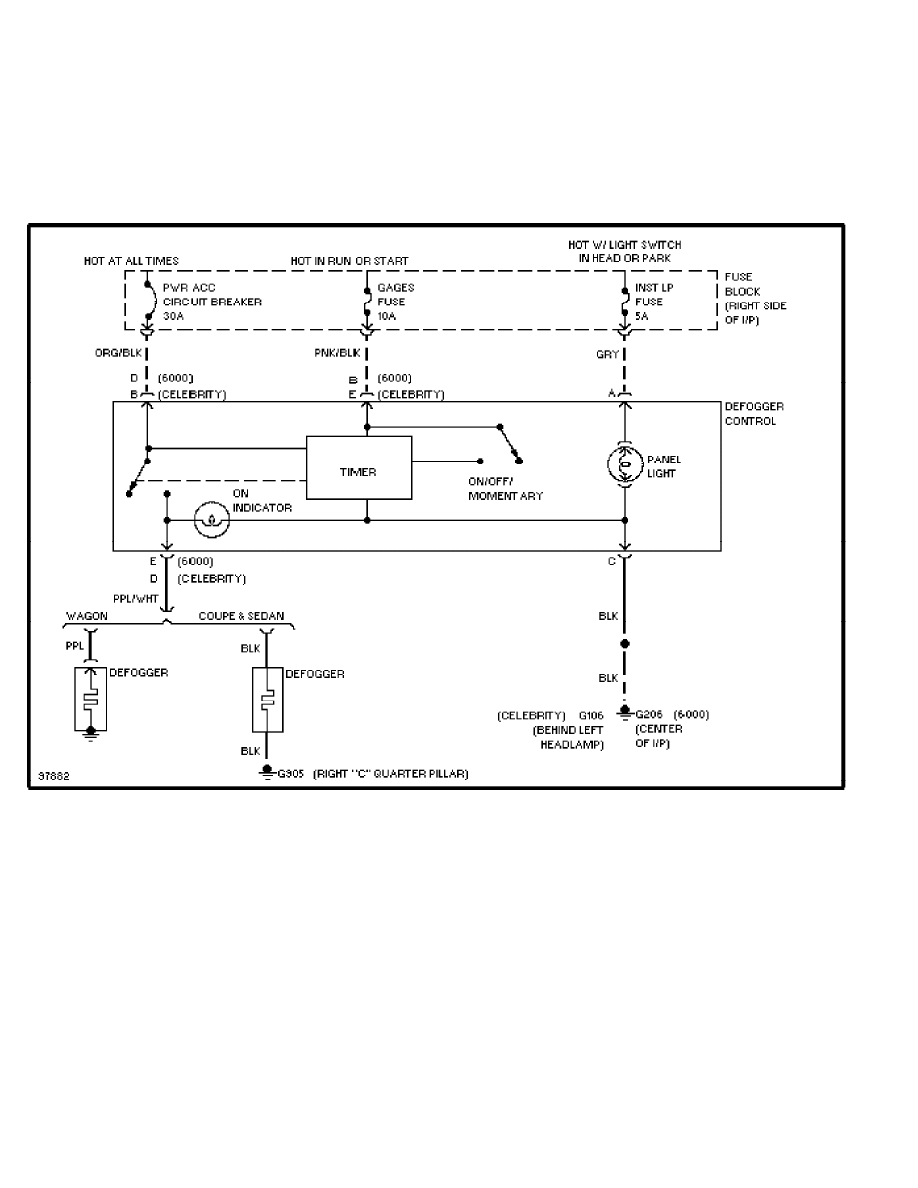

Defogger Circuit (p. 3)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:12PM
SYSTEM WIRING DIAGRAMS
Horn Circuit (p. 4)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:12PM
SYSTEM WIRING DIAGRAMS

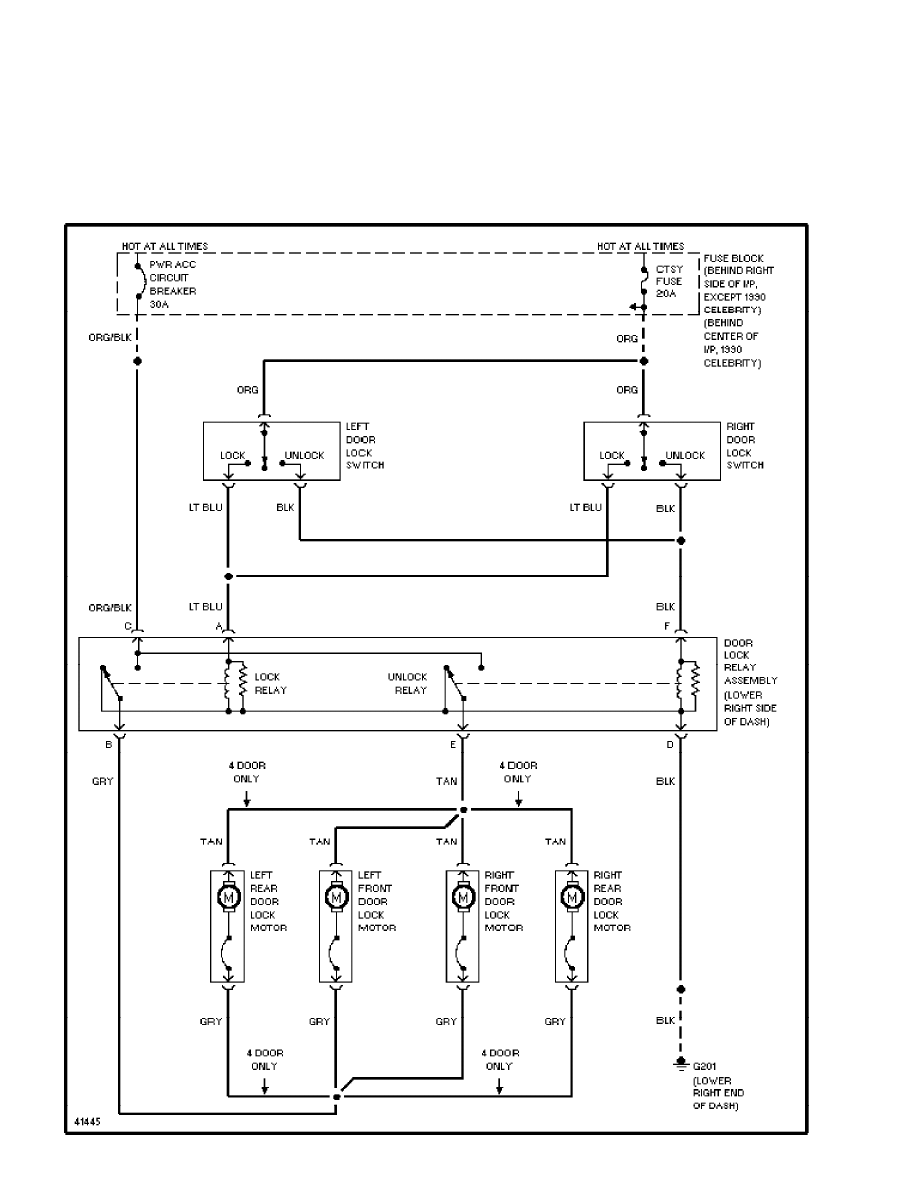

Power Door Locks Circuit (p. 5)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:12PM
SYSTEM WIRING DIAGRAMS

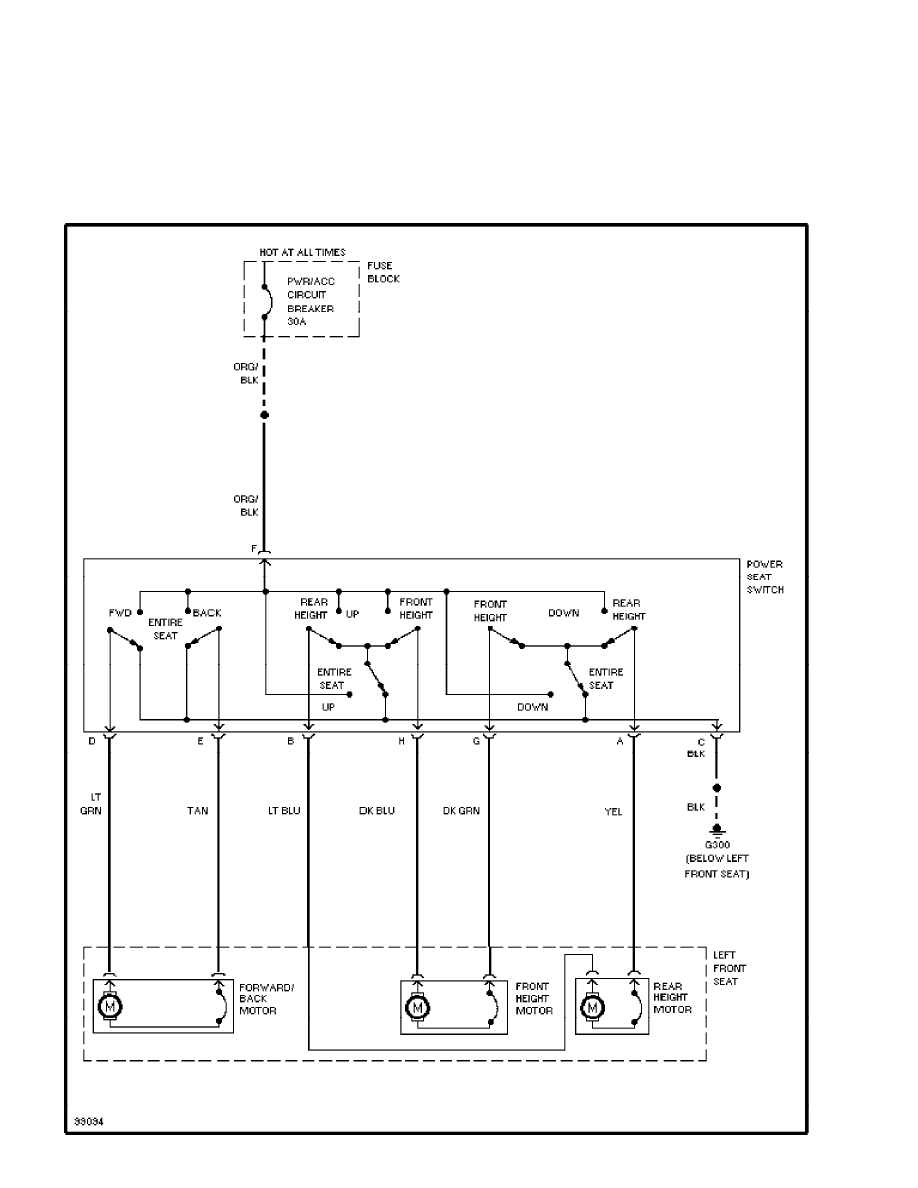

6-Way Power Seat Circuit (p. 6)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:12PM
SYSTEM WIRING DIAGRAMS

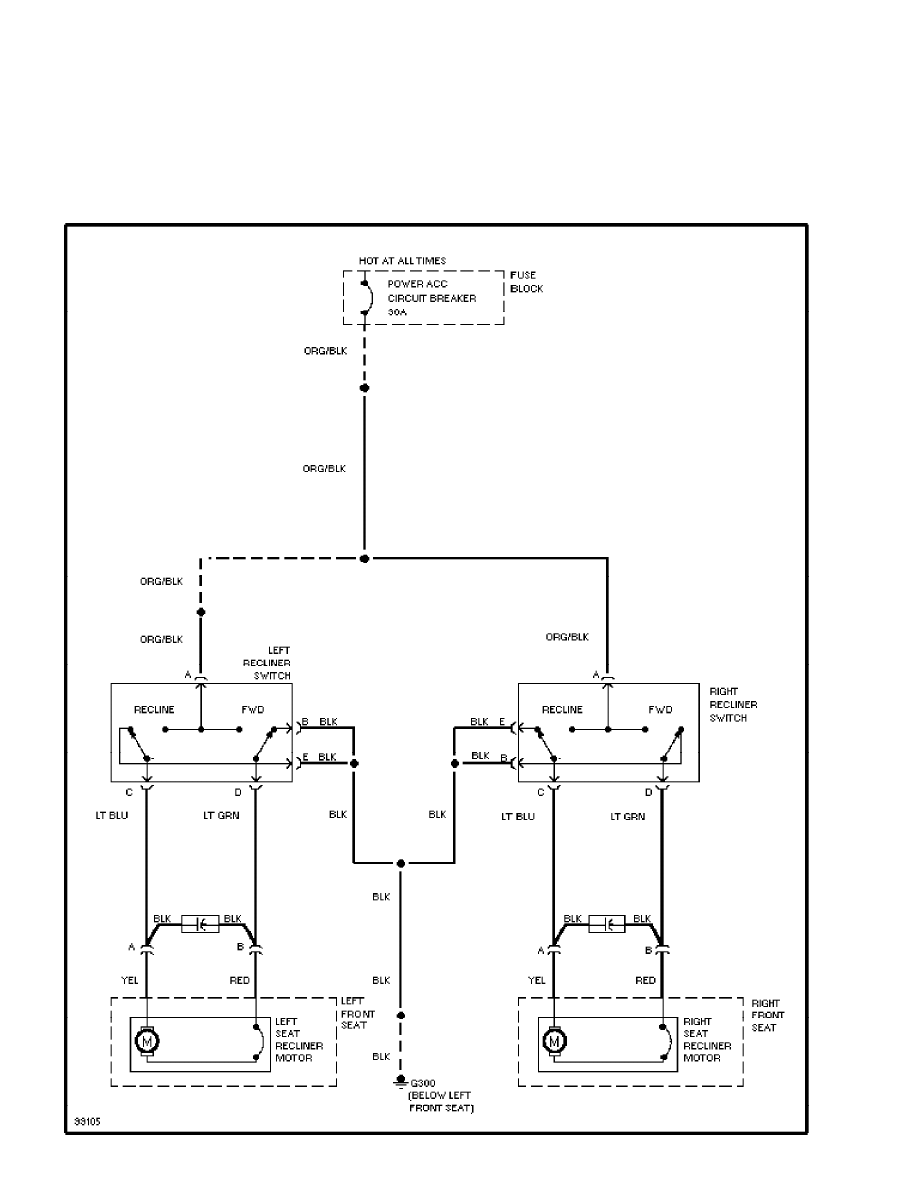

Recliner Circuit (p. 7)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:12PM
SYSTEM WIRING DIAGRAMS
Power Window Circuit (p. 8)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:12PM
SYSTEM WIRING DIAGRAMS

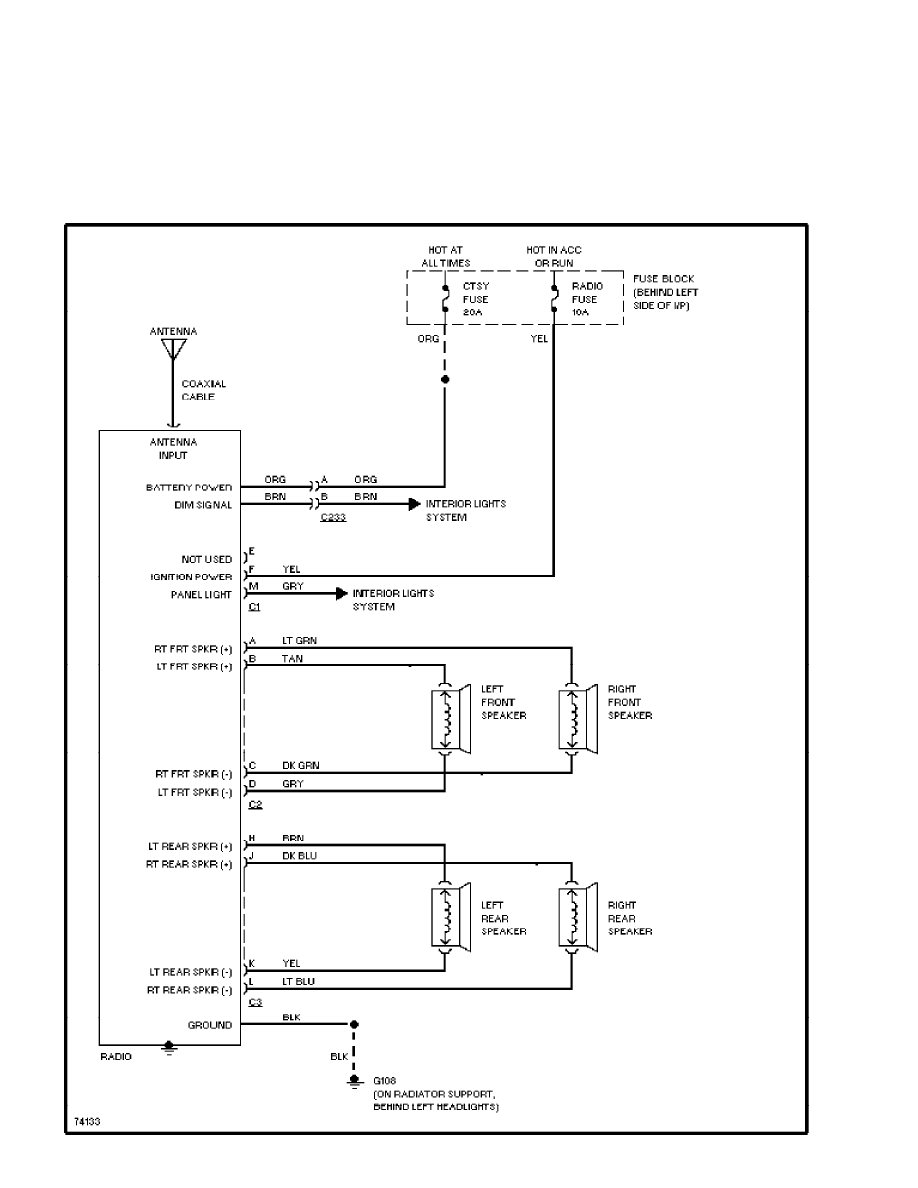

Radio Circuits (p. 9)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:12PM
SYSTEM WIRING DIAGRAMS

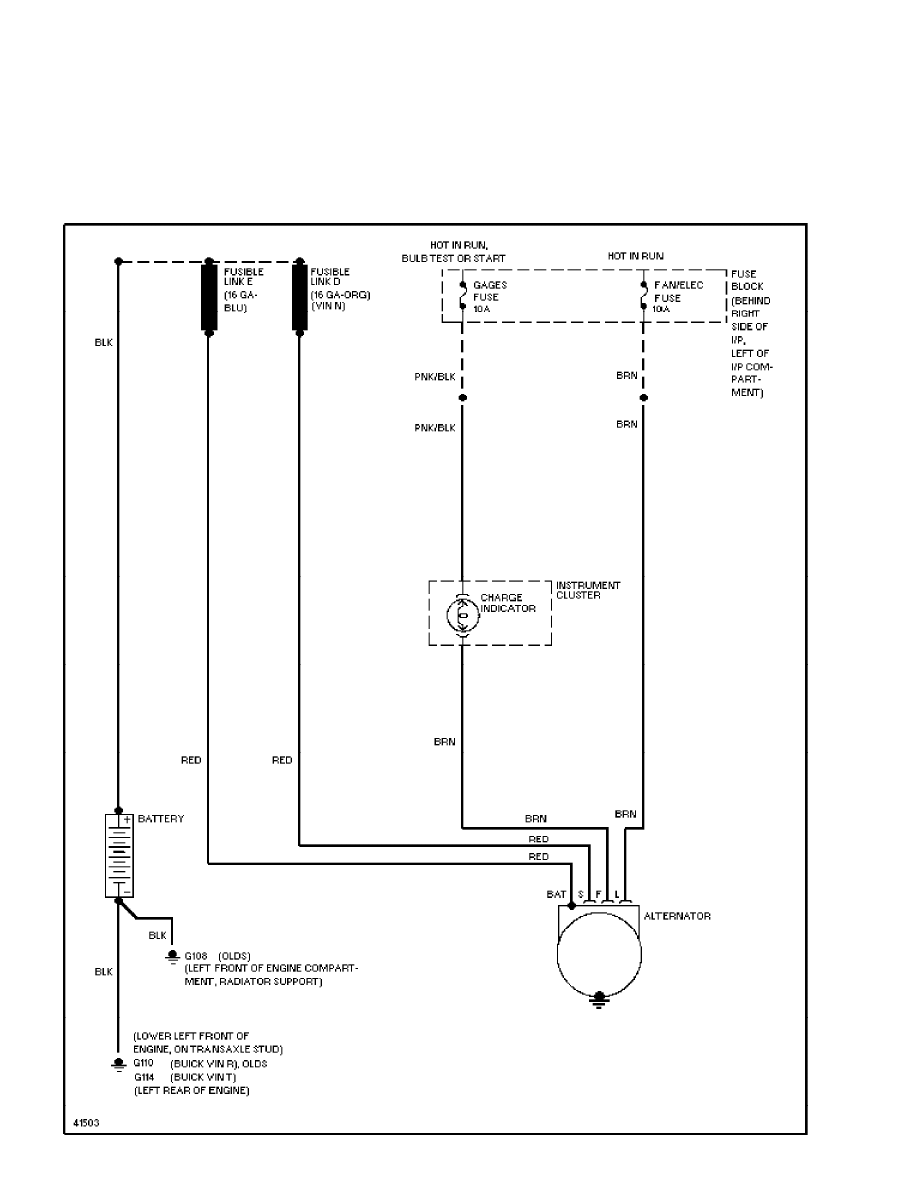

Charging Circuit (p. 10)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:12PM
SYSTEM WIRING DIAGRAMS

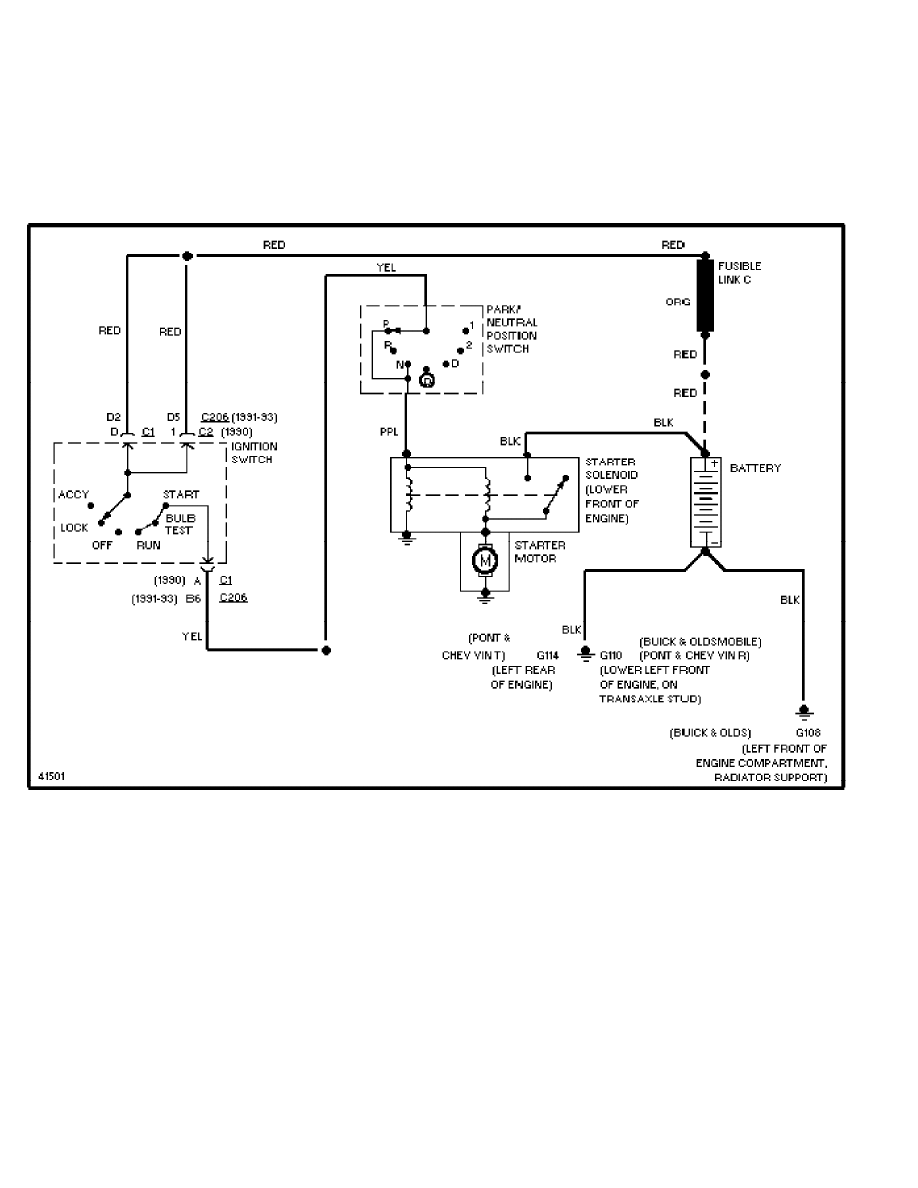

Starting Circuit (p. 11)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:12PM
SYSTEM WIRING DIAGRAMS

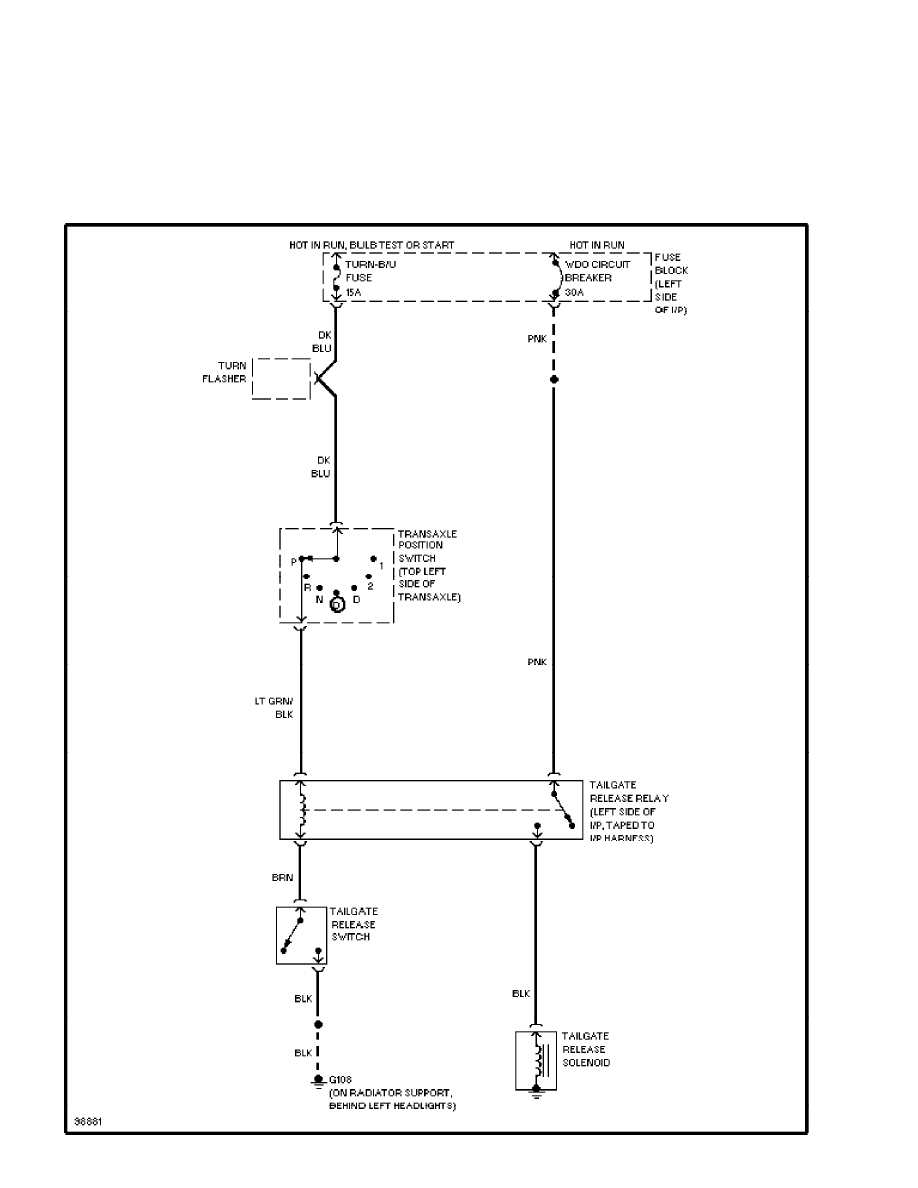

Tailgate Release Circuit (p. 12)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:12PM
SYSTEM WIRING DIAGRAMS

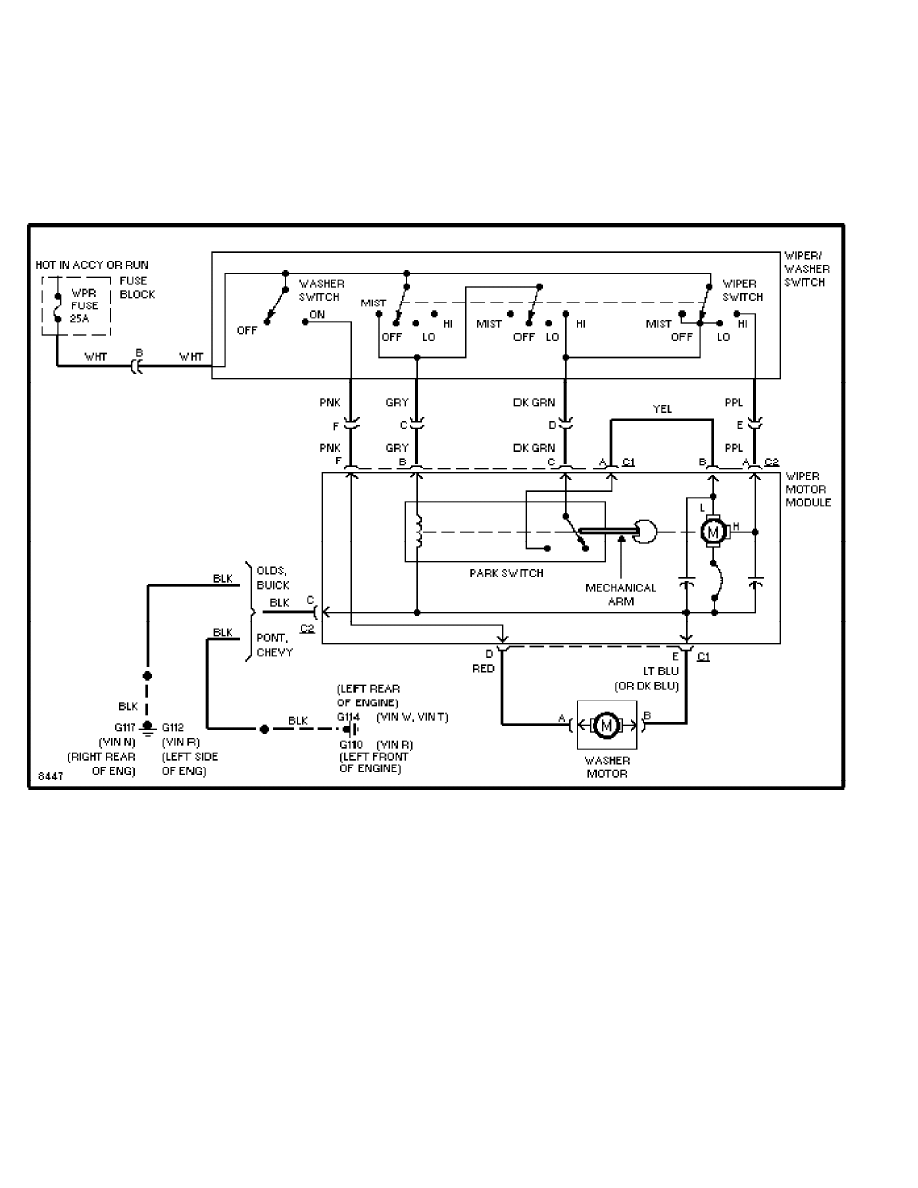

2-Speed Wiper/Washer Circuit (p. 13)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:12PM
SYSTEM WIRING DIAGRAMS
Interval Wiper/Washer Circuit (p. 14)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:12PM
SYSTEM WIRING DIAGRAMS

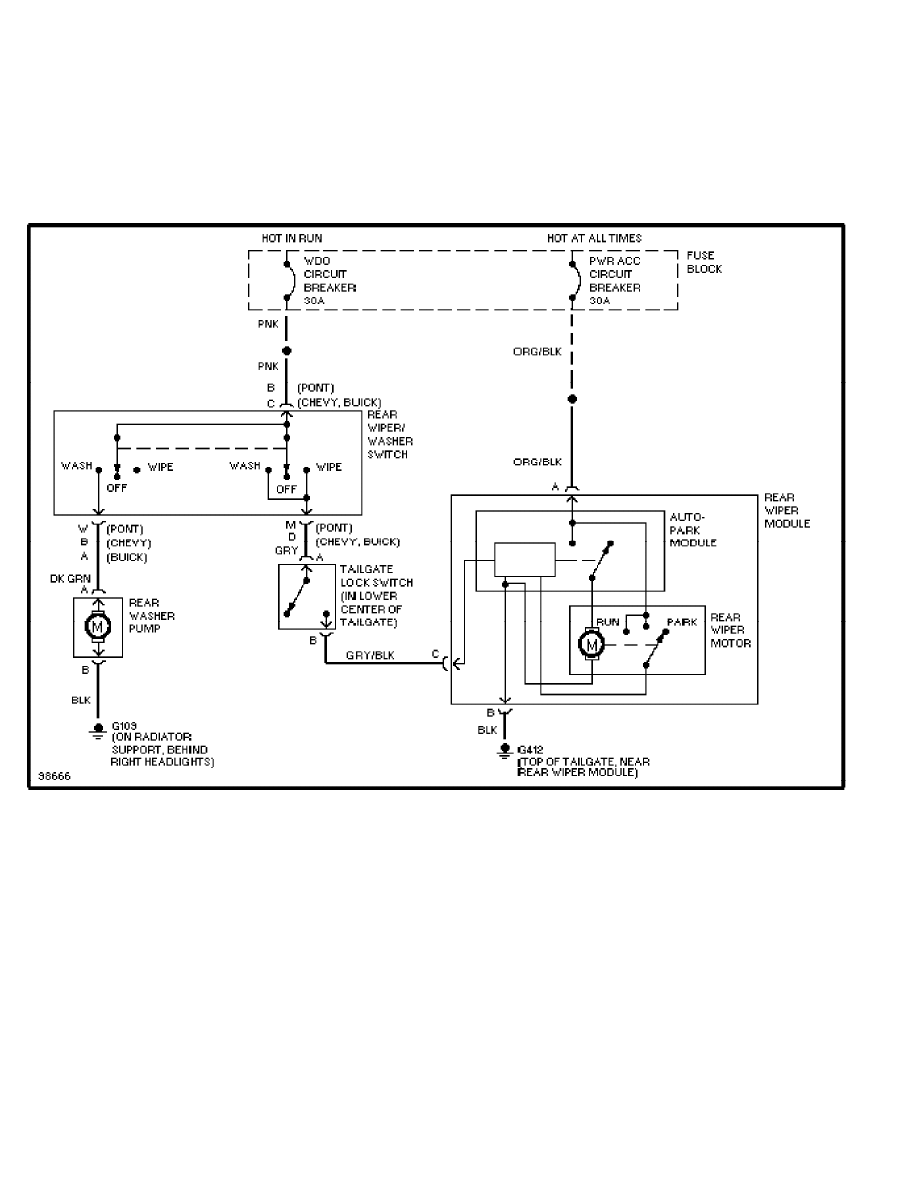

Rear Wiper/Washer Circuit (p. 15)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:12PM
WIRING DIAGRAMS

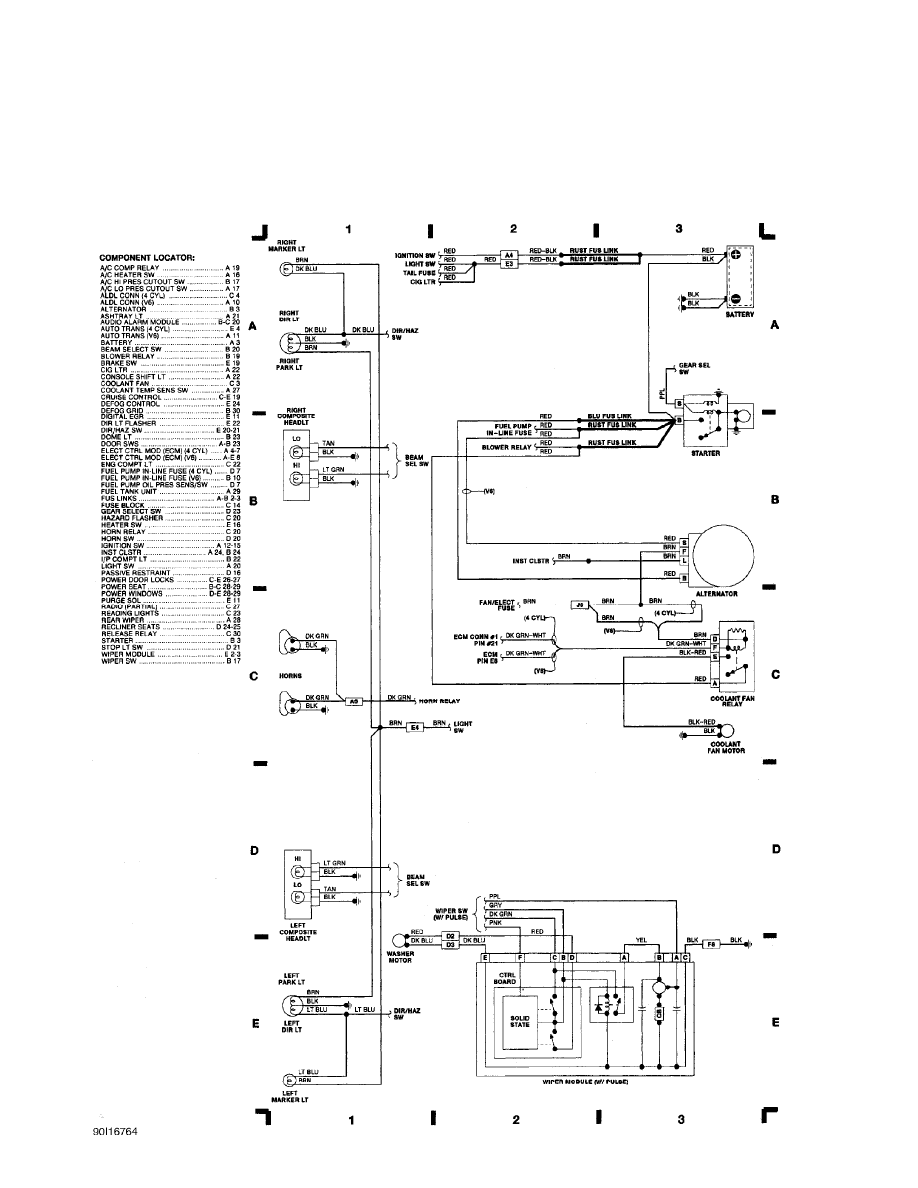

Fig. 1: Engine Compartment & Headlights
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:13PM
WIRING DIAGRAMS

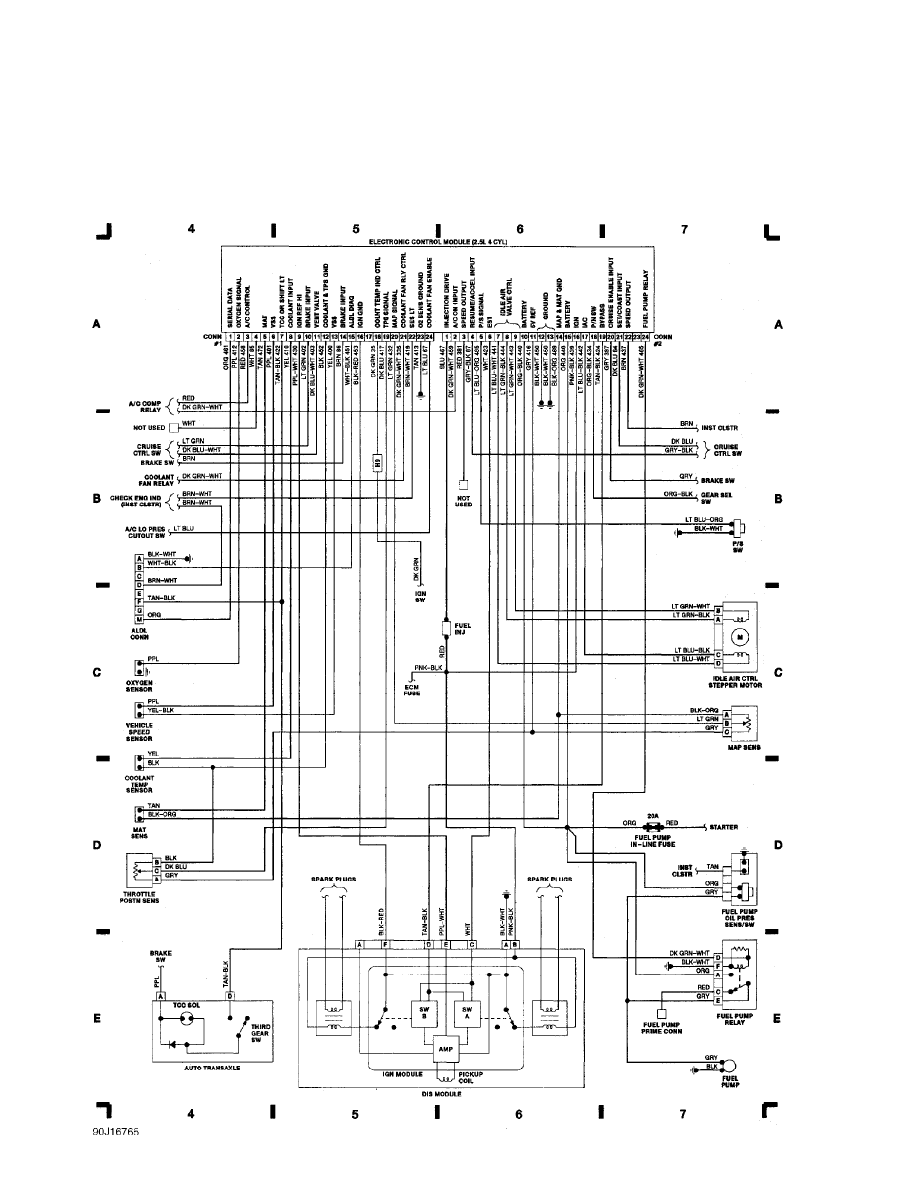

Fig. 2: Electronic Control Module (2.5L 4 Cylinder) (p. 2)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:13PM
WIRING DIAGRAMS

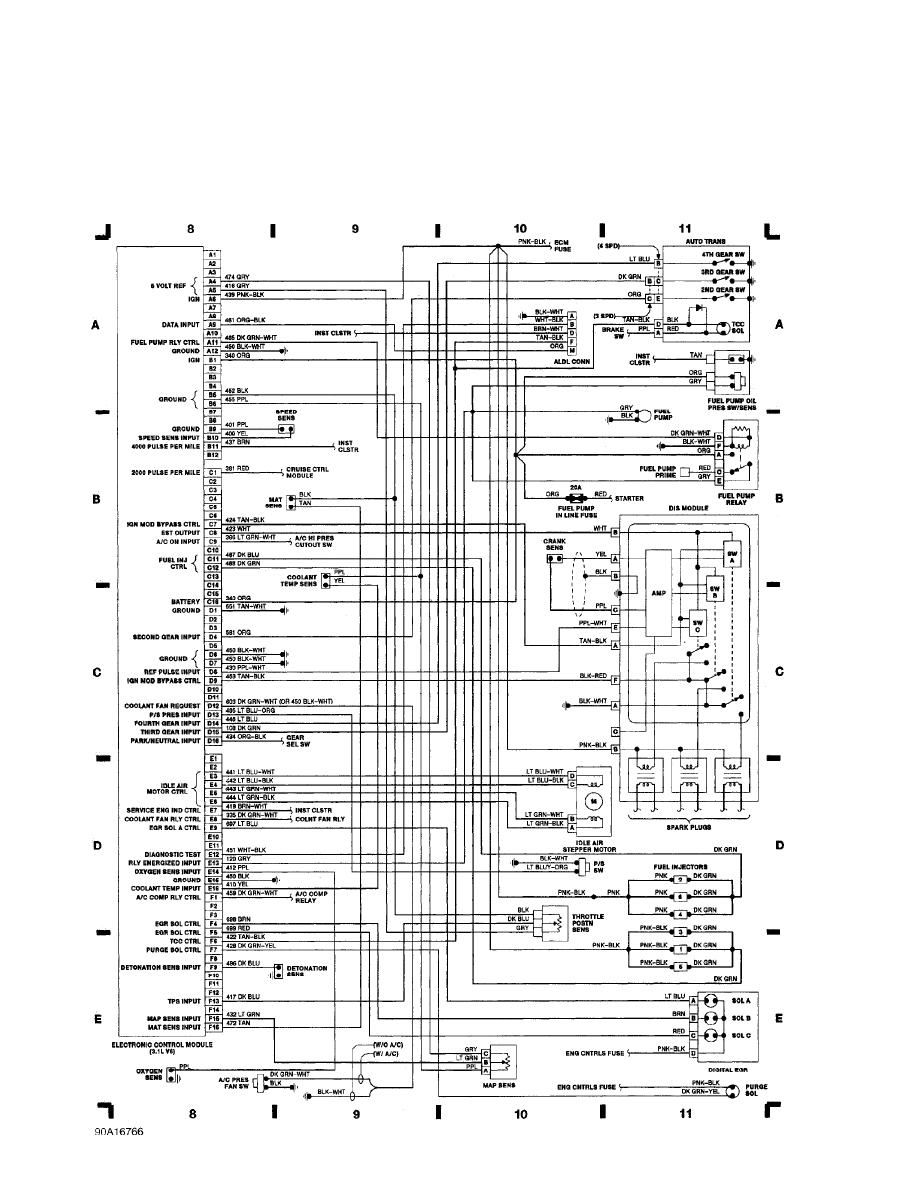

Fig. 3: Electronic Control Module (3.1L V6) (p. 3)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:13PM
WIRING DIAGRAMS
Fig. 4: Fuse Block (p. 4)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:13PM
WIRING DIAGRAMS

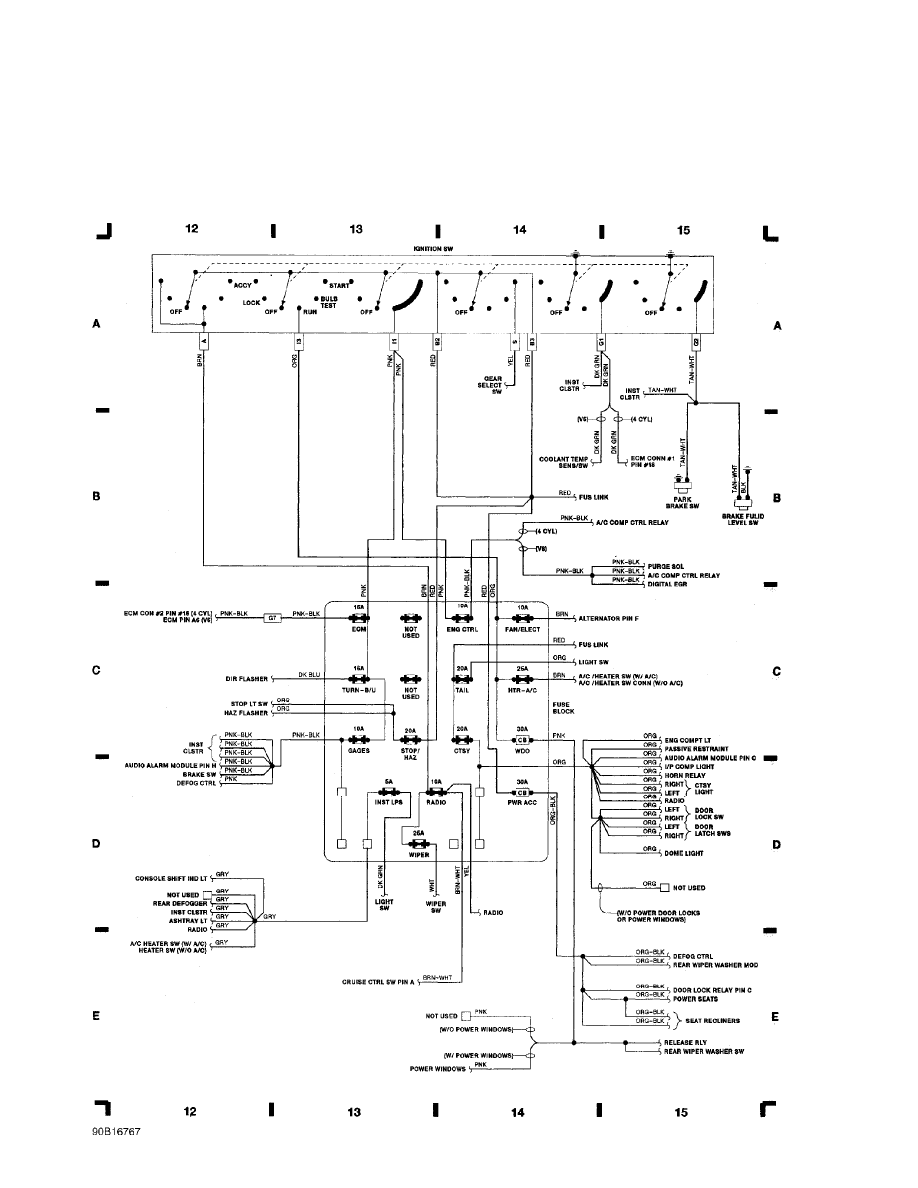

Fig. 5: Passenger Compartment (p. 5)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:13PM
WIRING DIAGRAMS

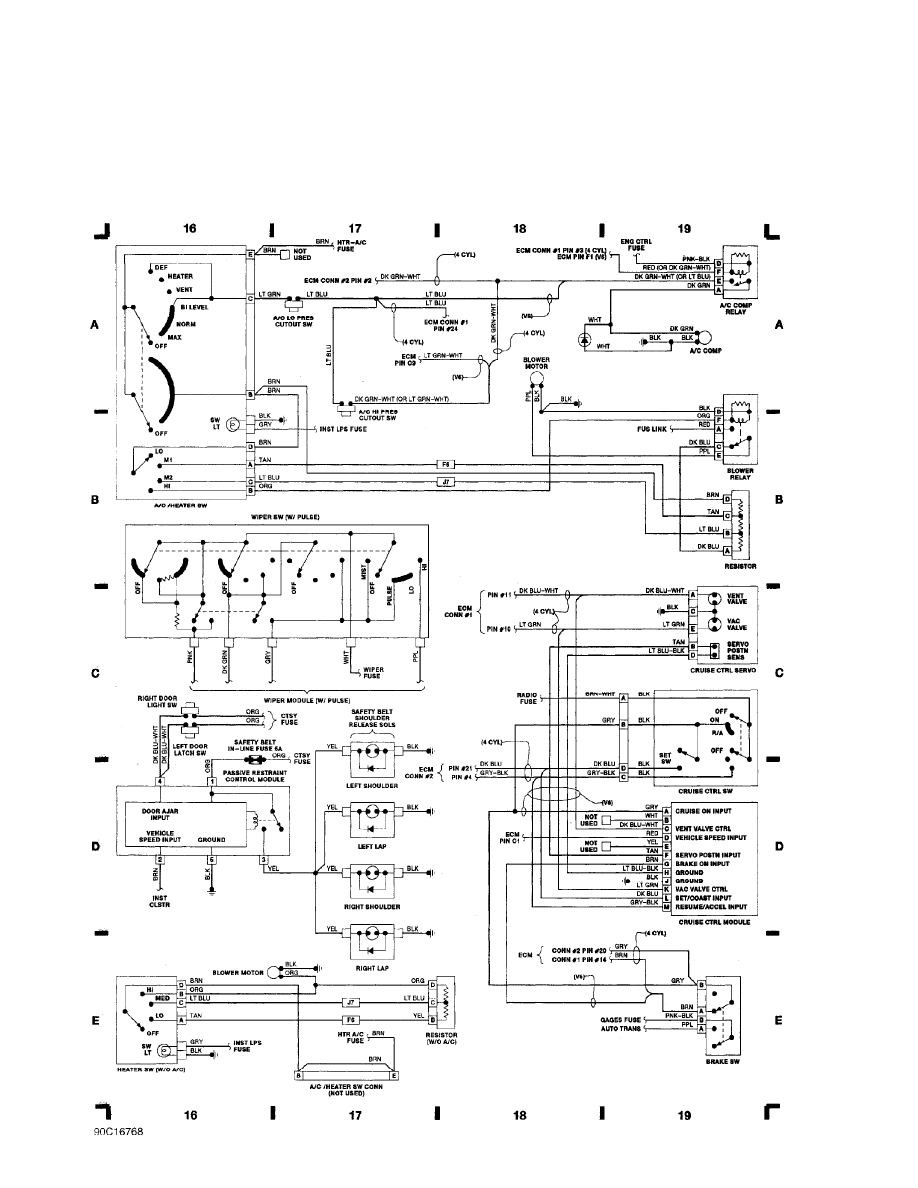

Fig. 6: Passenger Compartment (Continued) (p. 6)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:13PM
WIRING DIAGRAMS
Fig. 7: Instrument Cluster (Indicators & Gages) (p. 7)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:13PM
WIRING DIAGRAMS

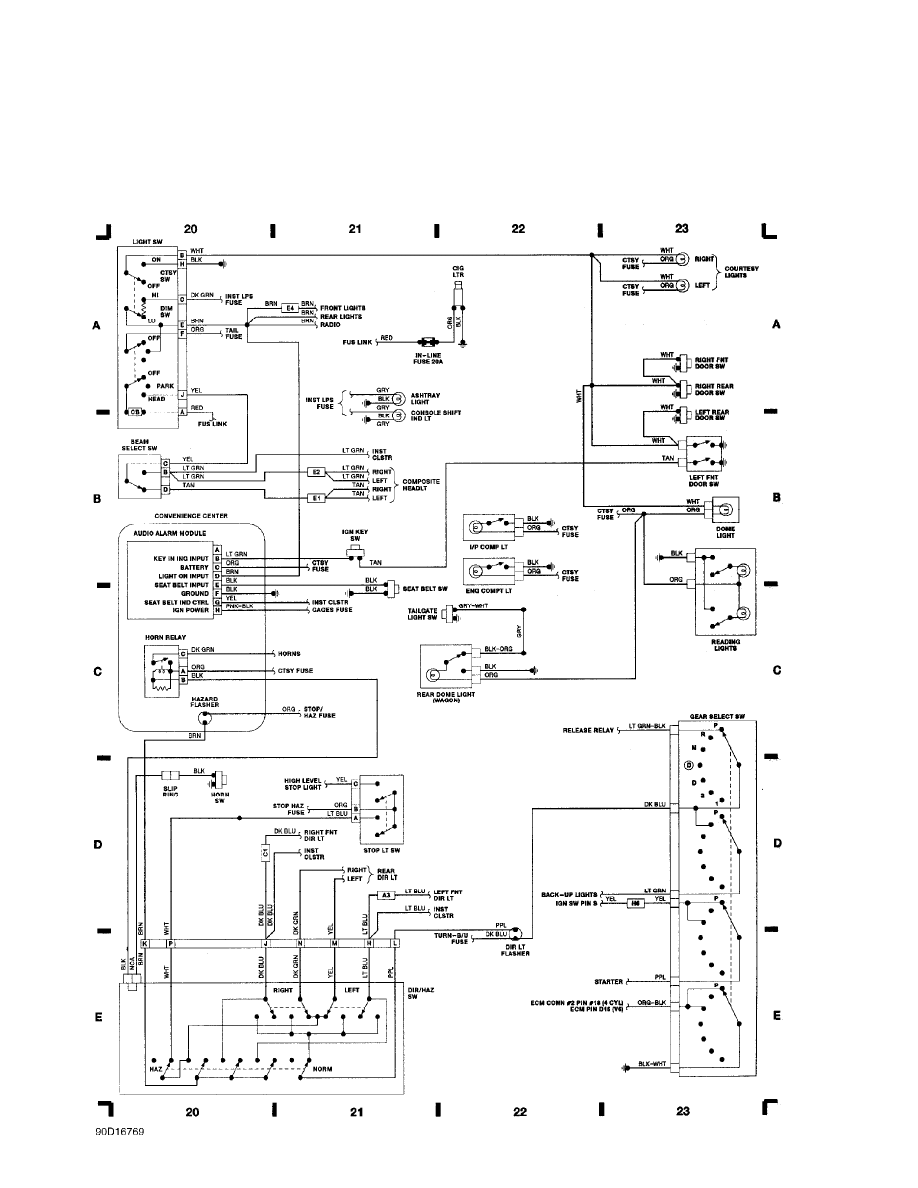

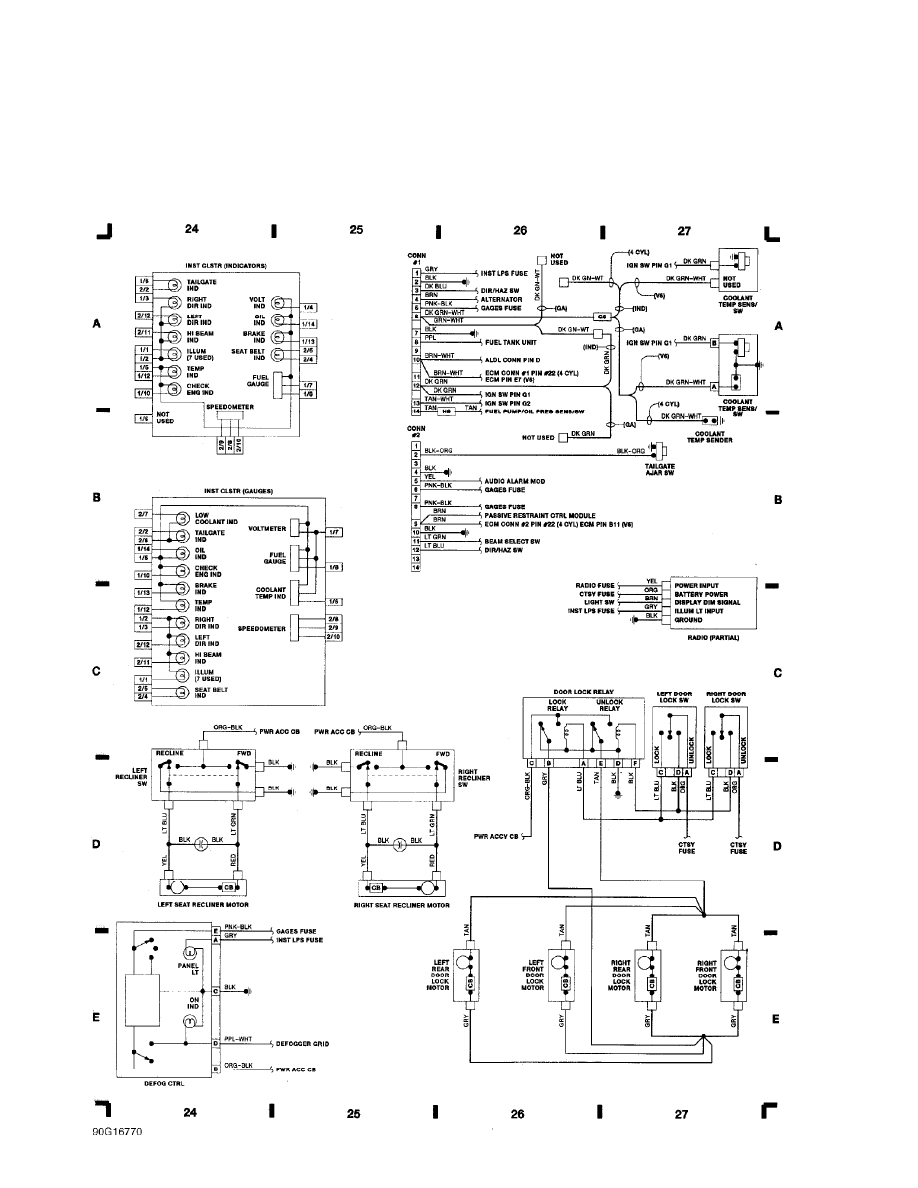

Fig. 8: Passenger Compartment & Taillights (p. 8)
1990 Chevrolet Celebrity
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, April 04, 2005 12:13PM
