CHEVROLET S10 BLAZER 1990

SYSTEM WIRING DIAGRAMS

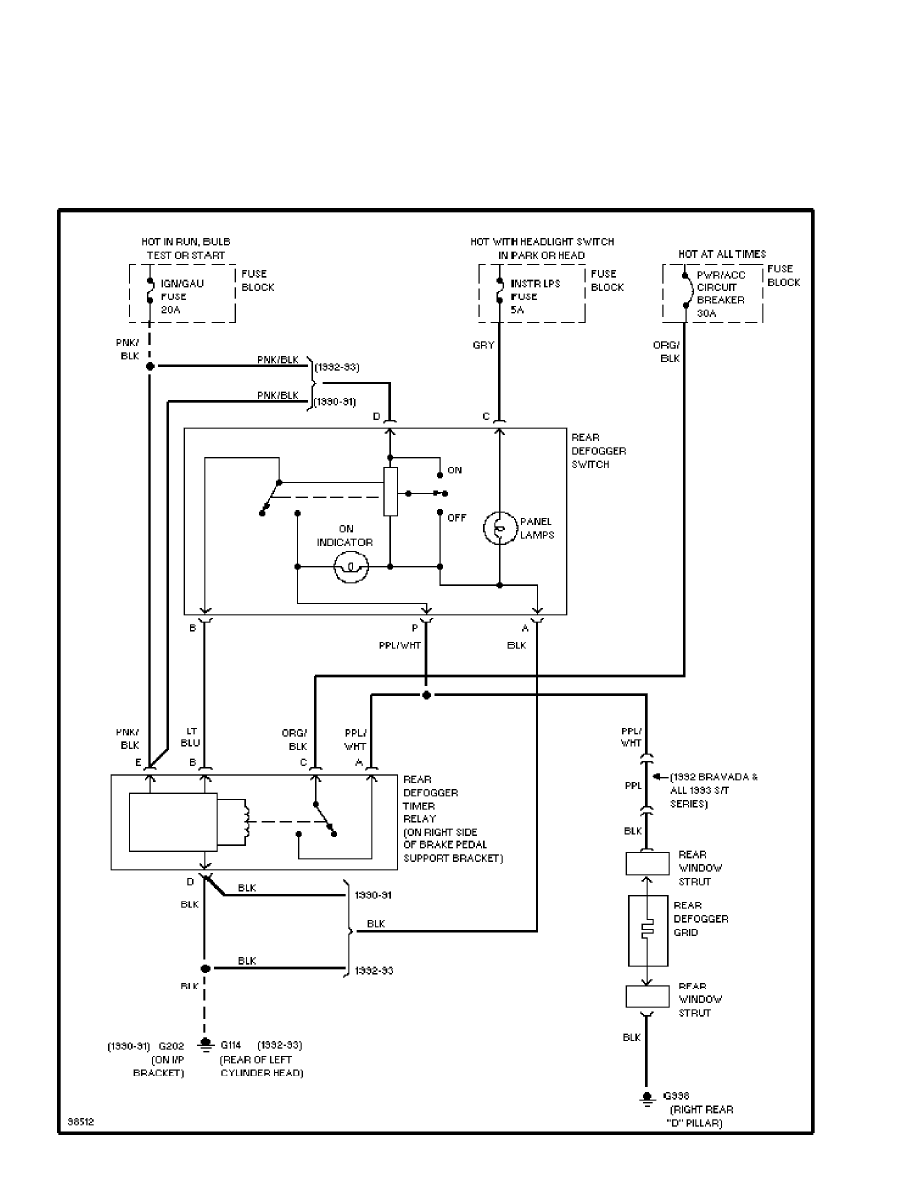

Defogger Circuit

1990 Chevrolet S10 Blazer

For cdr101@wp.pl

Saturday, April 23, 2005 08:07PM

SYSTEM WIRING DIAGRAMS

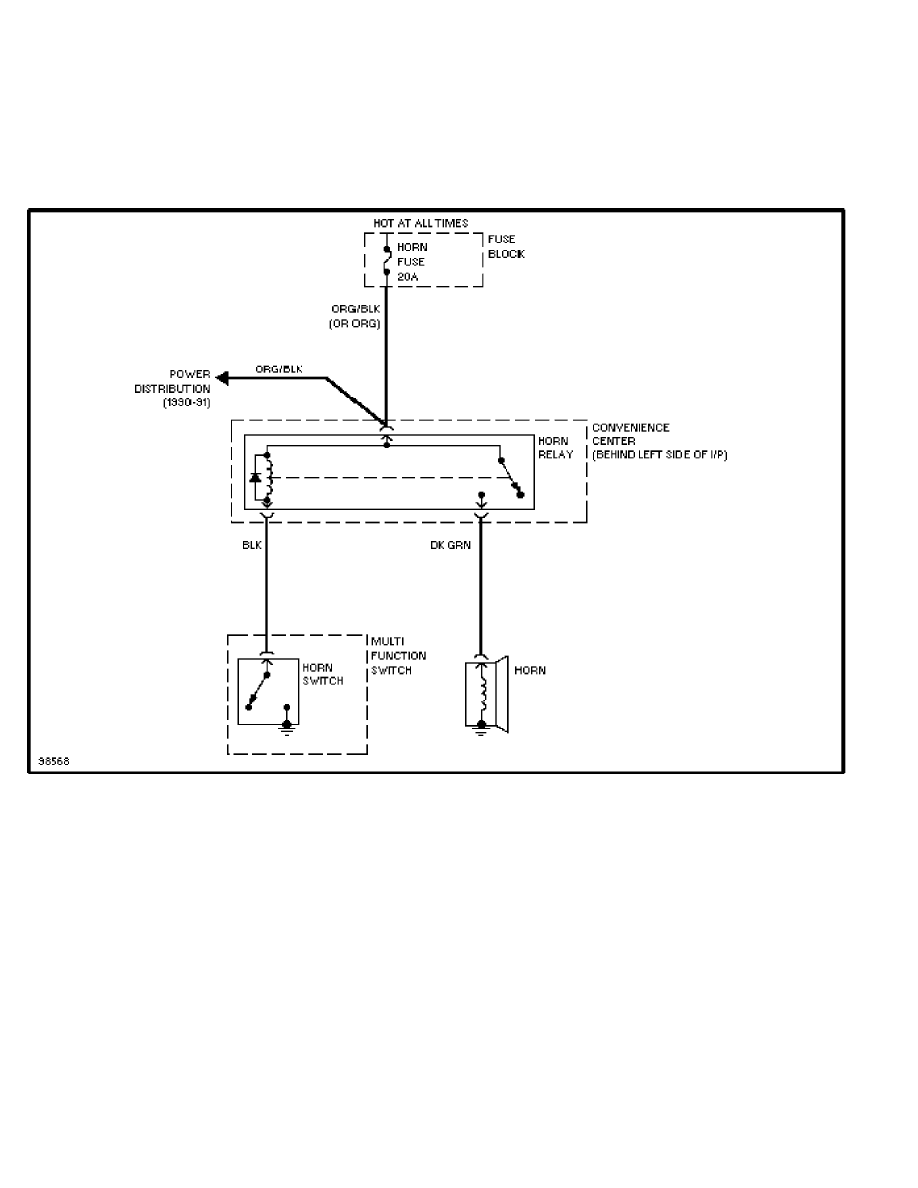

Horn Circuit (p. 2)

1990 Chevrolet S10 Blazer

For cdr101@wp.pl

Saturday, April 23, 2005 08:07PM

SYSTEM WIRING DIAGRAMS

Power Door Lock Circuit, 2 Door (p. 3)

1990 Chevrolet S10 Blazer

For cdr101@wp.pl

Saturday, April 23, 2005 08:07PM

SYSTEM WIRING DIAGRAMS

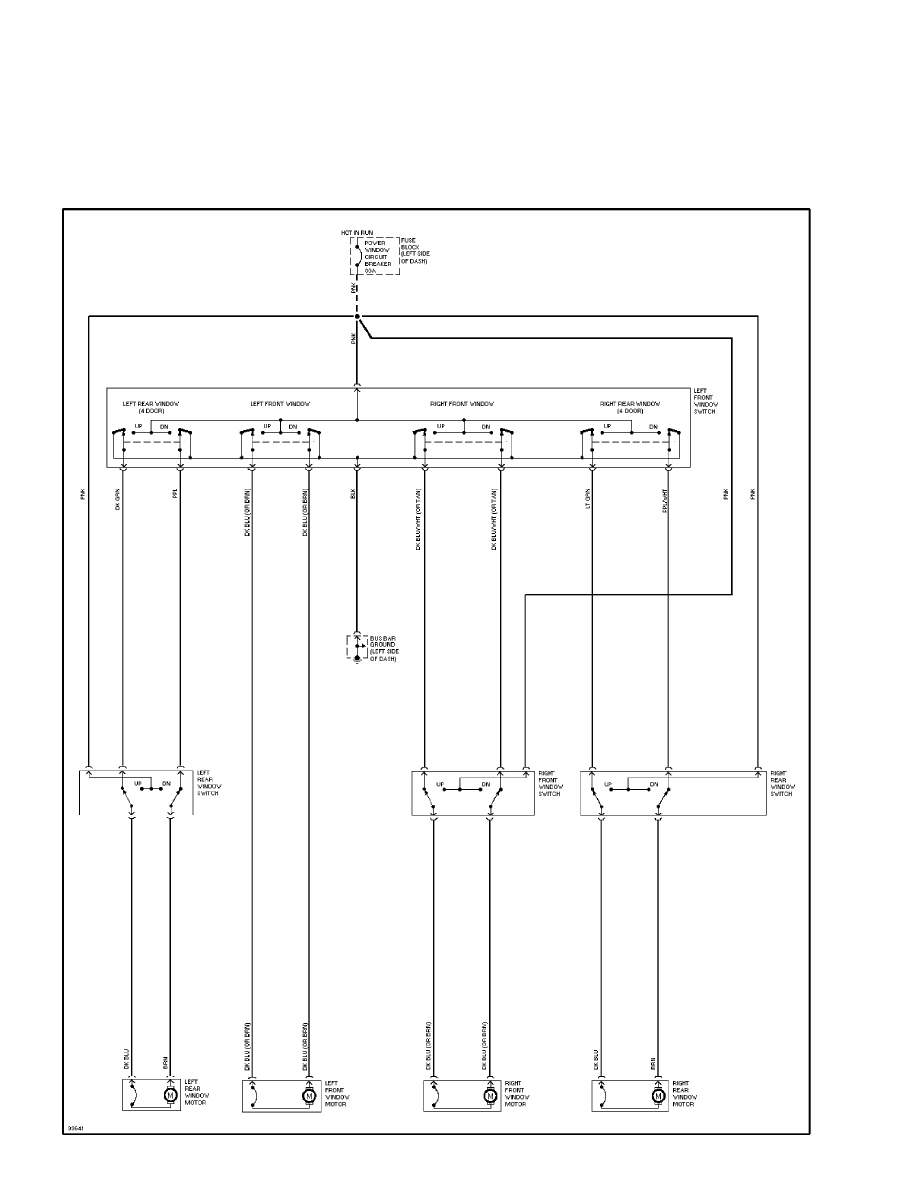

Power Window Circuit (p. 4)

1990 Chevrolet S10 Blazer

For cdr101@wp.pl

Saturday, April 23, 2005 08:07PM

SYSTEM WIRING DIAGRAMS

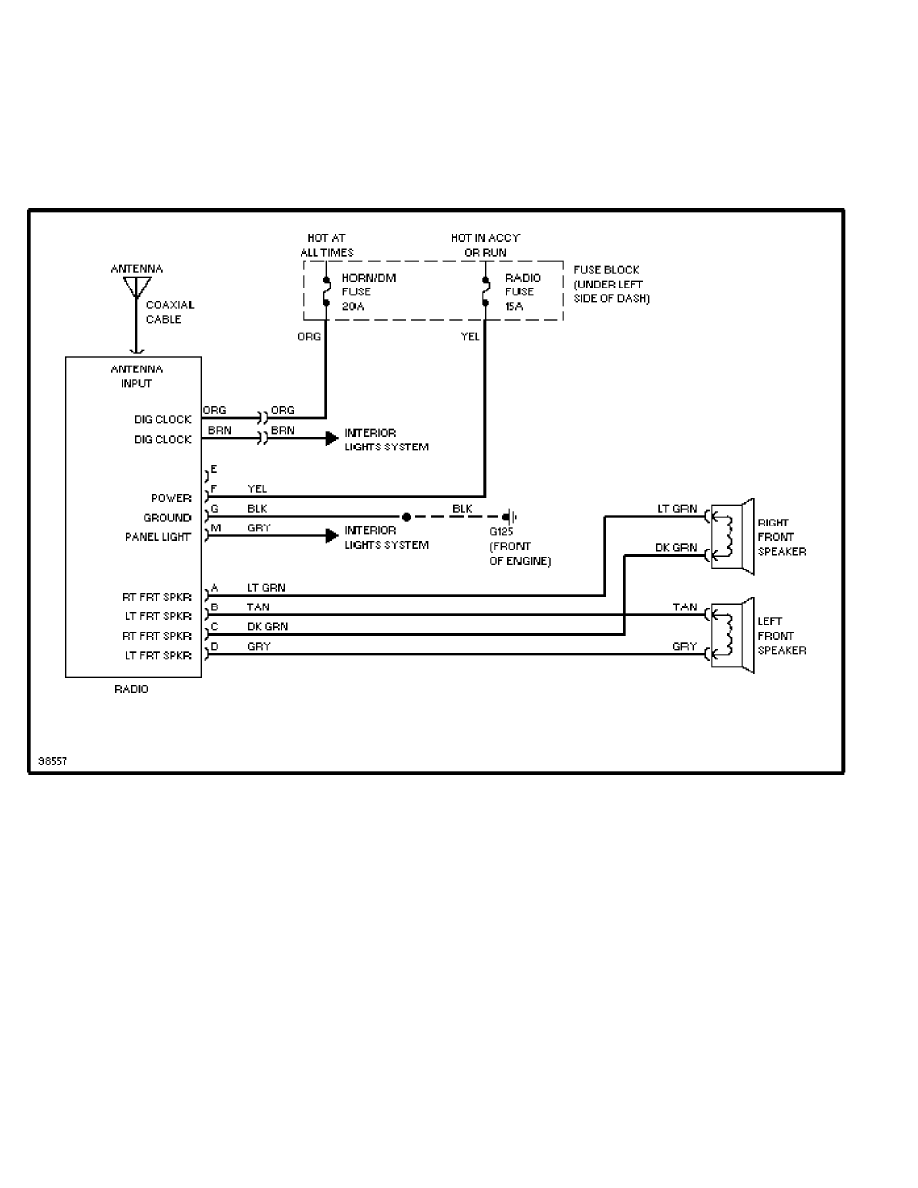

2-Speaker System Circuit (p. 5)

1990 Chevrolet S10 Blazer

For cdr101@wp.pl

Saturday, April 23, 2005 08:07PM

SYSTEM WIRING DIAGRAMS

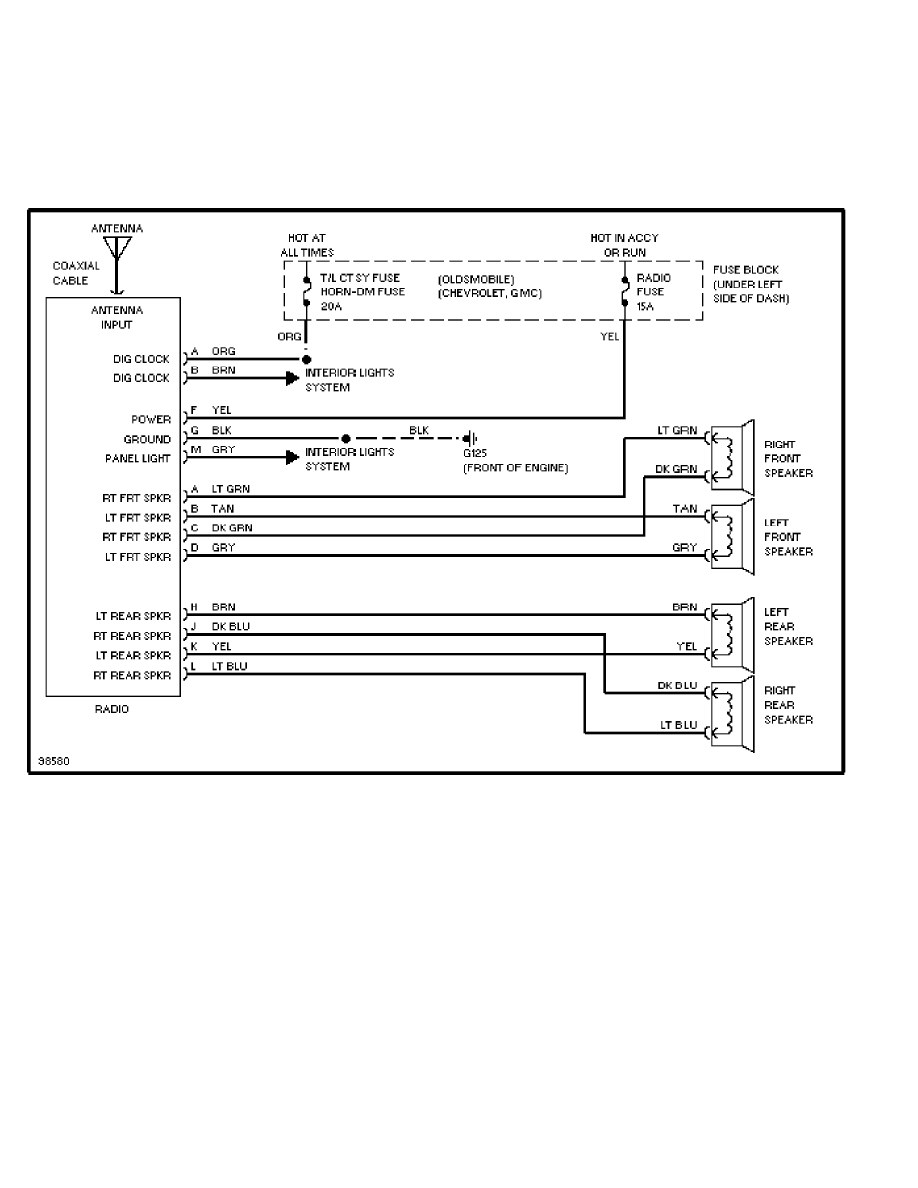

4-Speaker System Circuit, ETR (p. 6)

1990 Chevrolet S10 Blazer

For cdr101@wp.pl

Saturday, April 23, 2005 08:07PM

SYSTEM WIRING DIAGRAMS

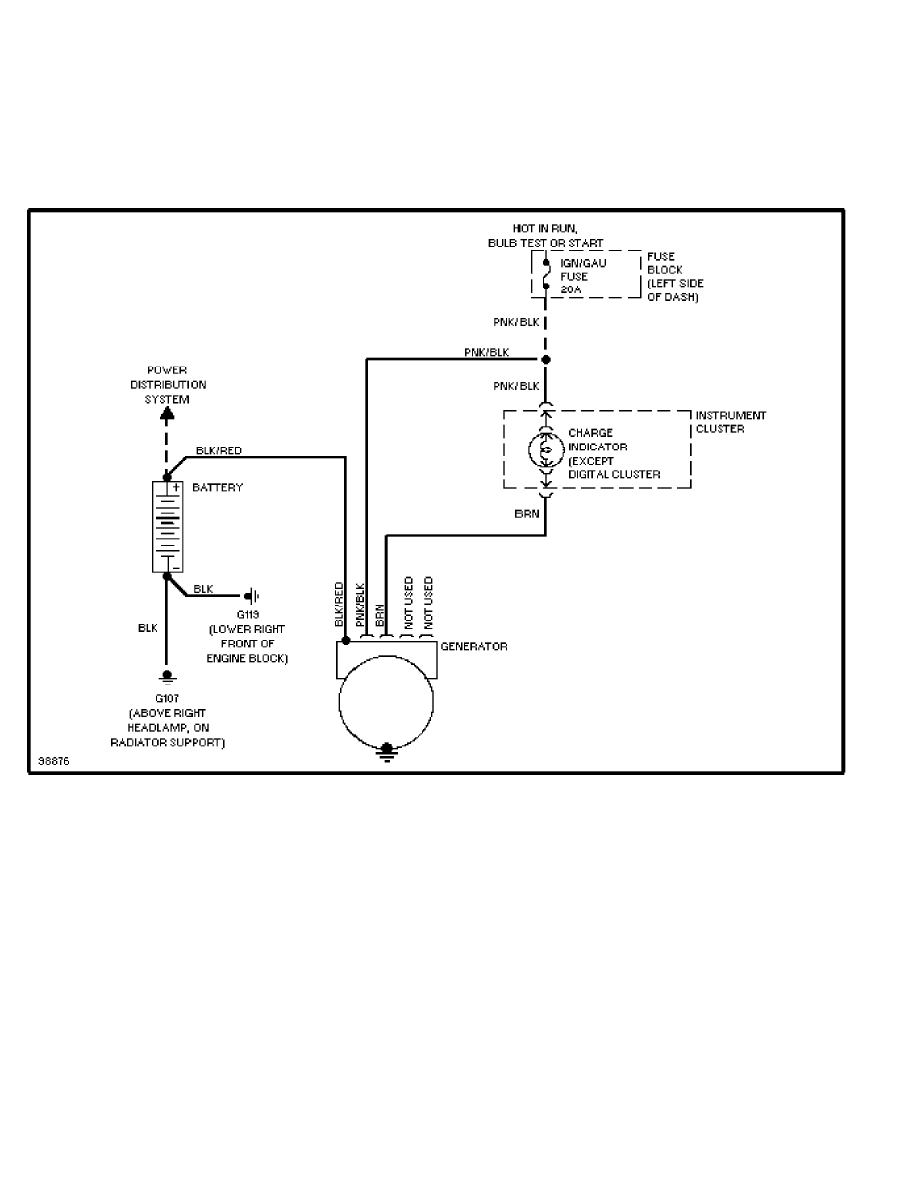

Charging Circuit (p. 7)

1990 Chevrolet S10 Blazer

For cdr101@wp.pl

Saturday, April 23, 2005 08:07PM

SYSTEM WIRING DIAGRAMS

Starting Circuit (p. 8)

1990 Chevrolet S10 Blazer

For cdr101@wp.pl

Saturday, April 23, 2005 08:07PM

SYSTEM WIRING DIAGRAMS

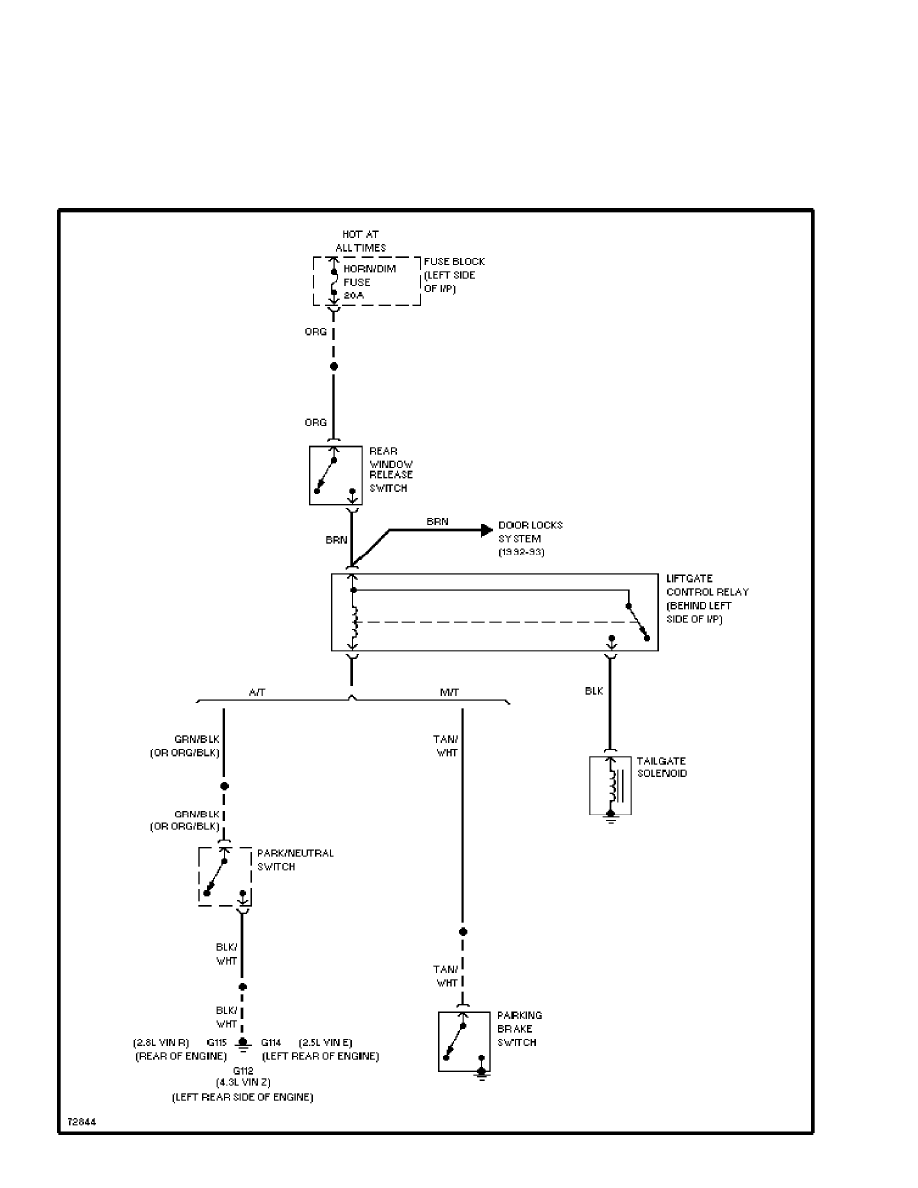

Trunk, Tailgate, Fuel Door Circuits (p. 9)

1990 Chevrolet S10 Blazer

For cdr101@wp.pl

Saturday, April 23, 2005 08:07PM

SYSTEM WIRING DIAGRAMS

2-Speed Wiper/Washer Circuit (p. 10)

1990 Chevrolet S10 Blazer

For cdr101@wp.pl

Saturday, April 23, 2005 08:07PM

SYSTEM WIRING DIAGRAMS

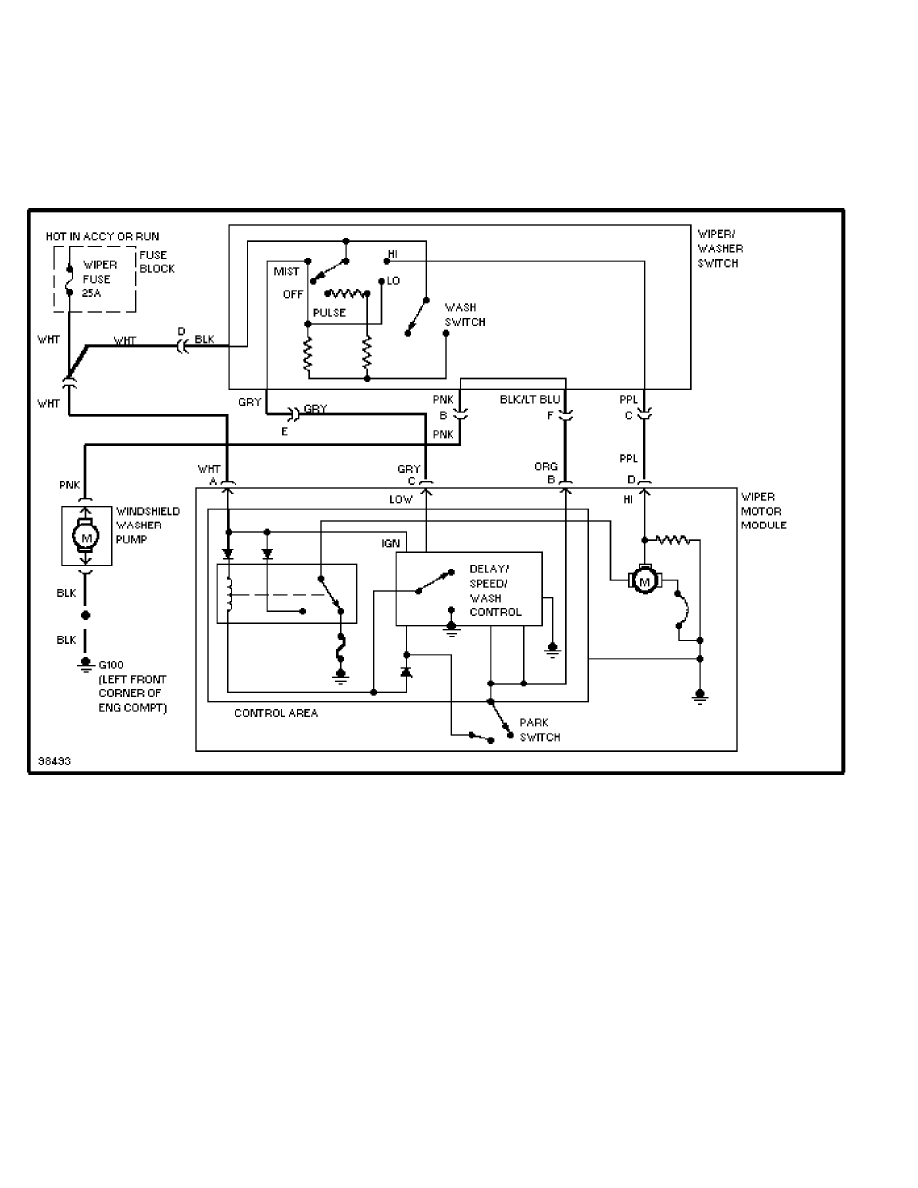

Interval Wiper/Washer Circuit (p. 11)

1990 Chevrolet S10 Blazer

For cdr101@wp.pl

Saturday, April 23, 2005 08:07PM

SYSTEM WIRING DIAGRAMS

Rear Wiper/Washer Circuit (p. 12)

1990 Chevrolet S10 Blazer

For cdr101@wp.pl

Saturday, April 23, 2005 08:07PM

WIRING DIAGRAMS

Fig. 1: Engine Compartment & Headlights

1990 Chevrolet S10 Blazer

For cdr101@wp.pl

Saturday, April 23, 2005 08:08PM

WIRING DIAGRAMS

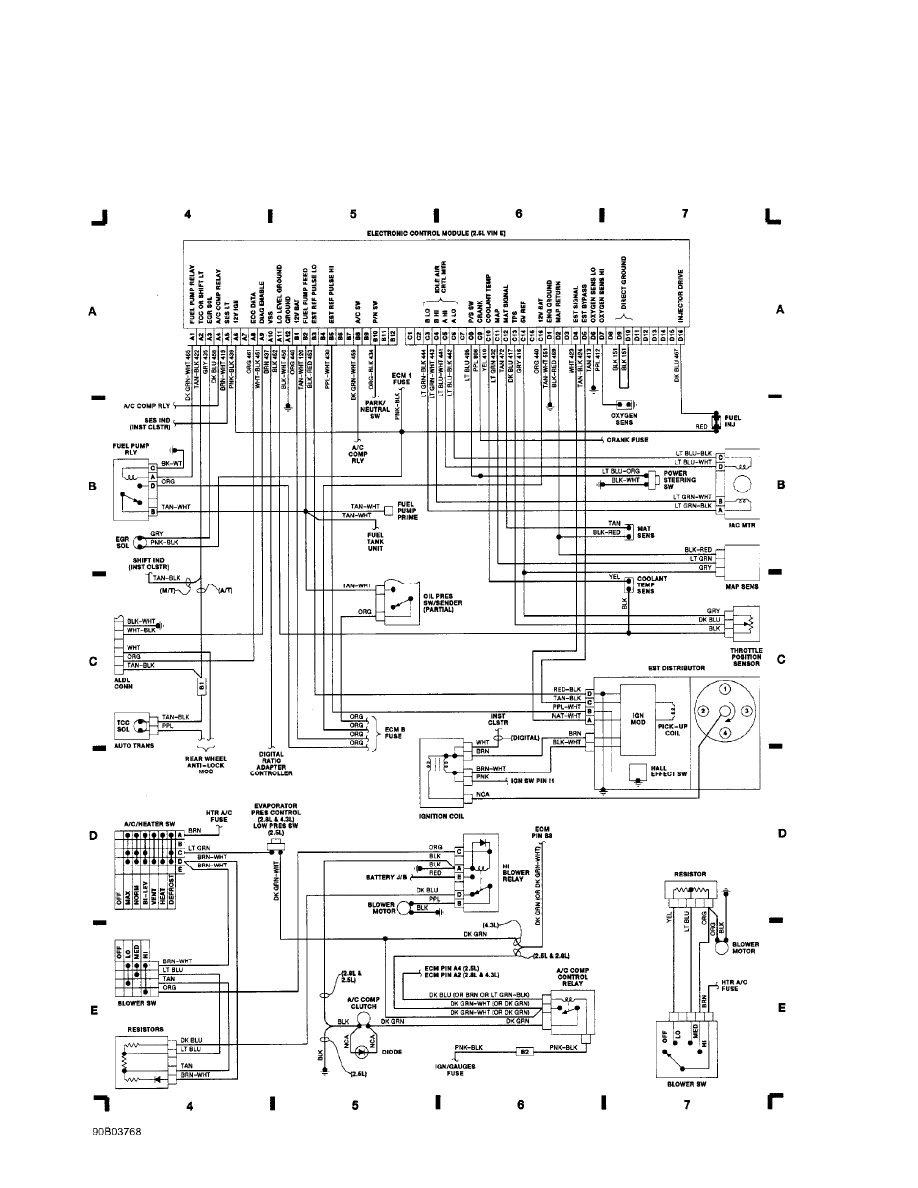

Fig. 2: Electronic Control Module (2.5L VIN E) (p. 2)

1990 Chevrolet S10 Blazer

For cdr101@wp.pl

Saturday, April 23, 2005 08:08PM

WIRING DIAGRAMS

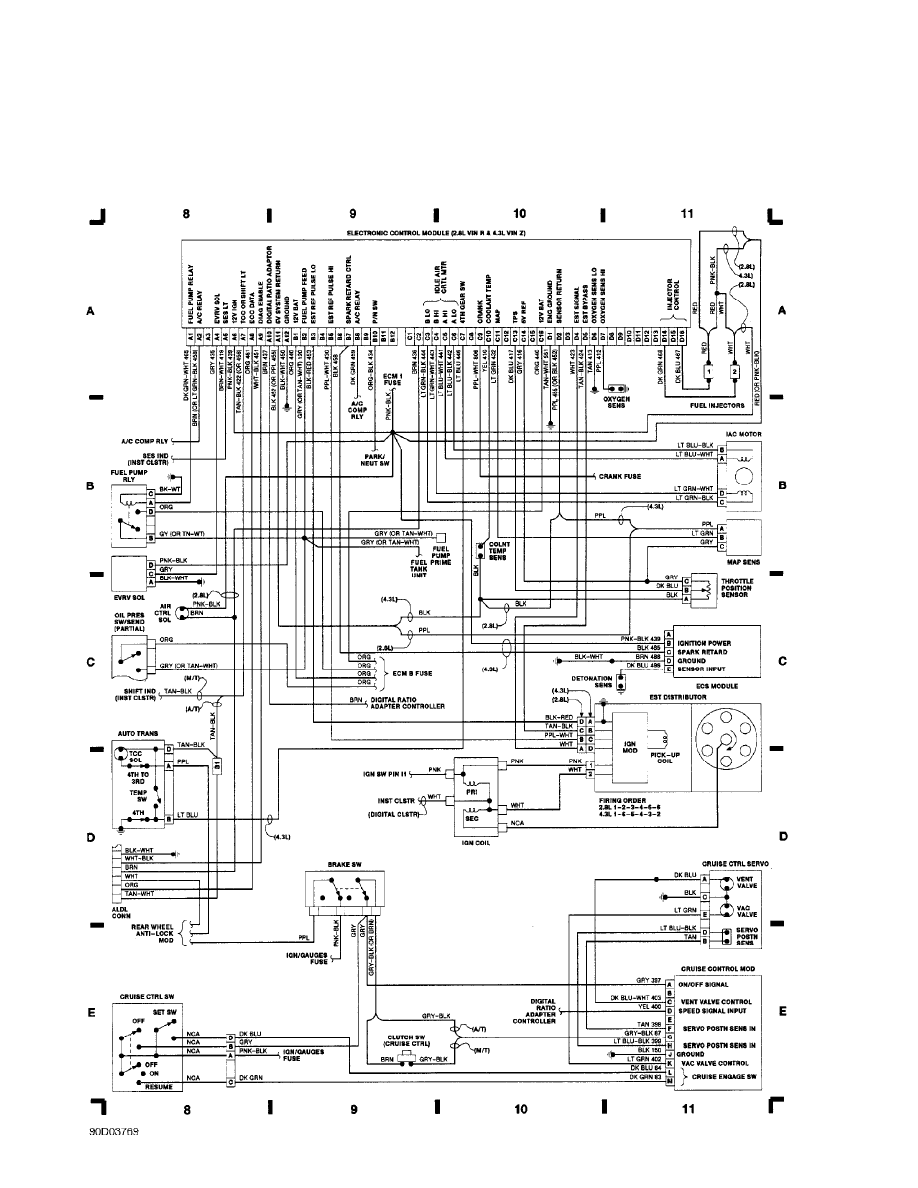

Fig. 3: Electronic Control Module (2.8L VIN R & 4.3L VIN Z) (p. 3)

1990 Chevrolet S10 Blazer

For cdr101@wp.pl

Saturday, April 23, 2005 08:08PM

WIRING DIAGRAMS

Fig. 4: Fuse Block (p. 4)

1990 Chevrolet S10 Blazer

For cdr101@wp.pl

Saturday, April 23, 2005 08:08PM

WIRING DIAGRAMS

Fig. 5: Convenience Center & Washer/Wiper (p. 5)

1990 Chevrolet S10 Blazer

For cdr101@wp.pl

Saturday, April 23, 2005 08:08PM

WIRING DIAGRAMS

Fig. 6: Instrument Cluster (Indicator, Gages, & Digital) (p. 6)

1990 Chevrolet S10 Blazer

For cdr101@wp.pl

Saturday, April 23, 2005 08:08PM

WIRING DIAGRAMS

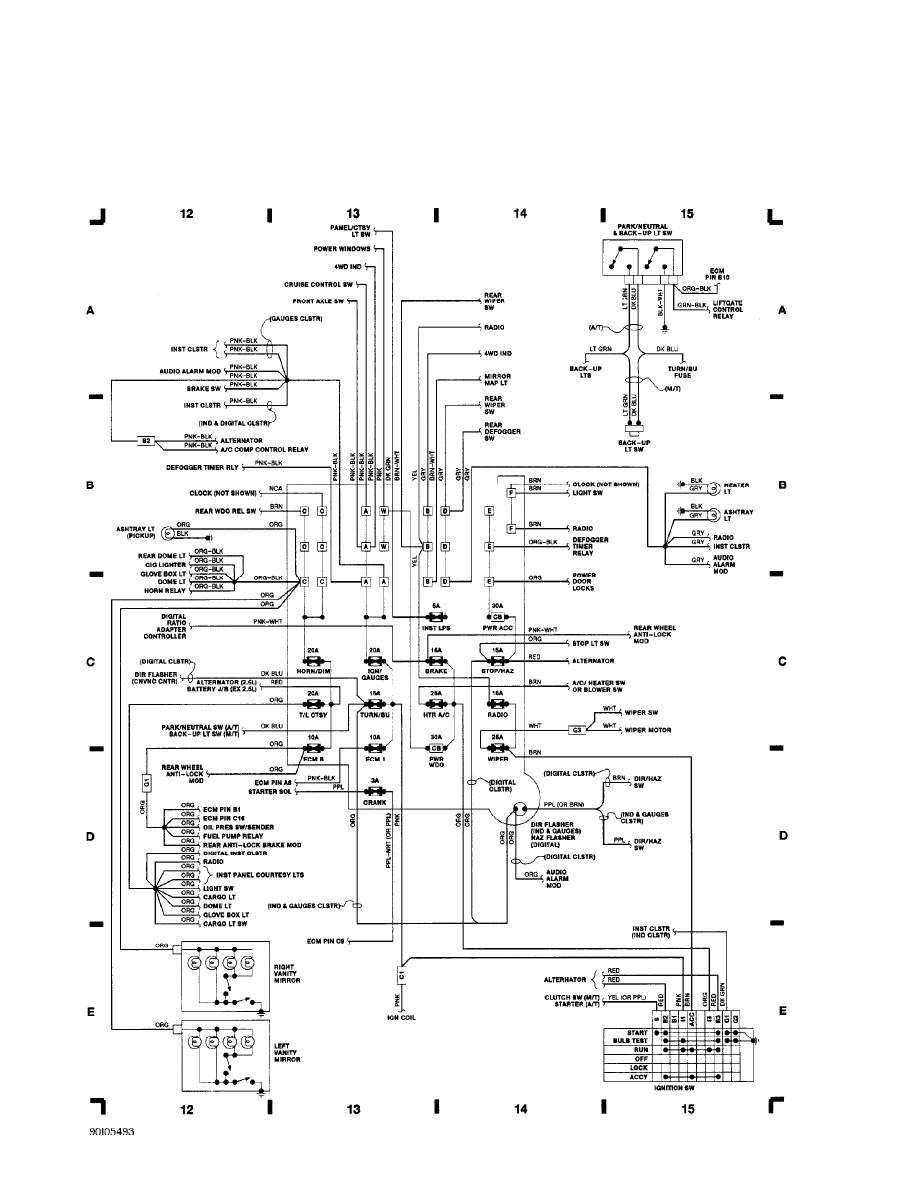

Fig. 7: Passenger Compartment & Taillights (p. 7)

1990 Chevrolet S10 Blazer

For cdr101@wp.pl

Saturday, April 23, 2005 08:08PM
