CHEVROLET CORVETTE 1990

SYSTEM WIRING DIAGRAMS

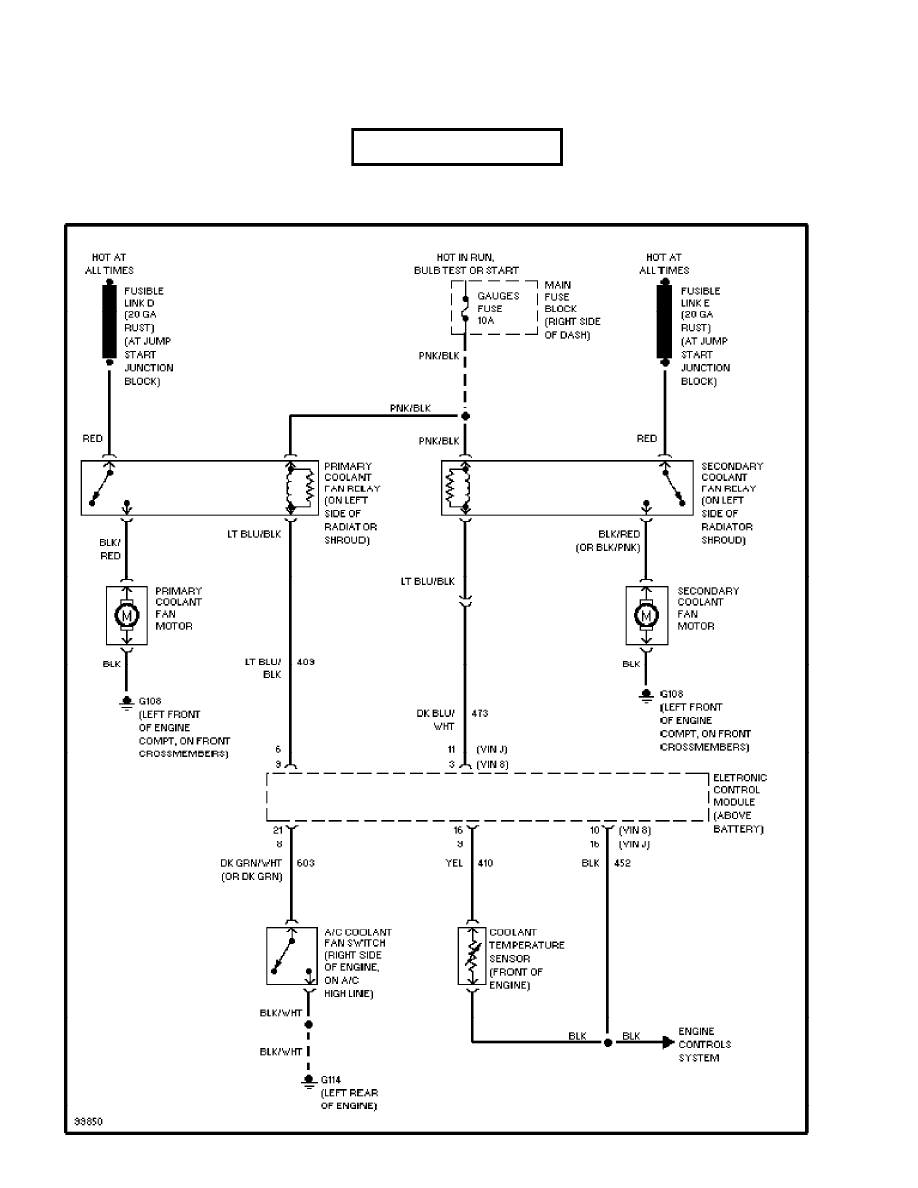

Cooling Fan Circuit

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

CDR@WP.PL

SYSTEM WIRING DIAGRAMS

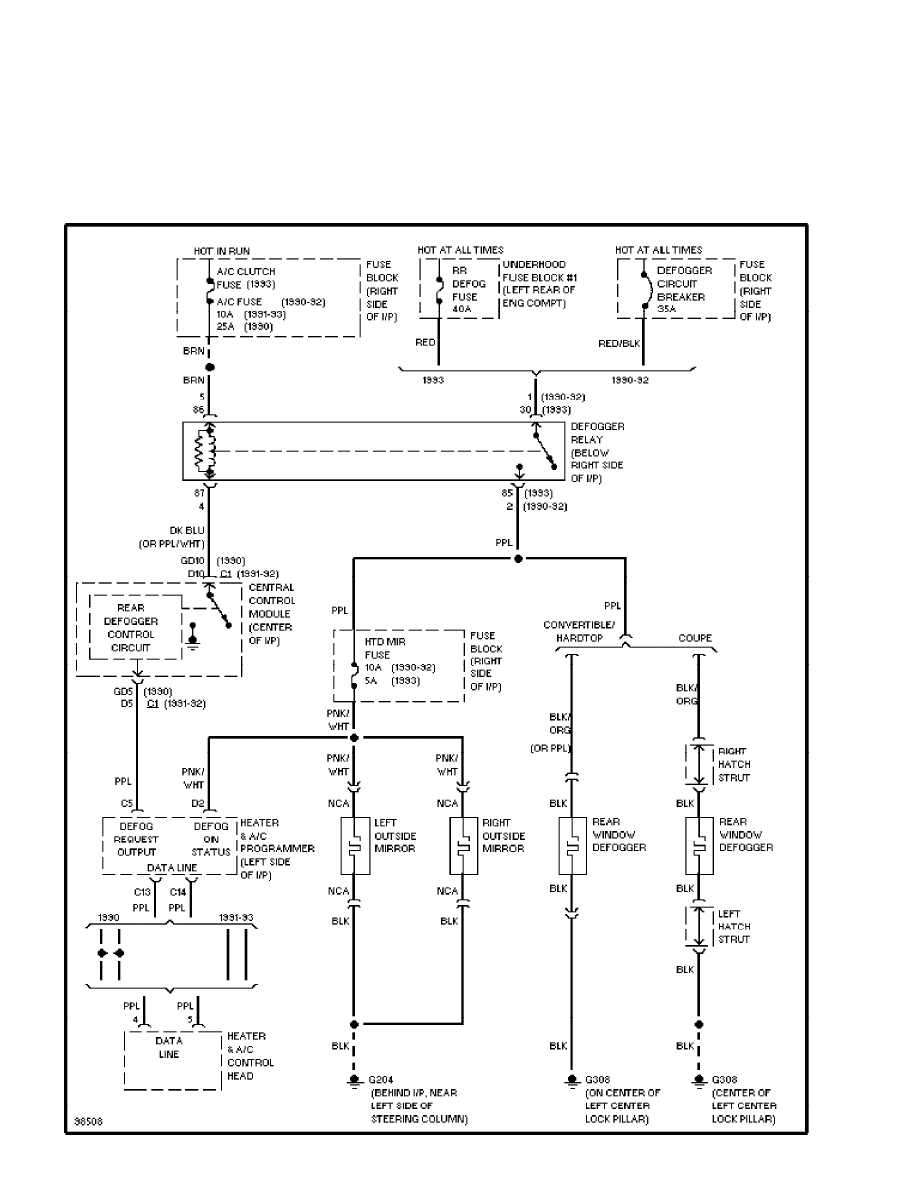

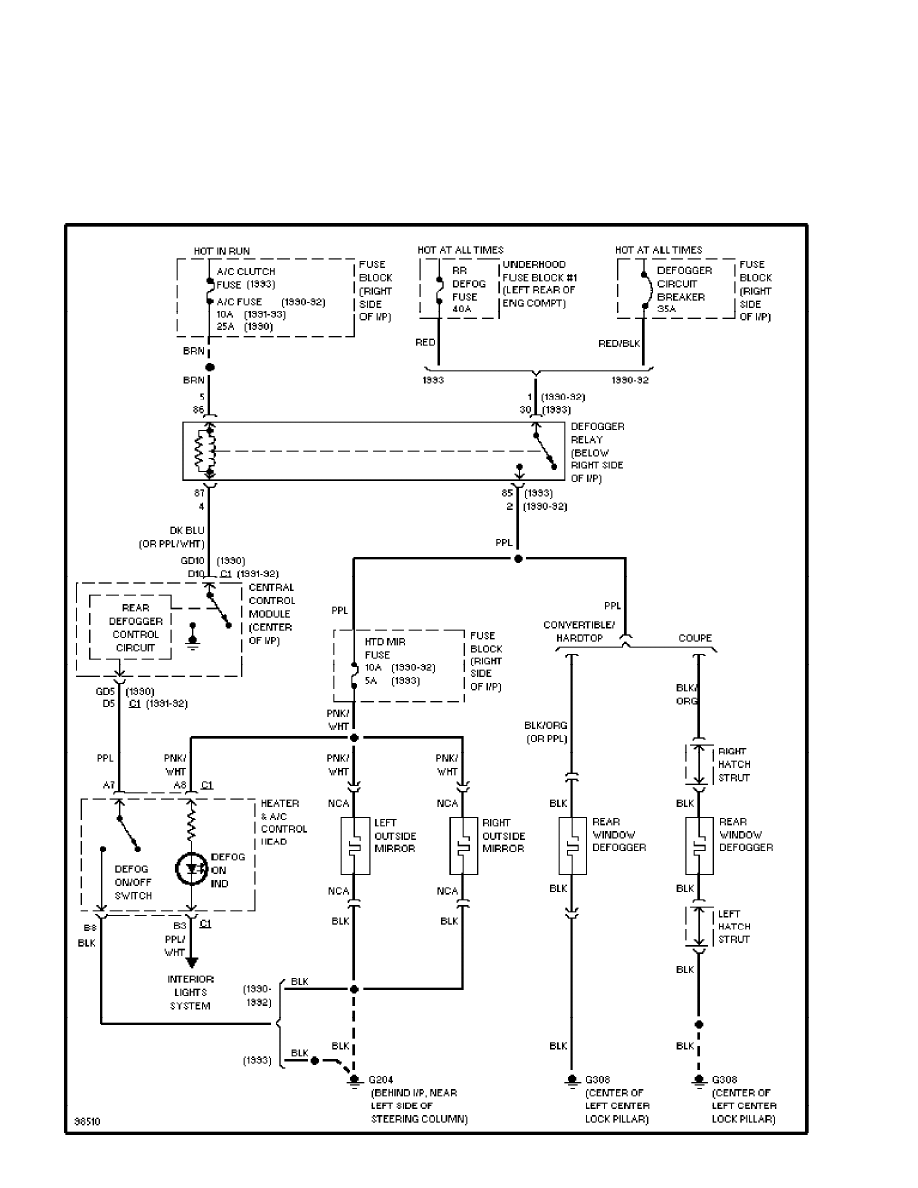

Defogger Circuit, W/ Electronic A/C (p. 2)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

SYSTEM WIRING DIAGRAMS

Defogger Circuit, W/ Manual A/C (p. 3)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

SYSTEM WIRING DIAGRAMS

Horn Circuit (p. 4)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

SYSTEM WIRING DIAGRAMS

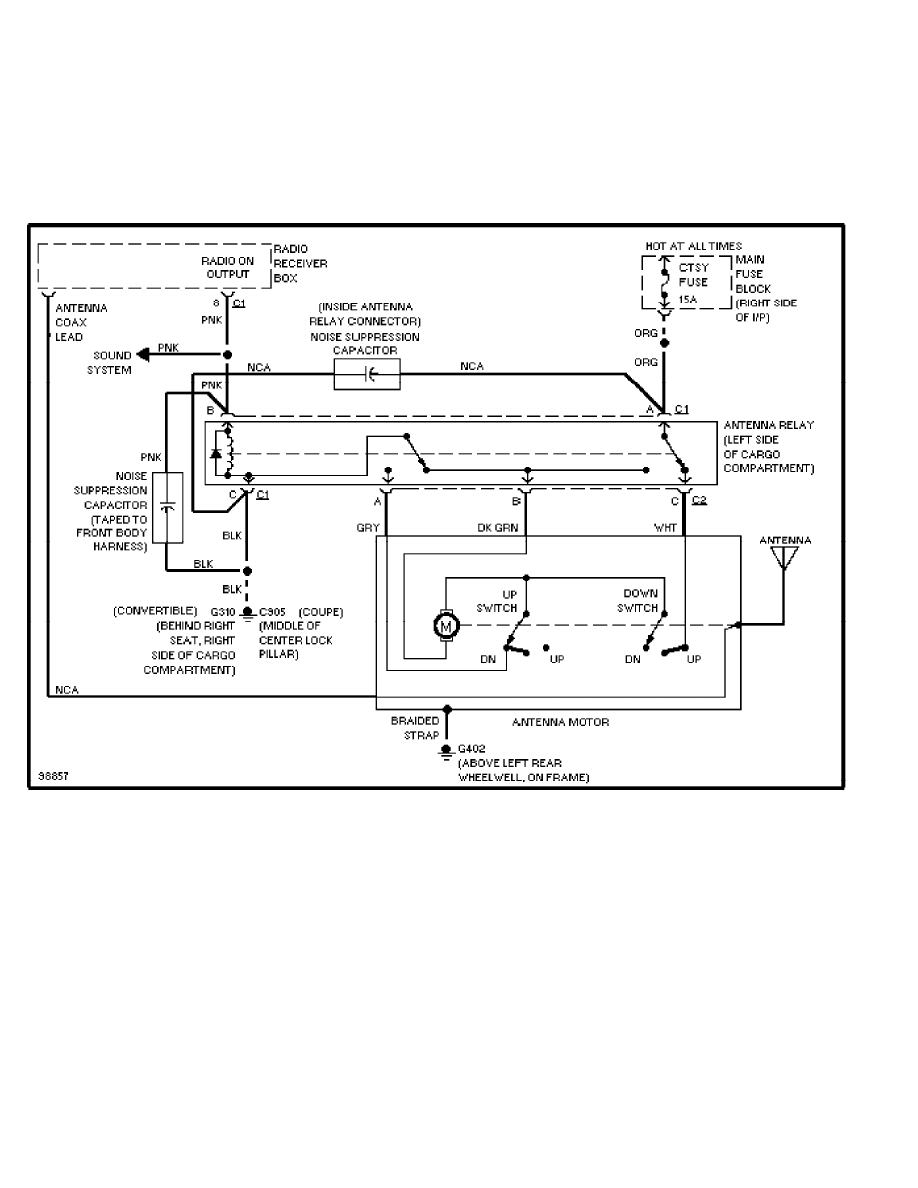

Power Antenna Circuit (p. 5)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

SYSTEM WIRING DIAGRAMS

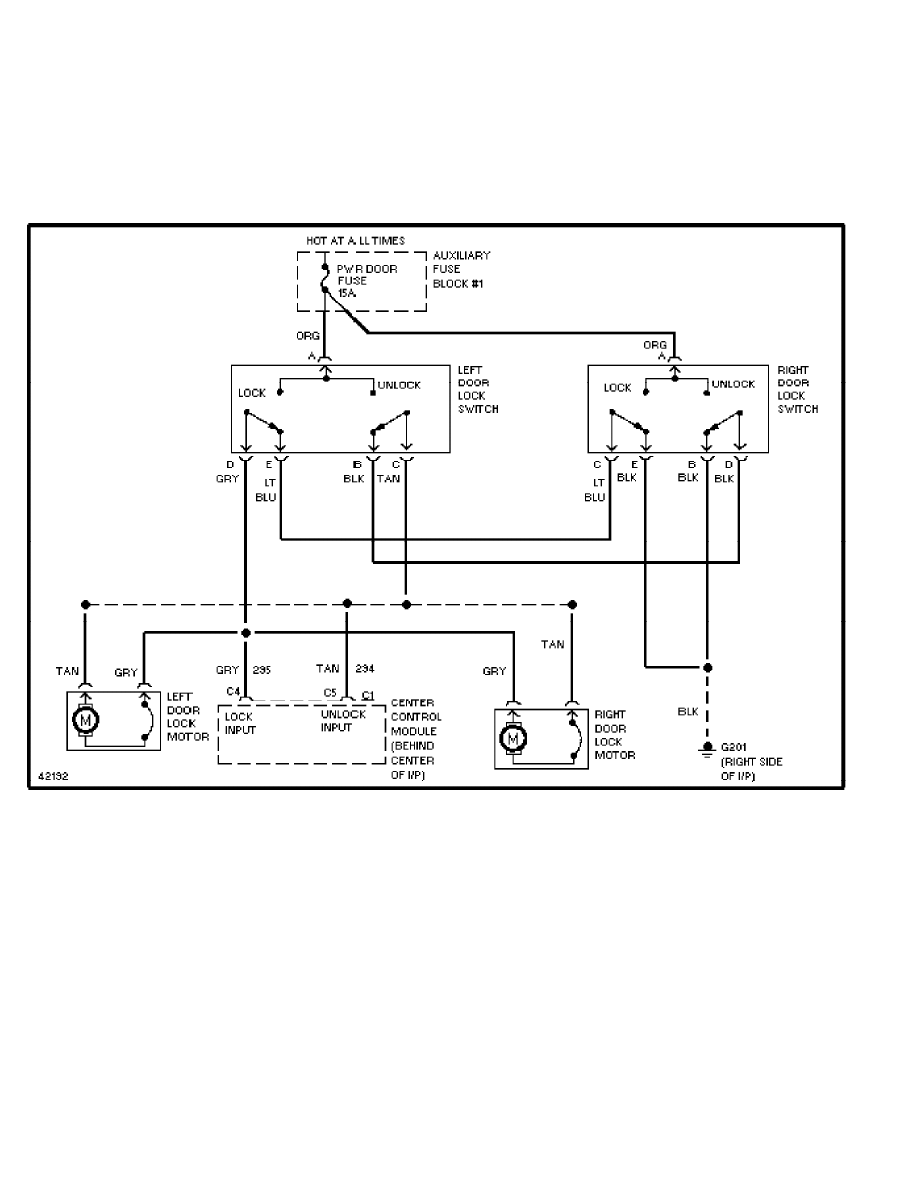

Power Door Lock Circuit (p. 6)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

SYSTEM WIRING DIAGRAMS

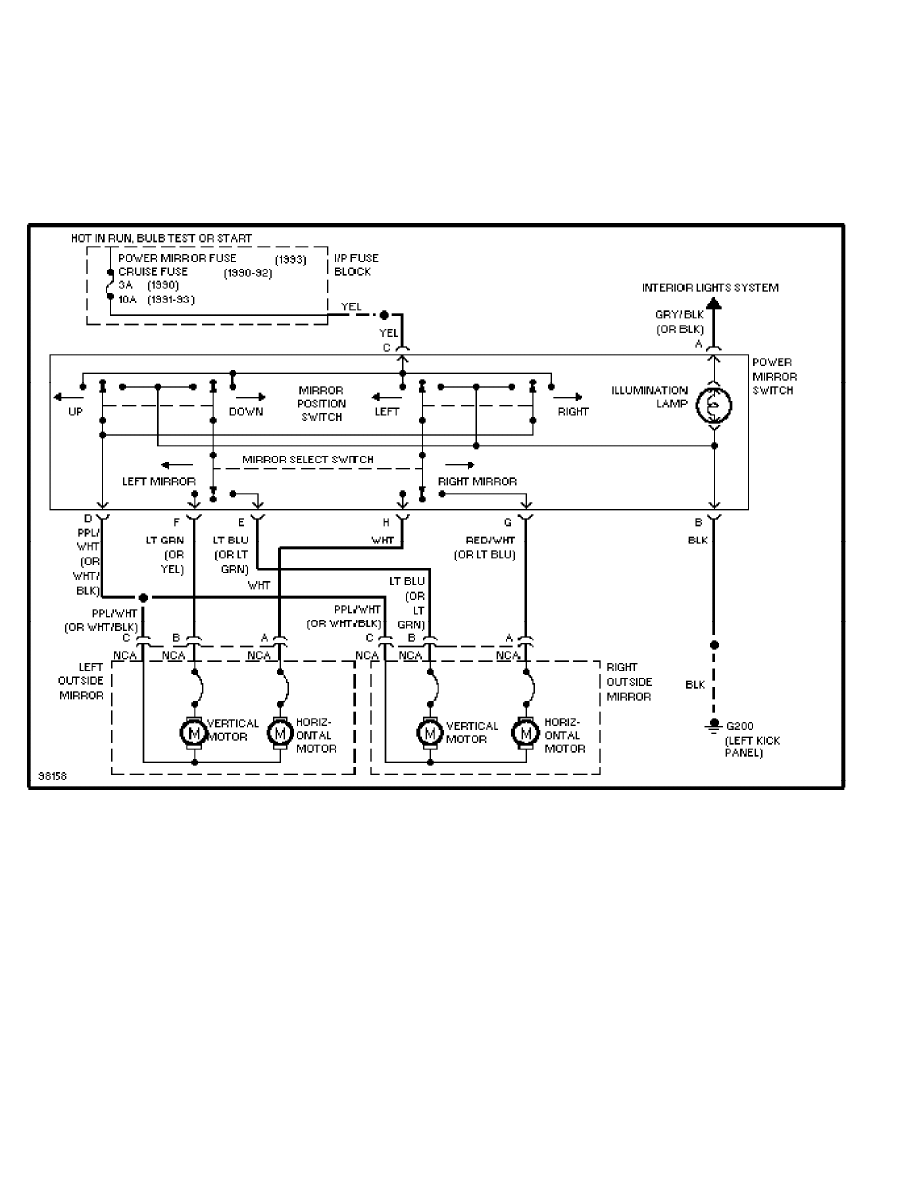

Power Mirror Circuit (p. 7)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

SYSTEM WIRING DIAGRAMS

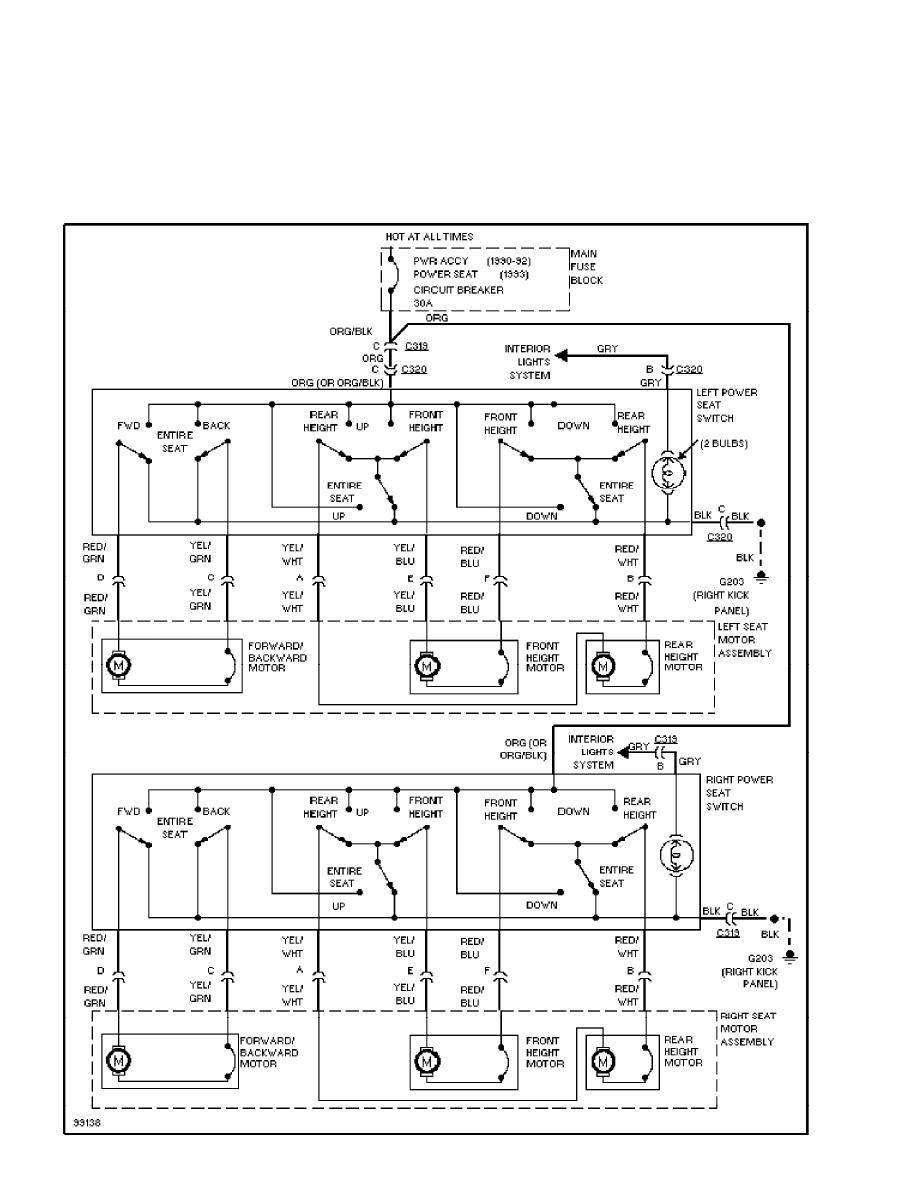

6-Way Power Seat Circuit (p. 8)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

SYSTEM WIRING DIAGRAMS

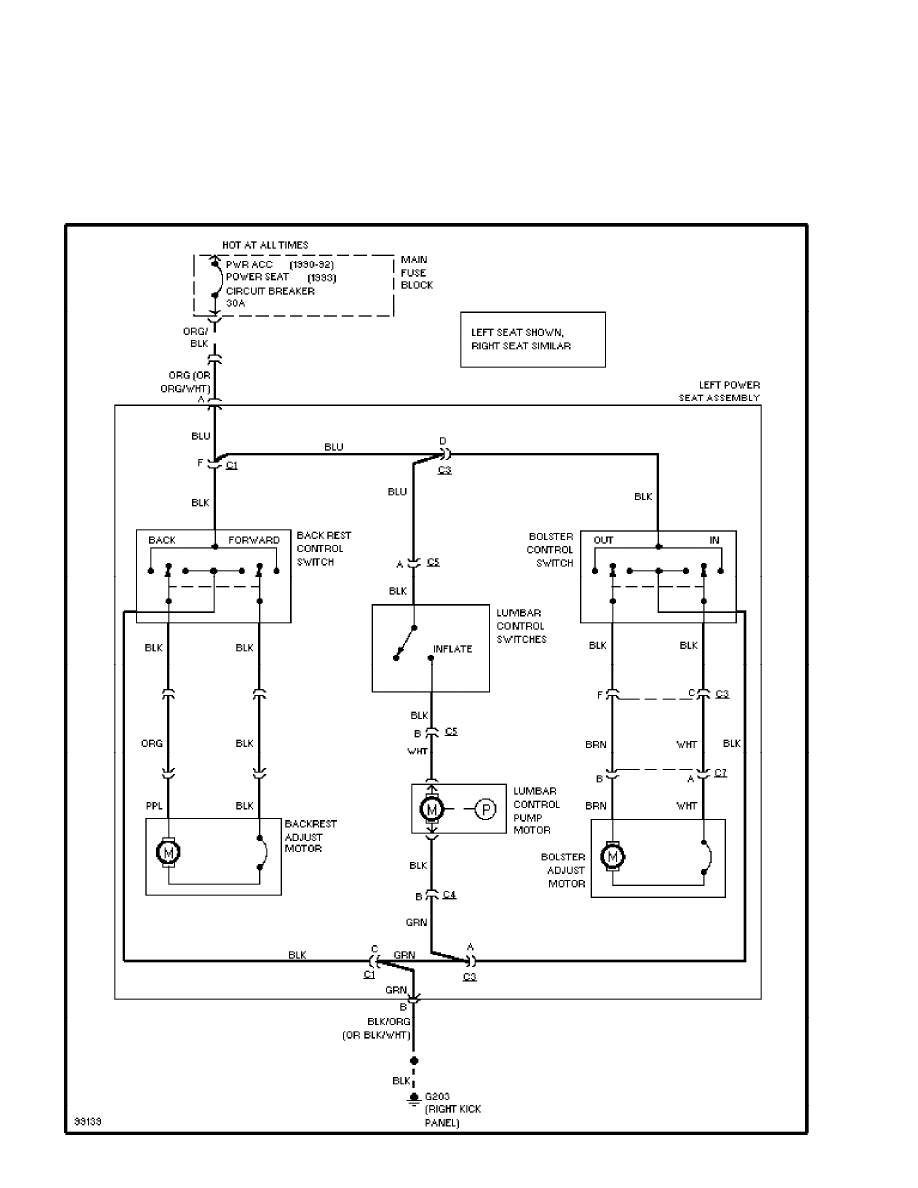

Lumbar/Bolster Circuit (p. 9)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

SYSTEM WIRING DIAGRAMS

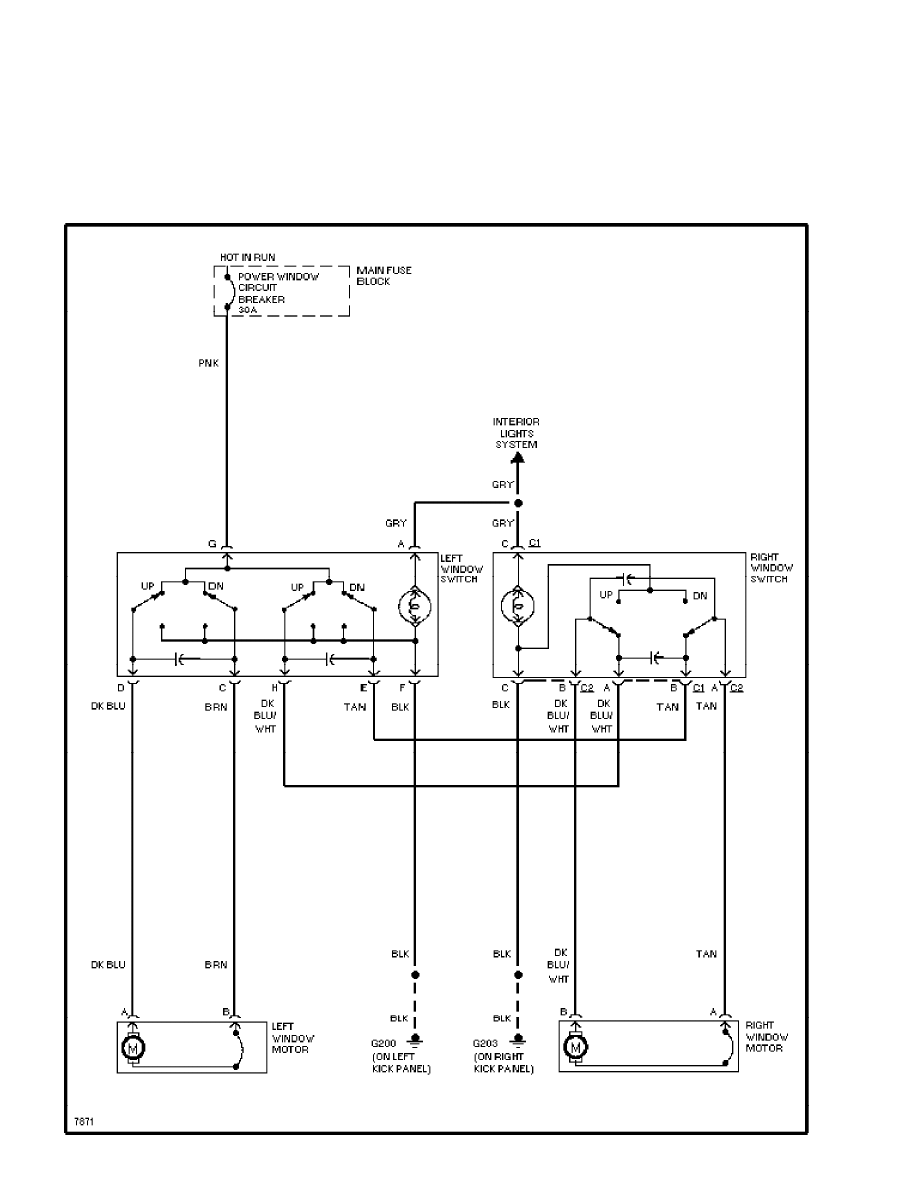

Power Window Circuit (p. 10)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

SYSTEM WIRING DIAGRAMS

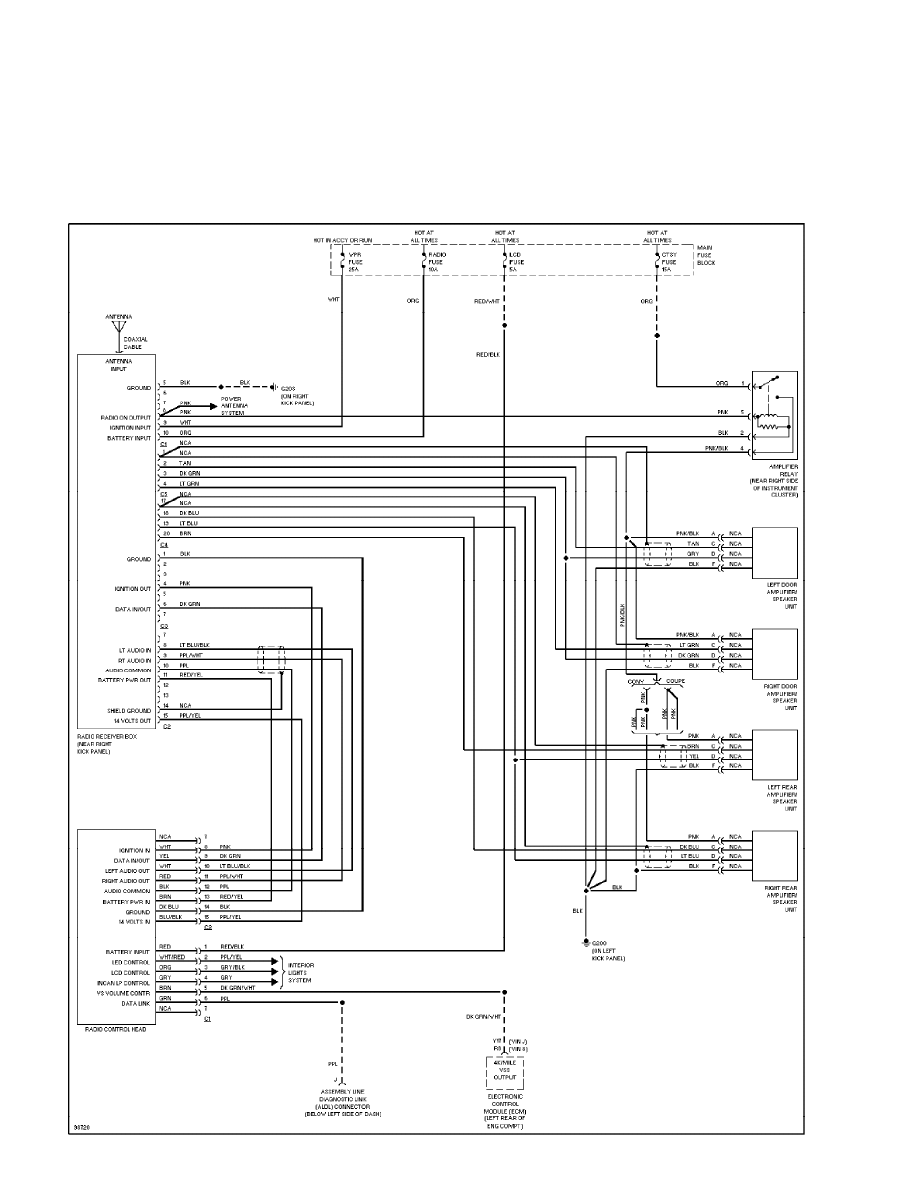

Radio Circuits, W/ Delco Bose (p. 11)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

SYSTEM WIRING DIAGRAMS

Radio Circuits, W/O Delco Bose (p. 12)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

SYSTEM WIRING DIAGRAMS

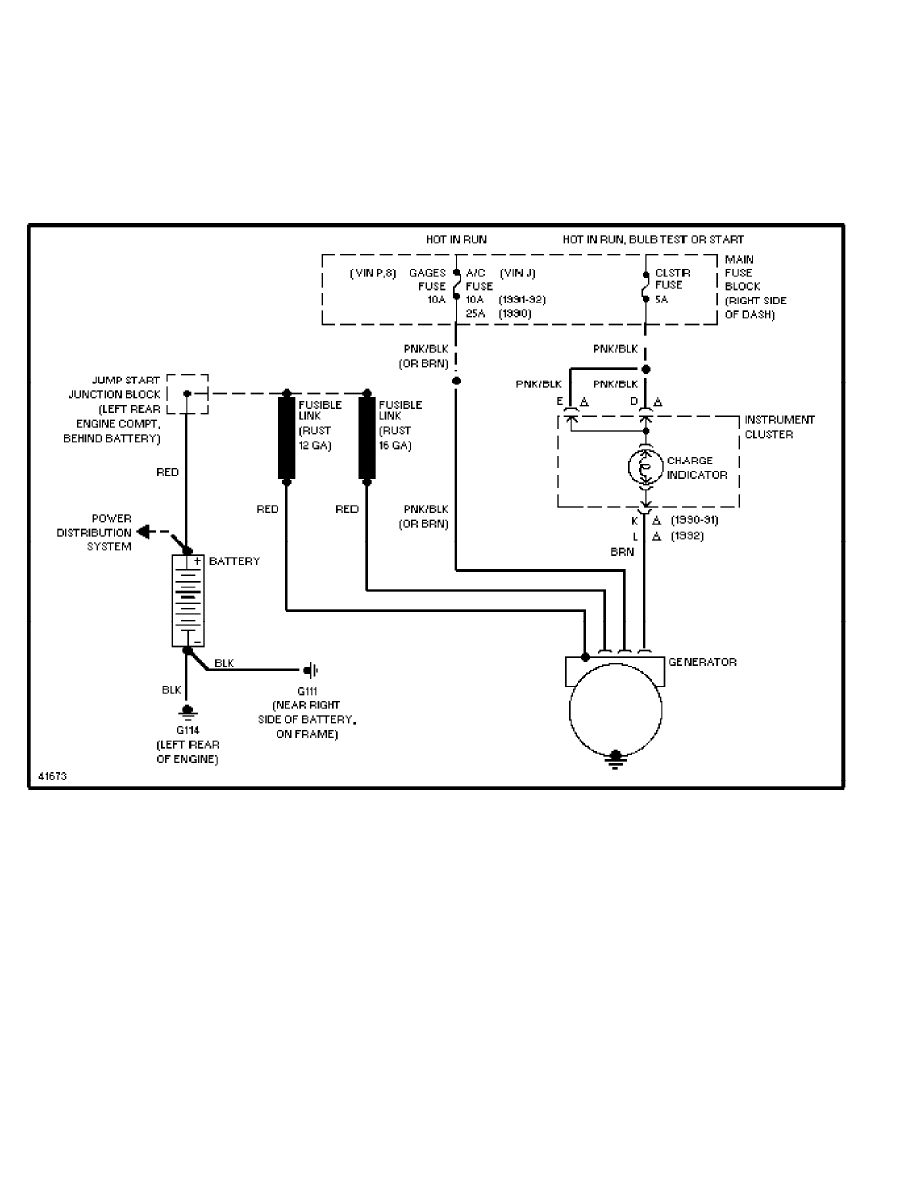

Charging Circuit (p. 13)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

SYSTEM WIRING DIAGRAMS

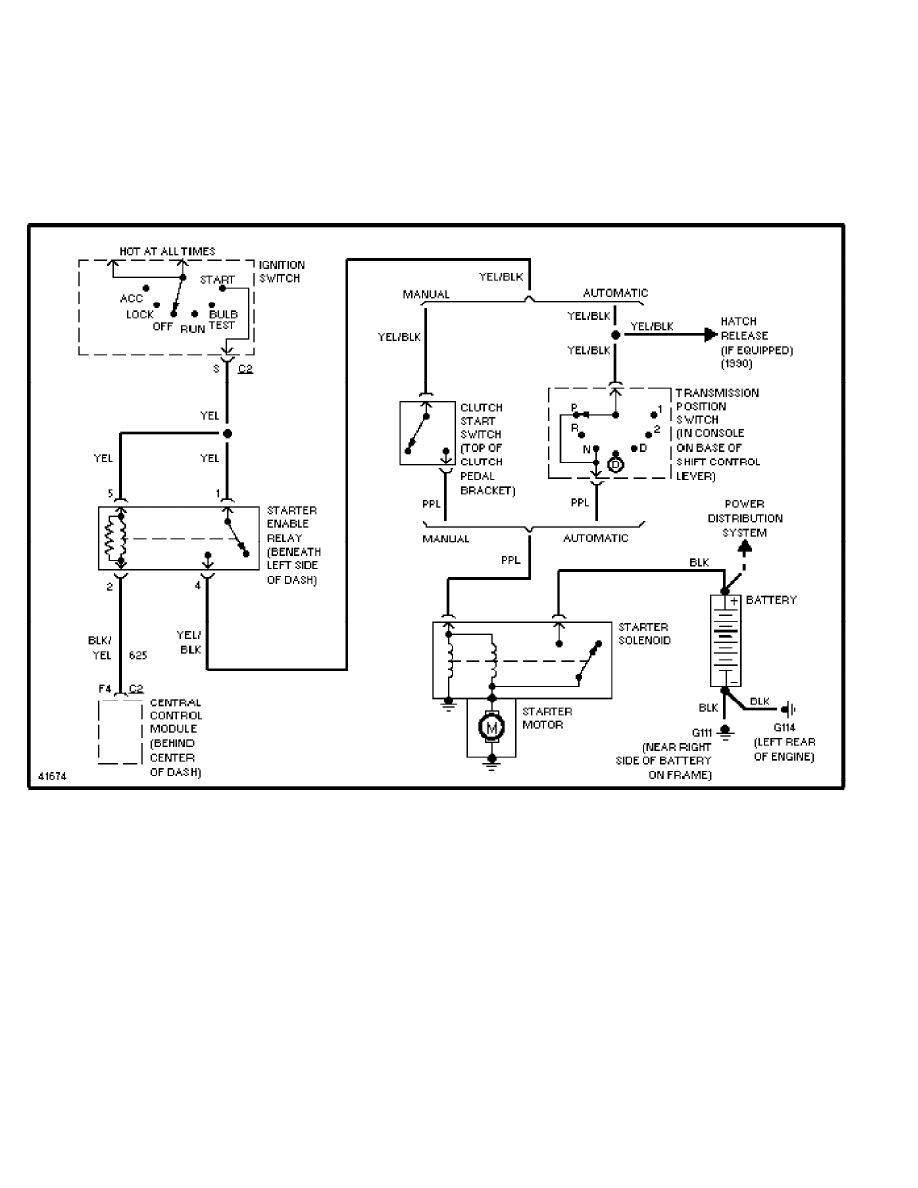

Starting Circuit (p. 14)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

SYSTEM WIRING DIAGRAMS

Hatch Release Circuit (p. 15)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

SYSTEM WIRING DIAGRAMS

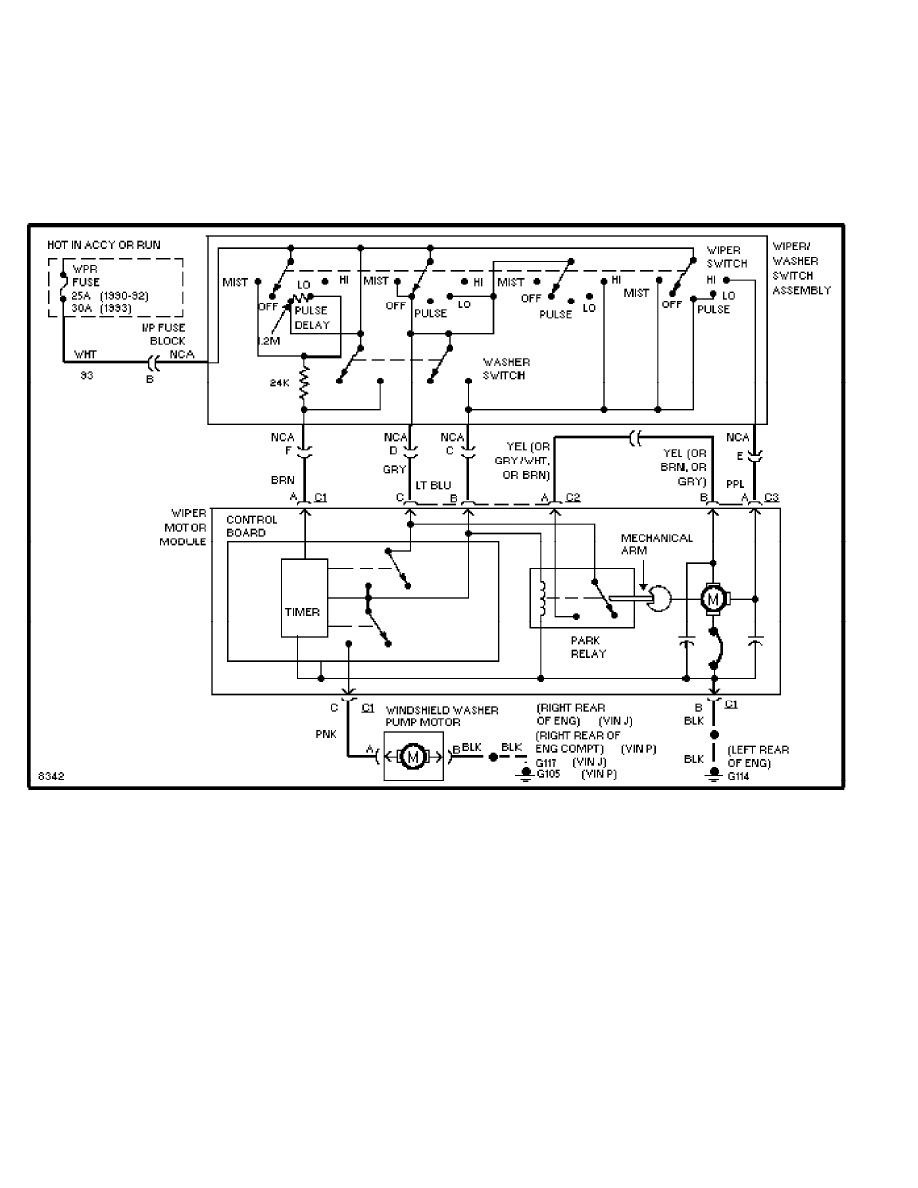

Wiper/Washer Circuit (p. 16)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

WIRING DIAGRAMS

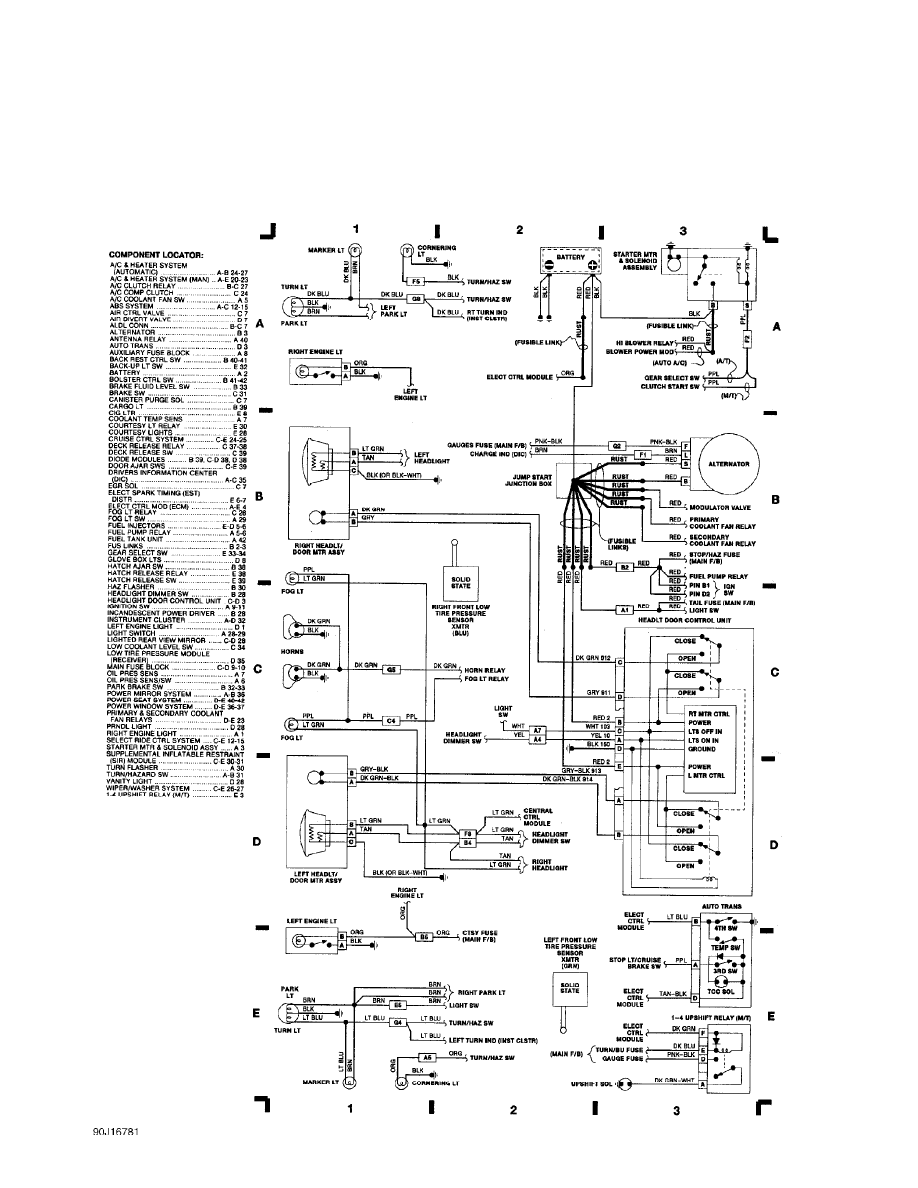

Fig. 1: Engine Compartment & Headlights (Grid 1-3)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

WIRING DIAGRAMS

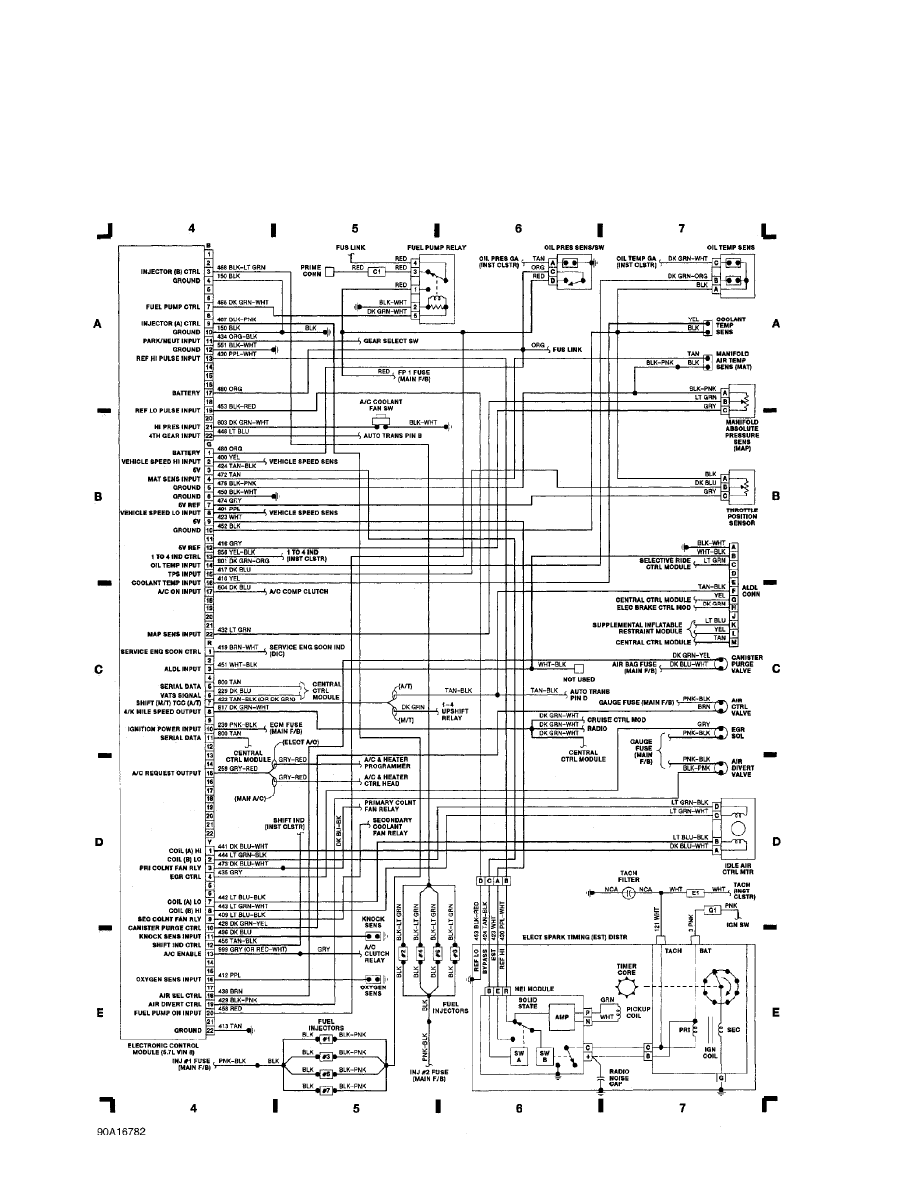

Fig. 2: Electronic Control Module (5.7L VIN 8) (Grid 4-7) (p. 2)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

WIRING DIAGRAMS

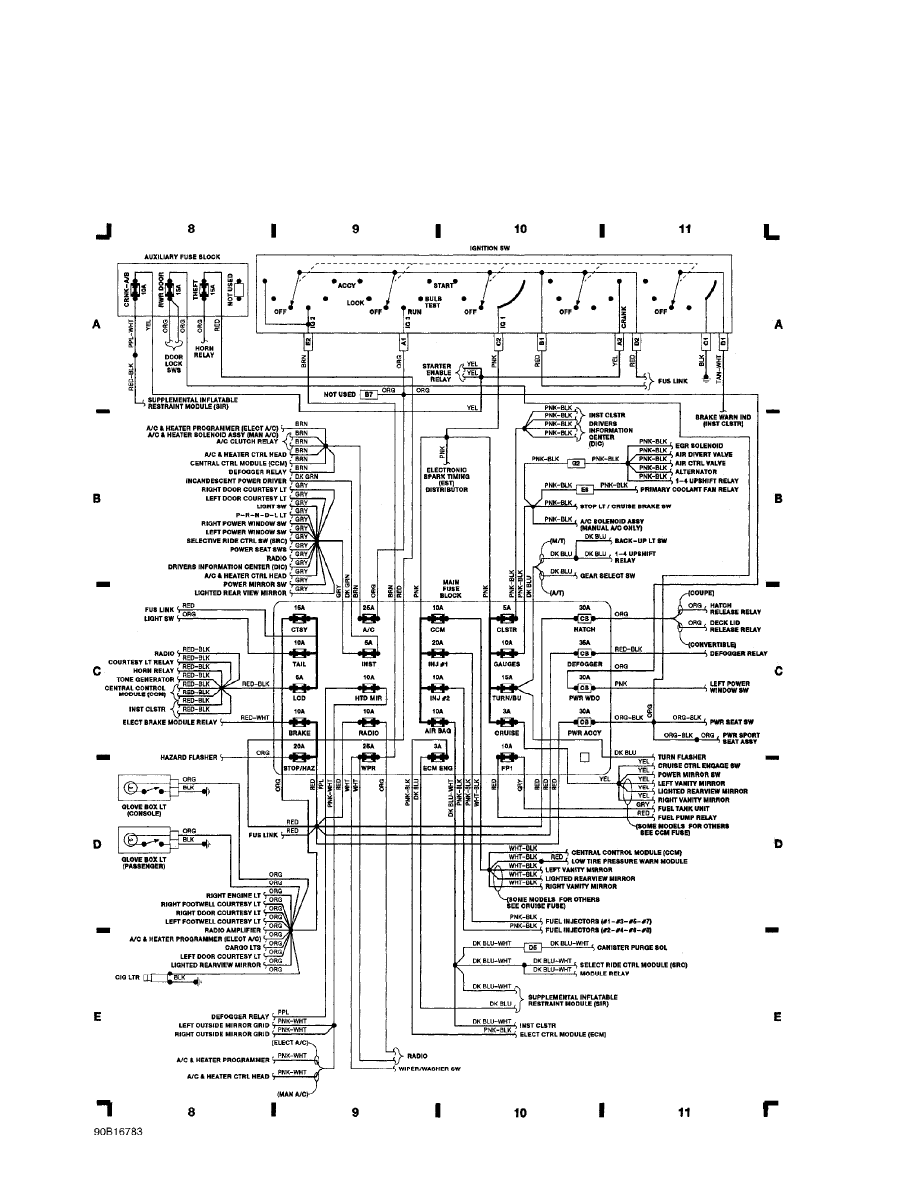

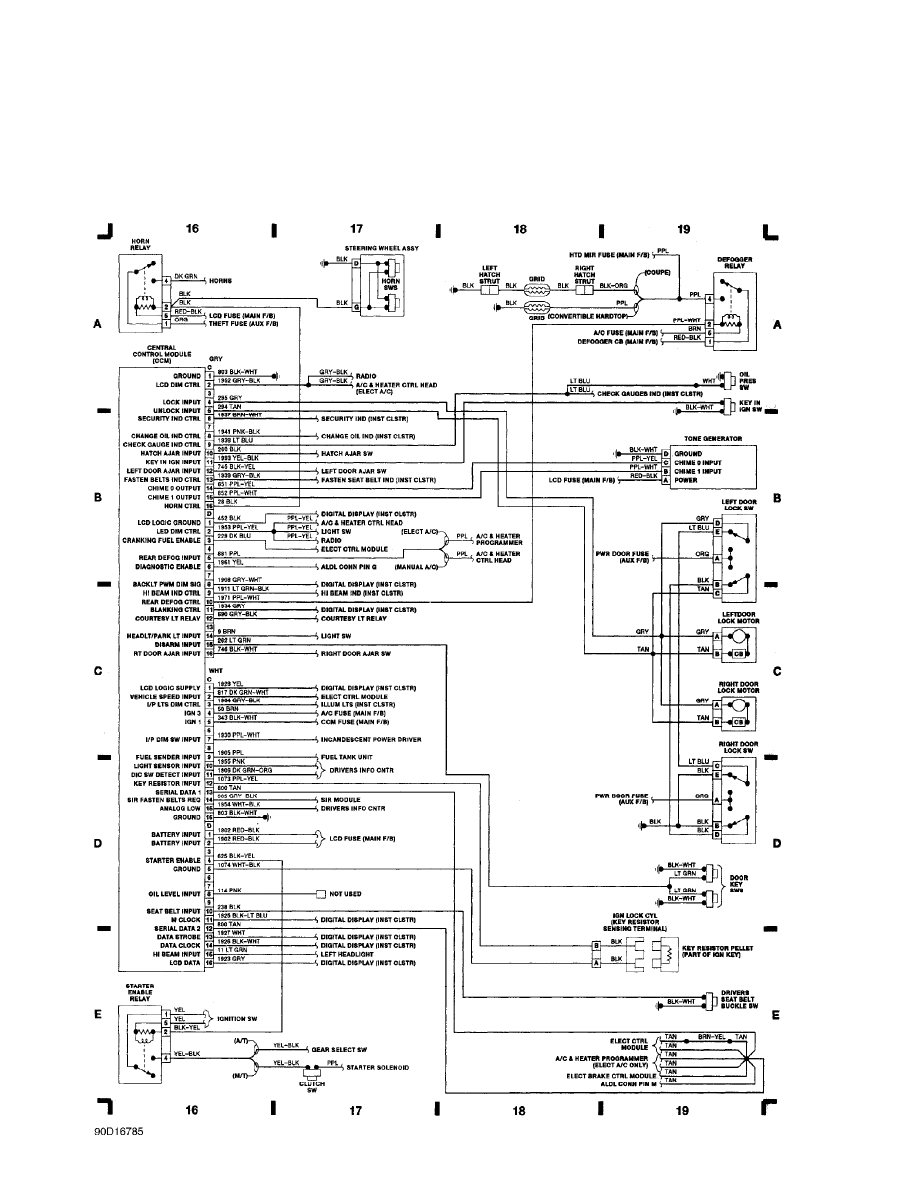

Fig. 3: Fuse Block (Grid 8-11) (p. 3)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

WIRING DIAGRAMS

Fig. 4: Electronic Brake Control Module & Select Ride Control Module (Grid 12-15) (p. 4)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

WIRING DIAGRAMS

Fig. 5: Passenger Compartment (Cont) (Grid 16-19) (p. 5)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

WIRING DIAGRAMS

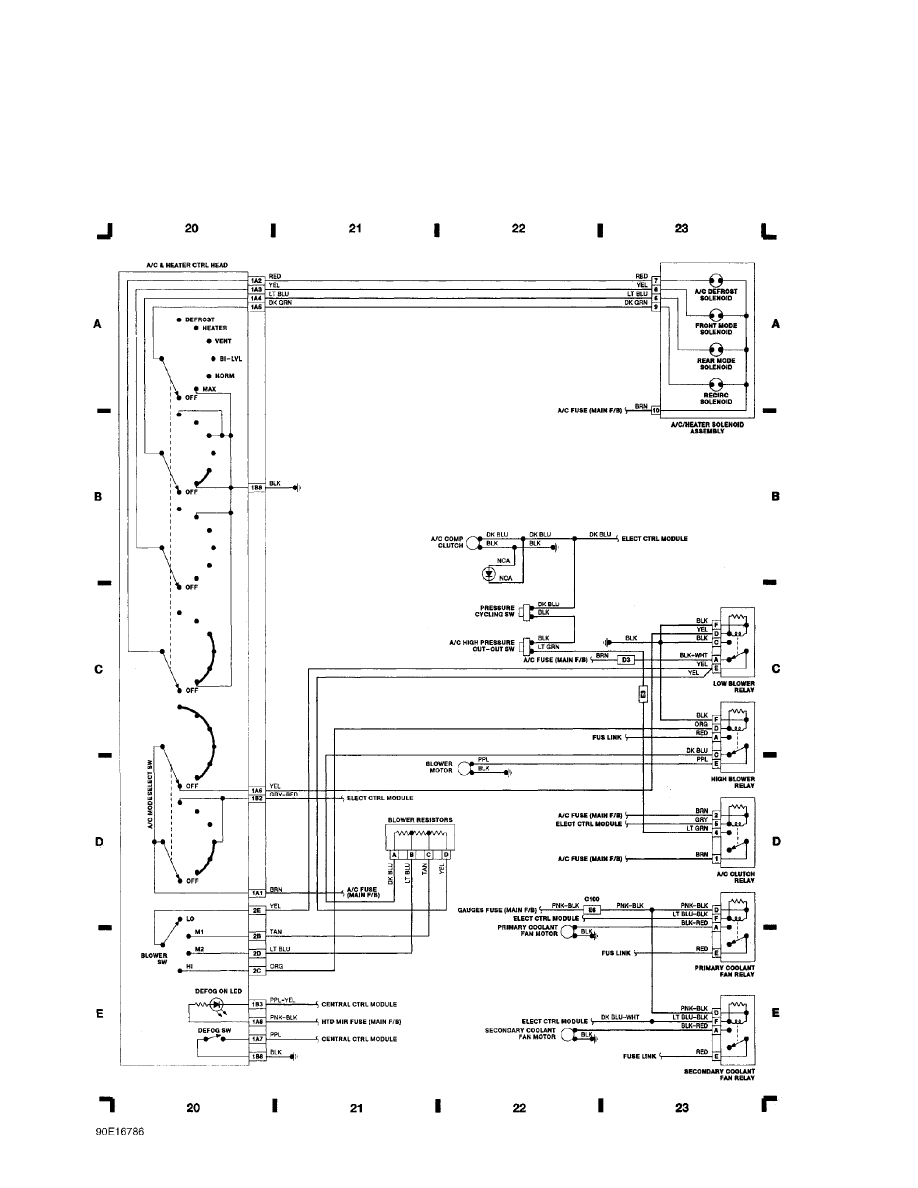

Fig. 6: A/C-Heater Control Head (Grid 20-23) (p. 6)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

WIRING DIAGRAMS

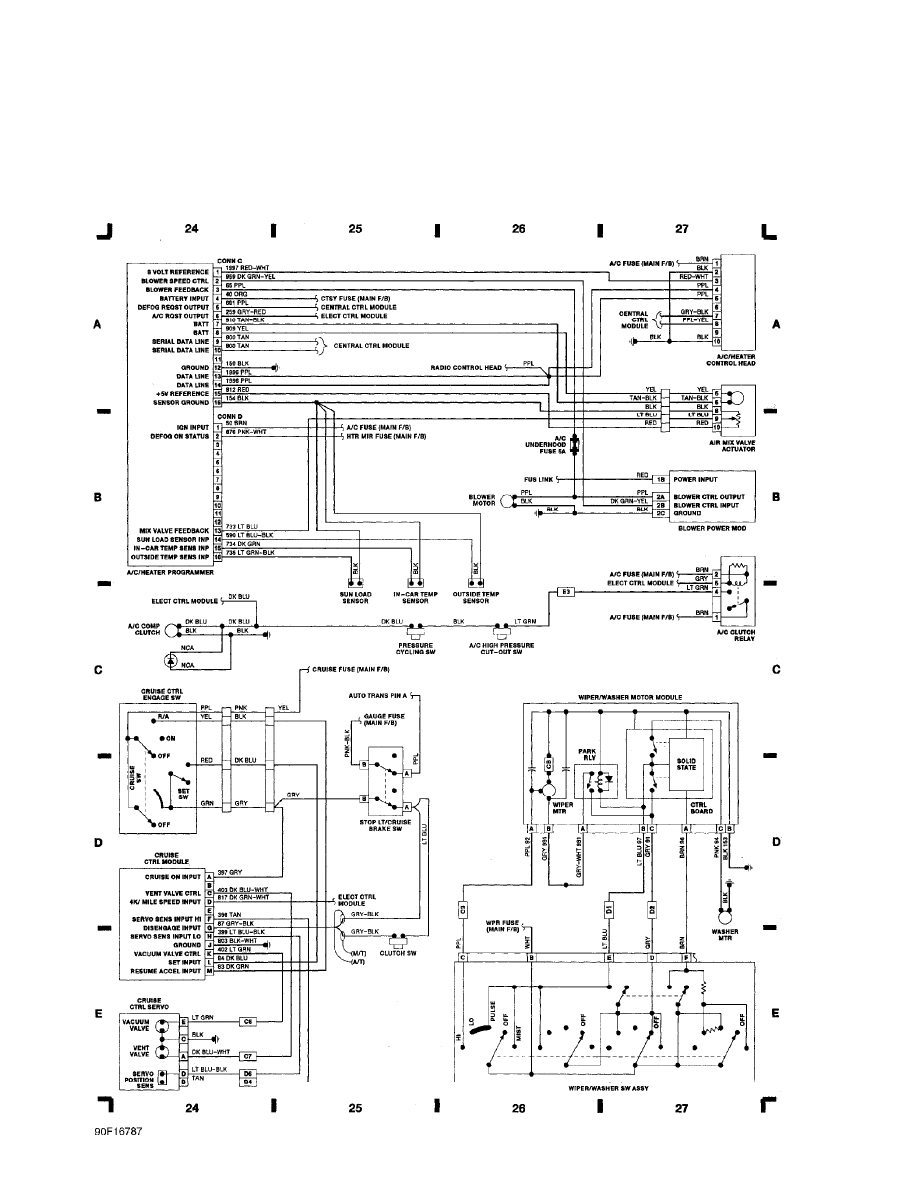

Fig. 7: A/C-Heater Programmer, Cruise Control & Wiper/Washer (Grid 24-27) (p. 7)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

WIRING DIAGRAMS

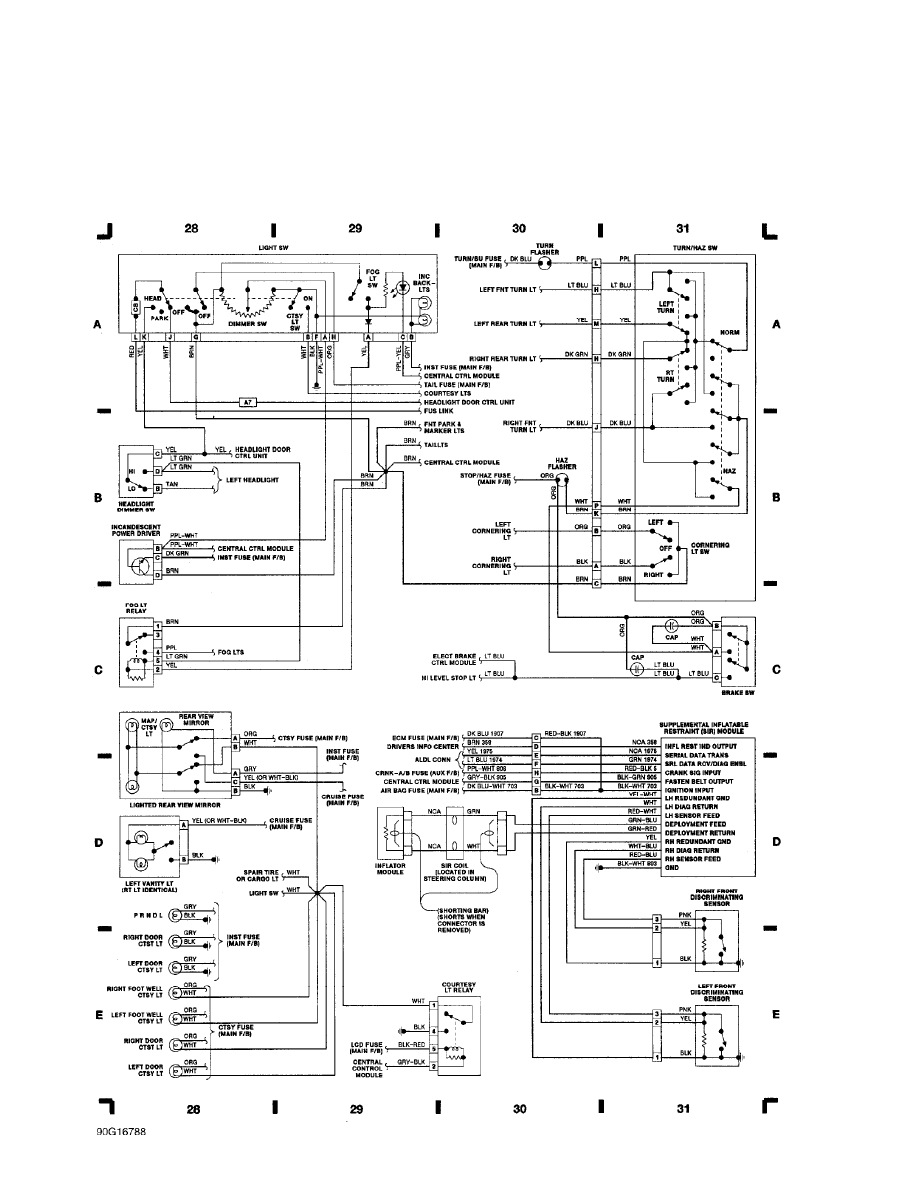

Fig. 8: Passenger Compartment & Supplemental Inflatable Restraint (SIR) (Grid 28-31) (p. 8)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

WIRING DIAGRAMS

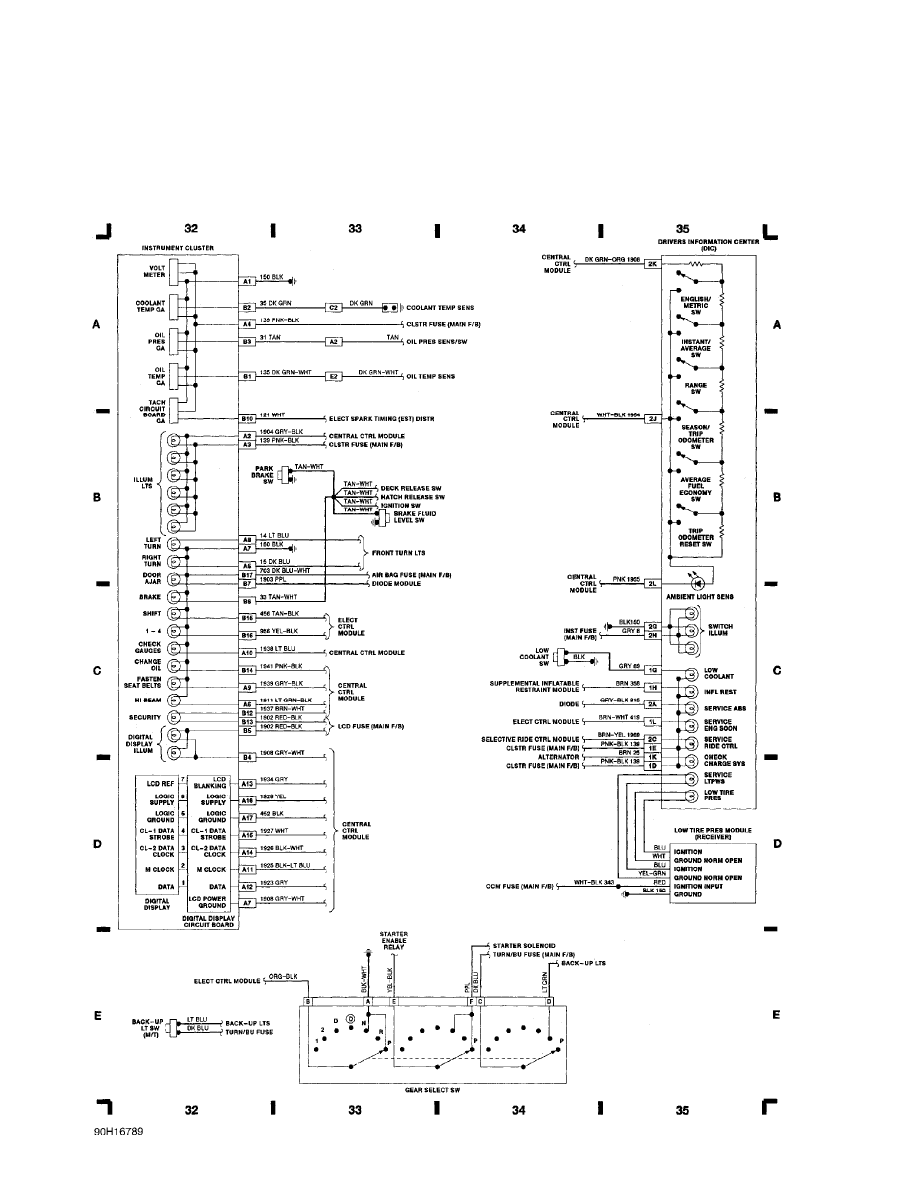

Fig. 9: Instrument Cluster & Drivers Information Center (DIC) (Grid 32-35) (p. 9)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

WIRING DIAGRAMS

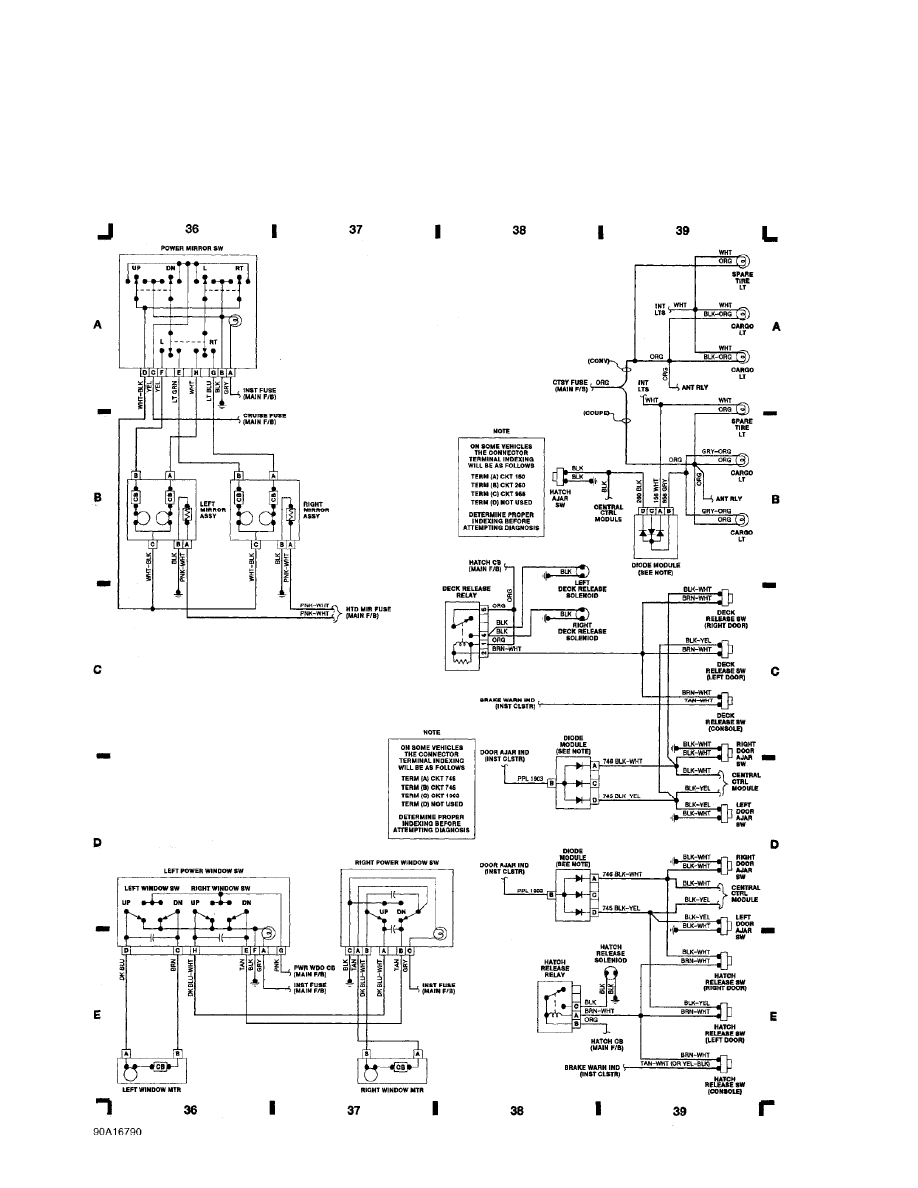

Fig. 10: Passenger Compartment (Cont) (Grid 36-39) (p. 10)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM

WIRING DIAGRAMS

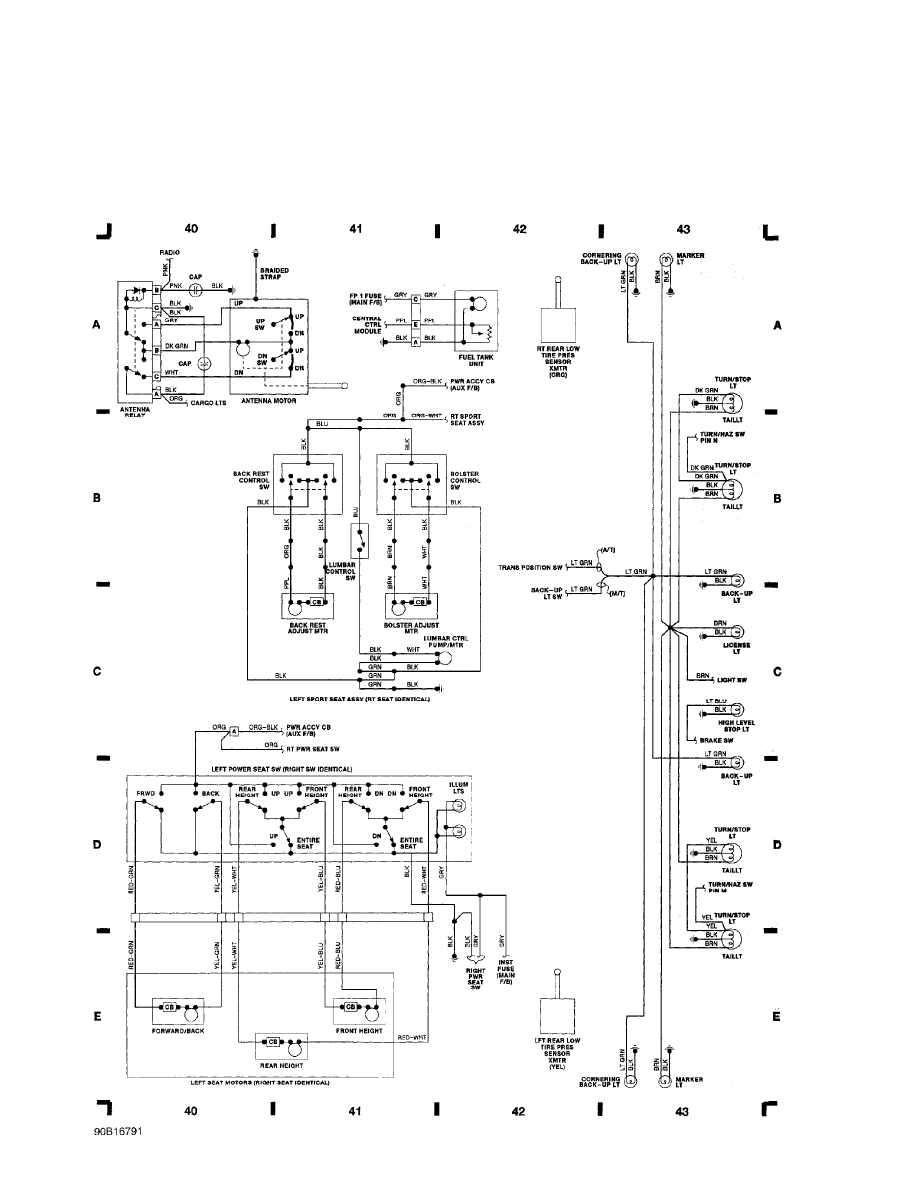

Fig. 11: Passenger Compartment (Cont) & Taillights (Grid 40-43) (p. 11)

1990 Chevrolet Corvette

For x

Saturday, July 31, 2004 02:10PM
