climatronik passat b4

background image

Telephone:

Fax:

VAT Registration No.:

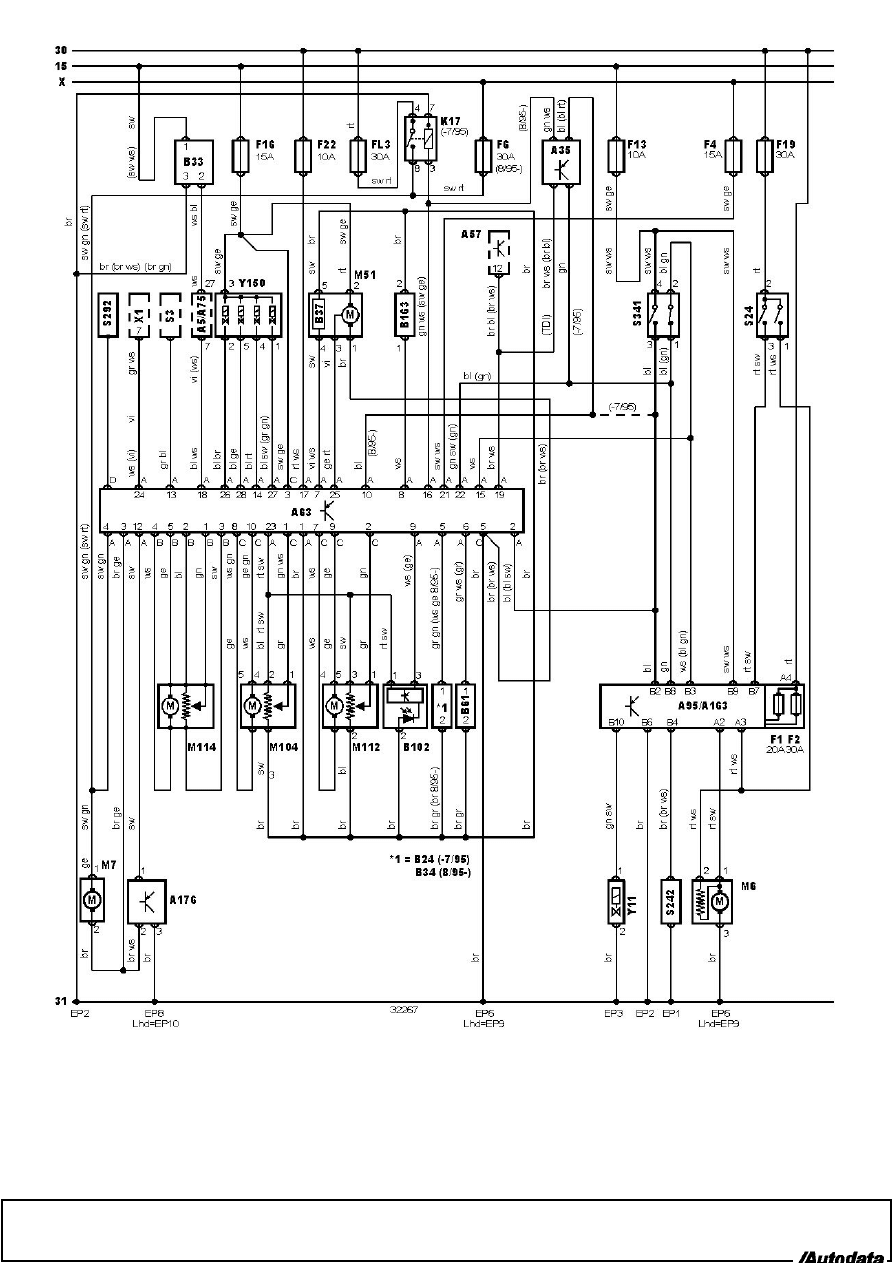

Y11

AC compressor clutch

K263

AC compressor clutch cut-off relay

A163

AC compressor control module

A63

AC control module

S151

AC engine coolant temperature switch

S341

AC refrigerant triple pressure switch

K17

AC relay

B102

AC sunlight sensor

M112

AC/heater air direction motor

M104

AC/heater air intake flap motor

B163

AC/heater air intake temperature sensor

M114

AC/heater air mix flap motor

A176

AC/heater blower control module

M7

AC/heater blower motor

S292

AC/heater function control panel

Y150

AC/heater valve block

31

Battery -

30

Battery +

X1

Data link connector (DLC)

A35

Engine control module (ECM)

M6

Engine coolant blower motor

A95

Engine coolant blower motor control module

S242

Engine coolant blower motor run-on switch

S24

Engine coolant blower motor temperature switch

M50

Engine coolant pump motor

B24

Engine coolant temperature (ECT) sensor

F

Fuse

FS

Fuse satellite

A104

Glow plug control module

S3

Headlamp switch

B34

Heater output temperature sensor

K76

Ignition auxiliary circuits relay

15

Ignition switch - ignition ON

B37

In-car temperature sensor

M51

In-car temperature sensor blower

A5

Instrument panel

A75

Instrumentation control module

B61

Outside air temperature sensor

S104

Throttle position (TP) switch

A57

Transmission control module (TCM)

B33

Vehicle speed sensor (VSS)

Manufacturer:

Volkswagen

Model:

Passat (88-96) 1,9D TDI

Engine code:

1Z

Output:

66 (90) 4000

Tuned for:

Year:

1994-96

© Autodata Limited 2004

2007-08-28

V5.500-

background image

bl = blue

br = brown

el = cream

ge = yellow

gn = green

gr = grey

nf = neutral

og = orange

rs = pink

rt = red

sw = black

vi = violet

ws = white

hbl = light blue hgn = light green

rbr = maroon

x = braided cable y = high tension z = non-cable connection

NOTE: In certain diagrams (Citroen, Peugeot & Renault), colour codes are replaced by numbers which are used to

identify a particular cable and not the colour. In this instance, the cables will be numbered at each end close to the

harness connector.

Manufacturer:

Volkswagen

Model:

Passat (88-96) 1,9D TDI

Engine code:

1Z

Output:

66 (90) 4000

Tuned for:

Year:

1994-96

© Autodata Limited 2004

2007-08-28

V5.500-

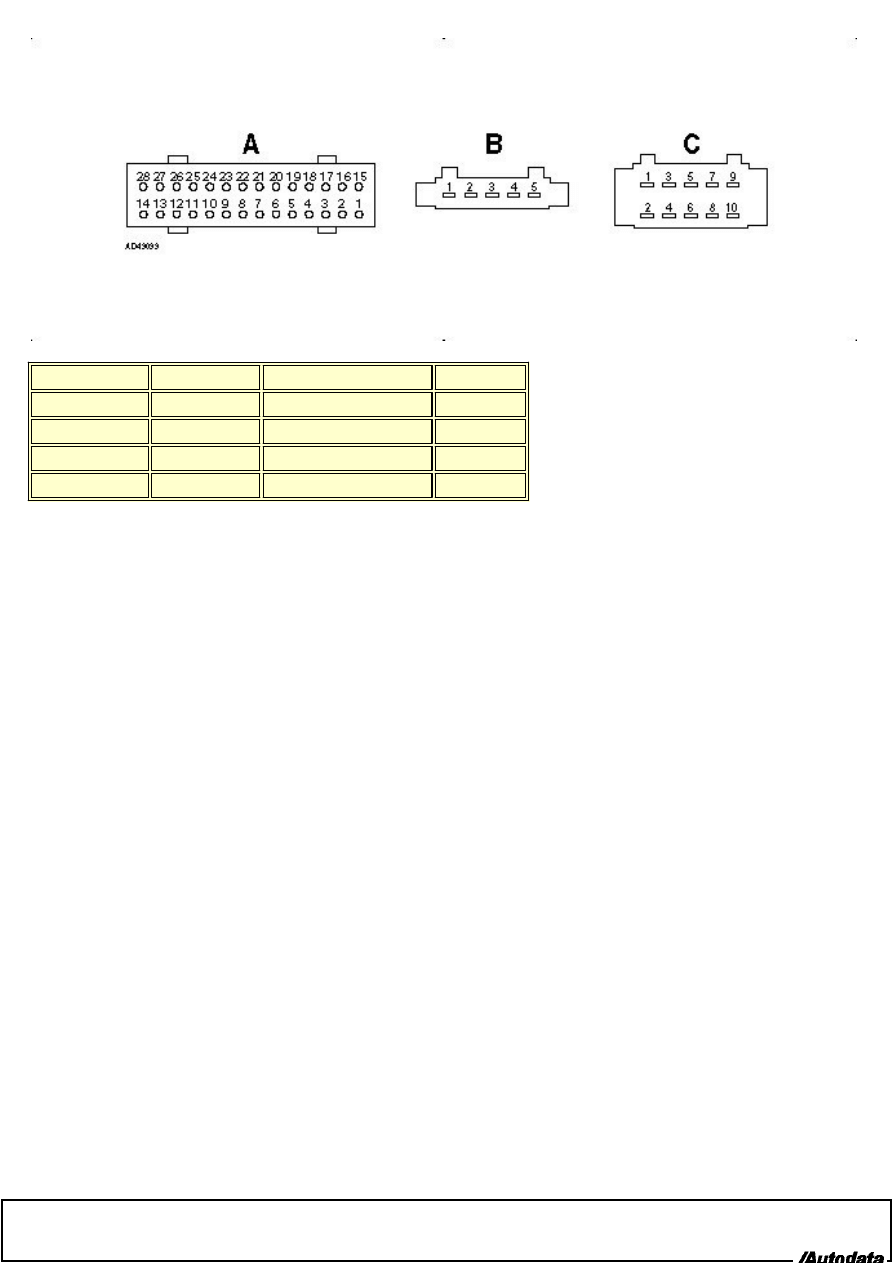

background image

Manufacturer:

Volkswagen

Model:

Passat (88-96) 1,9D TDI

Engine code:

1Z

Output:

66 (90) 4000

Tuned for:

Year:

1994-96

© Autodata Limited 2004

2007-08-28

V5.500-
