MITSUBISHI VAN WAGON 1990

background image

SYSTEM WIRING DIAGRAMS

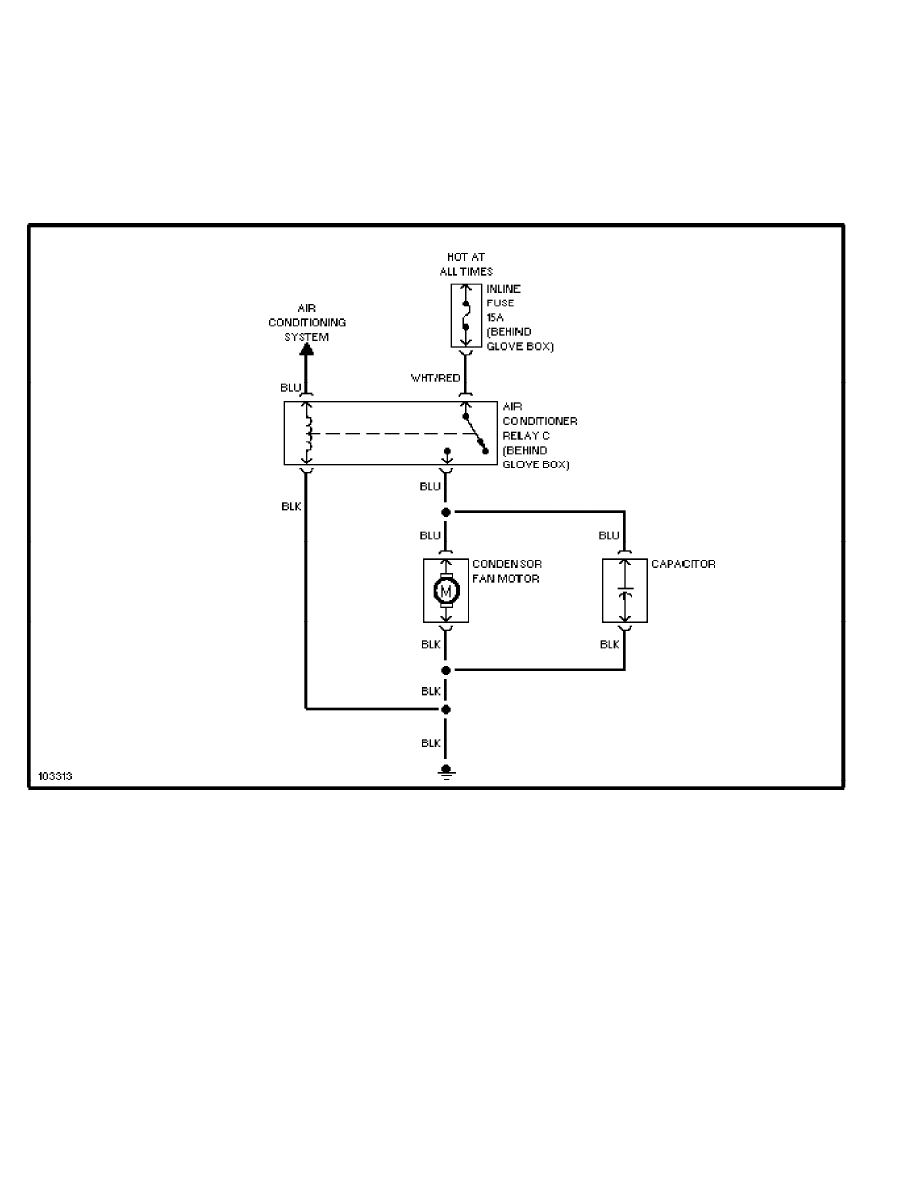

Condenser Cooling Fan Circuit

1990 Mitsubishi Van/Wagon

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:26PM

background image

SYSTEM WIRING DIAGRAMS

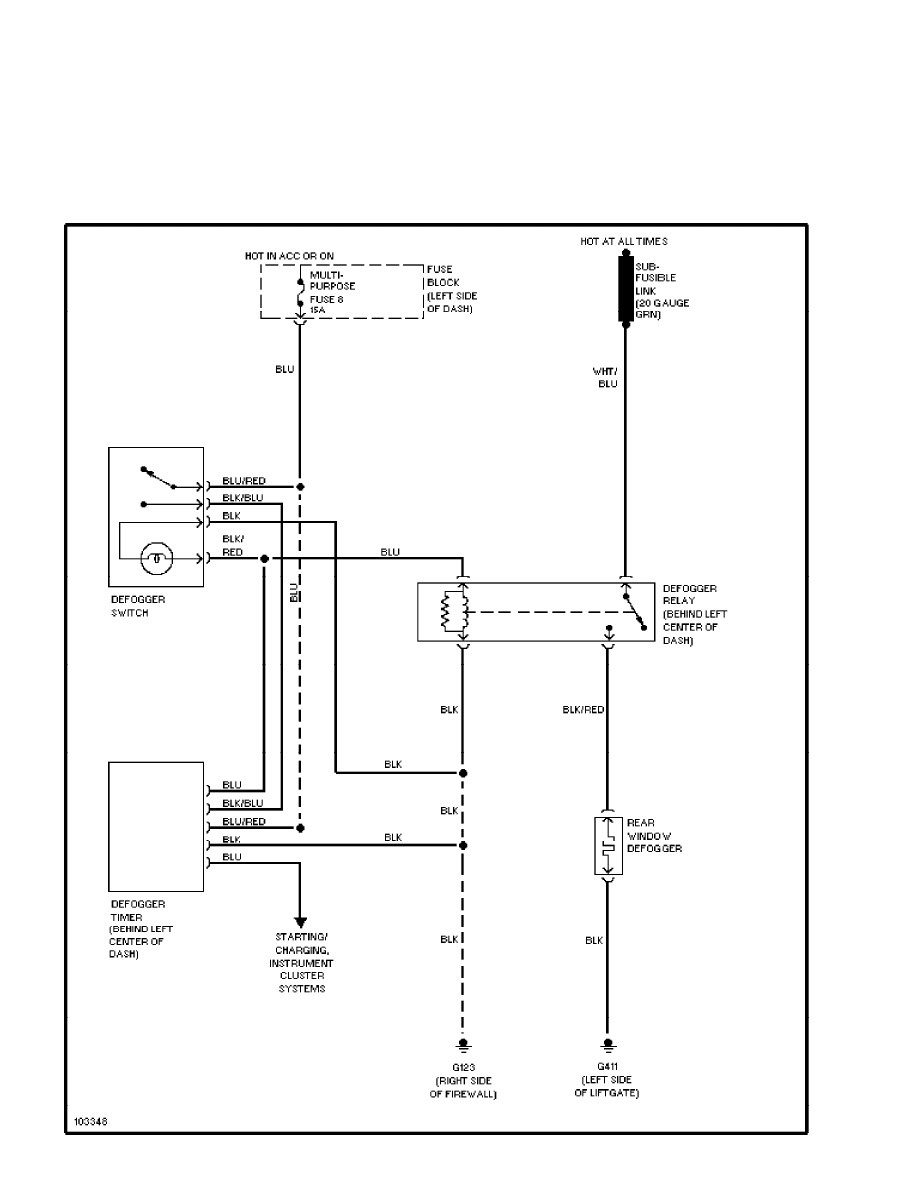

Defogger Circuit (p. 2)

1990 Mitsubishi Van/Wagon

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:26PM

background image

SYSTEM WIRING DIAGRAMS

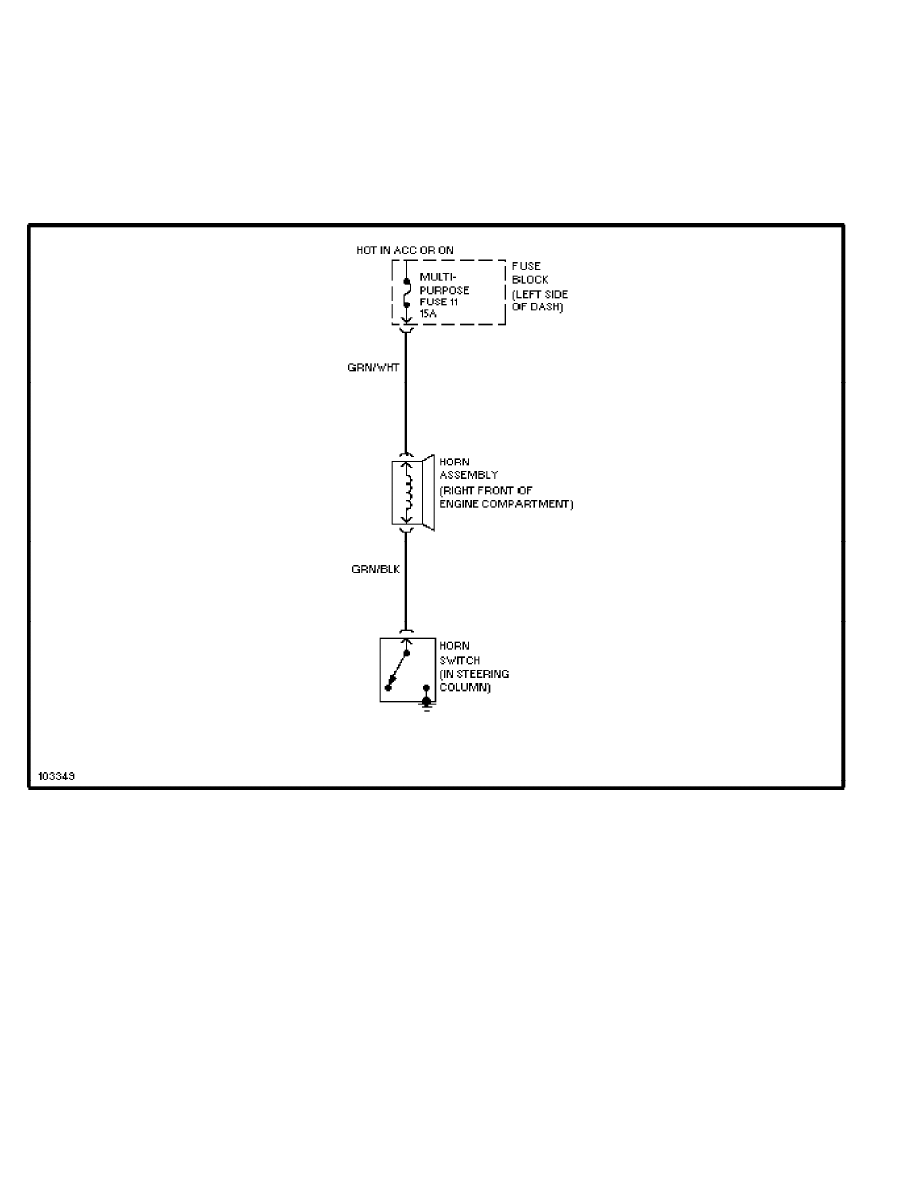

Horn Circuit (p. 3)

1990 Mitsubishi Van/Wagon

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:26PM

background image

SYSTEM WIRING DIAGRAMS

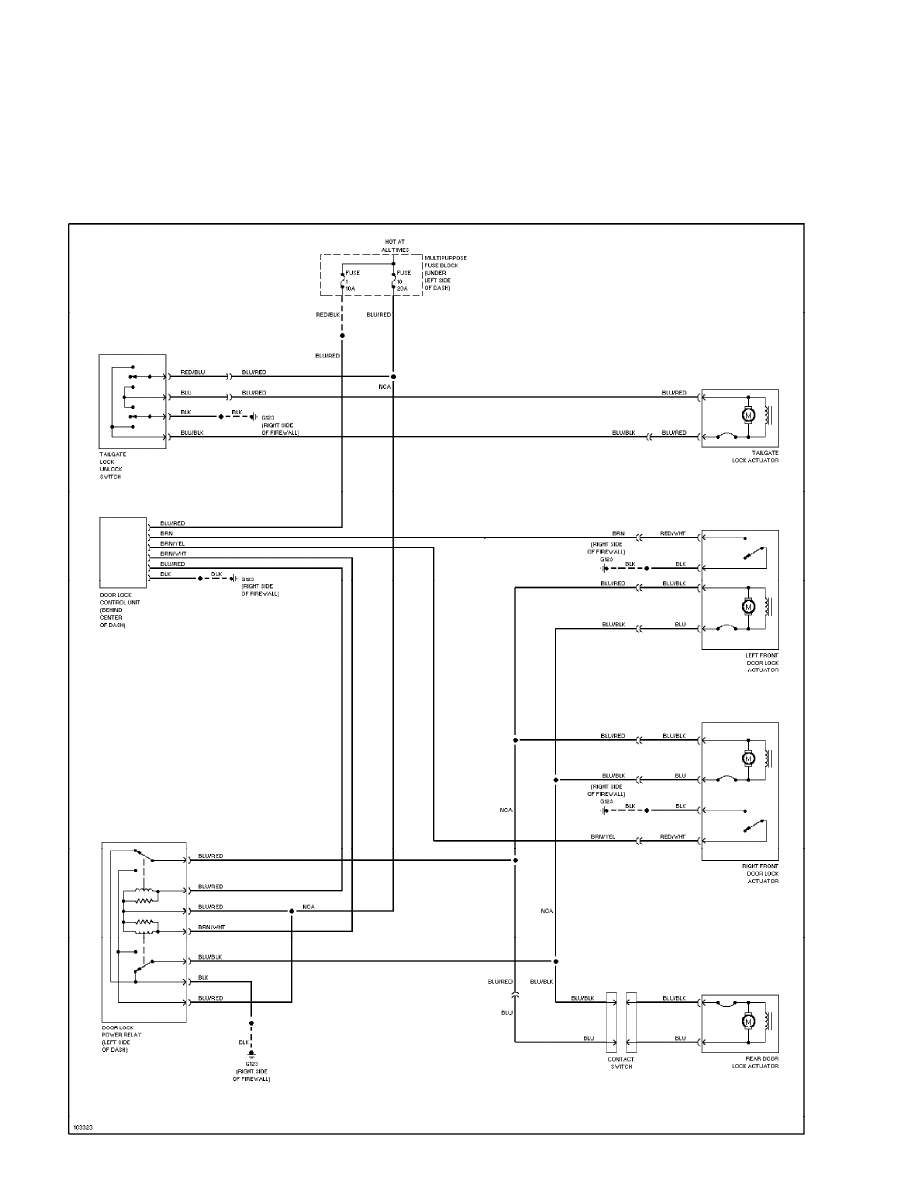

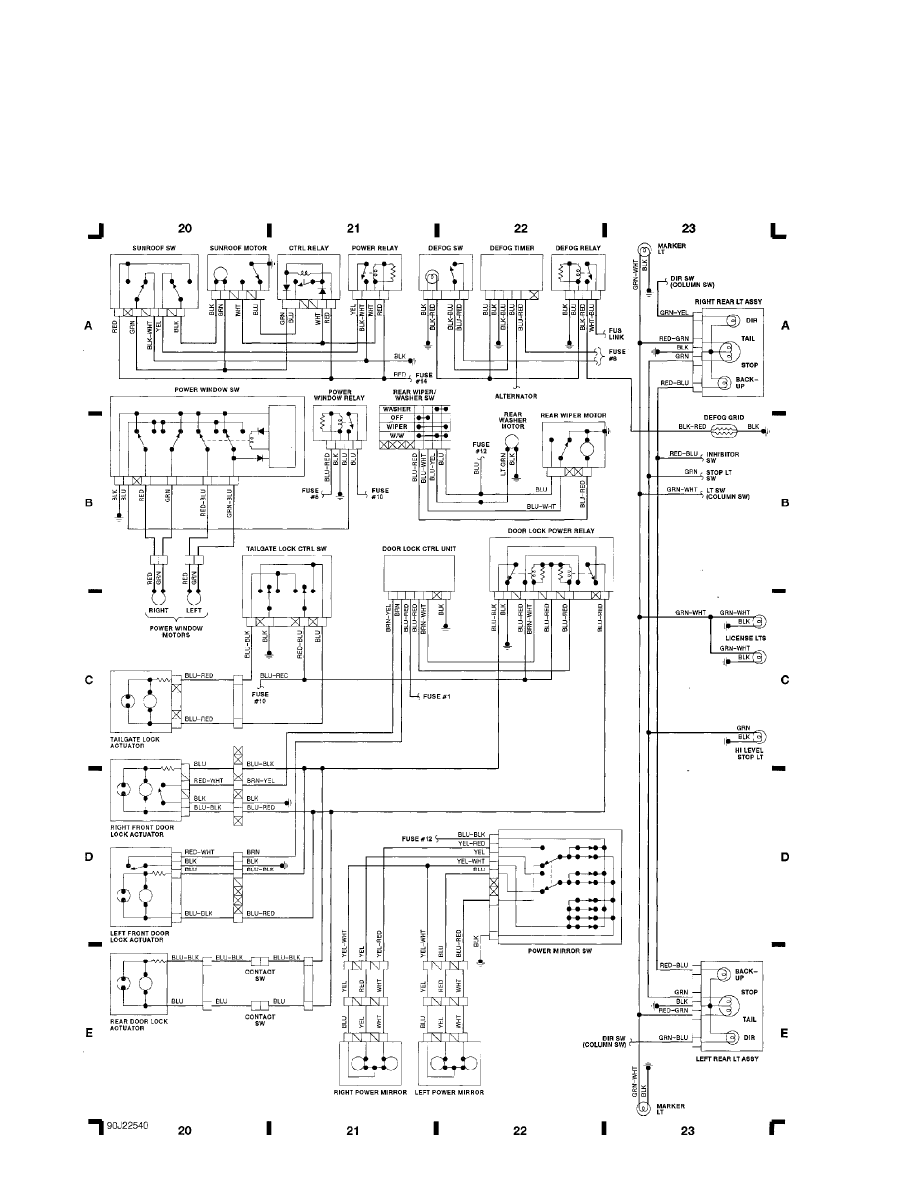

Power Door Lock Circuit (p. 4)

1990 Mitsubishi Van/Wagon

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:26PM

background image

SYSTEM WIRING DIAGRAMS

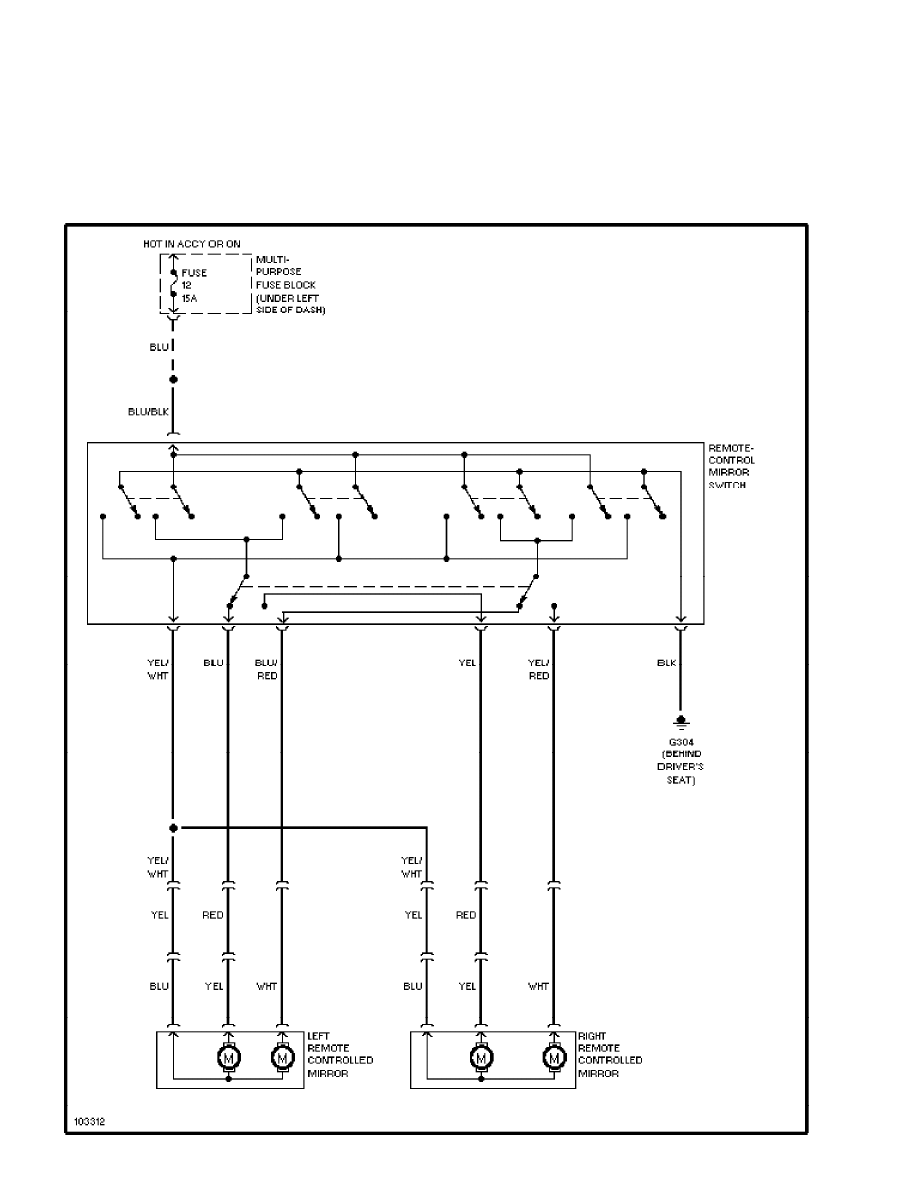

Power Mirror Circuit (p. 5)

1990 Mitsubishi Van/Wagon

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:26PM

background image

SYSTEM WIRING DIAGRAMS

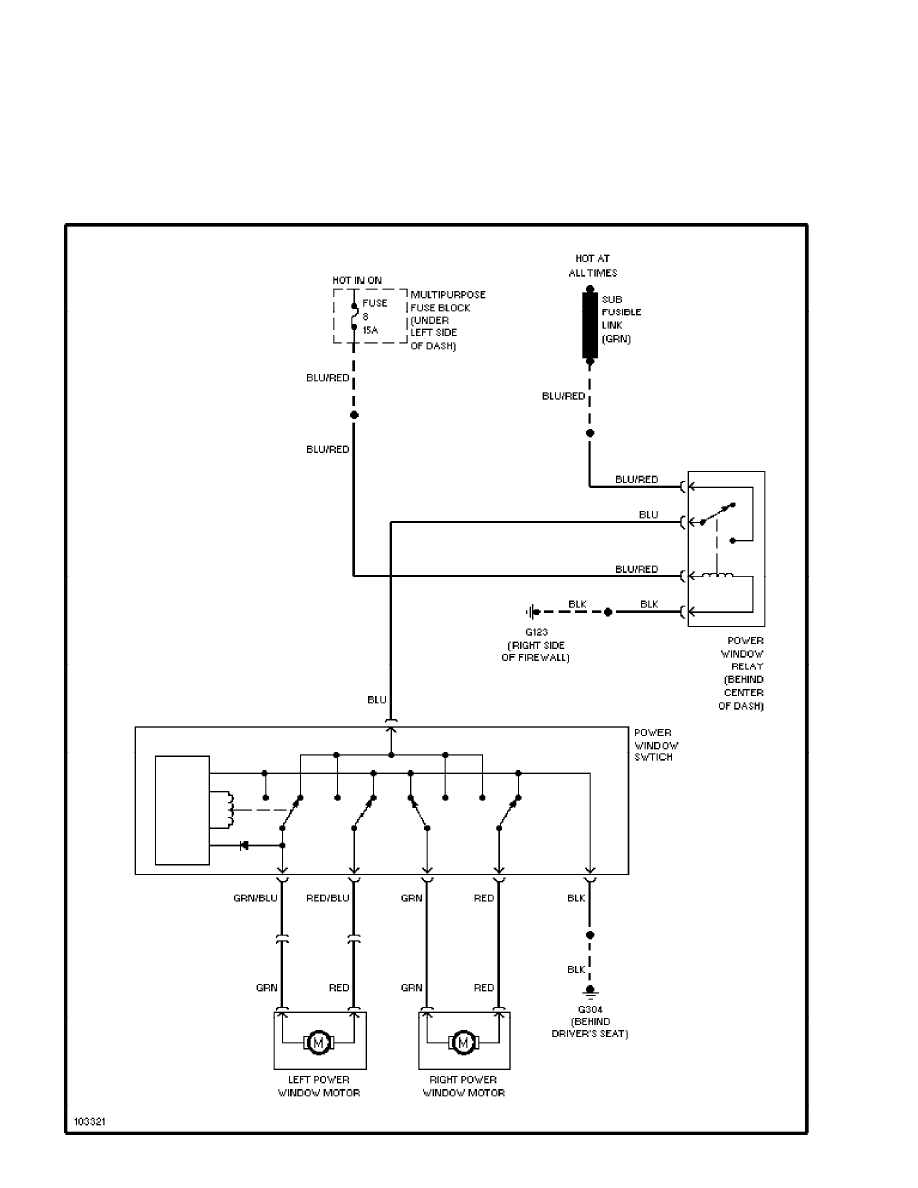

Power Window Circuit (p. 6)

1990 Mitsubishi Van/Wagon

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:26PM

background image

SYSTEM WIRING DIAGRAMS

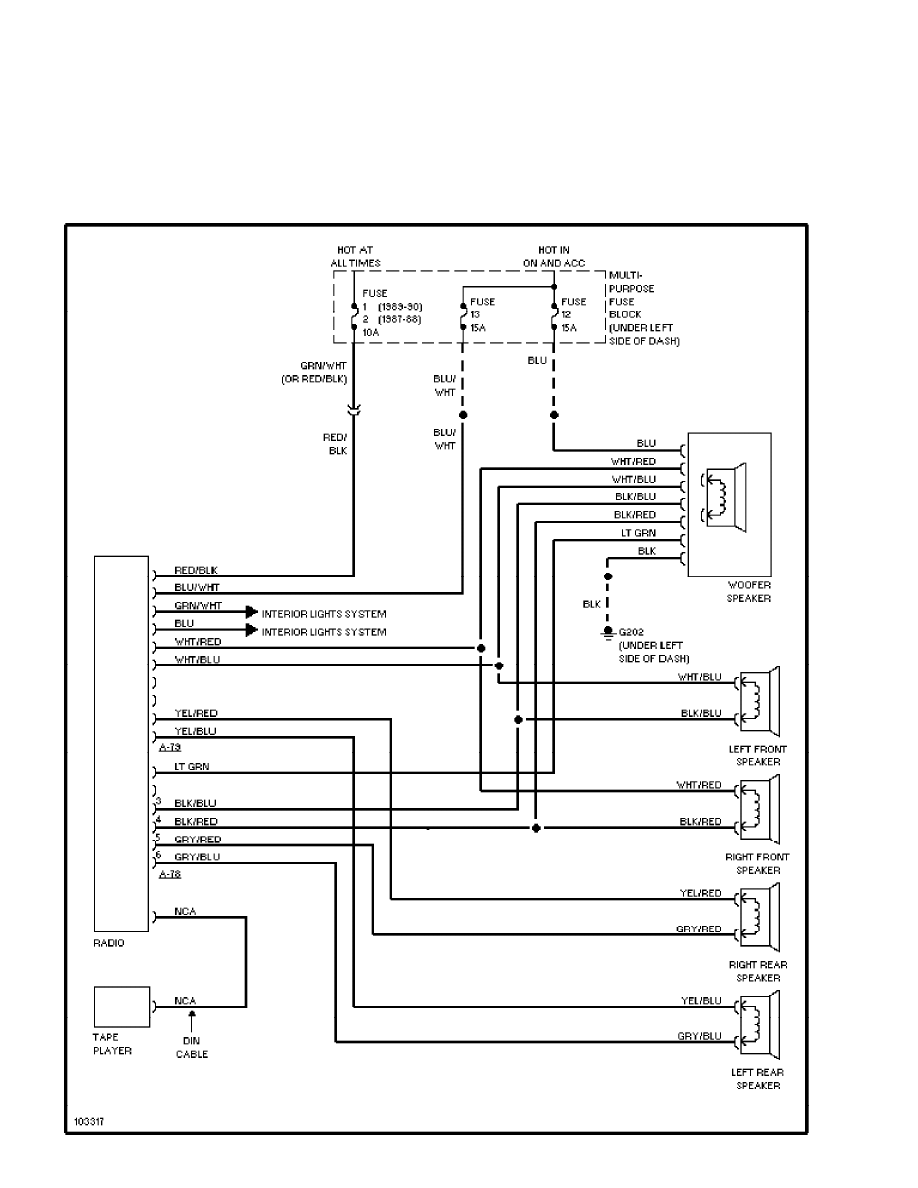

Radio Circuits (p. 7)

1990 Mitsubishi Van/Wagon

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:26PM

background image

SYSTEM WIRING DIAGRAMS

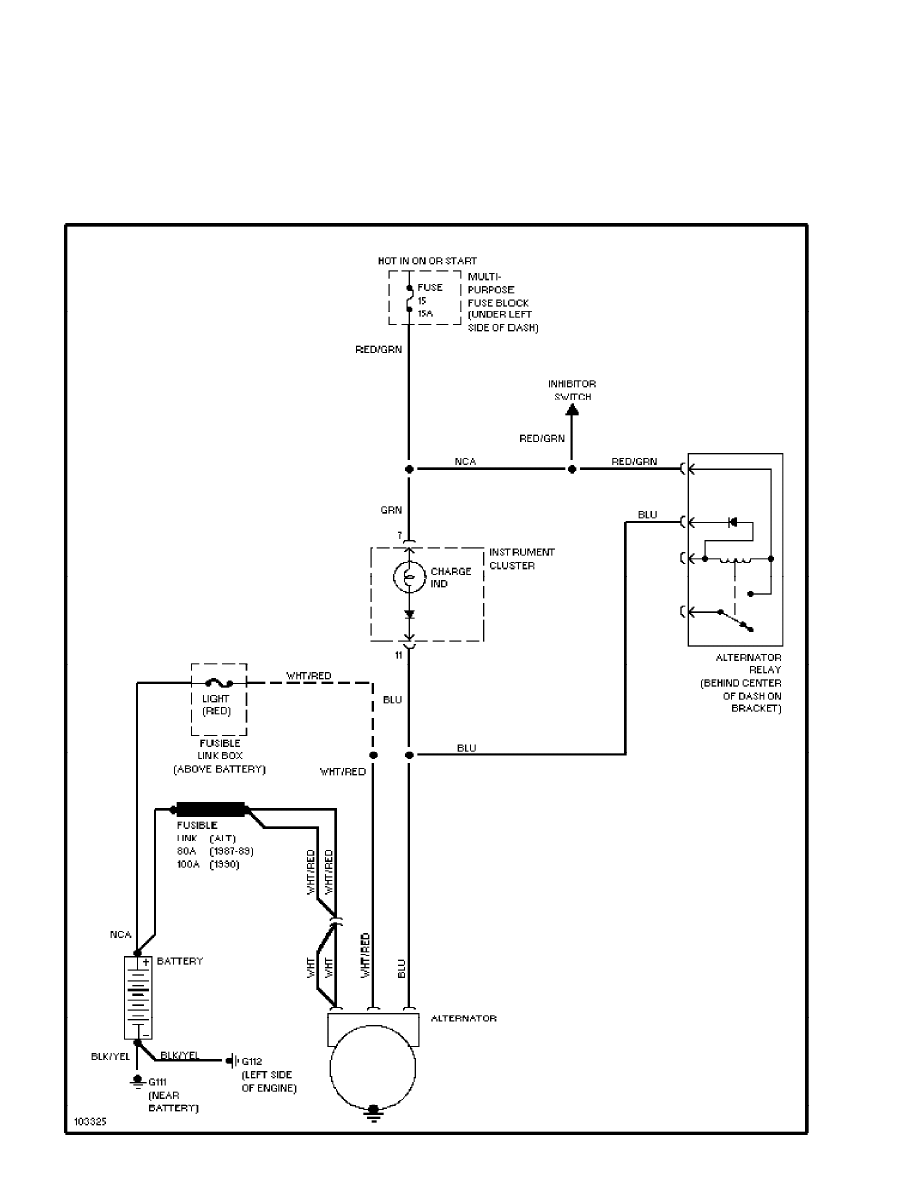

Charging Circuit (p. 8)

1990 Mitsubishi Van/Wagon

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:26PM

background image

SYSTEM WIRING DIAGRAMS

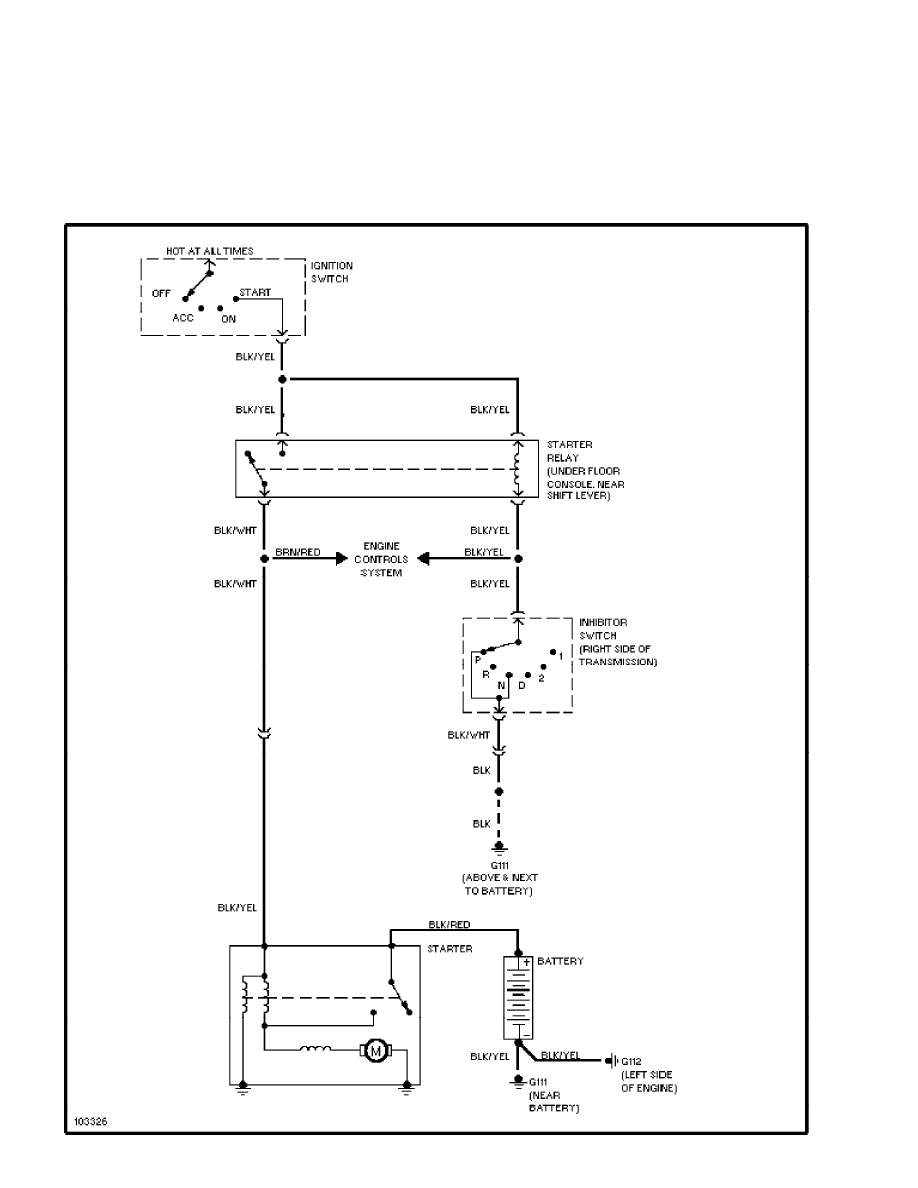

Starting Circuit (p. 9)

1990 Mitsubishi Van/Wagon

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:26PM

background image

SYSTEM WIRING DIAGRAMS

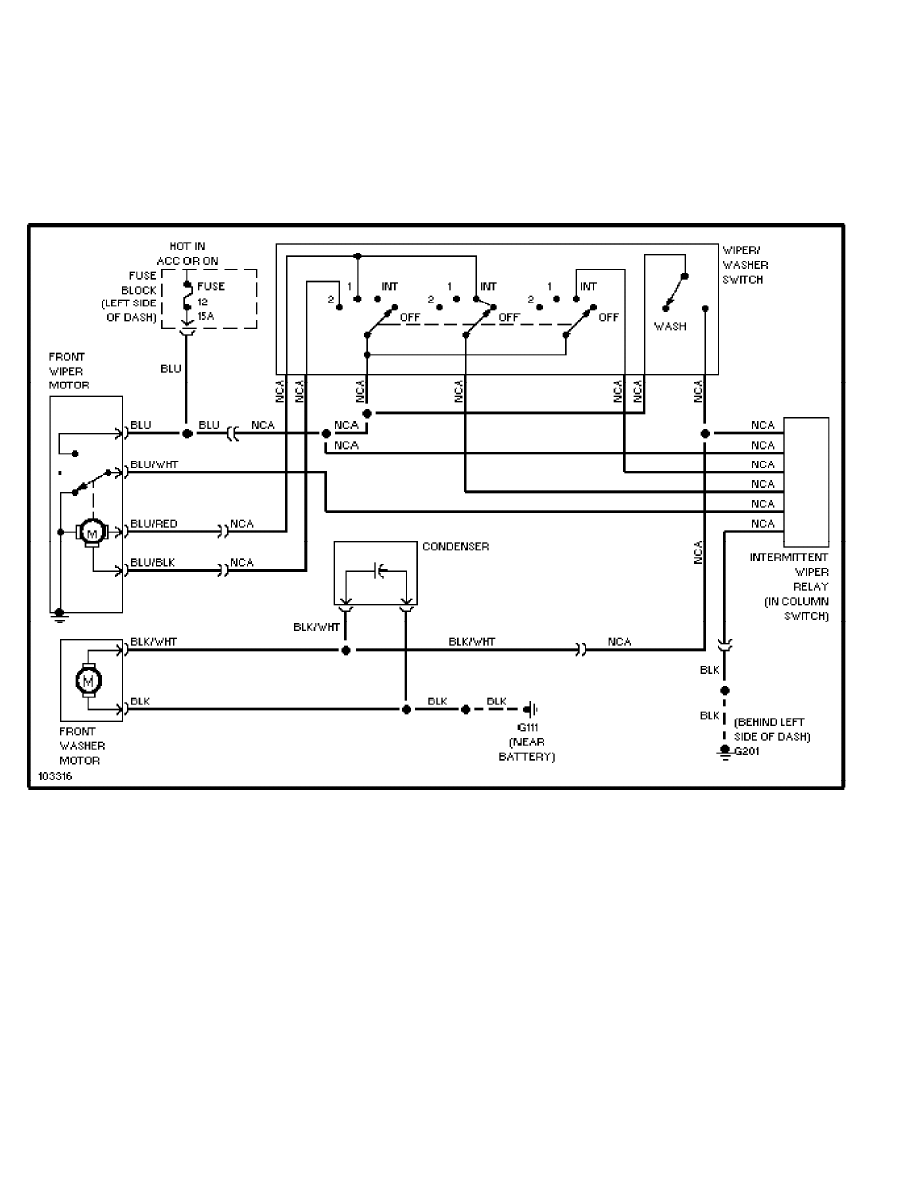

Front Washer/Wiper Circuit (p. 10)

1990 Mitsubishi Van/Wagon

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:26PM

background image

SYSTEM WIRING DIAGRAMS

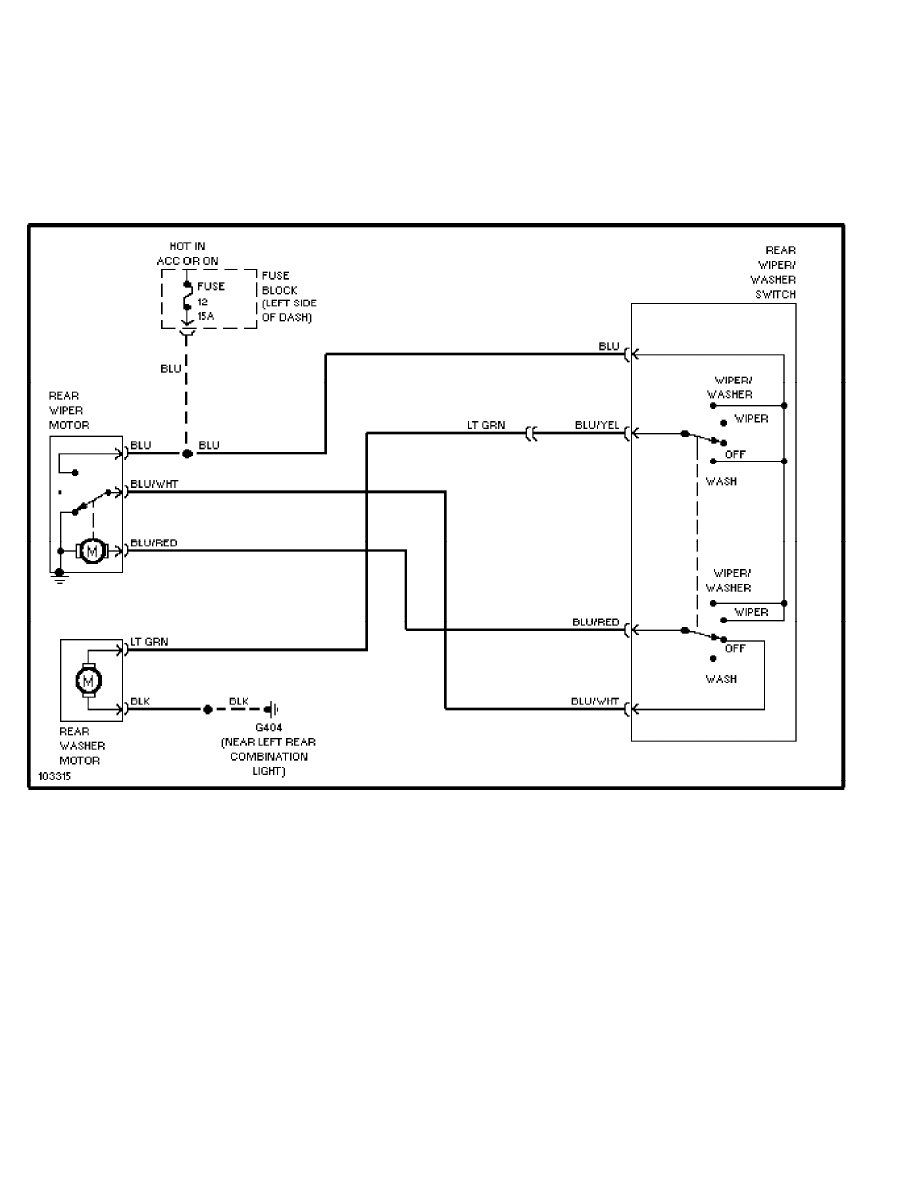

Rear Washer/Wiper Circuit (p. 11)

1990 Mitsubishi Van/Wagon

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:26PM

background image

WIRING DIAGRAMS

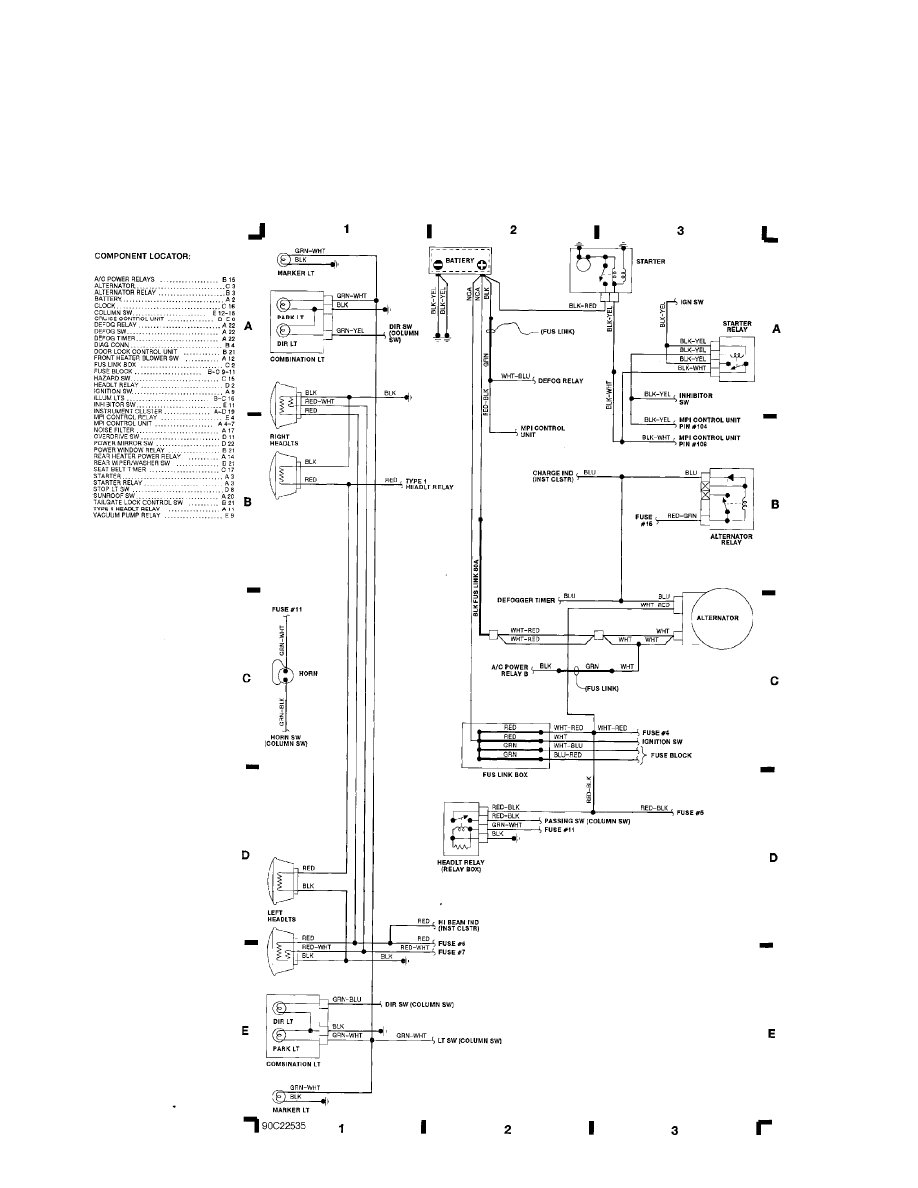

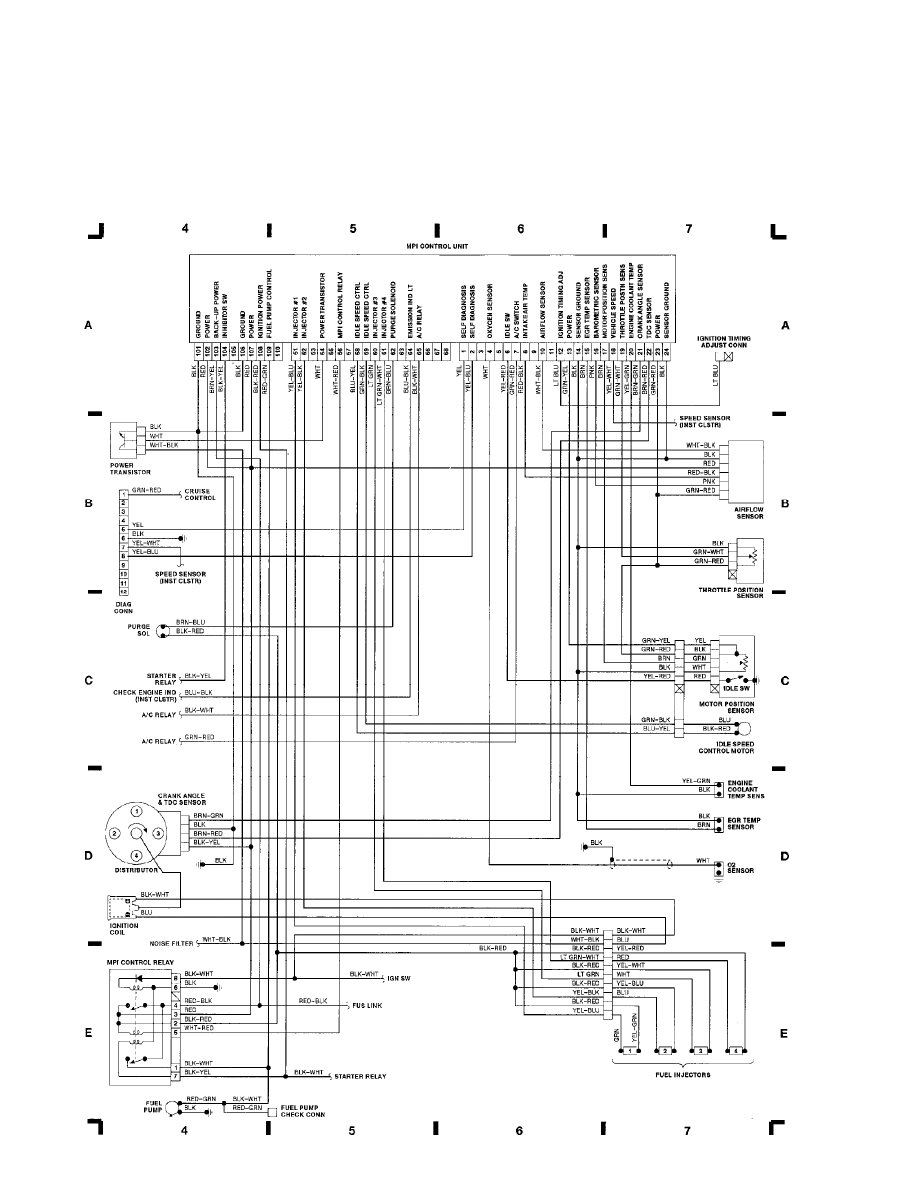

Fig. 1: Engine Compartment & Headlights

1990 Mitsubishi Van/Wagon

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:26PM

background image

WIRING DIAGRAMS

Fig. 2: Computer Engine Control (p. 2)

1990 Mitsubishi Van/Wagon

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:26PM

background image

WIRING DIAGRAMS

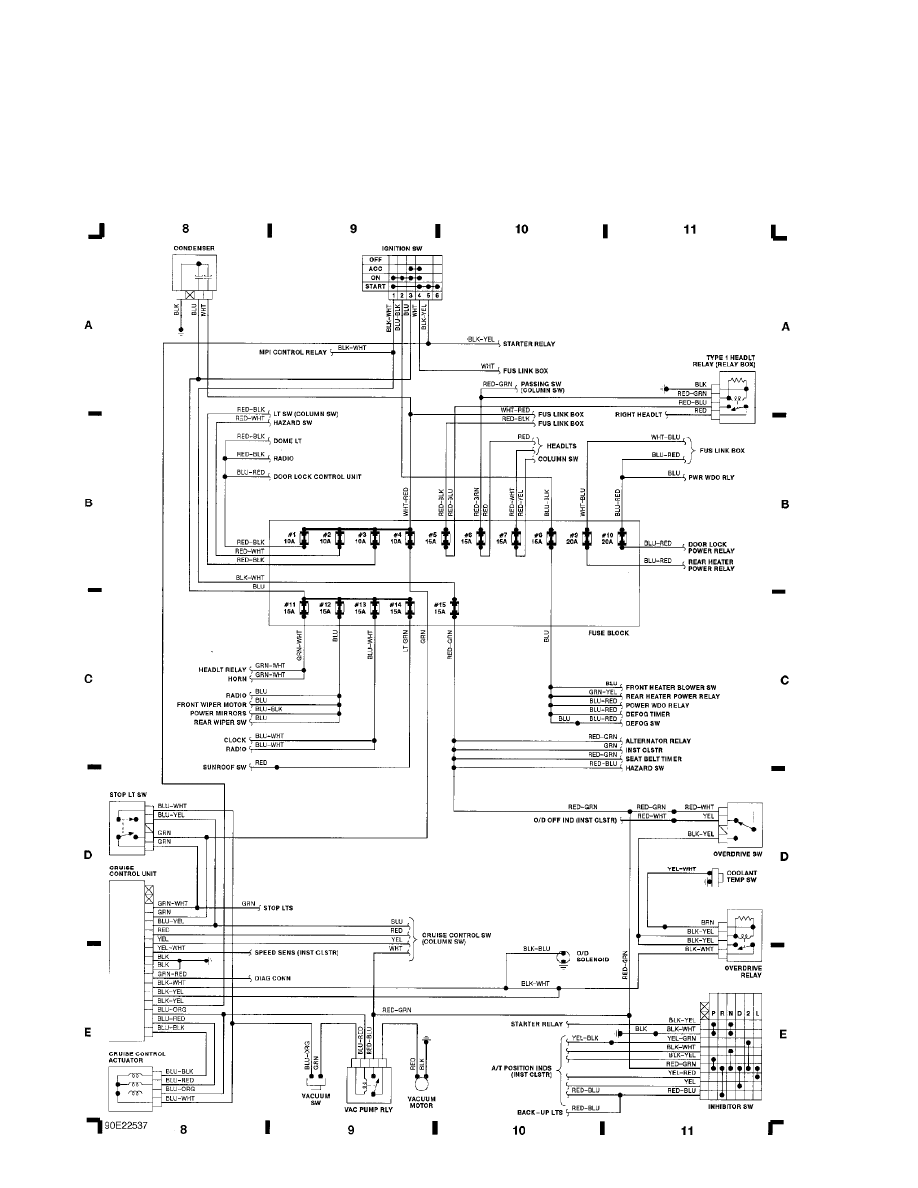

Fig. 3: Fuse Block, Cruise Control, Ignition Switch, Inhibitor Switch (p. 3)

1990 Mitsubishi Van/Wagon

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:26PM

background image

WIRING DIAGRAMS

Fig. 4: Steering Column and A/C & Heating (p. 4)

1990 Mitsubishi Van/Wagon

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:26PM

background image

WIRING DIAGRAMS

Fig. 5: Instrument Panel and Interior Lights (p. 5)

1990 Mitsubishi Van/Wagon

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:26PM

background image

WIRING DIAGRAMS

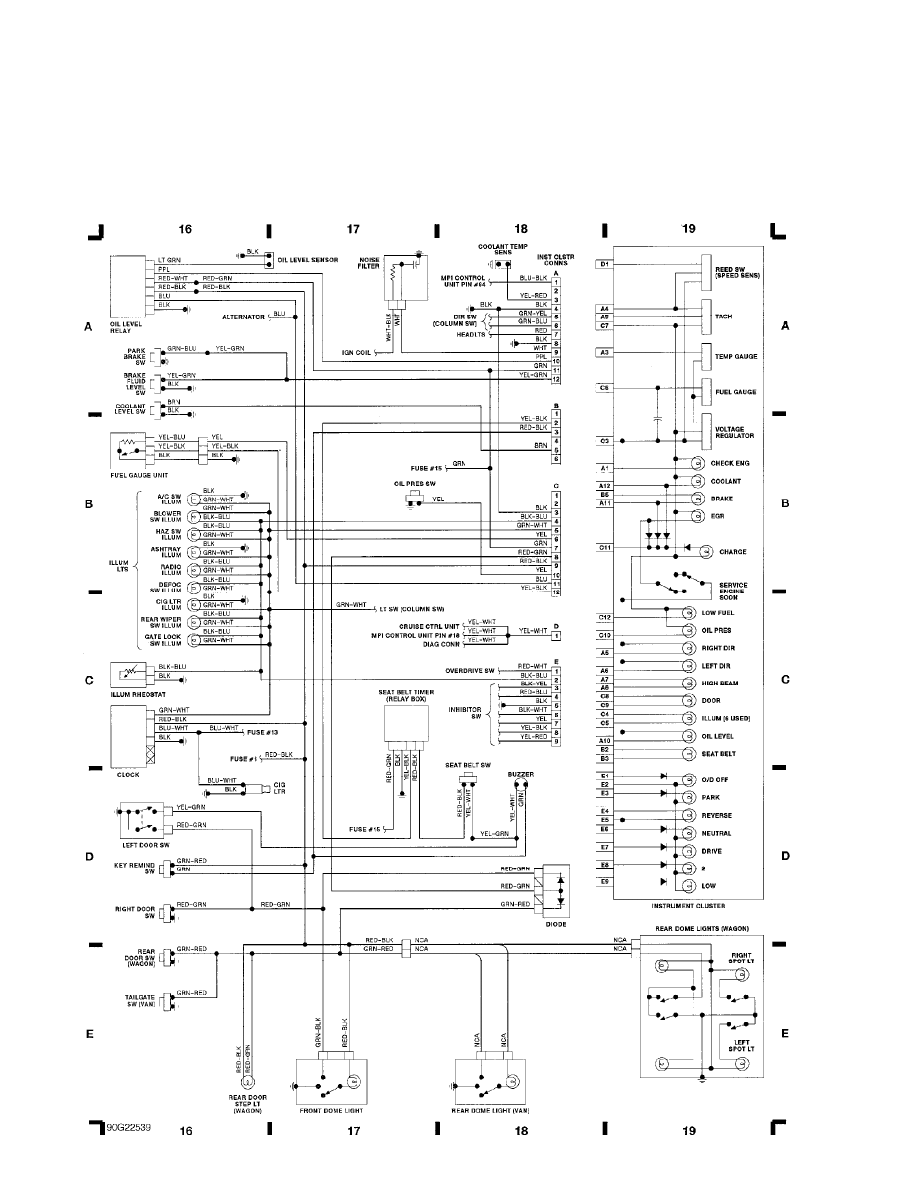

Fig. 6: Passenger Compartment & Taillights (p. 6)

1990 Mitsubishi Van/Wagon

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:26PM
