SYSTEM WIRING DIAGRAMS
Cooling Fan Circuit
1988 Mitsubishi Van/Wagon
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:30PM
SYSTEM WIRING DIAGRAMS

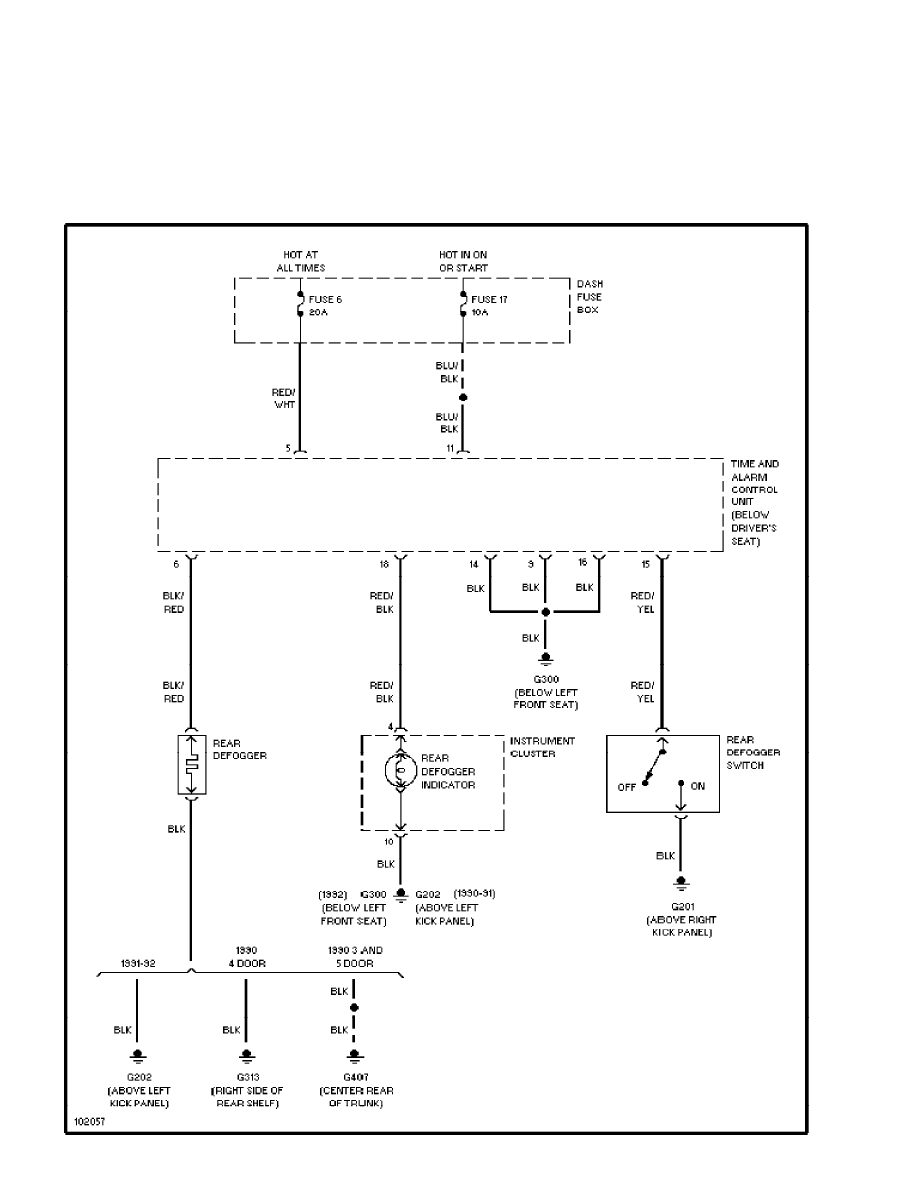

Defogger Circuit (p. 2)
1988 Mitsubishi Van/Wagon
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:30PM
SYSTEM WIRING DIAGRAMS

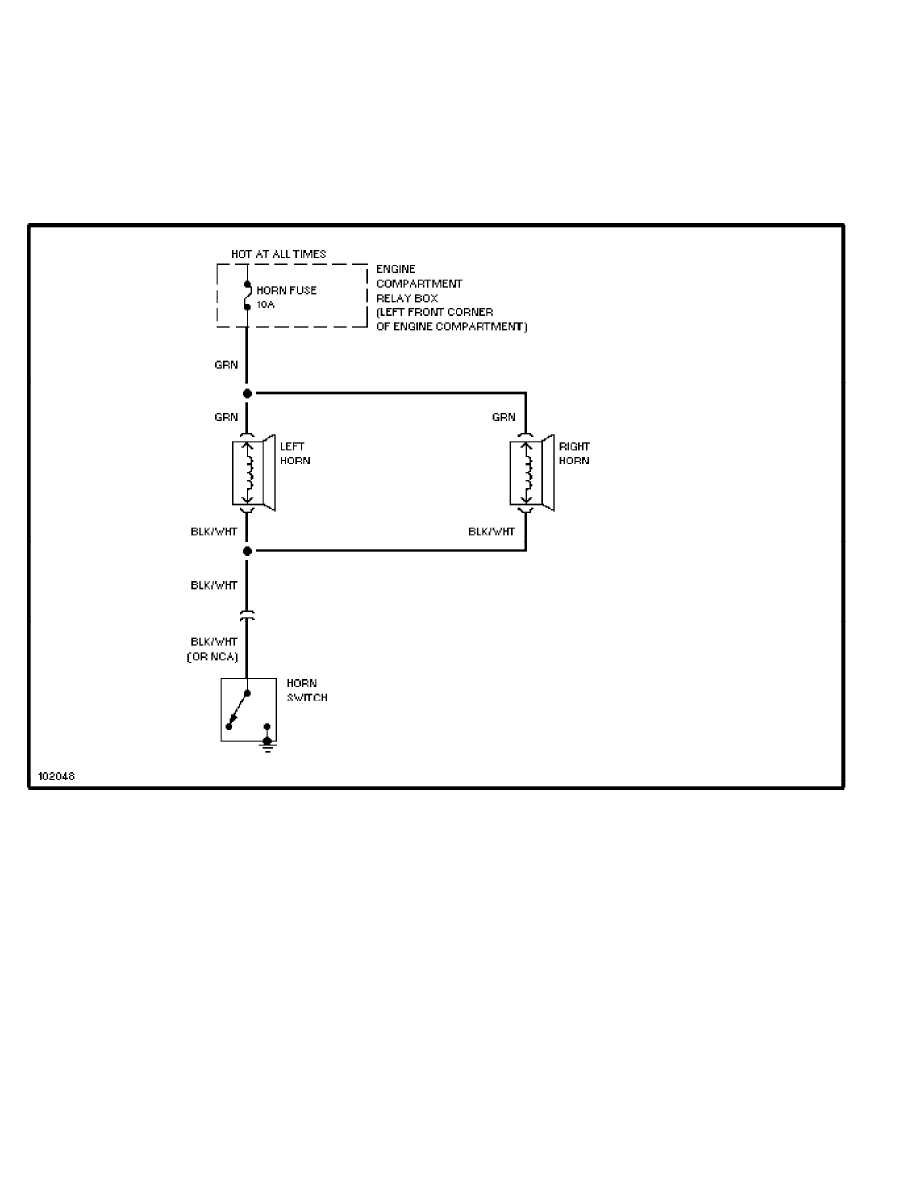

Horn Circuit (p. 3)
1988 Mitsubishi Van/Wagon
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:30PM
SYSTEM WIRING DIAGRAMS

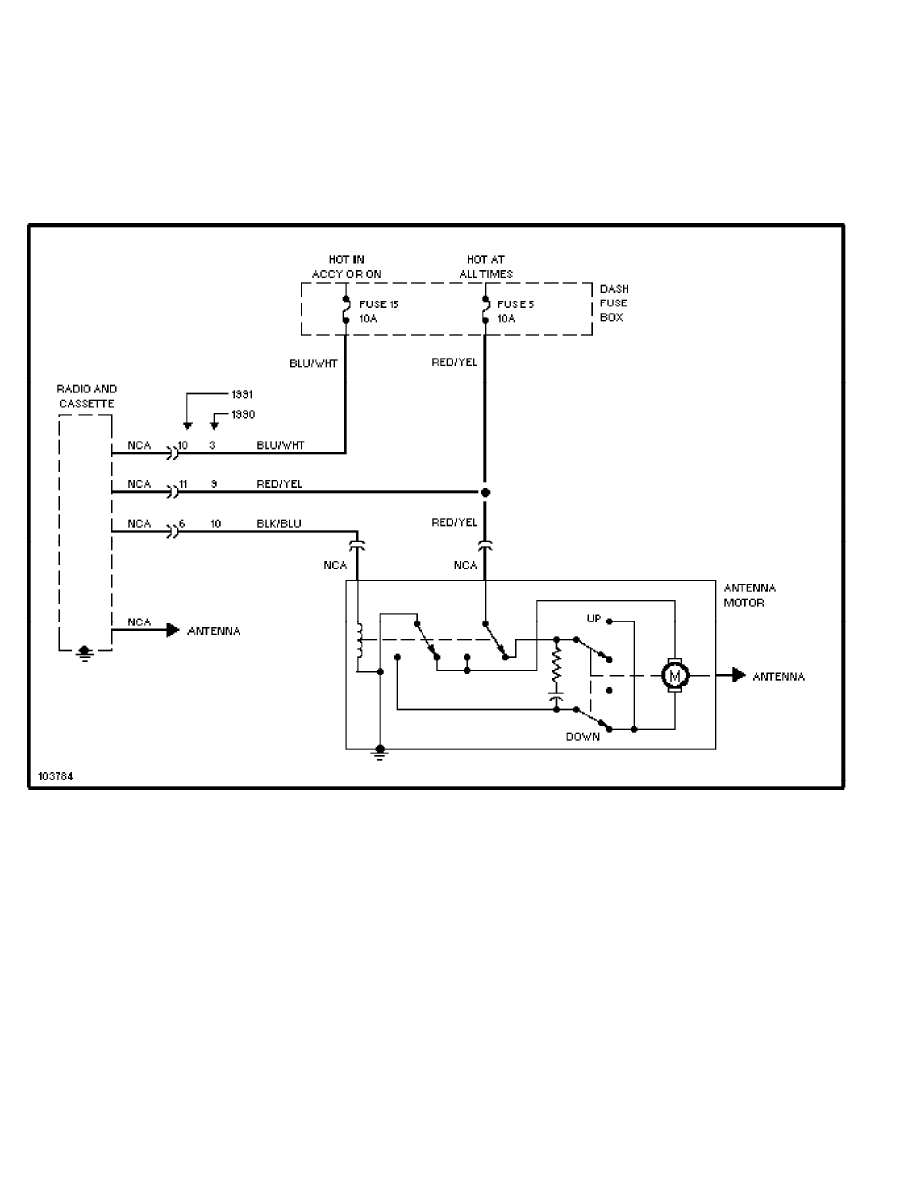

Power Antenna Circuit (p. 4)
1988 Mitsubishi Van/Wagon
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:30PM
SYSTEM WIRING DIAGRAMS

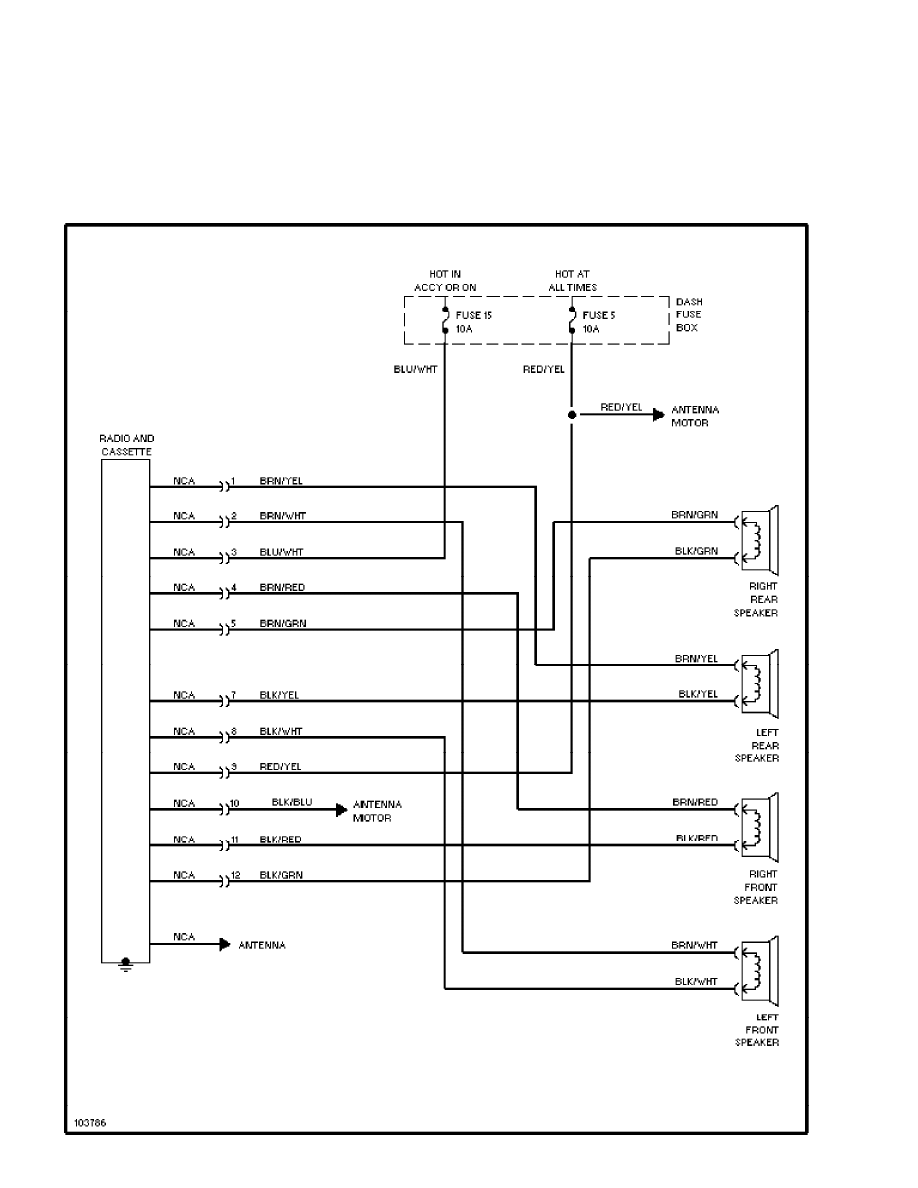

Radio Circuits (p. 5)
1988 Mitsubishi Van/Wagon
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:30PM
SYSTEM WIRING DIAGRAMS

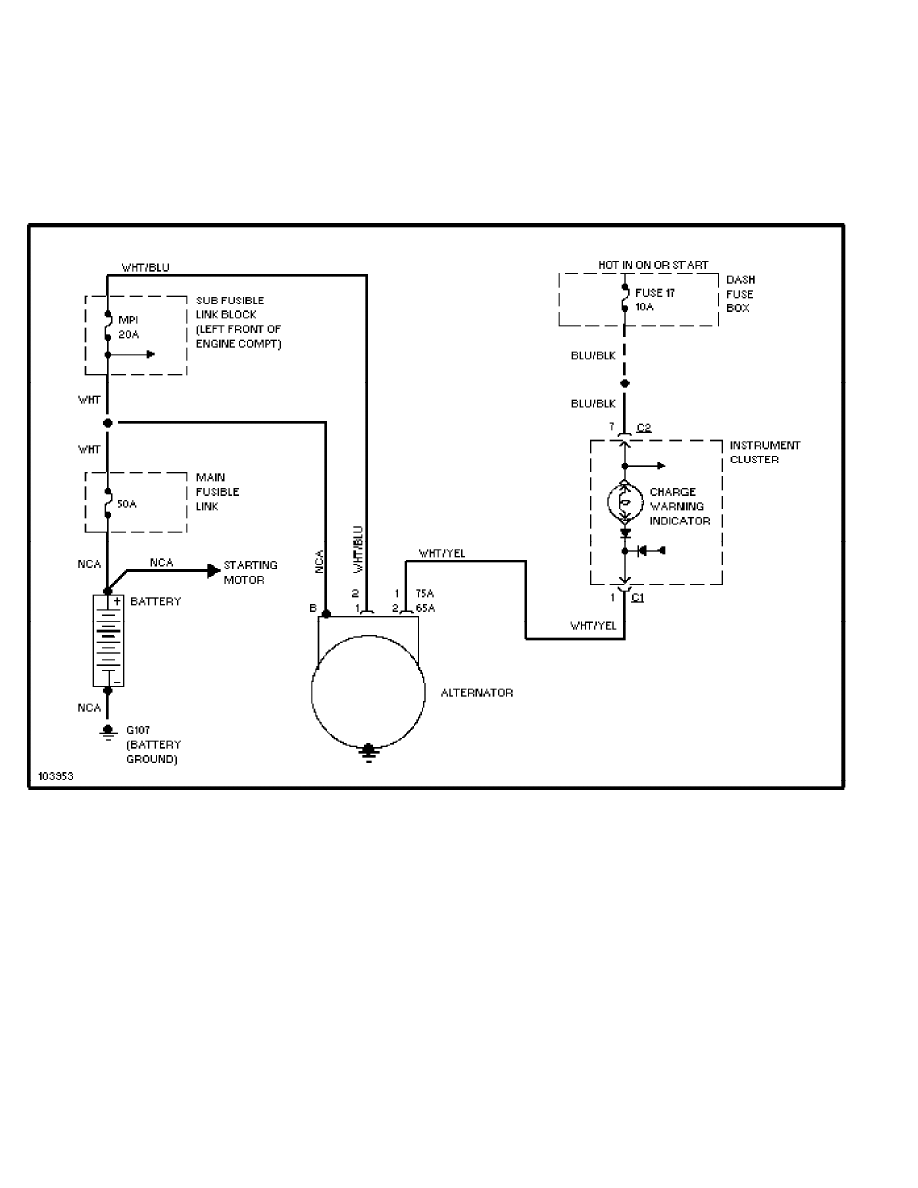

Charging Circuit (p. 6)
1988 Mitsubishi Van/Wagon
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:30PM
SYSTEM WIRING DIAGRAMS

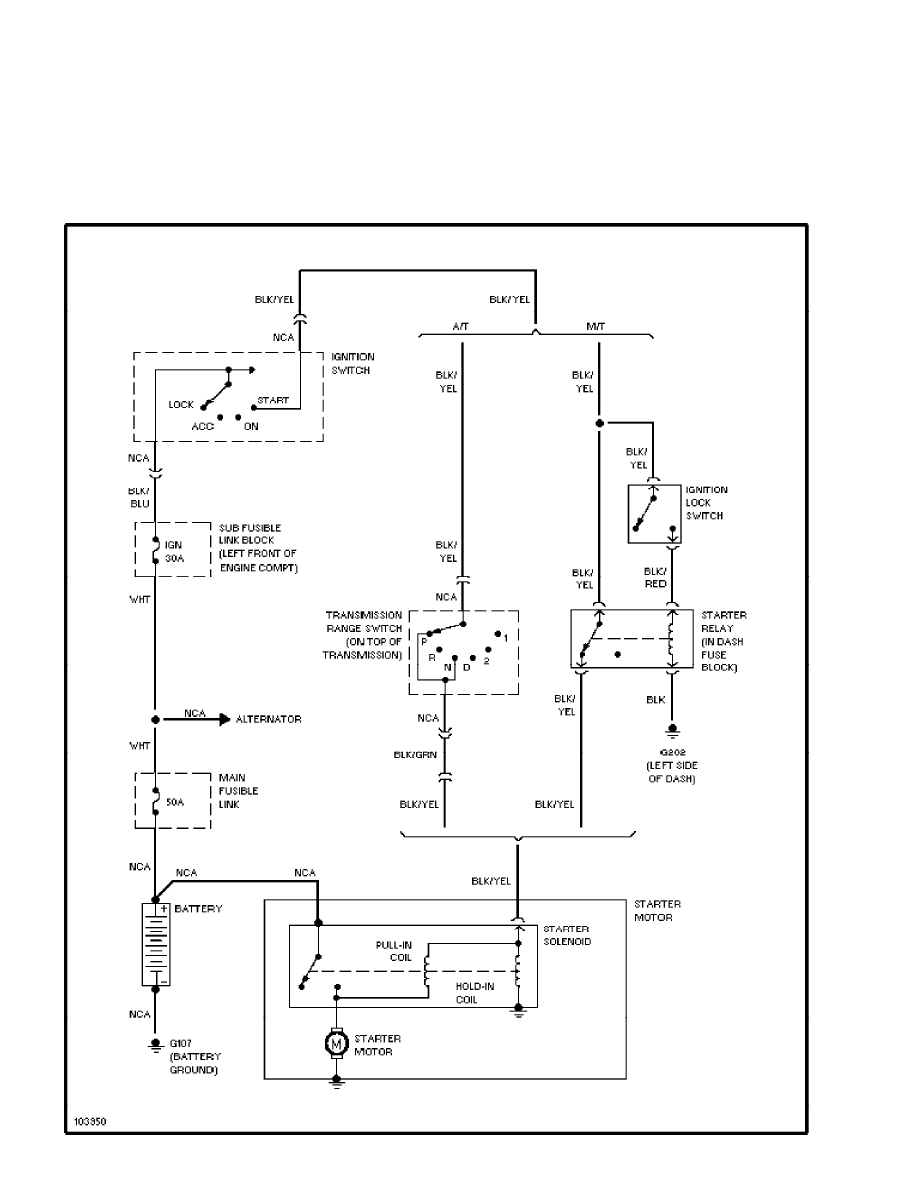

Starting Circuit (p. 7)
1988 Mitsubishi Van/Wagon
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:30PM
SYSTEM WIRING DIAGRAMS

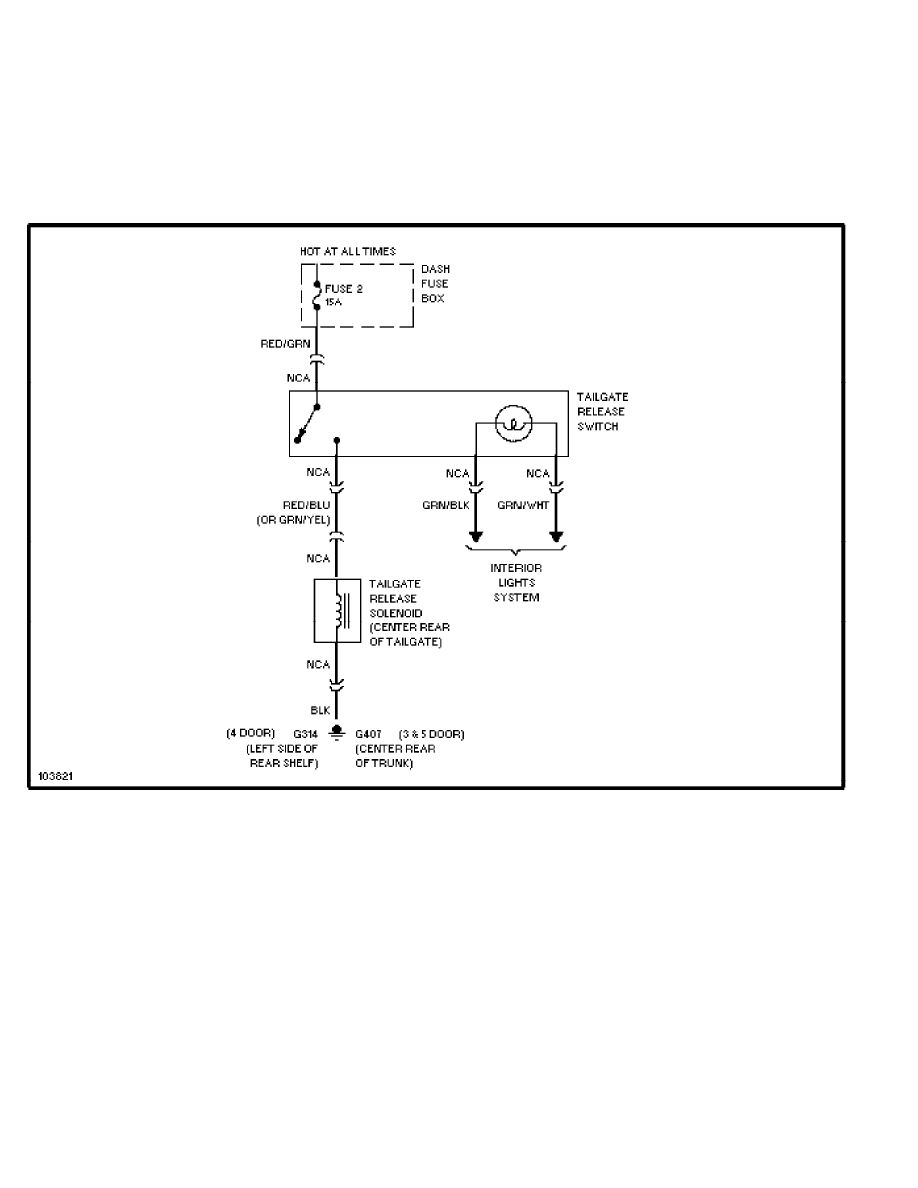

Trunk, Tailgate, Fuel Door Circuits (p. 8)
1988 Mitsubishi Van/Wagon
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:30PM
SYSTEM WIRING DIAGRAMS
Front Wiper/Washer Circuit (p. 9)
1988 Mitsubishi Van/Wagon
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:30PM
SYSTEM WIRING DIAGRAMS

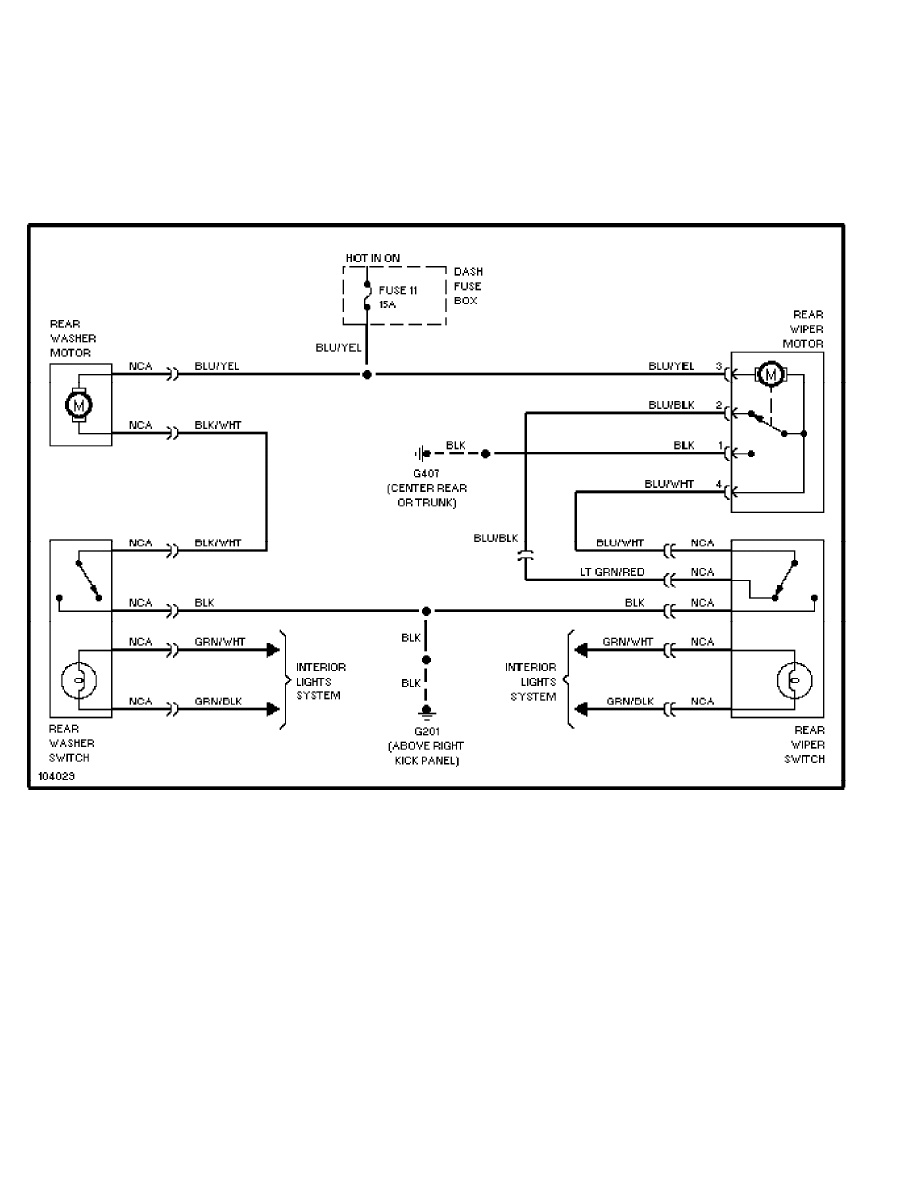

Rear Wiper/Washer Circuit (p. 10)
1988 Mitsubishi Van/Wagon
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:30PM
WIRING DIAGRAMS

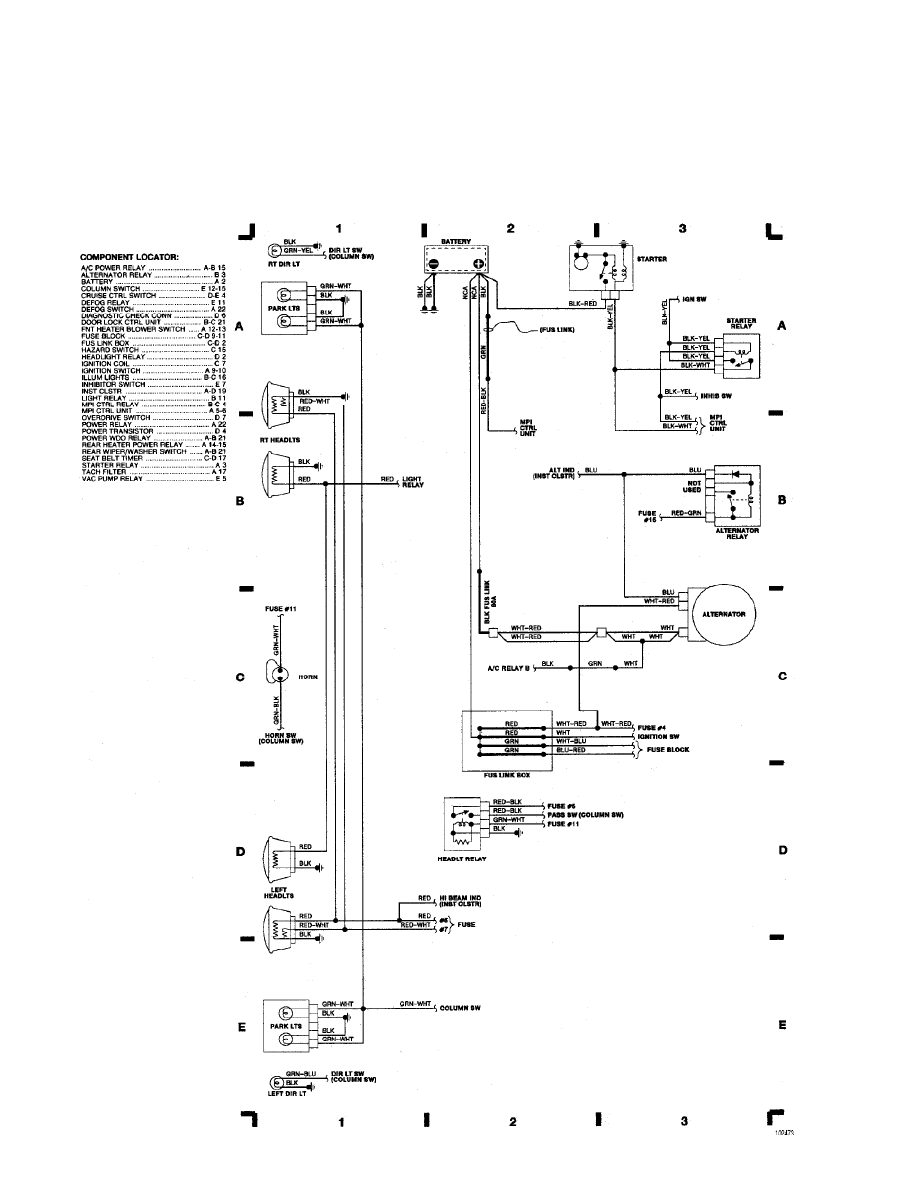

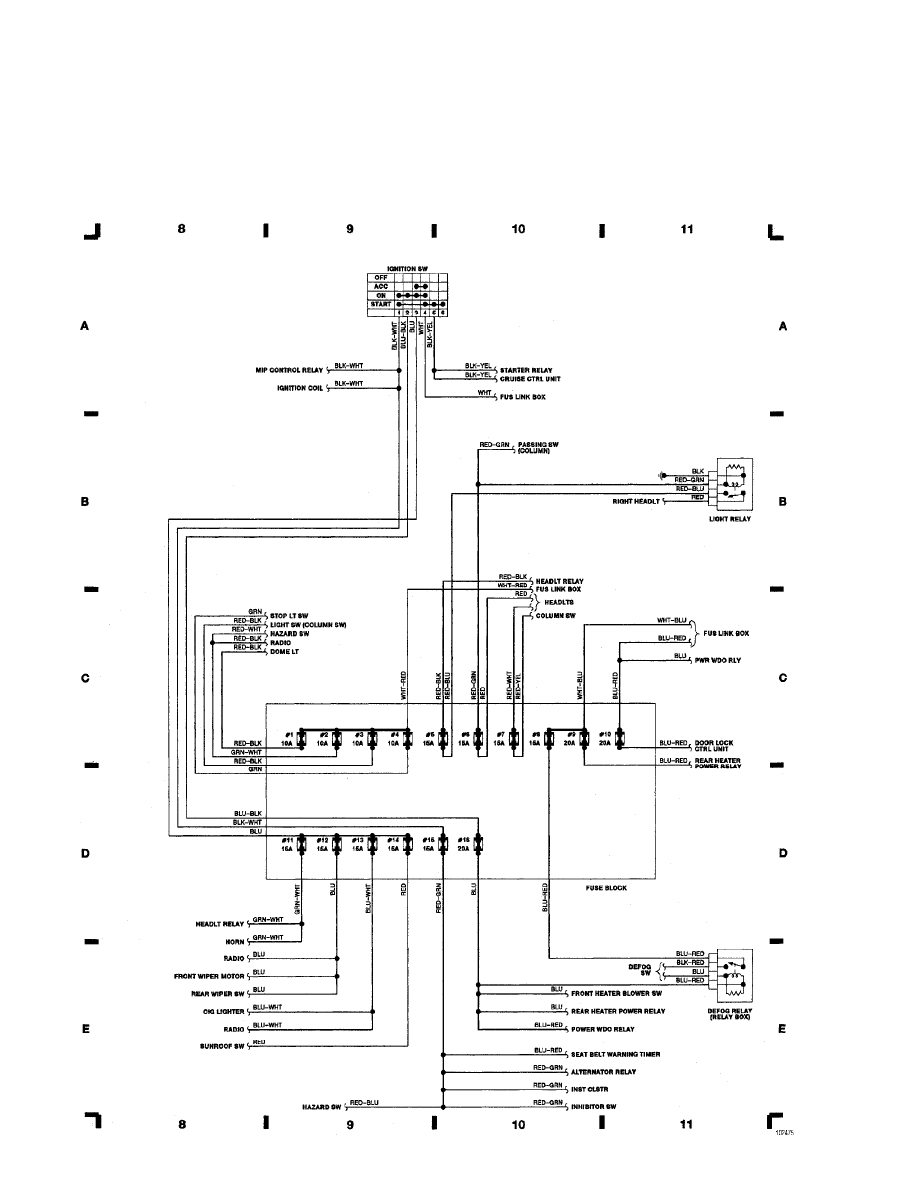

Fig. 1: Engine Compartment, Headlights
1988 Mitsubishi Van/Wagon
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:30PM
WIRING DIAGRAMS
Fig. 2: Engine Compartment (Cont.), Ignition & Fuel (p. 2)
1988 Mitsubishi Van/Wagon
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:30PM
WIRING DIAGRAMS
Fig. 3: Fuse Block (p. 3)
1988 Mitsubishi Van/Wagon
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:30PM
WIRING DIAGRAMS

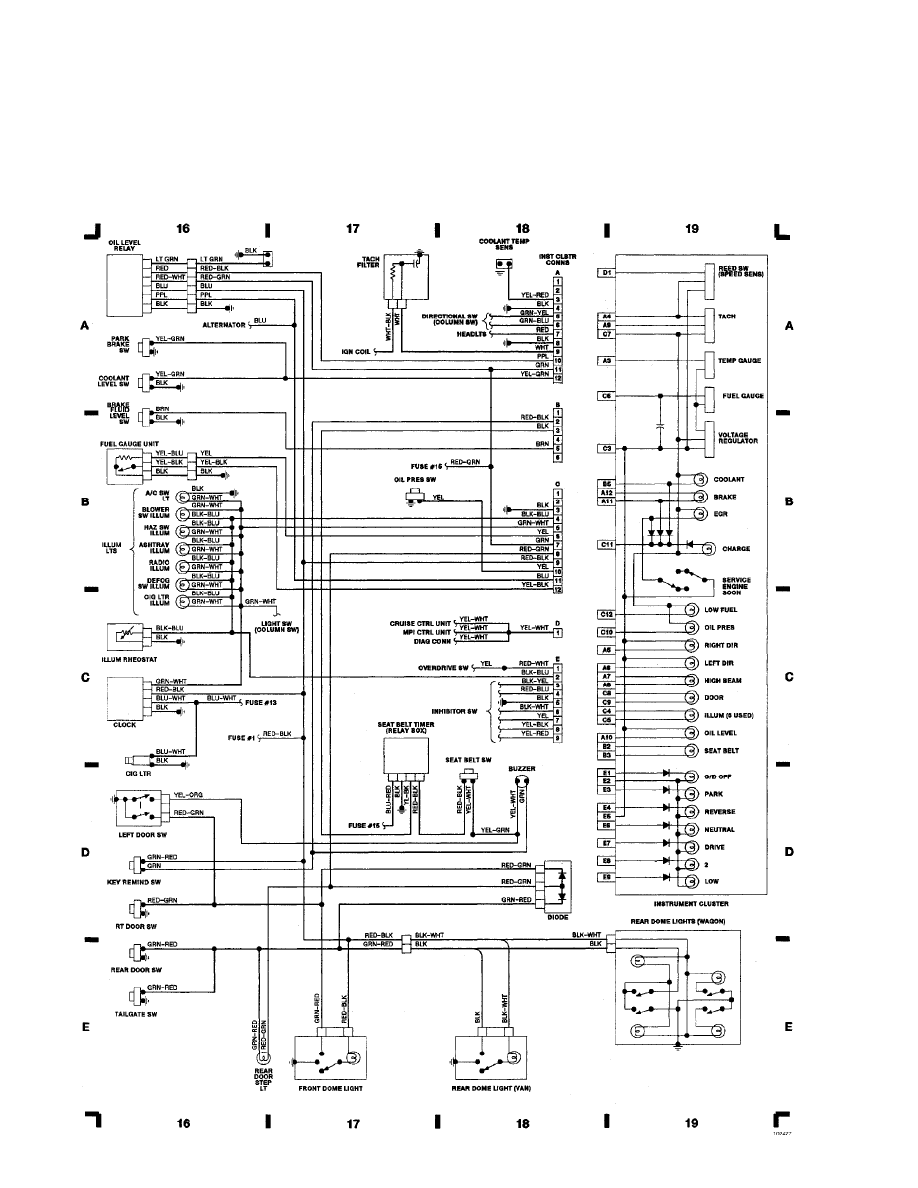

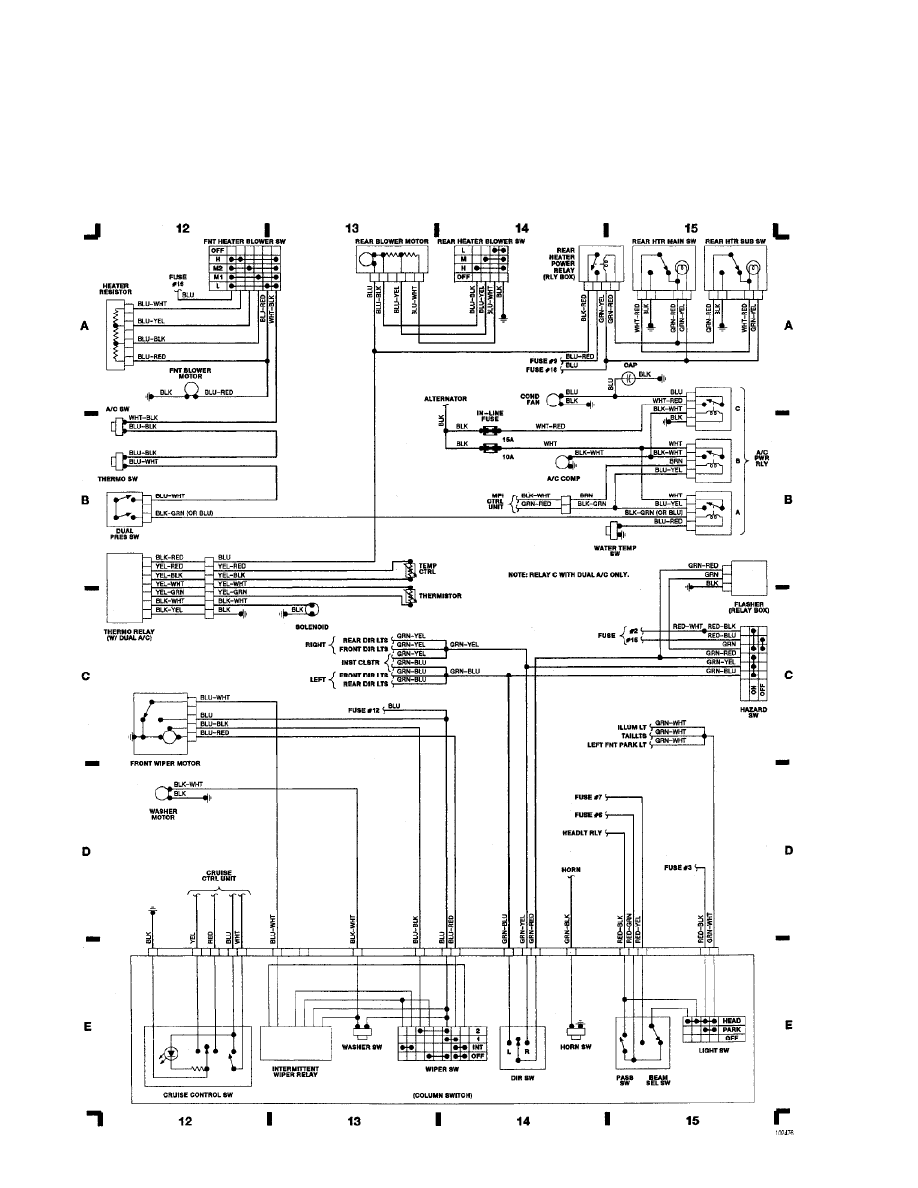

Fig. 4: Underdash, Instrument Panel, Heat & A/C (p. 4)
1988 Mitsubishi Van/Wagon
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:30PM
WIRING DIAGRAMS
Fig. 5: Instrument Panel (Cont.) (p. 5)
1988 Mitsubishi Van/Wagon
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:30PM
WIRING DIAGRAMS

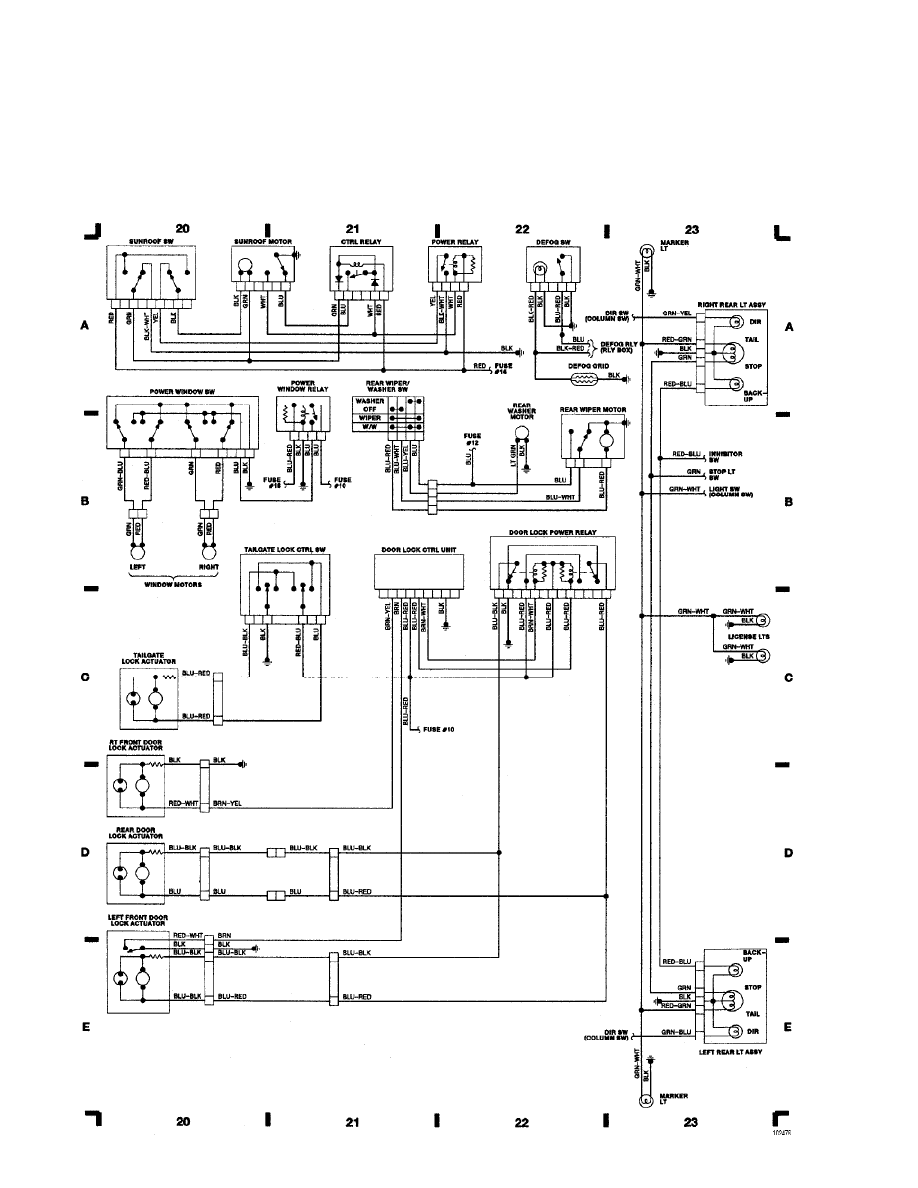

Fig. 6: Rear Compartment & Accessories (p. 6)
1988 Mitsubishi Van/Wagon
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:30PM
