2009 ELECTRICAL

Fuses & Circuit Breakers - Grand Caravan, Town & Country

IDENTIFICATION

TOTALLY INTEGRATED POWER MODULE

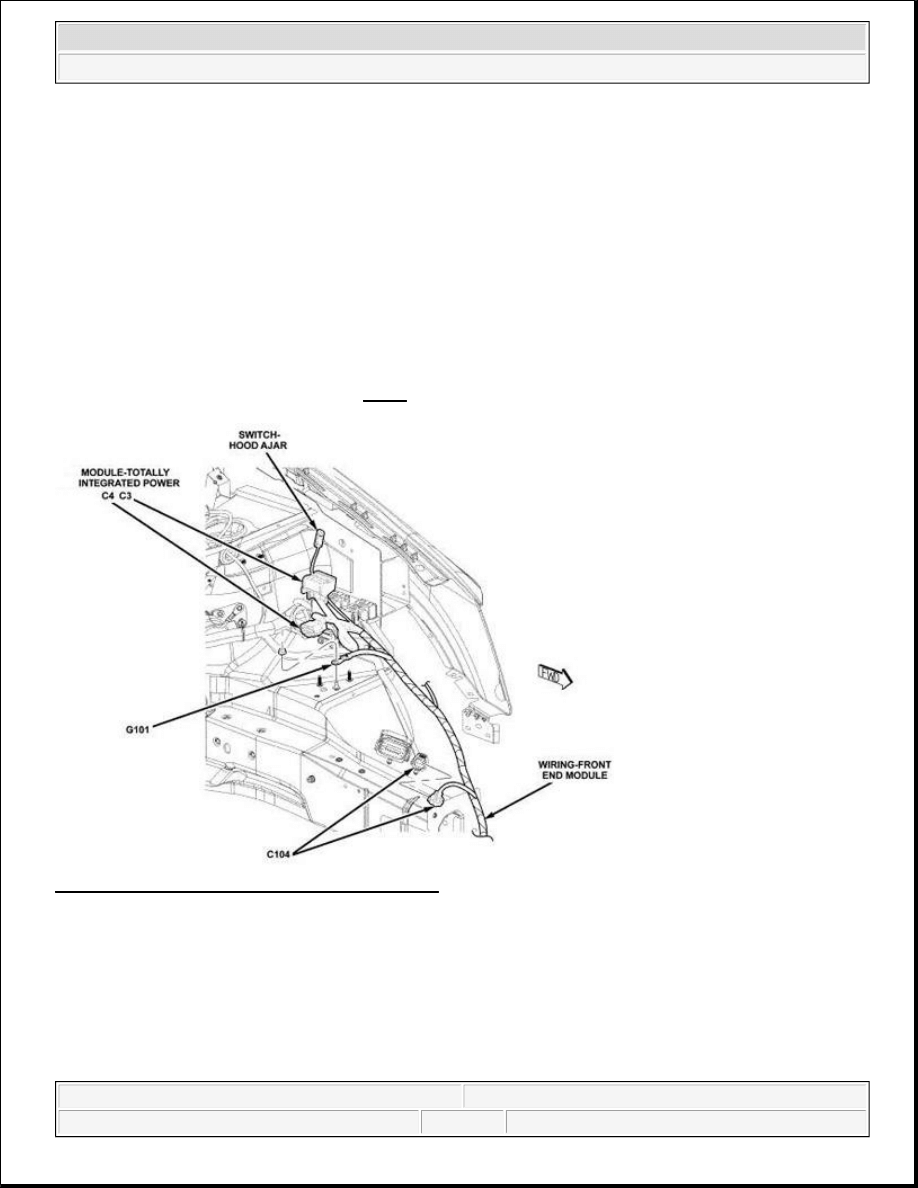

For integrated power module location, see Fig. 1.

Fig. 1: Locating Totally Integrated Power Module
Courtesy of CHRYSLER CORP.

CAUTION: When battery is disconnected, vehicle computer and memory systems

may lose memory data. Driveability problems may exist until computer
systems have completed a relearn cycle.

2009 Chrysler Town & Country LX

2009 ELECTRICAL Fuses & Circuit Breakers - Grand Caravan, Town & Country

2009 Chrysler Town & Country LX

2009 ELECTRICAL Fuses & Circuit Breakers - Grand Caravan, Town & Country

steve

Monday, May 23, 2011 12:53:12 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

steve

Monday, May 23, 2011 12:53:15 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

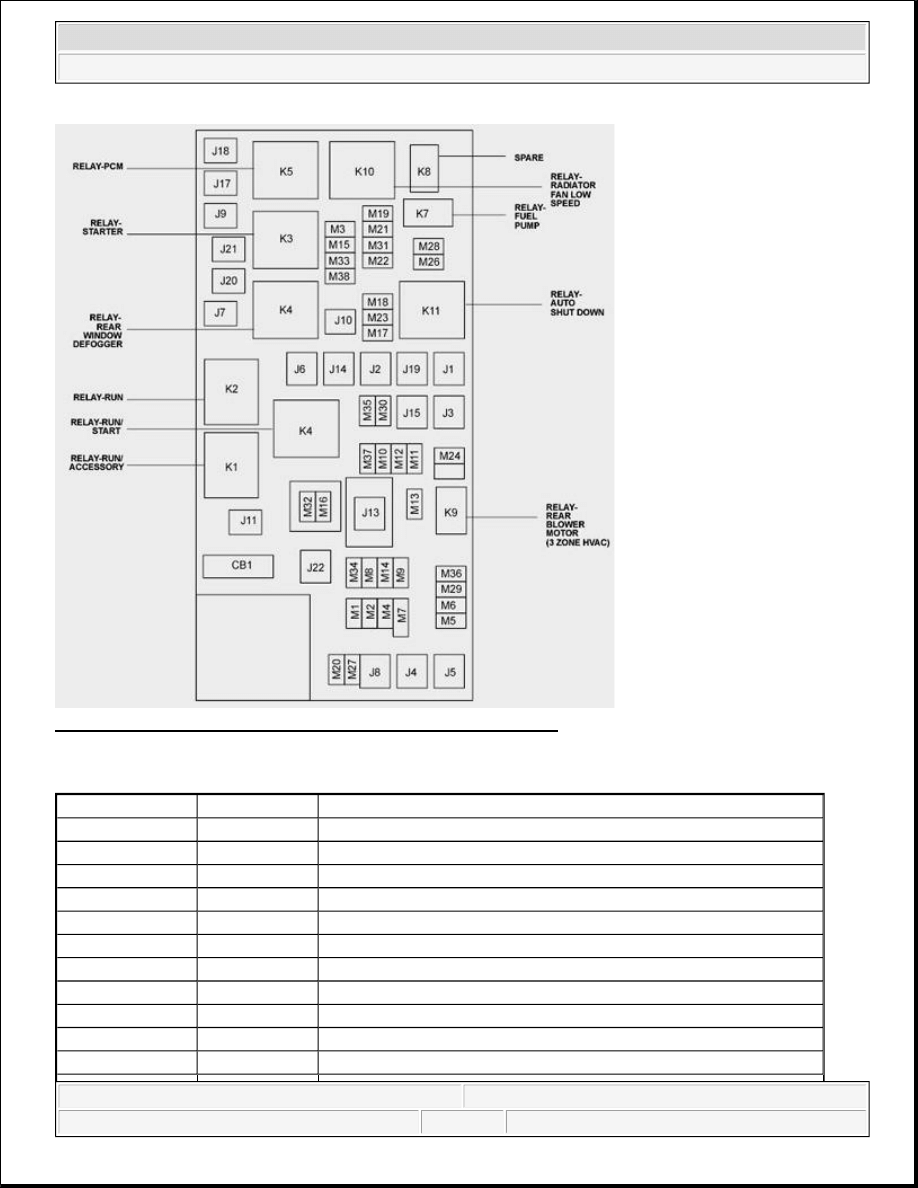

Fig. 2: Identifying Totally Integrated Power Module Components
Courtesy of CHRYSLER CORP.

Totally Integrated Power Module Fuses

FUSE NO.

AMPS

FUNCTION

J1

40A

Power Folding Seat

J2

30A

Power Liftgate Module

J3

40A

Rear Door Module

J4

25A

Driver Door Node

J5

25A

Passenger Door Node

J6

40A

Anti-Lock Brake System (ABS) Pump/ESP

J7

30A

Anti-Lock Brake System (ABS) Valve

J8

40A

Power Memory Seat

J9

40A

PZEV Motor/Flex Fuel

J10

30A

Headlamp Wash Relay/Manual Turning Valve

J11

30A

Power Sliding Door Module

2009 Chrysler Town & Country LX

2009 ELECTRICAL Fuses & Circuit Breakers - Grand Caravan, Town & Country

steve

Monday, May 23, 2011 12:53:12 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

J13

60A

Ignition Off Draw (IOD) - Main

J14

40A

Rear Window Defogger

J15

30A

Rear Blower

J17

40A

Starter Solenoid

J18

20A

Powertrain Control Module (PCM) Trans Range

J19

60A

Radiator Fan

J20

30A

Front Wiper LO/HI

J21

20A

Front/Rear Washer

J22

25A

Sunroof Module

M1

15A

Center High Mounted Stop Light (CHMSL)/Brake Switch

M2

20A

Trailer Lighting

M3

20A

-

M4

10A

Trailer Tow

M5

25A

Inverter

M6

20A

-

M7

20A

Power Outlet #2 (BATT/ACC SELECT)

M8

20A

Front Heated Seat

M9

20A

Rear Heated Seat

M10

20A

Ignition Off Draw - Vehicle Entertainment System (IOD-VES),
Satellite Digital Audio Receiver (SDARS), DVD, Hands Free
Module (HFM), Universal Garage Door Opener (UGDO), Vanity
Lamp (VANITY LP)

M11

10A

Ignition Off Draw - IOD-HVAC/ATC, MW SENSR, Underhood
Lamp (UH LMP)

M12

30A

Amplifier (AMP)

M13

20A

Ignition Off Draw - Cabin Compartment Node (IOD-CCN), Wireless
Control Module (WCM), SIREN, Clock Module (CLK MOD),
Multifunction Control Switch (MULTIFCTN SW)

M14

20A

Trailer Tow (Export Only)

M15

20A

COL MOD, IR SNS, Heater Ventilation, Air
Conditioning/Automatic Temperature Control (HVAC/ATC), Rear
View Mirror (RR VW MIR), Cabin Compartment Node (CCN),
Transfer Case Switch (T-CASE SW), RUN/ST. Multifunction
Control Switch (MULTIFTCN SW), Tire Pressure Monitor (TPM),
Glow Plug Module (GLW PLG MOD) - Export Diesel Only

M16

10A

Occupant Restraint Controller/Occupant Classification Module
(ORC/OCM)

M17

15A

Left Tail/License/Park Lamp (LT-TAIL/LIC/PRK LMP)

M18

15A

Right Tail/Park/Run Lamp (RT-TAIL/PRK/RUN LMP)

M19

25A

Auto Shut Down (ASD #1 & #2)

M20

15A

Cabin Compartment Node Interior Light (CNN INT LIGHT), Switch
Bank (SW BANK), Steering Control Module (SCM)

2009 Chrysler Town & Country LX

2009 ELECTRICAL Fuses & Circuit Breakers - Grand Caravan, Town & Country

steve

Monday, May 23, 2011 12:53:12 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.

M21

20A

Auto Shut Down (ASD #3)

M22

10A

Right Horn (RT HORN HI/LO)

M23

10A

Left Horn (LT HORN HI/LO)

M24

25A

Rear Wiper (REAR WIPER)

M25

20A

Fuel Pump (FUEL PUMP), Diesel Lift Pump (DSL LIFT PUMP) -
Export Only

M26

10A

Power Mirror Switch (PWR MIRR SW), Driver Window Switch
(DRVR WIND SW)

M27

10A

Ignition Switch (IGN SW), Window Module (WIN MOD)

M28

10A

Next Generation Controller (NGC), Transmission Feed (TRANS
FEED), J1962

M29

10A

Occupant Classification Module (OCM)

M30

15A

Rear Wiper Module (RR WIPER MOD), Power Folding Mirror
(PWR FOLD MIR)

M31

20A

Back-Up Lamps (B/U LAMPS)

M32

10A

Occupant Restraint Controller (ORC), TT EUROPE

M33

10A

Next Generation Controller (NGC), Global Powertrain Engine
Controller (GPEC)

M34

10A

Park Assist (PRK ASST), Heater Ventilation, Air Conditioning
Module (HVAC MOD), Headlamp Wash (HDLP WASH), Compass
(COMPAS)

M35

10A

Heated Mirrors

M36

20A

Power Outlet #3 (BATT)

M37

10A

Anti-Lock Brake System (ABS), Electronic Stability Program (ESP),
Stop Lamp Switch (STP LP SW), Fuel Pump Rly Hi Control

M38

25A

Lock/Unlock Motors (LOCK/UNLOCK MTRS)
