Building an MVP Framework for NET Part 1

Clear separation of responsibilities along with a low coupling level is a sign of a well- designed application. Whereas design
patterns are proven solutions to reduce coupling between small sets of objects, architectural patterns help to improve a
system's design on the whole. One popular architectural pattern is Model- View- Controller. It originally came from Smalltalk and
now it has implementations in various languages. In Java for example such Frameworks as Spring and Struts have gained high
popularity and are widely used. However in the .NET world, the existing implementations aren't much spread, being mainly
inspired by Java implementations they fit well only for Web applications and are not suitable for Windows thick client
applications.

Another architectural pattern that in fact is an evolution of MVC is Model- View- Presenter. The underlying ideas of MVP are very
similar to those in MVC however MVP is designed to be more usable and understandable. MVP has much less

Hot News:

10 Best Practices of Code

Commenting & Formatting

The Code Project Insider.

Free each

morning.

PDFmyURL.com

implementations than MVC does, one known MVP implementation for .NET is the Microsoft User Interface Process application
block (UIPAB). In spite of numerous problems, and hence low usability of UIPAB, its reasonable key concepts inspired us to
create something new.

This article starts a series covering the development of a native Model- View- Presenter Framework for .NET platform. Although
it will be an MVP Framework, we will still use the term "Controller" as it seems to be more pertinent than the "Presenter" notation
(UIPAB follows the same manner describing itself as MVC, though in fact it is closer to MVP). Let us start with clarifying the
basic concepts of an application's structure. After that we will proceed to the discussion of the existing architectural solutions
(including MVC and MVP).

Basic Concepts

Every application can be split into a number of tasks. Here by task we mean a sequence of actions which accomplish a job,
problem or assignment. There are different ways of breaking an application into tasks, for example, tasks may be associated
with use cases. Each task involves interaction with a user done via so called interaction points. An interaction point is
represented by one or more classes which serve the following needs:

Receive and process an input from a user
Make proper requests to the business objects
Request/modify the task's state
Send feedback to the user

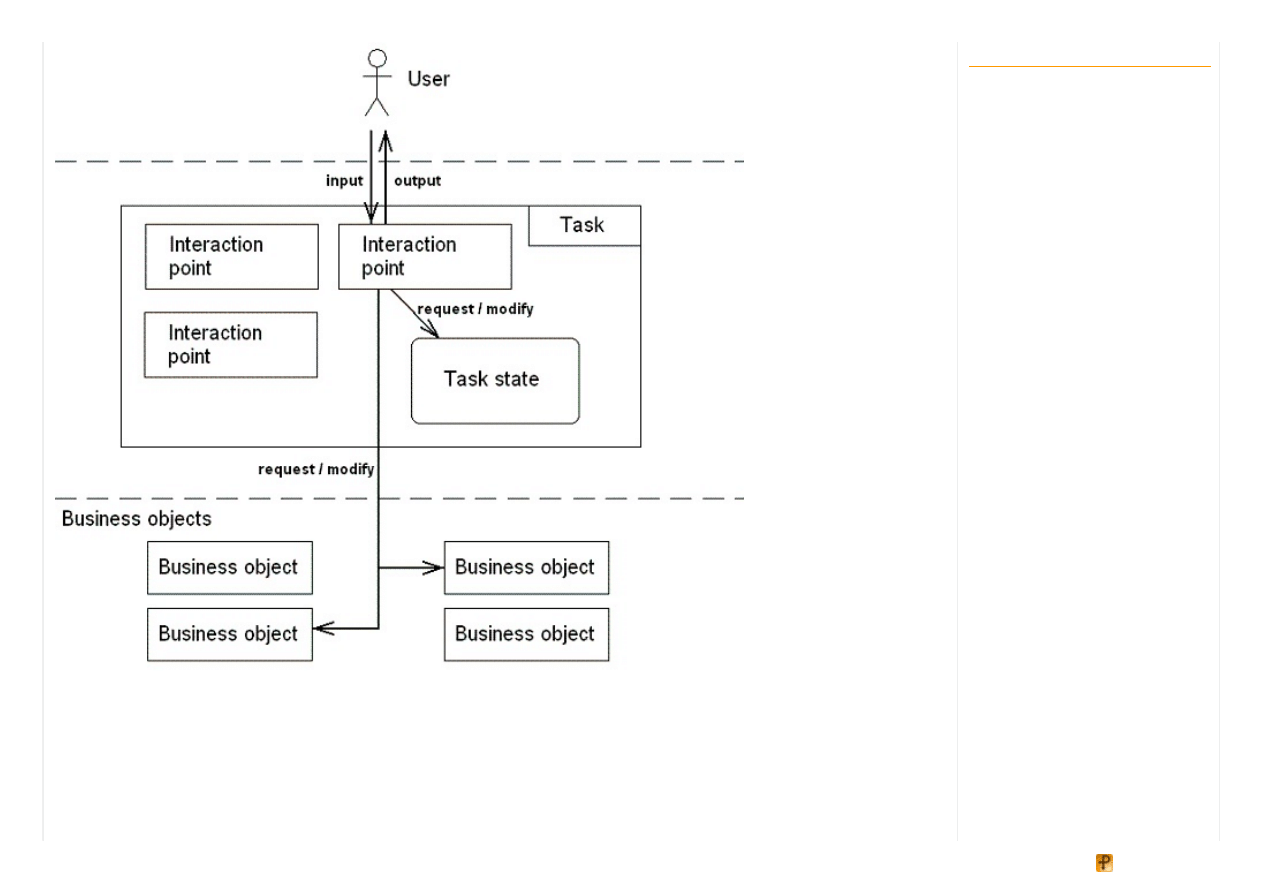

The following figure illustrates the described relationships:

Related Articles

PDFmyURL.com

As we can see, the interaction point responsibilities are rather vast. That is why architectural solutions such as MVC make their
aim to split interaction points into simpler parts. Next we will consider various ways of splitting the interaction point (including the
MVC paradigm). Though the division of the interaction point into smaller elements is preferred, we will start with a case when an
interaction point is represented by a single view class.

Interaction Point as a Single View

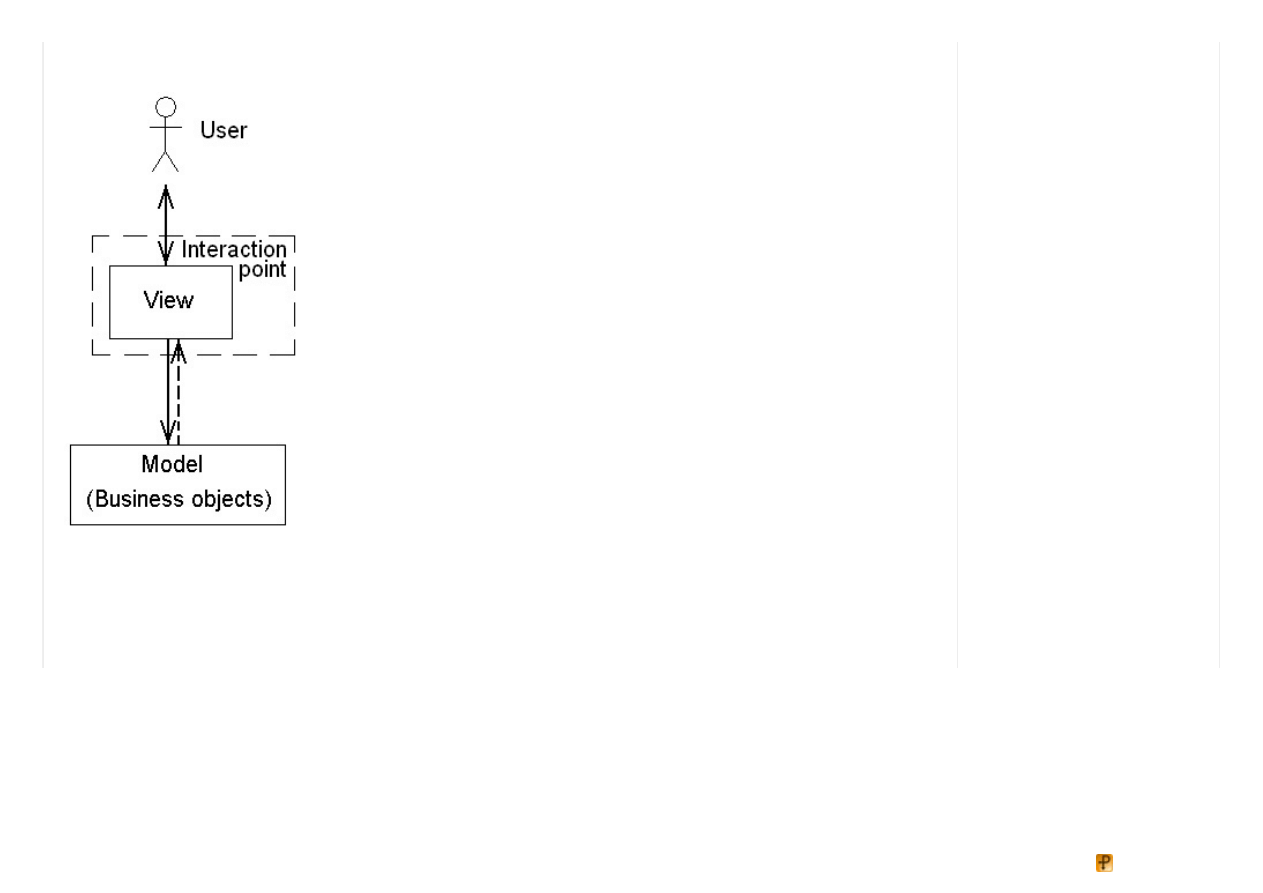

When the interaction point is made of a single view class it is the view which is responsible for all intermediate data processing.

Related Articles

Building an MVP Framework for .NET.
Part 2: Implementing Core
Functionality
Understanding Basics of UI Design
Pattern MVC, MVP and MVVM
Building an MVP Framework for .NET.
Part 3: Designing a Windows Forms
Views Engine
Building an MVP Framework for .NET.
Part 4: Strongly Typed Associations
Differences between MVC and MVP
for Beginners
MVC, MVP, ASP.NET
Comparison of Architecture
presentation patterns
MVP(SC),MVP(PV),PM,MVVM and
MVC
MVP Dependency Chaining
Framework
Entity Framework Implementation
Using ASP.NET MVP
MVP - A Basic Demonstration of its
Power
MVC v/s MVP - How Common and How
Different
MVC in the Visual Component
Framework, Part II
Beginners Guide’s to ASP.NET MVC
Framework – Part 1 of n
Architecture Guide: ASP.NET MVC
Framework + N- tier + Entity
Framework and Many More
Comparison of MVC implementation
between J2EE Struts 2 & ASP.NET
MVC 2, who is the best? Part 2
ASP.NET MVC - Part 1
ASP.NET MVC: Part 2
Building a Web Message Board using
Visual Studio 2008, Part I - The Basic
Message Board
Web- Application Framework -
Catharsis - Part I - New Solution
SharePoint MVP with Telerik ORM

PDFmyURL.com

Such view class handles user input, makes proper calls to the business objects, analyses the data received from them,
decides what to display to the user and actually displays it.

In order to demonstrate this and the other approaches, let us now introduce the example we will refer to throughout the article.
Consider the encyclopedia application where a user enters some term and the system gives back the explanation for it. In most
cases, the explanation is unambiguously found for a term. However sometimes several explanations of a term (especially if the
term is an abbreviation) may apply and the system then asks the user which one to display.

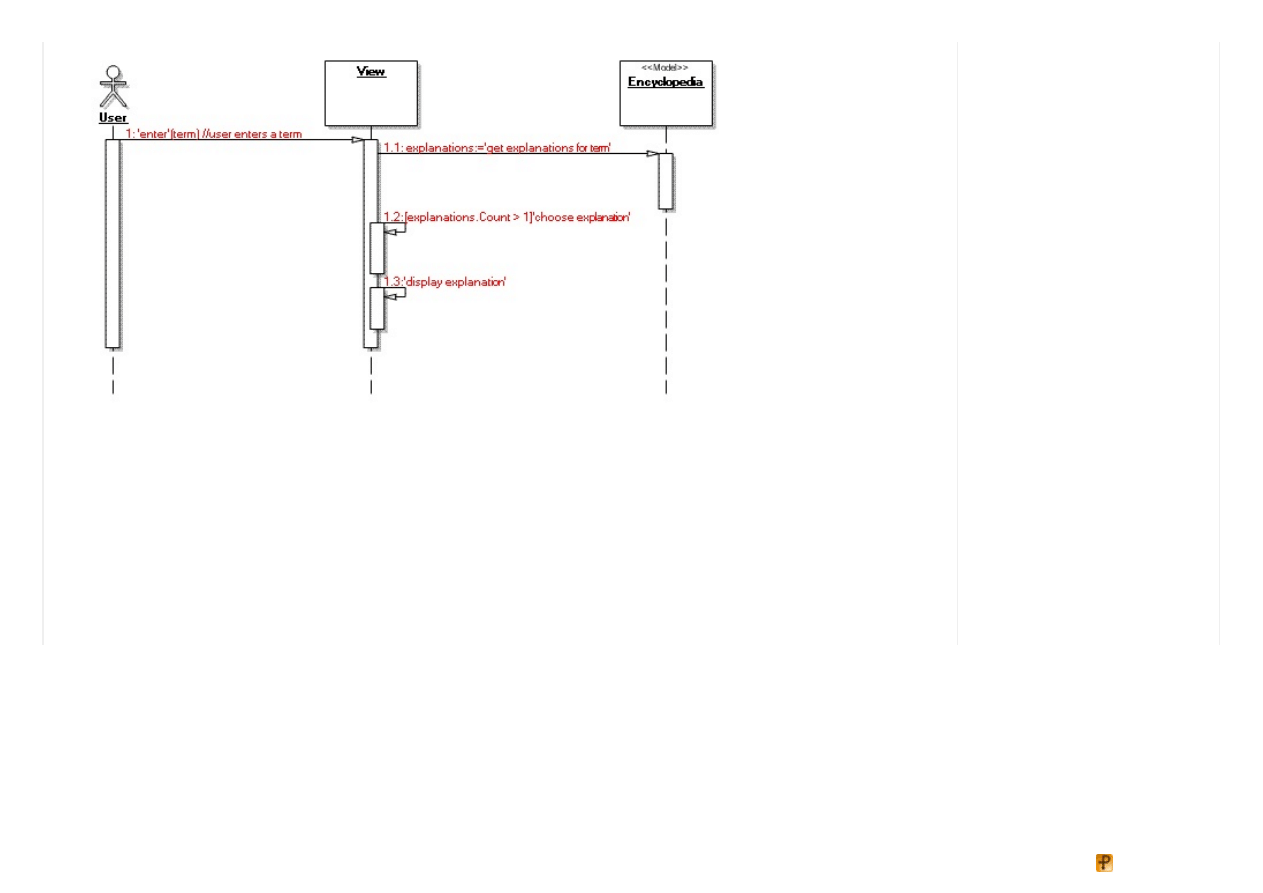

With a single view approach, the sequence diagram for our encyclopedia application would look as follows:

PDFmyURL.com

This figure reveals the drawbacks of combining all intermediate logic into a view class. The view then becomes too bloated
and difficult for understanding. Moreover such approach violates the single responsibility principle by uniting in the view two
conceptually different responsibilities. First is making requests to the model and deciding what to display (application logic) and
the second is actually displaying (presentation mechanism). As a result if we want to make our encyclopedia work both as a
Windows and a Web application, we will have to duplicate the application logic in two view classes: one for Windows and the
other for Web environment.

Model-View-Controller

We have seen the downsides of the solution when the interaction point is represented by a single view class. On the contrary to

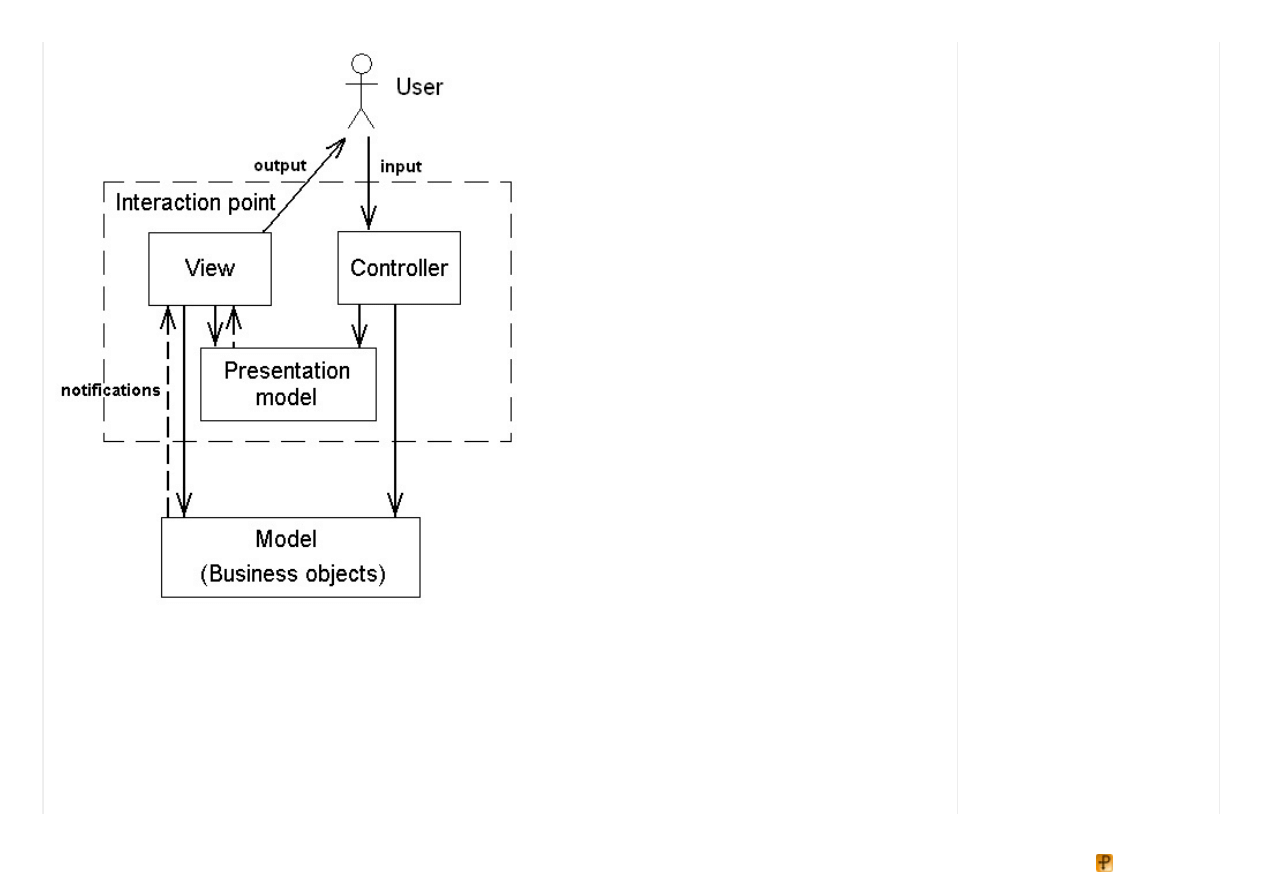

the single view technique MVC does break the interaction point into three parts. These parts are: Controller, View and
Presentation model.

PDFmyURL.com

Controller handles user input, makes subsequent calls to the business objects and manages the application flow. In particular
the controller decides what to display to the user. However it is not allowed in MVC to access the view directly, instead the
underlying model should be altered and the changes will be propagated to the view through the observer mechanism. Thus in
order to make the view update itself, the controller should change the presentation model object.

In our encyclopedia example, the controller class asks the model for the proper explanations (1.1 in the figure below) and
passes the returned explanations to the presentation model (1.2). Depending on how many explanations were found (one or
more) the controller sets a flag in the presentation model indicating whether the user should choose the desired variant (1.3).
The view then reflects the changes in the presentation model (1.3.1) and either displays dialog with several variants (1.3.1.3) or
displays the only found explanation (1.3.1.4).

PDFmyURL.com

The main advantage of MVC is a clear distribution of responsibilities between parties. The controller drives the application flow
specifying what and when it should be done. The view only renders the underlying business and presentation models and
presents them to the user. Since views in MVC do not contain any application logic, they can be harmlessly substituted, for
example there may be different view classes for Windows and Web interfaces.

Nevertheless there are two major drawbacks in the traditional MVC approach. First is a higher complexity because of the
observer mechanism: in order to update the view the controller must make changes to the presentation model, which will trigger
the view update. Such indirect relationship may be difficult to understand. Instead the controller could simply send a message to
the view, however such direct linking is not allowed in MVC.

The other shortcoming is that MVC does not conform to the modern UI programming environments where widgets themselves
handle user gestures. For example form classes (either Web or Windows) in .NET applications by default contain handlers for
user input. Thus it would be difficult to break the common paradigm and make controllers receive the user input instead of
views.

The next architectural pattern we consider was designed to eliminate the drawbacks of MVC, while preserving its separation of
application logic and presentation mechanism.

PDFmyURL.com

Model-View-Presenter

Model- View- Presenter approach appeared in the late 1990’s and was an evolution of MVC pattern. Above we have described
two typical shortcomings of the MVC pattern. Now let us look at how MVP eliminates these two.

Firstly according to MVP, direct requests from the controller to the view become possible. Thus the controller itself may trigger
the view updates instead of performing a round trip through the presentation model. In this sense the controller in MVP contains
the presentation model from MVC. That is probably the reason why the controller in MVP is referred to as presenter (however
we will continue naming it controller).

PDFmyURL.com

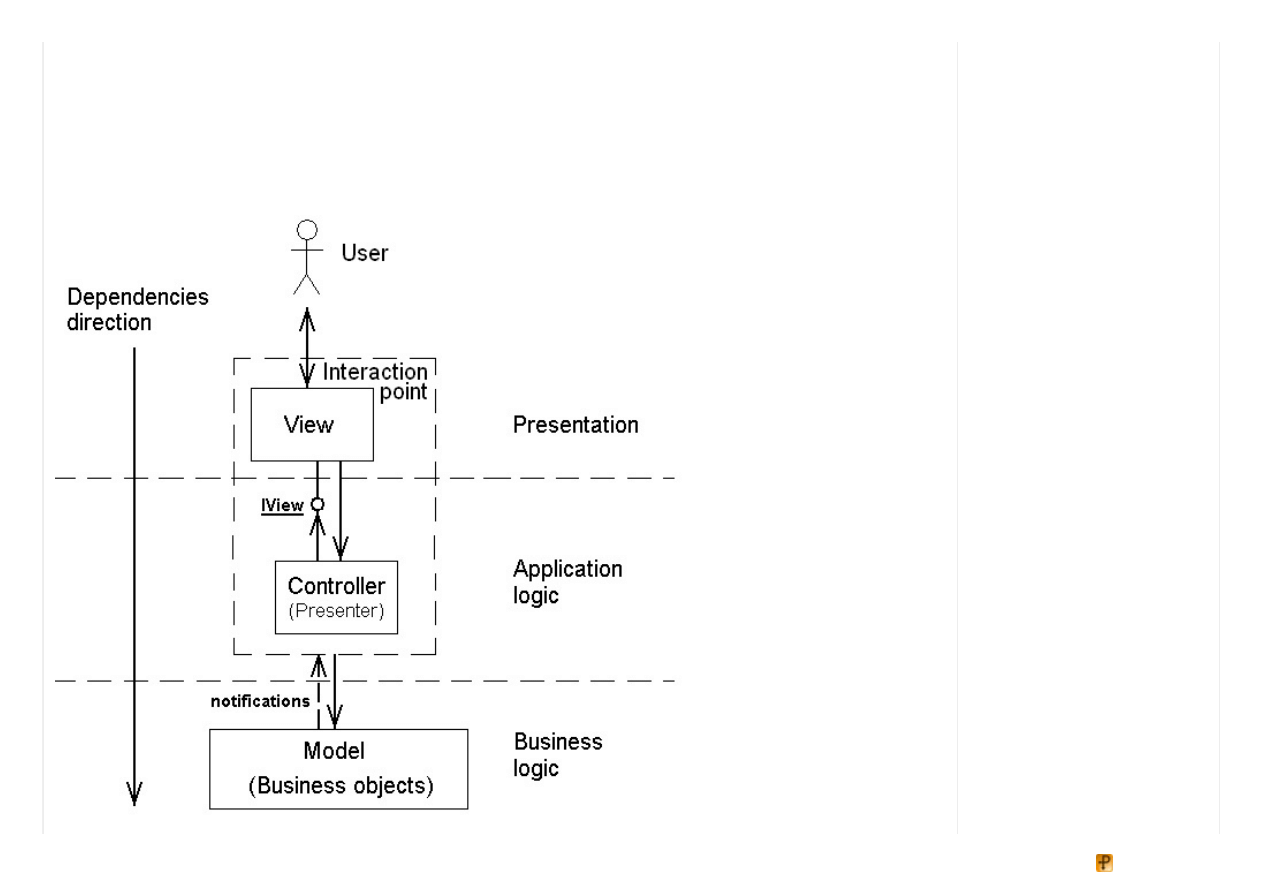

Here we must note that although the controller has a link to the view object it does not depend on the concrete view class.
Instead the controller treats the view in an abstracted way by the means of a separated interface implemented by the view (see
the figure above). For example, the encyclopedia controller will communicate the view via the

IEncyclopediaView

interface with

chooseExplFrom(…)

and

displayExpl(…)

operations. Since such separated interface is a part of the

application logic, the dependency runs from the presentation to the application logic but not vice versa.

Next thing that makes MVP more convenient (in contrast to MVC) is that it allows views to receive user input. Such behavior fits
well modern UI environments. For instance in Windows keyboard and mouse events are handled by UI controls and forms, in
ASP.NET user requests are processed by Web page classes. Though the view in MVP receives the user input it should merely
delegate all the processing to the controller.

The next figure demonstrates the interactions in MVP by the example of the encyclopedia application. As we can see direct
calls from the controller to the view (via the

IEncyclopediaView

interface) make the overall picture less complicated than

that in MVC. Yet the clear separation of responsibilities between the controller (application logic) and the view (presentation
mechanism) still remains, in particular allowing the developer to easily support interchangeable views for Web and Windows
environments.

Summary

Let us sum up what we have discussed so far. Among the architectural patterns we have considered, MVP seems to be the
most attractive one. It allows building flexible systems without overheads peculiar to the classic MVC approach. That is why it is
MVP that we are going to base our Framework on.

Proceed to Part 2: Implementing Core MVP Functionality

Project Website

PDFmyURL.com
