SYSTEM WIRING DIAGRAMS

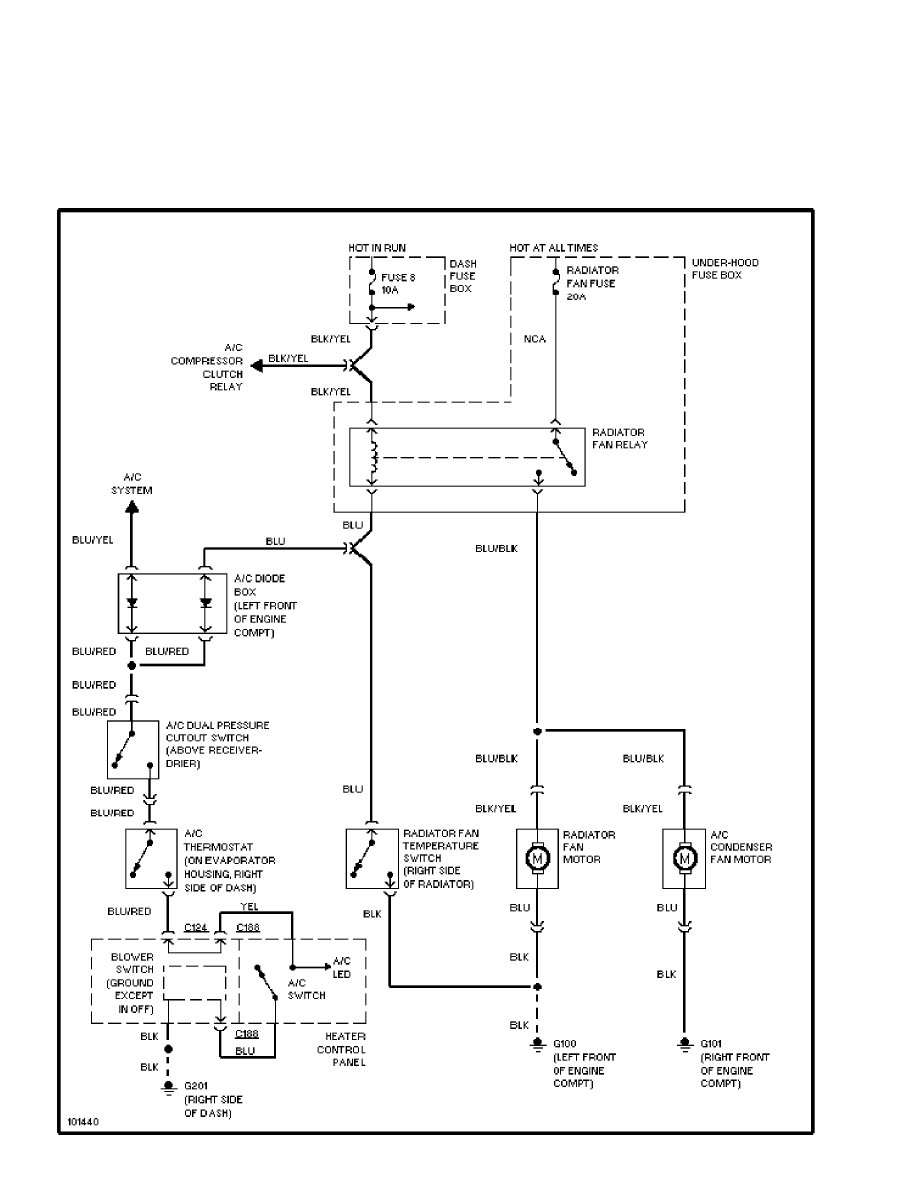

Cooling Fan Circuit, Carbureted
1986 Honda Prelude
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, June 09, 2005 09:15PM
SYSTEM WIRING DIAGRAMS

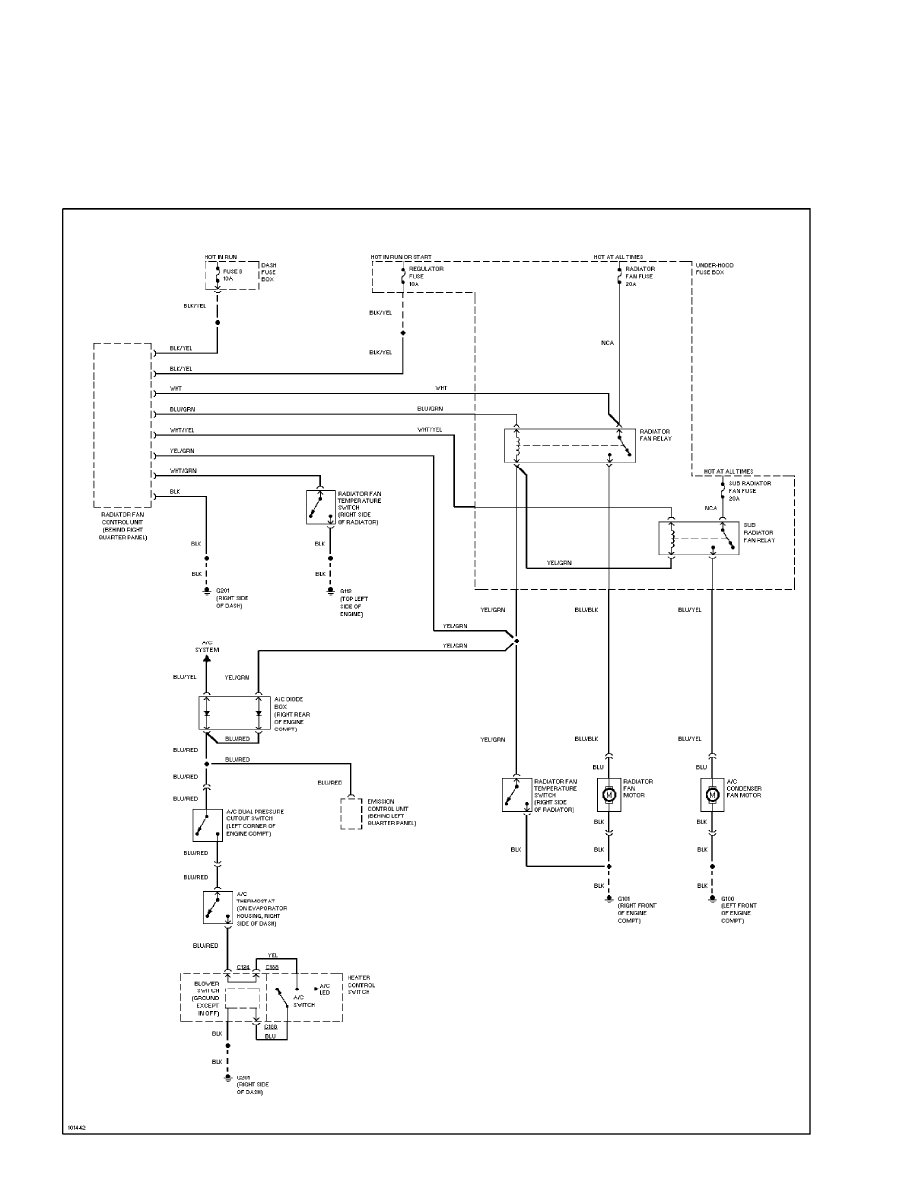

Cooling Fan Circuit, EFI (p. 2)
1986 Honda Prelude
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, June 09, 2005 09:15PM
SYSTEM WIRING DIAGRAMS

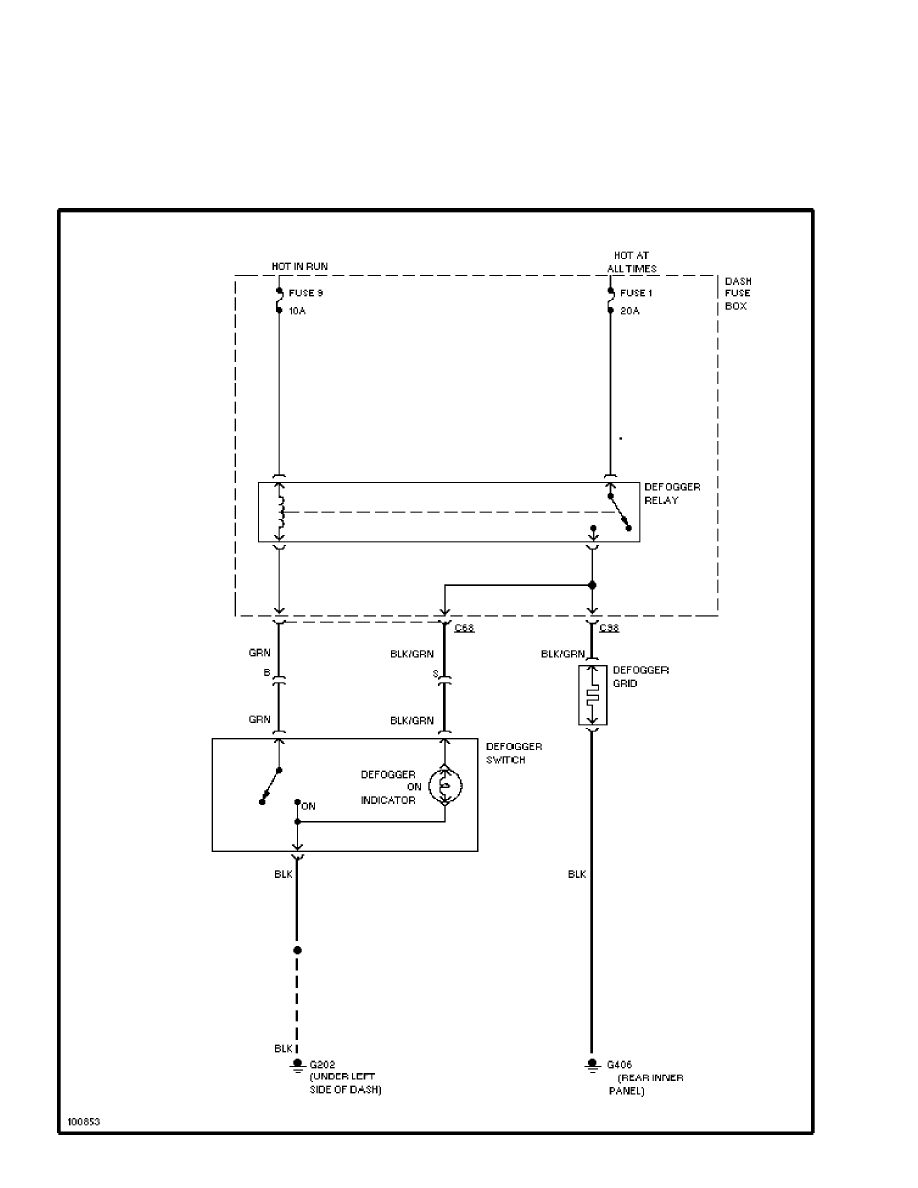

Defogger Circuit (p. 3)
1986 Honda Prelude
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, June 09, 2005 09:15PM
SYSTEM WIRING DIAGRAMS

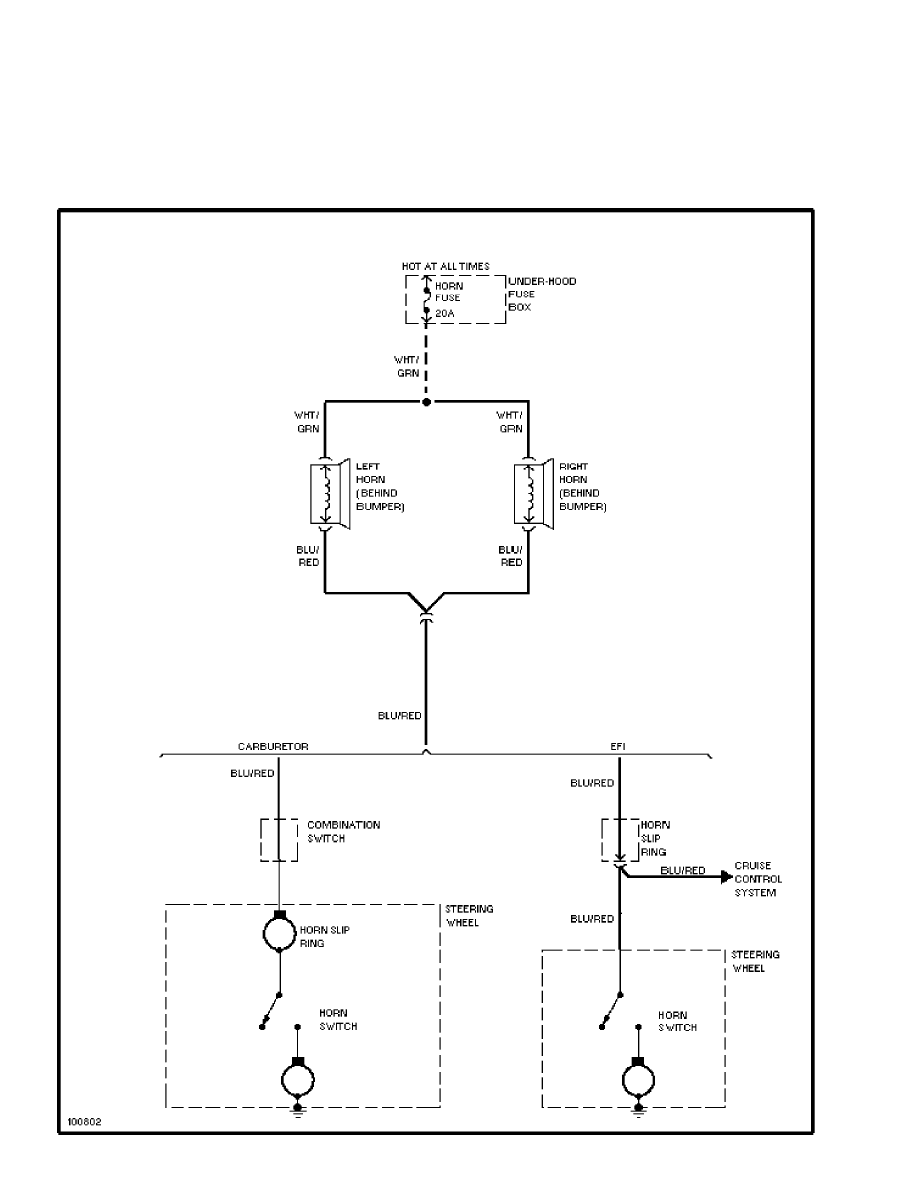

Horn Circuit (p. 4)
1986 Honda Prelude
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, June 09, 2005 09:15PM
SYSTEM WIRING DIAGRAMS

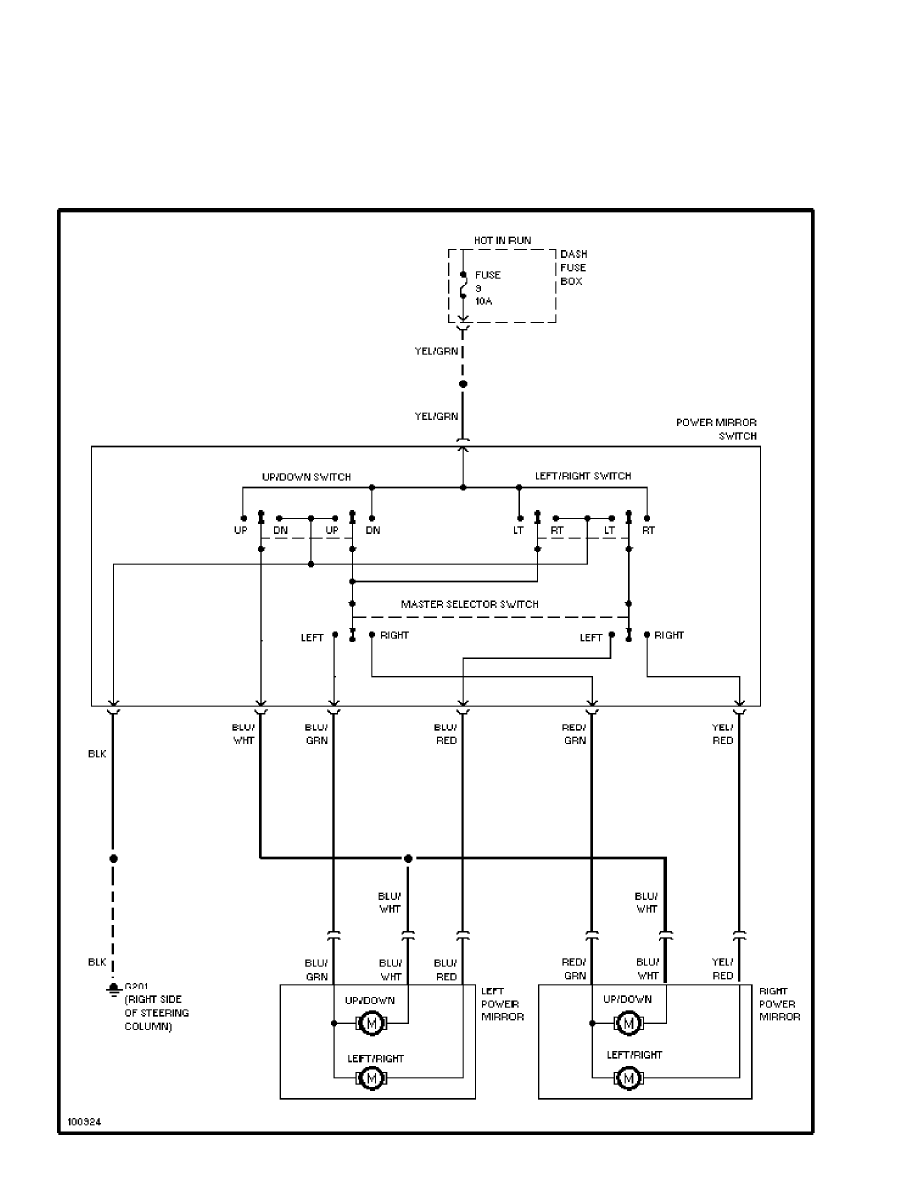

Power Mirror Circuit (p. 5)
1986 Honda Prelude
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, June 09, 2005 09:15PM
SYSTEM WIRING DIAGRAMS

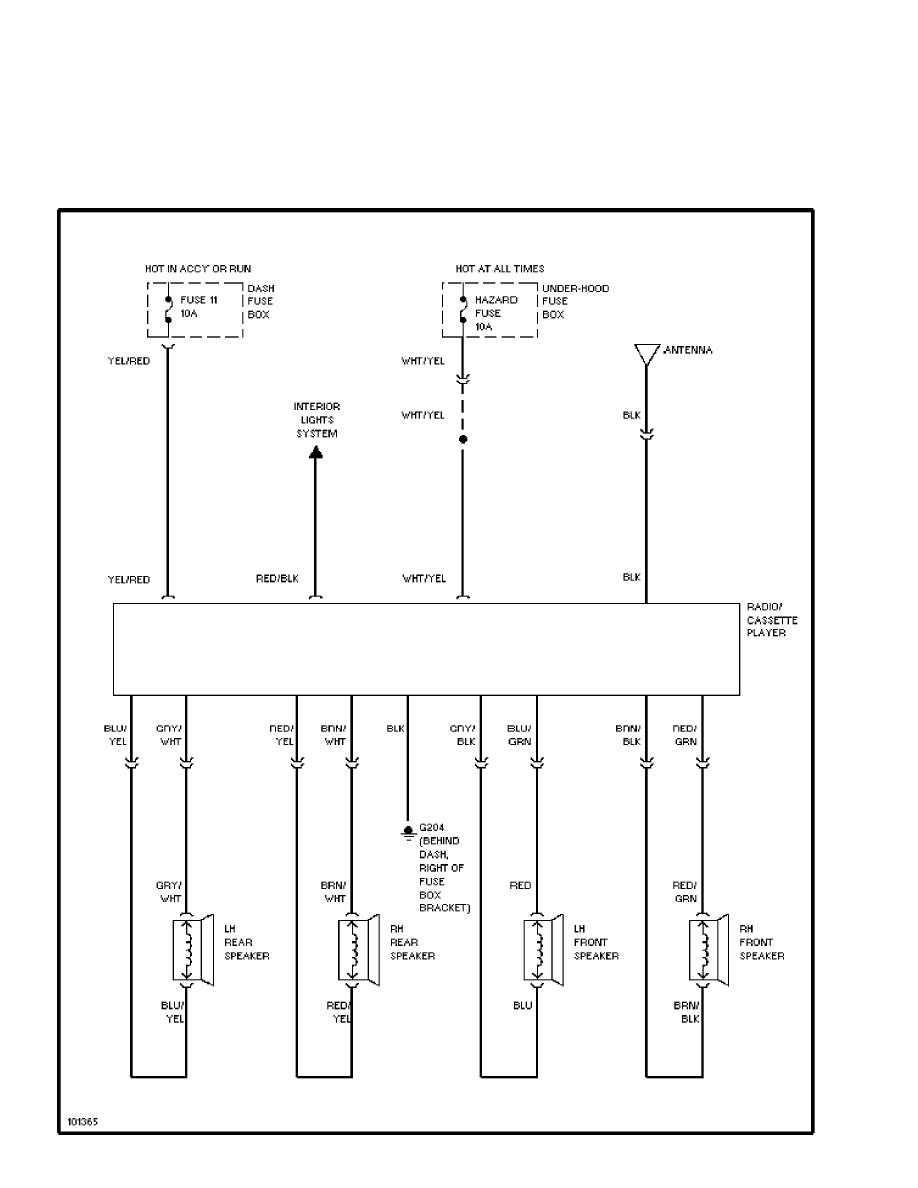

Radio Circuits (p. 6)
1986 Honda Prelude
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, June 09, 2005 09:15PM
SYSTEM WIRING DIAGRAMS

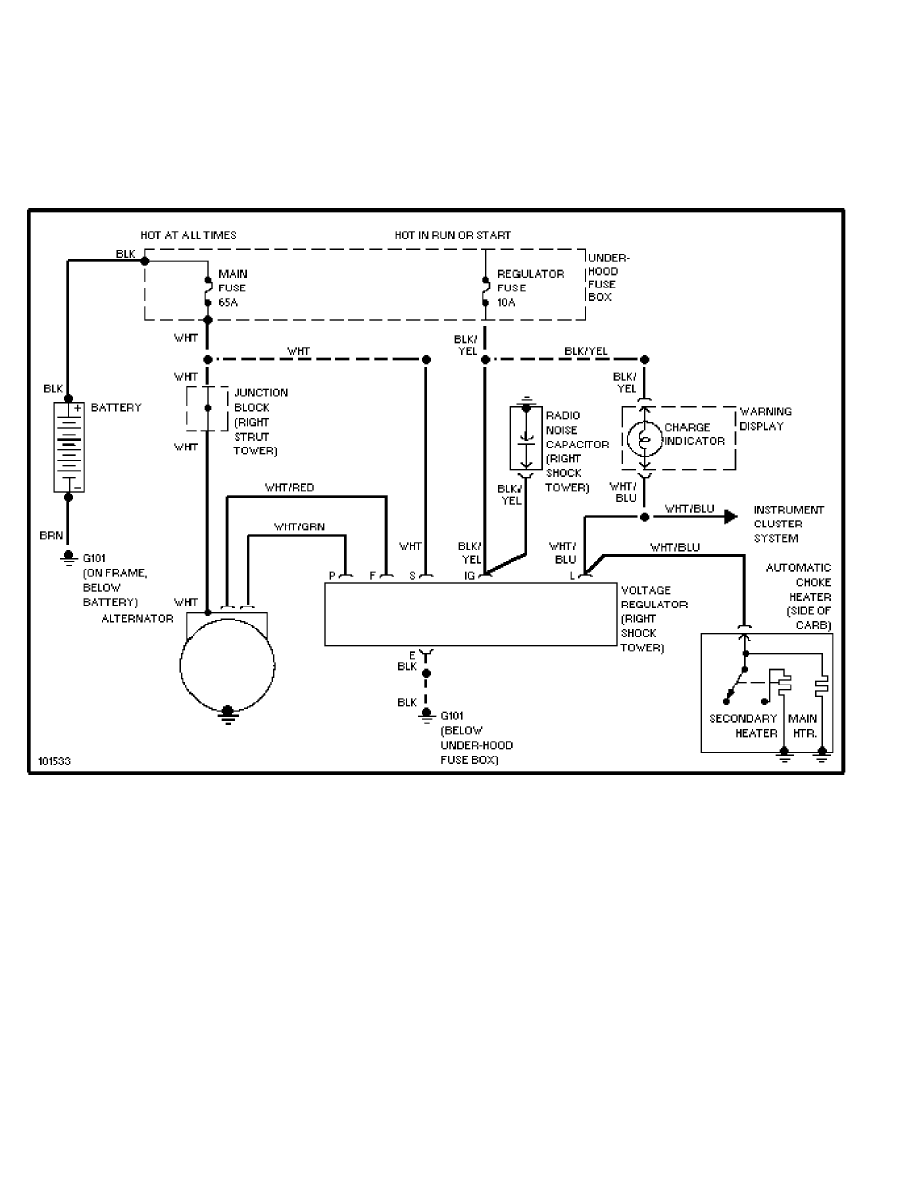

Charging Circuit, Carbureted (p. 7)
1986 Honda Prelude
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, June 09, 2005 09:15PM
SYSTEM WIRING DIAGRAMS

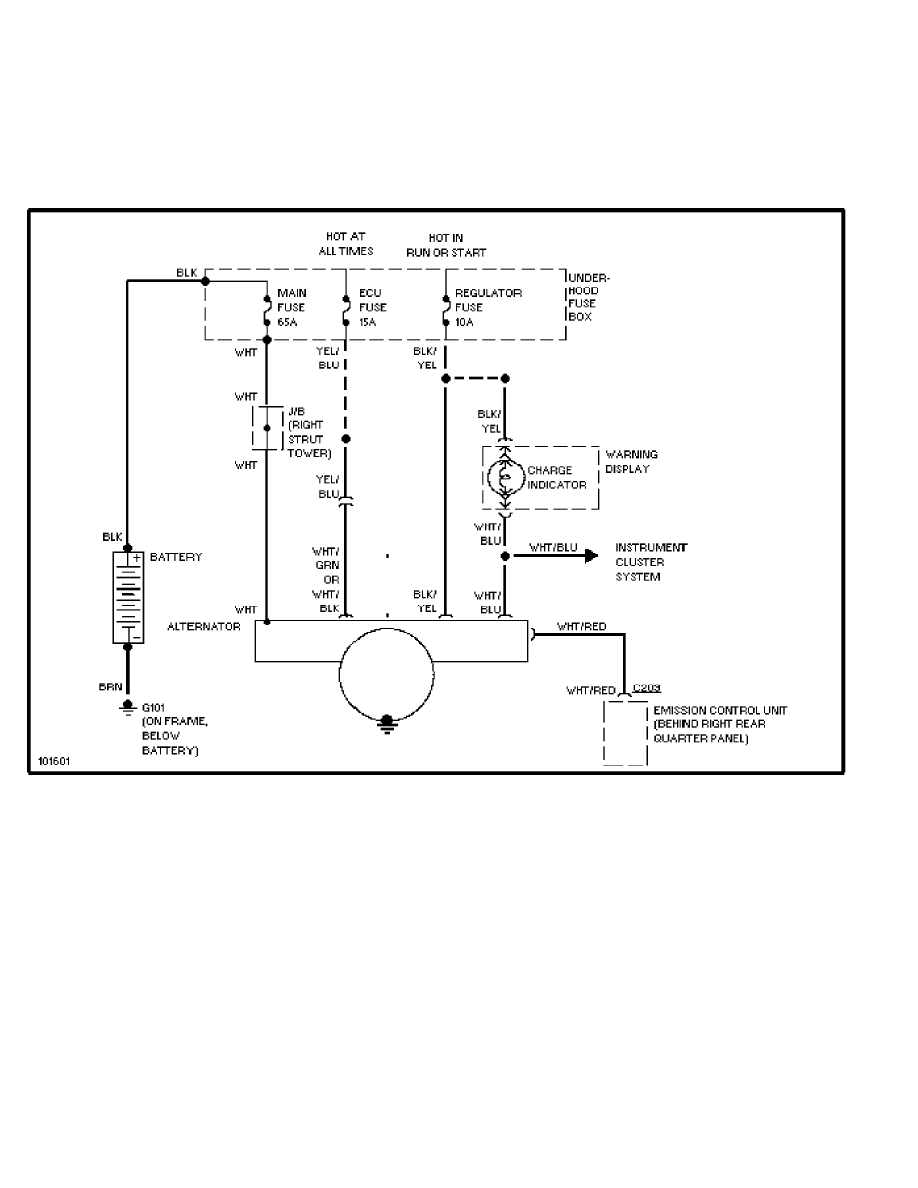

Charging Circuit, EFI (p. 8)
1986 Honda Prelude
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, June 09, 2005 09:15PM
SYSTEM WIRING DIAGRAMS
Starting Circuit (p. 9)
1986 Honda Prelude
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, June 09, 2005 09:15PM
SYSTEM WIRING DIAGRAMS

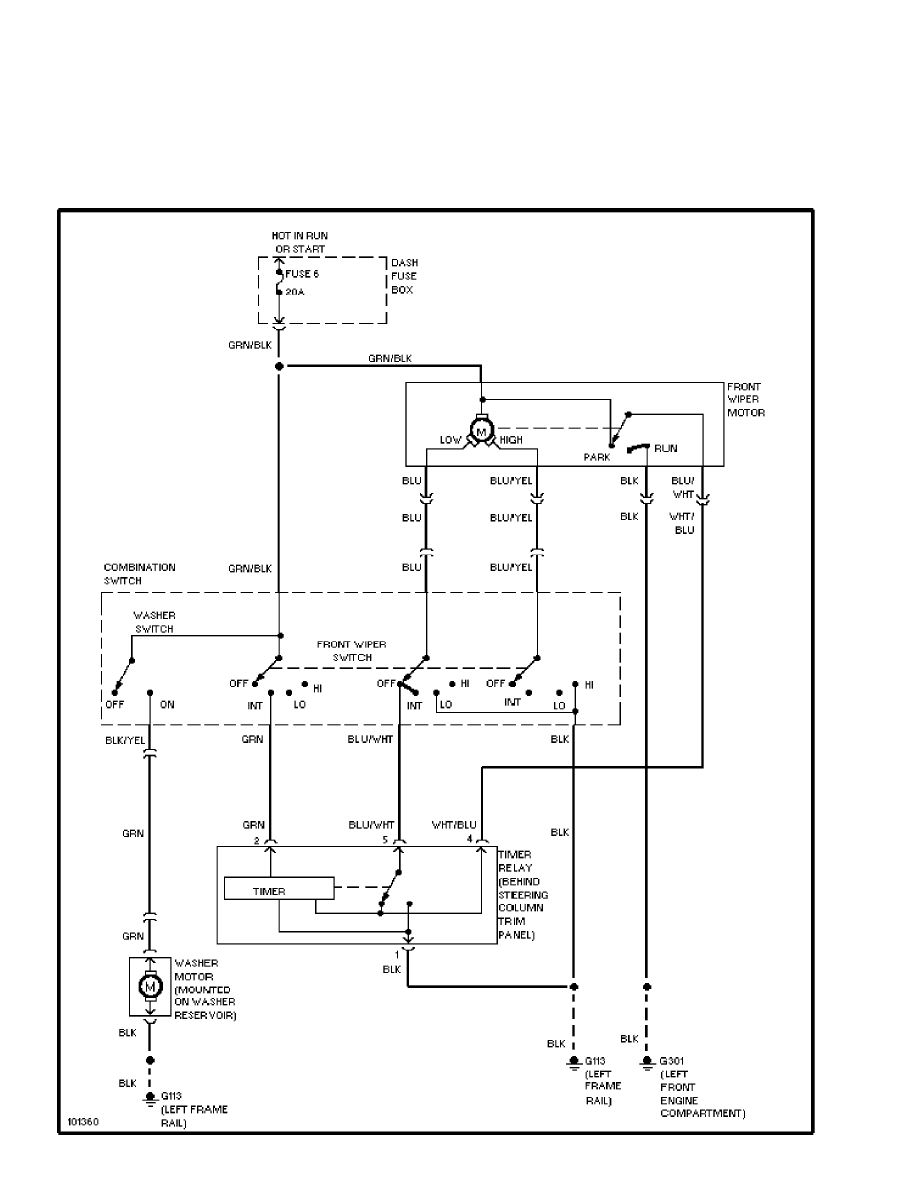

Wiper/Washer Circuit (p. 10)
1986 Honda Prelude
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, June 09, 2005 09:15PM
WIRING DIAGRAMS

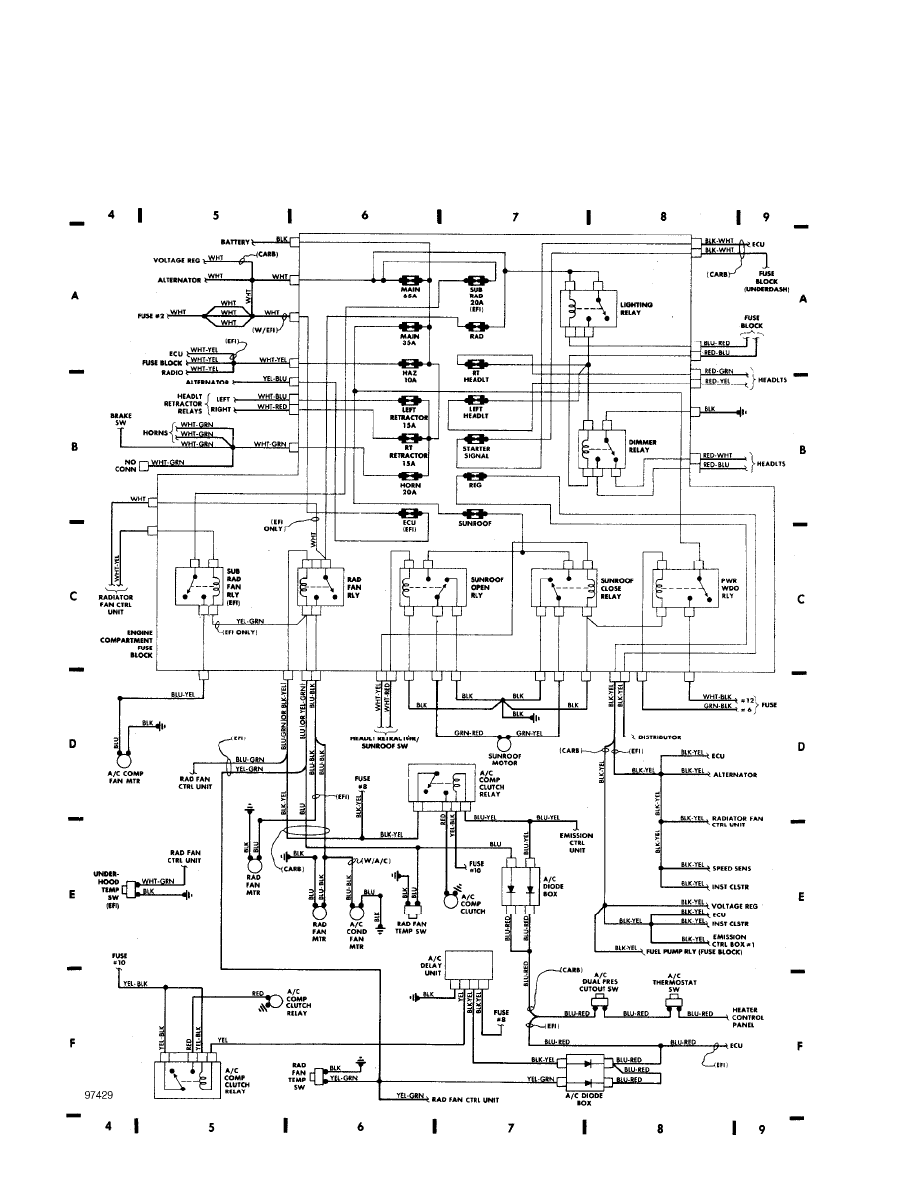

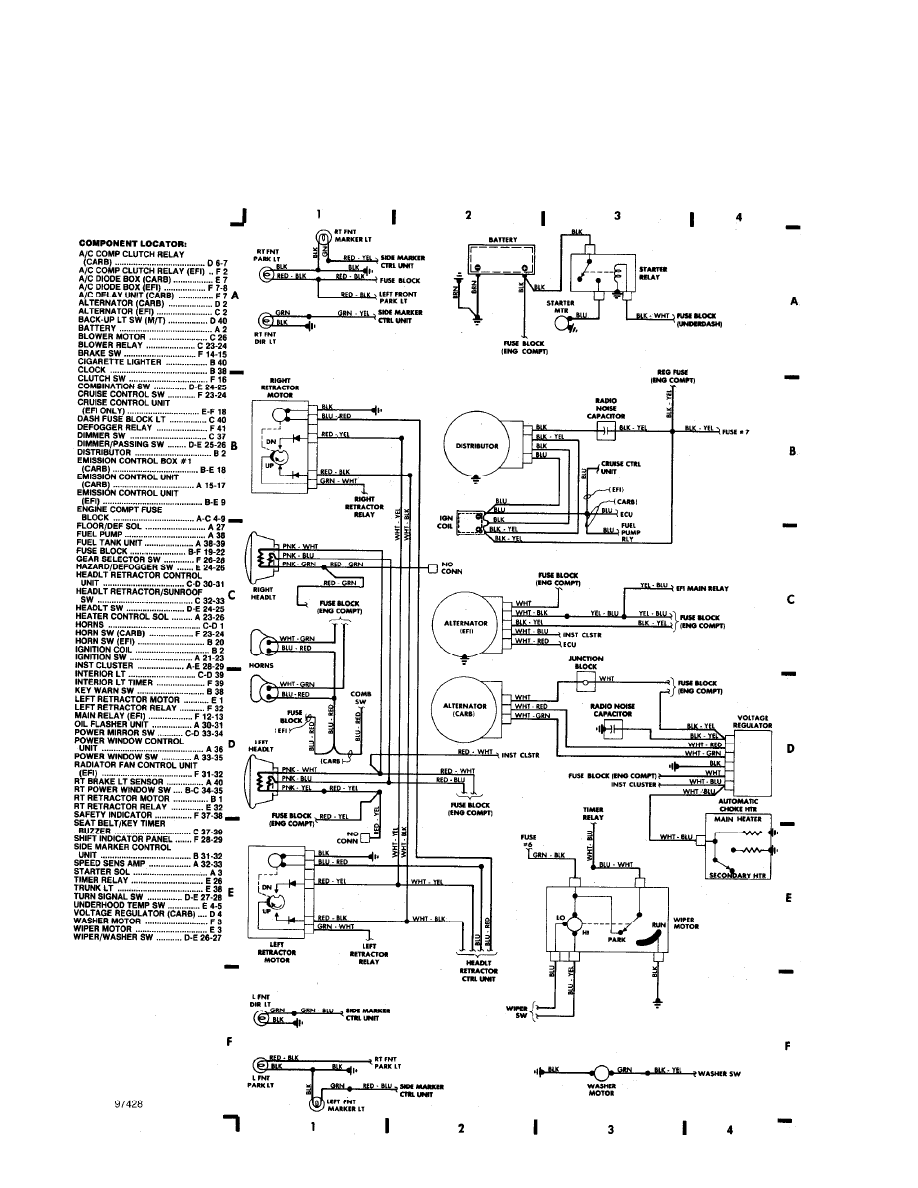

Fig. 1: Engine Compartment
1986 Honda Prelude
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, June 09, 2005 09:15PM
WIRING DIAGRAMS
Fig. 2: Engine Compartment (Cont.) (p. 2)
1986 Honda Prelude
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, June 09, 2005 09:15PM
WIRING DIAGRAMS

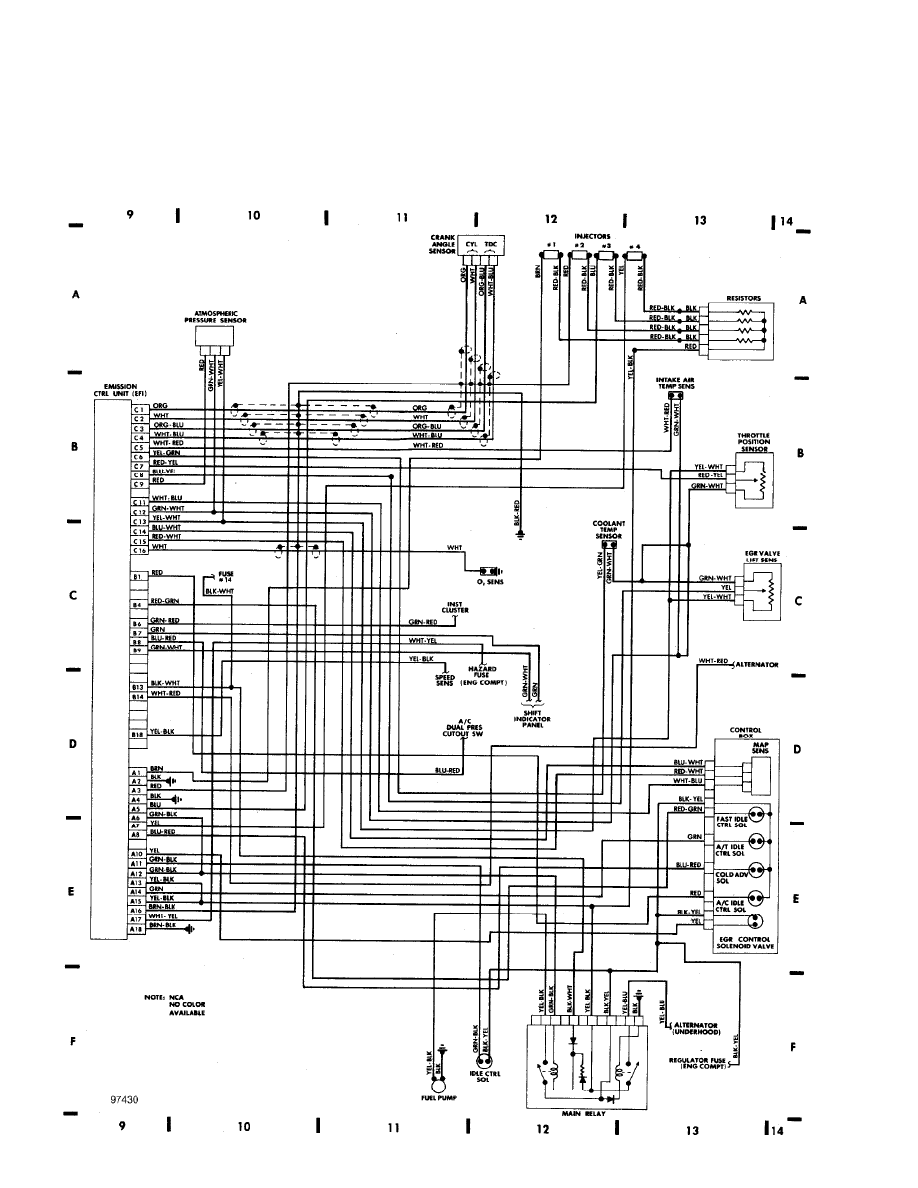

Fig. 3: Engine Compartment (Cont.) (p. 3)
1986 Honda Prelude
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, June 09, 2005 09:15PM
WIRING DIAGRAMS

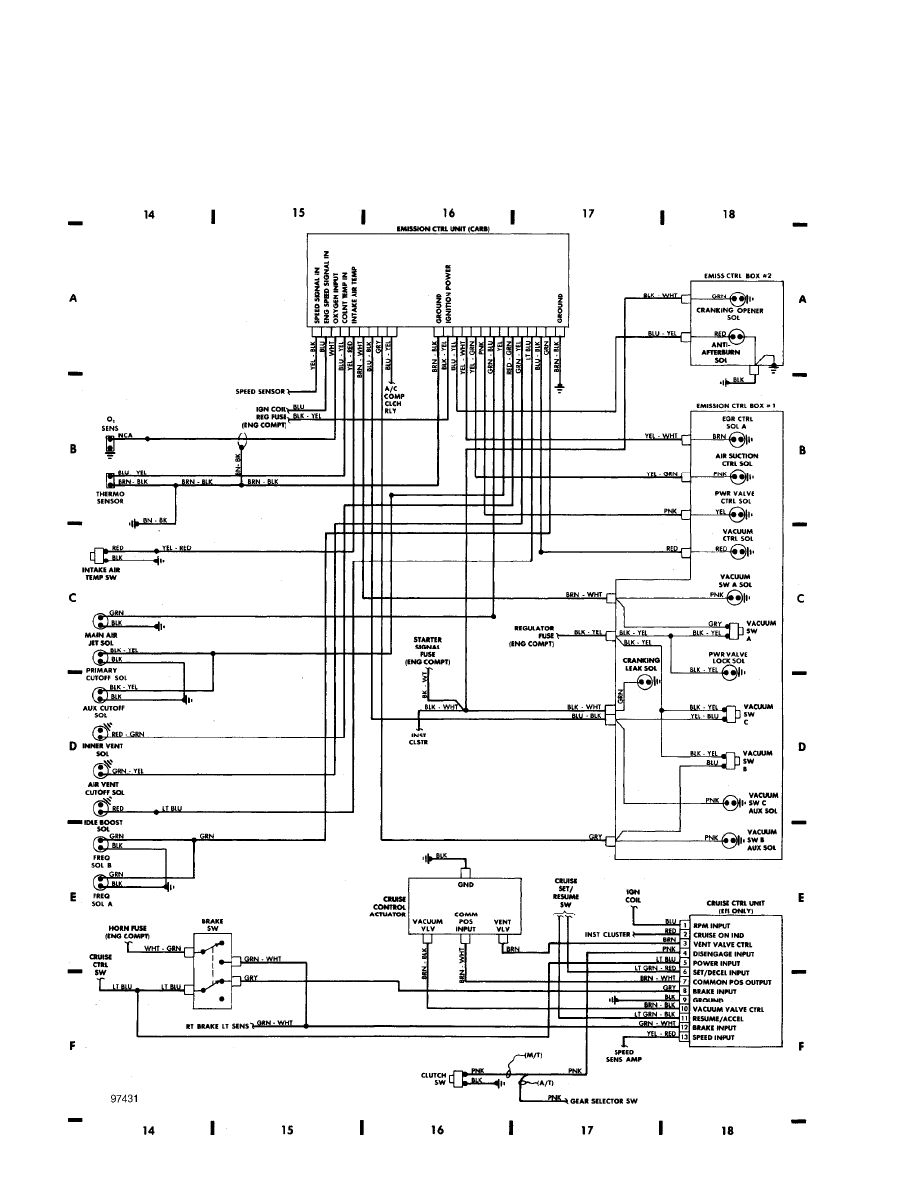

Fig. 4: Engine Compartment & Underdash (p. 4)
1986 Honda Prelude
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, June 09, 2005 09:15PM
WIRING DIAGRAMS

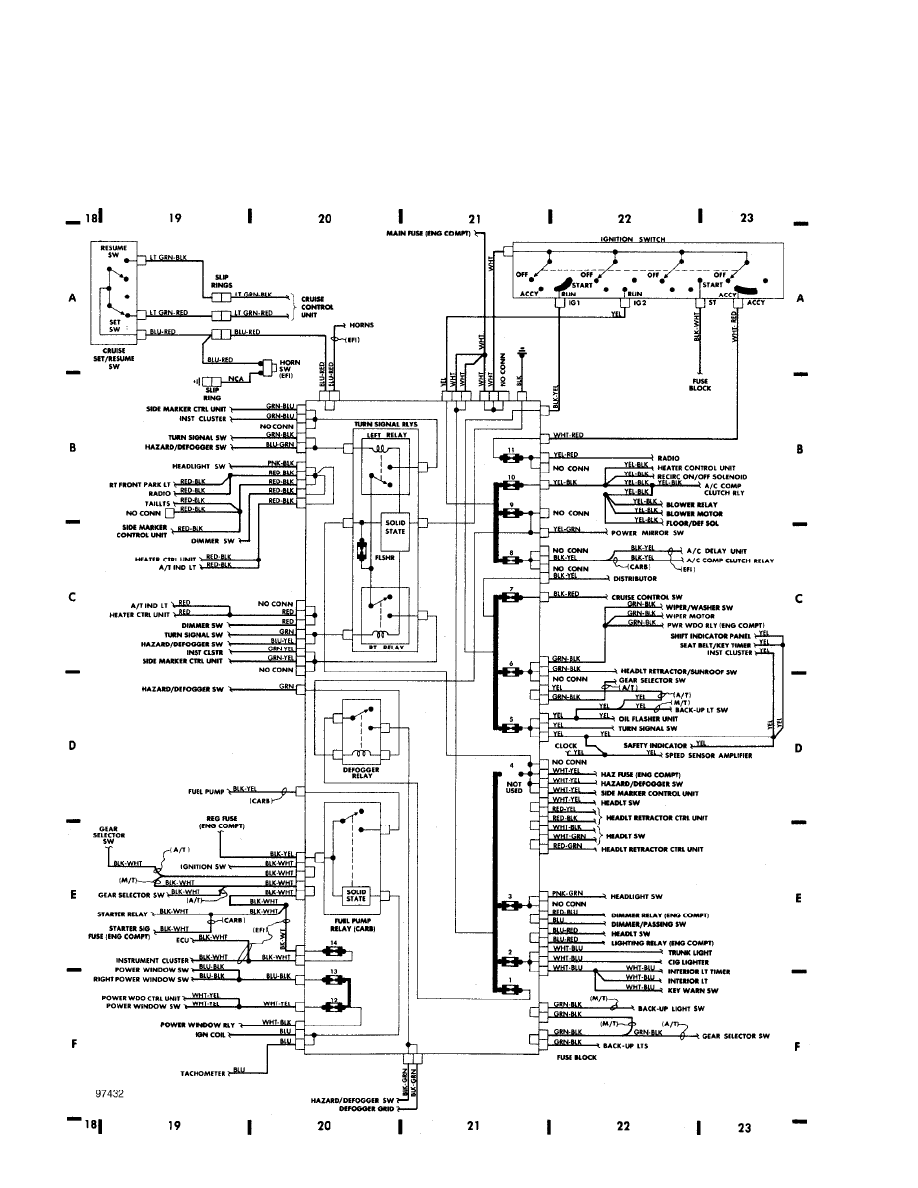

Fig. 5: Underdash (Cont.) & Fuse Block (p. 5)
1986 Honda Prelude
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, June 09, 2005 09:15PM
WIRING DIAGRAMS

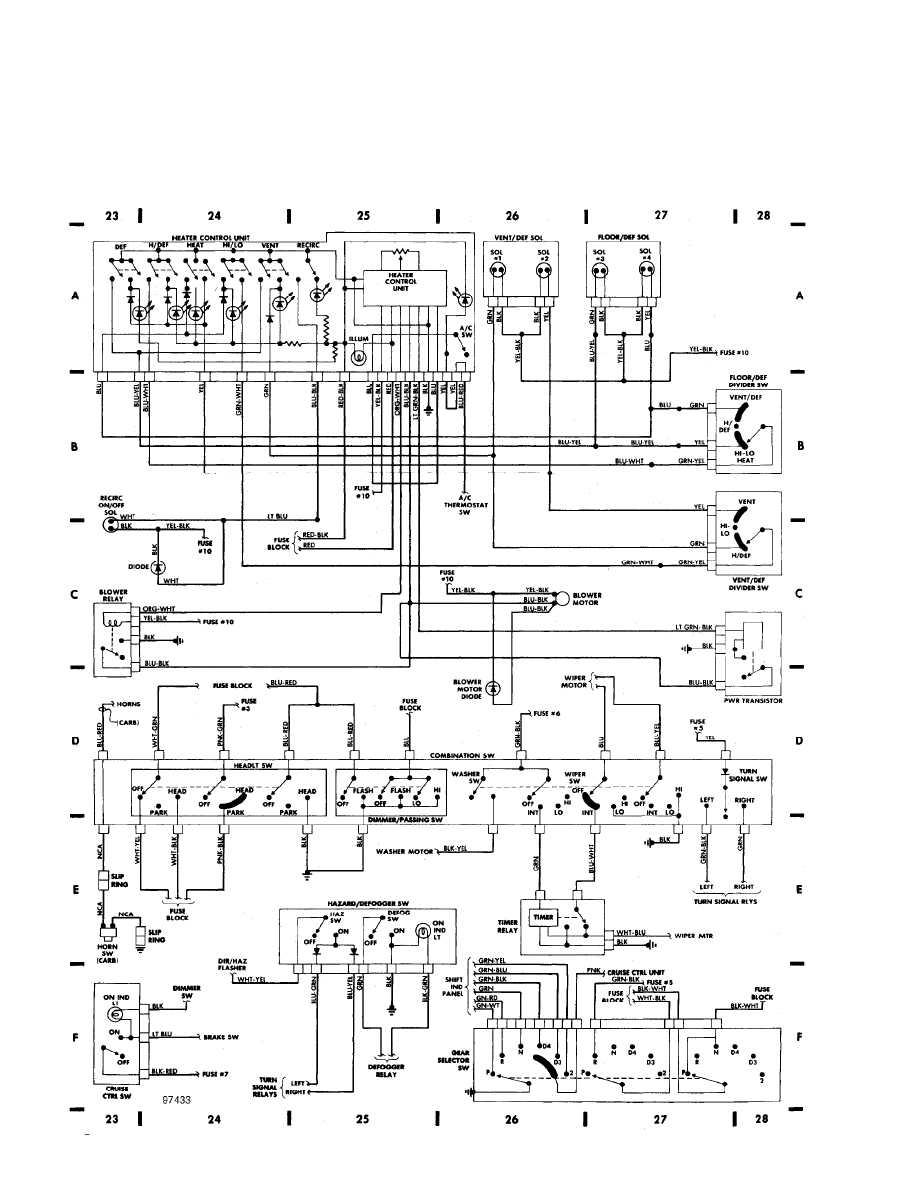

Fig. 6: Underdash (Cont.) (p. 6)
1986 Honda Prelude
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, June 09, 2005 09:15PM
WIRING DIAGRAMS

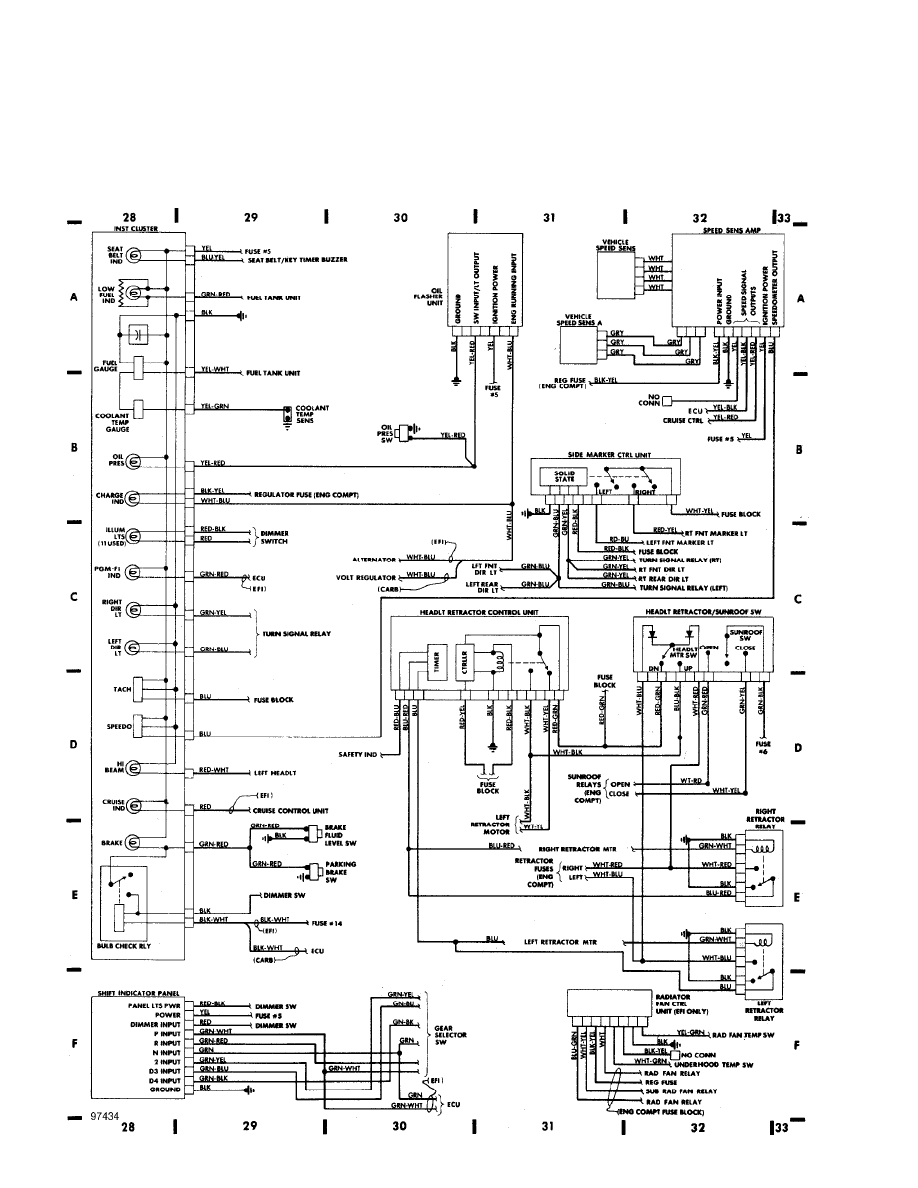

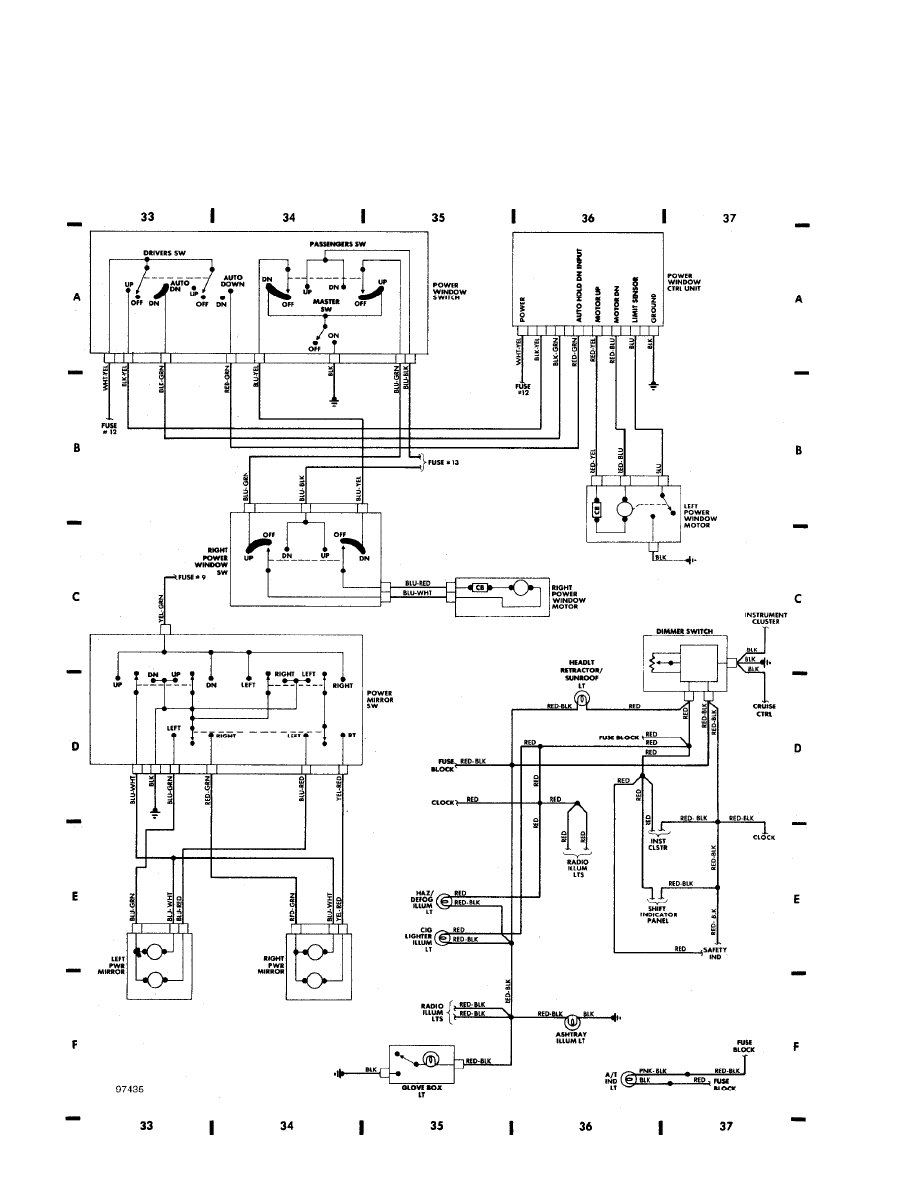

Fig. 7: Instrument Panel (p. 7)
1986 Honda Prelude
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, June 09, 2005 09:15PM
WIRING DIAGRAMS
Fig. 8: Rear Compartment & Accessories (p. 8)
1986 Honda Prelude
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, June 09, 2005 09:15PM
WIRING DIAGRAMS

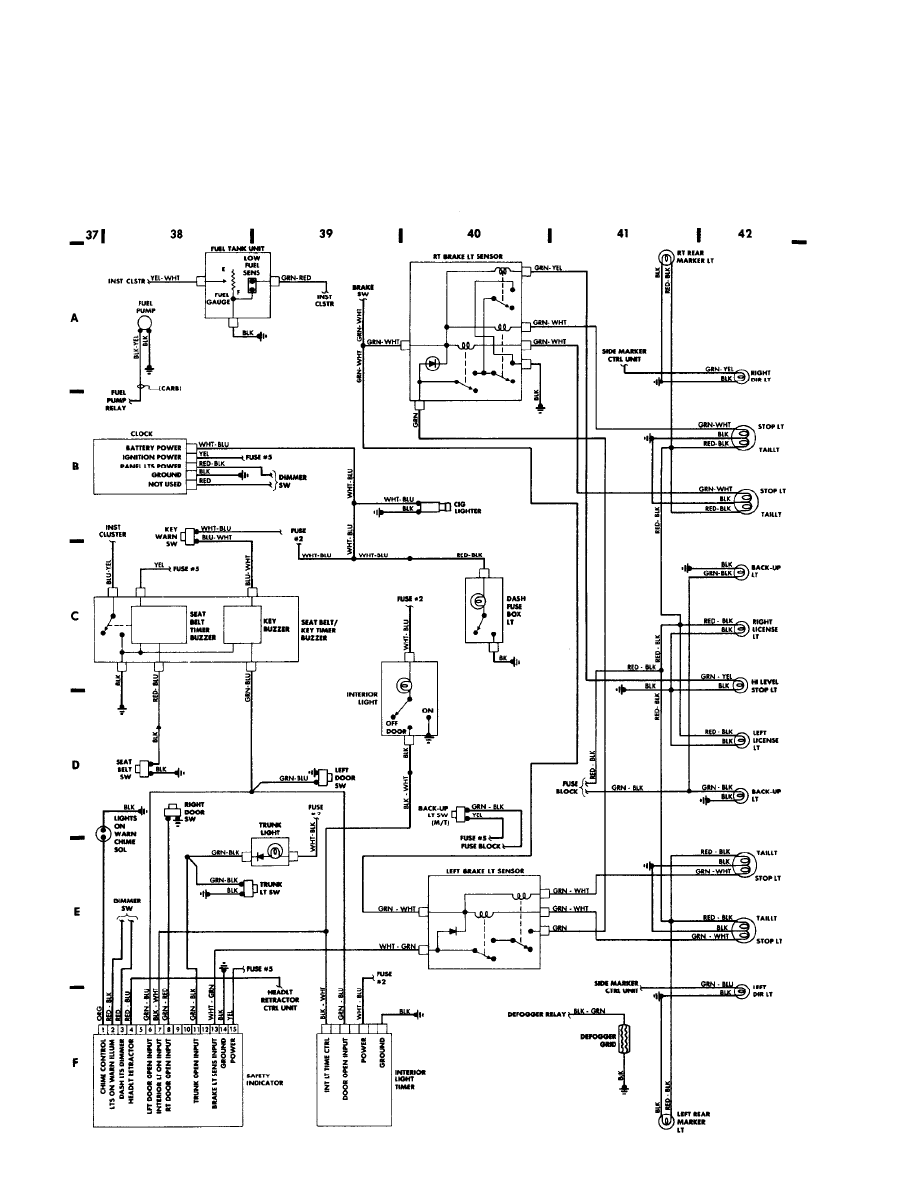

Fig. 9: Rear Compartment & Accessories (Cont.) (p. 9)
1986 Honda Prelude
For cdr101@wp.pl
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, June 09, 2005 09:15PM
