SYSTEM WIRING DIAGRAMS

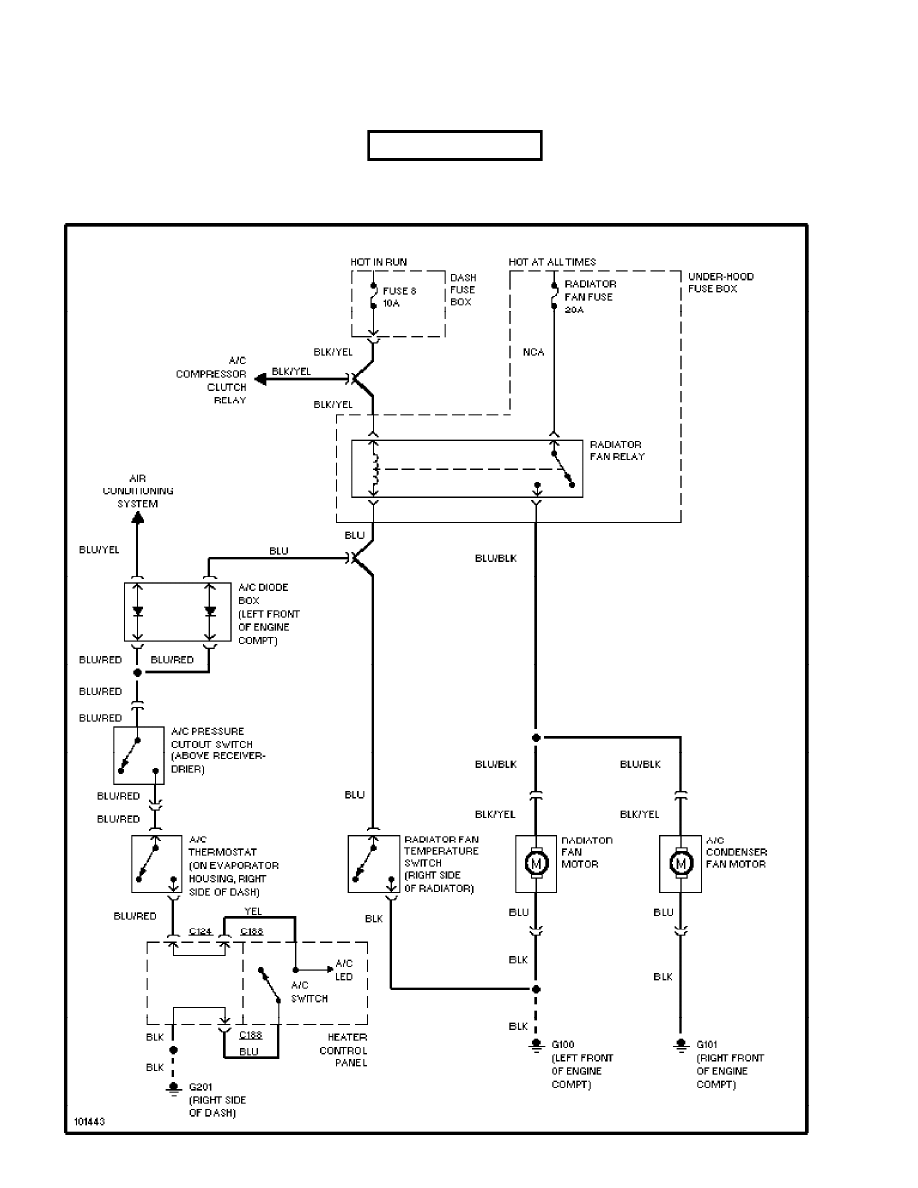

Cooling Fan Circuit
1985 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:23PM
CDR@WP.PL
SYSTEM WIRING DIAGRAMS

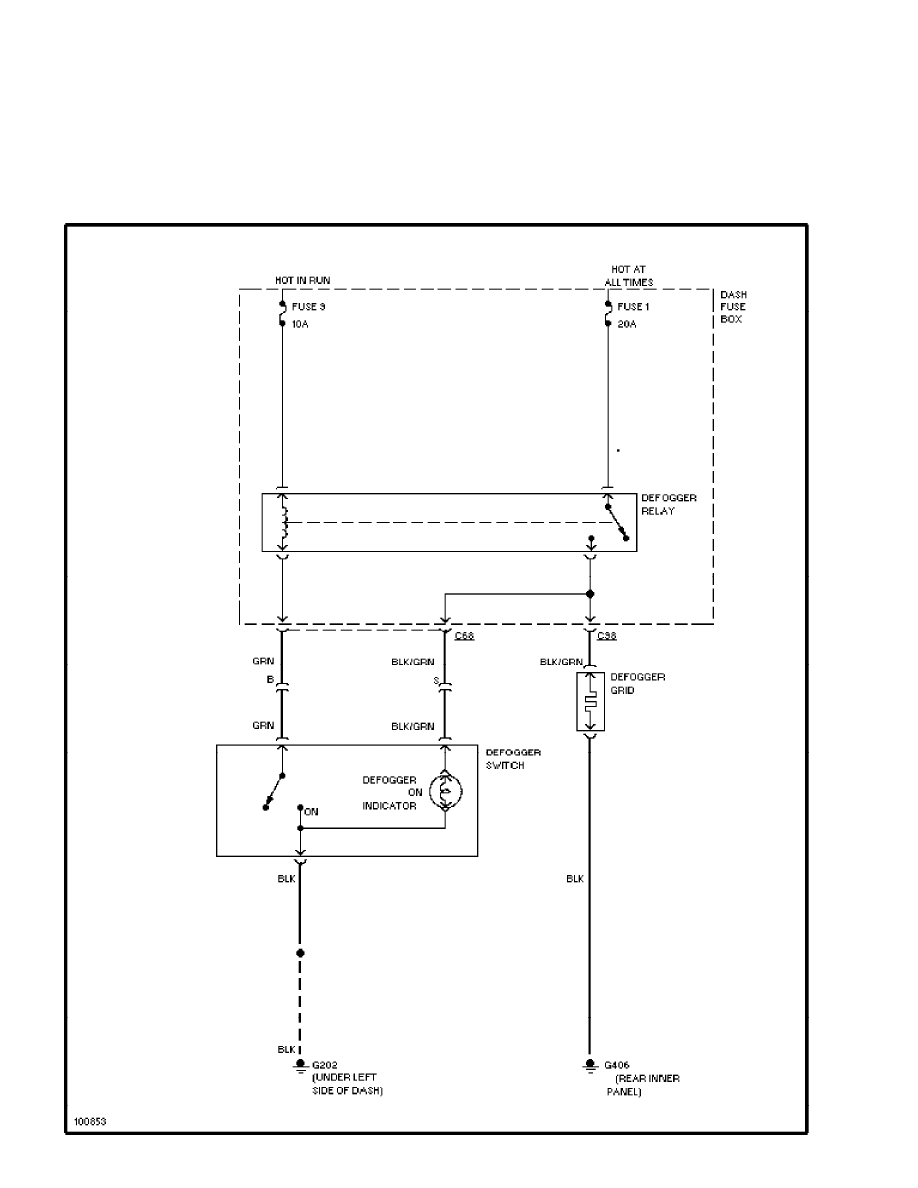

Defogger Circuit (p. 2)
1985 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:23PM
SYSTEM WIRING DIAGRAMS

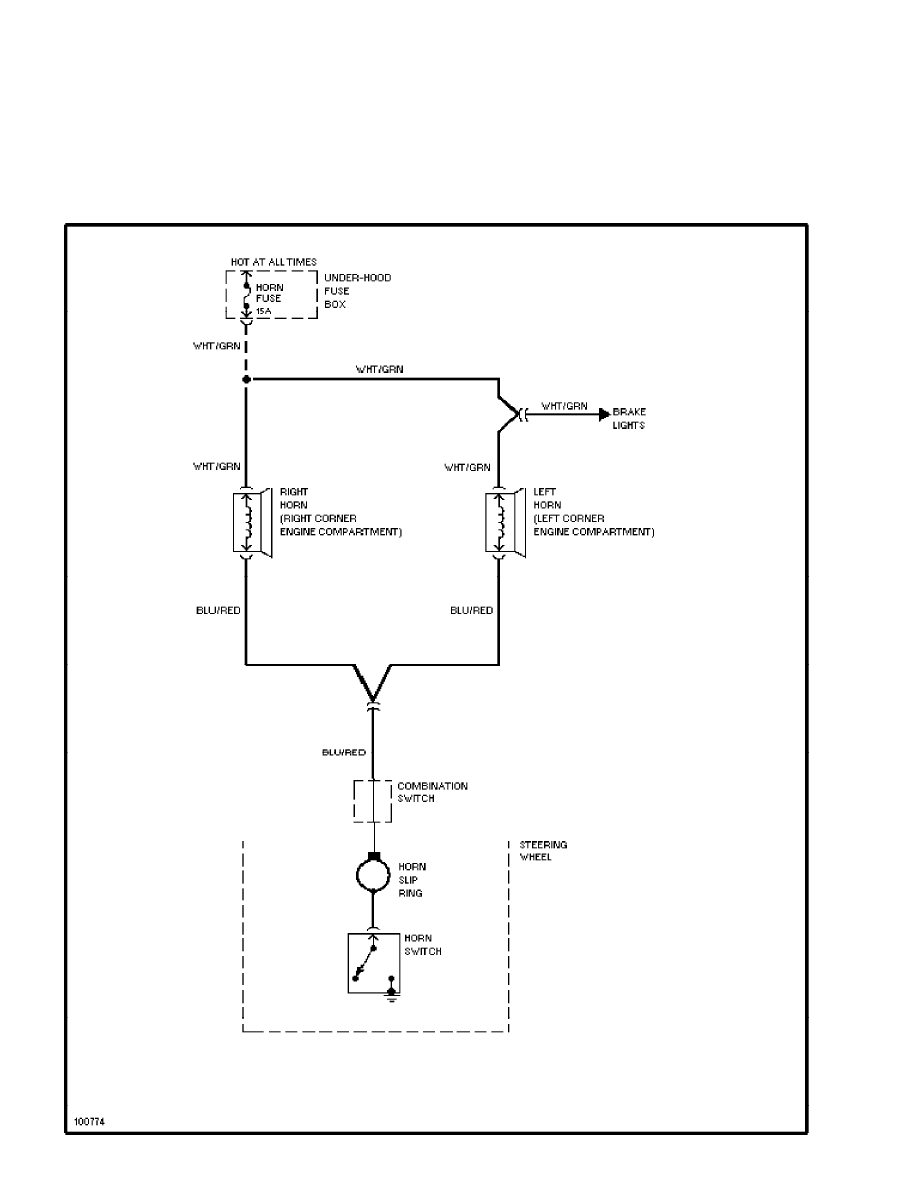

Horn Circuit (p. 3)
1985 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:23PM
SYSTEM WIRING DIAGRAMS

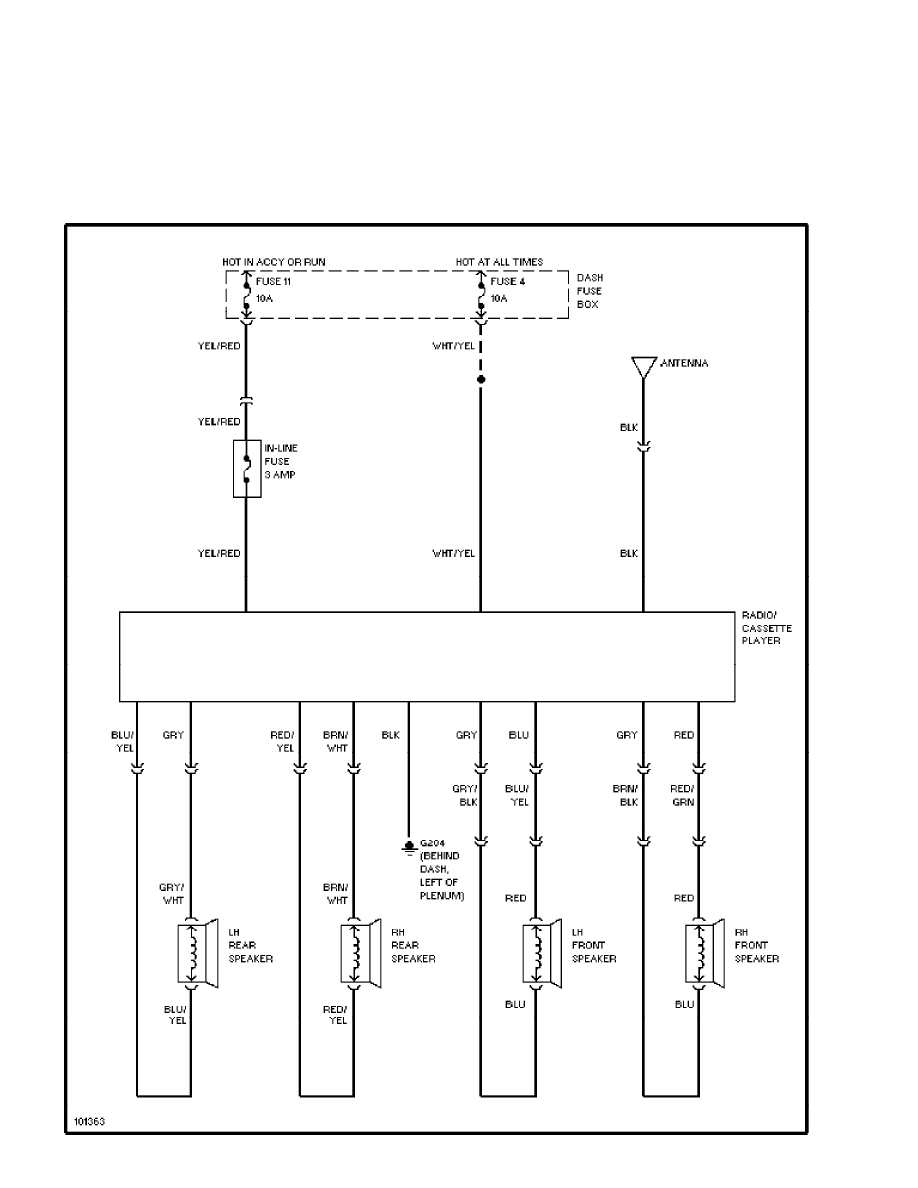

Radio Circuits (p. 4)
1985 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:23PM

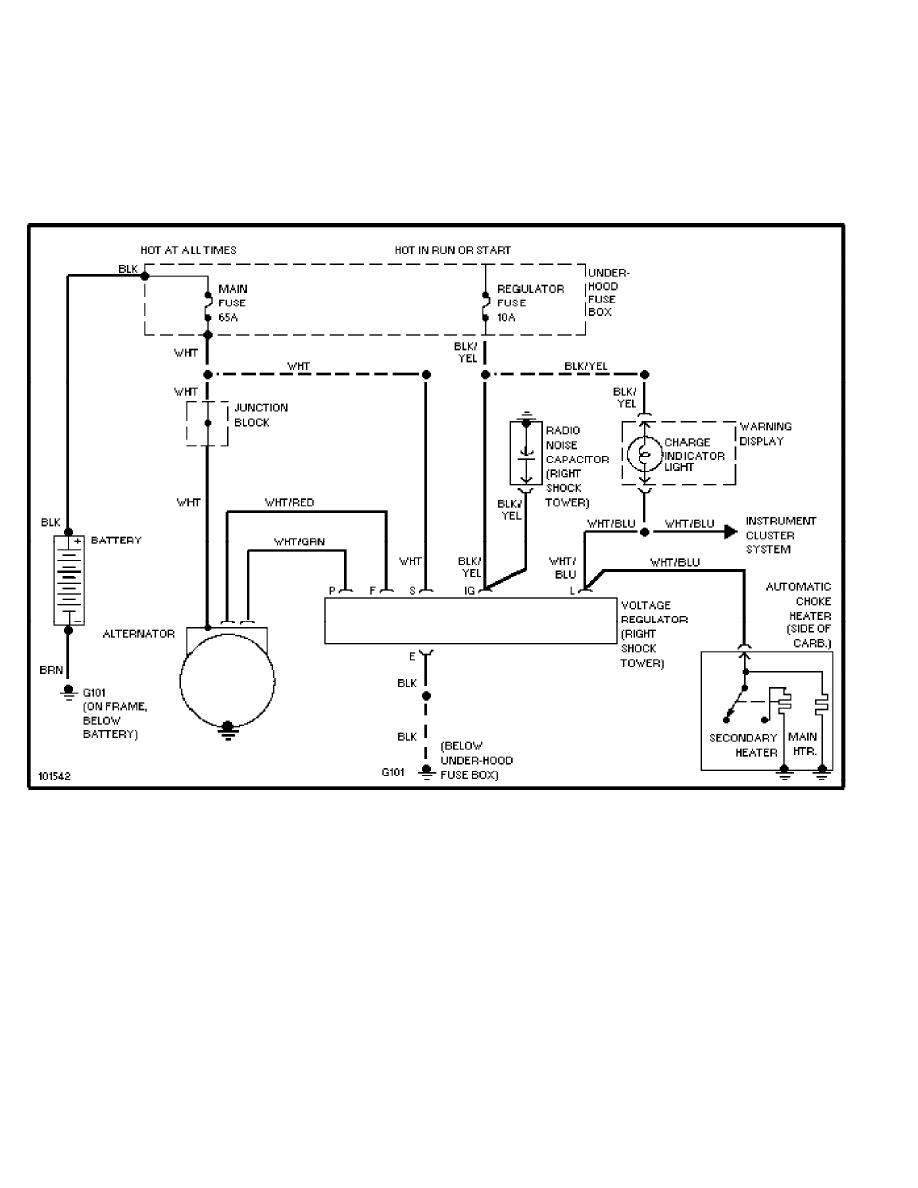

SYSTEM WIRING DIAGRAMS
Charging Circuit (p. 5)
1985 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:23PM

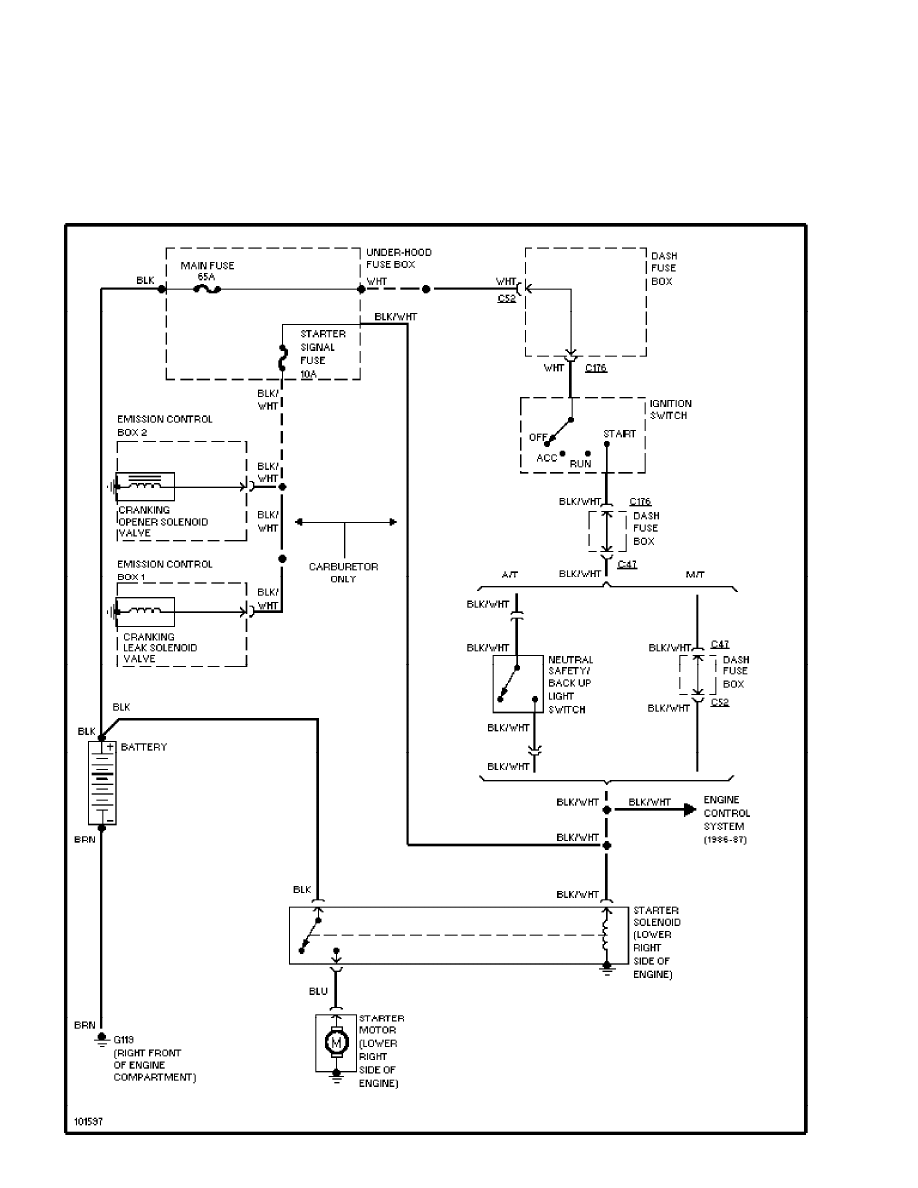

SYSTEM WIRING DIAGRAMS
Starting Circuit (p. 6)
1985 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:23PM

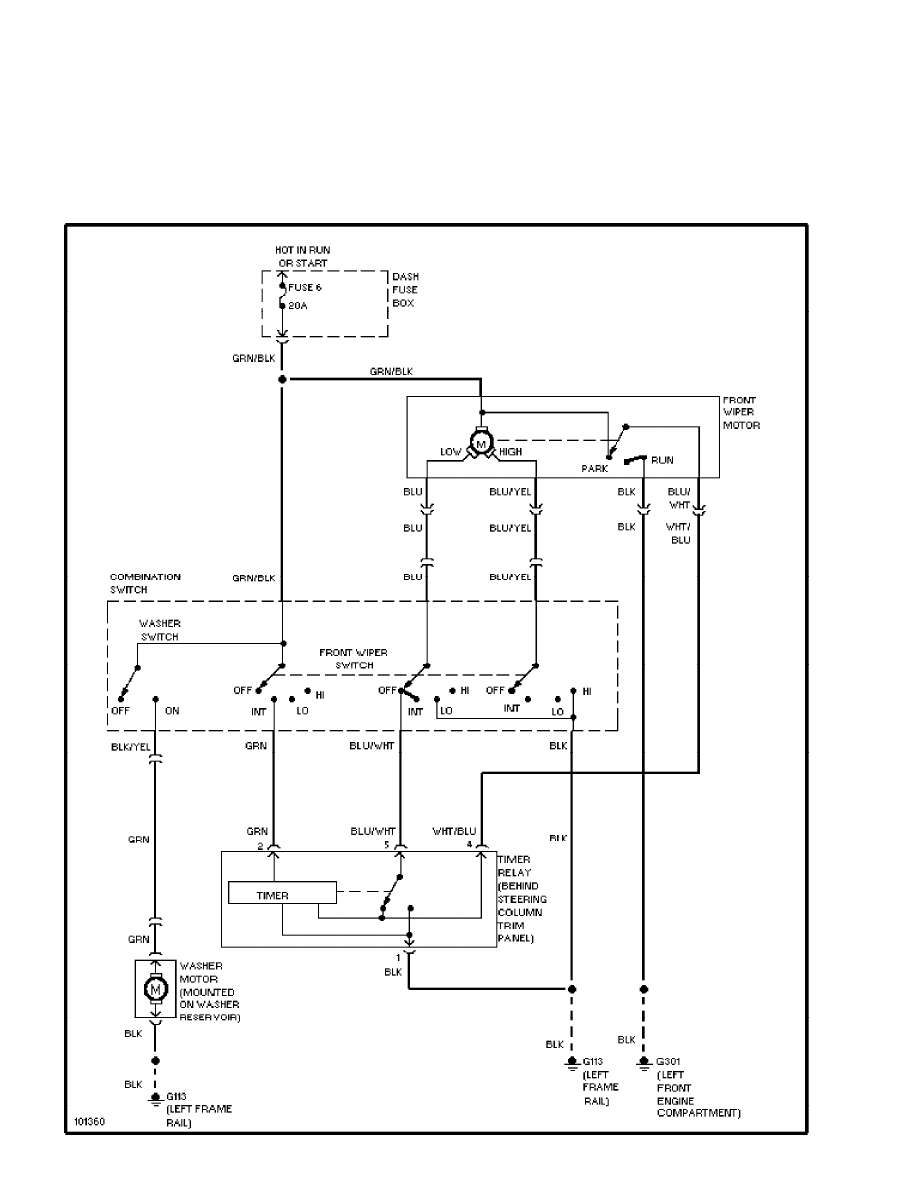

SYSTEM WIRING DIAGRAMS
Wiper/Washer Circuit (p. 7)
1985 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:23PM
WIRING DIAGRAMS

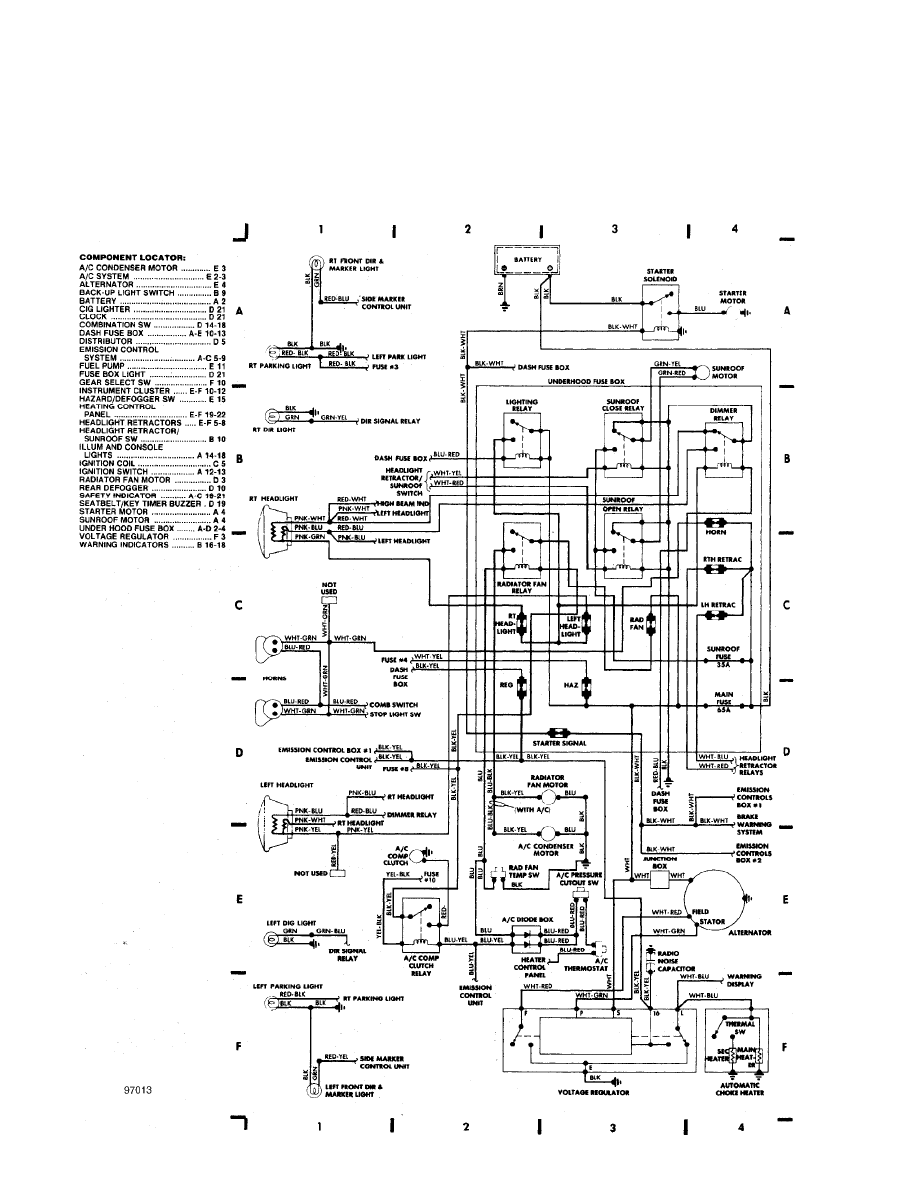

Fig. 1: Engine Compartment
1985 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:24PM
WIRING DIAGRAMS

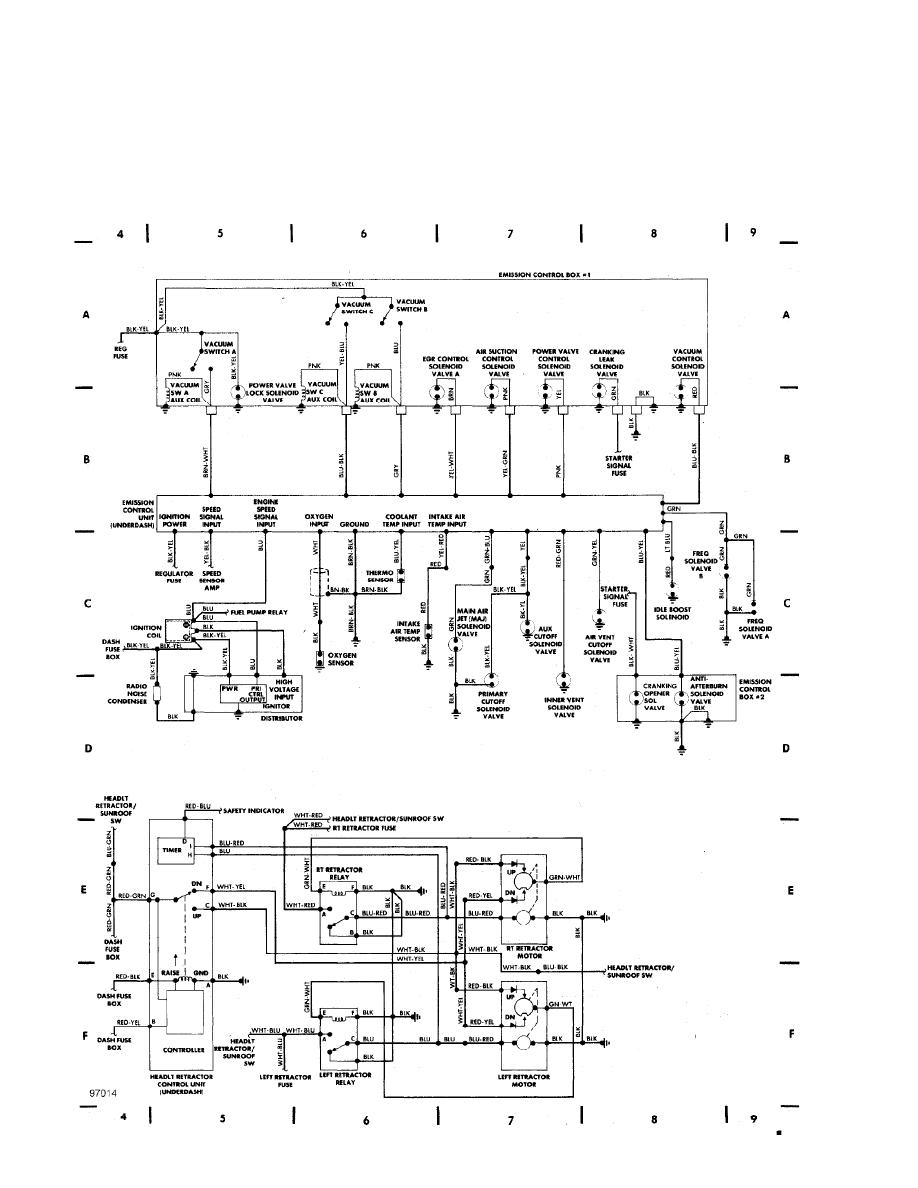

Fig. 2: Engine Compartment (Cont.) (p. 2)
1985 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:24PM
WIRING DIAGRAMS

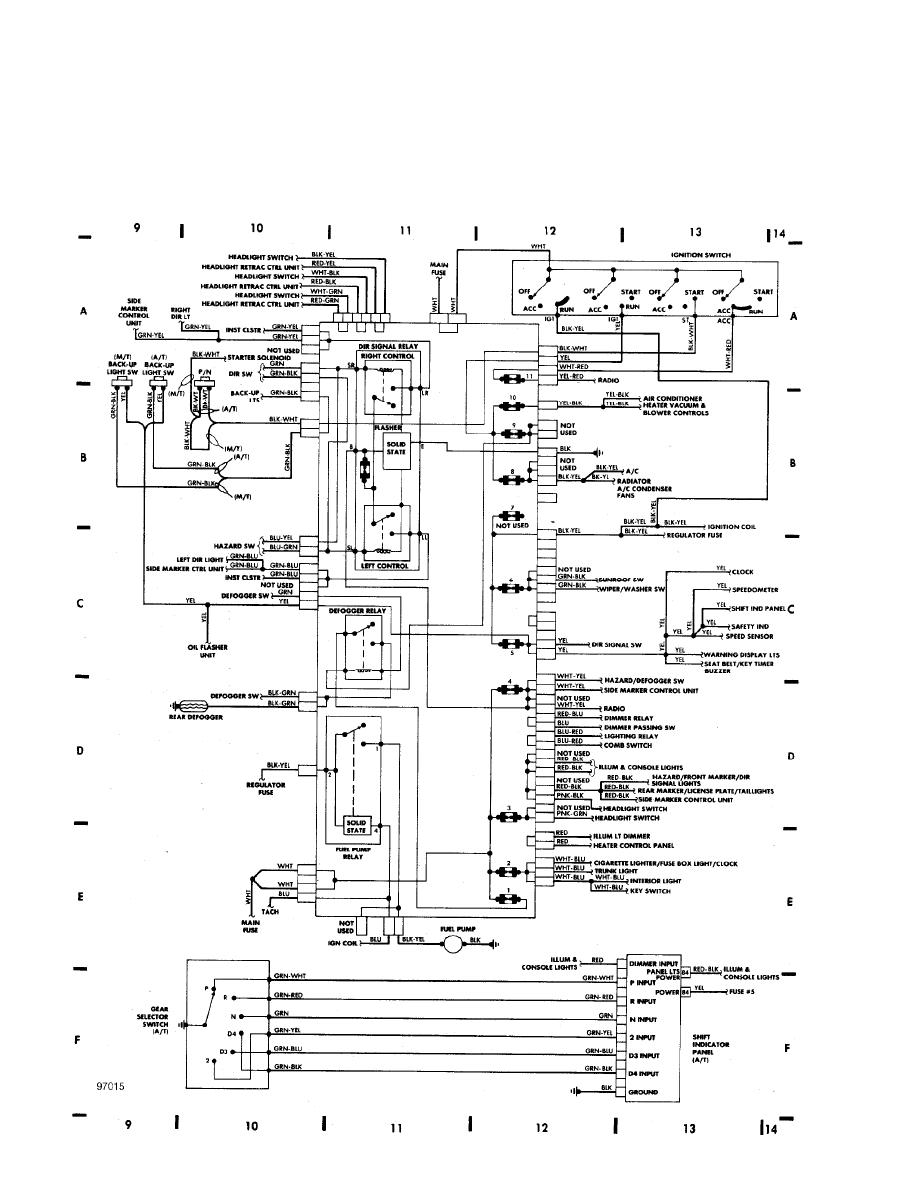

Fig. 3: Underdash (p. 3)
1985 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:24PM
WIRING DIAGRAMS

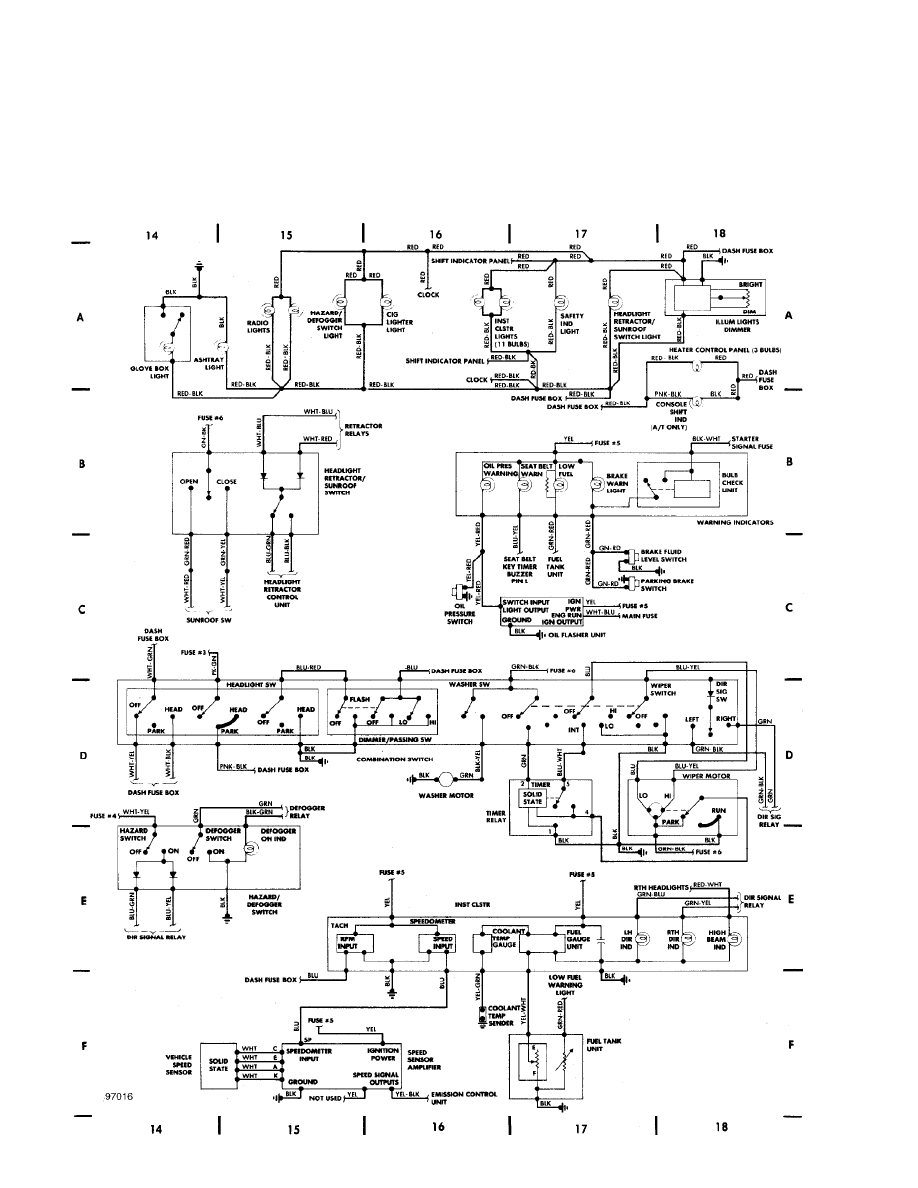

Fig. 4: Instrument Panel (p. 4)
1985 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:24PM

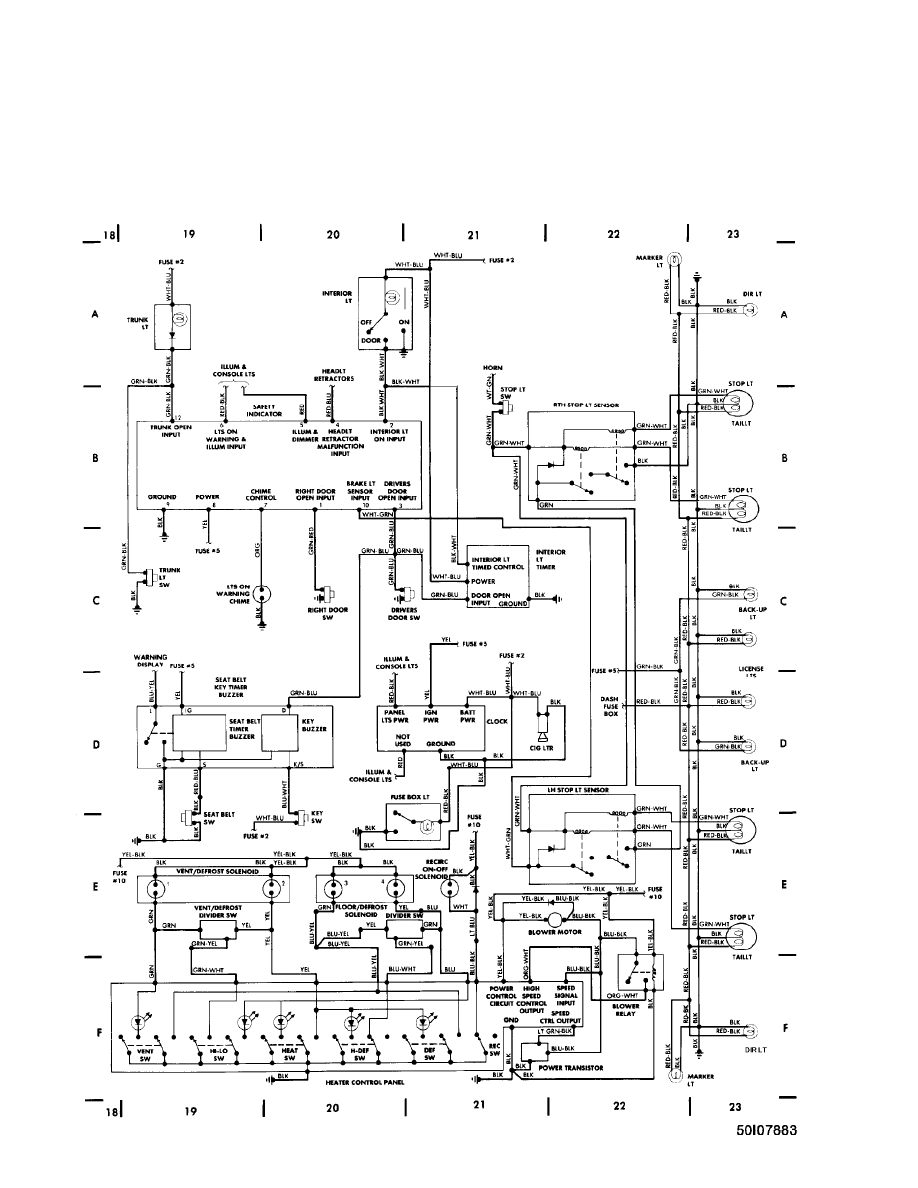

WIRING DIAGRAMS
Fig. 5: Rear Compartment & Accessories (p. 5)
1985 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:24PM
