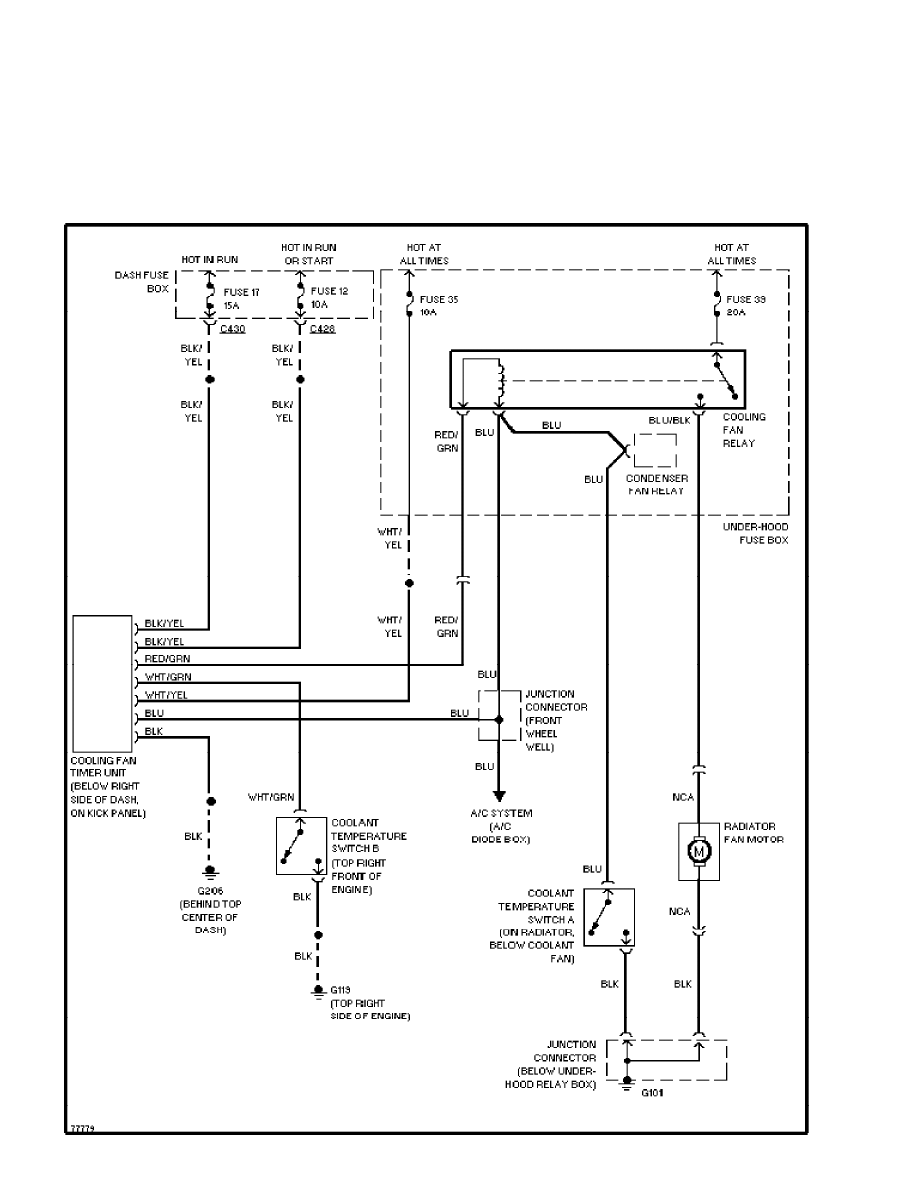

SYSTEM WIRING DIAGRAMS

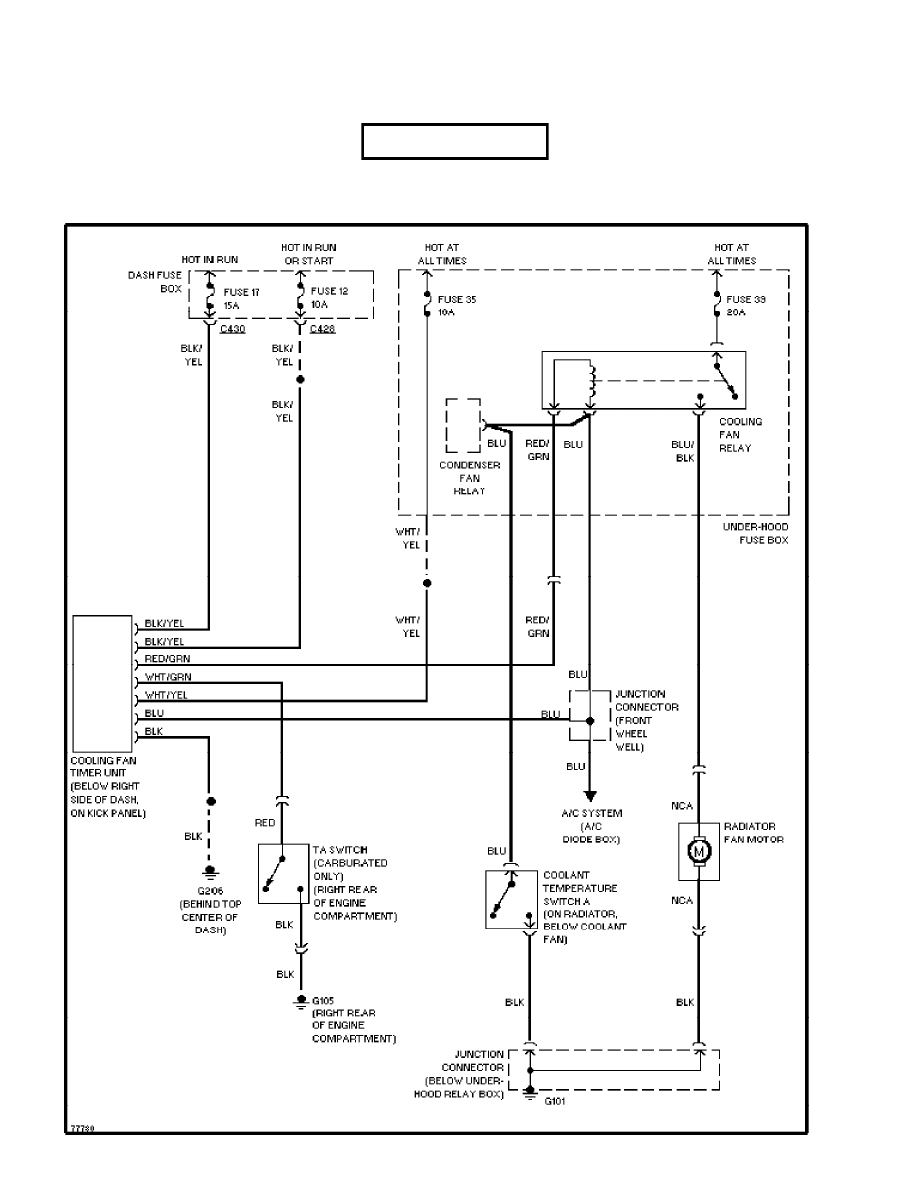

2.0L, Cooling Fan Circuit, W/ A/C
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
CDR@WP.PL
SYSTEM WIRING DIAGRAMS

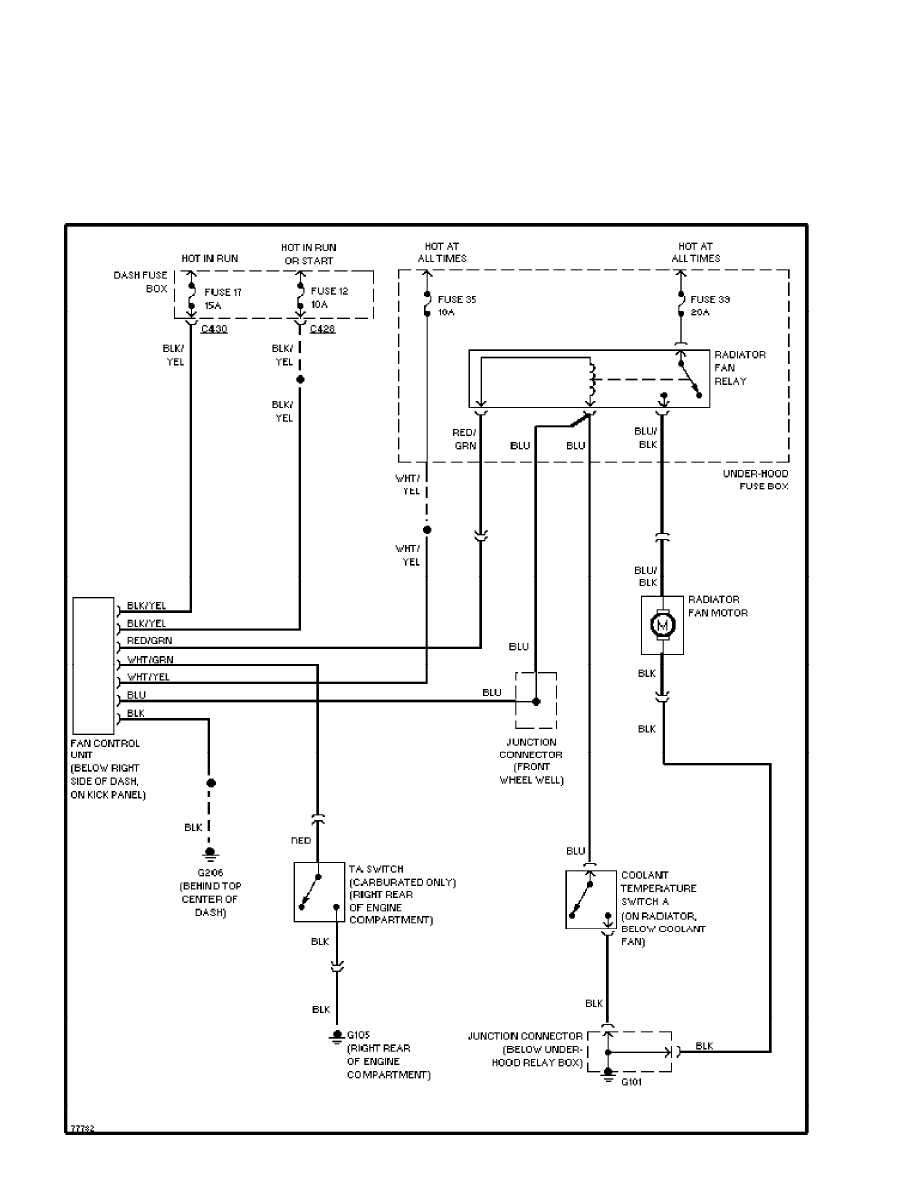

2.0L, Cooling Fan Circuit, W/O A/C (p. 2)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
SYSTEM WIRING DIAGRAMS
2.1L, Cooling Fan Circuit, W/ A/C (p. 3)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
SYSTEM WIRING DIAGRAMS
2.1L, Cooling Fan Circuit, W/O A/C (p. 4)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM

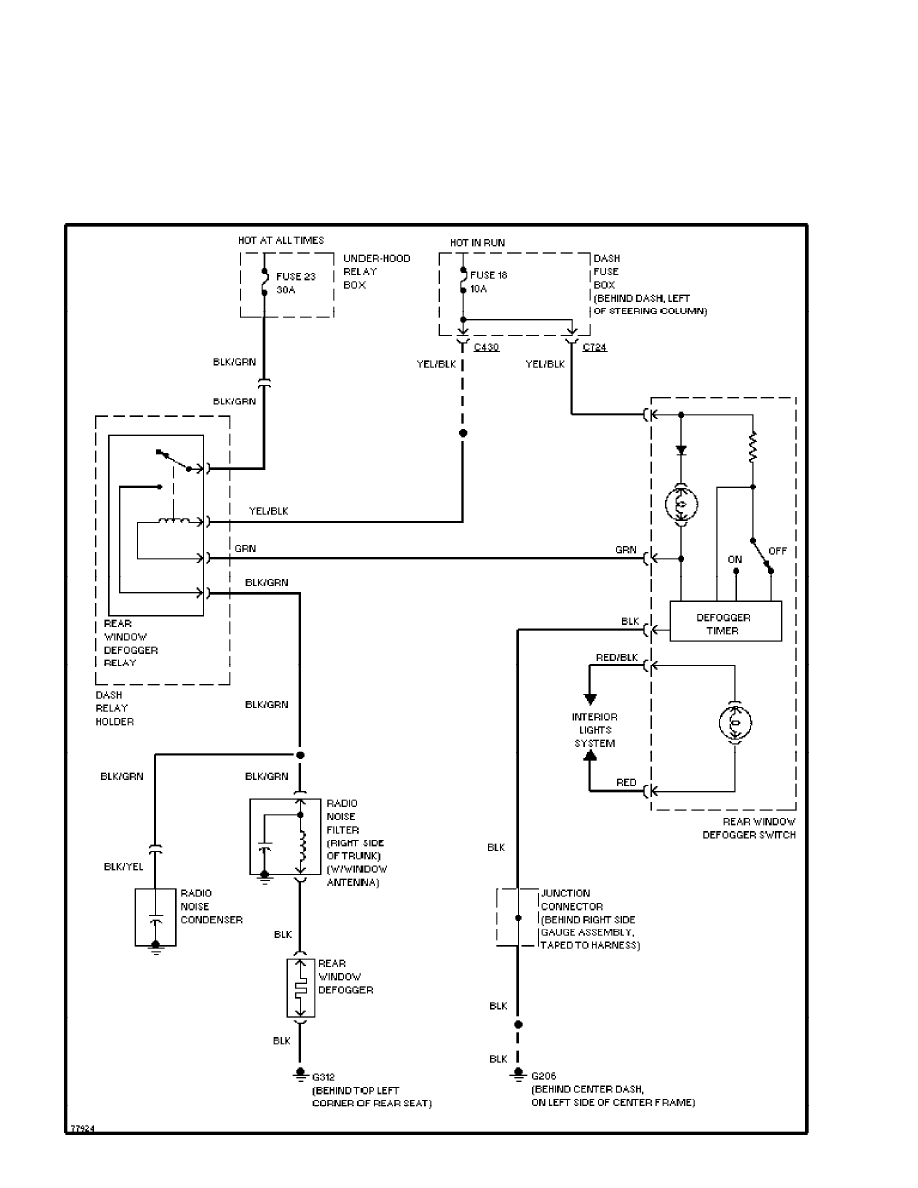

SYSTEM WIRING DIAGRAMS
Defogger Circuit (p. 5)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM

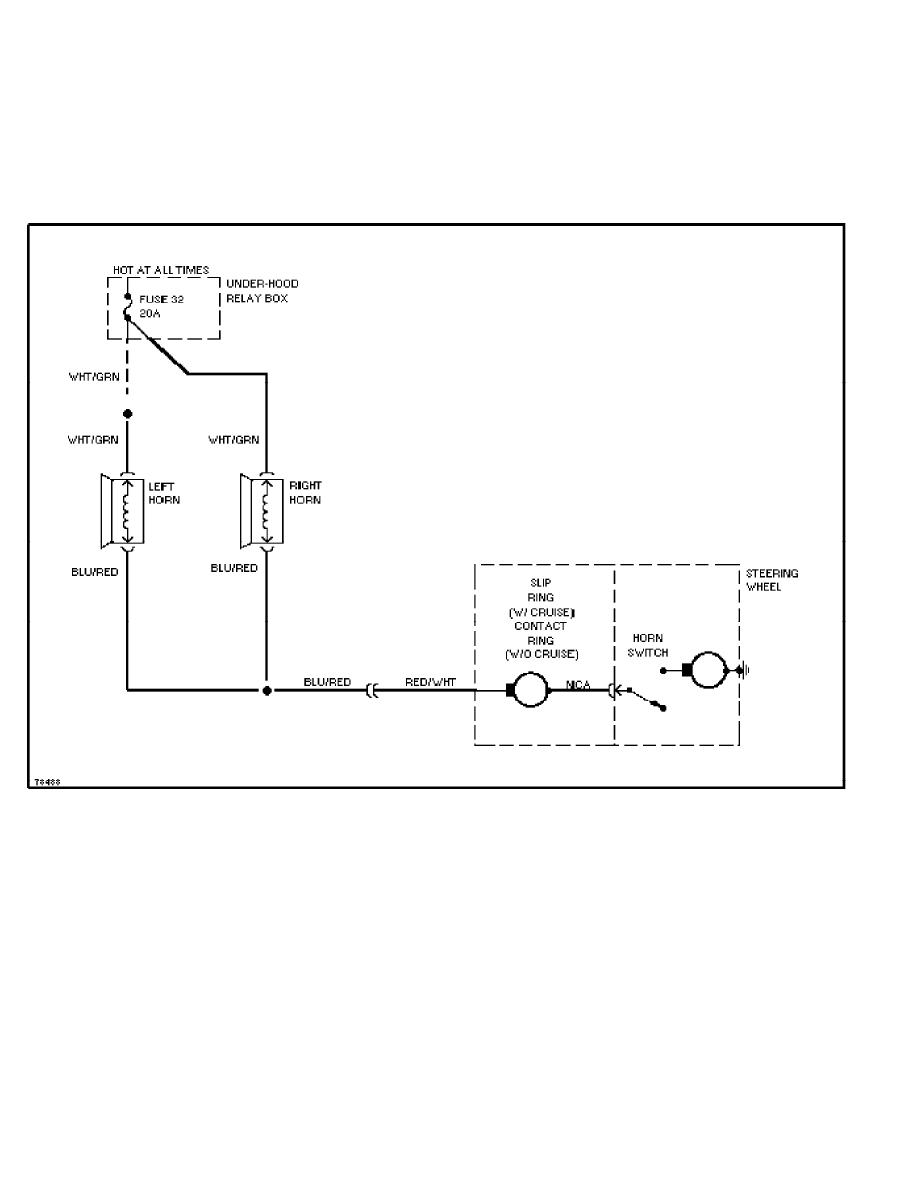

SYSTEM WIRING DIAGRAMS
Horn Circuit (p. 6)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
SYSTEM WIRING DIAGRAMS

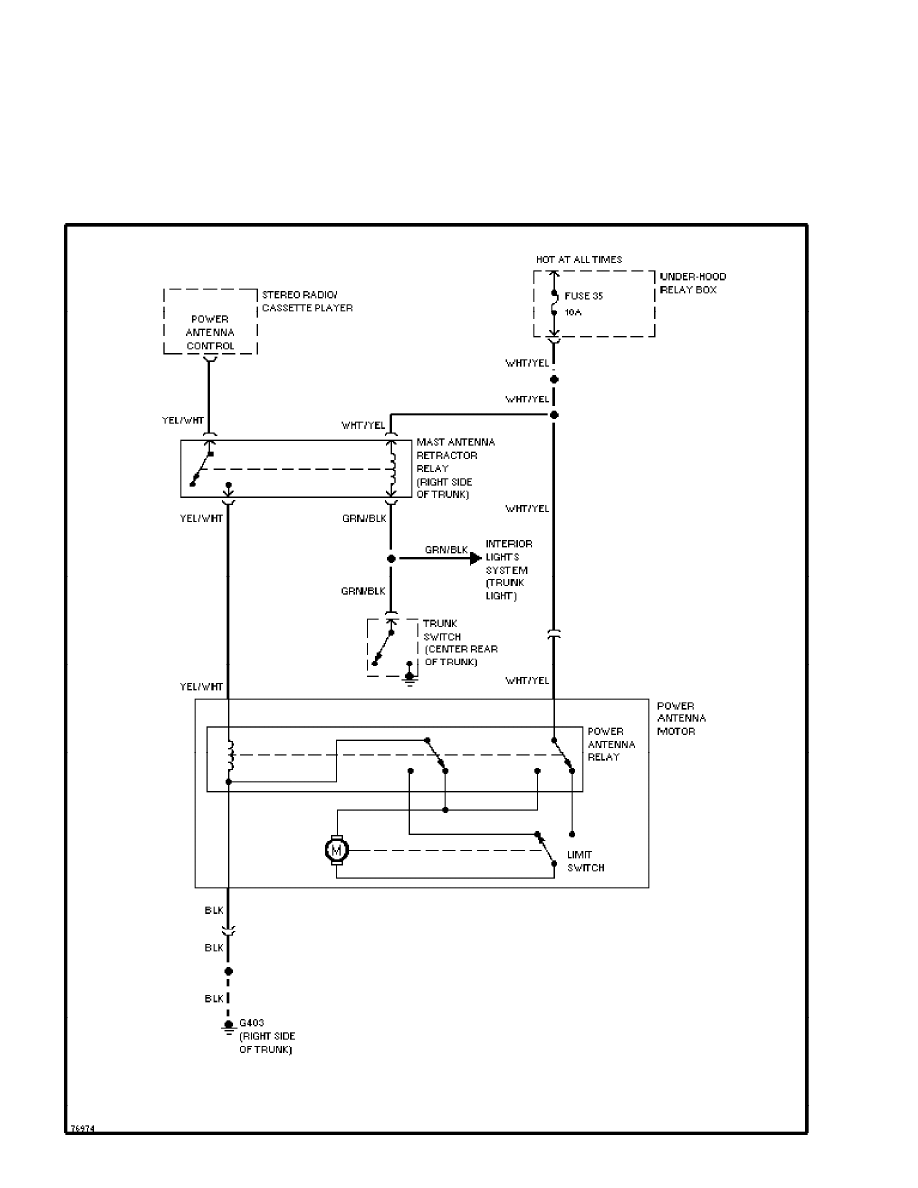

Power Antenna Circuit, W/ Spoiler (p. 7)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM

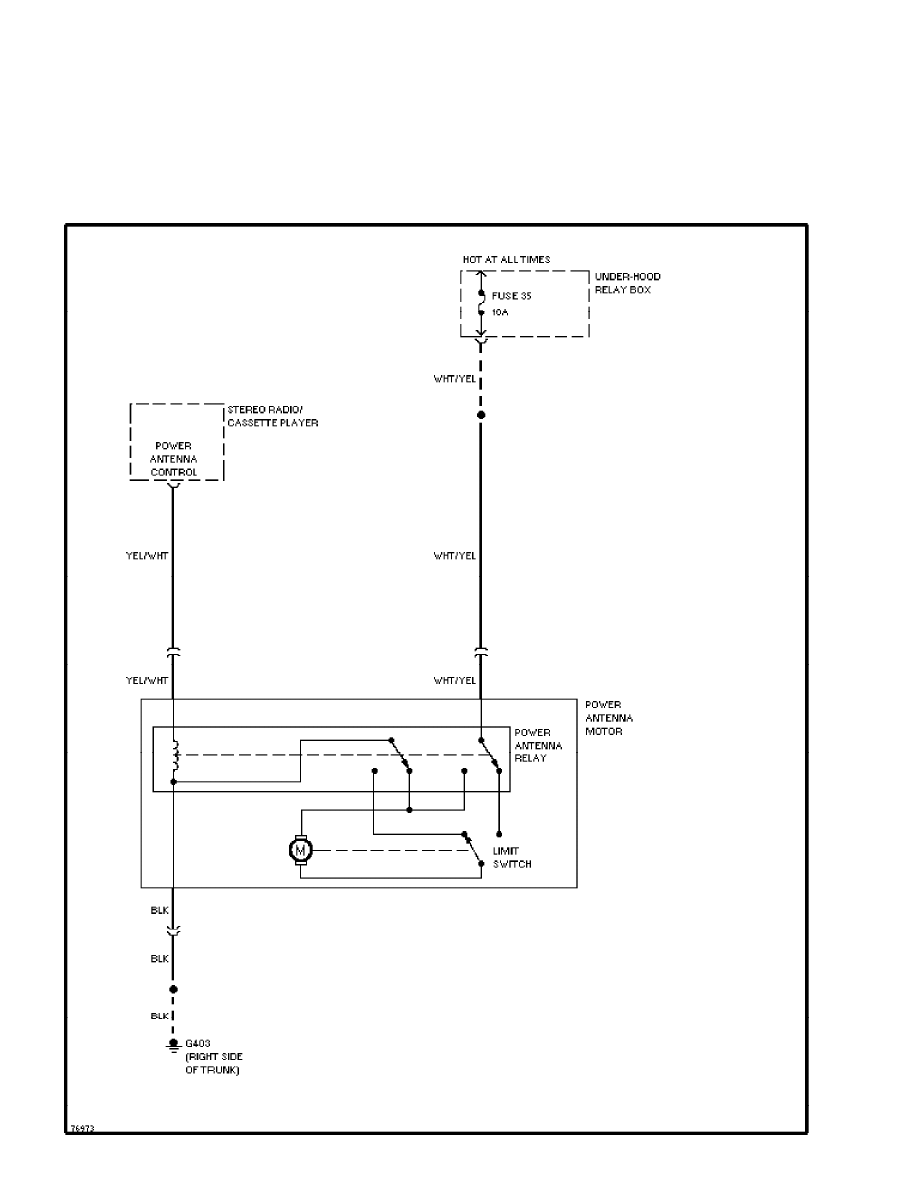

SYSTEM WIRING DIAGRAMS
Power Antenna Circuit, W/O Spoiler (p. 8)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM

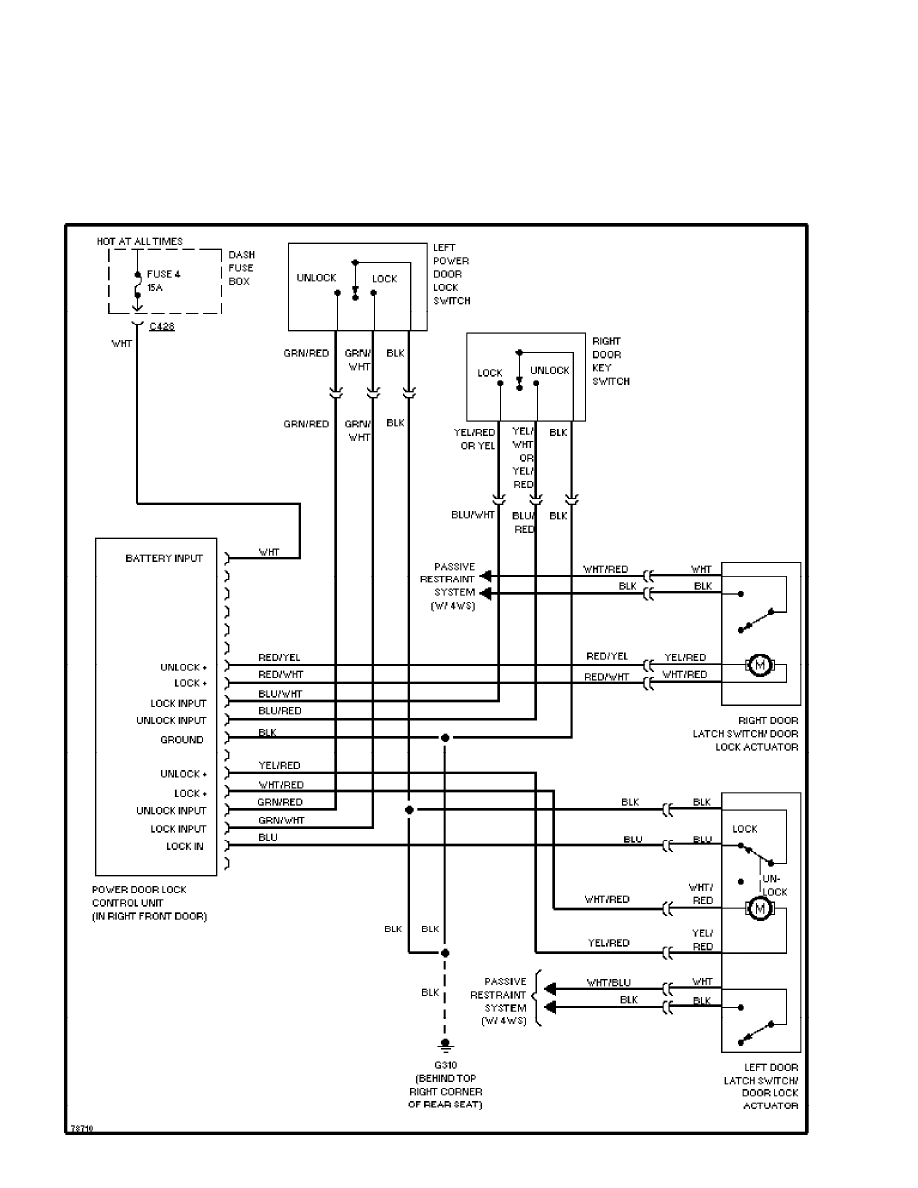

SYSTEM WIRING DIAGRAMS
Power Door Lock Circuit (p. 9)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
SYSTEM WIRING DIAGRAMS

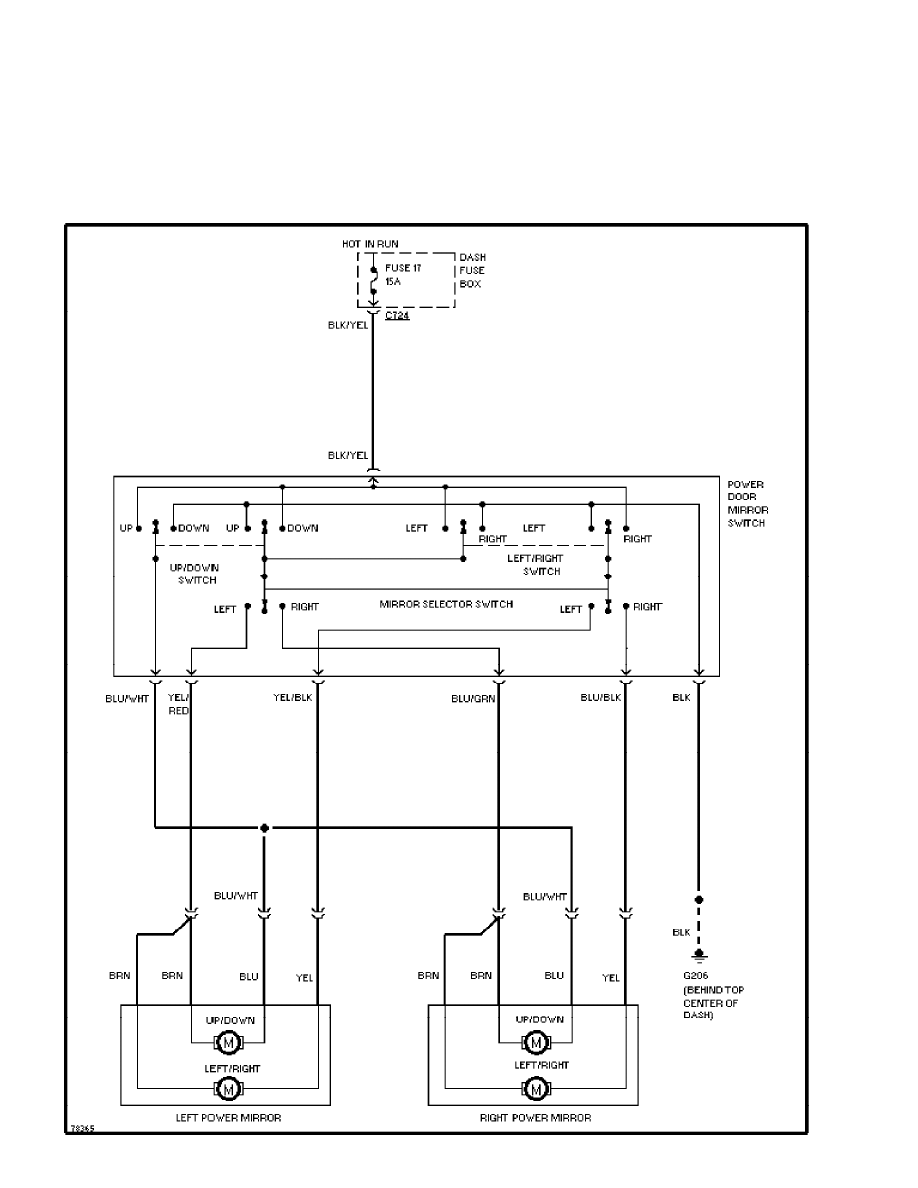

Power Mirror Circuit (p. 10)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM

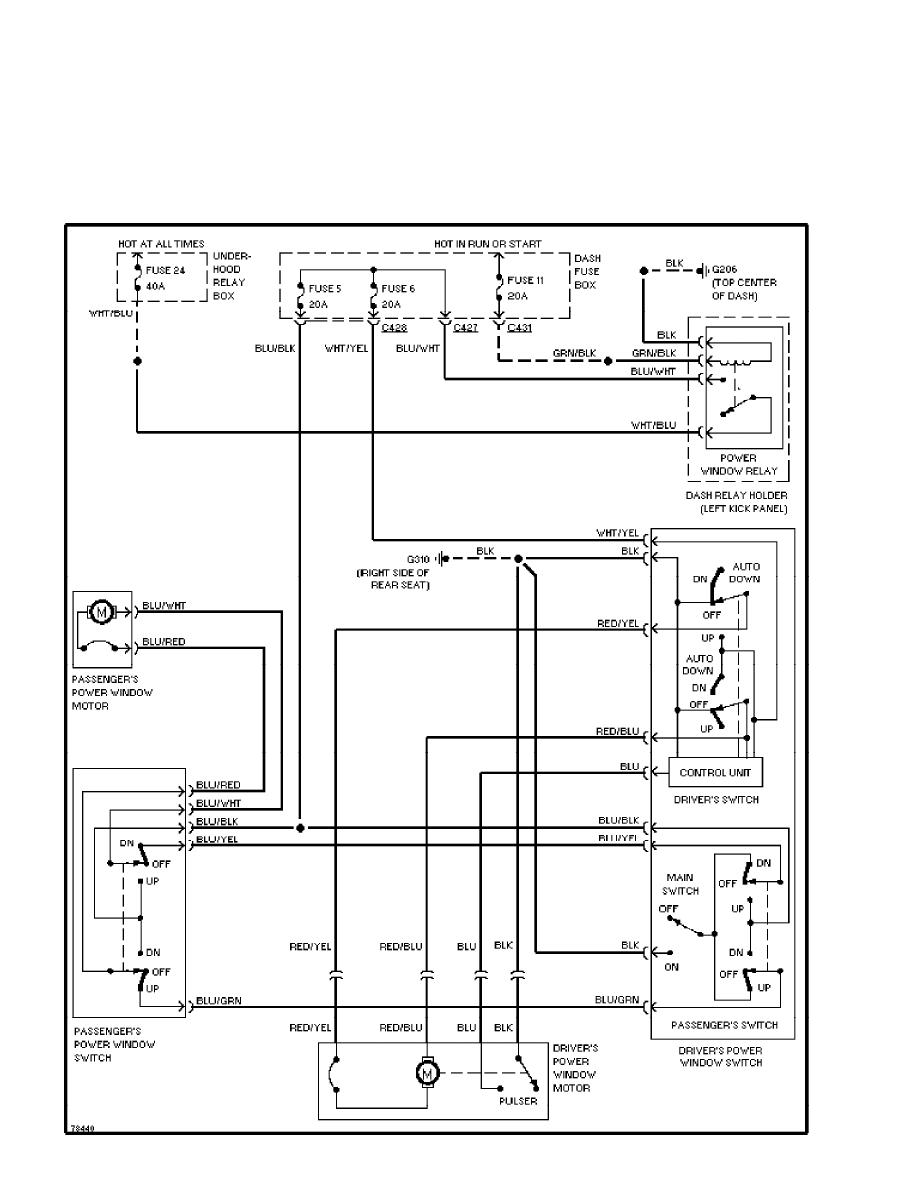

SYSTEM WIRING DIAGRAMS
Power Window Circuit (p. 11)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
SYSTEM WIRING DIAGRAMS

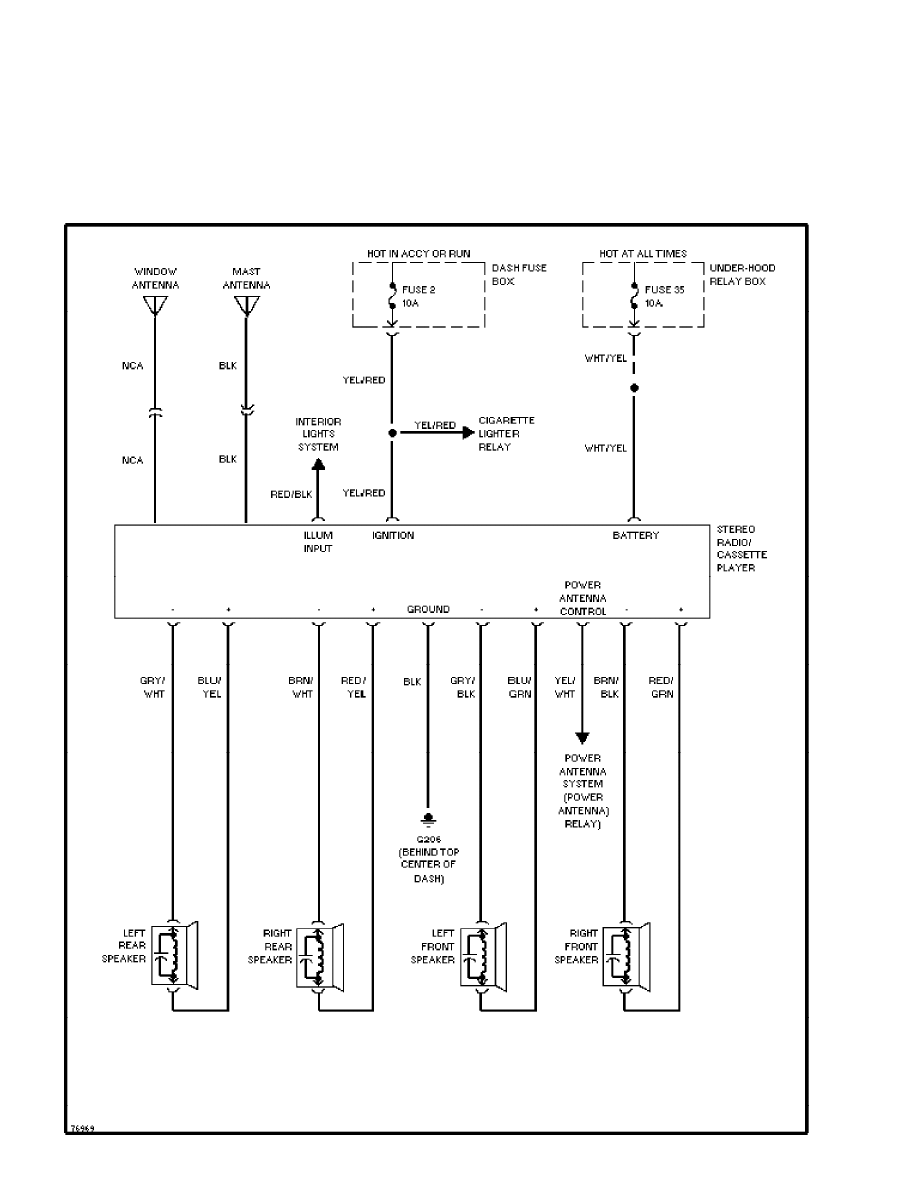

Radio Circuits (p. 12)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
SYSTEM WIRING DIAGRAMS

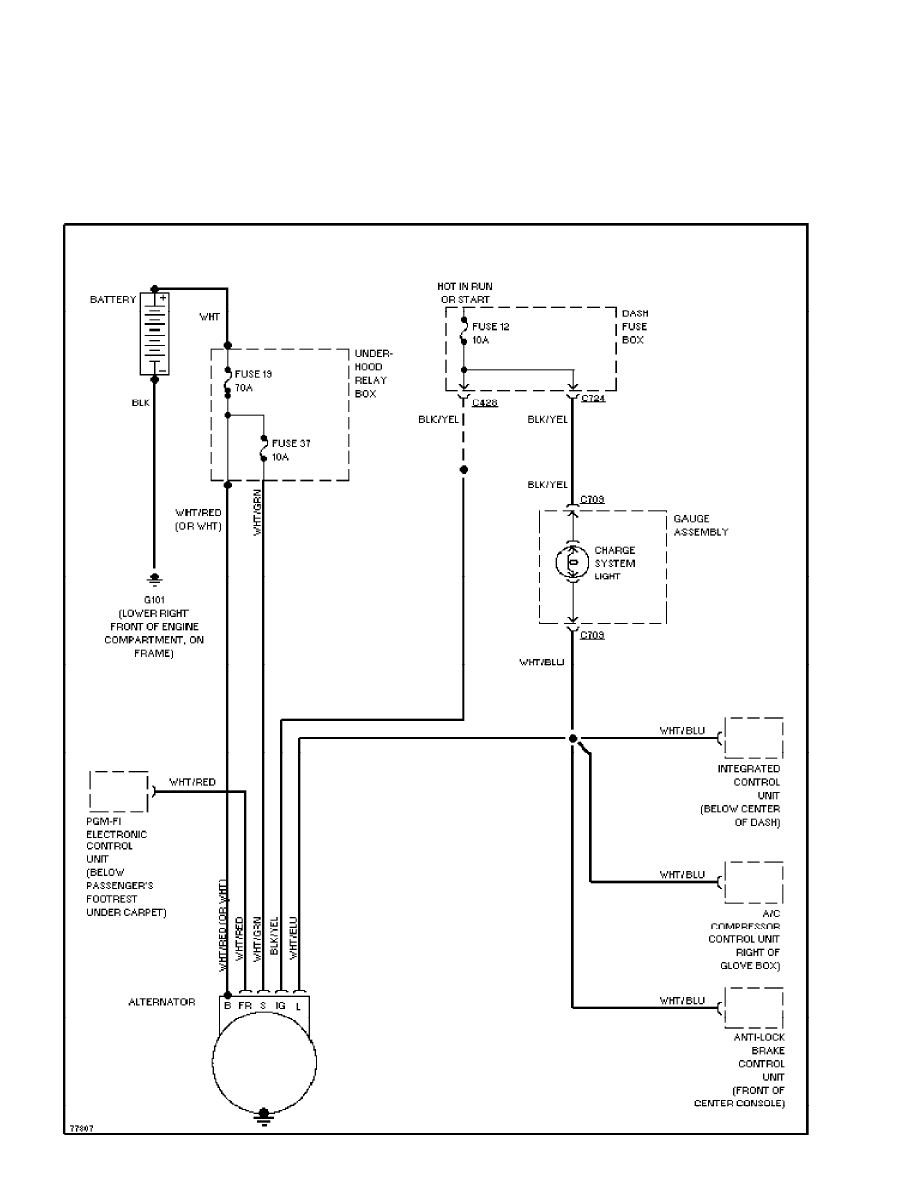

Charging Circuit (p. 13)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
SYSTEM WIRING DIAGRAMS

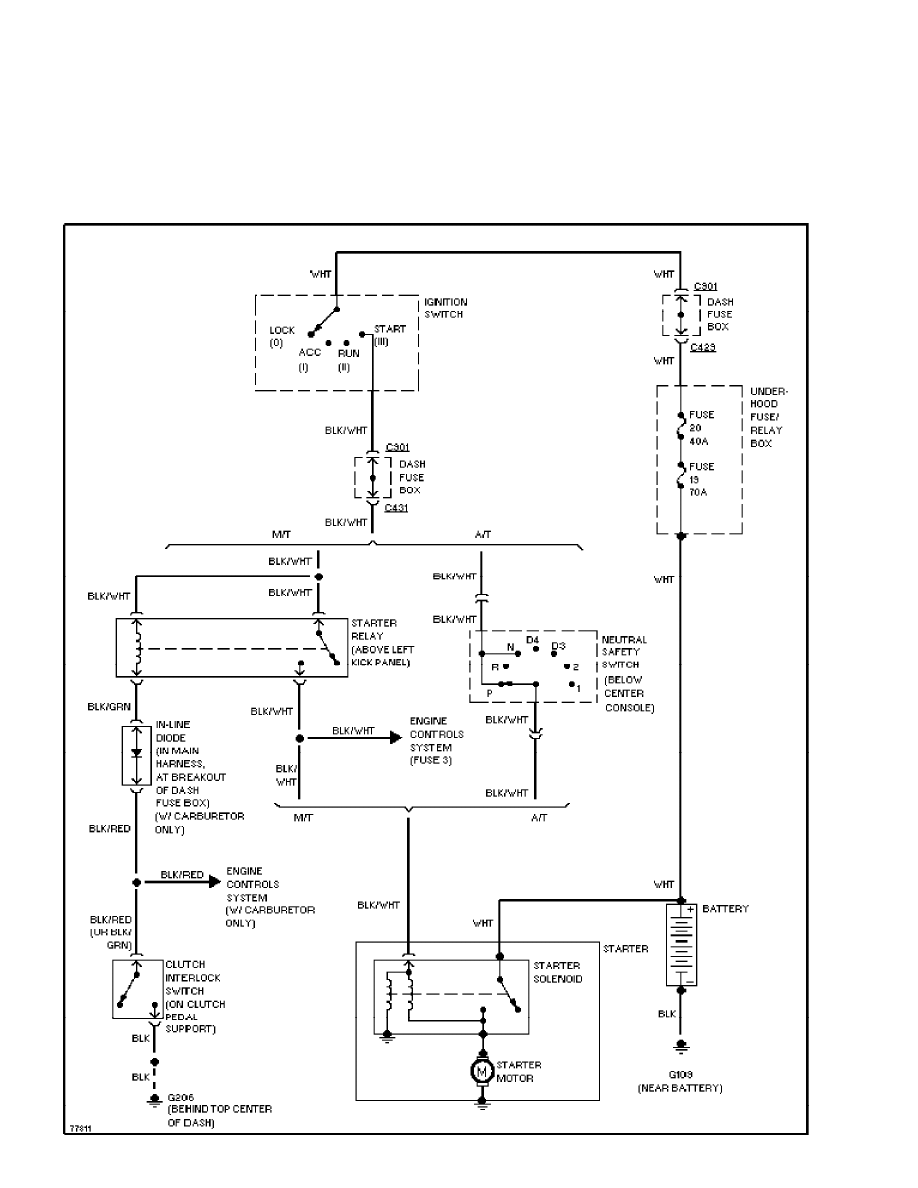

Starting Circuit (p. 14)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
SYSTEM WIRING DIAGRAMS

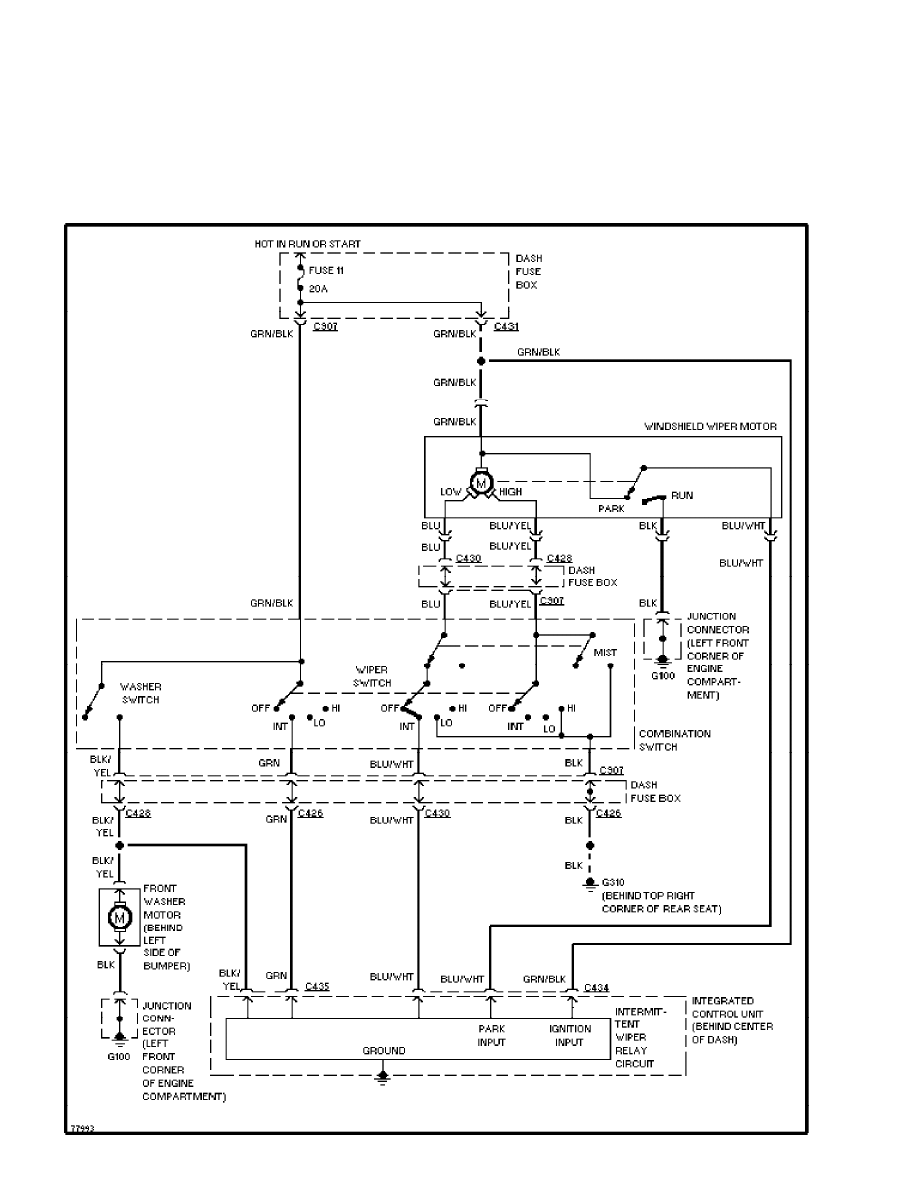

Wiper/Washer Circuit (p. 15)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
WIRING DIAGRAMS

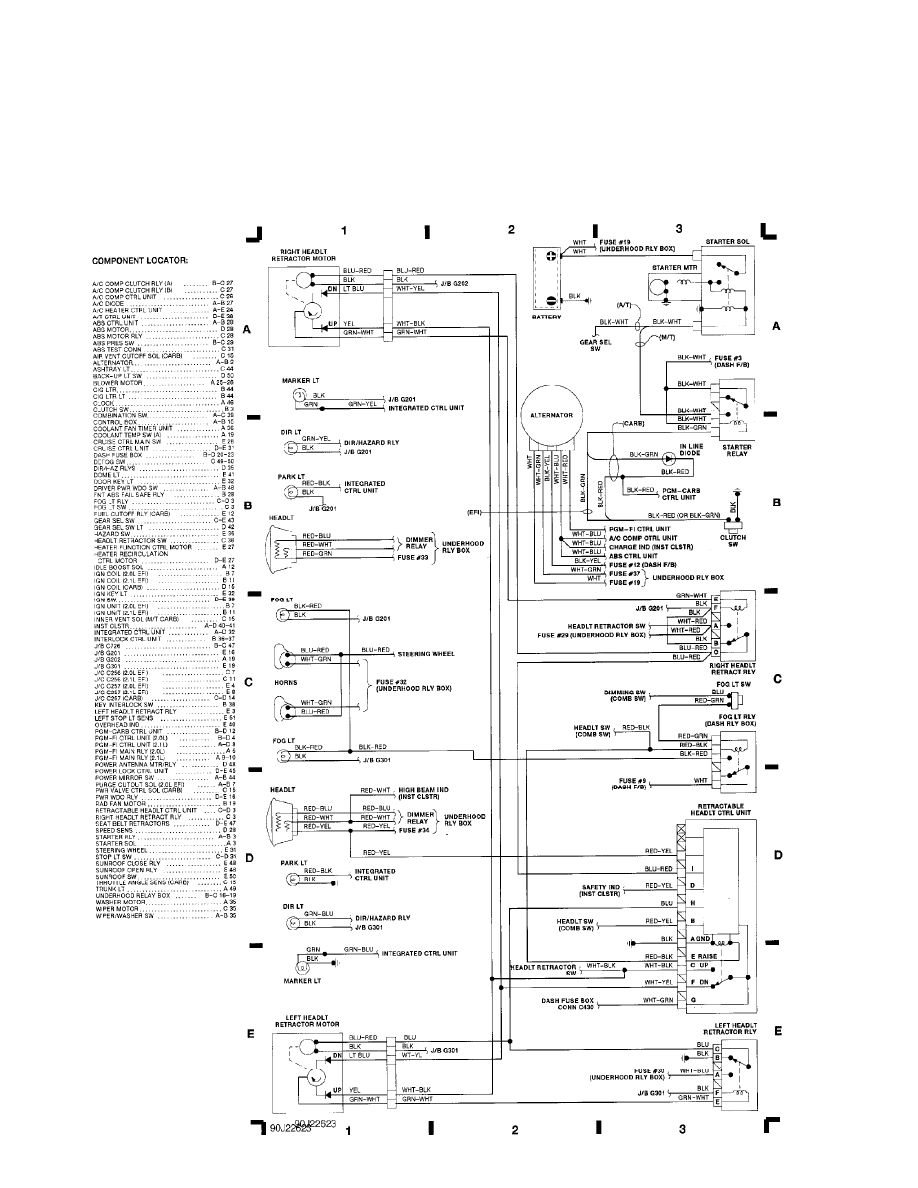

Fig. 1: Engine Compartment & Headlights (Grid 1-3)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
WIRING DIAGRAMS

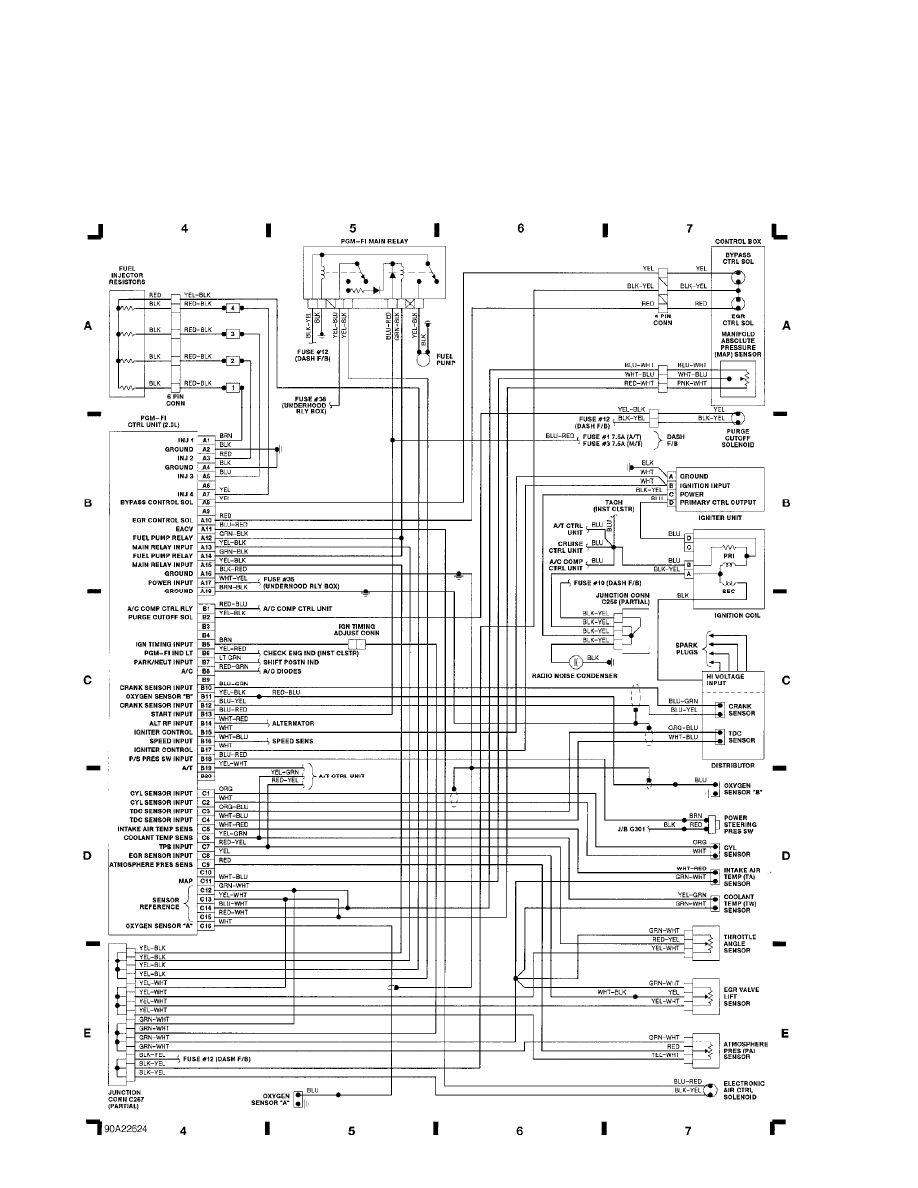

Fig. 2: Computer Engine Control (2.0L EFI) (Grid 4-7) (p. 2)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM

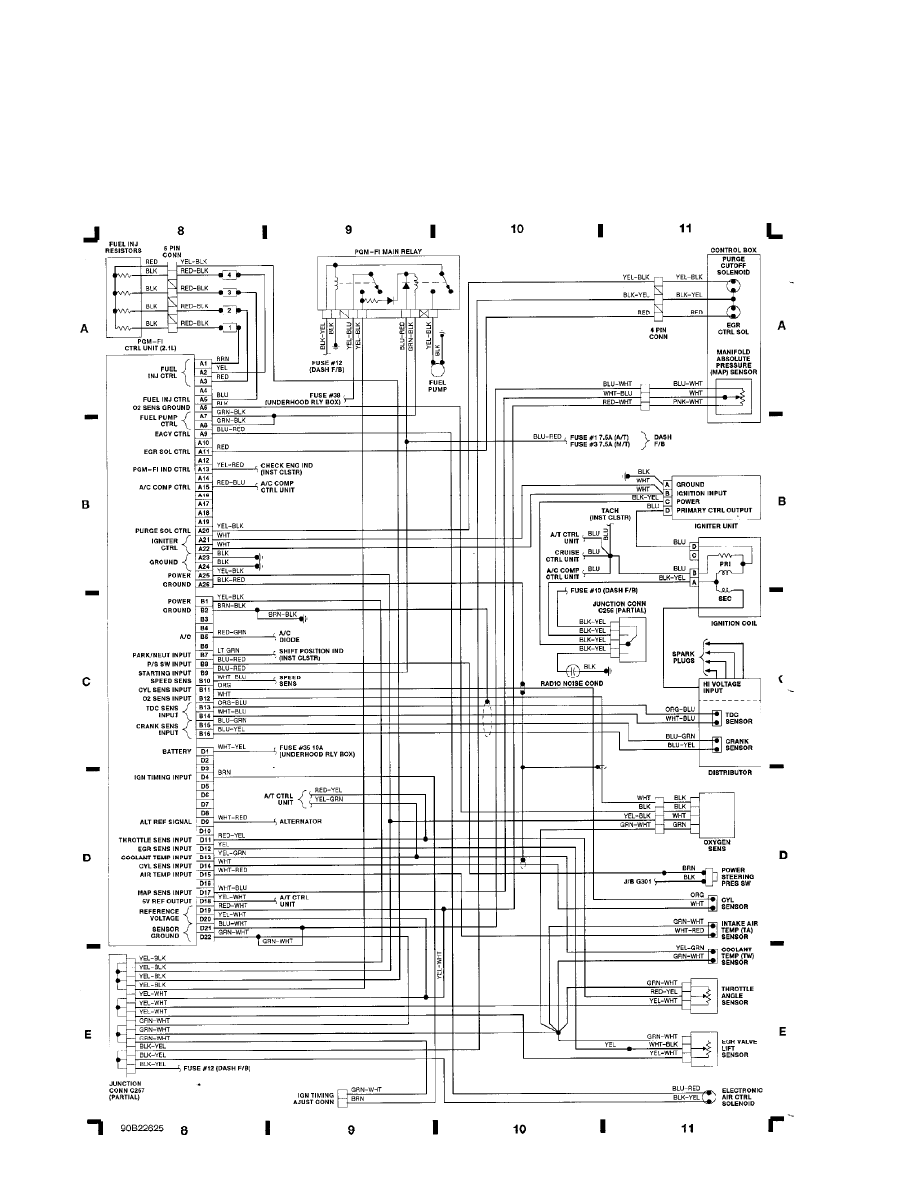

WIRING DIAGRAMS
Fig. 3: Computer Engine Control (2.1L EFI) (Grid 8-11) (p. 3)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
WIRING DIAGRAMS

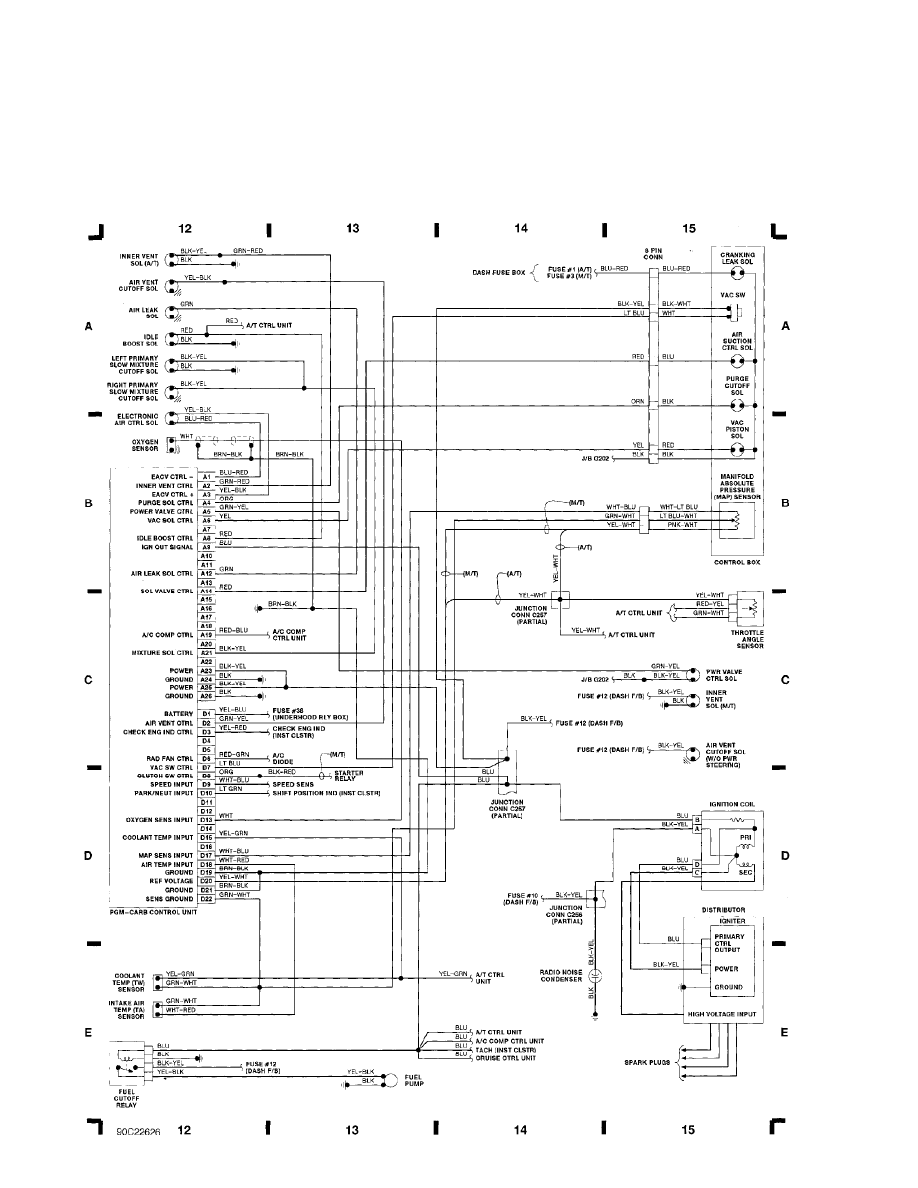

Fig. 4: Computer Engine Control (Carb) (Grid 12-15) (p. 4)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
WIRING DIAGRAMS

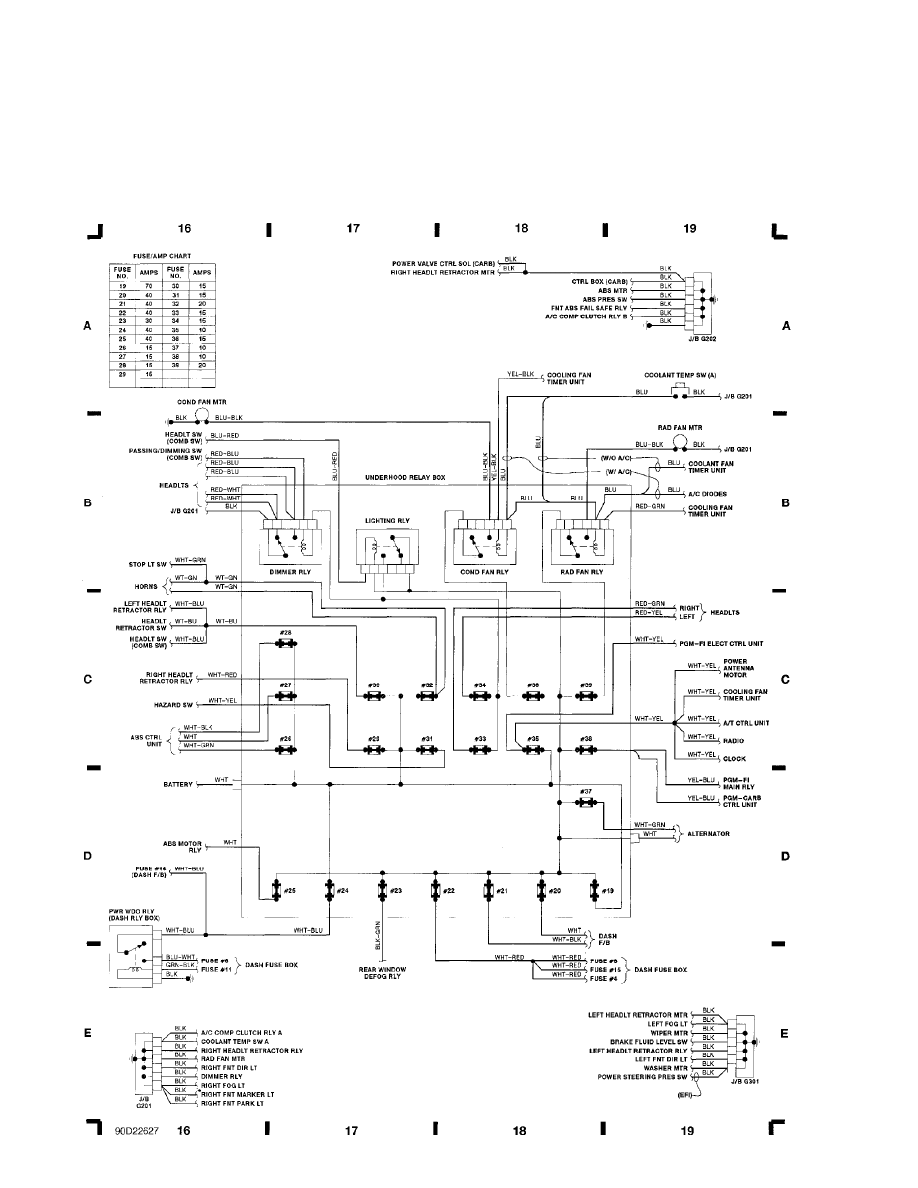

Fig. 5: Underhood Relay Box (Grid 16-19) (p. 5)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
WIRING DIAGRAMS

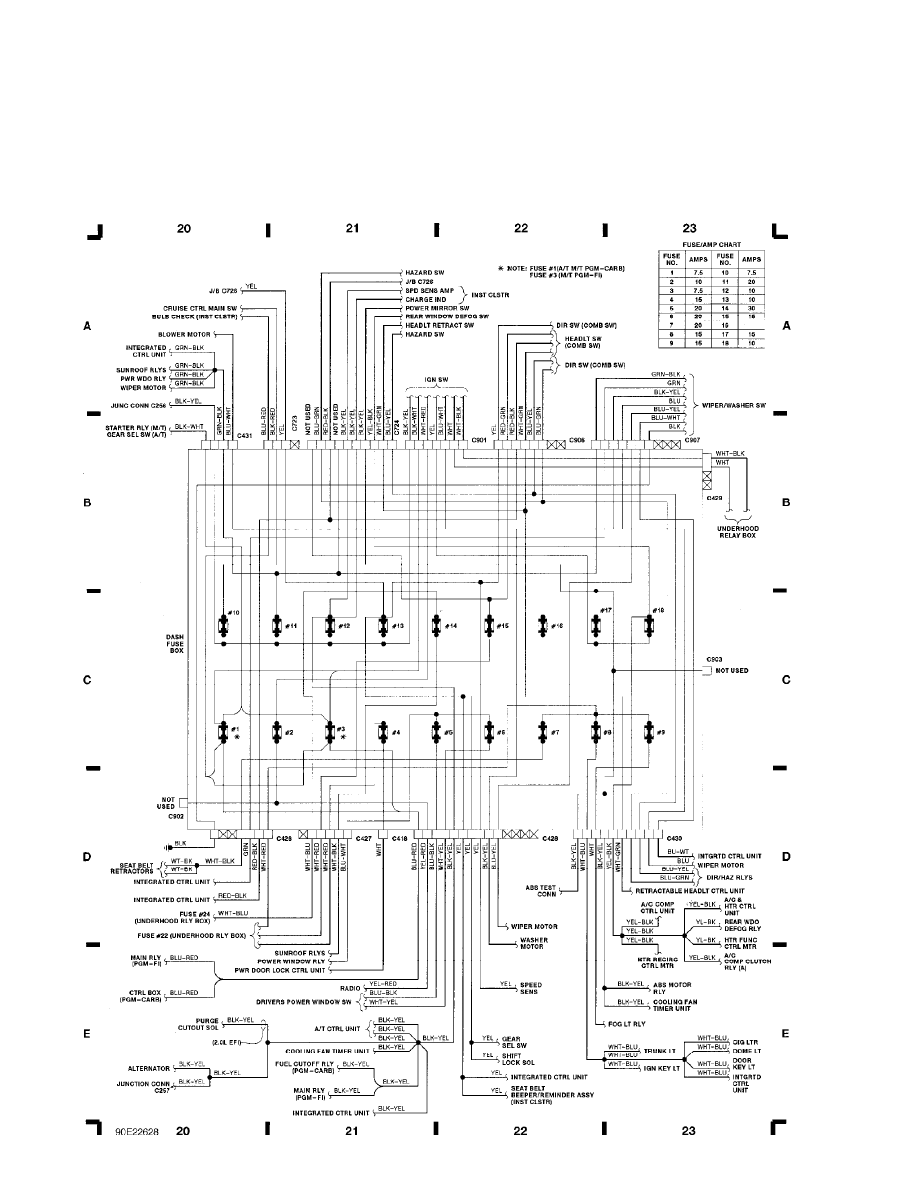

Fig. 6: Dash Fuse Block (Grid 20-23) (p. 6)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
WIRING DIAGRAMS

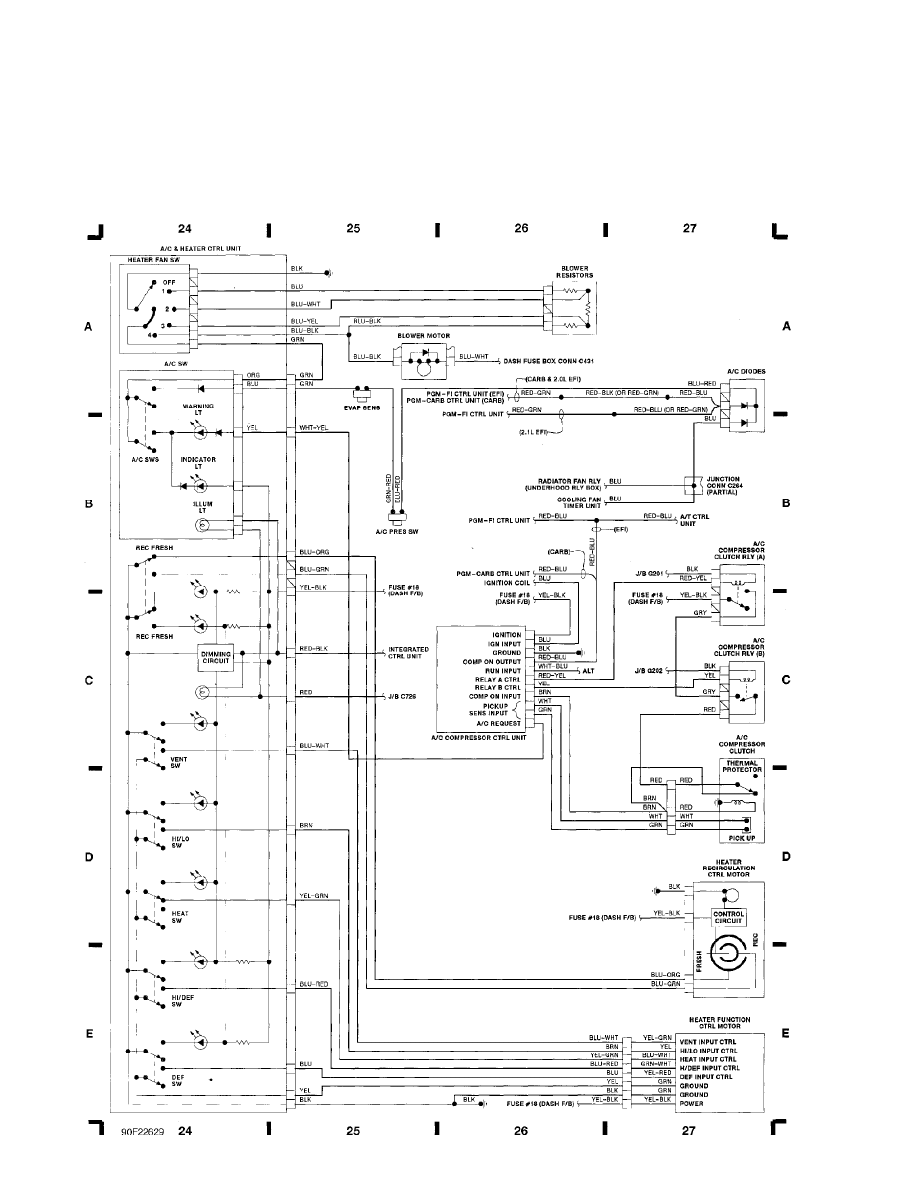

Fig. 7: A/C & Heating (Gird 24-27) (p. 7)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
WIRING DIAGRAMS

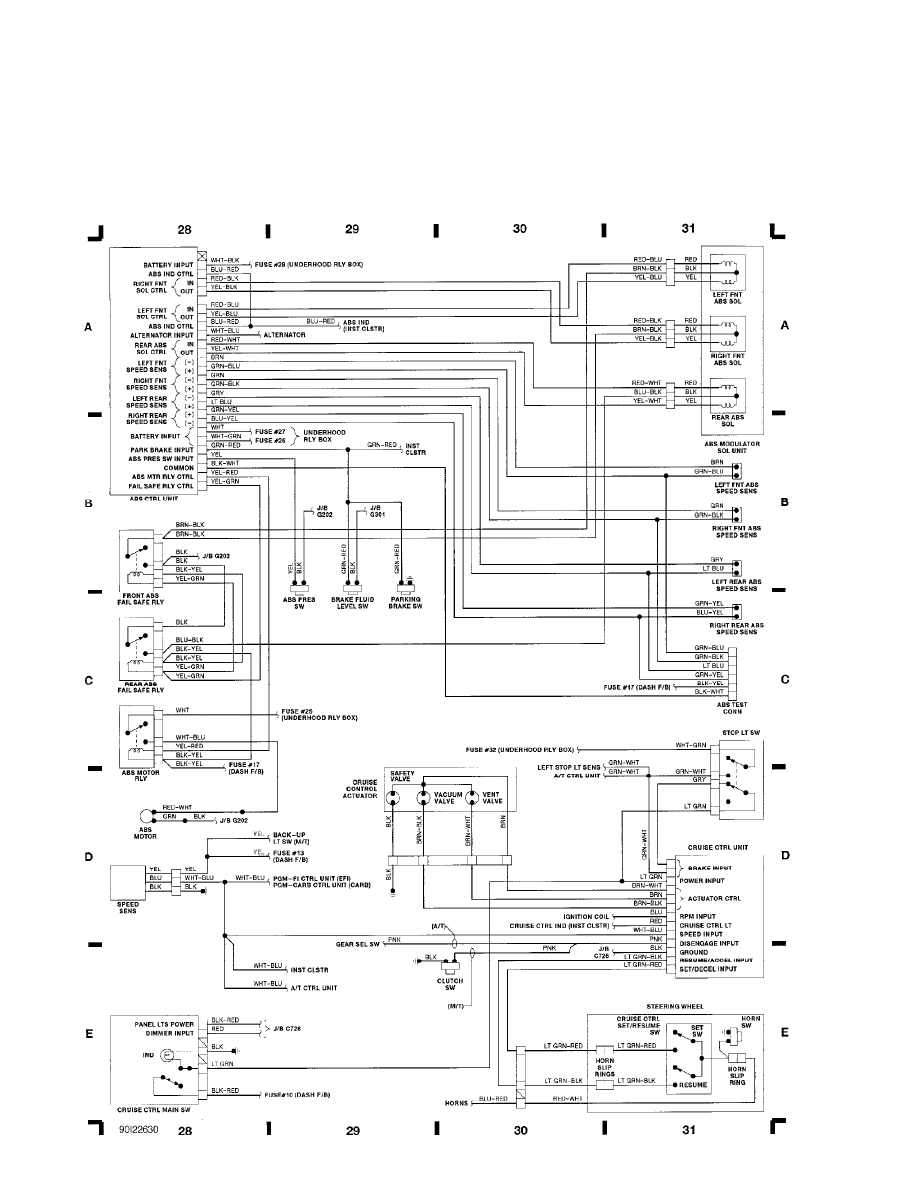

Fig. 8: ABS System, Cruise Control (Grid 28-31) (p. 8)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
WIRING DIAGRAMS

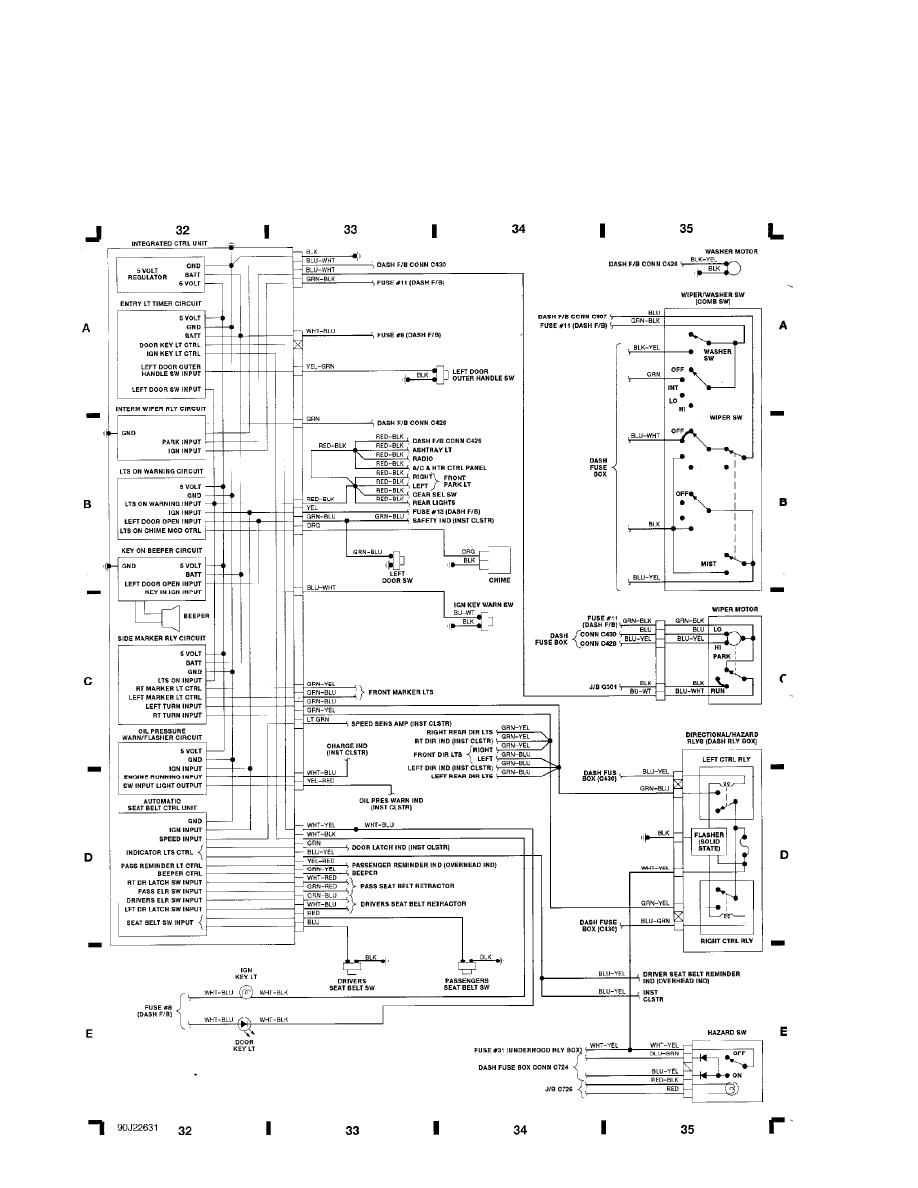

Fig. 9: Steering Column, Integrated Ctrl Unit, W/Washer (Grid 32-35) (p. 9)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
WIRING DIAGRAMS

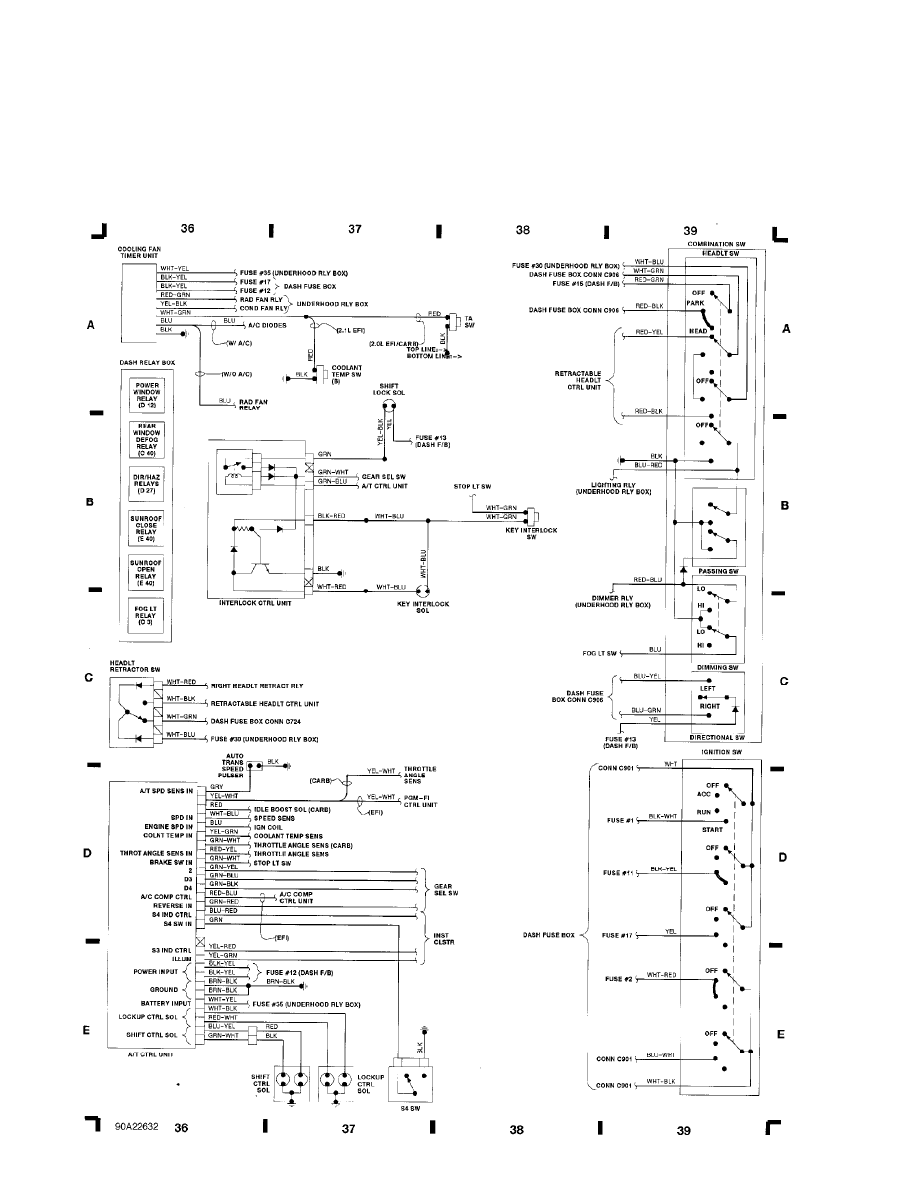

Fig. 10: Steering Column (Cont), Dash Relay Box, A/T (Grid 36-39) (p. 10)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
WIRING DIAGRAMS
Fig. 11: Instrument Panel, Gear Selector Switch (Grid 40-43) (p. 11)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM

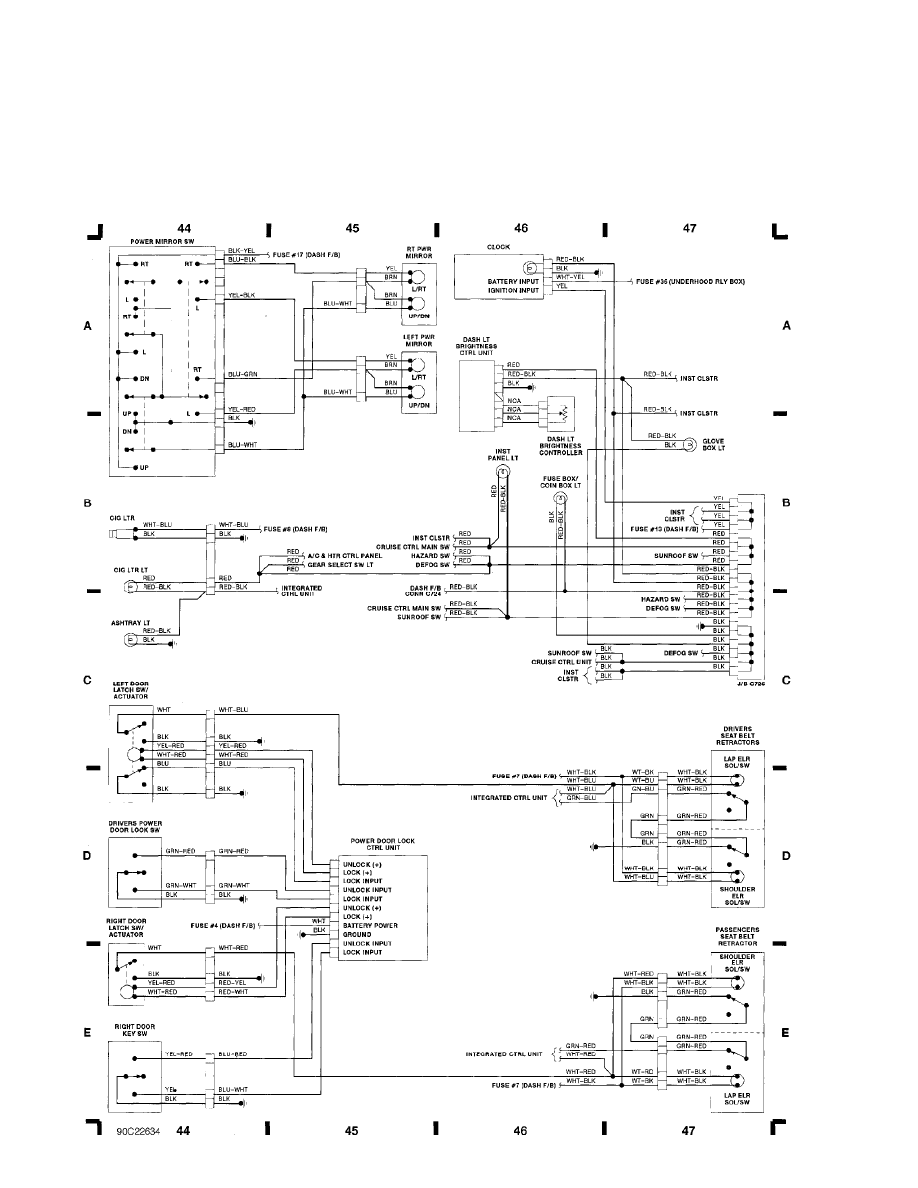

WIRING DIAGRAMS
Fig. 12: Power Mirrors/Door Locks, Seat Belt Retractors (Grid 44-47) (p. 12)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
WIRING DIAGRAMS

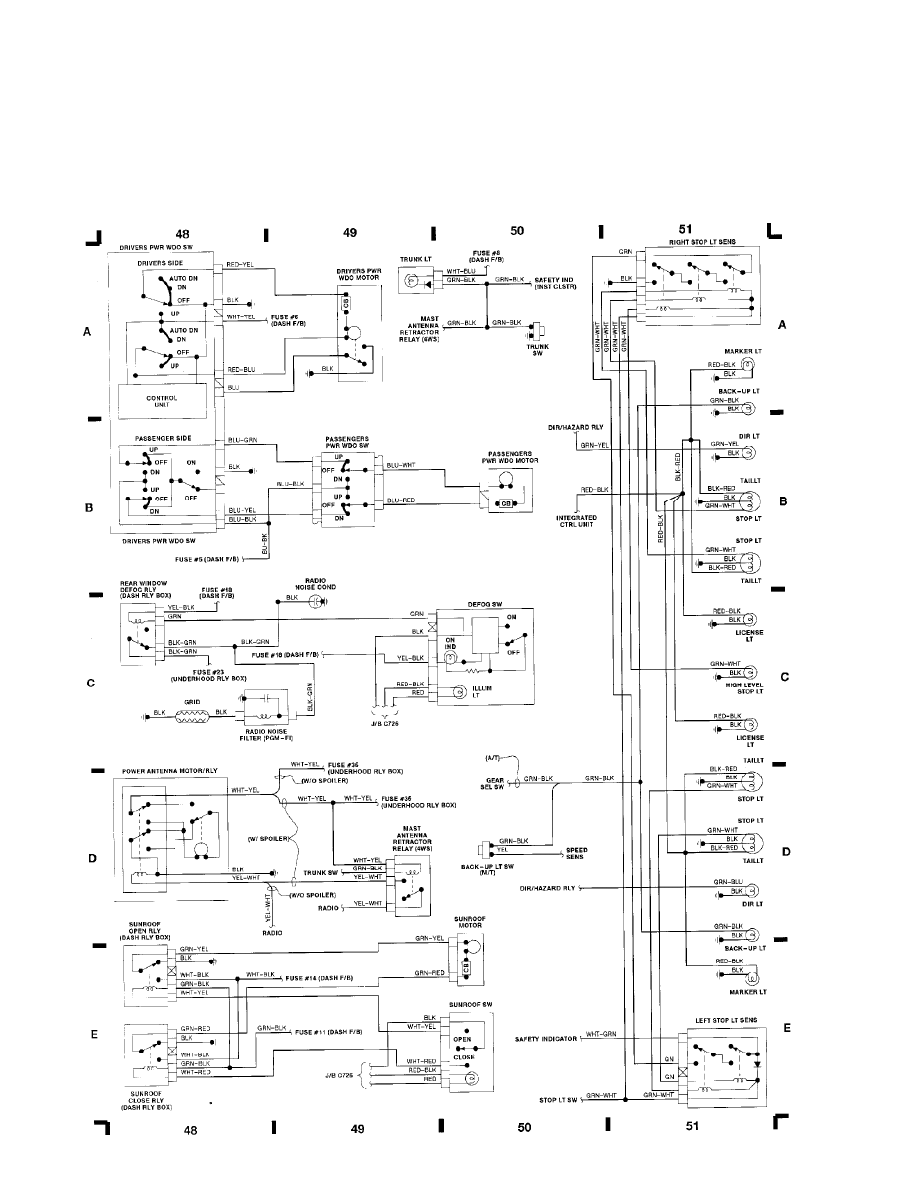

Fig. 13: Power Windows/Antenna, Sunroof, Taillights (Grid 48-51) (p. 13)
1990 Honda Prelude
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, July 29, 2004 10:33PM
