SYSTEM WIRING DIAGRAMS

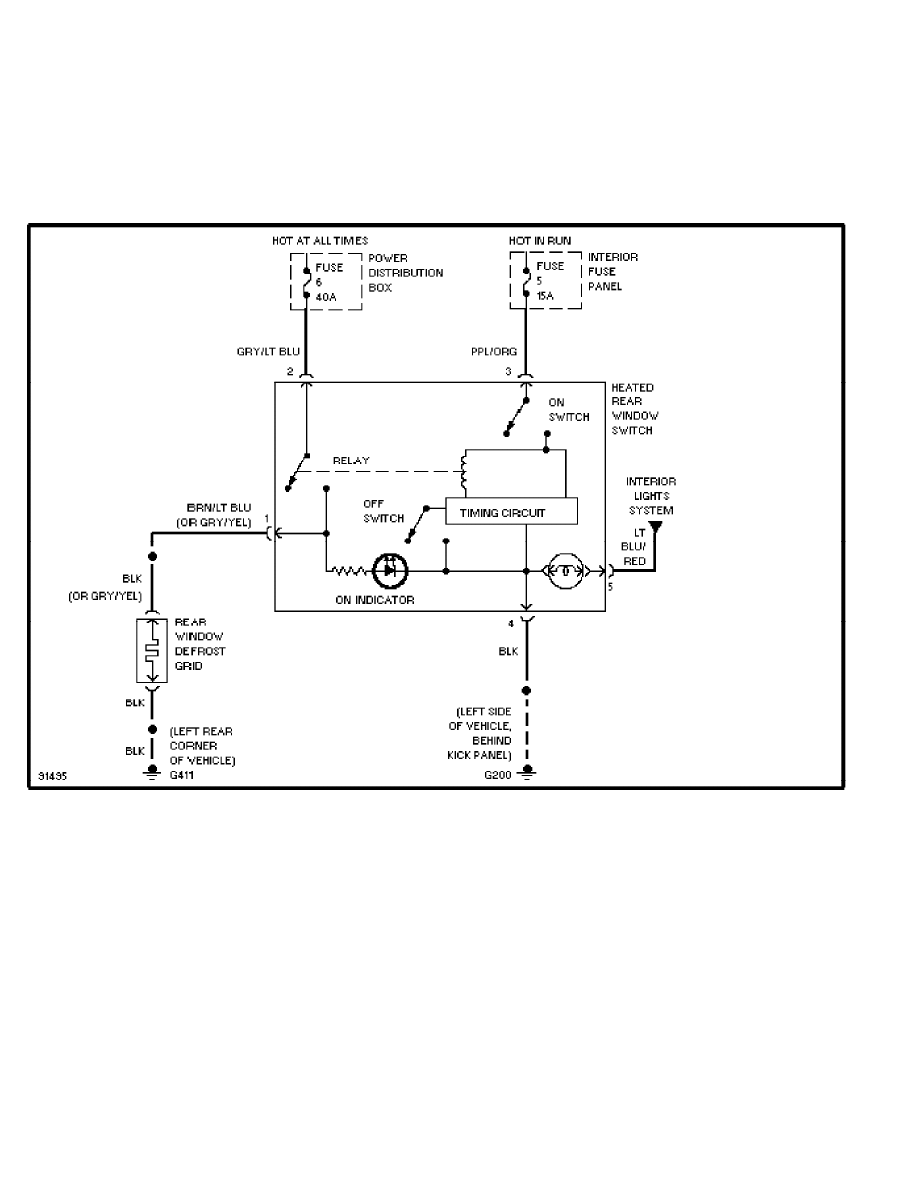

Defogger Circuit

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

SYSTEM WIRING DIAGRAMS

Horn Circuit (p. 2)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

SYSTEM WIRING DIAGRAMS

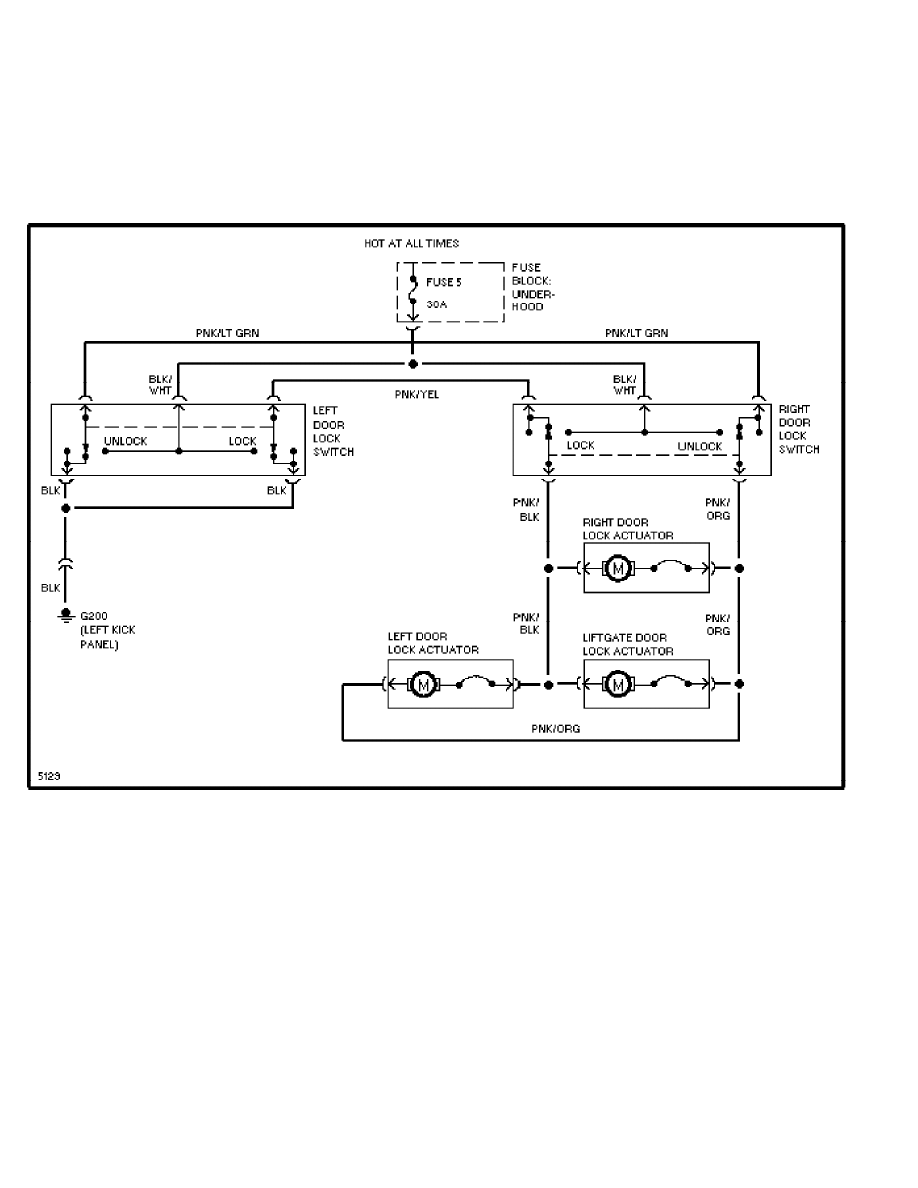

Power Door Lock Circuit, 2 Door (p. 3)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

SYSTEM WIRING DIAGRAMS

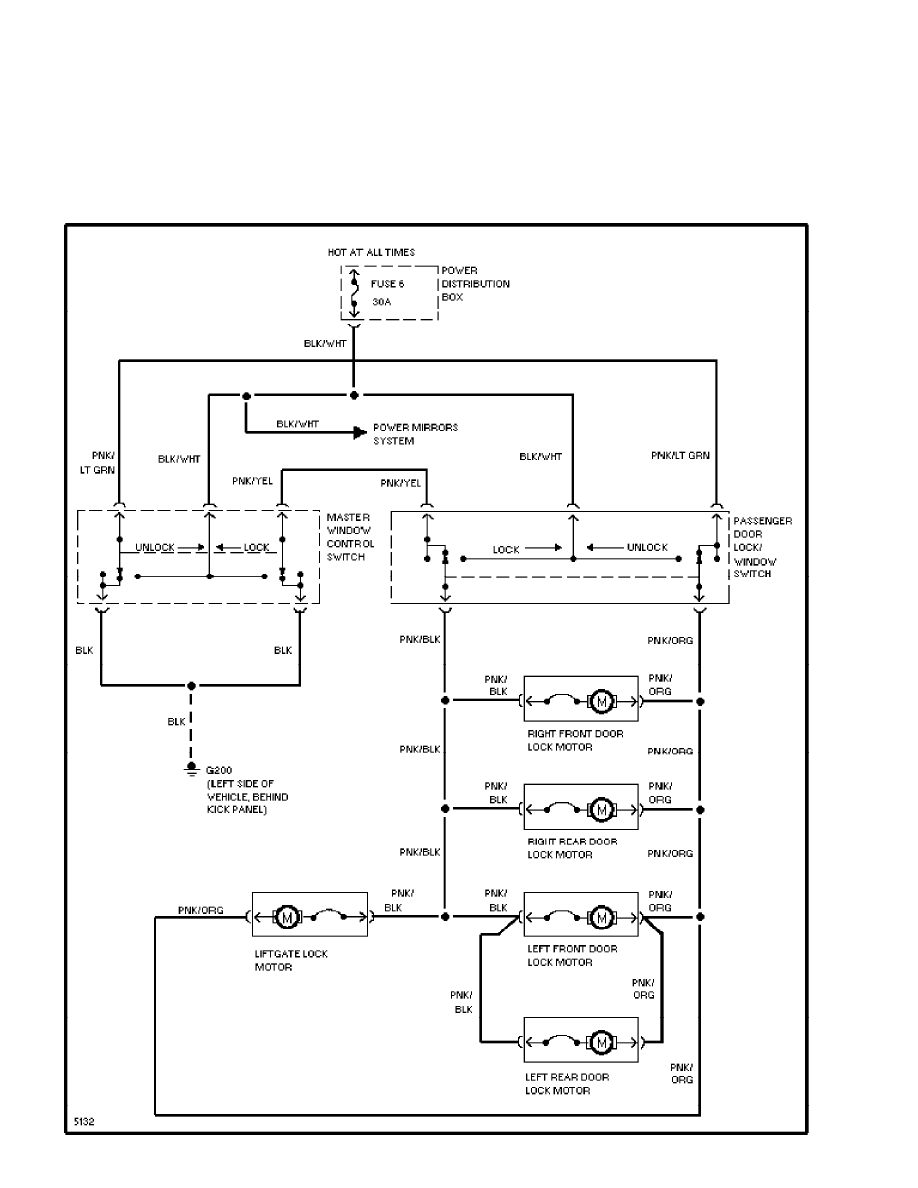

Power Door Lock Circuit, 4 Door (p. 4)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

SYSTEM WIRING DIAGRAMS

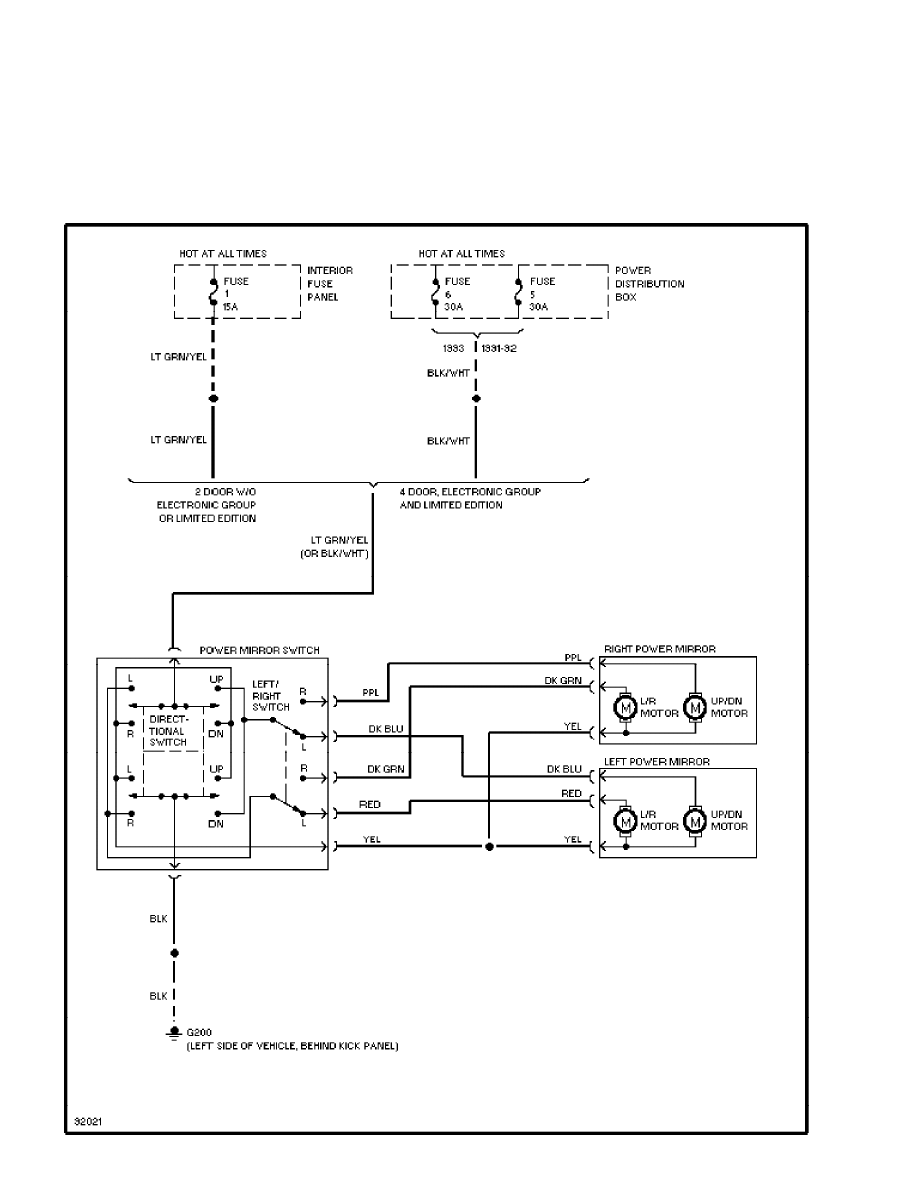

Power Mirror Circuit (p. 5)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

SYSTEM WIRING DIAGRAMS

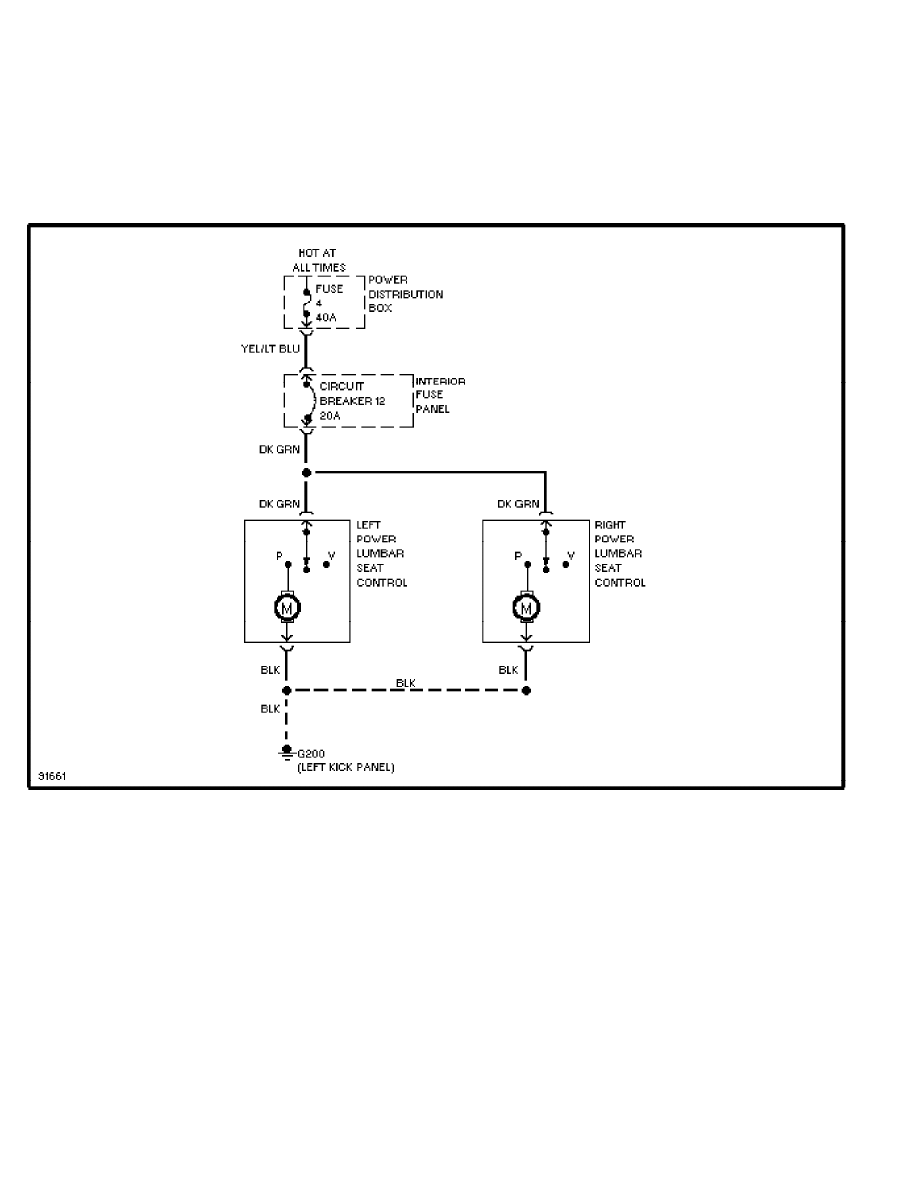

Lumbar Circuit (p. 6)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

SYSTEM WIRING DIAGRAMS

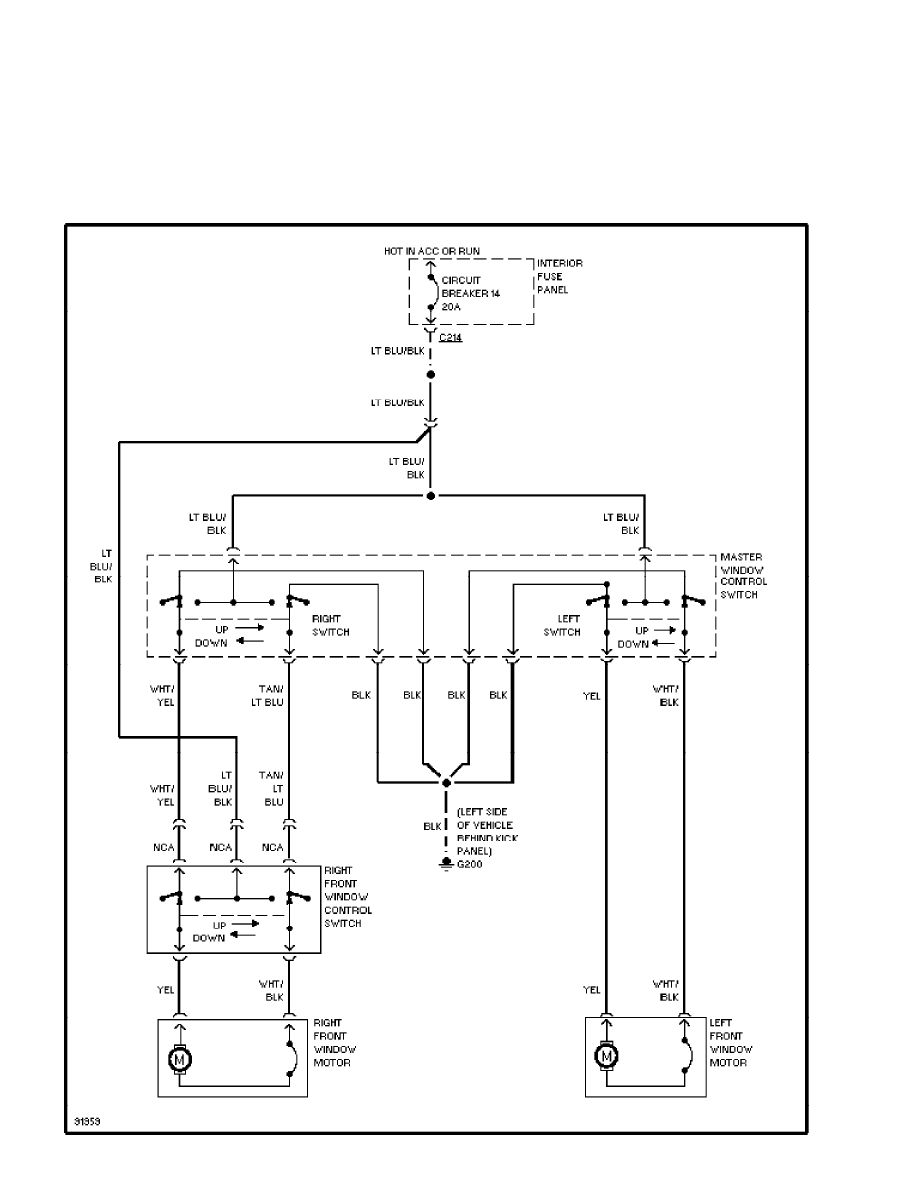

Power Window Circuit, 2 Door (p. 7)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

SYSTEM WIRING DIAGRAMS

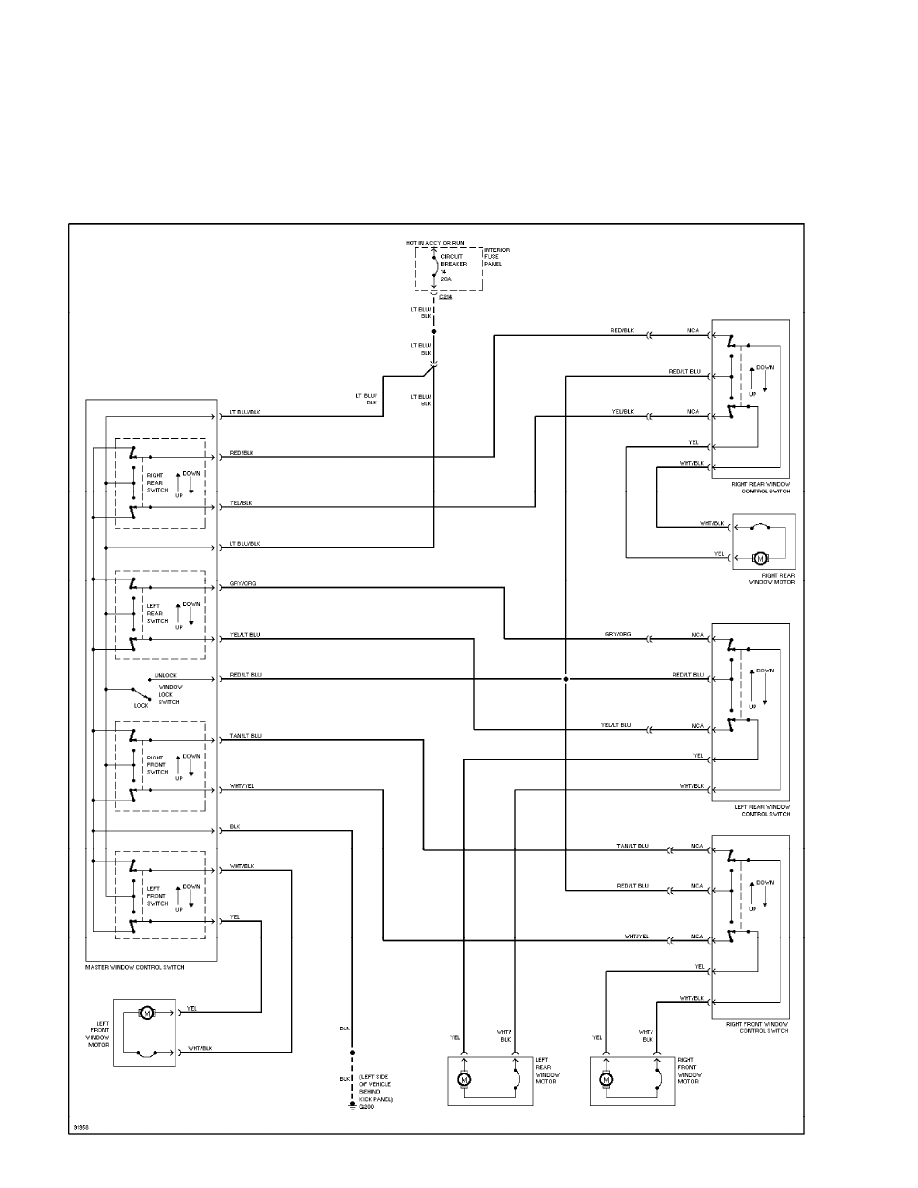

Power Window Circuit, 4 Door (p. 8)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

SYSTEM WIRING DIAGRAMS

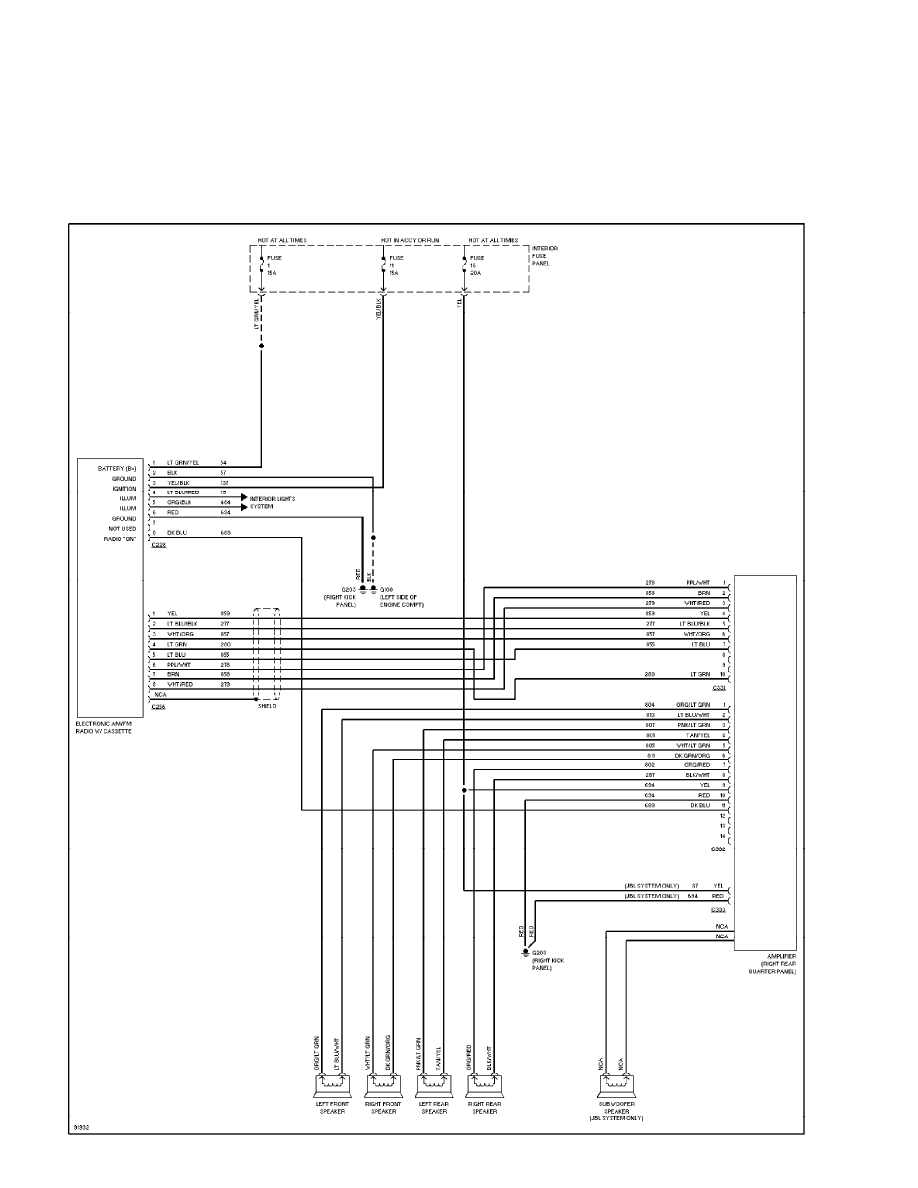

Radio Circuits (p. 9)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

SYSTEM WIRING DIAGRAMS

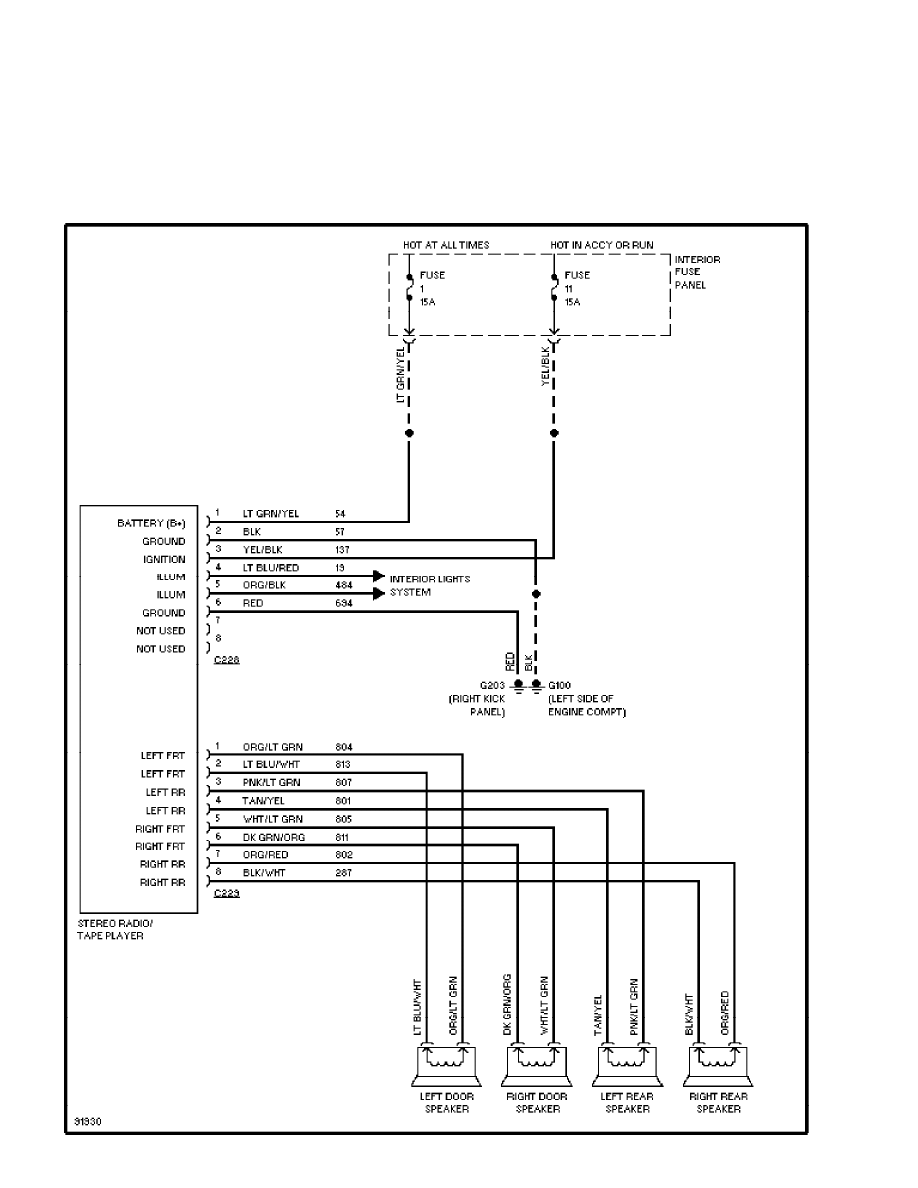

Radio Circuits, Base Radio (p. 10)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

SYSTEM WIRING DIAGRAMS

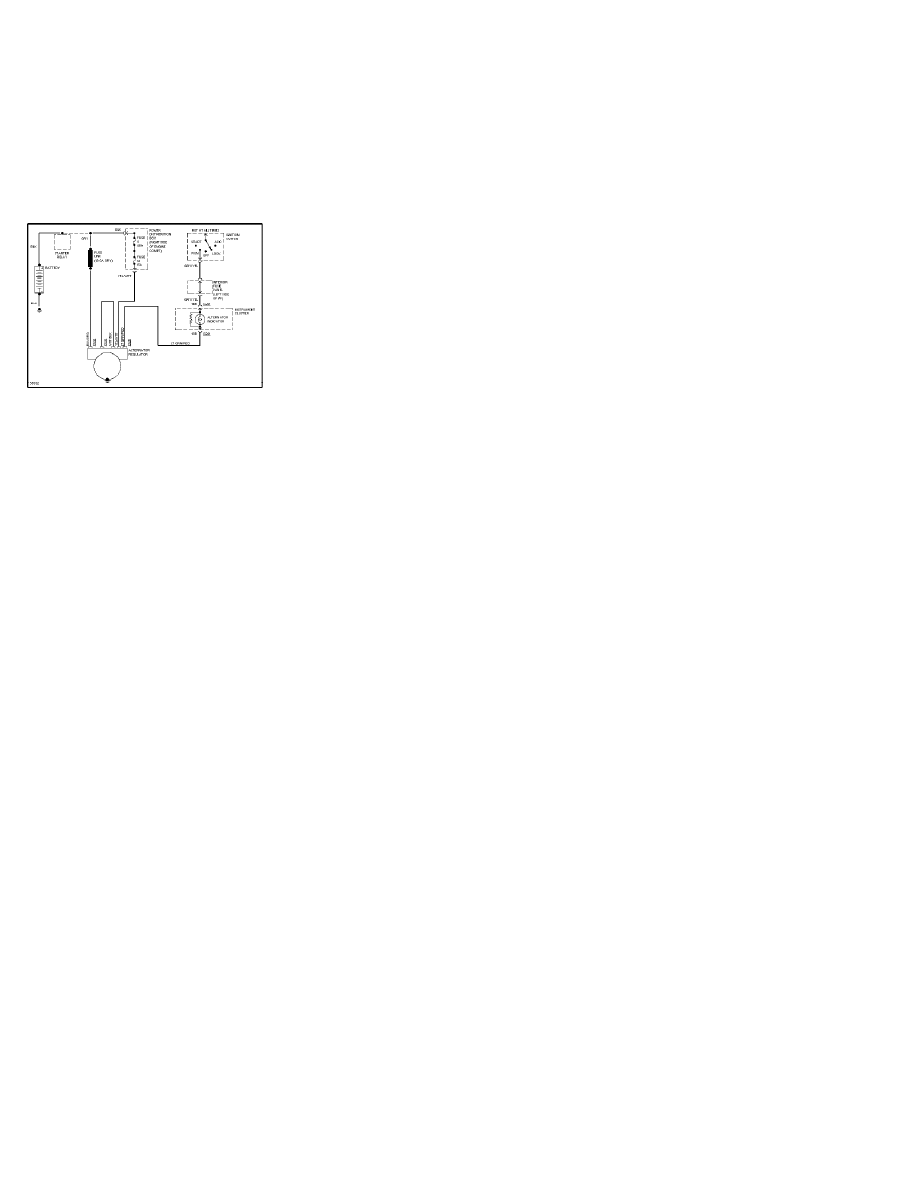

Charging Circuit (p. 11)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

SYSTEM WIRING DIAGRAMS

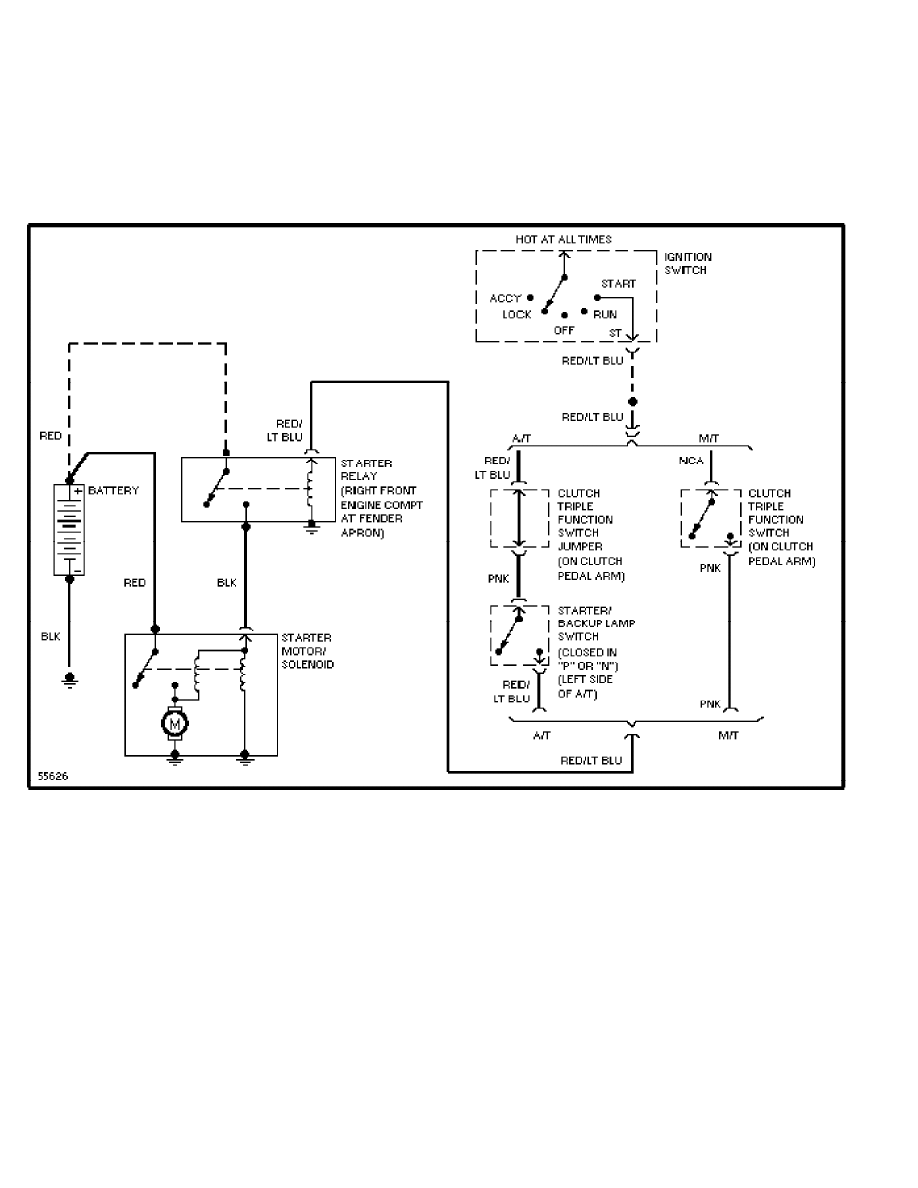

Starting Circuit (p. 12)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

SYSTEM WIRING DIAGRAMS

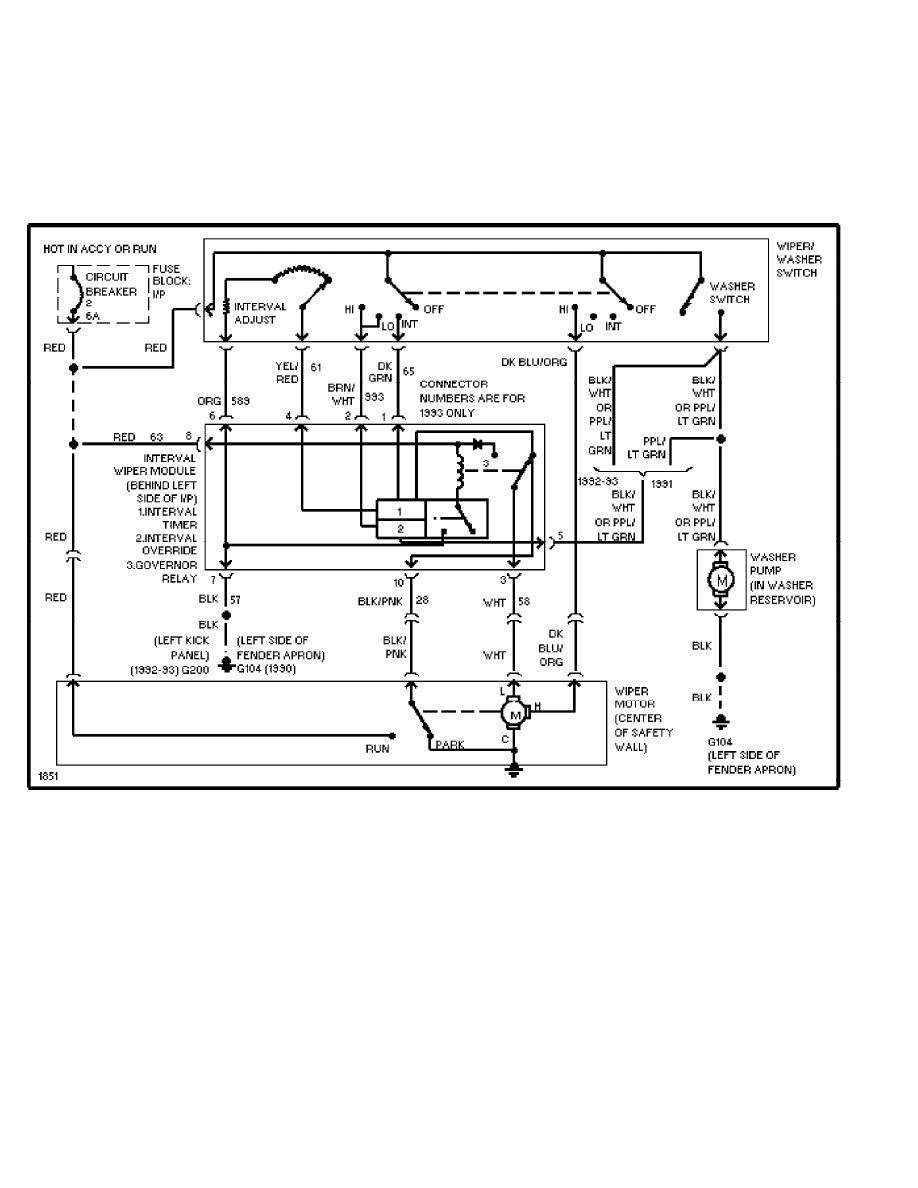

Interval Wiper/Washer Circuit (p. 13)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

SYSTEM WIRING DIAGRAMS

Rear Wiper/Washer Circuit (p. 14)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

WIRING DIAGRAMS

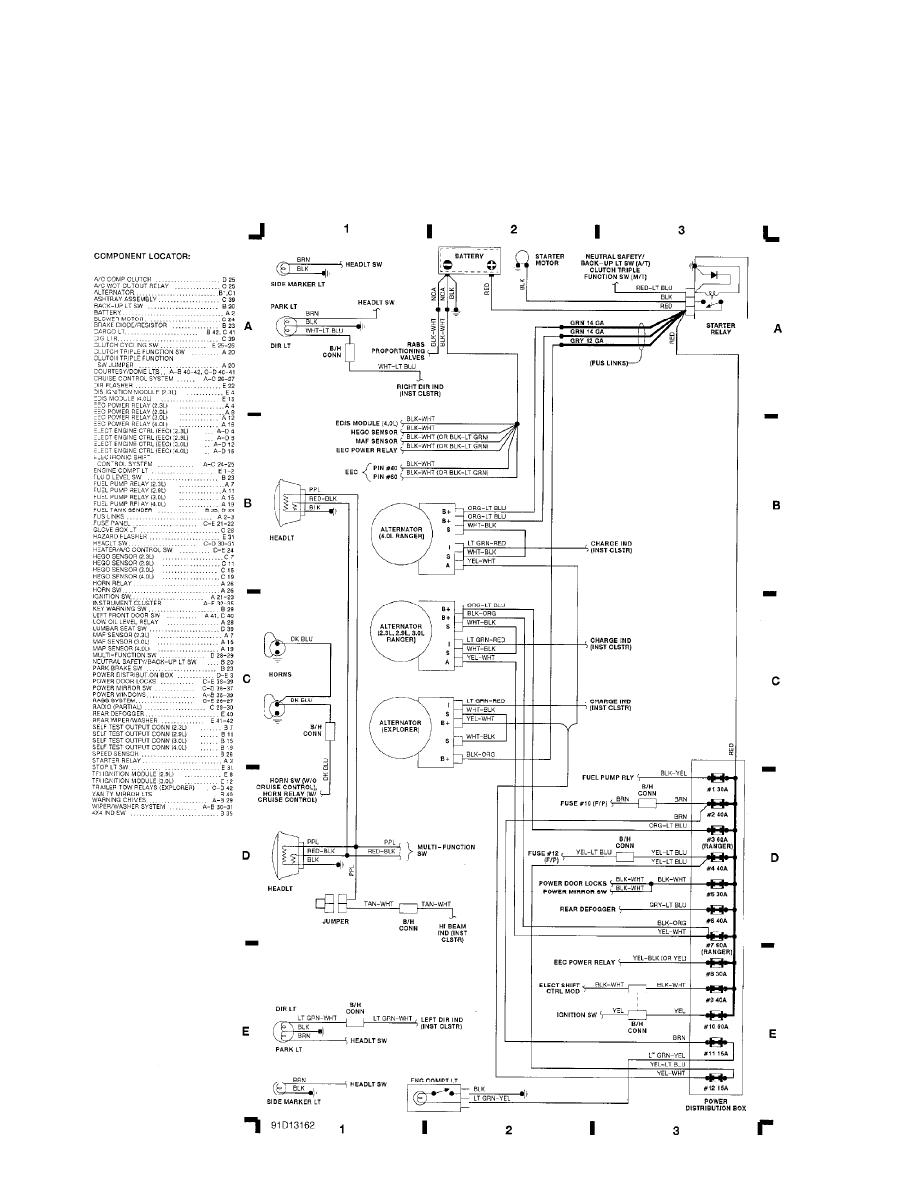

Fig. 1: Engine Compartment & Headlights (Grids 1-3)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

WIRING DIAGRAMS

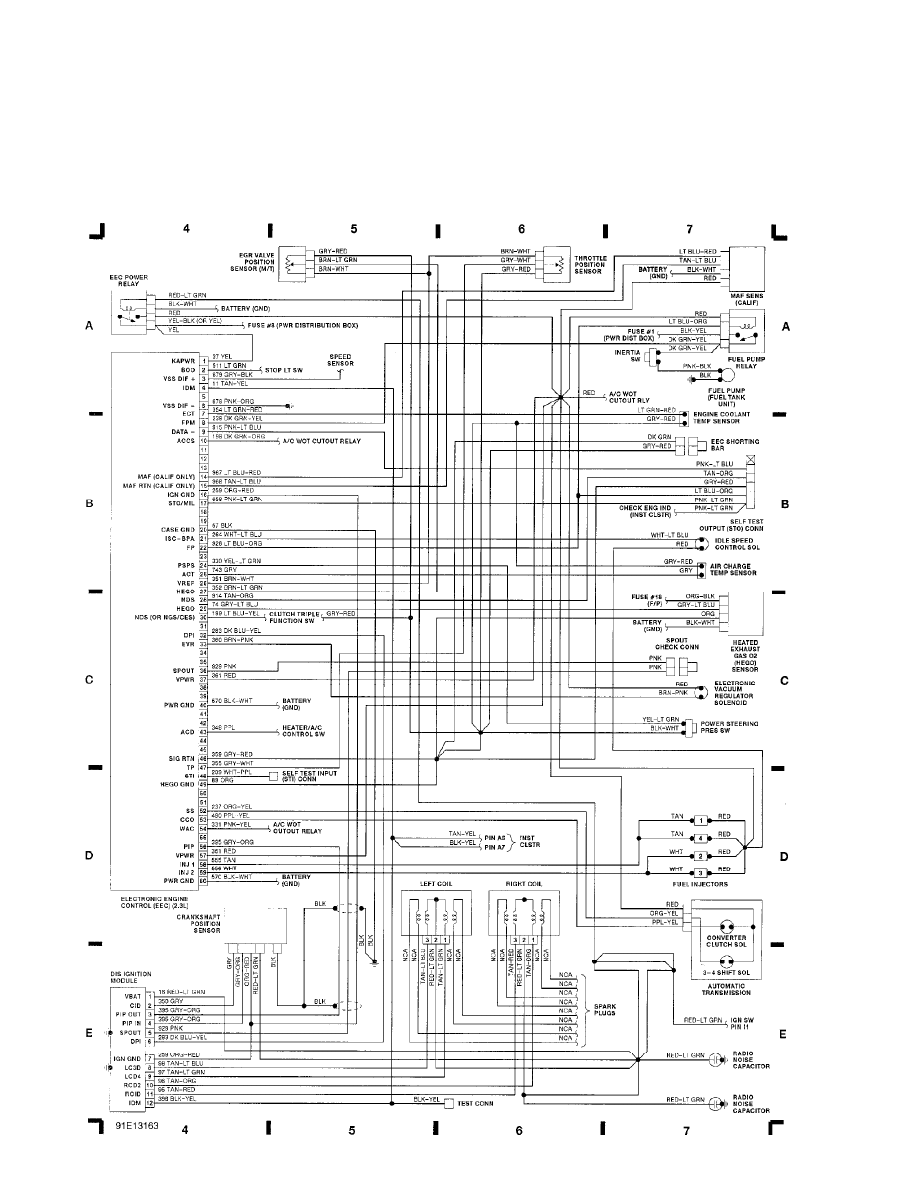

Fig. 2: Electronic Engine Control (EEC) (2.3L) (Grids 4-7) (p. 2)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

WIRING DIAGRAMS

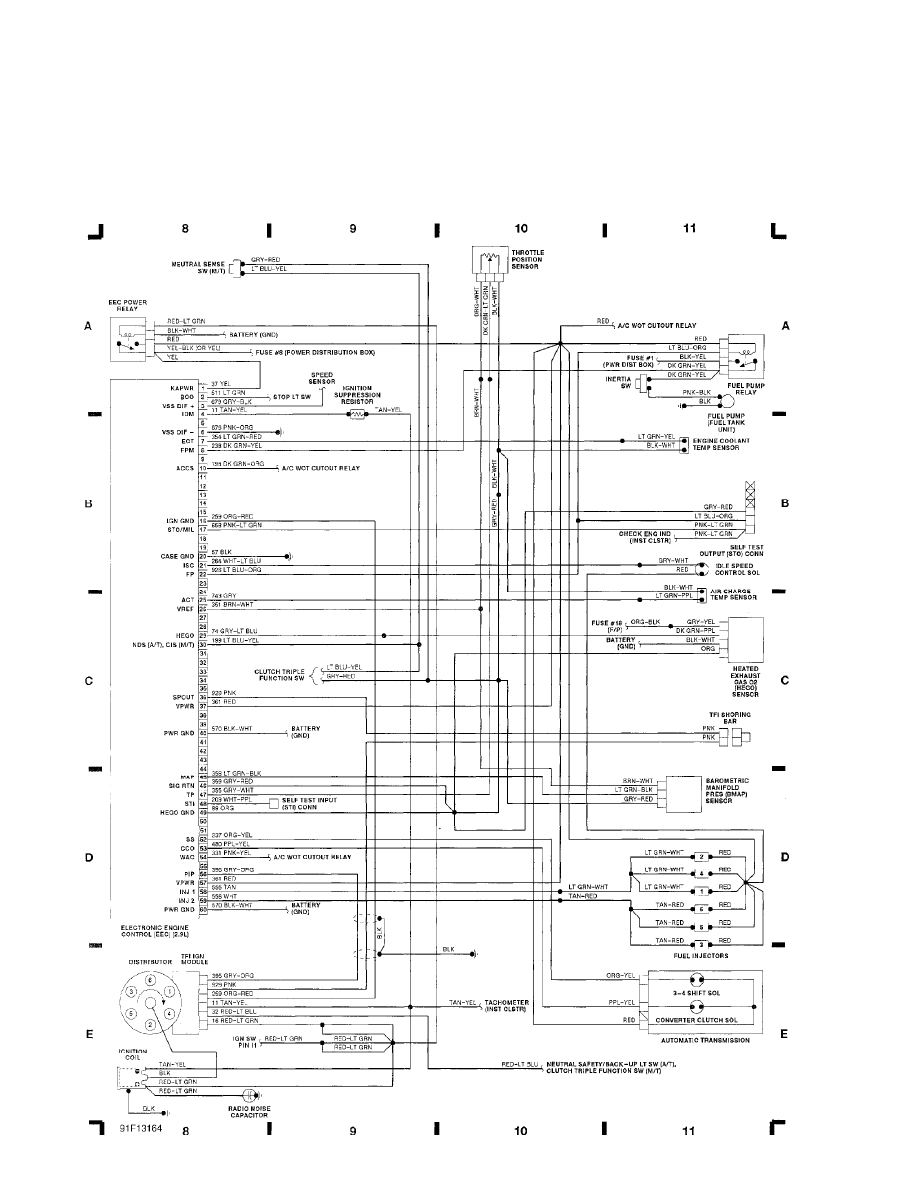

Fig. 3: Electronic Engine Control (EEC) (2.9L) (Grids 8-11) (p. 3)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

WIRING DIAGRAMS

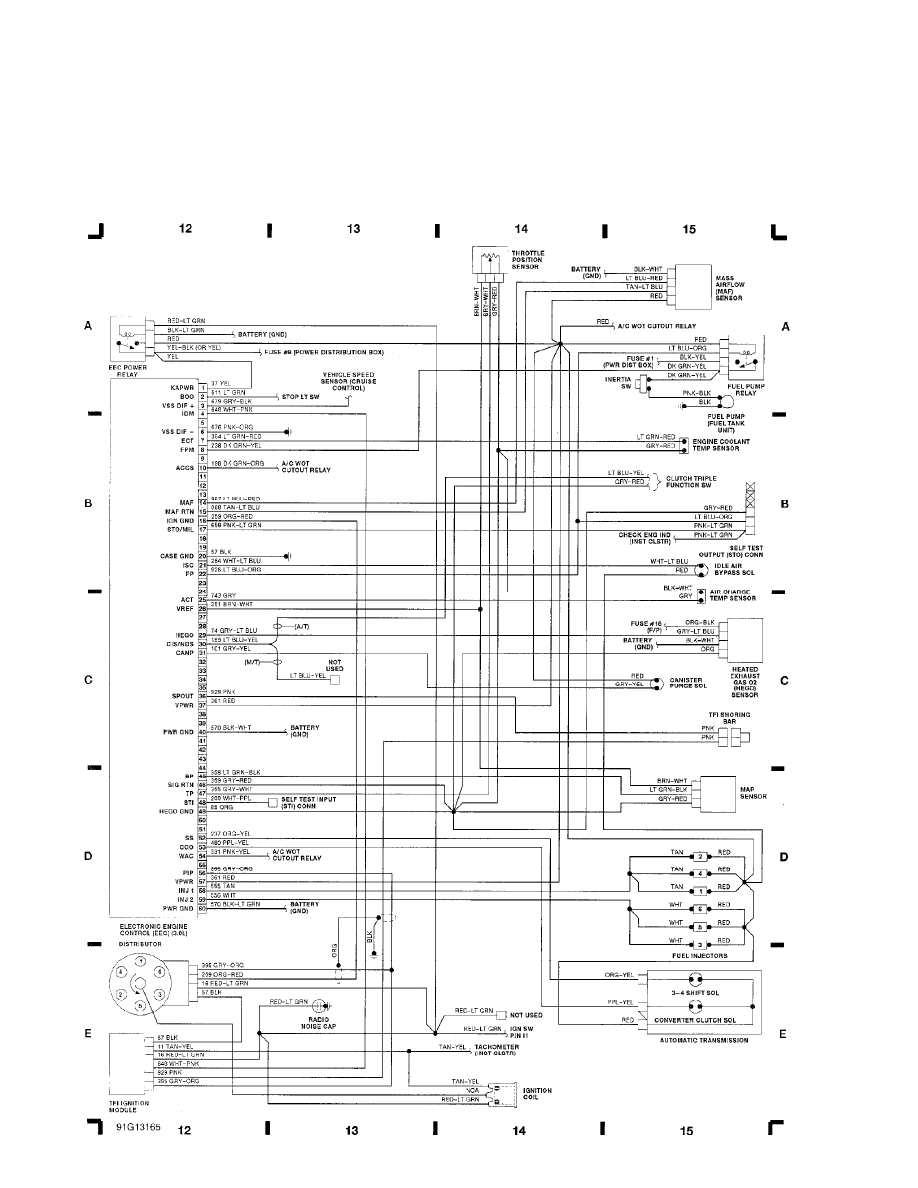

Fig. 4: Electronic Engine Control (EEC) (3.0L) (Grids 12-15) (p. 4)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

WIRING DIAGRAMS

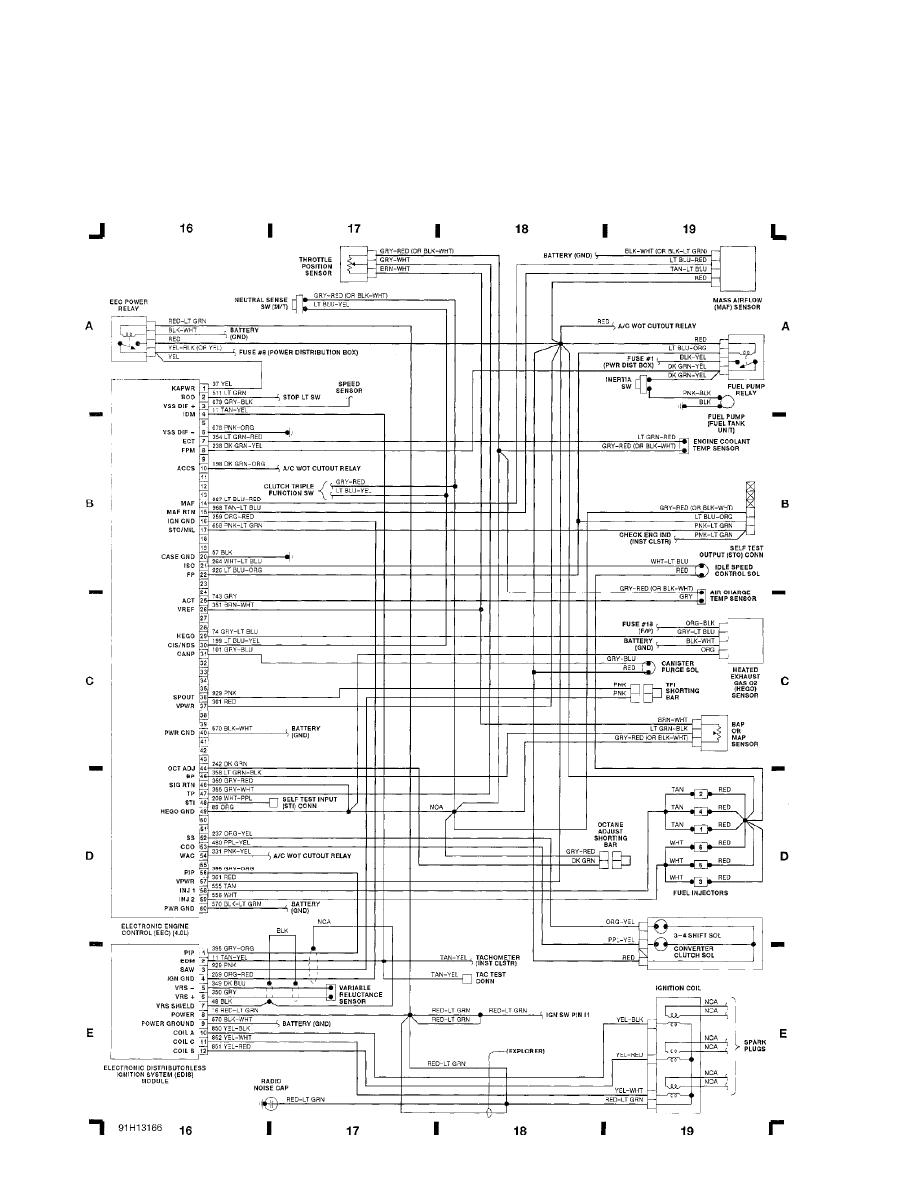

Fig. 5: Electronic Engine Control (EEC) (4.0L) (Grids 16-19) (p. 5)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

WIRING DIAGRAMS

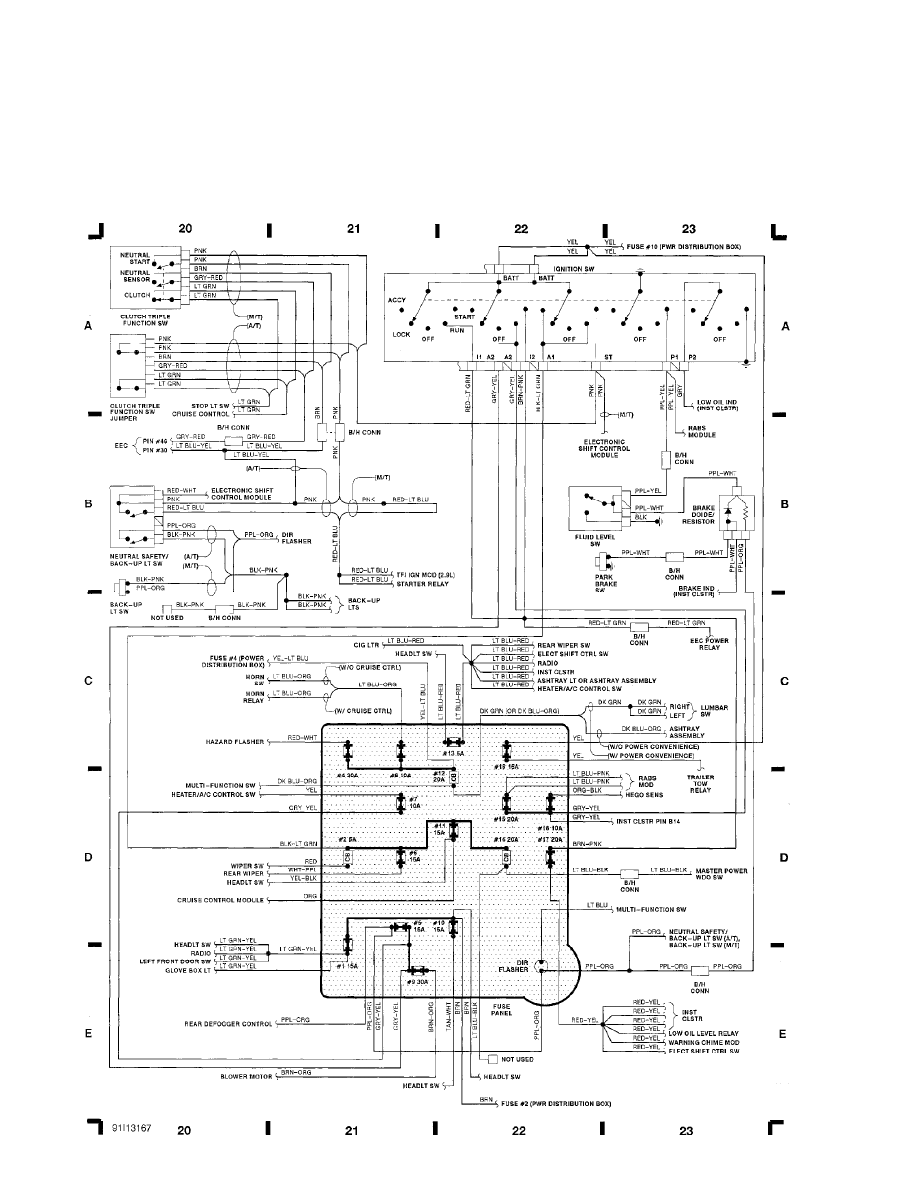

Fig. 6: Fuse Block (Grids 20-23) (p. 6)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

WIRING DIAGRAMS

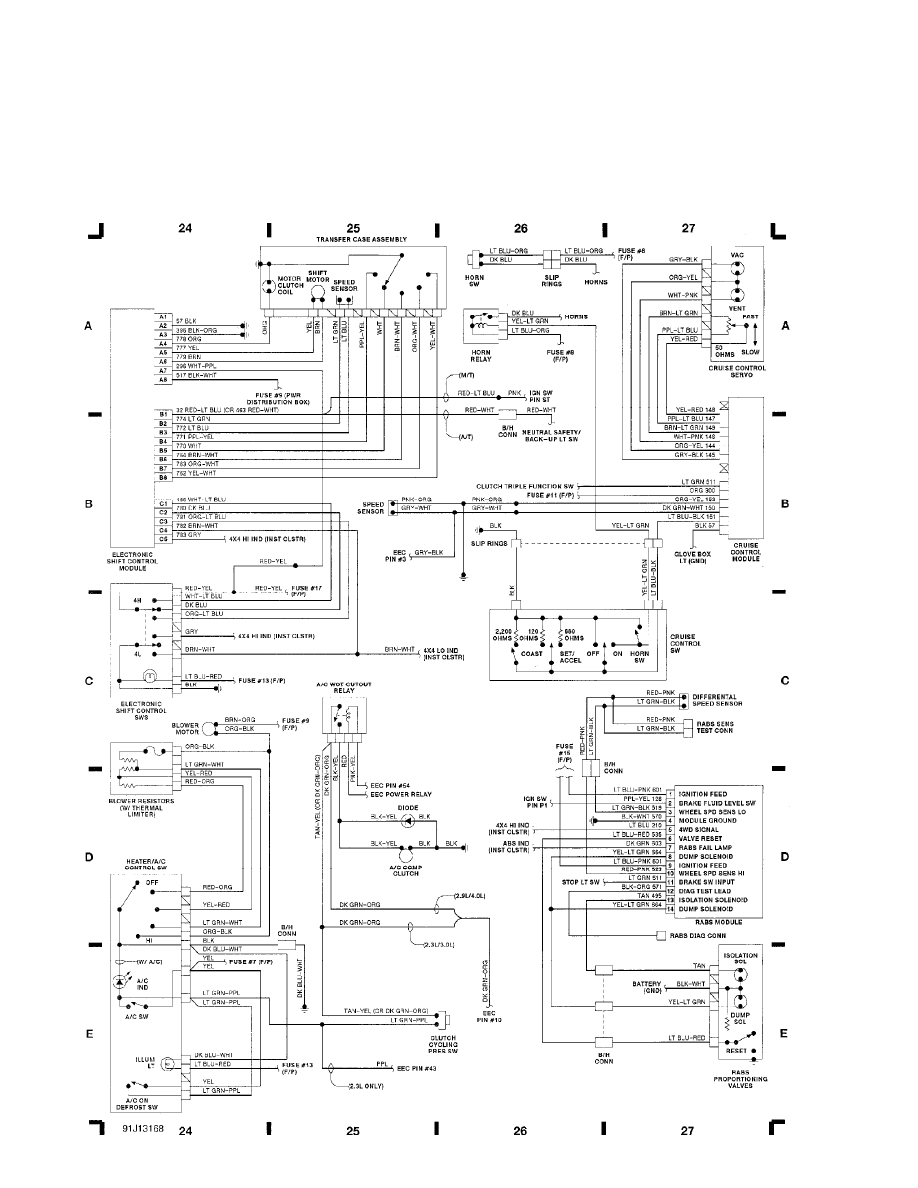

Fig. 7: Cruise Control & RABS Module (Grids 24-27) (p. 7)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

WIRING DIAGRAMS

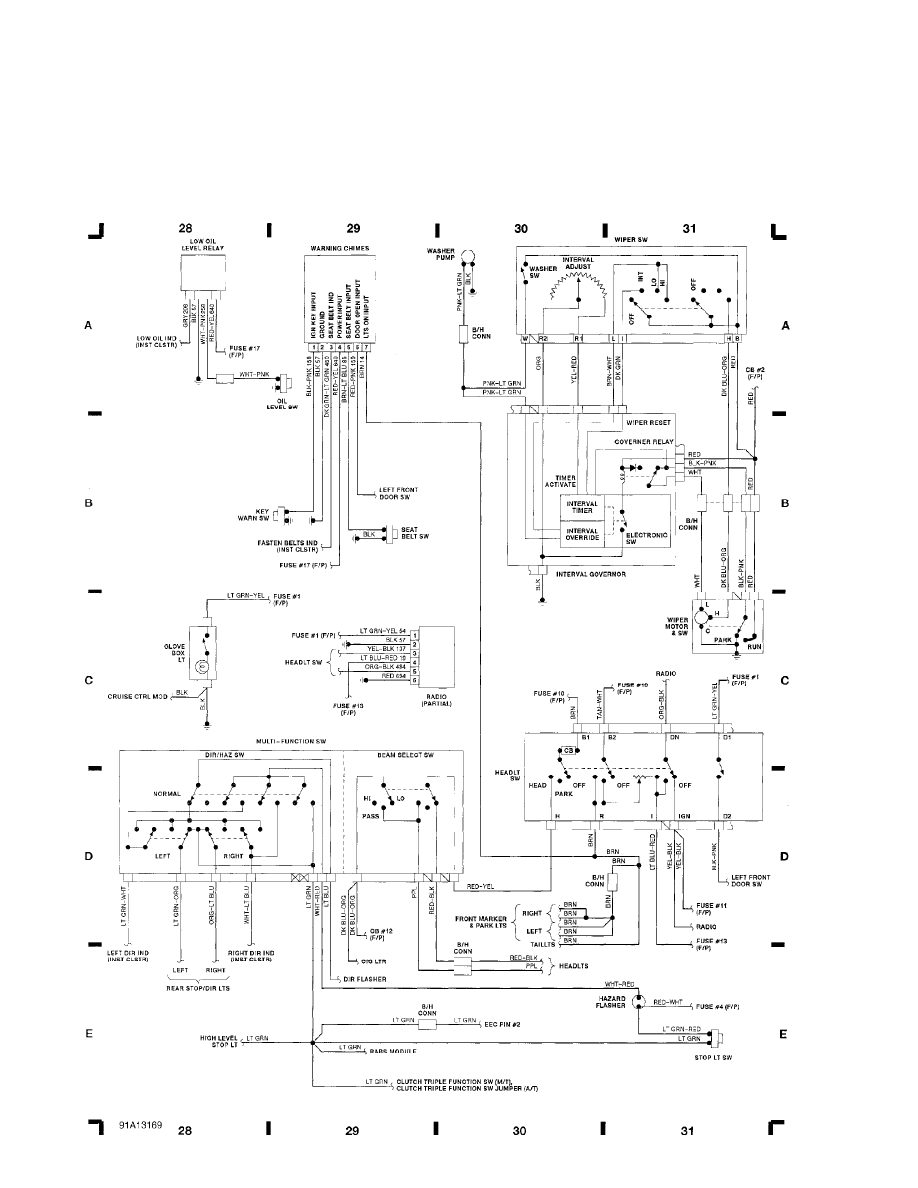

Fig. 8: Multi-Function Switches (Grids 28-31) (p. 8)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

WIRING DIAGRAMS

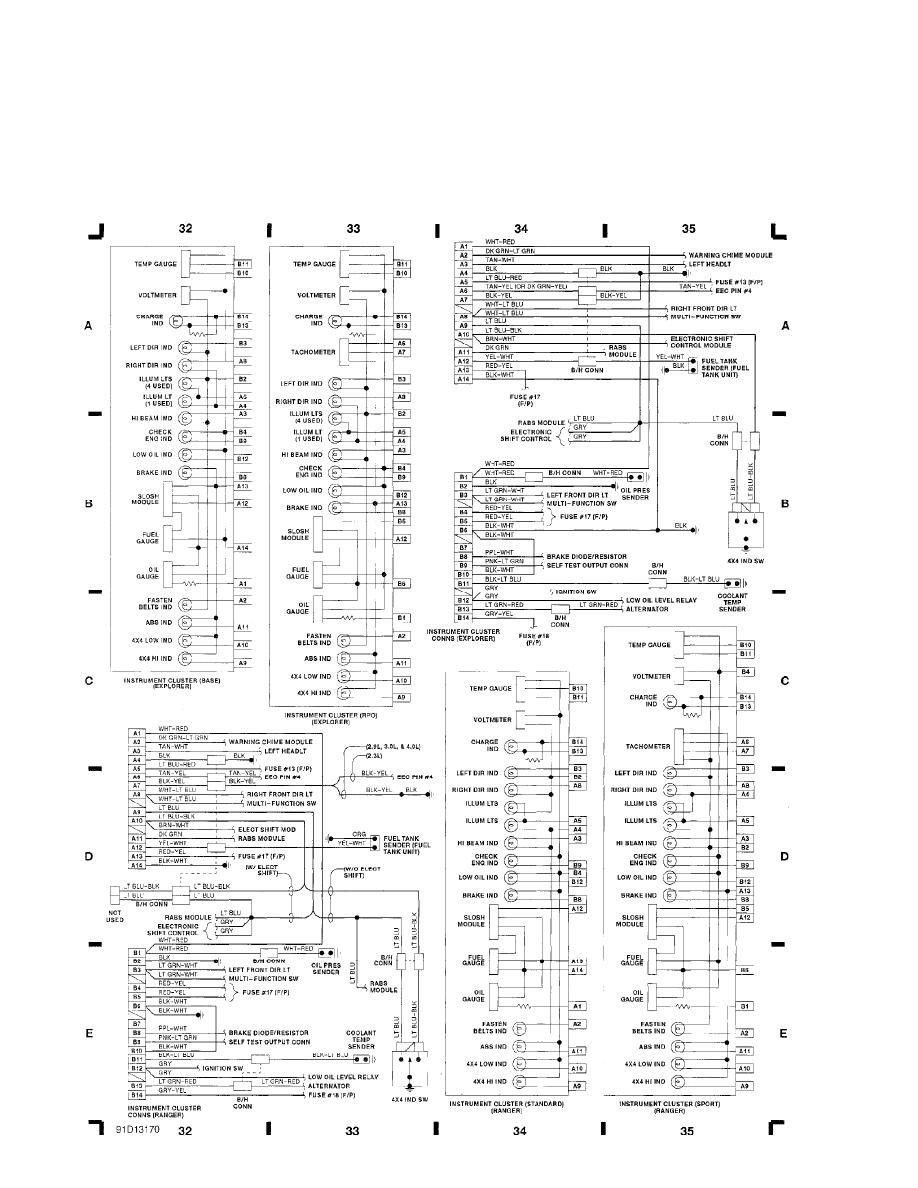

Fig. 9: Instrument Clusters (Grids 32-35) (p. 9)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

WIRING DIAGRAMS

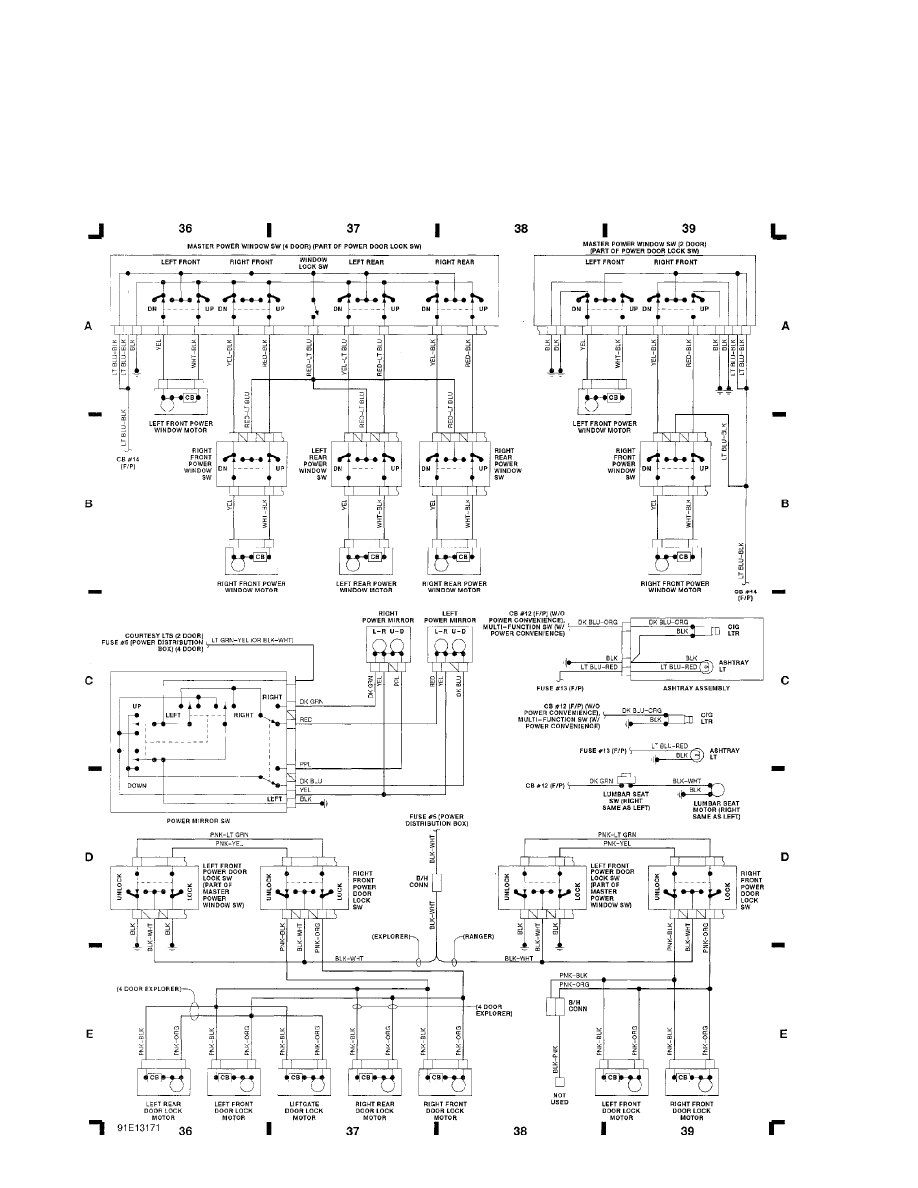

Fig. 10: Power Window & Power Mirror Switches (Grids 36-39) (p. 10)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM

WIRING DIAGRAMS

Fig. 11: Passenger Compartment & Taillights (Grids 40-43) (p. 11)

1991 Ford Explorer

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:52PM
