SYSTEM WIRING DIAGRAMS
2.3L, Cooling Fan Circuit
1985 Mercedes-Benz 190E
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:34PM
CDR@WP.PL

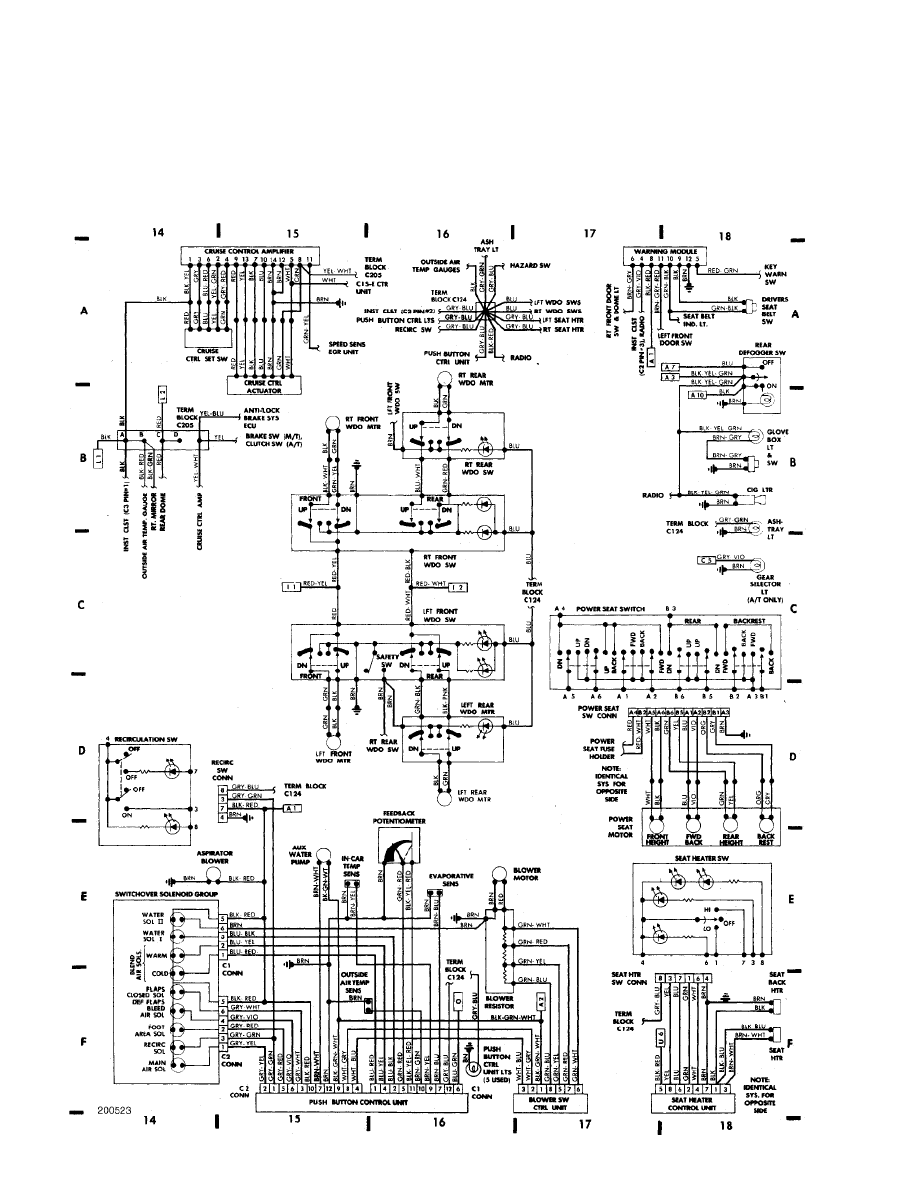

WIRING DIAGRAMS
Fig. 4: Accessories
1985 Mercedes-Benz 190E
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:37PM

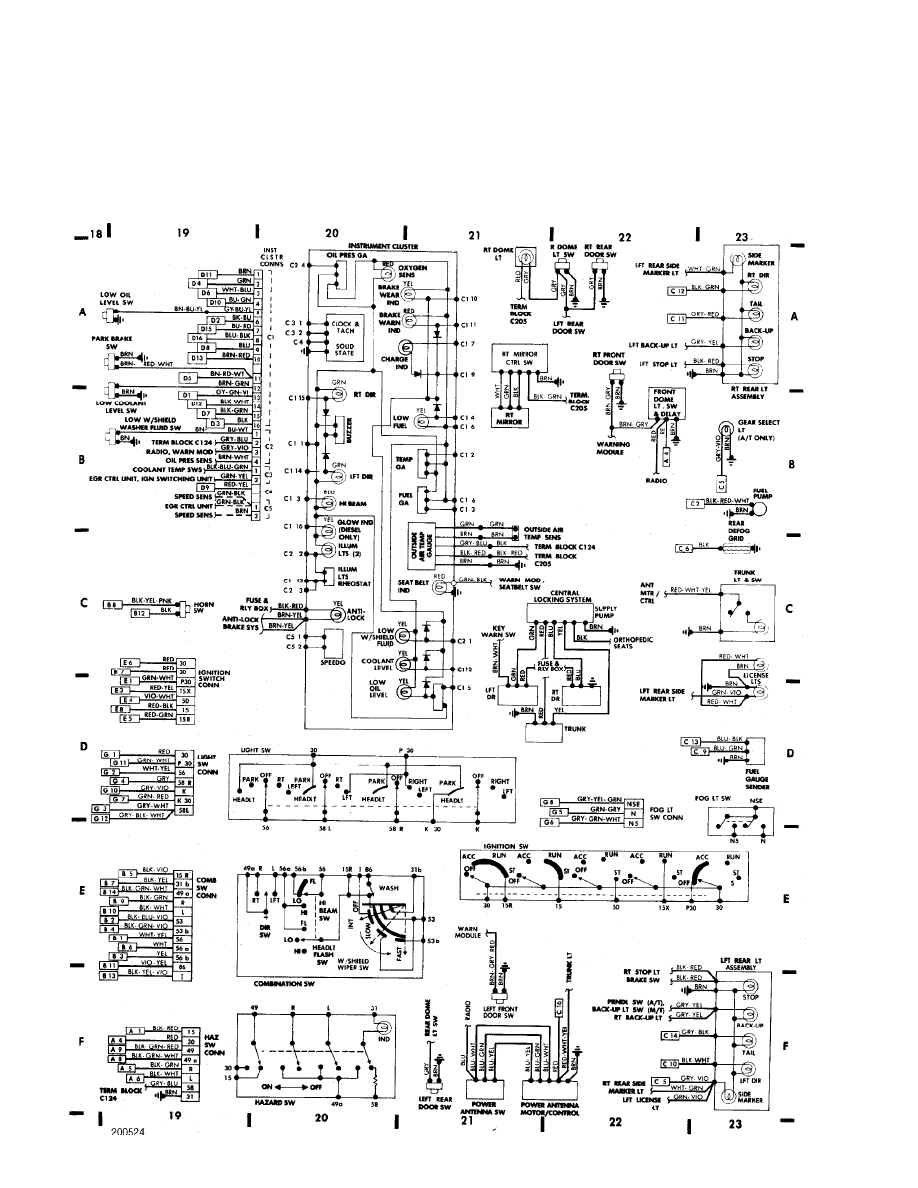

WIRING DIAGRAMS
Fig. 5: Instrument Panel & Rear Compartment
1985 Mercedes-Benz 190E
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:38PM

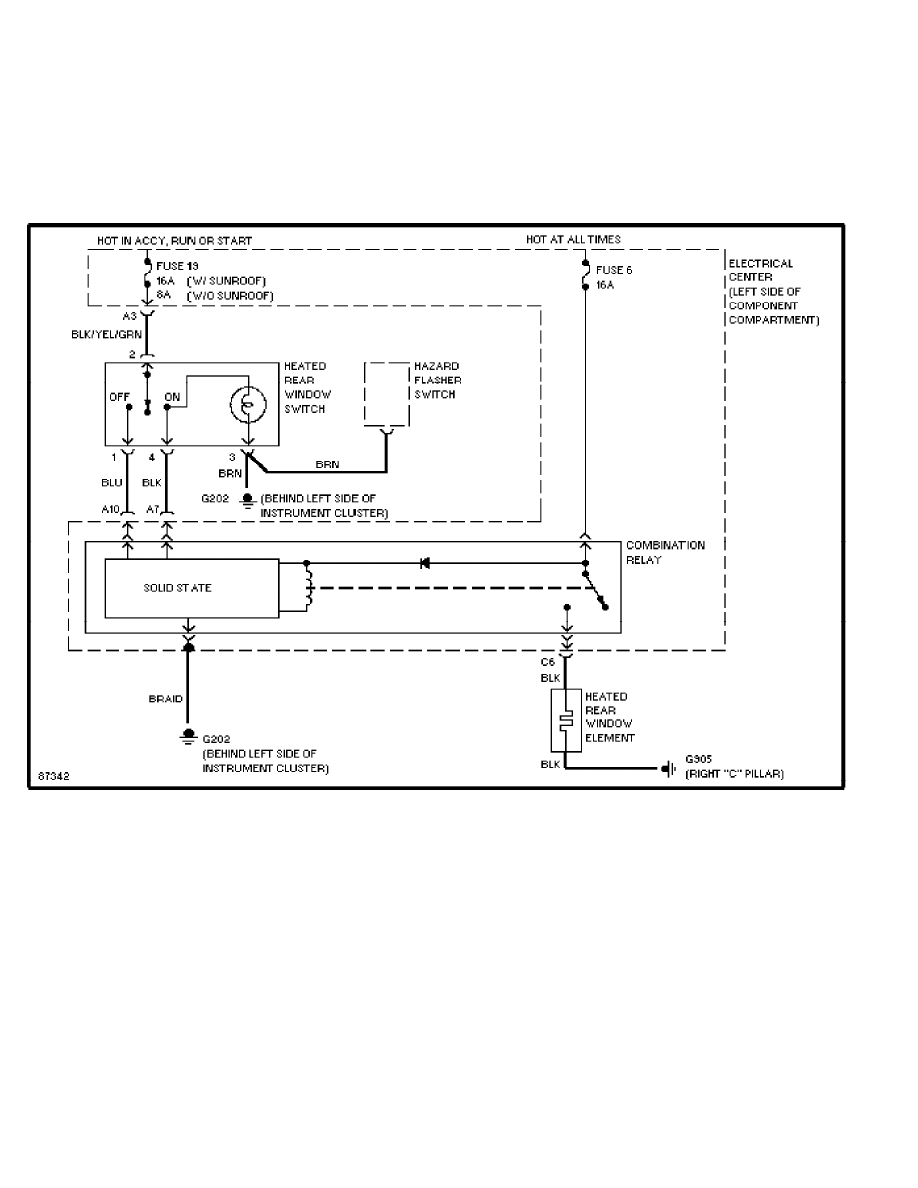

SYSTEM WIRING DIAGRAMS
Defogger Circuit
1985 Mercedes-Benz 190E
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:36PM

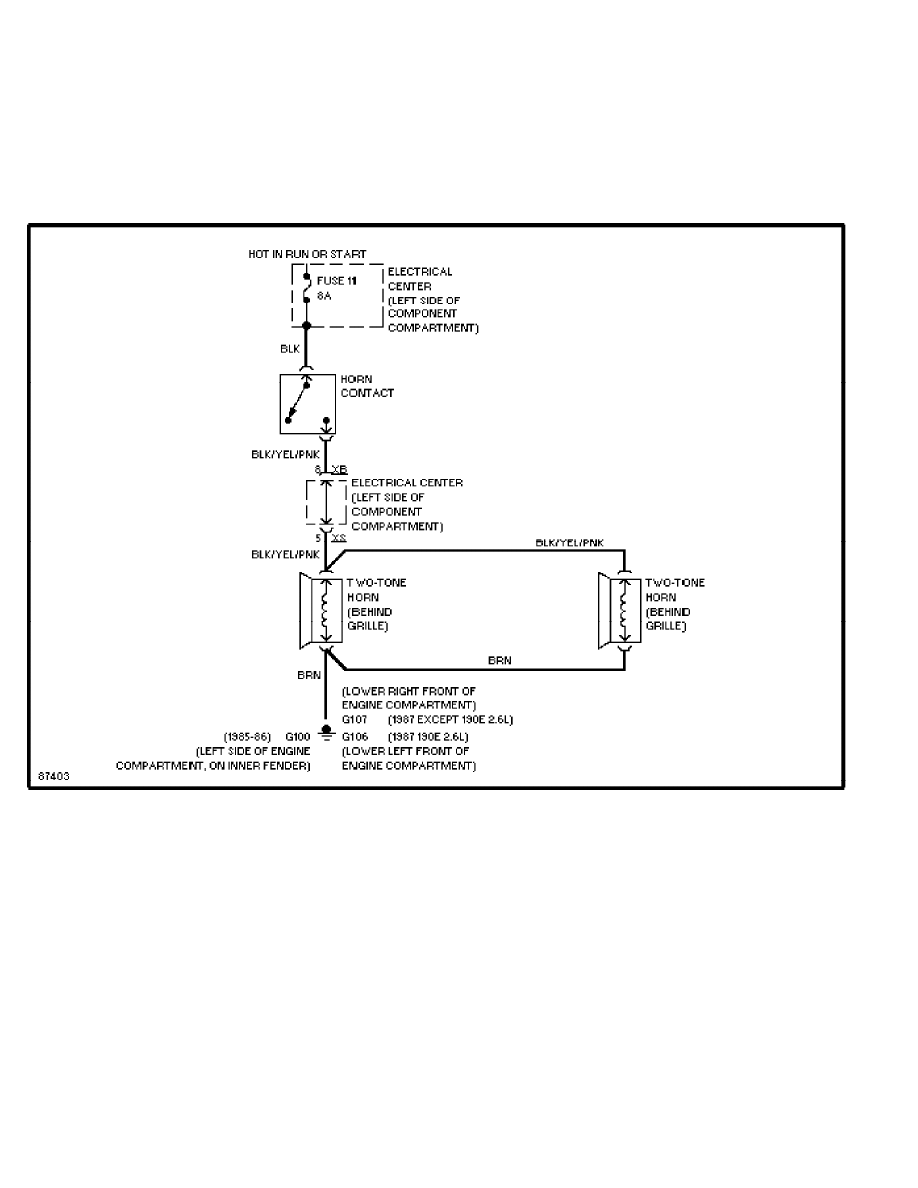

SYSTEM WIRING DIAGRAMS
Horn Circuit
1985 Mercedes-Benz 190E
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:36PM

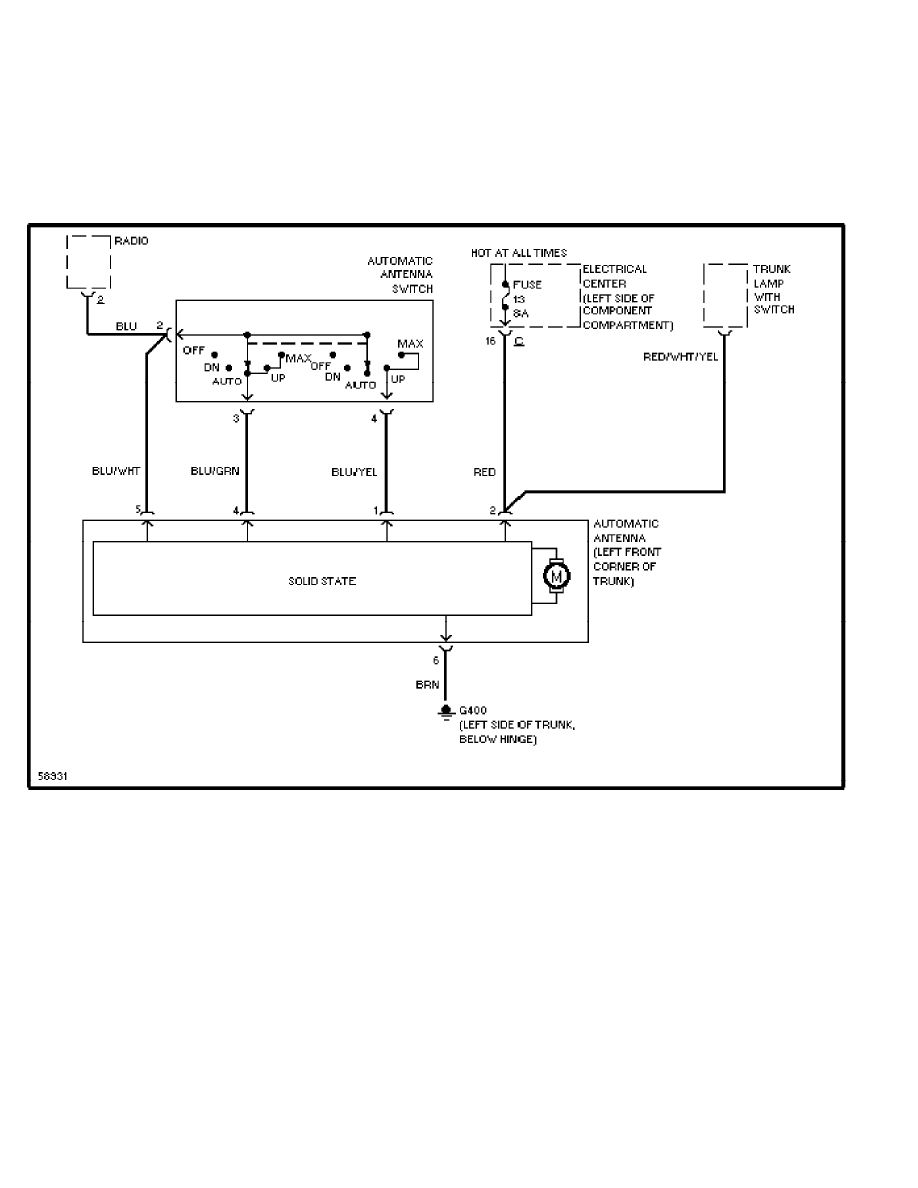

SYSTEM WIRING DIAGRAMS
Power Antenna Circuit
1985 Mercedes-Benz 190E
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:36PM

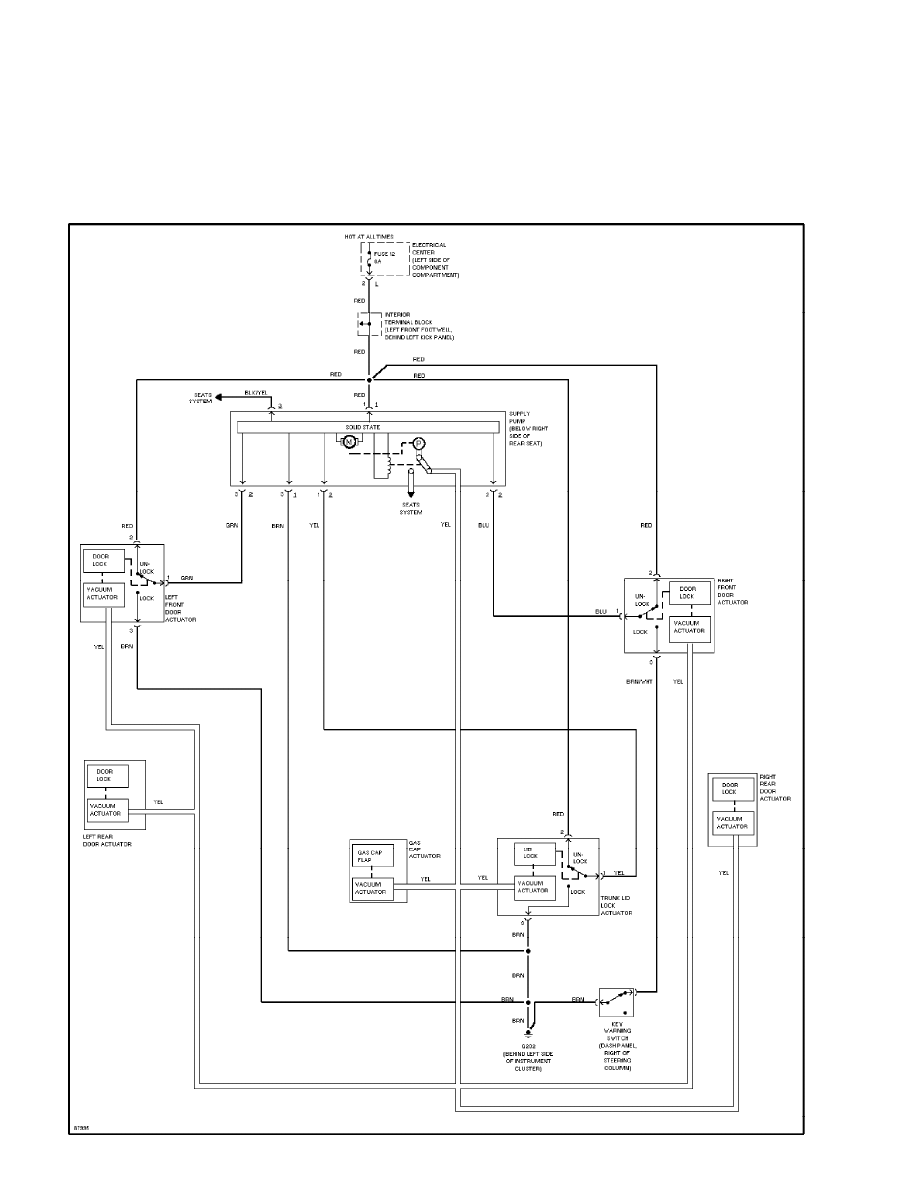

SYSTEM WIRING DIAGRAMS
Power Door Lock Circuit
1985 Mercedes-Benz 190E
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:37PM

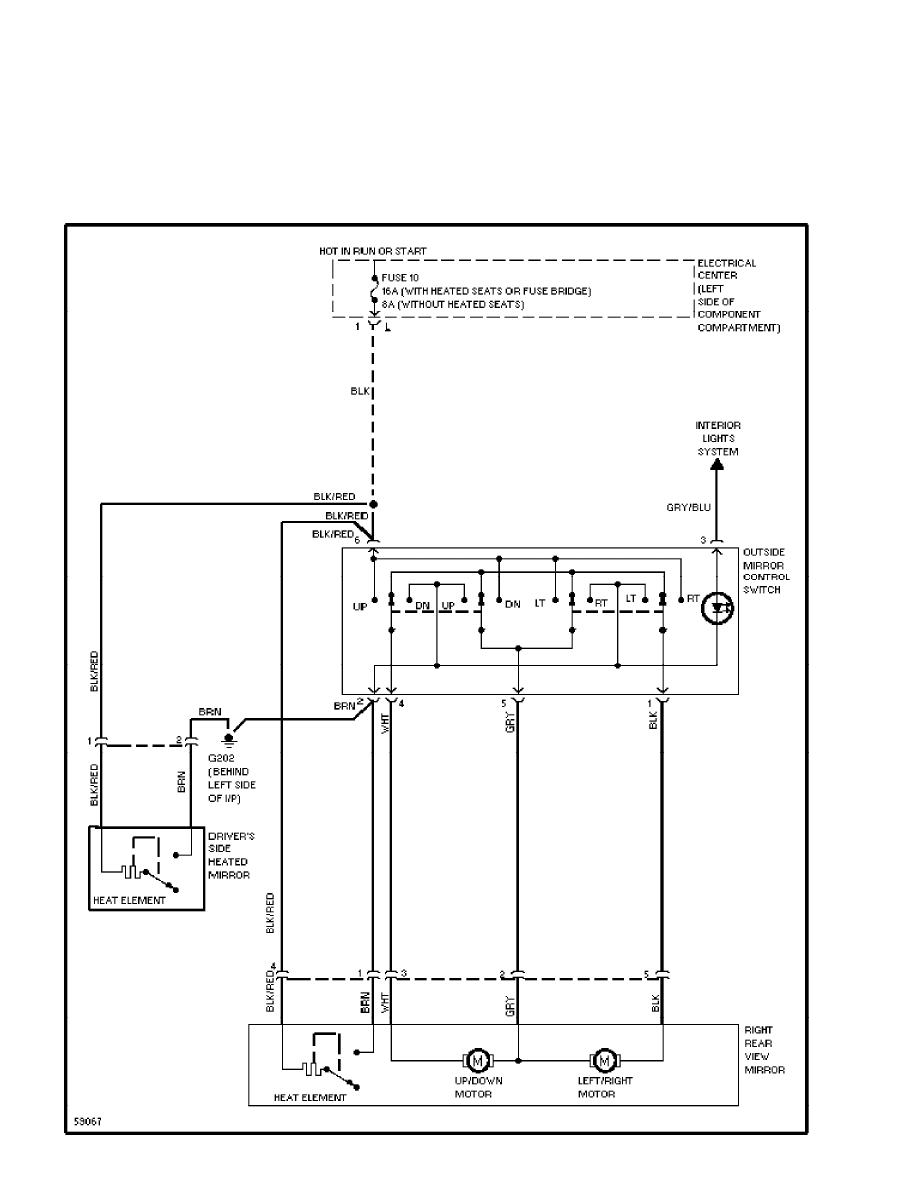

SYSTEM WIRING DIAGRAMS
Power Mirror Circuit
1985 Mercedes-Benz 190E
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:37PM
SYSTEM WIRING DIAGRAMS
Heater Circuit
1985 Mercedes-Benz 190E
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:37PM

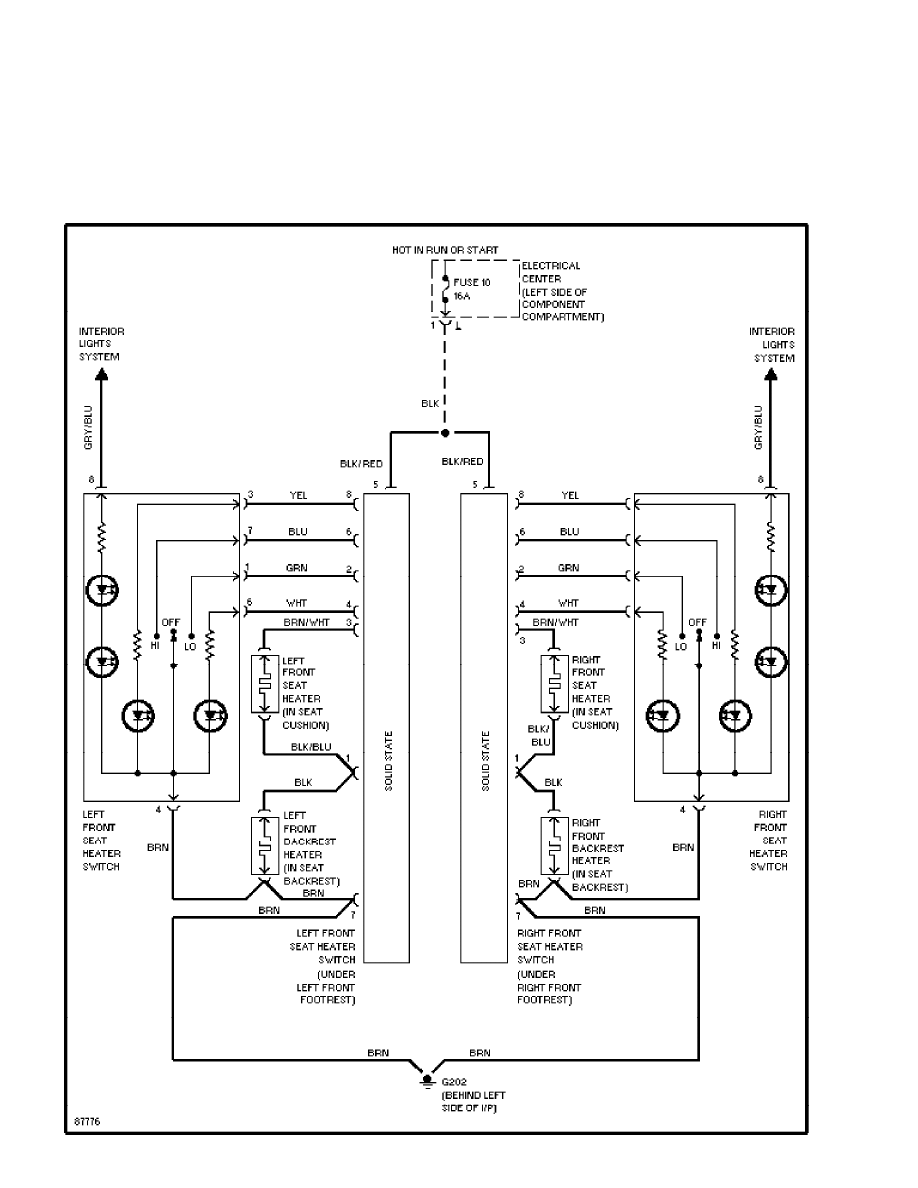

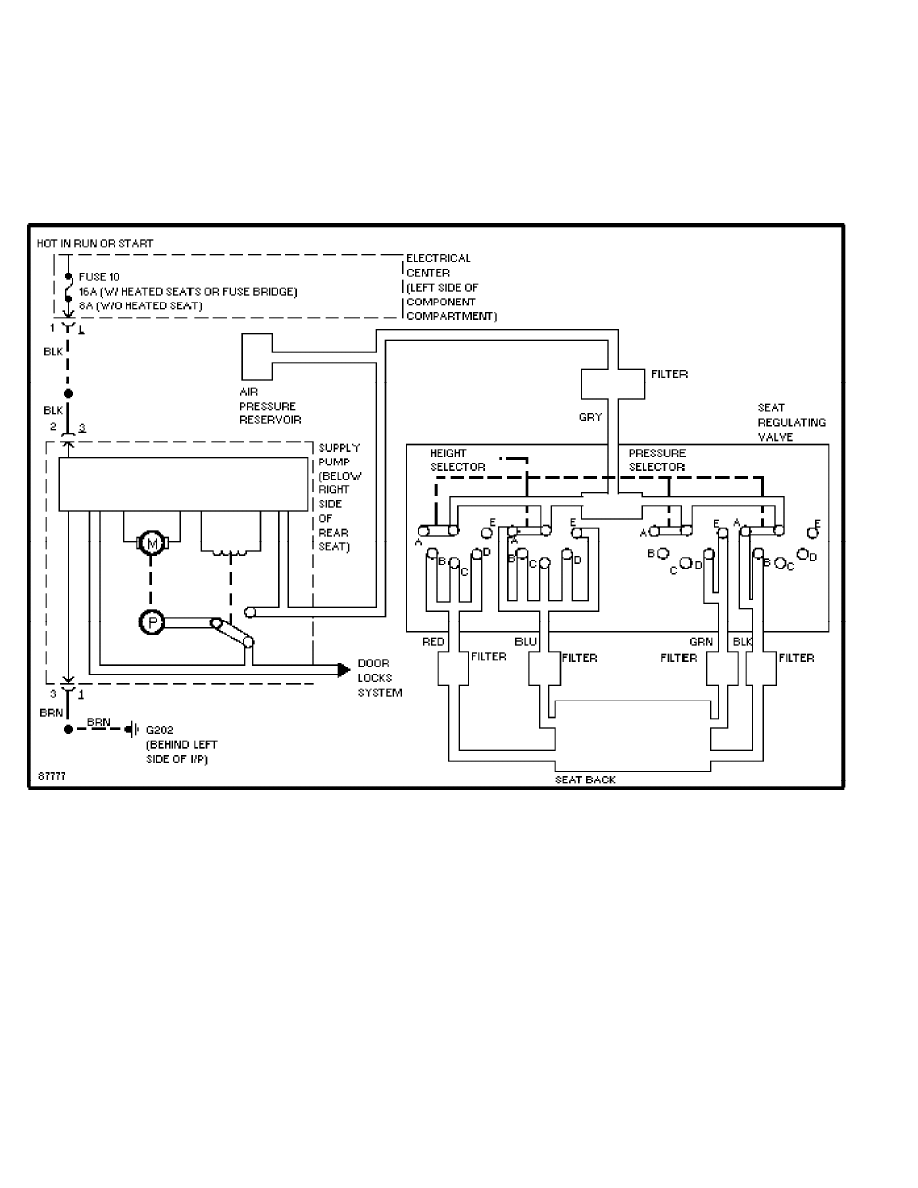

SYSTEM WIRING DIAGRAMS
Orthopedic Seats
1985 Mercedes-Benz 190E
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:37PM

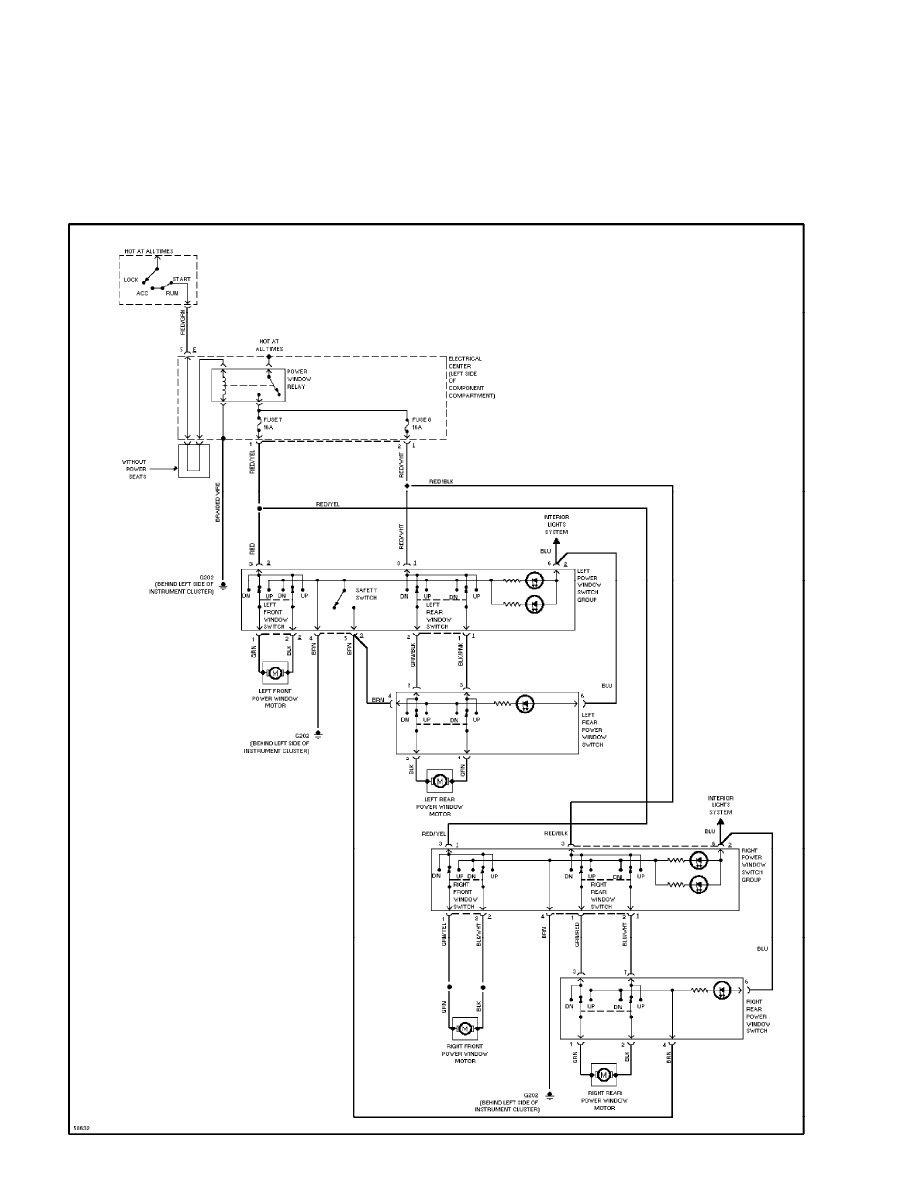

SYSTEM WIRING DIAGRAMS
Power Window Circuit
1985 Mercedes-Benz 190E
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:37PM

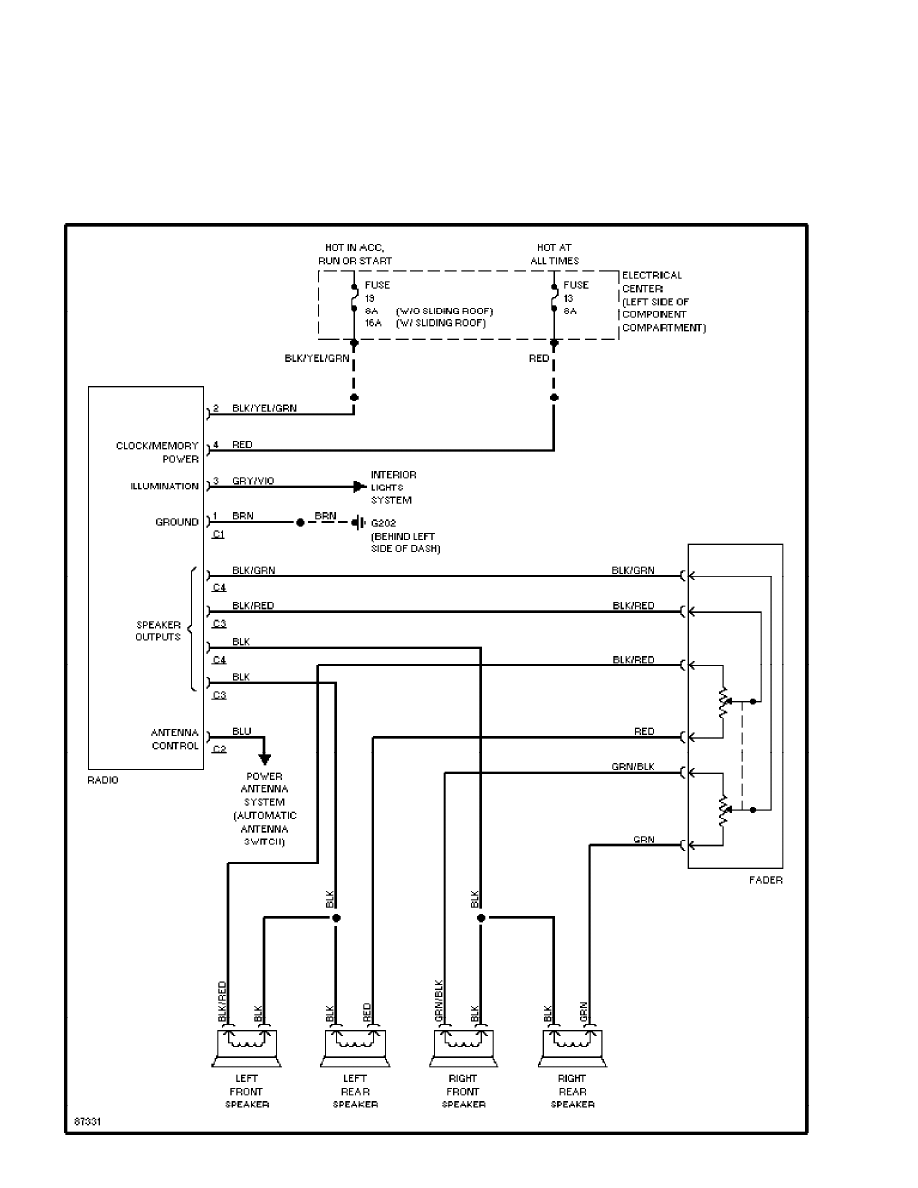

SYSTEM WIRING DIAGRAMS
Radio Circuits
1985 Mercedes-Benz 190E
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:37PM

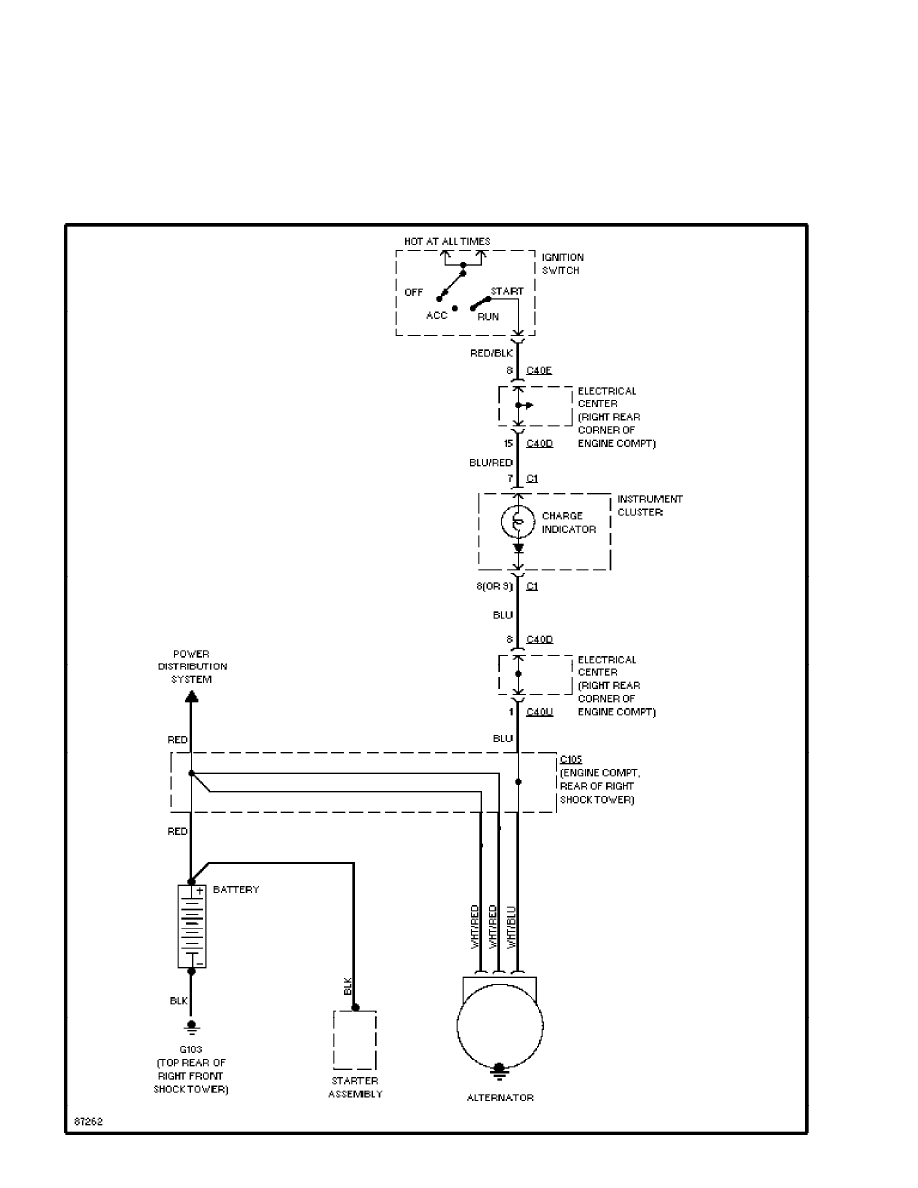

SYSTEM WIRING DIAGRAMS
Charging Circuit
1985 Mercedes-Benz 190E
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:37PM
SYSTEM WIRING DIAGRAMS
Starting Circuit
1985 Mercedes-Benz 190E
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:37PM

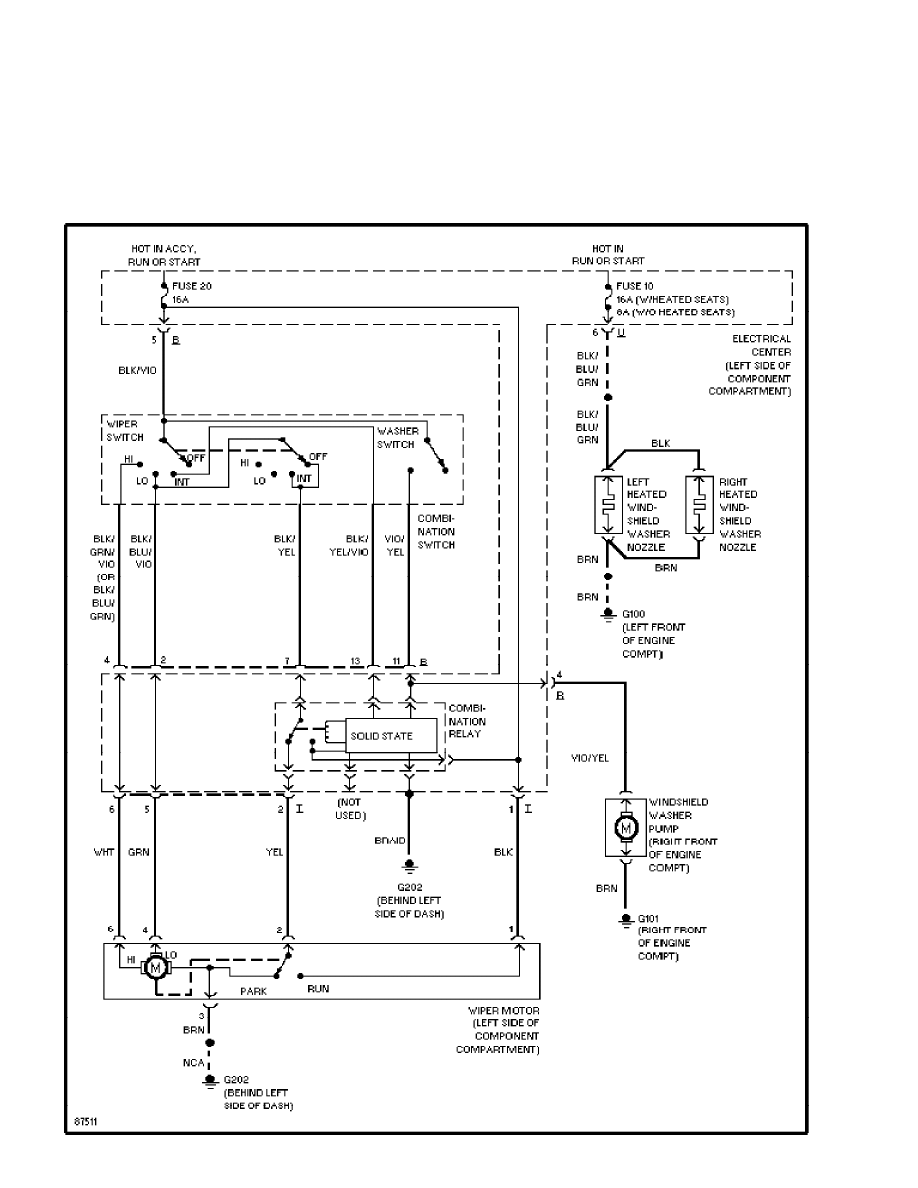

SYSTEM WIRING DIAGRAMS
Wiper/Washer Circuit
1985 Mercedes-Benz 190E
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:37PM

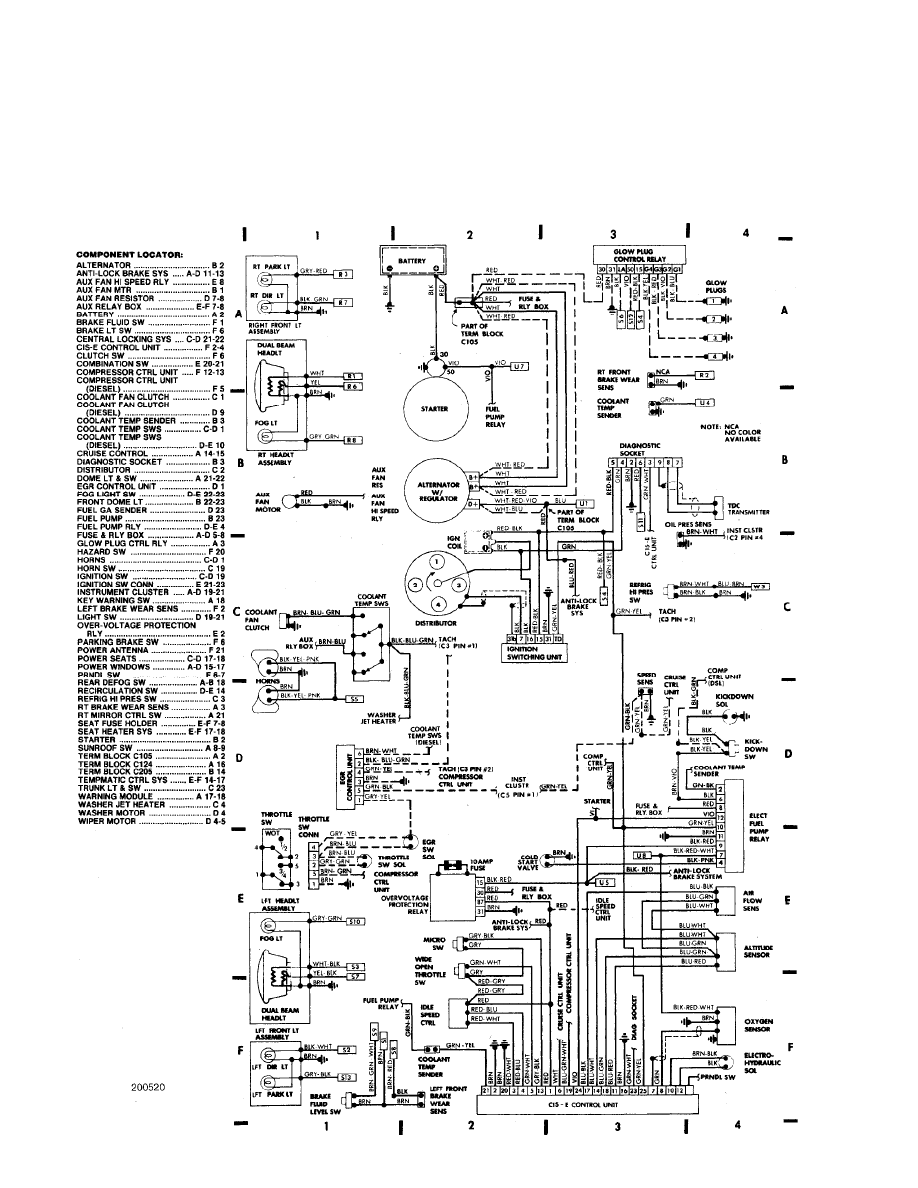

WIRING DIAGRAMS
Fig. 1: Engine Compartment
1985 Mercedes-Benz 190E
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:37PM

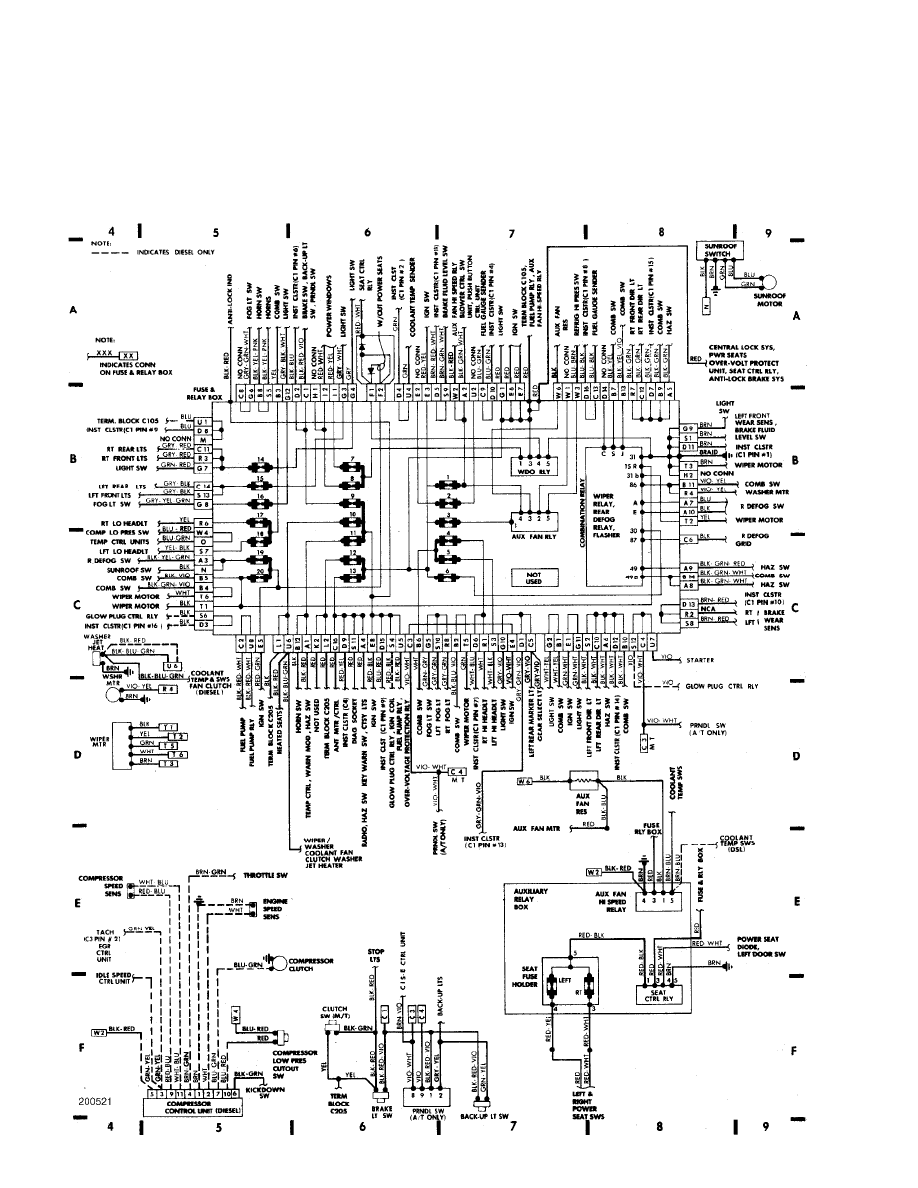

WIRING DIAGRAMS
Fig. 2: Fuse Panel & Underdash
1985 Mercedes-Benz 190E
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:37PM

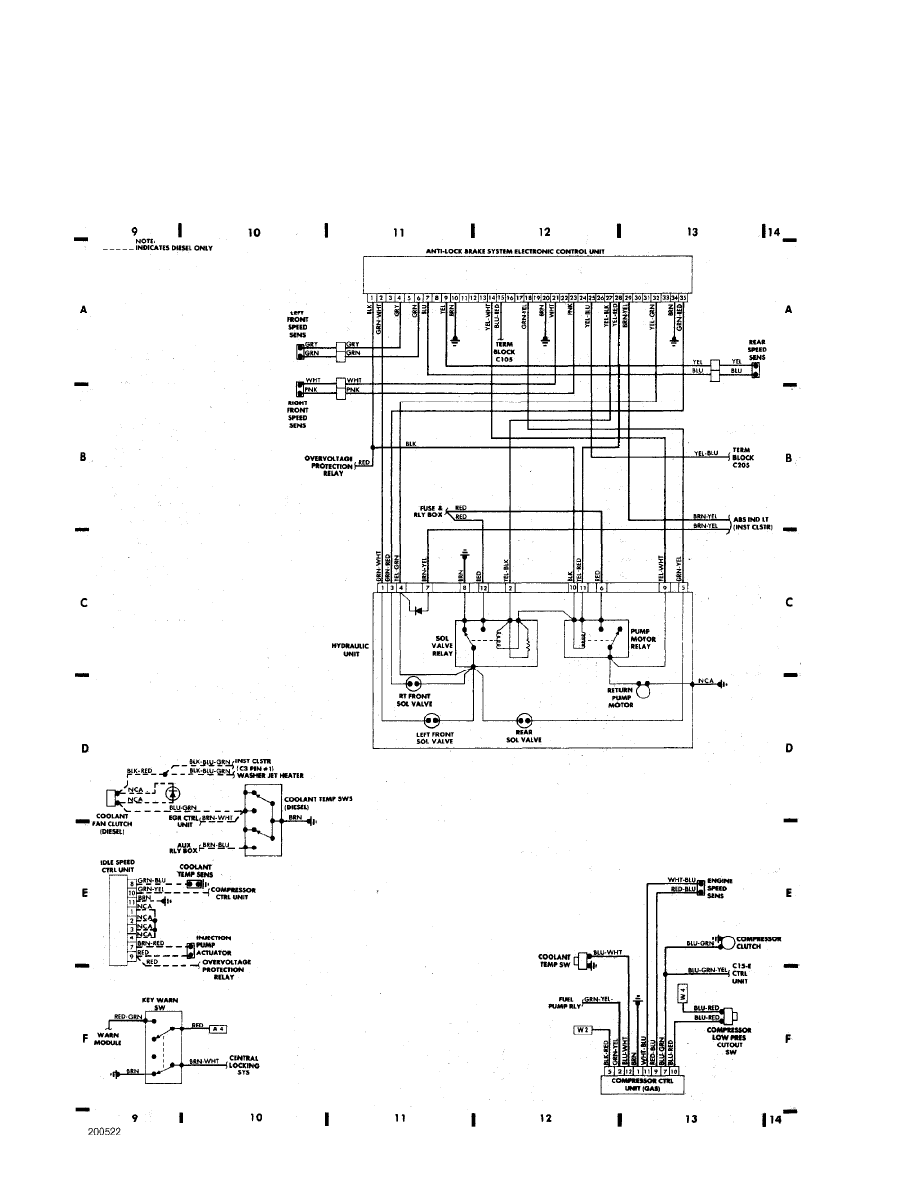

WIRING DIAGRAMS
Fig. 3: Underdash
1985 Mercedes-Benz 190E
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, July 25, 2004 05:37PM
