ALFA ROMEO GTV 6 1985

background image

WIRING DIAGRAMS

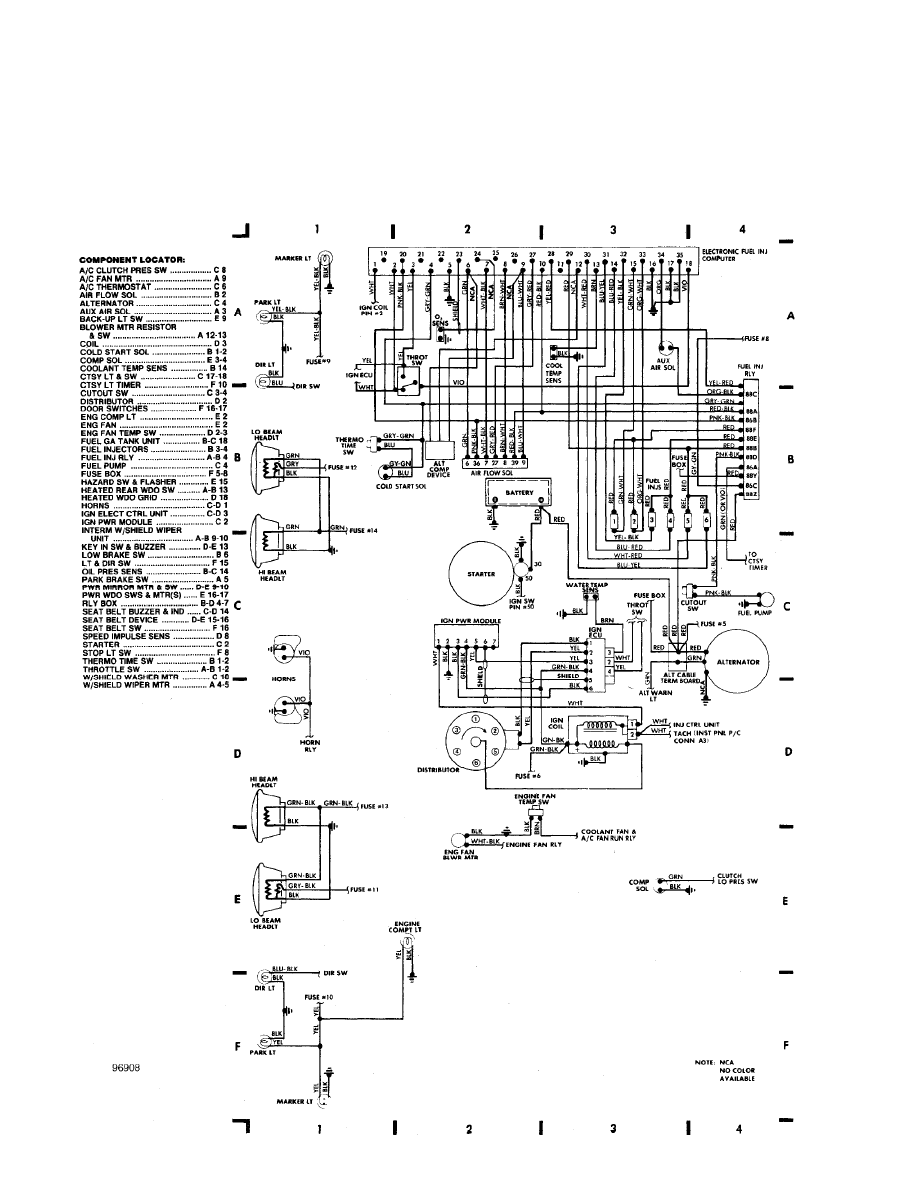

Fig. 1: Engine Compartment

1985 Alfa Romeo GTV-6

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 11:42AM

background image

WIRING DIAGRAMS

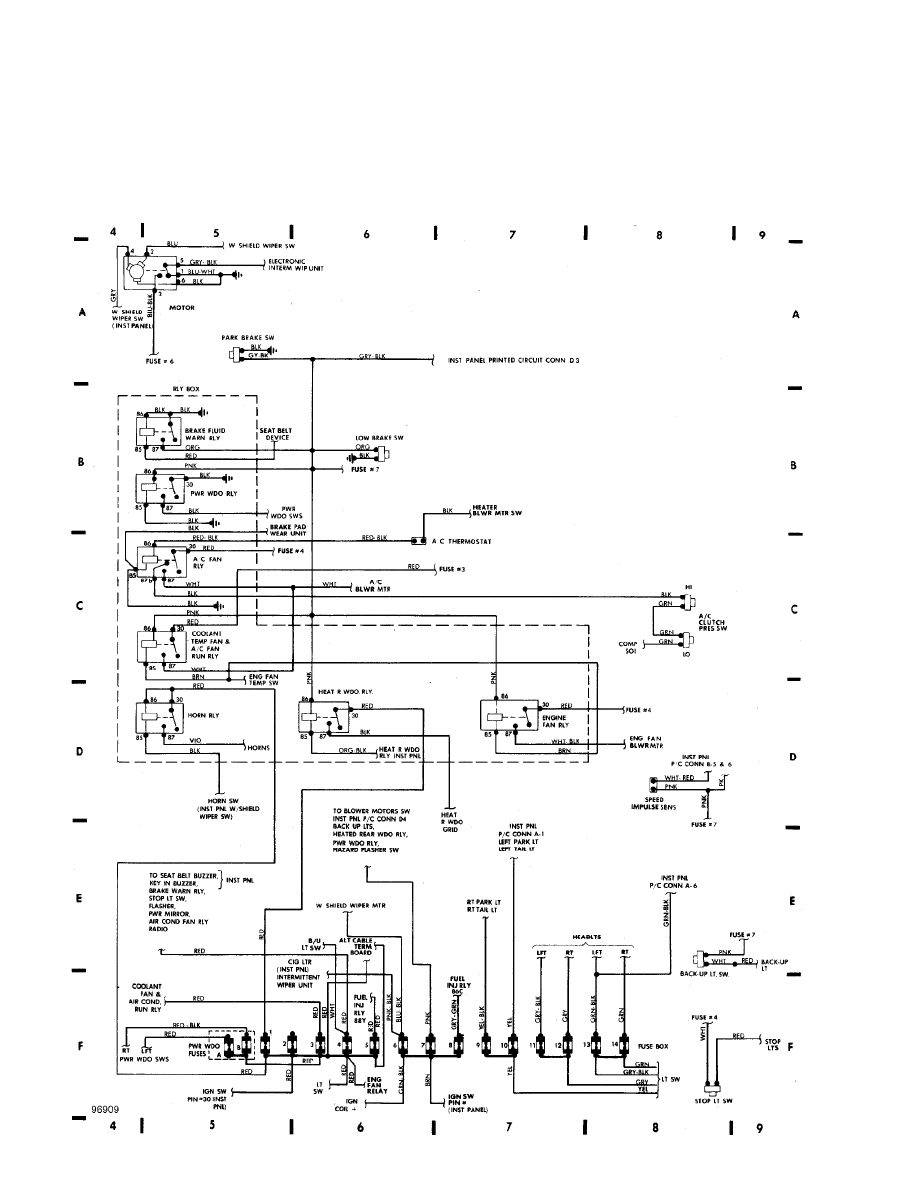

Fig. 2: Fuse Block & Underdash (p. 2)

1985 Alfa Romeo GTV-6

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 11:42AM

background image

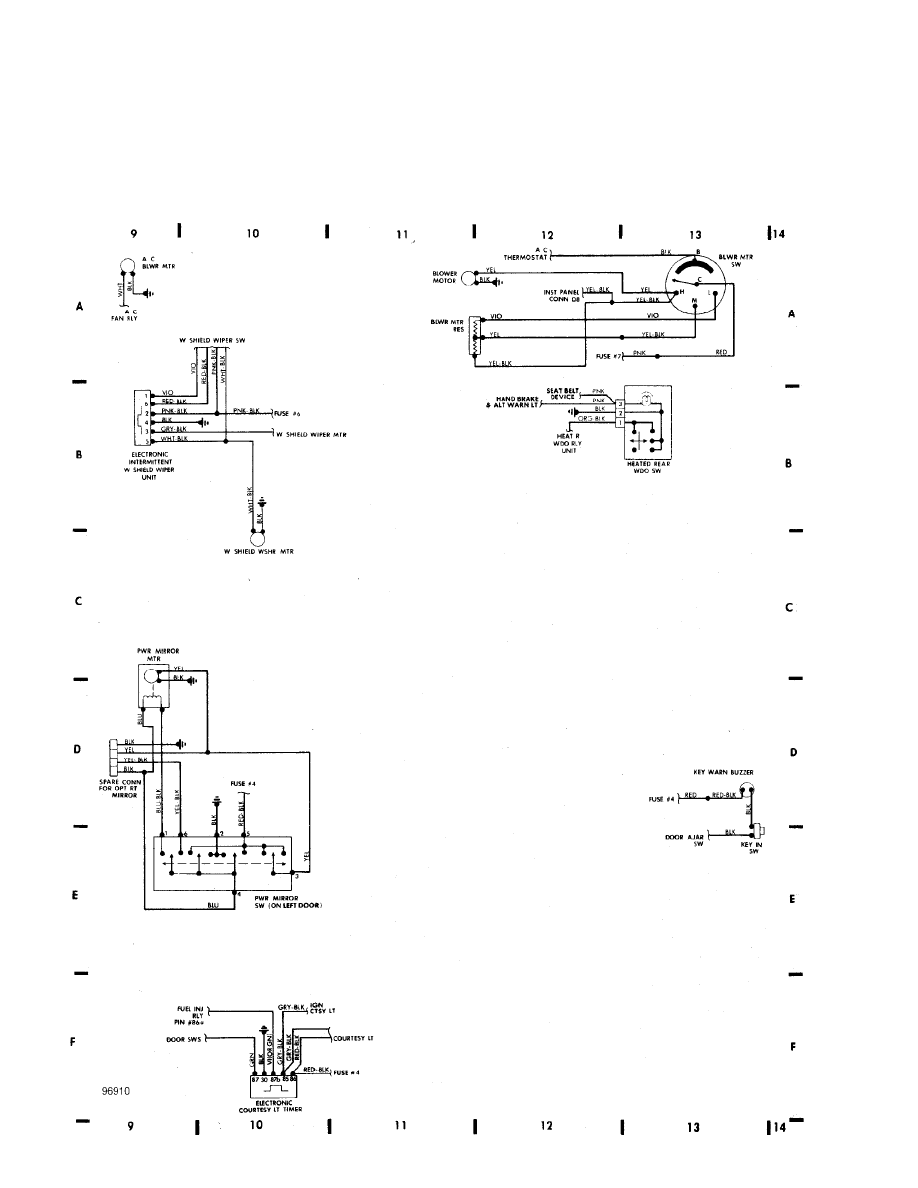

WIRING DIAGRAMS

Fig. 3: Underdash (p. 3)

1985 Alfa Romeo GTV-6

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 11:42AM

background image

WIRING DIAGRAMS

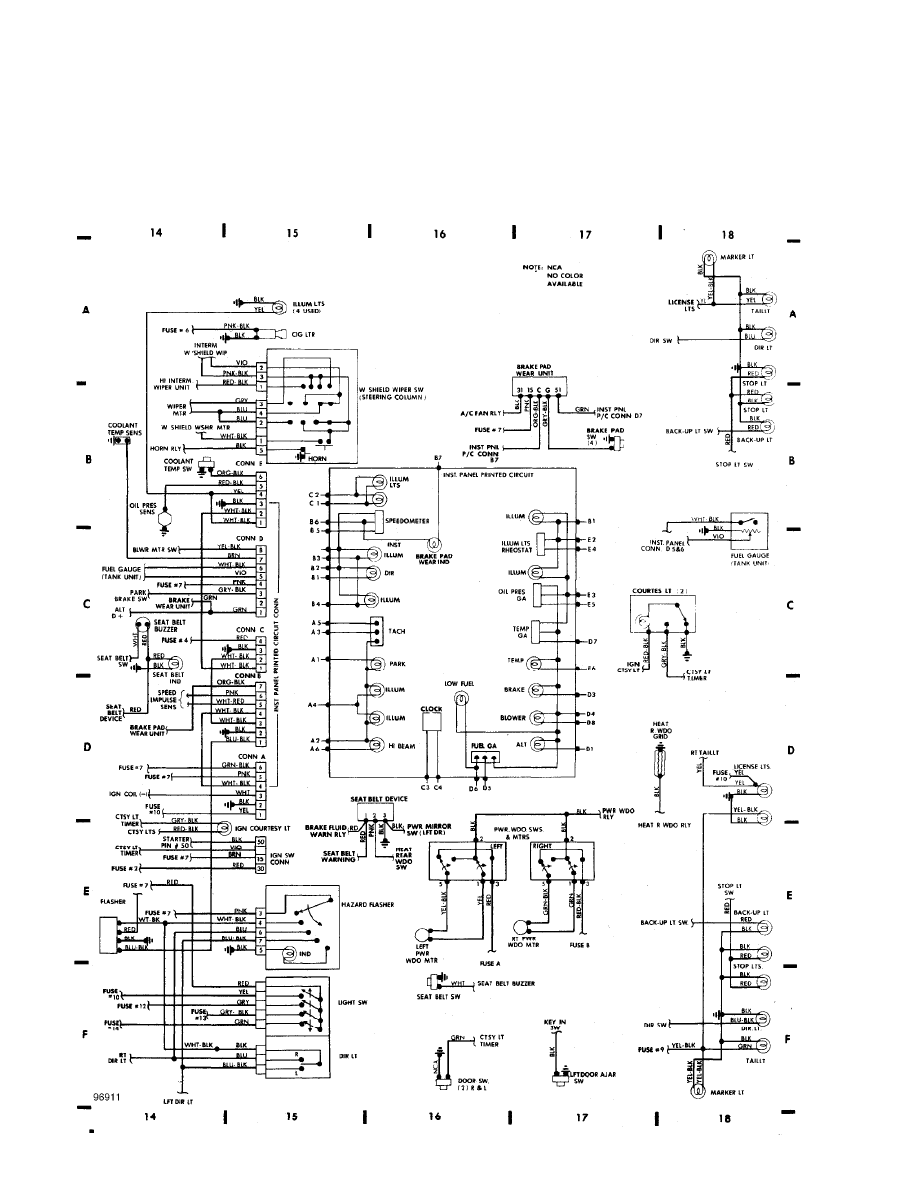

Fig. 4: Instrument Panel & Rear Compartment (p. 4)

1985 Alfa Romeo GTV-6

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 11:42AM
