ALFA ROMEO GTV 6 1986

background image

WIRING DIAGRAMS

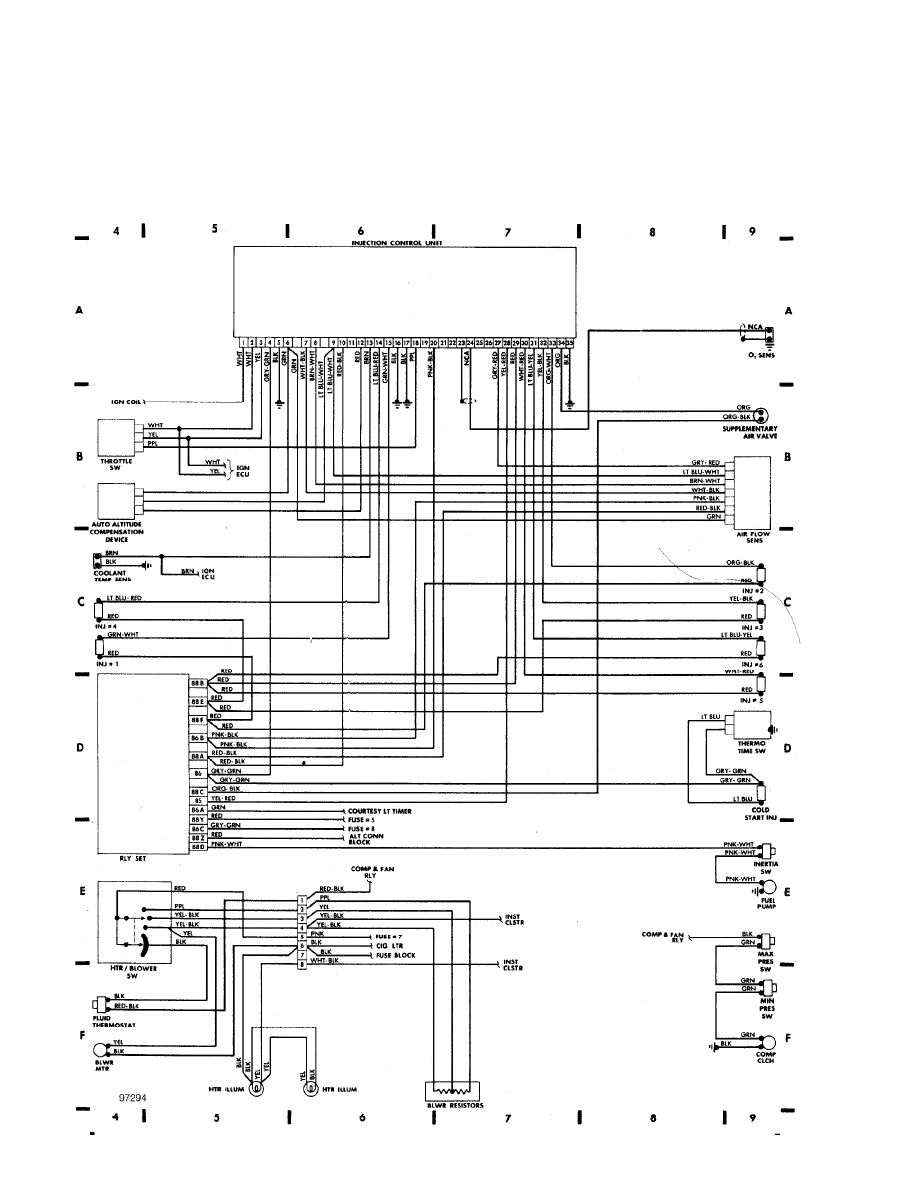

Fig. 1: Engine Compartment (Grids 1-4)

1986 Alfa Romeo GTV-6

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 11:41AM

background image

WIRING DIAGRAMS

Fig. 2: Engine Compartment (Cont.) & Underdash (Grids 4-9) (p. 2)

1986 Alfa Romeo GTV-6

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 11:41AM

background image

WIRING DIAGRAMS

Fig. 3: Fuse Block (Grids 9-14) (p. 3)

1986 Alfa Romeo GTV-6

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 11:41AM

background image

WIRING DIAGRAMS

Fig. 4: Underdash (Cont.) & Instrument Panel (Grids 14-18) (p. 4)

1986 Alfa Romeo GTV-6

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 11:41AM

background image

WIRING DIAGRAMS

Fig. 5: Rear Compartment & Accessories (Grids 18-23) (p. 5)

1986 Alfa Romeo GTV-6

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, April 02, 2006 11:41AM
