3304S–01

PARKING BRAKE

PARKING BRAKE SYSTEM

33–1

2052

Author:

Date:

2002 CAMRY REPAIR MANUAL (RM881U)

PARKING BRAKE SYSTEM

PROBLEM SYMPTOMS TABLE

Use the table below to help you find the cause of the problem. The numbers indicate the priority of the likely
cause of the problem. Check each part in order. If necessary, replace these parts.

Symptom

Suspect Area

See page

Brake drag

1. Parking brake pedal or lever travel (Out of adjustment)

2. Parking brake wire (Sticking)

3. Parking brake shoe clearance (Out of adjustment)

4. Parking brake shoe lining (Cracked or distorted)

5. Tension or return spring (Damaged)

33–2

33–12
33–16

33–19

33–21
33–21
33–21

background image

3304T–01

F41011

Adjusting Nut

Lock Nut

F40014

Adjusting Nut

Lock Nut

33–2

PARKING BRAKE

PARKING BRAKE SYSTEM

2053

Author:

Date:

2002 CAMRY REPAIR MANUAL (RM881U)

ADJUSTMENT

1.

REMOVE REAR WHEEL

2.

ADJUST PARKING BRAKE SHOE CLEARANCE(See page

33–21

)

3.

INSTALL REAR WHEEL
Torque: 103 N

m (1,050 kgf

cm, 76 ft

lbf)

4.

INSPECT PARKING BRAKE PEDAL TRAVEL(PEDAL TYPE PARKING BRAKE)

(a)

Slowly depress the parking brake pedal all the way, and count the number of clicks.
Parking brake pedal travel: 3 – 6 clicks at 300 N (31 kgf, 68.3 lbf)

5.

INSPECT PARKING BRAKE LEVER TRAVEL(LEVER TYPE PARKING BRAKE)

(a)

Pull the parking brake lever all the way up, and count the number of clicks.
Parking brake lever travel: 6 – 9 clicks at 200 N (20 kgf, 44.1 lbf)

6.

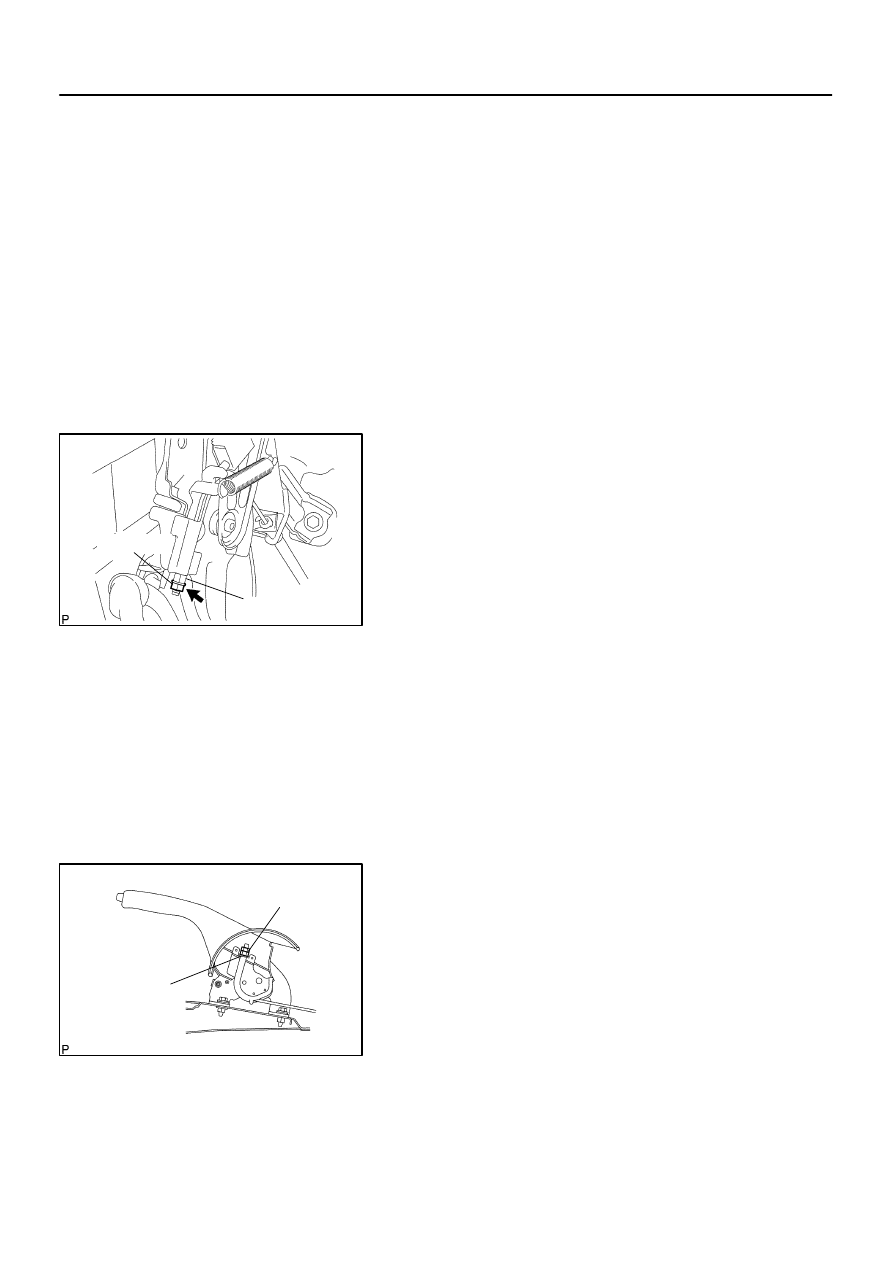

ADJUST PARKING BRAKE PEDAL TRAVEL(PEDAL
TYPE PARKING BRAKE)

(a)

Depress the parking brake pedal 3 notches to make a
room for the procedure, and loosen the lock nut.

(b)

Return the parking brake pedal to the original position.

(c)

Turn the adjusting nut until the parking brake pedal travel
is correct.

(d)

Depress the parking brake pedal 3 notches to make a
room for the procedure, and tighten the lock nut.
Torque: 5.4 N

m (55 kgf

cm, 48 in.

lbf)

(e)

Return the parking brake pedal to the original position.

(f)

Check whether parking brake drags or not.

(g)

When operating the parking brake pedal, check that the
parking brake pedal indicator light lights up.

7.

ADJUST PARKING BRAKE LEVER TRAVEL(LEVER
TYPE PARKING BRAKE)

(a)

Remove the console panel upper.

(b)

Remove the air duct rear No. 1.

(c)

Loosen the lock nut and turn the adjusting nut until the le-
ver travel is correct.

(d)

Tighten the lock nut.
Torque: 5.0 N

m (51 kgf

cm, 44 in.

lbf)

(e)

Install the air duct rear No.1.

(f)

Install the console panel upper.

background image

3304Z–01

F41002

Lock Nut

5.0 (51, 44 in.

lbf)

Parking Brake Lever Sub–assy

Adjusting Nut

Parking Brake
Switch Assy

Parking Brake Cable Assy No.1

N

m (kgf

cm, ft

lbf) : Specified torque

23 (235, 17)

23 (235, 17)

23 (235, 17)

Parking Brake Lever Sub–assy:

Air Duct Rear No.1

PARKING BRAKE

PARKING BRAKE

33–3

2054

Author:

Date:

PARKING BRAKE

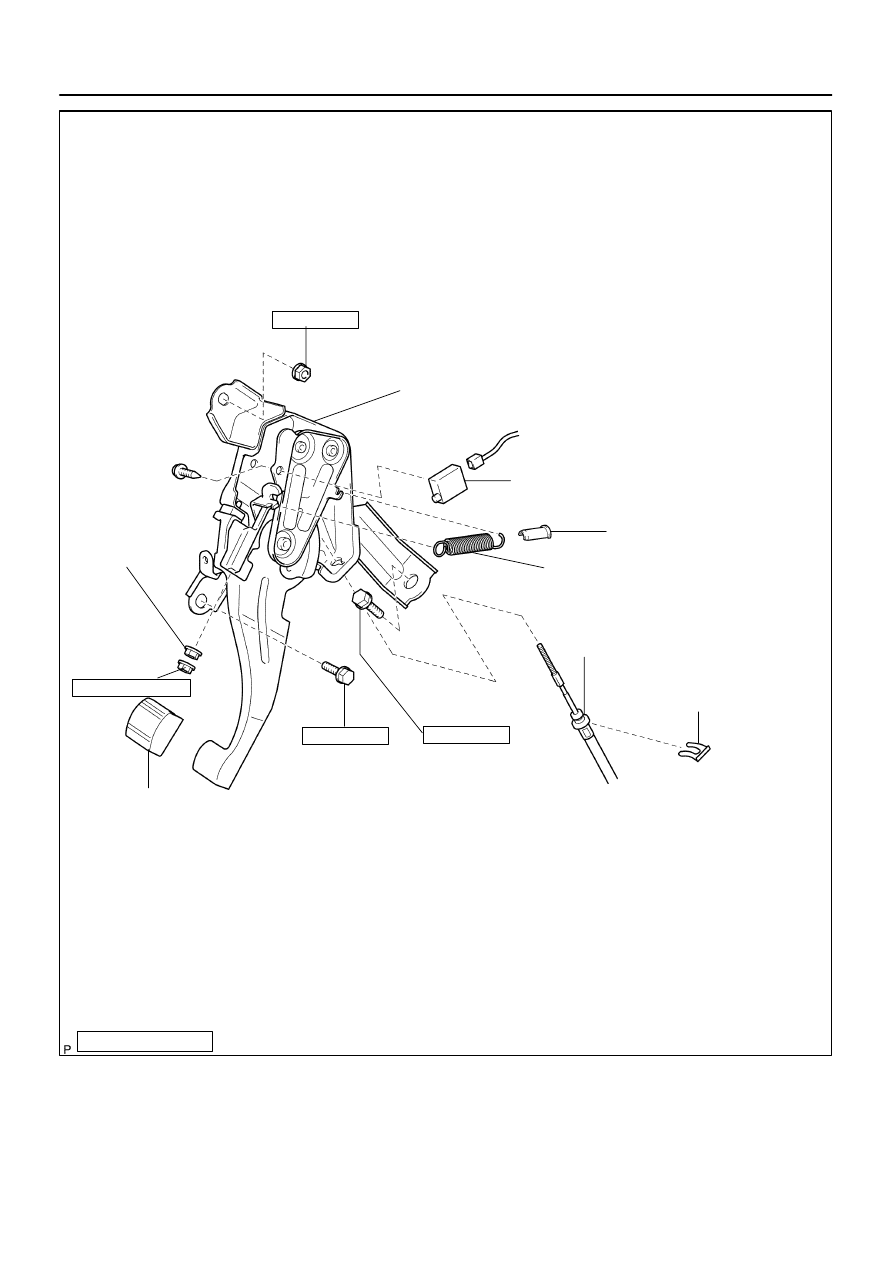

COMPONENTS

background image

F41008

N

m (kgf

cm, ft

lbf) : Specified torque

39 (398, 29)

5.4 (55, 48 in.

lbf)

Lock Nut

Adjusting Nut

Parking Brake Control Pedal Assy

Parking Brake Switch Assy

Tension Spring

Parking Brake Cable Assy No.1

Clip

39 (398, 29)

39 (398, 29)

Parking Brake Control Pedal Assy:

Parking Pedal Pad

Return Spring Damper

33–4

PARKING BRAKE

PARKING BRAKE

2055

Author:

Date:

background image

C90467

F41686

N

m (kgf

cm, ft

lbf) : Specified torque

5.4 (55, 48 in.

lbf)

12.5 (128, 9)

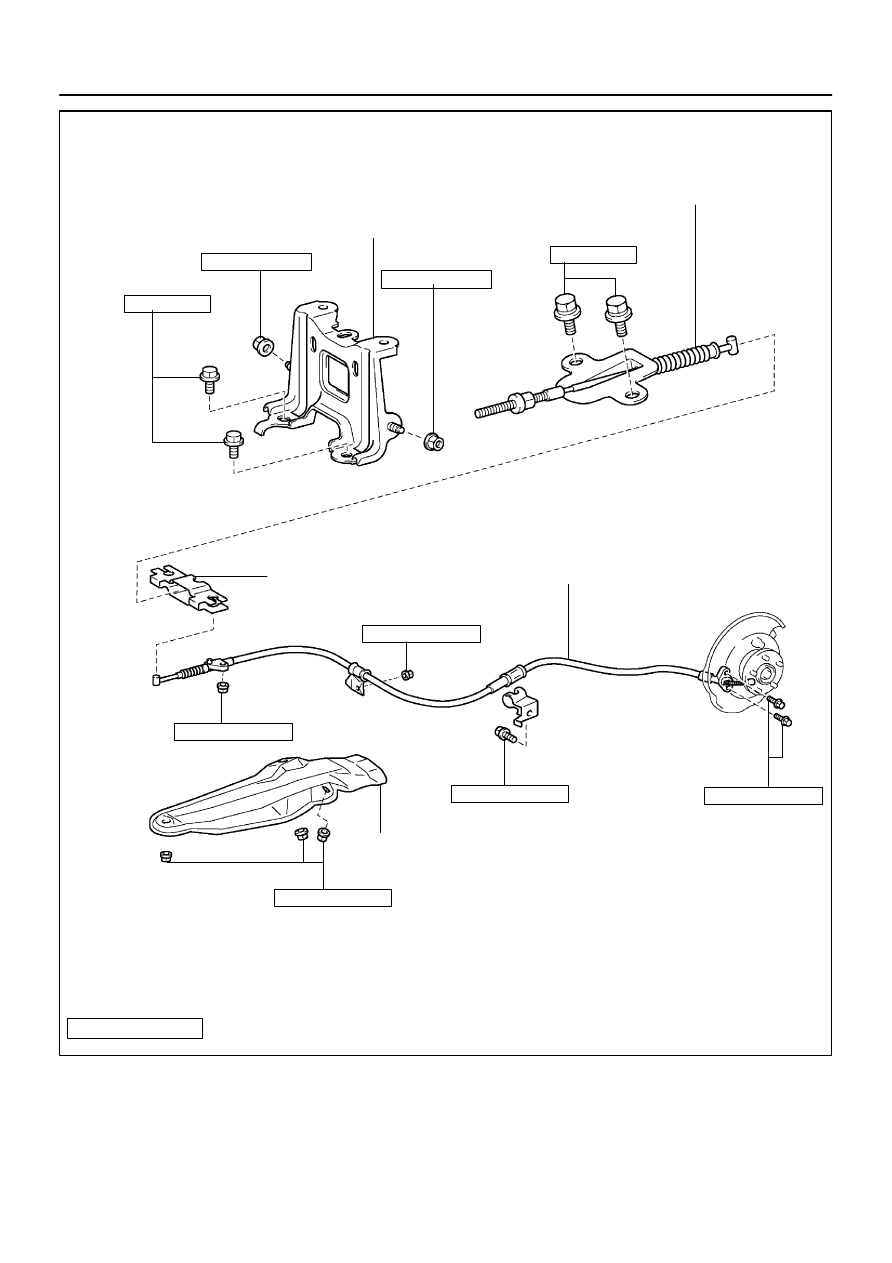

Consol Box Mounting Bracket No.2

Parking Brake Control Pedal Models:

12.5 (128, 9)

Parking Brake Equalizer

Parking Brake Cable Assy No.3

5.4 (55, 48 in.

lbf)

5.4 (55, 48 in.

lbf)

7.8 (80, 69 in.

lbf)

Parking Brake Cable Assy No.4

Parking Brake Cable Heat Insulator

Parking Brake Cable:

5.4 (55, 48 in.

lbf)

8.0 (85, 73 in.

lbf)

8.0 (85, 73 in.

lbf)

PARKING BRAKE

PARKING BRAKE

33–5

2056

Author:

Date:

background image

C90458

F41967

N

m (kgf

cm, ft

lbf) : Specified torque

Non–reusable part

High Temperature grease

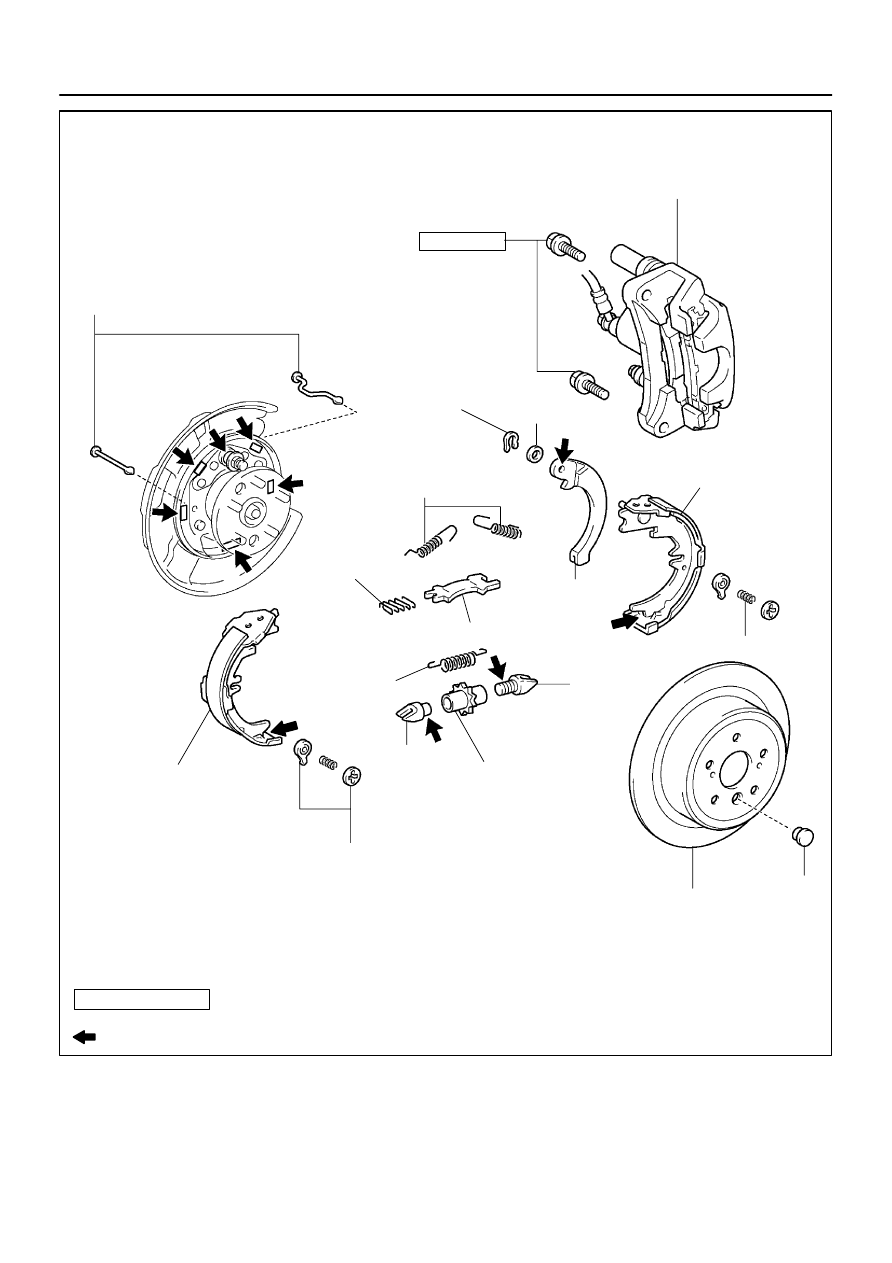

Parking Brake Assy:

Shoe Hold–down Spring Pin

Rear Disc Brake Caliper Assy LH

Parking Brake Shoe

Parking Brake Shoe Return
Tension Spring

Parking Brake Shoe Strut LH

Parking Brake
Shoe Strut
Compression
Spring

Parking Brake Shoe

Shoe Hold–down Spring Cup

Shoe Adjusting Screw Set

Parking Brake Shoe
Return Tension Spring

Rear Disc

Hole Plug

Adjusting Bolt

Shoe Hold–down Spring

C–Washer

Shim

47 (480, 35)

Parking Brake
Shoe Lever

Adjusting Bolt

33–6

PARKING BRAKE

PARKING BRAKE

2057

Author:

Date:

background image

3304U–01

F41001

F41001

PARKING BRAKE

PARKING BRAKE LEVER SUB–ASSY

33–7

2058

Author:

Date:

PARKING BRAKE LEVER SUB–ASSY

REPLACEMENT

HINT:
COMPONENTS: See page

71–7

and

33–3

1.

REMOVE CONSOLE PANEL UPPER
(See page

71–12

)

2.

REMOVE AIR DUCT REAR NO.1
(See page

71–12

)

3.

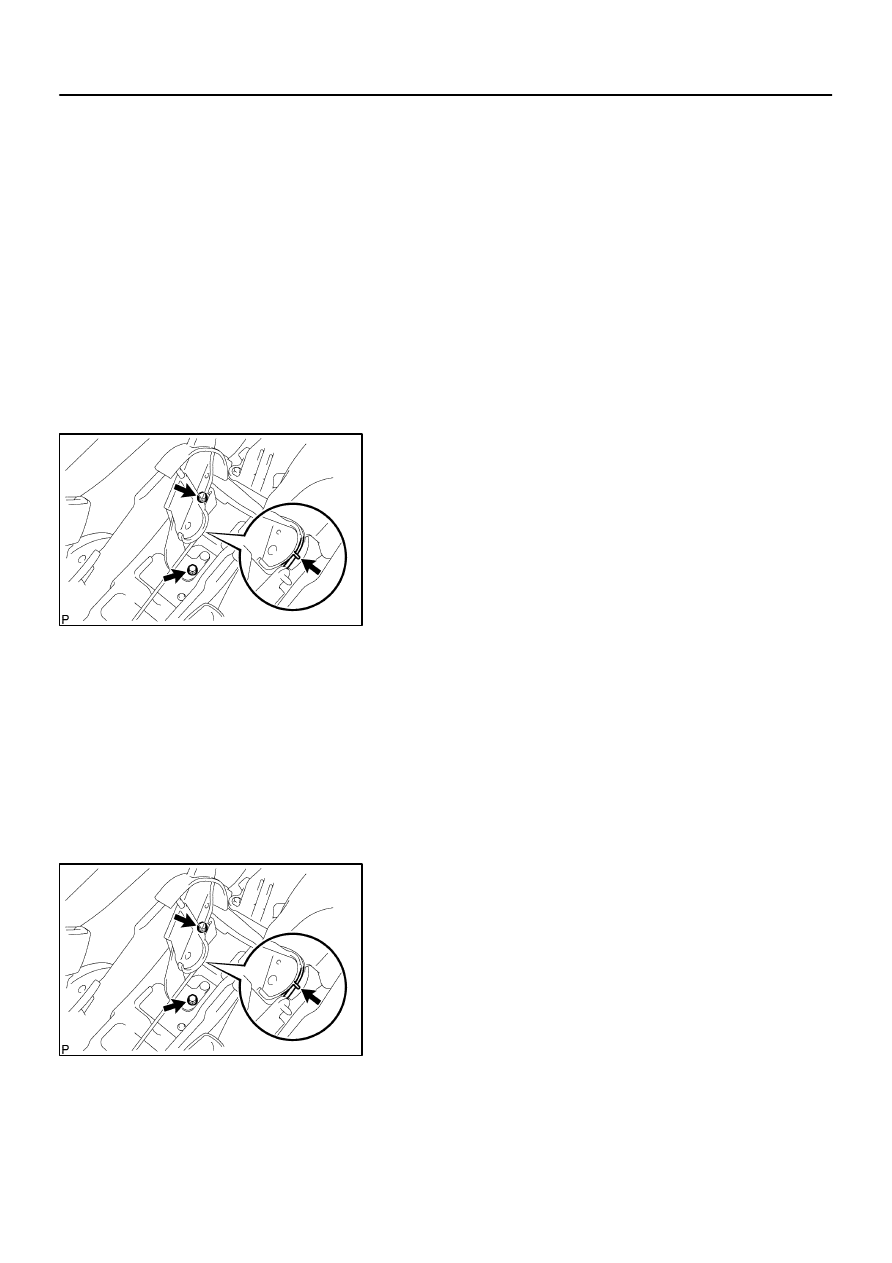

REMOVE PARKING BRAKE LEVER SUB–ASSY

(a)

Disconnect the parking brake switch connector.

(b)

Remove the lock nut and adjusting nut.

(c)

Remove the 2 bolts.

(d)

Using a screwdriver, disconnect the parking brake cable
No. 1 and remove the parking brake lever sub–assy.

4.

REMOVE PARKING BRAKE SWITCH ASSY

(a)

Remove the screw and parking brake switch assy.

5.

INSTALL PARKING BRAKE SWITCH ASSY

(a)

Install the parking brake switch assy with the screw.

6.

INSTALL PARKING BRAKE LEVER SUB–ASSY

(a)

Connect the parking brake cable to the lever and install
the adjusting nut and lock nut.

(b)

Install the paking brake lever sub–assy with the 2 bolts.
Torque: 23 N

m (235 kgf

cm, 17 ft

lbf)

(c)

Connect the parking brake switch connector.

7.

INSTALL AIR DUCT REAR NO.1
(See page

71–12

)

8.

INSTALL CONSOLE PANEL UPPER
(See page

71–12

)

9.

CHECK PARKING BRAKE LEVER TRAVEL(See page

33–2

)

background image

33–8

PARKING BRAKE

PARKING BRAKE LEVER SUB–ASSY

2059

Author:

Date:

10.

ADJUST PARKING BRAKE LEVER TRAVEL(See page

33–2

)

background image

3304V–01

F41009

F41010

PARKING BRAKE

PARKING BRAKE CONTROL PEDAL ASSY

33–9

2060

Author:

Date:

2002 CAMRY REPAIR MANUAL (RM881U)

PARKING BRAKE CONTROL PEDAL ASSY

OVERHAUL

HINT:
COMPONENTS: See page

71–7

and

33–3

1.

REMOVE INSTRUMENT CLUSTER FINISH PANEL
(See page

71–12

)

2.

REMOVE COMBINATION METER ASSY
(See page

71–12

)

3.

REMOVE FRONT DOOR SCUFF PLATE LH
(See page

71–12

)

4.

REMOVE COWL SIDE TRIM SUB–ASSY LH
(See page

71–12

)

5.

REMOVE INSTRUMENT PANEL SUB–ASSY UPPER
(See page

71–12

)

6.

REMOVE INSTRUMENT PNL INSERT SUB–ASSY LWR LH
(See page

71–12

)

7.

REMOVE PARKING BRAKE CONTROL PEDAL ASSY

(a)

Disconnect the parking brake switch connector.

(b)

Remove the 2 bolts, nut and parking brake control pedal
assy.

8.

REMOVE PARKING BRAKE CABLE ASSY NO.1

(a)

Remove the lock nut, adjusting nut, clip and parking brake
assy No. 1.

background image

F41010

F41009

33–10

PARKING BRAKE

PARKING BRAKE CONTROL PEDAL ASSY

2061

Author:

Date:

2002 CAMRY REPAIR MANUAL (RM881U)

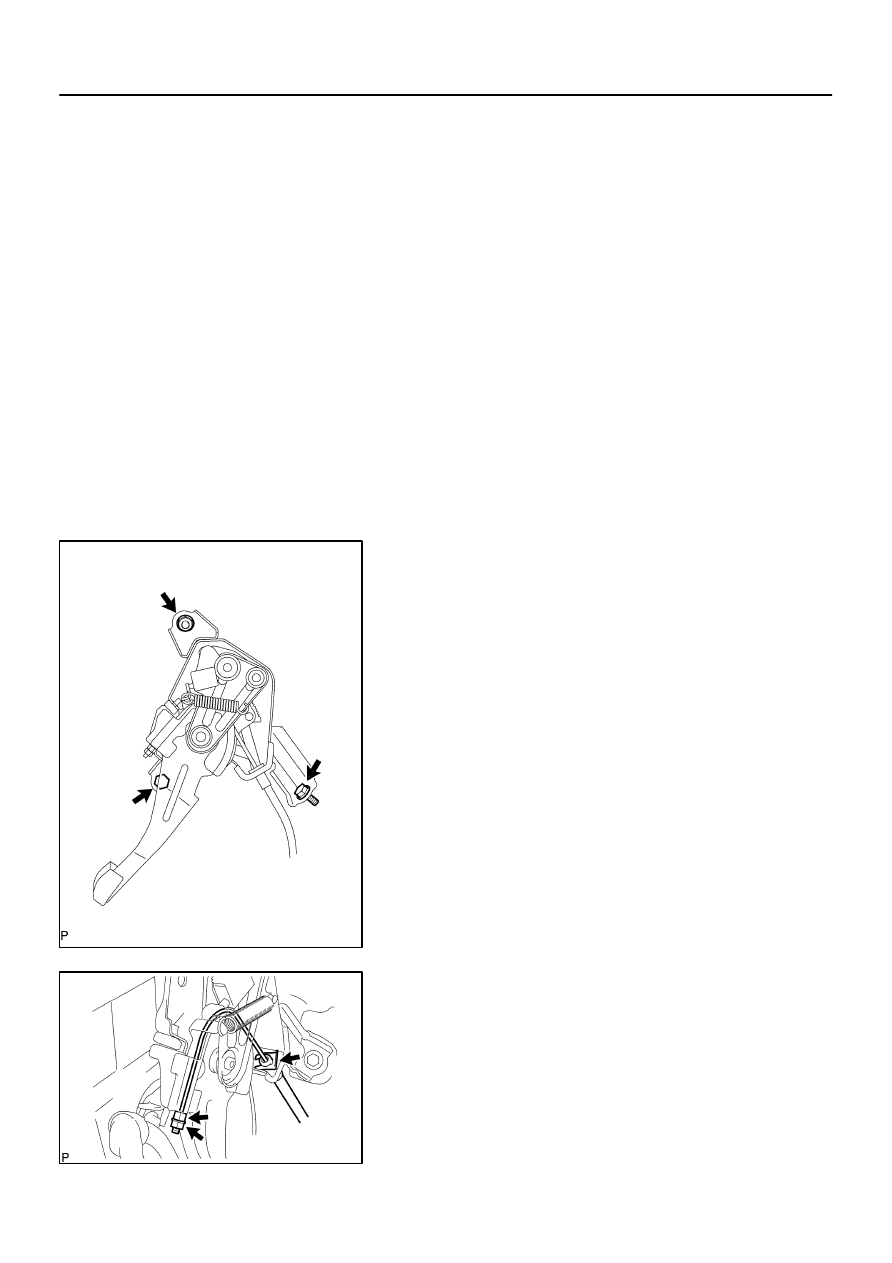

9.

REMOVE PARKING BRAKE SWITCH ASSY

(a)

Remove the screw and parking brake switch assy.

10.

REMOVE TENSION SPRING

11.

REMOVE RETURN SPRING DAMPER

12.

REMOVE PARKING PEDAL PAD

13.

INSTALL PARKING PEDAL PAD

14.

INSTALL RETURN SPRING DAMPER

15.

INSTALL TENSION SPRING

16.

INSTALL PARKING BRAKE SWITCH ASSY

(a)

Install the parking brake switch assy with the screw.

17.

INSTALL PARKING BRAKE CABLE ASSY NO.1

(a)

Install the parking brake cable assy No.1 with the clip, ad-
justing nut and lock nut.

18.

INSTALL PARKING BRAKE CONTROL PEDAL ASSY

(a)

Install the parking brake control pedal assy with the 2
bolts and nut.
Torque: 39 N

m (398 kgf

cm, 29ft

lbf)

(b)

Connect the parking brake switch connector.

background image

PARKING BRAKE

PARKING BRAKE CONTROL PEDAL ASSY

33–11

2062

Author:

Date:

2002 CAMRY REPAIR MANUAL (RM881U)

19.

INSTALL INSTRUMENT PNL INSERT SUB–ASSY LWR LH
(See page

71–12

)

20.

INSTALL INSTRUMENT PANEL SUB–ASSY UPPER
(See page

71–12

)

21.

INSTALL COWL SIDE TRIM SUB–ASSY LH
(See page

71–12

)

22.

INSTALL FRONT DOOR SCUFF PLATE LH
(See page

71–12

)

23.

INSTALL COMBINATION METER ASSY
(See page

71–12

)

24.

INSTALL INSTRUMENT CLUSTER FINISH PANEL
(See page

71–12

)

25.

INSPECT AND ADJUST PARKING BRAKE PEDAL TRAVEL(See page

33–2

)

background image

3304W–01

C90470

Turn Buckle

33–12

PARKING BRAKE

PARKING BRAKE CABLE ASSY NO.1

2063

Author:

Date:

PARKING BRAKE CABLE ASSY NO.1

REPLACEMENT

HINT:
COMPONENTS: See page

71–7

and

33–3

1.

REMOVE FRONT DOOR SCUFF PLATE LH(PEDAL TYPE PARKING BRAKE)
(See page

71–12

)

2.

REMOVE COWL SIDE TRIM SUB–ASSY LH(PEDAL TYPE PARKING BRAKE)
(See page

71–12

)

3.

REMOVE INSTRUMENT PANEL SUB–ASSY UPPER(PEDAL TYPE PARKING BRAKE)
(See page

71–12

)

4.

REMOVE INSTRUMENT PNL INSERT SUB–ASSY LWR LH(PEDAL TYPE PARKING BRAKE)
(See page

71–12

)

5.

REMOVE CONSOLE PANEL UPPER REAR
(See page

71–12

)

6.

REMOVE CONSOLE BOX CARPET
(See page

71–12

)

7.

REMOVE RR CONSOLE BOX(See page

71–12

)

8.

REMOVE INSTRUMENT PANEL ASH RECEPTACLE ASSY
(See page

71–12

)

9.

REMOVE CONSOLE PANEL UPPER
(See page

71–12

)

10.

REMOVE CONSOLE BOX FRONT
(See page

71–12

)

11.

REMOVE AIR DUCT REAR NO.1
(See page

71–12

)

12.

REMOVE AIR DUCT REAR NO.2
(See page

71–12

)

13.

REMOVE CONSOLE BOX DUCT NO.1
(See page

71–12

)

14.

REMOVE SHIFT LEVER SHAFT HOUSING ASSY(See page

71–12

)

15.

REMOVE YAWRATE SENSOR(W/ VSC)
(See page

32–61

)

16.

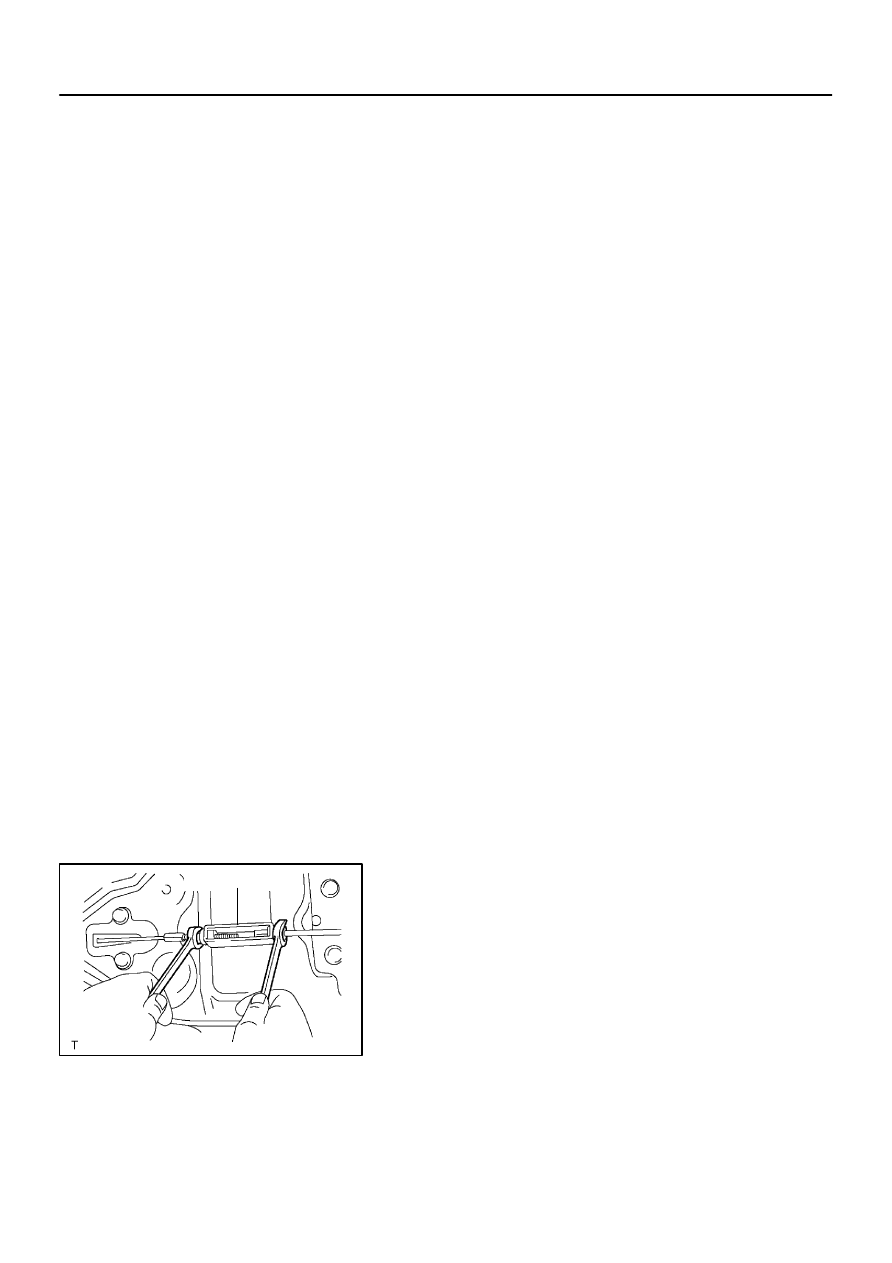

REMOVE PARKING BRAKE CABLE ASSY
NO.1(PEDAL TYPE PARKING BRAKE)

(a)

Loosen the turn buckle, disconnect the parking brake
cable assy No.1 from the parking brake cable assy No.4.

(b)

Remove the 2 bolts and console box mounting bracket
No.2.

background image

F41010

F41687

F41000

F41688

PARKING BRAKE

PARKING BRAKE CABLE ASSY NO.1

33–13

2064

Author:

Date:

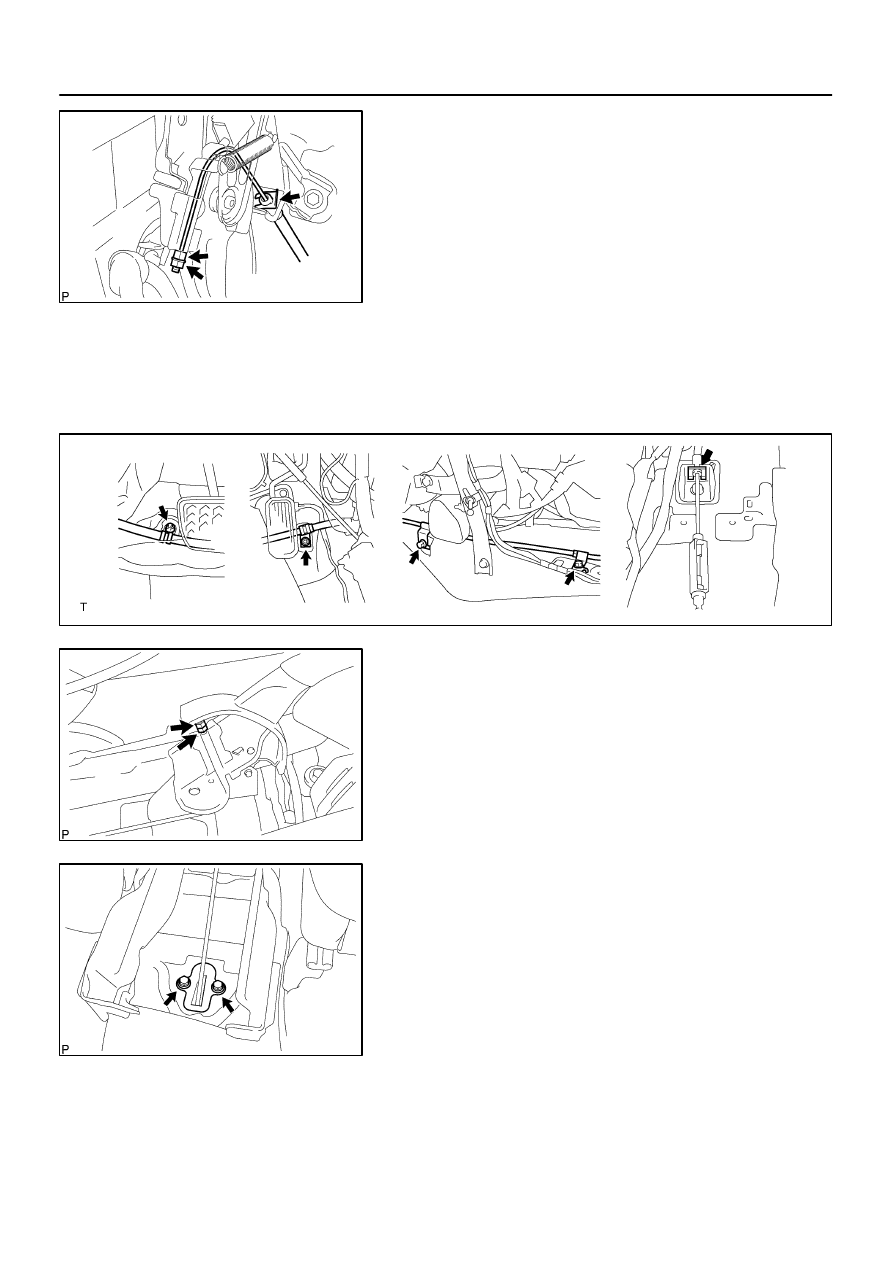

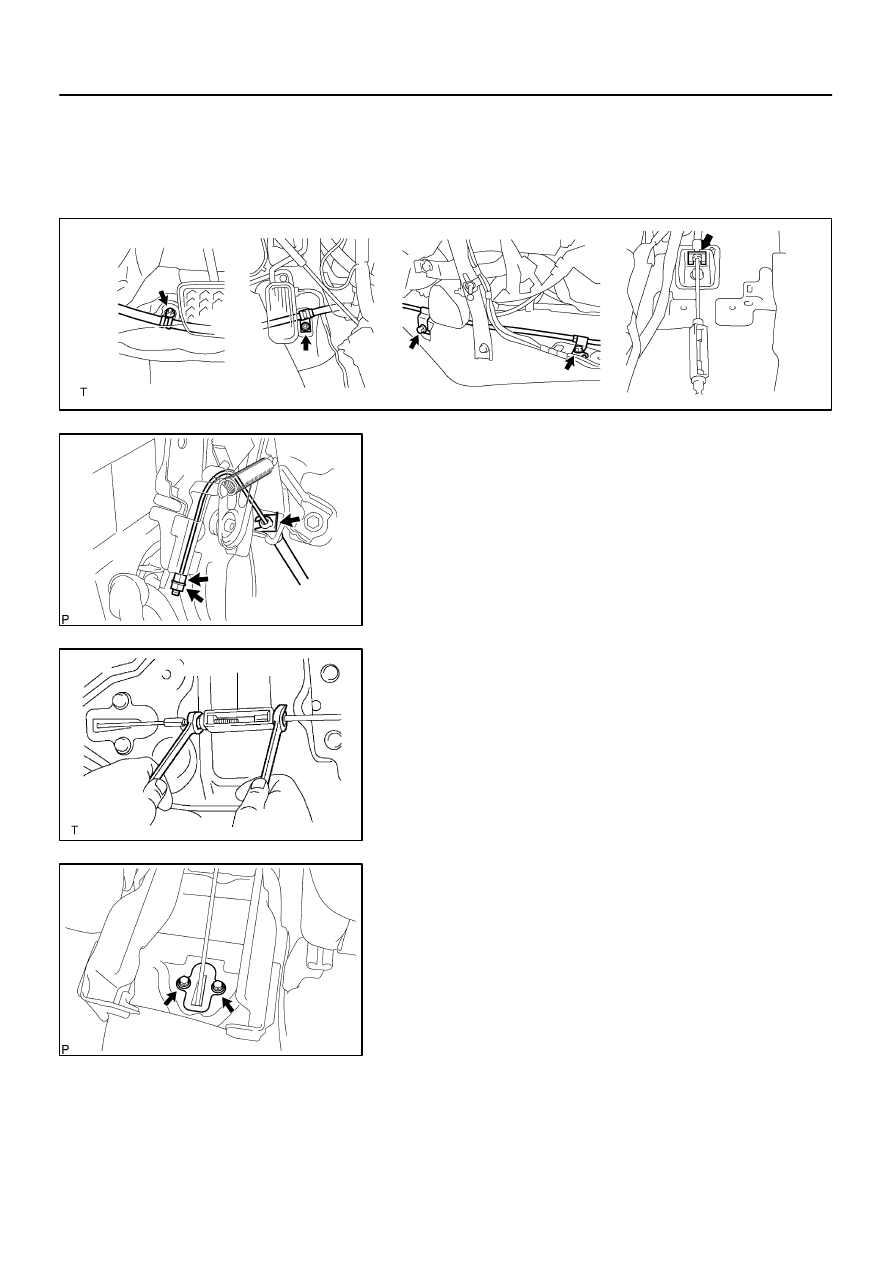

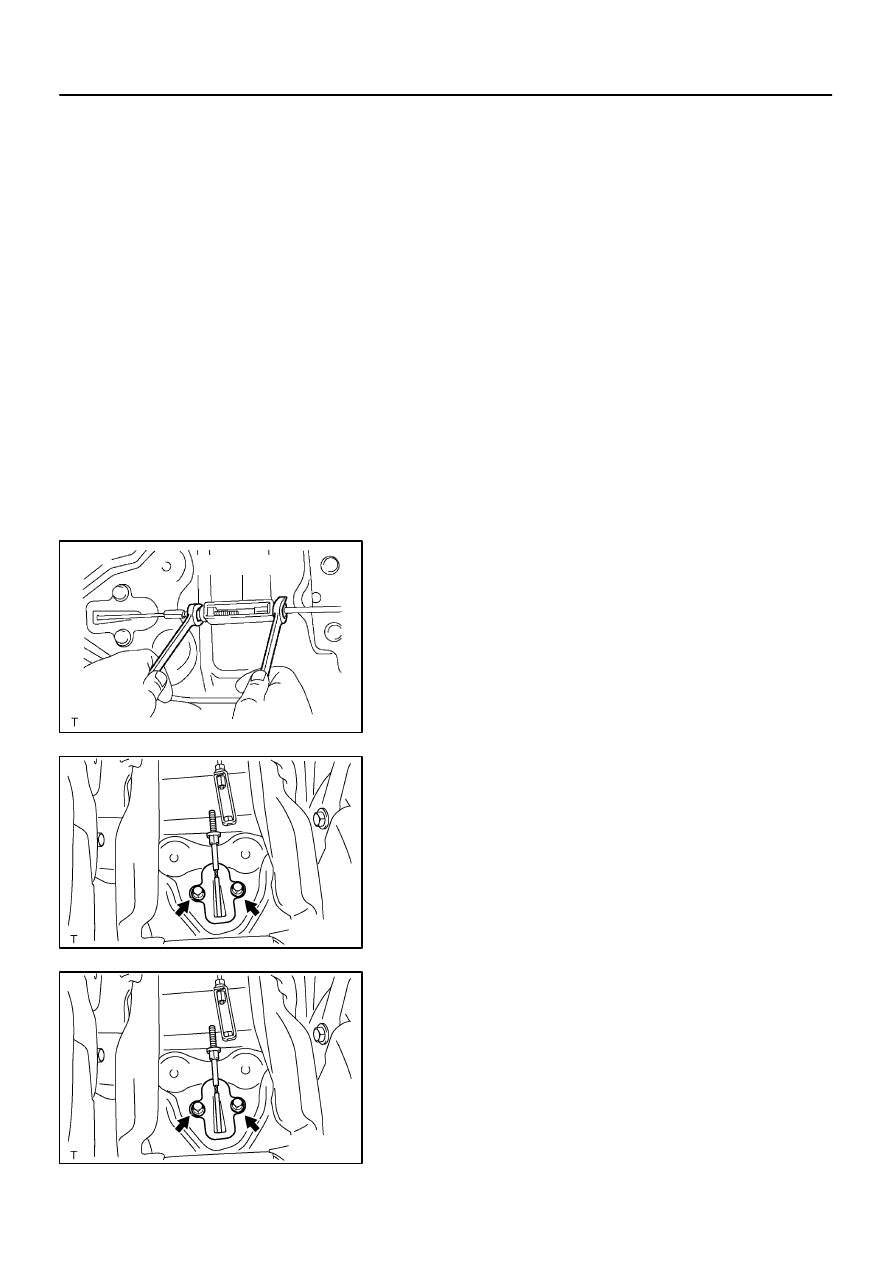

(c)

Remove the lock nut, adjusting nut, clip and disconnect
the parking brake cable assy No.1 from the parking brake
control pedal assy.

(d)

Remove the 2 nuts, 2 bolts, clip and parking brake cable
assy No.1.

17.

REMOVE PARKING BRAKE CABLE ASSY
NO.1(LEVER TYPE PARKING BRAKE)

(a)

Remove the lock nut and adjusting nut from the parking
brake cable assy No.1.

(b)

Remove the 2 bolts and console box mounting bracket
No.2.

(c)

Remove the 2 bolts and separate the parking brake cable
No.1 from the parking brake equalizer.

background image

F41687

F41010

C90470

Turn Buckle

F41688

33–14

PARKING BRAKE

PARKING BRAKE CABLE ASSY NO.1

2065

Author:

Date:

18.

INSTALL PARKING BRAKE CABLE ASSY
NO.1(PEDAL TYPE PARKING BRAKE)

(a)

Install the parking brake cable assy No.1 with the 2 nuts,
2 bolts and clip.

(b)

Install the parking brake cable assy No.1 with the clip, ad-
justing nut and lock nut to the parking brake control pedal
assy.
Torque: 5.4 N

m (55 kgf

cm, 48 in.

lbf)

(c)

Install the console box mounting bracket No.2 with the 2
bolts.
Torque: 12.5 N

m (128 kgf

cm, 9 ft

lbf)

(d)

Tighten the turn buckle, connect the parking brake cable
assy No. 1 to the parking brake cable assy No.4.
Torque: 5.4 N

m (55 kgf

cm, 48 in.

lbf)

19.

INSTALL PARKING BRAKE CABLE ASSY
NO.1(LEVER TYPE PARKING BRAKE)

(a)

Install the parking brake cable assy No.1 with the 2 bolts
to the parking brake equalizer.
Torque: 23 N

m (235 kgf

cm, 17 ft

lbf)

(b)

Install the console box mounting bracket No.2 with the 2
bolts.
Torque: 12.5 N

m (128 kgf

cm, 9 ft

lbf)

background image

F41000

PARKING BRAKE

PARKING BRAKE CABLE ASSY NO.1

33–15

2066

Author:

Date:

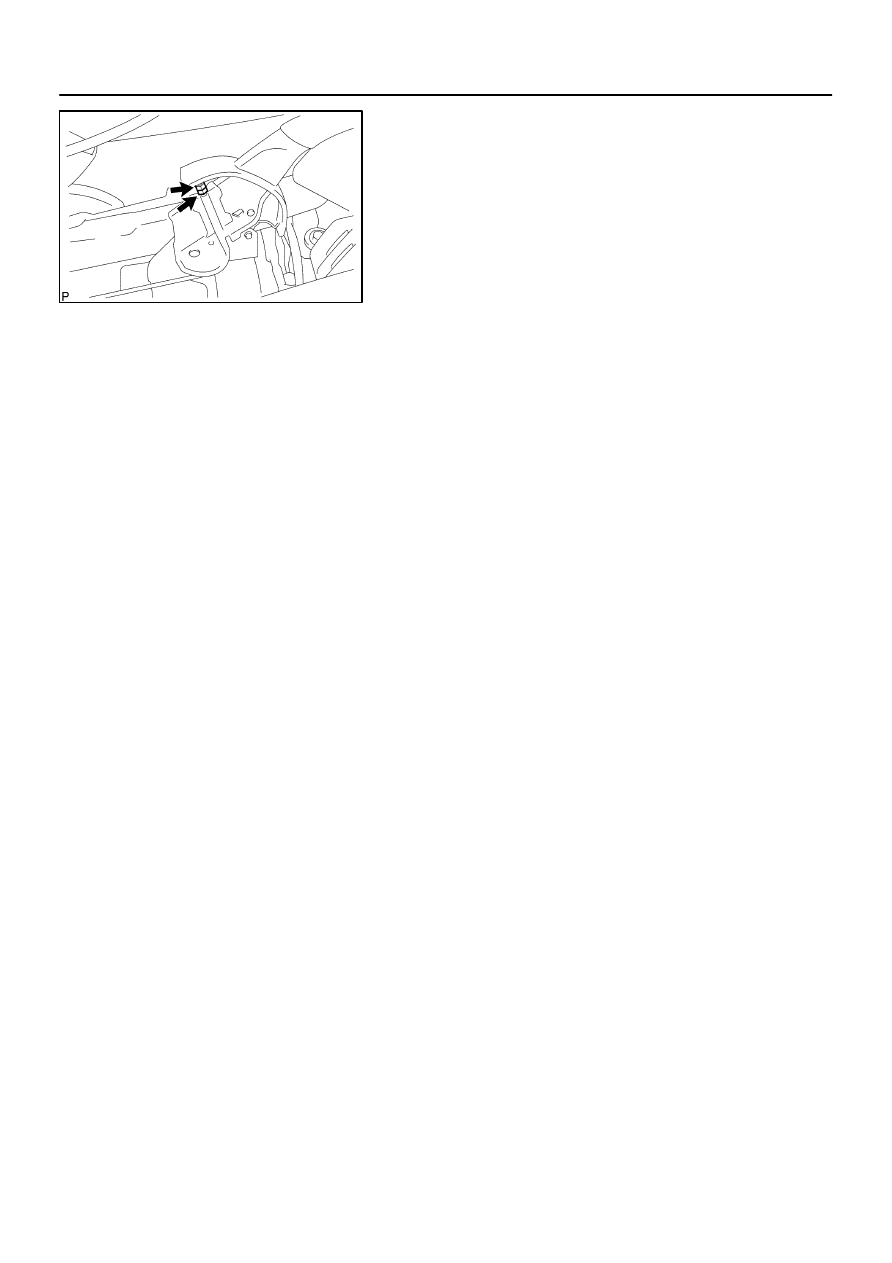

(c)

Install the parking brake cable assy No.1 with the adjust-
ing nut and lock nut to the parking brake lever assy.
Torque: 5.0 N

m (51 kgf

cm, 44 in.

lbf)

20.

INSTALL YAWRATE SENSOR(W/ VSC)
(See page

32–61

)

21.

INSTALL SHIFT LEVER SHAFT HOUSING ASSY(See page

71–12

)

22.

INSTALL CONSOLE BOX DUCT NO.1
(See page

71–12

)

23.

INSTALL AIR DUCT REAR NO.2
(See page

71–12

)

24.

INSTALL AIR DUCT REAR NO.1
(See page

71–12

)

25.

INSTALL CONSOLE BOX FRONT
(See page

71–12

)

26.

INSTALL CONSOLE PANEL UPPER
(See page

71–12

)

27.

INSTALL INSTRUMENT PANEL ASH RECEPTACLE ASSY
(See page

71–12

)

28.

INSTALL RR CONSOLE BOX(See page

71–12

)

29.

INSTALL CONSOLE BOX CARPET
(See page

71–12

)

30.

INSTALL CONSOLE PANEL UPPER REAR
(See page

71–12

)

31.

INSTALL INSTRUMENT PNL INSERT SUB–ASSY LWR LH(PEDAL TYPE PARKING BRAKE)
(See page

71–12

)

32.

INSTALL INSTRUMENT PANEL SUB–ASSY UPPER(PEDAL TYPE PARKING BRAKE)
(See page

71–12

)

33.

INSTALL COWL SIDE TRIM SUB–ASSY LH(PEDAL TYPE PARKING BRAKE)
(See page

71–12

)

34.

INSTALL FRONT DOOR SCUFF PLATE LH(PEDAL TYPE PARKING BRAKE)
(See page

71–12

)

35.

INSPECT AND ADJUST PARKING BRAKE PEDAL TRAVEL(PEDAL TYPE PARKING
BRAKE)(See page

33–2

)

36.

INSPECT AND ADJUST PARKING BRAKE LEVER TRAVEL(LEVER TYPE PARKING BRAKE)
(See page

33–2

)

37.

PERFORM YAWRATE SENSOR ZERO POINT CALIBRATION(W/ VSC)(See page

05–453

)

background image

3304X–01

C90471

C90462

F41690

33–16

PARKING BRAKE

PARKING BRAKE CABLE ASSY NO.3

2067

Author:

Date:

2002 CAMRY REPAIR MANUAL (RM881U)

PARKING BRAKE CABLE ASSY NO.3

REPLACEMENT

HINT:

COMPONENTS: See page

33–3

For parking brake cable No.2, employ the same procedure to the RH side.

1.

REMOVE REAR WHEEL

2.

SEPARATE REAR DISC BRAKE CALIPER ASSY, LH

(a)

Remove the 2 bolts and separate the rear disc brake caliper assy LH.

HINT:
Do not the flexible hose from the brake caliper assy LH.
3.

REMOVE REAR BRAKE DRUM SUB–ASSY(DRUM REAR BRAKE TYPE)
(See page

32–39

)

4.

REMOVE REAR DISC(DISC REAR BRAKE TYPE)
(See page

33–21

)

5.

REMOVE PARKING BRAKE SHOE(See page

33–21

)

6.

REMOVE PARKING BRAKE CABLE HEAT INSULATOR

(a)

Remove the 3 nuts and parking brake heat insulator.

7.

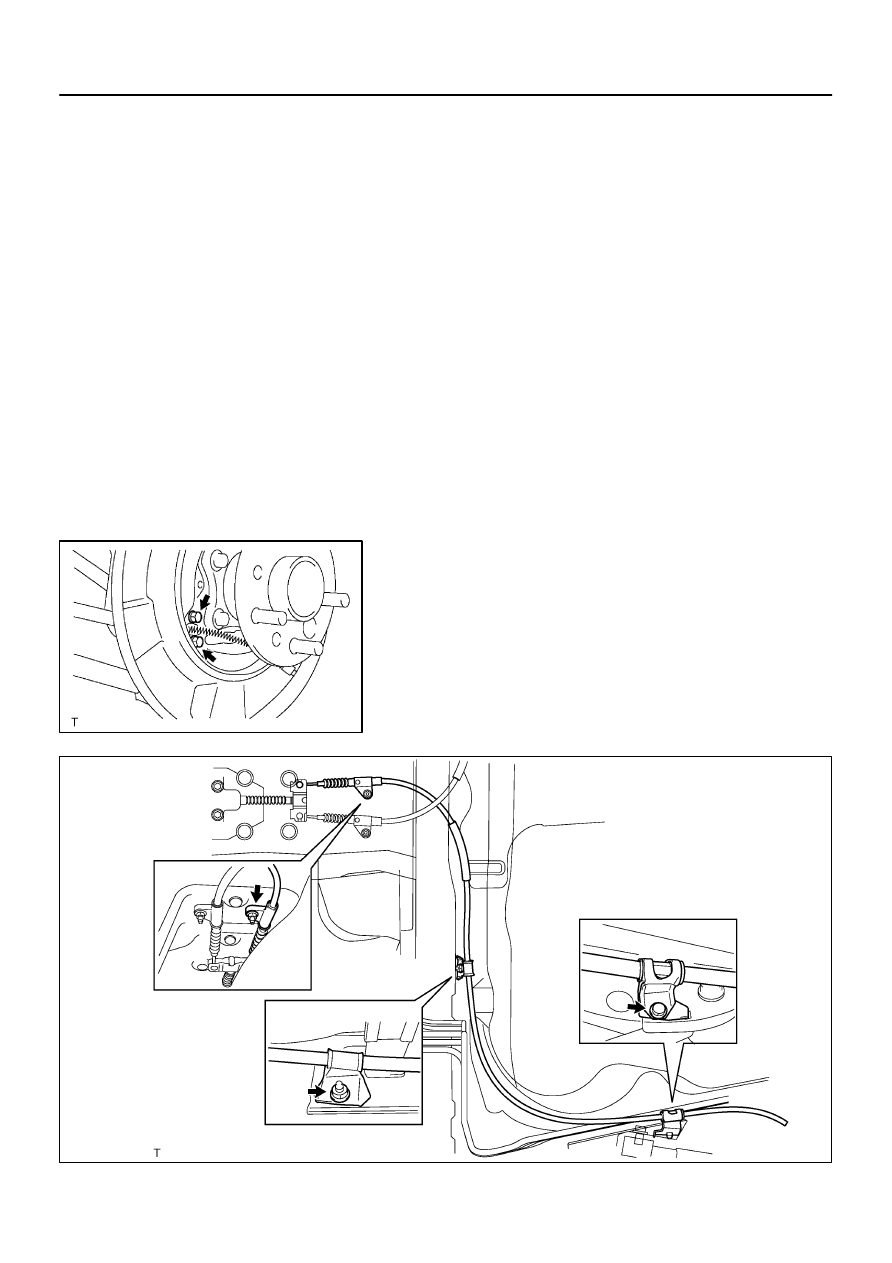

REMOVE PARKING BRAKE CABLE ASSY NO.3

(a)

Remove the 2 bolts and disconnect the parking brake
cable assy No.3 from the backing plate.

(b)

Remove the 2 nuts, bolt and parking brake cable assy
No.3.

background image

C90462

F41690

C90471

PARKING BRAKE

PARKING BRAKE CABLE ASSY NO.3

33–17

2068

Author:

Date:

2002 CAMRY REPAIR MANUAL (RM881U)

(c)

Disconnect the parking brake cable assy No.3 from the
parking brake equalizer.

8.

INSTALL PARKING BRAKE CABLE ASSY NO.3

(a)

Connect the parking brake cable assy No.3 to the parking
brake equolizer.

(b)

Install the parking brake cable assy No.3 with the 2 nuts
and bolt.
Torque: 5.4 N

m (55 kgf

cm, 48 in.

lbf)

(c)

Install the parking brake cable assy No.3 with the 2 bolts
to the backing plate.
Torque: 7.8 N

m (80 kgf

cm, 69 in.

lbf)

9.

INSTALL PARKING BRAKE CABLE HEAT INSULATOR

(a)

Install the parking brake heat insulator with the 3 nuts.
Torque: 5.4 N

m (55 kgf

cm, 48 in.

lbf)

10.

APPLICATION HIGH TEMPERATURE GREASE(See page

33–21

)

11.

INSTALL PARKING BRAKE SHOE(See page

33–21

)

12.

CHECK PARKING BRAKE INSTALLATION(See page

33–21

)

13.

INSTALL REAR BRAKE DRUM SUB–ASSY(DRUM REAR BRAKE TYPE)
(See page

32–39

)

background image

33–18

PARKING BRAKE

PARKING BRAKE CABLE ASSY NO.3

2069

Author:

Date:

2002 CAMRY REPAIR MANUAL (RM881U)

14.

INSTALL REAR DISC(DISC REAR BRAKE TYPE)
(See page

33–21

)

15.

ADJUST PARKING BRAKE SHOE CLEARANCE(See page

33–21

)

16.

INSTALL REAR DISC BRAKE CALIPER ASSY, LH

(a)

Install the rear disc brake caliper with the 2 bolts.
Torque: 47 N

m (480 kgf

cm, 35 ft

lbf)

17.

INSTALL REAR WHEEL
Torque: 103 N

m (1,050 kgf

cm, 76 ft

lbf)

18.

INSPECT AND ADJUST PARKING BRAKE PEDAL TRAVEL(PEDAL TYPE PARKING
BRAKE)(See page

33–2

)

19.

INSPECT AND ADJUST PARKING BRAKE LEVER TRAVEL(LEVER TYPE PARKING BRAKE)
(See page

33–2

)

background image

3304Y–01

C90470

Turn Buckle

C90464

C90464

PARKING BRAKE

PARKING BRAKE CABLE ASSY NO.4

33–19

2070

Author:

Date:

2002 CAMRY REPAIR MANUAL (RM881U)

PARKING BRAKE CABLE ASSY NO.4

REPLACEMENT

HINT:
COMPONENTS: See page

33–3

1.

REMOVE CONSOLE PANEL UPPER REAR
(See page

71–12

)

2.

REMOVE CONSOLE BOX CARPET
(See page

71–12

)

3.

REMOVE RR CONSOLE BOX(See page

71–12

)

4.

REMOVE CONSOLE BOX MOUNTING BRACKET NO.2

(a)

Remove the 2 bolts and console box mounting bracket No.2.

5.

REMOVE YAWRATE SENSOR(W/ VSC)
(See page

32–61

)

6.

REMOVE PARKING BRAKE CABLE ASSY NO.4

(a)

Loosen the turn buckle, disconnect the parking brake
cable assy No.4 from the parking brake cable assy No.1.

(b)

Disconnect the parking brake cable assy No.4 from the
parking brake equolizer.

(c)

Remove the 2 bolts and parking brake cable assy No.4.

7.

INSTALL PARKING BRAKE CABLE ASSY NO.4

(a)

Install the parking brake cable No.4 with the 2 bolts.
Torque: 12.5 N

m (128 kgf

cm, 9 ft

lbf)

(b)

Connect the parking brake cable assy No.4 to the parking
brake equolizer.

background image

C90470

Turn Buckle

33–20

PARKING BRAKE

PARKING BRAKE CABLE ASSY NO.4

2071

Author:

Date:

2002 CAMRY REPAIR MANUAL (RM881U)

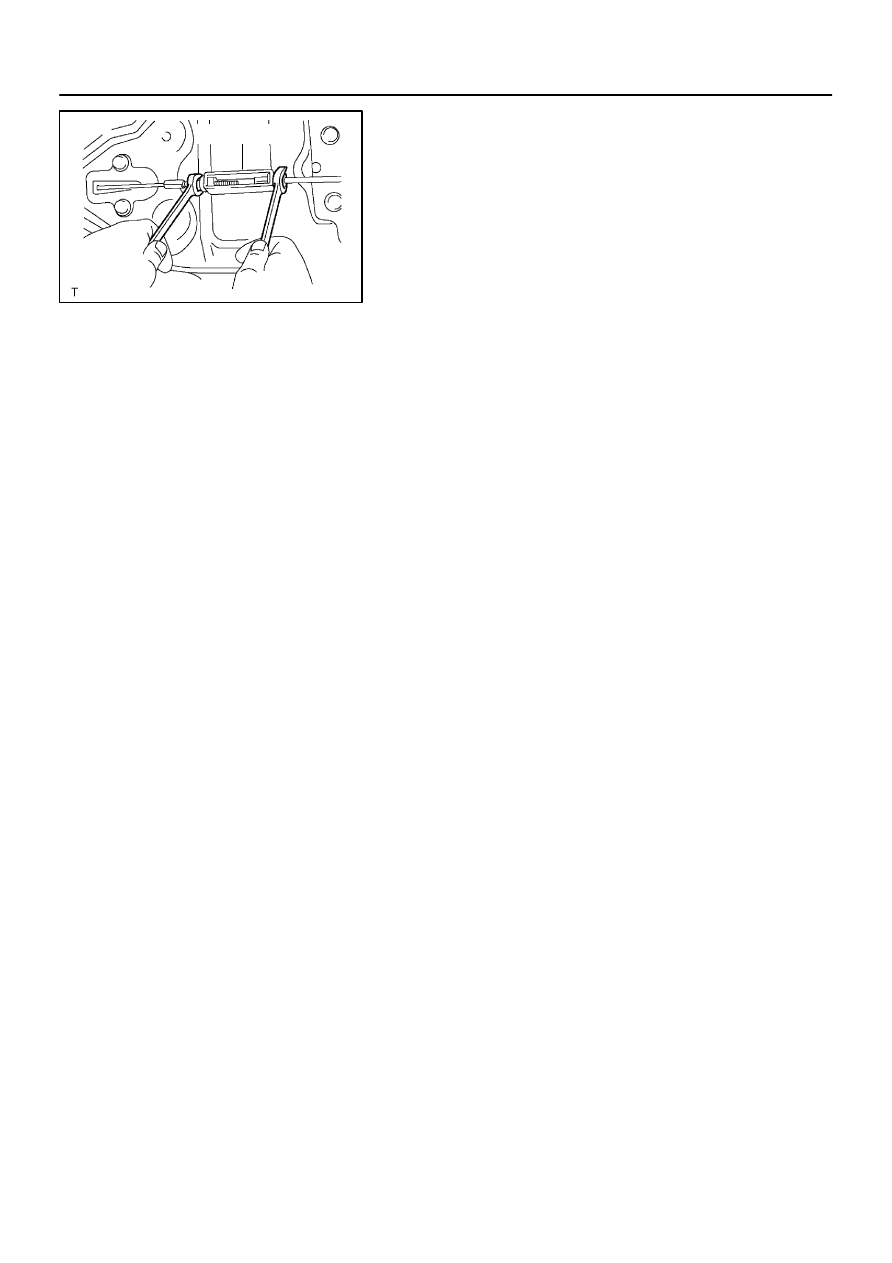

(c)

Tighten the turn buckle, connect the parking brake cable
assy No.4 to the parking brake cable assy No.1.
Torque: 5.4 N

m (55 kgf

cm, 48 in.

lbf)

8.

INSTALL YAWRATE SENSOR(W/ VSC)
(See page

32–61

)

9.

INSTALL CONSOLE BOX MOUNTING BRACKET NO.2

(a)

Install the console box mounting bracket No.2 with the 2 bolts.
Torque: 12.5 N

m (128 kgf

cm, 9 ft

lbf)

10.

INSTALL RR CONSOLE BOX(See page

71–12

)

11.

INSTALL CONSOLE BOX CARPET
(See page

71–12

)

12.

INSTALL CONSOLE PANEL UPPER REAR
(See page

71–12

)

13.

INSPECT AND ADJUST PARKING BRAKE PEDAL TRAVEL(See page

33–2

)

14.

PERFORM YAWRATE SENSOR ZERO POINT CALIBRATION(W/ VSC)(See page

05–452

)

background image

33050-01

C64523

Contract

F06409

F40318

-

PARKING BRAKE

PARKING BRAKE ASSY

33-21

2072

Author:

Date:

2002 CAMRY REPAIR MANUAL (RM881U)

PARKING BRAKE ASSY

OVERHAUL

HINT:

COMPONENTS: See page

33-3

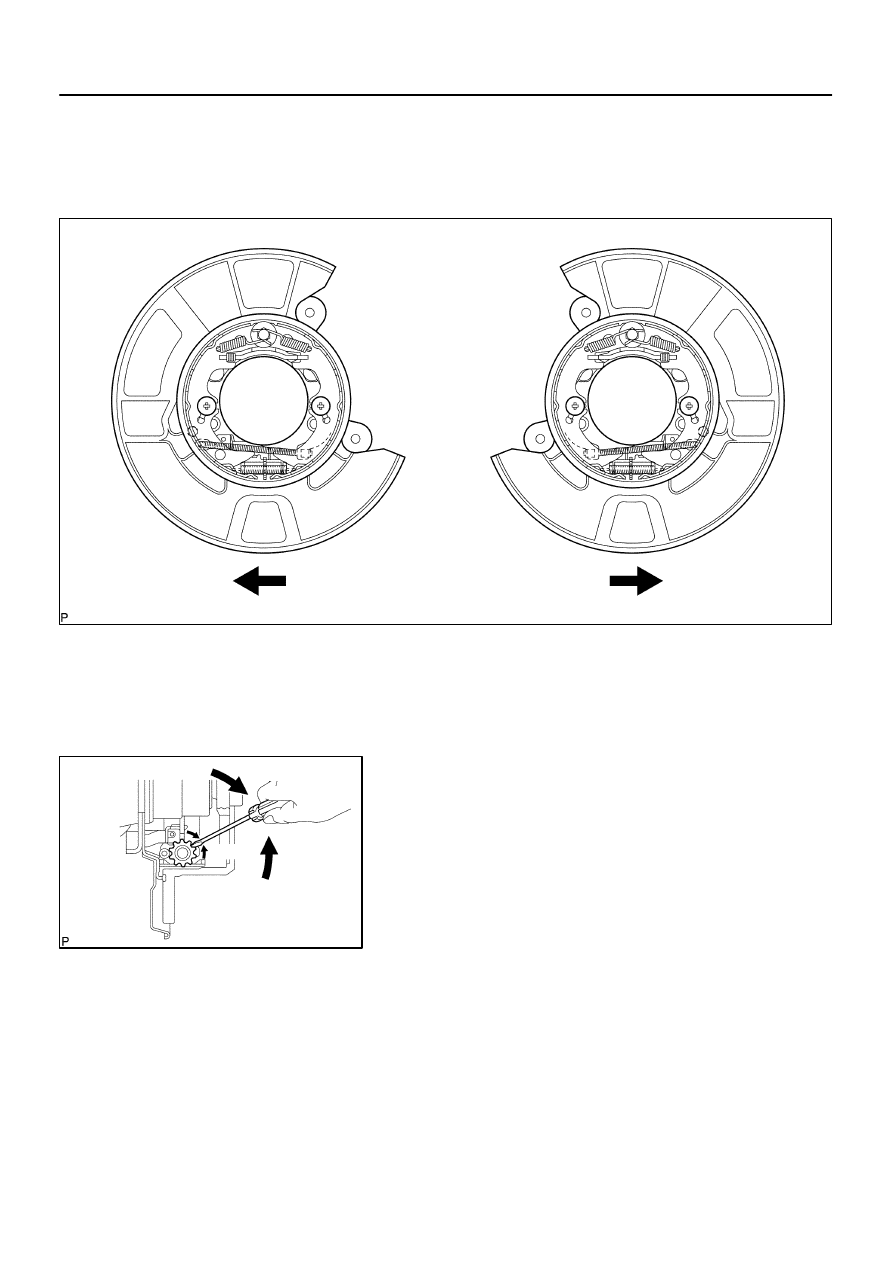

Overhaul the RH side by the same procedures with LH side.

1.

REMOVE REAR WHEEL

2.

SEPARATE REAR DISC BRAKE CALIPER ASSY, LH

(a)

Remove the 2 bolts and separate the rear disc brake caliper assy LH.

HINT:
Do not disconnect the flexible hose from the brake caliper.

3.

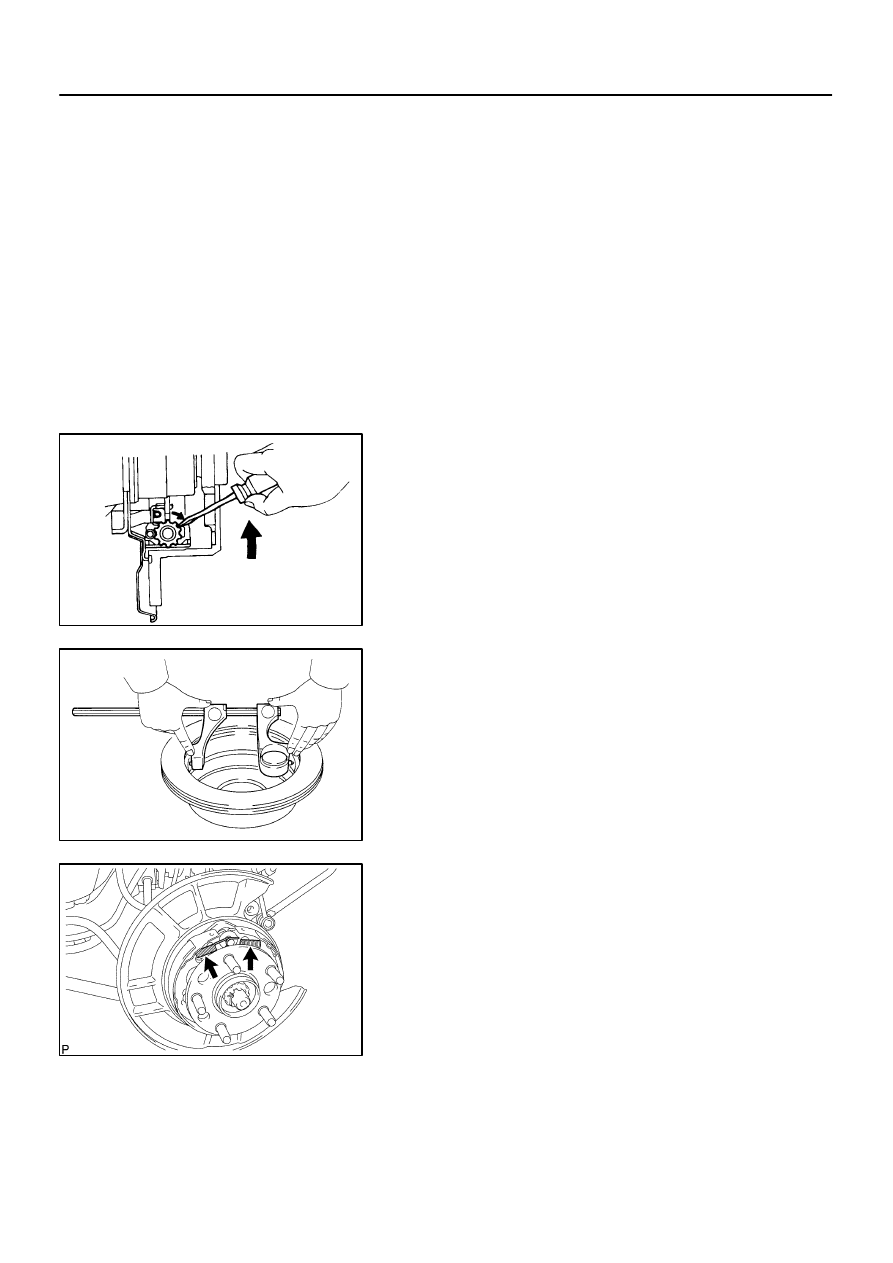

REMOVE REAR DISC

(a)

Release the parking brake, and remove the rear disc.

HINT:

Put matchmarks on the disc and the axle hub.

If the disc cannot be removed easily, turn the shoe adjust-
er until the wheel turns freely.

4.

INSPECT BRAKE DISC INSIDE DIAMERTER

(a)

Using a brake drum gauge or equivalent, measure the in-
side diameter of the disc.
Standard inside diameter: 170 mm (6.69 in.)
Maximum inside diameter: 171 mm (6.73 in.)

5.

REMOVE PARKING BRAKE SHOE RETURN TENSION
SPRING

(a)

Using a needle-nose pliers, remove the 2 return tension
springs.

6.

REMOVE PARKING BRAKE SHOE STRUT COMPRESSION SPRING

(a)

Slide out the front shoe and remove the compression spring.

7.

REMOVE PARKING BRAKE SHOE STRUT LH

background image

F40319

F40320

BR5332

BR0828

33-22

-

PARKING BRAKE

PARKING BRAKE ASSY

2073

Author:

Date:

2002 CAMRY REPAIR MANUAL (RM881U)

8.

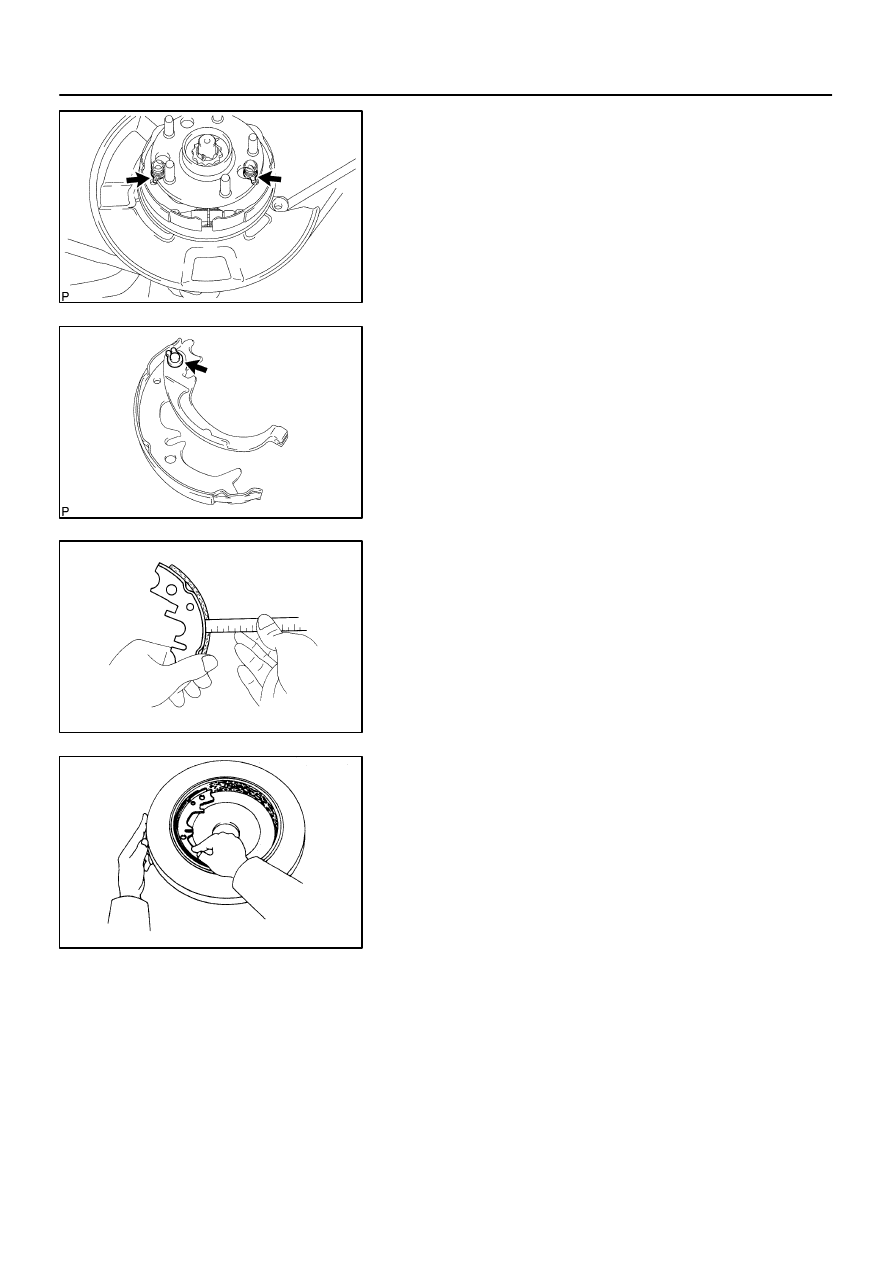

REMOVE PARKING BRAKE SHOE

(a)

Release the cup claw and remove the front and rear park-
ing brake shoe.

(b)

Disconnect the parking brake cable from the shoe lever.

(c)

Remove the tension spring and shoe adjuster screw set
from the front and rear shoe.

(d)

Remove the 2 shoe hold-down springs, 4 cups and 2
pins.

(e)

Using a screw driver, remove the C-washer.

(f)

Remove the shim and shoe lever from the parking brake
shoe.

9.

INSPECT PARKING BRAKE SHOE LINING
THICKNESS

(a)

Using a ruler, measure the thickness of the shoe lining.
Standard thickness: 2.0 mm (0.079 in.)
Minimum thickness: 1.0 mm (0.039 in.)

If the lining thickness is at the minimum thickness or less, or if
there is severe, uneven wear, replace the brake shoe.

10.

INSPECT BRAKE DISC AND PARKING BRAKE SHOE
LINING FOR PROPER CONTACT

(a)

Apply chalk to the inside surface of the disc, then grind
down the brake shoe lining to fit.

If the contact between the brake disc and the shoe lining is im-
proper, repair it using a brake shoe grinder or replace the brake
shoe assembly.

11.

APPLICATION HIGH TEMPERATURE GREASE

(a)

Apply the high temperature grease to the shoe attached surface of backing plate.

background image

R00343

F41705

F40318

-

PARKING BRAKE

PARKING BRAKE ASSY

33-23

2074

Author:

Date:

2002 CAMRY REPAIR MANUAL (RM881U)

12.

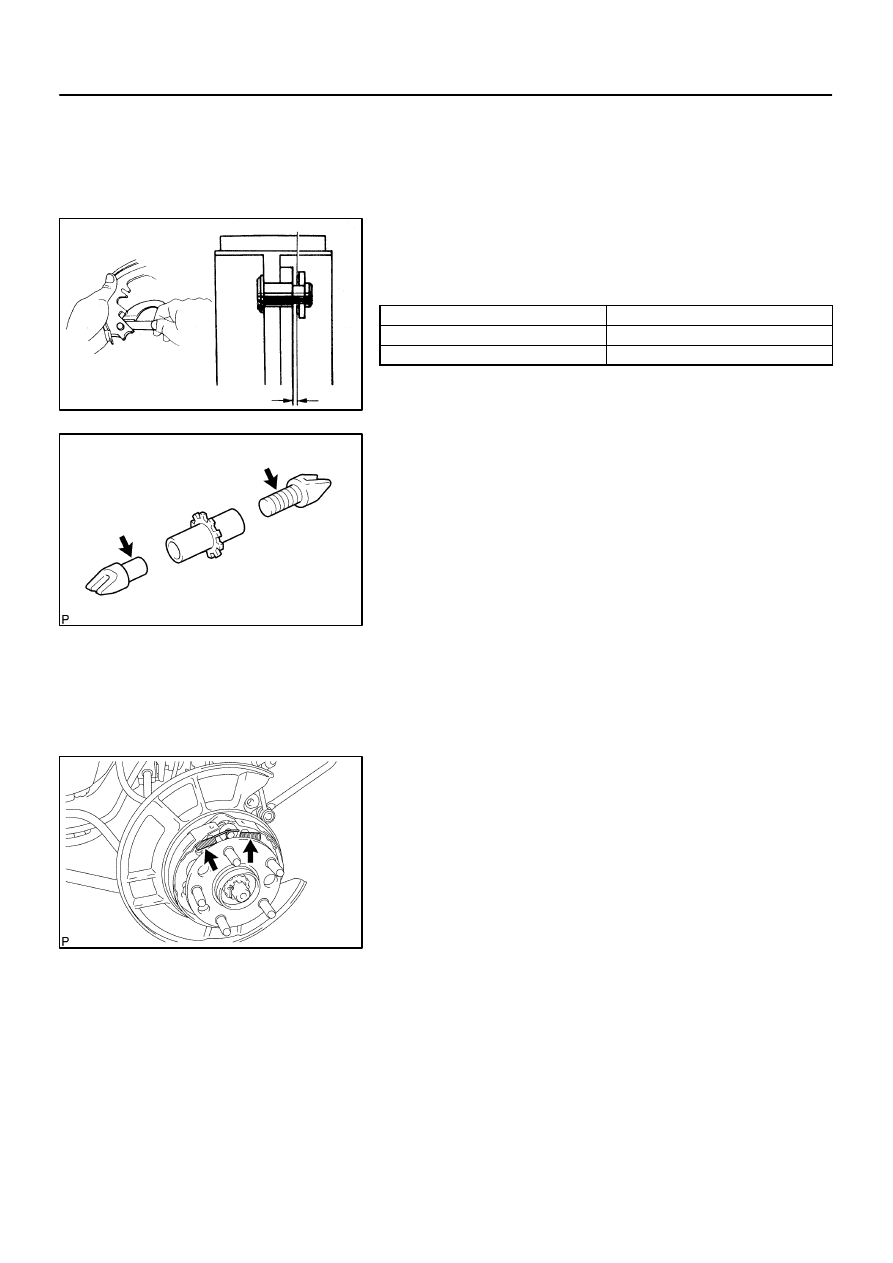

INSTALL PARKING BRAKE SHOE

(a)

Install the shoe lever and shim to the rear shoe with a new
C-washer .

(b)

Using a feeler gauge, measure the clearance.
Standard clearance: Less than 0.35 mm (0.0138 in.)

If the clearance is not within the specification, replace the shim
with one of the correct size.

Shim Thickness

Shim Thickness

0.3 mm (0.012 in.)

0.9 mm (0.035 in.)

0.6 mm (0.024 in.)

-

(c)

Apply the high temperature grease to the adjusting bolt.

(d)

Install the shoe adjusting screw set and tension spring to
the front and rear shoe.

(e)

Install the 2 pins, 4 cups and 2 shoe hold-down springs.

(f)

Connect the parking brake cable to the shoe lever.

(g)

Install the front and rear parking brake shoe.

13.

INSTALL PARKING BRAKE SHOE STRUT LH

14.

INSTALL PARKING BRAKE SHOE STRUT COMPRESSION SPRING

15.

INSTALL PARKING BRAKE SHOE RETURN TENSION
SPRING

(a)

Using a needle nose pliers, install the 2 return tension
springs.

background image

F40322

Front

Front

RH

LH

F40026

Expand

Contract

33-24

-

PARKING BRAKE

PARKING BRAKE ASSY

2075

Author:

Date:

2002 CAMRY REPAIR MANUAL (RM881U)

16.

CHECK PARKING BRAKE INSTALLATION

(a)

Check that each part is installed properly.

NOTICE:
There should be no oil or grease adhering to the friction surface of the shoe lining and disc.

17.

INSTALL REAR DISC

18.

ADJUST PARKING BRAKE SHOE CLEARANCE

(a)

Temporarily install the hub nuts.

(b)

Remove the hole plug, and turn the adjuster and expand
the shoes until the disc locks.

(c)

Contract the shoe adjuster until the disc can rotate
smoothly.
Standard : Return 8 notches

(d)

Check shoe is no brake drag.

(e)

Install the hole plug.

19.

CONNECT REAR DISC BRAKE CALIPER ASSY, LH

(a)

Install the rear disc brake caliper with the 2 bolts.
Torque: 47 N

m (480 kgf

cm, 35 ft

lbf)

20.

INSTALL REAR WHEEL
Torque: 103 N

m (1,050 kgf

cm, 76 ft

lbf)

21.

INSPECT AND ADJUST PARKING BRAKE PEDAL TRAVEL(PEDAL TYPE PARKING
BRAKE)(See page

33-2

)

22.

INSPECT AND ADJUST PARKING BRAKE LEVER TRAVEL(LEVER TYPE PARKING BRAKE)
(See page

33-2

)


Wyszukiwarka

Podobne podstrony:
33 Parking Brake
33 Parking Brake
33 Parking Brake
PARKING BRAKE
M34g Parking Brake
4261 Adjusting parking brake
G 2 0 DOHC Parking Brake Compnents Location doc
4256 Inspecting parking brake cable
4290 Brake test, parking brake check
Passat B6 Parking brake control module 9S12C128
33 NAWIERZCHNIE STOSOWANE NA PARKINGACH
33 Omów usprawnianie pacjentów z chorobą Parkinsona
(33) Leki stosowane w niedokrwistościach megaloblastycznych oraz aplastycznych
33 Przebieg i regulacja procesu translacji
Image Processing with Matlab 33
6 Wielki kryzys 29 33 NSL

więcej podobnych podstron
