Model: E60, E61

Production: From March 2007 Production

After completion of this module you will be able to:

• Identify the changes made to the E60 and E61 as of March 2007 production

At the change of model year in March 2007, there will be new systems in the E60
and E61.

These systems include, for example, the lane departure warning and active cruise
control with stop & go function.

With the lane departure warning, BMW is providing a new assistance system.

The lane departure warning warns the driver to counter-steer in the event of unintention-
al lane changing. It does this by generating a vibration in the steering wheel. The system
is designed for use on B-roads, A-roads and highways.

Active cruise control with stop & go function makes it easier to drive in heavy traffic.
The system supports repeated pulling away and braking in slow traffic queues.

Other model year actions include:

• Car Access System with electronic immobilizer 4

• Rain/light solar sensor with LIN bus

• Two-part center console switch cluster and pop-up menus

for seat auxiliary functions

• Welcome light

• Daytime driving light with corona rings

• Adaptive headlights with turn-off light

• Direction indicator based on light emitting diodes LED and

additional side-marker lamps at rear as standard equipment

• Diagnostics on CAN on body gateway module.

5

E60/E61 Model Update

Introduction

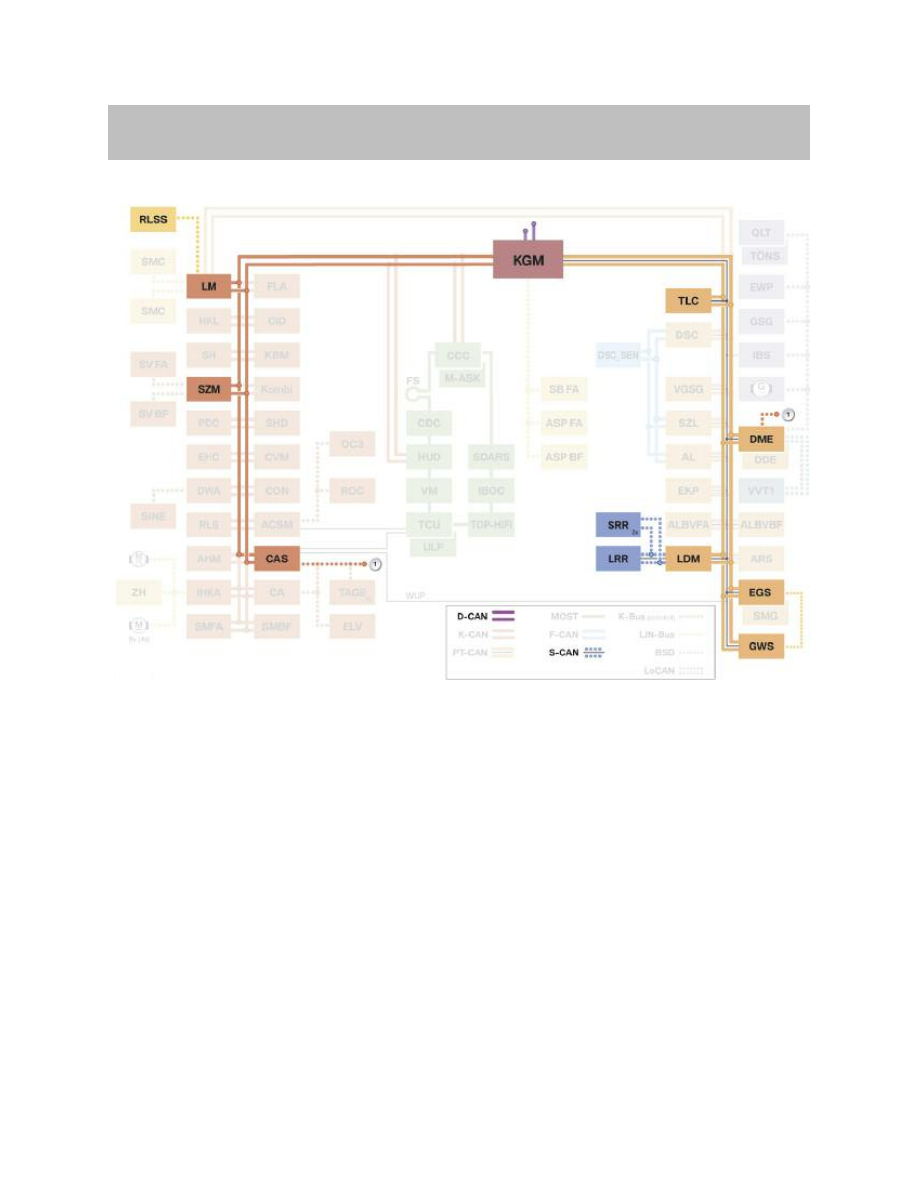

Bus Diagram

New control units are integrated in the bus system of the E60/E61. The modifications in
the bus system are listed below in brief.

New Control Units

Lane Departure Warning (TLC)
The lane departure warning generates a warning when the driver accidentally changes
lane. The warning should prompt the driver to counter-steer.

Gear Selector (GWS)
The control unit was first used with the E70 and is now also integrated in the E60/E61.

Longitudinal Dynamics Management (LDM)
LDM is used, amongst other things, for the "Active cruise control stop & go function"
driver assistance system.

6

E60/E61 Model Update

Systems Overview

Car Access System (CAS)
The model year actions provide for the installation of the Car Access System 3 in the
E60/E61.

The Car Access System 3 was first installed on the E92 and includes electronic immobi-
lizers EWS 3 and EWS 4. Depending on the engine variant, EWS 3 or EWS 4 is operated
by the Car Access System 3.

With EWS 4, the engine electronics are connected to the Car Access System 3 by a
redundant data connection. The data connection is redundant to the PT-CAN and uses
the K bus protocol.

New Components

Long Range Radar/Short Range Radar
Both components are for the newly installed active cruise control with stop & go function.

Center console switch cluster E60/E61 The center console switch cluster, which previ-
ously consisted of one switch bar, has been split into two switch blocks. One switch
block is for the driver's side, and the other is for the front-passenger side. Between the
switch blocks, there is an ashtray insert.

Rain/Light Solar Sensor
The installation of the rain/light solar sensor or rain/light sensor depends on the options.
Thus, for example, only the rain/light sensor is fitted with the Japan specifications.

For vehicles with the head-up display option, it is not possible to install the rain/light solar
sensor.

The above-mentioned options for the sensors result in the different connections via the
LIN bus or K-CAN.

New Bus Systems

Sensor CAN
The sensor CAN S-CAN is a new bus system. The bus system is based on the PT-CAN.
Therefore, the S-CAN works at the same speed as the PT-CAN and uses the PT-CAN
protocol.

Diagnostics on CAN D-CAN
The body gateway module KGM now has a connection for the Diagnostics on CAN
D-CAN. The connection of a D-CAN depends on the engine variant.

7

E60/E61 Model Update

Car Access System 3

The Car Access System 3 CAS 3 includes the functions of Car Access System 2. A
more detailed description of the Car Access System 3 is given in the following Product
Information:

• "Electrical/Electronic Systems E92"

• "Car Access System E70".

Electronic immobilizer 4 EWS 4 can be used with Car Access System 3. The use of the
electronic immobilizer 4 depends on the engine control system fitted. The following
table specifies the engine variants and their relationship to the electronic immobilizer.

The Car Access System 3 CAS 3 includes the functions of Car Access System 2. A
more detailed description of the Car Access System 3 is given in the following Product
Information:

• "Electrical/Electronic Systems E92"

• "Car Access System E70".

Electronic immobilizer 4 EWS 4 can be used with Car Access System 3. The use of the
electronic immobilizer 4 depends on the engine control system fitted. The following
table specifies the engine variants and their relationship to the electronic immobilizer.

8

E60/E61 Model Update

Principle of Operation

Vehicle

Production

Date (launch) Engine

Engine Management EWS 3

EWS 4

E60/E61

03/07

N52B30U0/N52B30OO

N52B30O1/N52B30M1

MSV80

X

E60/E61

03/07

N53B25U1/N52B25O1

MSD80

X

E60/E61

03/07

N54B30U0

MSD80

X

E60/E61

03/07

N53B30U0/N53B30O0

MSD80

X

E60/E61

03/7

N62B40O1/N62B48O1

ME9.2.3

X

Rain/Light Solar Sensor

From 03/07 the E60/E61 will be fitted with the rain/light solar sensor. In addition, the LIN
bus will be installed between the rain/light solar sensor and the light module.

The rain/light solar sensor is taken from the E70 and is adapted to the E60/E61. The light
module requests the values from the rain/light solar sensor every 20 ms. In this way, it
receives the request to activate or deactivate the driving light, for example.

Requests received by the light module from the solar sensor or rain sensor, are converted
into K-CAN format. The light module sends the sensor signals via the K-CAN.

In this way, the body basic module receives the requests for automatic wiping and the air
conditioning system receives requests for air distribution in the vehicle.

The rain/light solar sensor cannot be fitted on vehicles with the head-up display option.

Therefore, in this option, the rain/light sensor used to date is fitted. The rain/light sensor is
connected via the K-CAN.

Both specifications are illustrated in the system circuit diagram on the next page.

Electrochromic Interior Mirror
The electrochromic interior mirror sends the request for lighting/dimming the outside mir-
ror directly to the body basic module. The body basic module prompts lighting/dimming
of the outside mirror.

The electrochromic interior mirror cannot be dimmed if reverse gear is engaged.
Therefore, the light module sends the "RFSI" signal directly to the electrochromic interior
mirror. This prevents the electrochromic interior mirror from dimming when reverse gear is
engaged. This enables an optimal view to the rear via the interior mirror or the outside
mirror.

9

E60/E61 Model Update

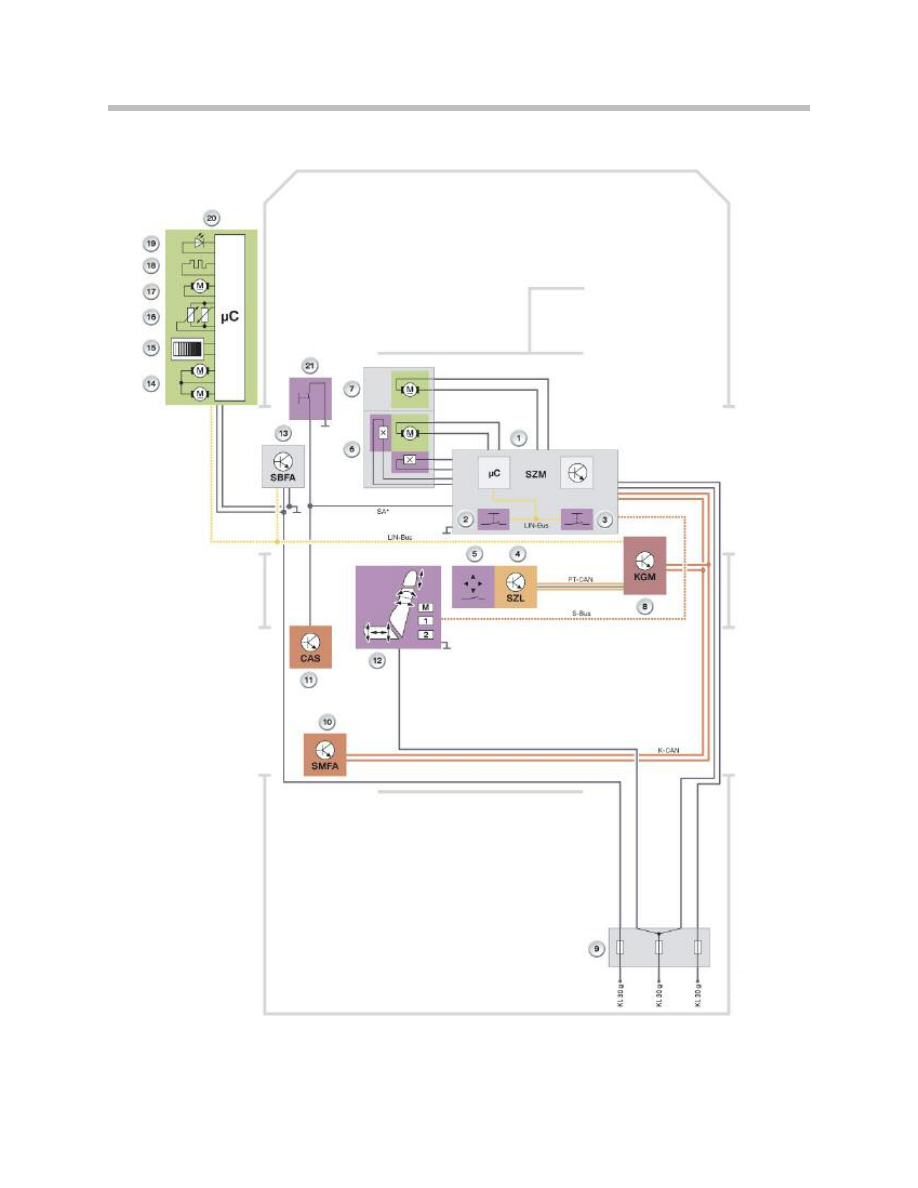

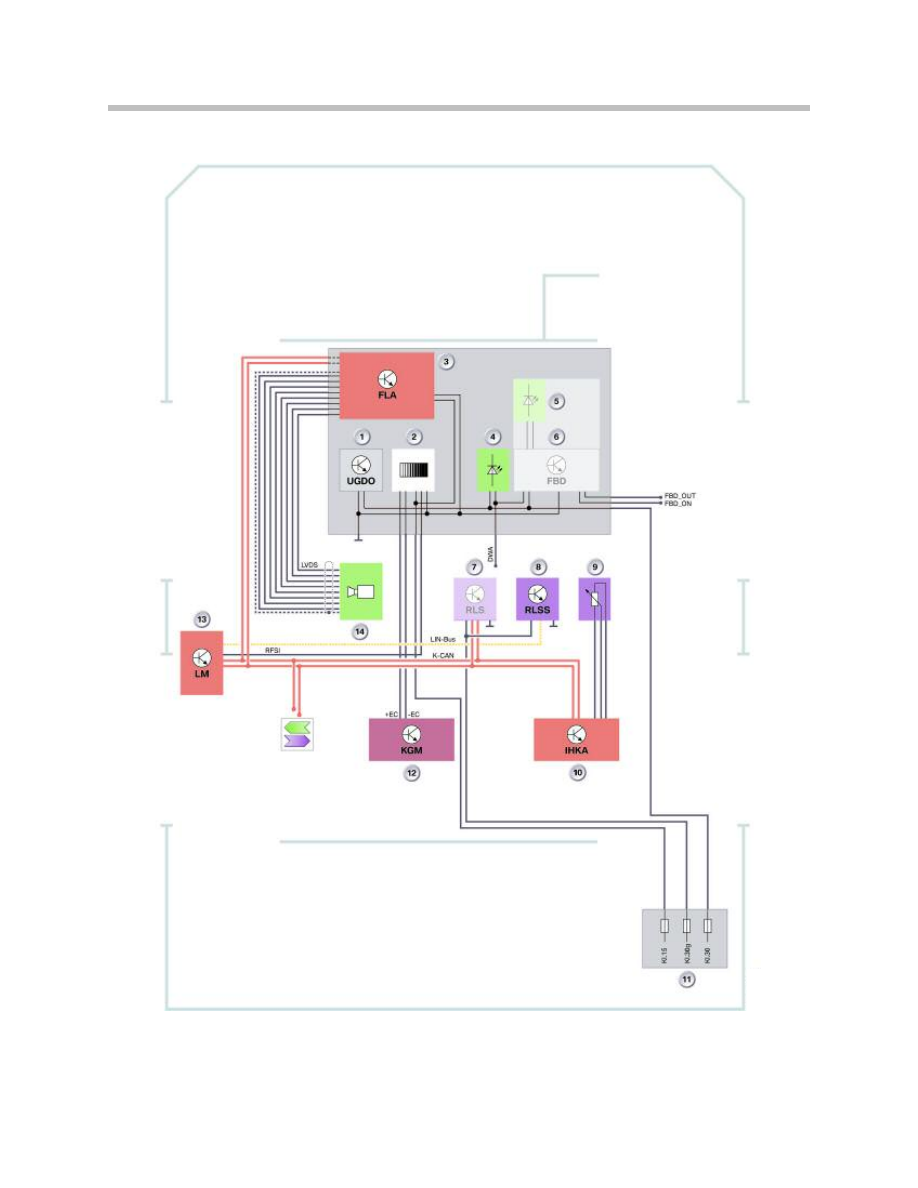

System Circuit Diagram

10

E60/E61 Model Update

11

E60/E61 Model Update

Index

Explanation

1

Universal garage-door opener UGDO

2

Electrochromic interior mirror

3

High beam assistant FLA

4

Anti-theft alarm system LED

5

Anti-theft alarm system LED

6

Remote control receiver FBD

7

Rain/light sensor RLS

8

Rain/light solar sensor RLSS

9

Mist sensor

10

Integrated heating-air conditioning control IHKA

11

Luggage compartment electrical distribution box

12

Body gateway module KGM

13

Light module LM

14

High beam assistant image sensor

K-CAN

Body CAN

LIN-bus

Local Interconnect Network bus

LVDS

Low Voltage Differential Signalling

KL 15

Terminal 15

KL 30

Terminal 30

KL 30g

Terminal 30 switched

FBD

Remote control service

FBD_OUT

Remote control service OUT

FBD_ON

Remote control service ON

+EC

+ Electrochromic interior mirror

-EC

- Electrochromic interior mirror

RFSI

Reversing light signal

Modified Center Console Switch Cluster

The center console switch cluster SZM will be
replaced by a two-part SZM from 03/07. This not
only changes the visual aspect, but also the func-
tionality of the buttons.

The SZM is available in single, double or triple
row versions. The version depends on the number
of buttons required.

In principle, the buttons for Dynamic Traction
Control (DTC) or Park Distance Control (PDC)
are located in the top row.

If, for example, Park Distance Control was not ordered, the button for unlocking the lug-
gage area or tailgate will be located here instead.

12

E60/E61 Model Update

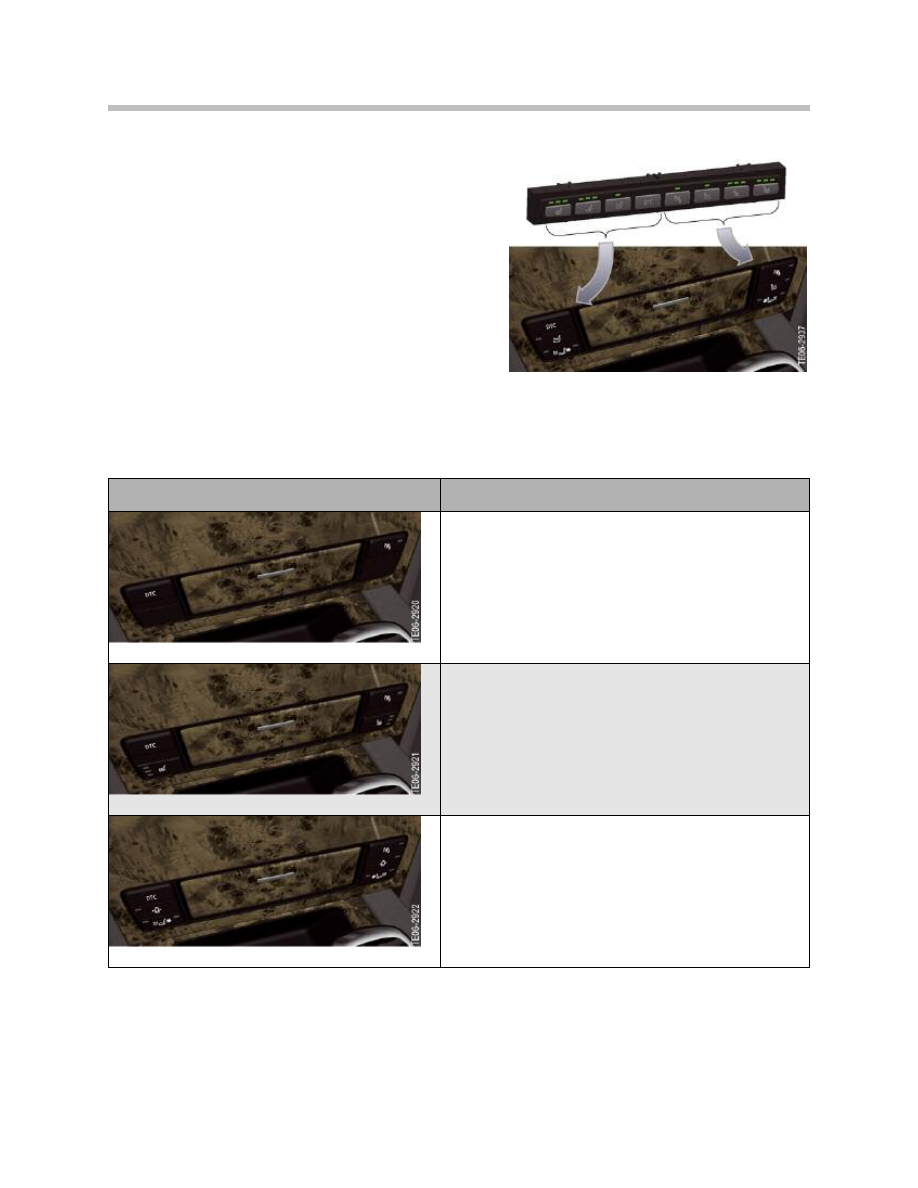

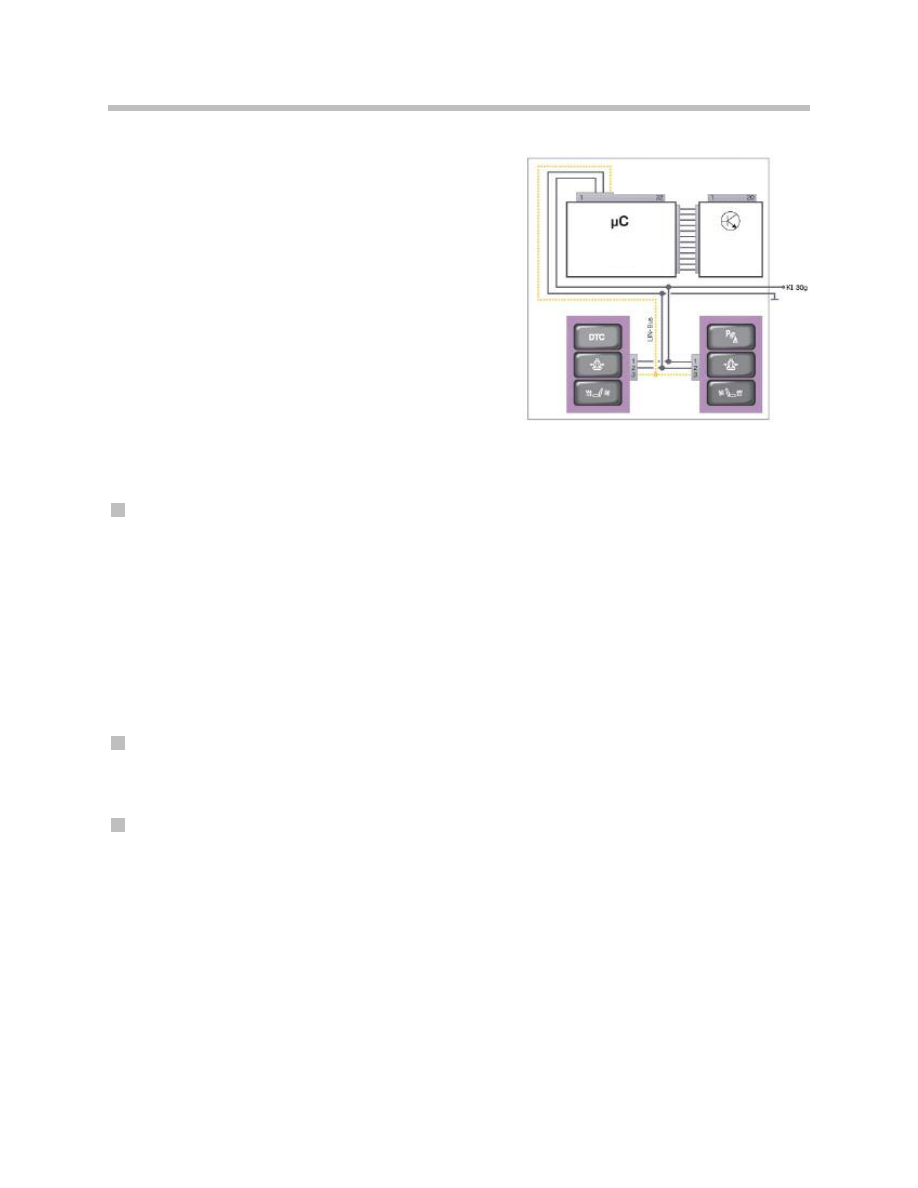

Previous and new center console switch

Center Console Switch Cluster

Version

Single-Row
The single-row version means that only one button is inte-

grated in the SZM on the front passenger and driver's side.

Double-Row
The double-row version means that two buttons are

arranged one above the other on the front-passenger and

driver's side.
With the double-row version, the function display is shown

via an LED on the button.

• Active seat width adjustment

• Seat heating. 1

Triple-Row
With the triple-row version, there are three buttons one

above the other on the front passenger and driver's side.
From the triple-row version, there is a "pop-up" menu in the

Central Information Display for:

• Active seat back width adjustment

• Seat air conditioning

• Seat heating. 1

13

E60/E61 Model Update

NOTES

PAGE

System Circuit Diagram

14

E60/E61 Model Update

15

E60/E61 Model Update

Index

Explanation

1

Center console switch cluster SZM

2

Button for driver's seat function

3

Button for front passenger seat function

4

Steering column switch cluster (SZL)

5

Steering column adjustment button

6

Driver's outside mirror

7

Mirror adjustment motors

8

Potentiometer memory position

9

Outside mirror heating

10

Mirror folding motor

11

Electrochromic outside mirror

12

Courtesy lighting

13

Boot lid push button

14

Body gateway module KGM

15

Luggage compartment electrical distribution box, left

16

Driver's seat module

17

Seat-adjustment switch

18

Car Access System CAS

K-CAN

Body CAN

PT-CAN

Powertrain CAN

LIN bus

Local Interconnect Network bus

KL 30g

Terminal 30 switched

KL 58g

Terminal 58 switched

Option*

Dependent on option

As for the triple-row version, it is only possible to display the function via the LED in the
button.

This means that pressing the button (2 or 3) calls up the associated pop-up menu in the
Central Information Display.

The individual activation stages of the specific function are shown in the Central
Information Display.

Pop-up Menu
Depending on the option, pop-up menus can be displayed in the Central Information
Display. The pop-up menus are dependent on the following auxiliary seat functions:

• Seat heating in conjunction with seat climate

• Seat heating in conjunction with active seat

• Seat heating in conjunction with seat climate and active seat

• Seat heating in conjunction with active seat back width adjustment

• Seat heating in conjunction with seat climate and active seat back width adjustment

Pressing the button for an auxiliary seat function causes this function to be activated.
A pop-up menu appears in the Central Information Display. When the function is
switched on, the highest setting for the activated function is shown first. By pressing the
button again, you can shift through until the function is switched off or reactivated again.

The pop-up menu for the auxiliary seat functions fades to show Check Control messages
for the time during which the Check Control messages are present.

It is still possible to shift through the seat function. The only indicator in this situation is
the activation display via the LED on the button.

Note: If seat functions were stored before leaving the vehicle, they will still be

active the next time the vehicle is started.

16

E60/E61 Model Update

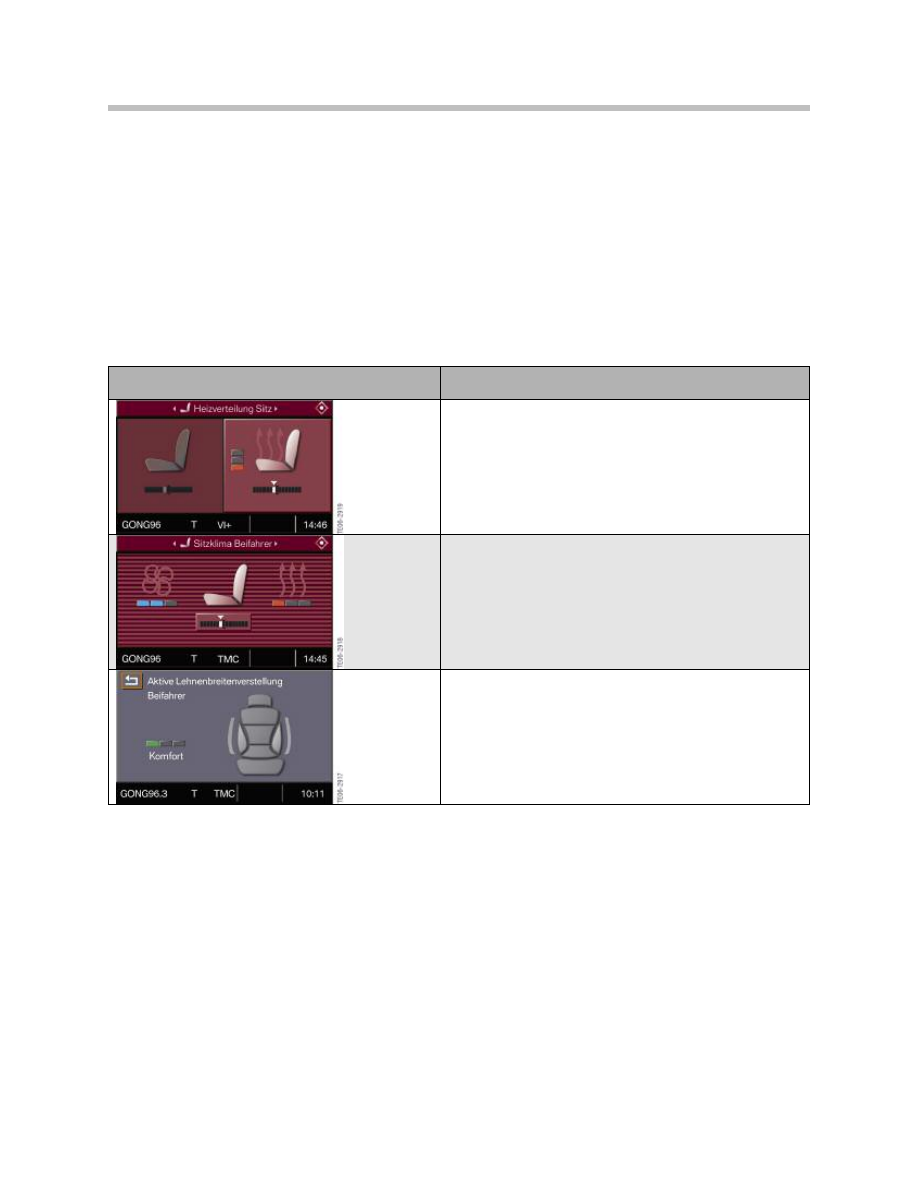

Example of “Pop-up” Menu

Seat Function

Seat Heating

Seat Climate

Active seat back width adjustment

Center Console Switch Cluster Assembly
The center console switch cluster consists of an
electrical system, performance electronics and the
driver's and front-passenger side button blocks.

The performance electronics are connected via a
20-pin connector. The electrical system has a 32-
pin connection. The two electrical systems com-
municate with each other via a 12-pin ribbon
cable.

The electrical system is integrated in a 2/3 hous-
ing and the performance electronics are integrated
in a 1/3 housing (module). Both modules are
installed in the glove box device holder.

The electrical system, performance electronics
and buttons are connected to terminal 30g.

Electrical System

The LIN bus of the SZM-electrical system only connects the SZM-button blocks.

The electrical system is responsible for analyzing the information from the following
bus systems:

• Body-CAN K-CAN

• Seat bus S bus based on K bus protocol

• Local Interconnect Network bus LIN bus, only for internal

connection in the center console switch cluster.

Performance Electronics

The performance electronics control the motors for
steering-column adjustment and for the roller sunblind.

Steering Column Adjustment

The electrical system monitors the Hall sensors for the electric steering-column adjust-
ment. Thus, the position of the steering column can be used for the steering column
memory function, based on the Hall sensor pulses.

The request to activate the motors for steering column adjustment is received by the
electrical system via the K-CAN. The electrical system forwards the request to the perfor-
mance electronics, which activates the motors.

Note: The buttons for the steering-column adjustment are analyzed by the

steering column switch cluster. The steering column switch cluster
sends the request via the PT-CAN. The body-gateway-module converts
the signal to the K-CAN.

17

E60/E61 Model Update

Electrical System

Performance

Electronics

Basic Assembly of the Steering
Column Switch Cluster

18

E60/E61 Model Update

Roller Sunblind E60

The request to activate the roller sunblind is received via the K-CAN. The electrical
system analysis the request and the performance electronics activate the motor.

Note: The button for the roller sunblind is analyzed by the driver's switch block.

The driver's switch block is connected to the body gateway module via
the LIN bus. The body gateway module requests the status of the button
cyclically from the driver's switch block.

In this way, the body-gateway-module receives the request to activate
the roller sunblind and converts this to the K-CAN.

Buttons in the Center Console Switch Cluster

The buttons in the center console switch cluster are connected to the electrical system
via the LIN bus. The electrical system sends the status of the buttons via the K-CAN.

In this way, the Park Distance Control can be activated or deactivated by pressing the
PDC button, for example.

Trunk Push Button

For vehicles without optional equipment, the boot-lid push button is located on the A-pil-
lar and is redundant in the center console switch cluster.

Exterior Lighting

In 03/07, the exterior lighting of the E60/E61 will have the following function additions:

• Welcome light

• Daytime driving light with corona rings (only with bi-xenon lights)

• Turn-off light (only with bi-xenon lights)

• Side-marker light at rear, as standard

• High beam assistant option 5AC can be deactivated via the light settings menu

For these additions, not only new headlights or rear lights are required, but also a new
light module. The light module contains the abovementioned functions and the connec-
tion options. The pin assignment is to be taken from the BMW diagnostics system.

The external dimensions of the headlights and rear lights remain the same. The modifi-
cations are within the headlight or tail light, such as corona ring for the daytime driving
light or direction indicator based on light emitting diodes LED in the rear light.

19

E60/E61 Model Update

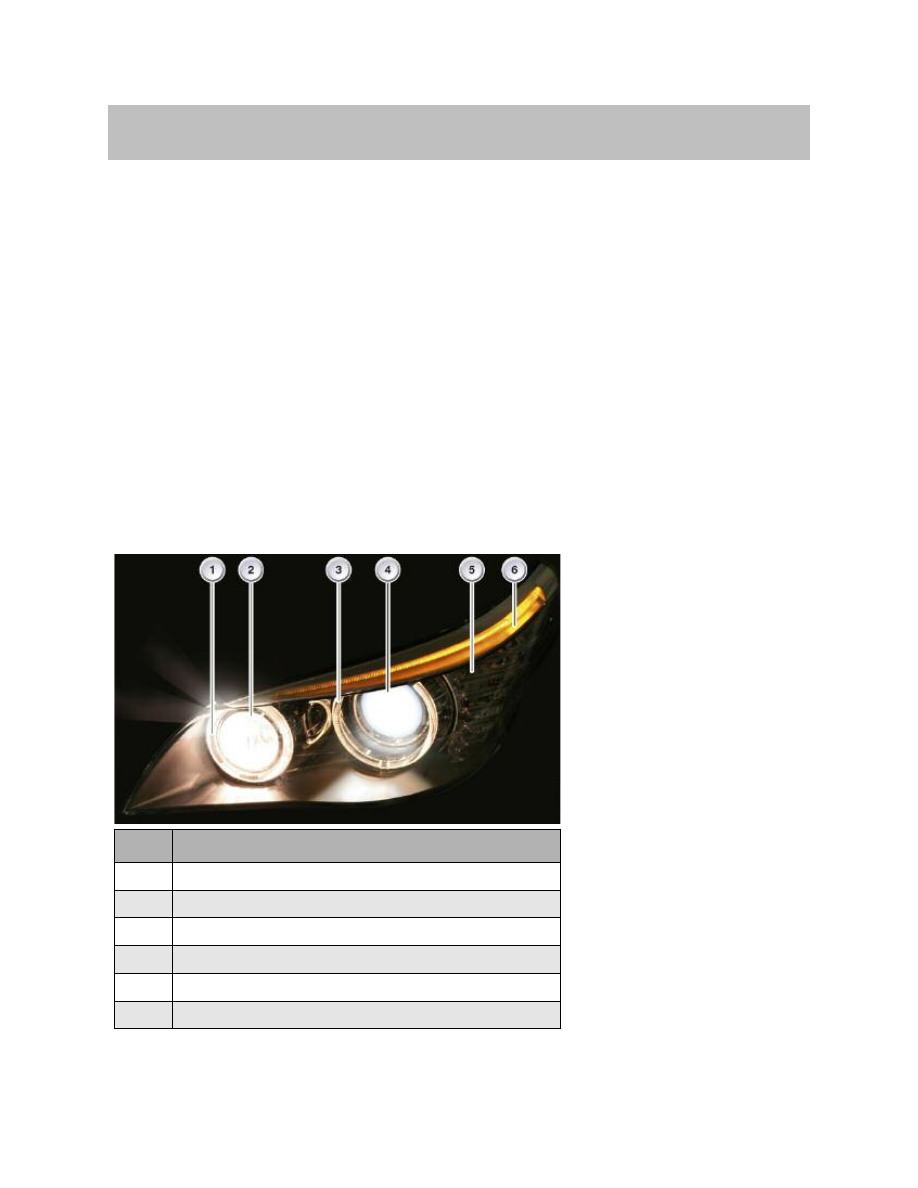

Components

Index

Explanation

1

Parking light/daytime driving light

2

Turn-off light

3

Parking light/daytime driving light

4

Low-beam headlights/high-beam headlights

5

Direction indicator

6

Side-marker light

Welcome Light
The welcome light is activated for around 20 seconds when the
vehicle is unlocked. In addition to the interior lighting, the following
lights are also activated for the welcome light:

• Parking light, corona rings in parking light function

• Tail light bars, also the dimmed rear fog lights on the E60

• License plate light

• Courtesy lights

• Side-marker light

• Illumination of the instrument cluster as indicator lamp

Note: For the welcome light function, the light switch must be in the "low-beam

headlights" or "automatic driving lights control" position.

The welcome light is activated as factory default. With the controller, the welcome light
can be deactivated via the Central Information Display.

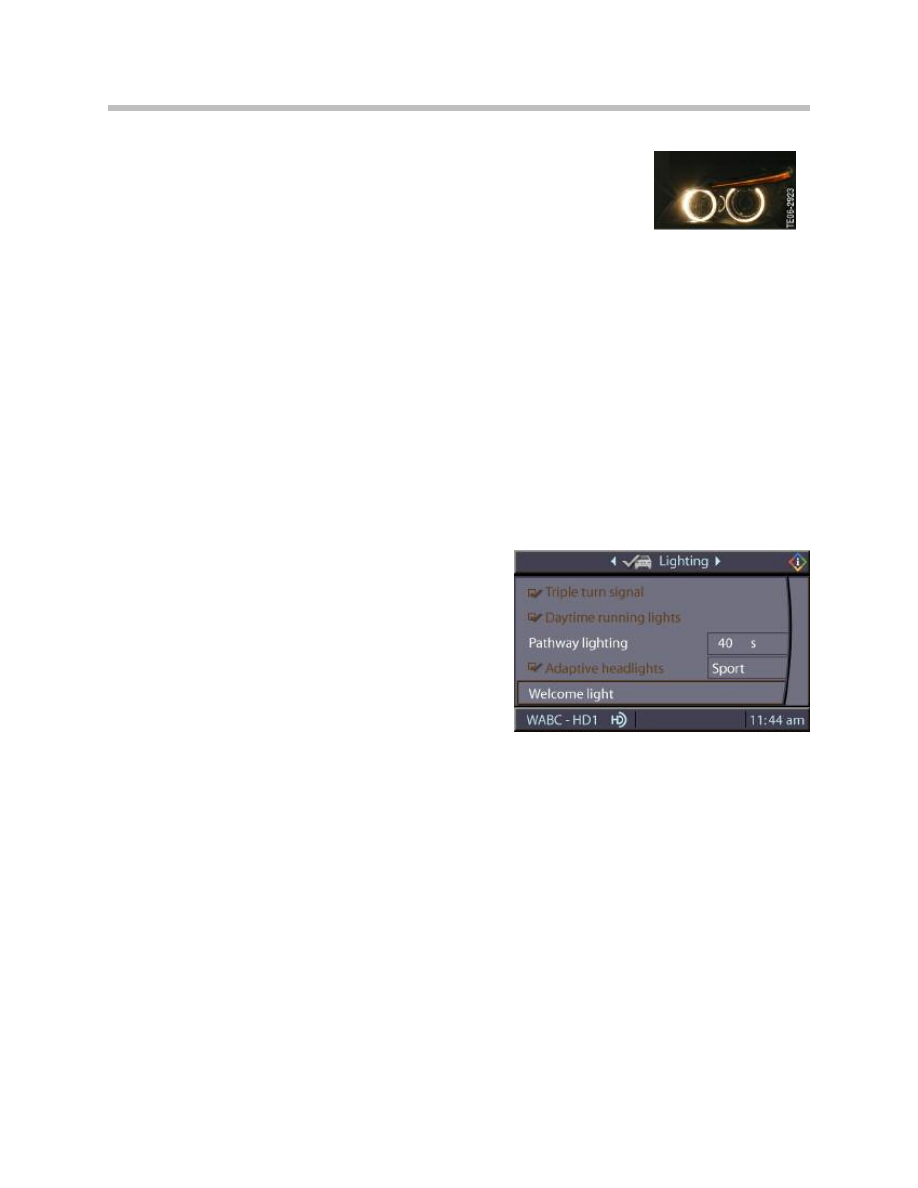

To do this you must select menu item:

"Settings" > "Vehicle/Tires" > "Light settings"
> "Welcome light"

Confirm the desired setting by pressing the con-
troller.

20

E60/E61 Model Update

Daytime Driving Lights

The daytime driving light is available with halogen headlights or bi-xenon headlights as
well as with adaptive headlights.

Halogen Headlight
With halogen headlights, the light switch must be in the "automatic driving lights control"
position. With the daytime driving light, the driving light is used.

Bi-Xenon Headlights/Adaptive Headlights
The daytime driving light with corona rings is only available in conjunc-
tion with the bi-xenon headlights and adaptive headlights options. In
the daytime driving light function, the corona rings of the headlights
and the tail light bars of the rear lights are activated.

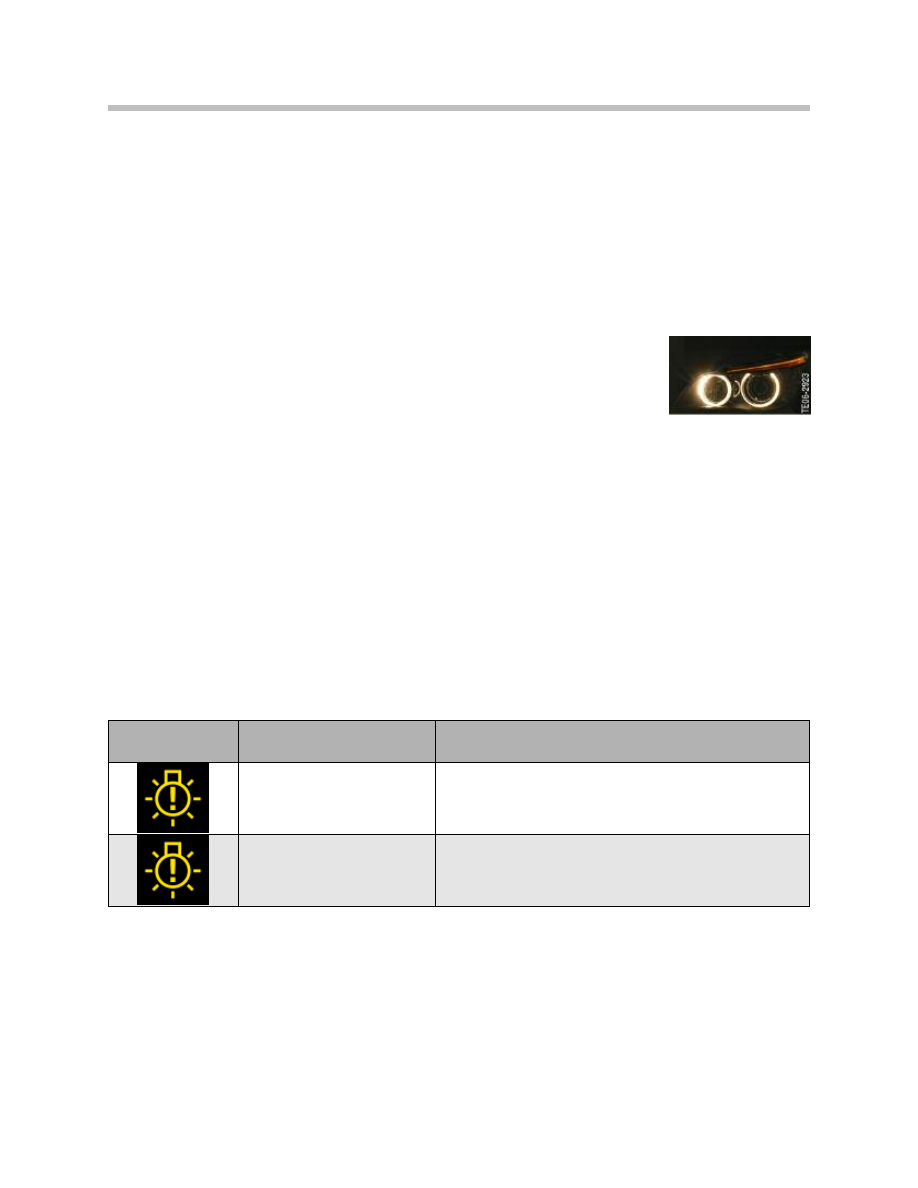

The principle for generating the daytime driving light with corona rings is taken from the
E92. The light in the inside chamber of the main headlight is fed into the corona rings
through optical fiber cables. Only one bulb per headlight is used for feeding light to the
corona rings.

For the daytime driving light function, the light switch must be in the "light OFF" or "auto-
matic driving lights control" position. The switch position is important, as the daytime dri-
ving light cannot be activated by the light module otherwise.

The corona rings are switched on from terminal 15 ON, with the corresponding light
switch position. The bulb is actuated in pulse width modulation. Pulse width modulation
makes it possible to realize the daytime driving light and parking light functions.

In the event of a defect in the daytime driving light or parking light, the following informa-
tion is displayed or issued:

The daytime driving light function can be activated or deactivated via the Central
Information Display using the controller.

To do this, you must select the menu option "Settings" > "Vehicle/Tires" > "Light set-
tings" > "Daytime driving light". See also the Owner's Handbook.

Note: The daytime driving light is subject to statutory and country-specific

regulations. These statutory and country-specific regulations must be
complied with.

21

E60/E61 Model Update

Check Control

Message

Meaning

Messages in the Central Information Display

Left parking light/daytime

driving light failed.

Left parking light/daytime driving light.
Left parking light/daytime driving light failed.
Have checked by nearest BMW Service.

Right parking light/daytime

driving light failed.

Right parking light/daytime driving light.
Right parking light/daytime driving light failed.
Have checked by nearest BMW Service.

Cornering Lights

The cornering lights is integrated with the xenon light option. With the turn-off light, the
areas in front of and beside the vehicle can be illuminated, in addition to the adaptive
headlights.

The cornering lights has been integrated in the place of the former auxiliary high-beam
light in the headlight.

A special reflector geometry and positioning of the H3-bulb makes it possible for the light
to be beamed to the side.

The function of the turn-off light is taken from the E92. The function of the H3-bulb is
monitored by the light module.

In the event of a defect in the turn-off light, the following information is displayed or
issued:

To activate the cornering lights, the adaptive headlights must first be switched on via the
automatic driving lights control.

The cornering lights is not activated if the hazard warning lights or one-touch direction
indicator function are in operation.

The cornering lights is not activated when the high-beam headlights or headlight flasher
are activated. If the high-beam headlights or headlight flasher is switched off and the
switch-on conditions are fulfilled, the cornering lights are activated.

Activation Conditions
The activation conditions for forwards travel are:

• 0 mph

• Steering angle approximately 40 - 70°

• Engine Running

The activation conditions for reverse travel are:

• Reverse gear selected

• Turn-off light on both sides

22

E60/E61 Model Update

Check Control

Message

Meaning

Messages in the Central Information Display

Left cornering lights failed.

Left cornering lights light.
Left cornering lights failed.
Have checked by nearest BMW Service.

Right cornering lights failed.

Right cornering lights.
Right cornering lights failed.
Have checked by nearest BMW Service.

Deactivation Conditions
The turn-off light is switched off if none of the switch-on conditions is met:

• Adaptive headlights OFF and

– Direction indicator OFF or
– Steering angle reversed or
– Reverse gear OFF.

In vehicles with Europe specifications, the turn-off light is also switched off when the
high-beam headlights or headlight flasher are activated.

In addition, the turn-off light is switched off if one of the following parameters applies:

• Road speed

• Vehicle stationary

• Time out, time or temperature-related limitation

• Dynamism, vehicle drifting

The conditions are given in the following table:

23

E60/E61 Model Update

Other Switch-off Conditions

Road Speed

Switch-on Condition

Remark

70 km/h

Steering Column

When the vehicle is in motion

Stationary

Switch-on Condition

Remark

0 mph

Steering angle

5° - 10° reduced according to switch-on condition

Time out

Condition

Remark

> 4 seconds

FRAZ on, v= < 2 km/h steering angle 0°

Turning at traffic lights

Temperature
Model

Steering movement and yaw

rat have opposite directions

Headlight protection

Dynamism

Condition

Remark

Drifting

Steering movement and yaw

rate have opposite directions

Adaptive headlights switch to

straight-ahead position

Rear Light Cluster

A new feature here is the side-marker light integrated in the rear light cluster as standard
on vehicles with Europe specifications.

The direction indicators and the side-marker lights are shown in LEDs (light emitting
diodes).

For the additional side-marker light, four LEDs are used on the E60 and two LEDs
on the E61.

For the brake light (BL), the outer and inner
chamber of the rear light cluster is used. For the
brake-force display (BFD) function, the rear fog
light NSL chamber is used. If the rear fog light is
switched on, the brake-force display is not
shown. The following table shows which lights
are activated, according to the function.

Note: When the rear fog light is ON, the inner chamber of the rear lights cluster

is not used as the brake light (BL2). This is because a legally required
distance of 100 mm is prescribed between the light surfaces of the brake
light and the rear fog light.

24

E60/E61 Model Update

Function

Activated Lights

BL Normal

BK1 + BL2

BL + BFD

BL1 + BL2 + BFD

BL + NSL

BL1 + NSL

Index

Explanation

1

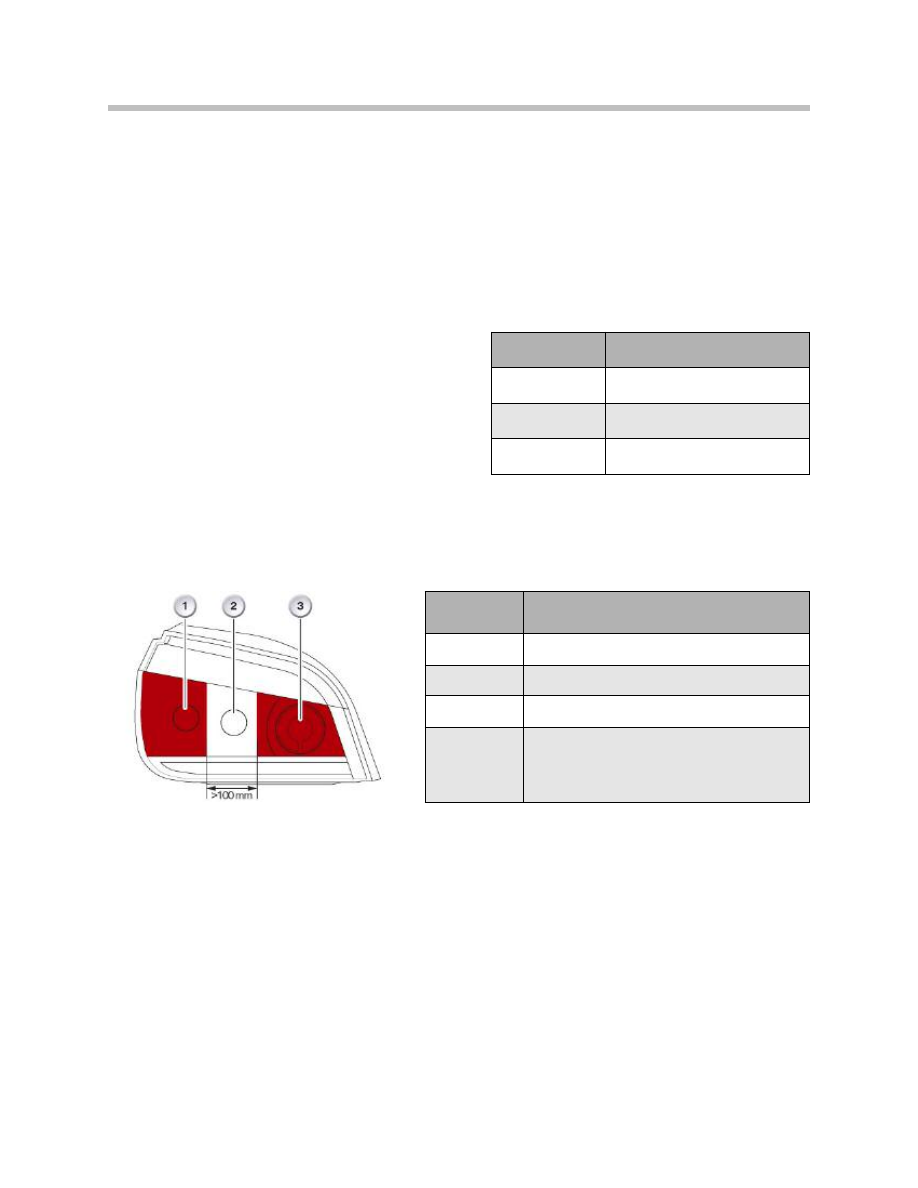

Exterior chamber for brake light - BL1

2

Interior chamber for brake light - BL2

3

Rear fog light NSL/brake-force display - BFD

> 100 mm

Legally required distance

between light surfaces of BL/NSL

must be greater than 100 mm

25

E60/E61 Model Update

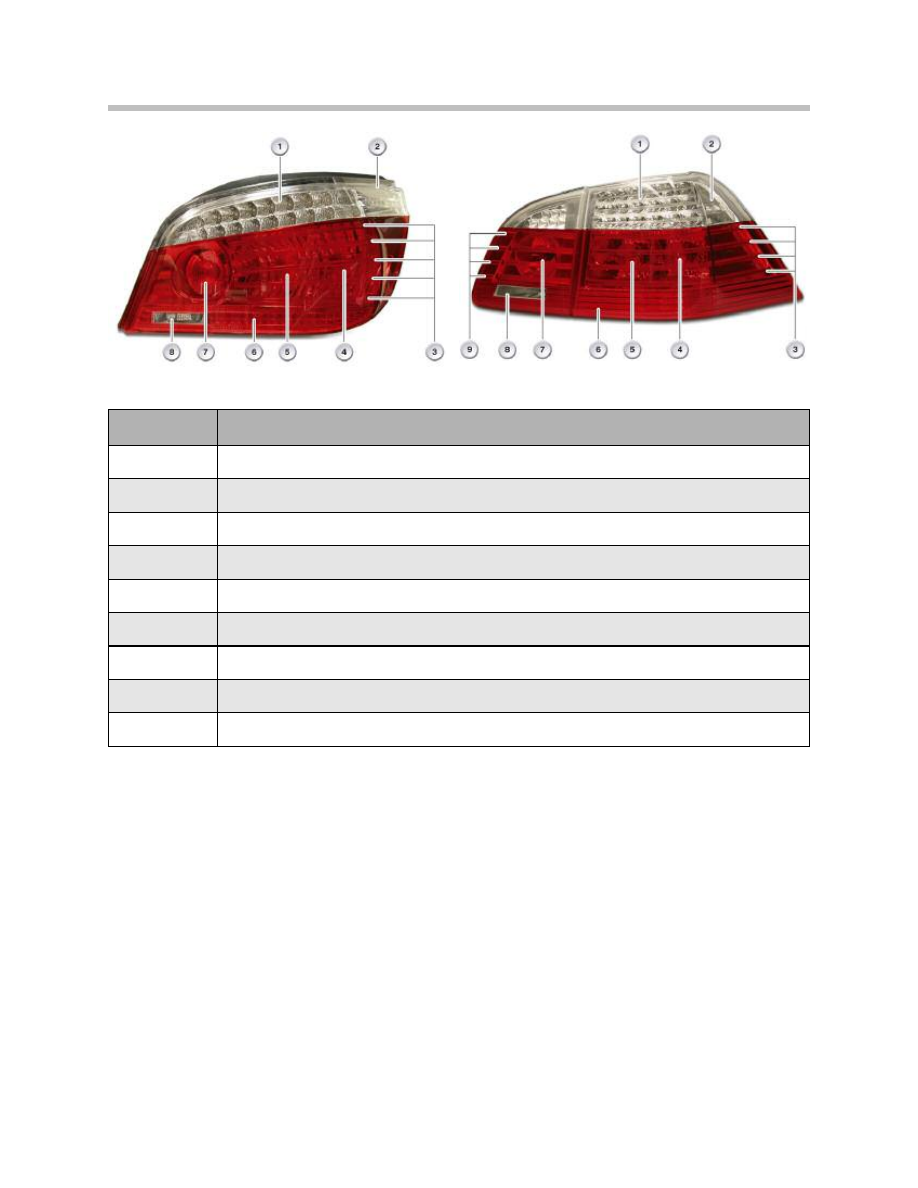

Rear Light E60

Rear Light E61

Index

Explanation

1

Direction indicator (basic LED)

2

Side-marker light (LED)

3

Tail light bars (basic LED)

4

Brake light 1

5

Brake light 2

6

Reflector

7

Brake-force display

8

Reversing light

9

Tail light bars (basic LED)

Automatic Driving Lights Control

With the model year actions, the E60 and E61 also now have a rain/light solar sensor.

The rain/light solar sensor is connected to the light module via the LIN bus.

The requests to switch the driving light on or off are received by the light module via the
LIN bus. The light module requests the status of the rain/light solar sensor cyclically from
the LIN bus.

The rain/light solar sensor responds to the requests from the light module.

The light module converts the signals from the rain/light solar sensor to the K-CAN and
vice versa. Thus, the light module is the gateway between the LIN bus and the K-CAN

Note: In vehicles with the head-up display, lane departure warning the

previous rain/light sensor is used. The rain/light sensor is connected
via the K-CAN.

26

E60/E61 Model Update

Diagnostics Connection D-CAN

A new communication interface will be used for diagnostics in future.

D-CAN (Diagnostics on Controller Area Network) will replace the previous diagnostics
interface world-wide. In this way, BMW has met the requirements of standard ISO 15765
(Diagnostics on CAN with KWP 2000 [Keyword Protocol 2000] or UDS [Unified
Diagnostic Service]).

The D-CAN data-signalling rate is 500 kbit/s.

The background for the change-over is a new legal regulation in the USA, according to
which all vehicles from model year 2008 must be fitted with a D-CAN. The transition
phase began in September 2006.

The change-over to D-CAN in all ranges and model variants is planned for 3/2007 and
9/2007, depending on the type of engine installed.

An OBD-tool or BMW diagnostics system is automatically detected and distinguished
during data output. The second TXD interface (pin 8) is not necessary.

Center Console Switch Cluster

The center console switch cluster is now split into two. For servicing, it must be noted
that the performance electronics and the electrical system are integrated in a single
module. Both modules are installed in the glove box device holder.

27

E60/E61 Model Update

Service Information

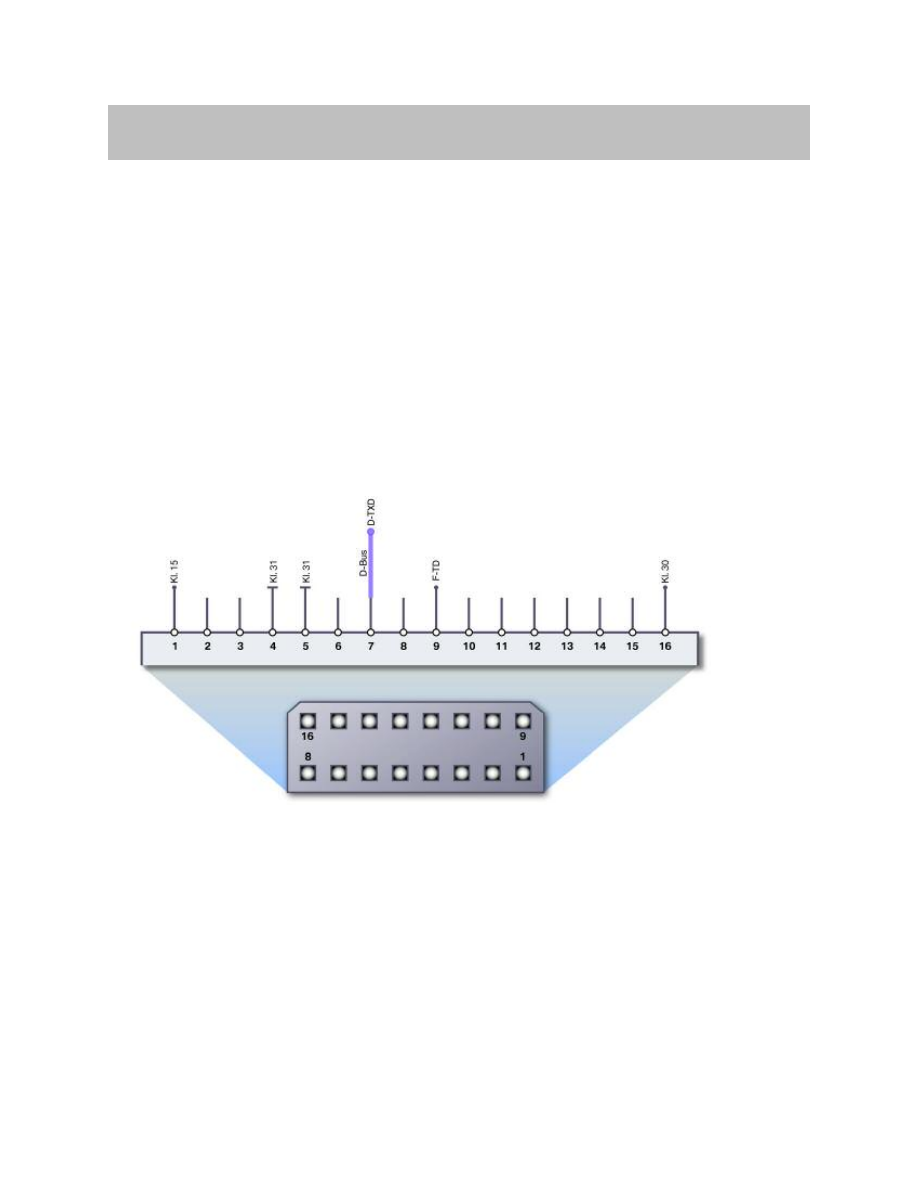

Pin Assignments E60/E61
