Samsung SGH R200 service manual

background image

SERVICE

DUAL BAND Mobile
Cellular Phone

SGH-R200

Manual

DUAL BAND MOBILE CELLULAR PHONE

CONTENTS

1. Exploded Views and Parts List

2. PCB Diagrams

3. Electrical Parts List

4. Block Diagrams

5. Flow Chart of Troubleshooting

background image

Samsung Electronics Co.,Ltd.

Printed in Korea

06/2001 Rev 1.0

GH68-02098A

ELECTRONICS

background image

1. Exploded Views and Parts List

1-1

Main

1-2

Main Parts List

1-3

Travel Adapter

1-4

Travel Adapter Parts List

1-5

Ciger Light Adapter

1-6

Ciger Light Adapter Parts List

1-7

Test Jig

1-8 EAR Microphone
1-9

Data Kit

2. PCB Diagrams

2-1

Main Top

2-2

Main Bottom

3. Electrical Parts List

3-1

Main Parts List Top

3-2

Main Parts List Bottom

4. Block Diagrams

4-1

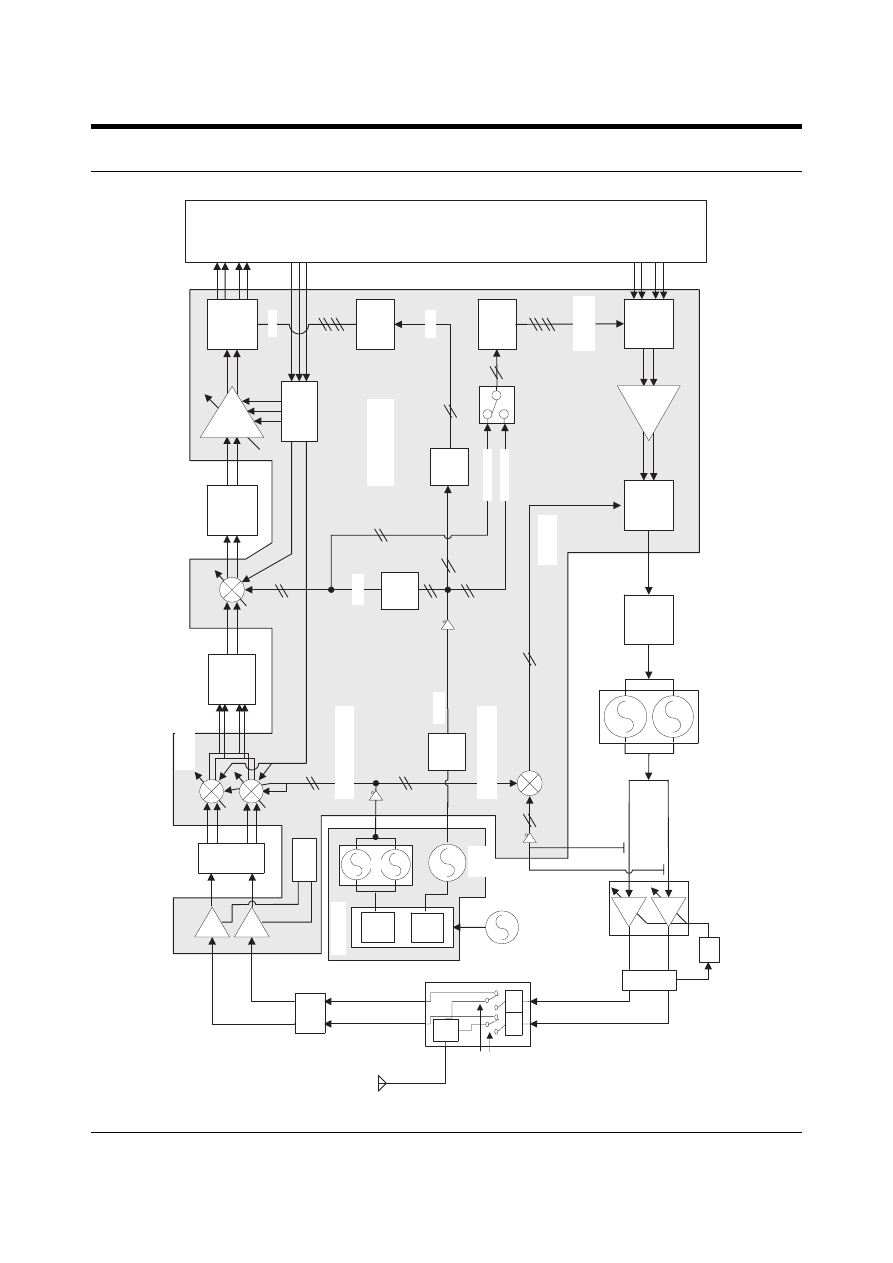

Main Baseband

4-2

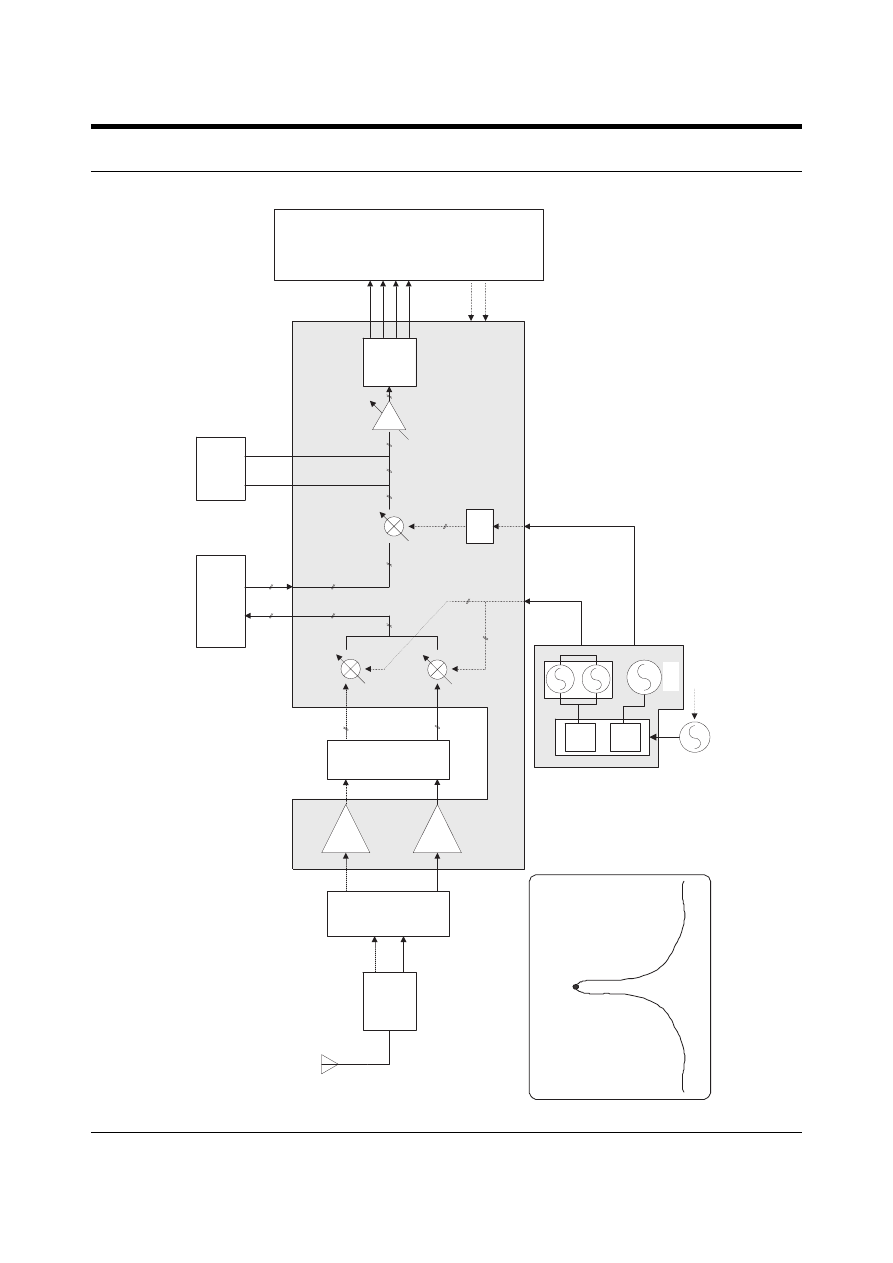

Main RF
4-2-1

RF Transmit Part

4-2-2

RF Receive Part

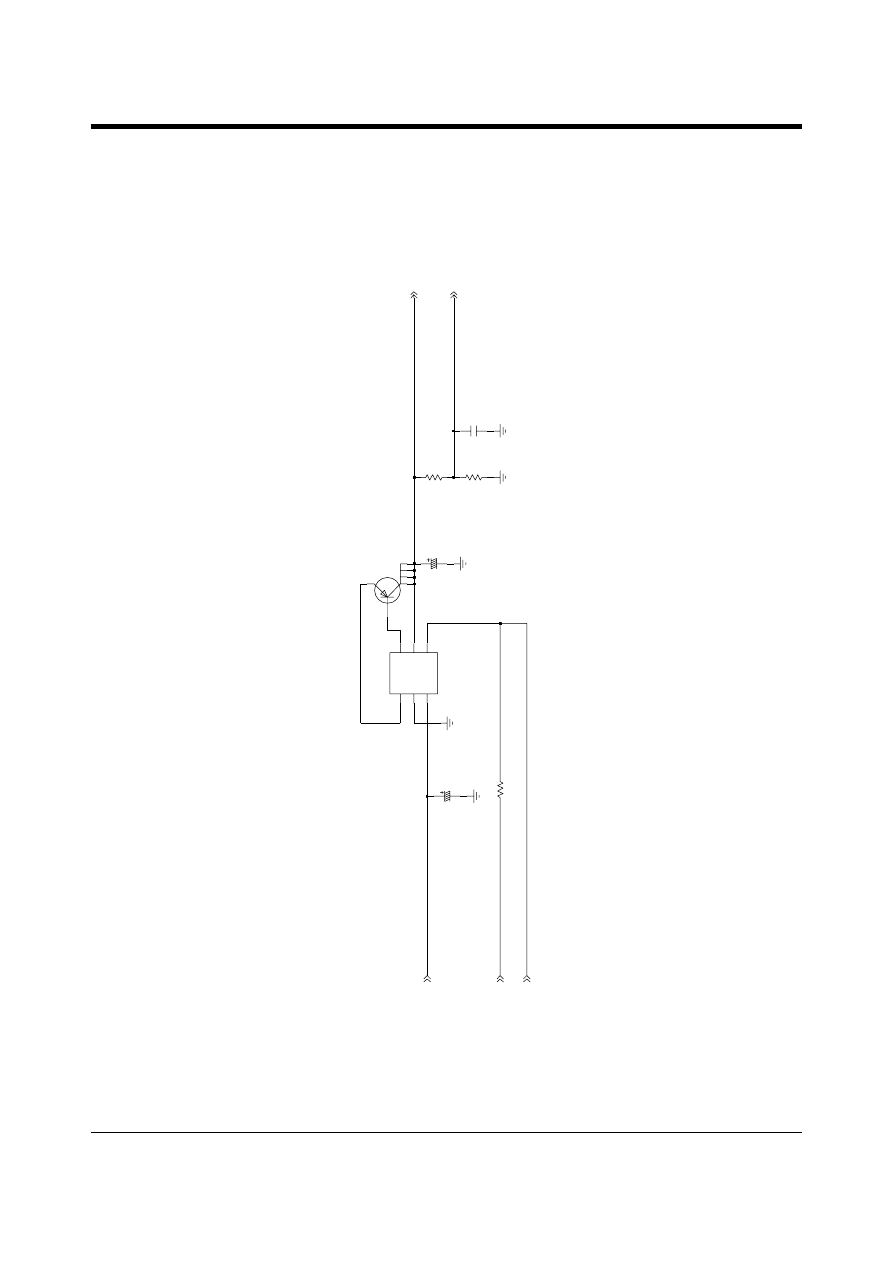

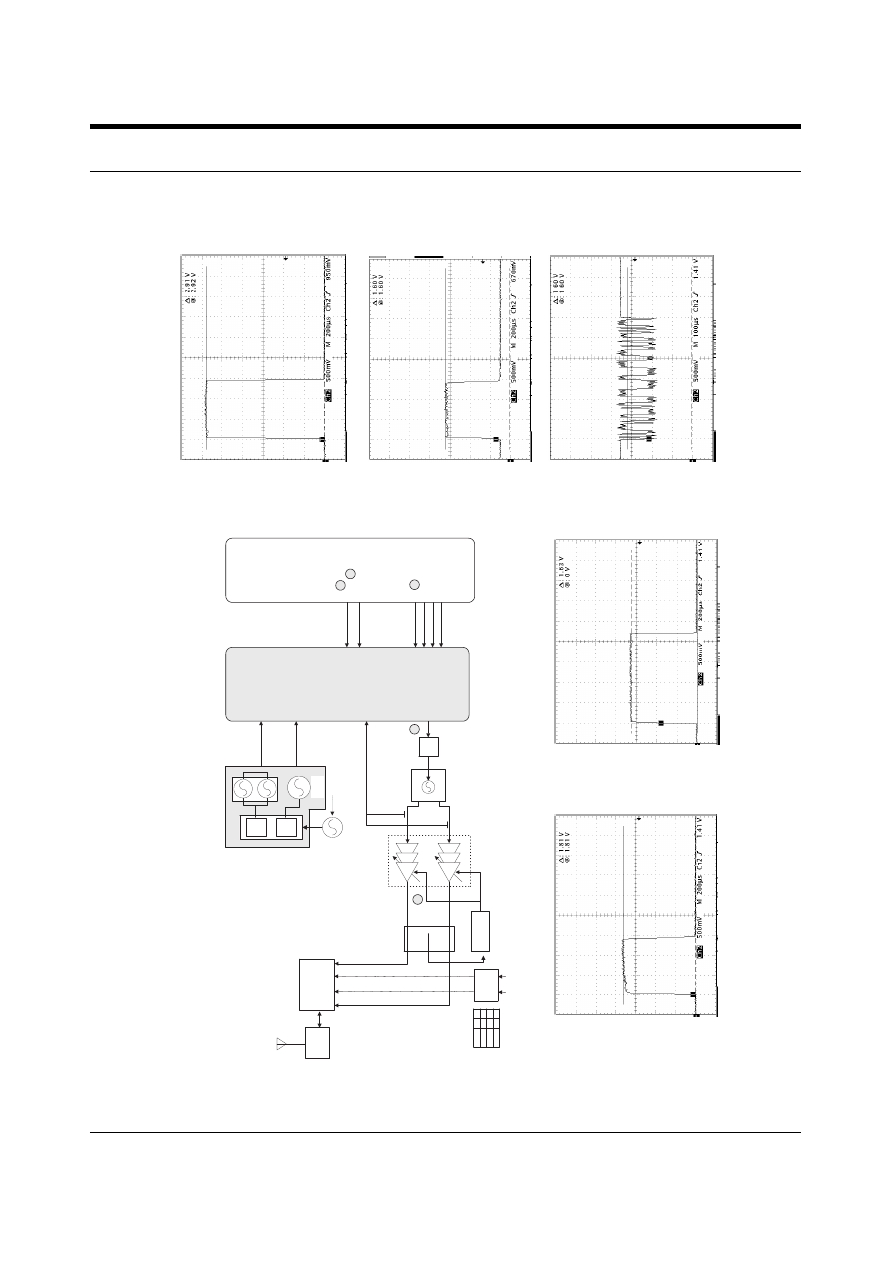

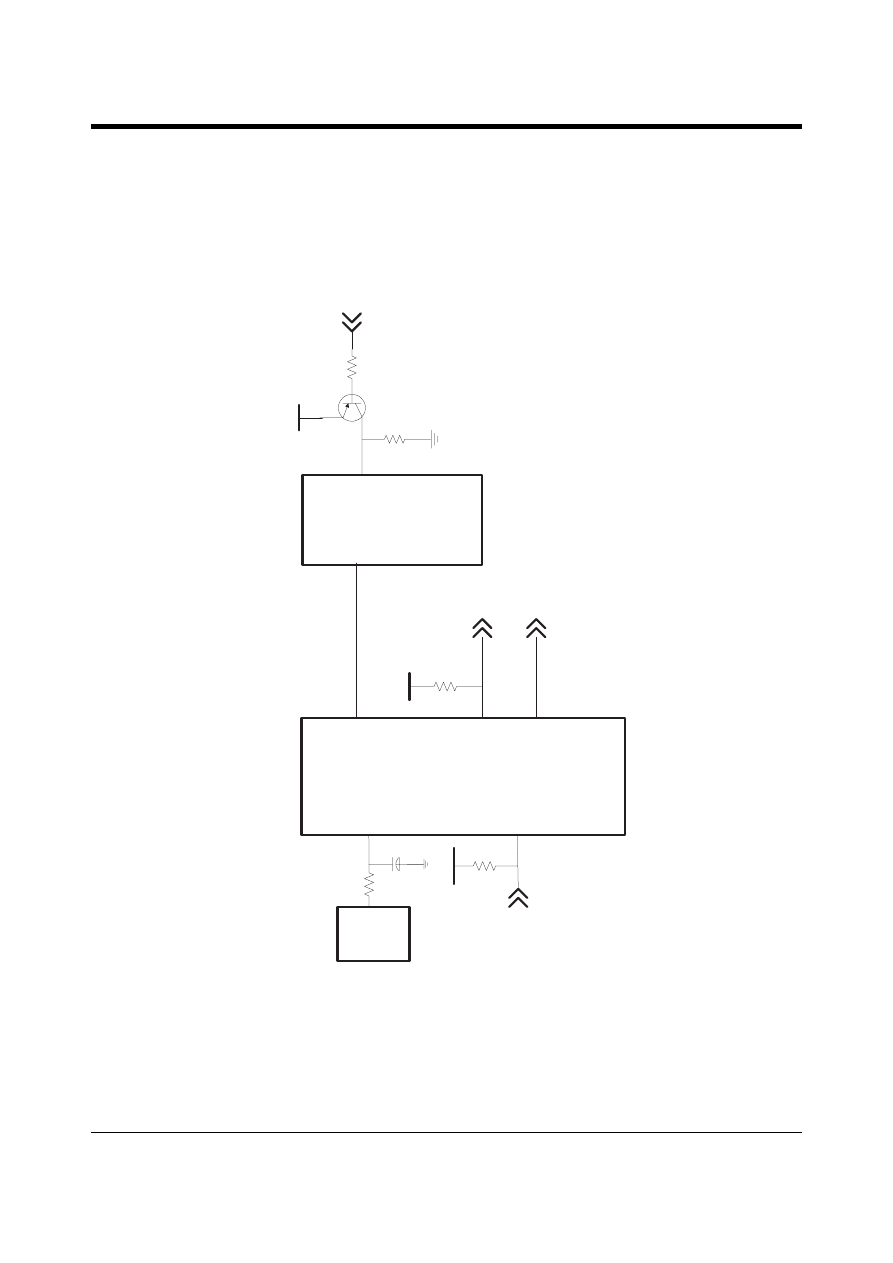

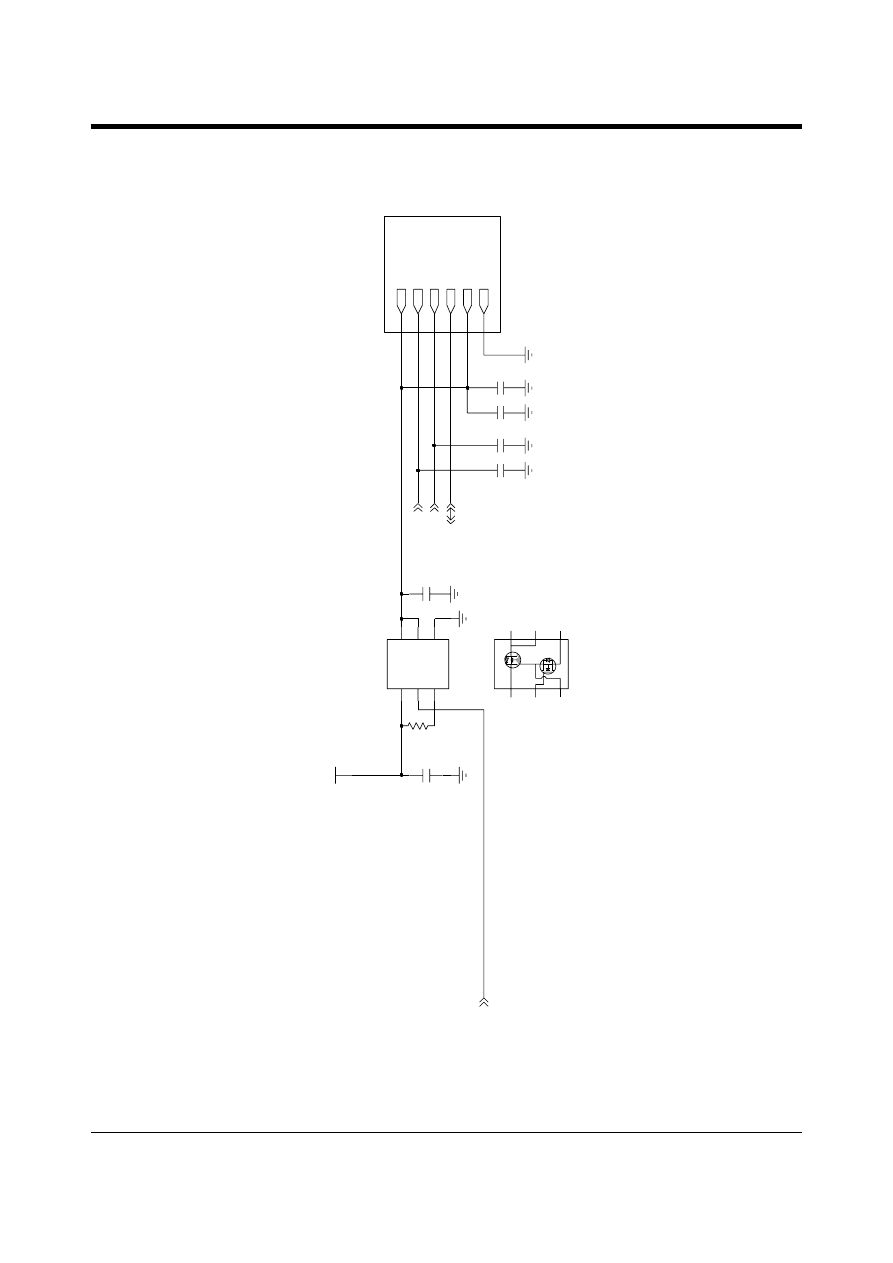

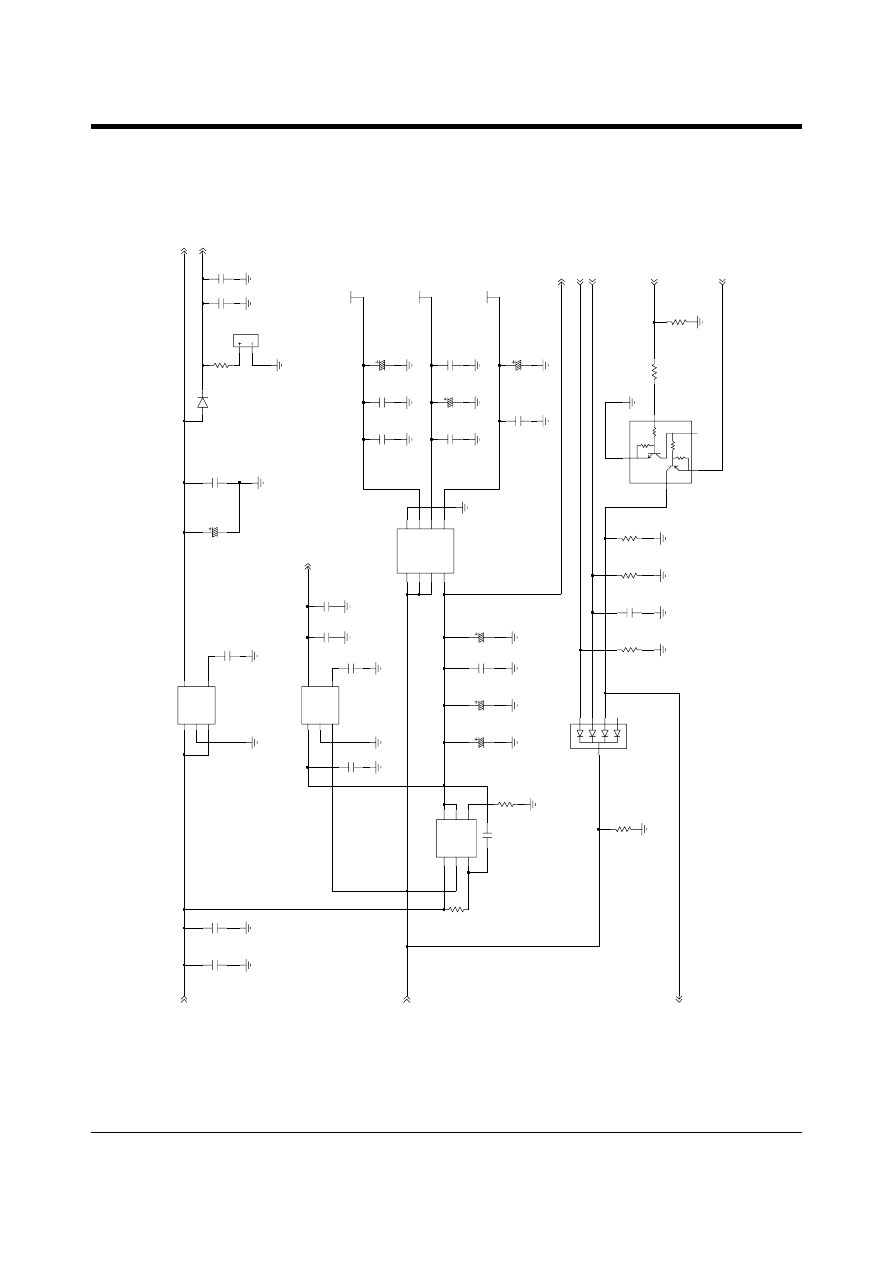

5. Flow Chart of Troubleshooting and Circuit Diagrams

5-1 Power ON
5-2

Initial

5-3

Charging Part

5-4

Sim Part

5-5

Microphone Part

5-6

Speaker Part

5-7

Key Data Input

5-8

Alert Tone

5-9

Ring Indicator

5-10

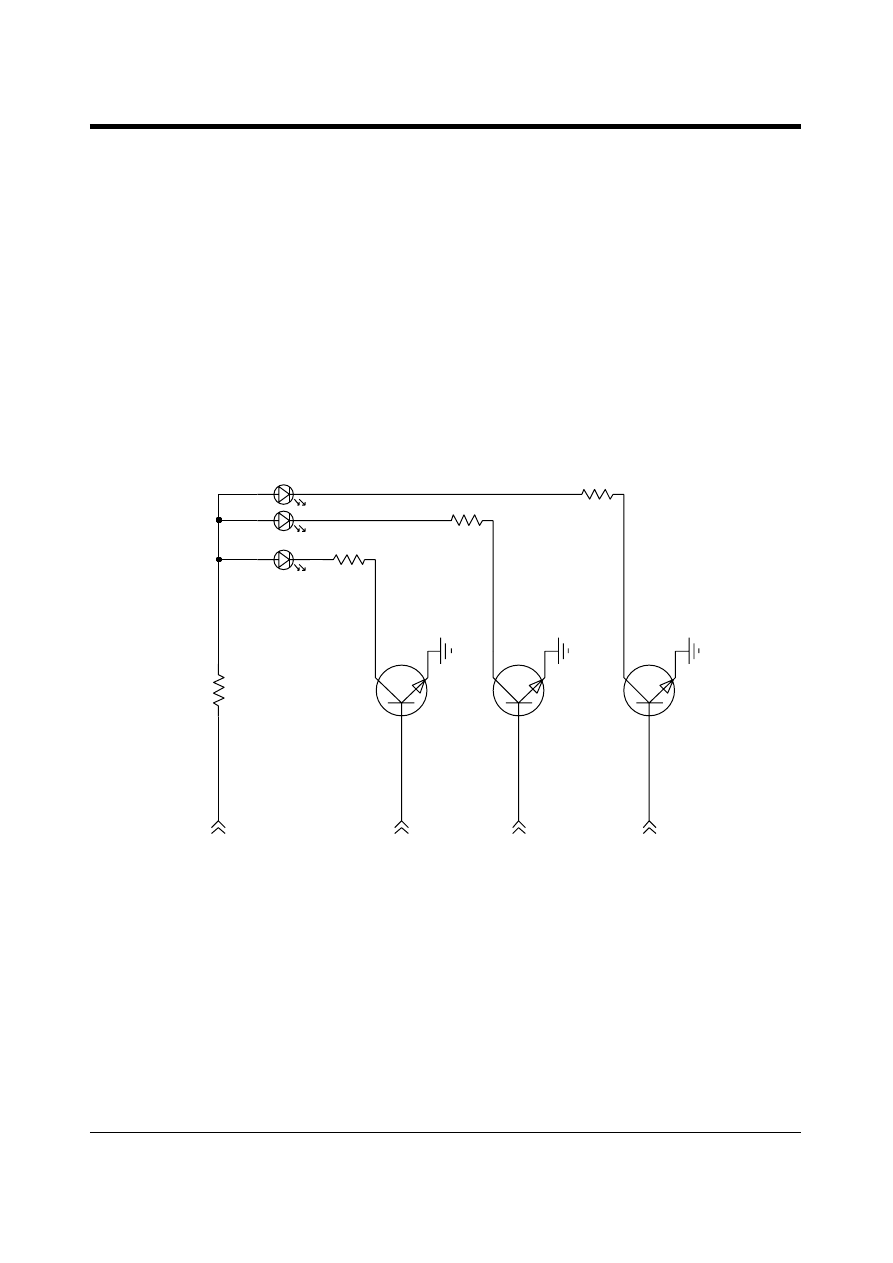

Back Light

5-11

GSM Receiver

5-12

GSM Transmitter

5-13

DCS Receiver

5-14

DCS Transmitter

background image

Exploded Views and Parts List

1-1

1. Exploded Views and Parts List

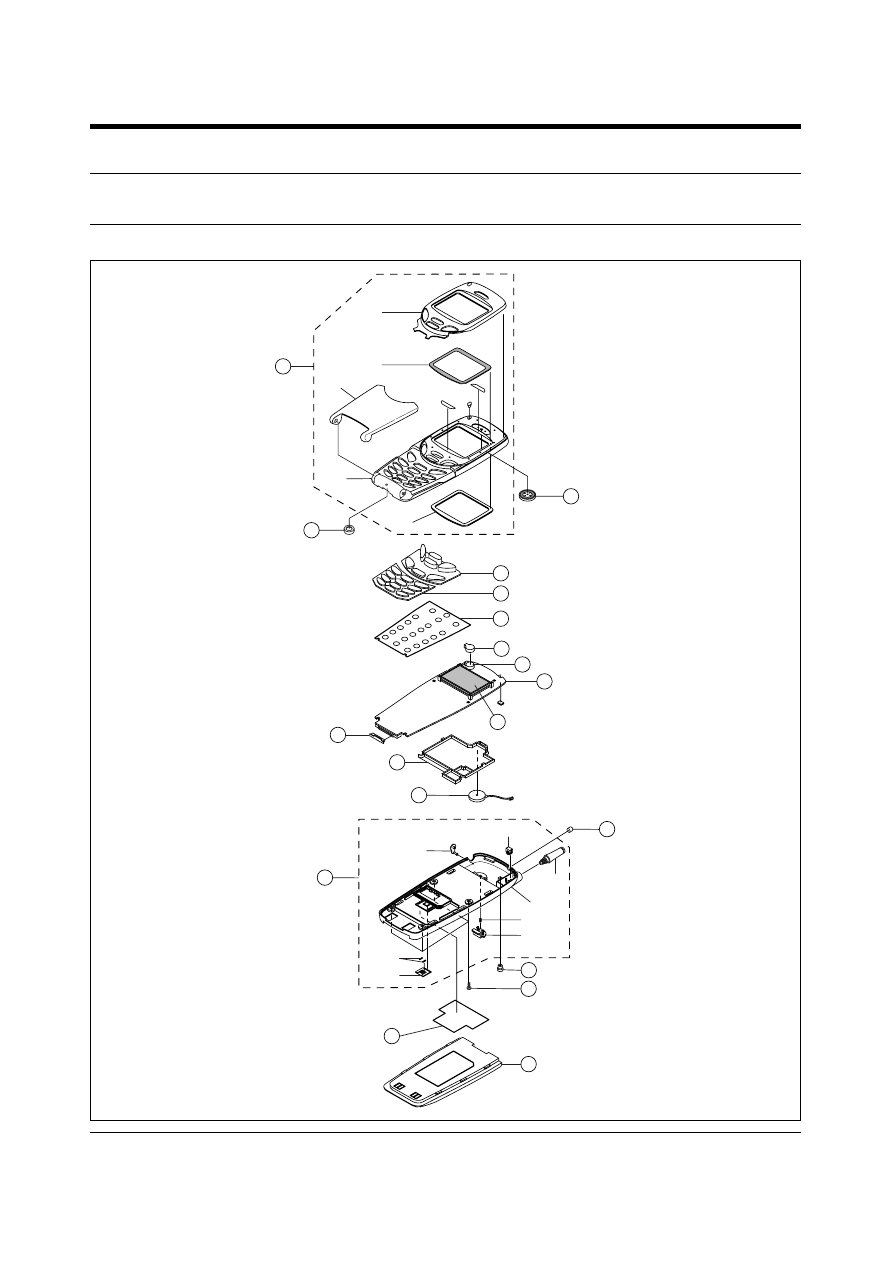

1-1 Main

1-1

1-5

14-2

14-1

14-3

14-4
14-5

14-7

14-8

14-6

1-2

1-3

1-4

1

11

12

18

13

15

14

9

7

8

10

19

17

16

4

2

5

6

3

background image

NO

PARTS NAME

SEC CODE

QÕTY SVC REMARK

BLUE GREEN

D/GRAY

1

1

FRONT COVER ASSÕY

GH75-01302A

GH75-01303A

GH75-01304A

1

SA

1-1

DUMMY-FRONT

GH72-02547A

GH72-02547A

GH72-02547A

1

SNA

1-2

WINDOW LCD

GH72-02549A

GH72-02549A

GH72-02549A

1

SNA

1-3

FLIP COVER ASSÕY

GH75-01141A

GH75-01141B

GH75-01141C

1

SNA

1-4

FRONT COVER GH72-02545A

GH72-02545B

GH72-02545C

1

SNA

1-5

SPONGE LCD

GH74-01449A

GH74-01449A

GH74-01449A

1

SNA

2

SPEAKER

3001-001221

3001-001221

3001-001221

1

SA

3

MIC

3003-001063

3003-001063

3003-001063

1

SA

4

KEY PAD

GH72-02553B

GH72-02553B

GH72-02553B

1

SA

5

KEY TOP

GH72-02834A

GH72-02834A

GH72-02834A

1

SA

6

KEY-DOME

GH59-00219A

GH59-00219A

GH59-00219A

1

SA

7

BUZZER HOLDER

GH73-00729A

GH73-00729A

GH73-00729A

1

SA

8

BUZZER

3002-001098

3002-001098

3002-001098

1

SA

9

MAIN PBA

GH92-00998A

GH92-00998A

GH92-00998A

1

SA

10

LCD

GH07-00075A

GH07-00075A

GH07-00075A

1

SA

11

RUBBER CONNECTOR

GH73-00678E

GH73-00678F

GH73-00678G

1

SA

12

COVER SHIELD

GH72-02554A

GH72-02554A

GH72-02554A

1

SA

13

MOTOR

GH31-00025A

GH31-00025A

GH31-00025A

1

SA

14

14

REAR COVER ASSÕY

GH75-01142A

GH75-01142B

GH75-01142C

1

SA

14-1

COVER EARPHONE

GH73-00730A

GH73-00730B

GH73-00730C

1

SA

14-2

BUSHING ANT

GH71-00491A

GH71-00491A

GH71-00491A

1

SA

14-3

ANTENNA

GH42-00120C

GH42-00120B

GH42-00120A

1

SA

14-4

REAR COVER

GH72-02551A

GH72-02551B

GH72-02551C

1

SNA

14-5

SPRING-LOCKER

GH70-10516A

GH70-10516A

GH70-10516A

1

SNA

14-6

LOCKER MAIN

GH72-02552A

GH72-02552B

GH72-02552C

1

SNA

14-7

SIM SPRING

GH70-00006A

GH70-00006A

GH70-00006A

1

SNA

14-8

SIM COVER

GH72-02557A

GH72-02557B

GH72-02557C

1

SNA

15

MOBILE CAP

GH73-00079D

GH73-00079E

GH73-00079F

1

SNA

16

SCREW COVER

GH73-00660C

GH73-00660D

GH73-00660E

1

SNA

17

SCREW M1.7 X 5

6001-001346

6001-001346

6001-001346

5

SA

18

LABEL(R) ID MAIN

GH68-01944A

GH68-01944A

GH68-01944A

1

SA

19

BATT ASSÕY(STD)

GH43-00344A

GH43-00344B

GH43-00344C

1

SA

1-2 Main Parts List

1-2

Exploded Views and Parts List

background image

Exploded Views and Parts List

1-3

1-4 Travel Adapter Parts List

TYPE

SEC CODE

REMARK

A

GH44-00171A

CHINA

B

GH44-00184A

EUROPE

C

GH44-00171C

UNITED KINGDOM

D

Gh44-00171E

TAIWAN

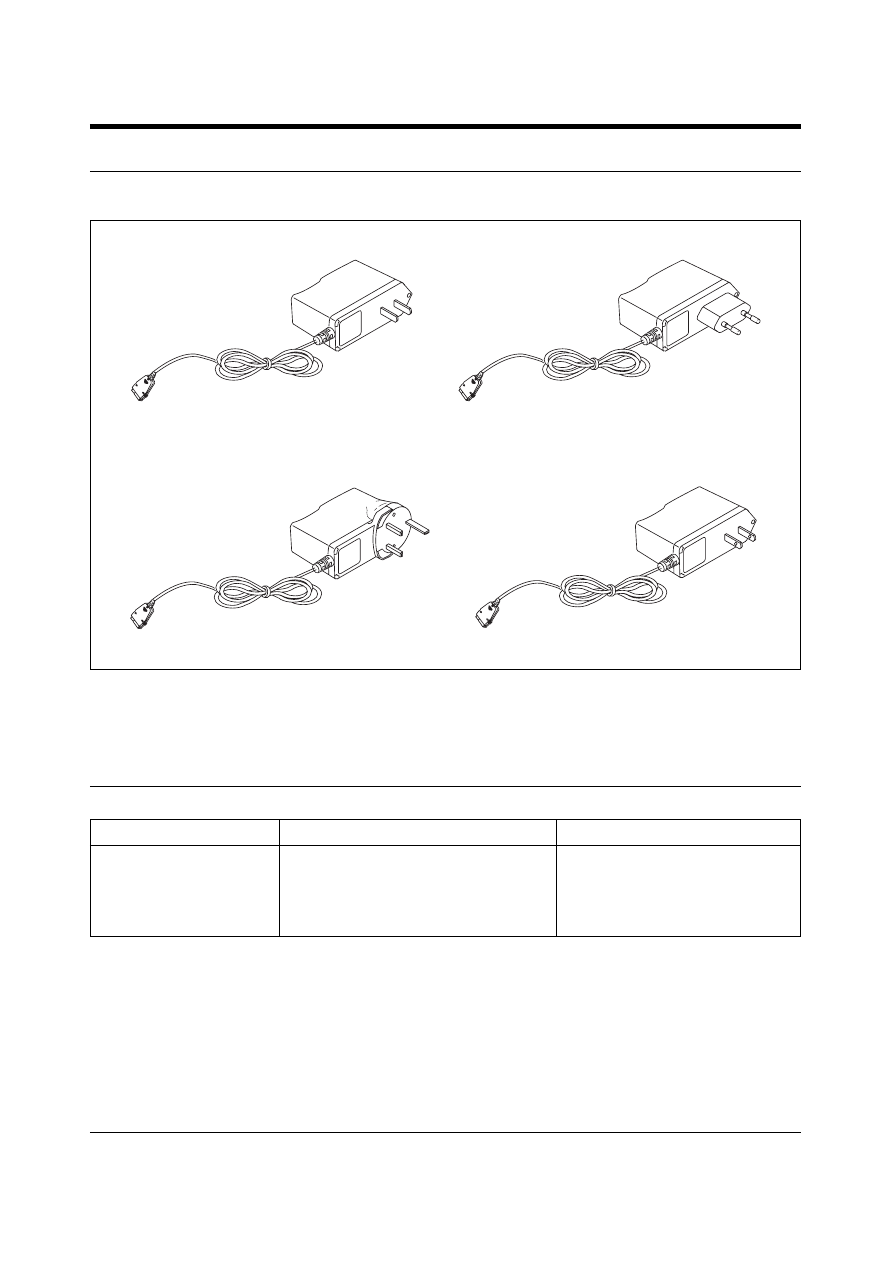

1-3 Travel Adapter

A

B

C

D

background image

1-4

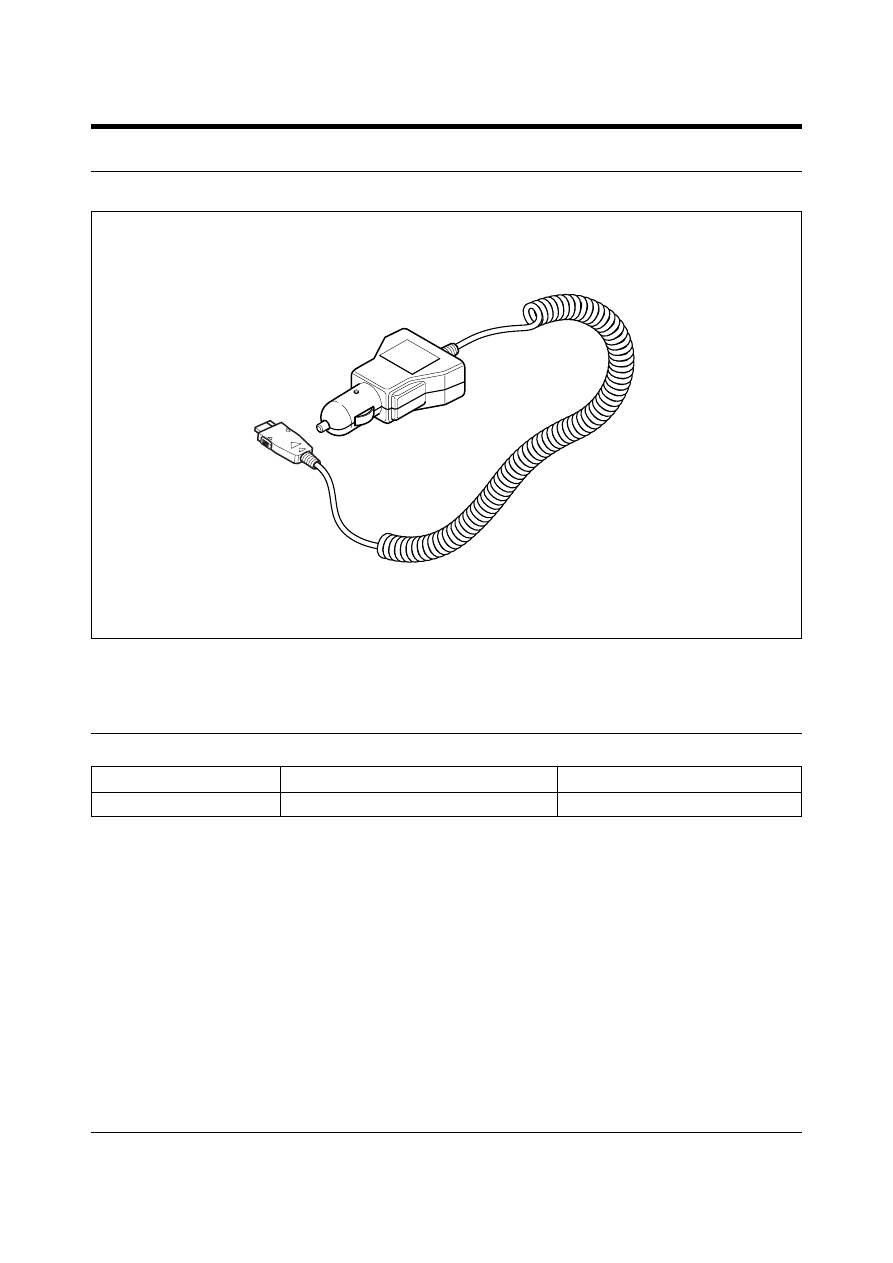

1-5 Ciger Light Adapter

Exploded Views and Parts List

1-6 Ciger Light Adapter Parts List

DESCRIPTION

SEC CODE

REMARK

Ciger Light Adapter Code

GH44-00170A

BLACK

background image

1-5

Exploded Views and Parts List

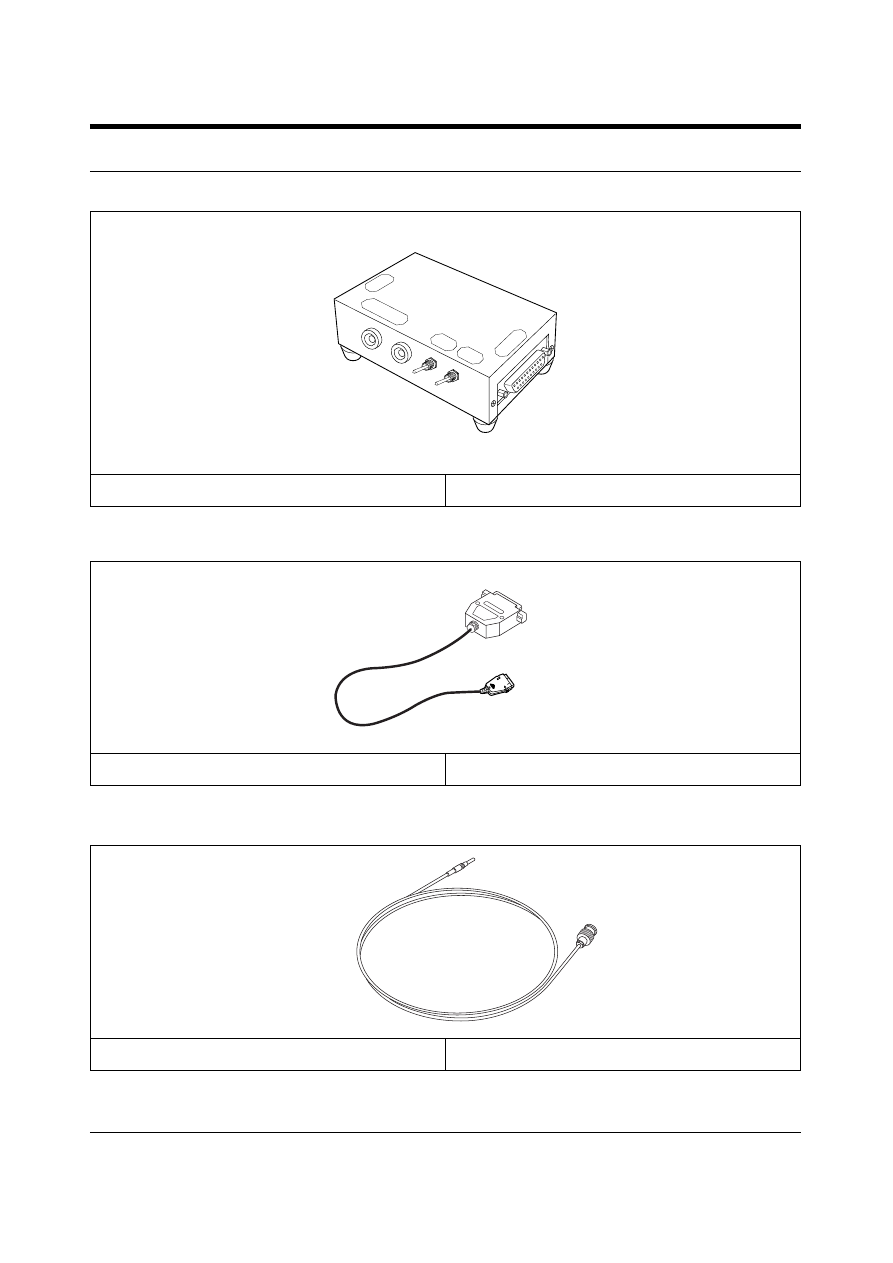

1-7 Test Jig

TEST JIG

GH80-10508A

TEST JIG CABLE

GH39-00079A

RF CABLE

GH39-00094A

background image

1-6

Exploded Views and Parts List

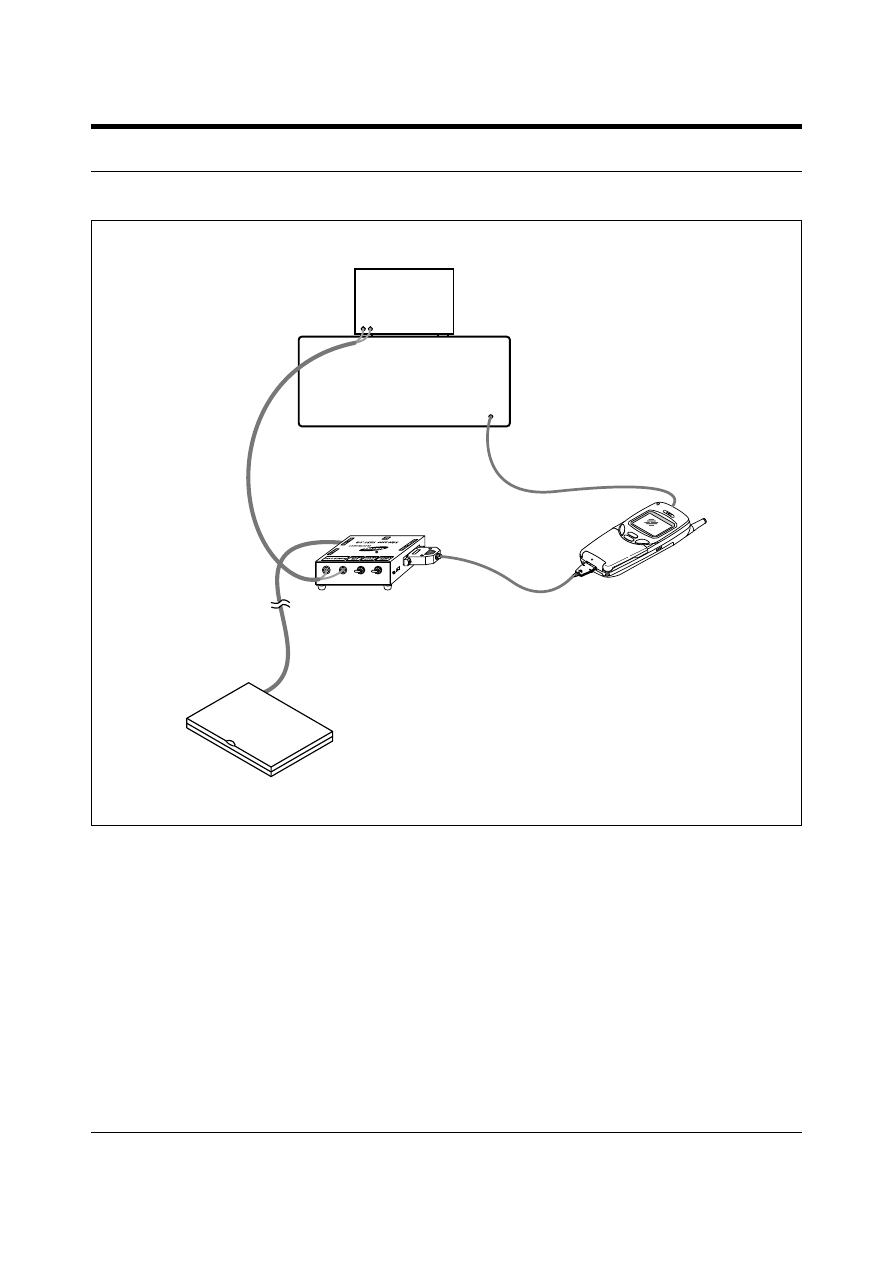

1-7-1 Test Jig

DC

POWER

SUPPLY

232 CABLE

TEST JIG CABLE

RF CABLE

8922 or 8960

TEST SET

Note PC

WIRELESS COMMUNICATION

background image

Exploded Views and Parts List

1-7

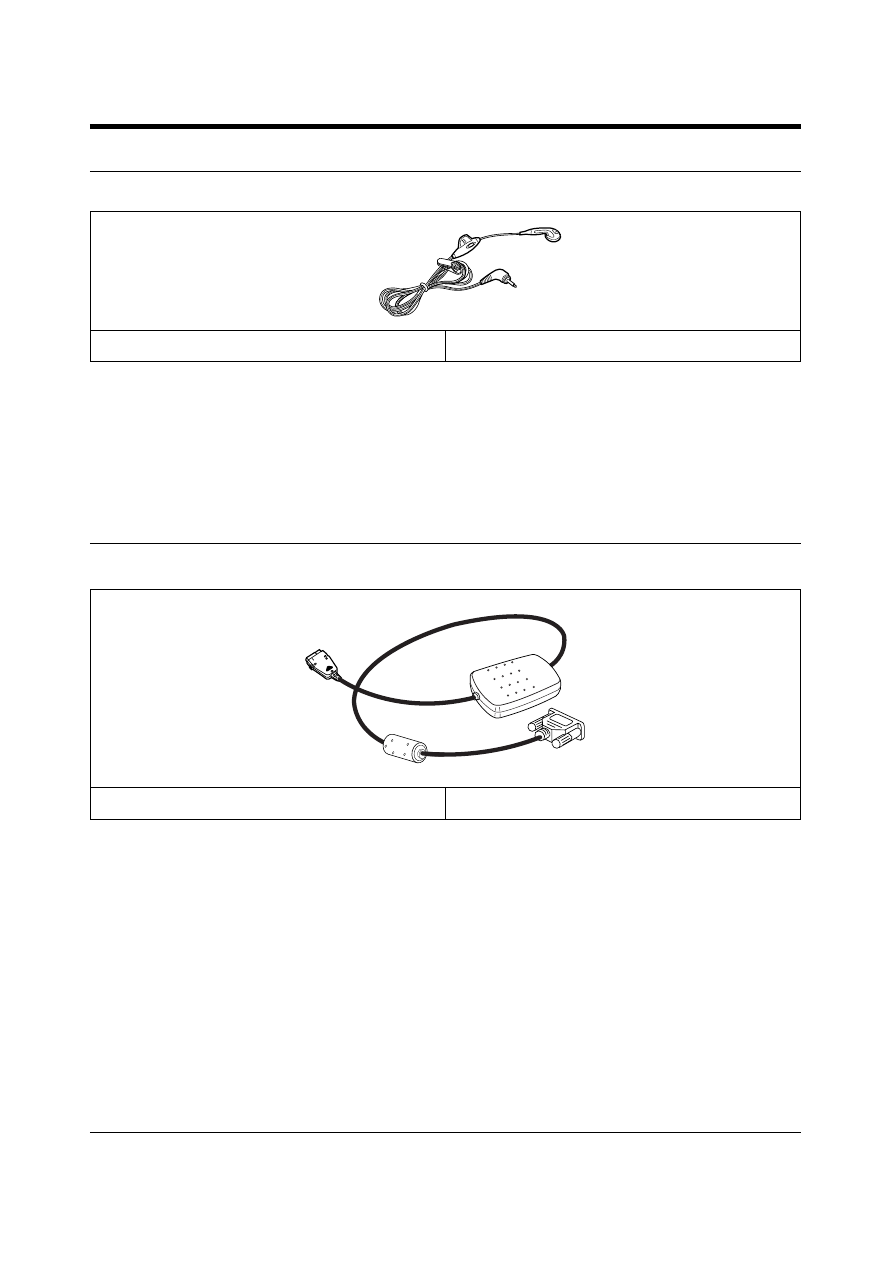

1-8 EAR Microphone

EAR MICROPHONE

GH59-00168A

1-9 Data Kit

DATA KIT

GH39-00078A

background image

PCB Diagrams

2-1

2. PCB Diagrams

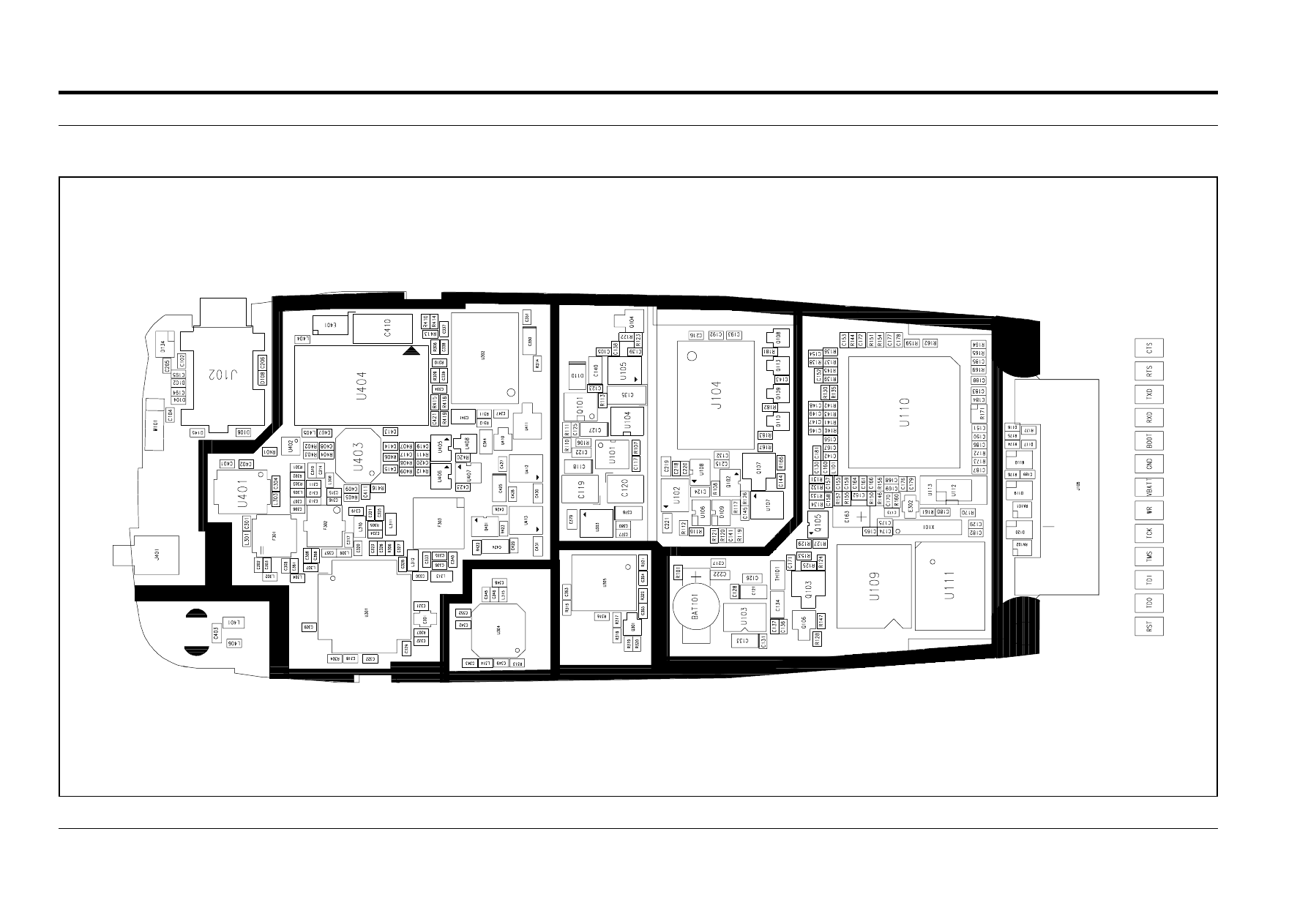

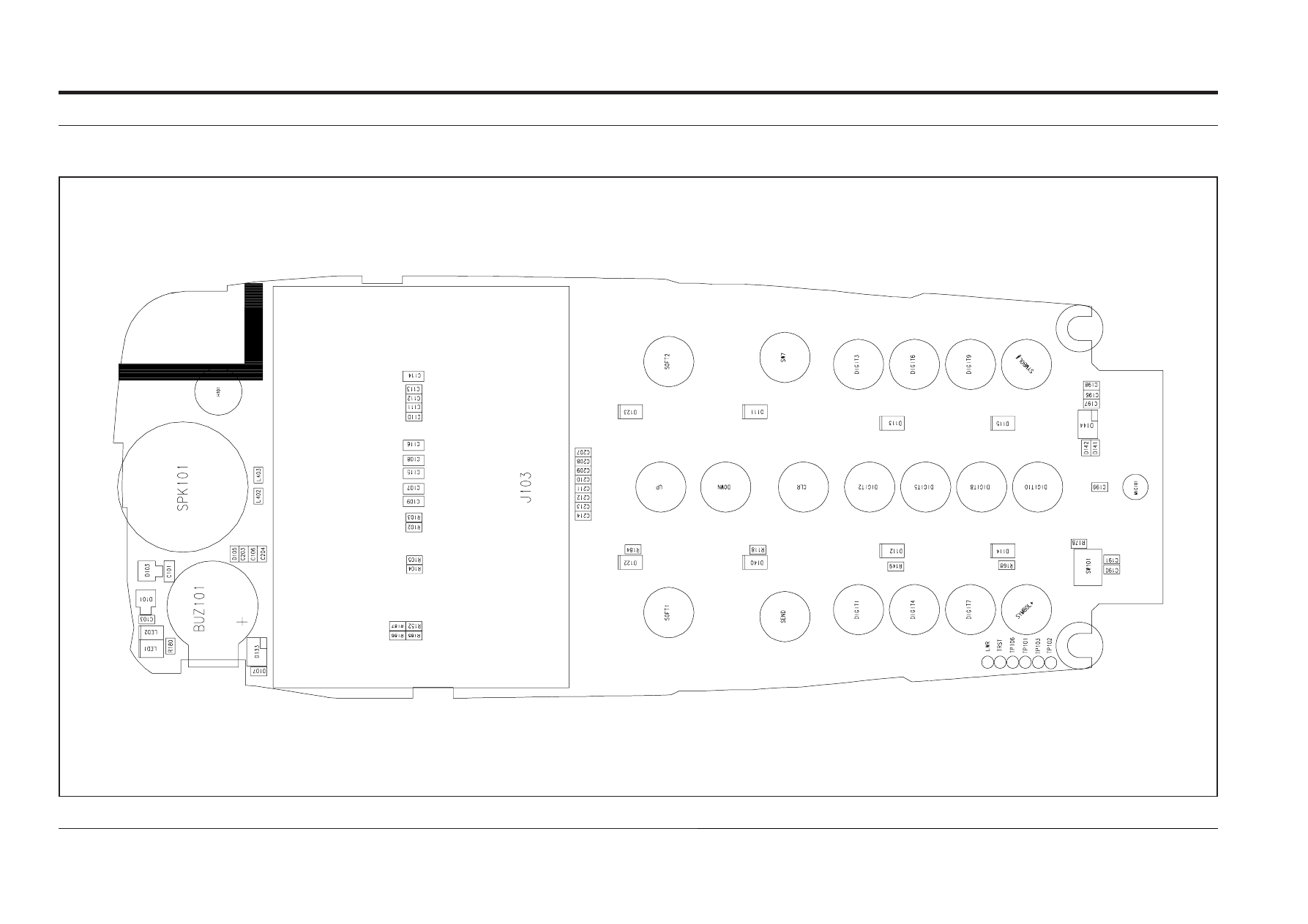

2-1 Main Top

background image

PCB Diagrams

2-2

2-2 Main Bottom

background image

3-1

Electrical Parts List

3. Electrical Parts List

3-1 Main Parts List Top

1

BUZ101

3002-001098

BUZZER;BRT-03S

BRT-03S

2

C103

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

3

C106

2203-005444

ÒC-CERAMIC,CHIP;C030B,3PF,50VÓ

GRP1555C1H3R0BZ01E

4

C107

2203-005065

ÒC-CERAMIC,CHIP;C105Z,1UF,10VÓ

GRM39Y5V105Z10PT

5

C108

2203-005065

ÒC-CERAMIC,CHIP;C105Z,1UF,10VÓ

GRM39Y5V105Z10PT

6

C109

2203-005065

ÒC-CERAMIC,CHIP;C105Z,1UF,10VÓ

GRM39Y5V105Z10PT

7

C110

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

8

C111

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

9

C112

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

10

C113

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

11

C114

2203-005065

ÒC-CERAMIC,CHIP;C105Z,1UF,10VÓ

GRM39Y5V105Z10PT

12

C115

2203-005065

ÒC-CERAMIC,CHIP;C105Z,1UF,10VÓ

GRM39Y5V105Z10PT

13

C116

2203-005065

ÒC-CERAMIC,CHIP;C105Z,1UF,10VÓ

GRM39Y5V105Z10PT

14

C190

2203-002443

ÒC-CERAMIC,CHIP;C331K,330PF,50VÓ

GRM36X7R331K50PT

15

C199

2203-000995

ÒC-CERAMIC,CHIP;C470J,47PF,50VÓ

GRM36C0G470J50PT

16

D101

0407-001002

DIODE;DAN222TL

DAN222TL

17

D111

0601-001094

LED;SLS-NNYG101TS

SLS-NNYG101TS

18

D112

0601-001094

LED;SLS-NNYG101TS

SLS-NNYG101TS

19

D113

0601-001094

LED;SLS-NNYG101TS

SLS-NNYG101TS

20

D114

0601-001094

LED;SLS-NNYG101TS

SLS-NNYG101TS

21

D115

0601-001094

LED;SLS-NNYG101TS

SLS-NNYG101TS

22

D122

0601-001094

LED;SLS-NNYG101TS

SLS-NNYG101TS

23

D123

0601-001094

LED;SLS-NNYG101TS

SLS-NNYG101TS

24

D140

0601-001094

LED;SLS-NNYG101TS

SLS-NNYG101TS

25

D141

1405-001093

COMP-SMD;VC040214X300

VC040214X300

26

D142

1405-001093

COMP-SMD;VC040214X300

VC040214X300

27

D144

0406-001083

DIODE;ESDA6V1W5

ESDA6V1W5

28

U415

0601-001094

LED;SLS-NNYG101TS

SLS-NNYG101TS

29

L402

2703-001986

INDUCTOR-SMD;MLK1005S33NJT

MLK1005S33NJT

30

L403

2703-001986

INDUCTOR-SMD;MLK1005S33NJT

MLK1005S33NJT

31

LED1

0601-001402

LED;CL-165HR/YG-D

CL-165HR/YG-D

32

LED2

0601-001540

LED;SLS-NNBD102TS

SLS-NNBD102TS

33

R102

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

34

R103

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

35

R104

2007-000162

ÒR-CHIP;100K,5%Ó

RC1005J104CS

36

R105

2007-000162

ÒR-CHIP;100K,5%Ó

RC1005J104CS

37

R118

2007-007009

ÒR-CHIP;75,5%Ó

RC1005J750CS

Reference

SEC CODE

Part Description

Vender Part No

background image

3-2

Electrical Parts List

Reference

SEC CODE

Part Description

Vender Part No

38

R149

2007-007009

ÒR-CHIP;75,5%Ó

RC1005J750CS

39

R152

2007-000172

ÒR-CHIP;10,5%Ó

RC1005J100CS

40

R168

2007-007009

ÒR-CHIP;75,5%Ó

RC1005J750CS

41

R178

2007-000143

ÒR-CHIP;4.7K,5%Ó

RC1005J472CS

42

R180

2007-007771

ÒR-CHIP;0,5%Ó

ERJ2GEJ0R0E

43

R184

2007-007009

ÒR-CHIP;75,5%Ó

RC1005J750CS

44

R185

2007-000172

ÒR-CHIP;10,5%Ó

RC1005J100CS

45

R187

2007-007771

ÒR-CHIP;0,5%Ó

ERJ2GEJ0R0E

46

SW101

1009-001006

IC;A3210ELH

A3210ELH

background image

Electrical Parts List

3-3

Reference

SEC CODE

Part Description

Vender Part No

1

BAT101

4302-001119

BACKUP BATTERY SOCKET;RB414

RB414II06N

2

C101

2203-005065

ÒC-CERAMIC,CHIP;C105Z,1UF,10VÓ

GRM39Y5V105Z10PT

3

C102

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

4

C104

2203-000679

ÒC-CERAMIC,CHIP;C270J,27PF,50VÓ

GRM36C0G270J50PT

5

C117

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

6

C118

2404-001105

ÒC-TA,CHIP;10UF/6.3VÓ

GRM40X7R682K50PT

7

C119

2404-001134

ÒC-TA,CHIP;100UF/6.3VÓ

GRM42-6C0G681J50PT

8

C120

2404-001134

ÒC-TA,CHIP;100UF/6.3VÓ

GRM42-6C0G681J50PT

9

C121

2404-001105

ÒC-TA,CHIP;10UF/6.3VÓ

GRM40X7R682K50PT

10

C122

2203-005065

ÒC-CERAMIC,CHIP;C105Z,1UF,10VÓ

GRM39Y5V105Z10PT

11

C123

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

12

C124

2203-005065

ÒC-CERAMIC,CHIP;C105Z,1UF,10VÓ

GRM39Y5V105Z10PT

13

C125

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

14

C127

2404-001105

ÒC-TA,CHIP;10UF/6.3VÓ

GRM40X7R682K50PT

15

C128

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

16

C129

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

17

C130

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

18

C131

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

19

C132

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

20

C133

2404-001105

ÒC-TA,CHIP;10UF/6.3VÓ

GRM40X7R682K50PT

21

C134

2404-001105

ÒC-TA,CHIP;10UF/6.3VÓ

GRM40X7R682K50PT

22

C135

2404-001020

ÒC-TA,CHIP;10UF/10VÓ

GRM39C0G040C50PT

23

C136

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

24

C137

2203-000679

ÒC-CERAMIC,CHIP;C270J,27PF,50VÓ

GRM36C0G270J50PT

25

C138

2203-000233

ÒC-CERAMIC,CHIP;C101J,100PF,50VÓ

GRM36C0G101J50PT

26

C139

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

27

C140

2404-001105

ÒC-TA,CHIP;10UF/6.3VÓ

GRM40X7R682K50PT

28

C141

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

29

C143

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

30

C144

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

31

C145

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

32

C146

2203-000233

ÒC-CERAMIC,CHIP;C101J,100PF,50VÓ

GRM36C0G101J50PT

33

C147

2203-000233

ÒC-CERAMIC,CHIP;C101J,100PF,50VÓ

GRM36C0G101J50PT

34

C148

2203-000233

ÒC-CERAMIC,CHIP;C101J,100PF,50VÓ

GRM36C0G101J50PT

35

C149

2203-000233

ÒC-CERAMIC,CHIP;C101J,100PF,50VÓ

GRM36C0G101J50PT

36

C150

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

37

C151

2203-000254

ÒCCERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

38

C152

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

39

C153

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

3-2 Main Parts List Bottom

background image

Electrical Parts List

3-4

Reference

SEC CODE

Part Description

Vender Part No

40

C154

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

41

C155

2203-003054

ÒC-CERAMIC,CHIP;C090C,9PF,50VÓ

GRM36C0G090C50PT

42

C156

2203-005481

ÒC-CERAMIC,CHIP;C470J,47NF,50VÓ

GRP155R71A473KA01E

43

C157

2203-005503

ÒC-CERAMIC,CHIP;C1801J,180PF,25VÓ

GRM36C0G181J25PT

44

C158

2203-005503

ÒC-CERAMIC,CHIP;C1801J,180PF,25VÓ

GRM36C0G181J25PT

45

C159

2203-000679

ÒC-CERAMIC,CHIP;C270J,27PF,50VÓ

GRM36C0G270J50PT

46

C160

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

47

C161

2203-005480

ÒC-CERAMIC,CHIP;C333K,33NF,10VÓ

GRM36X7R333K10PT

48

C162

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

49

C163

2404-001162

ÒC-TA,CHIP;47UF/6.3VÓ

F950G476MAAJZTQ2

50

C164

2203-005480

ÒC-CERAMIC,CHIP;C333K,33NF,10VÓ

GRM36X7R333K10PT

51

C165

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

52

C166

2203-003054

ÒC-CERAMIC,CHIP;C090C,9PF,50VÓ

GRM36C0G090C50PT

53

C168

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

54

C169

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

55

C170

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

56

C171

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

57

C172

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

58

C173

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

59

C174

2203-003054

ÒC-CERAMIC,CHIP;C090C,9PF,50VÓ

GRM36C0G090C50PT

60

C175

2203-003054

ÒC-CERAMIC,CHIP;C090C,9PF,50VÓ

GRM36C0G090C50PT

61

C176

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

62

C177

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

63

C178

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

64

C179

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

65

C180

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

66

C181

2203-005482

ÒC-CERAMIC,CHIP;C104Z,100NF,10VÓ

GRP155R61A104KA01E

67

C182

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

68

C183

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

69

C184

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

70

C185

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

71

C186

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

72

C187

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

73

C188

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

74

C189

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

75

C192

2203-000233

ÒC-CERAMIC,CHIP;C101J,100PF,50VÓ

GRM36C0G101J50PT

76

C193

2203-000233

ÒC-CERAMIC,CHIP;C101J,100PF,50VÓ

GRM36C0G101J50PT

77

C217

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

78

C218

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

79

C219

2203-005065

ÒC-CERAMIC,CHIP;C105Z,1UF,10VÓ

GRM39Y5V105Z10PT

80

C221

2203-005065

ÒC-CERAMIC,CHIP;C105Z,1UF,10VÓ

GRM39Y5V105Z10PT

81

C222

2203-005065

ÒC-CERAMIC,CHIP;C105Z,1UF,10VÓ

GRM39Y5V105Z10PT

background image

3-5

Electrical Parts List

Reference

SEC CODE

Part Description

Vender Part No

82

C301

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

83

C302

2203-005446

ÒC-CERAMIC,CHIP;C2R7B,2.7PF,50VÓ

GRM36COG2R7B50PT

84

C303

2203-000679

ÒC-CERAMIC,CHIP;C270J,27PF,50VÓ

GRM36C0G270J50PT

85

C304

2203-000233

ÒC-CERAMIC,CHIP;C101J,100PF,50VÓ

GRM36C0G101J50PT

86

C305

2203-000233

ÒC-CERAMIC,CHIP;C101J,100PF,50VÓ

GRM36C0G101J50PT

87

C306

2203-005050

ÒC-CERAMIC,CHIP;1.8pF,16VÓ

GRM36C0G1R8C50PT

88

C307

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

89

C309

2203-000438

ÒC-CERAMIC,CHIP;C102K,1NF,50VÓ

GRM36X7R102K50PT

90

C310

2203-000679

ÒC-CERAMIC,CHIP;C270J,27PF,50VÓ

GRM36C0G270J50PT

91

C311

2203-000438

ÒC-CERAMIC,CHIP;C102K,1NF,50VÓ

GRM36X7R102K50PT

92

C312

2203-000278

ÒC-CERAMIC,CHIP;C100D,10PF,50VÓ

GRM36C0G100D50PT

93

C313

2203-000233

ÒC-CERAMIC,CHIP;C101J,100PF,50VÓ

GRM36C0G101J50PT

94

C314

2203-000438

ÒC-CERAMIC,CHIP;C102K,1NF,50VÓ

GRM36X7R102K50PT

95

C315

2203-000679

ÒC-CERAMIC,CHIP;C270J,27PF,50VÓ

GRM36C0G270J50PT

96

C318

2203-002687

ÒC-CERAMIC,CHIP;C122K,1.2NF,50VÓ

GRM36X7R122K50PT

97

C319

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

98

C320

2203-000438

ÒC-CERAMIC,CHIP;C102K,1NF,50VÓ

GRM36X7R102K50PT

99

C321

2203-000995

ÒC-CERAMIC,CHIP;C470J,47PF,50VÓ

GRM36C0G470J50PT

100

C322

2203-000438

ÒC-CERAMIC,CHIP;C102K,1NF,50VÓ

GRM36X7R102K50PT

101

C323

2203-000438

ÒC-CERAMIC,CHIP;C102K,1NF,50VÓ

GRM36X7R102K50PT

102

C324

2203-001385

ÒC-CERAMIC,CHIP;C1R5C,1.5PF,50VÓ

GRM36C0G1R5C50PT

103

C325

2203-000995

ÒC-CERAMIC,CHIP;C470J,47PF,50VÓ

GRM36C0G470J50PT

104

C326

2203-000438

ÒC-CERAMIC,CHIP;C102K,1NF,50VÓ

GRM36X7R102K50PT

105

C327

2203-000438

ÒC-CERAMIC,CHIP;C102K,1NF,50VÓ

GRM36X7R102K50PT

106

C328

2203-000359

ÒC-CERAMIC,CHIP;C151J,150PF,50VÓ

GRM36C0G151J50PT

107

C329

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

108

C330

2203-000438

ÒC-CERAMIC,CHIP;C102K,1NF,50VÓ

GRM36X7R102K50PT

109

C331

2203-000679

ÒC-CERAMIC,CHIP;C270J,27PF,50VÓ

GRM36C0G270J50PT

110

C332

2203-000438

ÒC-CERAMIC,CHIP;C102K,1NF,50VÓ

GRM36X7R102K50PT

111

C333

2203-000995

ÒC-CERAMIC,CHIP;C470J,47PF,50VÓ

GRM36C0G470J50PT

112

C334

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

113

C336

2203-000870

ÒC-CERAMIC,CHIP;C030C,3PF,50VÓ

GRM36COG030C50PT

114

C337

2203-000233

ÒC-CERAMIC,CHIP;C101J,100PF,50VÓ

GRM36C0G101J50PT

115

C338

2203-000679

ÒC-CERAMIC,CHIP;C270J,27PF,50VÓ

GRM36C0G270J50PT

116

C339

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

117

C340

2203-000995

ÒC-CERAMIC,CHIP;C470J,47PF,50VÓ

GRM36C0G470J50PT

118

C341

2301-001232

ÒC-CERAMIC,CHIP;470PF,50VÓ

ECHU1H471JX5

119

C342

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

120

C343

2203-002525

ÒC-CERAMIC,CHIP;C561K,560PF,50VÓ

GRM36X7R561K50PT

121

C344

2203-000609

ÒC-CERAMIC,CHIP;C223K,22NF,50VÓ

RM40X7R223K50PT

122

C345

2203-000585

ÒC-CERAMIC,CHIP;C221K,220PF,50VÓ

ECUE1H221KBQ

123

C346

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

background image

Electrical Parts List

3-6

Reference

SEC CODE

Part Description

Vender Part No

124

C348

2203-002525

ÒC-CERAMIC,CHIP;C561K,560PF,50VÓ

GRM36X7R561K50PT

125

C349

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

126

C350

2404-001101

ÒC-TA,CHIP;1UF/16VÓ

TAJR105M016R

127

C351

2203-000438

ÒC-CERAMIC,CHIP;C102K,1NF,50VÓ

GRM36X7R102K50PT

128

C352

2203-002525

ÒC-CERAMIC,CHIP;C561K,560PF,50VÓ

GRM36X7R561K50PT

129

C353

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

130

C354

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

131

C355

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

132

C357

2203-000233

ÒC-CERAMIC,CHIP;C101J,100PF,50VÓ

GRM36C0G101J50PT

133

C358

2203-005393

ÒC-CERAMIC,CHIP;C050B,5PF,50VÓ

GRM36C0G050B50PT

134

C377

2203-000254

ÒC-CERAMIC,CHIP;C103K,10NF,16VÓ

GRM36X7R103K16PT

135

C378

2404-001105

ÒC-TA,CHIP;10UF/6.3VÓ

GRM40X7R682K50PT

136

C379

2203-005065

ÒC-CERAMIC,CHIP;C105Z,1UF,10VÓ

GRM39Y5V105Z10PT

137

C380

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

138

C381

2203-000466

ÒC-CERAMIC,CHIP;C010C,1PF,50VÓ

GRM36C0G010C50PT

139

C401

2203-000233

ÒC-CERAMIC,CHIP;C101J,100PF,50VÓ

GRM36C0G101J50PT

140

C402

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

141

C403

2203-000697

ÒC-CERAMIC,CHIP;C020C,2PF,50VÓ

GRM39C0G020C50PT

142

C407

2203-000233

ÒC-CERAMIC,CHIP;C101J,100PF,50VÓ

GRM36C0G101J50PT

143

C408

2203-000995

ÒC-CERAMIC,CHIP;C470J,47PF,50VÓ

GRM36C0G470J50PT

144

C409

2203-001124

ÒC-CERAMIC,CHIP;C681K,680PF,50VÓ

GRM36X7R681K50PT

145

C410

2404-001210

ÒC-TA,CHIP;220UF/6.3VÓ

F750J227MUCGZT

146

C411

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

147

C413

2203-000679

ÒC-CERAMIC,CHIP;C270J,27PF,50VÓ

GRM36C0G270J50PT

148

C414

2203-000679

ÒC-CERAMIC,CHIP;C270J,27PF,50VÓ

GRM36C0G270J50PT

149

C415

2203-000311

ÒC-CERAMIC,CHIP;C121J,120PF,50VÓ

GRM36C0G121J50PT

150

C417

2203-001239

ÒC-CERAMIC,CHIP;C820J,82PF,50VÓ

GRM36C0G820J50PT

151

C419

2203-000679

ÒC-CERAMIC,CHIP;C270J,27PF,50VÓ

GRM36C0G270J50PT

152

C420

2203-000679

ÒC-CERAMIC,CHIP;C270J,27PF,50VÓ

GRM36C0G270J50PT

153

C421

2203-000812

ÒC-CERAMIC,CHIP;C330J,33PF,50VÓ

GRM36C0G330J50PT

154

C423

2203-000438

ÒC-CERAMIC,CHIP;C102K,1NF,50VÓ

GRM36X7R102K50PT

155

C424

2404-001105

ÒC-TA,CHIP;10UF/6.3VÓ

GRM40X7R682K50PT

156

C425

2404-001105

ÒC-TA,CHIP;10UF/6.3VÓ

GRM40X7R682K50PT

157

C428

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

158

C429

2203-005061

ÒC-CERAMIC,CHIP;C104Z,100NF,16VÓ

GRM36Y5V104Z16PT

159

C430

2203-005065

ÒC-CERAMIC,CHIP;C105Z,1UF,10VÓ

GRM39Y5V105Z10PT

160

C431

2203-005065

ÒC-CERAMIC,CHIP;C105Z,1UF,10VÓ

GRM39Y5V105Z10PT

161

D102

1405-001093

COMP-SMD;VC040214X300

VC040214X300

162

D103

0407-001002

DIODE;DAN222TL

DAN222

163

D104

1405-001093

VARISTOR;VC040214X300

VC040214X300

164

D105

1405-001093

VARISTOR;VC040214X300

VC040214X300

165

D106

1405-001093

VARISTOR;VC040214X300

VC040214X300

background image

3-7

Electrical Parts List

Reference

SEC CODE

Part Description

Vender Part No

166

D107

1405-001093

VARISTOR;VC040214X300

VC040214X300

167

D108

1405-001093

VARISTOR;VC040214X300

VC040214X300

168

D109

0407-001007

DIODE;UMN1

DAN222

169

D110

0401-001033

DIODE;MCL4154

MCL4154

170

D116

1405-001093

COMP-SMD;VC040214X300

VC040214X300

171

D117

1405-001093

COMP-SMD;VC040214X300

VC040214X300

172

D118

0406-001083

DIODE;ESDA6V1W5

ESDA6V1W5

173

D119

0406-001083

DIODE;ESDA6V1W5

ESDA6V1W5

174

D120

0406-001083

DIODE;ESDA6V1W5

ESDA6V1W5

175

D121

0406-001083

DIODE;ESDA6V1W5

ESDA6V1W5

176

D134

0406-001083

DIODE;ESDA6V1W5

ESDA6V1W5

177

D145

1405-001093

VARISTOR;VC040214X300

VC040214X300

178

E301

2901-001116

FILTER-EMI SMD;NFM39R12C471T1

NFM2012R13C471R

179

E302

2901-001116

FILTER-EMI SMD;NFM39R12C471T1

NFM2012R13C471R

180

E401

2901-001155

FILTER-EMI SMD;NFM60R00T221

NFM60R00T221

181

F301

2904-001235

FILTER-SAW;FAR-G6CH-1G8425-L218

FAR-G6CH-1G8425-L218

182

F302

2904-001300

FILTER-SAW;FAR-G6CH-1G8425-L227B

FAR-G6CH-1G8425-L227B

183

F303

2904-001302

FILTER-SAW;B4846

B4846

184

J102

3722-001380

CONNECTOR;02-787B2-53BKA

02-787B3-53BKA

185

J104

3709-001121

CONNECTOR;1-338063-9

1-338063-9

186

J105

3710-001595

CONNECTOR;1004-0018-304

1004-0018-304

187

J401

3705-001242

CONNECTOR;CRS5001-1702

CRS5001-1702

188

L101

2703-001752

INDUCTOR-SMD;LL1005-FH39NJ

LL1005-FH39NJ

189

L301

2703-001409

INDUCTOR-SMD;LL1005-F12NK

LL1005-FH12NK

190

L302

2703-001734

INDUCTOR-SMD;LL1005-FH6N8J

LL1005-FH6N8J

191

L303

2703-001748

INDUCTOR-SMD;LL1005-FH5N6S

LL1005-FH5N6S

192

L304

2703-001750

INDUCTOR-SMD;LL1005-FH2N2S

LL1005-FH2N2S

193

L305

2703-001727

INDUCTOR-SMD;HK1005-22NJ-T

HK1005-22NJ-T

194

L307

2703-001747

INDUCTOR-SMD;LL1005-FH4N7S

LL1005-FH4N7S

195

L308

2703-001178

INDUCTOR-SMD;LL1005-FH3N3S

LL1005-FH3N3S

196

L309

2703-001727

INDUCTOR-SMD;HK1005-22NJ-T

HK1005-22NJ-T

197

L310

2703-001545

INDUCTOR-SMD;0603CS-47NXJBC

0603CS-47NXJBC

198

L311

2703-001545

INDUCTOR-SMD;0603CS-47NXJBC

0603CS-47NXJBC

199

L312

2703-001685

INDUCTOR-SMD;0603CS-82NXJBC

0603CS-82NXJBC

200

L313

2703-001514

INDUCTOR-SMD;0603CS-68NXJBC

0603CS-68NXJBC

201

L314

2703-001786

INDUCTOR-SMD;LL1005-FH10NJ

LL1005-FH10NJ

202

L315

2703-001750

INDUCTOR-SMD;LL1005-FH2N2S

LL1005-FH2N2S

203

L401

2703-001308

INDUCTOR-SMD;HK1608-68NJ-T

HK1608-68NJ-T

204

L404

2703-001970

INDUCTOR-SMD;HK1005-18NJ-T

HK1005-18NJ-T

205

L405

2703-001734

INDUCTOR-SMD;LL1005-FH6N8J

LL1005-FH6N8J

206

L406

2703-001178

INDUCTOR-SMD;LL1005-FH3N3S

LL1005-FH3N3S

207

M101

3710-001105

CONNECTOR;24-8005-002-000-867

24-8005-002-000-867

background image

Electrical Parts List

3-8

Reference

SEC CODE

Part Description

Vender Part No

208

Q101

0502-001201

TR-POWER;ZXT13P20DE6

ZXT13P20DE6

209

Q102

0505-001423

IC;FDG63231

FDG6323L

210

Q103

0501-002011

TR-SMALL SIGNAL;2SD2114KT146V

2SD2114KT146V

211

Q104

0501-000162

TR-SMALL SIGNAL;2SA1576FRT106

2SA1576FRT106

212

Q105

0505-001332

IC;FDG6301N

FDG6301N

213

Q106

0501-000162

TR-SMALL SIGNAL;2SA1576FRT106

2SA1576FRT106

214

Q107

0501-002011

TR-SMALL SIGNAL;2SD2114KT146V

2SD2114KT146V

215

Q108

0504-001012

TR-SMALL SIGNAL;DTC114YE

DTC114YE

216

Q109

0504-001012

TR-SMALL SIGNAL;DTC114YE

DTC114YE

217

Q110

0504-001012

TR-SMALL SIGNAL;DTC114YE

DTC114YE

218

Q113

0504-000167

TR-SMALL SIGNAL;DTC114EE/TR

DTC114EE/TR

219

Q301

0501-000225

TR-SMALL SIGNAL;2SC4617

2SC4617R

220

Q401

0505-001423

IC;FDG63231

FDG6323L

221

R101

2007-000140

ÒR-CHIP;1K,5%Ó

RC1005J102CS

222

R106

2007-000140

ÒR-CHIP;1K,5%Ó

RC1005J102CS

223

R107

2007-000162

ÒR-CHIP;100K,5%Ó

RC1005J104CS

224

R108

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

225

R110

2007-007107

ÒR-CHIP;100K,1%Ó

RC1005F1003CS

226

R111

2007-007590

ÒR-CHIP;82K,1%Ó

RK73H1ETP8202F

227

R112

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

228

R113

2007-007317

ÒR-CHIP;2.2K,1%Ó

RK73H1ETP2201F

229

R116

2007-000162

ÒR-CHIP;100K,5%Ó

RC1005J104CS

230

R117

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

231

R119

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

232

R120

2007-000162

ÒR-CHIP;100K,5%Ó

RC1005J104CS

233

R121

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

234

R122

2007-000143

ÒR-CHIP;4.7K,5%Ó

RC1005J472CS

235

R123

2007-000138

ÒR-CHIP;100,5%Ó

RC1005J101CS

236

R124

2007-000143

ÒR-CHIP;4.7K,5%Ó

RC1005J472CS

237

R125

2007-000162

ÒR-CHIP;100K,5%Ó

RC1005J104CS

238

R126

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

239

R127

2007-000162

ÒR-CHIP;100K,5%Ó

RC1005J104CS

240

R128

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

241

R129

2007-000162

ÒR-CHIP;100K,5%Ó

RC1005J104CS

242

R130

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

243

R131

2007-007318

ÒR-CHIP;1K,1%Ó

RK73H1ETP1001F

244

R132

2007-007318

ÒR-CHIP;1K,1%Ó

RK73H1ETP1001F

245

R133

2007-007318

ÒR-CHIP;1K,1%Ó

RK73H1ETP1001F

246

R134

2007-007318

ÒR-CHIP;1K,1%Ó

RK73H1ETP1001F

247

R136

2007-000168

ÒR-CHIP;470K,5%Ó

RC1005J474CS

248

R137

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

249

R138

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

background image

3-9

Electrical Parts List

Reference

SEC CODE

Part Description

Vender Part No

250

R139

2007-000157

ÒR-CHIP;47K,5%Ó

RC1005J473CS

251

R140

2007-007317

ÒR-CHIP;2.2K,1%Ó

RK73H1ETP2201F

252

R141

2007-007317

ÒR-CHIP;2.2K,1%Ó

RK73H1ETP2201F

253

R142

2007-007317

ÒR-CHIP;2.2K,1%Ó

RK73H1ETP2201F

254

R143

2007-007317

ÒR-CHIP;2.2K,1%Ó

RK73H1ETP2201F

255

R144

2007-000157

ÒR-CHIP;47K,5%Ó

RC1005J473CS

256

R145

2007-000157

ÒR-CHIP;47K,5%Ó

RC1005J473CS

257

R146

2007-000139

ÒR-CHIP;220,5%Ó

RC1005J221CS

258

R147

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

259

R150

2007-002796

ÒR-CHIP;510,5%Ó

RK73K1ETP511J

260

R151

2007-000162

ÒR-CHIP;100K,5%Ó

RC1005J104CS

261

R153

2007-000159

ÒR-CHIP;56K,5%Ó

RC1005J563CS

262

R154

2007-000162

ÒR-CHIP;100K,5%Ó

RC1005J104CS

263

R155

2007-002796

ÒR-CHIP;510,5%Ó

RK73K1ETP511J

264

R156

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

265

R157

2007-000139

ÒR-CHIP;220,5%Ó

RC1005J221CS

266

R159

2007-000152

ÒR-CHIP;20K,5%Ó

RC1005J203CS

267

R160

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

268

R161

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

269

R162

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

270

R165

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

271

R166

2007-000162

ÒR-CHIP;100K,5%Ó

RC1005J104CS

272

R167

2007-000140

ÒR-CHIP;1K,5%Ó

RC1005J102CS

273

R169

2007-000162

ÒR-CHIP;100K,5%Ó

RC1005J104CS

274

R170

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

275

R171

2011-001345

R-CHIP;EXB28V103JX

EXB28V103JX

276

R172

2007-000141

ÒR-CHIP;2.2K,5%Ó

914C101X2SR

277

R173

2007-000141

ÒR-CHIP;2.2K,5%Ó

914C101X2SR

278

R174

2007-000172

ÒR-CHIP;10,5%Ó

DA10S103CG

279

R175

2007-000172

ÒR-CHIP;10,5%Ó

DA10S103CG

280

R176

2007-000138

ÒR-CHIP;100,5%Ó

RC1005J101CS

281

R177

2007-007771

ÒR-CHIP;0,5%Ó

ERJ2GEJ0R0E

282

R181

2007-001306

ÒR-CHIP;150,5%Ó

RC1005J151CS

283

R182

2007-000172

ÒR-CHIP;10,5%Ó

RC1005J100CS

284

R183

2007-001311

ÒR-CHIP;270,5%Ó

RC1005J271CS

285

R301

2007-000172

ÒR-CHIP;10,5%Ó

RC1005J100CS

286

R302

2007-000172

ÒR-CHIP;10,5%Ó

RC1005J100CS

287

R304

2007-001333

ÒR-CHIP;18K,5%Ó

RC1005J183CS

288

R305

2007-000141

ÒR-CHIP;2.2K,5%Ó

914C101X2SR

289

R306

2007-001298

ÒR-CHIP;51,5%Ó

RC1005J510CS

290

R307

2007-000174

ÒR-CHIP;47,5%Ó

RC1005J470CS

291

R308

2007-000138

ÒR-CHIP;100,5%Ó

RC1005J101CS

background image

Electrical Parts List

3-10

Reference

SEC CODE

Part Description

Vender Part No

292

R309

2007-001313

ÒR-CHIP;330,5%Ó

RC1005J331CS

293

R310

2007-000174

ÒR-CHIP;47,5%Ó

RC1005J470CS

294

R311

2007-000138

ÒR-CHIP;100,5%Ó

RC1005J101CS

295

R312

2007-001292

ÒR-CHIP;33,5%Ó

ERJ2GEJ330X

296

R313

2007-000242

ÒR-CHIP;1.5K,5%Ó

ERJ2GEJ152X

297

R314

2007-007771

ÒR-CHIP;0,5%Ó

ERJ2GEJ0R0E

298

R315

2007-000140

ÒR-CHIP;1K,5%Ó

RC1005J102CS

299

R316

2007-001325

ÒR-CHIP;3.3K,5%Ó

RC1005J332CS

300

R317

2007-001244

ÒR-CHIP;91K,5%Ó

RC1005J913CS

301

R318

2007-000155

ÒR-CHIP;27K,5%Ó

RC1005J273CS

302

R319

2007-000140

ÒR-CHIP;1K,5%Ó

RC1005J102CS

303

R320

2007-001307

ÒR-CHIP;180,5%Ó

RC1005J181CS

304

R321

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

305

R322

2007-000172

ÒR-CHIP;10,5%Ó

RC1005J100CS

306

R401

2007-001298

ÒR-CHIP;51,5%Ó

RC1005J510CS

307

R402

2007-001301

ÒR-CHIP;68,5%Ó

RC1005J680CS

308

R403

2007-001307

ÒR-CHIP;180,5%Ó

RC1005J181CS

309

R404

2007-001301

ÒR-CHIP;68,5%Ó

RC1005J680CS

310

R405

2007-007314

ÒR-CHIP;5.6K,1%Ó

MCR01MZSF5601

311

R406

2007-007311

ÒR-CHIP;22K,1%Ó

ERJ2RKF2202X

312

R407

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

313

R408

2007-007142

ÒR-CHIP;10K,1%Ó

ERJ2GEF103X

314

R409

2007-007142

ÒR-CHIP;10K,1%Ó

ERJ2GEF103X

315

R410

2007-007008

ÒR-CHIP;300,5%Ó

RC1005J301CS

316

R411

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

317

R412

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

318

R413

2007-001288

ÒR-CHIP;18,5%Ó

RC1005J180CS

319

R414

2007-007008

ÒR-CHIP;300,5%Ó

RC1005J301CS

320

R415

2007-001298

ÒR-CHIP;51,5%Ó

RC1005J510CS

321

R418

2007-001305

ÒR-CHIP;120,5%Ó

RC1005J121CS

322

R419

2007-001305

ÒR-CHIP;120,5%Ó

RC1005J121CS

323

R420

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

324

R422

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

325

R423

2007-000148

ÒR-CHIP;10K,5%Ó

RC1005J103CS

326

RA101

2011-001344

R-CHIP;CRB2A4E101JT

EXB28V101JX

327

RA102

2011-001344

R-CHIP;CRB2A4E101JT

EXB28V101JX

328

TH101

1404-001005

IC;NTH5G40B473J01TE

NTH5G20P40B473J07TE

329

U101

0505-001376

IC;SI3865DV

SI3865DV

330

U102

1203-002077

REGULATOR IC;LP2985AIM5X-3.0

LP2985AIM5X-3.0

331

U103

1203-001979

LDO;R5320G003A-TP

R5320G003A-TP

332

U104

1203-002127

BATTERY IC;LTC1734ES6-4.2#TR

LTC1734ES6-4.2#TR

333

U105

1203-002077

REGULATOR IC;LP2985AIM5X-3.0

LP2985AIM5X-3.0

background image

334

U106

0506-001004

TR-ARRAY;UMC5NTL

UMC5NTR

335

U107

1203-002247

RESET IC;S-80926ALMP-DAP-T2

S-80926ALMP-DAP-T2

336

U108

0504-001058

TR-SMALL SIGNAL;RN4985

RN4985-TE85L

337

U109

1107-001304

MEMORY IC;AM29DL162DT-90WCI

AM29DL162DT-90WCI

338

U110

1205-001881

ONE-C;VP40575

VP40575

339

U111

1106-001326

IC;KM616U4110CLZI-7L

KM616FU4110CFI-7

340

U113

1103-001185

EEPROM IC;S524AD0XF1

S524AD0XF1

341

U301

1205-001935

BRIGHT2 PLUS IC;HD155128TF

HD155128TF

342

U302

2806-001239

OSCILLATOR;VOF1748C28KRJ

VOF1748C28KRF

343

U303

1203-001701

REGULATOR IC;LP2982AIM5X-3.0

LP2982AIM5X-3.0

344

U304

1209-001337

IC;SI4133-MLP28

SI4133-MLP28

345

U305

2809-001237

OSCILLATOR;TCO-9131B(13MHz)

TCO-9131B(13MHz)

346

U401

2909-001146

ANTENNA SWITCH;LMG002S-5008C

LMG002S-5008C

347

U402

4709-001144

COUPLER-DIRECTION;LDC15D190A0007A

LDC15D190A0007A

348

U403

1209-001354

IC;HD155173NP

HD155173NP

349

U404

1201-001689

PAM IC;PF08107B

PF08107B

350

U405

0504-001058

TR-SMALL SIGNAL;RN4985

RN4985-TE85L

351

U406

0504-001058

TR-SMALL SIGNAL;RN4985

RN4985-TE85L

352

U407

0504-001058

TR-SMALL SIGNAL;RN4985

RN4985-TE85L

353

U408

0504-001012

TR-SMALL SIGNAL;DTC114YE

DTC114YE

354

U410

0504-000167

TR-SMALL SIGNAL;DTC114EE/TR

DTC114EE/TR

355

U411

0504-001021

TR-SMALL SIGNAL;DTB113ZK

DTB113ZK

356

U412

1203-001454

REGULATOR IC;LP2981AIM5X-3.0

LP2981AIM5X-3.0

357

U413

1203-001701

REGULATOR IC;LP2982AIM5X-3.0

LP2982AIM5X-3.0

358

X101

2801-003856

OSCILLATOR;MC-146

MC-146(32.768KHz)

3-11

Electrical Parts List

Reference

SEC CODE

Part Description

Vender Part No

background image

4. Block Diagrams

4-1 Main Baseband

Block Diagrams

4-1

Batter

y

T

ype

Batter

y

V

olta

g

e

Batter

y

T

emperature

3VTX

XVCC

R

TC_3V3

Serial Data

Interface

I/O

Interface

A/D

Interface

A

GC,AFC

PLL

LO

AD

SWITCH

Char

ging

Cir

cuit

Li-Ion Batter

y

ONE C

VIBRA

T

O

R

SYSTEM CLOCK

(13MHz)

SRAM

FLASH

EEPR

OM

R

TC_CLOCK

(32.768KHz)

KEYP

AD

SIM CARD

SPEAKER

MIC

LCD

BB INTERF

A

C

E

RF INTERF

A

C

E

A

VCC

SIMVCC

ALER

T_VCC

3VRF

VCC

background image

4-2

Block Diagrams

4-2 Main RF

IF SA

W

Filter

(225MHz)

LC

Filter

(45MHz)

Dual P

o

w

er AMP Module

SI4133G-XM2

VCTCXO

13MHz

HD155128TF

IF VCO

1080MHz

925~960MHz

Ant.

S/W

VC1(GSM)

VC2(DCS)

LPF

LPF

Dip

.

TX

Rx Dual

SA

W

filter

1805~1880MHz

Rx

Dual

SA

W

filter

LNA

LNA

PLL1

PLL2

PGA

90

°

Shift

÷

2

90MHz

÷

6

90

°

Shift

÷

2

DCS :

270MHz

GSM :

540MHz

I&Q

Mod.

GSM :

270MHz

DCS :

135MHz

Phase

Detector

Loop

filter

GSM :

270MHz

DCS :

135MHz

Baseband

Bloc

k

880 ~ 915MHz

1710 ~ 1785 MHz

Tx Dual

VCO

APCIC

Mix

er 2

Ser

ial data

interf

ace

45MHz

270MHz

÷

2

GSM :

1150~1185MHz

DCS :

1580~1655MHz

I

-I

Q

-Q

I&Q Demo

.

I

-I

Q

-Q

CLK

S

D

ATA

LE

bias circuit

Mix

er 1

RF VCO

÷

2

540MHz

Dual Directional

Coupler

GSM :

1150~1185MHz

DCS :

1575~1650MHz

(CH 62 :

947.4MHz)

(CH 698 :

1842.4MHz)

(CH 62 :

902.4MHz)

(CH 698 :

1747.4MHz)

CH 62 :

1172.4MHz

CH 698 :

1617.4MHz

background image

Block Diagrams

4-3

4-2-1 RF Transmit Part

a

b

c

d

e

U305

HD155128TF

Antenna

S/W

U304

U108

VP40575

TXEN

RAMPD

A

C

BAND Selection

- GSM :

Lo

w

- DCS :

High

ITXP

ITXN

QTXP

QTXN

Loop

Filter

TX VCO

U200

Dual P

A

M

U312

APC Circuit

Coupler

15

3

1

3

7

5

U318

U318

8

8

13

7

2

540 MHz

PCN :

1575 ~ 1650 MHz (Tx)

GSM :

1150 ~ 1185 MHz

41

4

1

1

1

2

3

4

5

38

35

20

19

18

17

30

47

10

6

8

1

4

2

5

2

1

Ant.

S/W

Control

Circuit

3VTX

TXEN2

VC1

VC2

VC3

VC3

VC2

VC1

GSM(Tx)

DCS(Tx)

Rx

H

H

H

L

L

L

L

LL

11

SI4133-MLP28

U302

VCTCXO

13MHz

U303

IF VCO

1080MHz

PLL1

PLL2

RF VCO

AFCD

A

C

10

23

15

880 ~ 915MHz(EGSM)

890 ~ 915MHz(PGSM)

1710 ~ 1785MHz(DCS)

U301

HD155128TF

Antenna

S/W

U401

U110

VP40578

TXEN

RAMPD

A

C

BAND Selection

- GSM :

Lo

w

- DCS :

High

ITXP

ITXN

QTXP

QTXN

Loop

Filter

TX VCO

U302

Dual P

A

M

U404

APC IC

U404

890

~

915

MHz

1710

~

1785

MHz

15

3

1

3

7

5

DIrectional

Coupler

U402

8

35

8

540 MHz

PCN :

1575 ~ 1650 MHz (Tx)

GSM :

1150 ~ 1185 MHz

2

11

1

2

3

4

5

38

35

20

19

18

17

30

47

10

6

8

1

4

2

5

2

19

Ant.

S/W

Control

Circuit

3VTX

TXEN2

VC1

VC2

VC2

VC1

DCS(Tx)

GSM(Tx)

Rx

H

H

L

L

LL

11

SI4133-MLP28

U304

VCTCXO

13MHz

U305

IF VCO

1080MHz

PLL1

PLL2

RF VCO

AFCD

A

C

10

23

15

14

RF

Conn.

J401

1

2

background image

4-4

Block Diagrams

4-2-2 RF Receive Part

Dual

SA

W

Filter

F301

VP40578

U110

IRXP

IRXN

QRXP

QRXN

RXEN1

RXEN2

925 ~ 960 MHz

1805 ~ 1880 MHz

HD155128TF

U301

Antenna

S/W

U401

8

LNA

LNA

C328,

L312

F303

IF SA

W Filter

(225MHz)

Mix

er 2

PGA

I & Q

Demod.

Mix

er 1

Mix

er 1

LC Filter

(45MHz)

1/2

30

47

10

1

7

5

1

3

1

8

7

5

53,54

2,3

49,50

1,2

5,6

40,41

27

S

D

ATA

SCLK

SYNEN1

- 46dBm

@ 947.467 MHz

- 50dBm

@ 1842.467 MHz

-47dBm

-30dBm

-33dBm

-38dBm

-52dBm

-43dBm

-9dBm

@ 1172.4 MHz

-9.5dBm

@ 1617.4 MHz

GSM :

1150 ~ 1185 MHz

DCS :

1580 ~ 1655 MHz

-8dBm @ 1080MHz

-24.4dBm (G)

-29dBm (D)

@ 224.933 MHz

-31dBm (G)

-35dBm (D)

-22dBm (G)

-25dBm (D)

@ 45.067 MHz

-50dBm (G)

-54dBm (D)

@ 67 kHz

26

25

24

33

32

44

43

4

3

6

10

SI4133-MLP28

U304

VCTCXO

13MHz

U305

IF VCO

1080MHz

PLL1

PLL2

RF VCO

AFCD

A

C

10

23

15

Dual

SA

W

Filter

F302

Frequenc

y = 947.467 MHz

P

o

wer = - 46 dBm

background image

5. Flow Chart of Troubleshooting

5-1 Power ON

Flow Chart of Troubleshooting and Circuit Diagrams

5-1

'POWER ON'does not work

Charge the Battery

Check the Battery Voltage

is more than 3.2V

No

Yes

Yes

Replace Keypad

When the "END" key is

pressed, the voltage of "D109 pin1"

3.6V?

No

Yes

U101 pin 2,3 > 3.2V

Check the circuit related to U101

No

END

U103 pin 1 3.0 V ?

Check the circuit related to U103

No

Yes

Check the initial operation

U103 pin2 3.0 V ?

Check U103 and related circuit

No

Yes

Check for the clock signal at R320

Check the clock generation circuit

(related to U305 and Q301)

No

Yes

Yes

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-2

100UF

+VBATT

POWER

RTC_3V3

DCVOLT

RTC_3V3

1

2

3

4

5

D109

UMN1

100K

R116

R112

10K

10K

2

3

4

5

R119

U106

UMC5NTL

1

R120

100K

C141

100NF

R117

10K

DCIN

BB_PWR

ON_OFF

10K

R121

One Point Contact

1UF

C122

1UF

C221

SIMVCC

C119

C131

10NF

C220

C218

10NF

NC

C222

1UF

AVCC

10NF

C117

100UF

C120

C217

100NF

2

3

ON/OFF

VIN

1

VOUT

5

MCL4154

D110

U105

LP2985AIM5-3.3

BYPASS

4

GND

10UF/6.3V

C133

100PF

C138

C118 10UF/6.3V

C137 27PF

VCC

10UF/6.3V

C140

C126 NC

LP2985AIM5-3.3

4

BYPASS

GND

2

ON/OFF

3

VIN

1

5

VOUT

1K

R106

U102

RB414

C105

NC

C219 1UF

BAT101

10NF

C123

C121

10UF/6.3V

10NF

C128

VOUT1

VOUT2

2

3

VOUT3

100NF

C139

R5320G003A-TP

CE1

7

6

CE2

CE3

5

GND

4

8

VDD

1

R107

U103

1K

R101

100K

D2

3

D2

5

ON/OFF

R1,C1

61

R2

4

S2

SI3865DV

U101

2

C134

10UF/6.3V

10NF

C136

VOUT

ALERT_VCC

RTC_VCC

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-3

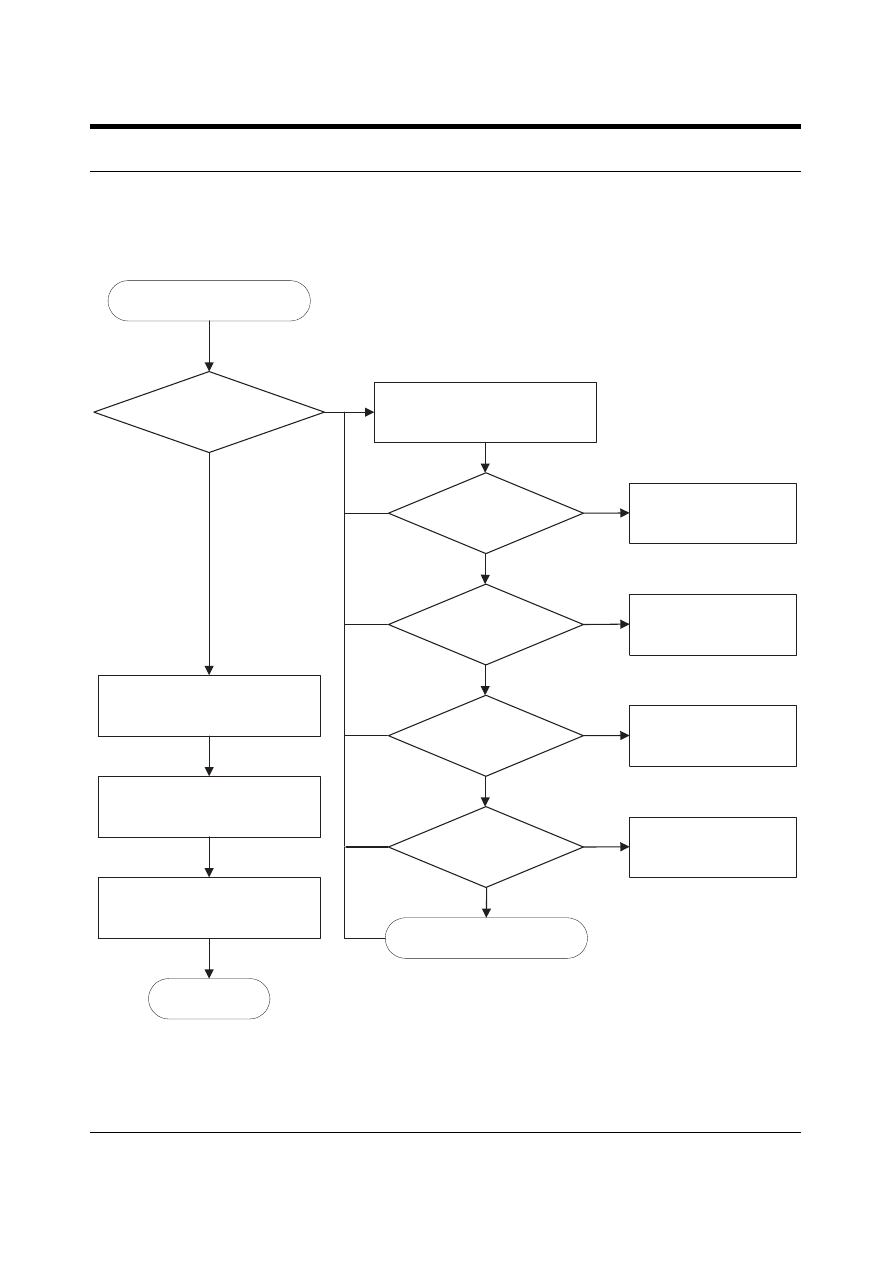

5-2 Initial

Initial Failure

After power on,

check and repair the important

signals of U110 as follows

END

No

Downloading SW is OK ?

(Is CSROM signal OK ?)

The node

between R126 and C145

= "H" (RST)

No

Check the circuit

related to reset

R137 = "H" (BOOT)

No

Resolder R137

Yes

R136 = "H" (MSIZE)

No

Resolder R136

Yes

R128 = "L" (EXTPROC)

No

Resolder R138

Yes

Replace PBA

Check all the other connection

by Test S/W

Check the circuit around LCD

Check the circuit

around U113(EEPROM)

and data stored in it

Yes

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-4

U110

U107

U109

VCC

VCC

R126

C145

R137

R136

R147

VCC

MSIZE

SIMPWDN_BOO

T

F_WP

F_WP

_WP/A

CC

SYSRST

GPIO3

GPIO4

GPO2

Q106

R128

CSR

OM

_CE

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-5

5-3 Charging Part

Abnormal charging part

Replace TA

Check the J105 pin 17,18 = 5.0 V ?

No

Yes

Yes

Check the U104 pin 3 = 5.0 V ?

Resolder C135

Yes

No

R113(CHG_ON side) = "L" ?

Resolder R113

Yes

No

Resolder components around

U104

Check the U104 pin 5 4.2V ?

END

Yes

No

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-6

LTC1734ES6-4.2#TR

DRIVE

6

U104

C127

CHG_ON

+VBATT

DCVOLT

I_CHARGE

BAT_VOLT

R110 100K,1%

GND

2

1

ISENSE

PROG

4

3

VCC

5

VSENSE

C135

10UF

10V

R113

2.2K,1%

82K,1%

R111

Q101

ZXT13P20DE6

3

12

56

4

C125 100NF

10UF 6.3V

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-7

5-4 Sim Part

Q102 pin5 = "H" ?

Replace Q102 or

Replace PBA

END

Yes

No

Check the circuit around U113

(Serial EEPROM) and data stored in it

Yes

Phone can't access SIM card

Yes

Q102 pin 2, 3 = 3.0 V ?

Replace Q102 or

Resolder C132

Yes

No

After Power ON,

Check SIMCLK Signal on CN102 pin 3

in a few second

After SIM card insert,

CN102 pin 2 = "H(SIMRST) ?

Resoldering C193 or

Replace PBA

Resoldering C192 or

Replace PBA

Yes

No

No

Q102 pin4 = 3.0 V ?

Yes

No

Check the circuit around U103

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-8

4

6

5

3

2

1

SIM CONNECTOR

J104

NC

C216

C215

NC

SIMVCC

100PF

C193

8

C192

100PF

6

J104-5

1-338063-9

7

J104-6

1-338063-9

2

1-338063-9

J104-3

3

J104-4

1-338063-9

J104-1

1-338063-9

1

1-338063-9

J104-2

6

R1,C1

1

R2

V.C1-1

2

V.C1-2

3

VIN,R1

4

FDG6323L

Q102

ON/OFF

5

10NF

C132

C124 1UF

10K

R108

SIMPWREN

SIMRST

SIMDATA

SIMCLK

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-9

5-5 Microphone Part

Microphone does not work

Resoler J102

J102 pin 4, 5 = short?

U103 pin 2 (AVCC3.0) 3.0V?

Check the circuit

from U110 to MIC101

Check the circuit related to U103

END

Resolder the

R146,R157,R150,R155,

C163,C161,C164

Yes

No

Yes

Yes

Yes

No

No

Check the tension of MIC Module

Replace the Mic or Mic Holder

No

Yes

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-10

J102

MIC101

U110

VXI1P

VXI1N

MIC+

MIC-

1

54

MIC+

MIC-

RC

FIL

TER

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-11

5-6 Speaker Part

Speaker does not work

Yes

J102 pin 2, 3 = short

Resoler J102

J102 pin 2, 3, 6 = 1.25 V ?

No

No

Replace the PBA

Yes

Yes

Modify the SPK pins

Check

the tension of the Speaker

Is Speaker working?

Replace the Speaker

END

No

Yes

Yes

No

background image

5-12

Flow Chart of Troubleshooting and Circuit Diagrams

J102

SPK101

U110

PW

O1P

PW

O1N

SPK+

SPK-

6

23

SPK+

SPK-

background image

5-13

Flow Chart of Troubleshooting and Circuit Diagrams

5-7 Key Data Input

Check Initial operation

Replace the Keypad

When

one of the keys is pushed,

is it displayed on LCD

Keypad is OK ?

END

Replace the PBA

Yes

No

Yes

Yes

No

background image

5-14

Flow Chart of Troubleshooting and Circuit Diagrams

5-8 Alert Tone

Abnormal Alert tone

ALERT by Test S/W

Is there alert wave form on the

R124 during alert tone test?

Is there alert wave form on the

Q103 pin 3 during alert tone test?

U105 pin 5 3.0V?

Check the circuit related to Q103

END

Check the circuit related to U105

Yes

No

Yes

Yes

No

No

Buzzer is ok?

Change the Buzzer

Yes

No

background image

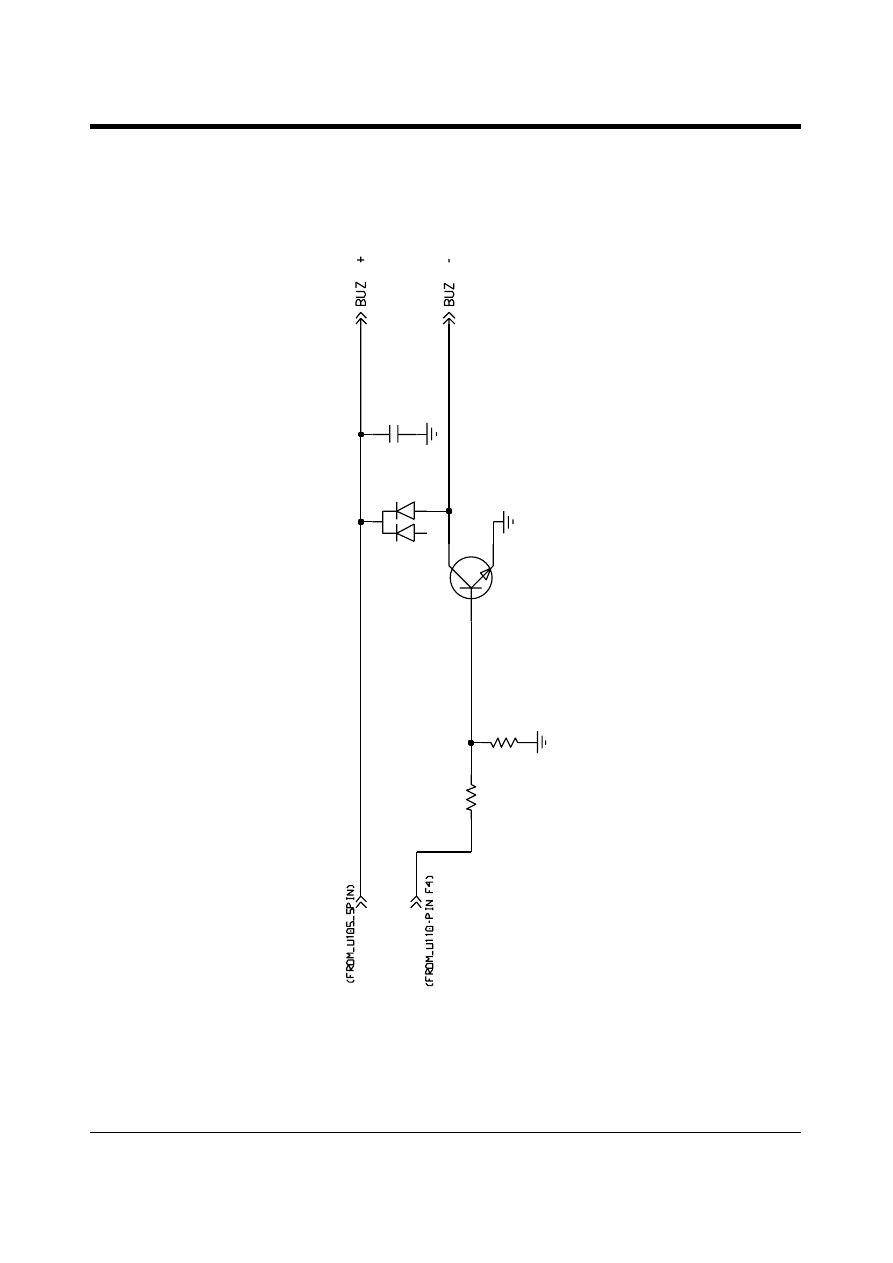

5-15

Flow Chart of Troubleshooting and Circuit Diagrams

RTC_3V3

ALERTER

3

1

2

100K

R125

2SD2114KT146V

Q103

1

3

2

4.7K

R124

100NF

C103

DAN222TL

D101

background image

5-16

Flow Chart of Troubleshooting and Circuit Diagrams

5-9 Ring Indicator

Ring Indicator LED does not

work

Check the circuit related to U102

U102 pin 5 3.3V?

Is Green color of

3 LEDs correctly work?

Is Red color LED of

3 LEDs correctly work?

Check Q109,R182,LED1

END

Check Q110,R183,LED1

Yes

No

Yes

Yes

No

No

Is Blue color LED of

3 LEDs correctly work?

No

Check Q108,R181,LED2

Yes

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-17

RI_BLUE

RI_RED

ALERT_VCC

Q110

DTC114YE

2

3

1

RI_GREEN

SLS-NNBD102TS

LED2

R180

0

Q108

DTC114YE

2

3

1

LED1

CL-165HR/YG-D

270,5%

R183

10,5%

R182

DTC114YE

Q109

R181

150,5%

2

3

1

background image

5-18

Flow Chart of Troubleshooting and Circuit Diagrams

5-10 Back Light

Yes

END

Backlight does not work

Select backlight "ON" mode

Backlight "ON" mode

in the menu?

R167 = "H" ?

GPO1 by test S/W

No

Yes

Yes

No

Resolder R167,R166

or replace Q107

Q107 pin 3 = "L" ?

LCD backlight on ?

Replace LCD

No

Yes

No

LCD BACKLIGHT

KEY PCB LED

Resolder R167,R166

or resolder Q107

Q107 pin 3 = "L" ?

No

Yes

Yes

END

Key PCB LED on ?

Resolder

R149,R118,R168,R184,

or Replace PBA

No

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-19

Q107

U110

R167

R166

K

e

yP

AD LED

D111

D112

D113

D114

D115

D122

D123

D140

J103(LCD LED)

GPO1

background image

5-20

Flow Chart of Troubleshooting and Circuit Diagrams

5-11 GSM Receiver

Rx On

RF input : CH center freq. + 67.7 kHz

Amp. : -50 dBm

U401

Pin 8

-65 dBm

U401

Pin 10

-65 dBm

F301

Pin 1

-70 dBm

F302

Pin 1

-60 dBm

U301

Pin 53, 54

-60 dBm

U301

Pin 49, 50

(225 MHz)

-50 dBm

U301

Pin 43, 44

(45 MHz)

-55 dBm

Resolder

J401

Resolder &

U401 Pin 10

-65 dBm

Check

VC1 : L
VC2 : L

Resolder

F301

Resolder

C303, L302, C302, L308, C315

Resolder

F302, C357, L309

Check

C348(CH+225MHz)

-20 dBm

C343(1080MHz)

-20 dBm

Resolder

U304

Resolder

F303,C321,C324,C325

C333,C340,C336,L313, R305

U301

Pin 24, 25, 26, 27

40 mV

Resolder

OneC(U110), U301

Check U301

Pin 32, 33

2.5 V

Pin 35

0.5 V

Resolder

U301 (Pin35, Pin 32, 33)

Resolder

U110

No

No

No

No

No

No

No

No

No

No

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-21

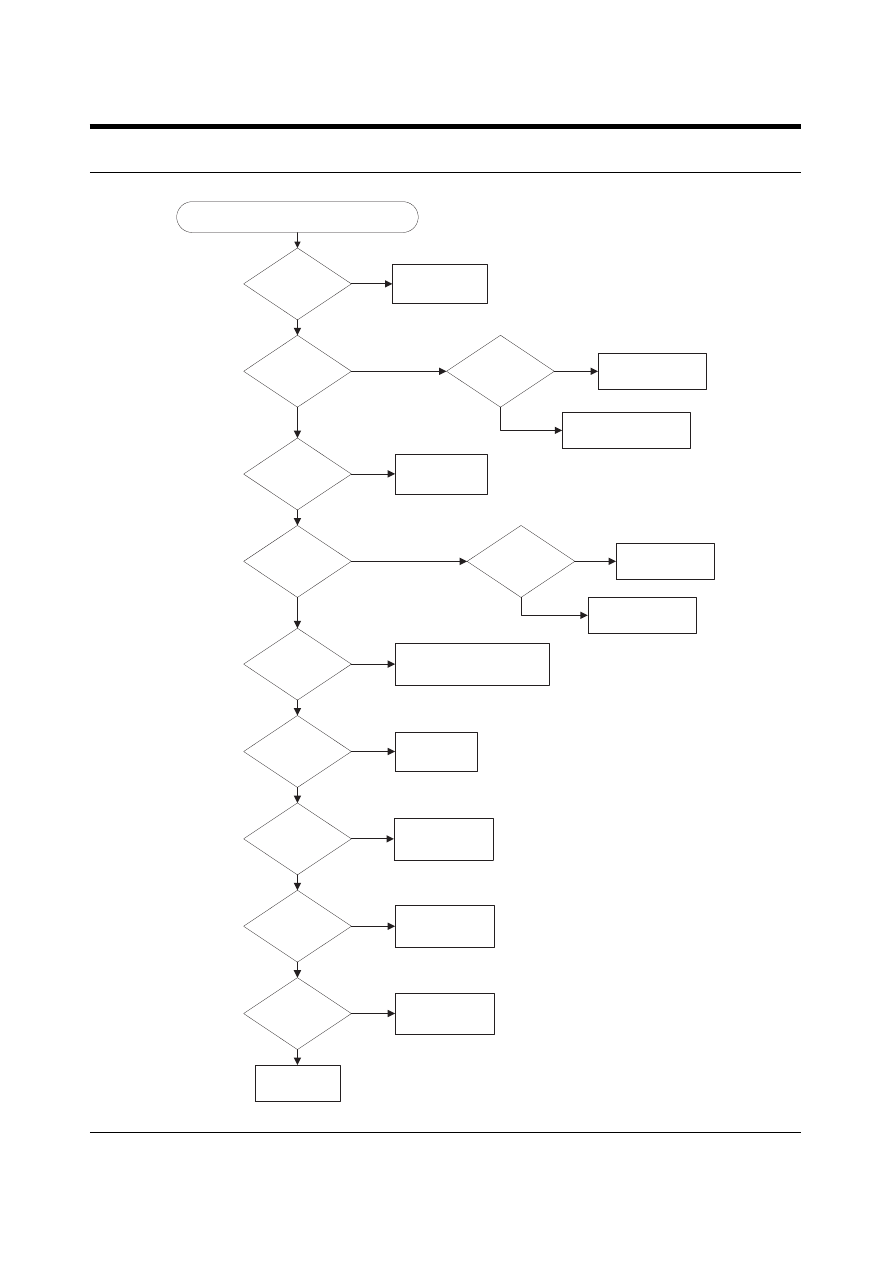

5-12 GSM Transmitter

Tx On (level : 5)

U401

Pin 8

30 dBm

U401

Pin 5

30 dBm

U402

Pin 1

30 dBm

U404

Pin 1

-10 dBm

U302

Pin 6

-10 dBm

U302

Pin 7

0.5 V

Pin 5

2.8 V

Pin 3 = 0.5~2.5 V

Resolder

J401

Check

VC1 : L

VC2 : H

Change or Resolder

U401

Resolder

U402, C401

Resolder or Change

C337, R410, R413, R414, C418

Resolder

U302, R314

U301

pin 30, 47

-10 dBm

Resolder

U301, U304

U301

Pin 17, 18, 19, 20

40 mV

Resolder

OneC(U110)

Check U301

Pin 38

2.5 V

Pin 35

0.5 V

Resolder

U301 (Pin35, Pin38)

Resolder

U110

No

No

No

No

No

No

No

No

No

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Check

Ant. S/W Control Circuit

Check

U404 : +VBATT,

Pin 2 (APC)

OK?

Resolder or

Change U404

Yes

Check +VBATT
or APC Control

No

background image

5-22

Flow Chart of Troubleshooting and Circuit Diagrams

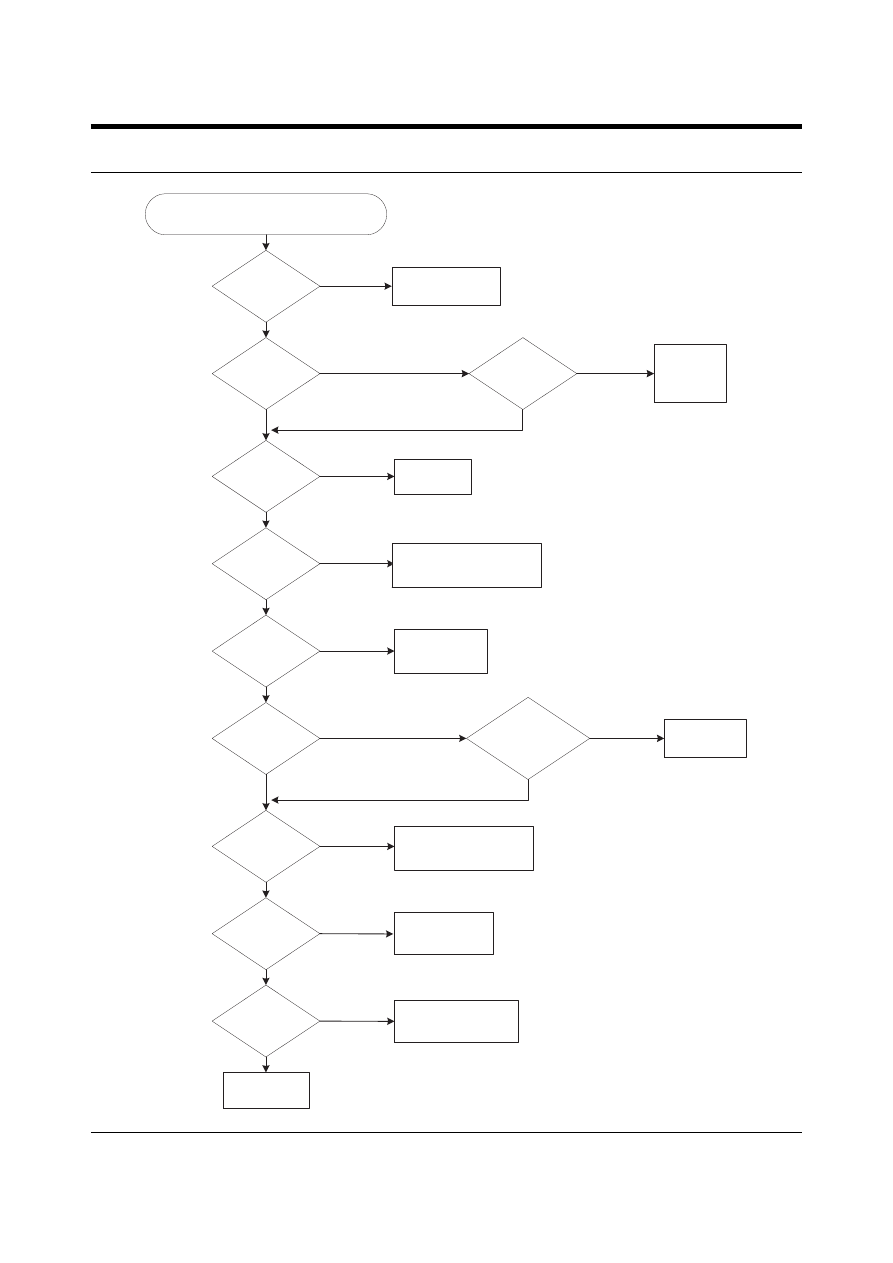

5-13 DCS Receiver

Rx On

RF input : CH center freq. + 67.7 kHz

Amp. : -50 dBm

U401

Pin 8

-65 dBm

U401

Pin 1

-65 dBm

F301

Pin 3

-70 dBm

F302

Pin 2

-60 dBm

U301

Pin 2, 3

-60 dBm

U301

Pin 49, 50

(225 MHz)

-50 dBm

U301

Pin 43, 44

(45 MHz)

-55 dBm

Resolder

J401

Resolder &

U401 Pin 16

-65 dBm

Check

VC1 : L
VC2 : L

Resolder

F301

Resolder

F302, C358, L307

Check

C348(CH-225MHz)

-20 dBm

C343(1080MHz)

-20 dBm

Resolder

U304

U301

Pin 24, 25, 26, 27

40 mV

Resolder

OneC(U110), U301

Check U301

Pin 32,33

2.5 V

Pin 35

2.5 V

Resolder

U301 (Pin 35, Pin 32, 33)

Resolder

U110

No

No

No

No

No

No

No

No

No

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Resolder

C305, L304, C381, L308

C306, C307, C313

Resolder

F303,C321,C324,C325

C333,C340,C336,L313, R305

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-23

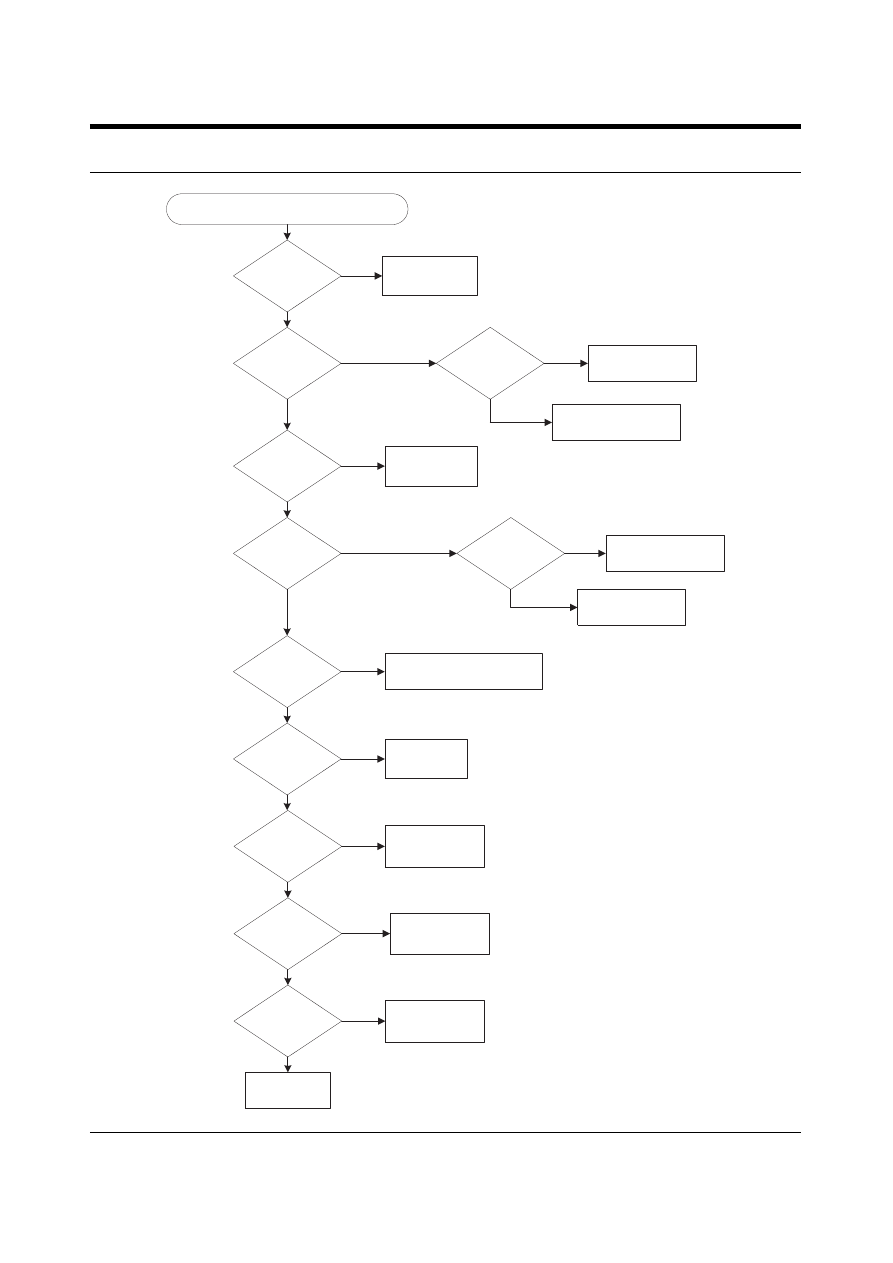

5-14 DCS Transmitter

Tx On (level : 0)

U401

Pin 8

25 dBm

U401

Pin 3

25 dBm

U402

Pin 3

25 dBm

U404

Pin 8

-10 dBm

U302

Pin 10

-10 dBm

U302

Pin 7

2.5 V

Pin 5

2.5 V

Pin 3 = 0.5~2.5 V

Resolder

J401

Check

VC1 : H

VC2 : L

Change or Resolder

U401

Resolder

U402, C402

Resolder or Change

C334, R410, R413, R414, C418

Resolder

U302, R314

U301

pin 30, 47

-10 dBm

Resolder

U301, U304

U301

Pin 17, 18, 19, 20

40 mV

Resolder

OneC(U110)

Check U301

Pin 38, Pin 35

2.5 V

Resolder

U301 (Pin35, Pin38)

Resolder

U110

No

No

No

No

No

No

No

No

No

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Check

Ant. S/W Control Circuit

Check

U404 : +VBATT,

Pin 2 (APC)

OK?

Resolder or Change

U404

Yes

Check +VBATT
or APC Control

No

background image

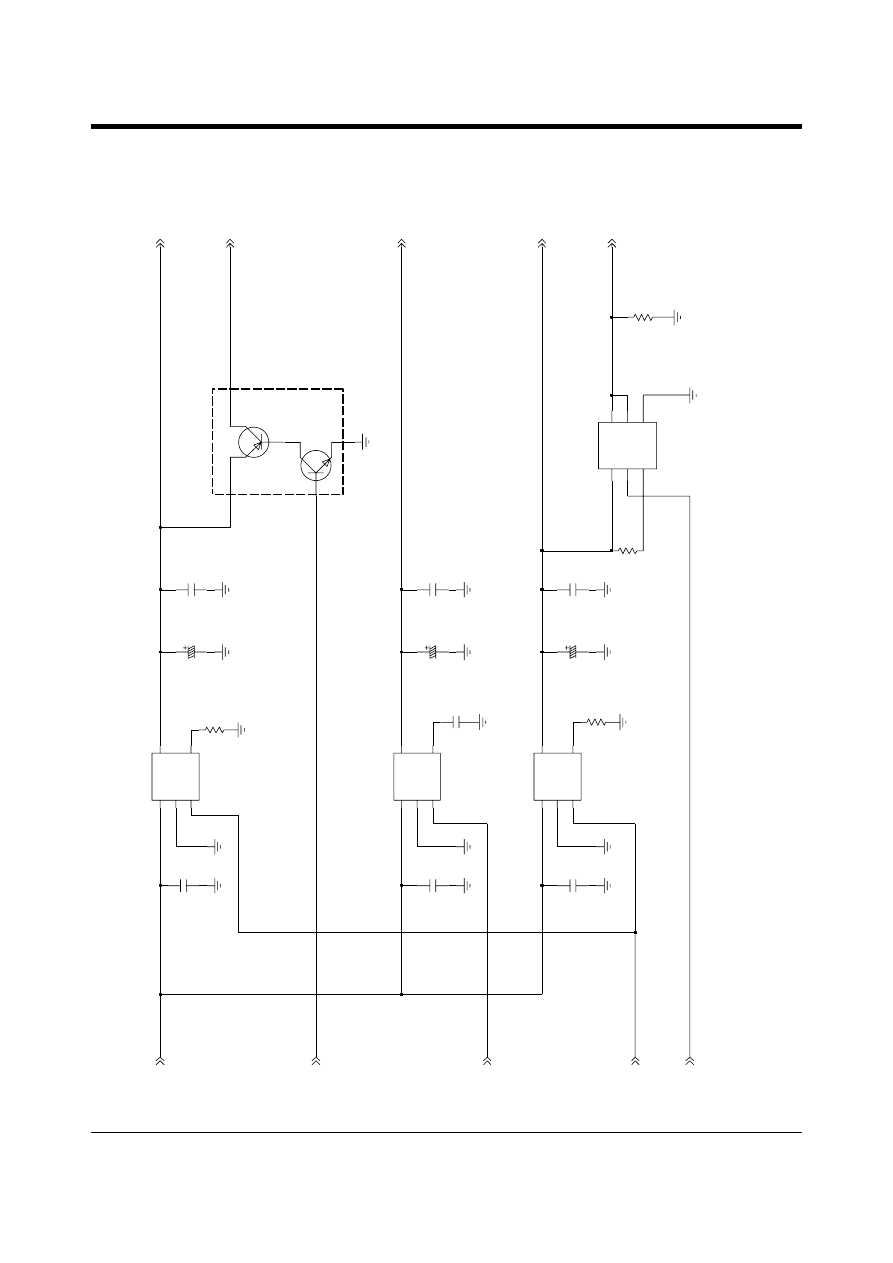

5-24

Flow Chart of Troubleshooting and Circuit Diagrams

BAND SELECT

(SYNTH&BRIGHT)

100NF

C380

1UF

C430

R423

10K

NC

BYPASS

4

2

GND

3

ON/OFF

1

VIN

VOUT

5

C426

LP2982AIM5X-3.0

U303

1UF

C431

C429

100NF

R422

10K

10UF/6.3V

C424

C428

100NF

DTC114EE/TR

U410

2

3

1

10UF/6.3V

C378

2

3

1

10UF/6.3V

C425

2

V.C1-1

3

V.C1-2

4

VIN,R1

DTB113ZK

U411

Q401

FDG63231

5

ON/OFF

R1,C1

6

R2

1

4

BYPASS

2

GND

ON/OFF

3

1

VIN

5

VOUT

LP2981AIM5-3.0

GND

2

NC

4

3

ON/OFF

VIN

1

VOUT

5

U413

LP2981AIM5-3.0

C377

U412

1UF

10NF

NC

C379

XVCC

C427

SYNEN

BANDSEL

TXEN1

SYSCLKENA

3VTXEN1

3VTX

3VBANDSEL

VOUT

3VRF

background image

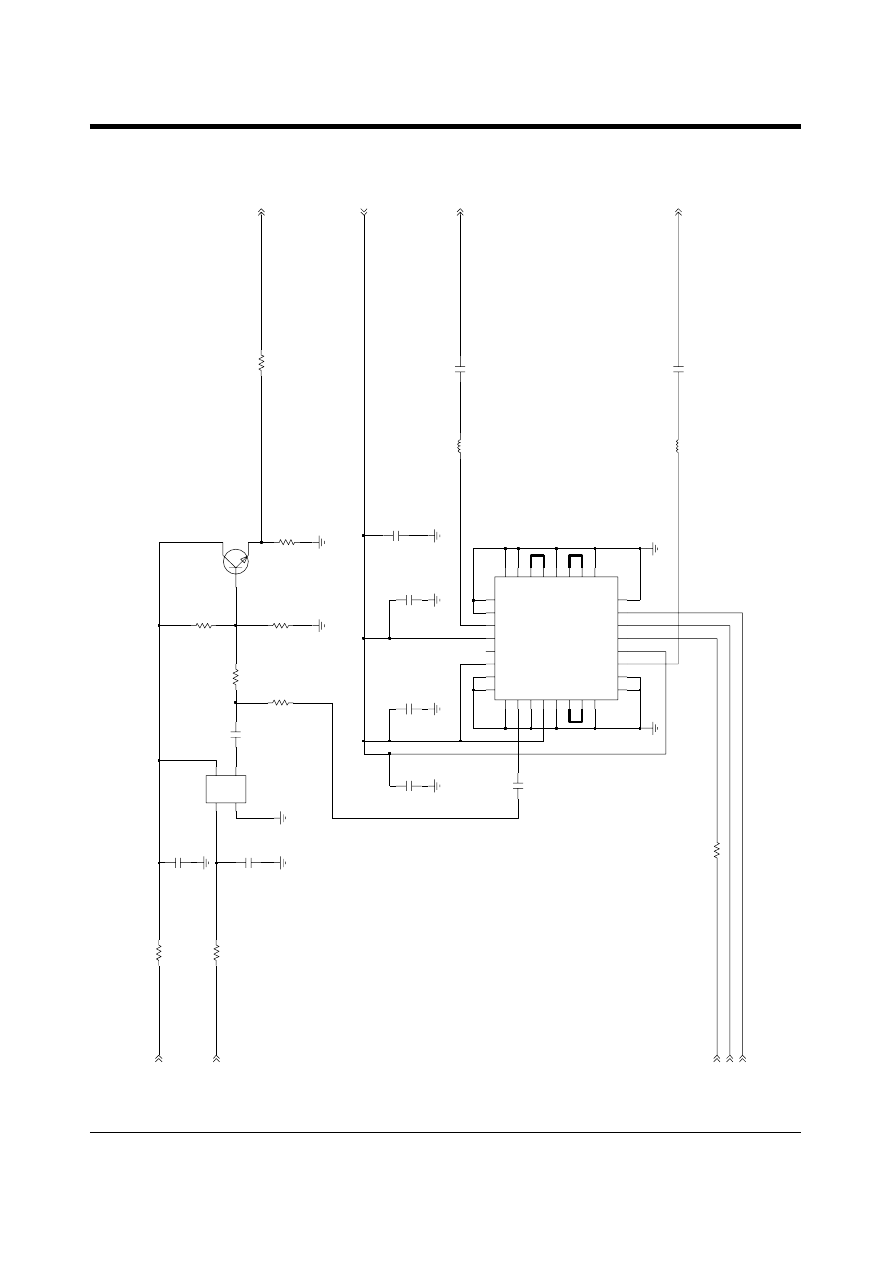

Flow Chart of Troubleshooting and Circuit Diagrams

5-25

27K

R318

C353

10NF

R316

3.3K

10K

R321

1.5K

1K

R315

R319

1K

R313

L314

10nH

C343

560PF

100NF

C346

560PF

C348

C342 100NF

XIN

15

C345 220PF

2

RFLD

10

RFOUT

26

SCLK

SDAT

27

SENB

25

17

VDDD

24

VDDI

VDDR

11

8

GNDR5

19

IFLA

20

IFLB

IFOUT

23

PWDNB

13

6

RFLA

RFLB

5

RFLC

3

14

GNDD2

22

GNDI

GNDI1

21

4

GNDR

GNDR1

9

7

GNDR2

28

GNDR3

GNDR4

1

12

AUXOUT

GND4

29

30

GND5

GND6

31

GND7

32

GNDD

18

16

GNDD1

100NF

C349

U304

SI4133G-XM2R

C352 560PF

R322

10

10NF

C354

C355

10NF

1

R320 180

Q301

2SC4617

2

3

U305

TCO-9131B(13MHz)

2

GND

3

OUT

VC

1

VCC

4

2.0nH

L315

SDATA

SCLK

3VRF

R317

91K

XVCC

AFC

CLK13M

RFLO

IFLO

SYNEN1

background image

5-26

Flow Chart of Troubleshooting and Circuit Diagrams

Coilcraft

2012

Coilcraft

2012

Film Cap

7

OUT1

OUT2

5

L310 47nH

FAR-G6CH-1G8425-L218

F301

G1

2

G2

4

G3

6

8

G4

1

IN1

IN2

3

100PF

C357

C307 33PF

68nH

L313

2.7PF

C302

C327

1NF

82nH

L312

C321 47PF

R314

0

24

13

R312

33

C337 100PF

E301

NFM39R12C471T1

C308

NC

22nH

L305

5PF

C358

L302

6.8nH

C322

1NF

10NF

C329

C336 3PF

100

R311

1NF

C320

1NF

C351

C316

NC

C303 27PF

47

R307

C313

100PF

C314 1NF

1.2NF

C318

R309

330

10

R301

NC

R303

R308

100

C328 150PF

L309

22nH

33PF

C339

47PF

C333

C341 470PF

C335

NC

C350 1UF

47PF

C340

11

GND
GND

12

4

NC

6

OUT1

OUT2

10

POWER

5

7

SELECT

U302

VOF1748C28KRJ

CONTROL

3

1

GND

GND

2
8

GND
GND

9

47

R310

1.5PF

C324

47PF

C325

48

VCCRELO

11

VCOIN

3.3nH

L308

37

TESTOUT

14

VCCCOMP

42

VCCCTRL

45

VCCIF

29

VCCIFLO

22

VCCIQ

VCCMIX

51

12

VCCPLL/LNA

38

POONTX

18

QIN

17

QINB

25

QOUT

24

QOUTB

21

RESET

47

RFLOIN

1

SDATA

50

MIX1OUTB

44

MIX2OUT

43

MIX2OUTB

36

NC

NC

34

15

PLLOUT

POONRX1

33

32

POONRX2

27

IOUT

26

IOUTB

55

LE

MIX1DCSIN

3

2

MIX1DCSINB

53

MIX1GSMIN

54

MIX1GSMINB

49

MIX1OUT

5

GSME

16

ICURAD

31

IFDIVSEL

41

IFIN

40

IFINB

30

IFLOIN

20

IIN

19

IINB

39

GNDCTRL

46

GNDIF

28

GNDIFLO

23

GNDIQ

52

GNDMIX

GNDPLL/LNA

13

6

GSMB

4

GSMC

HD155128TF

U301

35

BAND

56

CLK

DCSB

10

8

DCSC

9

DCSE1

7

DCSE2

C310 27PF

C338

27PF

C306 1.8PF

18K

R304

OUT

OUT

6

22NF

C344

G

34

G

7

G

8

G

1

IN

IN

2

5

27PF

C331

F303 B4846

R306

51

33PF

C334

1NF

C311

C317 NC

R305

2.2K

1NF

C330

C347

NC

10PF

C312

1

3

IN2

OUT1

7

5

OUT2

C323 1NF

F302

FAR-G6CH-1G8425-L227B

2

G1

4

G2

6

G3

G4

8

IN1

C309

1NF

R302

10

10NF

C319

L307 4.7nH

1NF

C326

100PF

C305

1PF

C381

47nH

L311

1NF

C332

2.2nH

L304

27PF

C315

3VBANDSEL

GSMRX

DCSRX

3VRF

3VRF

IFLO

3VRF

QRXN

QRXP

QTXN

QTXP

TXEN1

AGC_EN

IRXN

IRXP

ITXN

ITXP

SCLK

3VTXEN1

RFLO

RXEN1

GSMTX

DCSTX

SDATA

background image

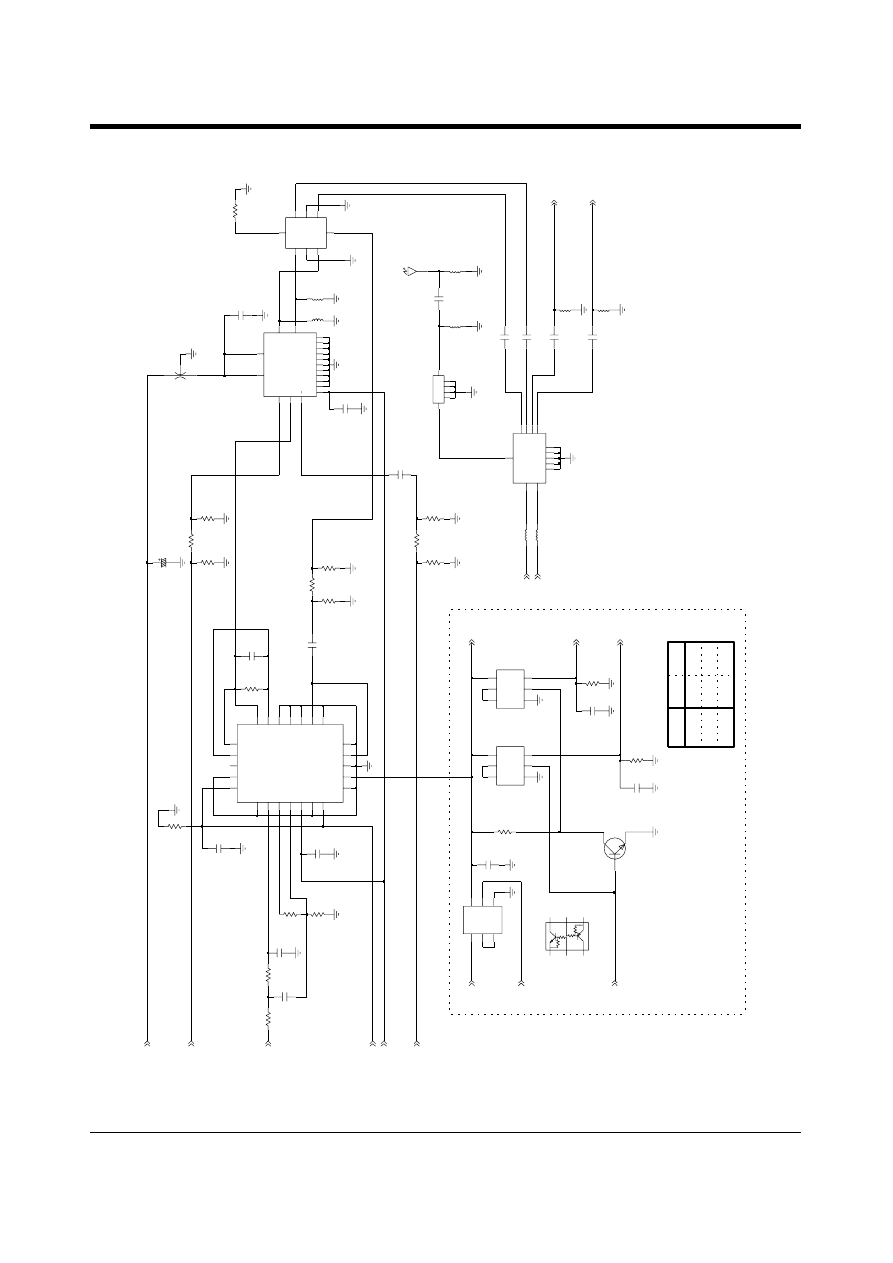

Flow Chart of Troubleshooting and Circuit Diagrams

5-27

6

Tx(GSM)

VC2

L

4

VC1 : GSM TX

BCR08PN

5

H

H

L

L

VC1

L

Antenna S/W Control Circuit

Tx(DCS)

RX

3

VC2 : DCS TX

2

1

100PF

C304

C407

100PF

18nH

L404

C408

47PF

C413

27PF

300

R410

33PF

300

R414

C402

5

G4

6

IN

1

OUT

2

R415

51

CRS5001-1702

J401

G1

3
4

G2
G3

33PF

C301

R405

5.6K,1%

L405

6.8nH

C421

33PF

1

4

E2

18

R413

U407

BCR08PN

2

B1

5

B2

C1

6

3

C2

E1

R404

68

68

R402

R401

ANT401

180

R403

51

R412

10K

L402

27PF

C414

33nH

DTC114YE

U408

2

3

1

R419

120

C415

120PF

7

G

91

2

G

GSM_RX

10

GSM_TX

5

VC1

2

11

VC2

U401 ES-A5010B

8

ANT

1

DCS_RX

3

DCS_TX

4

GG

6

G

C403

2PF

R407

10K

R411

10K

R418

120

5.6nH

L303

E1

E2

4

220UF

C410

BCR08PN

U405

B1

2

B2

5

6

C1

C2

3

1

NC

E401

NFM60R00T221

R416

5

DO

GD

6

GD1

2

1

GI

7

GO

4

TM

LDC15D190A0007A

U402

CO

8

3

DI

10K,1%

R408

27PF

C419

33PF

R406

22K,1%

C411

VCC1

VCC2

7

L301

12nH

16

NC

NC

17

23

NC

PS

9

11

RFIN1

14

RFIN2

VAPC1

20

19

VAPC2

24

18

INI-

21

MODESW

5

NC

1

NC

6

NC

8

12

NC

13

NC

U403

AMPIB

3

AMPO

4

DACIN

2

GND1

15

10

GND2

IN+

22

IN2-

HD155173NP

L401

68nH

100PF

C401

L403

33nH

2

B1

5

B2

C1

6

3

C2

E1

1

4

E2

U406

BCR08PN

C423

R409

10K,1%

680PF

C409

1NF

POUTDCS

5

4

POUTGSM

VAPC

2

7

VCTL

VDD1

3

6

VDD2

G3

11

12

G4

G5

13

14

G6

G7

15

16

G8

G9

17

GSM

1

U404

PF08122B

8

DCS

G1

9

G10

18

10

G2

82PF

C417

R420

10K

3.3nH

L406

27PF

C420

3VTXEN2

3VTXEN1

+VBATT

VC2

TXEN2

3VBANDSEL

VC1

VC2

DCSTX

DCSRX

TXPOWER

VC1

GSMRX

VC2

GSMTX

3VTX


Wyszukiwarka

Podobne podstrony:
Samsung SGH E710 service manual
Samsung SGH T500 service manual
Samsung SGH A408 service manual
Samsung SGH Q208 service manual
Samsung SGH N288 service manual
Samsung SGH A288 service manual
Samsung SGH S341i service manual
Samsung SGH E715 service manual
Samsung SGH X120 service manual
Samsung SGH Q100 service manual
Samsung SGH 2400 service manual
Samsung SGH N200 service manual
Samsung SGH R220E service manual
Samsung SGH Q105 service manual
Samsung SGH D410 service manual
Samsung SGH A200 service manual
Samsung SGH R220 service manual

więcej podobnych podstron
