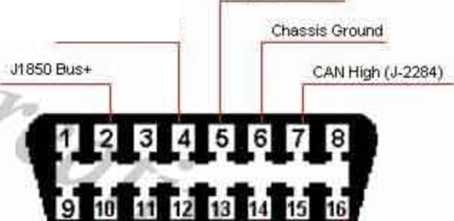

schemat złącza diagnostycznego Mazdab6 GF

Chassis Ground

Signal Ground

Piny w EIM327

J1850 Bus			Battery Power
	CAN Lcrw (J-2284)		ISO 9141-2L Linę

Protocol	Coiutector Pius Used
31850 VPW	2, 4, 5, and 16, but not 10
ISO 9141-2	4, 5, 7,15 and 16
31850 PWM	2, 4, 5,10 and 16
KWP2000 (ISO 14230)	4,5,7,15 and 16
CAN (Controller Area NetWork)	4,5,6,14 and 16
