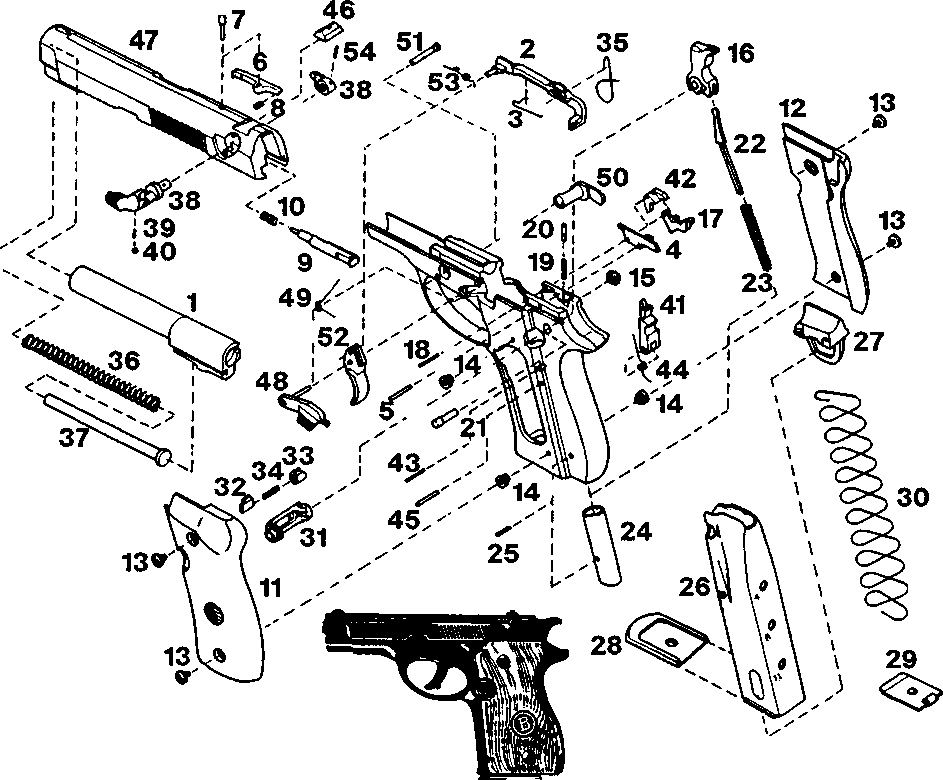

28 |
Magazine Floorplate | ||
29 |
Magazine Floorplate Retainer | ||
1 |
Barrel |
30 |
Magazine Spring |
2 |
Disconnector |
31 |
Magazine Latch |
3 |
Disconnector Spring |
32 |
Magazine Latch Retainer, Left |
4 |
Ejector |
33 |
Magazine Latch Retainer, Right |
5 |
Ejector Pin |
34 |
Magazine Latch Retainer Spring |
6 |
Extractor |
35 |
Magazine Safety Spring |
7 |
Extractor Pin |
36 |
Recoil Spring |
8 |
Extractor Spring |
37 |
Recoil Spring Guide |
9 |
Firing Pin |
38 |
Safety Assembly |
10 |
Firing Pin Spring |
39 |
Safety Spring |
11 |
Grip Platę, Left |
40 |
Safety Spring Bali |
12 |
Grip Platę, Right |
41 |
Sear |
13 |
Grip Platę Screw |
42 |
Sear Disconnector |
14 |
Grip Platę Bushing |
43 |
Sear Pin |
15 |
Grip Platę Bushing and Spring |
44 |
Sear Spring |
Return |
45 |
Sear Spring Pin | |
16 |
Hammer |
46 |
Sight, Rear |
17 |
Hammer Disconnector |
47 |
Slide |
18 |
Hammer Disconnector Pin |
48 |
Slide Stop |
19 |
Hammer Disconnector Spring |
49 |
Slide Stop Spring |
20 |
Hammer Disconnector Spring |
50 |
Takedown Lever |
Plunger |
51 |
Takedown Lever Stop | |
21 |
Hammer Pin |
52 |
Trigger |
22 |
Hammer Strut |
53 |
Trigger Spring |
23 |
Mainspring |
54 |
Safety Assembly Pin |
24 |
Mainspring Guide | ||
25 |
Mainspring Pin |
Parts Not Shown | |
26 |
Magazine Body |
Grip Platę Medallion | |
27 |
Magazine Follower |
