montadoÞ las sujeccionesÞ suspension trasera

montadoÞ las sujeccionesÞ suspension trasera

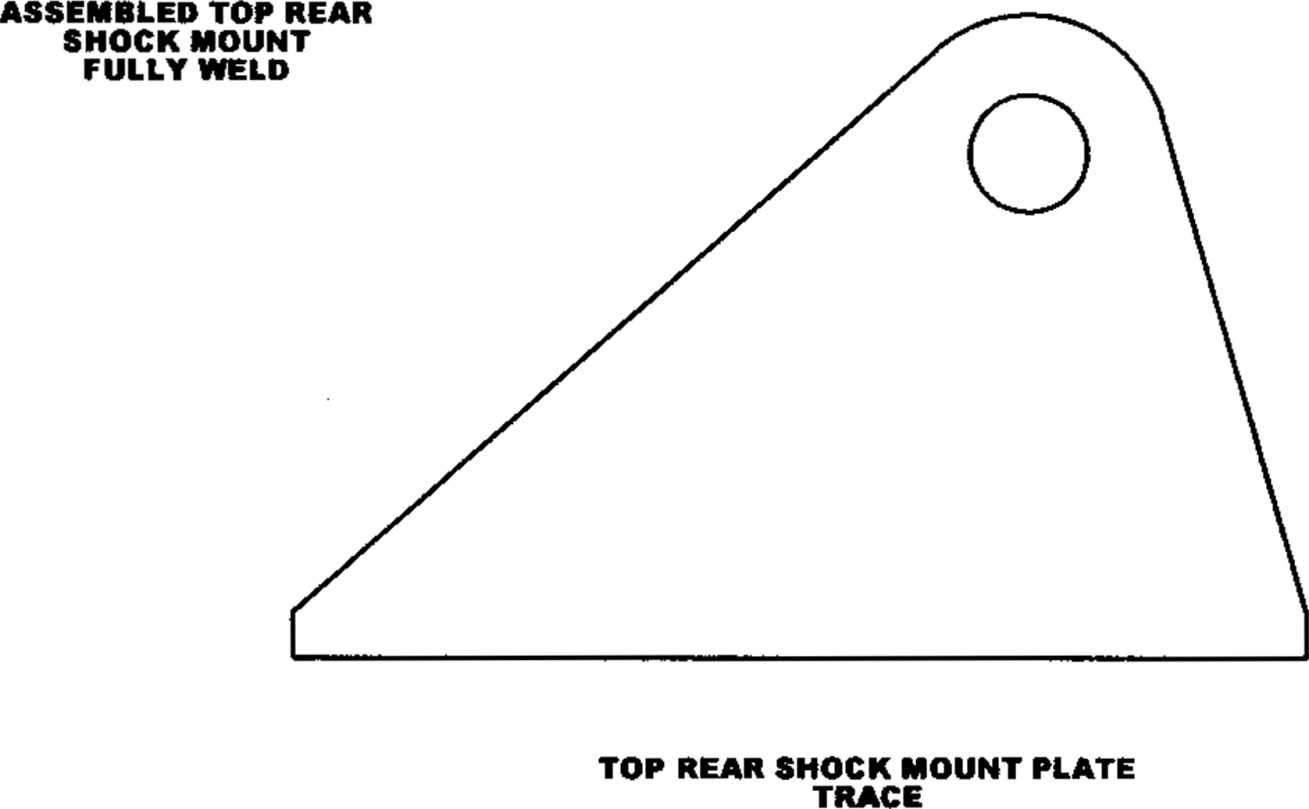

TOP REAR SHOCK MOUNT PLATĘ

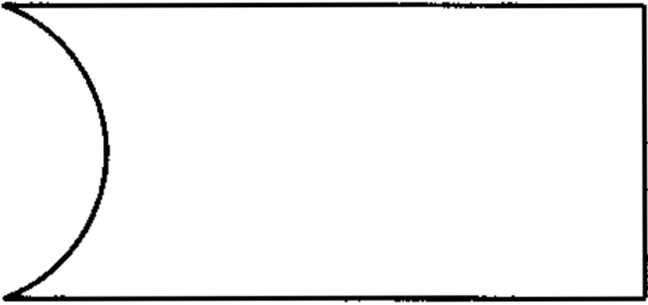

TOP REAR SHOCK MOUNT SPACER TRACĘ 2 REOUIRED

3D VIEW

4 REOUIRED


NOTĘ; THESE TWO DRAWINGS CAN BE USED AS A TRACĘ TO MAKE THE TOP REAR SHOCK MOUNT PLATES
