Audi A3 (974)3) 1,8 Turbo 19964)3 Engine codę: AGU

Impoitant notę Replacement lnteiv.il Guide Check Foi Engine D.im.ige Repaii Times - his Special Tools Special Precautions Removal

Installation

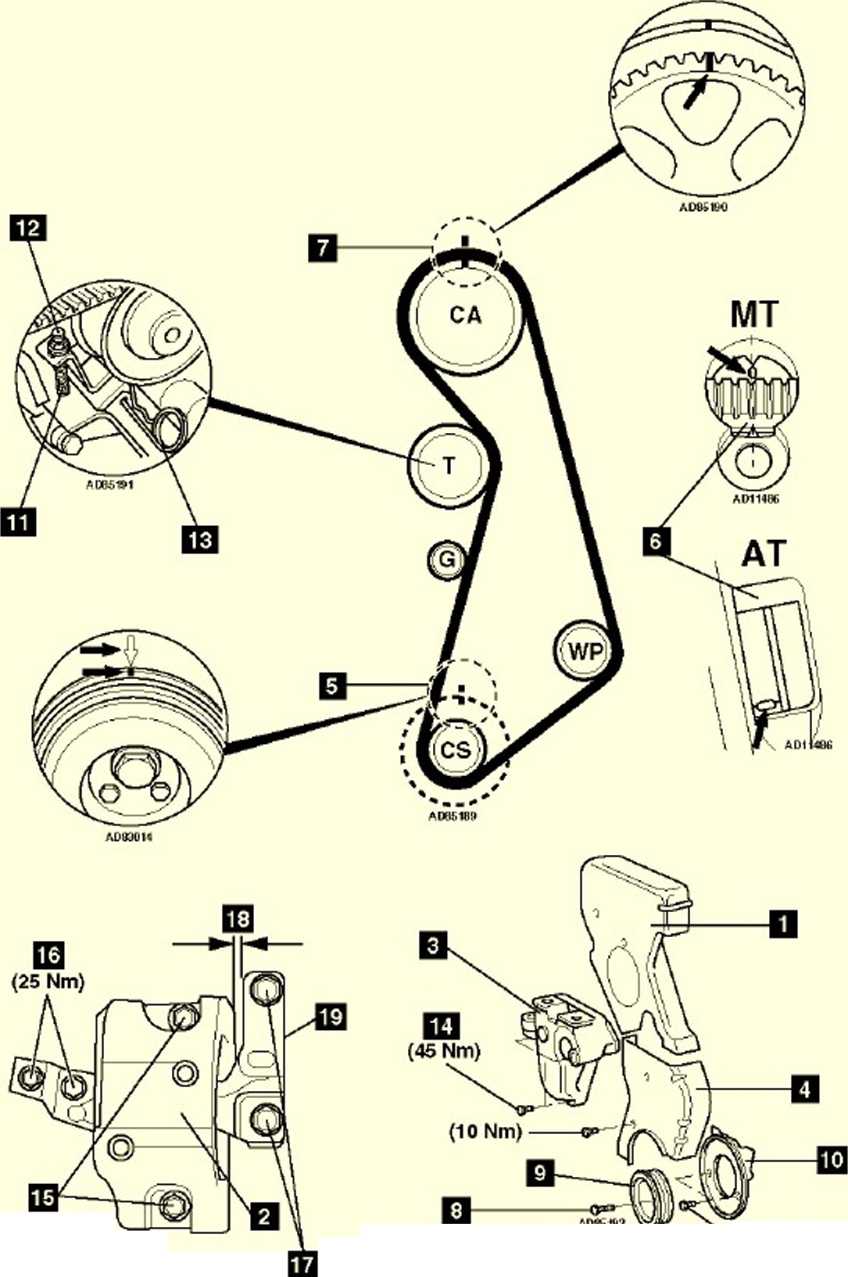

“T tnsure timing marKs angnea [bj & [/j.

2.    Fit timing belt in following order:

o Crankshaft sprocket. o Water pump sprocket. o Tensioner pulley. o Camshaft sprocket.

NOTĘ: Ensure belt is taut between sprockets on non-tensioned side.

3.    Remove locking pin (13).

4.    Remove nut, washer and stud (11 ] & (12).

5.    Tum crankshaft two turns clockwise.

6.    Ensure timing marks aligned (6) & (7).

7.    Install:

o Timing belt lower cover (10). o Crankshaft pulley (9). o Crankshaft pulley bolts (8). o Timing belt centre cover (4). o Engine mounting bracket (3).

8.    Tighten crankshaft pulley bolts (8). Tightening torque:

o 8.8 = 10 Nm + 90° Use new bolts. o 10.9 = 40 Nm.

9.    Tighten engine mounting bracket bolts (14). Tightening torque: 45 Nm.

10.    Fit and align RH engine mounting (2).

o Engine mounting clearance: 13 mm (18).

o Ensure engine mounting bolts (17) aligned with edge of mounting (19).

11.    Tighten:

o Engine mounting bolts (15). Tightening torque: 40 Nm + 90°. Use new bolts. o Engine mounting bolts (16). Tightening torque: 25 Nm. o Engine mounting bolts (17). Tightening torque: 60 Nm +900.

12_Install r rirnnnnpnt'-: in rPnPr^P nrdpr nf rpmnwal __

(40 Nm + 90°)

Att*3367

(8.8 =10 Nm + 90°) (10.9= 40 Nm)

(10 Nm)

AD18289

(60 Nm + 90°)
