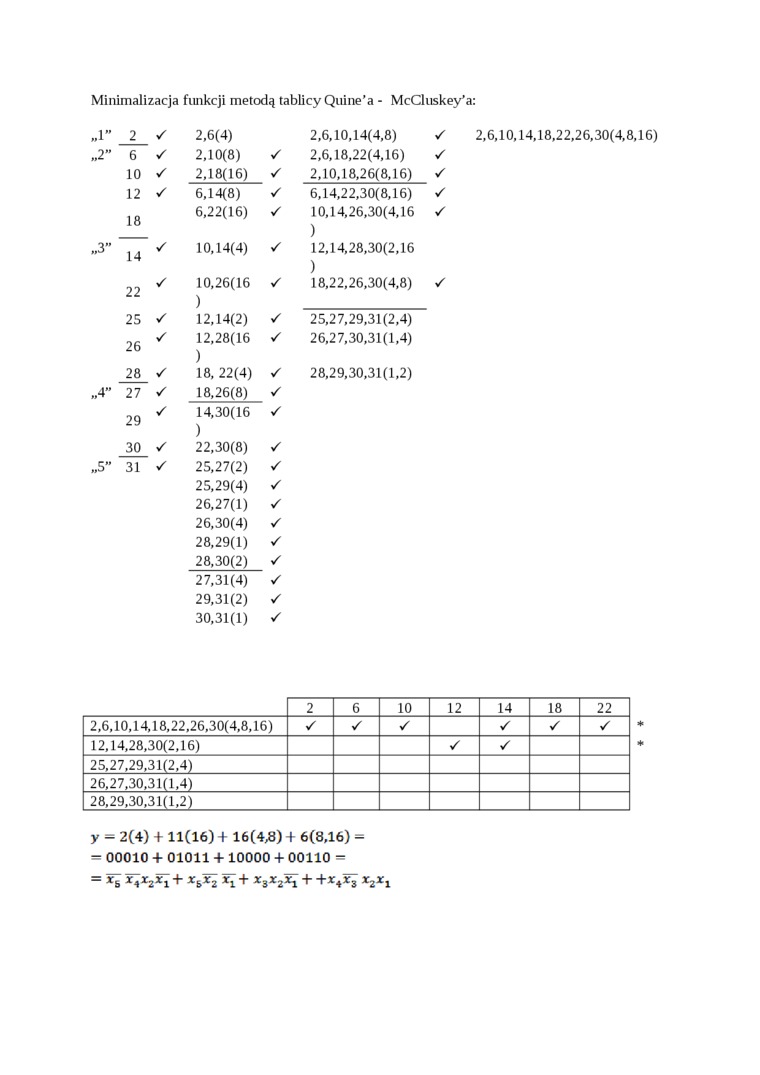

Minimalizacja funkcji metodą tablicy Quine’ a - McCluskey’a:

„1"	2	✓	2,6(4)		2,6,10,14(4,8)
„2”	6	✓	2,10(8)	✓	2,6,18,22(4,16)	✓
	10	✓	2,18(16)		2,10,18,26(8,16)	✓
	12	✓	6,14(8)	✓	6,14,22,30(8,16)	✓
	18		6,22(16)	✓	10,14,26,30(4,16 ) 12,14,28,30(2,16 )	✓
„3"	14	✓	10,14(4)	✓
	22	✓	10,26(16 )	✓	18,22,26,30(4,8)	✓
	25	✓	12,14(2)	✓	25,27,29,31(2,4)
	26	✓	12,28(16 ) 18, 22(4)	✓	26,27,30,31(1,4)
	28			✓	28,29,30,31(1,2)
„4"	27	✓	18,26(8)	✓
	29	✓	14,30(16 ) 22,30(8)	✓
	30	✓		✓
„5"	31	✓	25,27(2)	✓
			25,29(4)	✓
			26,27(1)	V
			26,30(4)	✓
			28,29(1)	✓
			28,30(2)	✓
			27,31(4)	✓
			29,31(2)	V
			30,31(1)	✓

2,6,10,14,18,22,26,30(4,8,16)

	2	6	10	12	14	18	22
2,6,10,14,18,22,26,30(4,8,16)	✓	✓	V		V	✓	✓
12,14,28,30(2,16)				✓	s
25,27,29,31(2,4)
26,27,30,31(1,4)
28,29,30,31(1,2)

y = 2(4) + 11(16) + 16(4,8) + 6(8,16) =

= 00010 + 01011 + 10000 + 00110 =

= *i    + *5*2 *1 + *3*2*1 + +*ł*3 *2*1
