1. Application

Electromagnetic multi-voltage (230V or 240V) ballast for SON (-T),(Plus)/(Comfort) and
MHN/W 250W lamps. The ballast can be used together with an ignitor SK578/SKD578. The
ballast has to be used into a luminairs. How to connect the parts see circuit below.

La(mp)230

L

L(ine)240

L(ine)240

L(ine)240

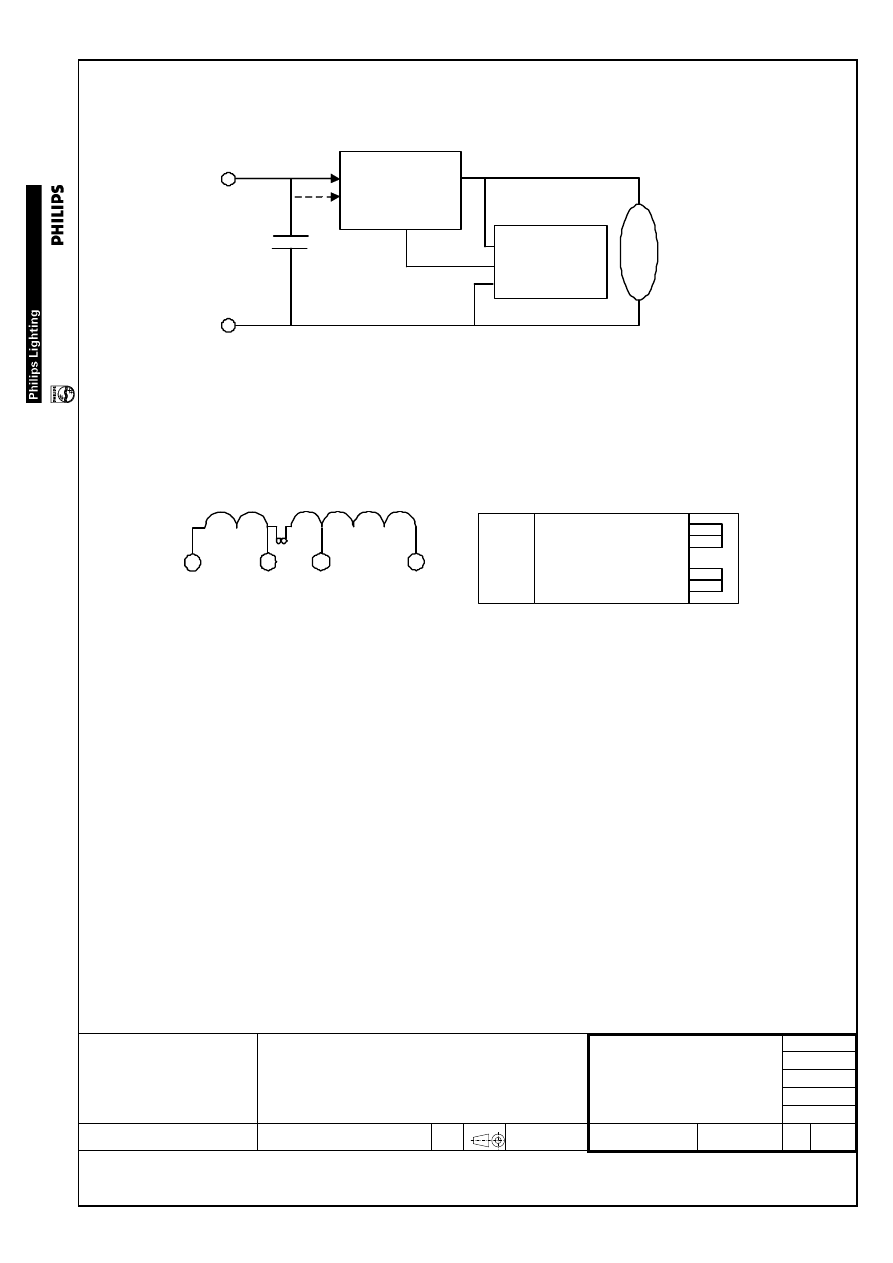

Electrical semi parallel circuit

Ignitor SK578

La(mp)

I(gnitor)

N(eutral)

Ballast

L(ine)240V
L(ine)230V

I(gnitor)

Lamp

Line

Neutral

Comp Cap

La(mp)
30V

2. Description ballast

Basic multi-voltage ballast with thermoswitch, mk4 EI75, stack height 90mm, 4 connector
terminals. Manufacturing process by HID-mechanization

3. General

General and safety requirement are according IEC 61347
Performance requirement are according IEC 60923.

3.1 Functional properties

All properties at t ambient =25º C ± 2 unless stated otherwise.

Ts

I(gnitor)

L(ine)240V

L(ine)230V

La(mp)

L(ine)240V L(ine)230V I(gnitor) La(mp)

Electrical circu it d ia gram b allast Topvie w electrical con nections balla st

Ballast

3.2. Electrical

3.2.1. Mains voltage area

Performance: 230V, (-8%, + 6%)

of the total circuit

Safety: 230V, ( -10%,+ 10%)

3.2.2. Mains frequency

50Hz

3.2.3. Current setting

Between terminals: “La(mp) 230/240V” and L(ine) I = 3.00A ± 6%
at U

La-L

= 192/202V 50Hz

3.2.4. Choke impedance

64.0/67.3 Ohm at U

La-L

= 192/202V 50Hz

3.2.5. Watt losses

typical 27,7/28,4W, at T

ambient

=20

o

C, U

La-L

= 192/202V 50Hz

3.2.6. Choke resistance

1.62/1.67 Ohm at U

La-L

= 192/202V 50Hz

3.2.7 Power factor

250W typical 0.4

3.2.8 Compensating cap

For PF=0.85 capacitor is 32 µF

for PF = 0.85

3.2.9. Mains current

250W 230/240V system. Input current without PF-correction I = 3A . Input current with PF-
correction I = 1.4A

SUPERSEDES:

2009-05-22

Technical Specification

BSN 250 K407 ITS 230/240V

50Hz BC2-160

9137 002 xxx00

NAME: Mariusz Puszko

DOC. ORIGIN DATE: 2009-05-22

UNIT

MM

SHEETS: 3

SHEET 190 - 2

LANGUAGE: 10

A4

MACHINE & PRODUCT DOCUMENTATION LIGHTING GBU-MAGNETICS

©

K

O

N

IN

K

L

IJ

K

E

P

H

IL

IP

S

E

L

E

C

T

R

O

N

IC

S

N

.V

.

A

ll

ri

g

h

ts

a

re

r

e

s

e

rv

e

d

.

R

e

p

ro

d

u

c

ti

o

n

i

n

w

h

o

le

o

r

in

p

a

rt

i

s

p

ro

h

ib

it

e

d

w

it

h

o

u

t

th

e

w

ri

tt

e

n

c

o

n

s

e

n

t

o

f

th

e

c

o

p

y

ri

g

h

t

o

w

n

e

r.

PROJ.

EUROP.

3.2.10 Insulation resistance ≥ 5 MOhm

3.2.11 Thermal switch

Thermoswitch incorporated switch-off temperature 145 deg C.

3.2.12 Peak voltage

>

3500V for SON(-T Plus); 3500V for MH; <5000V

3.2.13 Ignitor

SK578/SKD578

3.2.14 Max cable length

C=2nF (20m) - SK578
C=20nF (200m) - SKD578

3.3. Factory test

Connect between the terminals “L(ine)240V” and “La(mp)” a voltage of 202V 50Hz
Measure: I ballast = 2.820 – 3.180A ( 3.00A ± 6% ).
Between the terminals “La(mp) and I(gnitor)” a voltage

of 162V±2V

Connect between terminals “L(ine)240V” and “La(mp)” a voltage of 254.4V 50Hz
Measure: I ballast < 5.40A
High voltage test: Between all the terminals and housing
1 minute 3000V 50Hz or 2 sec 3000V 3 KHz

3.4. Mechanical properties

3.4.1. Dimensions ballast

Length x width x height = 160 x 76 x 65mm. Pitch width mounting screws = 139mm.
Stack height = 90 mm. Distance front edge bottom plate to laminated steel core 40mm.

Fixing hole diameter 6.2mm

3.4.2. Bottom plate

Material Steel, Length x width x thickness = 160 x 69.1 x 1.25 mm

3.4.3. Weight

3200 gram

3.4.4. Finishing

Impregnated with a lacquer with exception of the terminal blocks

3.4.5.Terminals

4 screw connectors for wire(s) till 2.5mm² for ballast BSN 250 L407 ITS

3.4.6 Earthing

No separated earth contact needed, earth by mounting

3.4.7 T-storage

-30 ÷ +130 degreeC

3.4.8 T-ambient(min)

-30 degreeC

3.4.9 Strip length

7mm

4.0. Life class

Tw = 140

4.1 Delta t

80

degreeC @ U

L(ine)240-La(mp)

= 202V 50Hz

5.0. High voltage test

In accordance to EN61347

6.0. Vibration resistance

In accordance to IEC 68-2-6.

6.1. Shock resistance

In accordance to UND 1400 program 3

7.0. Type plate

No type plate. Marked with black ink printed direct on top of the ballast
according to sheet 114

7.1. Date mark

Date mark according to Philips internal quality specification

SUPERSEDES:

2009-05-22

Technical Specification

BSN 250 K407 ITS 230/240V

50Hz BC2-160

9137 002 xxx00

NAME: Mariusz Puszko

DOC. ORIGIN DATE: 2009-05-22

UNIT

MM

SHEETS: 3

SHEET 190 - 3

LANGUAGE: 10

A4

MACHINE & PRODUCT DOCUMENTATION LIGHTING GBU-MAGNETICS

©

K

O

N

IN

K

L

IJ

K

E

P

H

IL

IP

S

E

L

E

C

T

R

O

N

IC

S

N

.V

.

A

ll

ri

g

h

ts

a

re

r

e

s

e

rv

e

d

.

R

e

p

ro

d

u

c

ti

o

n

i

n

w

h

o

le

o

r

in

p

a

rt

i

s

p

ro

h

ib

it

e

d

w

it

h

o

u

t

th

e

w

ri

tt

e

n

c

o

n

s

e

n

t

o

f

th

e

c

o

p

y

ri

g

h

t

o

w

n

e

r.

PROJ.

EUROP.

8. 0.Approbation marks

CE, ENEC
