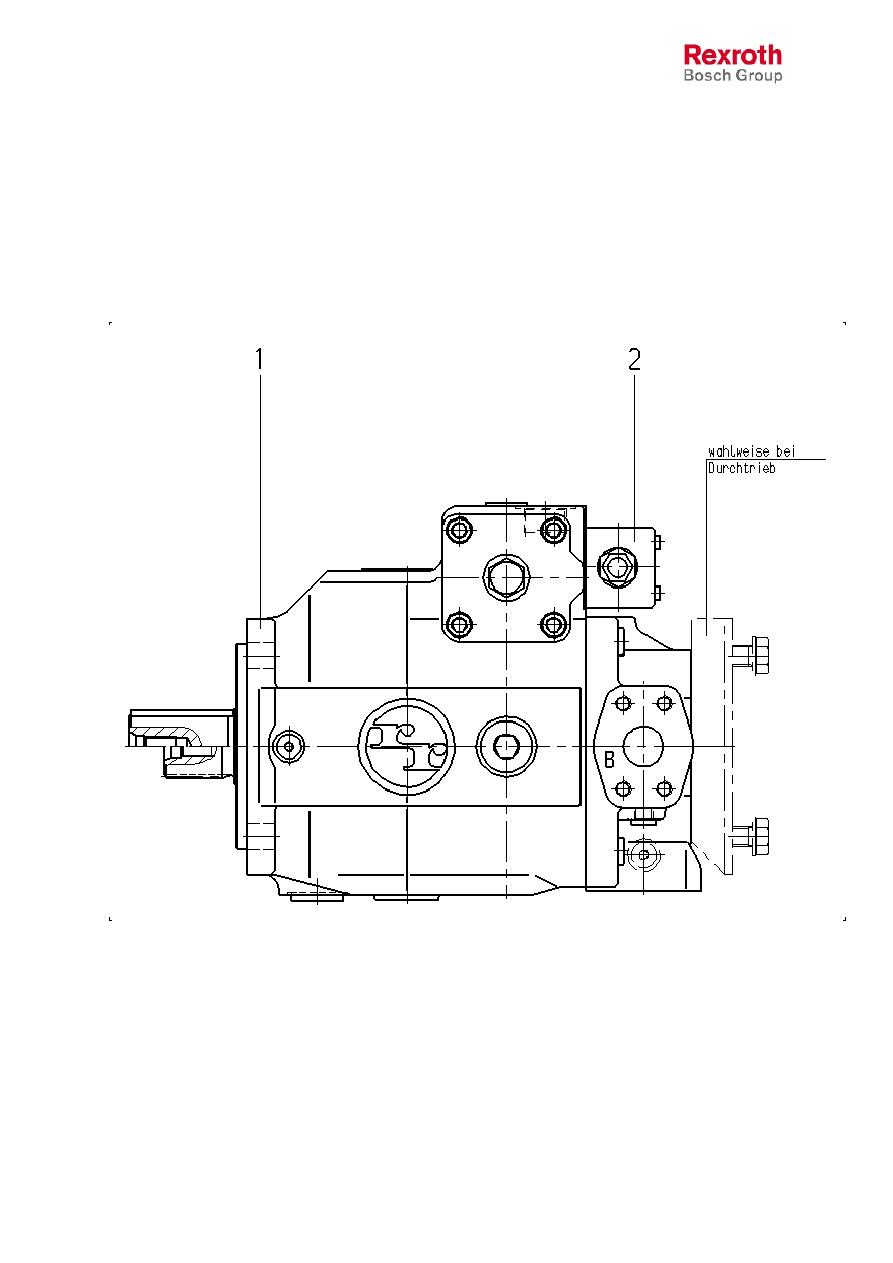

Spare parts list
Part No.: R910934611
Designation: A A4VSO 180 DR /22R-PPB13N00
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R910934612
Pos.
Part No.
Designation
Quantity
Safety Notes:
Service – and repair works have to be carried out by the Bosch Rexroth AG or their repair stations only. We do not grant any
warranty for defects due to assembly, maintenance or repair not effected by the Bosch Rexroth AG or their repair stations.
1
R910934217
1 ST
L
G A4VSO 180 OV /22R-PPB13N00
2
R910934545
1 ST
L
R A4VS 180 DR /20
L = Assembly group D = Sealing element
Page: 1
Date: 19.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Horb, An den Kelterwiesen 14, D-72160 Horb
Spare parts list
Part No.: R910934611
Designation: A A4VSO 180 DR /22R-PPB13N00
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R910934612
L = Assembly group D = Sealing element
Page: 2
Date: 19.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Horb, An den Kelterwiesen 14, D-72160 Horb

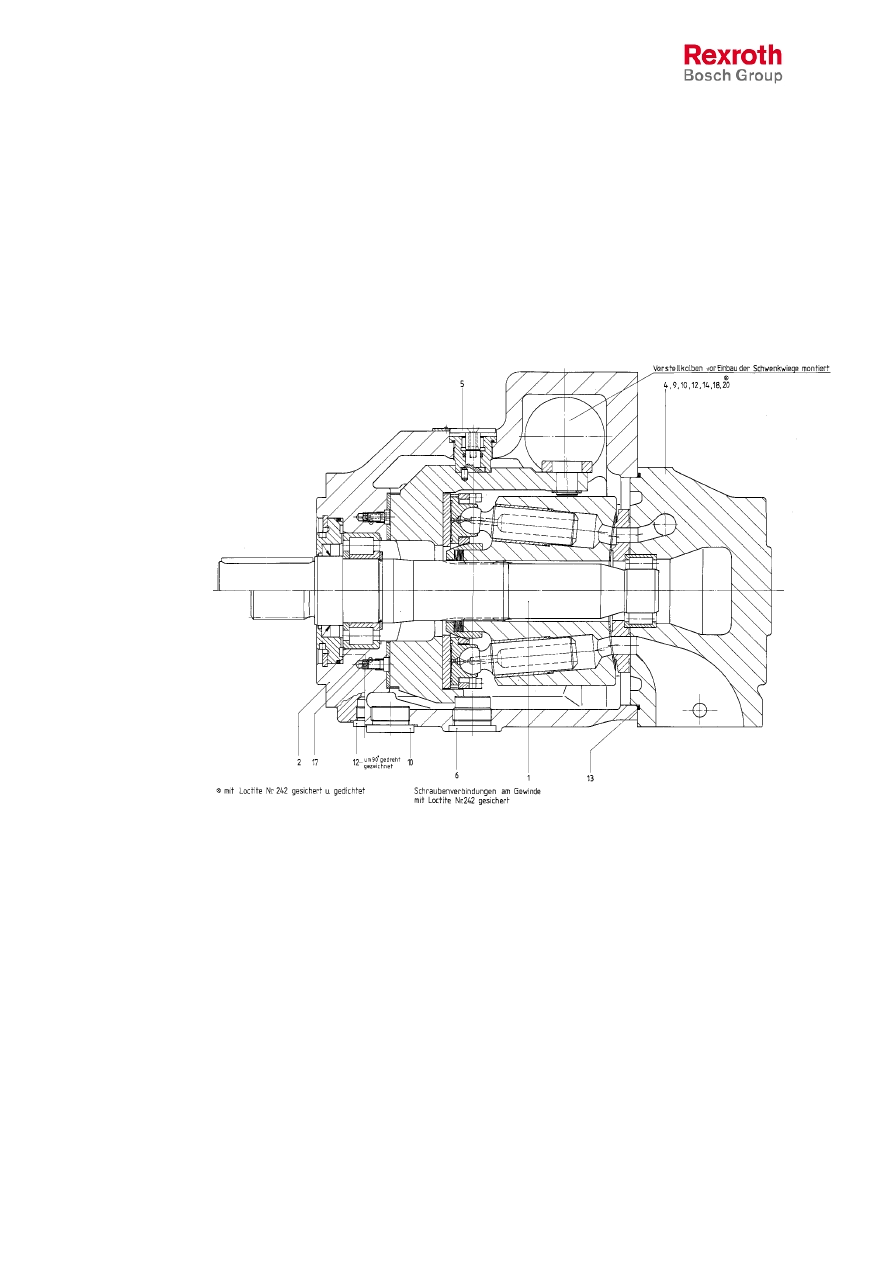

Spare parts list
Part No.: R910934217
Designation: G A4VSO 180 OV /22R-PPB13N00
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R910934225
Pos.
Part No.
Designation
Quantity
1
R910934102
1 ST
L
TW A4VSO 180 /22R-PPBN00
4
R910996953
1 ST
PORT PLATE
5
R910928485
1 ST
L
ANZEIGEVORRICHTUNG
6
R910798355
1 ST
L
THREADED BOLT
9
R910209228
8 ST
SOCKET-HEAD SCREW
10
R910632597
4 ST
D
LOCKING SCREW
12
R910531308
3 ST
D
LOCKING SCREW
13
R910928484
1 ST
D
O-RING
14
R910942134
1 ST
D
KANTSIL DKAR00011' 7,65X1,68' N90 B+S
17
R909831318
2 ST
D
DOUBLE BREAK-OFF PIN
18
R910977645
1 ST
D
PLUG
20
R910922276
1 ST
ORIFICE
L = Assembly group D = Sealing element
Page: 3
Date: 19.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Horb, An den Kelterwiesen 14, D-72160 Horb
Spare parts list
Part No.: R910934217
Designation: G A4VSO 180 OV /22R-PPB13N00
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R910934225
L = Assembly group D = Sealing element
Page: 4
Date: 19.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Horb, An den Kelterwiesen 14, D-72160 Horb

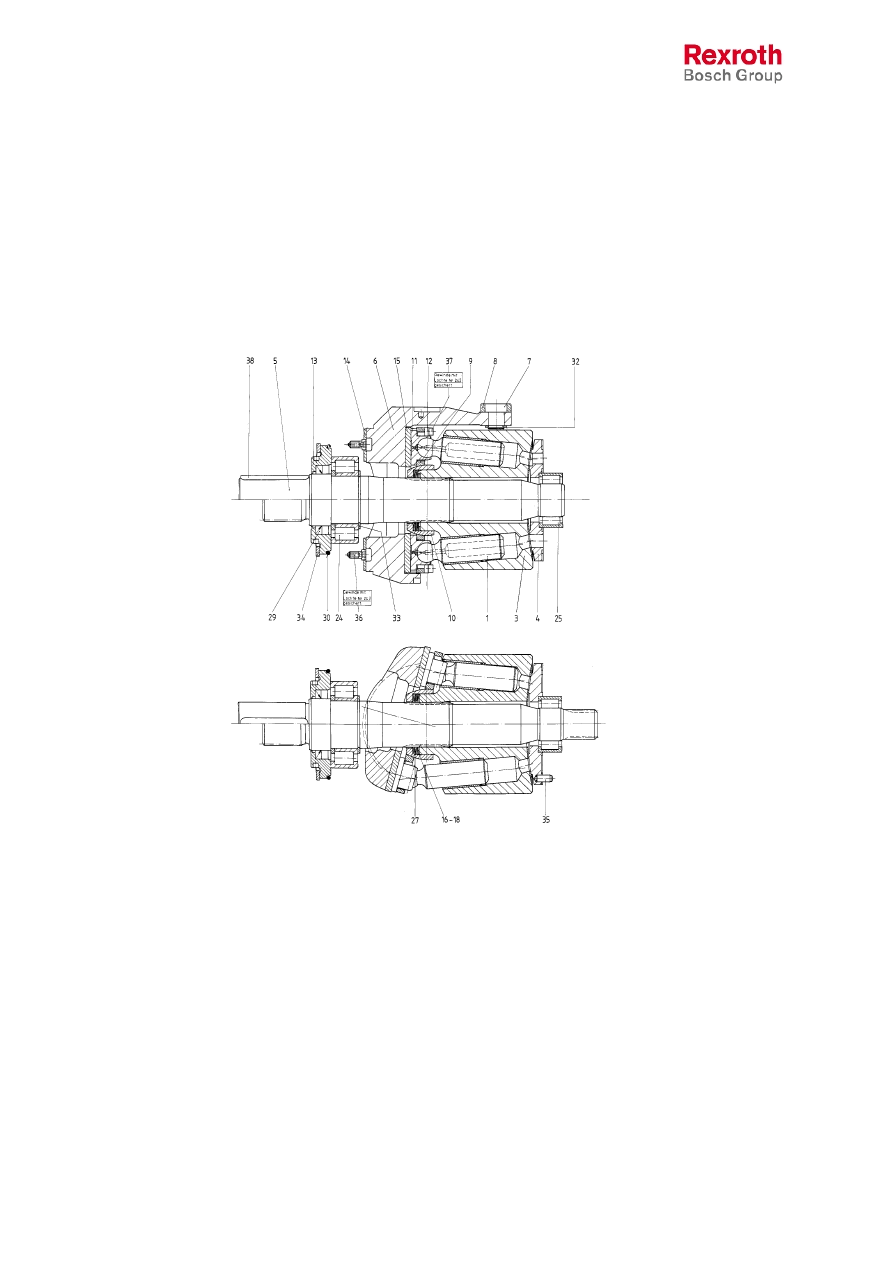

Spare parts list
Part No.: R910934102
Designation: TW A4VSO 180 /22R-PPBN00
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R910934107
Pos.
Part No.
Designation
Quantity
1
R910925455
9 ST
PISTON-SLIPPER PAD
3
R910936279
1 ST
ZYLINDER MIT BUCHSEN A4VS 180/22
4
R910934108
1 ST
CONTROL PLATE
5
R902409014
1 ST
DRIVE SHAFT
6
R910995197
1 ST
SWASHPLATE
7
R910928204
1 ST
MITNEHMERZAPFEN A4VS 180
8
R910923656
1 ST
SLIDE RING
9
R902400681
1 ST
RETAINING PLATE
10
R910928206
1 ST
RUECKZUGKUGEL A4 180/22
11
R910960458
4 ST
DISTANZSEGMENT A4VS 180
12
R910995055
4 ST
SEGMENT
13
R910991719
1 ST
SEAL FLANGE
14
R910946525
2 ST
LAGERSCHALE A4VS180/22/30
15
R910934106
1 ST
SLIPPER DISC
16
R910960168
1 ST
SHIM
17
R902400546
1 ST
SHIM
23
R910949038
1 ST
FIXIERSCHRAUBE A4VSO 125-355
24
R910960738
1 ST
PLAIN ROLLER BEARING
25
R910928220
1 ST
PLAIN ROLLER BEARING
27
R910927019
1 ST
TELLERFEDER-SAEULE
28
R902400750
1 ST
SHIM
29
R910381209
1 ST
D
SHAFT SEAL RING
30
R910112208
1 ST
D
O-RING
31
R902400755
1 ST
BACK-UP RING
32
R910126691
1 ST
RETAINING RING
33
R910991780
1 ST
RETAINING RING
34
R910116025
1 ST
RETAINING RING
35
R902651041
1 ST
CYLINDER PIN
36
R910932882
1 ST
FIXIERSCHRAUBE
37
R902650866
8 ST
SOCKET-HEAD SCREW
38
R910244848
1 ST
SHAFT KEY
39
R910991781
1 ST
RETAINING RING
40
R910991782
1 ST
RETAINING RING
41
R910991784
1 ST
RETAINING RING
43
R910991665
1 ST
RETAINING RING
44
R910991666
1 ST
RETAINING RING
45
R910991667
1 ST
RETAINING RING
46
R910991668
1 ST
RETAINING RING
L = Assembly group D = Sealing element
Page: 5
Date: 19.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Horb, An den Kelterwiesen 14, D-72160 Horb
Spare parts list
Part No.: R910934102
Designation: TW A4VSO 180 /22R-PPBN00
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R910934107
L = Assembly group D = Sealing element
Page: 6
Date: 19.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Horb, An den Kelterwiesen 14, D-72160 Horb

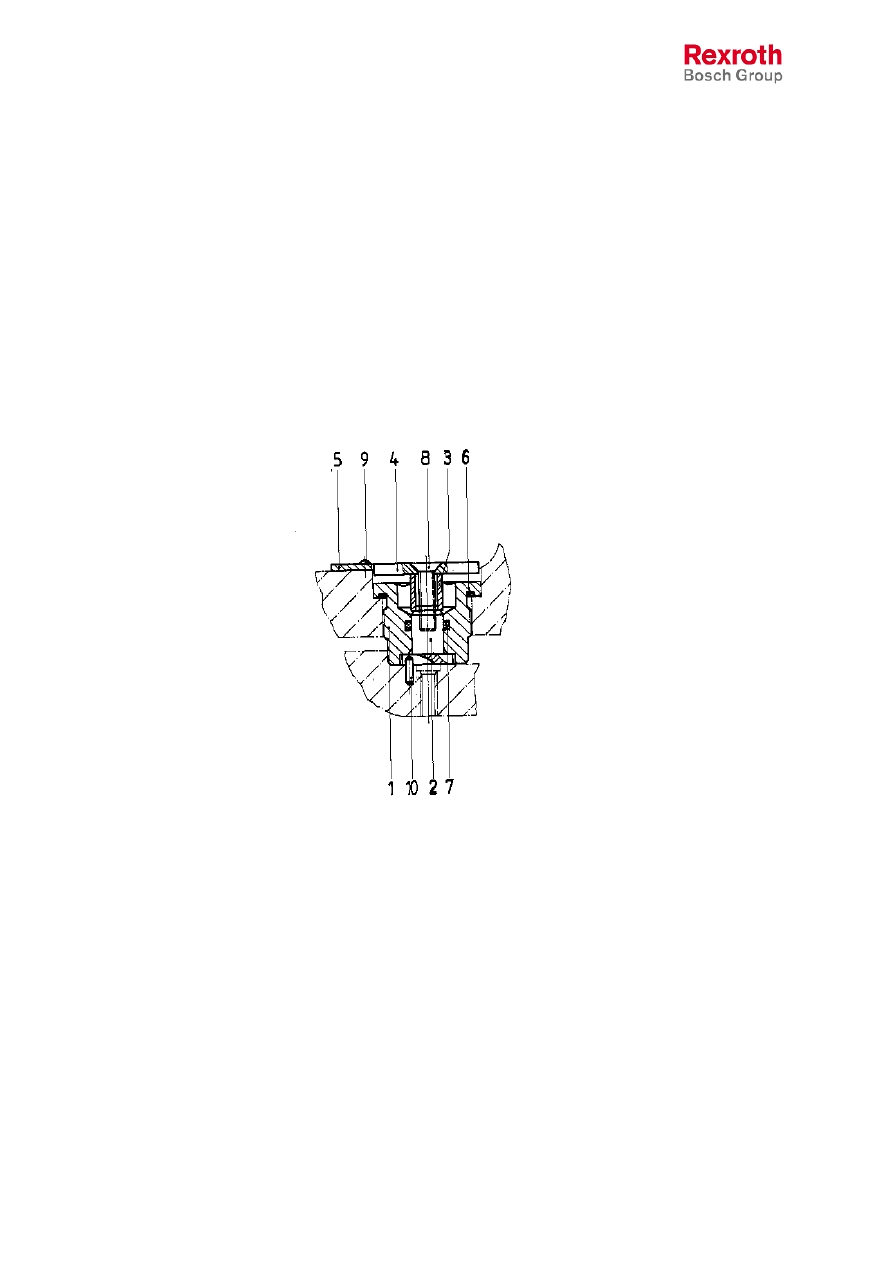

Spare parts list
Part No.: R910928485
Designation: ANZEIGEVORRICHTUNG
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R910798371
Pos.
Part No.
Designation
Quantity
1
R910789534
1 ST
THREADED BOLT
2
R910928465
1 ST
MITNEHMERZAPFEN A4VS 125/180
3
R910798398
1 ST
SPACER PIPE
4
R910765422
1 ST
INDICATOR
5
R910765473
1 ST
PLATE
6
R910744514
1 ST
D
SEAL RING
7
R910929484
1 ST
D
QUAD-RING 4112 -V7002 12,37X 2,62
8
R910797472
1 ST
FLAT HEAD SCREW
9
R910101265
2 ST
ROUND HEAD RIVET
10
R910928490
1 ST
CYLINDER PIN
L = Assembly group D = Sealing element
Page: 7
Date: 19.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Horb, An den Kelterwiesen 14, D-72160 Horb
Spare parts list
Part No.: R910928485
Designation: ANZEIGEVORRICHTUNG
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R910798371
L = Assembly group D = Sealing element
Page: 8
Date: 19.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Horb, An den Kelterwiesen 14, D-72160 Horb

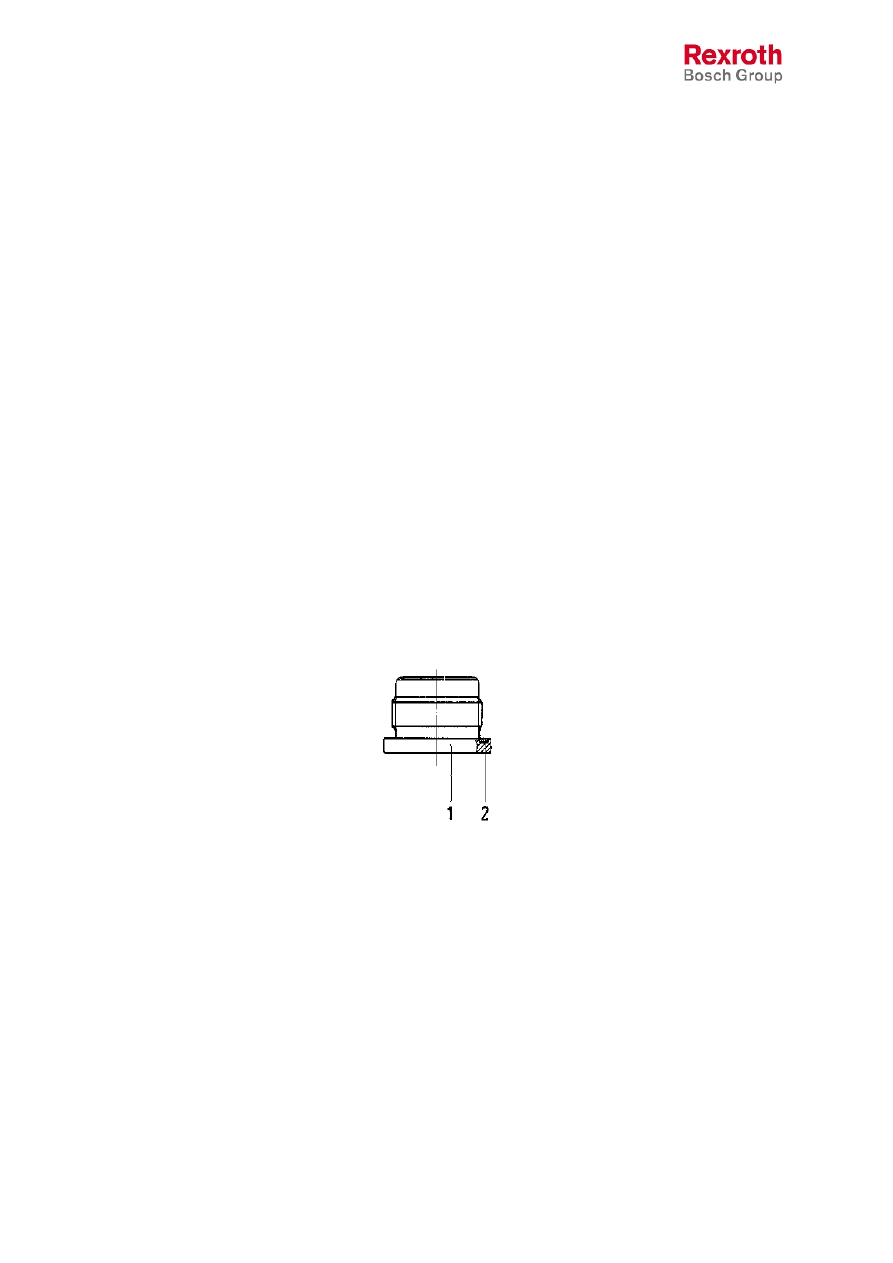

Spare parts list
Part No.: R910798355
Designation: THREADED BOLT
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R910765775
Pos.
Part No.
Designation
Quantity
1
R910789526
1 ST
THREADED BOLT
2
R910744514
1 ST
D
SEAL RING
L = Assembly group D = Sealing element
Page: 9
Date: 19.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Horb, An den Kelterwiesen 14, D-72160 Horb
Spare parts list
Part No.: R910798355
Designation: THREADED BOLT
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R910765775
L = Assembly group D = Sealing element
Page: 10
Date: 19.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Horb, An den Kelterwiesen 14, D-72160 Horb

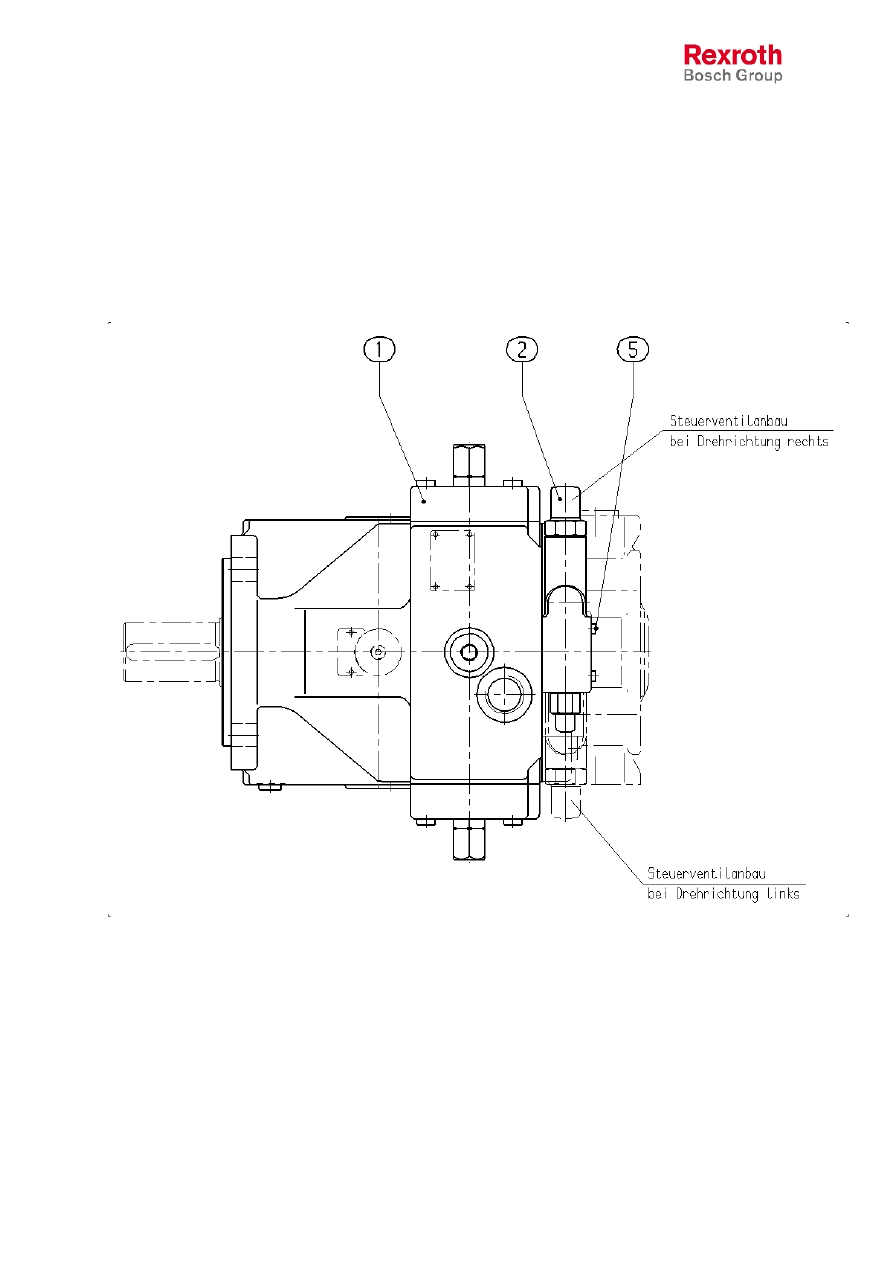

Spare parts list
Part No.: R910934545
Designation: R A4VS 180 DR /20
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R910943833
Pos.
Part No.
Designation
Quantity
1
R910934546
1 ST
L
V A4VS 180 DR /20
2
R910799734
1 ST
L
STEUERVENTIL A4VS DR P
5
R910785105
4 ST
SOCKET-HEAD SCREW
L = Assembly group D = Sealing element
Page: 11
Date: 19.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Horb, An den Kelterwiesen 14, D-72160 Horb
Spare parts list
Part No.: R910934545
Designation: R A4VS 180 DR /20
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R910943833
L = Assembly group D = Sealing element
Page: 12
Date: 19.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Horb, An den Kelterwiesen 14, D-72160 Horb

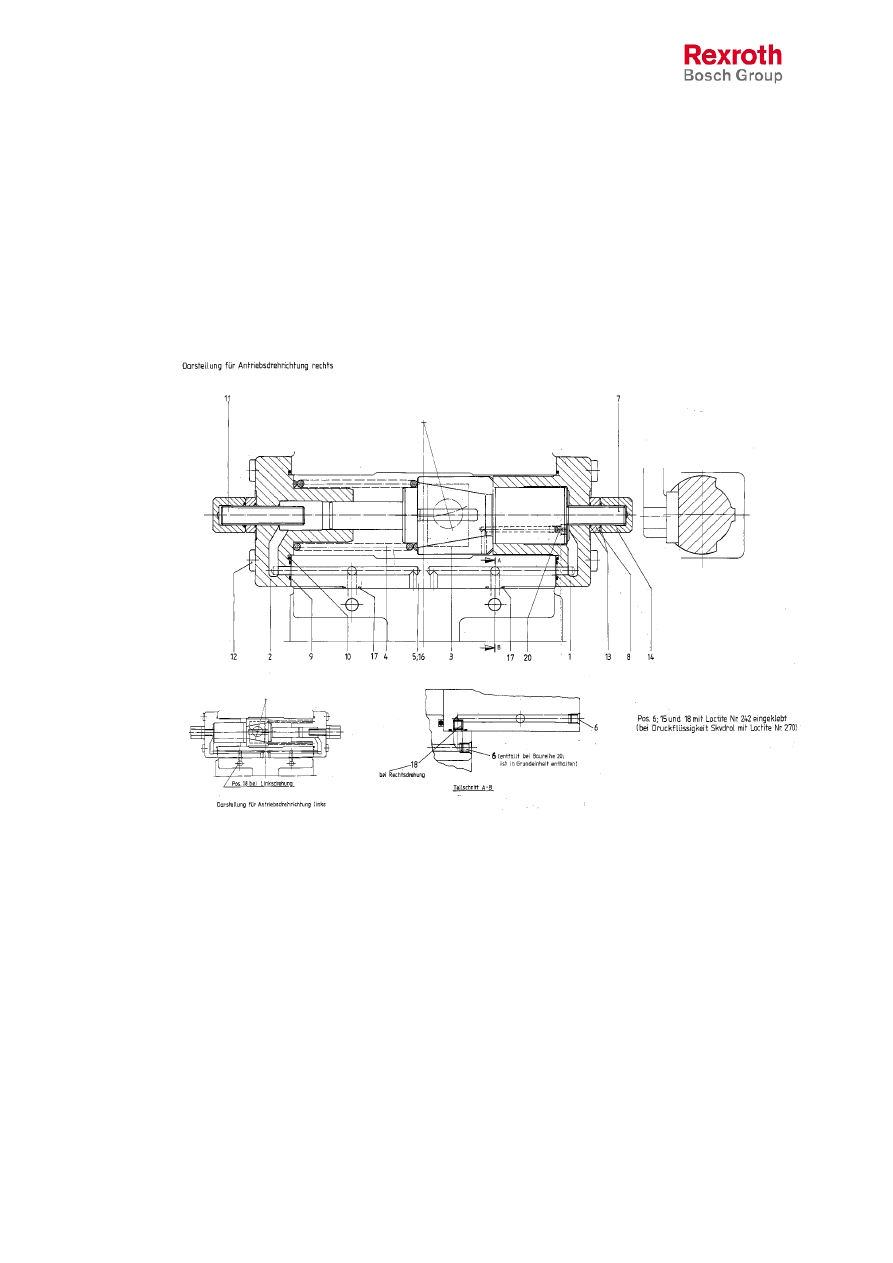

Spare parts list
Part No.: R910934546
Designation: V A4VS 180 DR /20
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R910795917
Pos.
Part No.
Designation
Quantity
1
R910903736
1 ST
PISTON HOUSING
2
R910903728
1 ST
PISTON HOUSING
3
R902407536
1 ST
CONTROL PISTON
4
R910943111
1 ST
SPRING
5
R910934530
1 ST
PUMP HOUSING
6
R910977645
1 ST
D
PLUG
7
R910042617
1 ST
D
GEW.STIFT M 16X1,5X50 -10.9 DIN 913
8
R910903326
2 ST
NUT
9
R910522449
2 ST
D
O-RING
10
R902650321
2 ST
D
KANTSIL DKAR00149' 71,12X2,51 N70 B+S
11
R910925764
1 ST
THREADED PIN
12
R910220264
8 ST
SOCKET-HEAD SCREW
13
R910827916
4 ST
D
O-RING
14
R910903327
2 ST
CAP NUT
16
R910632562
1 ST
D
VERSCHLUSSSCHRAUBE N 02.009-M27X2 P#90NM
17
R910942813
2 ST
D
KANTSIL DKAR00014' 12,42X1,68' N90 B+S
18
R910101001
1 ST
GEW.STIFT M 6X 10 -10.9 DIN 913
20
R910100579
1 ST
ORIFICE
L = Assembly group D = Sealing element
Page: 13
Date: 19.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Horb, An den Kelterwiesen 14, D-72160 Horb
Spare parts list
Part No.: R910934546
Designation: V A4VS 180 DR /20
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R910795917
L = Assembly group D = Sealing element
Page: 14
Date: 19.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Horb, An den Kelterwiesen 14, D-72160 Horb

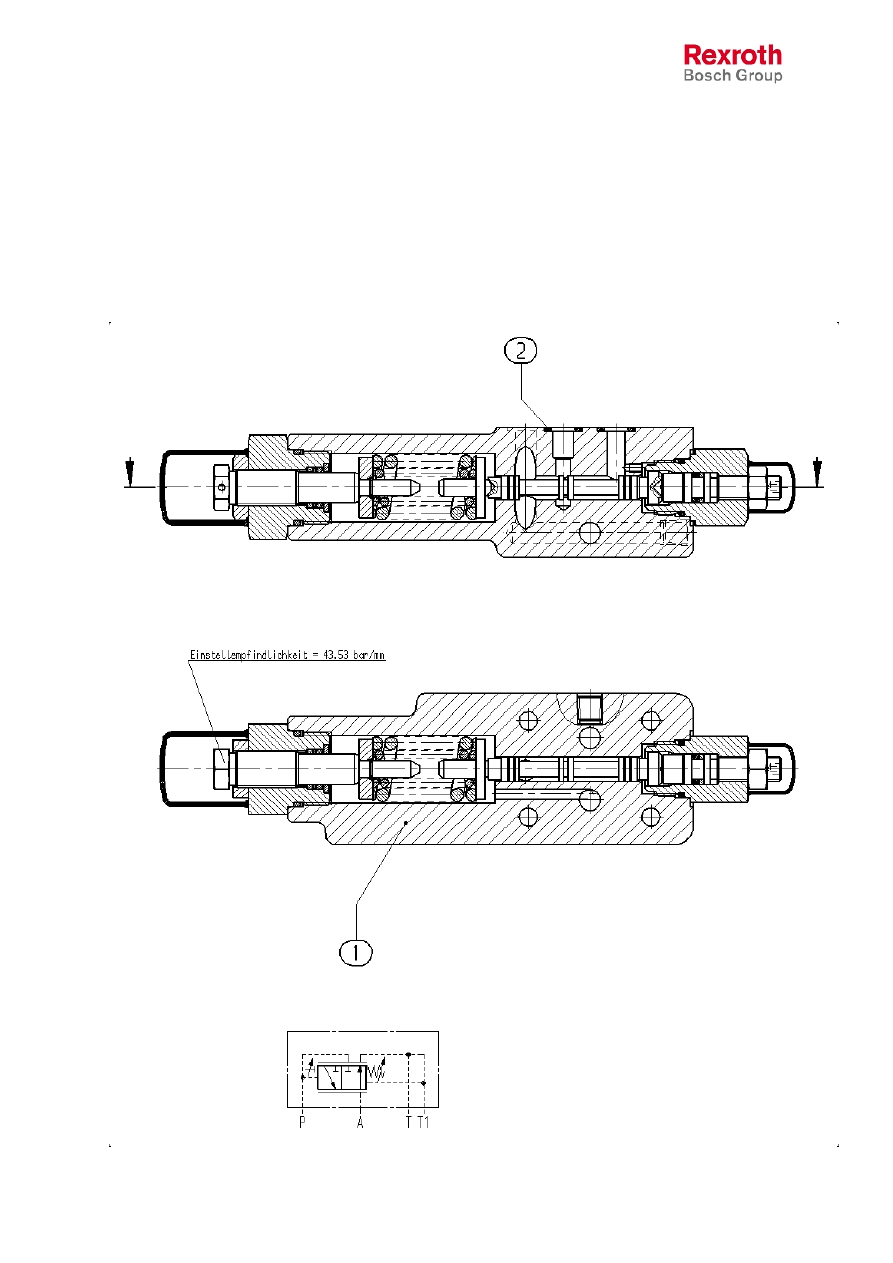

Spare parts list
Part No.: R910799734
Designation: STEUERVENTIL A4VS DR P
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R910799742
Pos.
Part No.
Designation
Quantity
1
R910913109
1 ST
ZVK STEUERV. A4VS DR P
2
R910514543
5 ST
D
O-RING
L = Assembly group D = Sealing element
Page: 15
Date: 19.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Horb, An den Kelterwiesen 14, D-72160 Horb
Spare parts list
Part No.: R910799734
Designation: STEUERVENTIL A4VS DR P
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R910799742
L = Assembly group D = Sealing element
Page: 16
Date: 19.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Horb, An den Kelterwiesen 14, D-72160 Horb
