Cwiczenie 40. Zjawisko fotoelektryczne wewnętrzne. Wyznaczenie charakterystyki fotooporu.																			3

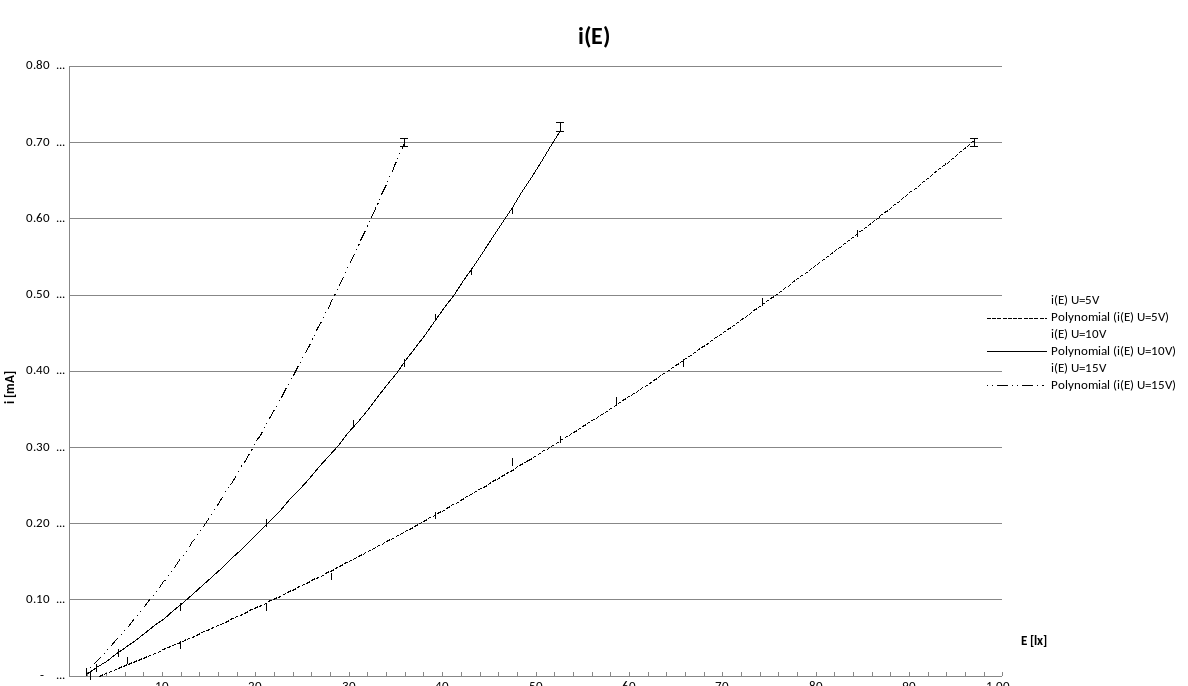

r1=20 cm		r2=25 cm		r3=30 cm		U1=5 V			U2=10 V			U3=15 V

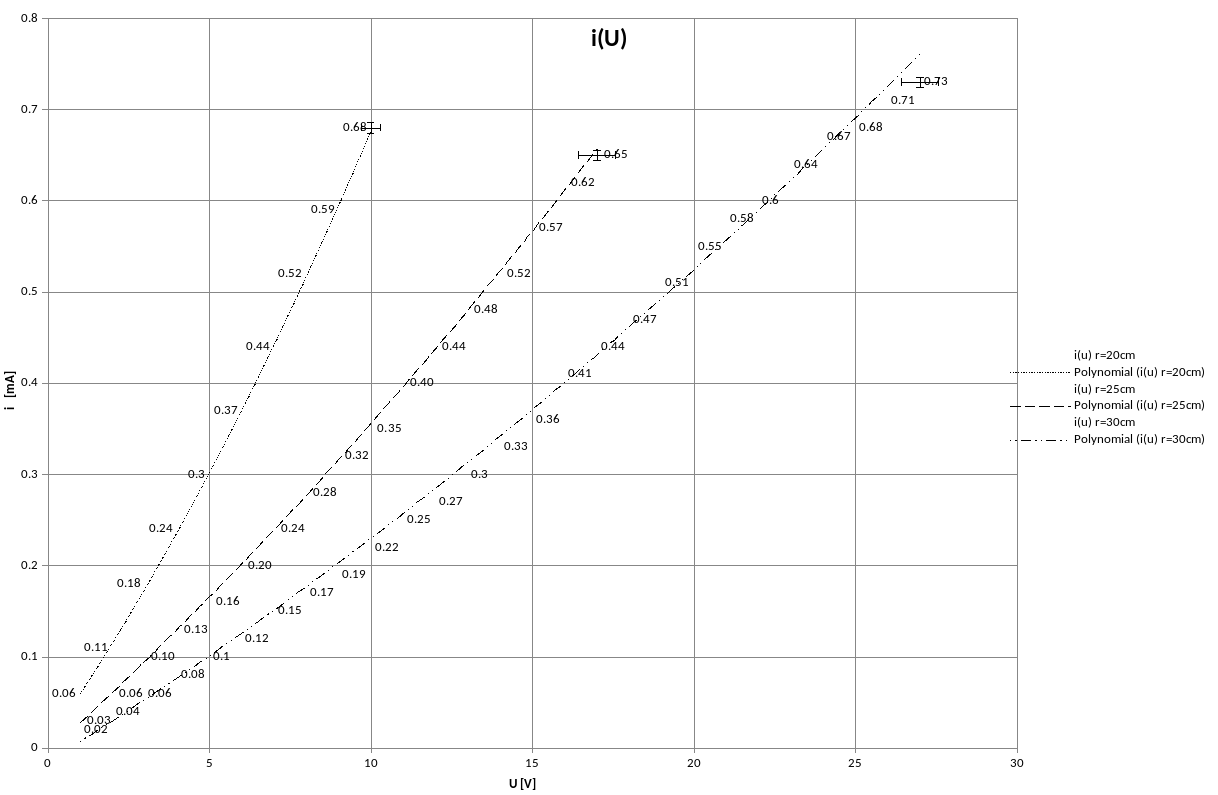

U	i	U	i	U	i	r	i	E	r	i	E	r	i	E							r	niepewności pomiarowe
[V]	[mA]	[V]	[mA]	[V]	[mA]	[m]	[mA]	[lx]	[m]	[mA]	[lx]	[m]	[mA]	[lx]								u(i) [mA]	u(r) [mm]	u(U) [V]
10	0.68	17	0.65	27	0.73	0.14	0.70	969.387755102041	0.19	0.72	526.315789473684	0.23	0.7	359.168241965973							1.	0.00577	0.57735	0.28868
9	0.59	16	0.62	26	0.71	0.15	0.58	844.444444444444	0.2	0.61	475	0.24	0.62	329.861111111111							2.			0.57735
8	0.52	15	0.57	25	0.68	0.16	0.49	742.1875	0.21	0.53	430.839002267574	0.25	0.54	304							3.			0.57735
7	0.44	14	0.52	24	0.67	0.17	0.41	657.439446366782	0.22	0.47	392.561983471074	0.26	0.49	281.065088757396
6	0.37	13	0.48	23	0.64	0.18	0.36	586.41975308642	0.23	0.41	359.168241965973	0.27	0.45	260.631001371742
5	0.3	12	0.44	22	0.6	0.19	0.31	526.315789473684	0.25	0.33	304	0.29	0.37	225.921521997622
4	0.24	11	0.4	21	0.58	0.2	0.28	475	0.3	0.2	211.111111111111	0.31	0.3	197.710718002081
3	0.18	10	0.35	20	0.55	0.22	0.21	392.561983471074	0.4	0.09	118.75	0.38	0.17	131.578947368421
2	0.11	9	0.32	19	0.51	0.26	0.13	281.065088757396	0.6	0.03	52.7777777777778	0.5	0.08	76
1	0.06	8	0.28	18	0.47	0.3	0.09	211.111111111111	0.8	0.01	29.6875	0.6	0.05	52.7777777777778
		7	0.24	17	0.44	0.4	0.04	118.75	1	0.005	19	0.8	0.02	29.6875
		6	0.2	16	0.41	0.55	0.02	62.8099173553719				1	0.01	19
		5	0.16	15	0.36	0.92	0	22.4480151228733
		4	0.13	14	0.33
		3	0.1	13	0.3
		2	0.06	12	0.27					Zadanie 3.
		1	0.03	11	0.25					r	niepewności pomiarowe
				10	0.22						u(i) [mA]	u(r) [mm]	u(U) [V]
				9	0.19					1.	0.00577	0.57735	0.28868
				8	0.17					2.			0.57735
				7	0.15					3.			0.57735
				6	0.12
				5	0.1
				4	0.08
				3	0.06
				2	0.04
				1	0.02

---

Sheet 2: Arkusz2

---

Sheet 3: Arkusz3

---

Sheet 4: Arkusz4

lni

lna

---

Sheet 5: Arkusz5

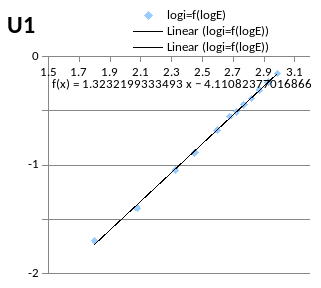

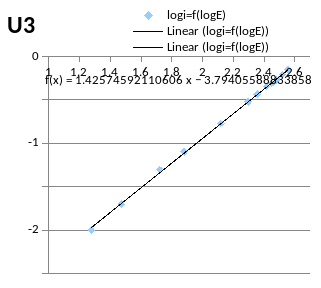

Zadanie 4.
u1		u2		u3
log(10)i	log(10)E	log(10)i	log(10)E	log(10)i	log(10)E
-0.154901959985743	2.98649752959635	-0.142667503568732	2.72124639904717	-0.154901959985743	2.55529792891764
-0.236572006437063	2.92657108284147	-0.214670164989233	2.67669360962487	-0.207608310501746	2.51833111752962
-0.309803919971486	2.87051363564098	-0.275724130399211	2.63431501148499	-0.267606240177031	2.48287358360875
-0.387216143280265	2.81785575819628	-0.327902142064283	2.59390823930842	-0.309803919971486	2.44880690501119
-0.443697499232713	2.76820859074622	-0.387216143280265	2.55529792891764	-0.346787486224656	2.41602607263485
-0.508638306165727	2.72124639904717	-0.481486060122113	2.48287358360875	-0.431798275933005	2.35395760515492
-0.552841968657781	2.67669360962487	-0.698970004336019	2.3245110915135	-0.522878745280338	2.29603021328428
-0.677780705266081	2.59390823930842	-1.04575749056068	2.0746336182969	-0.769551078621726	2.11918640771921
-0.886056647693163	2.44880690501119	-1.52287874528034	1.72245110018554	-1.09691001300806	1.88081359228079
-1.04575749056068	2.3245110915135	-2	1.47257362696894	-1.30102999566398	1.72245110018554
-1.39794000867204	2.0746336182969	-2.30102999566398	1.27875360095283	-1.69897000433602	1.47257362696894
-1.69897000433602	1.79802822196434			-2	1.27875360095283
a=	1.3232	a=	1.4705	a=	1.4257
b=	-4.1108	b=	-4.1346	b=	-3.7941
