Replacement of the fresh-air filter and cleaning of the drainage hose

To remove

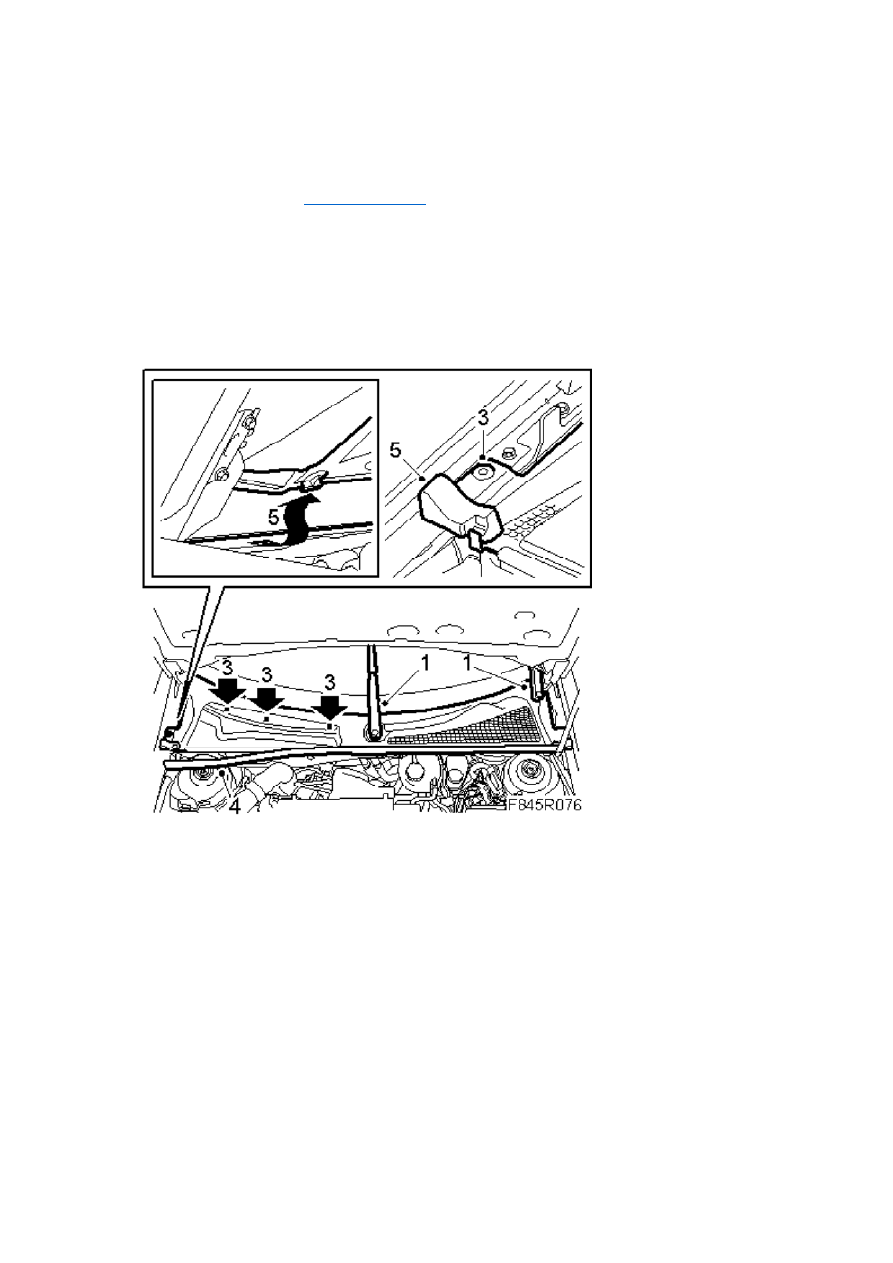

1. Set the wipers in the

service position

.

2. Open the bonnet.

3. Dismantle the cover's right hand clips.

CV: Remove the clip on the corner tab to the windscreen corner.

4. Loosen the rear main seal halfway.

5. Lift off the foam block and lift up the front edge of the cover so that the hook and

clip release on the rear edge. Fold back the corner tab.

6. Fold up the cover halfway.

7.

Cars with water barrier: Remove the water barrier.

8. Body\Heating and ventilatio...

Scheduled service - Replaceme...

9-3 (9440) 8 2008

1

background image

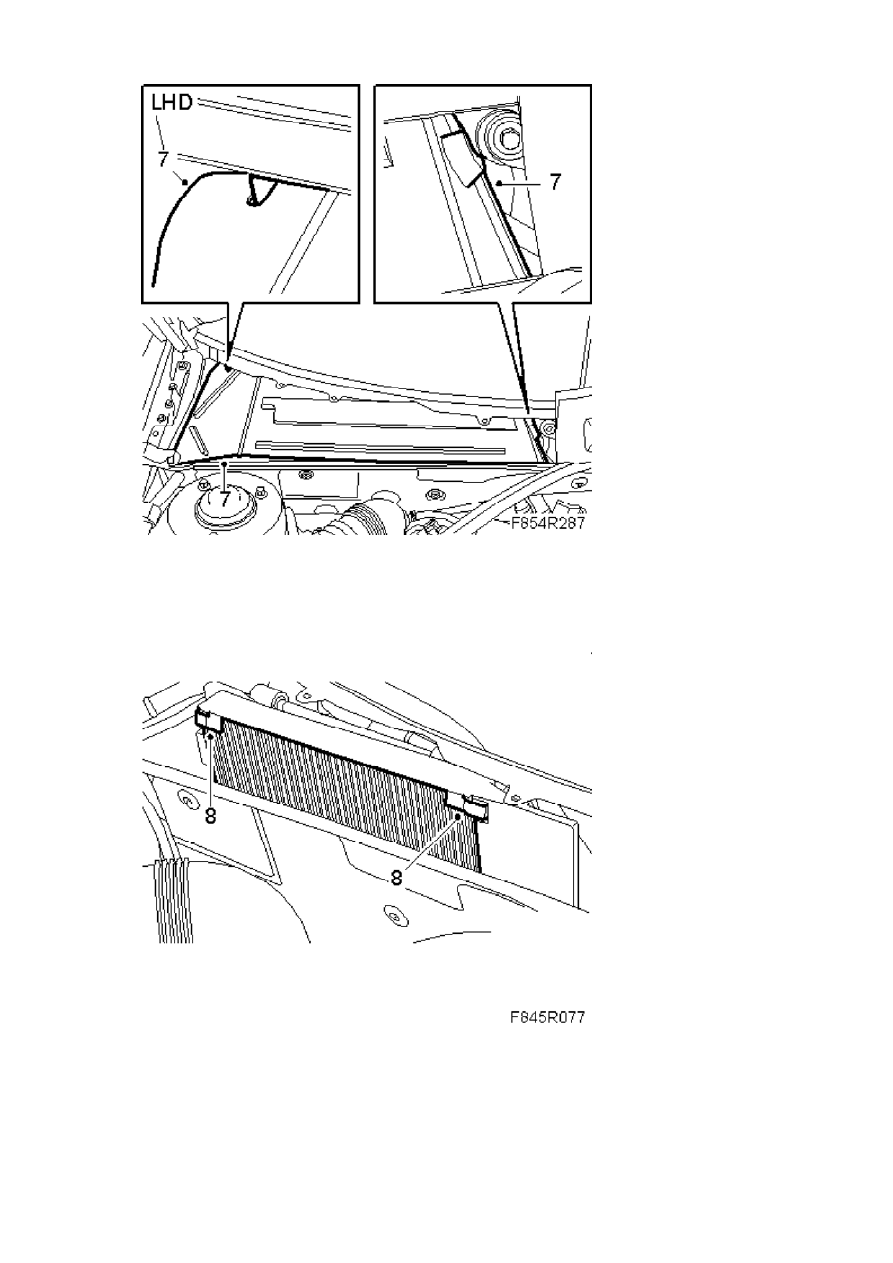

8. Fold up the clips from the filter holder. Lift off the fresh-air filter.

9.

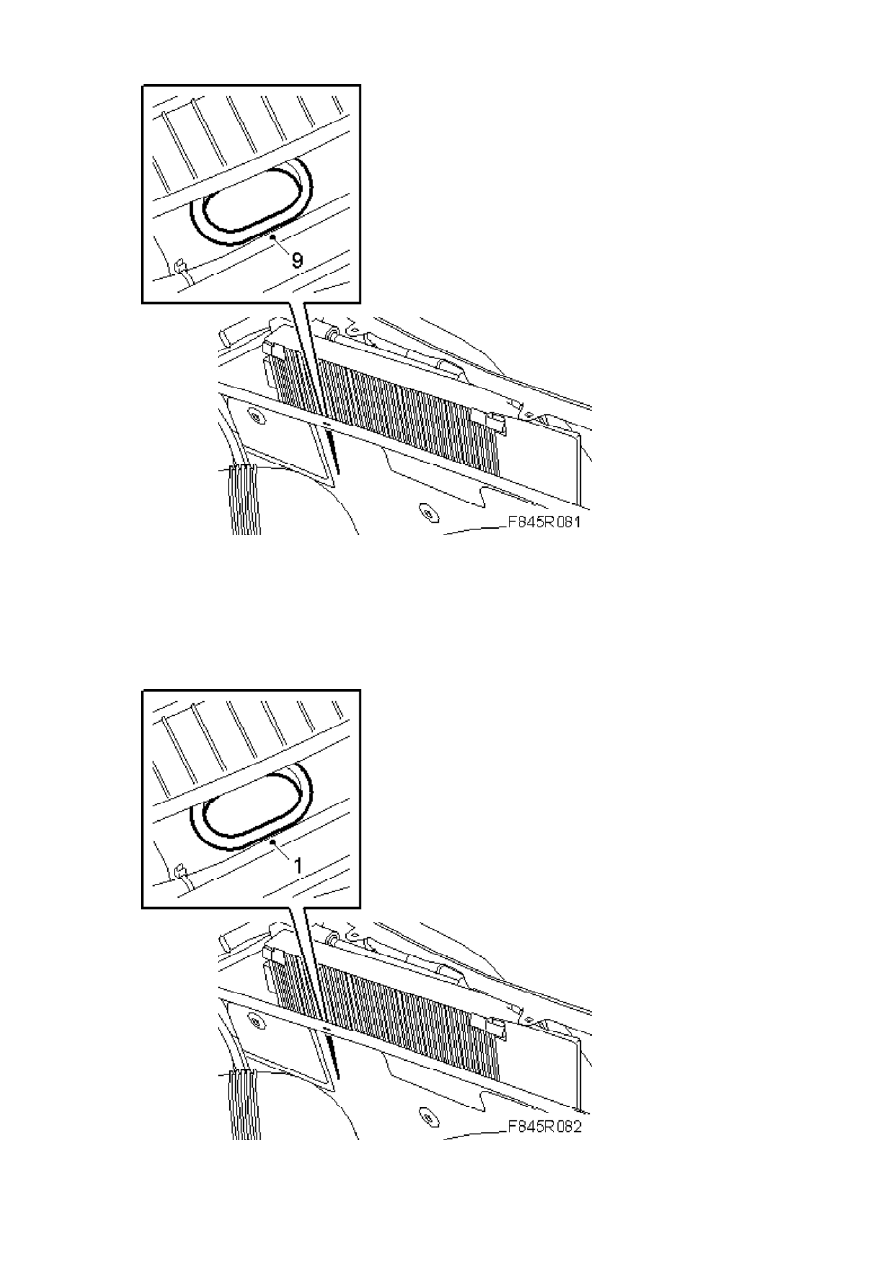

Lift up the drainage hose and clean it.

8. Body\Heating and ventilatio...

Scheduled service - Replaceme...

9-3 (9440) 8 2008

2

background image

To fit

1. Fit the drainage hose.

8. Body\Heating and ventilatio...

Scheduled service - Replaceme...

9-3 (9440) 8 2008

3

background image

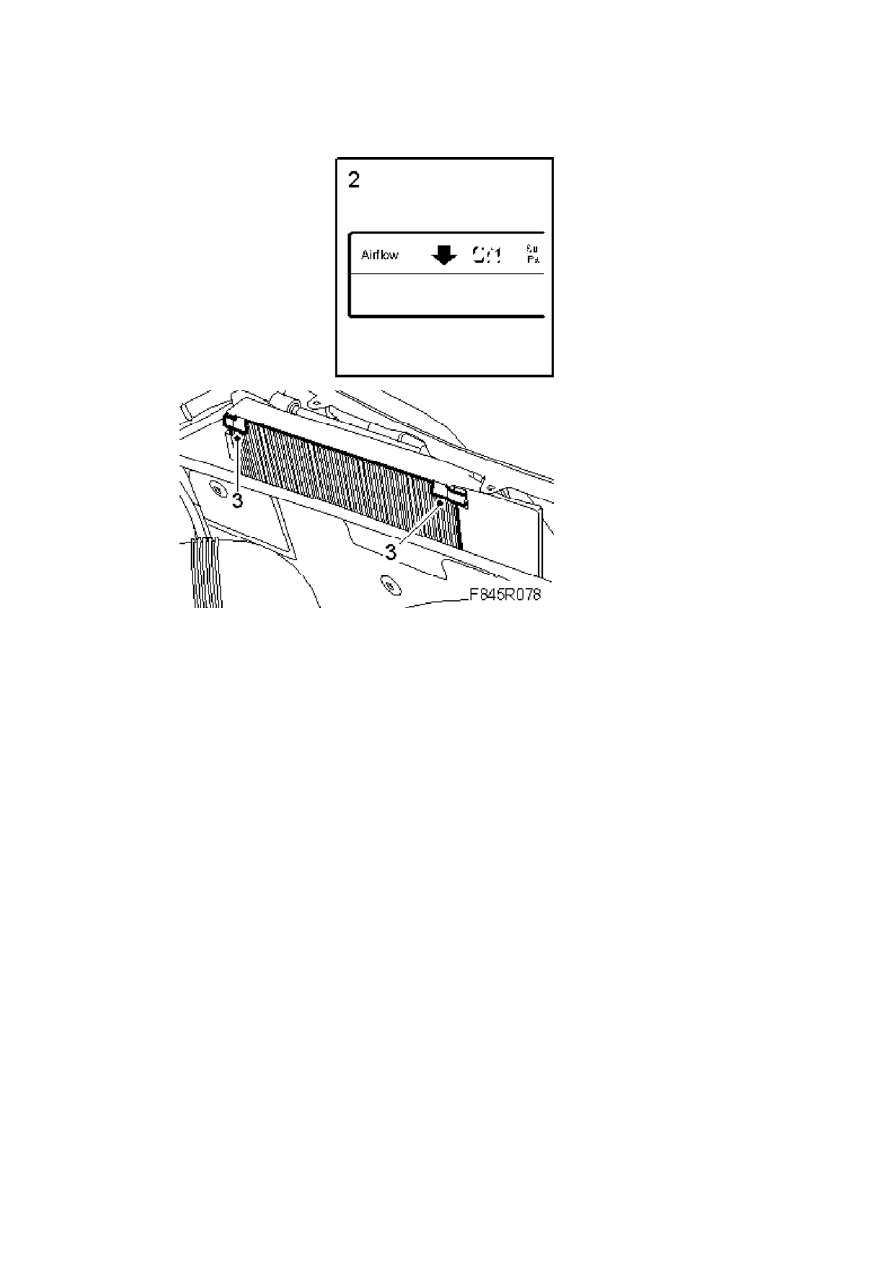

2. Fit the fresh-air filter. The fresh-air filter should be fitted with the arrows directed

in towards the car.

3. Fold back the holder's clips.

4.

Cars with water barrier: Fit the water barrier.

8. Body\Heating and ventilatio...

Scheduled service - Replaceme...

9-3 (9440) 8 2008

4

background image

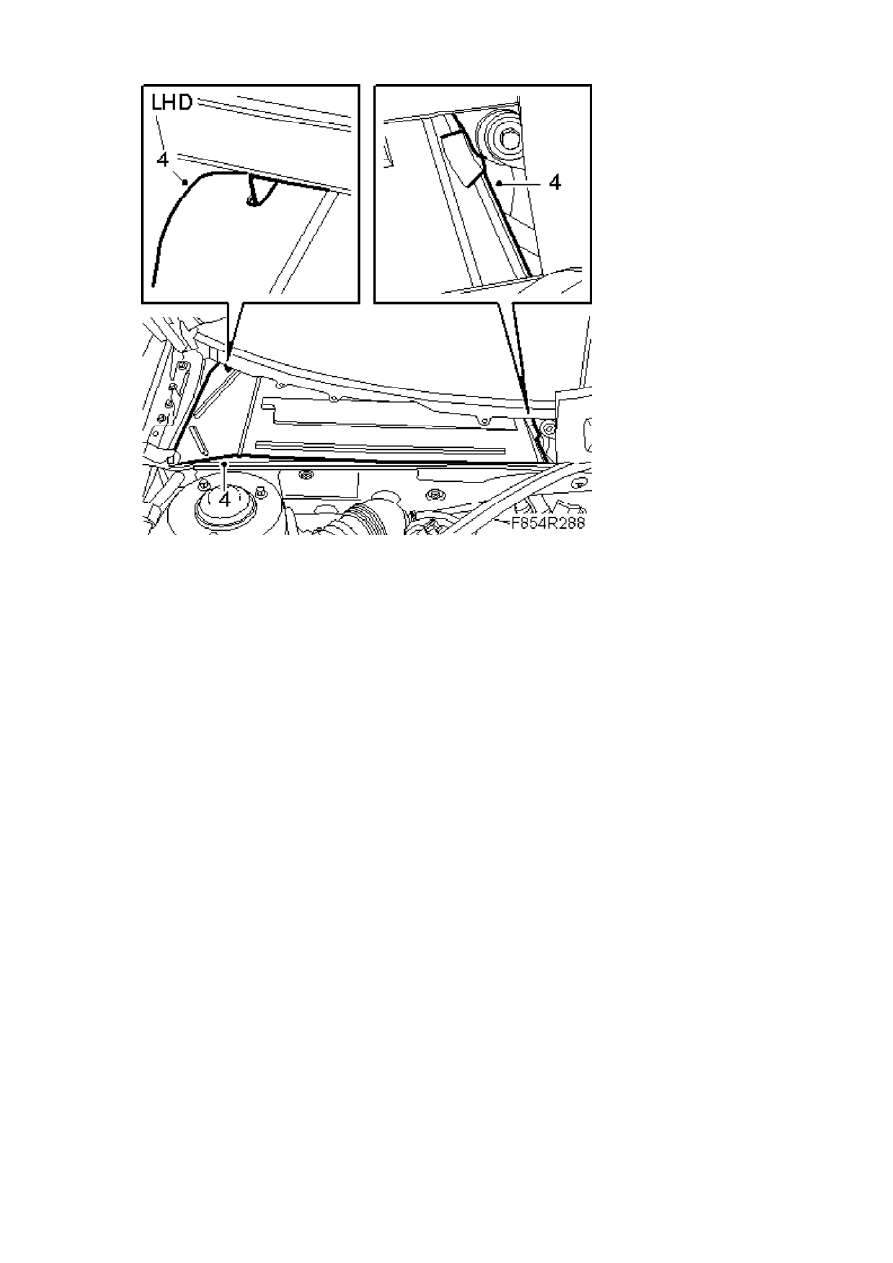

5. Fold down the cover.

6.

Fold down the corner so that it passes the hinge and bonnet. Fit the corner tab
under the windscreen moulding. Insert the hook under the windscreen and press

down the cover so that the clips lock.

CV: Fit the clip to the corner tab against the corner of the windscreen.

8. Body\Heating and ventilatio...

Scheduled service - Replaceme...

9-3 (9440) 8 2008

5

background image

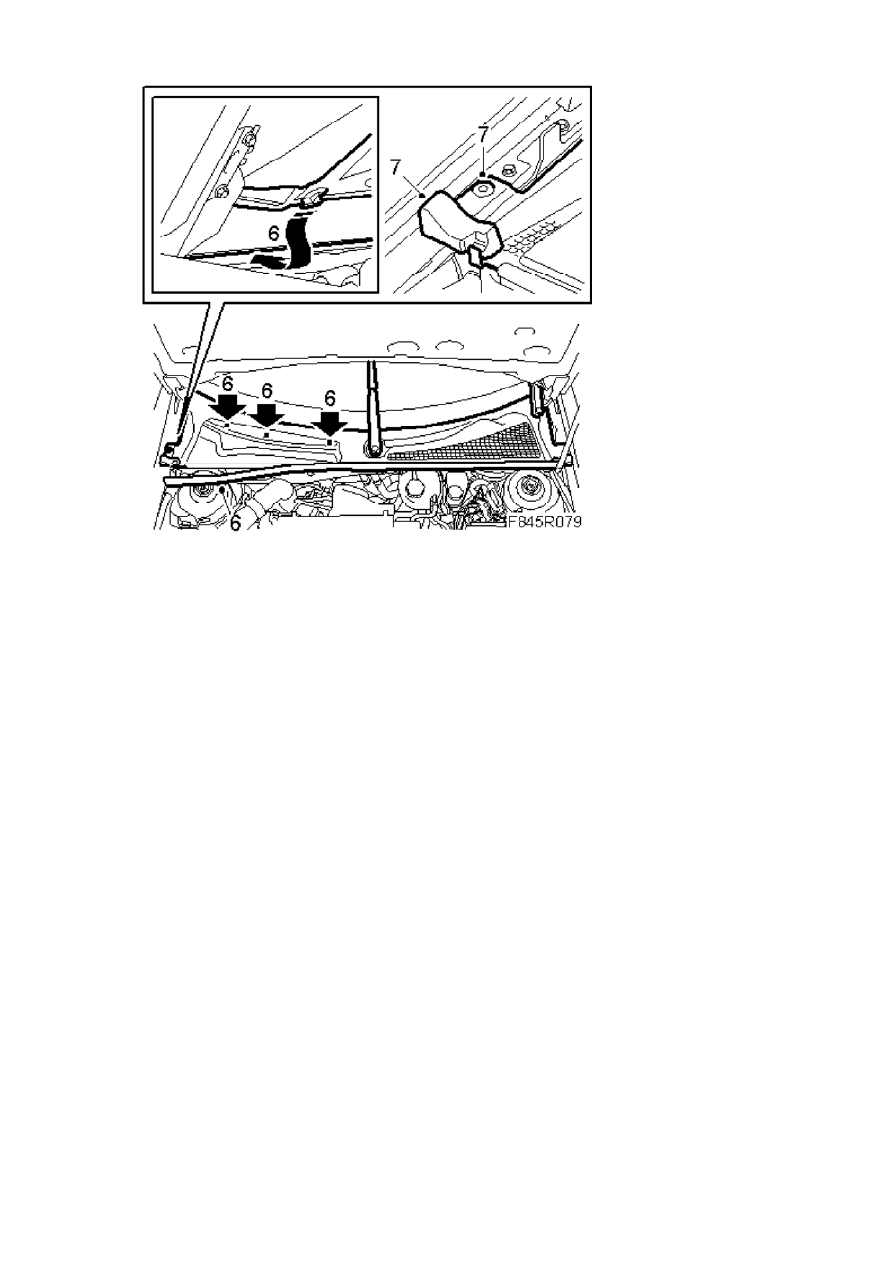

7. Lift up the foam block and fit the clip. Fit the rear main seal.

8. Check the function of the wipers.

8. Body\Heating and ventilatio...

Scheduled service - Replaceme...

9-3 (9440) 8 2008

6
