BMW 528e 1988

WIRING DIAGRAMS

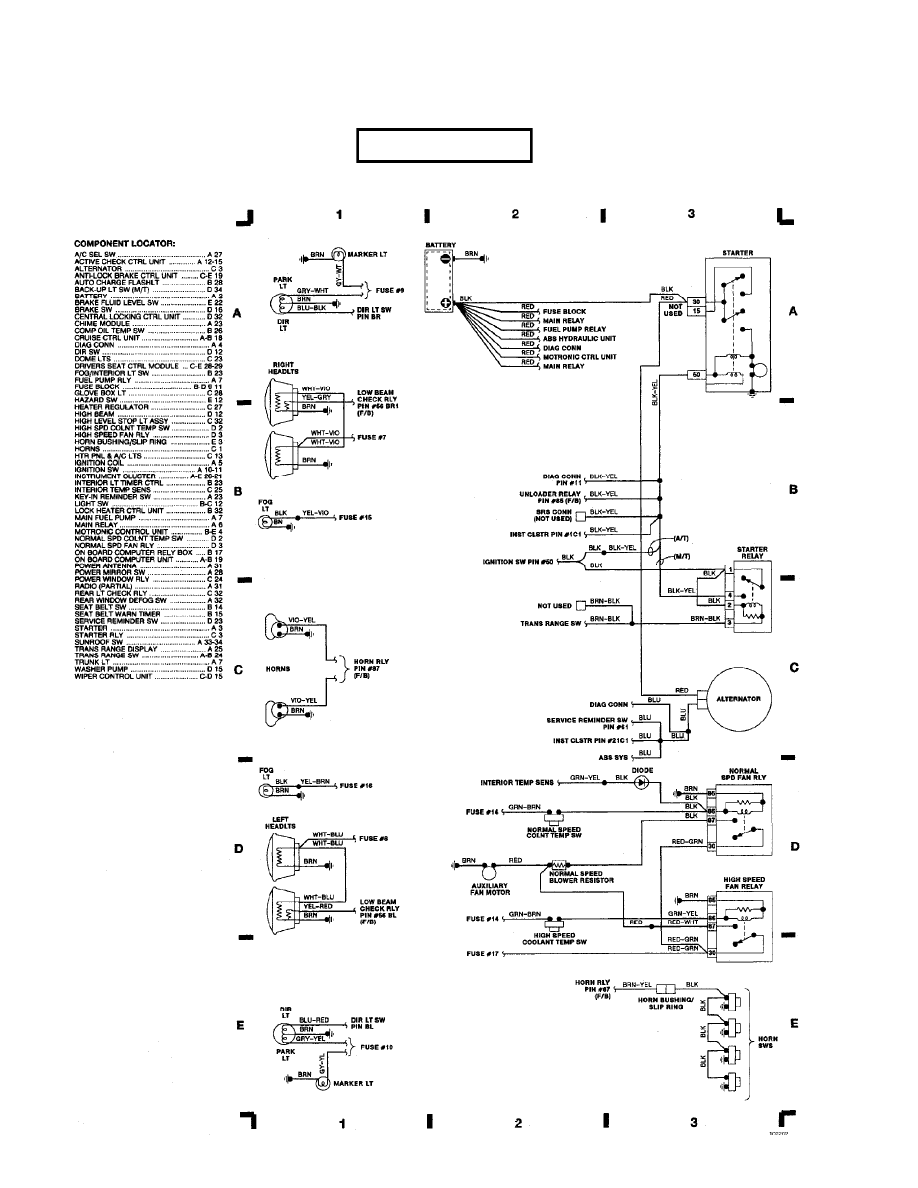

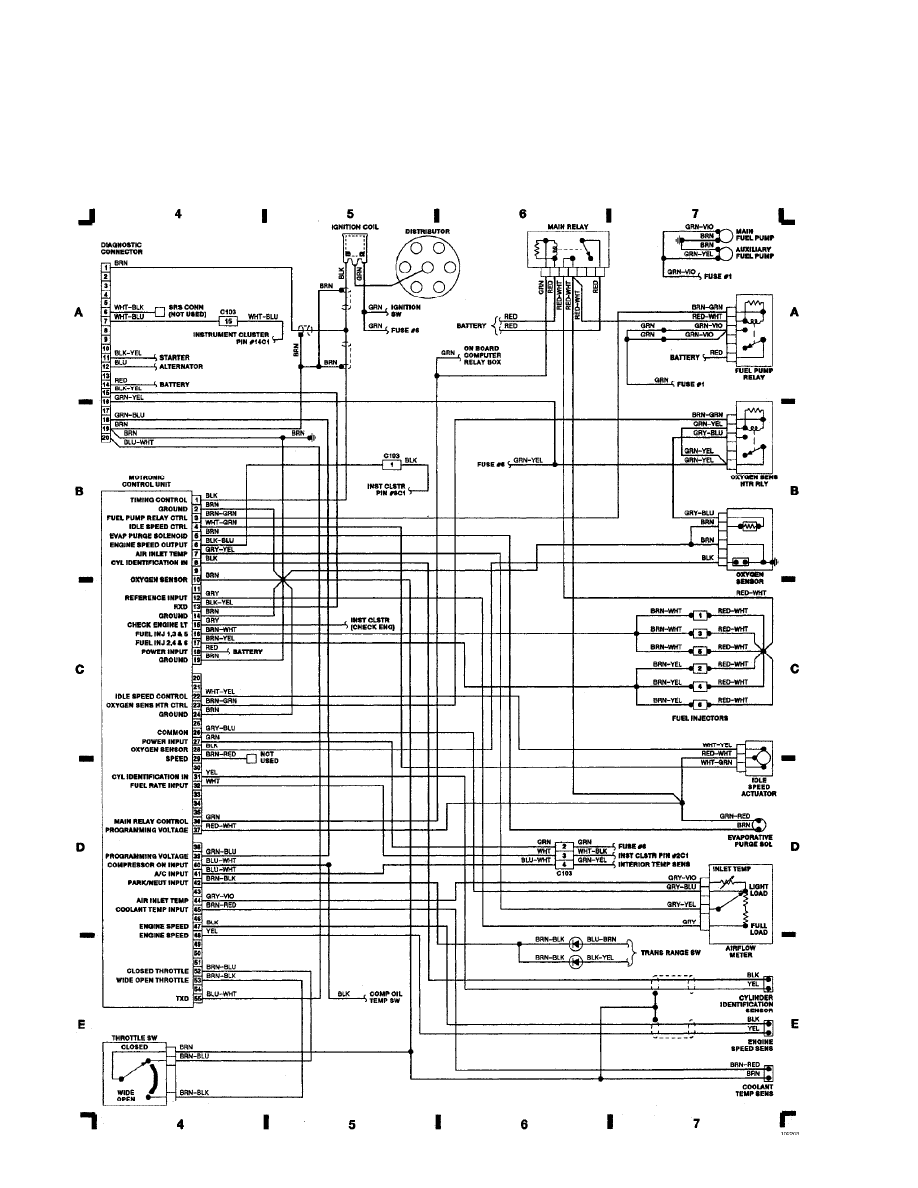

Fig. 1: Engine Compartment

1988 BMW 528e

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Friday, November 03, 2000 04:47PM

cdr@wp.pl

WIRING DIAGRAMS

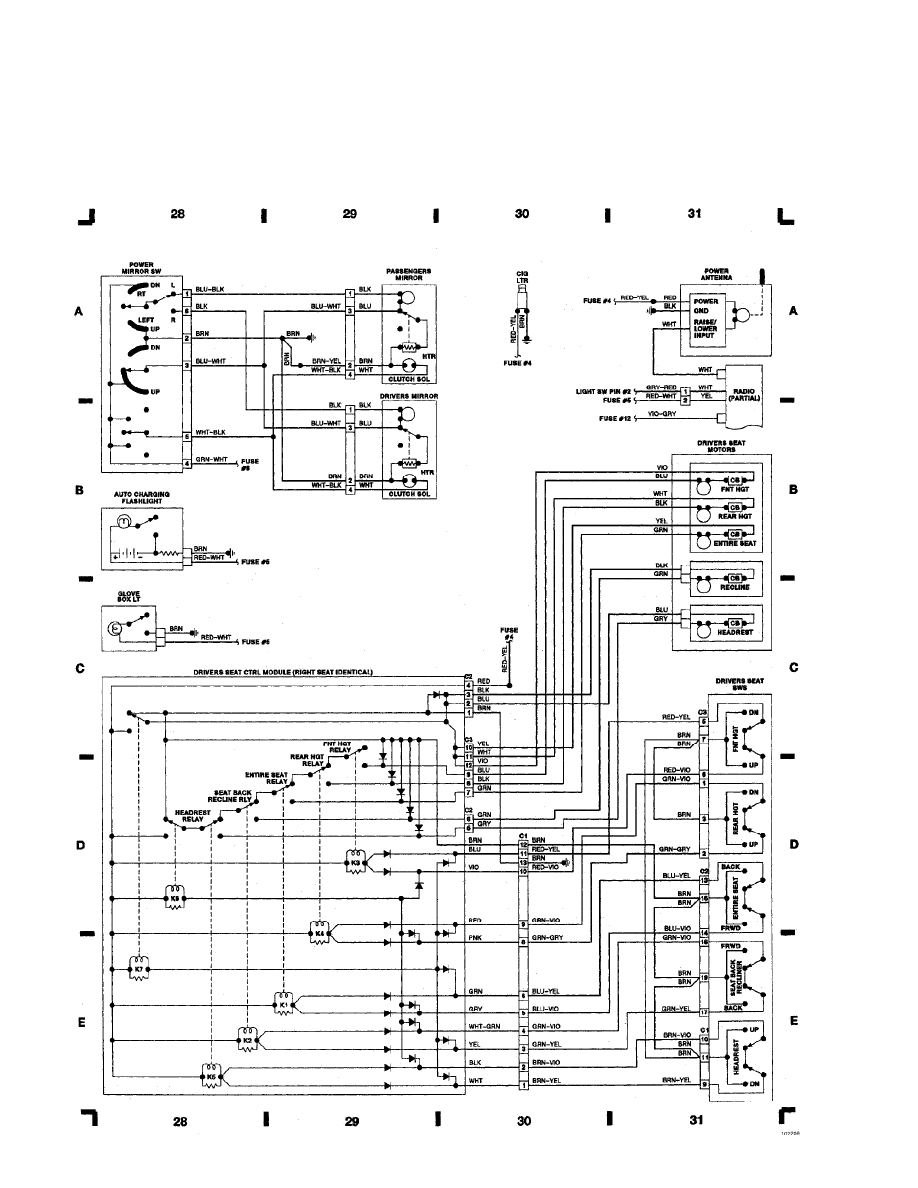

Fig. 8: Rear Compartment & Accessories (Cont.)

1988 BMW 528e

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Friday, November 03, 2000 04:48PM

WIRING DIAGRAMS

Fig. 9: Rear Compartment & Accessories (Cont.)

1988 BMW 528e

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Friday, November 03, 2000 04:48PM

WIRING DIAGRAMS

Fig. 2: Engine Compartment (Cont.)

1988 BMW 528e

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Friday, November 03, 2000 04:47PM

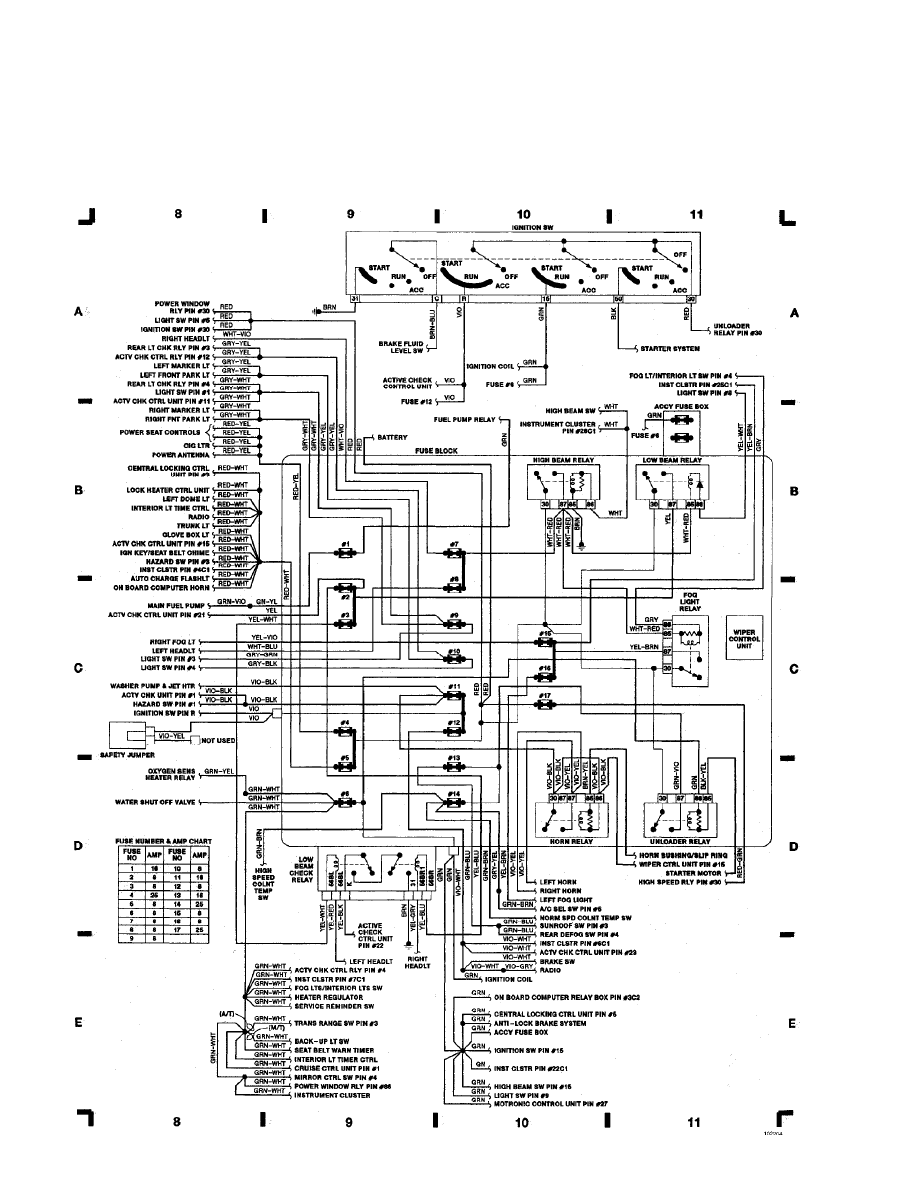

WIRING DIAGRAMS

Fig. 3: Fuse Block

1988 BMW 528e

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Friday, November 03, 2000 04:47PM

WIRING DIAGRAMS

Fig. 4: Underdash

1988 BMW 528e

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Friday, November 03, 2000 04:48PM

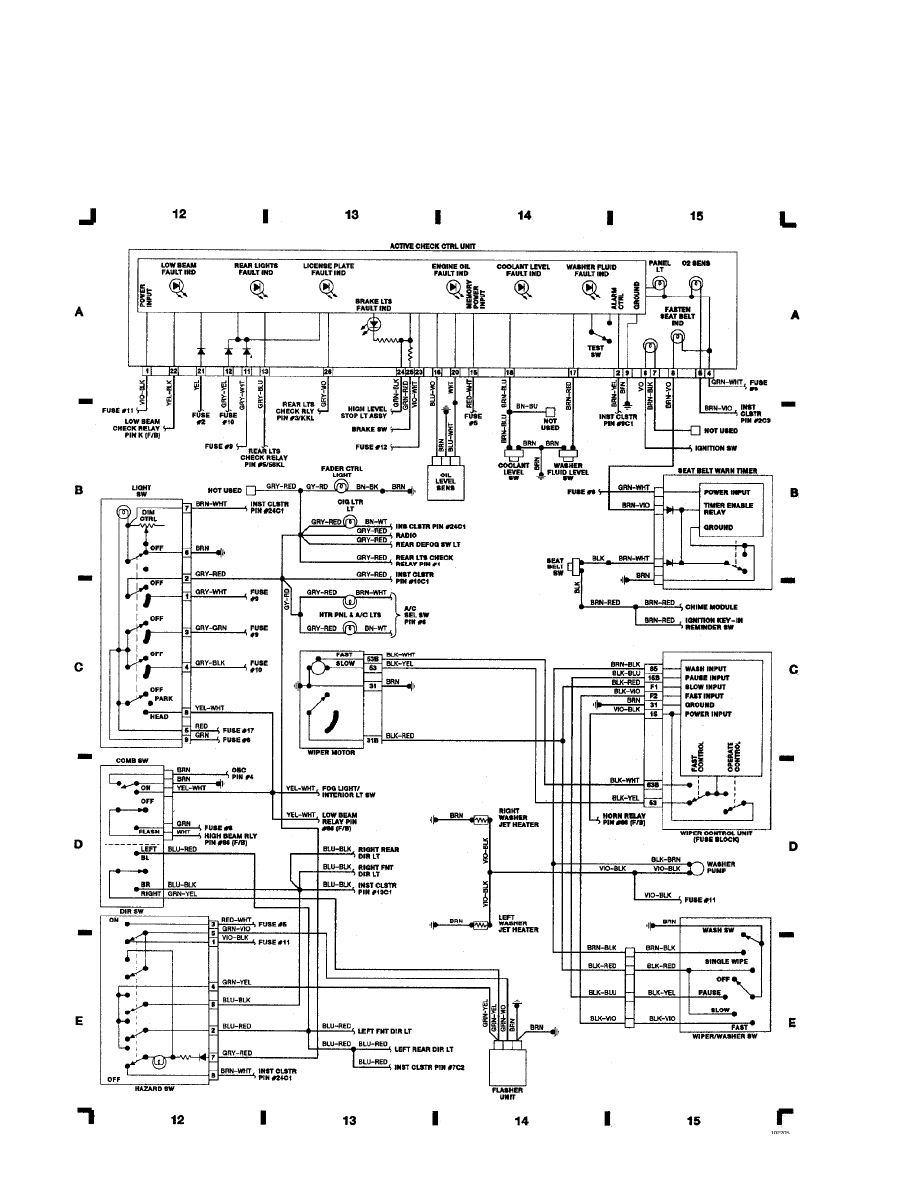

WIRING DIAGRAMS

Fig. 5: Underdash (Cont.)

1988 BMW 528e

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Friday, November 03, 2000 04:48PM

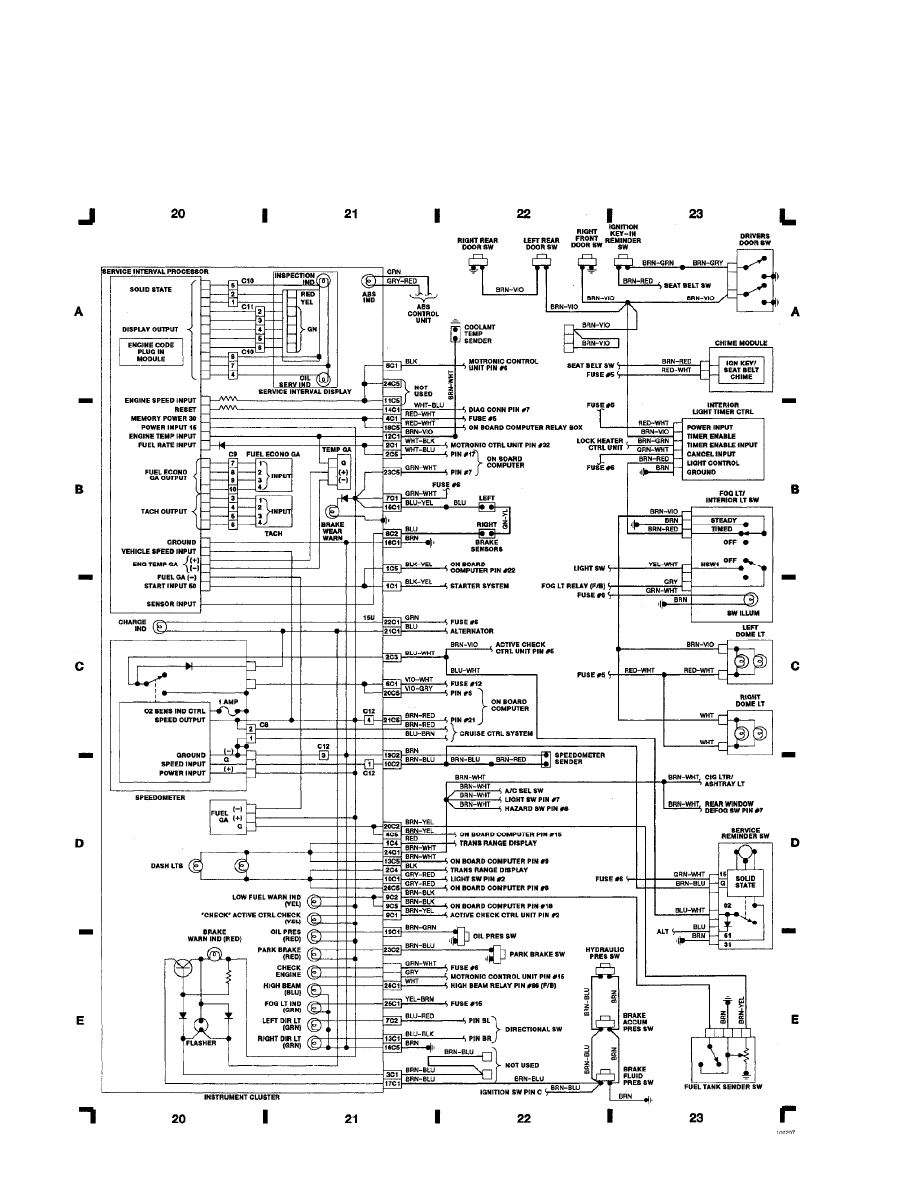

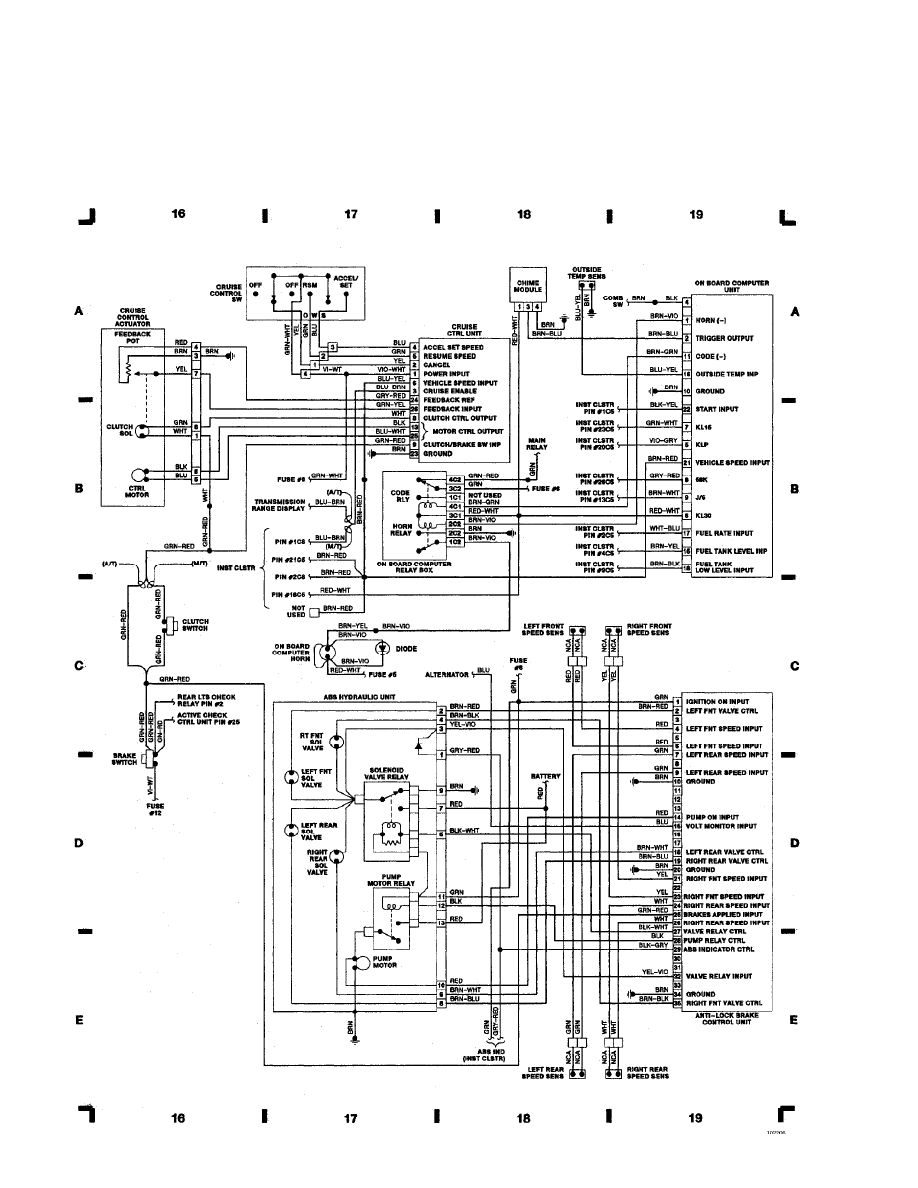

WIRING DIAGRAMS

Fig. 6: Instrument Panel

1988 BMW 528e

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Friday, November 03, 2000 04:48PM

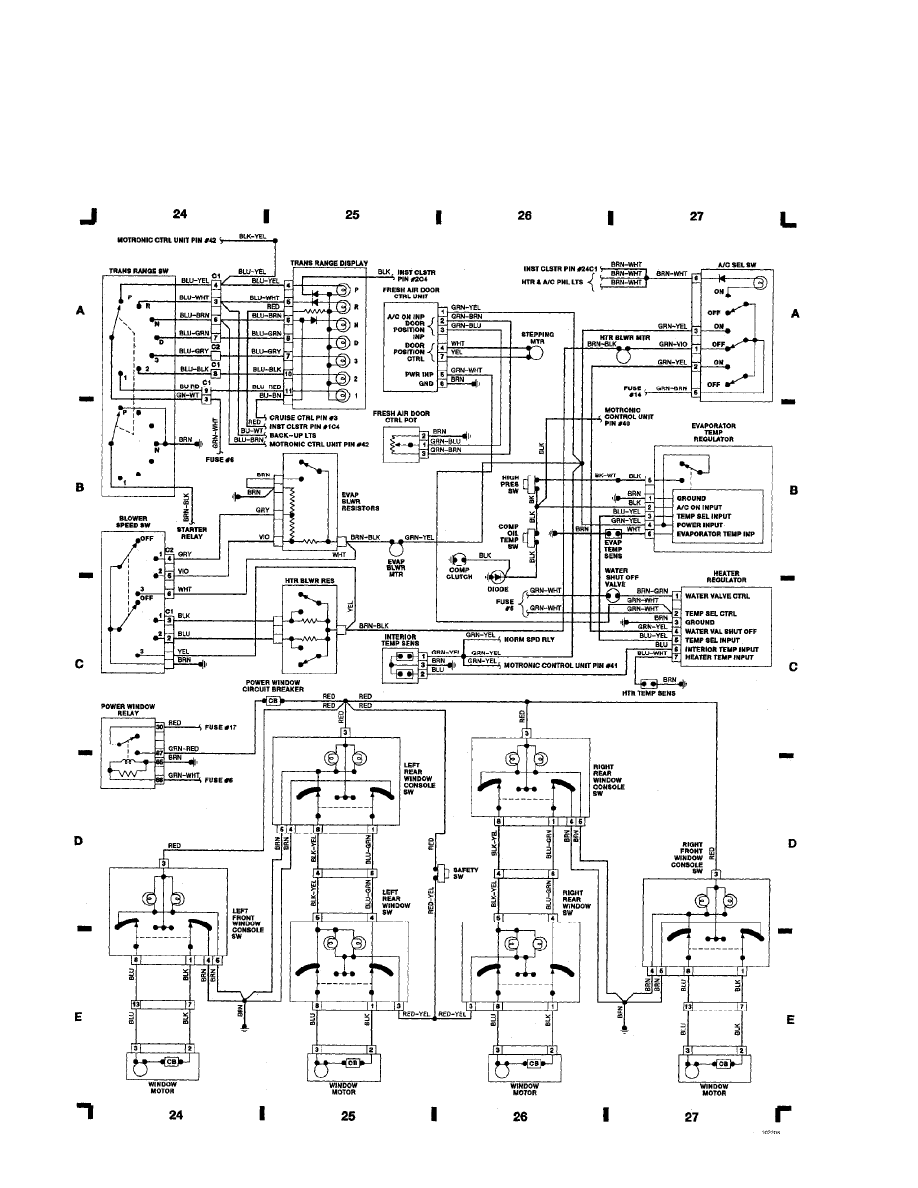

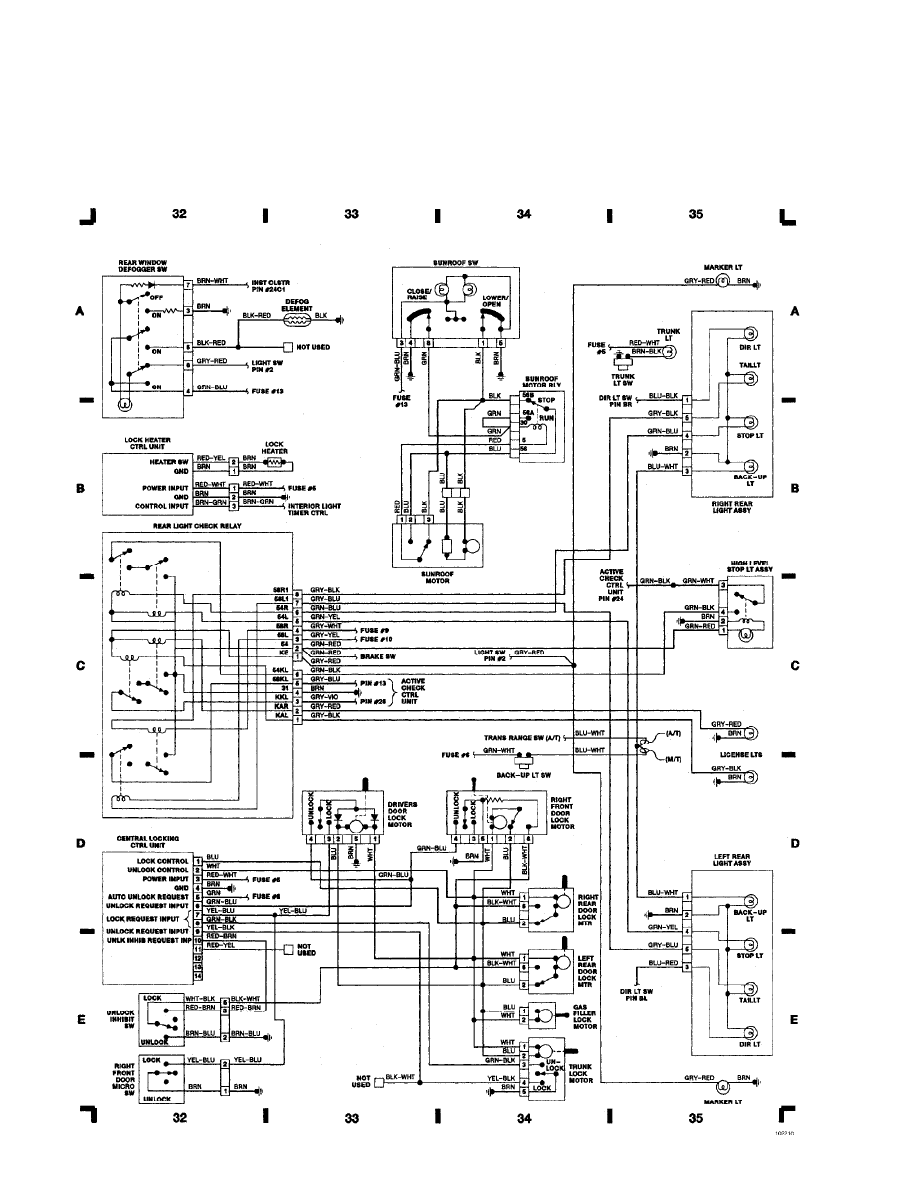

WIRING DIAGRAMS

Fig. 7: Rear Compartment & Accessories

1988 BMW 528e

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Friday, November 03, 2000 04:48PM
