0 Principles of a Wind Power Turbine Behaviour

background image

WIND POWER Turbines

Research Paper

background image

I what is a wind power turbine?

Here what a wind power turbine looks like:
The shape comes from studies which lead to a type that we found all around the world.
The number of blades doesn’t change the capacity of a turbine; it is just a question of
equilibrium and resistance. 3 blades is not more efficient than 2 it is just a question of forces
repartition when the wind is too important ( the 2 blades turbine need more wind to supply an
equivalent energy). We will see the different parts constituting a turbine and then we will take
a look at the places to put them to maximize their efficiency.

This is the top part of a turbine:


The blades (1) rotate and make the slow or primary shaft rotate (2). This shaft is to go in a
gear box that uses the high couple and low speed of the rotation to change it in a higher speed
one (3).In (5) it is the secondary shaft that has a higher rotational speed and that goes directly
into the generator. In (4) we have an hydraulic system that allows the turbine around its axis
to face the wind. This system is also used in emergency cases to stop the turbine.





background image

THE ROTOR HUB
The rotor blades capture the wind and transfer its power to the rotor hub. This part held the
blades. This part can make the blades rotate on their own axis to change the attack angle and
adapt it to the direction and force of wind. It is enclosed in a spinner which has no specific use
but protects it and is more beautiful.



THE ROTOR AND THE BLADES
The most important part of the turbine. Usually made with carbon or glass fibber for its
resistance and elasticity their length vary up to 40 metres to maximize the power produced:

the distance here is the diameter of the turbine.

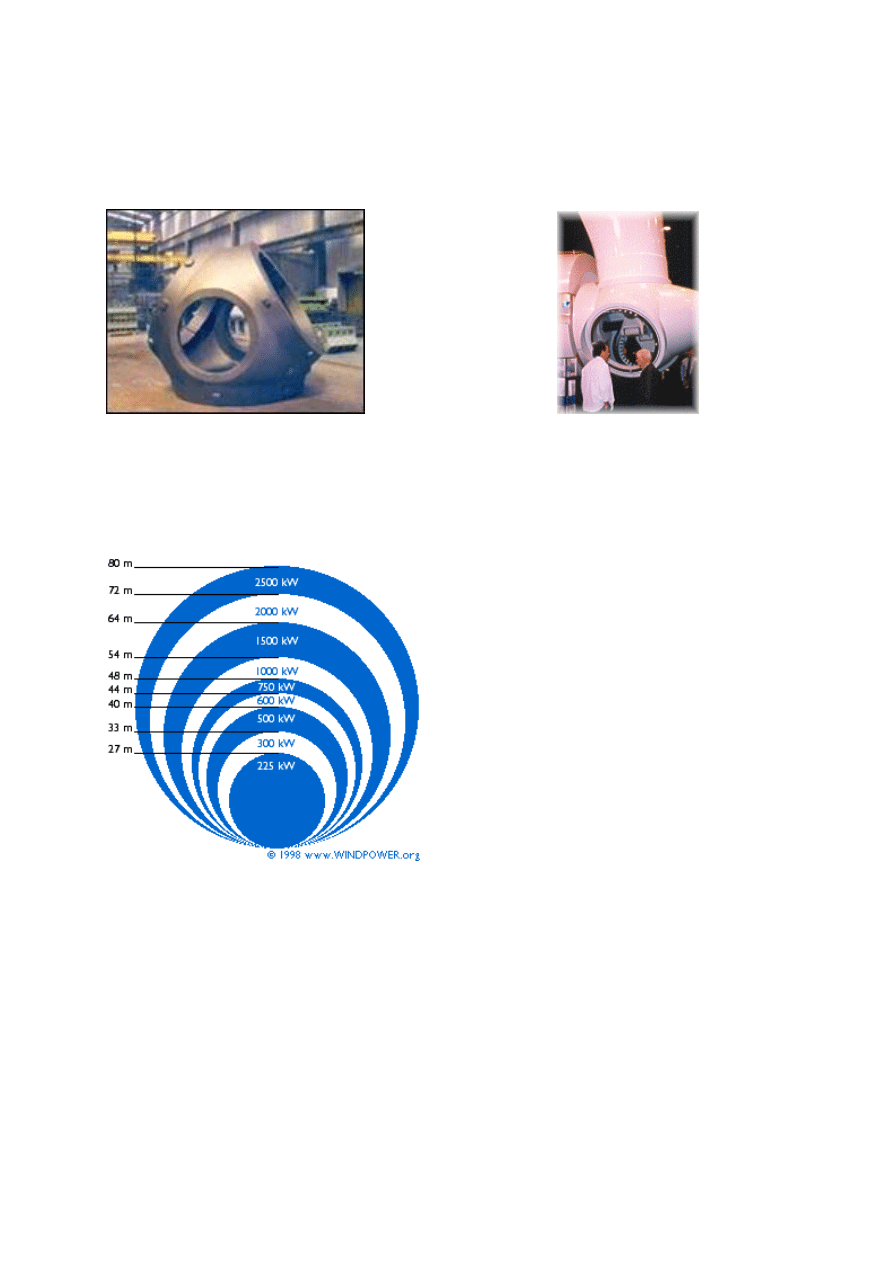

This scheme represents the size of the blades with respect to the power produced by the
turbine. The best efficiency for a turbine is obtained for a definite force of wind. I f the wind
is stronger, the turbine has a system that controls the rotational speed of the blades for them
not to break. They rotate around their own axis like a plane’s wing to stall at a certain speed.
This is called the Stall Effect. This possibility to rotate is used to maximize efficiency and to
slow down the speed of the blades in extreme conditions. The maximum speed of the last end
of a blade can go up to 216Km/H. Many tests, like static and dynamic test are done on the
blades to see if they can undergo high pressure and torsion forces.

background image

As shown here, the position of the blade.

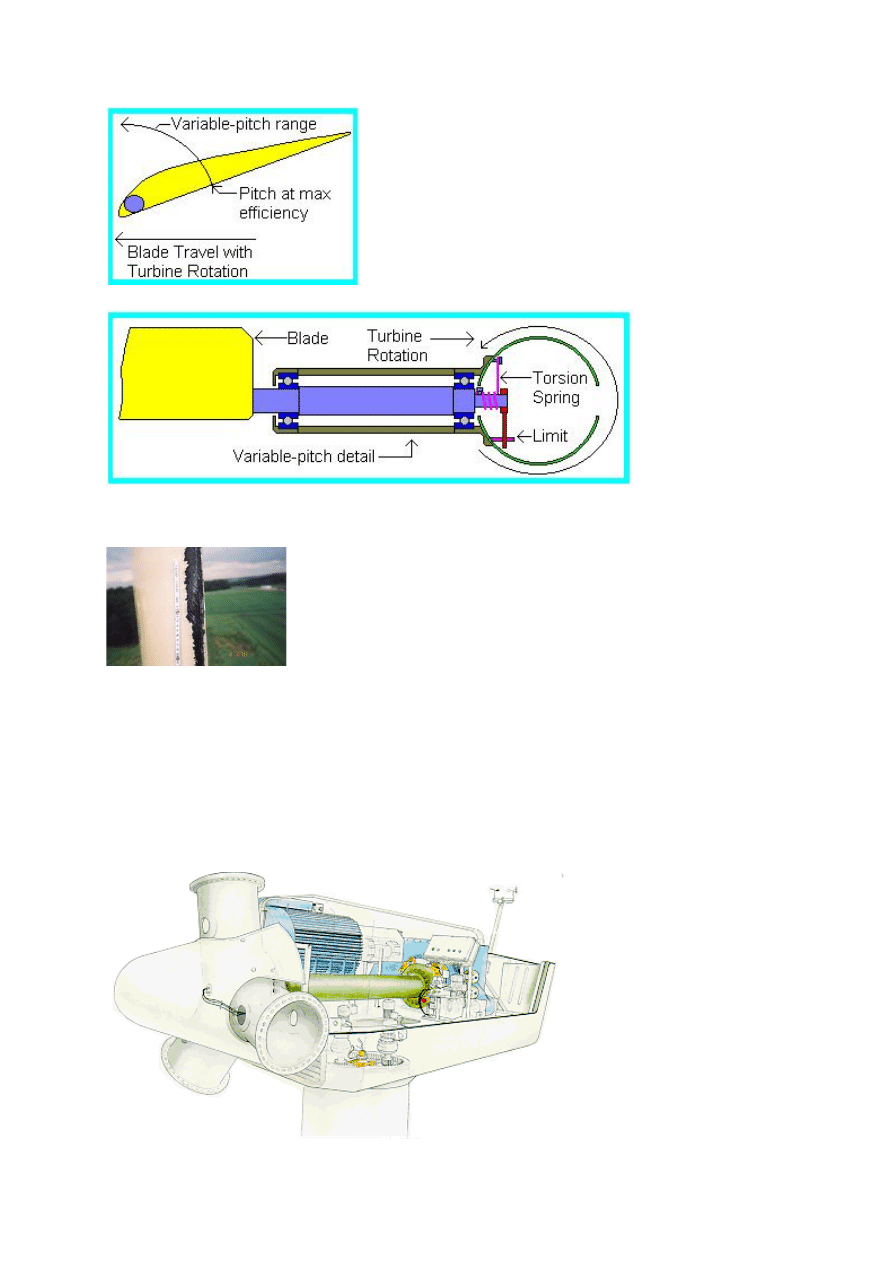

On this picture we describe how the blade is attached to the rotor:


We need to remember that those blades get use pretty fast because of the weather changes, the
sand the rain, ice, all these factor reduce the life of a blade to about 15years.

THE SHAFT
Both the primary and secondary shafts undergo very high forces and thus have to be precisely
built and tested. Their function is to transmit the mechanical work to the generator. In the
most popular, most used and most efficient turbines there are 2 shafts. Those shafts are related
trough a gearbox which transmits and amplifies the radial speed.
Primary Shaft:
A simple shaft connected on one end to the rotor and the other end to the gearbox.
Usually it has a brake for very windy conditions so that the turbine doesn’t undergo extreme
conditions.

background image

The Gearbox
It is used only on big turbines, over 15kW. It’s a power convertor, it multiplies the entering
speed to obtain a usable one that goes into the generator. The gear box undergoes very high
forces and lubrification is thus essential. Its efficiency is about 97%. Those are examples of

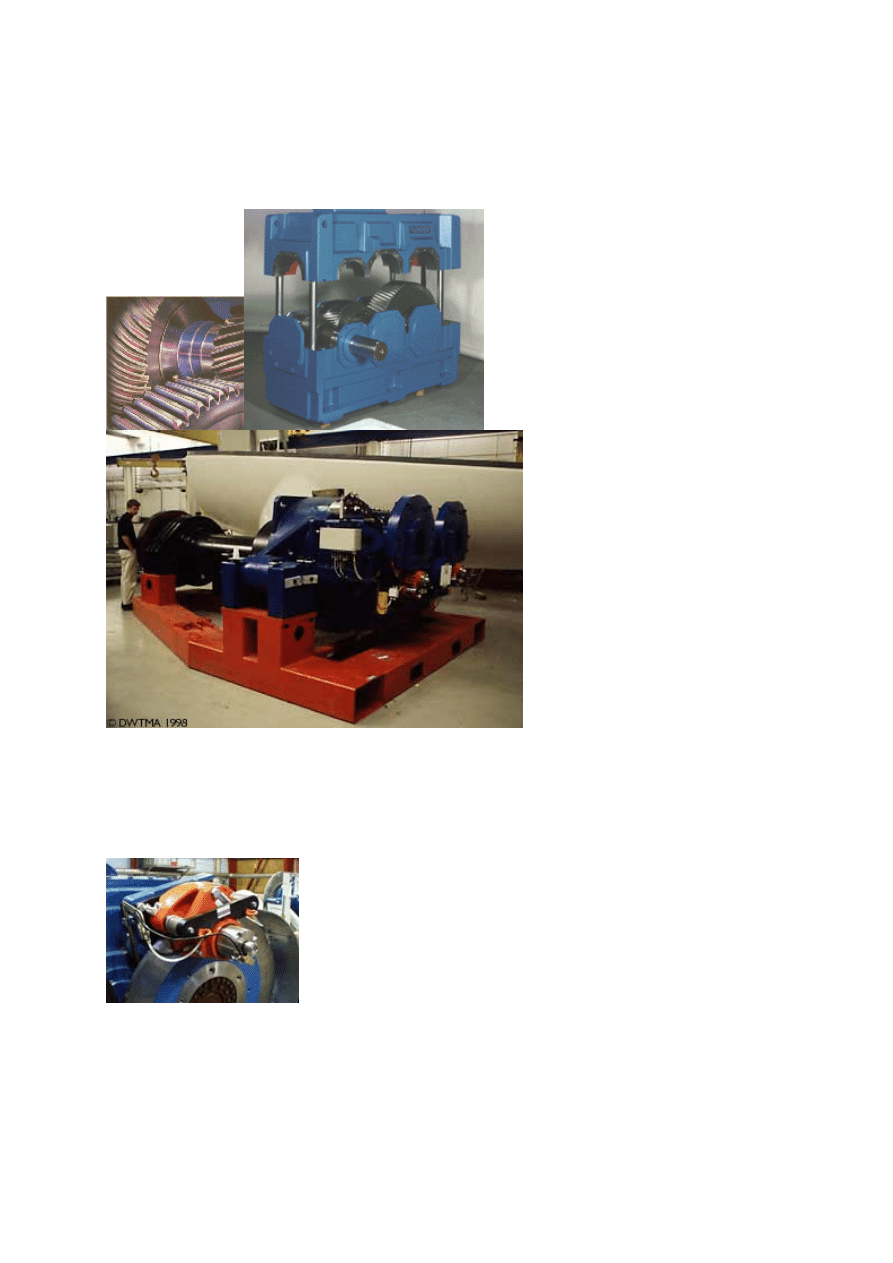

gearbox made by FLENDER USA.

The secondary shaft
It relates the gear box to the electric generator; it can be connected to it by 3 different ways,
directly, by elastic coupling or with a cardan. The elastic method is preferable since it has the
capacity to absorb vibrations. Once again a disk brake system can be put on the shaft,
connected to a computer to stop the turbine in extreme conditions.







background image

THE GENERATOR

2 Different types of generators can be used:
Asynchronous and synchronous generators.
The most used and known model is the asynchronous generator.

It uses the principle of an asynchronous motor on the other way:
The stator induces electromagnetic fields on the rotor which makes it rotate There is always a
shift between the field induce by the stator and the rotor. The rotor tries to “catch up the
stator”. If this shift is of about 1% we say that the generator absorbs its maximal power.
(15rpm for 1500rpm for ex). A slight variation of the speed induces a large variation of the
power produced. The synchronism speed of a motor depends on the number of poles of the
rotor and stator: 4 pôles/50 Hz(European norm) gives a synchronous speed of de 1500 rpm
(most commonly used) ; 6 poles/50 Hz would give 1000 rpm.

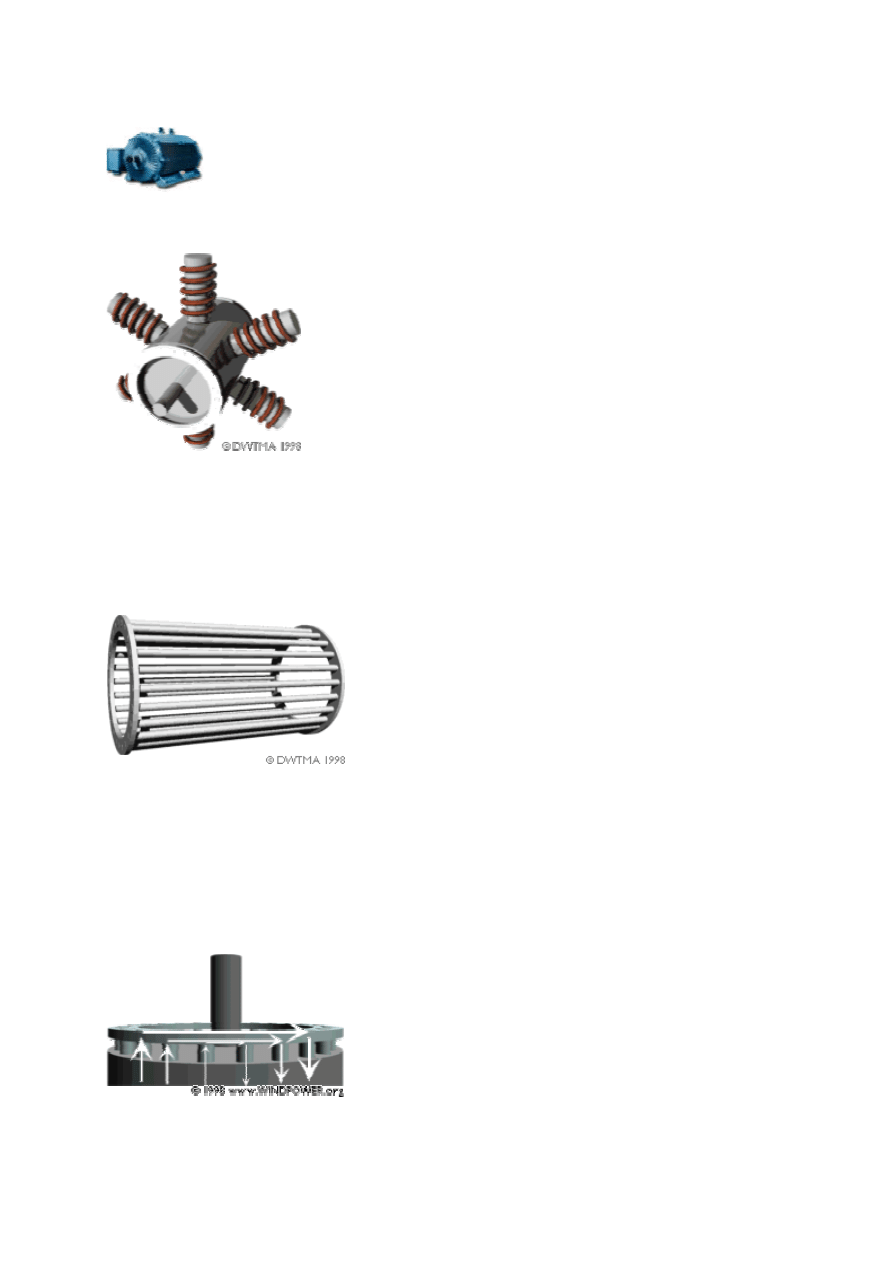

It is the rotor that makes the asynchronous generator

different from the synchronous generator. The rotor consists of a number of copper or
aluminium bars which are connected electrically by aluminium end rings.

In the picture at the top of the page you see how the rotor is provided with an "iron" core,

using a stack of thin insulated steel laminations, with holes punched for the conducting
aluminium bars. The rotor is placed in the middle of the stator, which in this case, once again,
is a 4-pole stator which is directly connected to the three phases of the electrical grid.
When the current is connected, the machine will start turning like a motor at a speed which is
just slightly below the synchronous speed of the rotating magnetic field from the stator. Now,
what is happening?

background image

If we look at the rotor bars from above (in the picture to the right) we have a magnetic field

which moves relative to the rotor. This induces a very strong current in the rotor bars which
offer very little resistance to the current, since they are short circuited by the end rings.

The rotor then develops its own magnetic poles, which in turn become dragged along by

the electromagnetic force from the rotating magnetic field in the stator.

Those explanations are taken from winpower.org.

Synchronous generators:

In a synchronous generator the rotor has the same speed as the electric field rotation around
the stator.




THE TOWER
The dimension of the tower that holds the turbine is mainly calculated in function of the mass
of the blades and rotor and the conditions around the turbine. It is fixed in the ground by huge
foundations with concrete and steel. The transformer used to plug it to the electrical network
is usually placed next to its base.










background image


CONNECTION TO ELECTRICAL NETWORK
The wind is neither constant nor regular; in addition to that, electrical energy can hardly be
stored and the electrical network can’t be disturbed by such an inconstant source of energy.
Therefore the connection to the electrical network is delicate.
We usually find 2 closets in the tower of a wind power turbine:
A low tension for the power to travel.
A low current which controls the different information about the system’s behaviour.

The low tension closet has a system that connects the generator directly to the electrical
network with respect to its quality and the wind parameters.

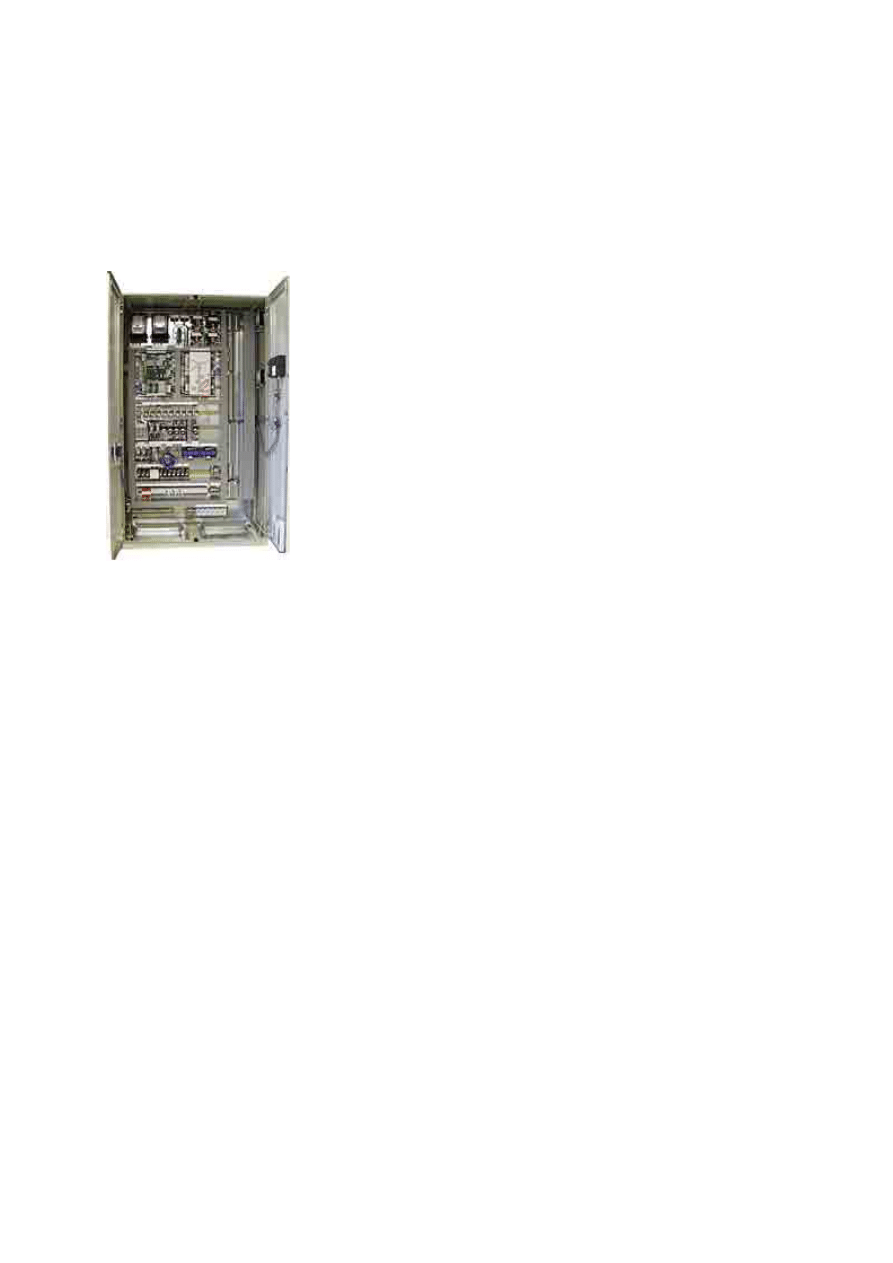

The low current closet contains a computer that controls many numerical and analogical
inputs and outputs. It deals with the problems, from the weather or the turbine itself and
supplies information about the energy production etc… In the case of fields of turbines, the
computers can be connected together but still have to be checked once a day by an technician
for a better efficiency.

background image

Here is the basic situations that the computer has to deal with:
Wind power < 4m/s: wait until the blades can rotate.
Wind power from 4m/s to 14m/s: normal energy production until rated power is reached.
Wind power from 14m/s to 25m/s: regulation of the production to stick to the rated power.
Wind power > 25m/s: the turbine has to stop.

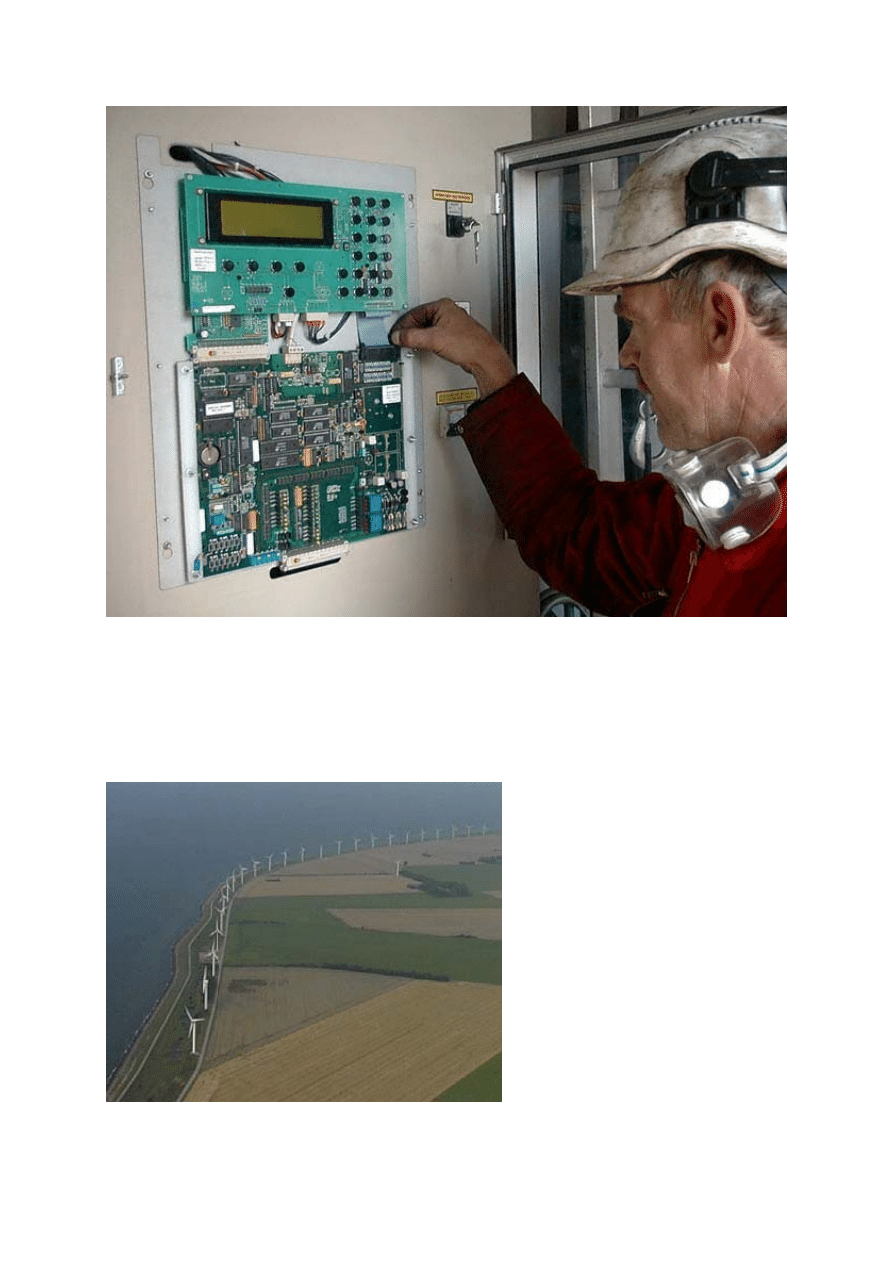

Here is the Kappel site in Denmark probably one of the most beautiful site on the estetic point
of view:


background image





GEOGRAPHIC REPARTITION

A very important part of the efficiency of a turbine is the conditions it is going to undergo and

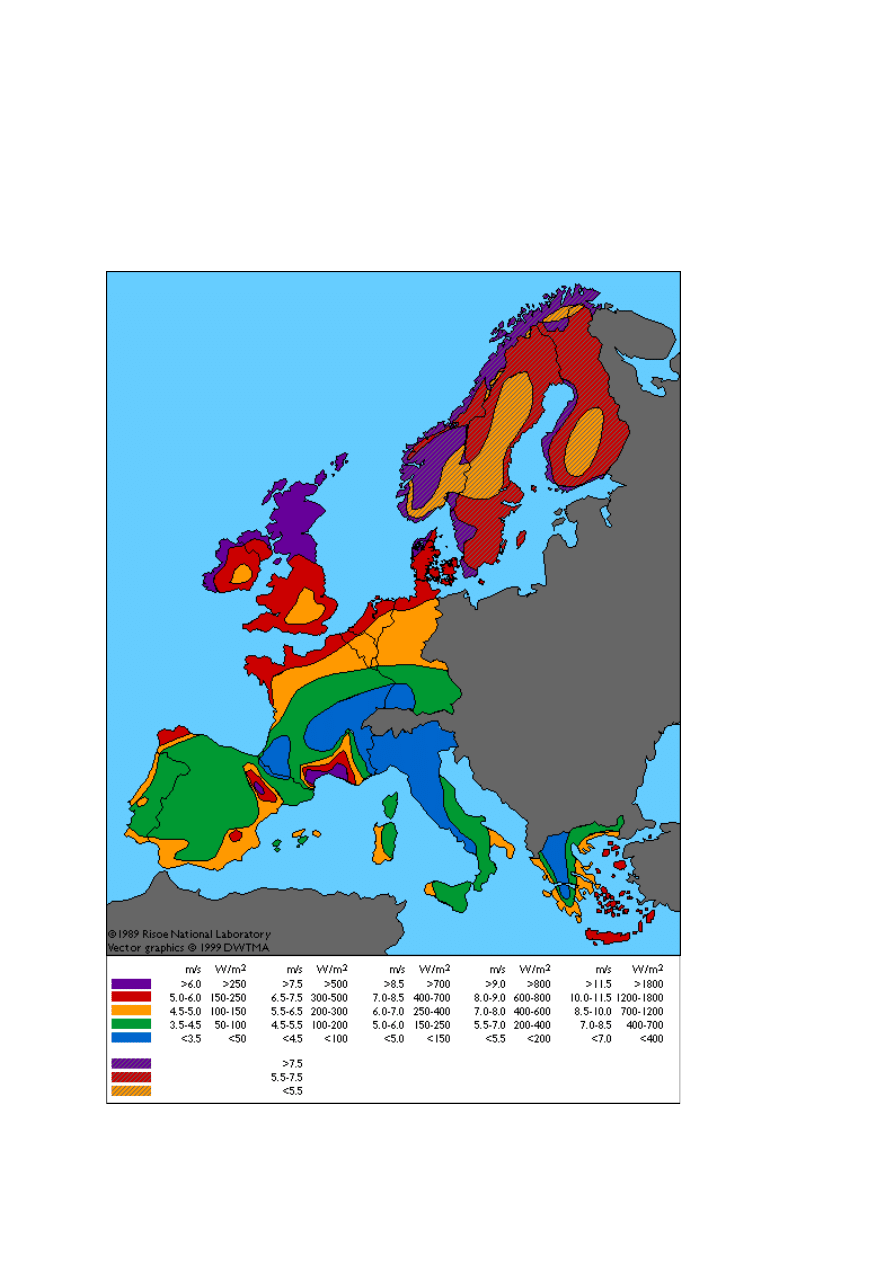

the type of wind it’s going to face. Here is an idea of how Europe is divided, on a wind factor

II PRINCIPLES OF A WIND POWER TURBINE BEHAVIOUR

background image

We must keep in mind that wind is something that changes a lot, and is neither stable nor
reliable. Nevertheless if we want to use it to supply electricity we need it not to cause trouble
to the electric network. The different types of winds we can have, their different power are
many parameters that have to be taken in account: The wind blades have to be able to undergo
such forces. The size of the huge turbines we are used to see is mainly due to the fact that they
have to adapt to the force of the wind in the larger range possible.
Energy:
The basic use of a wind power turbine is to convert the kinetic energy of the wind into
circular energy by the rotor which is then converted, once again in electrical energy by the
generator with some losses in thermal energy (as materials heat…). Logically all the energy
provided by the wind can’t be converted into the electrical because of the mechanical
interactions that induce friction and thus energy losses.
The units used to measure a turbine’s performances are the kWh or even the MWh for the
bigger ones.

A wind power turbine is a machine that changes the wind’s kinetic energy into mechanical or
electrical energy. The power supplied by such a turbine is given by the following formula:

P = ½ (rho) A V^3 Cp
With:
rho: weight of air per unit volume ( 1.225 Kg/m^3 at 15°C and pressure of 1013 mBar)
A: Area of the circle done by the blades when revolving around the axis in m²
V: velocity of wind in m/s
Cp: is a coefficient based on many parameters such as materials used in the blades, type of
step up gear’s efficiency…

This formula is derivate from the Betz Law:

Betz assumed that the wind is deviated form its direction as it approaches the turbine.

In addition to that the rotor changes the value of the wind’s velocity such that:
the wind before the turbine has a higher speed that the wind after it, which is logic since the
rotor uses some energy to rotate. But the ma ss of air that goes through the blades stays

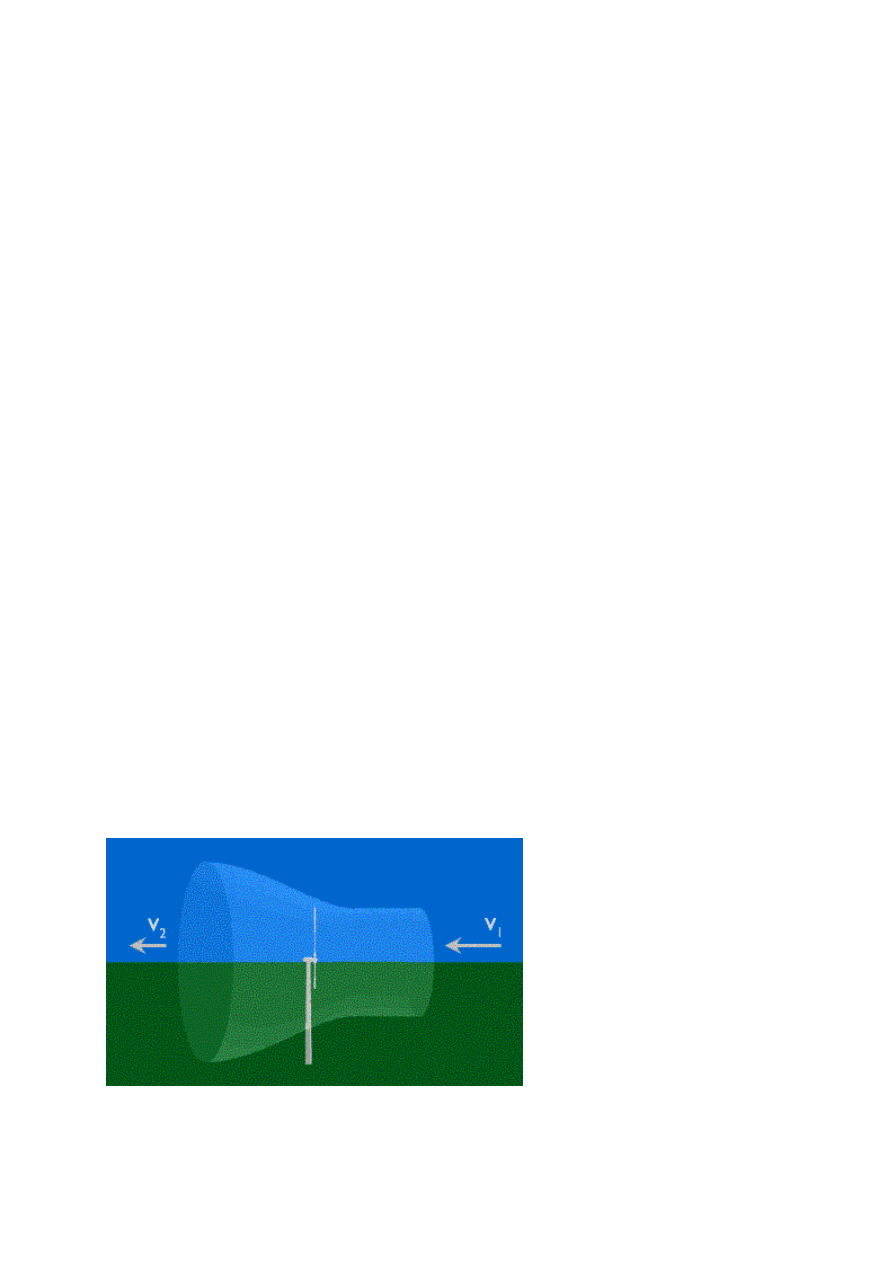

constant, therefore the repartition of air is about as shown here:

background image

The pressure is about like that around the rotor:
the distance to the rotor is on the X axis and the atmospheric pressure is represented on the Y
axis

As the wind approaches the rotor, atmospheric pressure increases

until the air reaches the rotor. Behind the rotor the pressure is very low until it reaches the
atmospheric value again. There are many ways to influence the type and direction of wind by
making different spatial organisation of the turbine like the field one for example where the
induced tube of the turbine at the front is used for the one behind…
Let’s assume that the average velocity of the wind that goes through the blades’ swept area, is
equal to the average V1 (velocity before the rotor) and V2 (velocity after the rotor):
(V1+V2) / 2
The mass of air that crosses the swept area in one second is:

m = ρF (V1+V2) / 2
where m is the mass per second, ρ is the density of air and F is the swept area.

The power obtained by the turbine is:

P = ½ m ( V1² - V2²) which is obtained from the second law of Newton

From those 2 equations we can get a 3

rd

one:

P = 1/4 ρF (V1+V2)( V1² - V2²)
If we compare this expression with the one obtained for a flux of air which is not disturbed by
a turbine we get:
Po = (ρ/2)V1^3

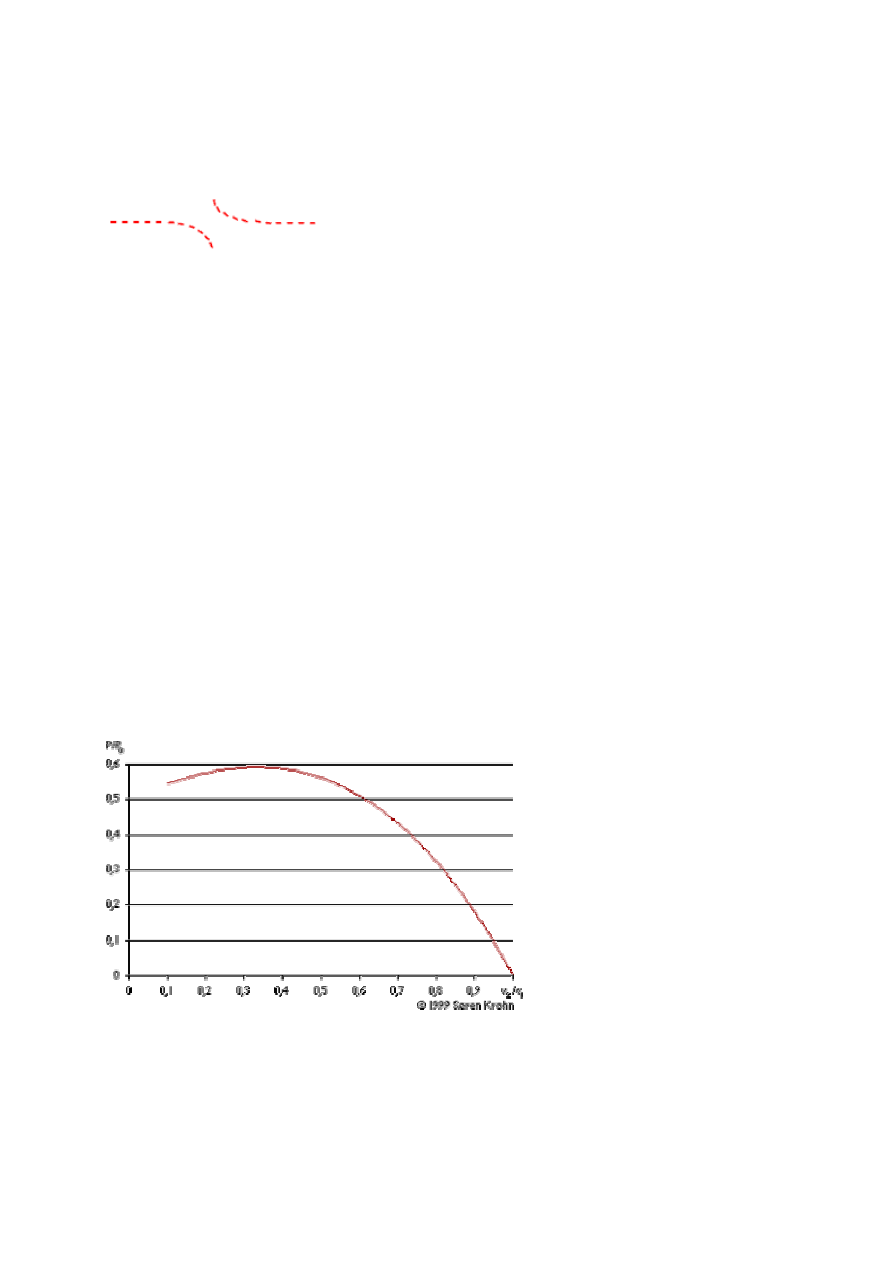

The ratio between the 2 powers gives us a graph:

From this graph we can see that the only usable part of the power of the wind is 0.59 or 16/27
of the total power supplied by the wind.

From earthlink.net we can have a precise idea of the power supplied by a 16kW turbine with
respect to the wind speed:

background image

Wind Power and Yield Calculations

Electric power from a windmill = (.0049)(wind speed)

3

(swept area)(efficiency)

where wind speed is in miles per hour
swept area is square feet swept by windmill blades
efficiency is %/100 for windmill, generator, and PWM regulator.

Since wind is so variable, average wind speed is used to predict duration at each speed, which
follows the statistical distribution:
Probable time at wind speed V = V / V

avg

2

* exp(-.785 * V

2

/ V

avg

2

)

where total time is 720 hours/month
Vavg is the average wind speed at the windmill.

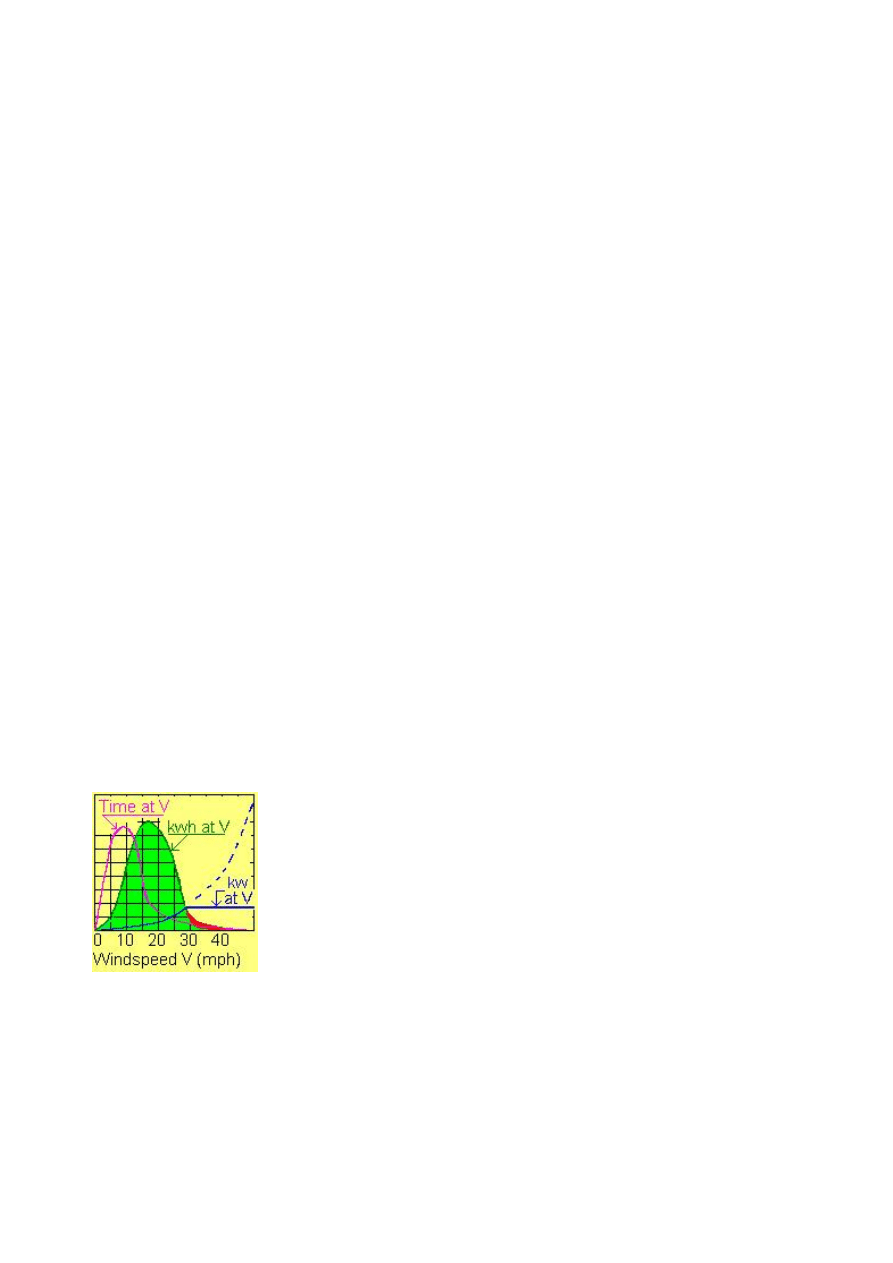

Power (kw at V), probable time at wind speed (hours at V), and their product (kwh at V), are
plotted (for V

avg

= 10 mph) vs. wind speed V (mph) in the figure shown at right.

Blades begin to feather at wind speeds above 30 mph, causing generated power to remain
practically constant at feathered wind speeds.

Yield (green area in this figure) is not appreciably lessened (red area) by blade feathering.
However, compared to fixed blades (dashed blue curve), peak power that must be handled by
the entire system is only about 20% as high. Also, feathered blades with self-limited spin
speed greatly reduce mechanical stress on all windmill parts (compared to fixed blades, with
turbine shaft spinning at essentially one speed, or locked during low and high winds).

For a windmill that sweeps 300 square feet, with 10 mph average wind speed (5 mph average
for locale, doubled by building aerodynamics), and overall efficiency of 40% for windmill,
generator, and PWM regulator, we get:

Power generated at 10 mph = 588 watts from each windmill
Yield from wind power = 729 kwh/month from each windmill
Maximum generated power (limited to level at 30 mph wind speed) = 16 kw from each.

If the building aerodynamics can result in 20 mph average wind
speed at the same windmill, we can get yields of about 5,000
kwh/month, from the same windmill, having the same 16 kw
maximum.




We can now get interested in the shape, the design of the blades. We saw that they were very
important for the capacity of the turbine to adapt to the different types of winds.
To calculate the dimensions of those huge blades, some laws have been found from human
experience:

background image

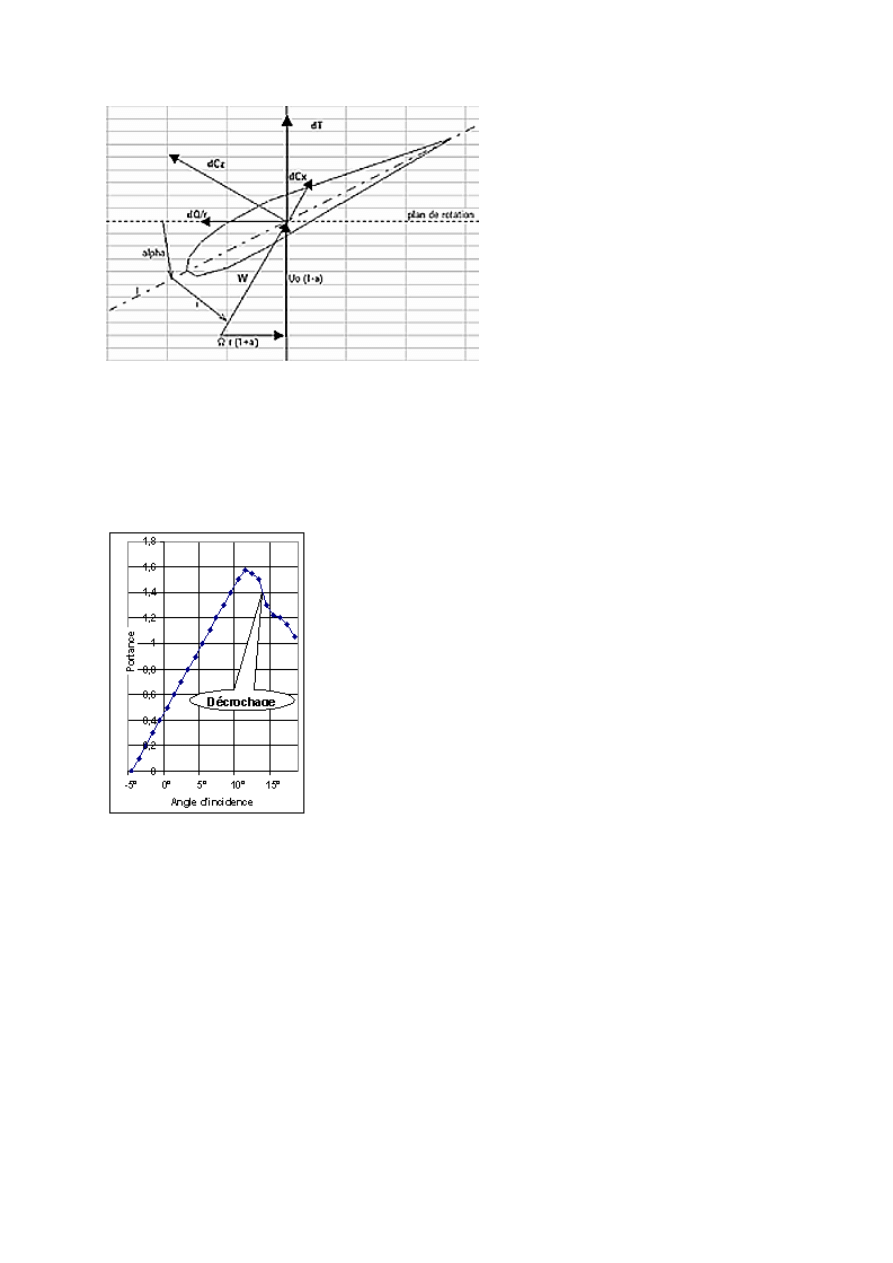

This blade looks like the shape of an

airplane’s wing ; if the relative wind is W, it is composed from the natural wind U and the
wind created by the turbine itself rΩ.
dCx is Uo natural wind
dCz is r radius
dT Ω angular speed
dQ elementary couple of the blade I angle
i incidence a axial induction coefficient
a’ radial induction coefficient alpha

The relative wind has an incidence i with respect to the blade’s

axis, this axis being oriented alpha with respect to the rotation plane;
Angle I is the sum of alpha and incidence angle i.
The relative wind W generates an elementary “poussée” dCz and an elementary drag dCx.
The force dCz tends to make the blade rotate. The couple given by the forces dCx and dCz is
equivalent to the one created by dQ/r and dT with dQ elementary couple produced by the
blade and dT elementary drag. The elementary power is deduced:
dP = dQ Ω

Once the power stored in the generator, we need to put it in phase with the one used and
provided on the network: 50Hz for the Europeans. This part is done by a computer which
controls the production with respect to the power of the wind. Wind turbines may be designed
with either synchronous or asynchronous generators, and with various forms of direct or
indirect grid connection

of the generator.

Direct grid connection mean that the generator is connected directly to the (usually 3-

phase) alternating current grid.

background image

Indirect grid connection means that the current from the turbine passes through a series of

electric devices which adjust the current to match that of the grid. With an asynchronous
generator this occurs automatically.


Wyszukiwarka

Podobne podstrony:
(eolica) II PRINCIPLES OF A WIND POWER TURBINE?HAVIOUR(1)
Foresight analysis of wind power in Turkey
Foresight analysis of wind power in Turkey
Development Of Wind Power Control System For Six Phase Permanent Magnet Synchronous Generators
[2006] Application of Magnetic Energy Recovery Switch (MERS) to Improve Output Power of Wind Turbine
(WinD Power) Dynamic Modeling of Ge 1 5 And 3 6 Wind Turbine Generator {}[2003}
Stochastic Analysis Power Output of Wind Turbine
[2006] Application of Magnetic Energy Recovery Switch (MERS) to Improve Output Power of Wind Turbine
Development of wind turbine control algorithms for industrial use
[US 2006] D517986 Wind turbine and rotor blade of a wind turbine
Advanced Methods for Development of Wind turbine models for control designe
Budujemy turbinę wiatrową w oparciu o projekt Hugh Piggotta z książki Wind power Workshop
Variable Speed Control Of Wind Turbines Using Nonlinear And Adaptive Algorithms
A Study Of A Wind Farm Power System
Automatic reactive power control of wind diesel micro hydro autonomous hybrid power systems

więcej podobnych podstron
