SYSTEM WIRING DIAGRAMS

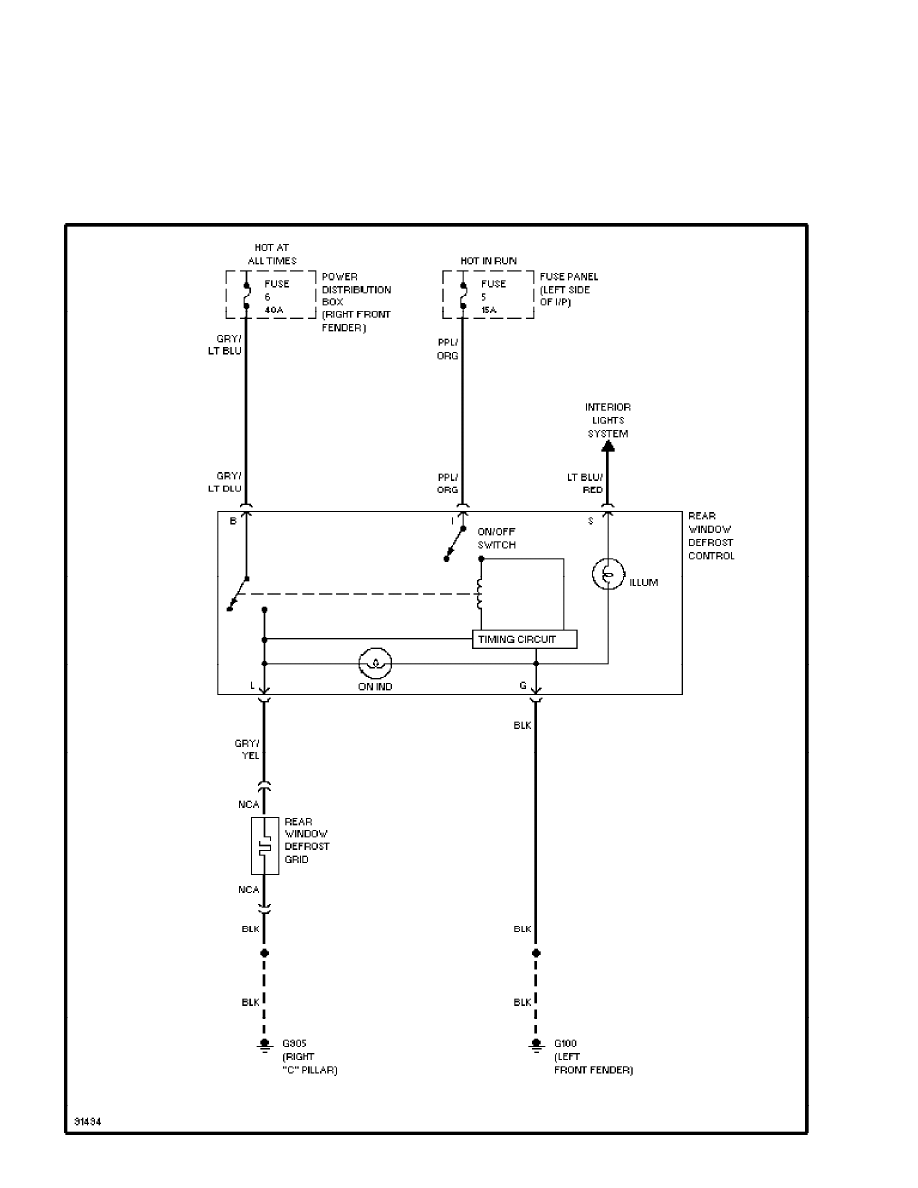

Defogger Circuit

1990 Ford Bronco II

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:26PM

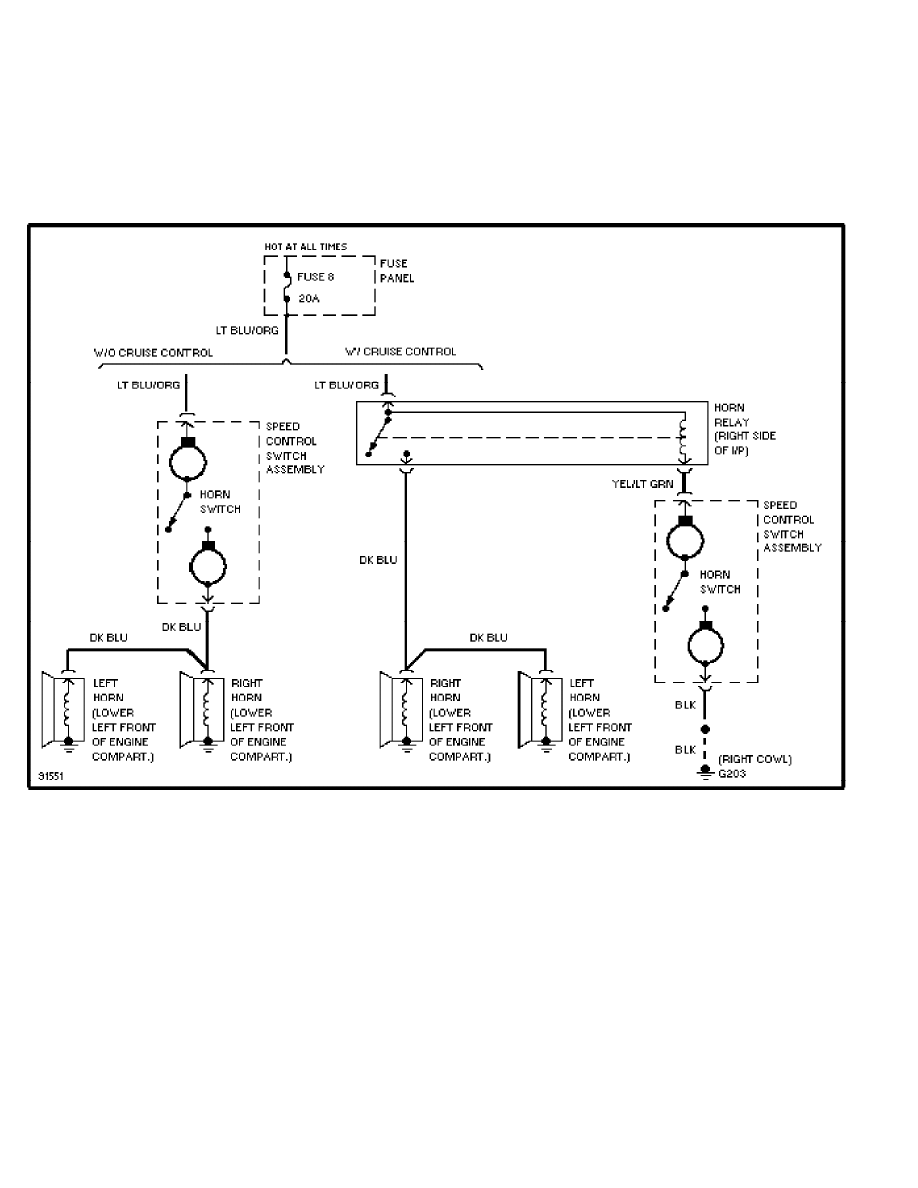

SYSTEM WIRING DIAGRAMS

Horn Circuit (p. 2)

1990 Ford Bronco II

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:26PM

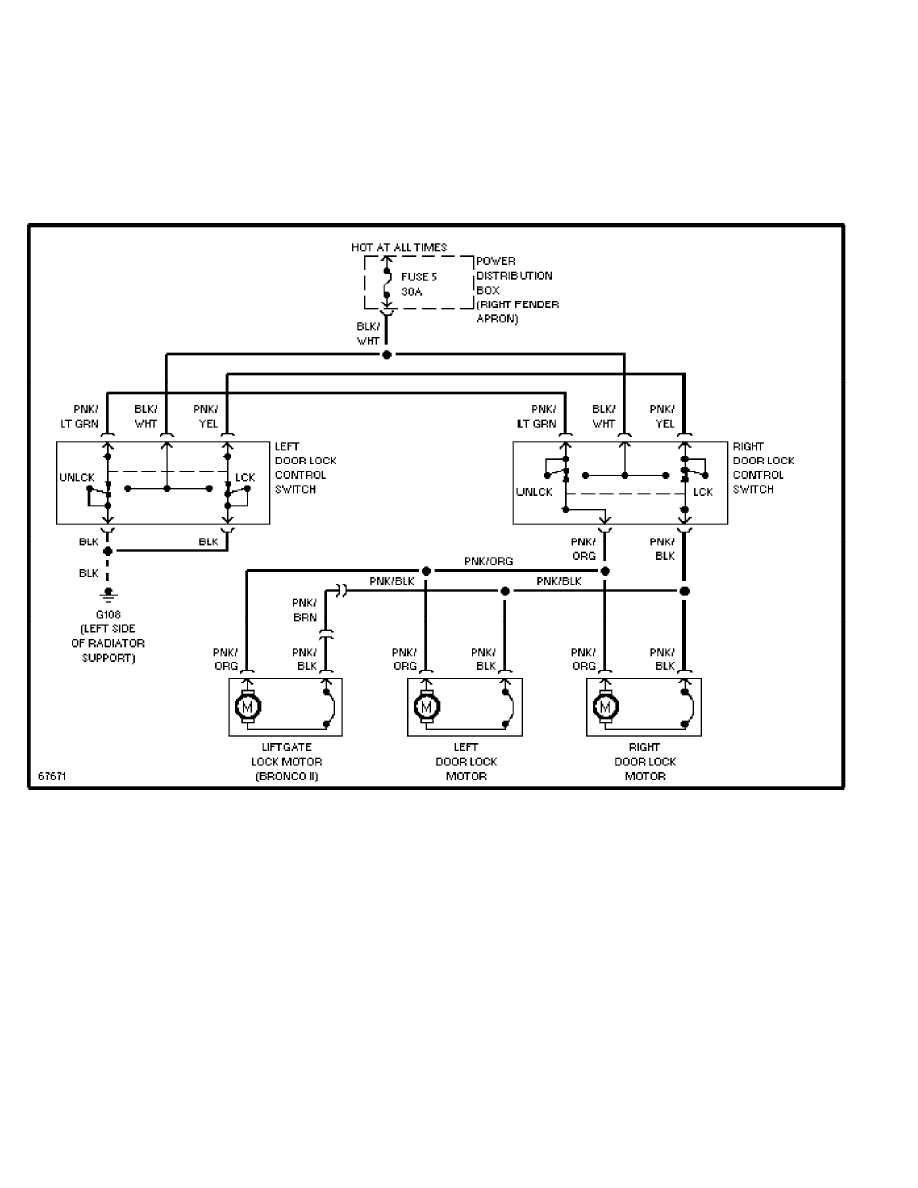

SYSTEM WIRING DIAGRAMS

Power Door Lock Circuit (p. 3)

1990 Ford Bronco II

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:26PM

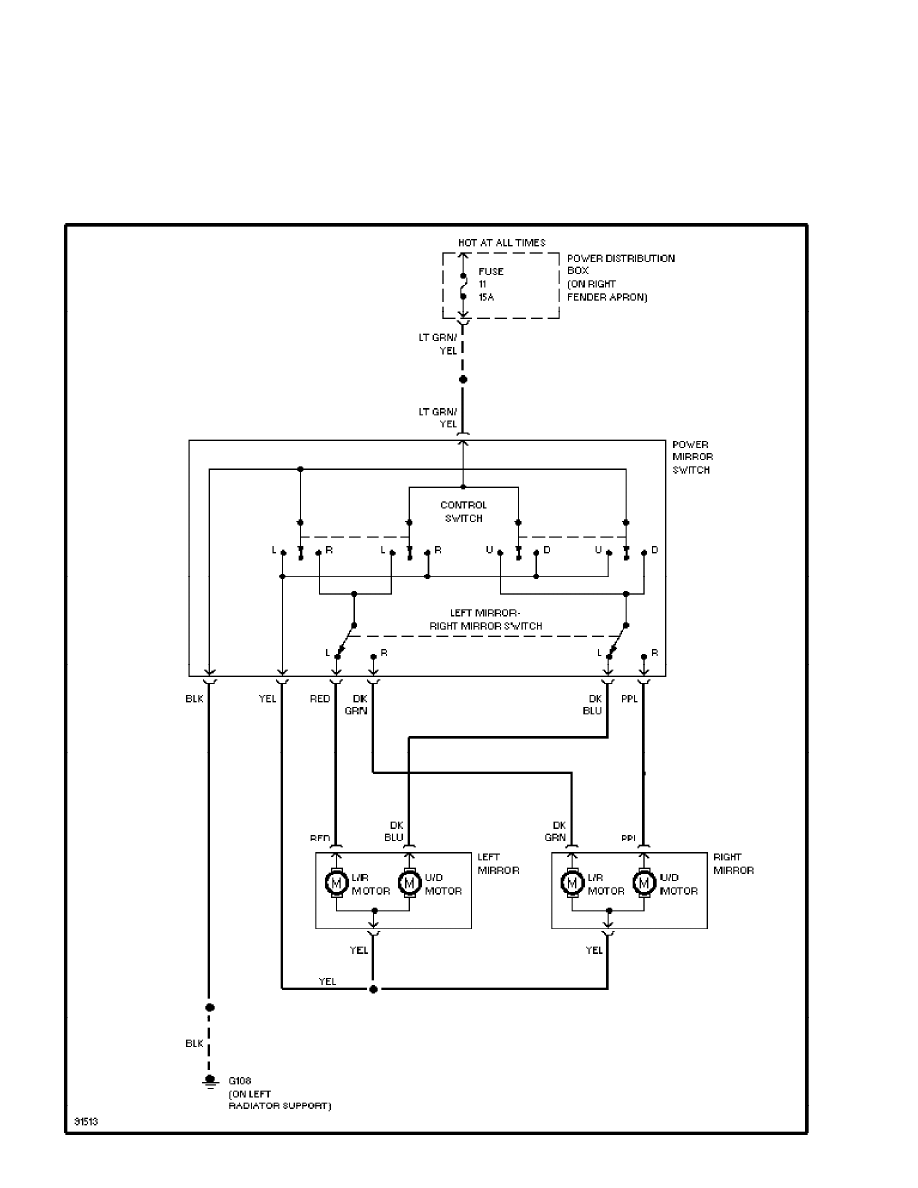

SYSTEM WIRING DIAGRAMS

Power Mirror Circuit (p. 4)

1990 Ford Bronco II

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:26PM

SYSTEM WIRING DIAGRAMS

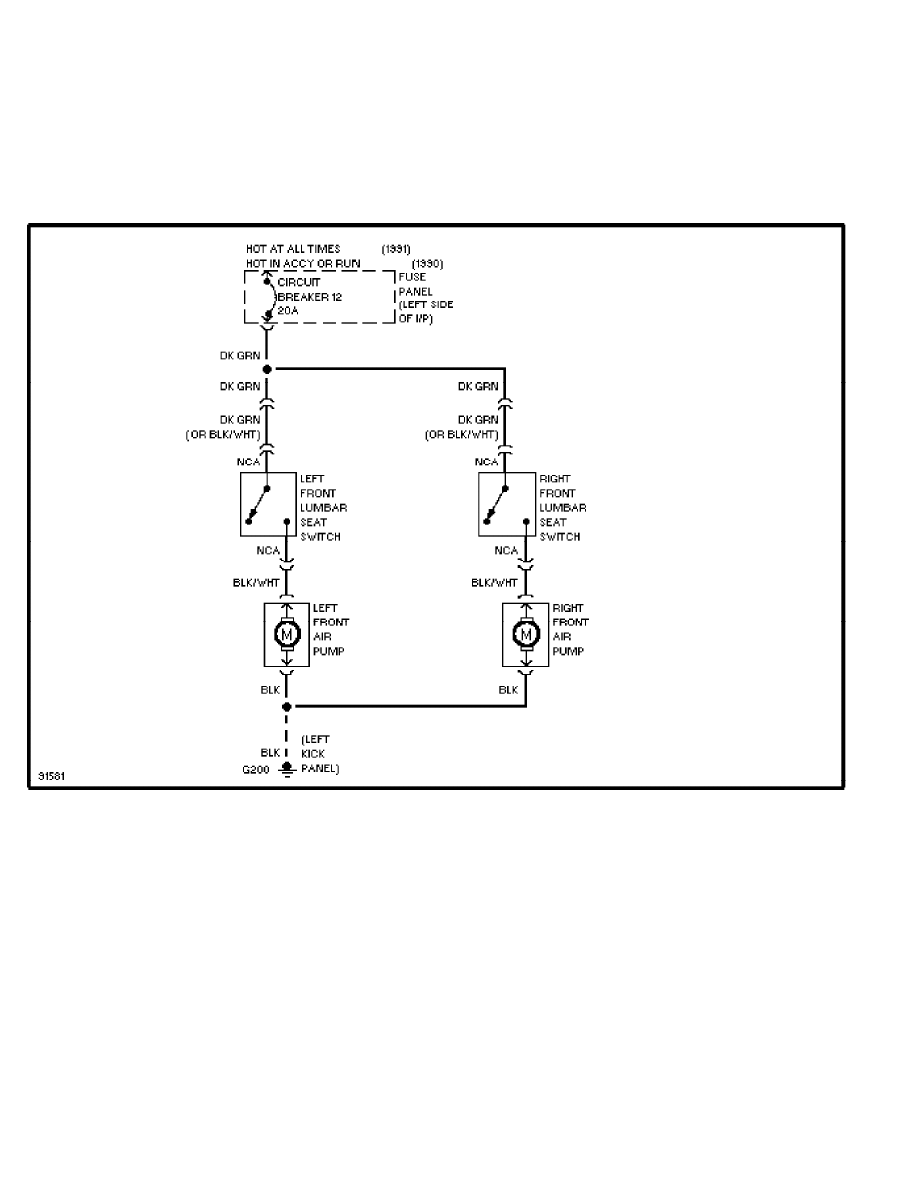

Lumbar Circuit (p. 5)

1990 Ford Bronco II

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:26PM

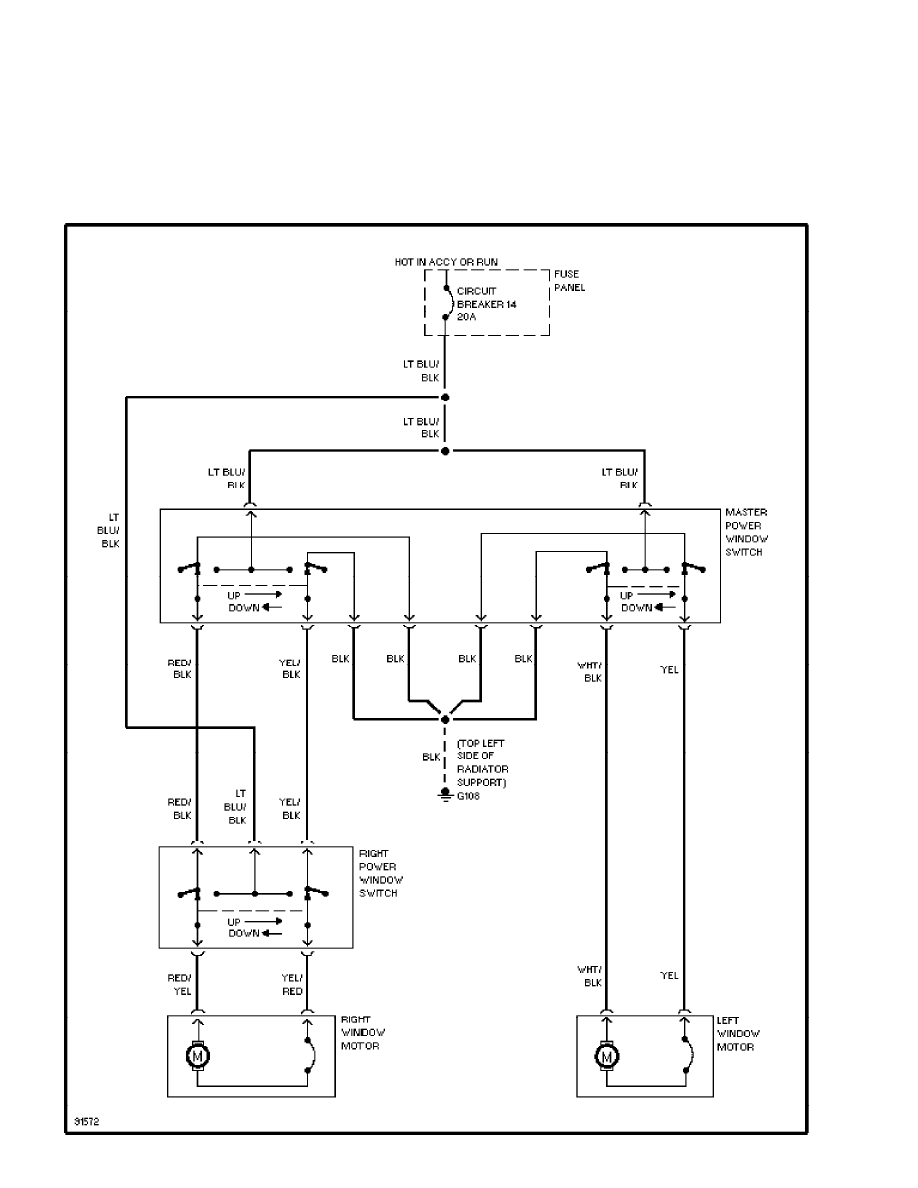

SYSTEM WIRING DIAGRAMS

Power Window Circuit (p. 6)

1990 Ford Bronco II

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:26PM

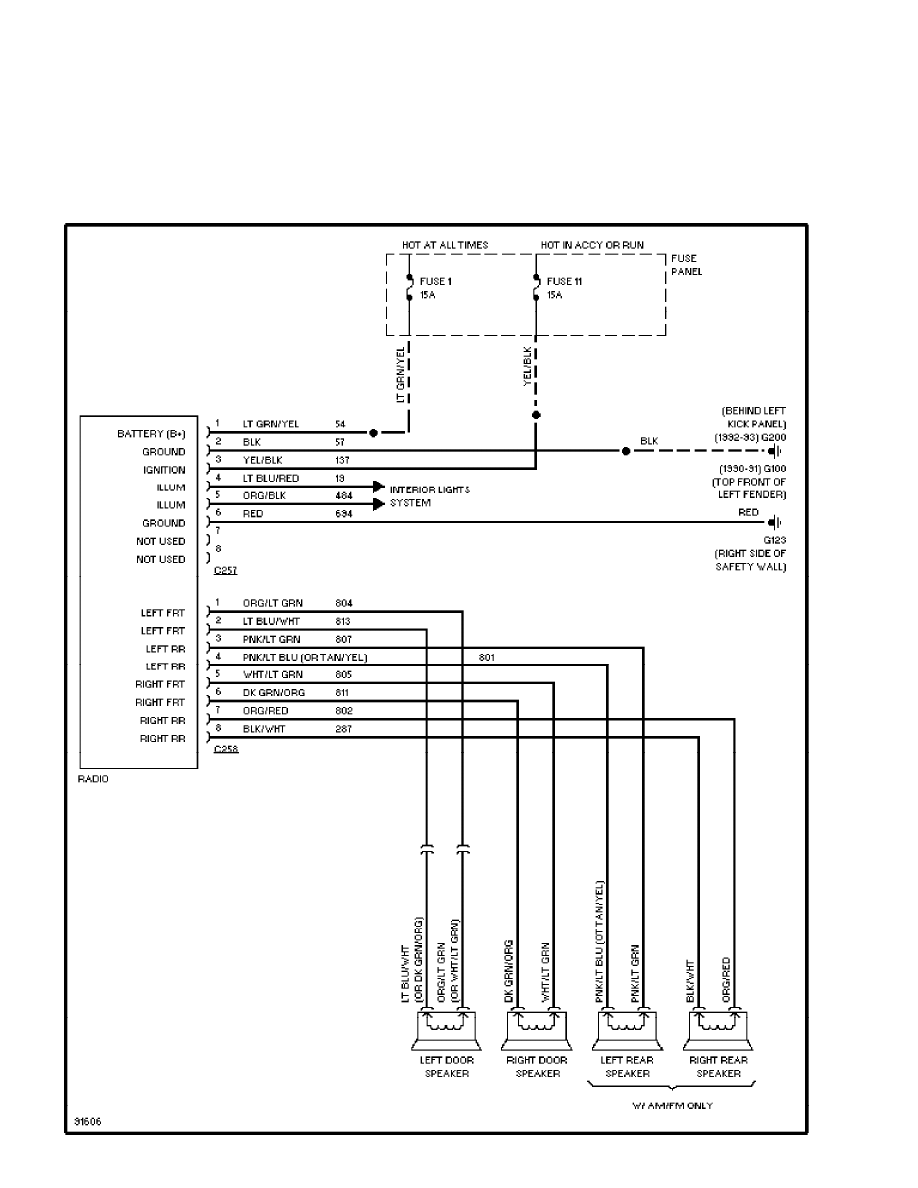

SYSTEM WIRING DIAGRAMS

Radio Circuits, Base Radio (p. 7)

1990 Ford Bronco II

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:26PM

SYSTEM WIRING DIAGRAMS

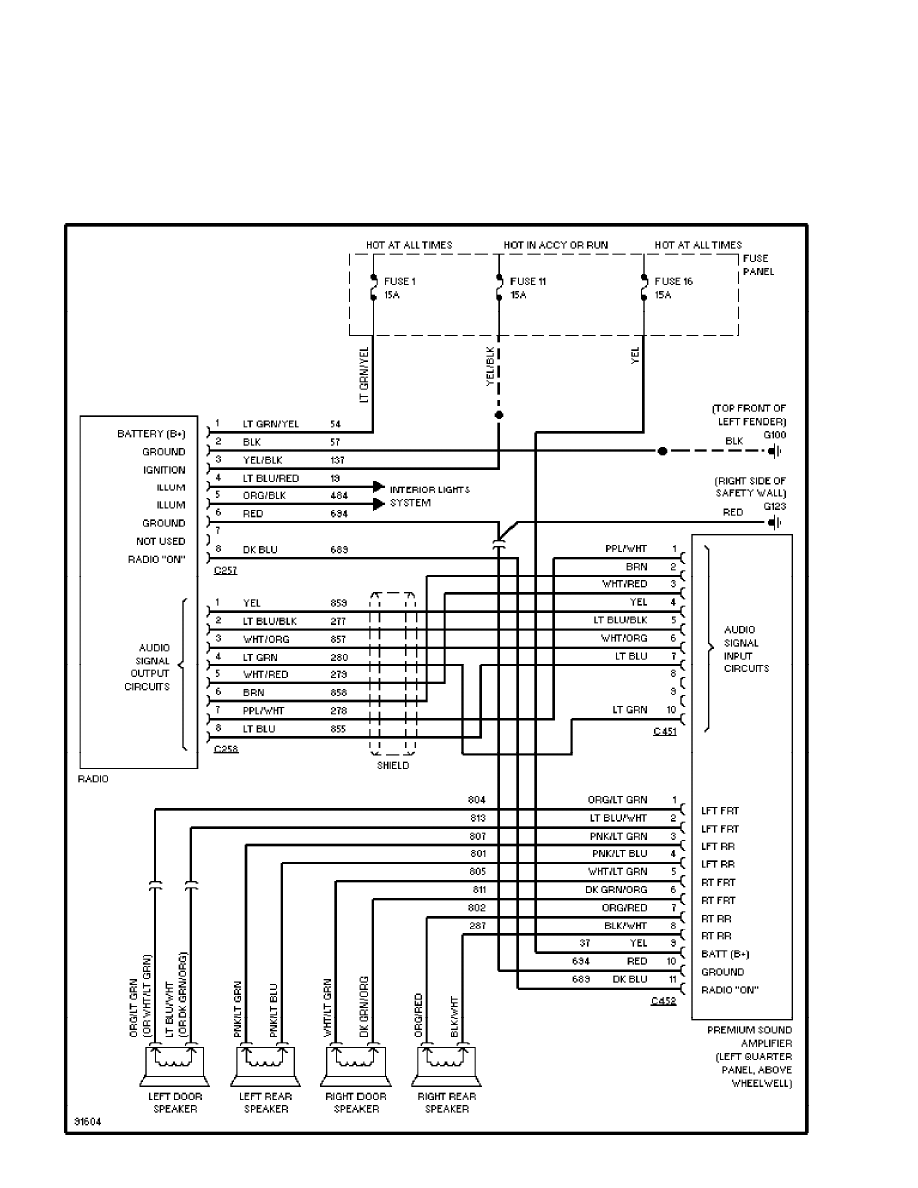

Radio Circuits, Premium Radio (p. 8)

1990 Ford Bronco II

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:26PM

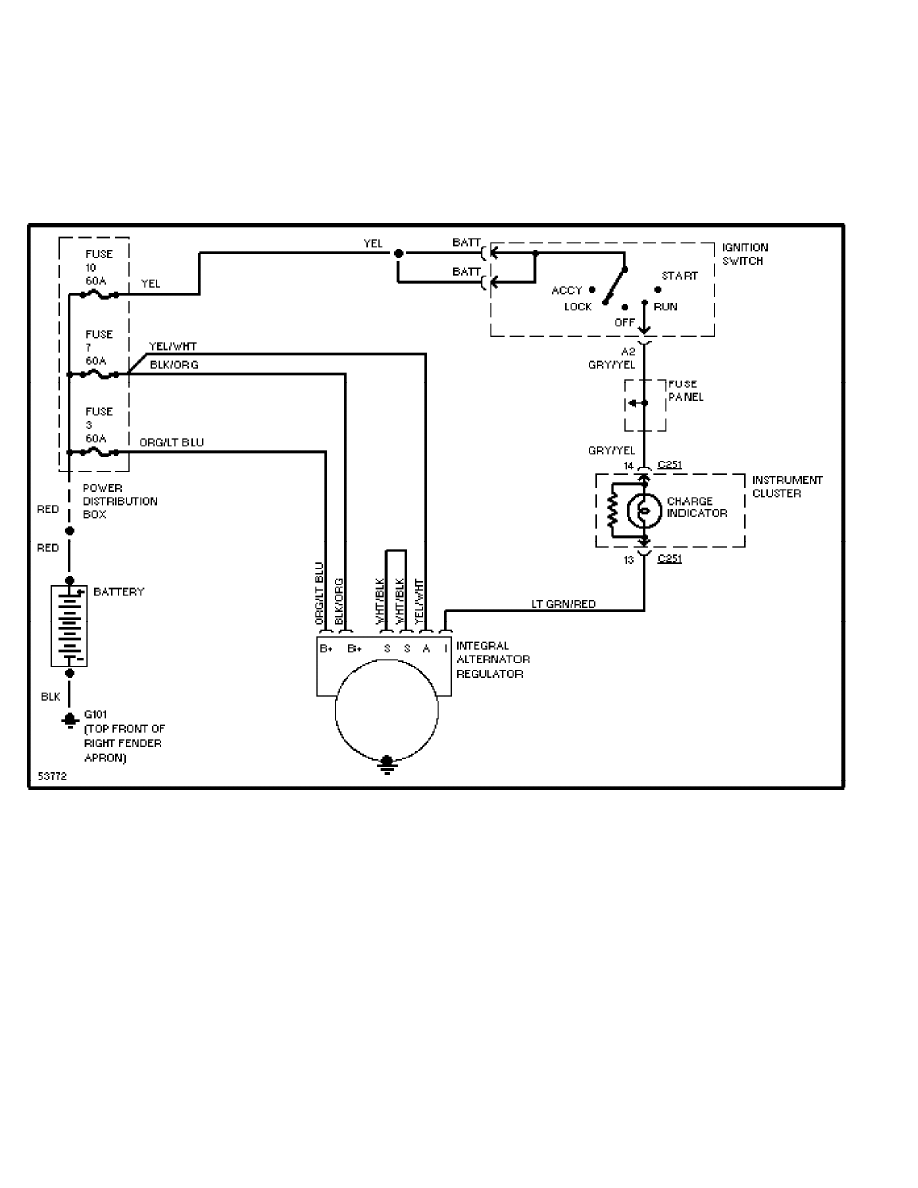

SYSTEM WIRING DIAGRAMS

Charging Circuit (p. 9)

1990 Ford Bronco II

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:26PM

SYSTEM WIRING DIAGRAMS

Starting Circuit (p. 10)

1990 Ford Bronco II

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:26PM

SYSTEM WIRING DIAGRAMS

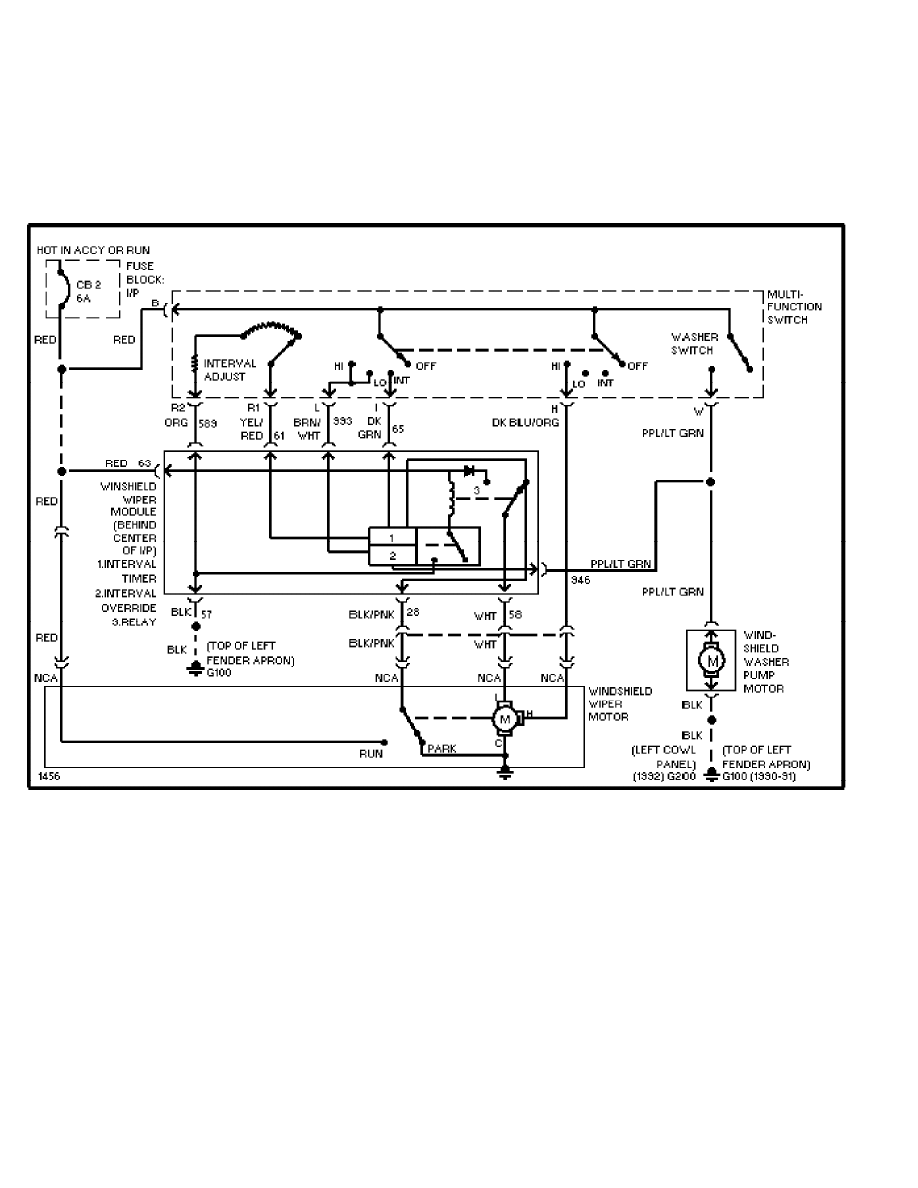

Interval Wiper/Washer Circuit (p. 11)

1990 Ford Bronco II

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:26PM

SYSTEM WIRING DIAGRAMS

Rear Wiper/Washer Circuit (p. 12)

1990 Ford Bronco II

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:26PM

WIRING DIAGRAMS

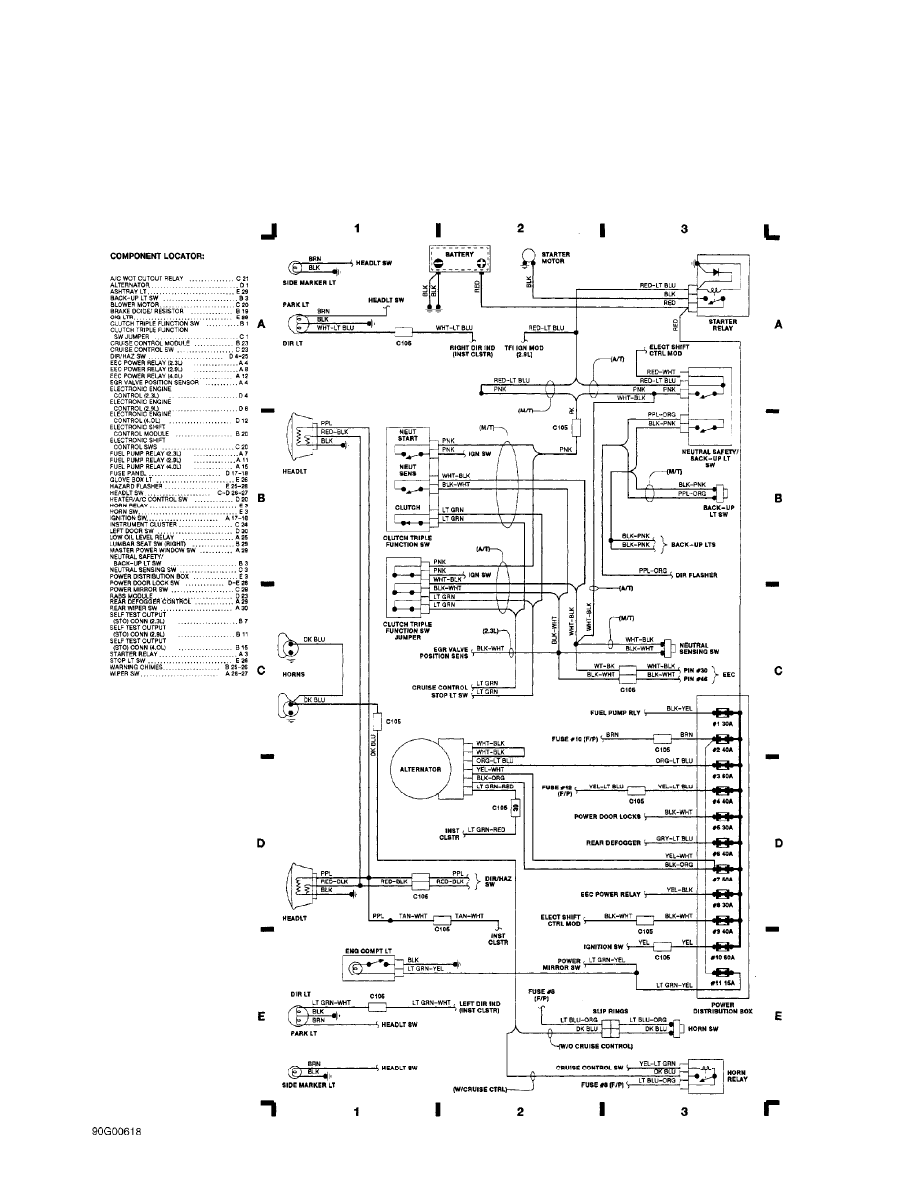

Fig. 1: Engine Compartment & Headlights

1990 Ford Bronco II

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:26PM

WIRING DIAGRAMS

Fig. 2: Electronic Engine Control (2.3L) (p. 2)

1990 Ford Bronco II

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:26PM

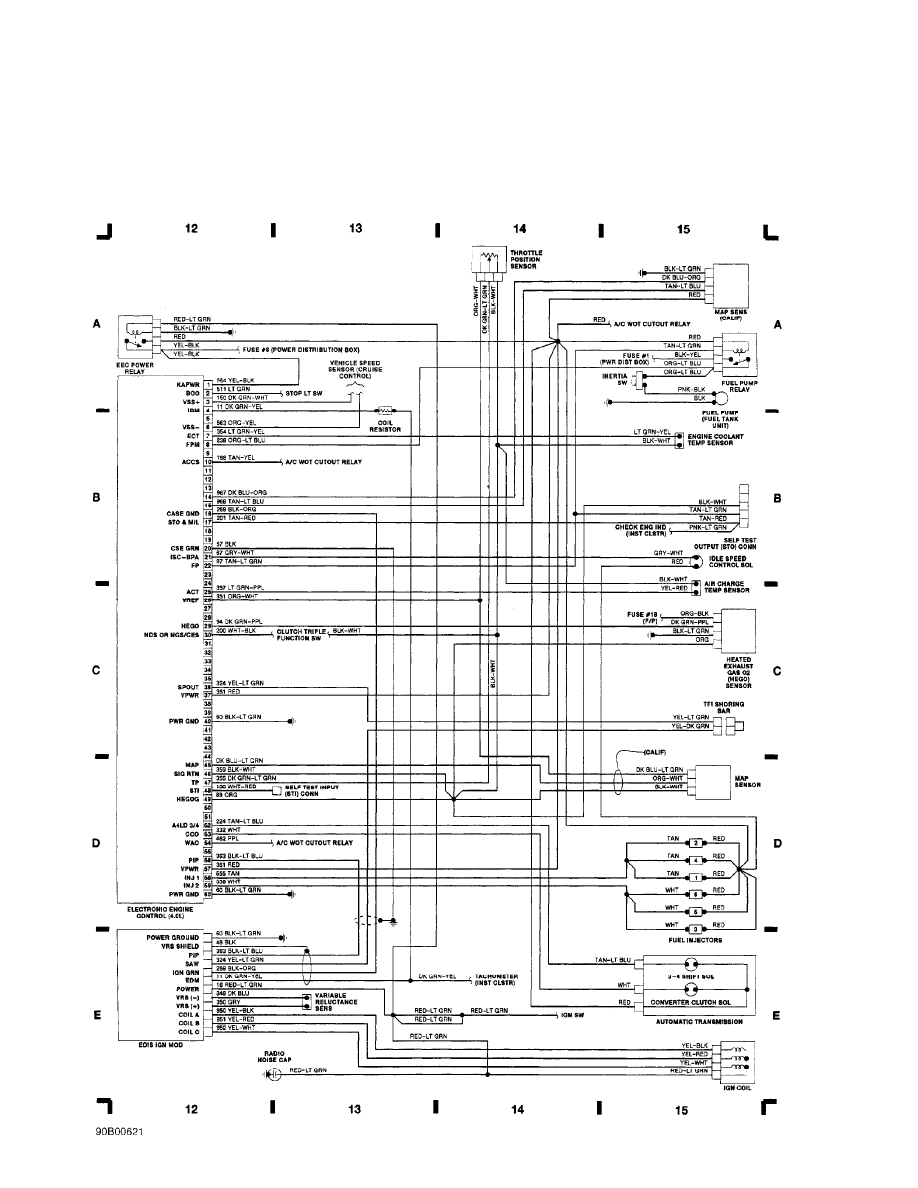

WIRING DIAGRAMS

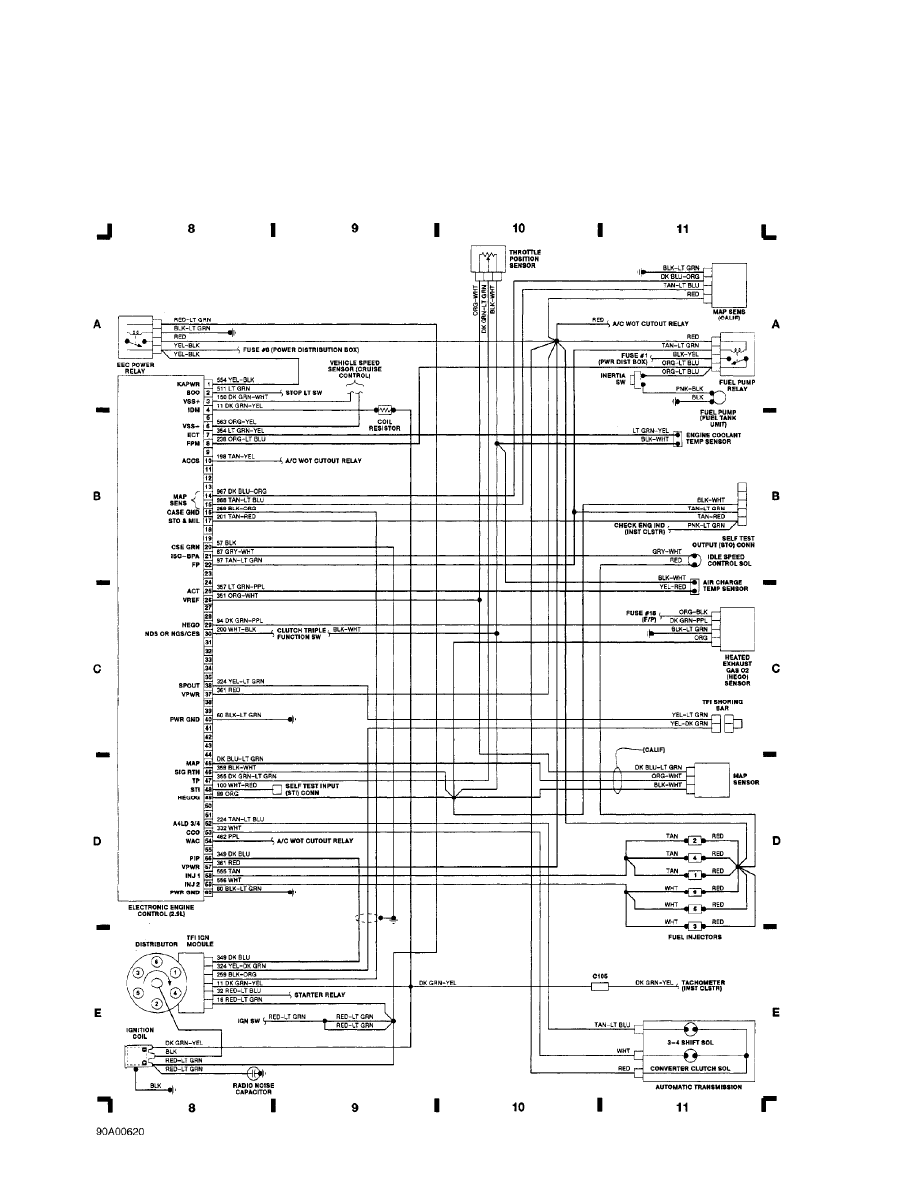

Fig. 3: Electronic Engine Control (2.9L) (p. 3)

1990 Ford Bronco II

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:26PM

WIRING DIAGRAMS

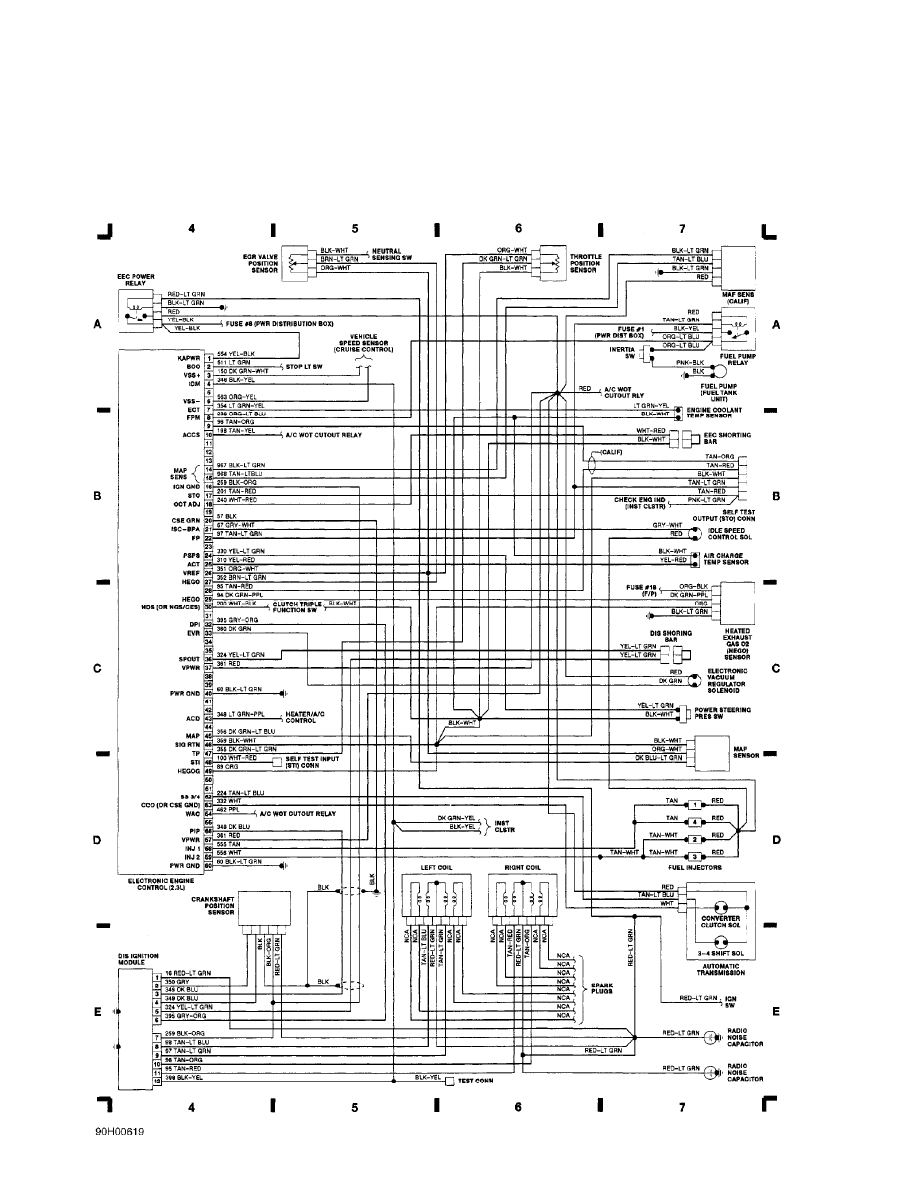

Fig. 4: Electronic Engine Control (4.0L) (p. 4)

1990 Ford Bronco II

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:26PM

WIRING DIAGRAMS

Fig. 5: Fuse Block (p. 5)

1990 Ford Bronco II

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:26PM

WIRING DIAGRAMS

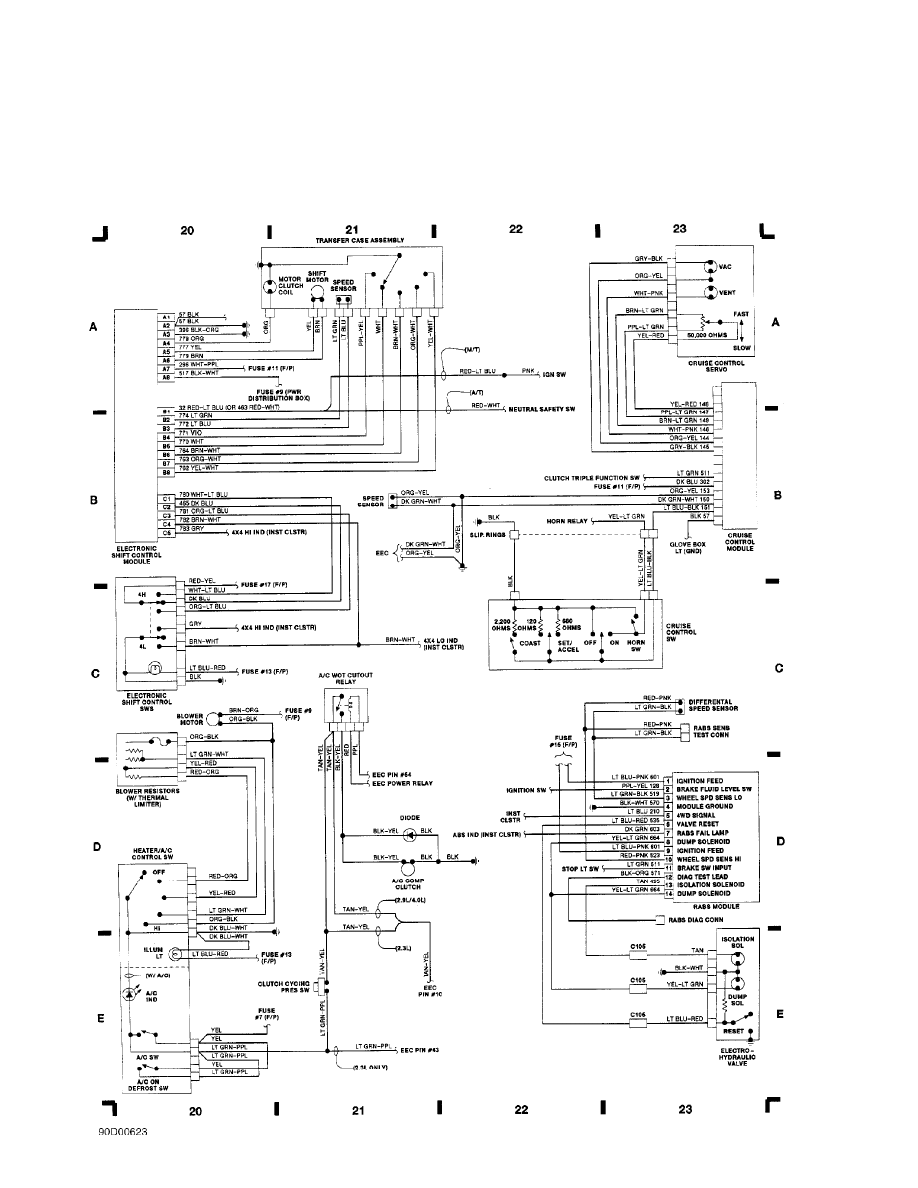

Fig. 6: Electronic Shift Control Module, Cruise Control & A/C-Heating (p. 6)

1990 Ford Bronco II

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:26PM

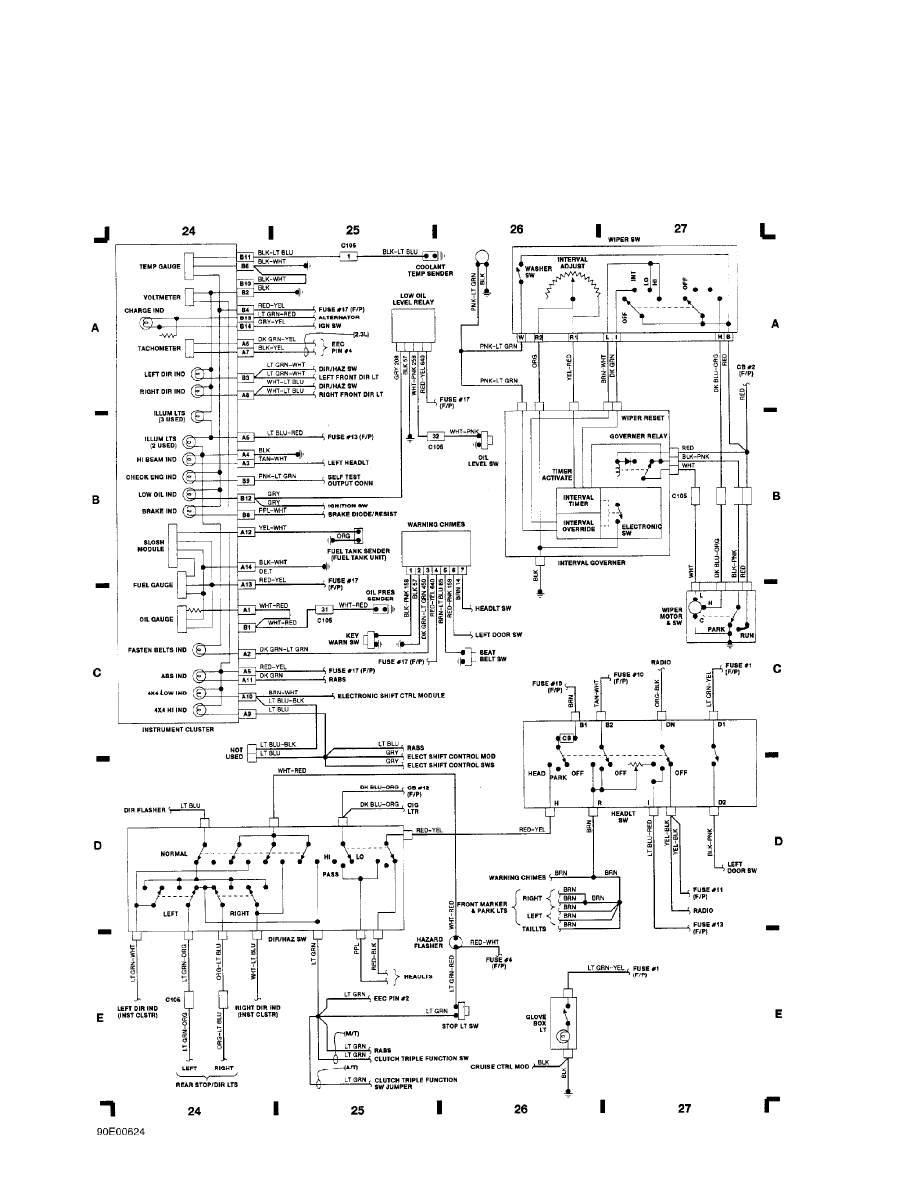

WIRING DIAGRAMS

Fig. 7: Instrument Cluster & Wiper/Washer (p. 7)

1990 Ford Bronco II

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:26PM

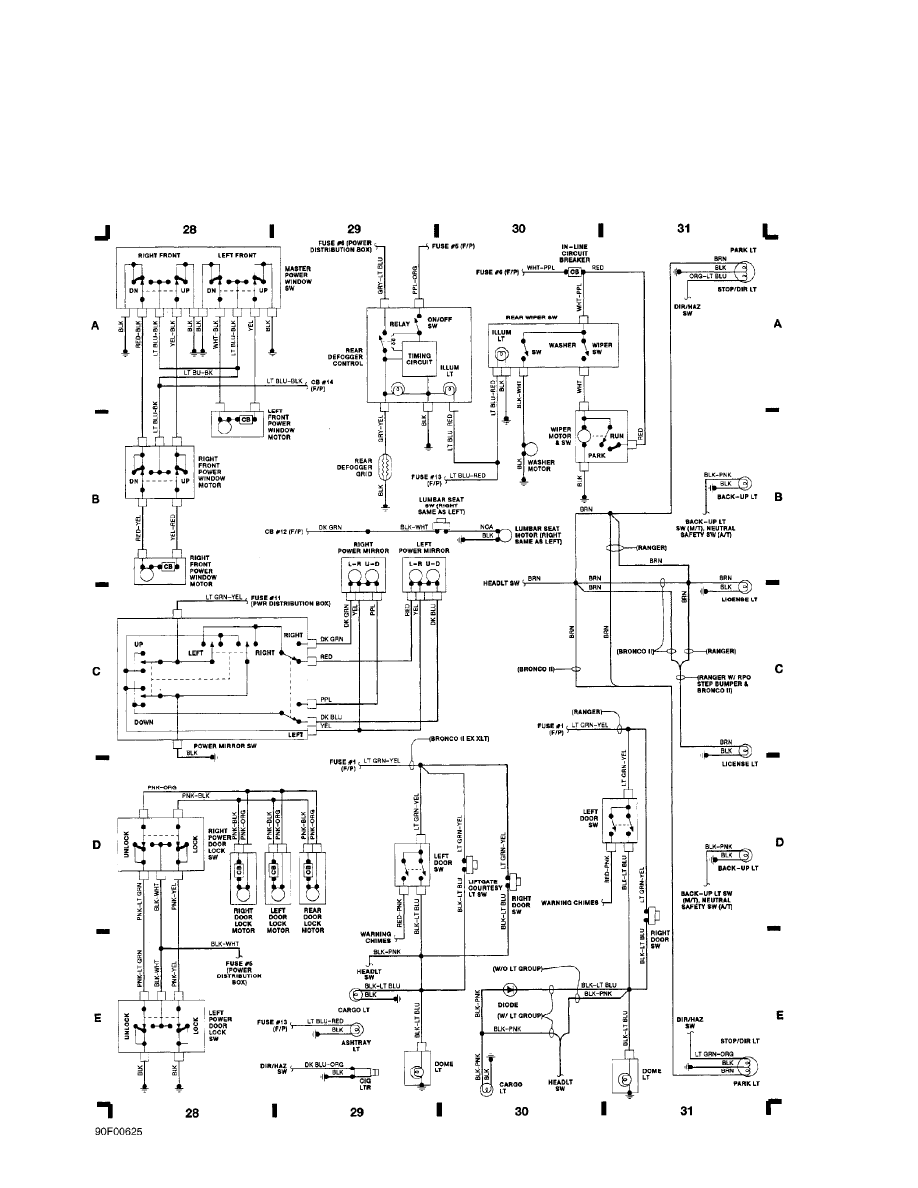

WIRING DIAGRAMS

Fig. 8: Passenger Compartment & Taillights (p. 8)

1990 Ford Bronco II

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:26PM
