SYSTEM WIRING DIAGRAMS

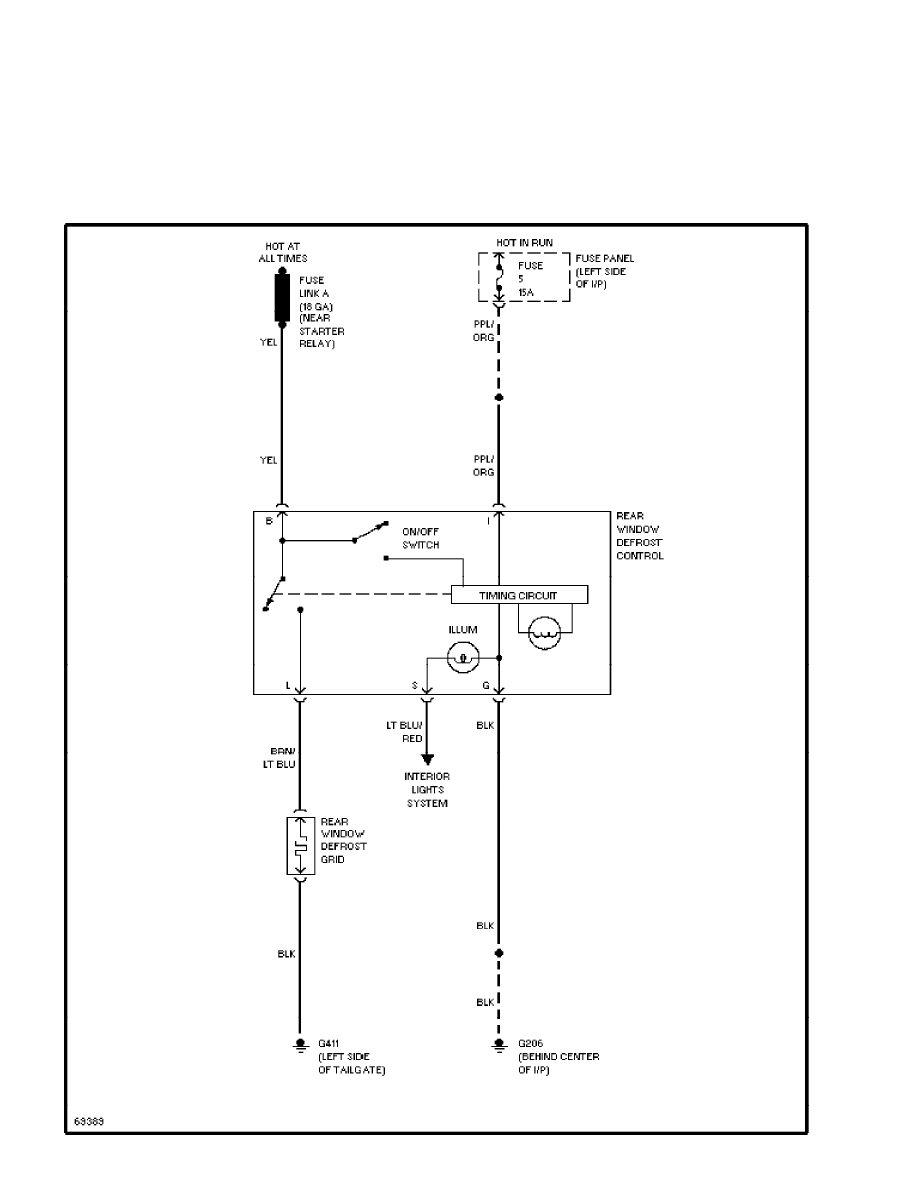

Defogger Circuit

1990 Ford Bronco

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:19PM

SYSTEM WIRING DIAGRAMS

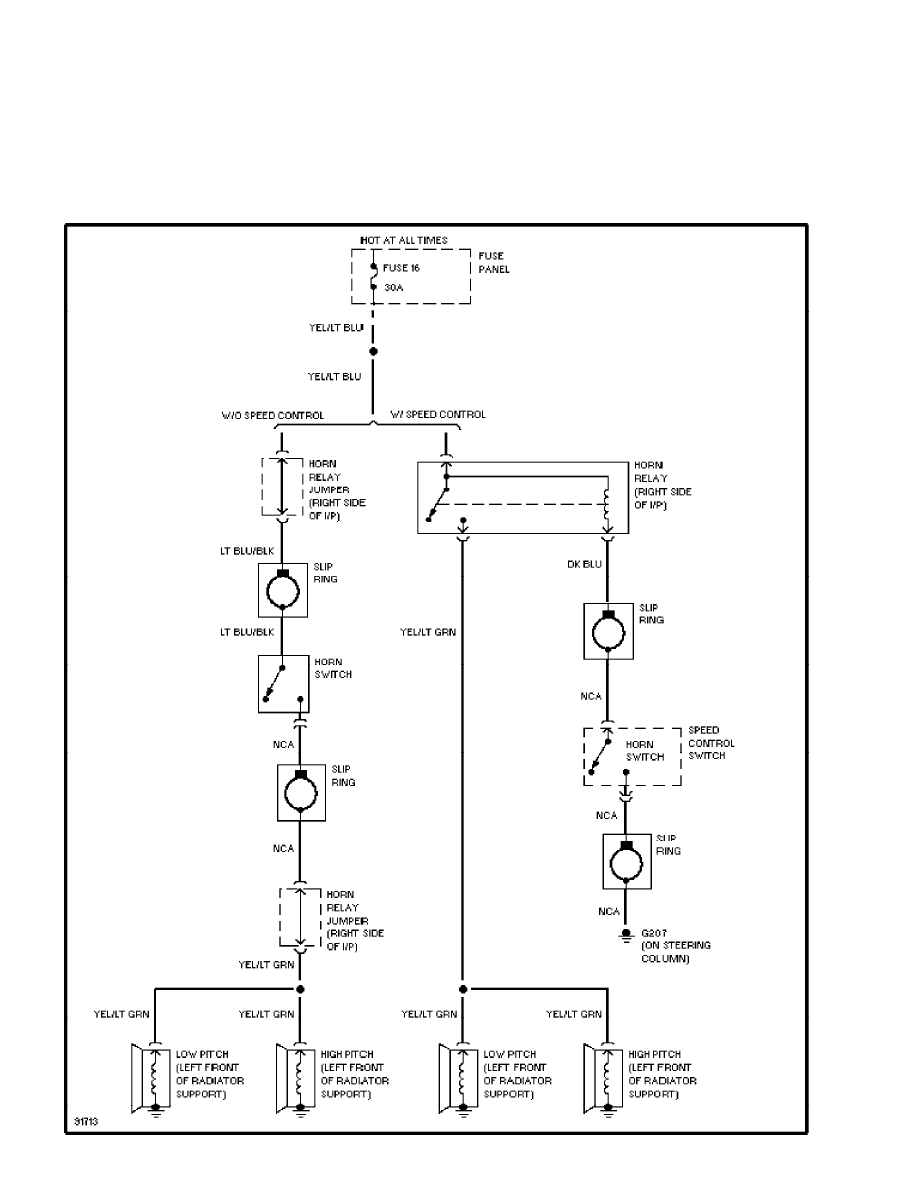

Horn Circuit (p. 2)

1990 Ford Bronco

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:19PM

SYSTEM WIRING DIAGRAMS

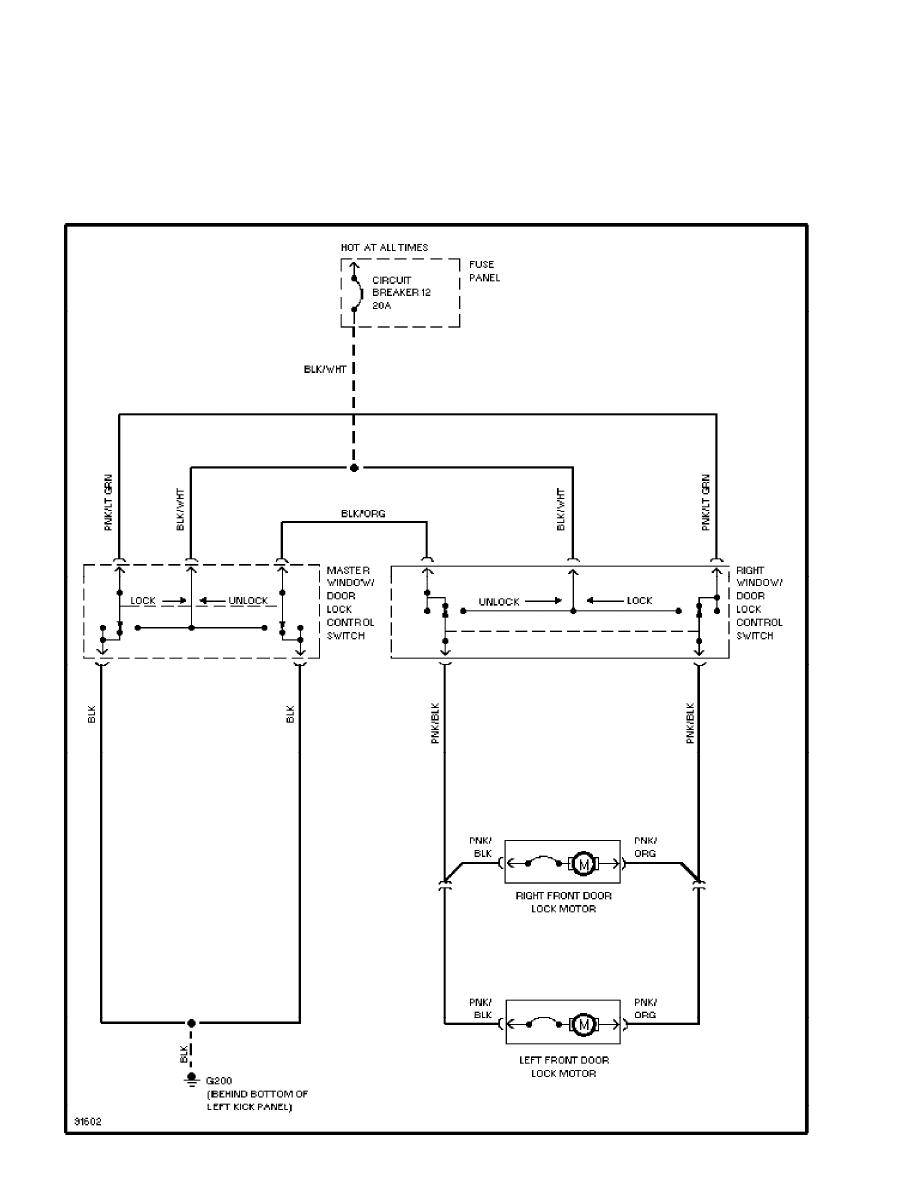

Power Door Lock Circuit (p. 3)

1990 Ford Bronco

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:19PM

SYSTEM WIRING DIAGRAMS

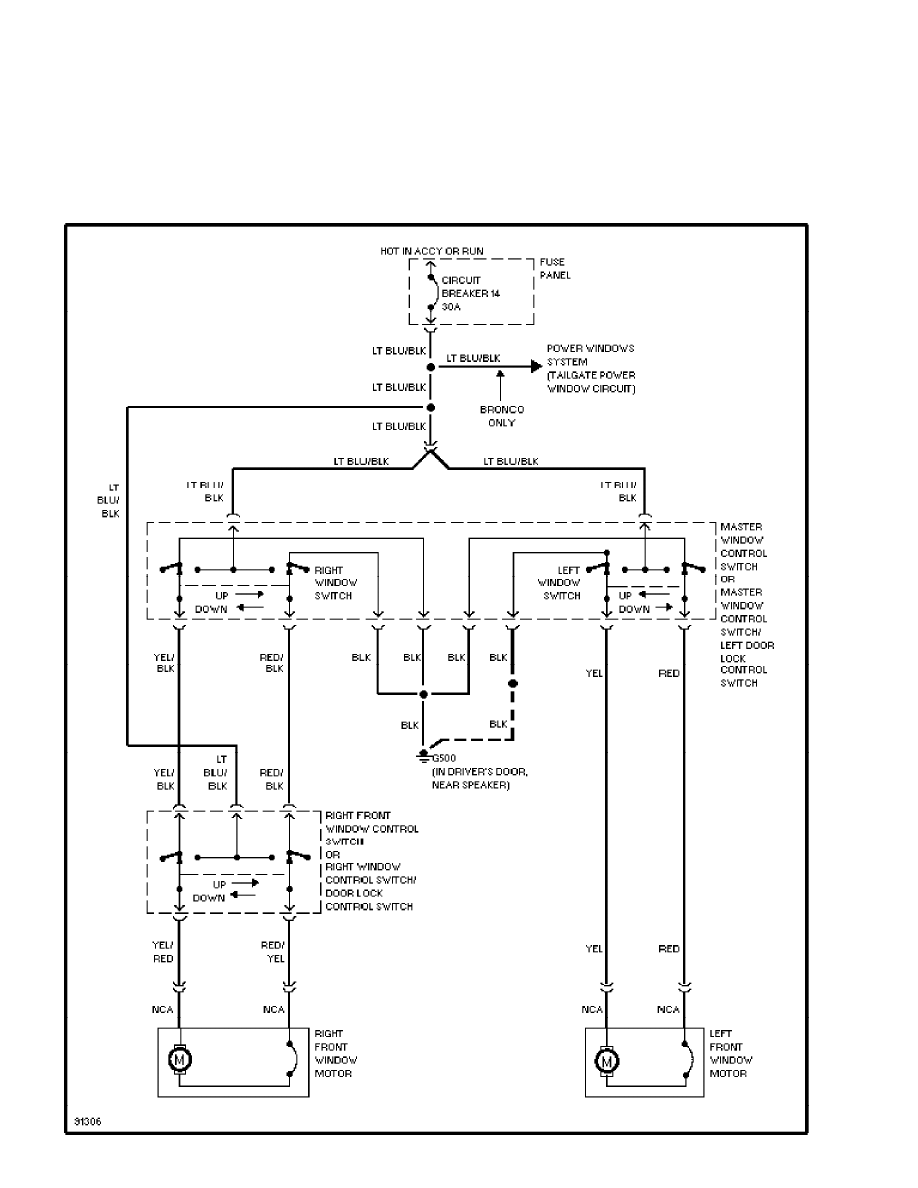

Power Windows Circuit (p. 4)

1990 Ford Bronco

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:19PM

SYSTEM WIRING DIAGRAMS

Tailgate Power Window Circuit (p. 5)

1990 Ford Bronco

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:19PM

SYSTEM WIRING DIAGRAMS

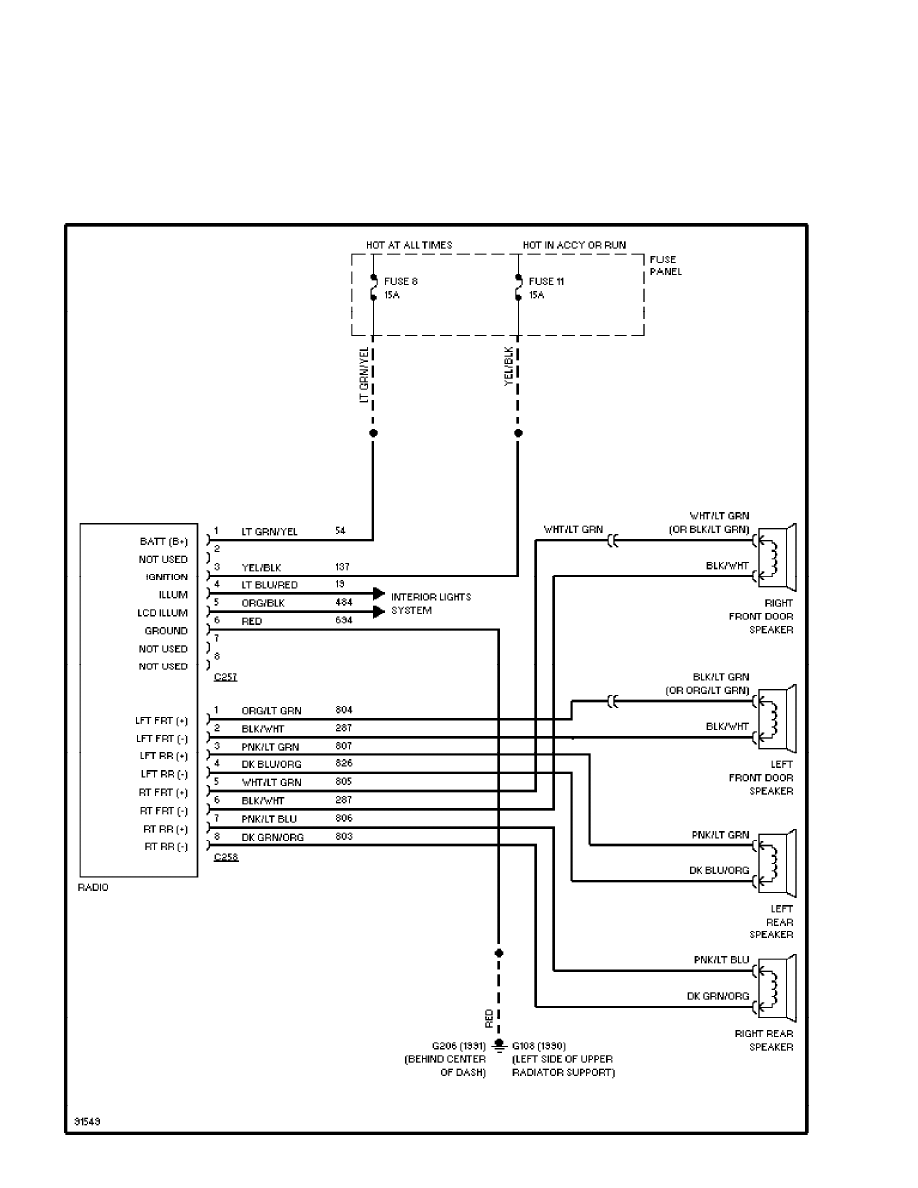

Radio Circuits (p. 6)

1990 Ford Bronco

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:19PM

SYSTEM WIRING DIAGRAMS

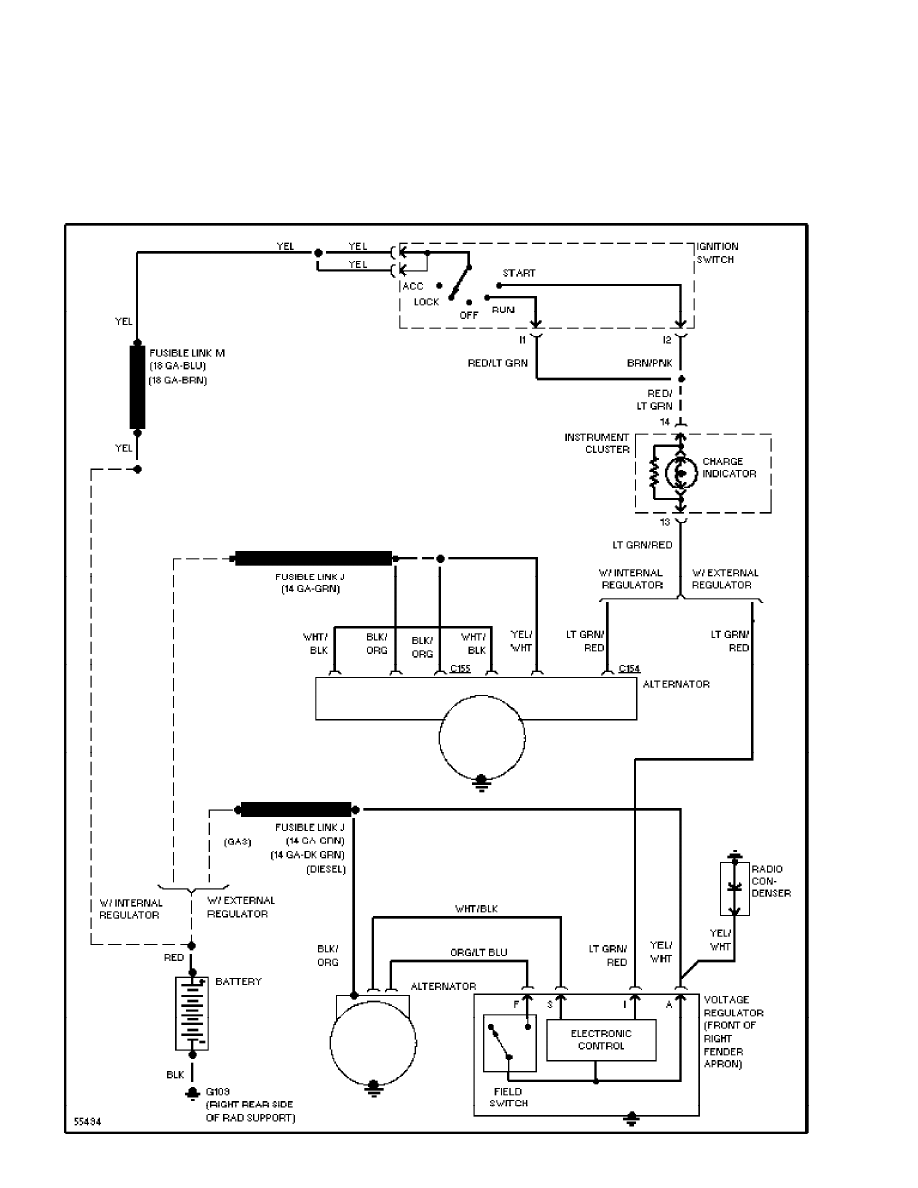

Charging Circuit (p. 7)

1990 Ford Bronco

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:19PM

SYSTEM WIRING DIAGRAMS

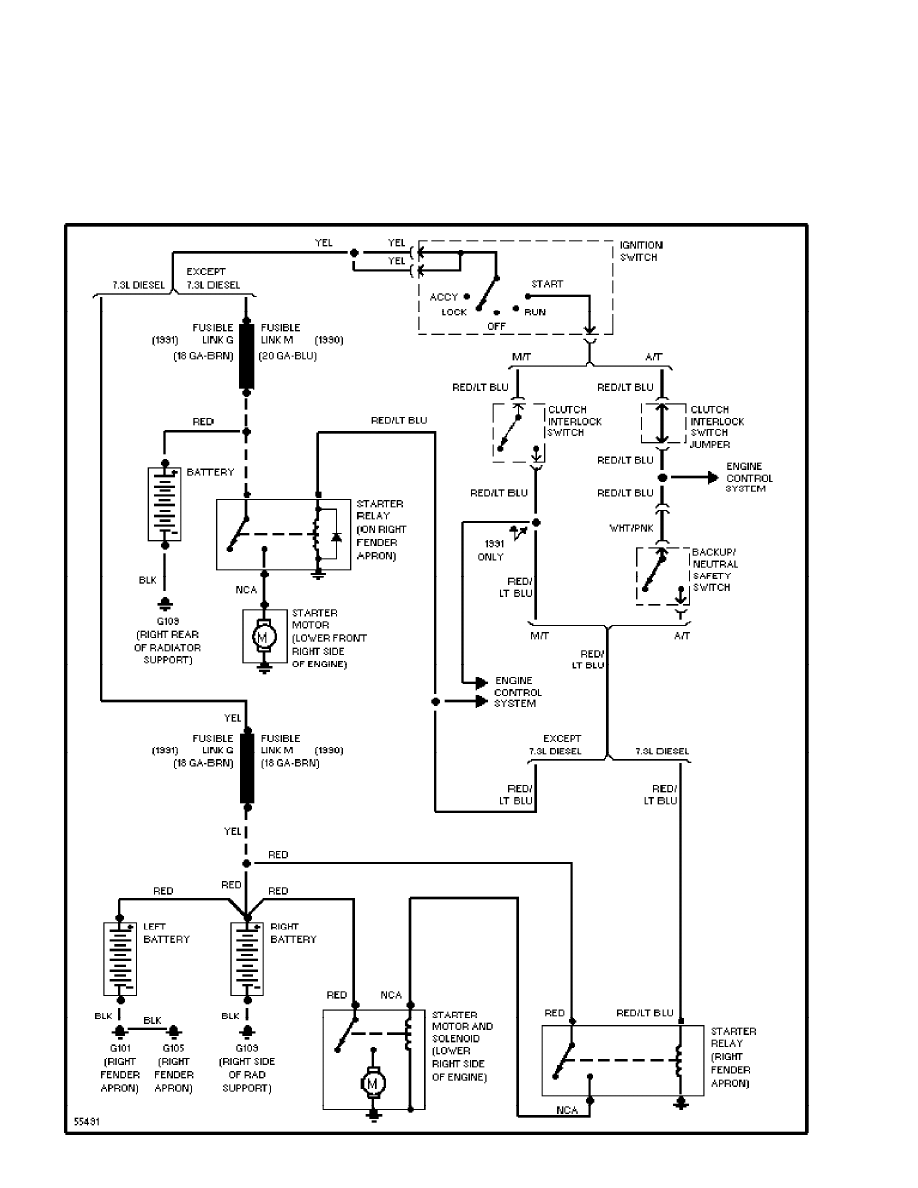

Starting Circuit (p. 8)

1990 Ford Bronco

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:19PM

SYSTEM WIRING DIAGRAMS

2-Speed Wiper/Washer Circuit (p. 9)

1990 Ford Bronco

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:19PM

SYSTEM WIRING DIAGRAMS

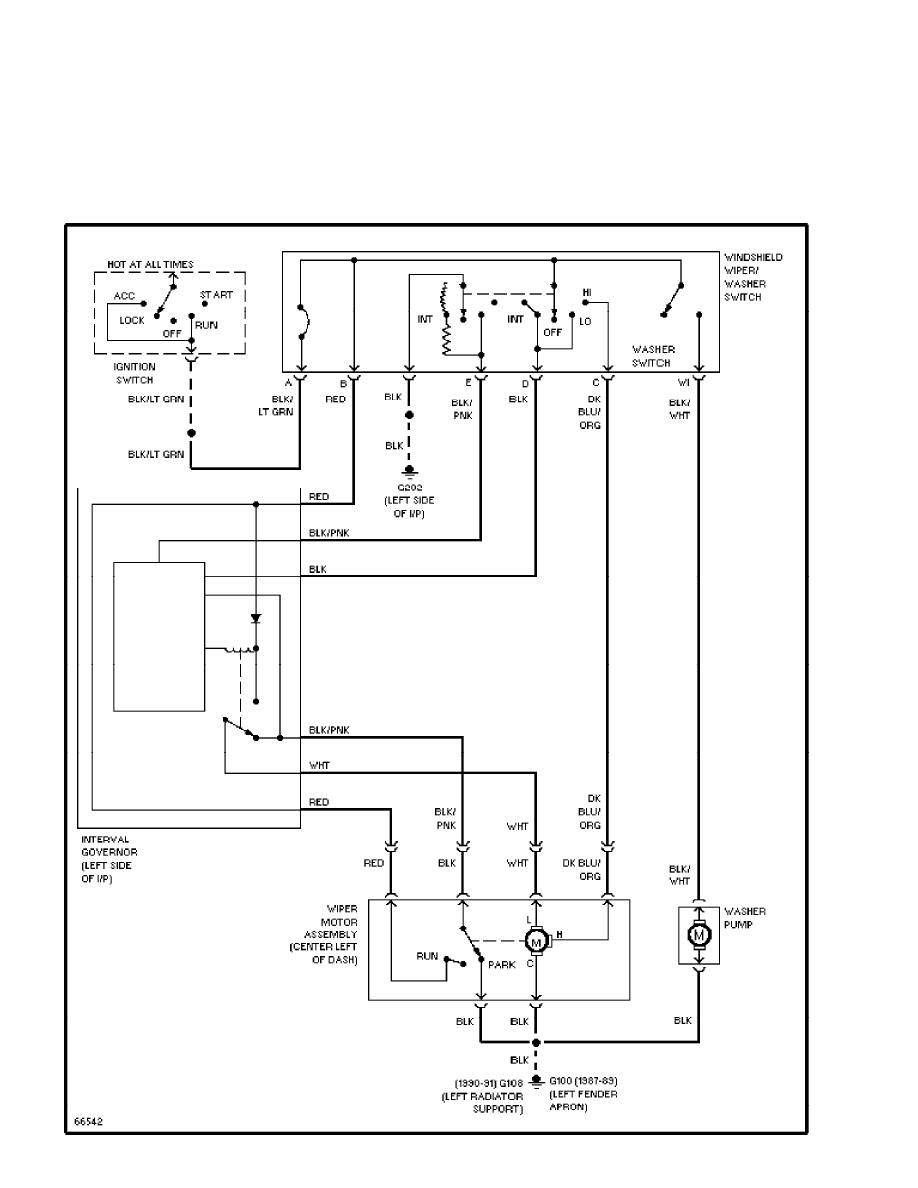

Interval Wiper/Washer Circuit (p. 10)

1990 Ford Bronco

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:19PM

WIRING DIAGRAMS

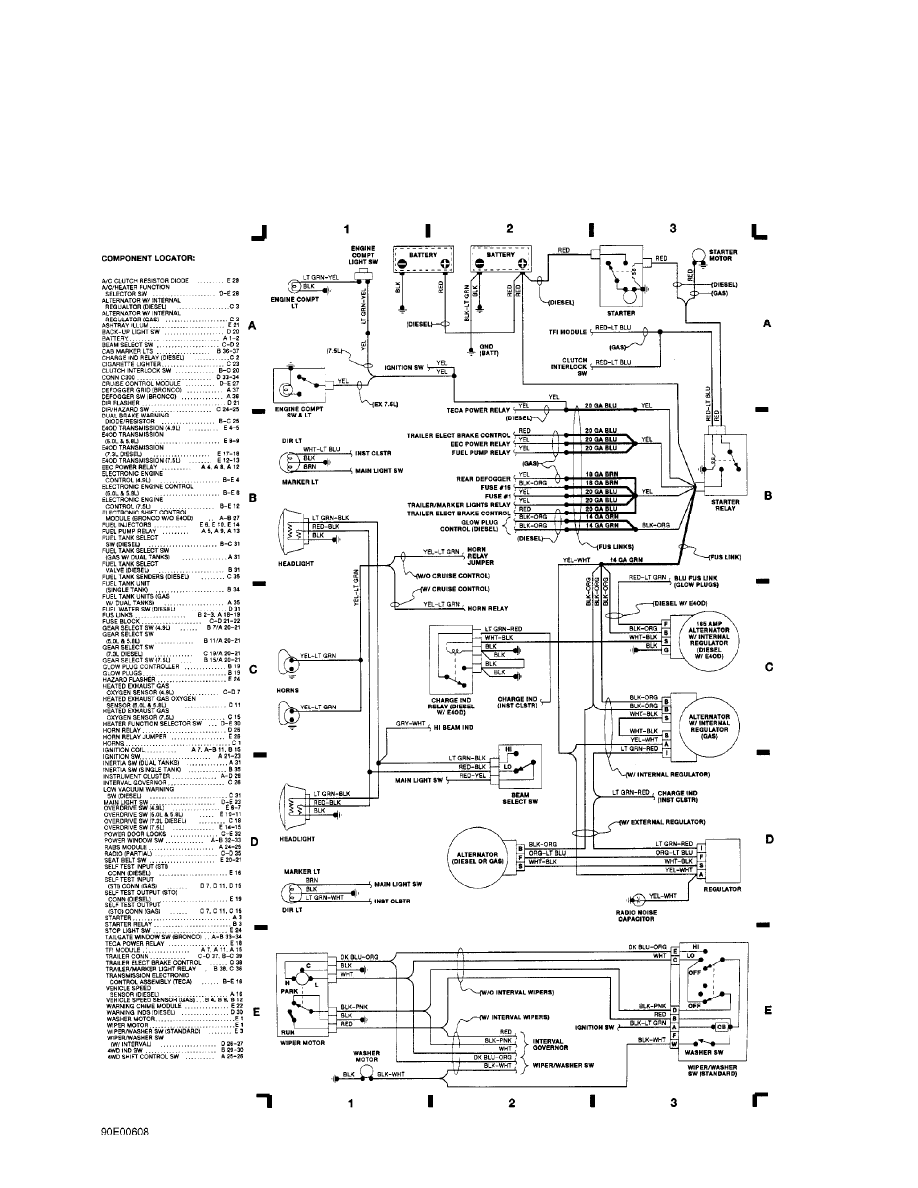

Fig. 1: Engine Compartment & Headlights

1990 Ford Bronco

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:19PM

WIRING DIAGRAMS

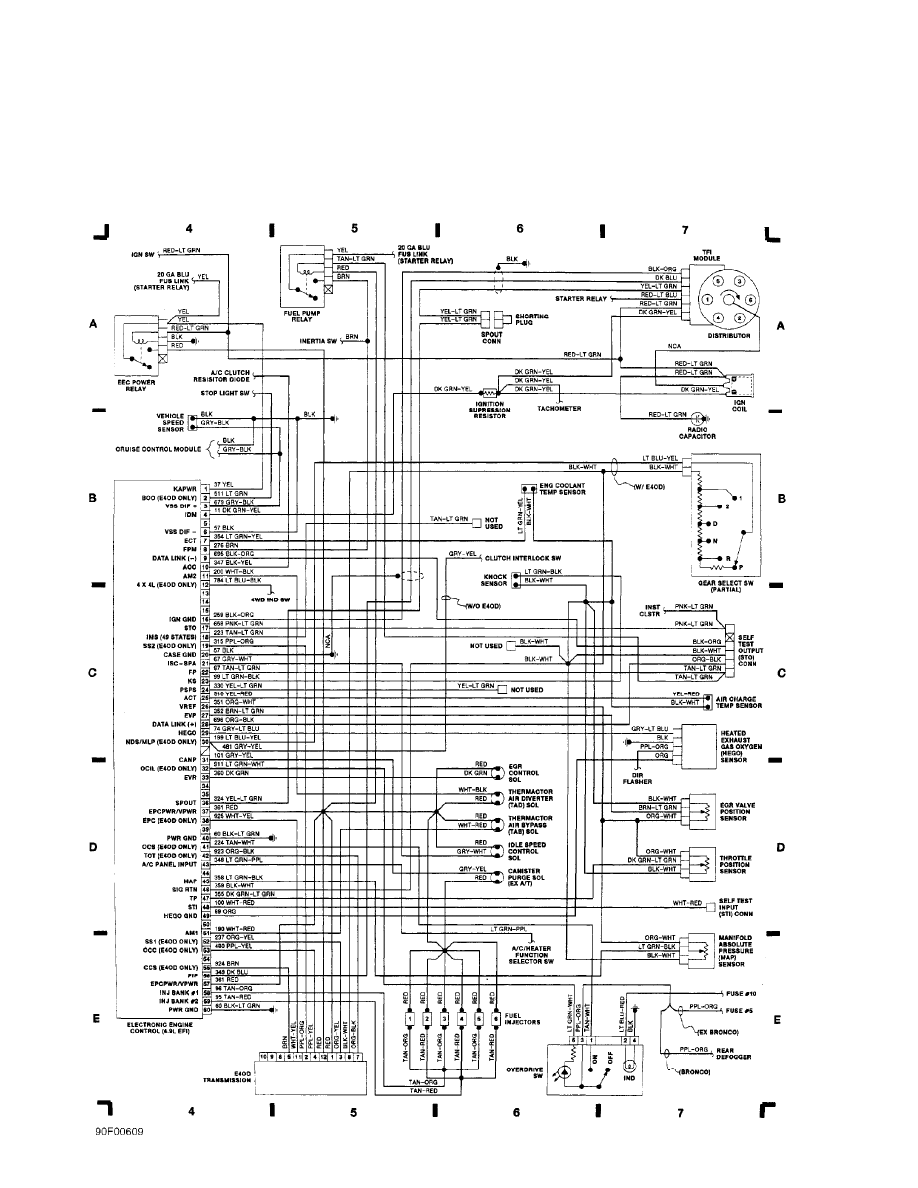

Fig. 2: Electronic Engine Control (4.9L EFI) (p. 2)

1990 Ford Bronco

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:19PM

WIRING DIAGRAMS

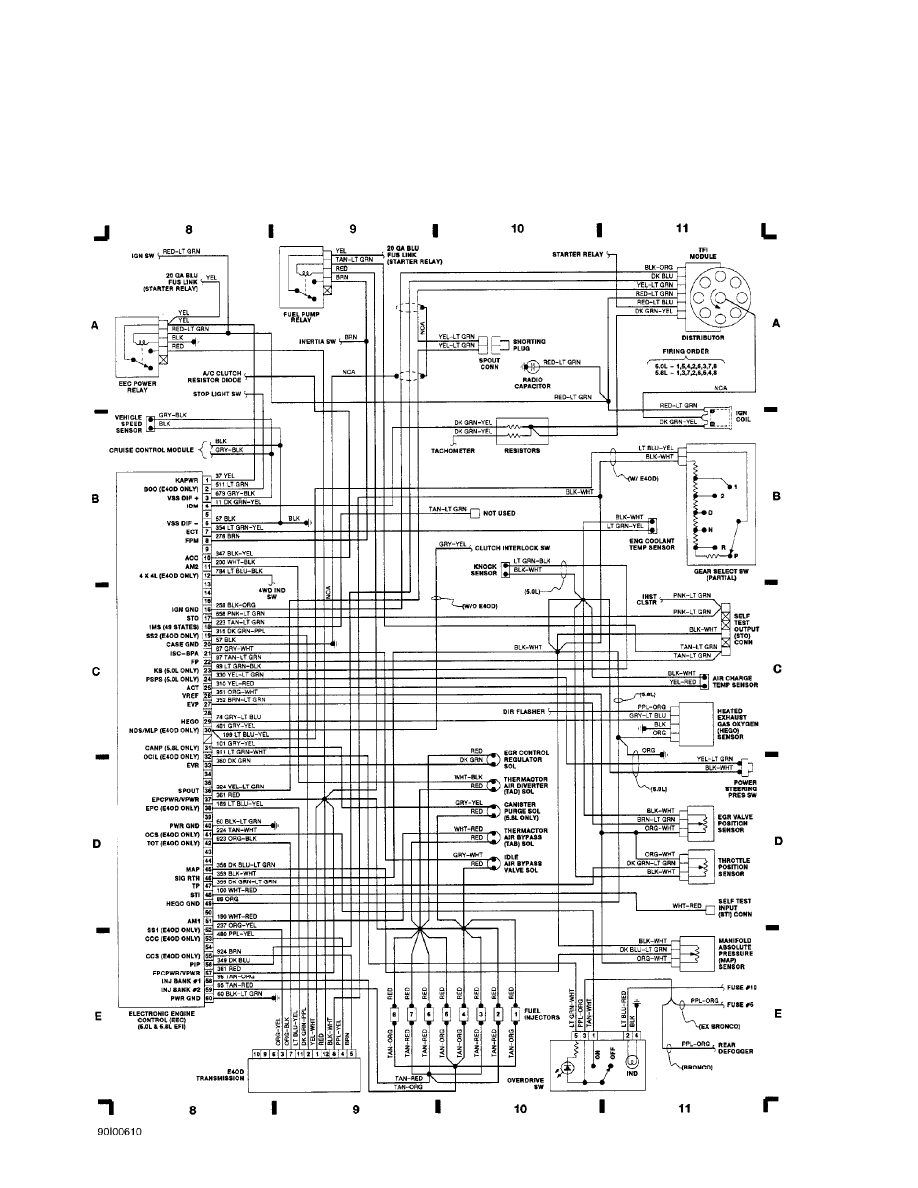

Fig. 3: Electronic Engine Control (EEC) (5.0L & 5.8L EFI) (p. 3)

1990 Ford Bronco

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:19PM

WIRING DIAGRAMS

Fig. 4: Electronic Engine Control (EEC) (7.5L EFI) (p. 4)

1990 Ford Bronco

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:19PM

WIRING DIAGRAMS

Fig. 5: Trans. Electronic Control Assembly (TECA) (Diesel w/E40D) (p. 5)

1990 Ford Bronco

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:19PM

WIRING DIAGRAMS

Fig. 6: Fuse Block (p. 6)

1990 Ford Bronco

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:19PM

WIRING DIAGRAMS

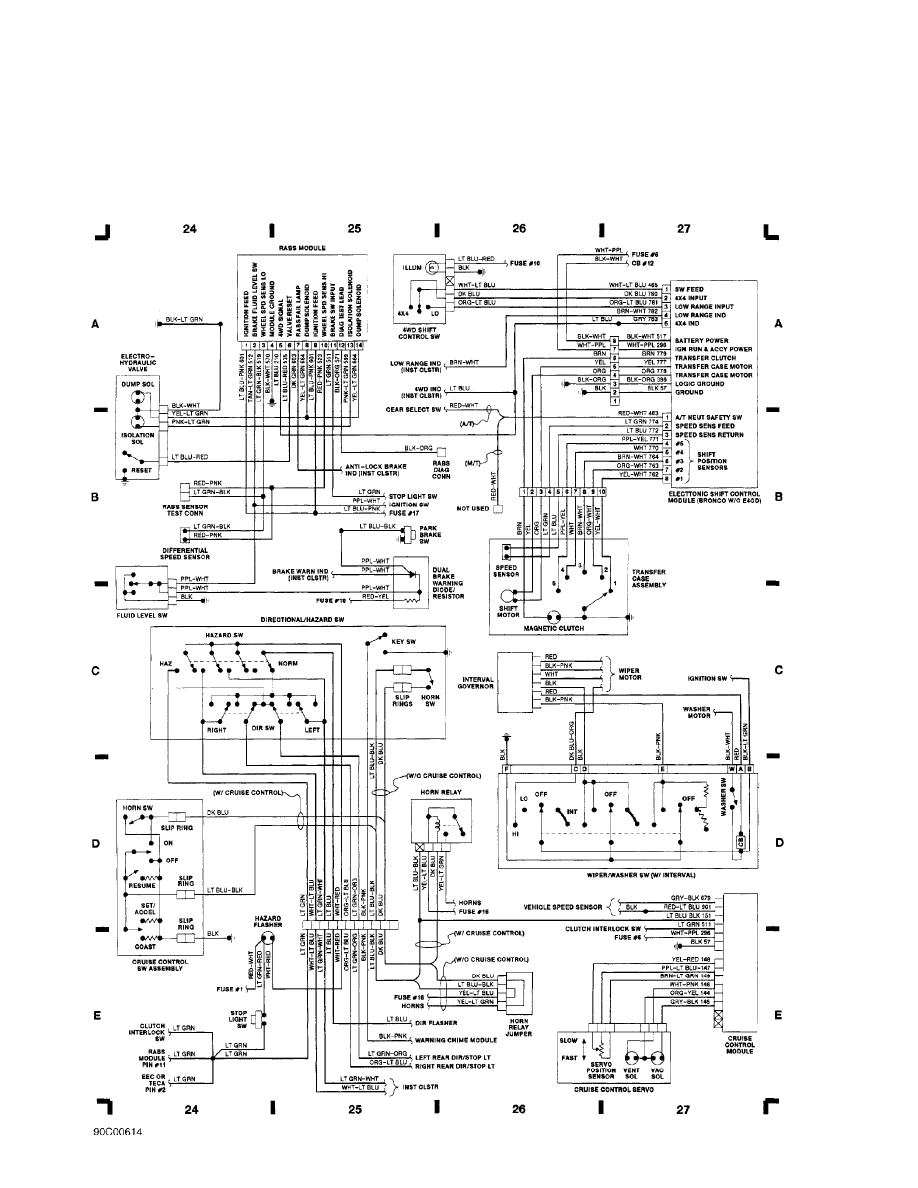

Fig. 7: RABS Module, Electronic Shift Control Module & Wiper/Washer (p. 7)

1990 Ford Bronco

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:19PM

WIRING DIAGRAMS

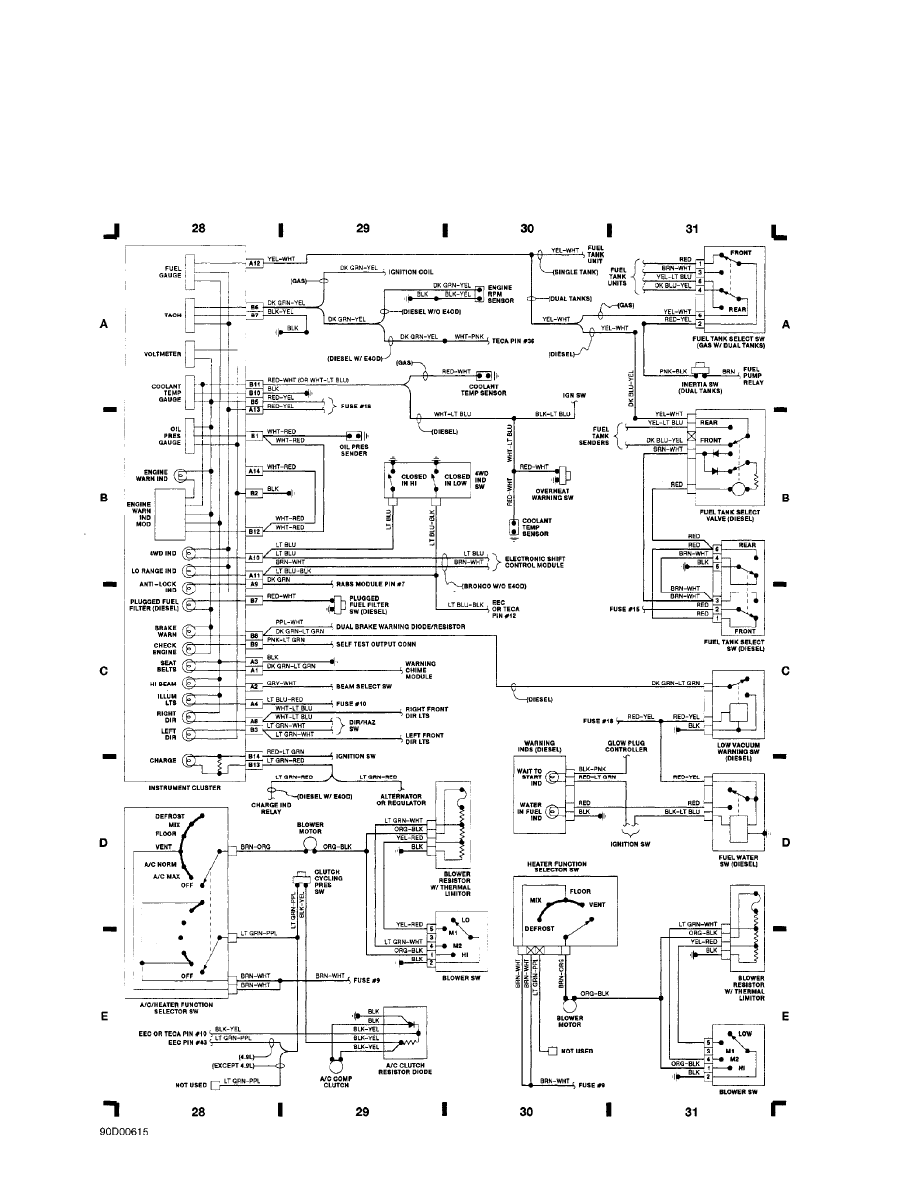

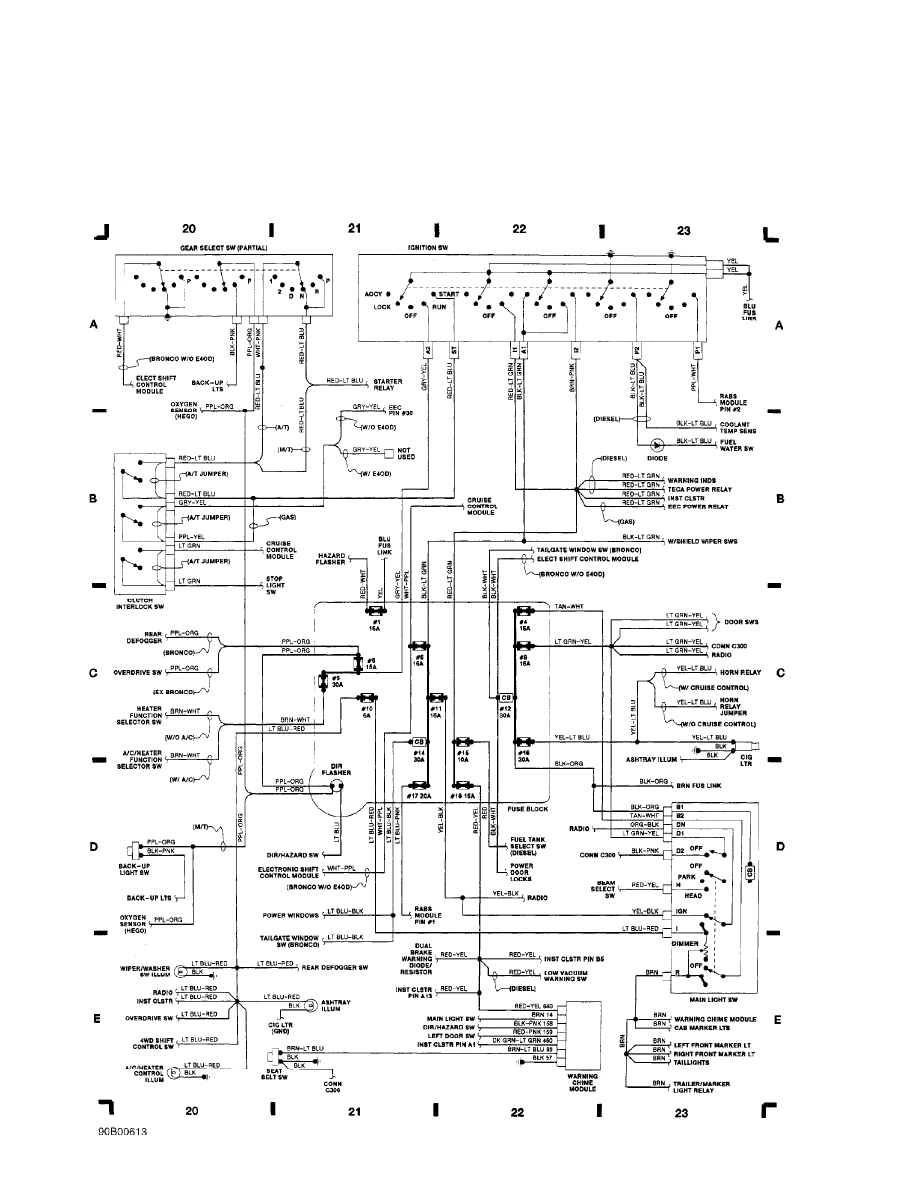

Fig. 8: Instrument Cluster & A/C-Heating (p. 8)

1990 Ford Bronco

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:19PM

WIRING DIAGRAMS

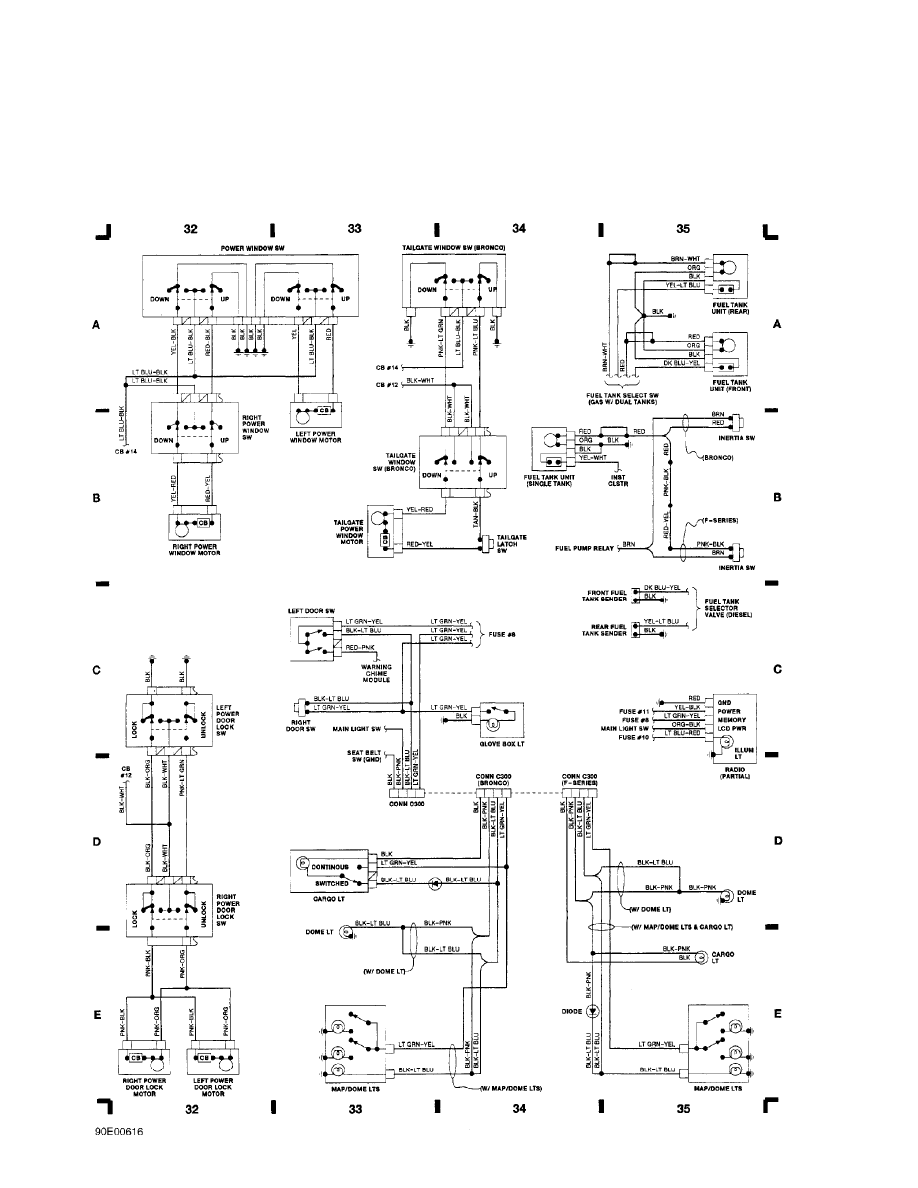

Fig. 9: Power Windows & Doors (p. 9)

1990 Ford Bronco

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:19PM

WIRING DIAGRAMS

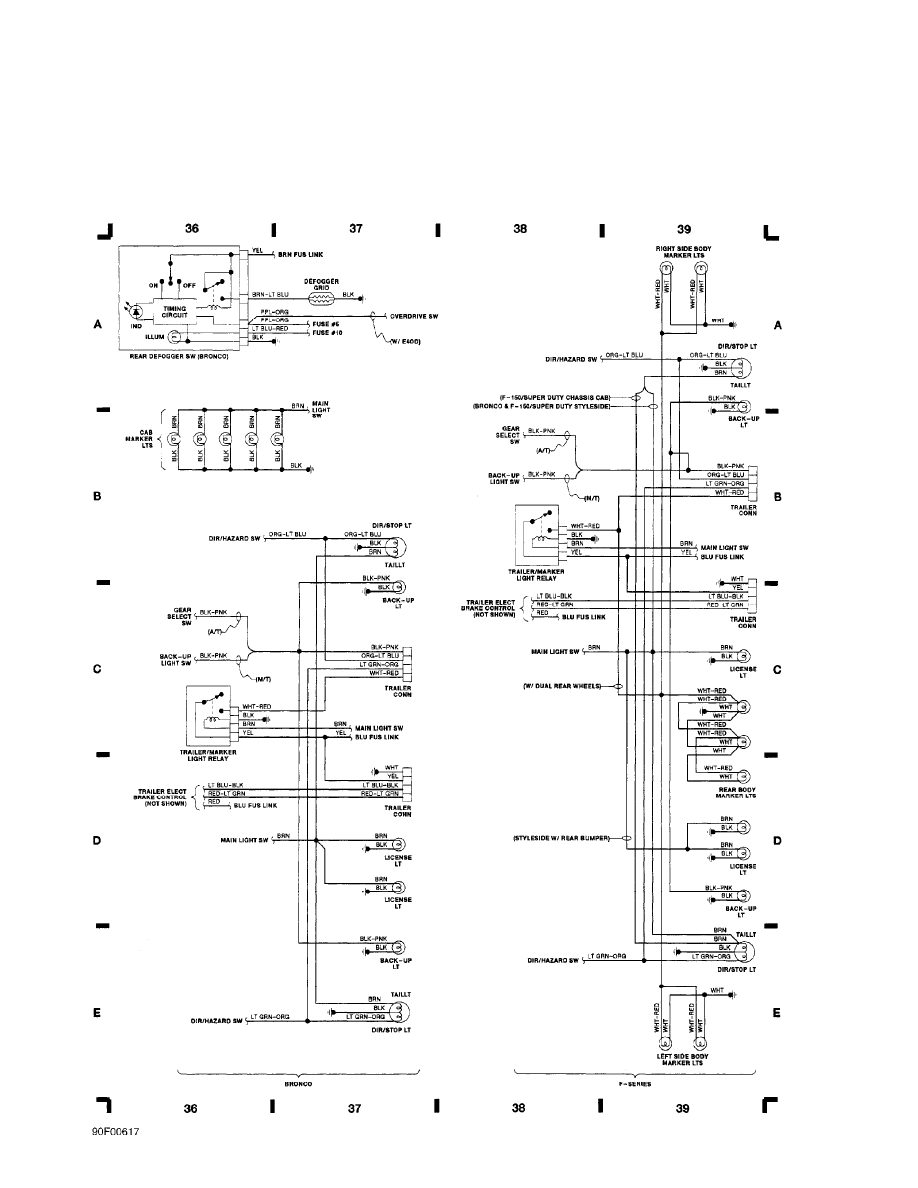

Fig. 10: Passenger Compartment & Taillights (p. 10)

1990 Ford Bronco

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:19PM
