FORD BRONCO 1984

background image

WIRING DIAGRAMS

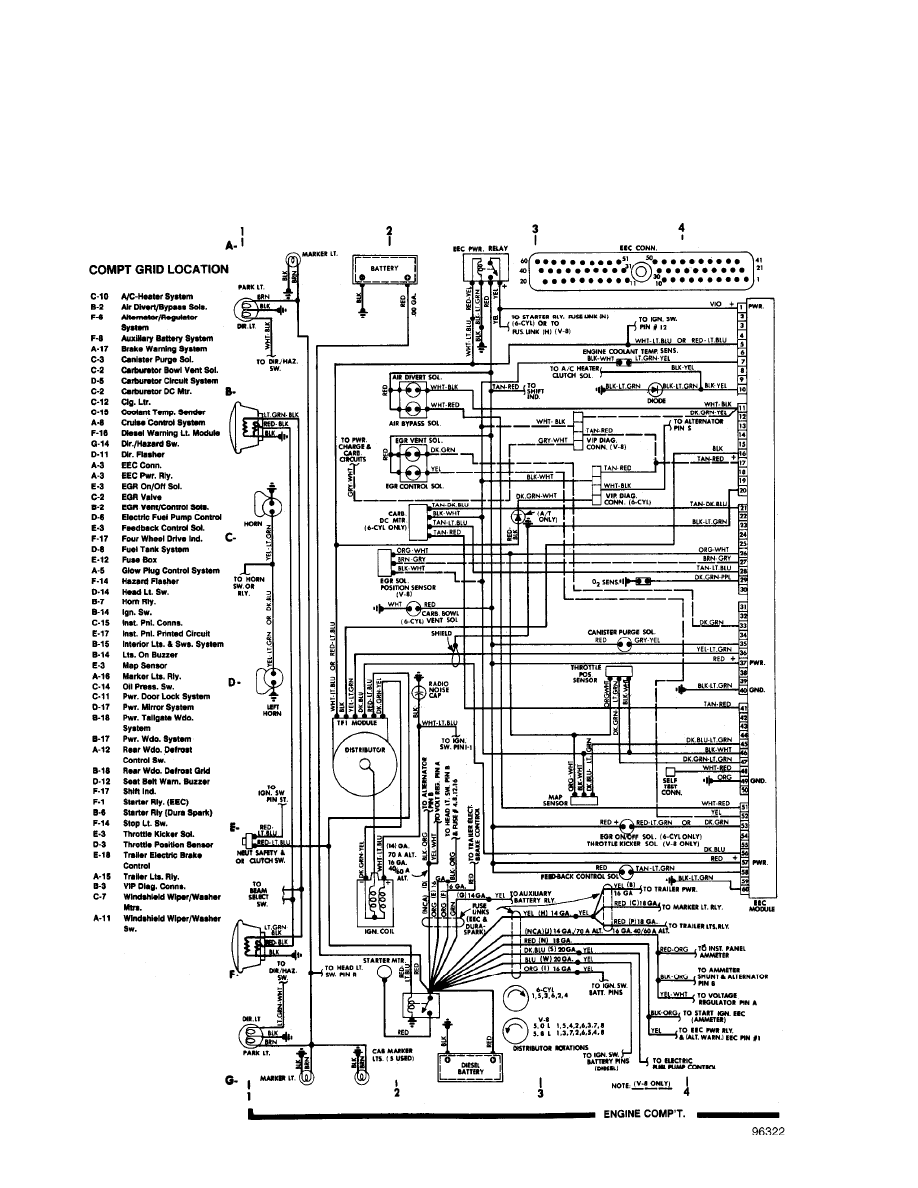

Fig. 1: Engine Compartment

1984 Ford Bronco

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:15PM

background image

WIRING DIAGRAMS

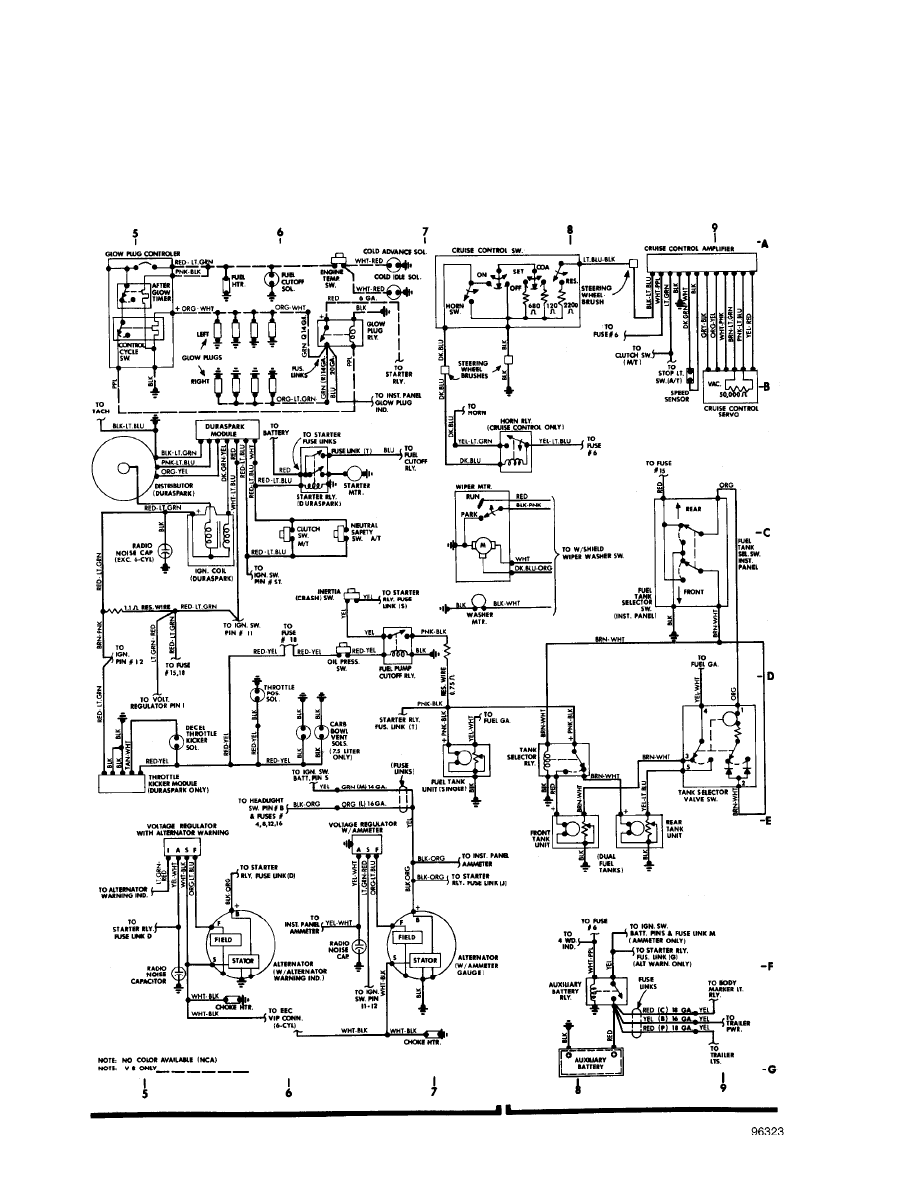

Fig. 2: Engine Compartment (Cont.) (p. 2)

1984 Ford Bronco

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:15PM

background image

WIRING DIAGRAMS

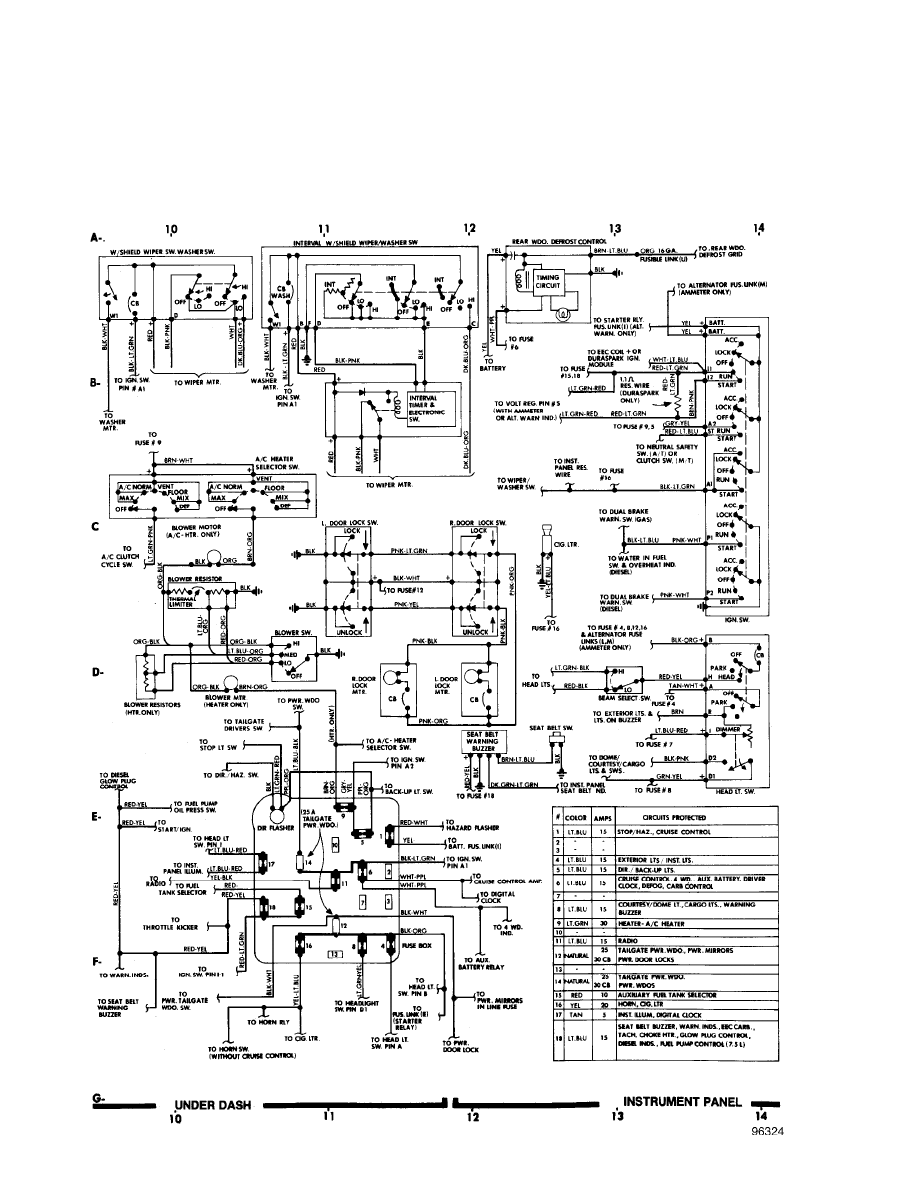

Fig. 3: Underdash & Instrument Panel (p. 3)

1984 Ford Bronco

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:15PM

background image

WIRING DIAGRAMS

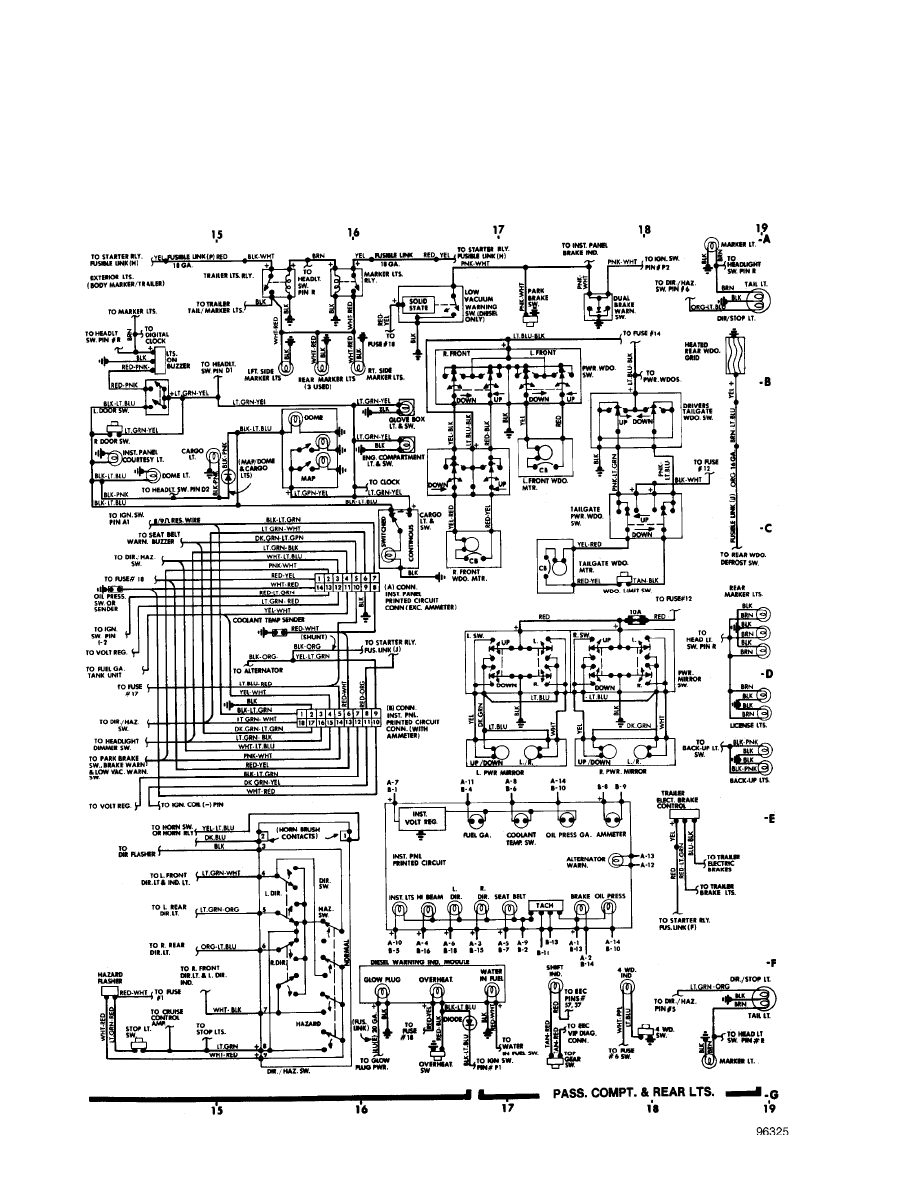

Fig. 4: Passenger Compartment & Rear Lights (p. 4)

1984 Ford Bronco

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:15PM
