FORD LTD 1984

background image

WIRING DIAGRAMS

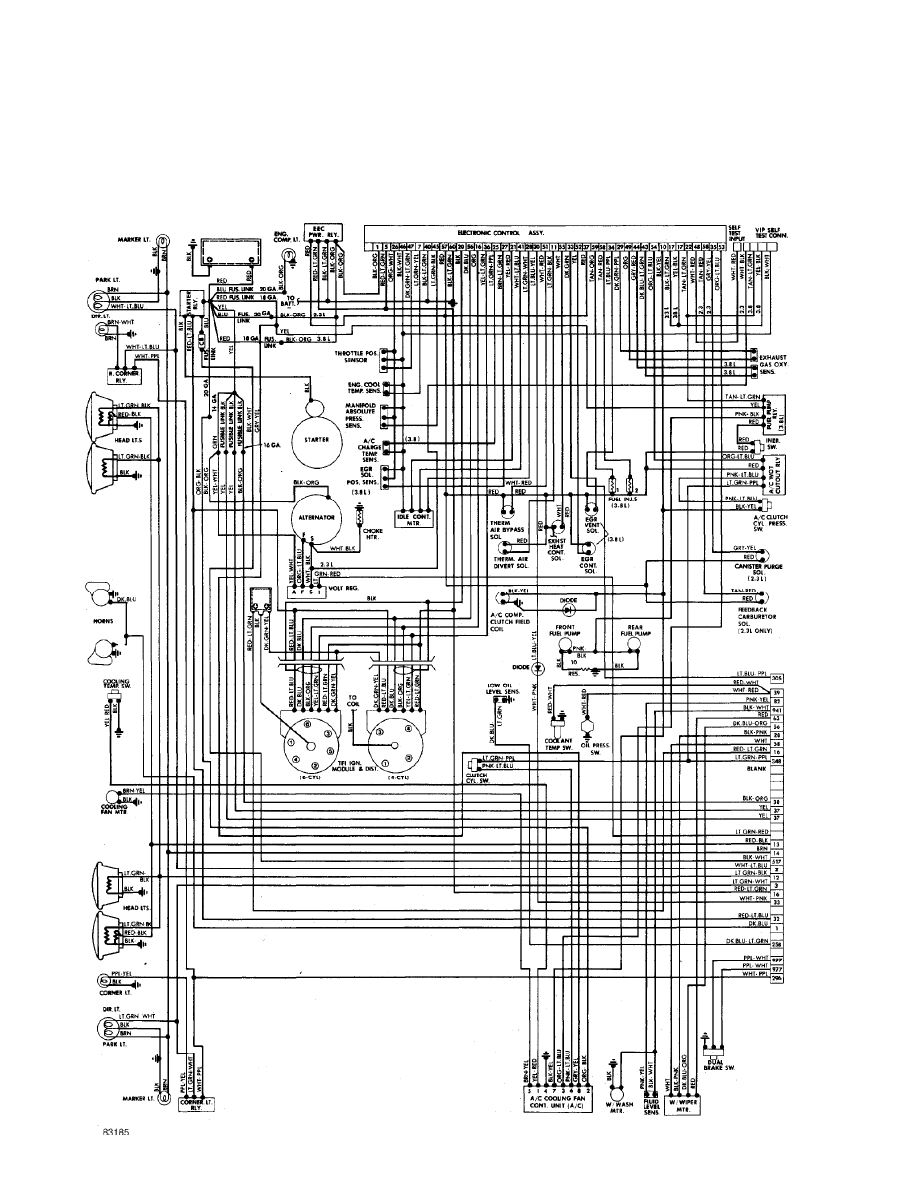

Fig. 1: Engine Compartment

1984 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

WIRING DIAGRAMS

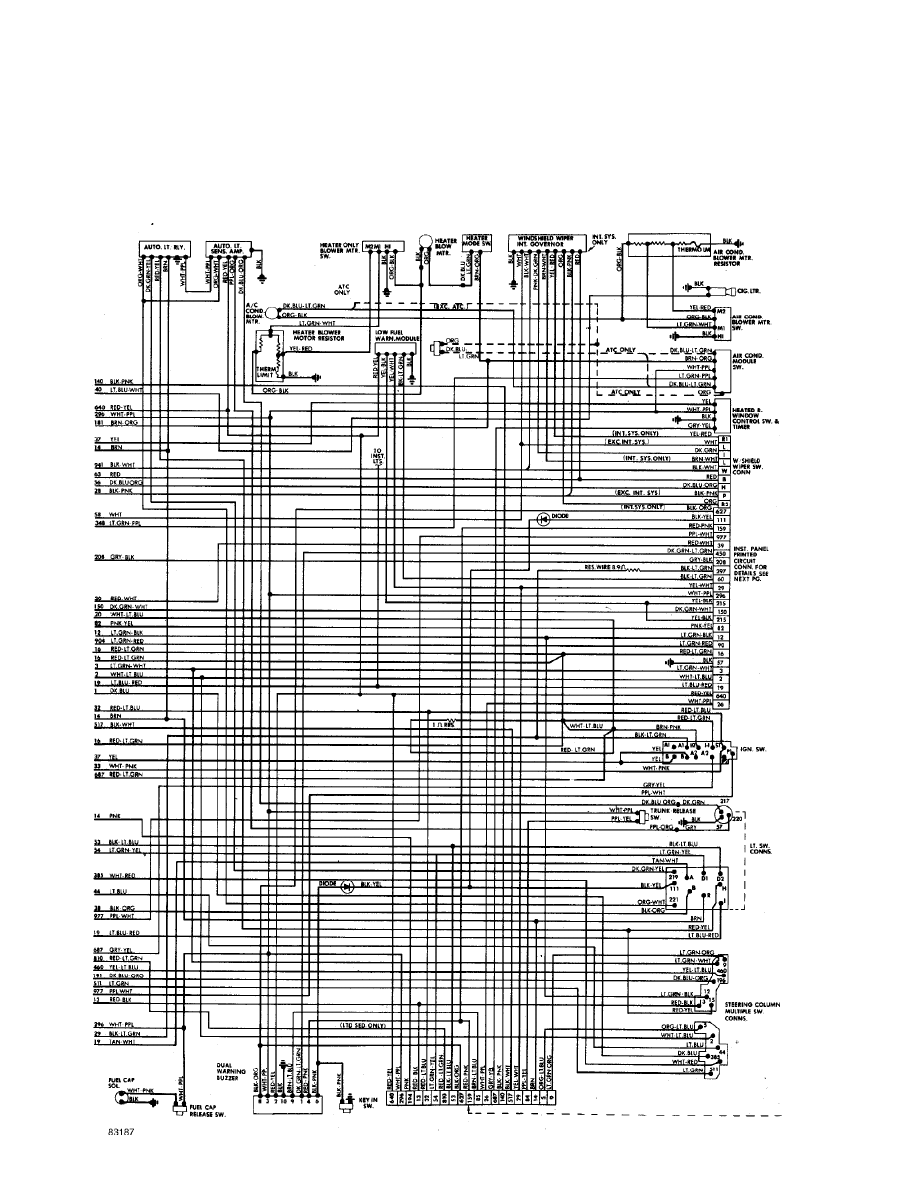

Fig. 2: Fuse Block & Underdash (p. 2)

1984 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

WIRING DIAGRAMS

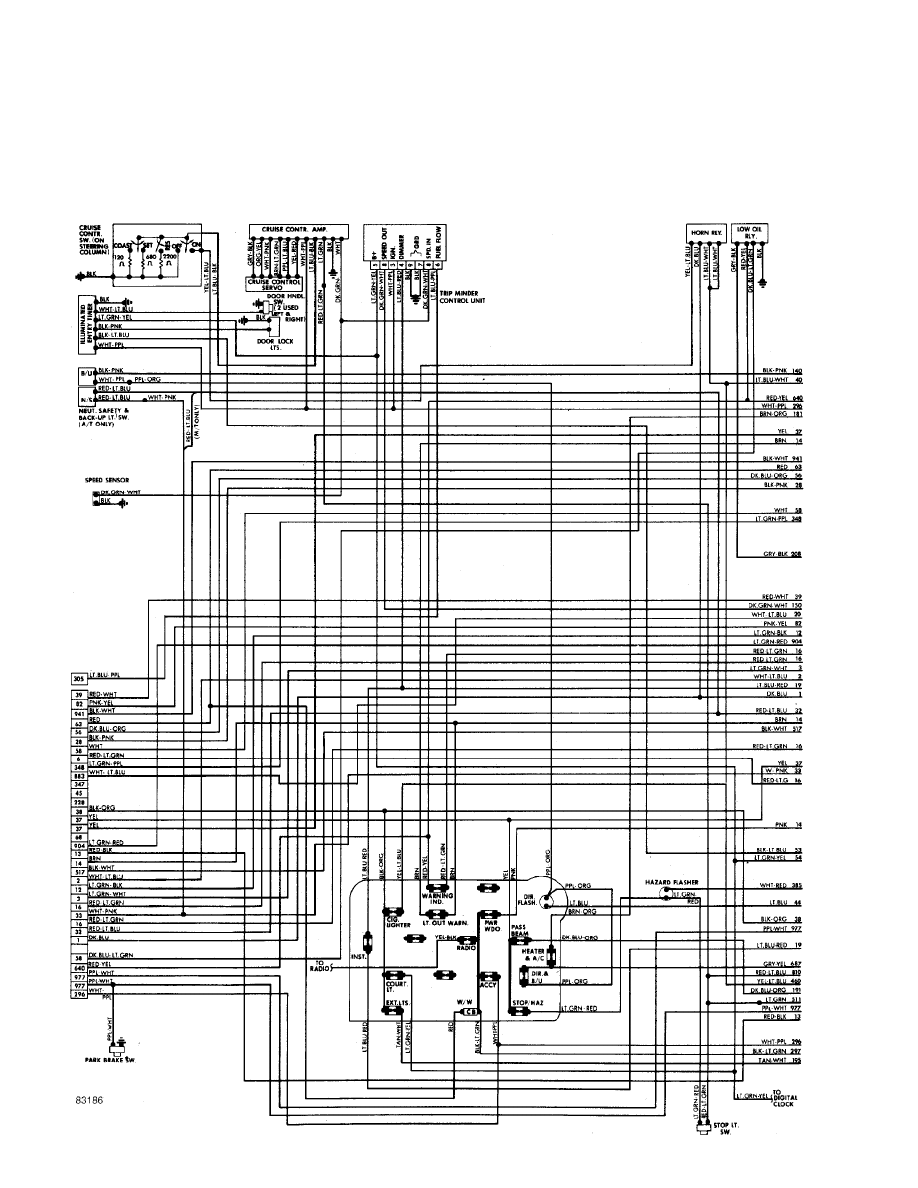

Fig. 3: Underdash (Cont.) & Instrument Panel (p. 3)

1984 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

WIRING DIAGRAMS

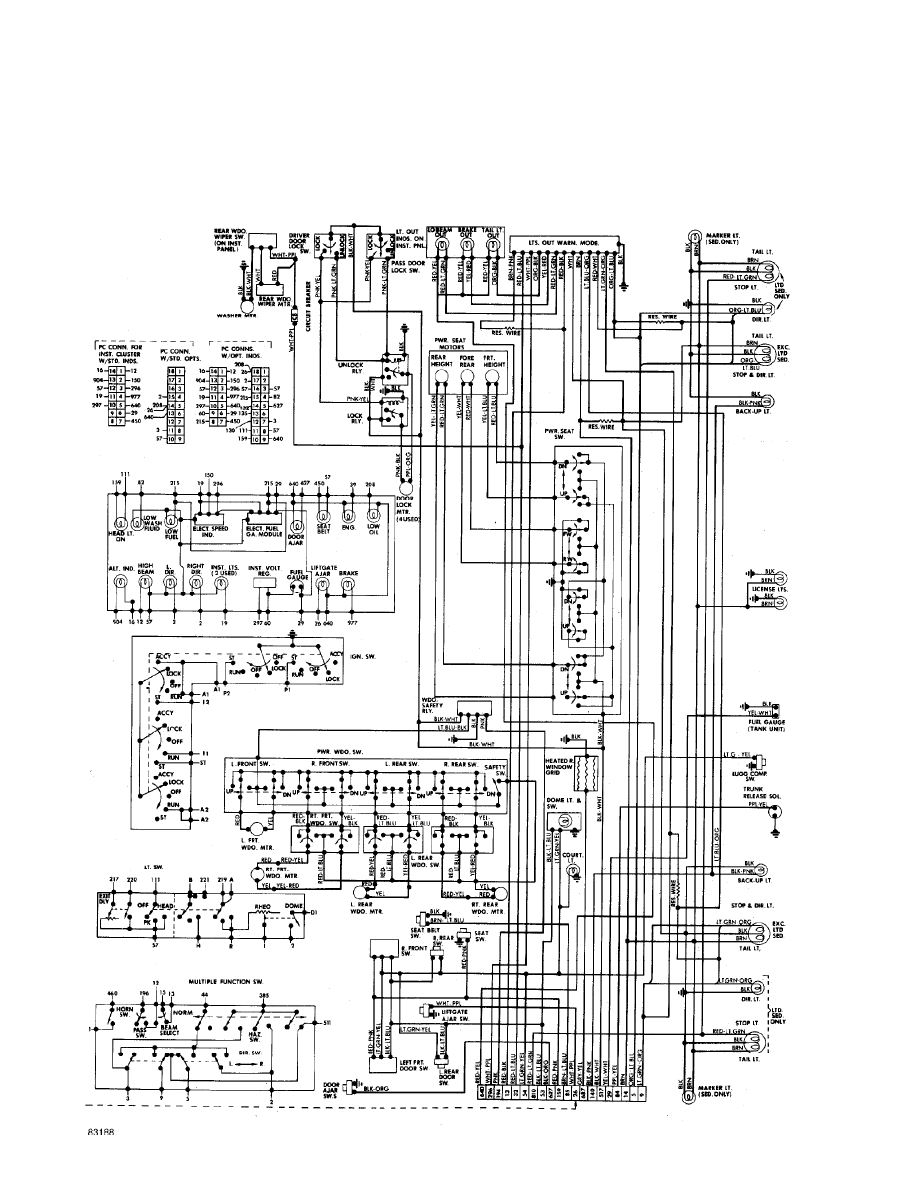

Fig. 4: Rear Compartment & Accessories (p. 4)

1984 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

WIRING DIAGRAMS

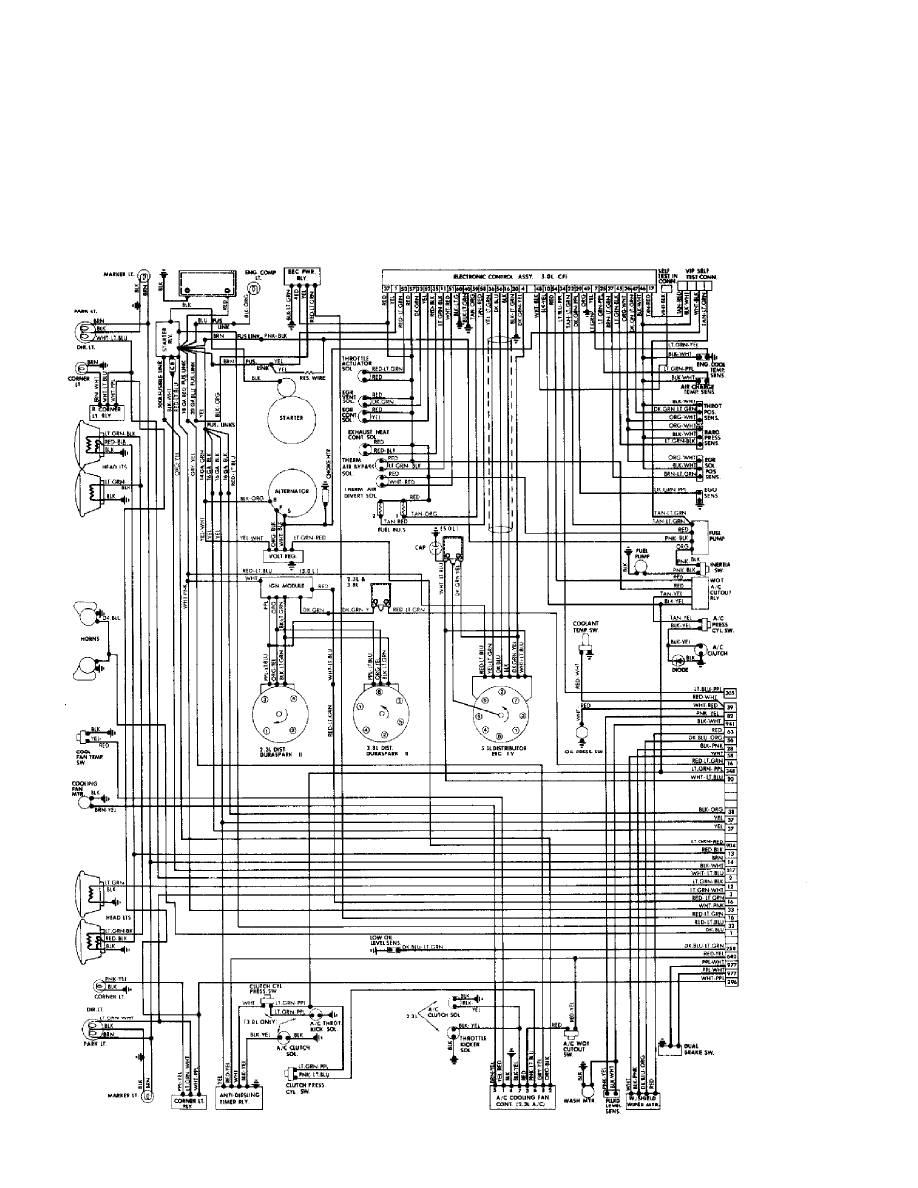

Fig. 5: Engine Compartment & Headlights (p. 5)

1984 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

WIRING DIAGRAMS

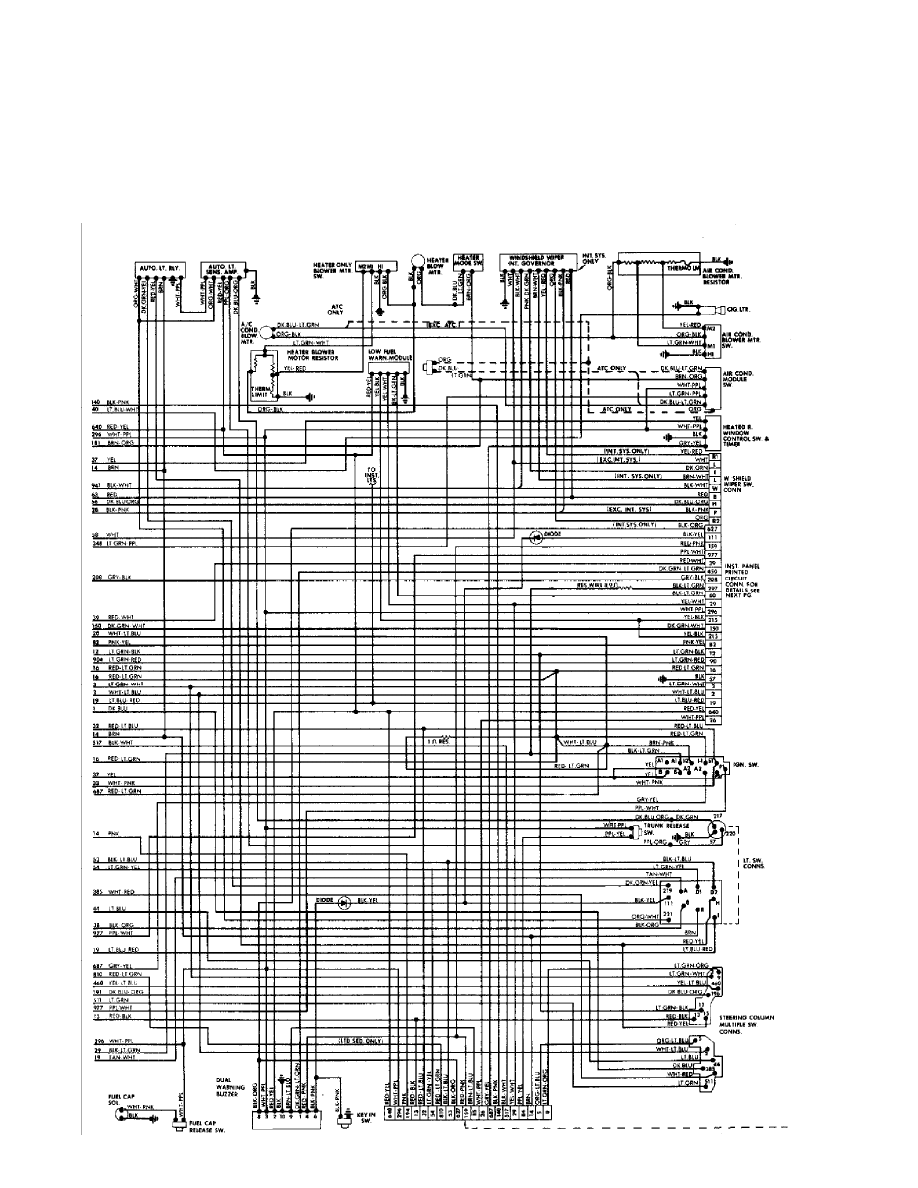

Fig. 6: Fuse Block & Underdash (p. 6)

1984 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

WIRING DIAGRAMS

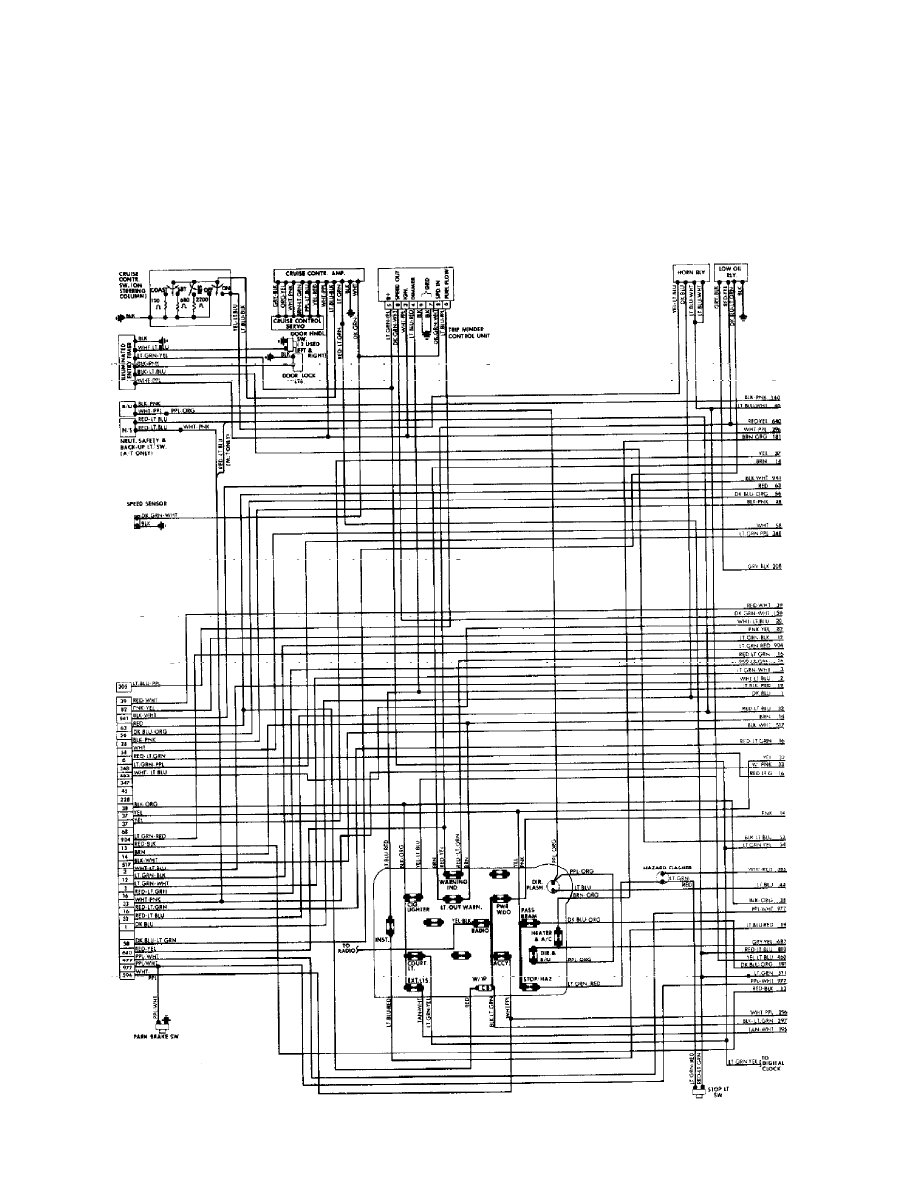

Fig. 7: Instrument Panel & Underdash (Cont.) (p. 7)

1984 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

WIRING DIAGRAMS

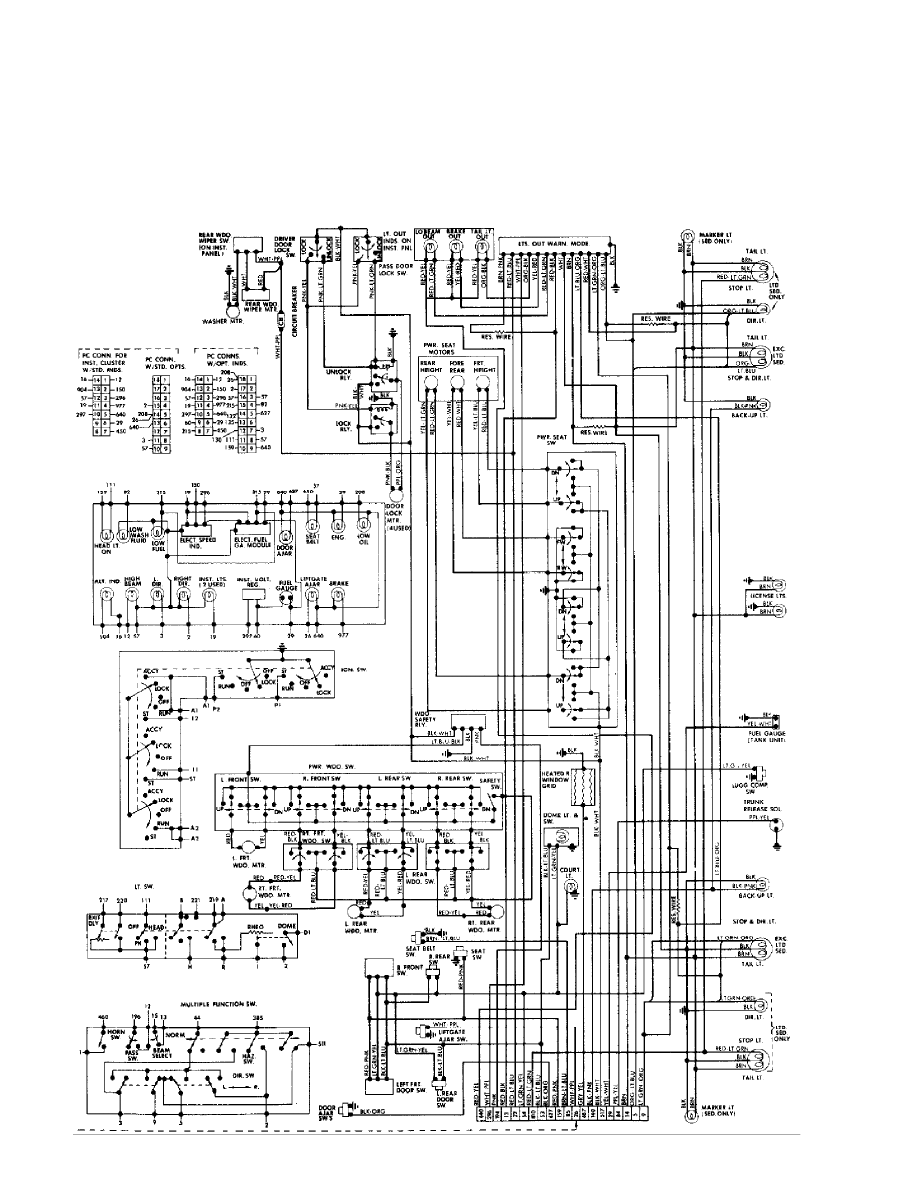

Fig. 8: Rear Compartment, Accessories & Taillights (p. 8)

1984 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM
