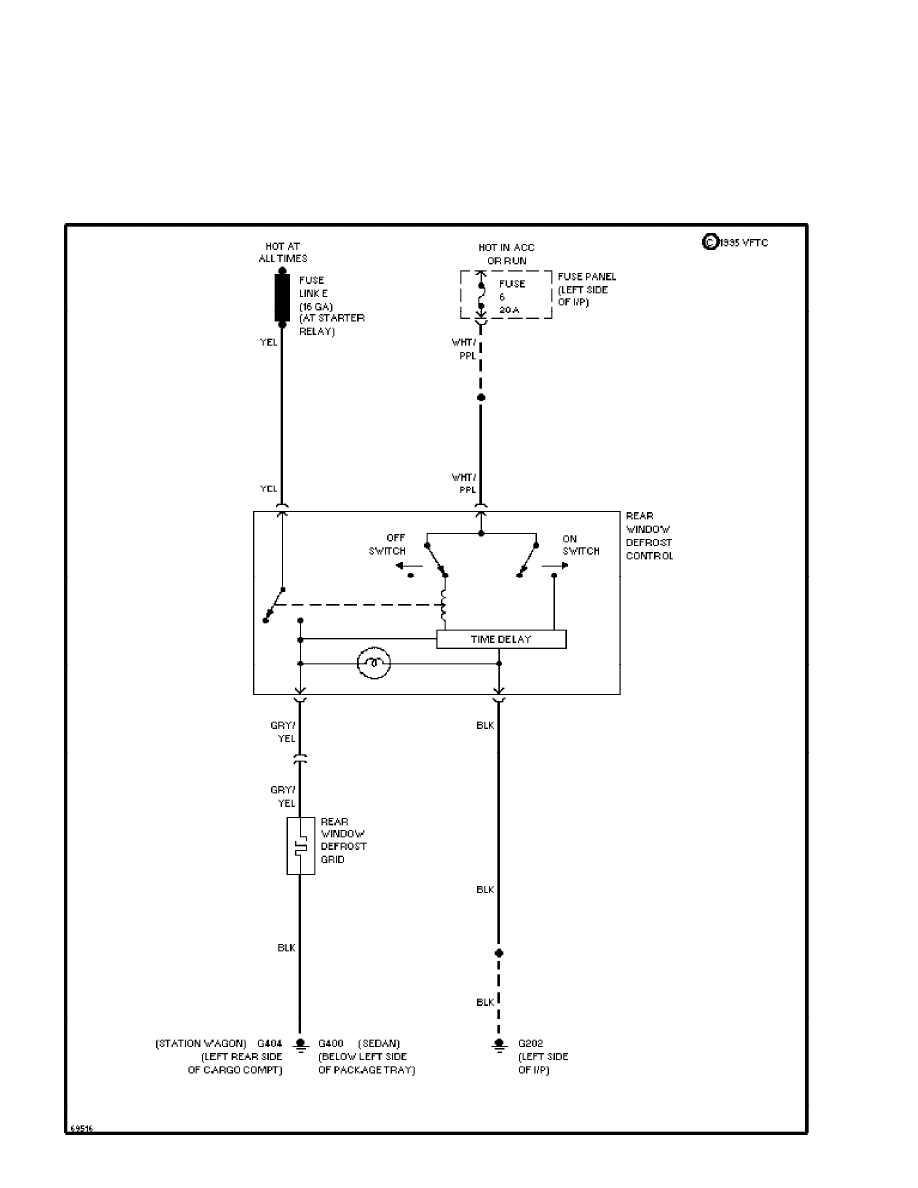

SYSTEM WIRING DIAGRAMS

Defogger Circuit

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

SYSTEM WIRING DIAGRAMS

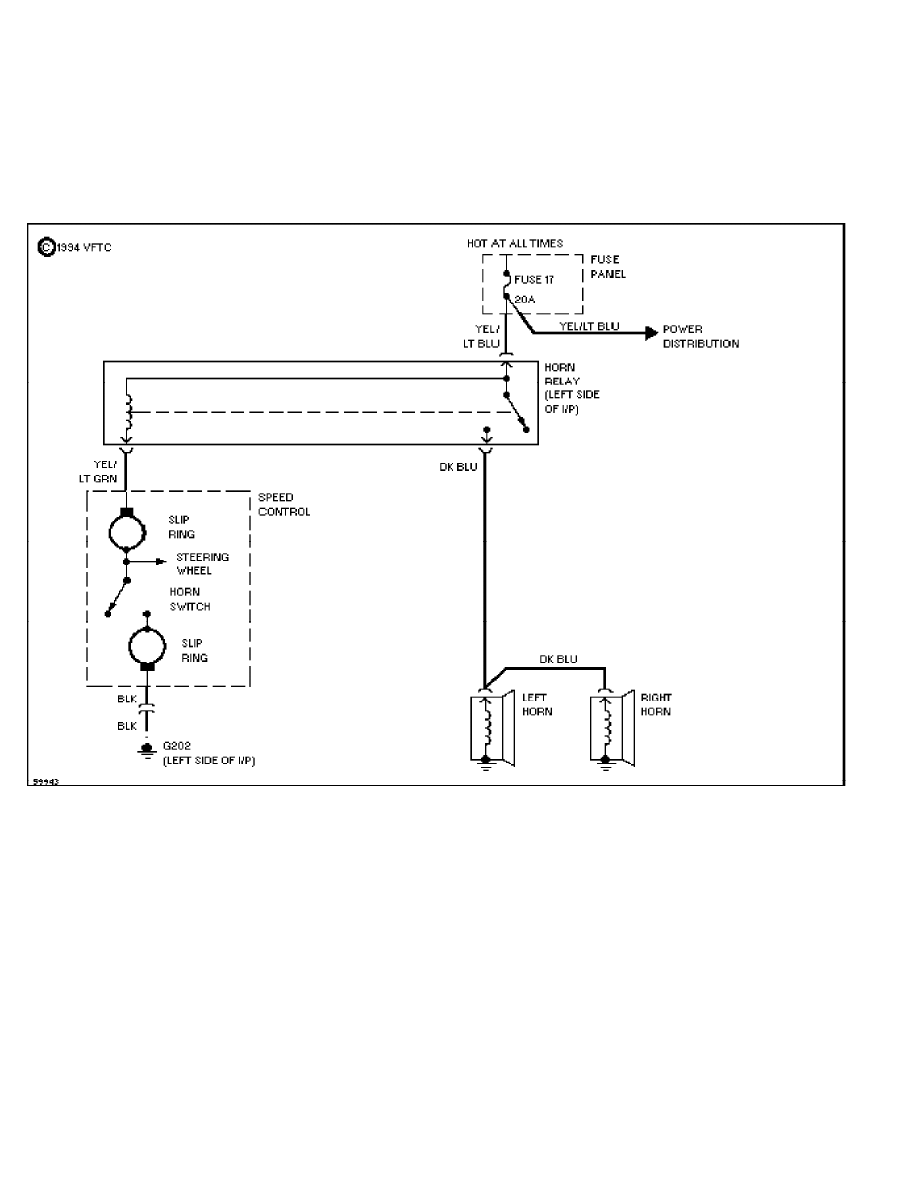

Horn Circuit (p. 2)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

SYSTEM WIRING DIAGRAMS

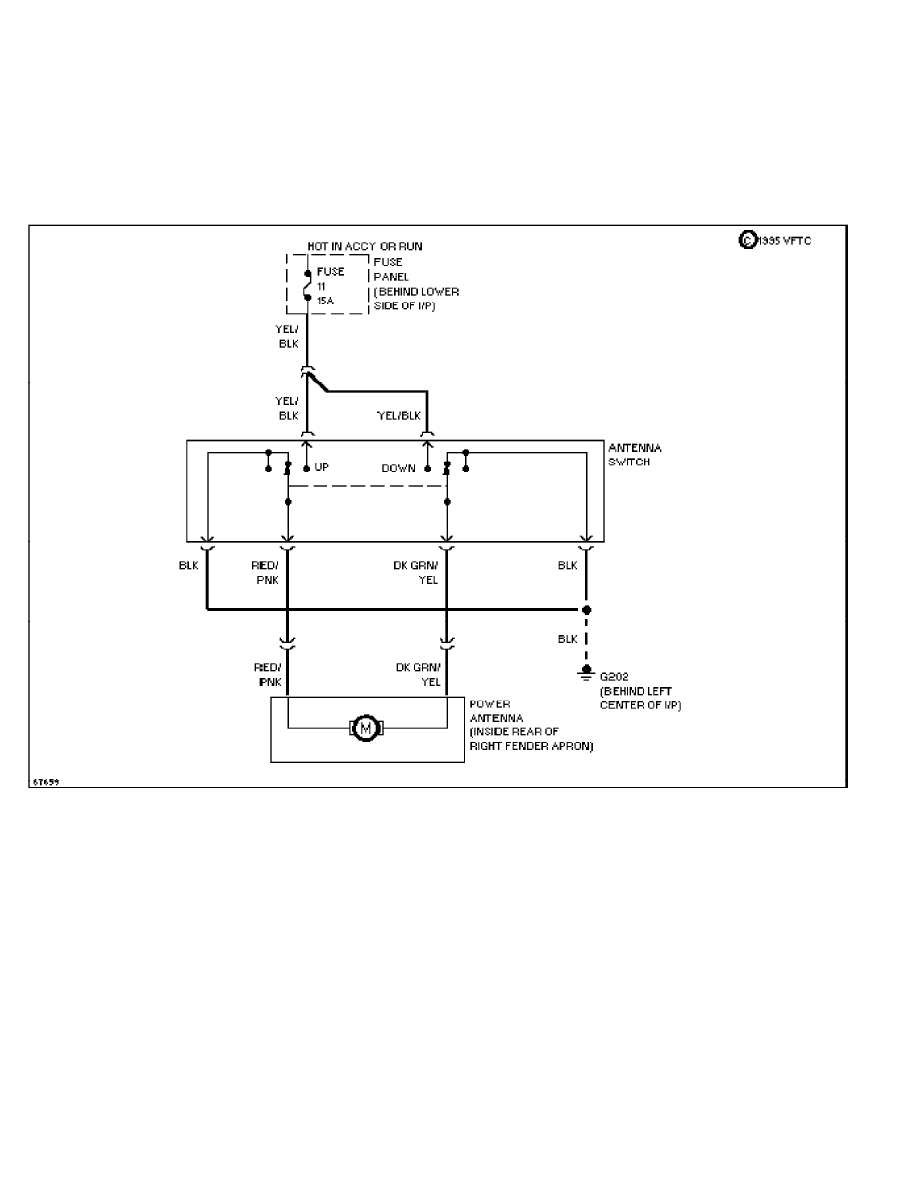

Power Antenna Circuit (p. 3)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

SYSTEM WIRING DIAGRAMS

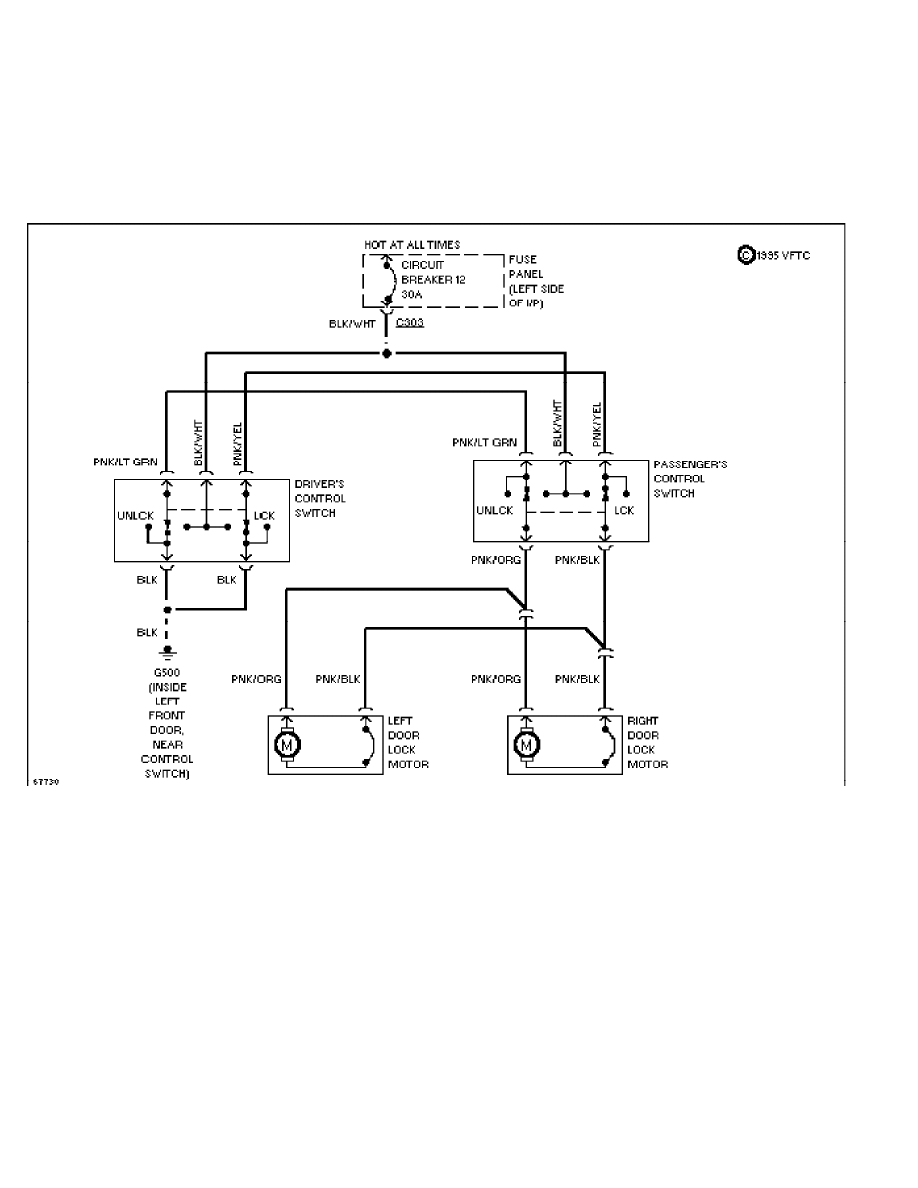

Power Door Lock Circuit, 2 Door (p. 4)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

SYSTEM WIRING DIAGRAMS

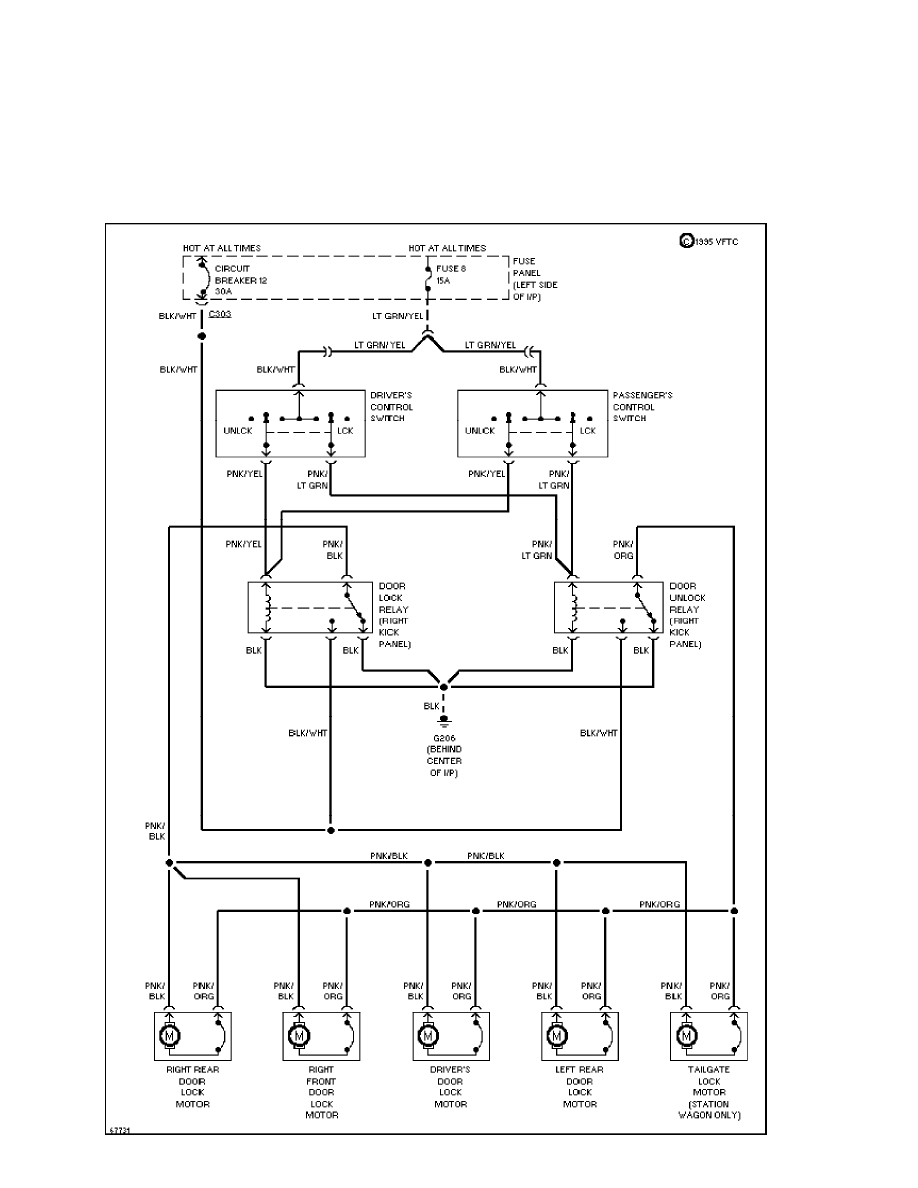

Power Door Lock Circuit, 4 Door (p. 5)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

SYSTEM WIRING DIAGRAMS

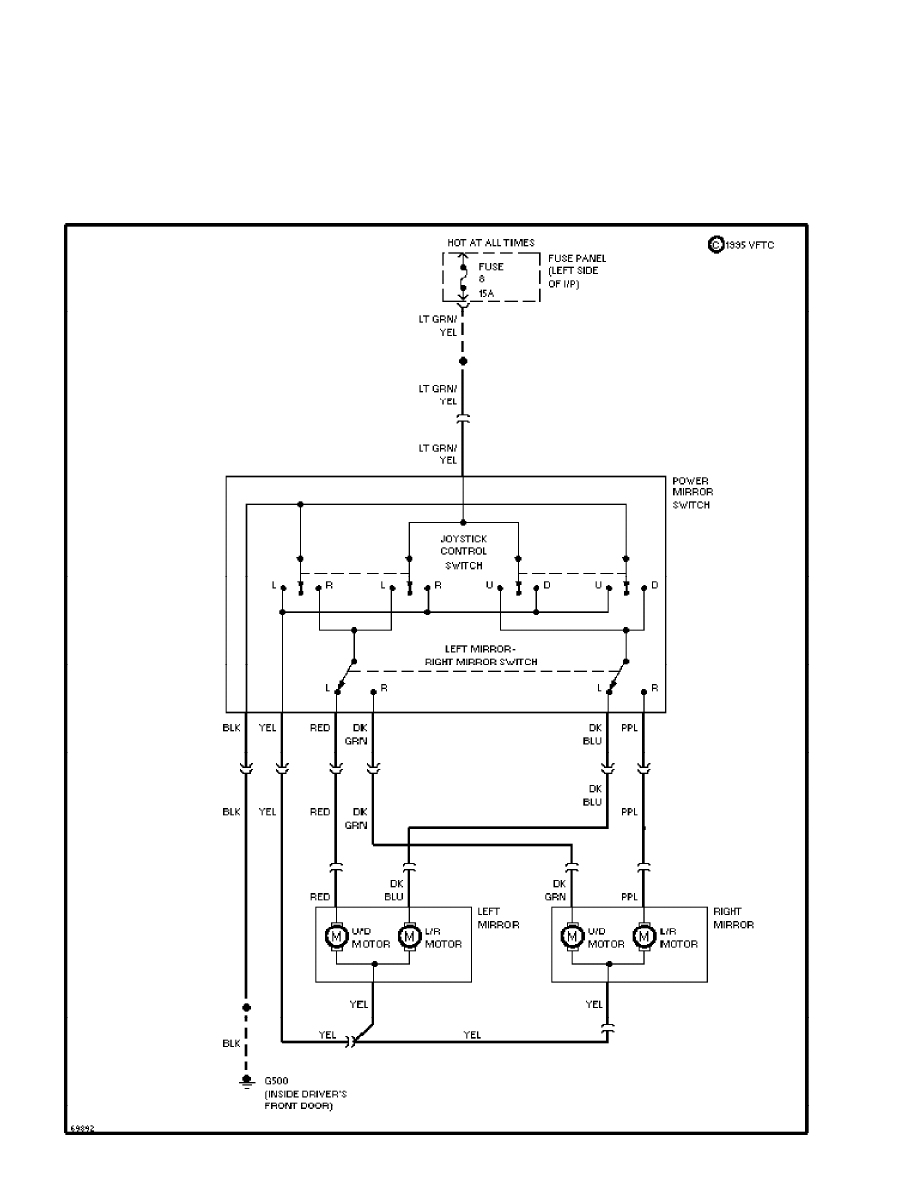

Power Mirror Circuit (p. 6)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

SYSTEM WIRING DIAGRAMS

Power Seat Circuits (p. 7)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

SYSTEM WIRING DIAGRAMS

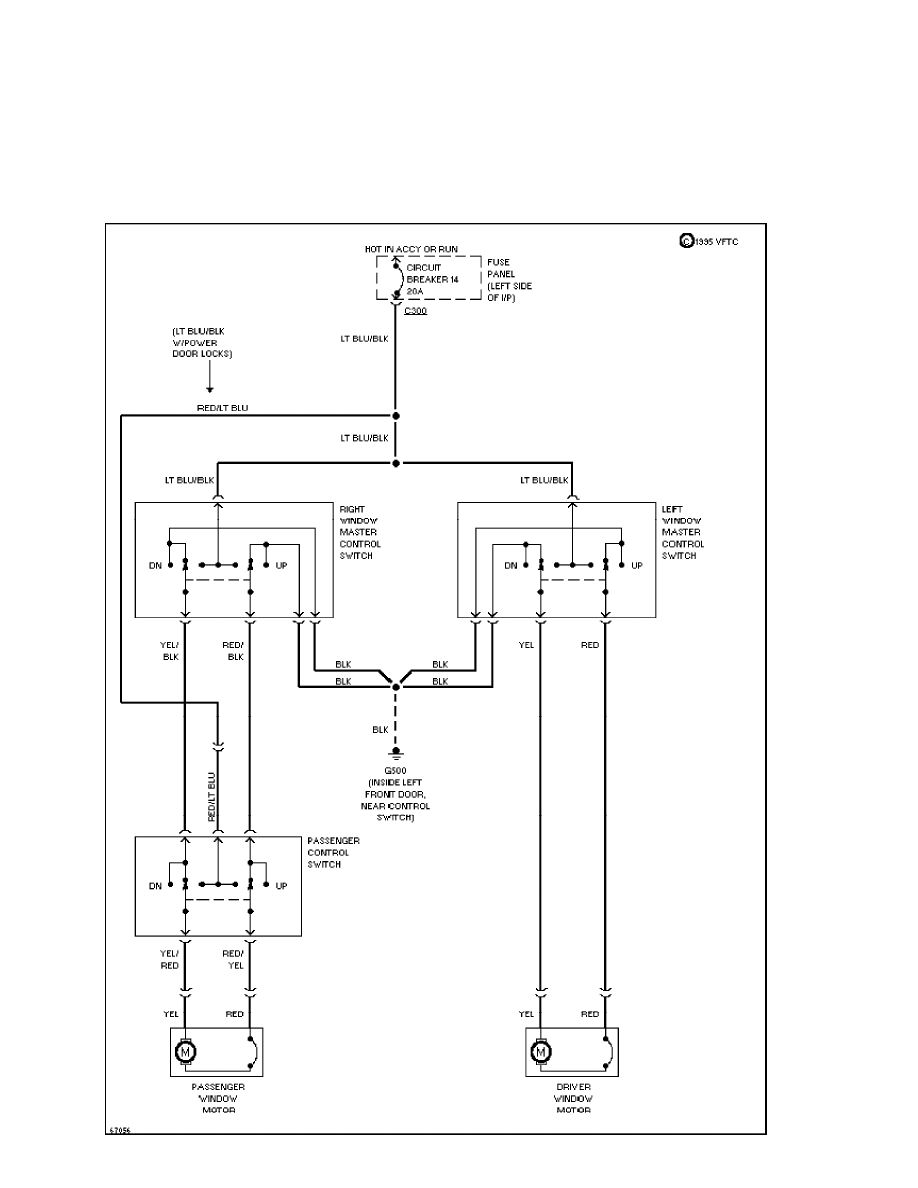

Power Windows Circuit, 2 Door & Luxury Interior (p. 8)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

SYSTEM WIRING DIAGRAMS

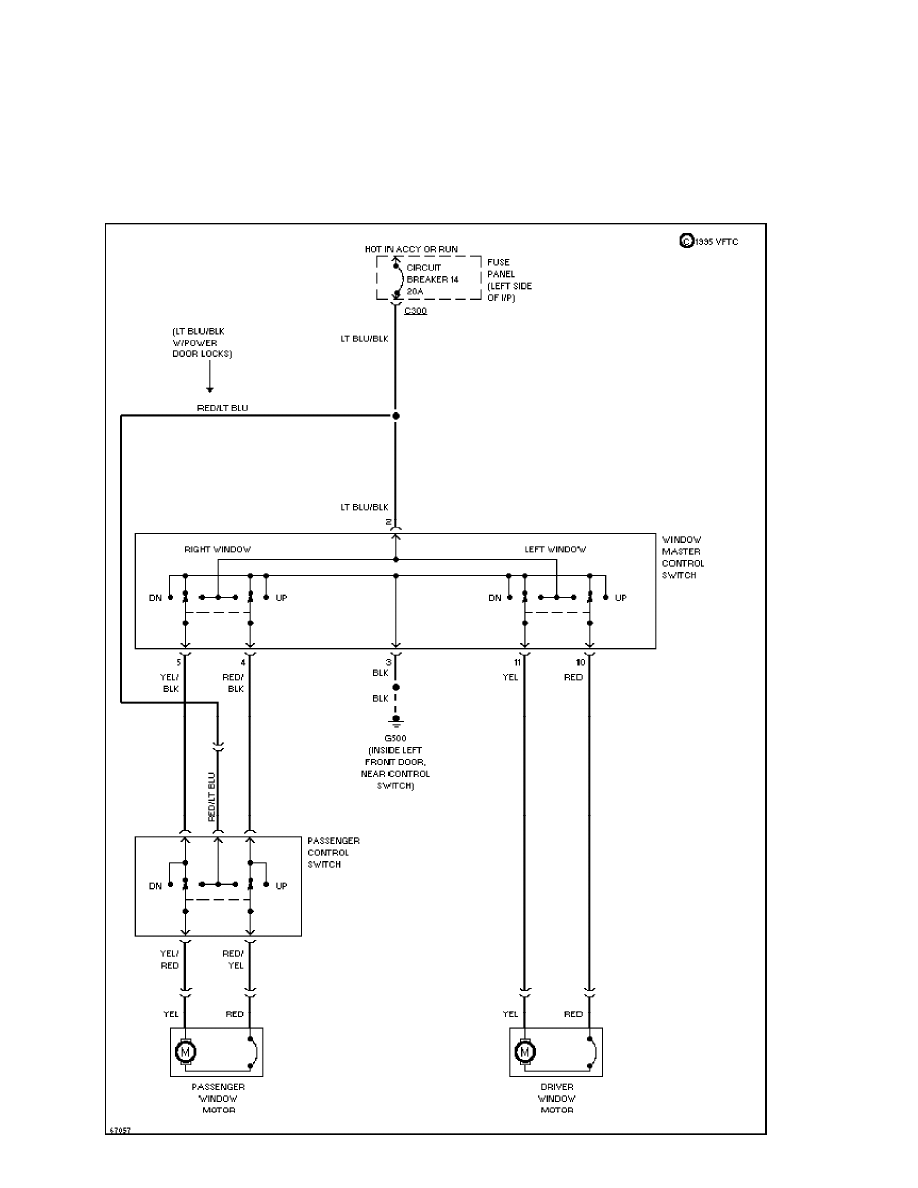

Power Windows Circuit, 2 Door & Standard Interior (p. 9)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

SYSTEM WIRING DIAGRAMS

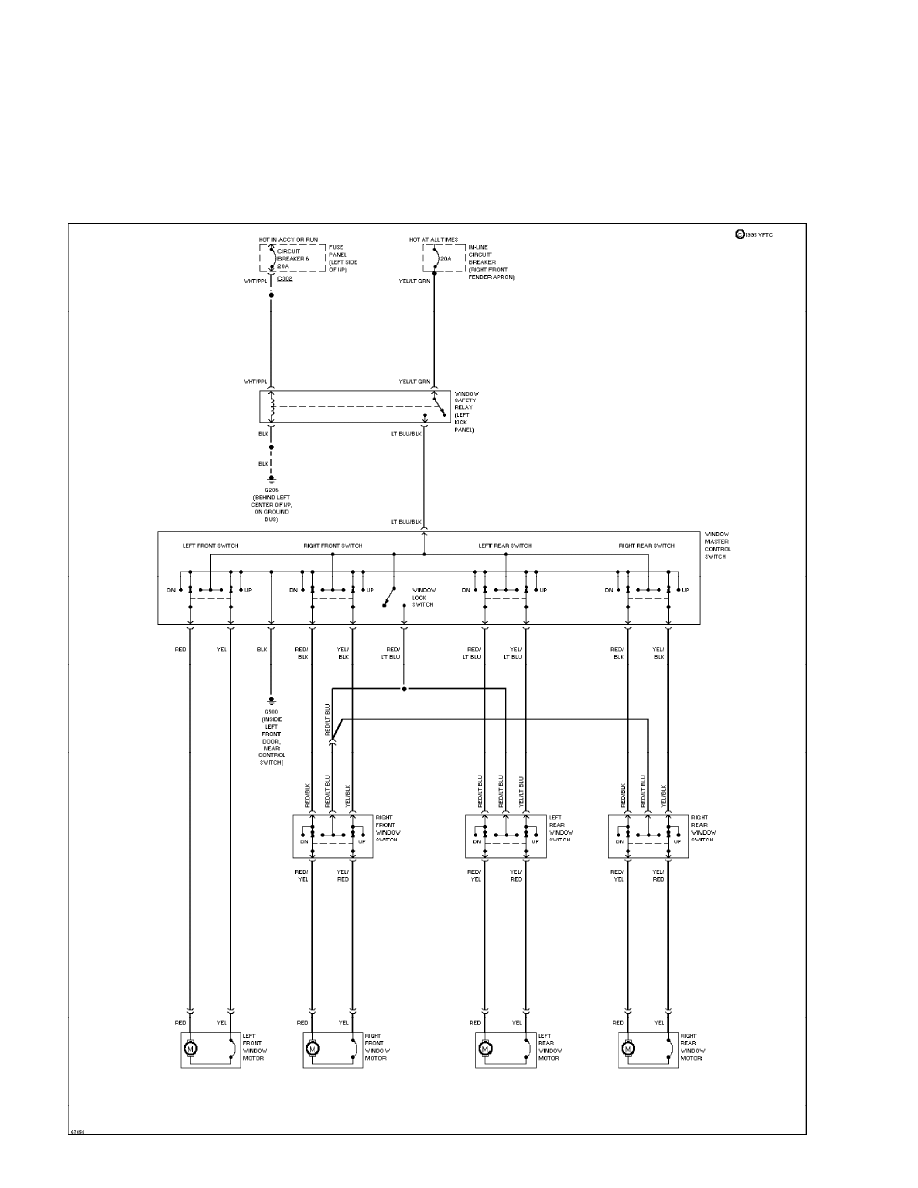

Power Windows Circuit, 4 Door (p. 10)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

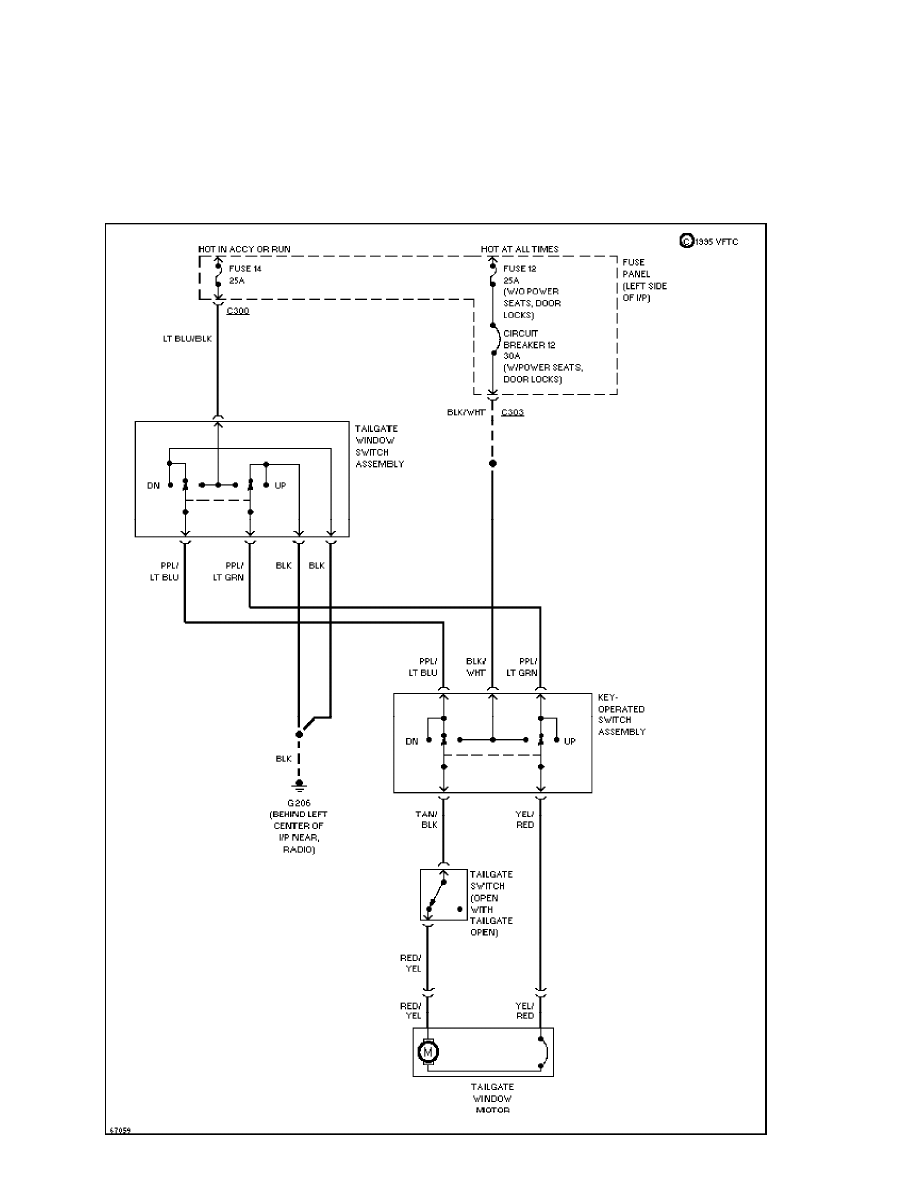

SYSTEM WIRING DIAGRAMS

Tailgate Power Window Circuit (p. 11)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

SYSTEM WIRING DIAGRAMS

Electronic Radio Circuit (p. 12)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

SYSTEM WIRING DIAGRAMS

Mono Radio Circuit (p. 13)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

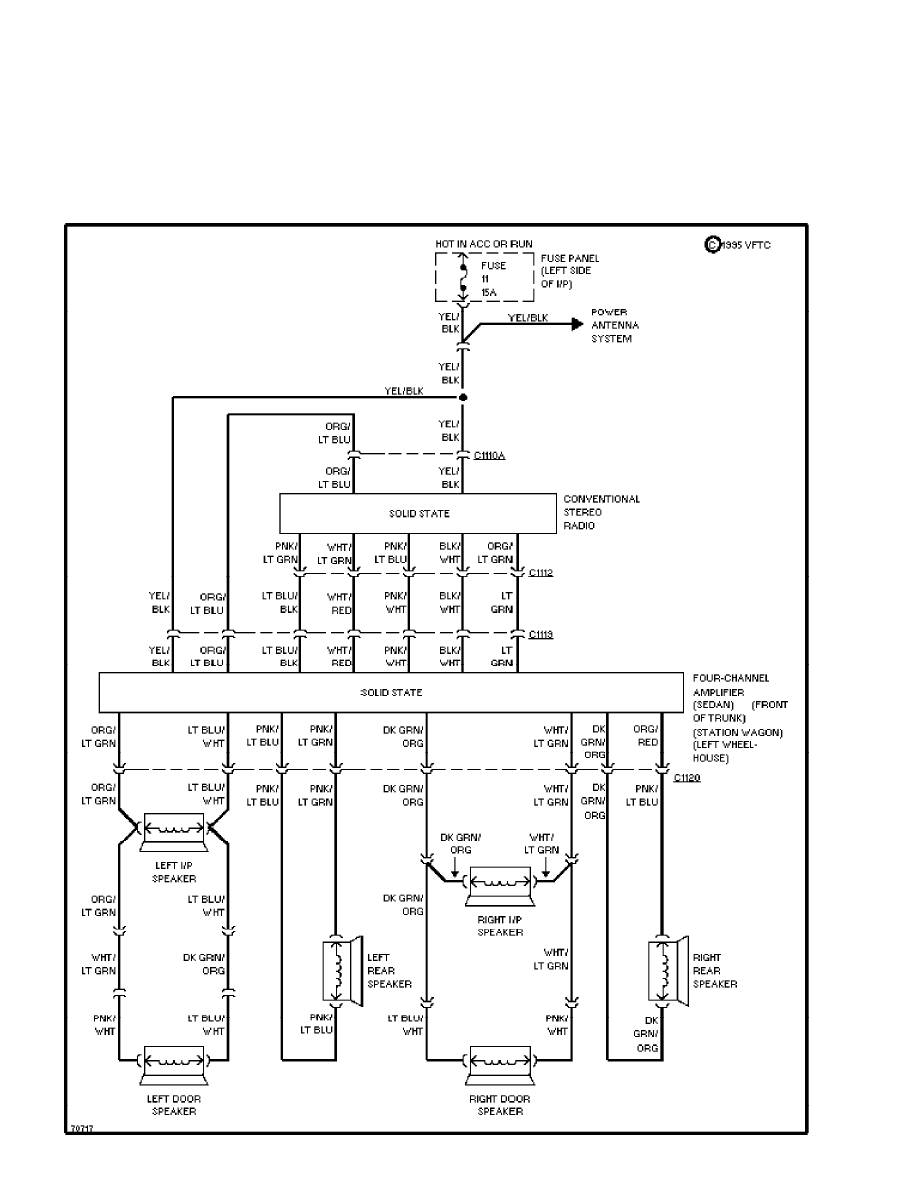

SYSTEM WIRING DIAGRAMS

Premium Sound Radio Circuit, Four Channel Amplifier (p. 14)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

SYSTEM WIRING DIAGRAMS

Premium Sound Radio Circuit, Two Channel Amplifier (p. 15)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

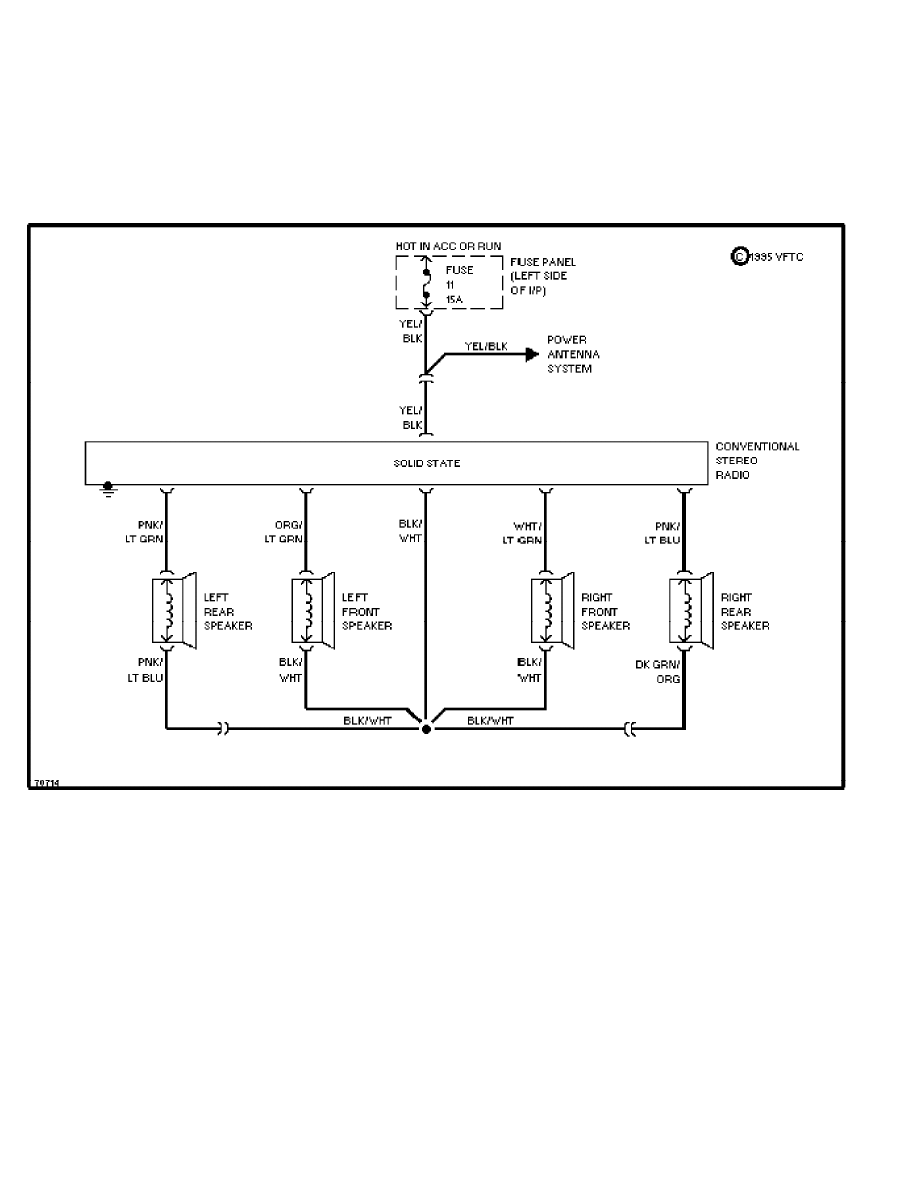

SYSTEM WIRING DIAGRAMS

Stereo Radio Circuit (p. 16)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

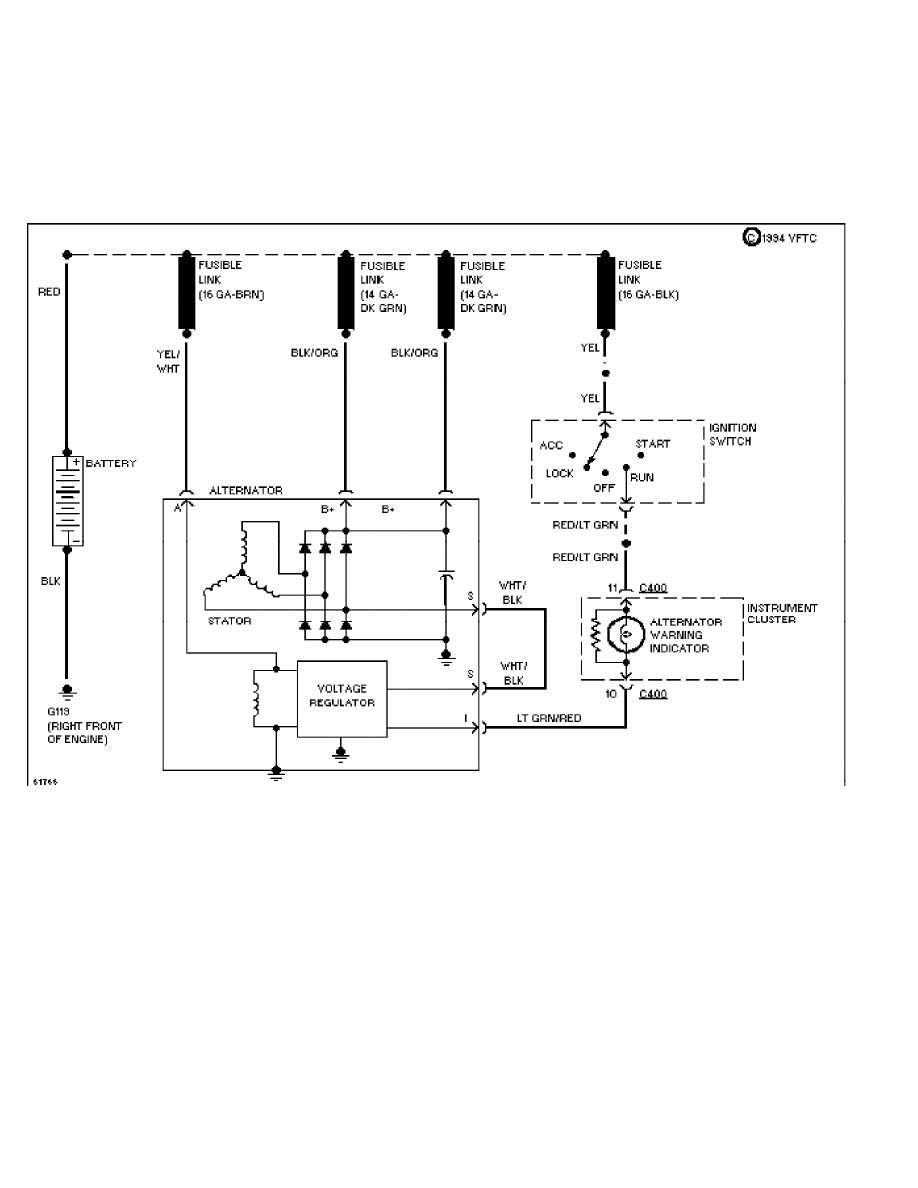

SYSTEM WIRING DIAGRAMS

Charging Circuit (p. 17)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

SYSTEM WIRING DIAGRAMS

Starting Circuit (p. 18)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

SYSTEM WIRING DIAGRAMS

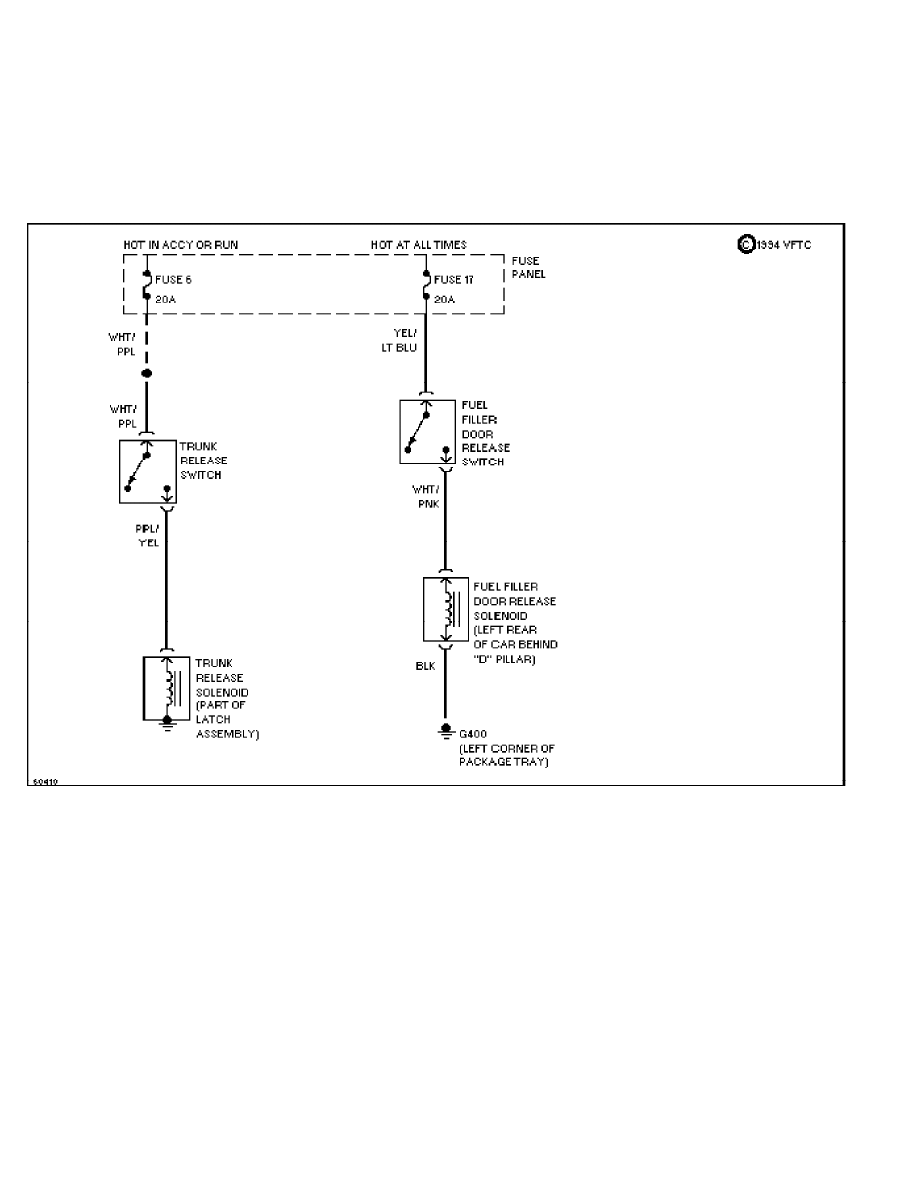

Trunk & Fuel Door Release Circuit (p. 19)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

SYSTEM WIRING DIAGRAMS

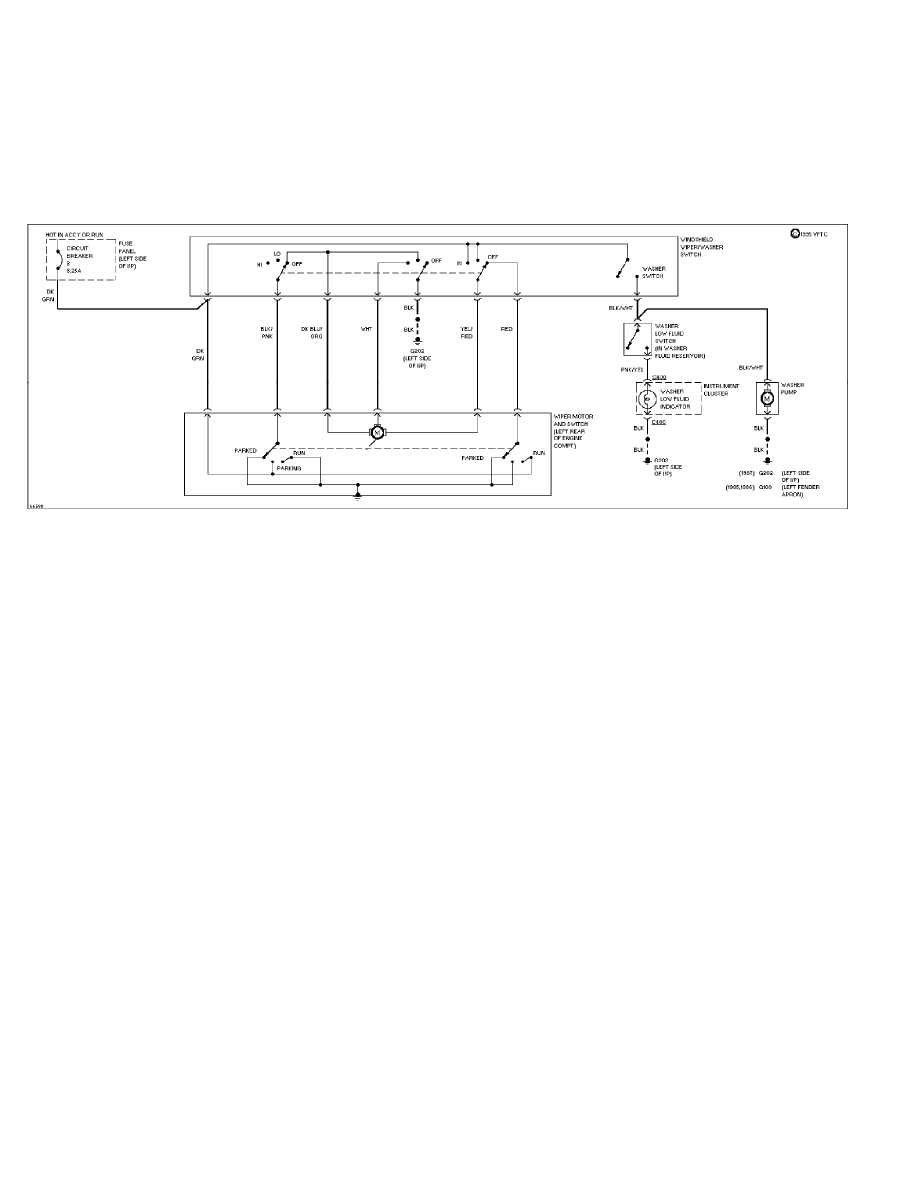

2-Speed Wiper/Washer Circuit (p. 20)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

SYSTEM WIRING DIAGRAMS

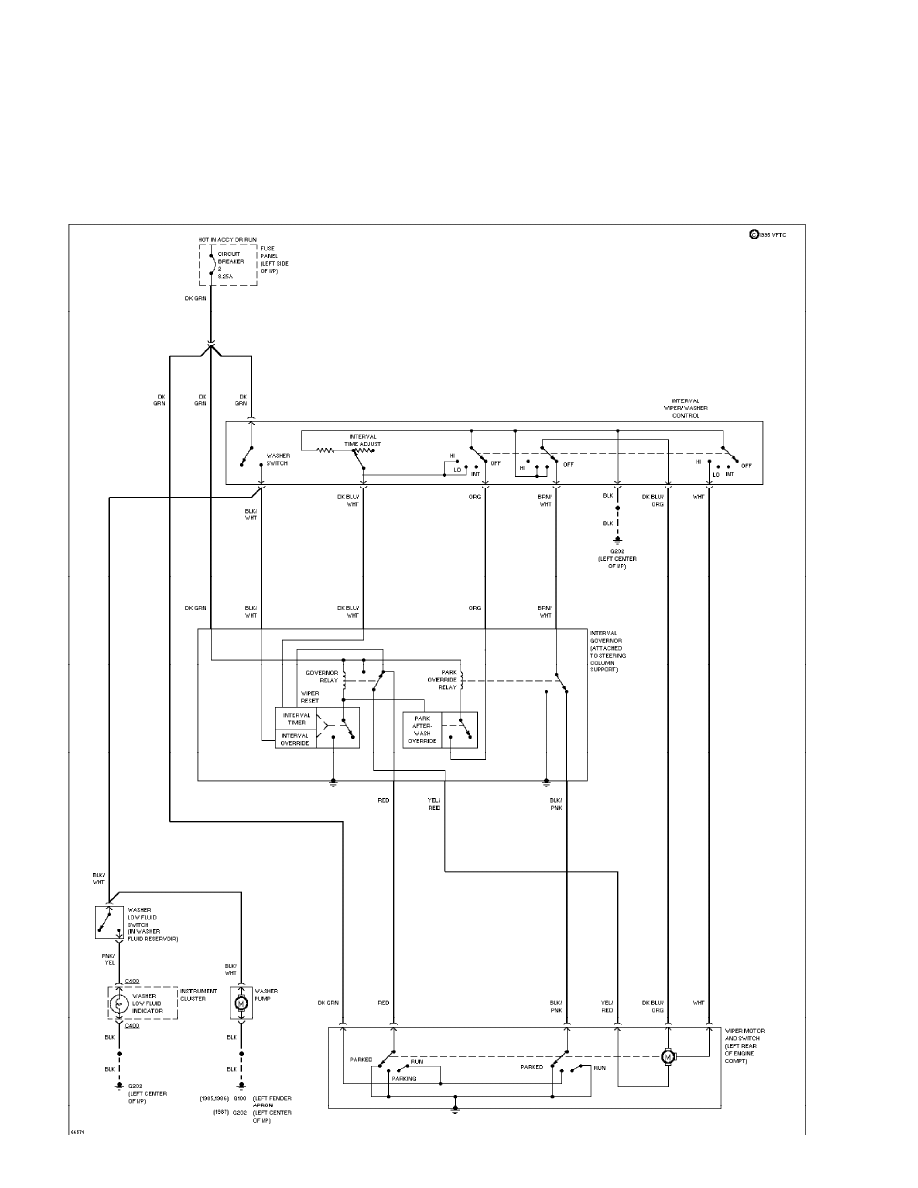

Interval Wiper/Washer Circuit (p. 21)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

WIRING DIAGRAMS

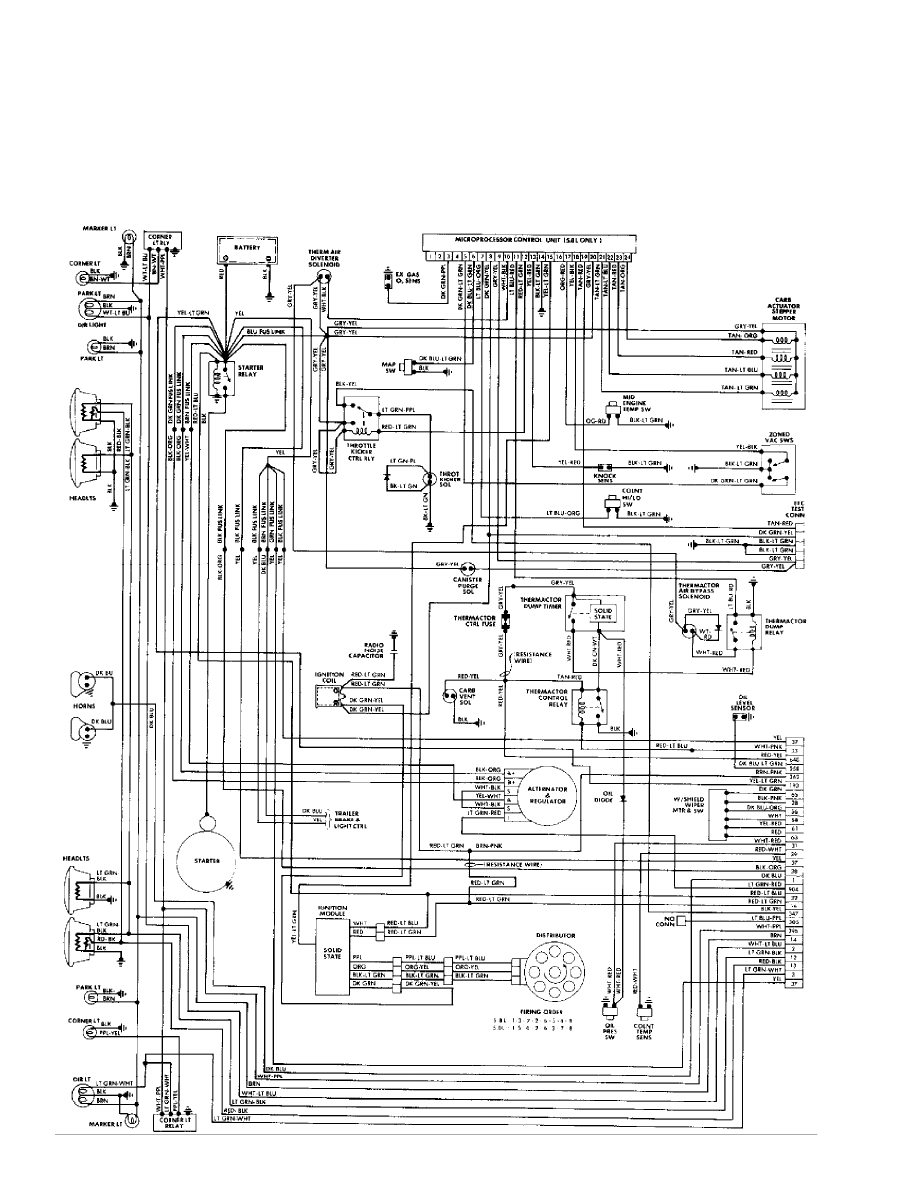

Fig. 1: Engine Compartment

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

WIRING DIAGRAMS

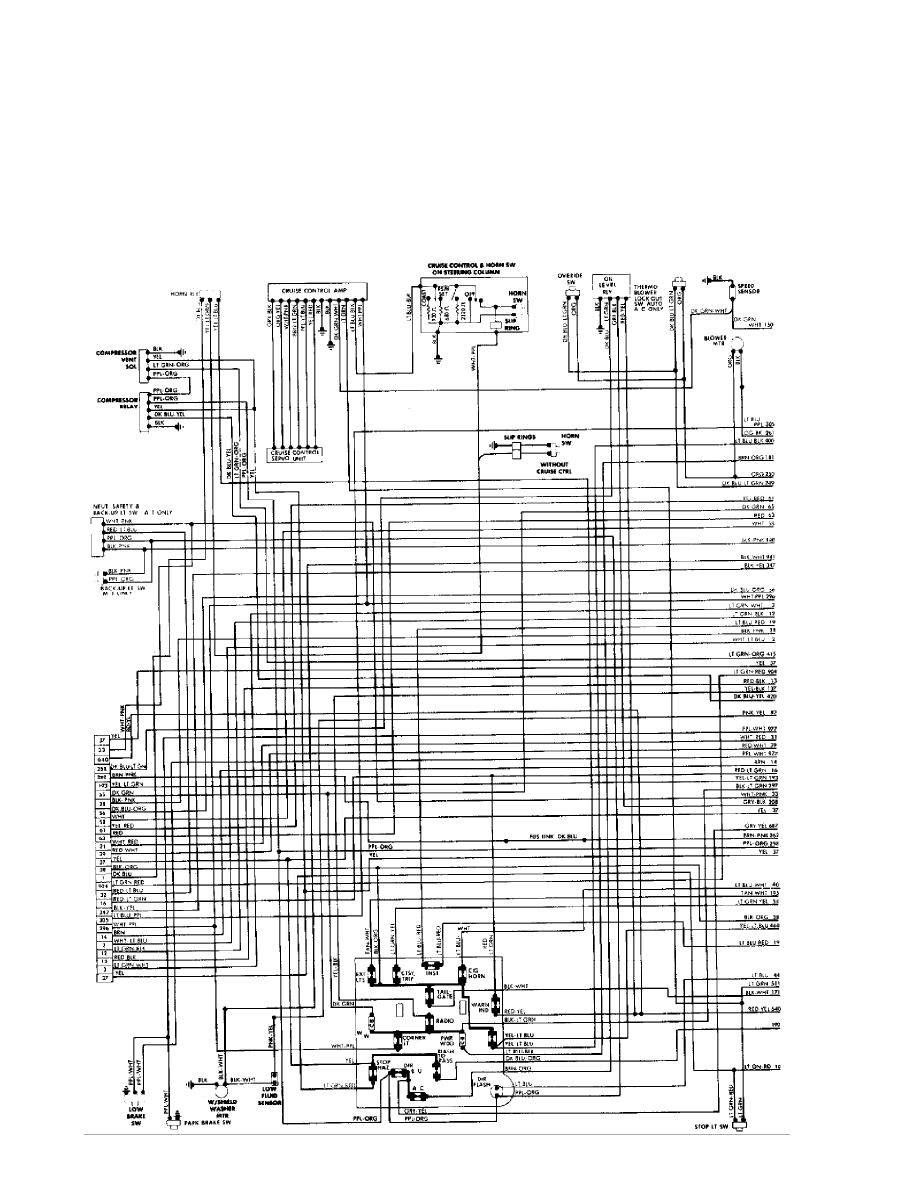

Fig. 2: Fuse Block & Underdash (p. 2)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

WIRING DIAGRAMS

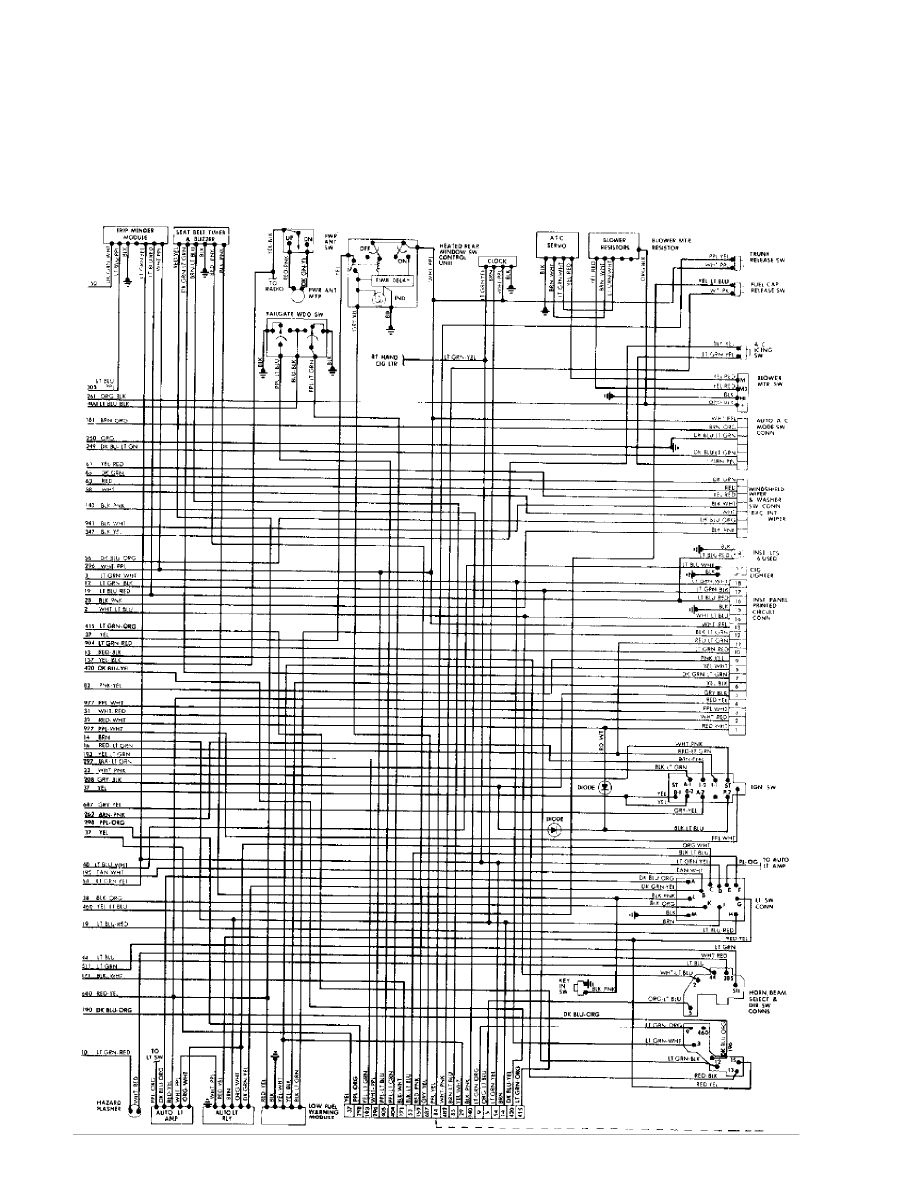

Fig. 3: Underdash (Cont.) & Instrument Panel (p. 3)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

WIRING DIAGRAMS

Fig. 4: Rear Compartment & Accessories (p. 4)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

WIRING DIAGRAMS

Fig. 5: Engine Compartment & Headlights (p. 5)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

WIRING DIAGRAMS

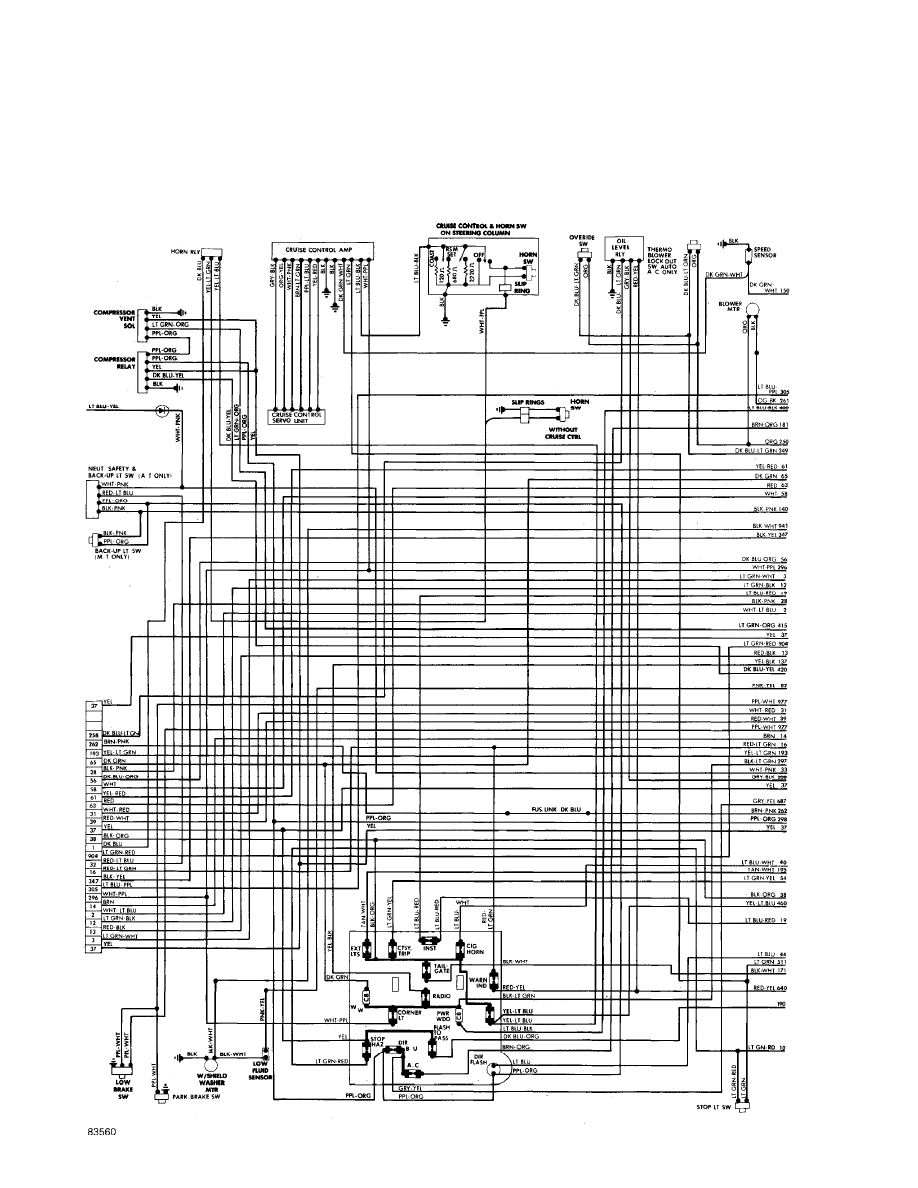

Fig. 6: Fuse Block & Underdash (p. 6)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

WIRING DIAGRAMS

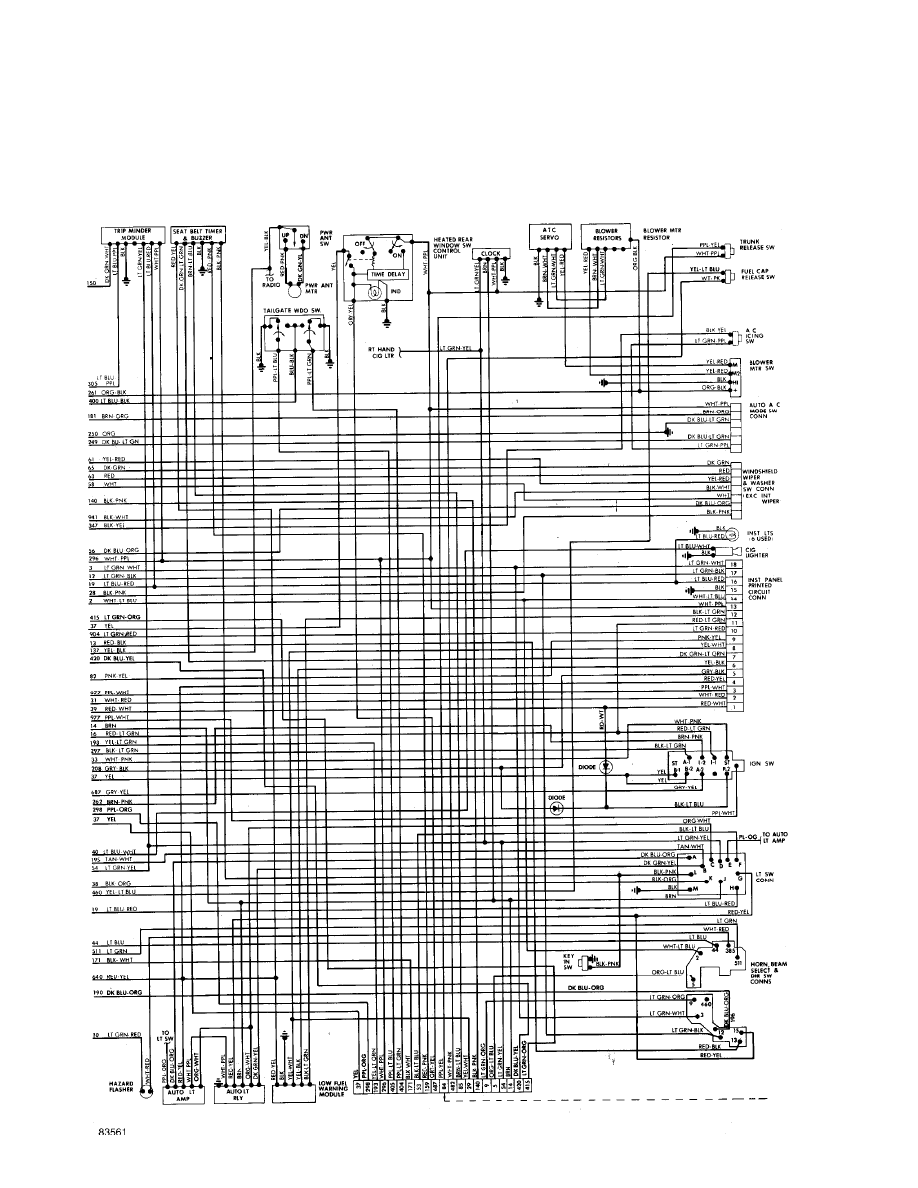

Fig. 7: Instrument Panel & Underdash (Cont.) (p. 7)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM

WIRING DIAGRAMS

Fig. 8: Rear Compartment, Accessories & Taillights (p. 8)

1986 Ford LTD Crown Victoria

For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 09:56PM
