FORD ECONOLINE CLUB WAGON 1986

background image

SYSTEM WIRING DIAGRAMS

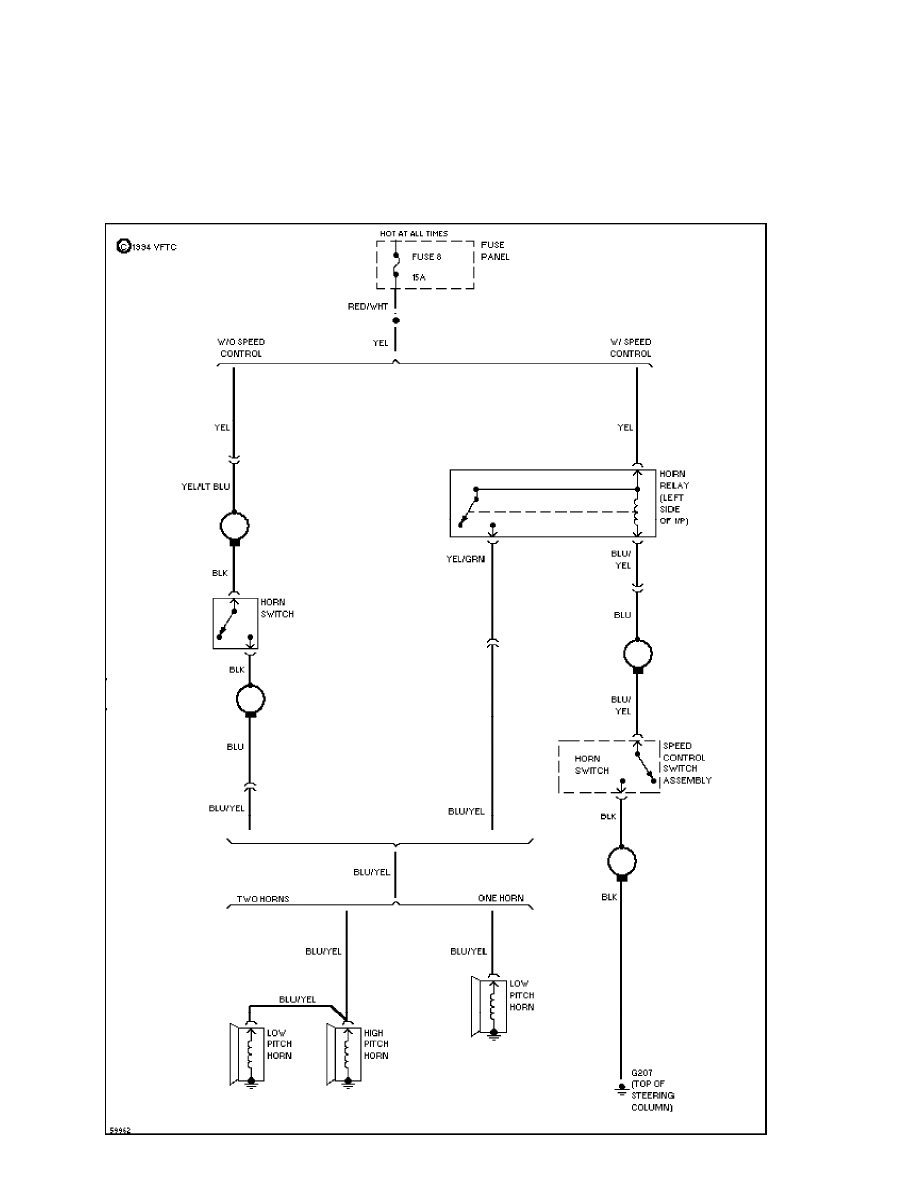

Horn Circuit

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

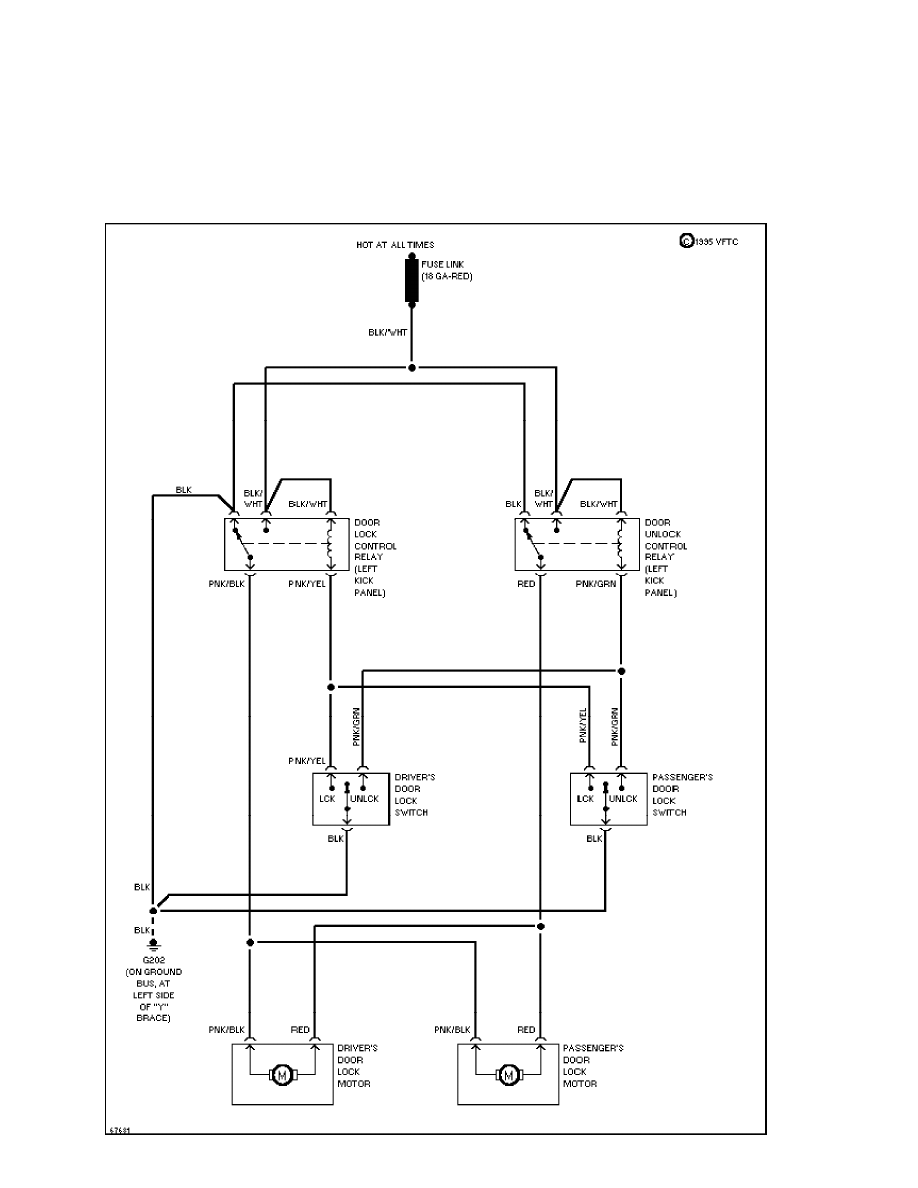

Power Door Lock Circuit (p. 2)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

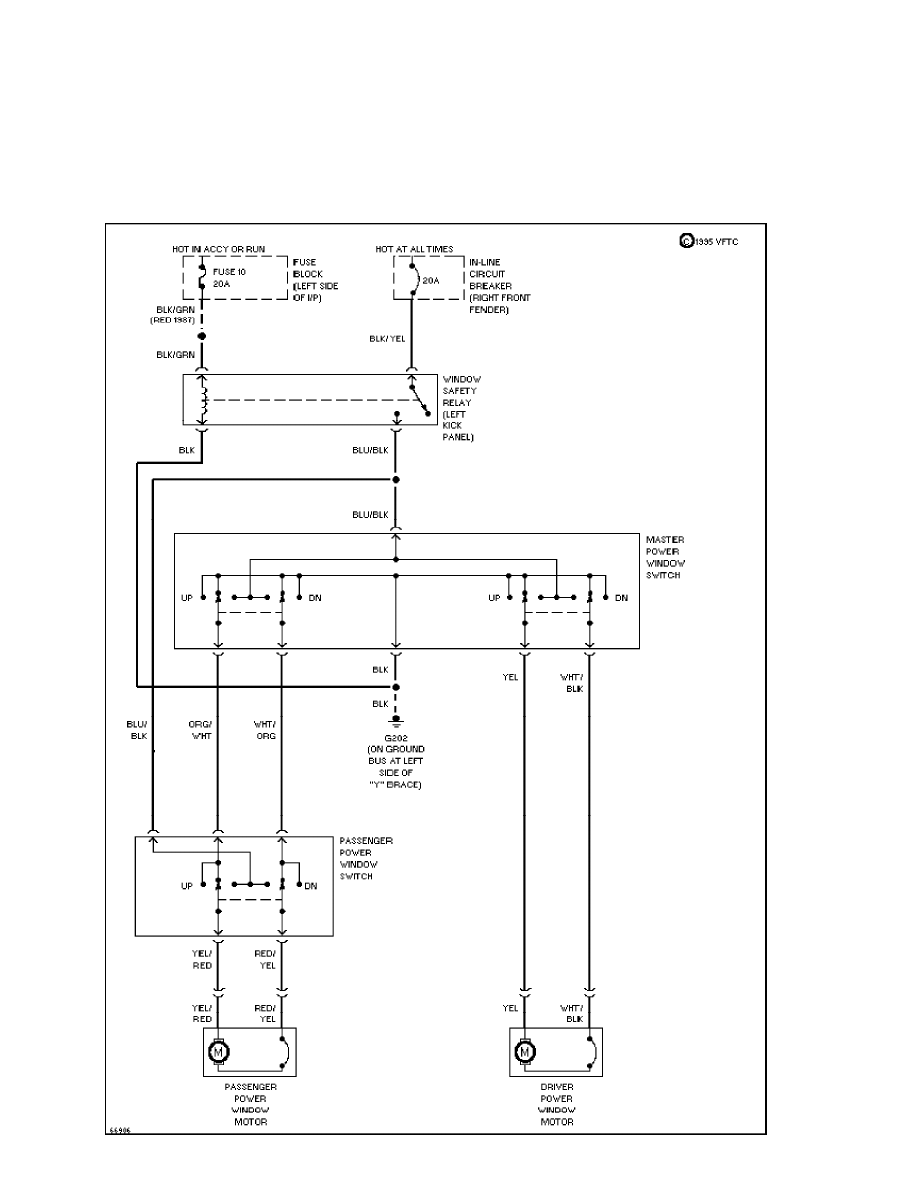

Power Window Circuit (p. 3)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

AM Radio Circuit (p. 4)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

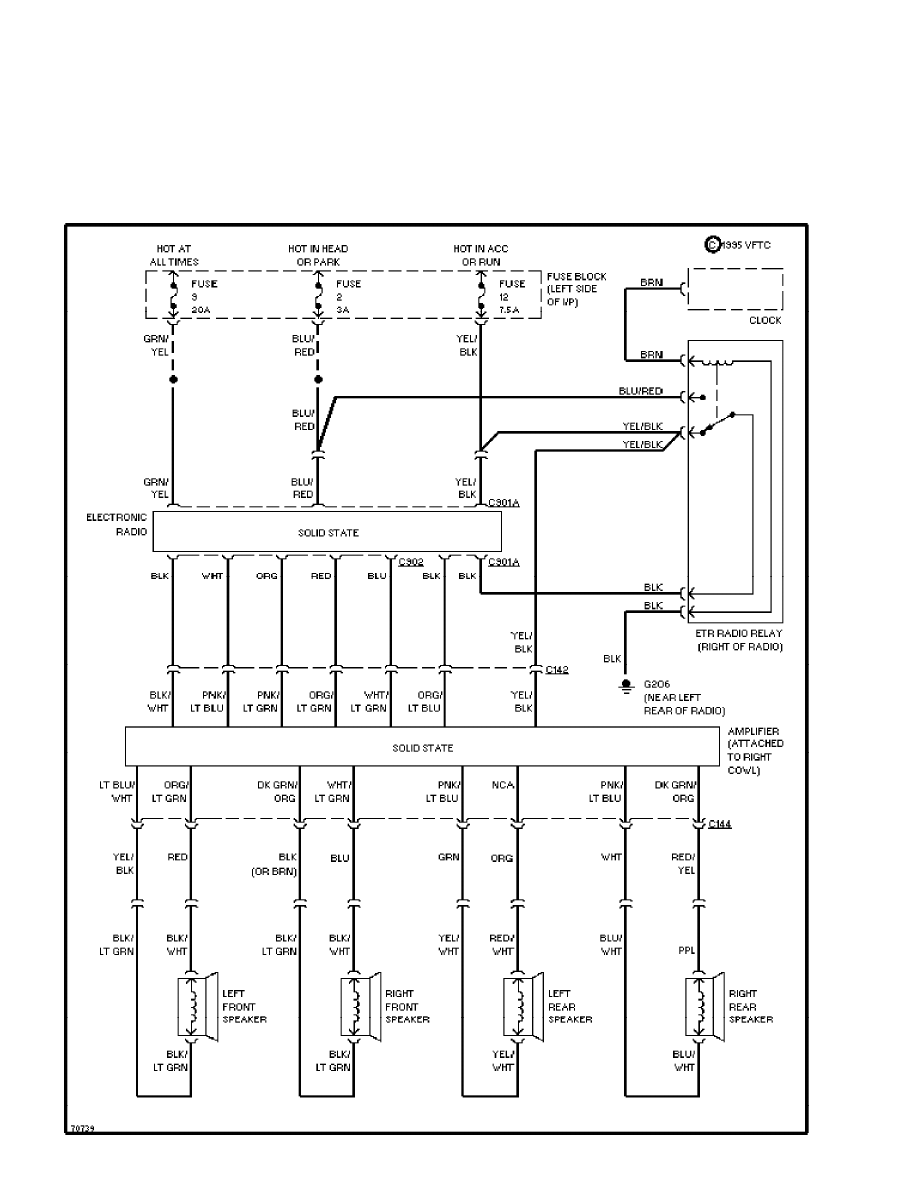

Electronic Radio Circuit, W/ Premium Sound (p. 5)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

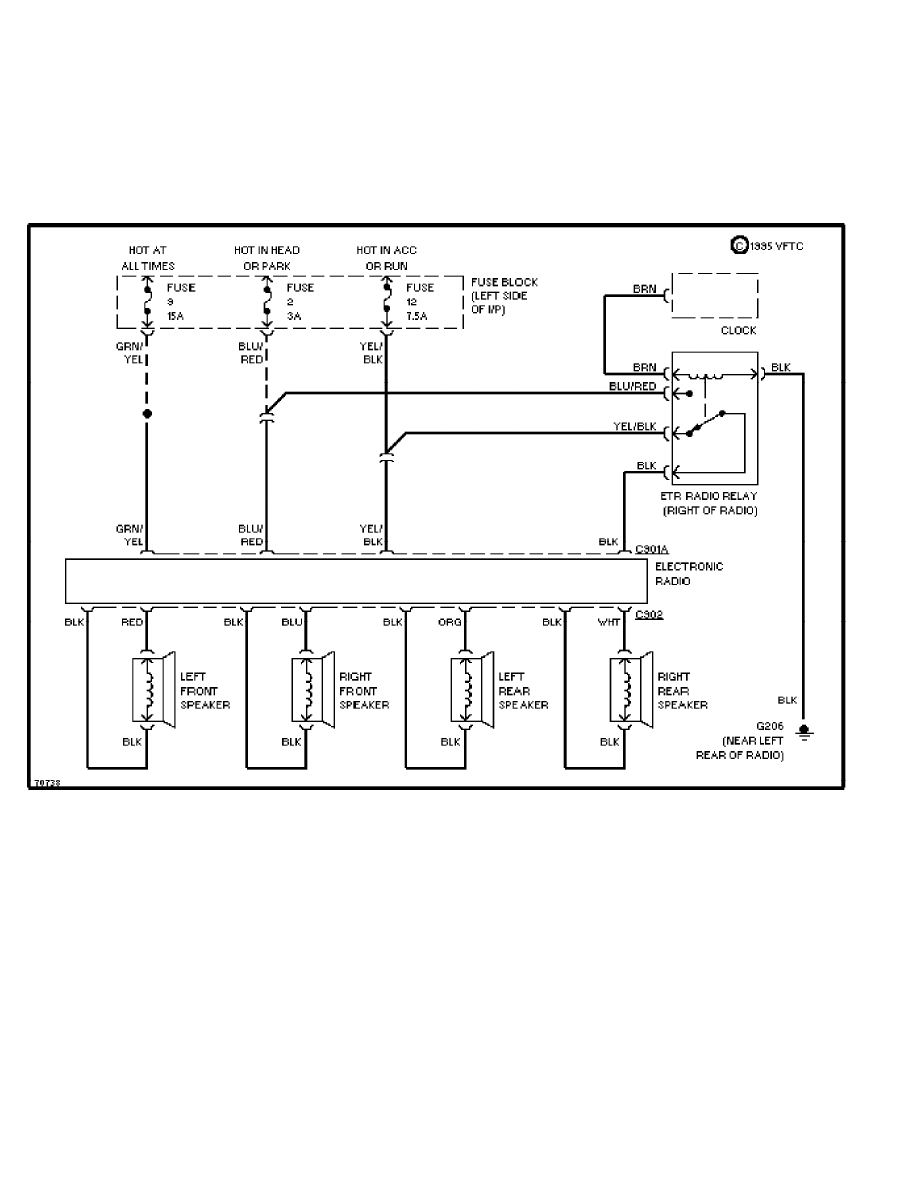

Electronic Radio Circuit, W/O Premium Sound (p. 6)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

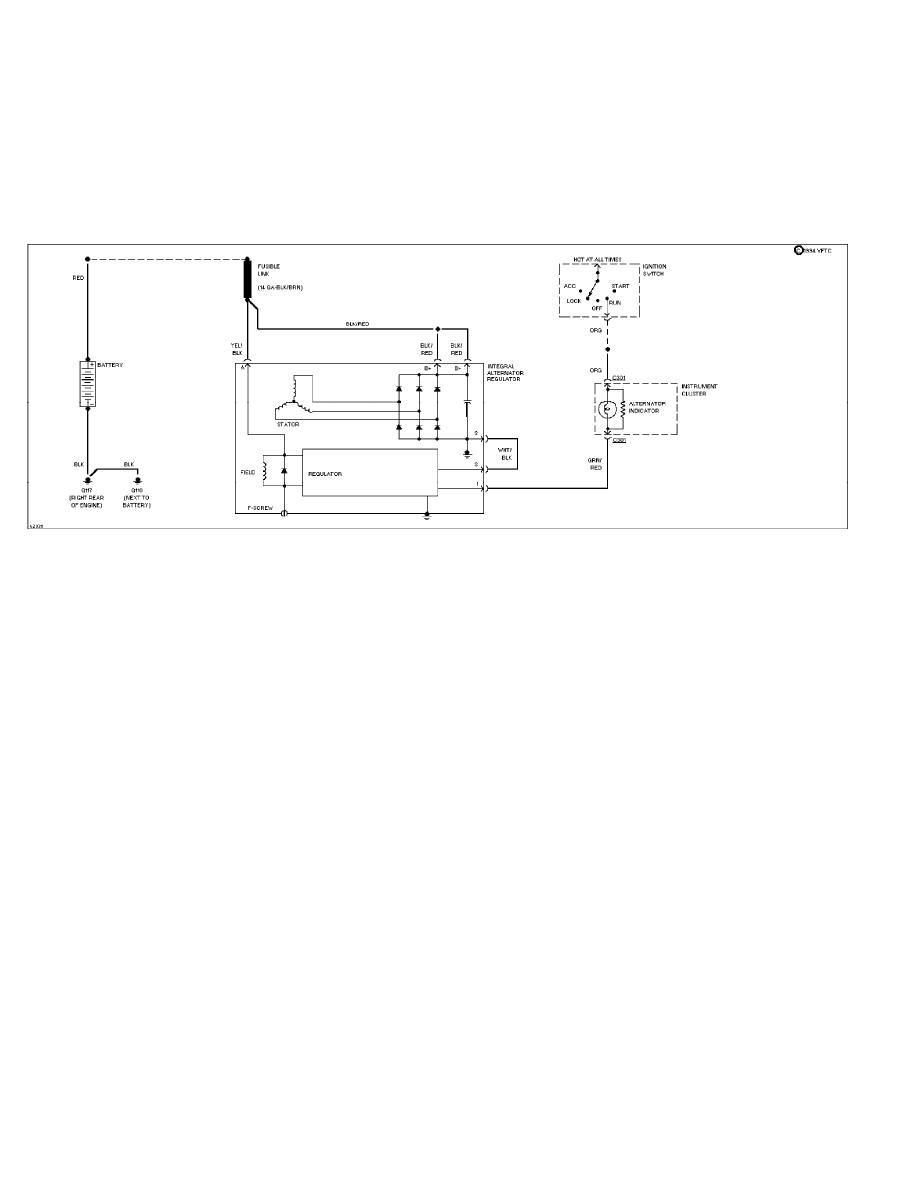

4.9L, Charging Circuit, Internal Regulator W/ Alternator Warning

Indicator (p. 7)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

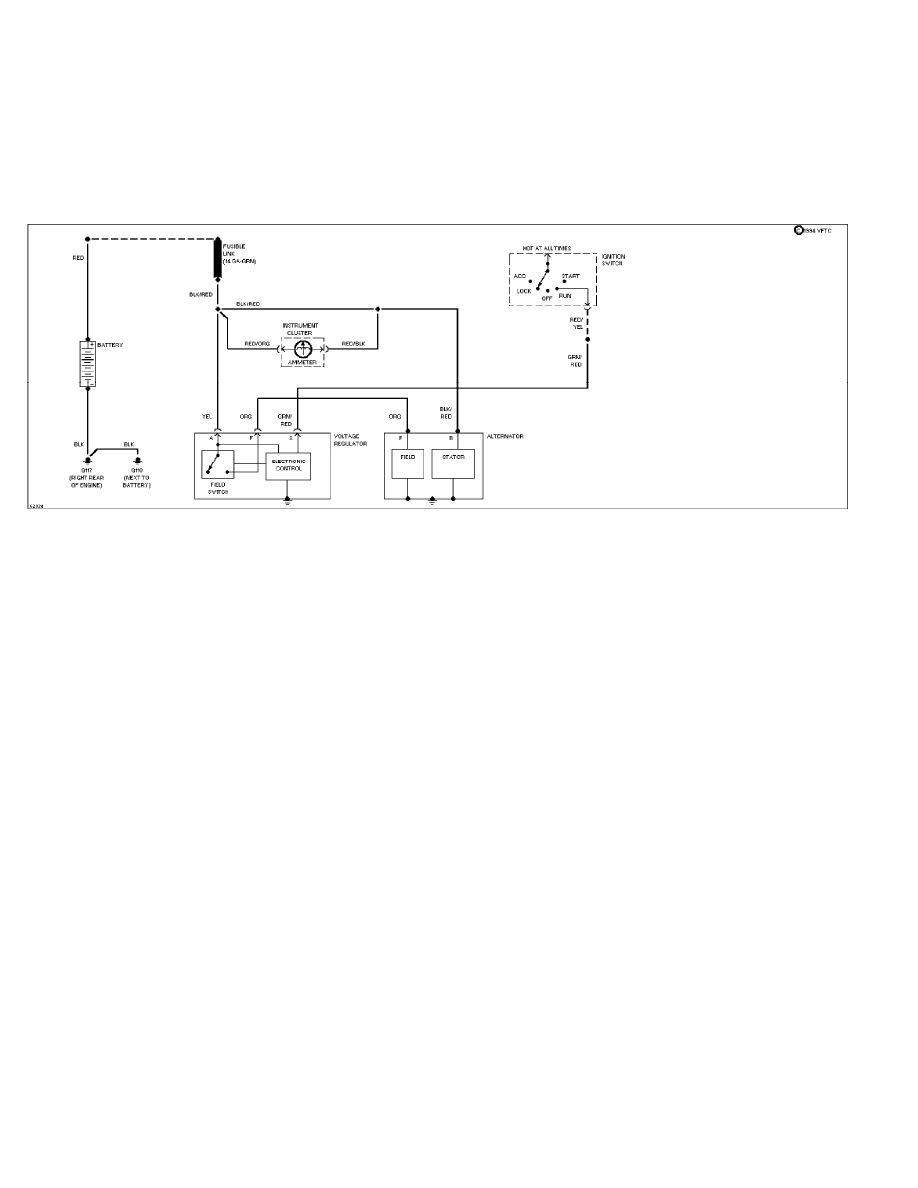

4.9L, Charging Circuit, Internal Regulator W/ Ammeter (p. 8)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

4.9L, Charging Circuit, W/ Alternator Warning Indicator (p. 9)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

4.9L, Charging Circuit, W/ Ammeter (p. 10)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

4.9L, Starting Circuit (p. 11)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

5.0L, Charging Circuit, Internal Regulator W/ Alternator Warning

Indicator (p. 12)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

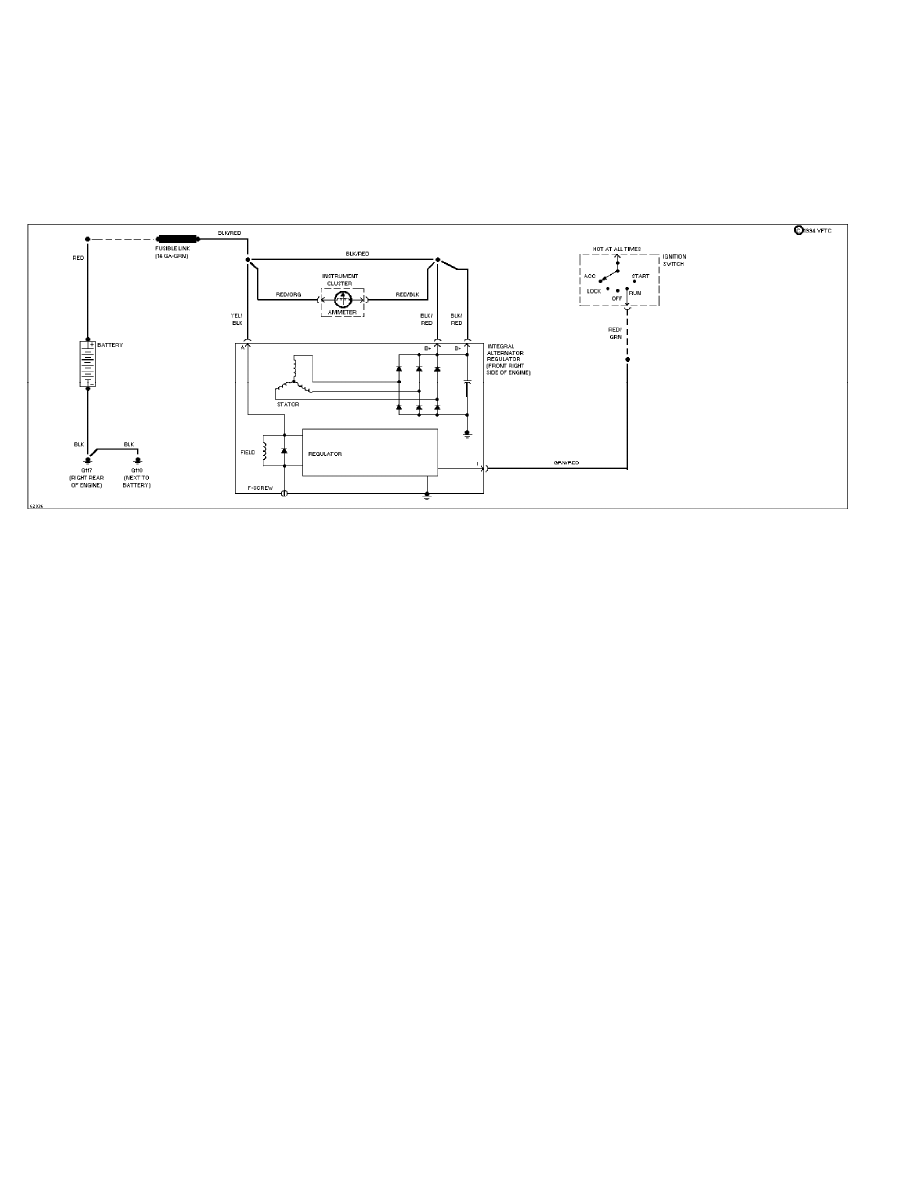

5.0L, Charging Circuit, Internal Regulator W/ Ammeter (p. 13)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

5.0L, Charging Circuit, W/ Alternator Warning Indicator (p. 14)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

5.0L, Charging Circuit, W/ Ammeter (p. 15)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

5.0L, Starting Circuit (p. 16)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

5.8L, Charging Circuit, Internal Regulator W/ Alternator Warning

Indicator (p. 17)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

5.8L, Charging Circuit, Internal Regulator W/ Ammeter (p. 18)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

5.8L, Charging Circuit, W/ Alternator Warning Indicator (p. 19)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

5.8L, Charging Circuit, W/ Ammeter (p. 20)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

5.8L, Starting Circuit (p. 21)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

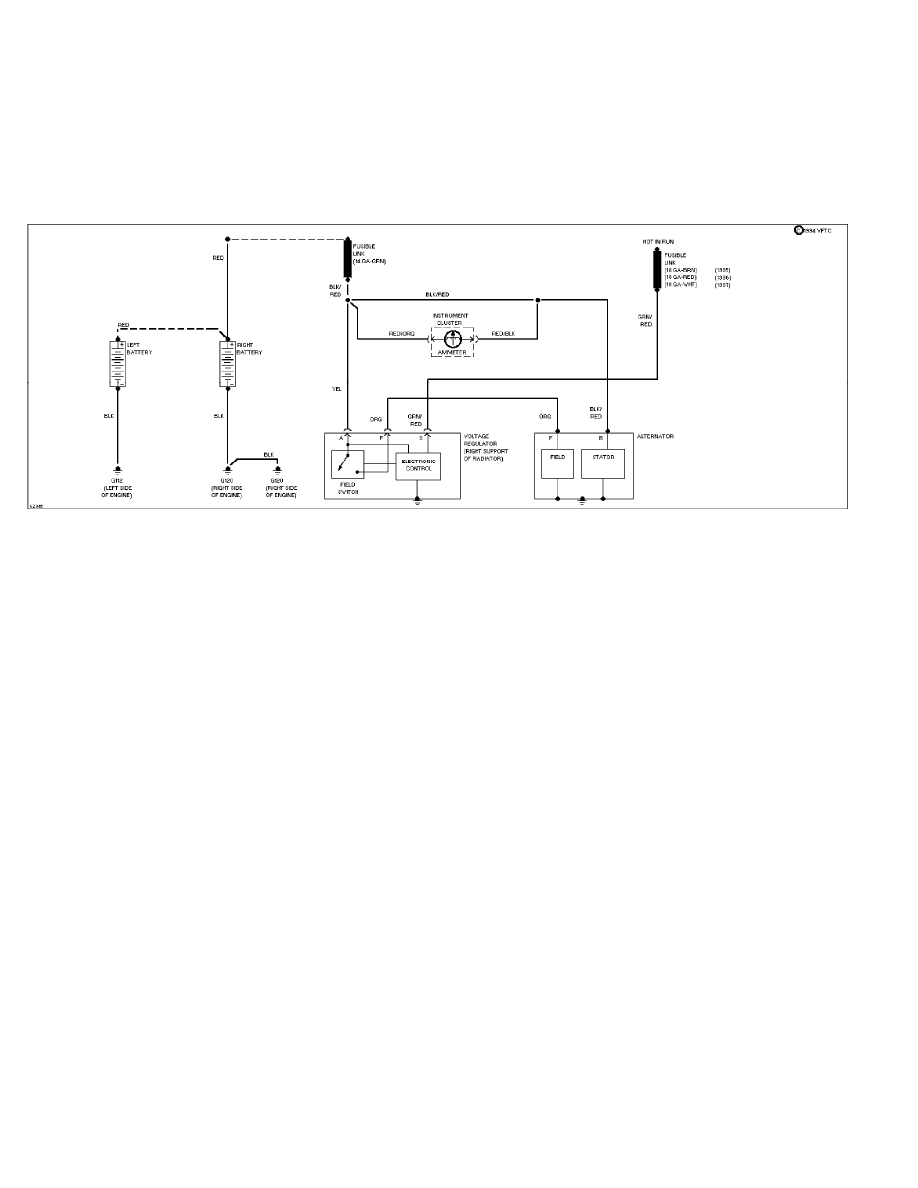

6.9L Diesel, Charging Circuit (p. 22)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

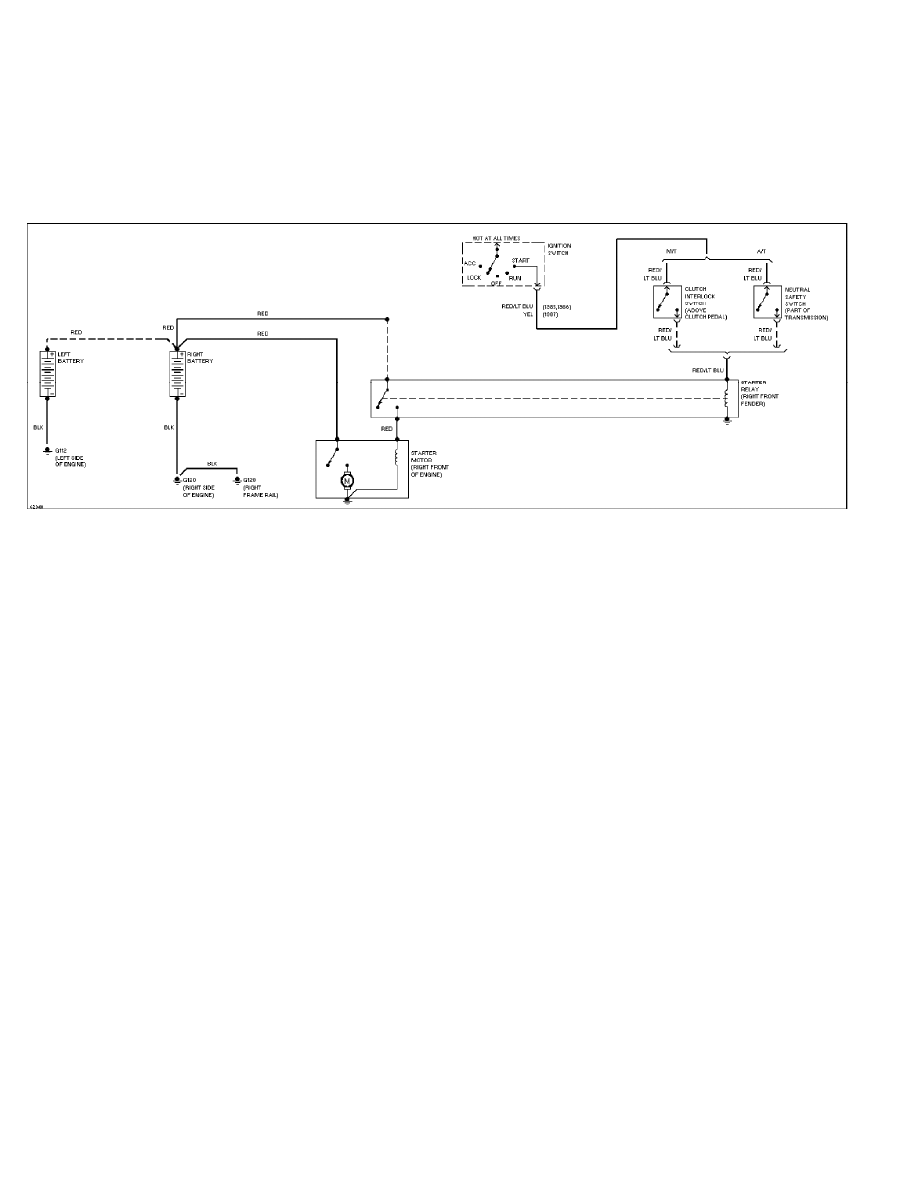

6.9L Diesel, Starting Circuit (p. 23)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

7.5L, Charging Circuit, Internal Regulator W/ Alternator Warning

Indicator (p. 24)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

7.5L, Charging Circuit, Internal Regulator W/ Ammeter (p. 25)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

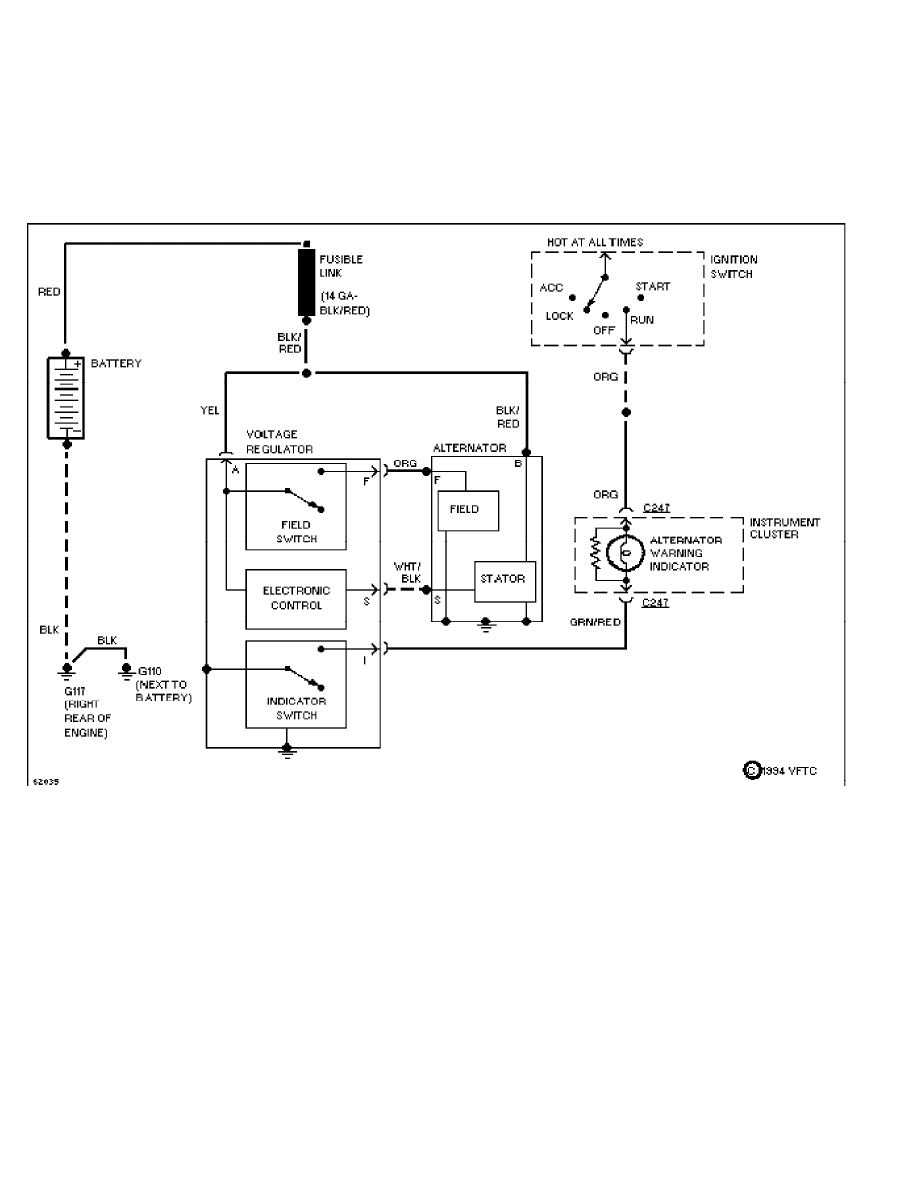

7.5L, Charging Circuit, W/ Alternator Warning Indicator (p. 26)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

7.5L, Charging Circuit, W/ Ammeter (p. 27)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

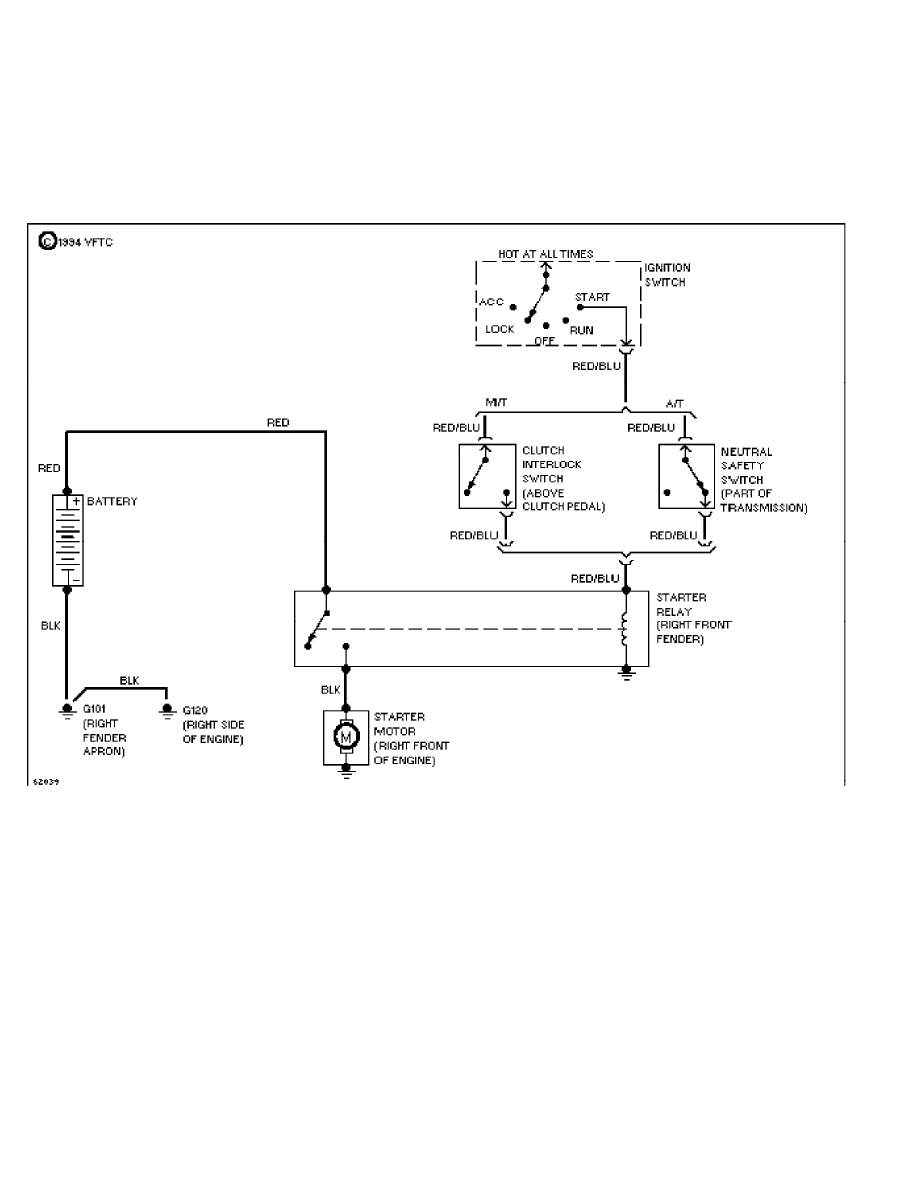

7.5L, Starting Circuit (p. 28)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

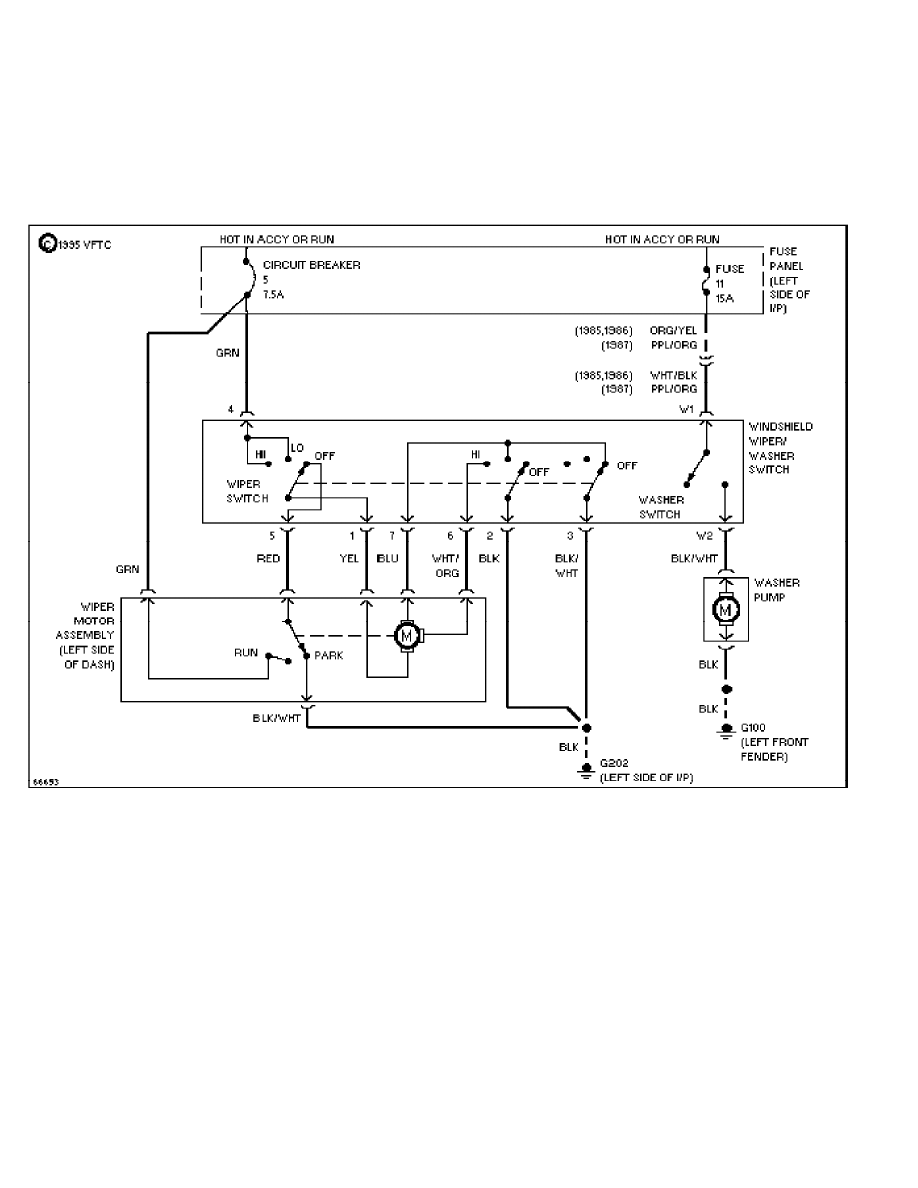

2-Speed Wiper/Washer Circuit (p. 29)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

SYSTEM WIRING DIAGRAMS

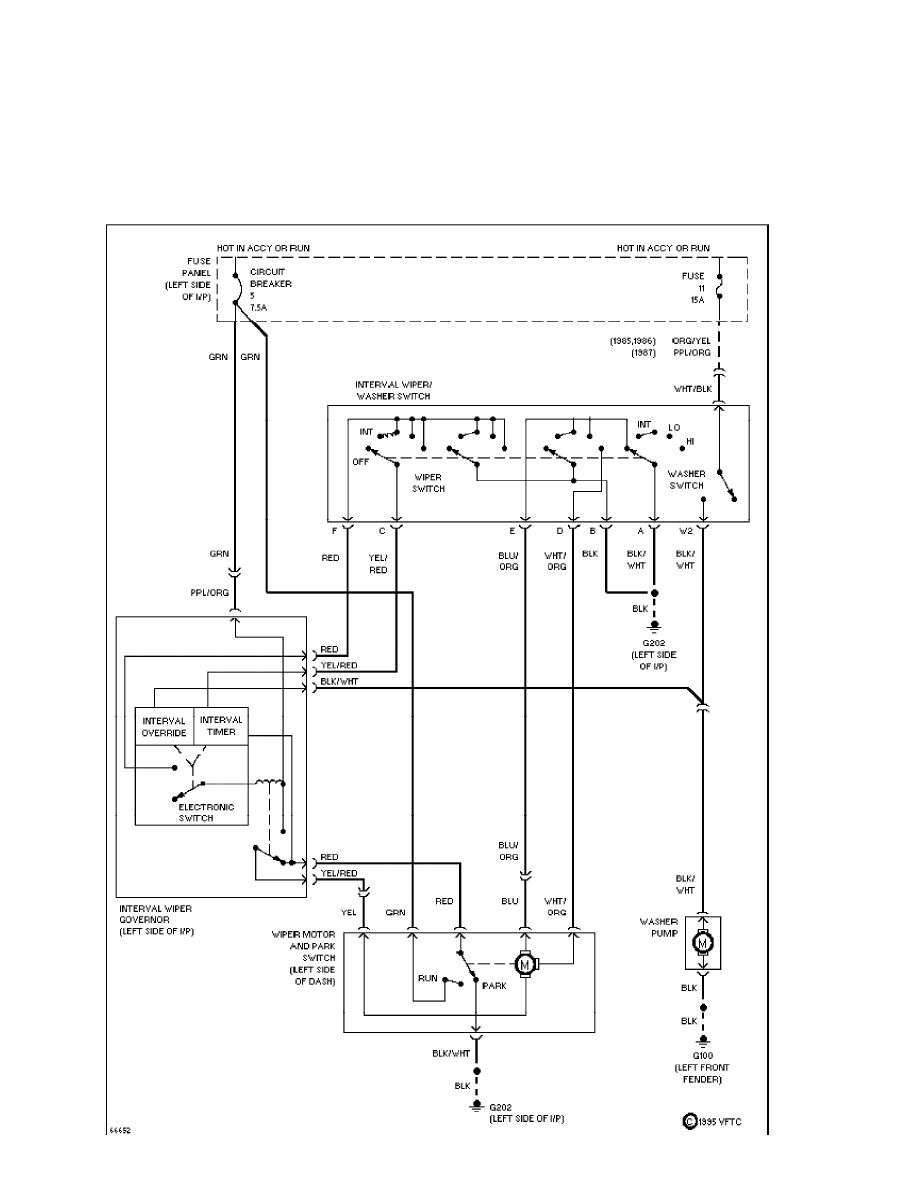

Interval Wiper/Washer Circuit (p. 30)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:37PM

background image

WIRING DIAGRAMS

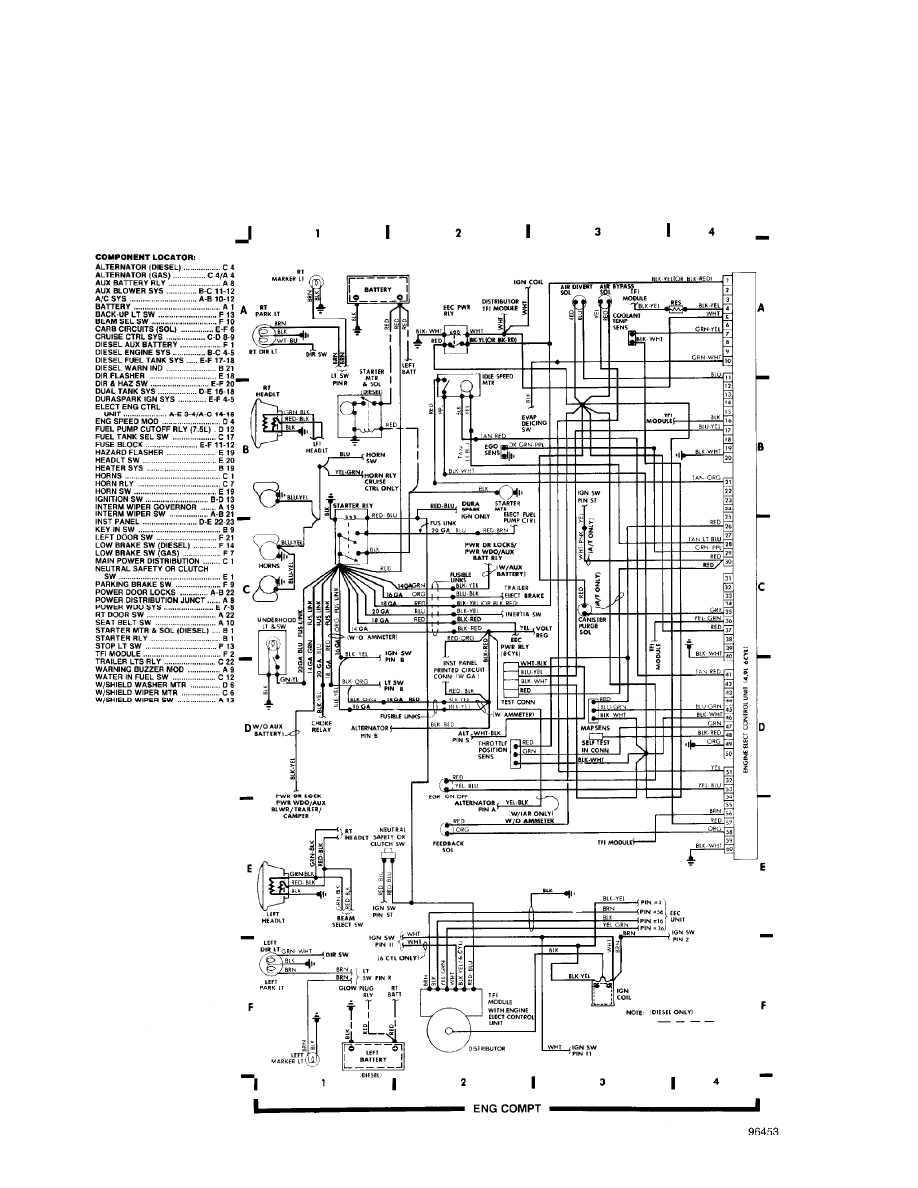

Fig. 1: Engine Compartment

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:38PM

background image

WIRING DIAGRAMS

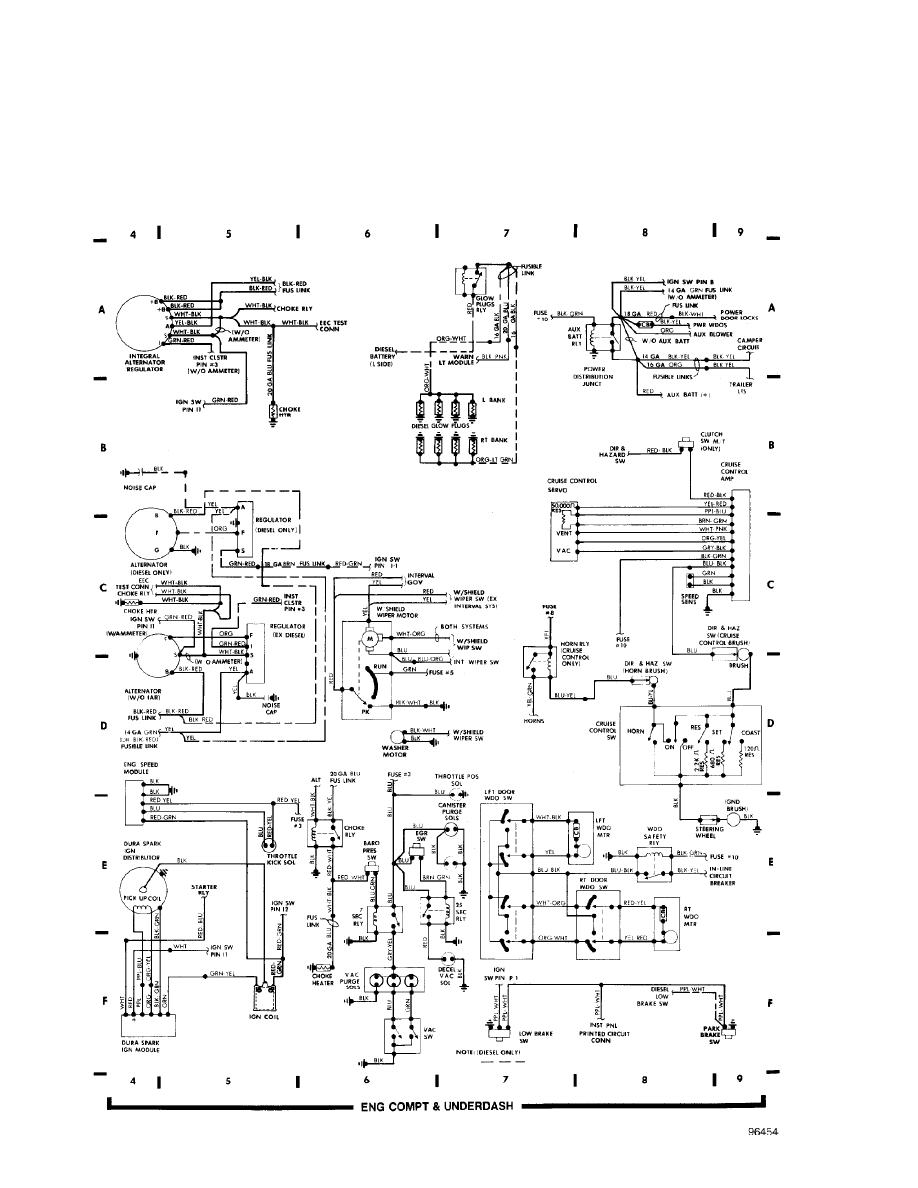

Fig. 2: Engine Compartment (Cont.) & Underdash (p. 2)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:38PM

background image

WIRING DIAGRAMS

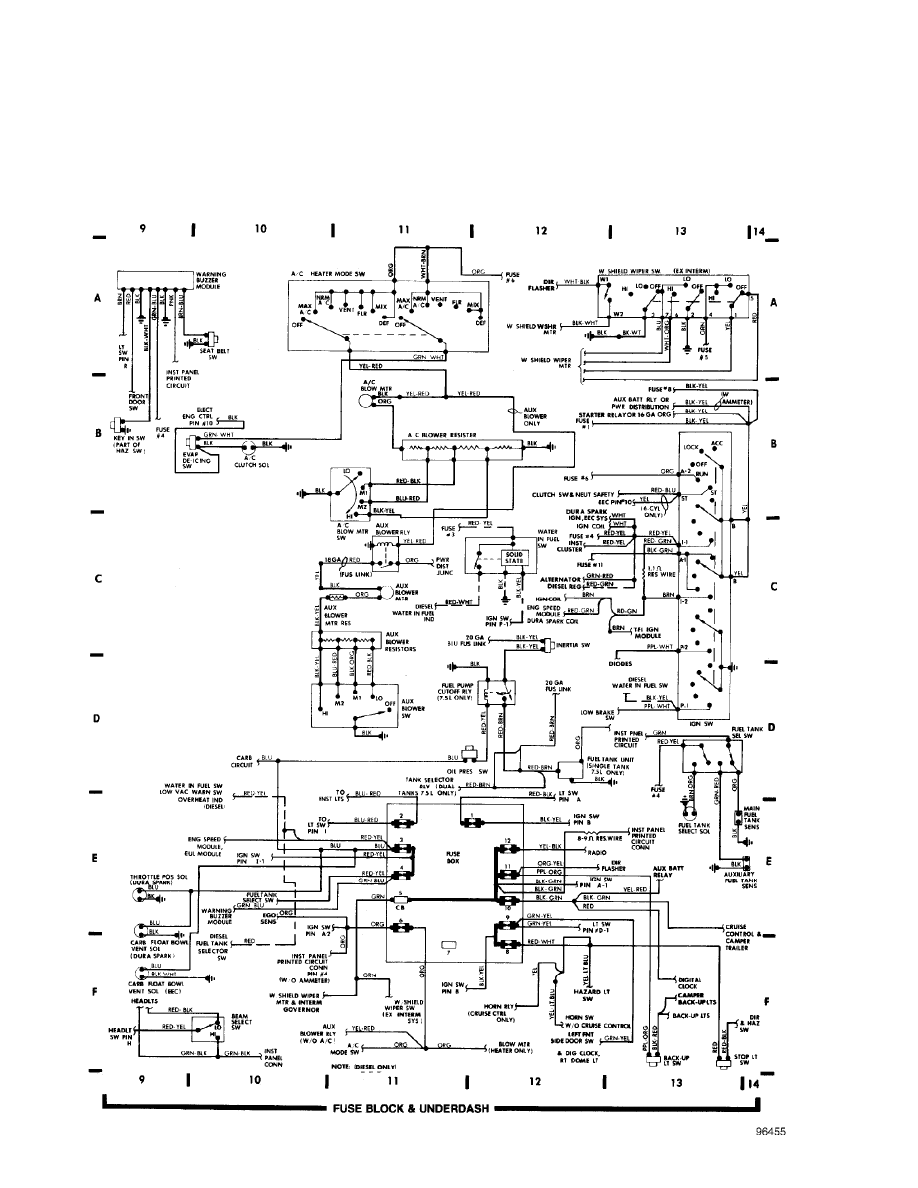

Fig. 3: Fuse Block & Underdash (p. 3)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:38PM

background image

WIRING DIAGRAMS

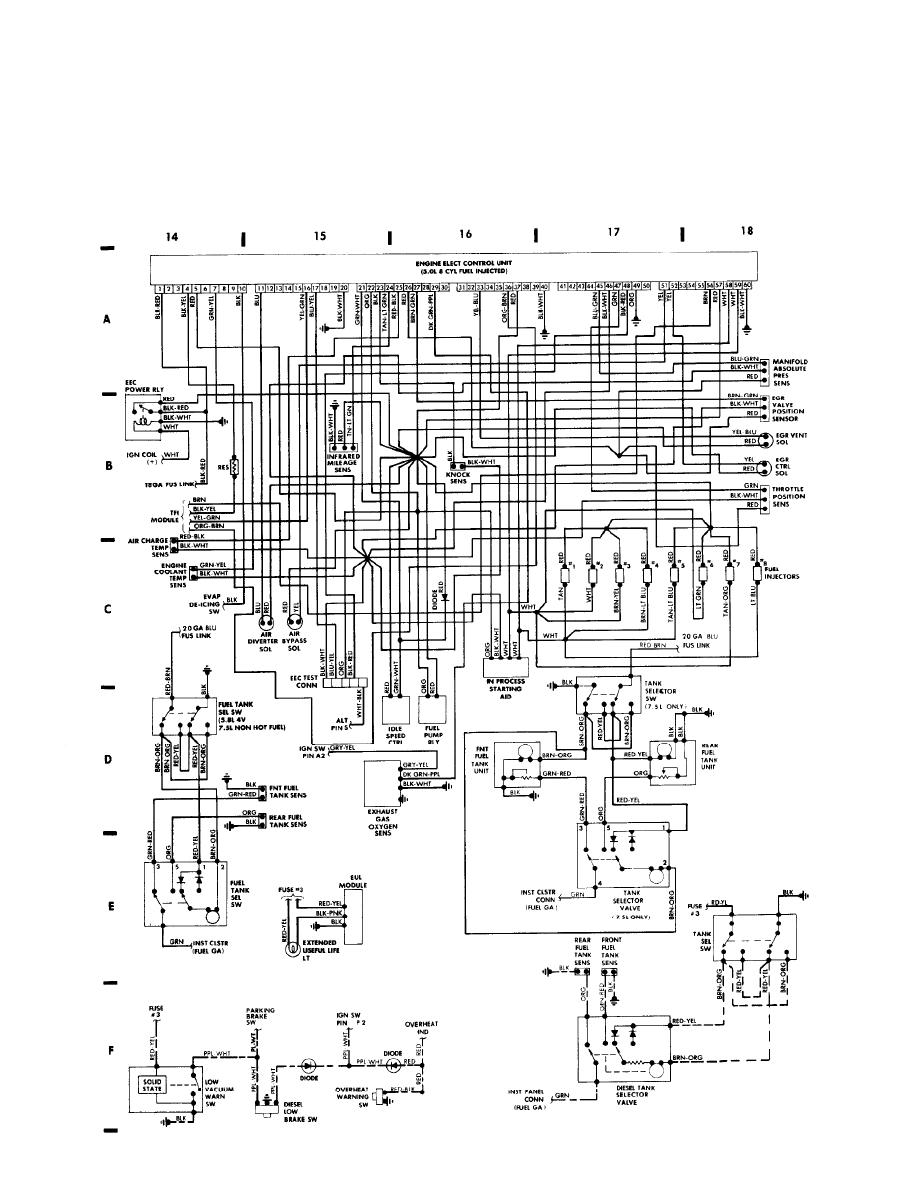

Fig. 4: Engine Compartment & Underdash (p. 4)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:38PM

background image

WIRING DIAGRAMS

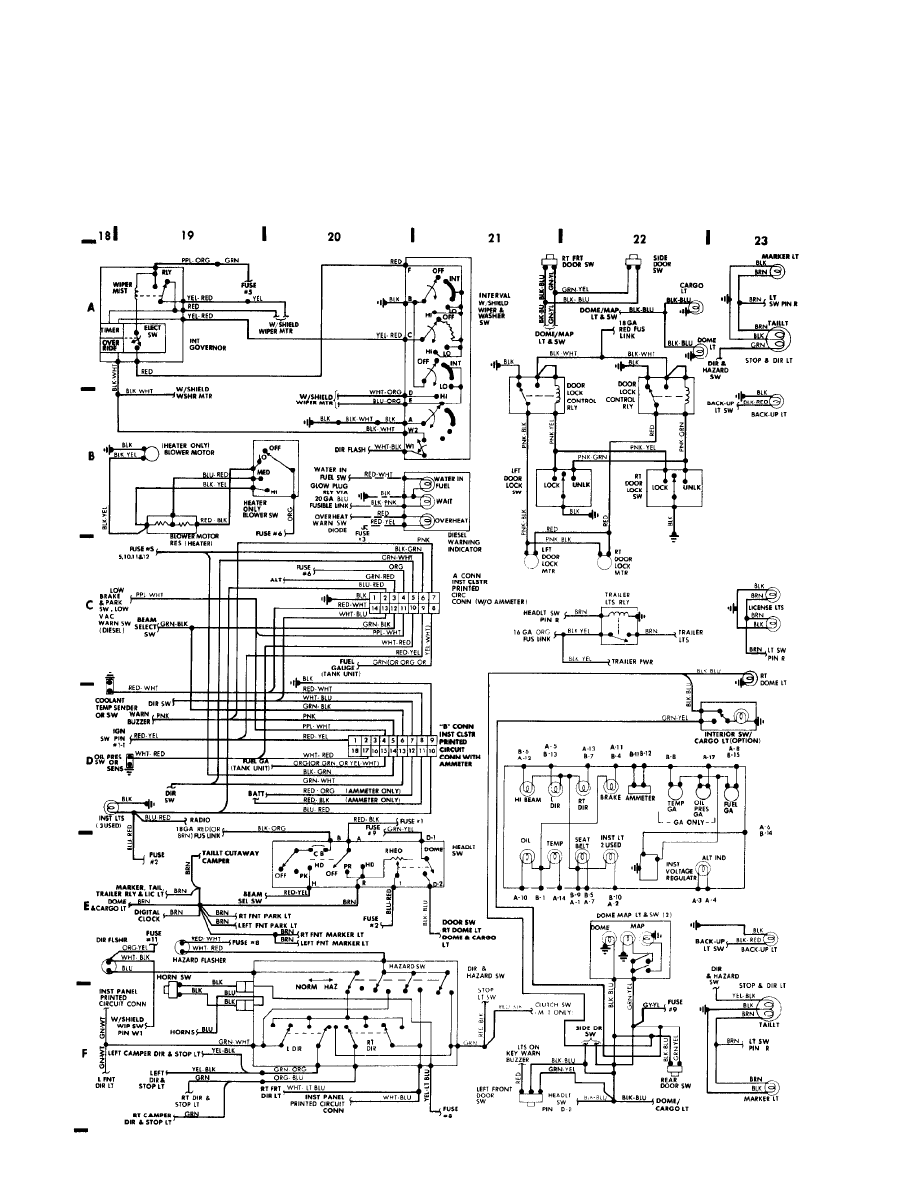

Fig. 5: Instrument Panel & Rear Compartment (p. 5)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:38PM

background image

WIRING DIAGRAMS

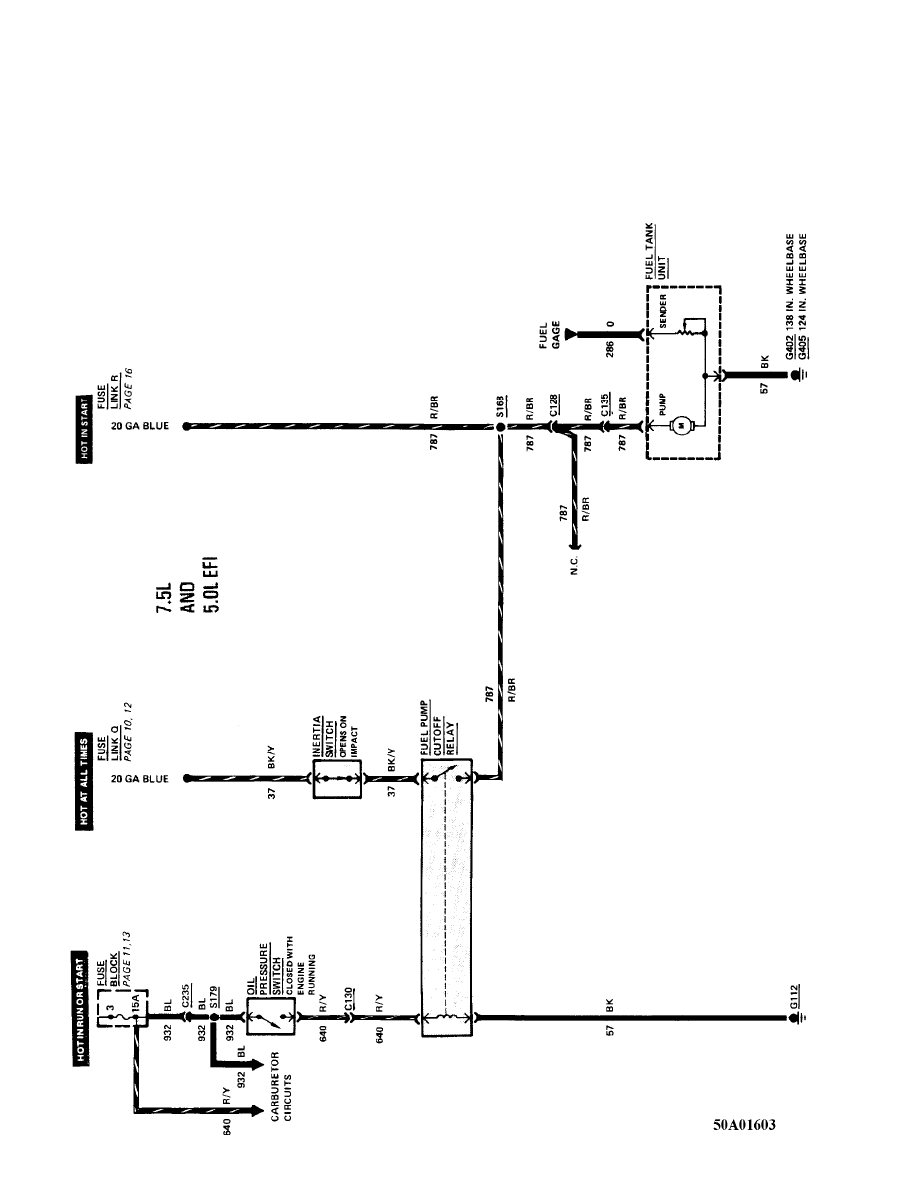

Fig. 6: Fuel Pump Cutoff Relay (7.5L & 5.0L EFI) - Print For Best Results (p. 6)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:38PM

background image

WIRING DIAGRAMS

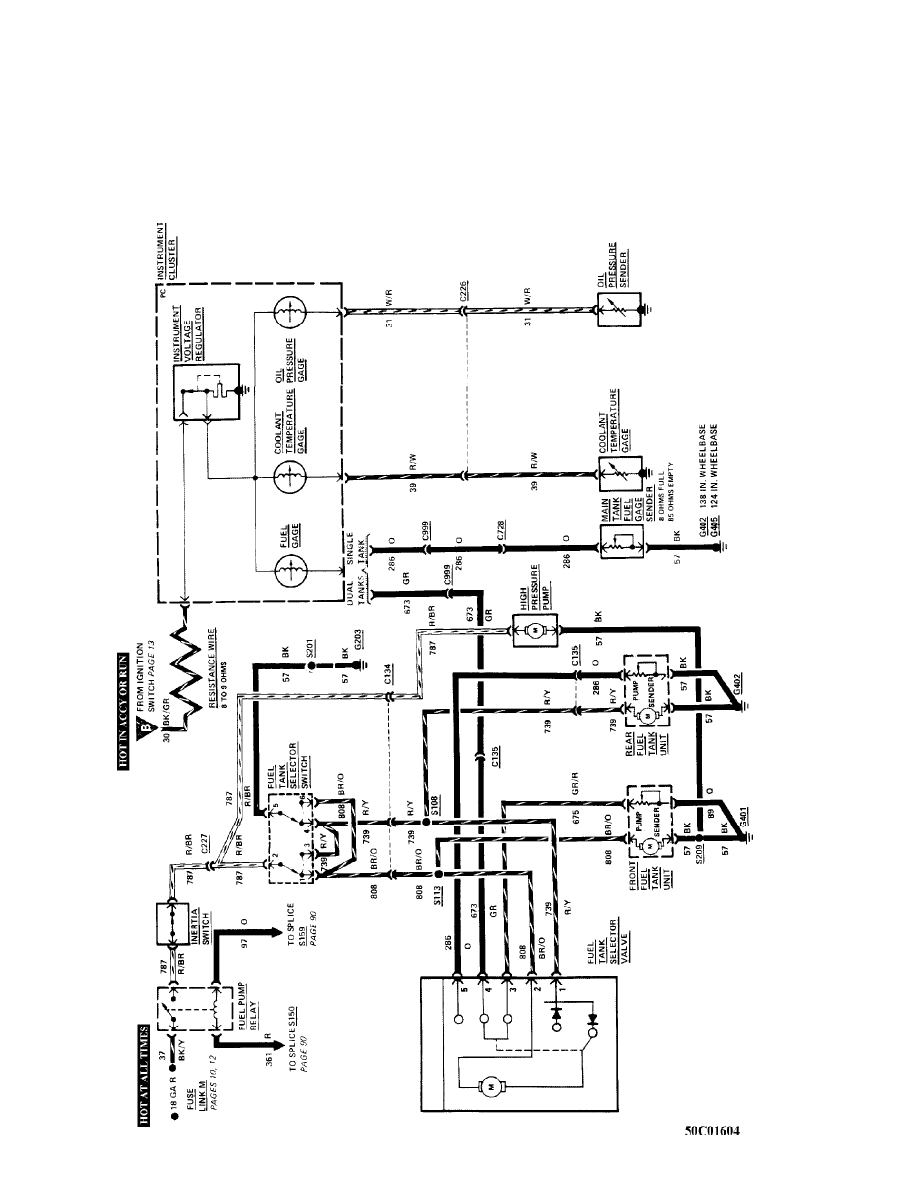

Fig. 7: Fuel Pump Relay (5.0L) - Print For Best Results (p. 7)

1986 Ford Econoline/Club Wagon

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:38PM
