FORD AEROSTAR 1986

background image

SYSTEM WIRING DIAGRAMS

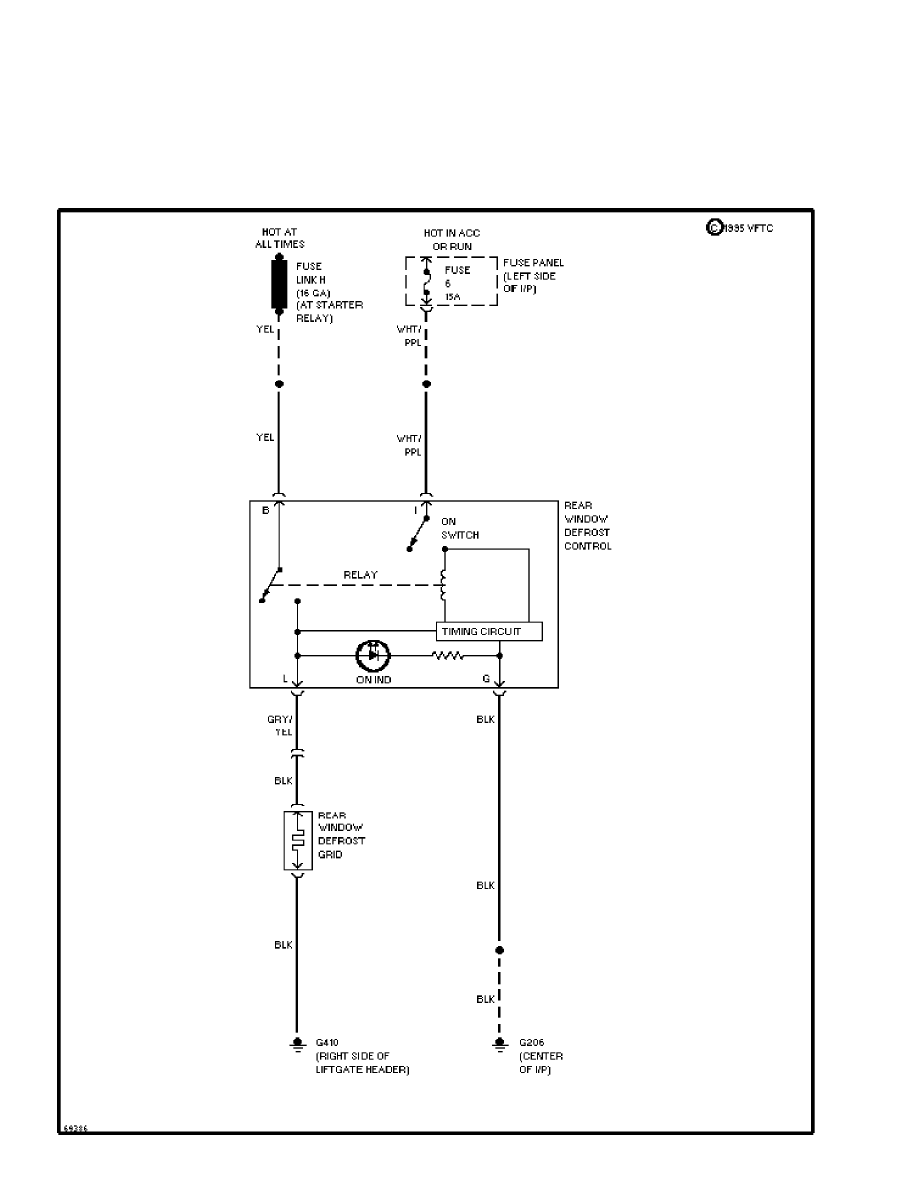

Defogger Circuit

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:15AM

background image

SYSTEM WIRING DIAGRAMS

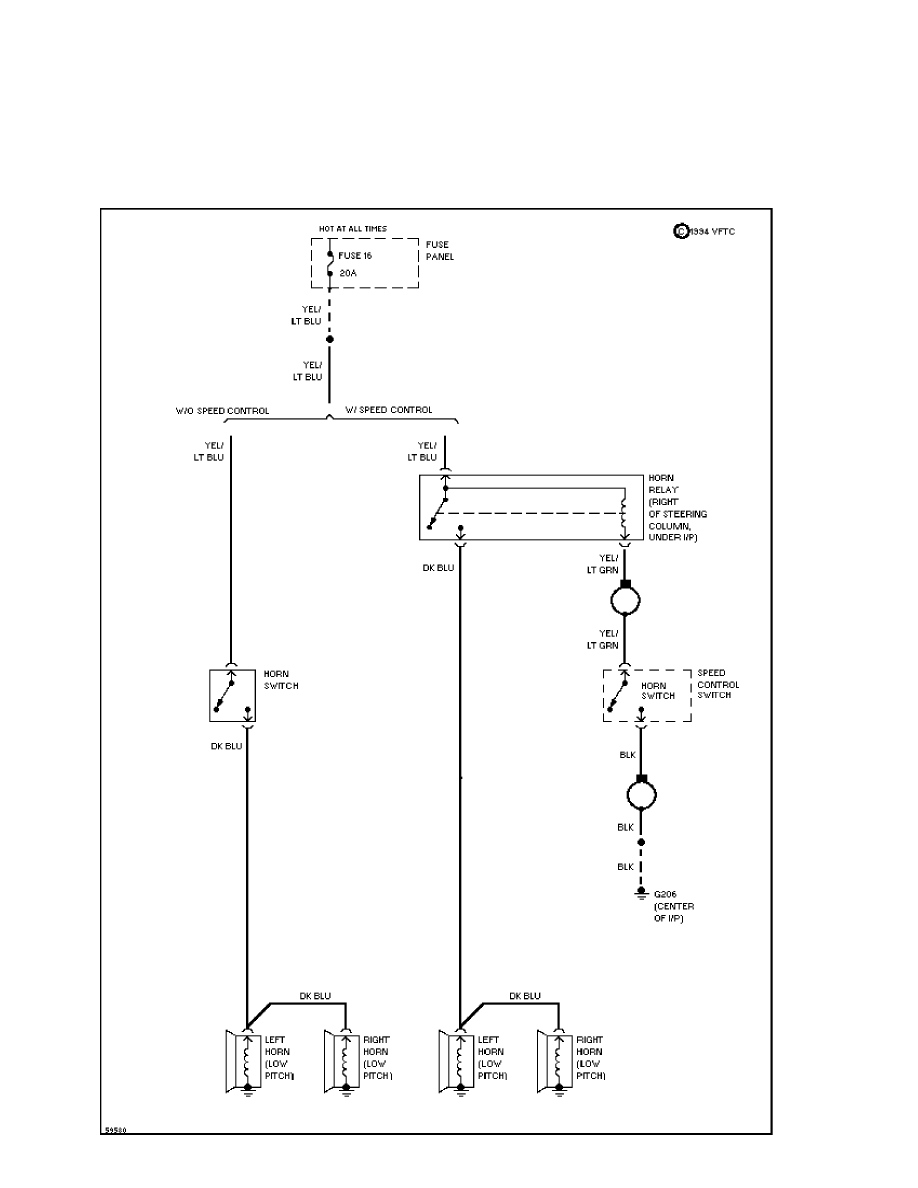

Horn Circuit (p. 2)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:15AM

background image

SYSTEM WIRING DIAGRAMS

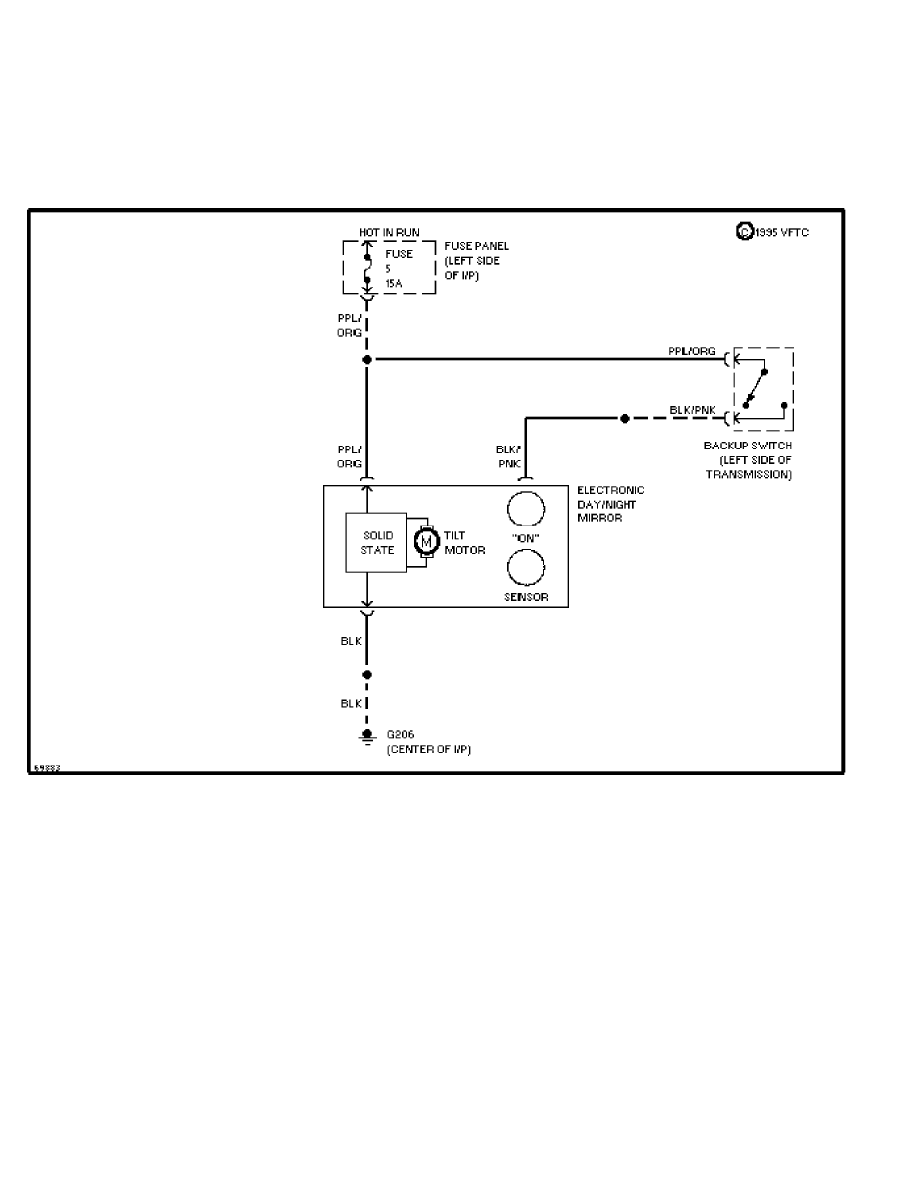

Electronic Day/Night Mirror Circuit (p. 3)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:15AM

background image

SYSTEM WIRING DIAGRAMS

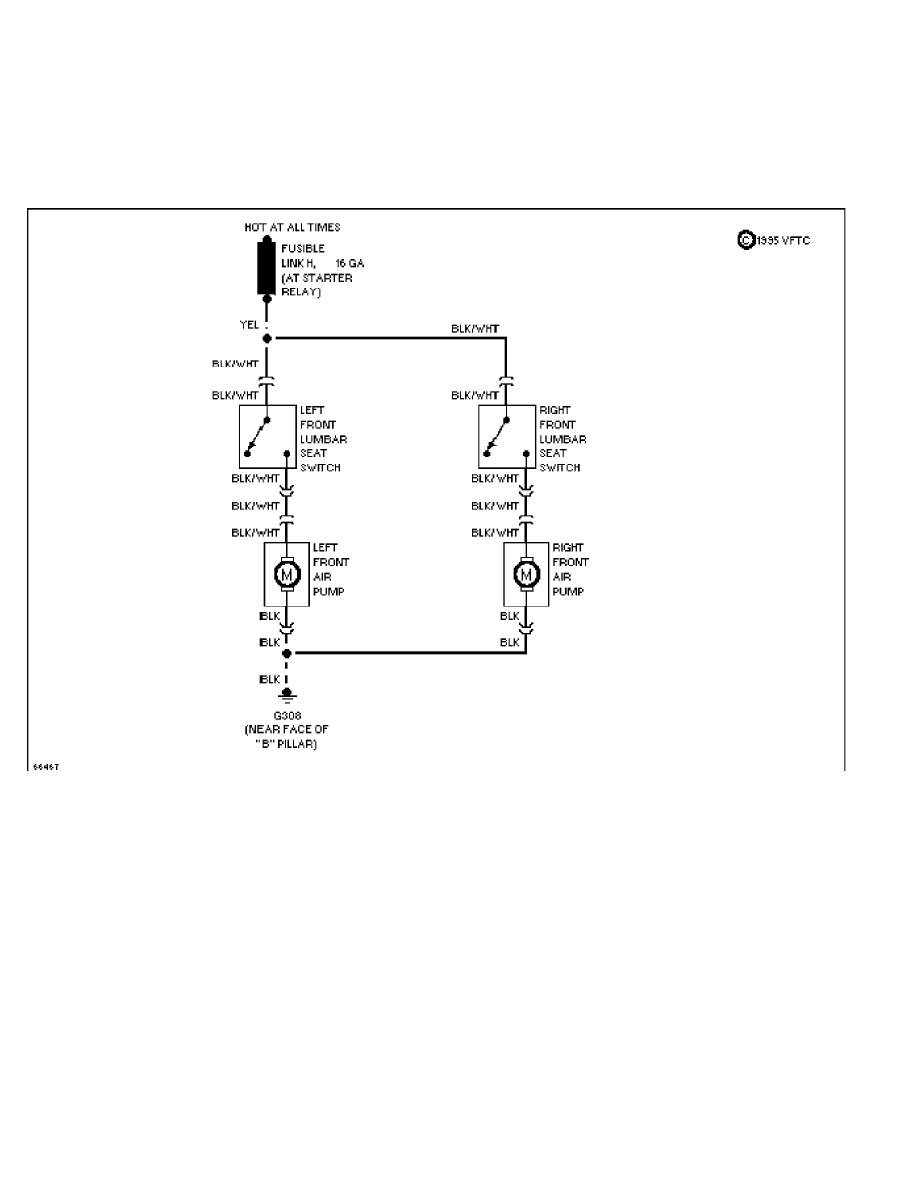

Lumbar Circuit (p. 4)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:15AM

background image

SYSTEM WIRING DIAGRAMS

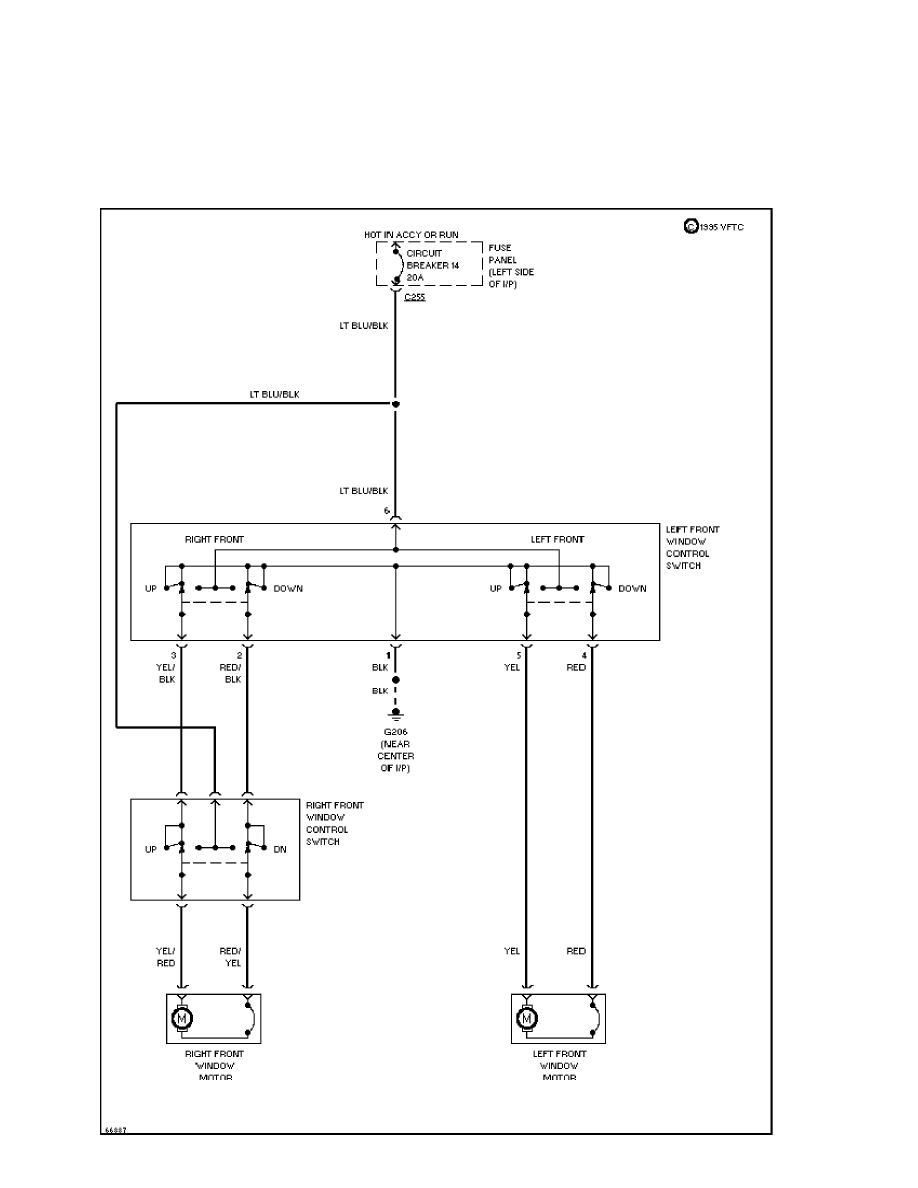

Power Window Circuit (p. 5)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:16AM

background image

SYSTEM WIRING DIAGRAMS

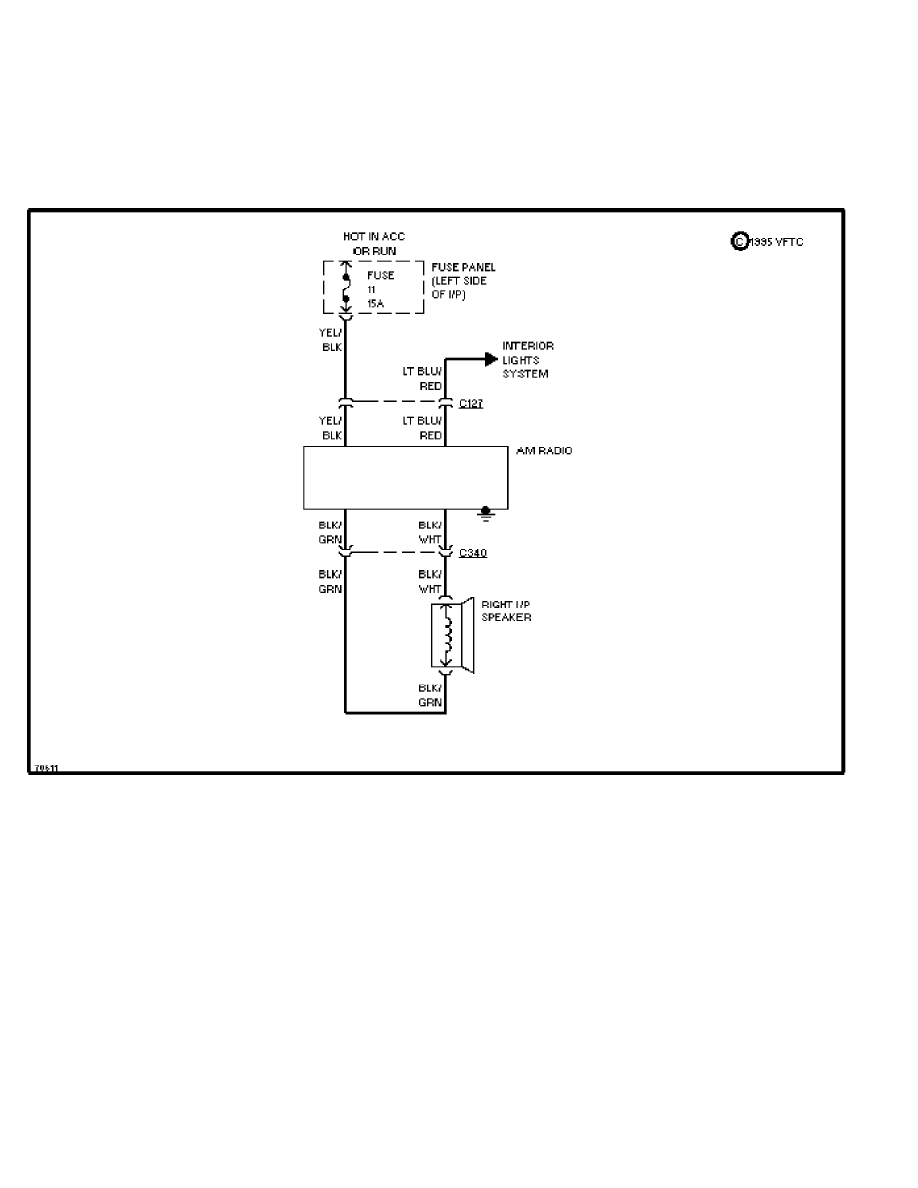

AM Radio Circuit (p. 6)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:16AM

background image

SYSTEM WIRING DIAGRAMS

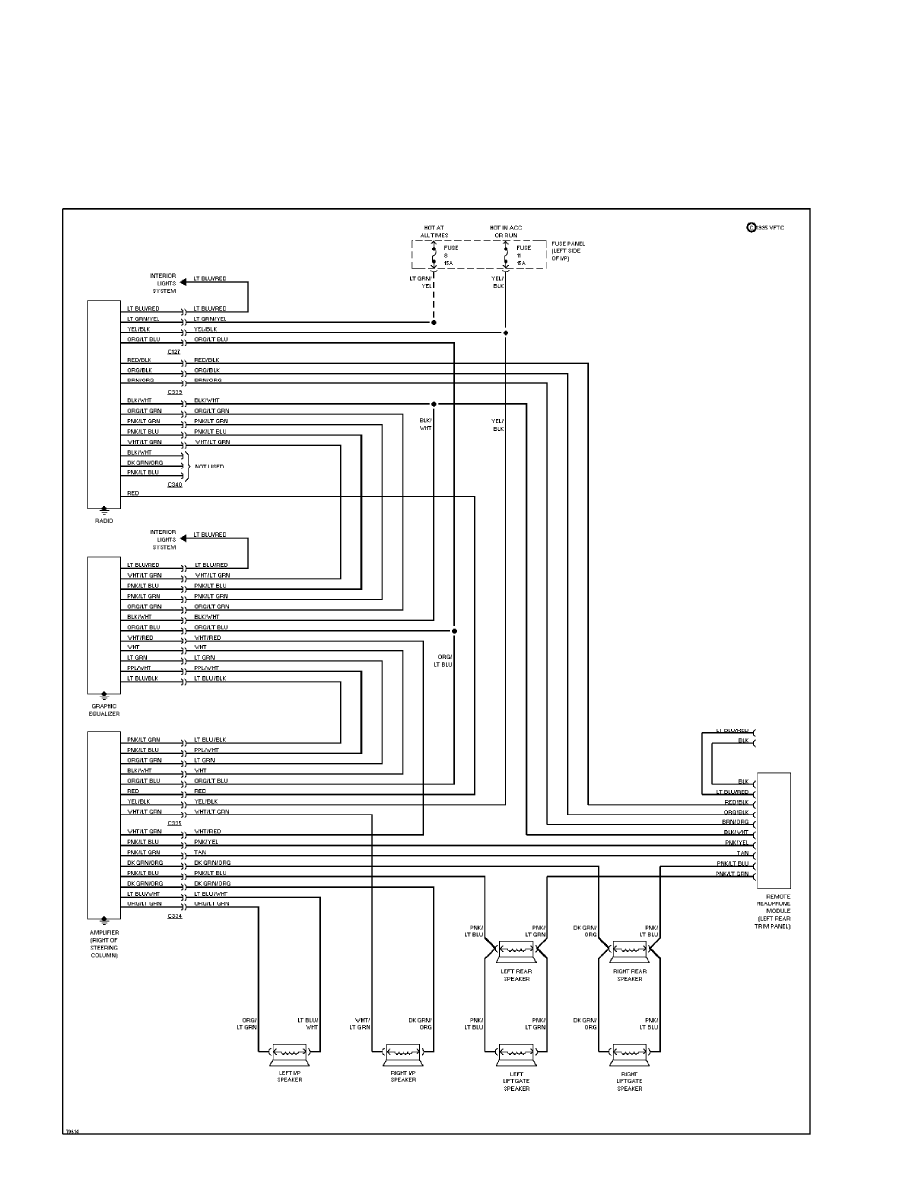

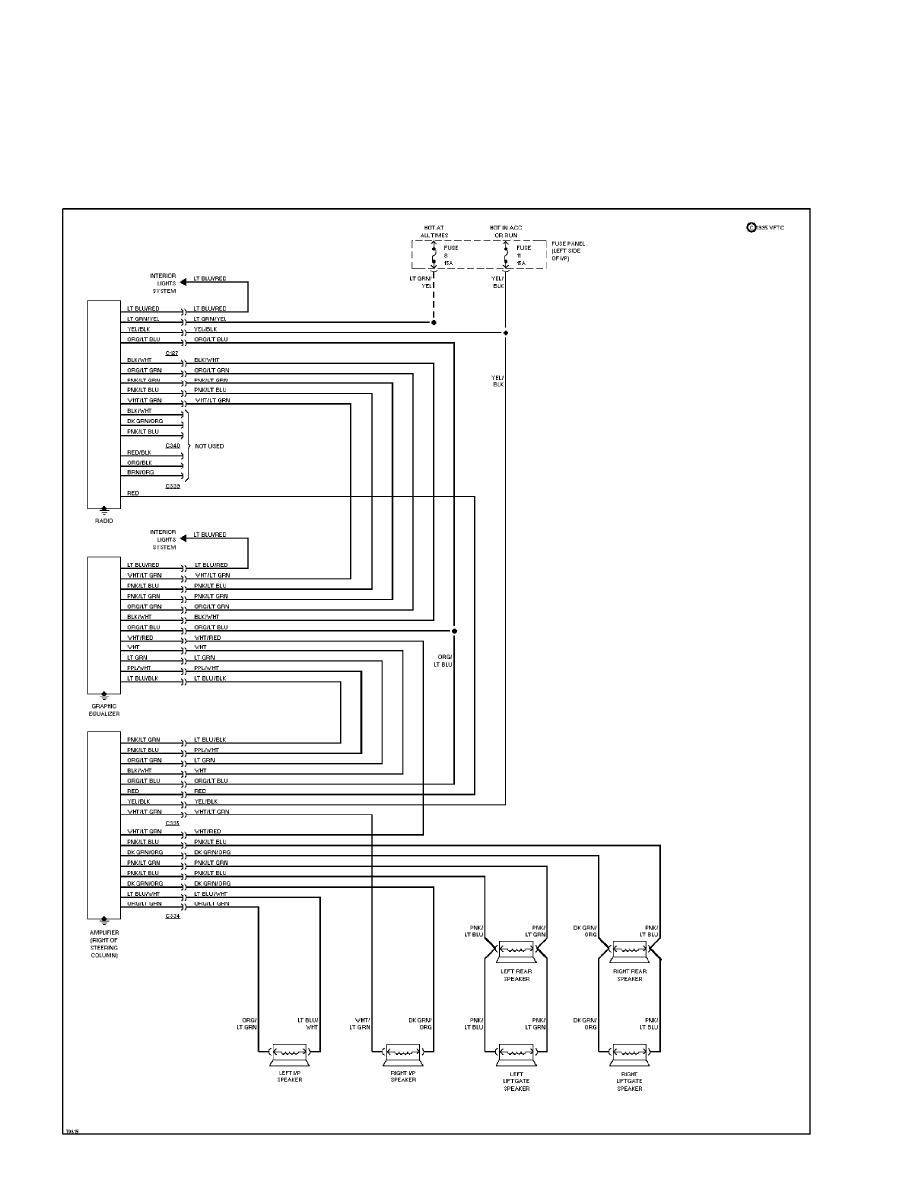

Electronic Radio Circuit, W/ Remote Headphones (p. 7)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:16AM

background image

SYSTEM WIRING DIAGRAMS

Electronic Radio Circuit, W/O Remote Headphones (p. 8)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:16AM

background image

SYSTEM WIRING DIAGRAMS

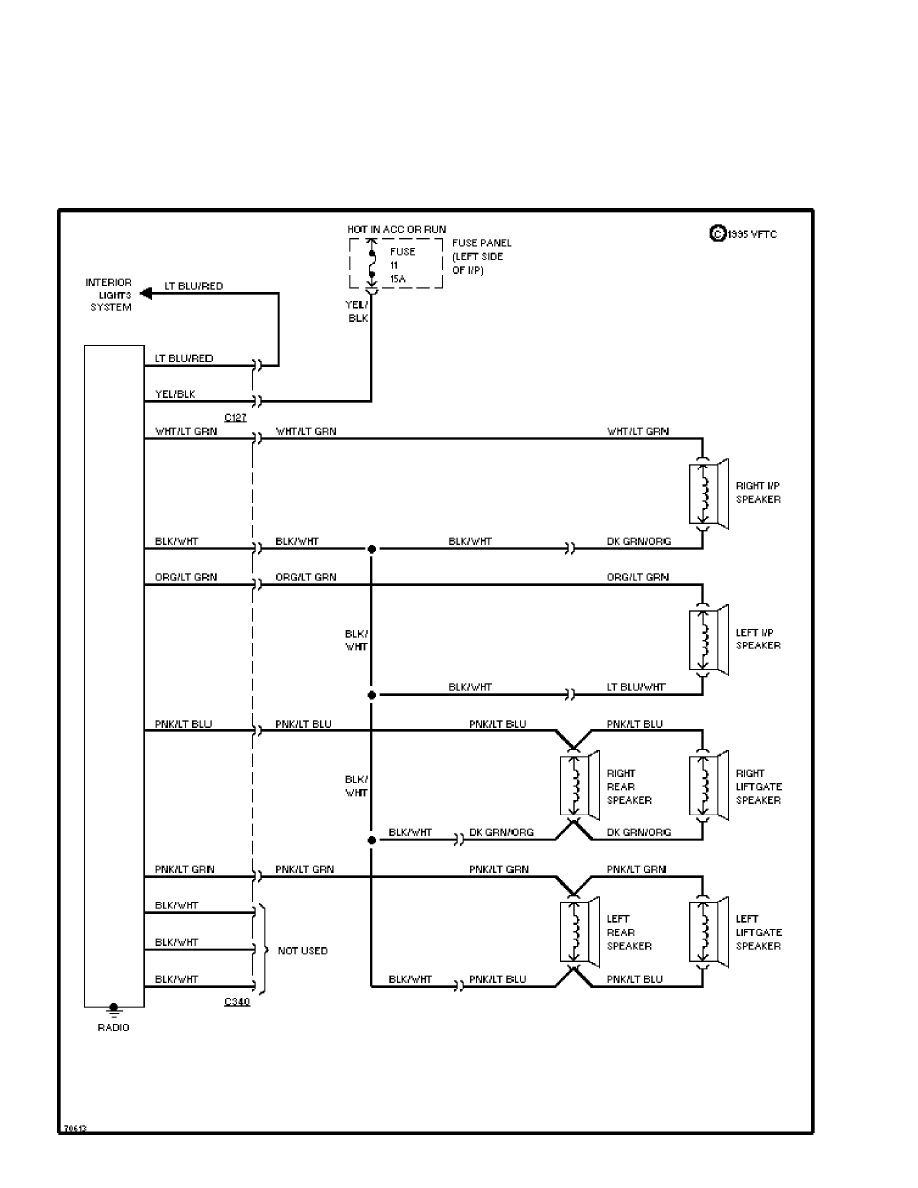

Stereo Radio Circuit, W/ Remote Headphones (p. 9)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:16AM

background image

SYSTEM WIRING DIAGRAMS

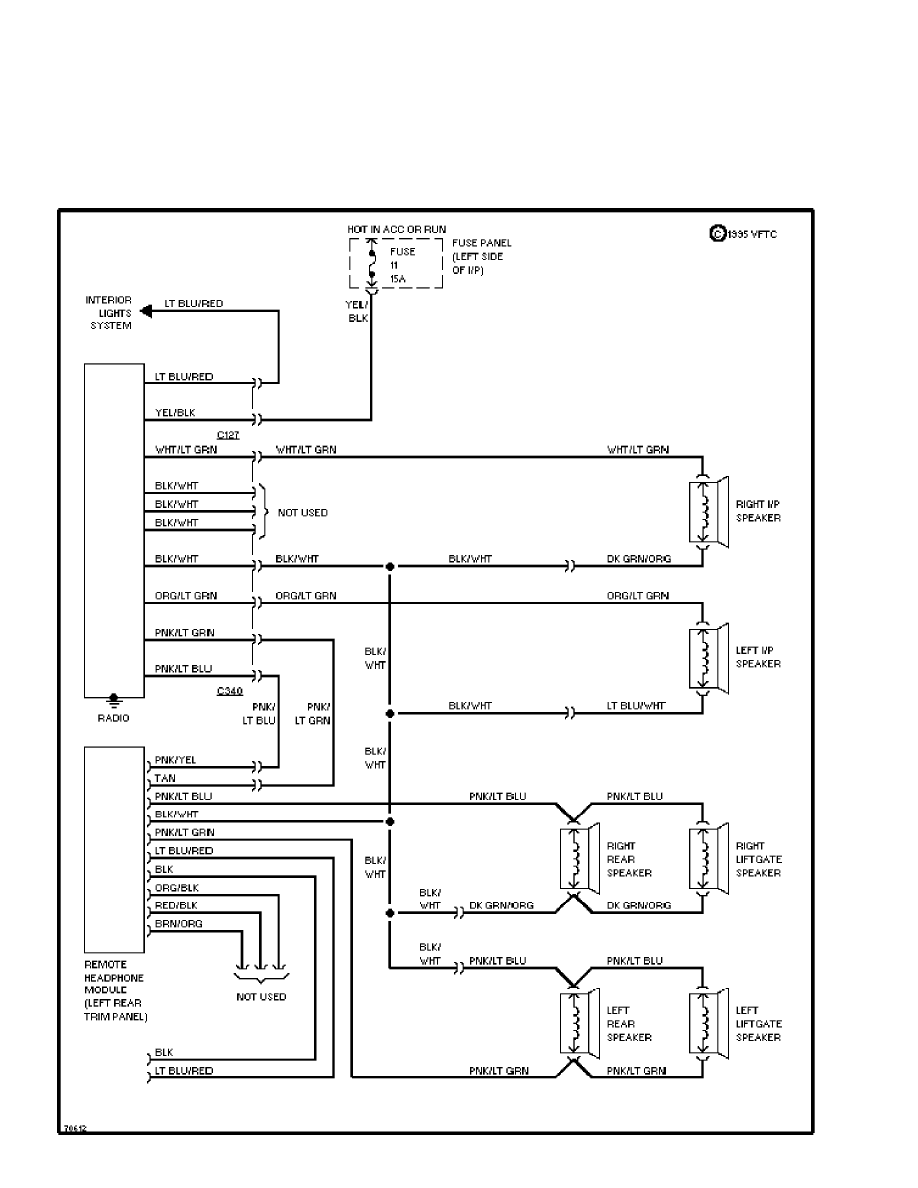

Stereo Radio Circuit, W/O Remote Headphones (p. 10)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:16AM

background image

SYSTEM WIRING DIAGRAMS

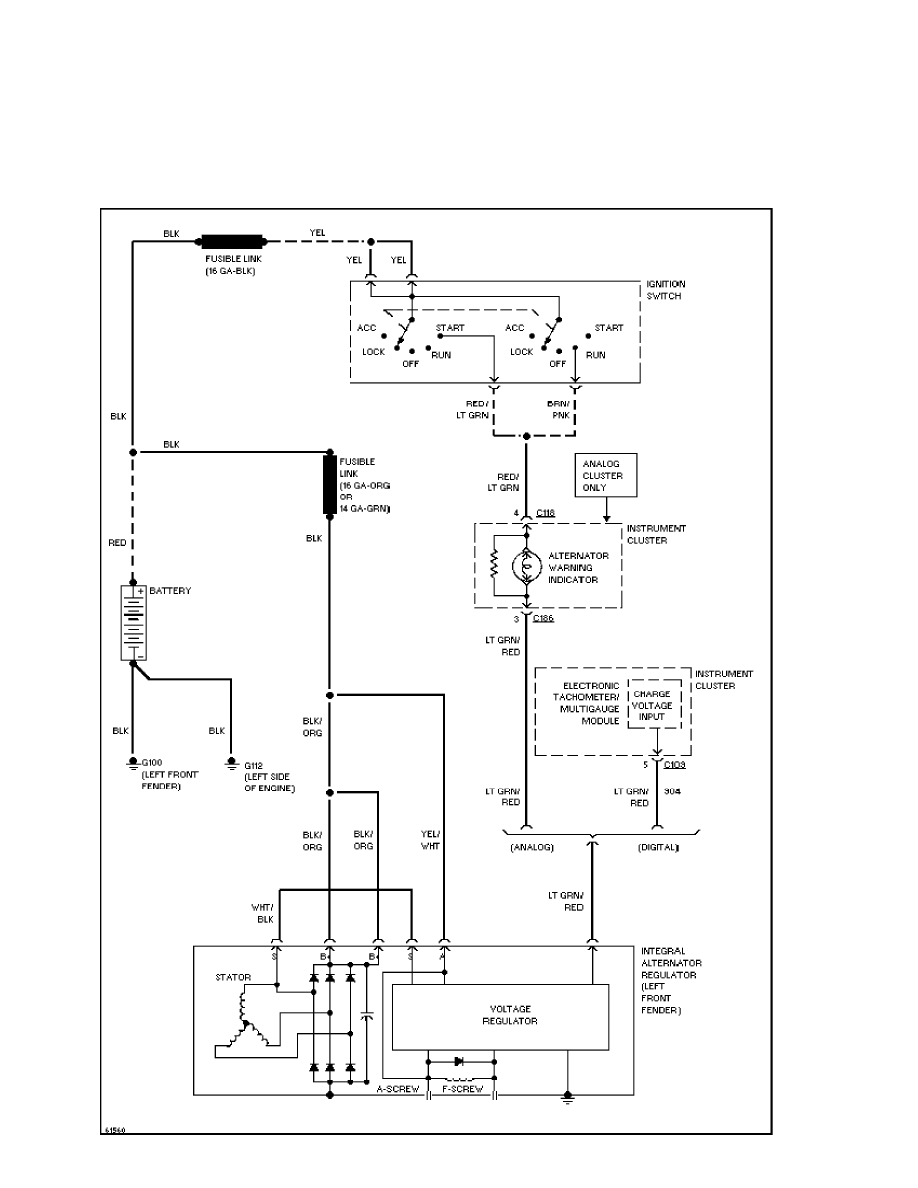

Charging Circuit (p. 11)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:16AM

background image

SYSTEM WIRING DIAGRAMS

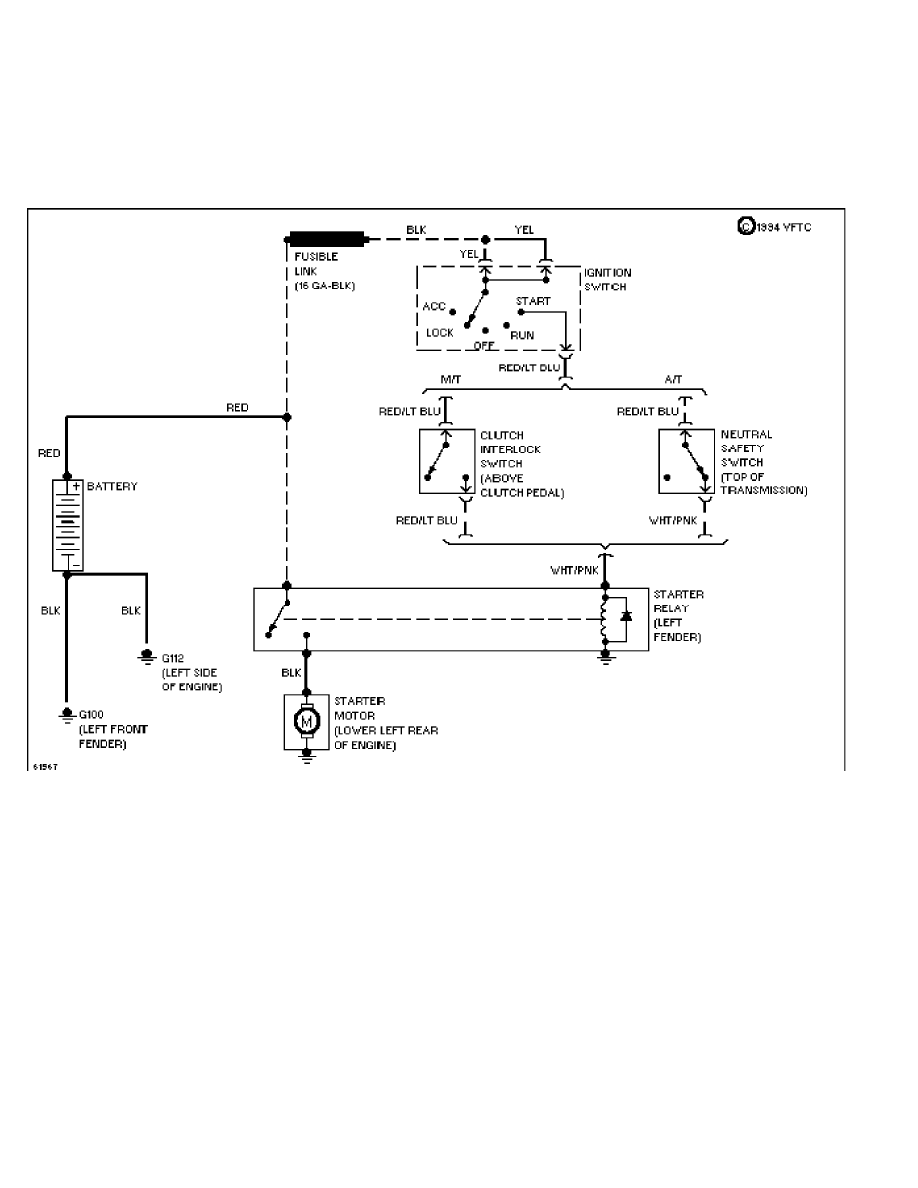

Starting Circuit (p. 12)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:16AM

background image

SYSTEM WIRING DIAGRAMS

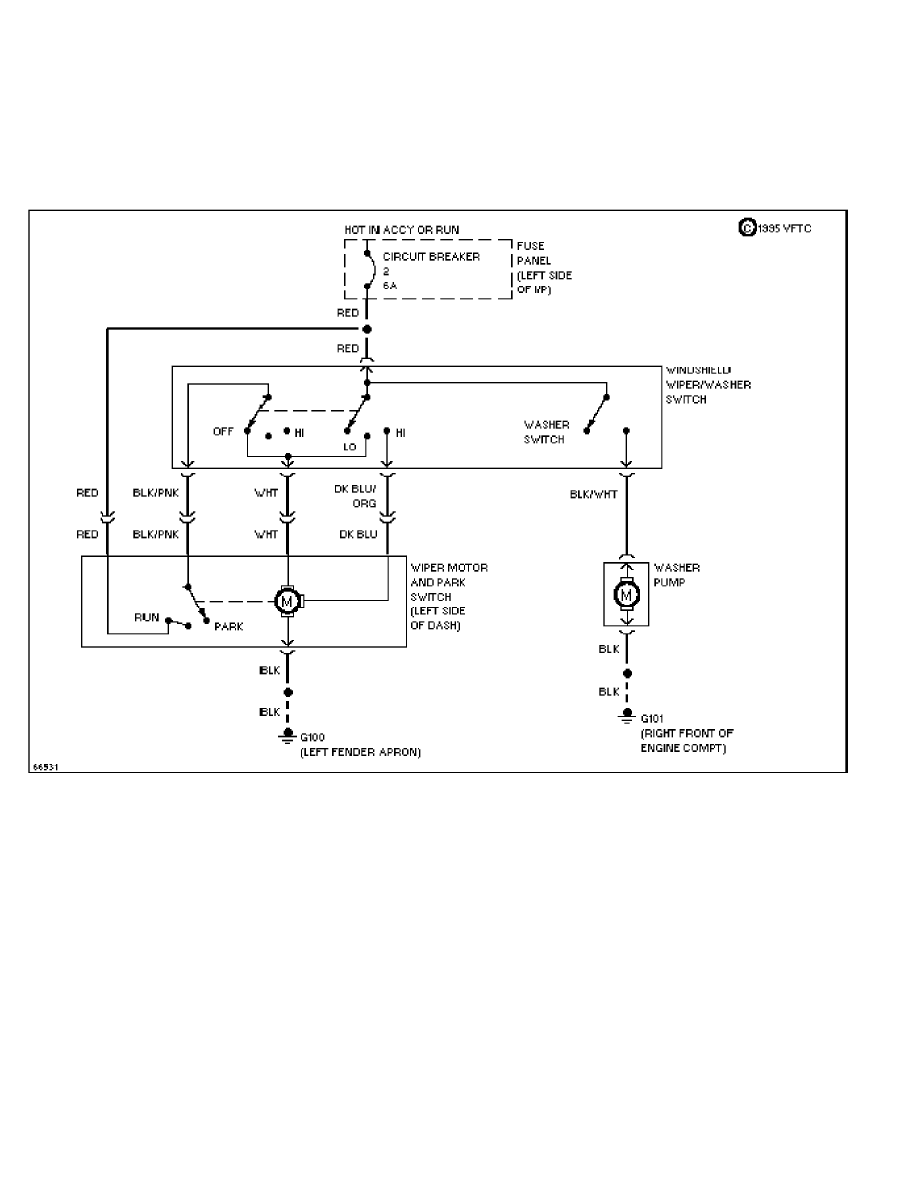

2-Speed Wiper/Washer Circuit (p. 13)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:16AM

background image

SYSTEM WIRING DIAGRAMS

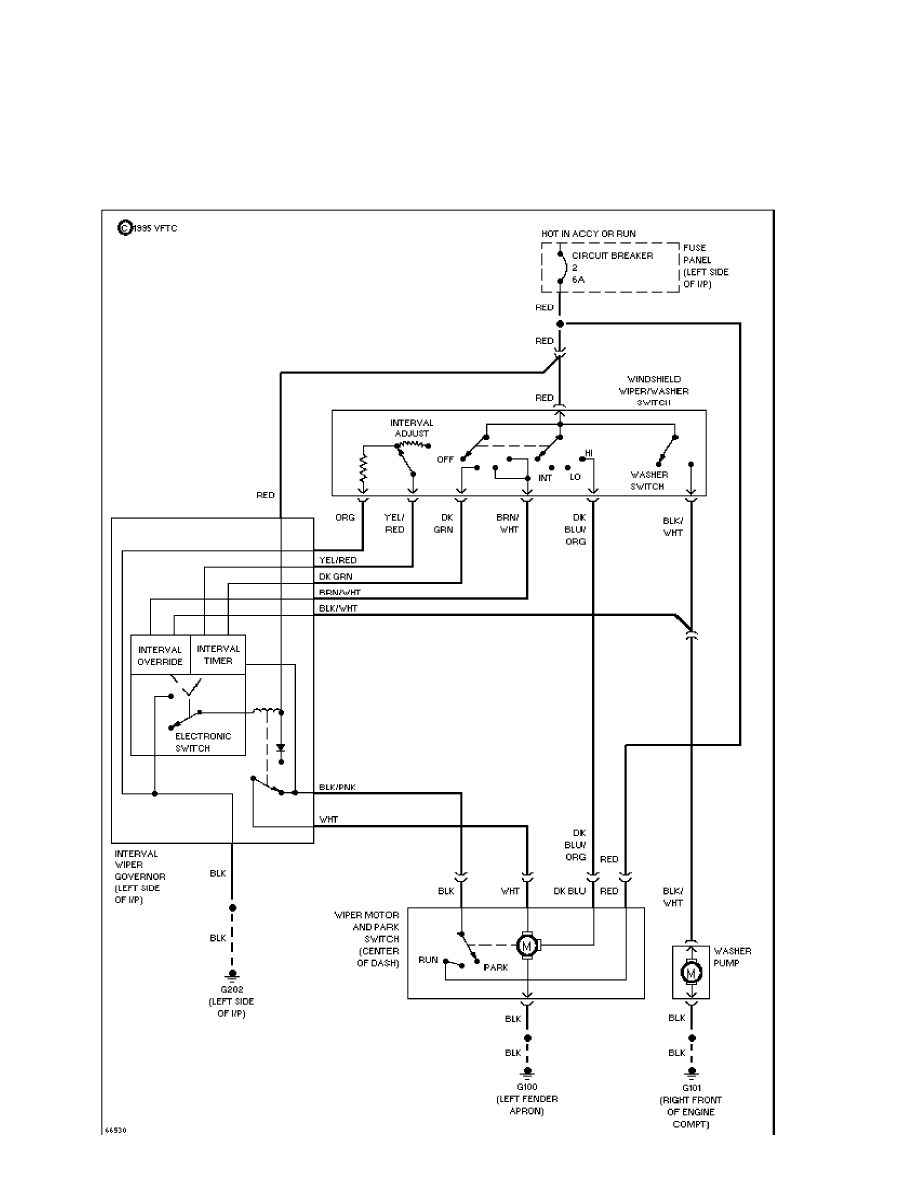

Interval Wiper/Washer Circuit (p. 14)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:16AM

background image

SYSTEM WIRING DIAGRAMS

Rear Wiper/Washer Circuit (p. 15)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:16AM

background image

WIRING DIAGRAMS

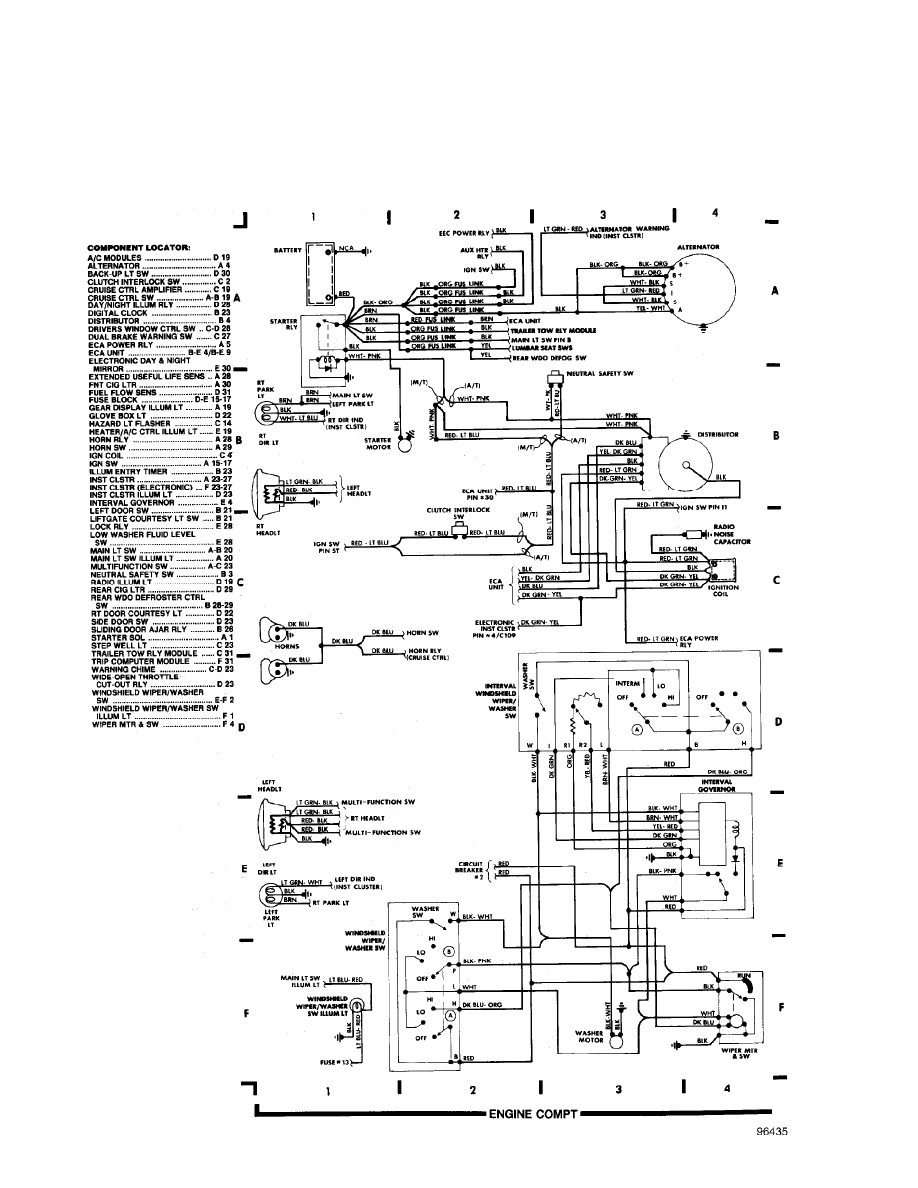

Fig. 1: Engine Compartment

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:16AM

background image

WIRING DIAGRAMS

Fig. 2: Engine Compartment (Cont.) (p. 2)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:16AM

background image

WIRING DIAGRAMS

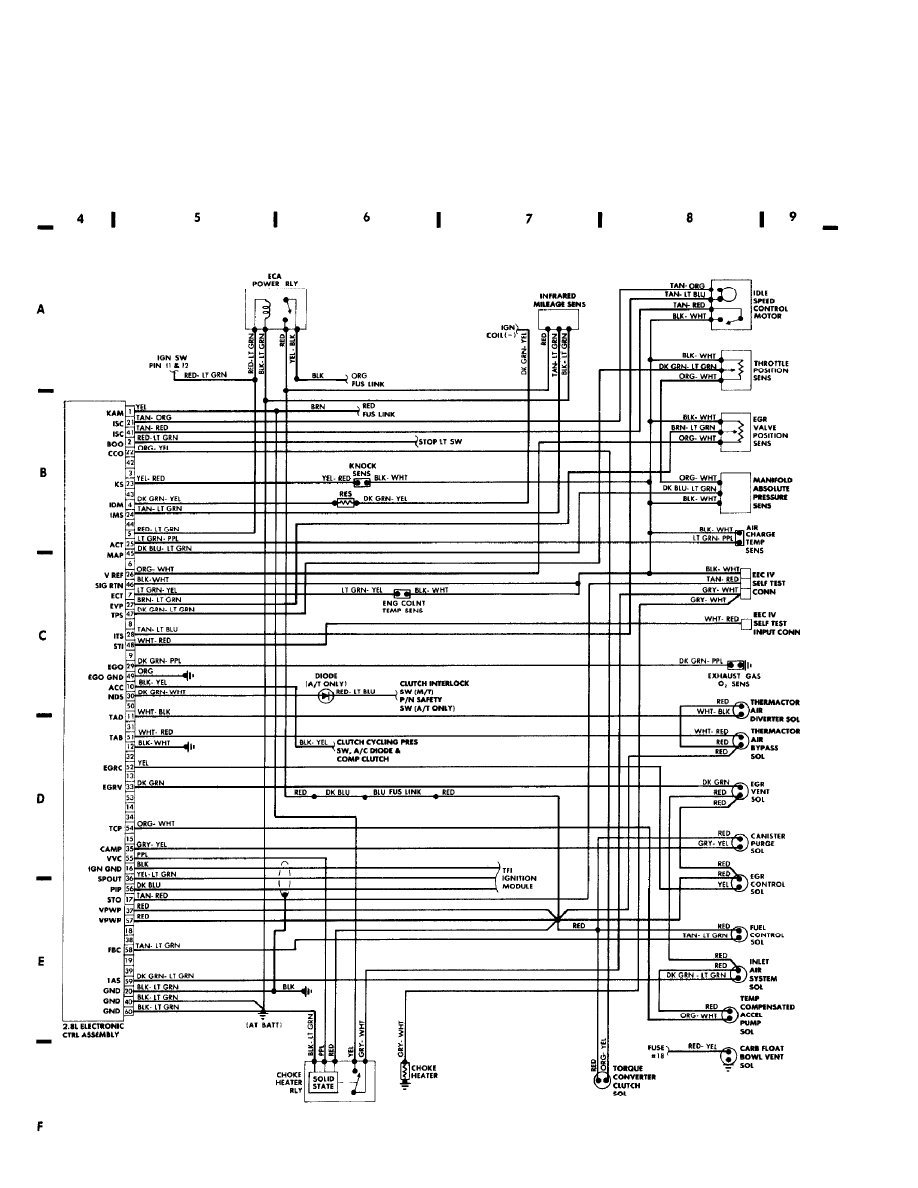

Fig. 3: Engine Compartment (Cont.) (p. 3)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:16AM

background image

WIRING DIAGRAMS

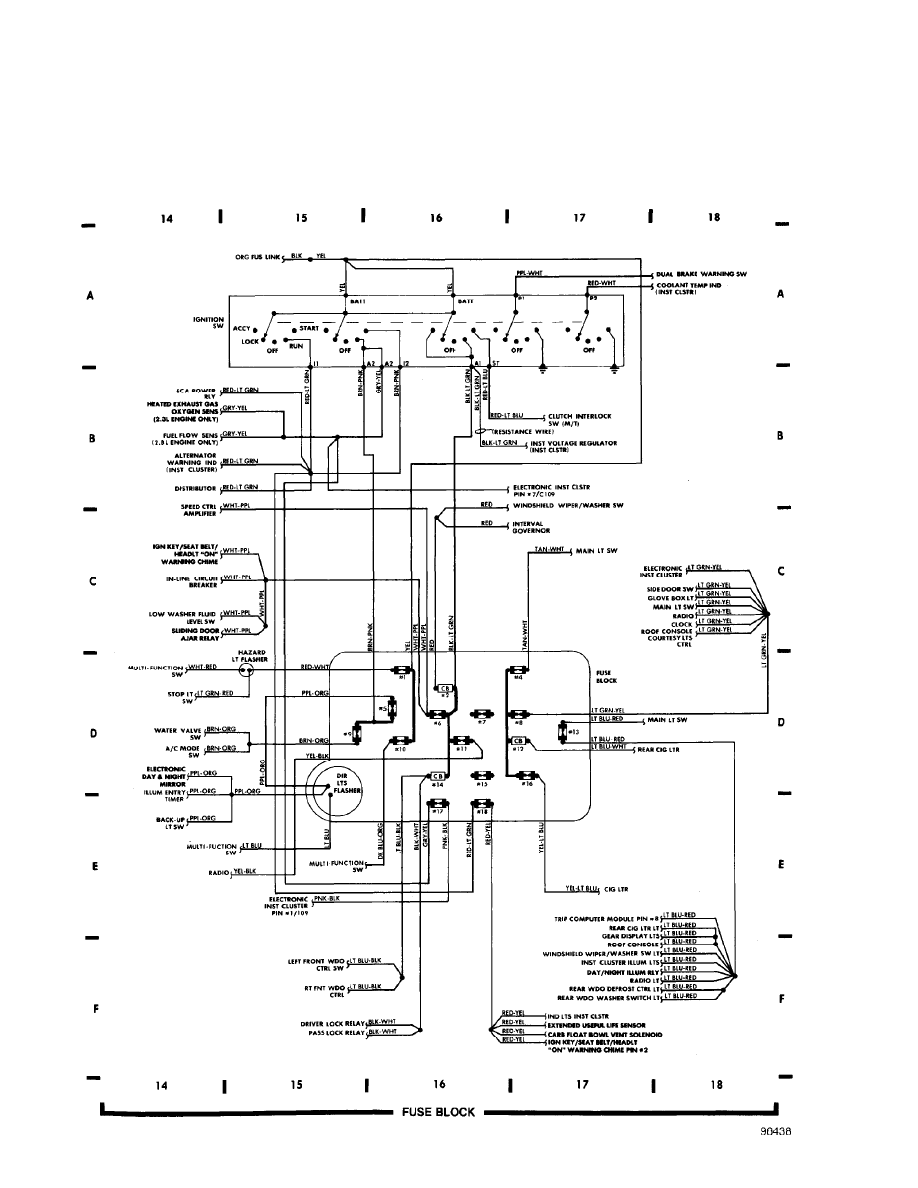

Fig. 4: Fuse Block (p. 4)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:16AM

background image

WIRING DIAGRAMS

Fig. 5: Underdash (p. 5)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:16AM

background image

WIRING DIAGRAMS

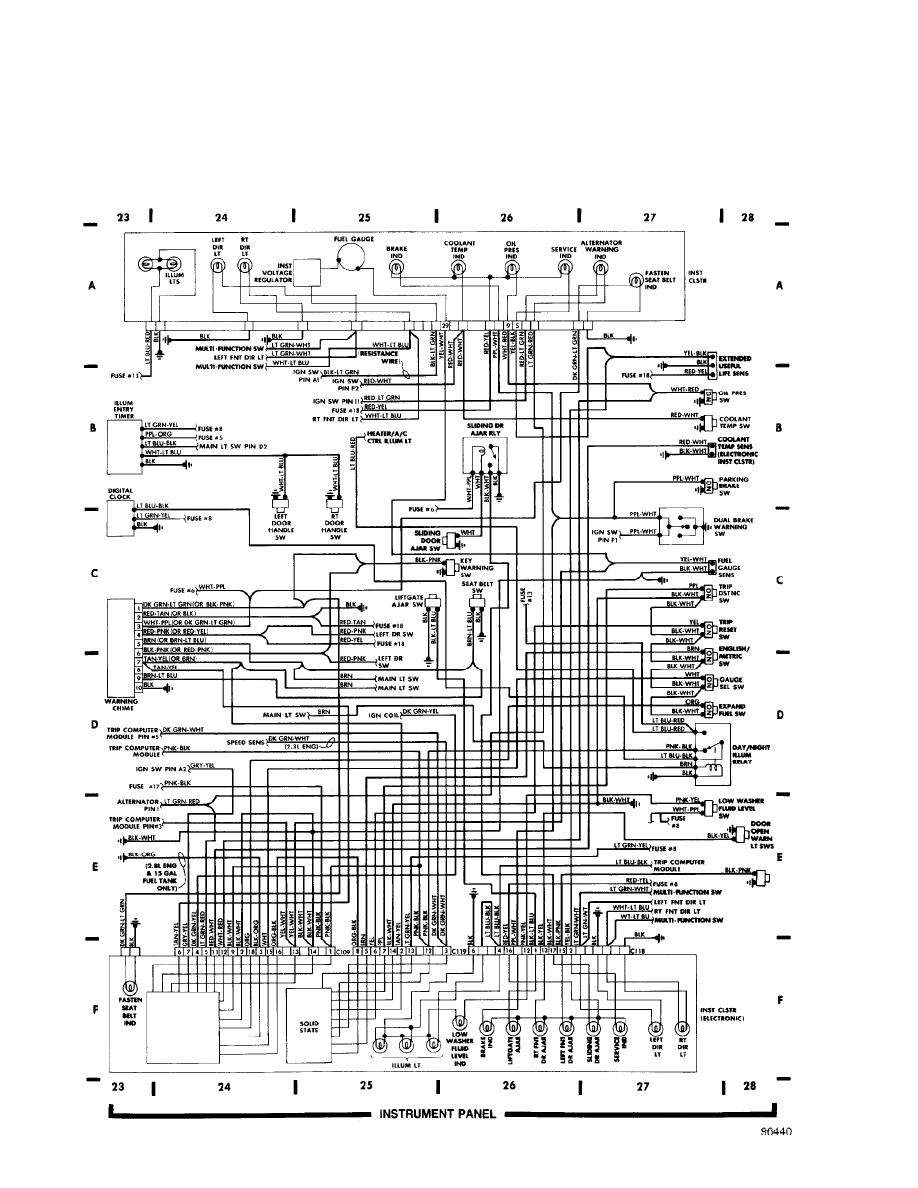

Fig. 6: Instrument Panel (p. 6)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:16AM

background image

WIRING DIAGRAMS

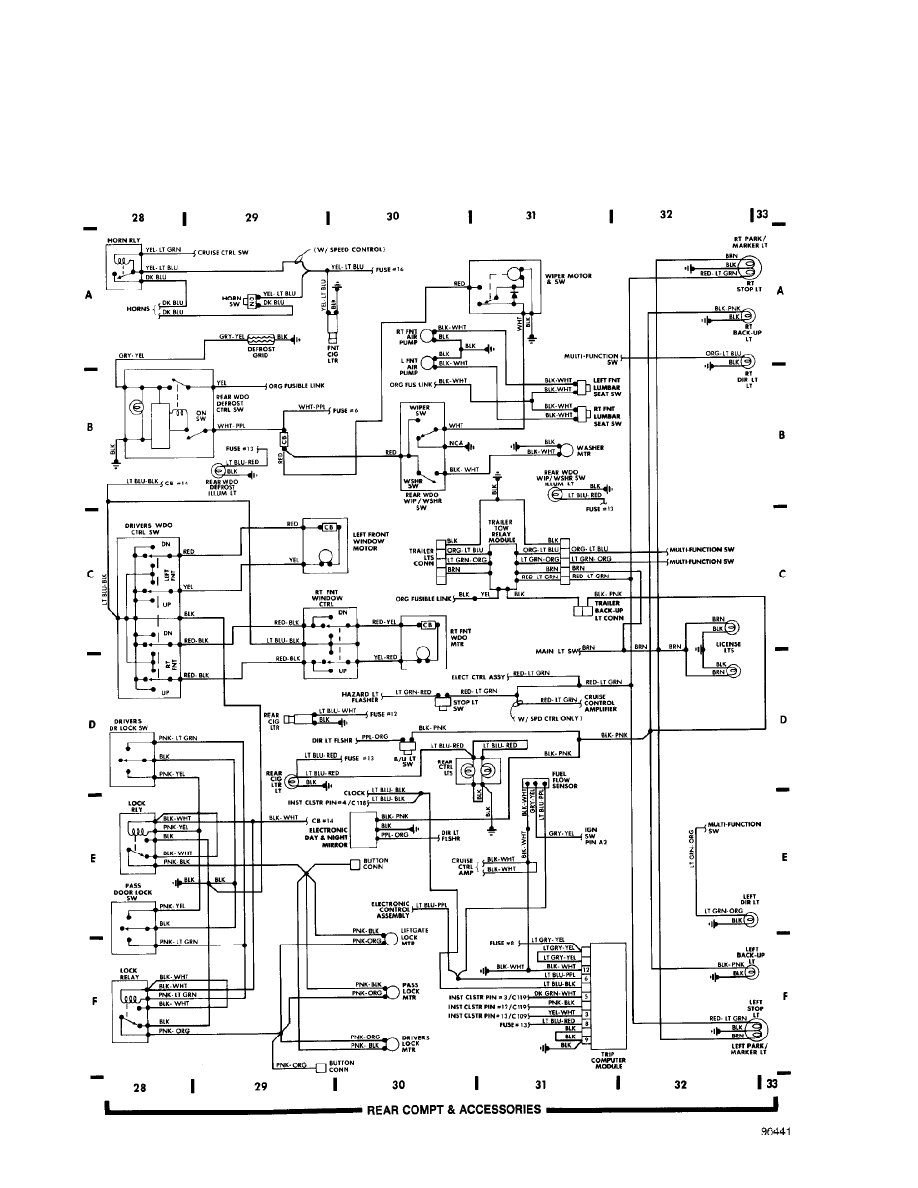

Fig. 7: Rear Compartment & Accessories (p. 7)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:16AM

background image

WIRING DIAGRAMS

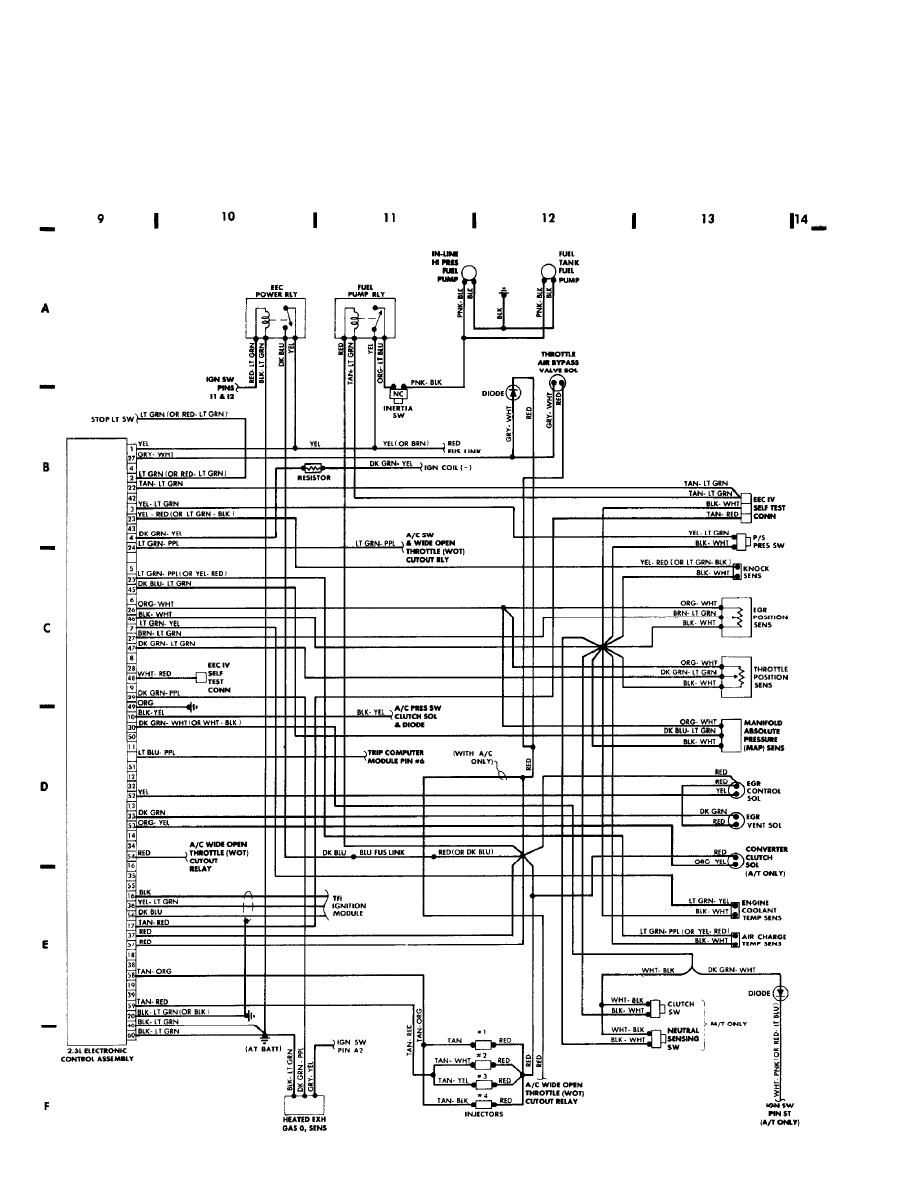

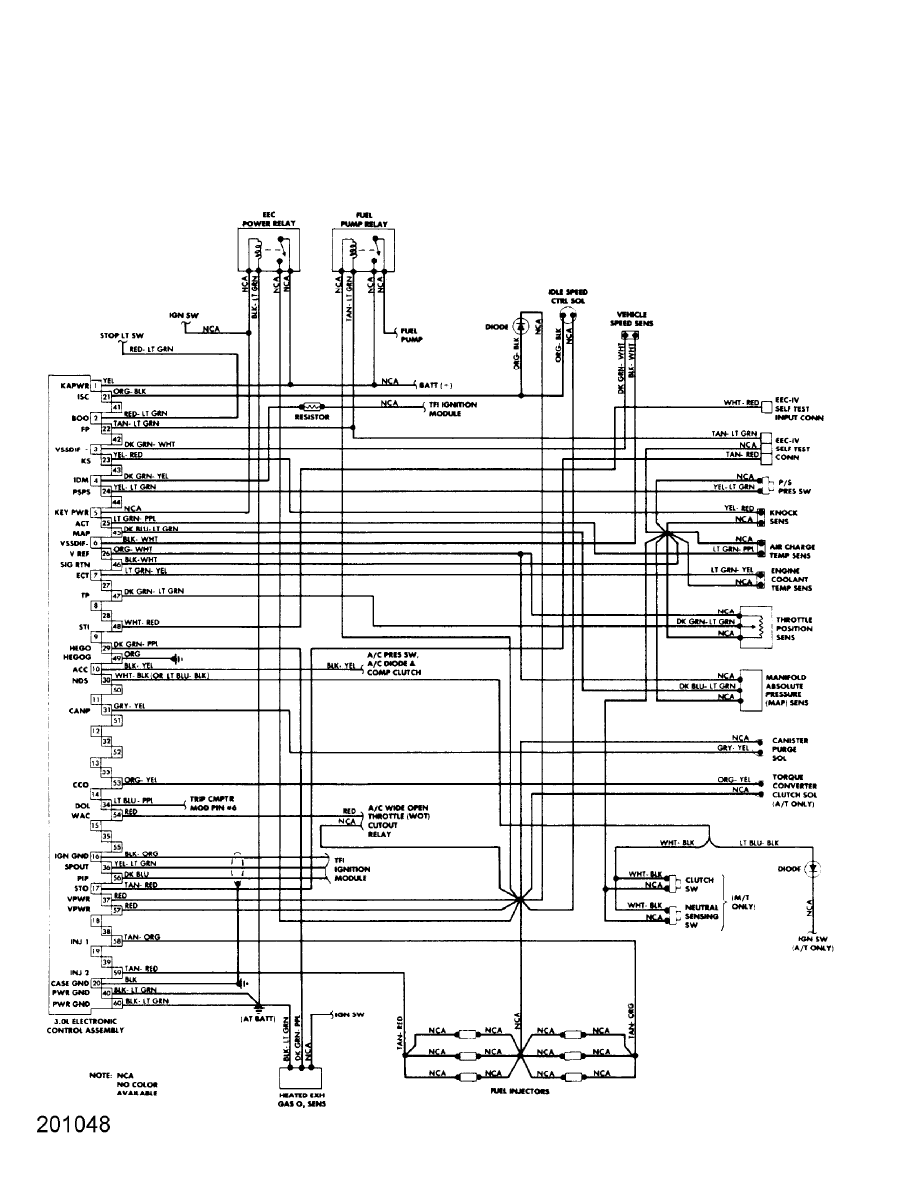

Fig. 8: 3.0L EFI EEC-IV Wiring Diagram (p. 8)

1986 Ford Aerostar

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, May 06, 2005 11:16AM
