FORD AEROSTAR 1988

background image

SYSTEM WIRING DIAGRAMS

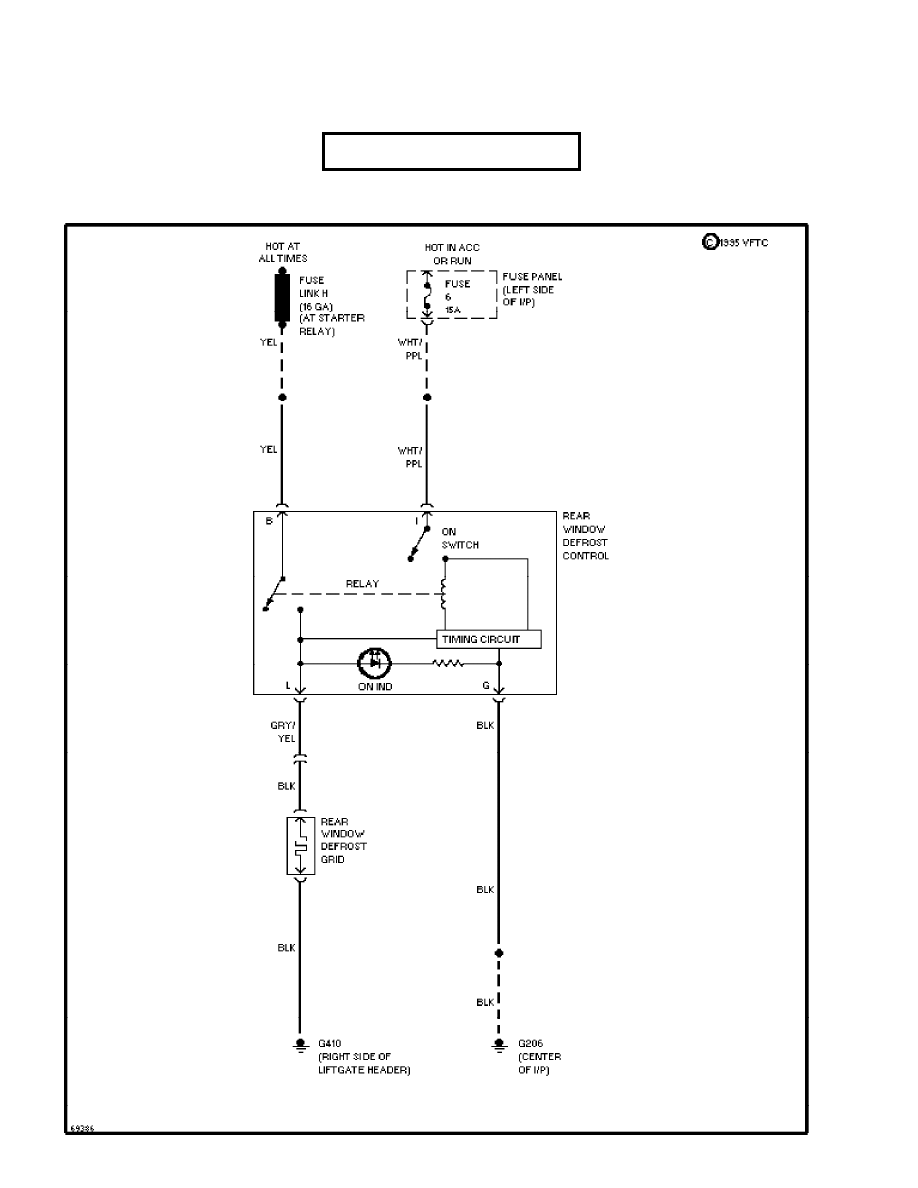

Defogger Circuit

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 02:58PM

cdr@wp.pl

background image

SYSTEM WIRING DIAGRAMS

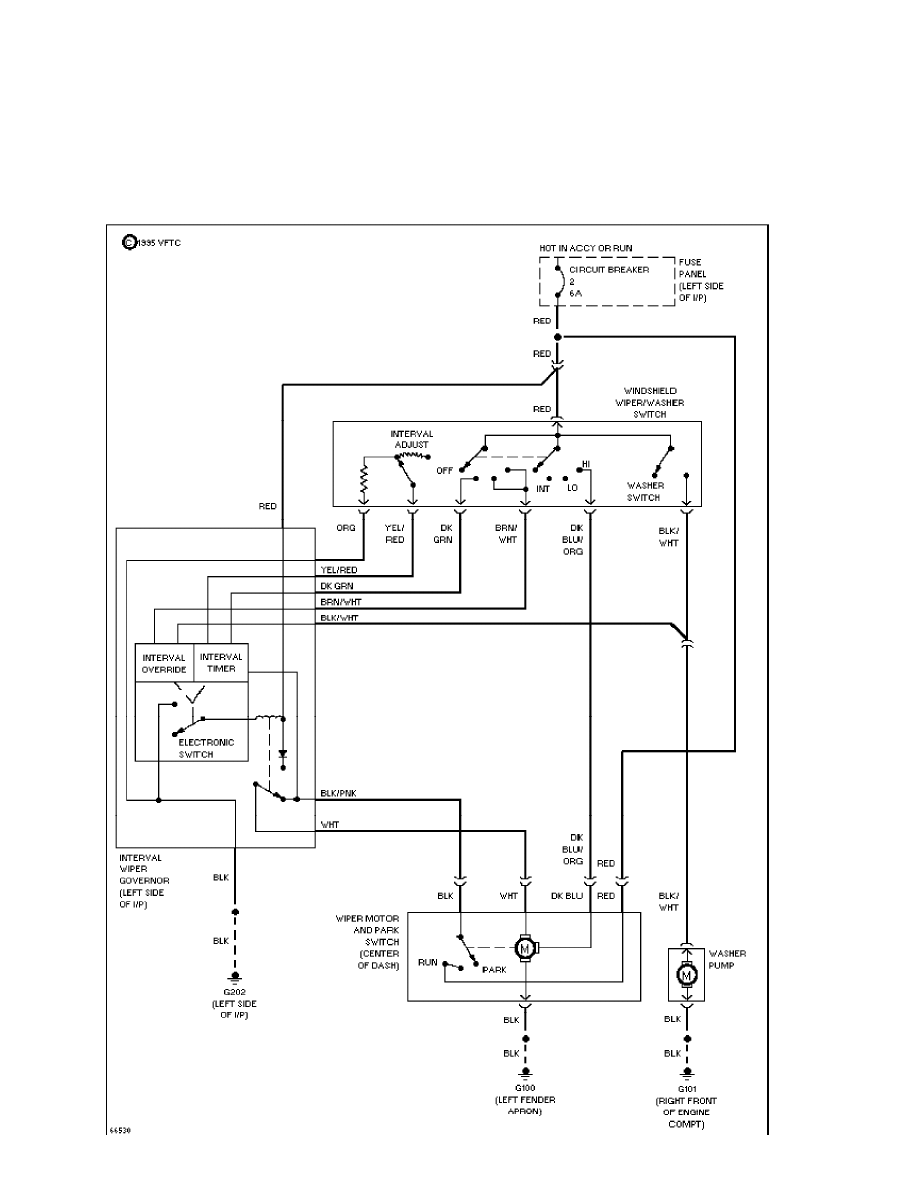

Interval Wiper/Washer Circuit

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 03:00PM

background image

SYSTEM WIRING DIAGRAMS

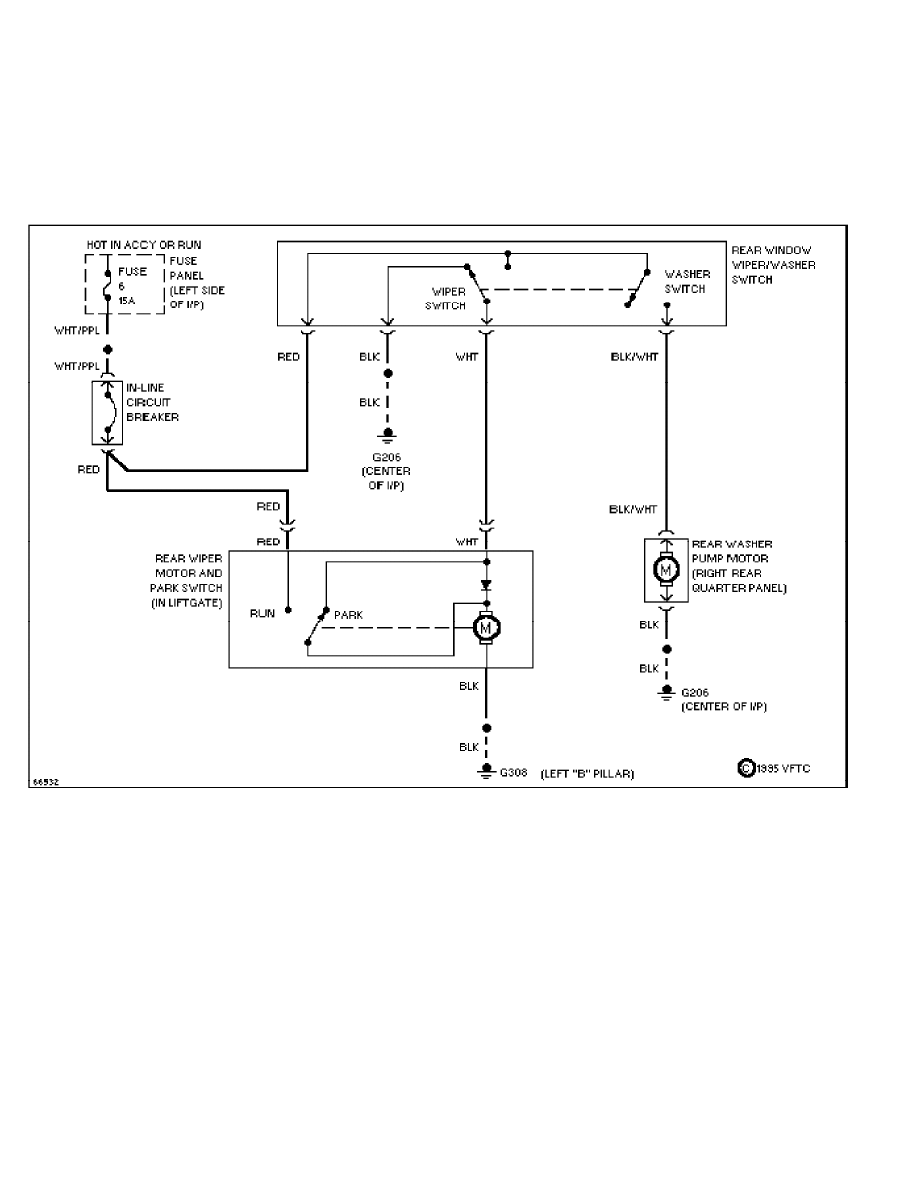

Rear Wiper/Washer Circuit

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 03:00PM

background image

SYSTEM WIRING DIAGRAMS

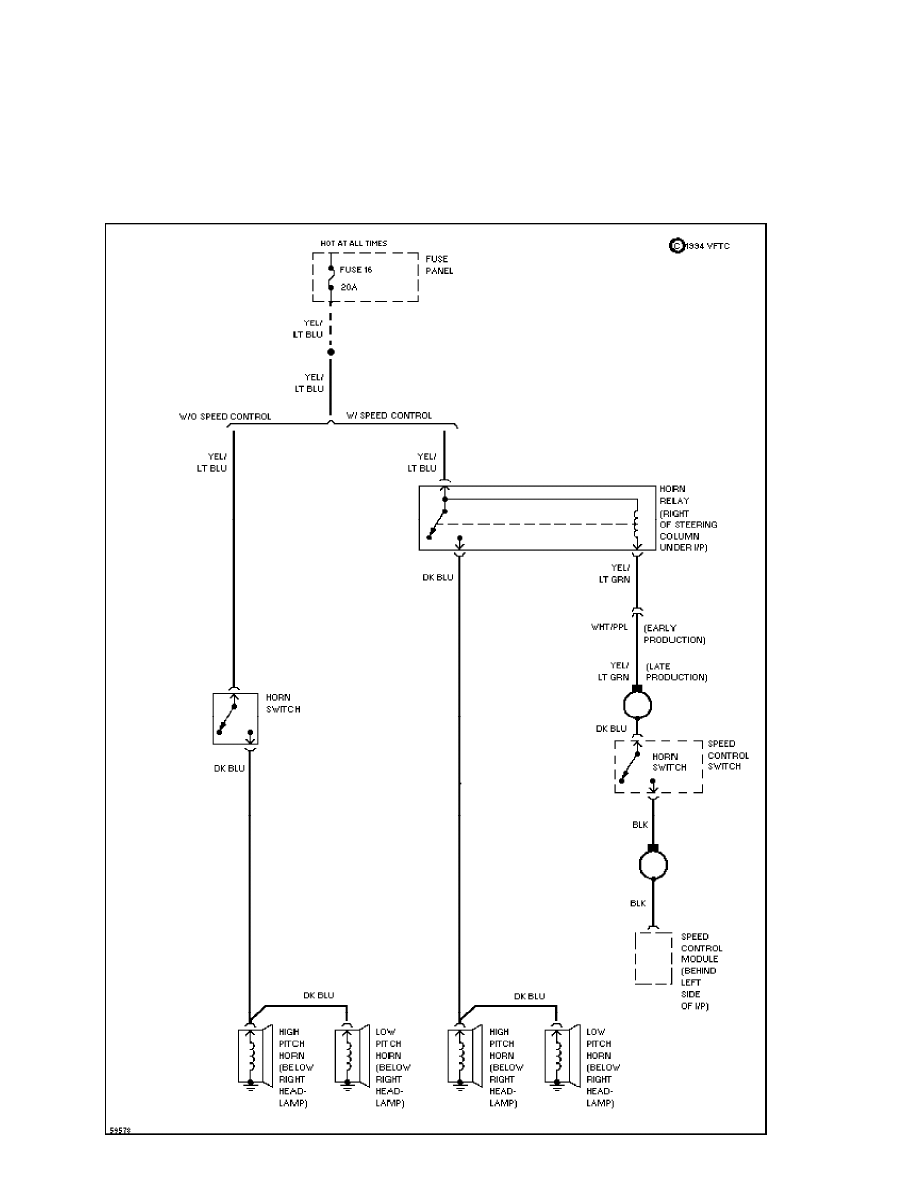

Horn Circuit

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 02:59PM

background image

SYSTEM WIRING DIAGRAMS

Power Door Lock Circuit

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 02:59PM

background image

SYSTEM WIRING DIAGRAMS

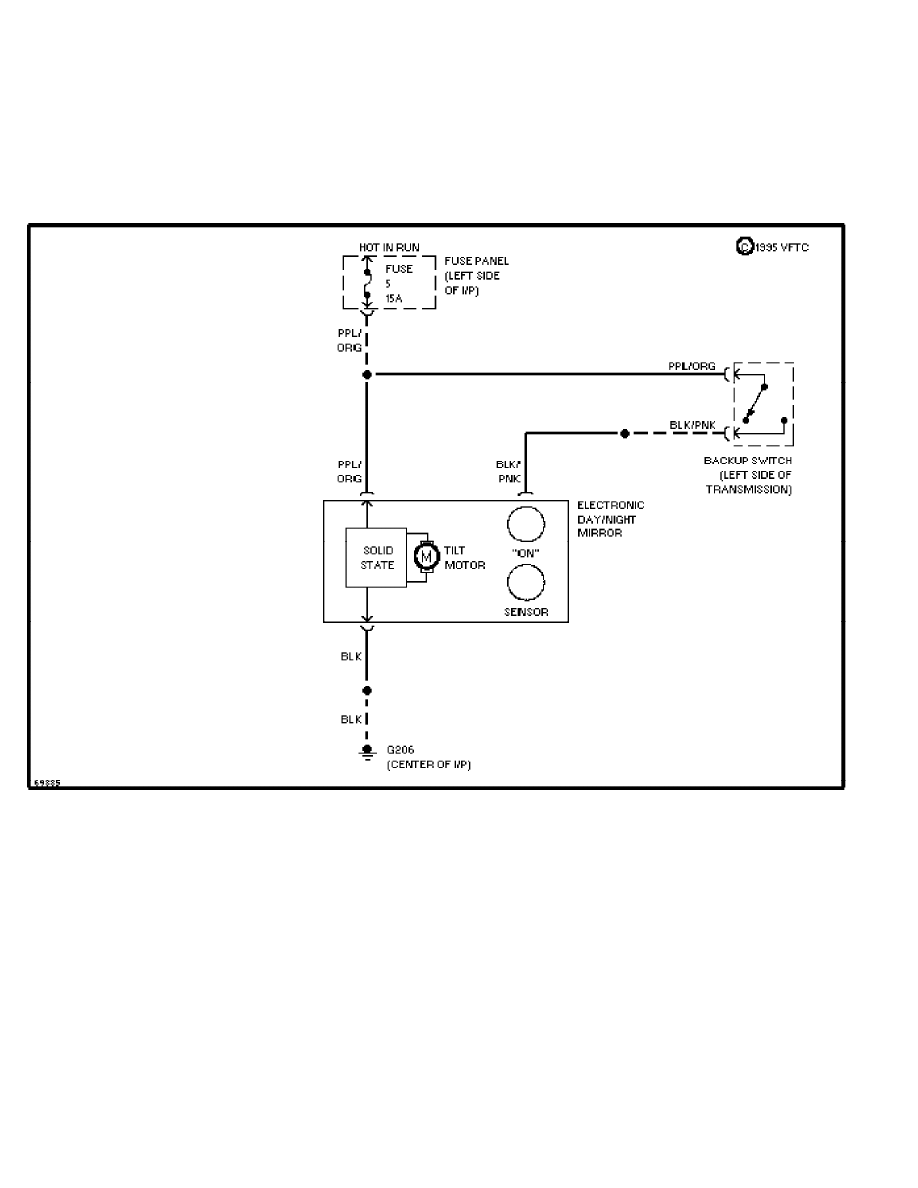

Electronic Day/Night Mirror Circuit

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 02:59PM

background image

SYSTEM WIRING DIAGRAMS

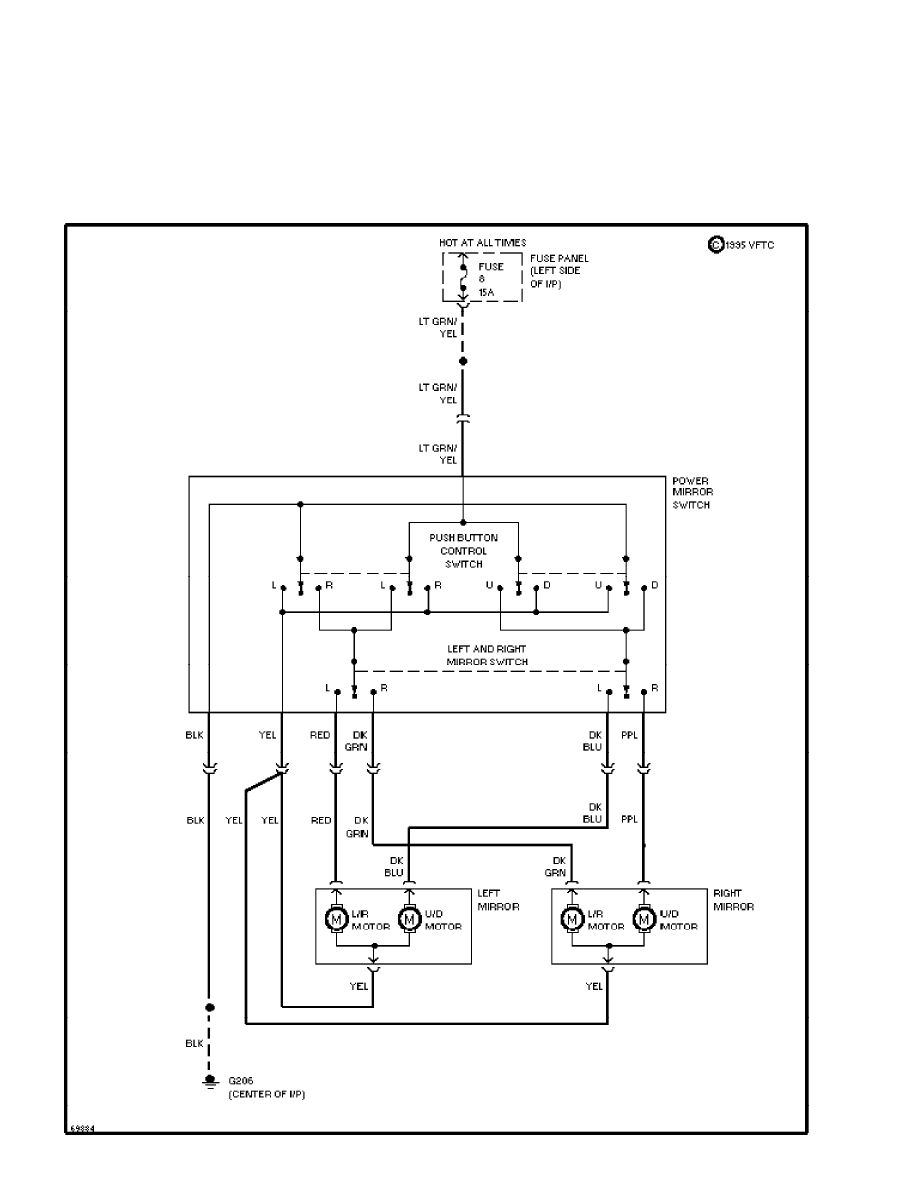

Exterior Power Mirror Circuit

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 02:59PM

background image

SYSTEM WIRING DIAGRAMS

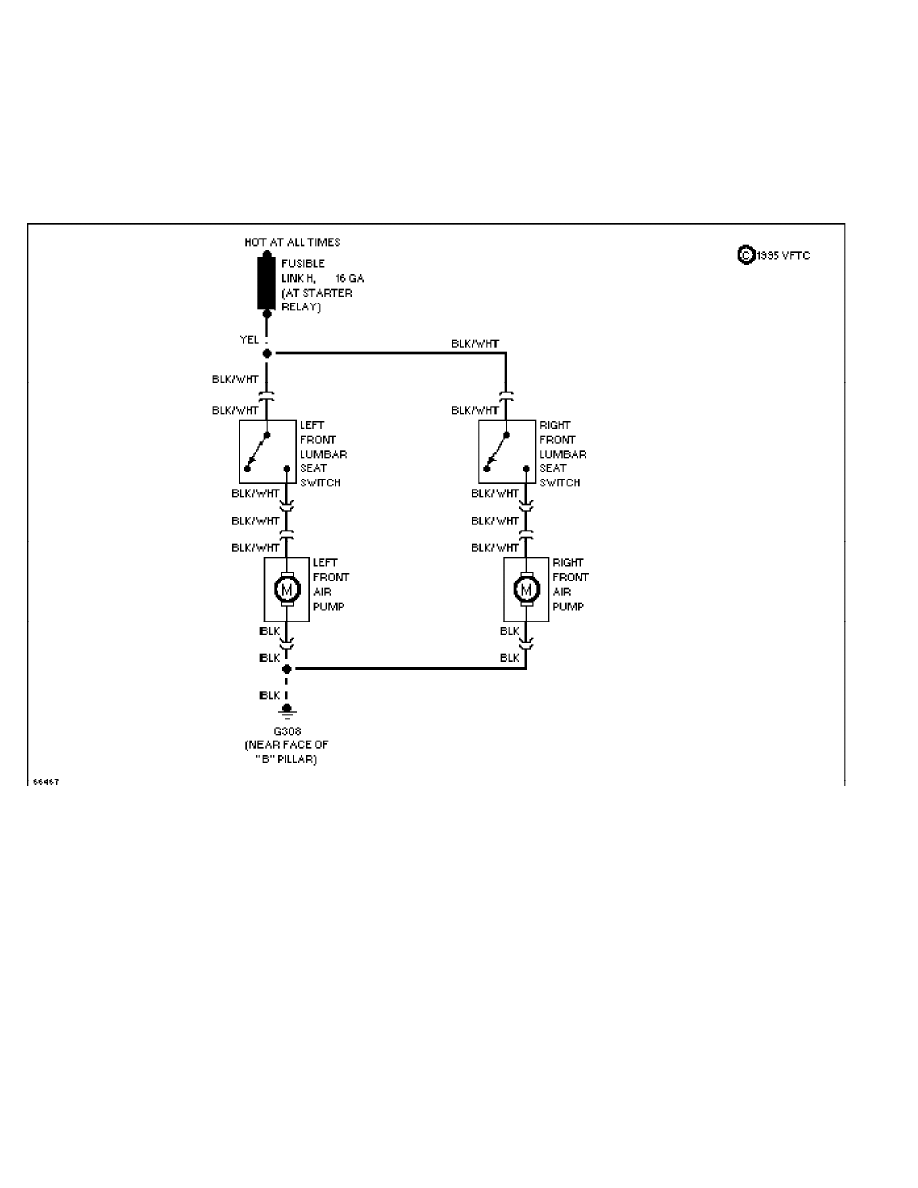

Lumbar Circuit

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 02:59PM

background image

SYSTEM WIRING DIAGRAMS

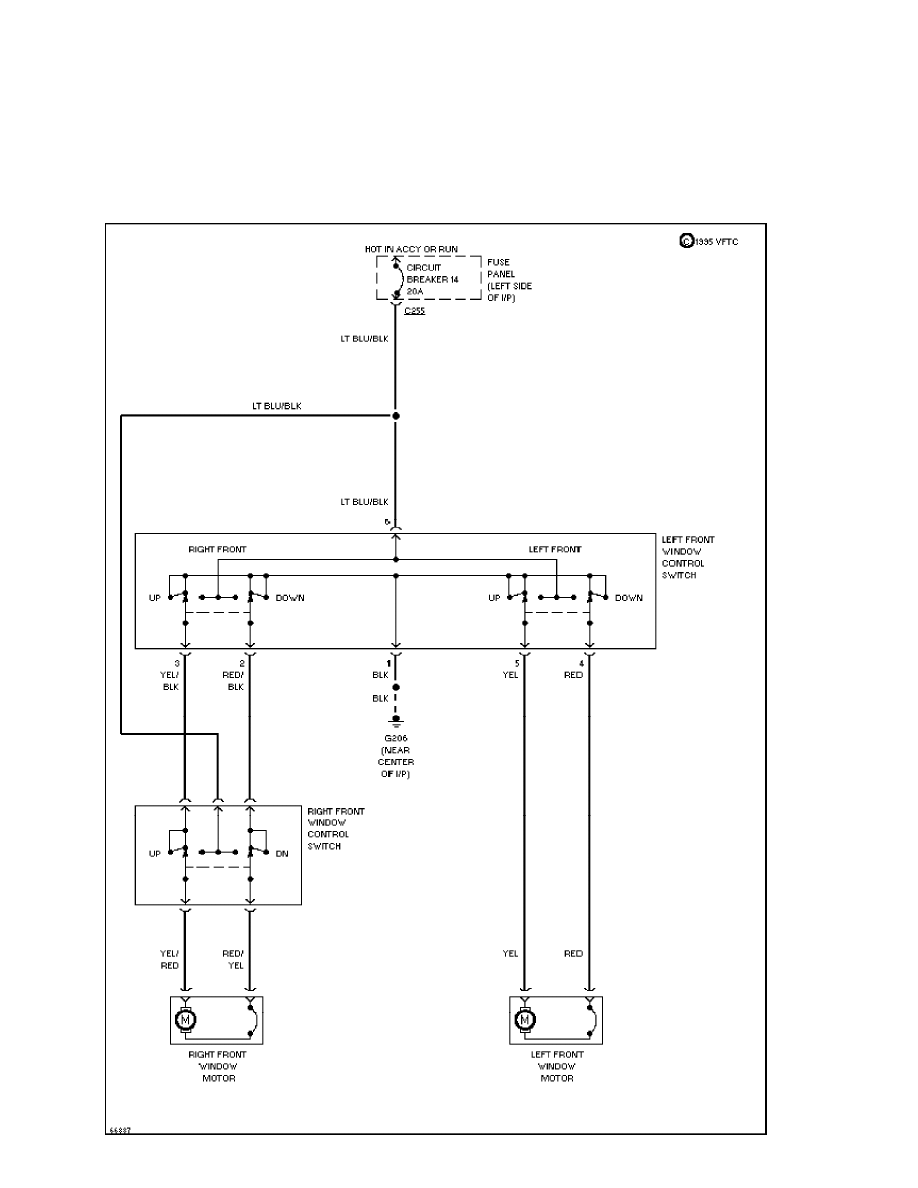

Power Window Circuit

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 02:59PM

background image

SYSTEM WIRING DIAGRAMS

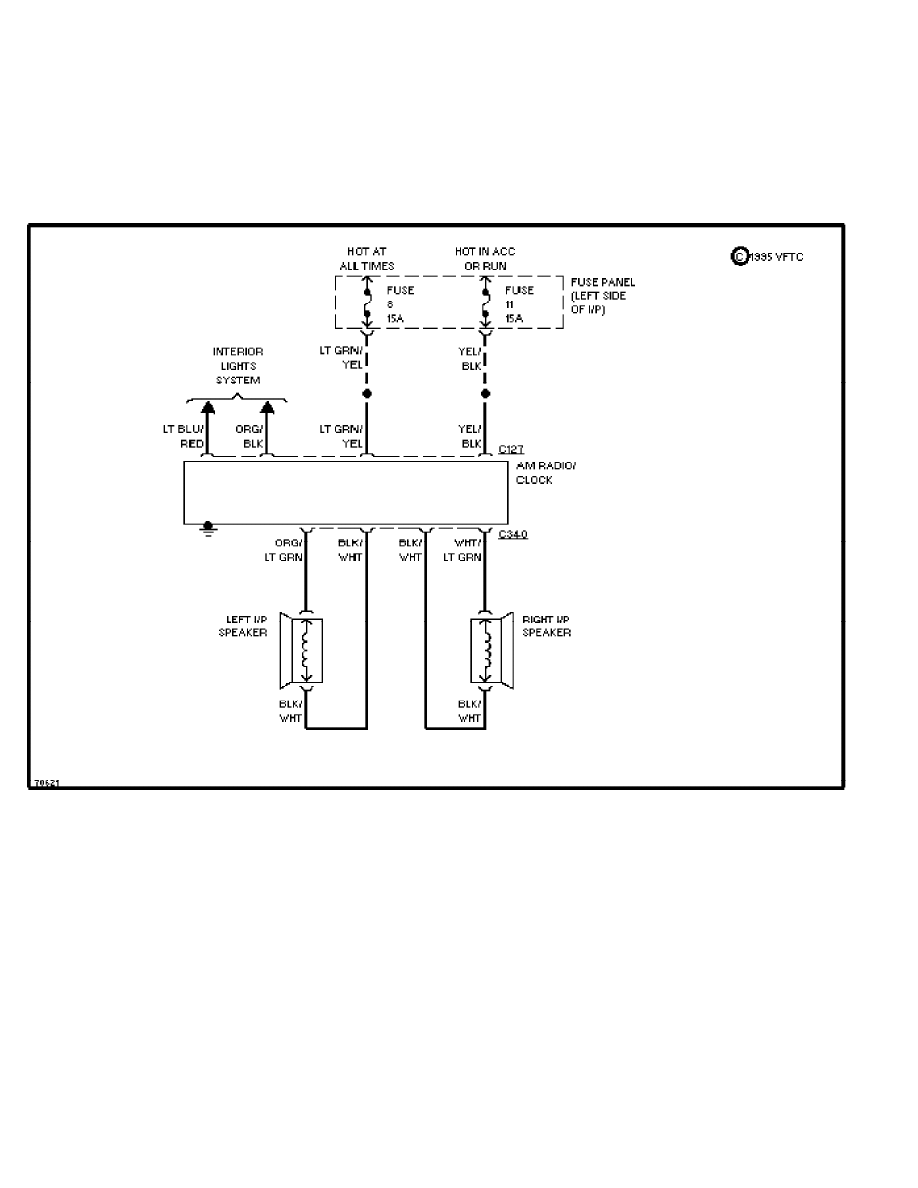

AM Radio Circuit

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 02:59PM

background image

SYSTEM WIRING DIAGRAMS

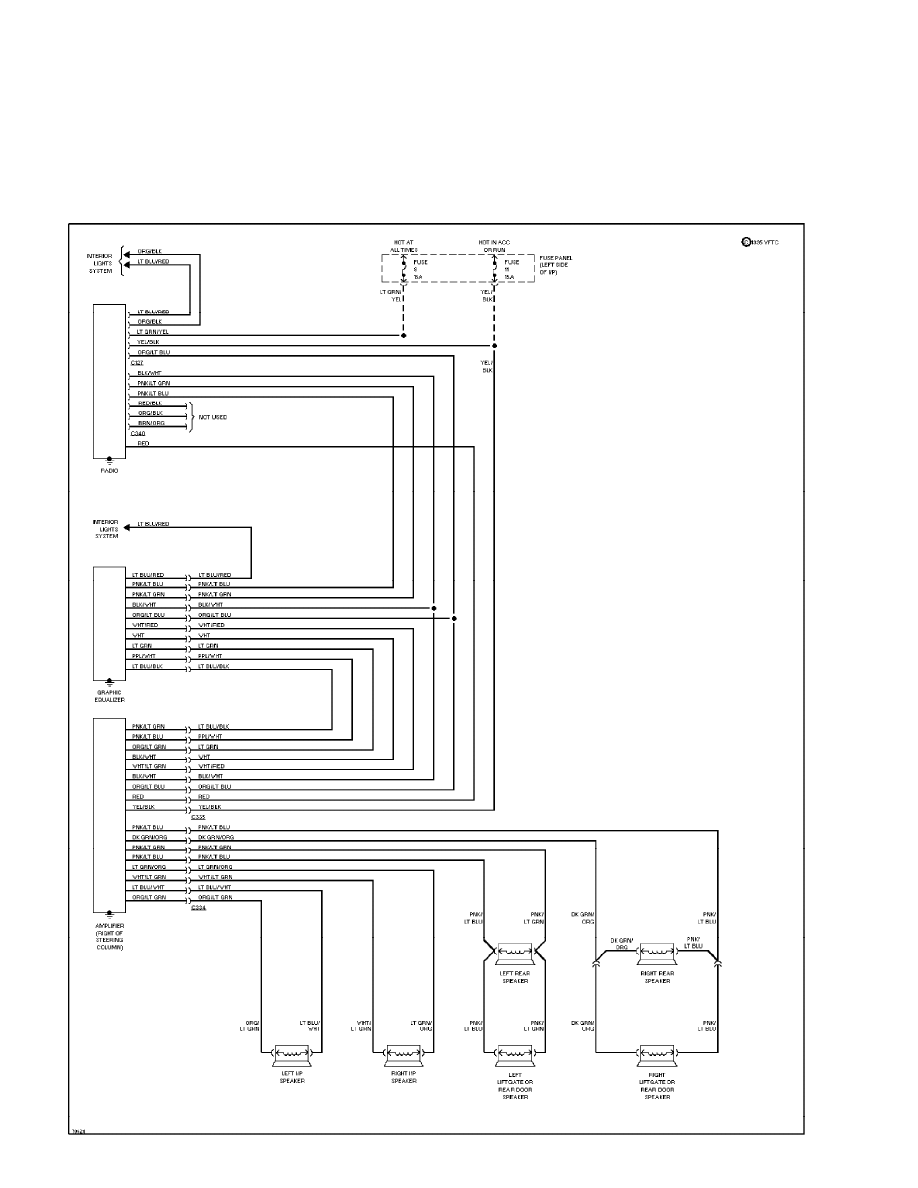

Electronic Radio Circuit, W/ Remote Headphones

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 02:59PM

background image

SYSTEM WIRING DIAGRAMS

Electronic Radio Circuit, W/O Remote Headphones

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 02:59PM

background image

SYSTEM WIRING DIAGRAMS

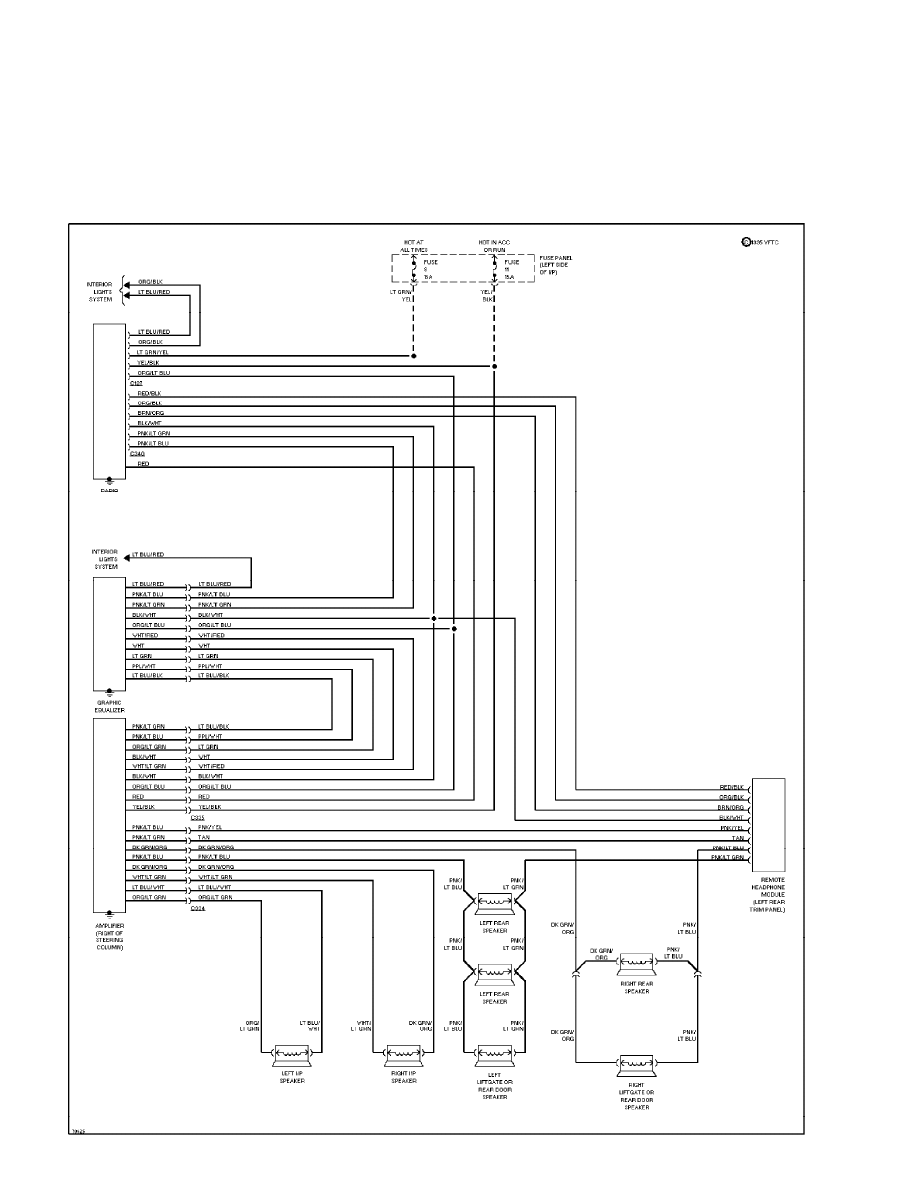

Stereo Radio Circuit, W/ Remote Headphones

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 02:59PM

background image

SYSTEM WIRING DIAGRAMS

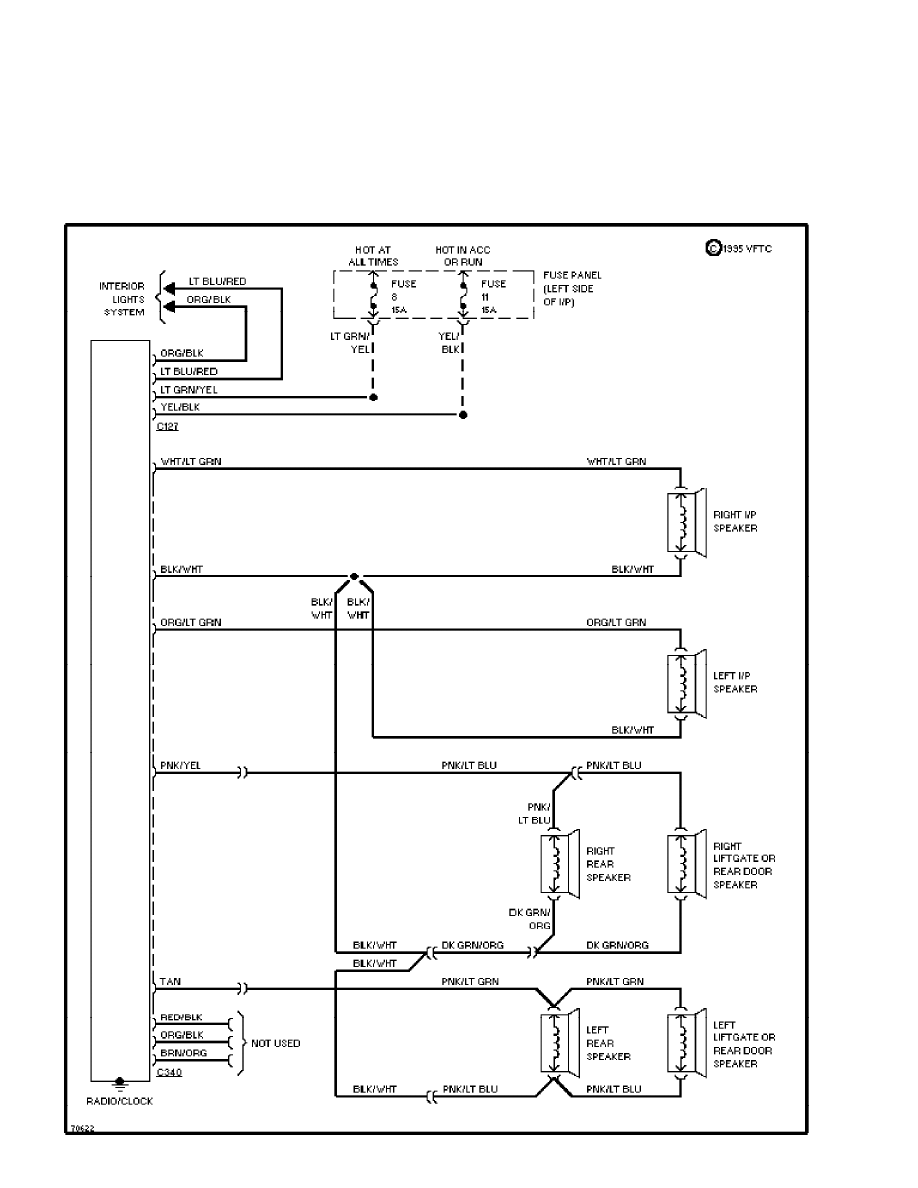

Stereo Radio Circuit, W/O Remote Headphones

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 03:00PM

background image

SYSTEM WIRING DIAGRAMS

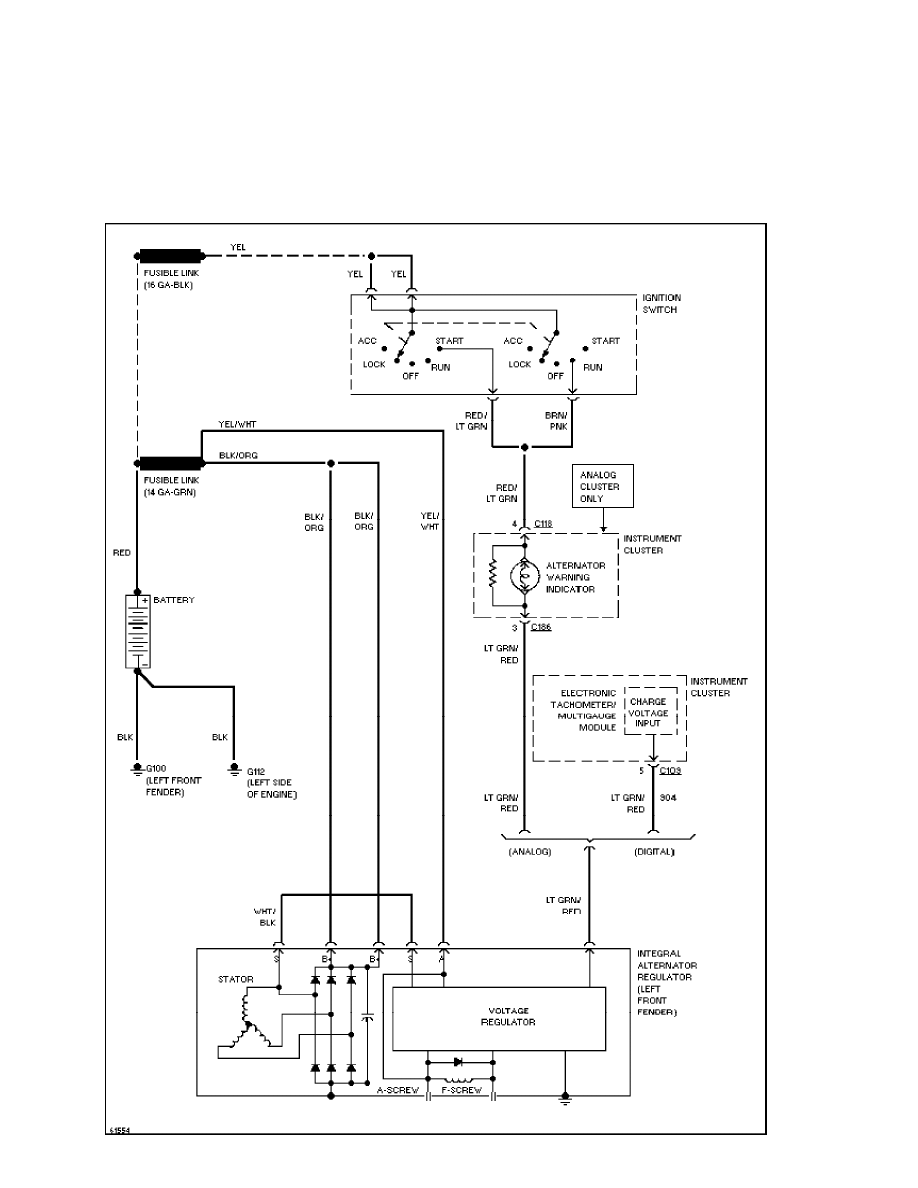

Charging Circuit

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 03:00PM

background image

SYSTEM WIRING DIAGRAMS

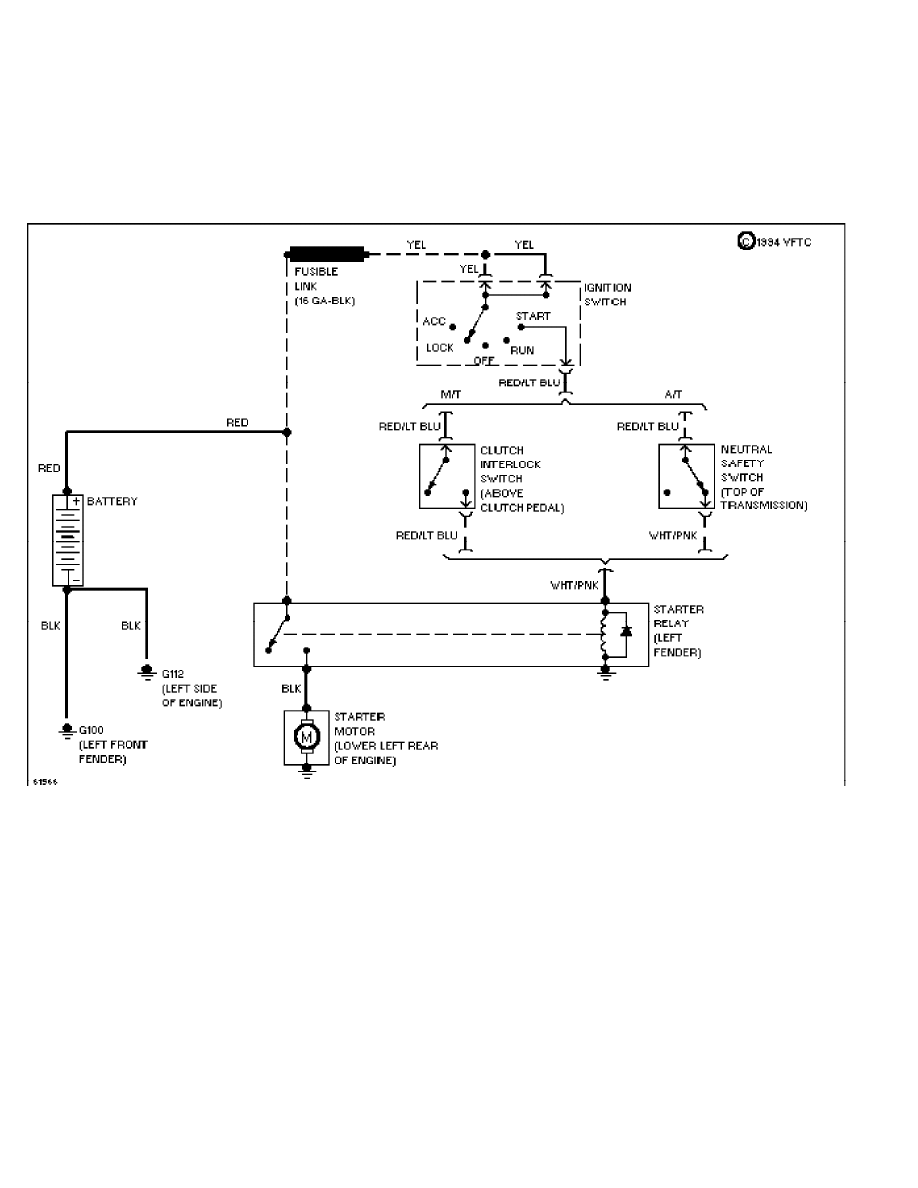

Starting Circuit

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 03:00PM

background image

SYSTEM WIRING DIAGRAMS

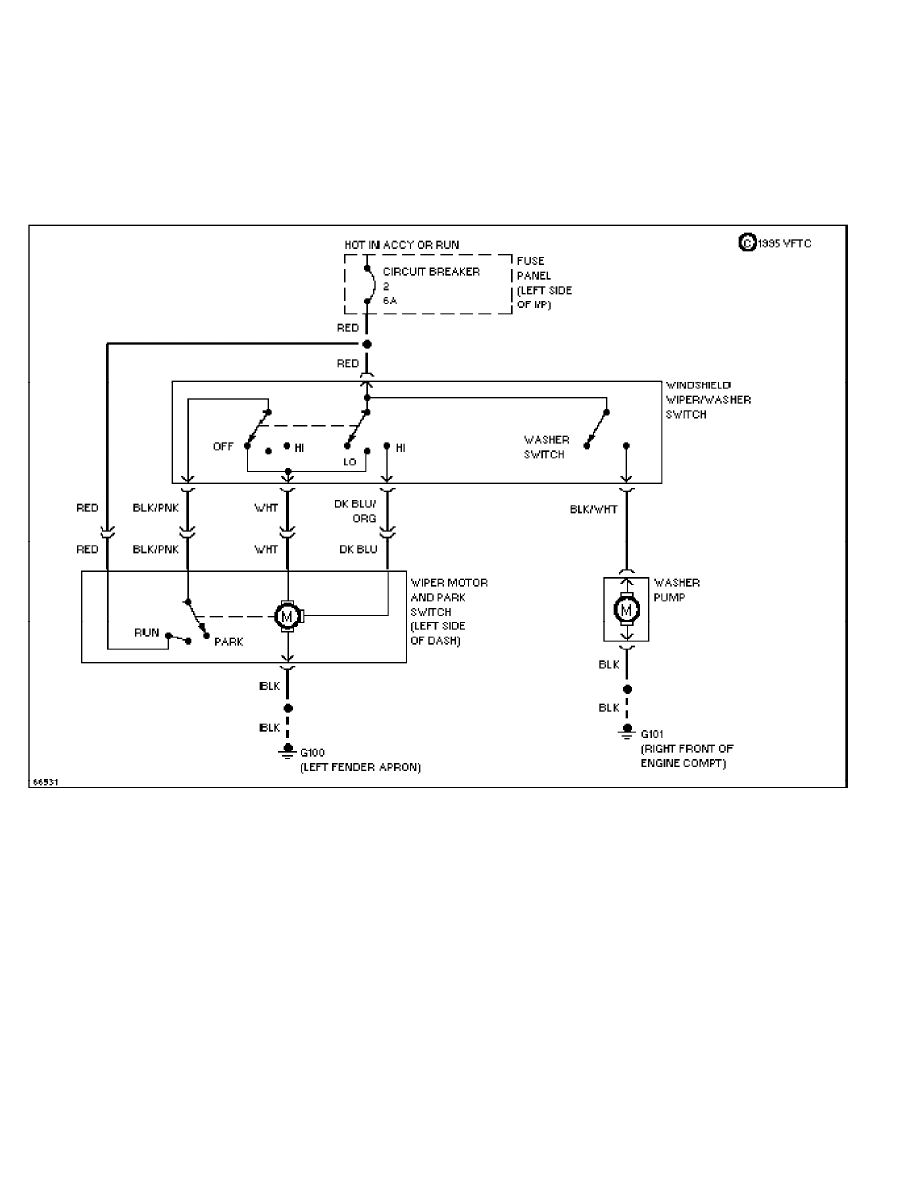

2-Speed Wiper/Washer Circuit

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 03:00PM

background image

WIRING DIAGRAMS

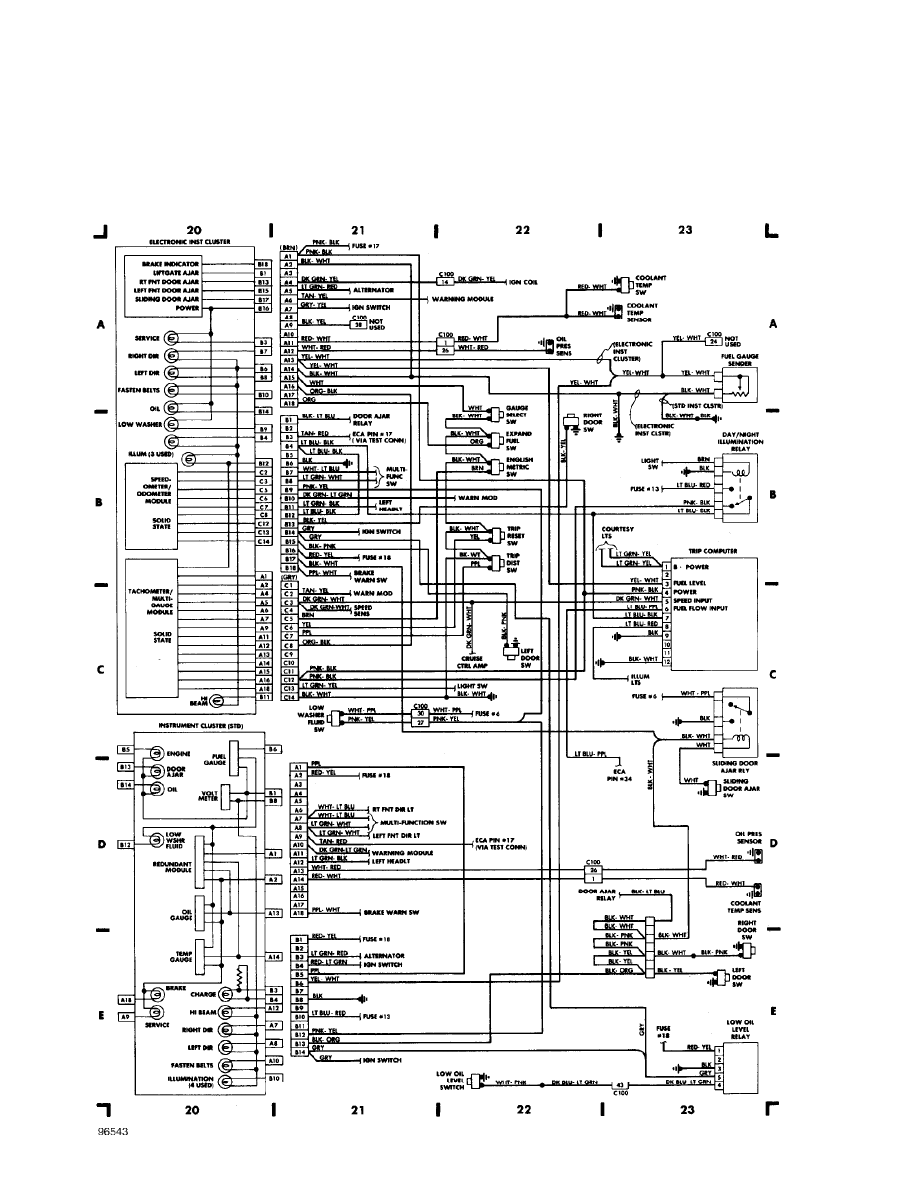

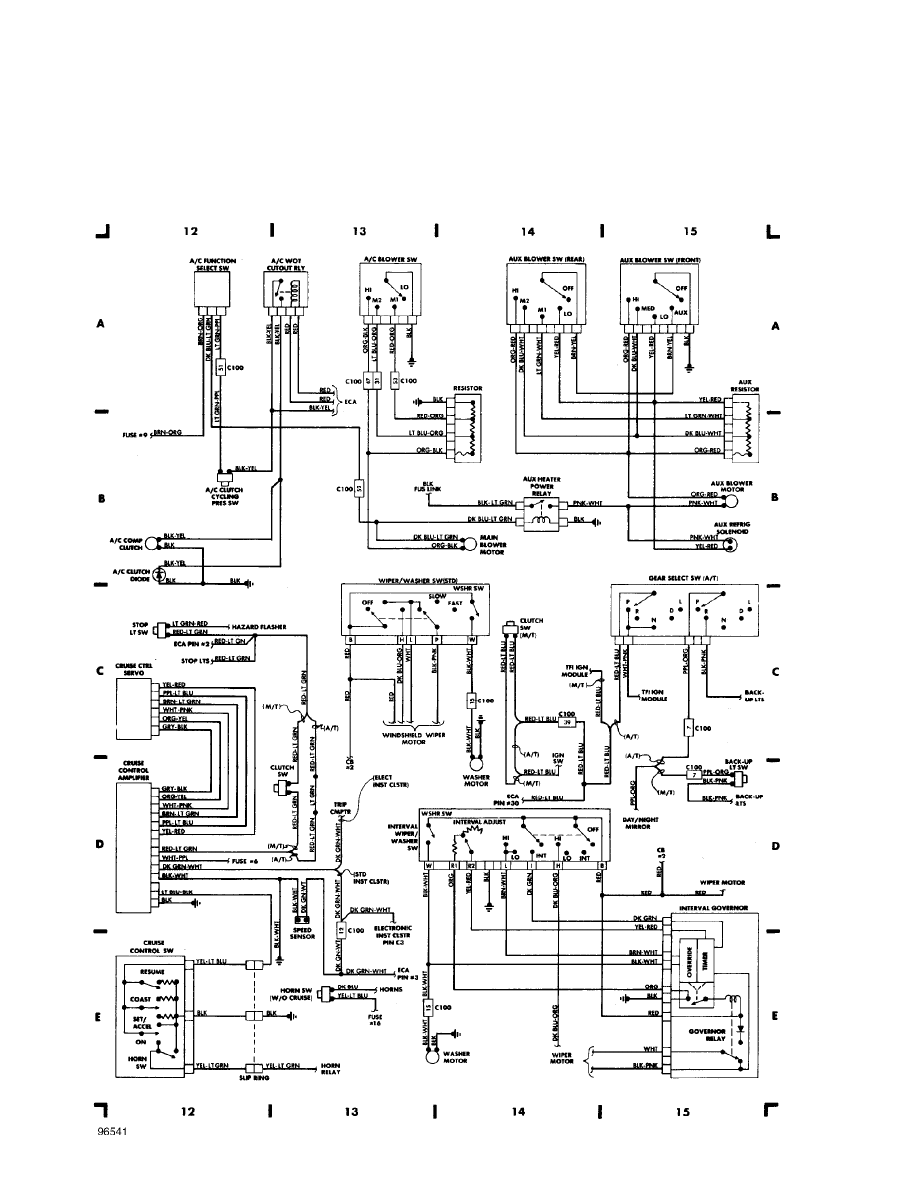

Fig. 6: Instrument Panel (3 of 3)

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 03:01PM

background image

WIRING DIAGRAMS

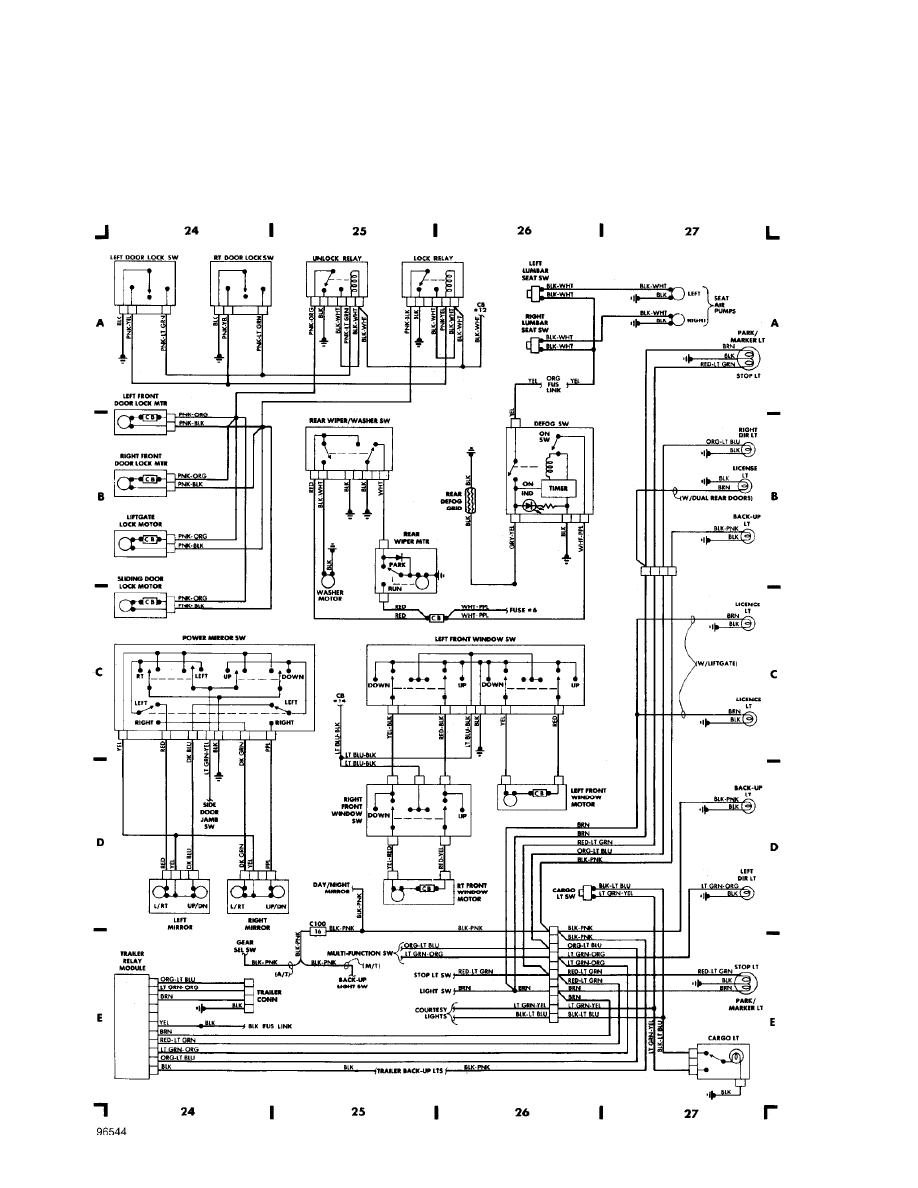

Fig. 7: Passenger Compartment & Tail Lights

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 03:01PM

background image

WIRING DIAGRAMS

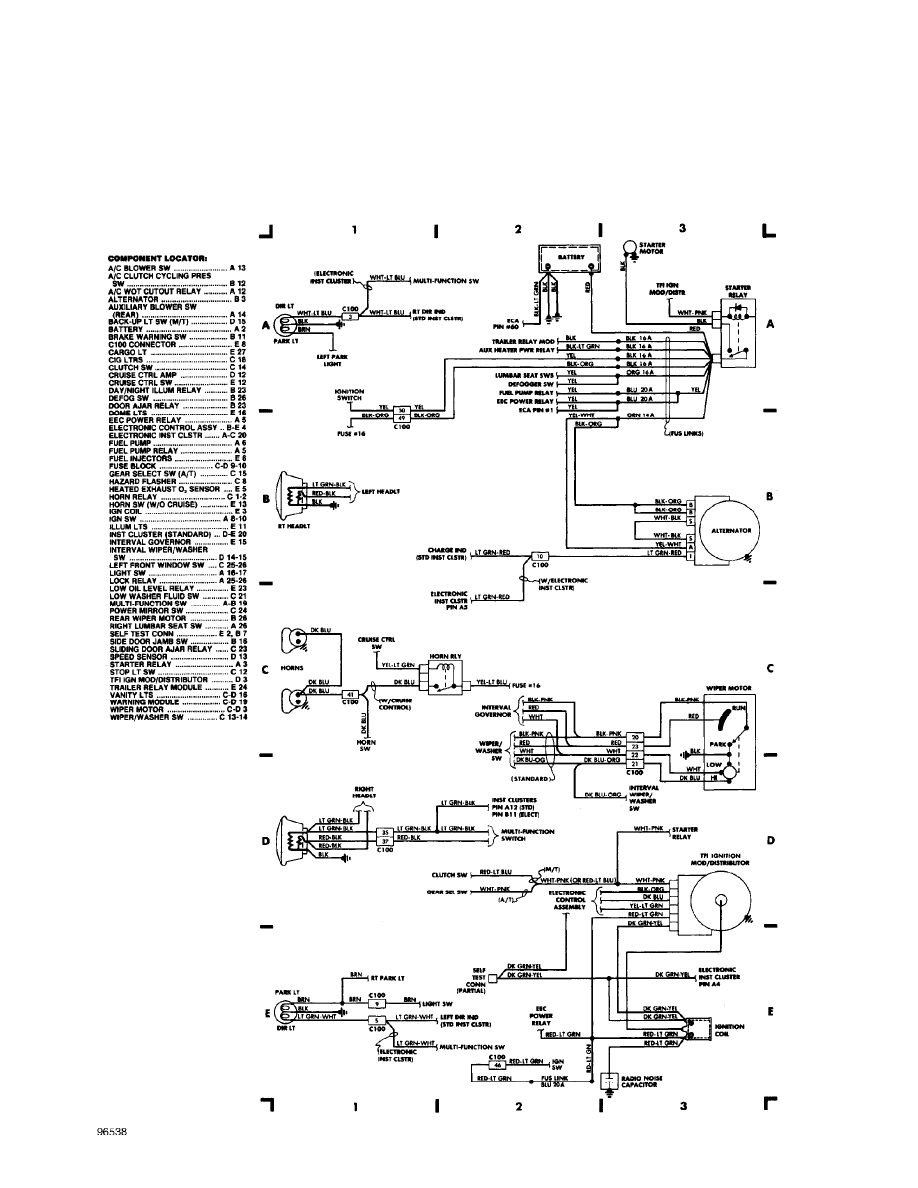

Fig. 1: Engine Compartment & Headlights

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 03:01PM

background image

WIRING DIAGRAMS

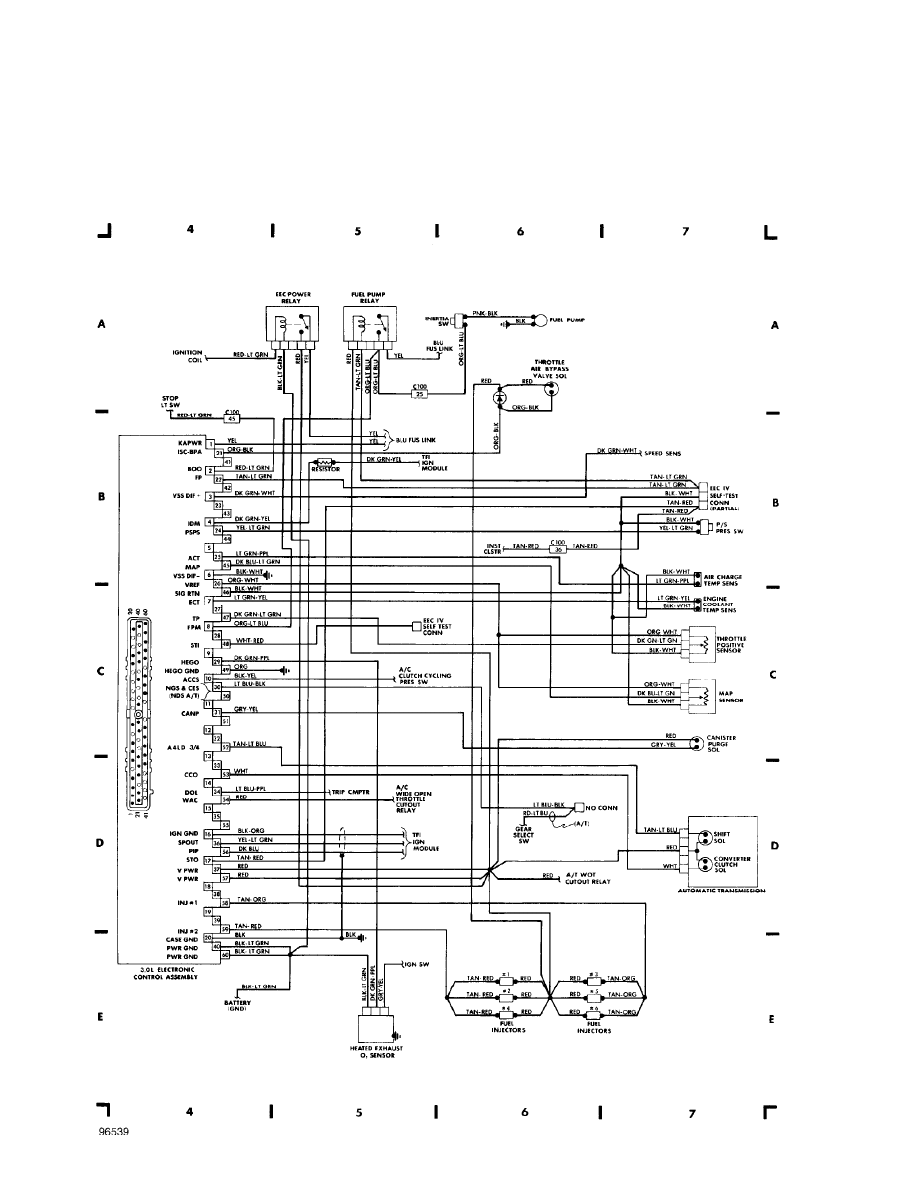

Fig. 2: Computer Engine Control

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 03:01PM

background image

WIRING DIAGRAMS

Fig. 3: Fuse Block

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 03:01PM

background image

WIRING DIAGRAMS

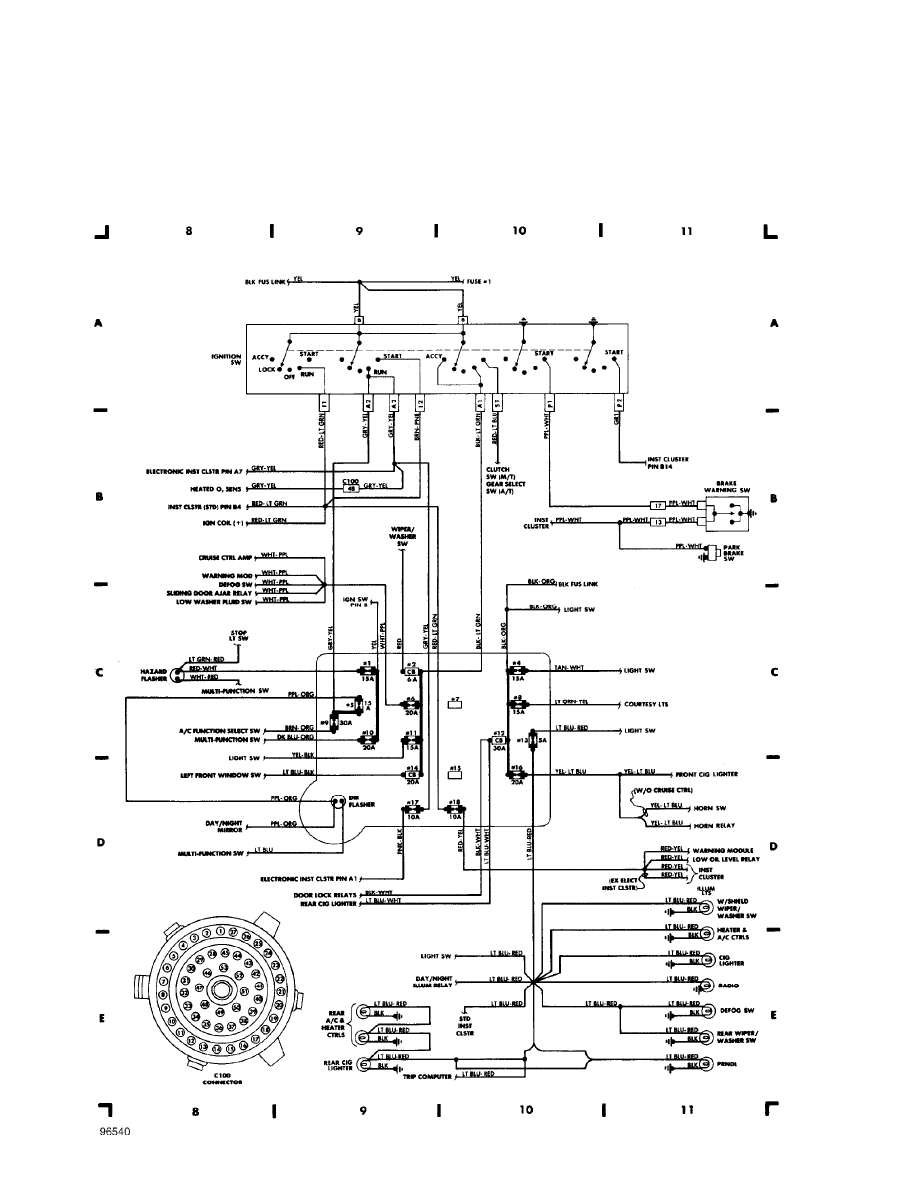

Fig. 4: Instrument Panel (1 of 3)

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 03:01PM

background image

WIRING DIAGRAMS

Fig. 5: Instrument Panel (2 of 3)

1988 Ford Aerostar

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, July 29, 2004 03:01PM
