FORD FESTIVA 1988

background image

SYSTEM WIRING DIAGRAMS

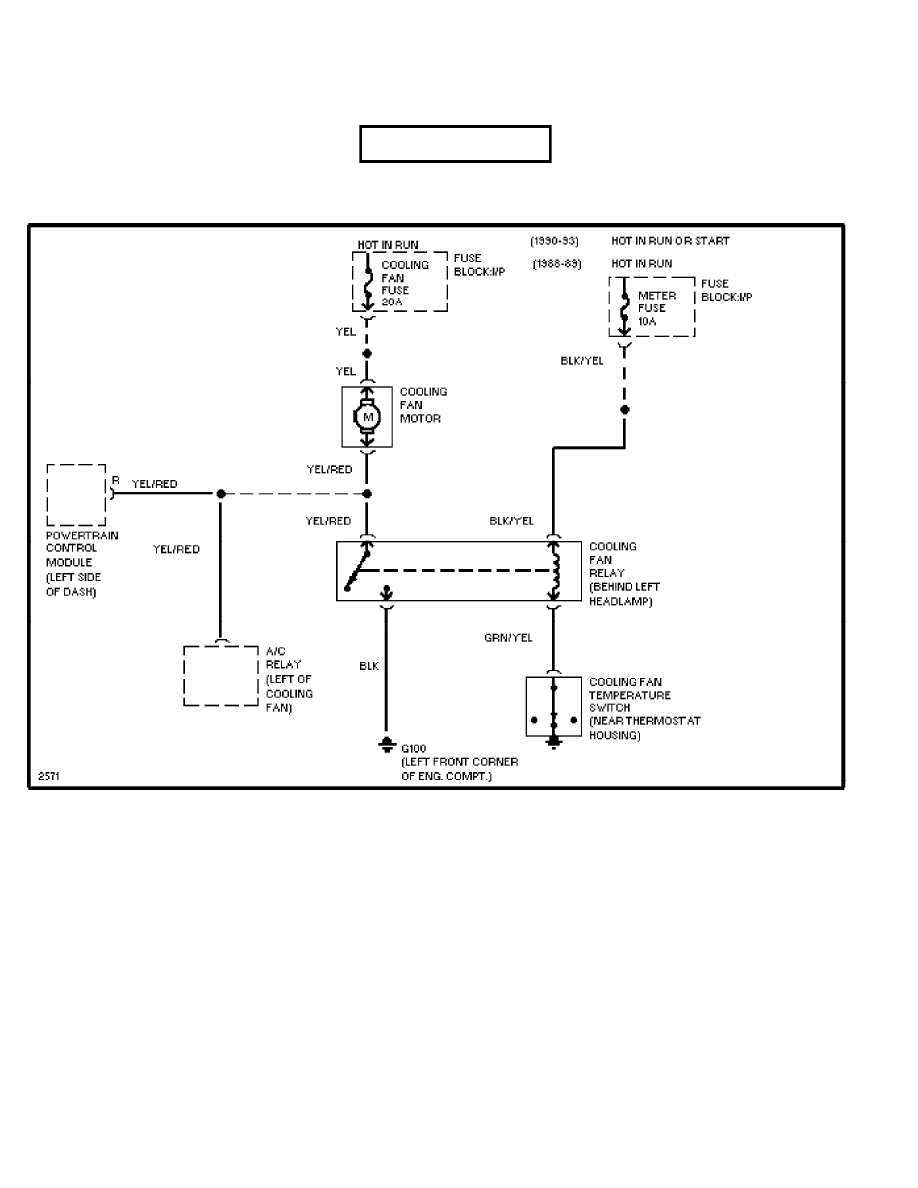

Cooling Fan Circuit

1988 Ford Festiva

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 10:34AM

CDR@WP.PL

background image

SYSTEM WIRING DIAGRAMS

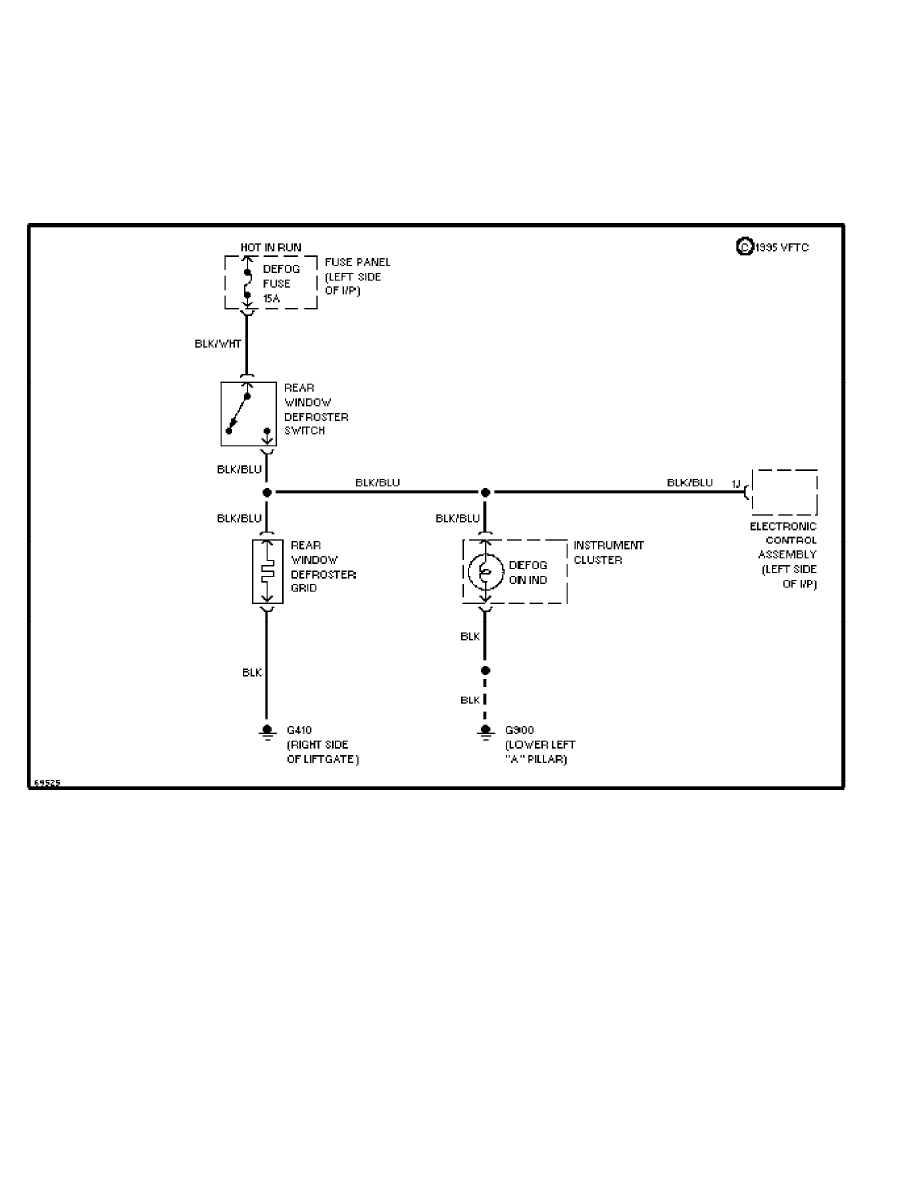

Defogger Circuit (p. 2)

1988 Ford Festiva

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 10:34AM

background image

SYSTEM WIRING DIAGRAMS

Horn Circuit (p. 3)

1988 Ford Festiva

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 10:34AM

background image

SYSTEM WIRING DIAGRAMS

Radio Circuits (p. 4)

1988 Ford Festiva

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 10:34AM

background image

SYSTEM WIRING DIAGRAMS

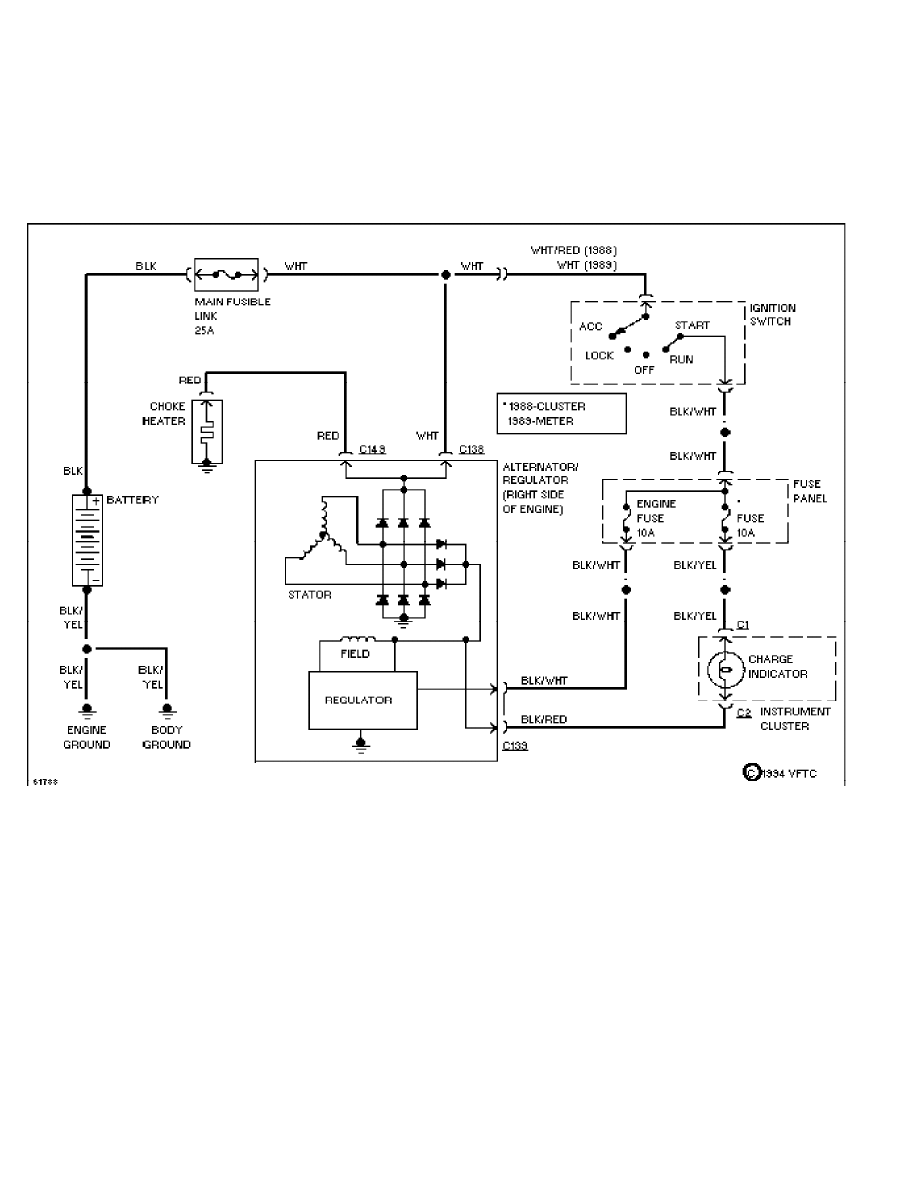

Charging Circuit (p. 5)

1988 Ford Festiva

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 10:34AM

background image

SYSTEM WIRING DIAGRAMS

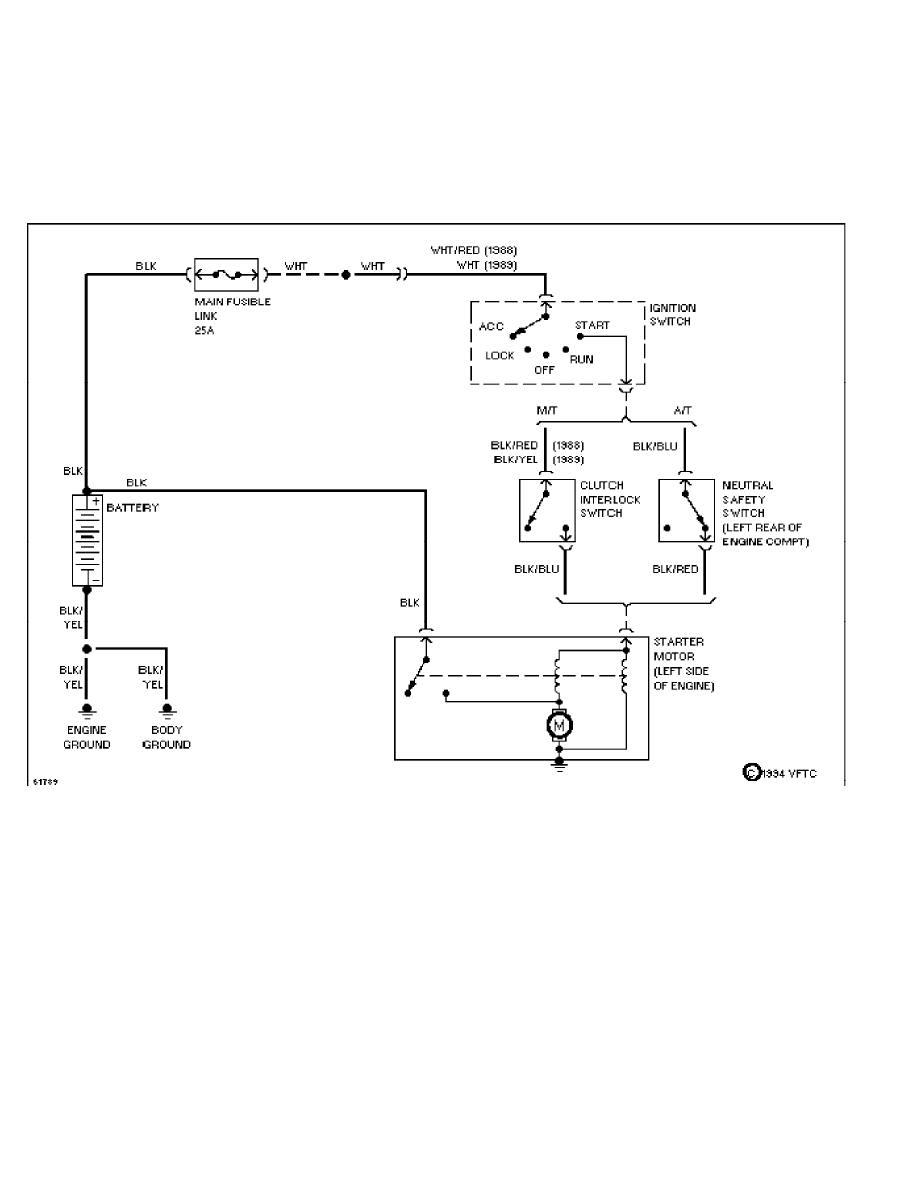

Starting Circuit (p. 6)

1988 Ford Festiva

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 10:34AM

background image

SYSTEM WIRING DIAGRAMS

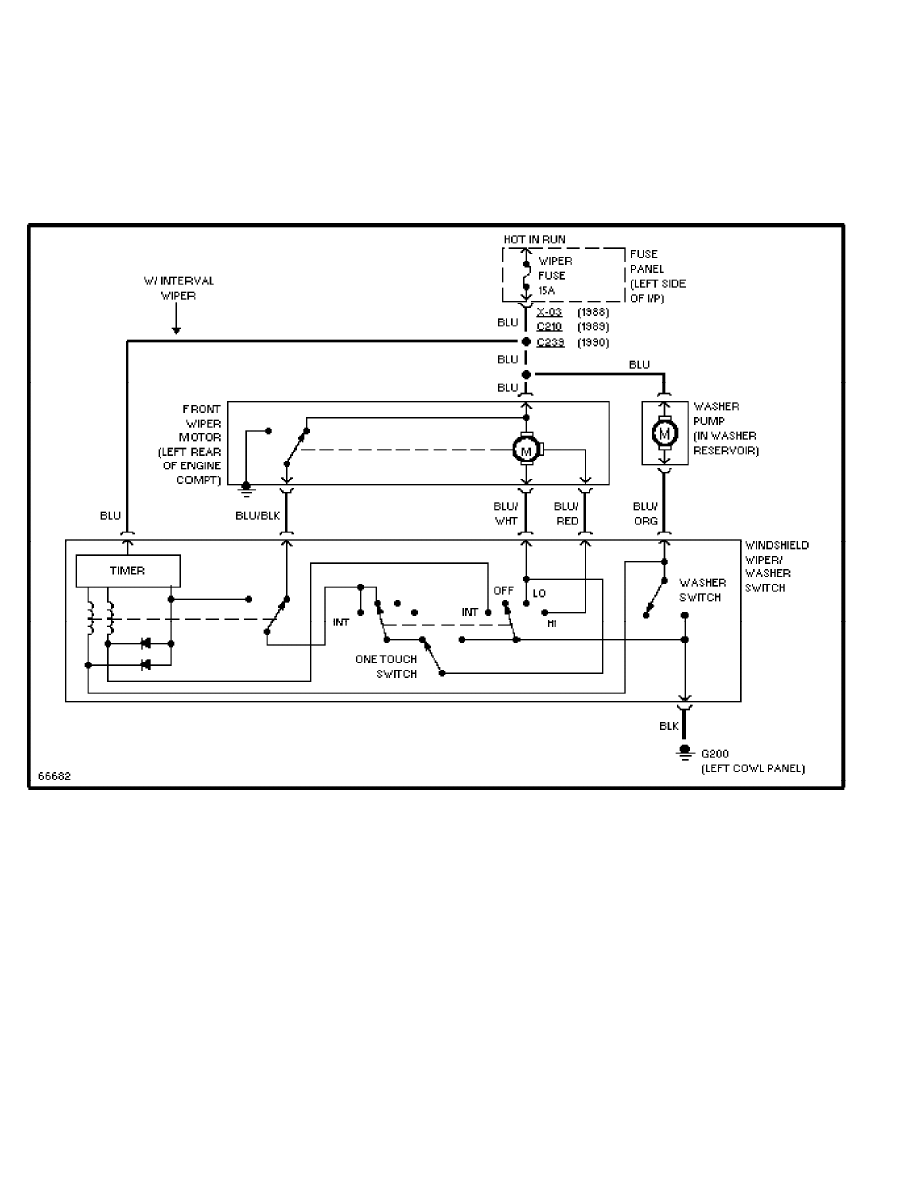

Front Wiper/Washer Circuit (p. 7)

1988 Ford Festiva

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 10:34AM

background image

SYSTEM WIRING DIAGRAMS

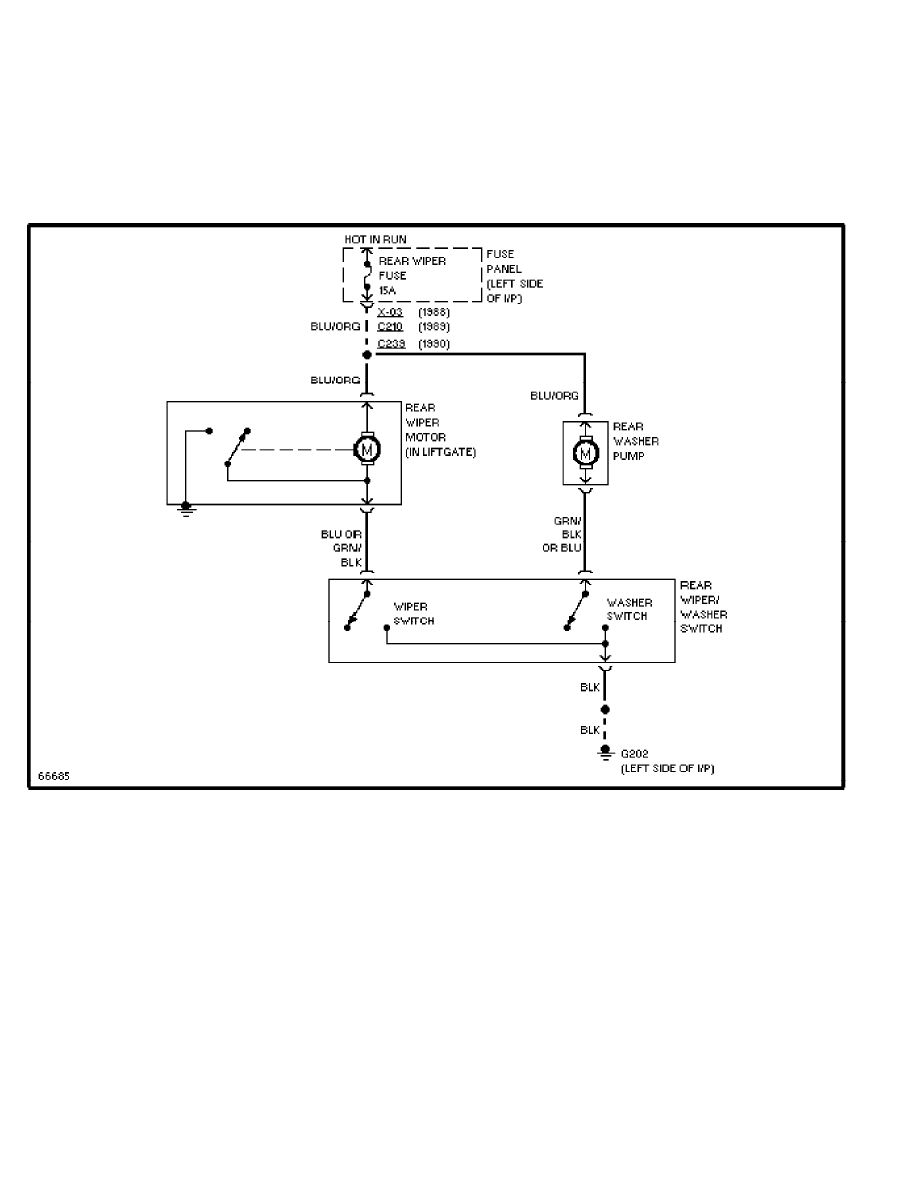

Rear Wiper/Washer Circuit (p. 8)

1988 Ford Festiva

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 10:34AM

background image

WIRING DIAGRAMS

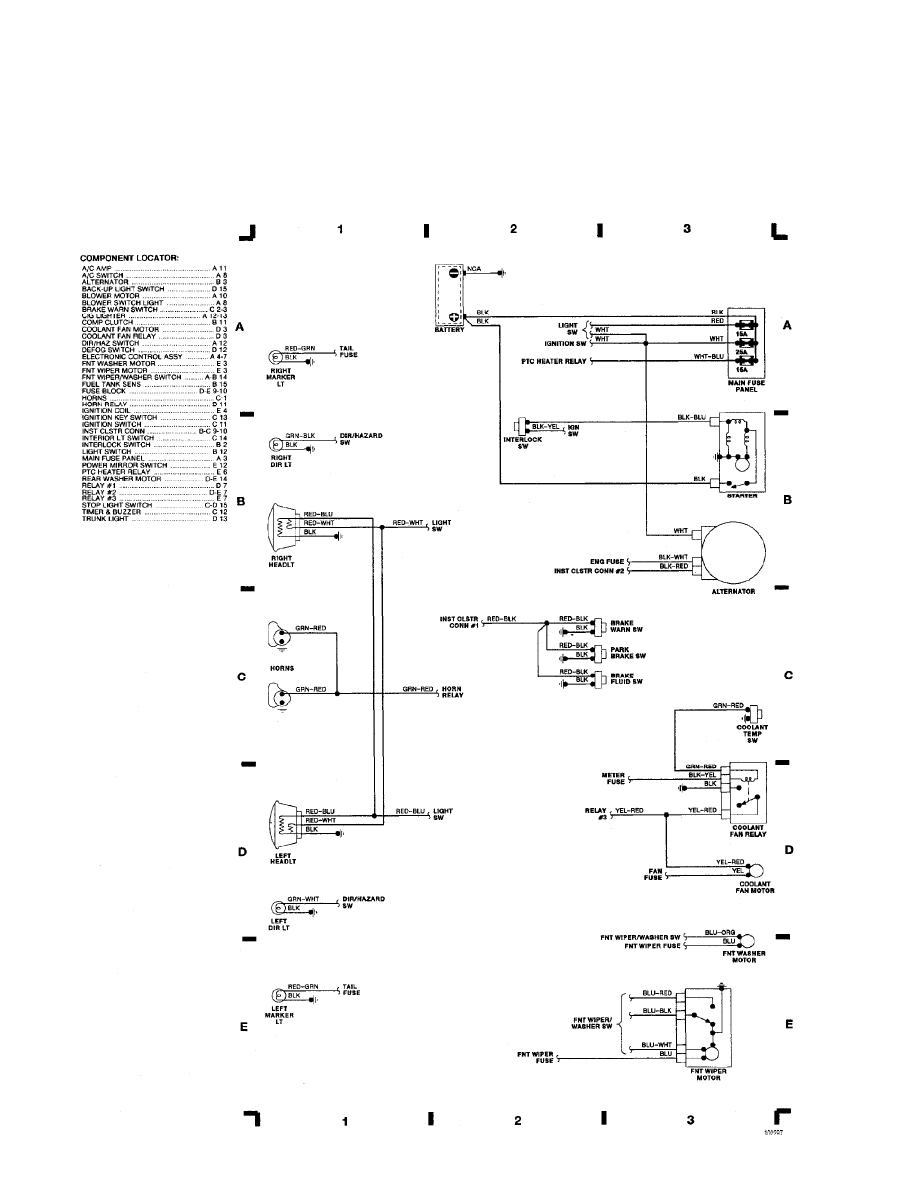

Fig. 1: Engine Compartment

1988 Ford Festiva

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 10:35AM

background image

WIRING DIAGRAMS

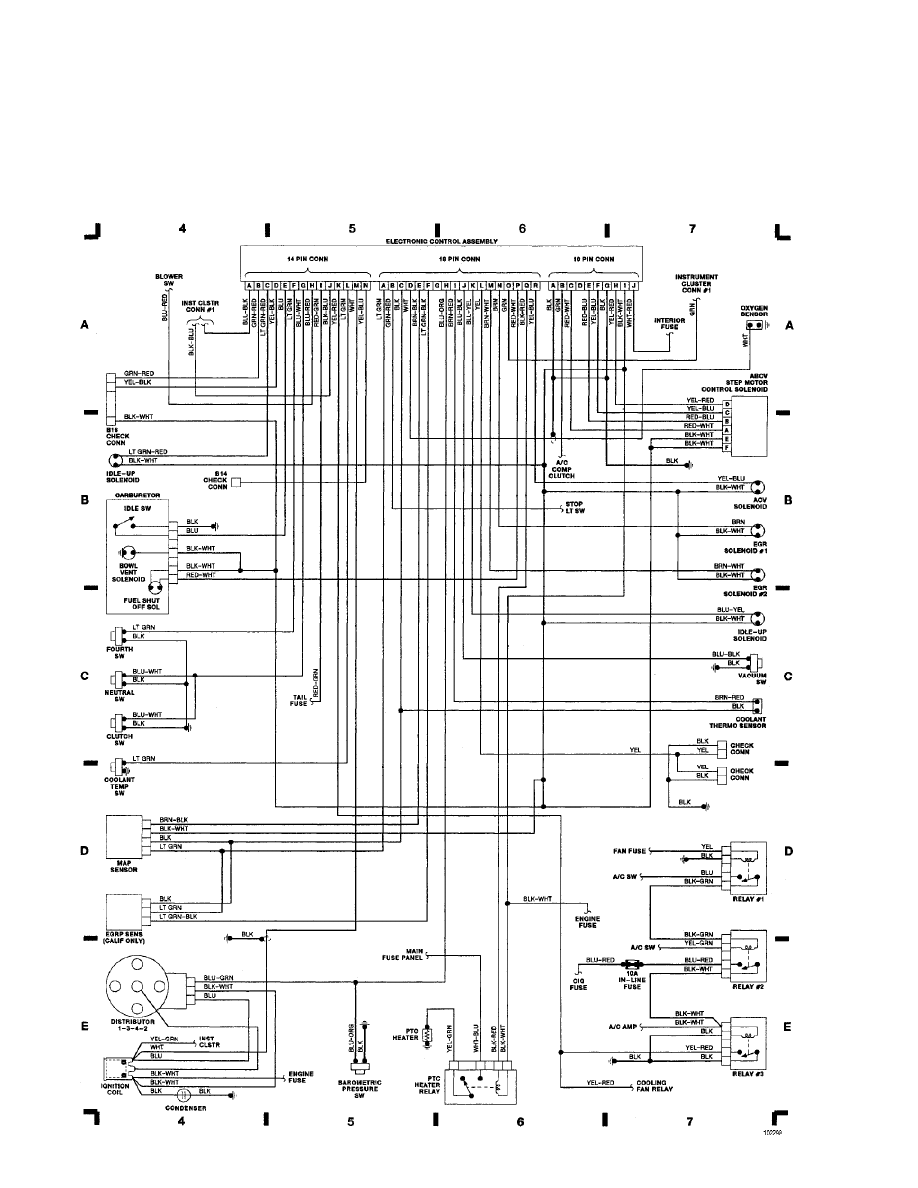

Fig. 2: Engine Compartment (Cont.) (p. 2)

1988 Ford Festiva

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 10:35AM

background image

WIRING DIAGRAMS

Fig. 3: Instrument Panel, Underdash & Fuse Block (p. 3)

1988 Ford Festiva

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 10:35AM

background image

WIRING DIAGRAMS

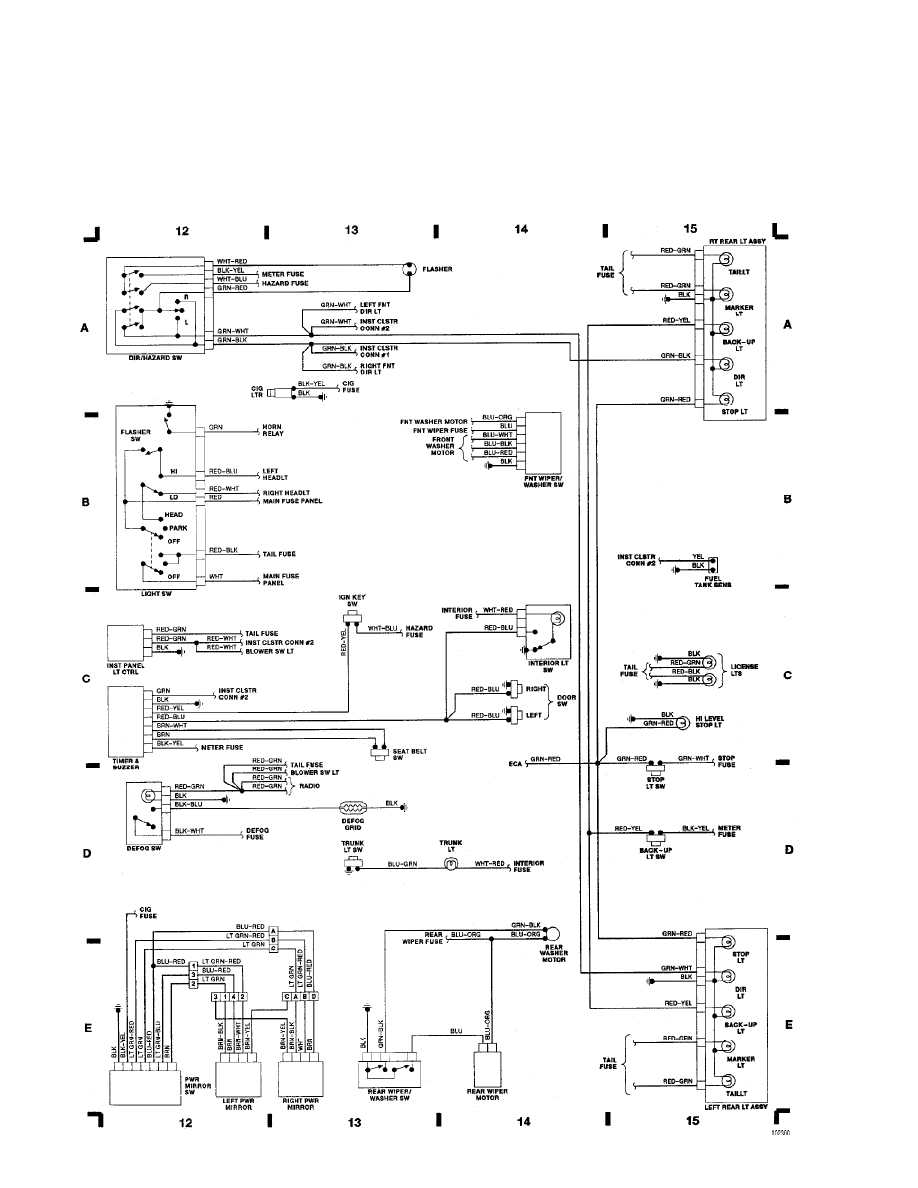

Fig. 4: Instrument Panel (Cont.), Rear Compartment (p. 4)

1988 Ford Festiva

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 10:35AM
