SYSTEM WIRING DIAGRAMS

Defogger Circuit

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

SYSTEM WIRING DIAGRAMS

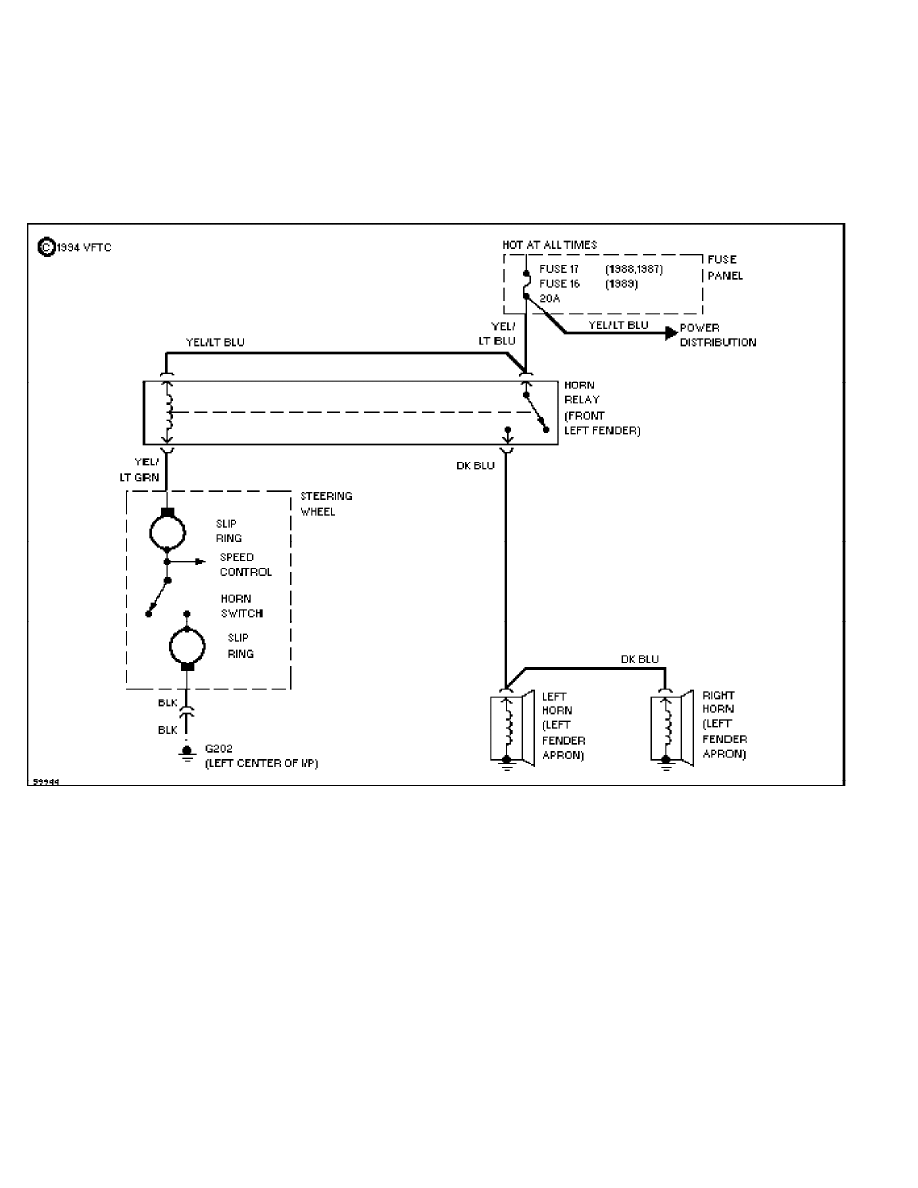

Horn Circuit (p. 2)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

SYSTEM WIRING DIAGRAMS

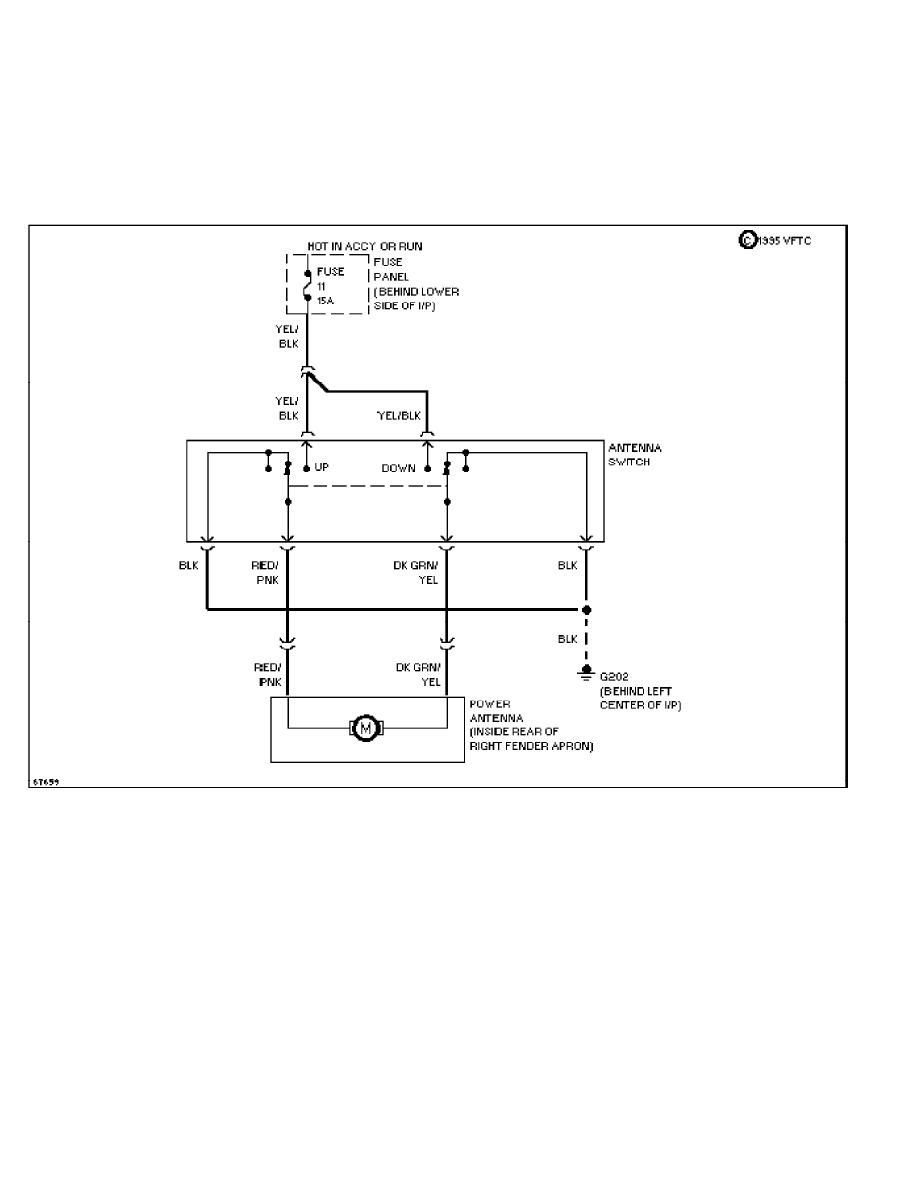

Power Antenna Circuit (p. 3)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

SYSTEM WIRING DIAGRAMS

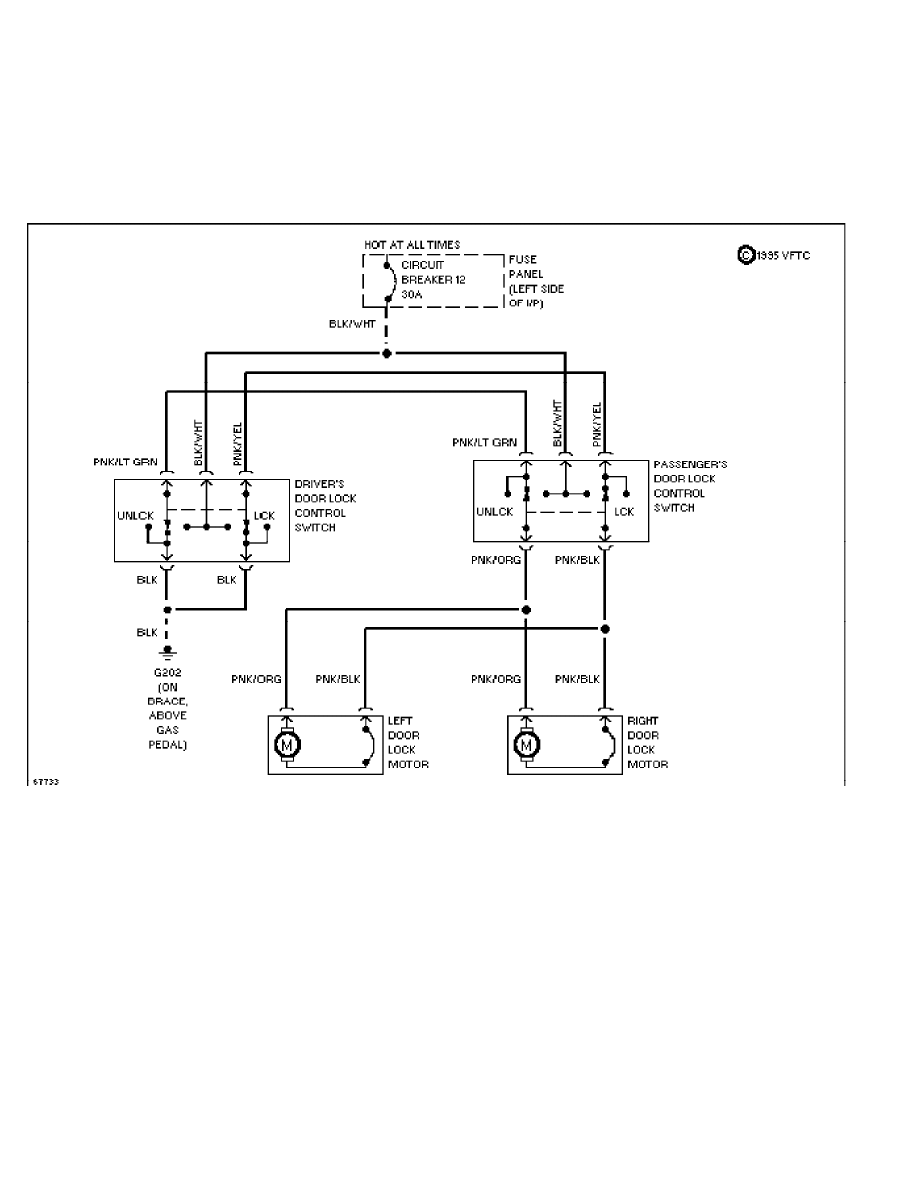

Power Door Lock Circuit, 2 Door (p. 4)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

SYSTEM WIRING DIAGRAMS

Power Door Lock Circuit, 4 Door (p. 5)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

SYSTEM WIRING DIAGRAMS

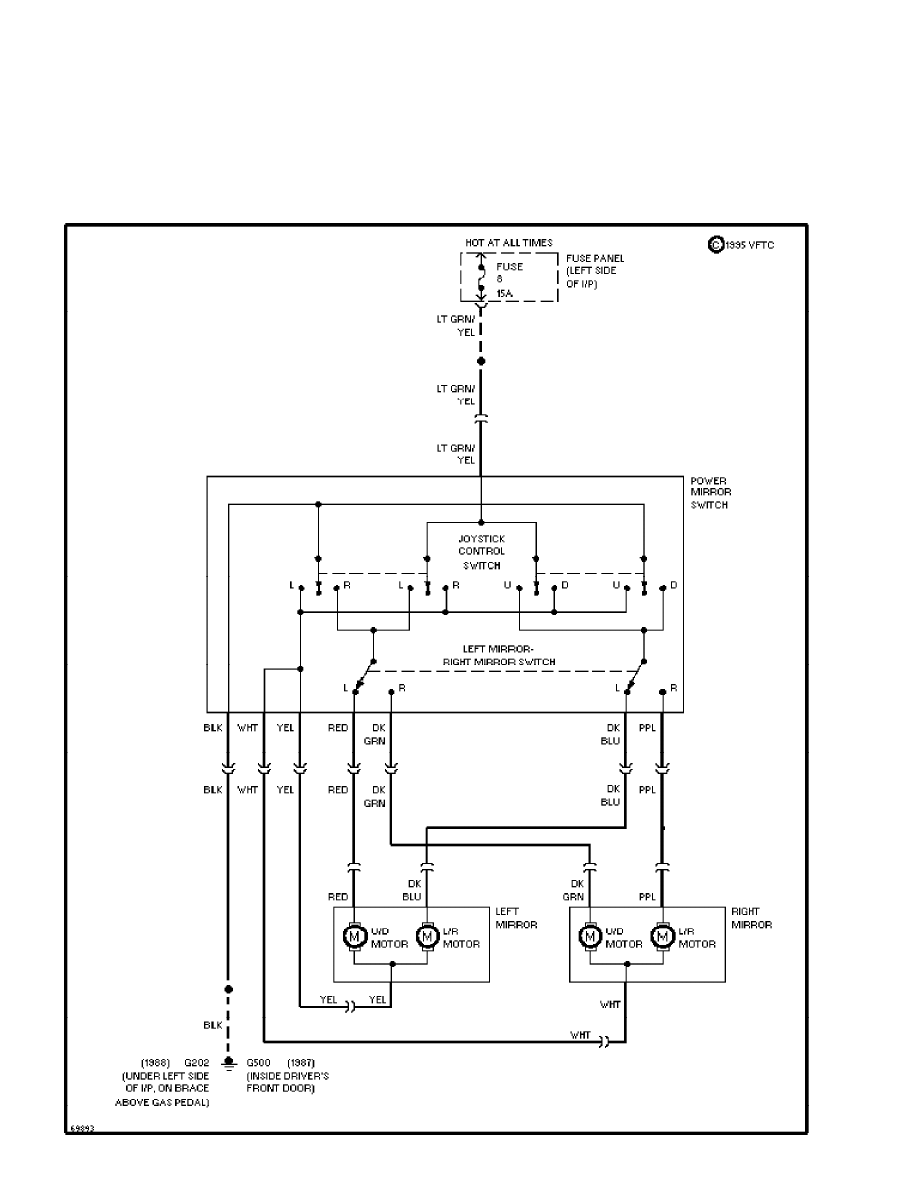

Power Mirror Circuit (p. 6)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

SYSTEM WIRING DIAGRAMS

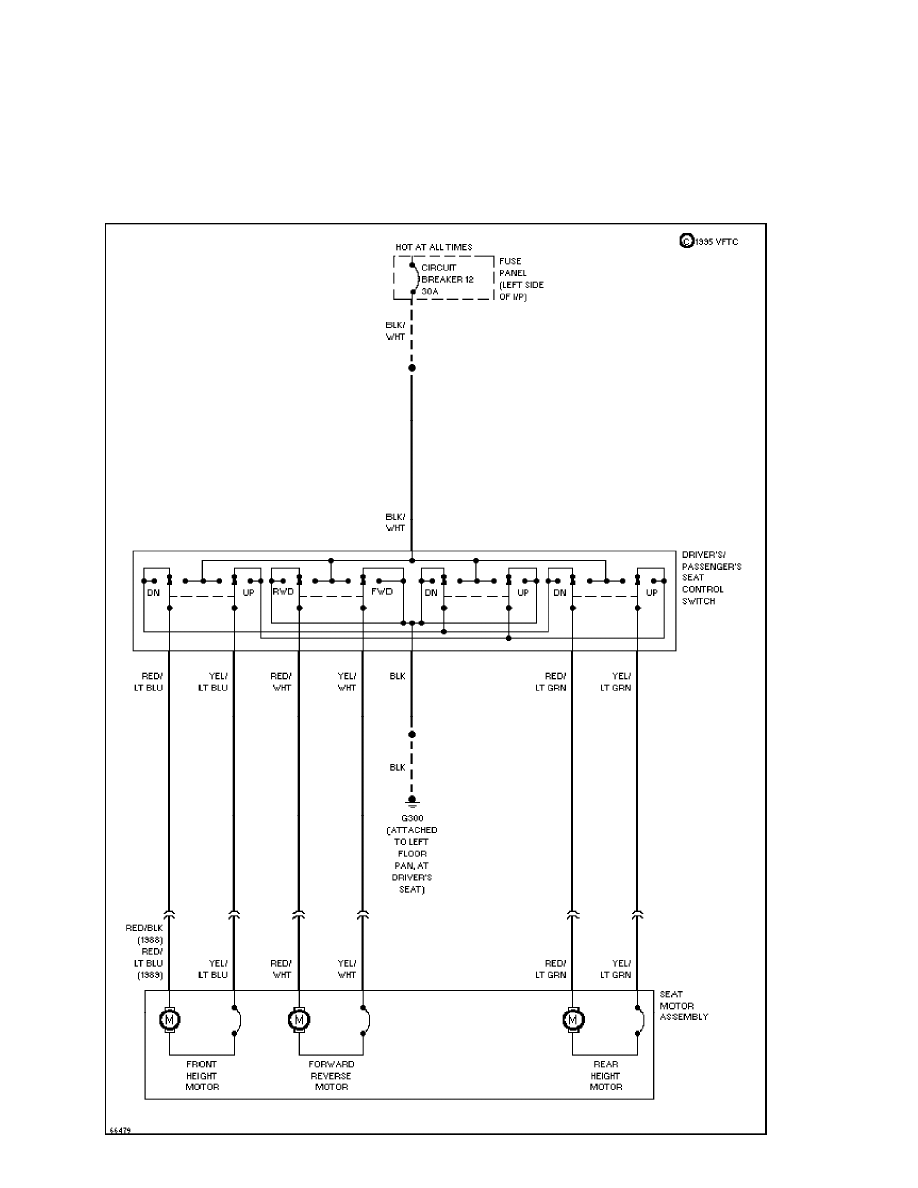

Power Seat Circuits (p. 7)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

SYSTEM WIRING DIAGRAMS

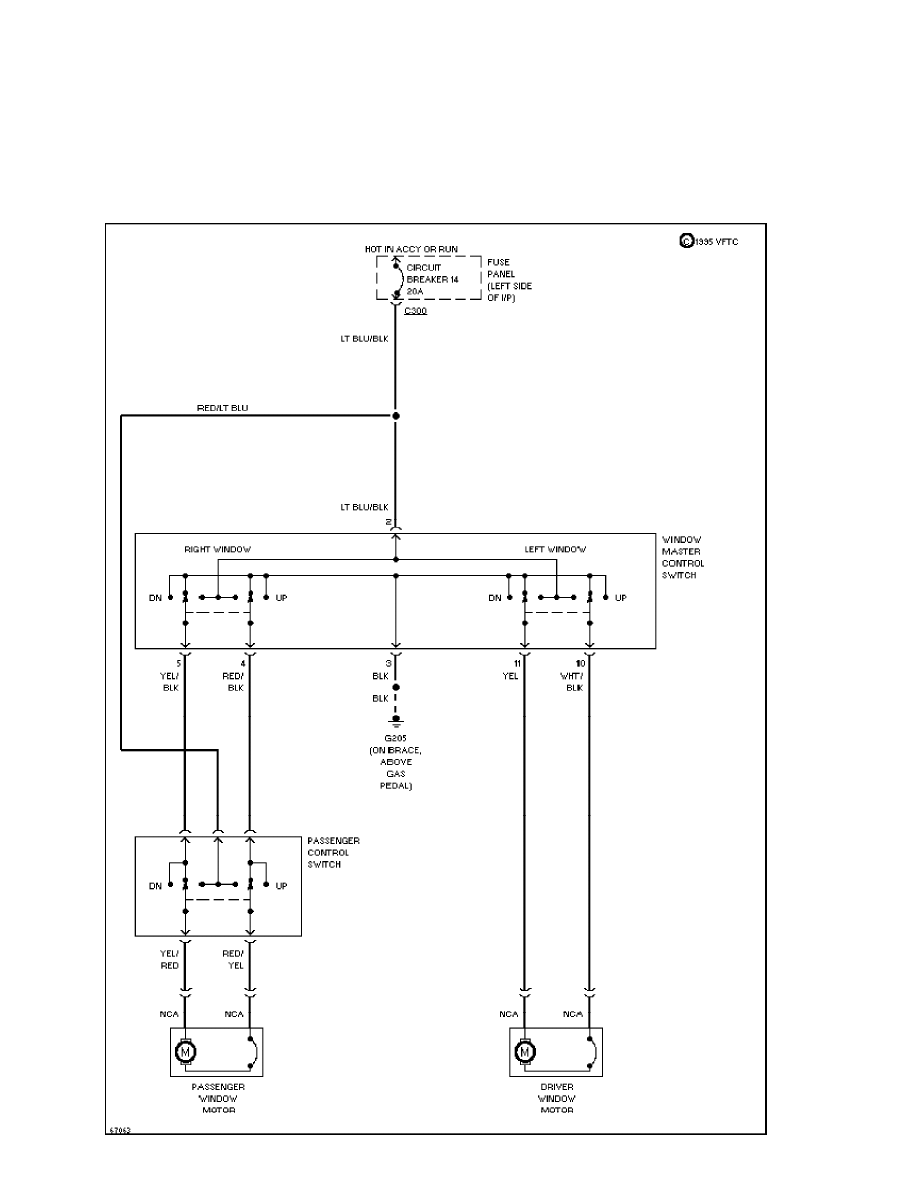

Power Windows Circuit, 2 Door (p. 8)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

SYSTEM WIRING DIAGRAMS

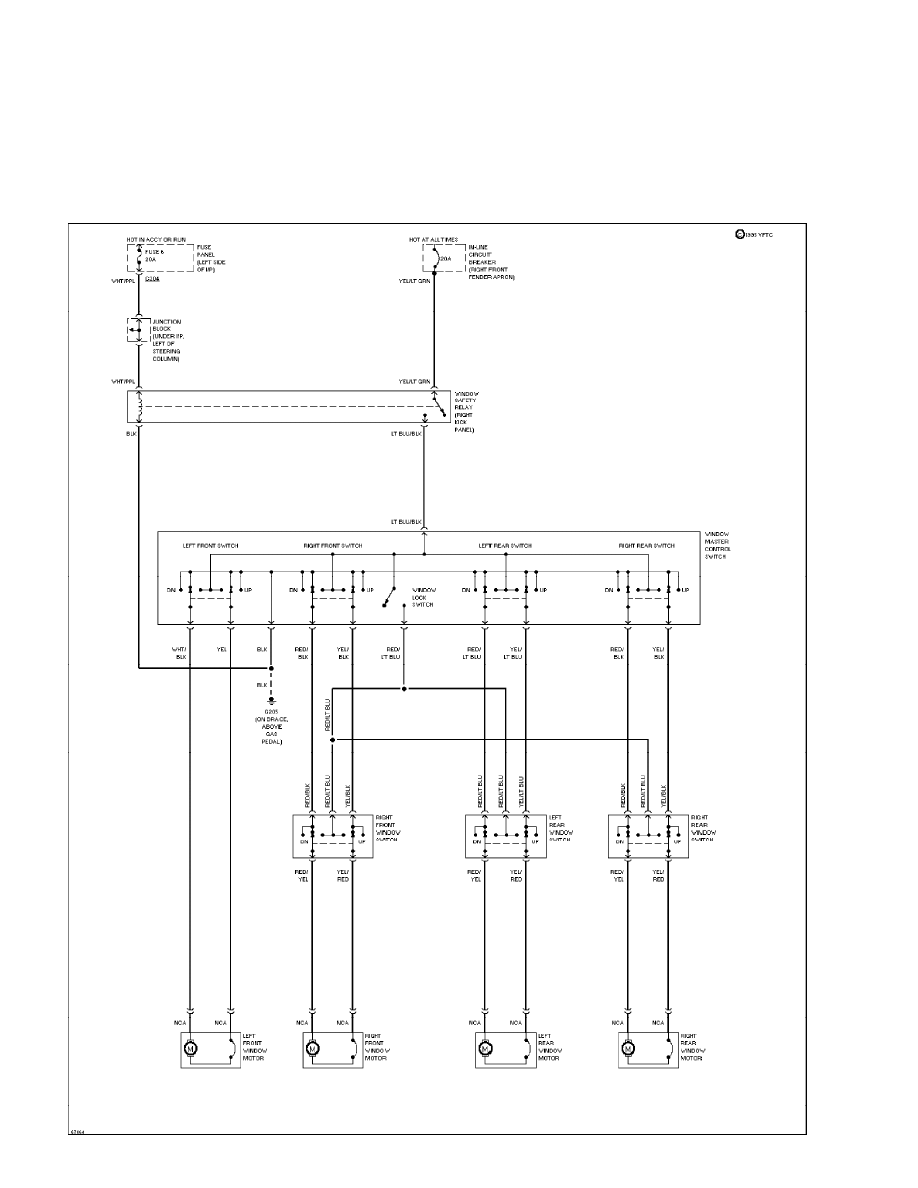

Power Windows Circuit, 4 Door (p. 9)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

SYSTEM WIRING DIAGRAMS

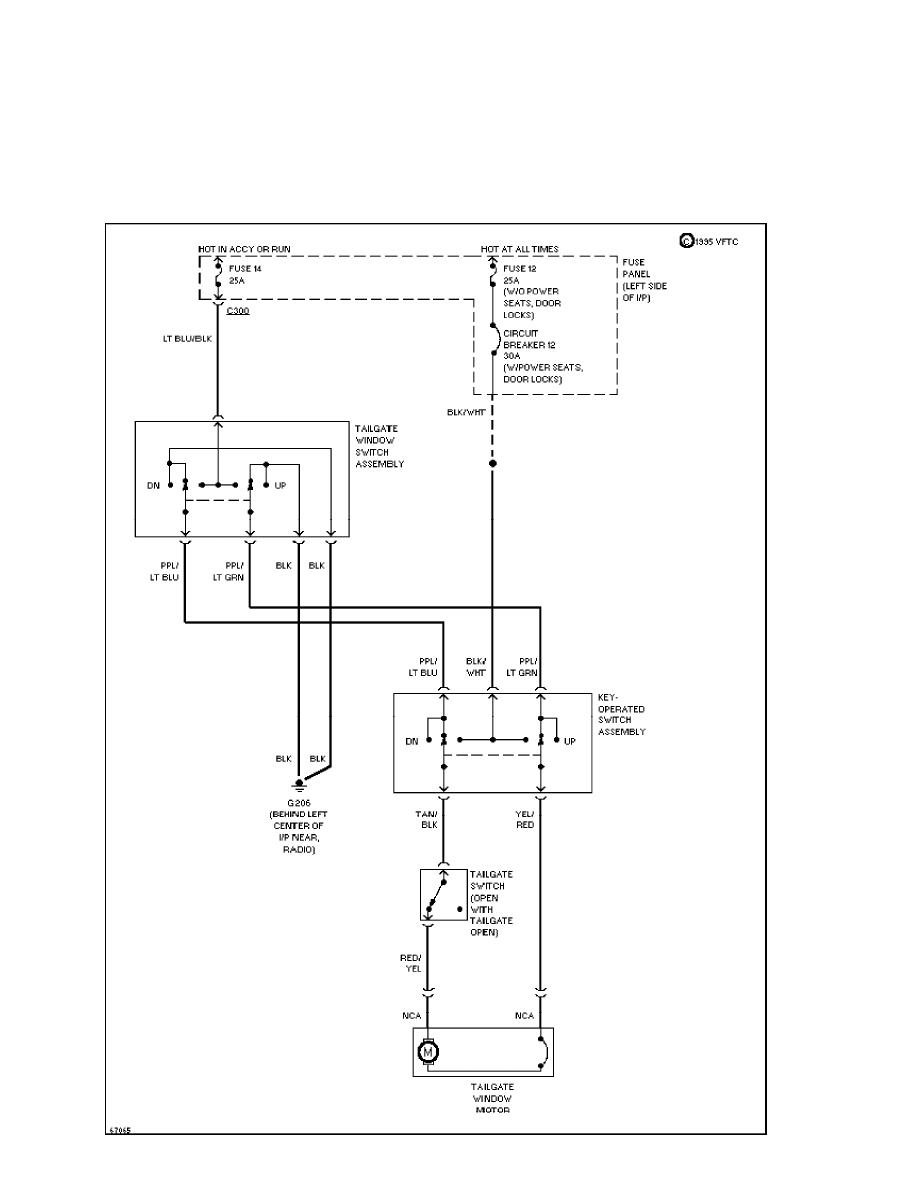

Tailgate Power Window Circuit (p. 10)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

SYSTEM WIRING DIAGRAMS

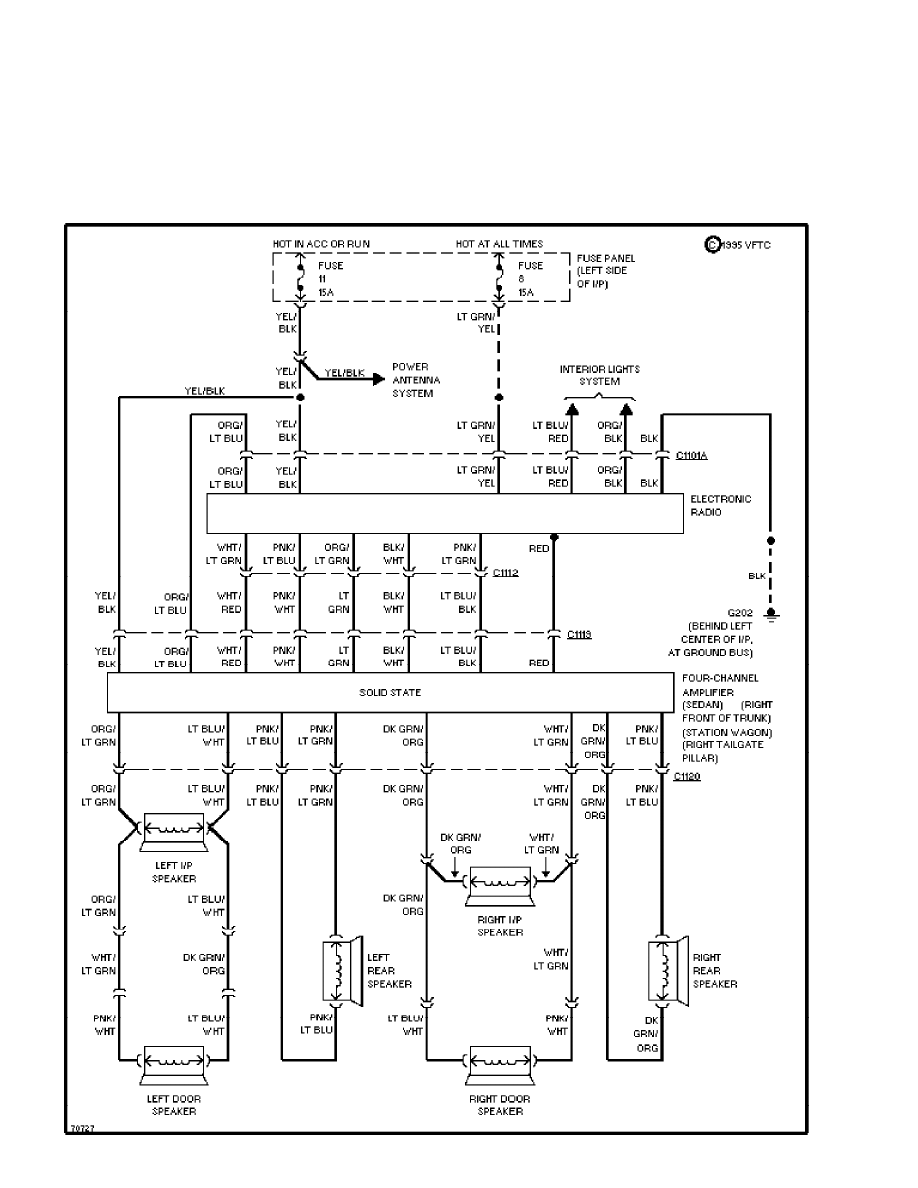

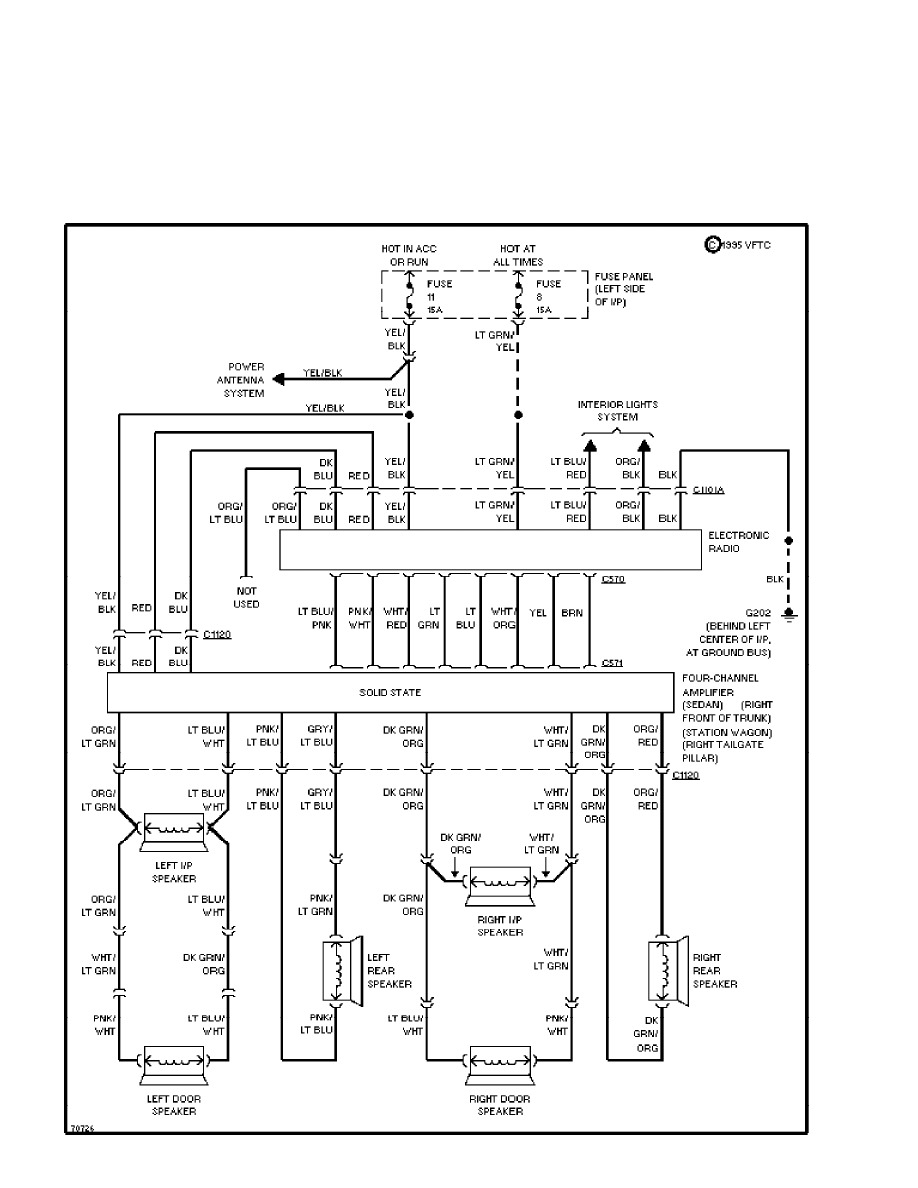

Premium Sound Radio Circuit, AAU (p. 11)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

SYSTEM WIRING DIAGRAMS

Premium Sound Radio Circuit, AAY (p. 12)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

SYSTEM WIRING DIAGRAMS

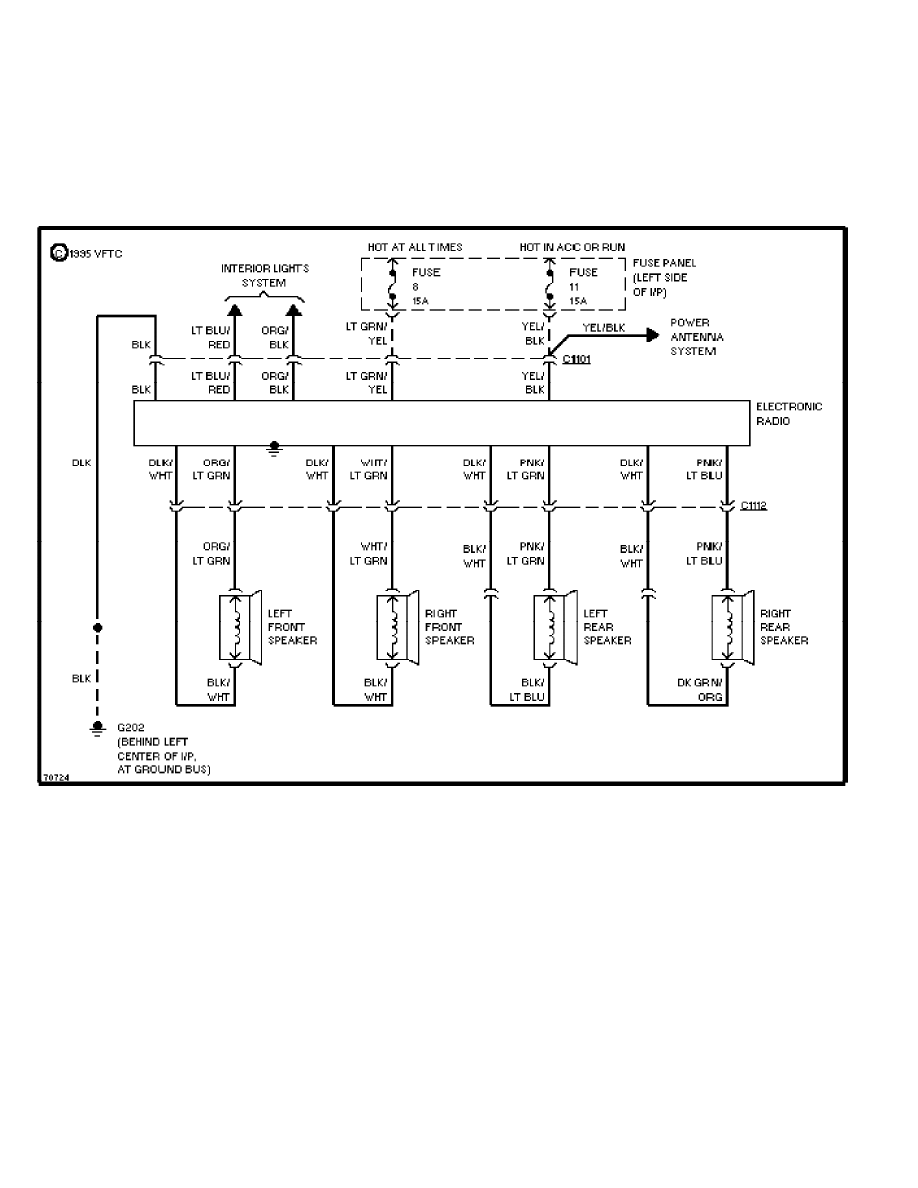

Stereo Radio/Tape Player Circuit (p. 13)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

SYSTEM WIRING DIAGRAMS

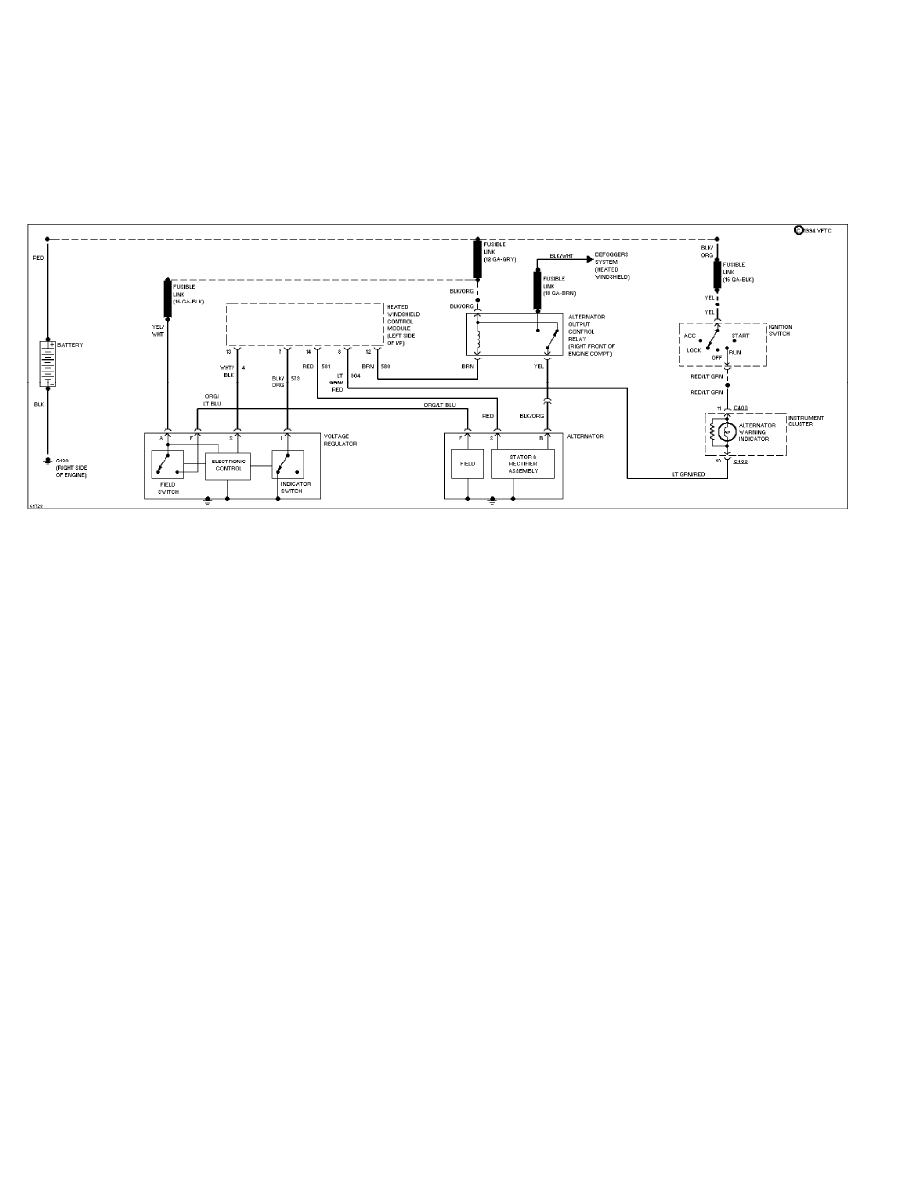

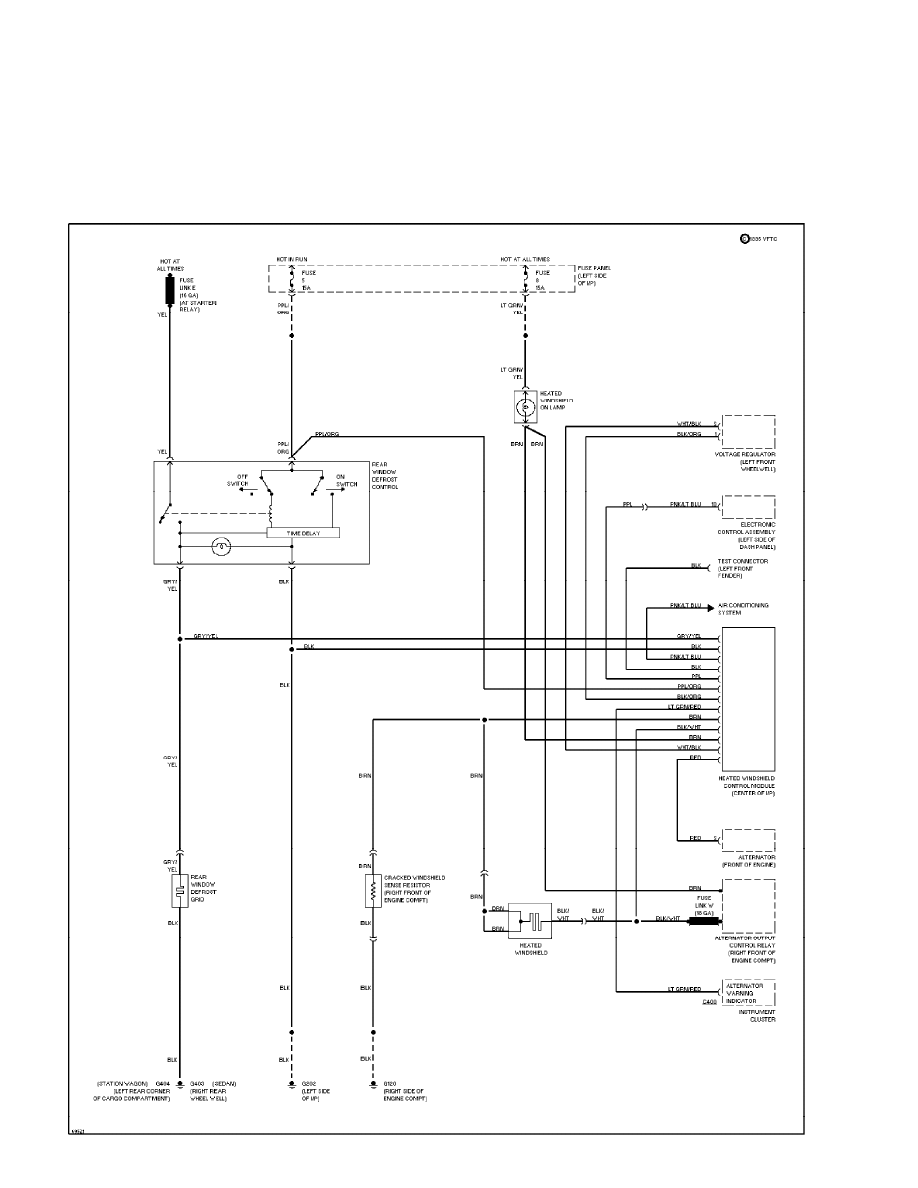

Charging Circuit, W/ Heated Windshield (p. 14)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

SYSTEM WIRING DIAGRAMS

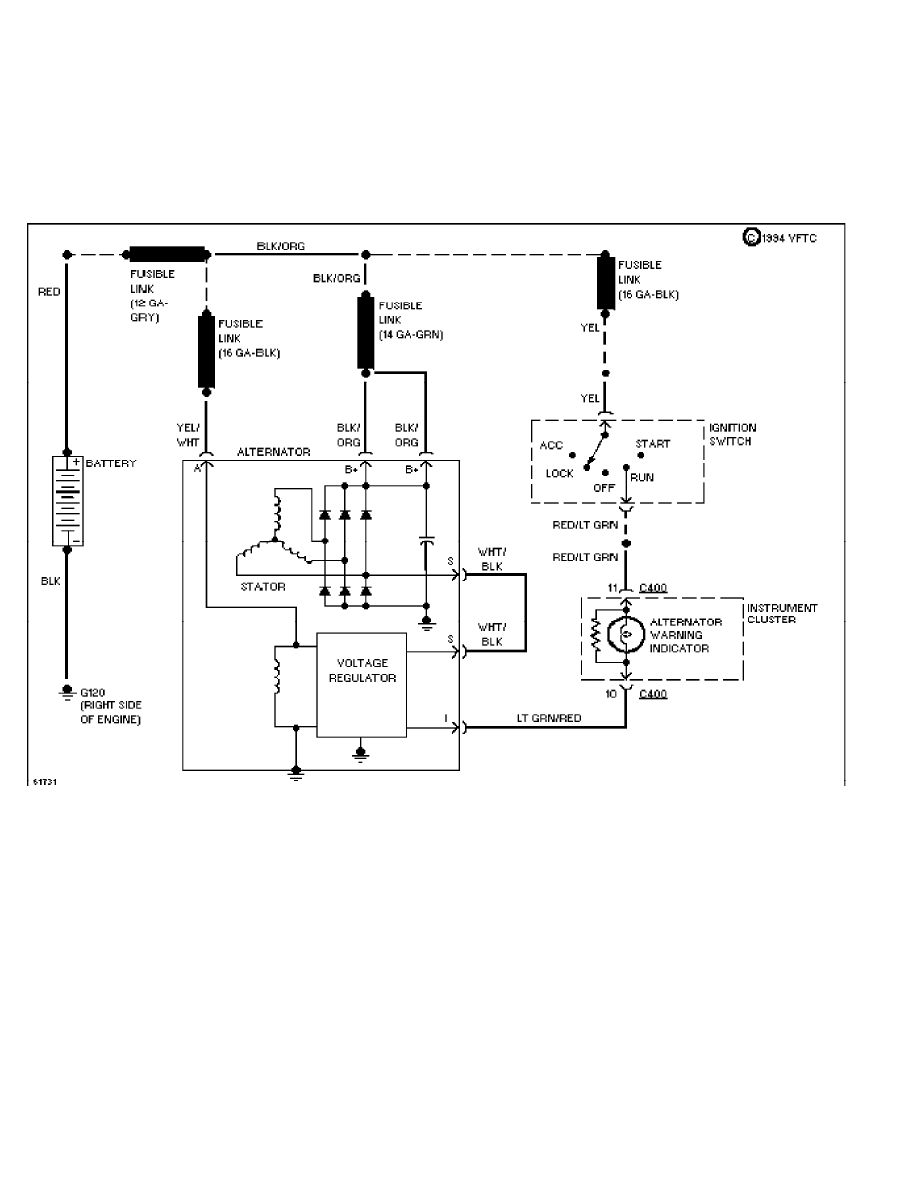

Charging Circuit, W/O Heated Windshield (p. 15)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

SYSTEM WIRING DIAGRAMS

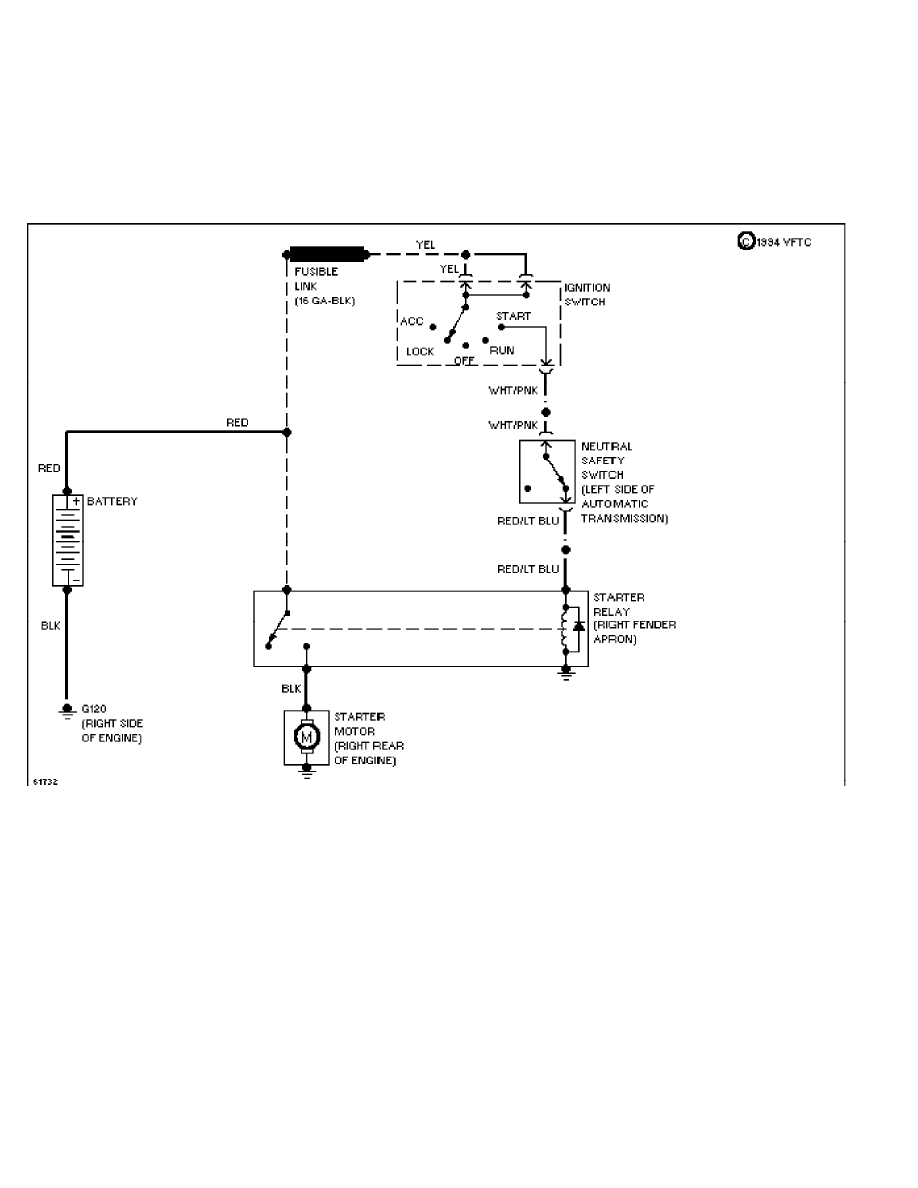

Starting Circuit (p. 16)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

SYSTEM WIRING DIAGRAMS

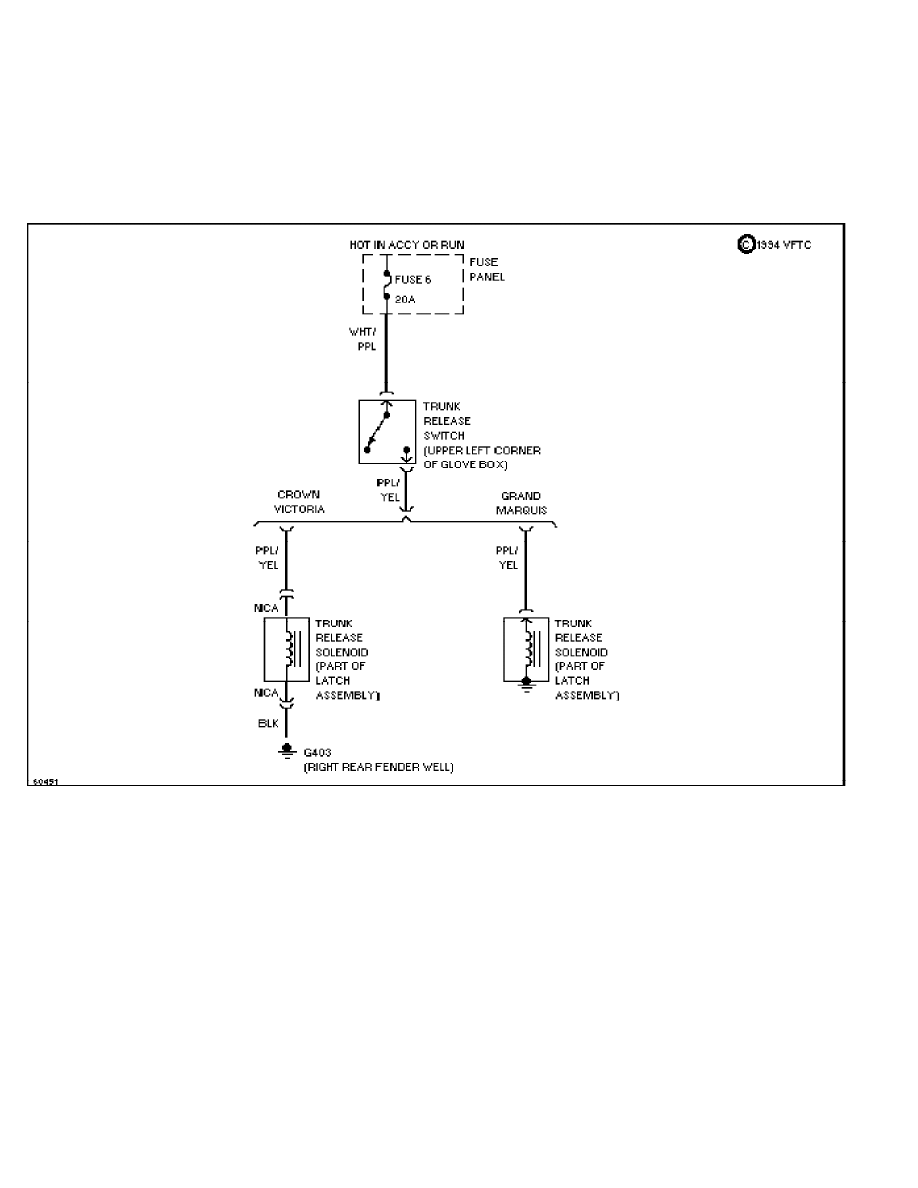

Trunk Release Circuit (p. 17)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

SYSTEM WIRING DIAGRAMS

2-Speed Wiper/Washer Circuit (p. 18)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

SYSTEM WIRING DIAGRAMS

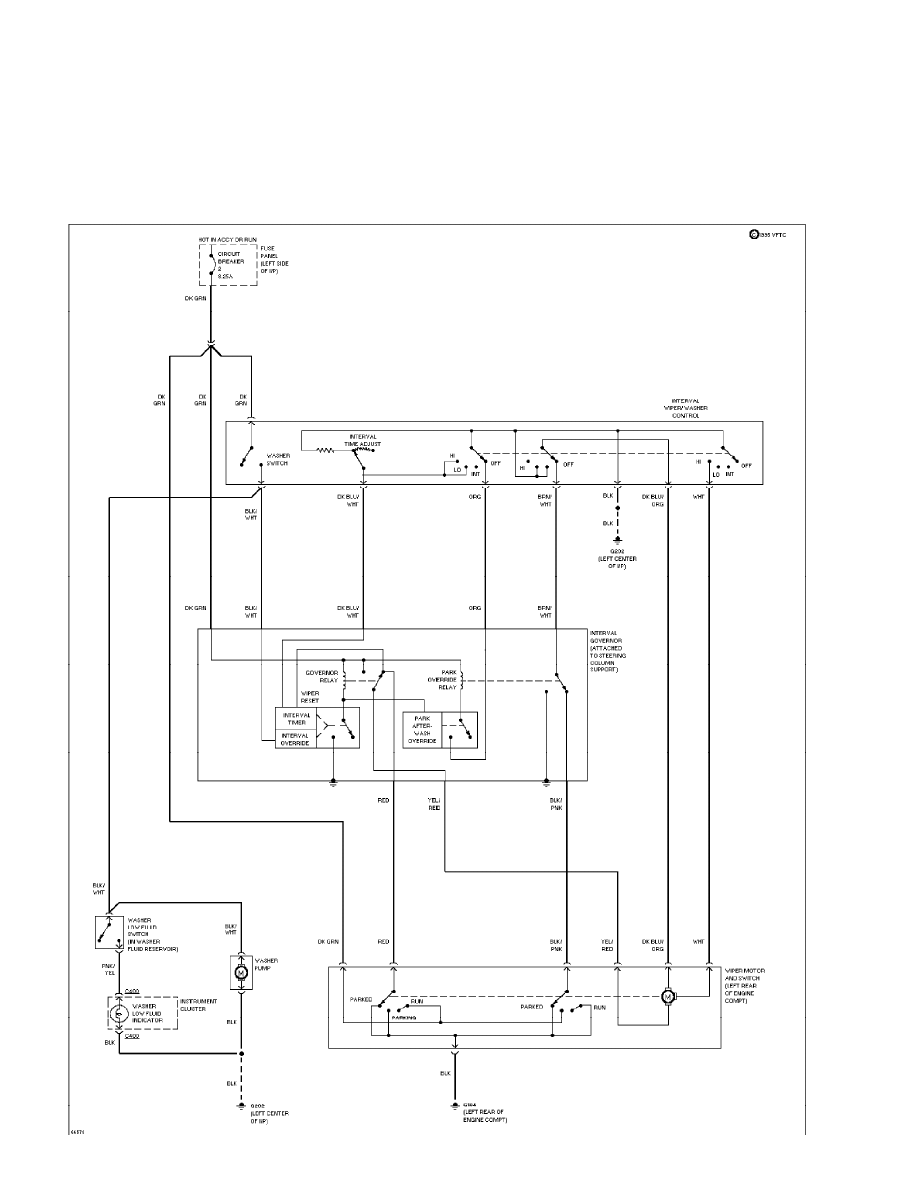

Interval Wiper/Washer Circuit (p. 19)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

WIRING DIAGRAMS

Fig. 1: Engine Compartment & Headlights

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

WIRING DIAGRAMS

Fig. 2: Computer Engine Control (MPFI) (p. 2)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

WIRING DIAGRAMS

Fig. 3: Computer Engine Control (Carbureted) (p. 3)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

WIRING DIAGRAMS

Fig. 4: Fuse Block (p. 4)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

WIRING DIAGRAMS

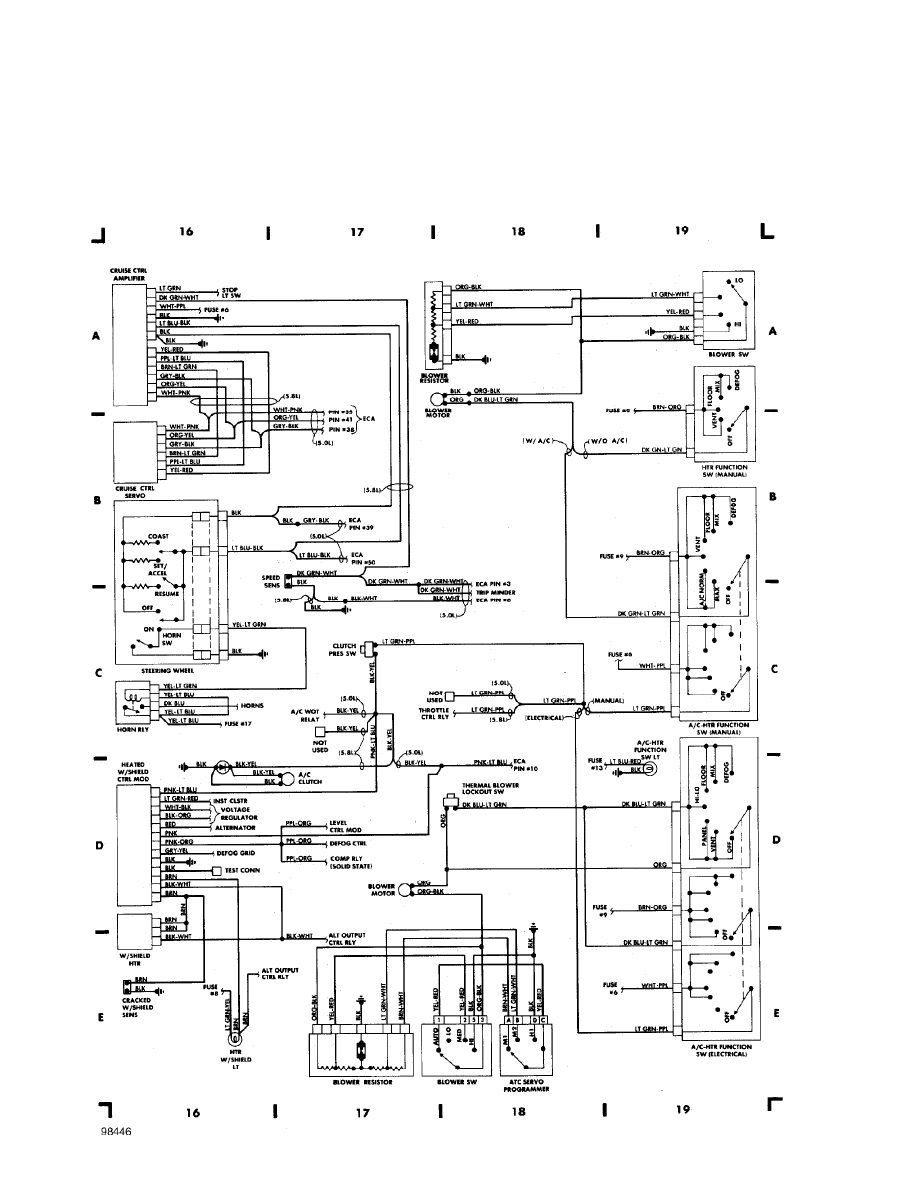

Fig. 5: A/C Heating System & Cruise Control (p. 5)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

WIRING DIAGRAMS

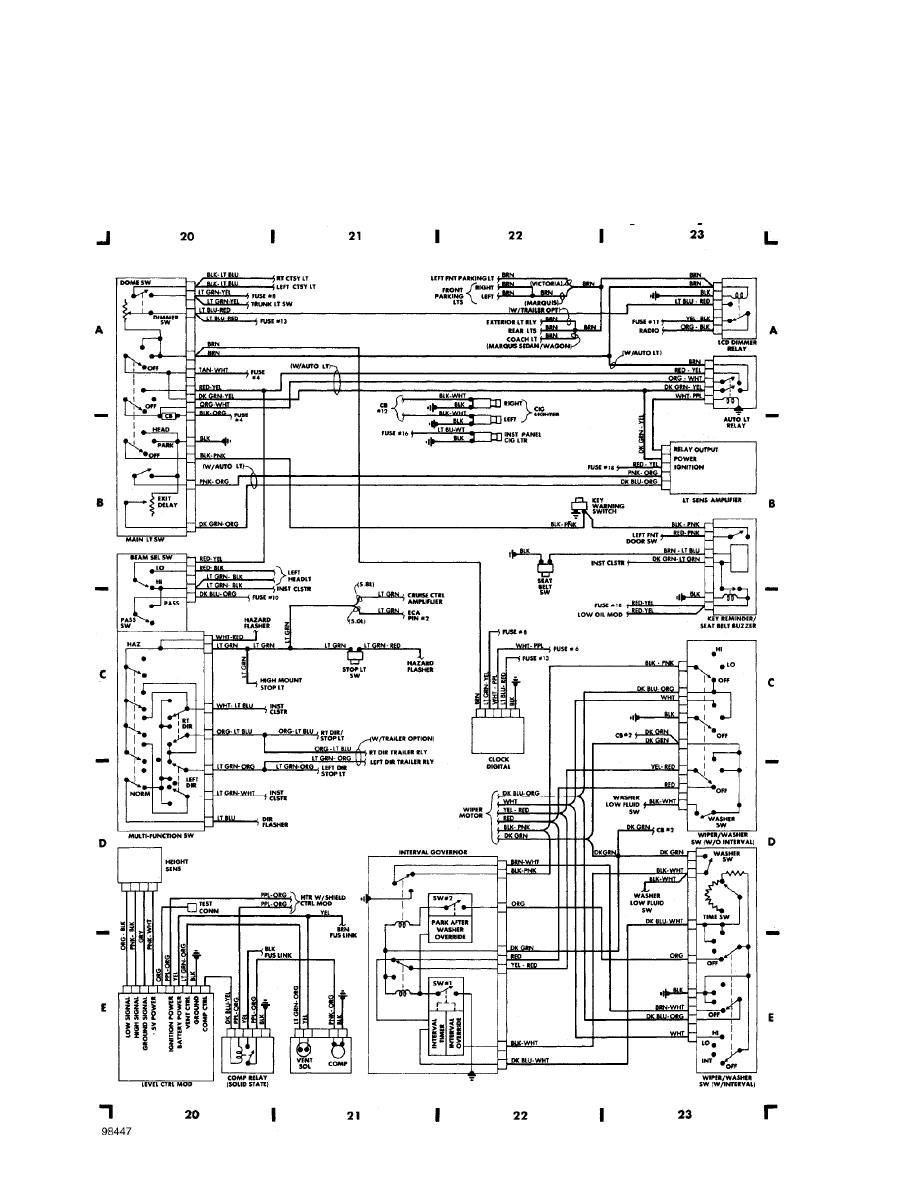

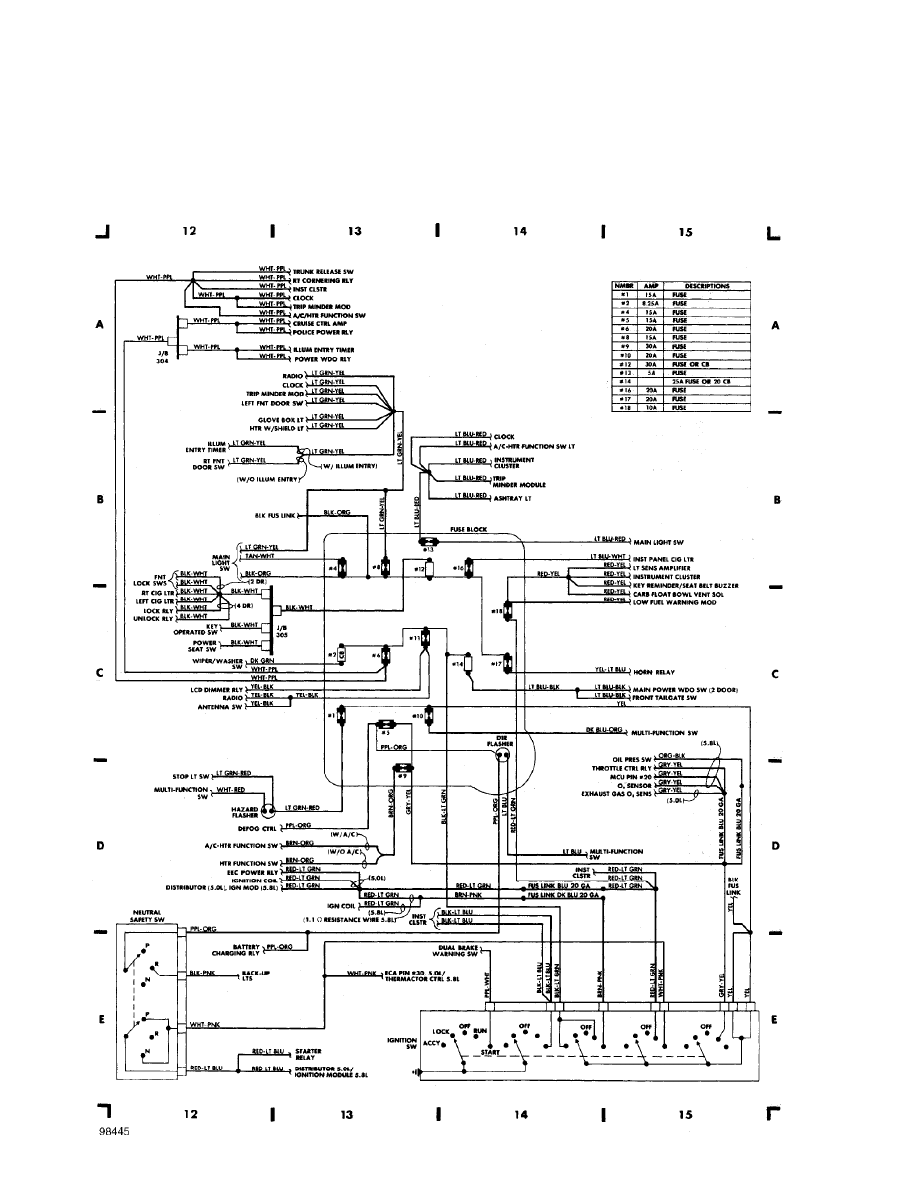

Fig. 6: Instrument Panel (p. 6)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

WIRING DIAGRAMS

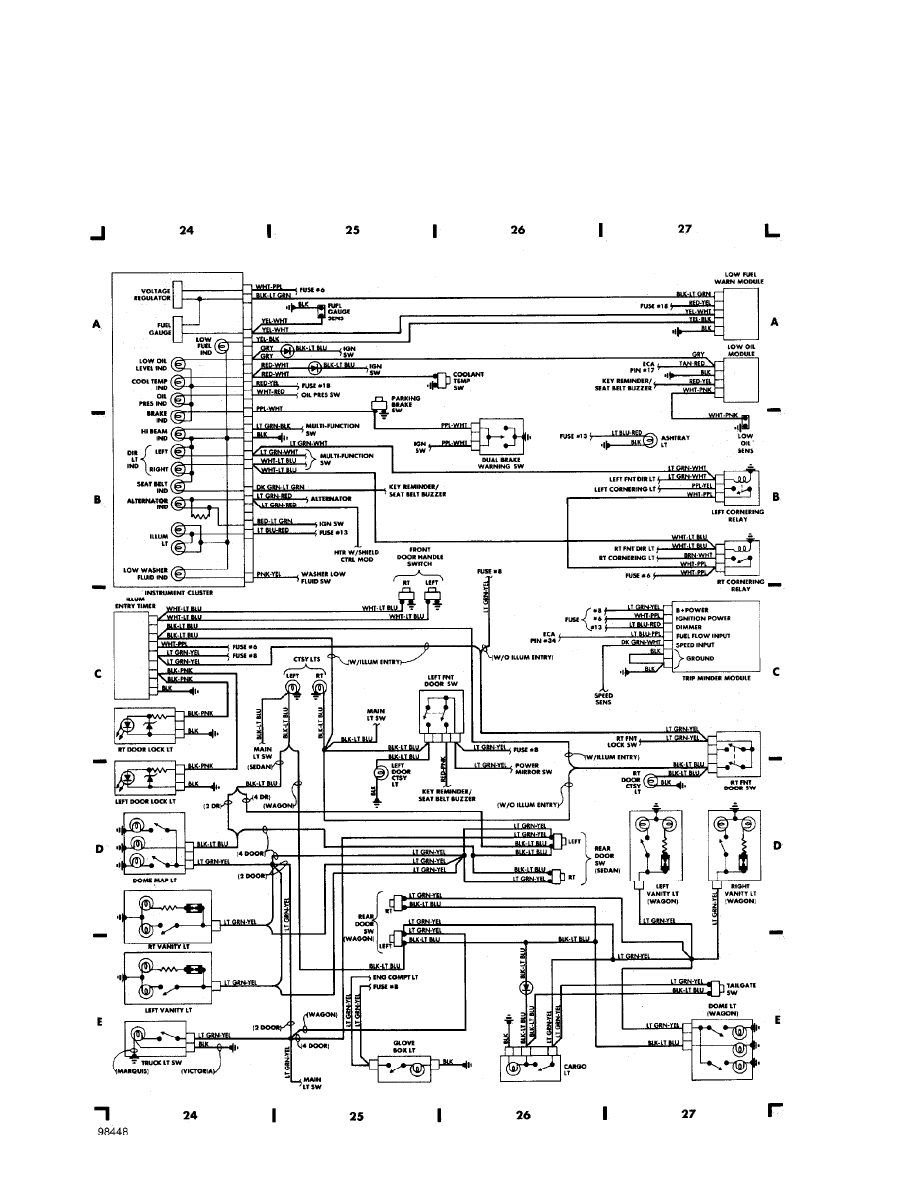

Fig. 7: Passenger Compartment (p. 7)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

WIRING DIAGRAMS

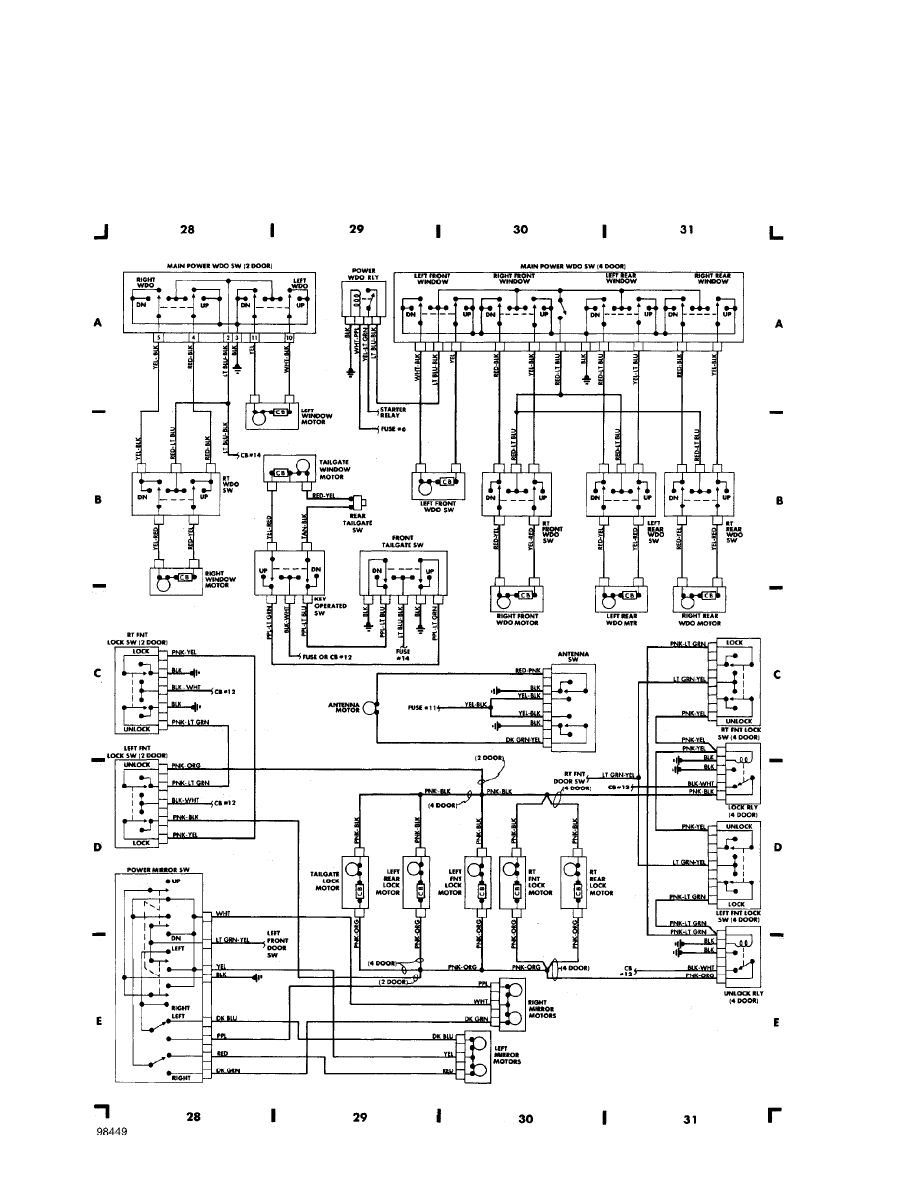

Fig. 8: Electric Door Locks & Window Control (p. 8)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

WIRING DIAGRAMS

Fig. 9: Electric Seat, Rear Defogger & Trailer Lights System (p. 9)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM

WIRING DIAGRAMS

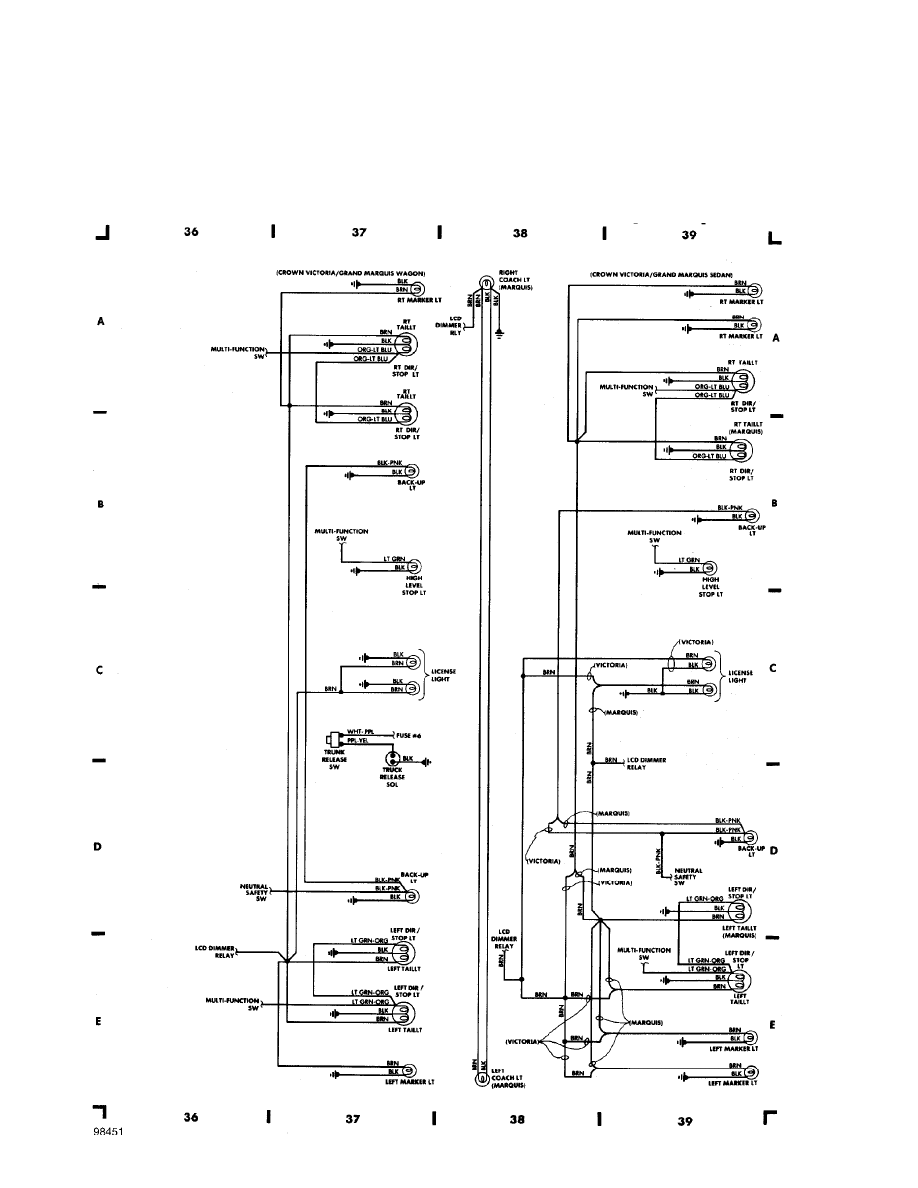

Fig. 10: Taillights (p. 10)

1988 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:28PM
