SYSTEM WIRING DIAGRAMS

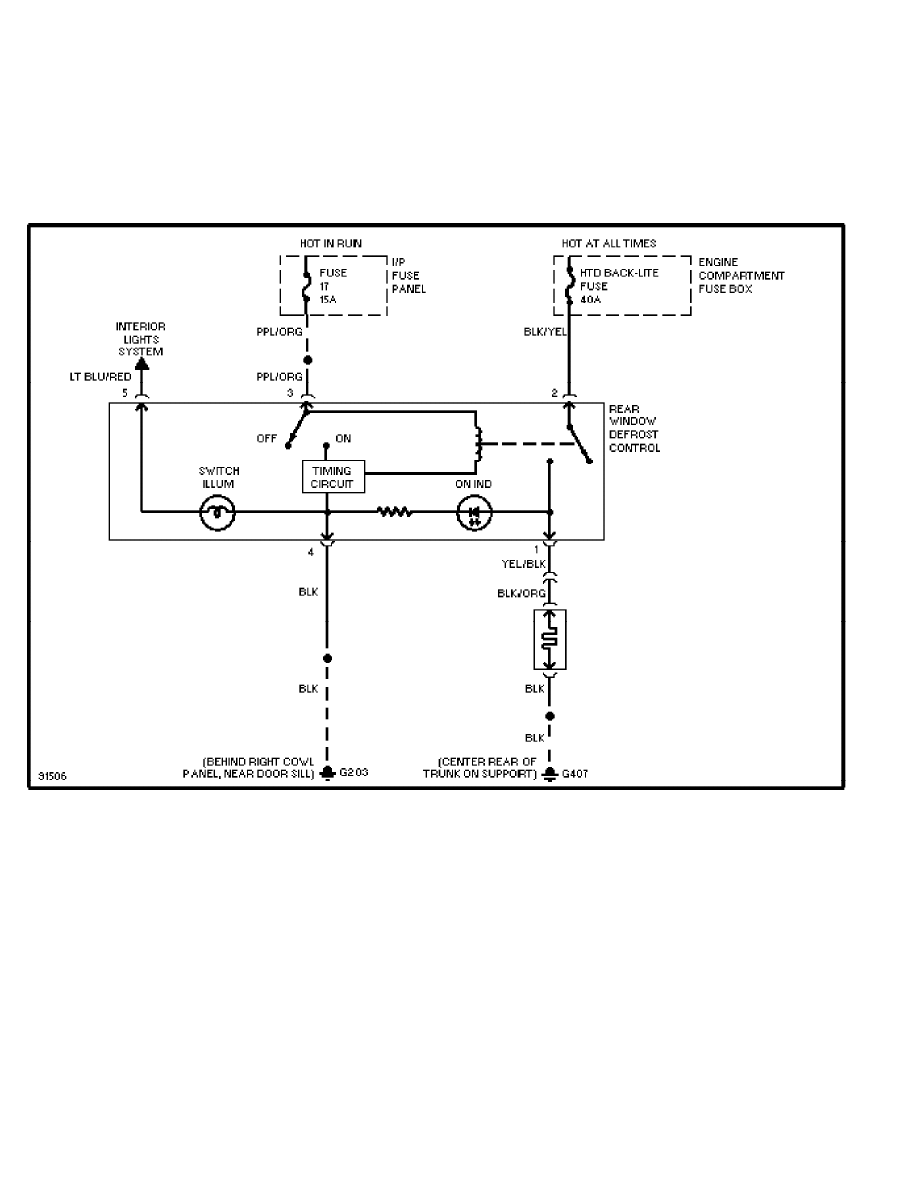

Defogger Circuit
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
SYSTEM WIRING DIAGRAMS

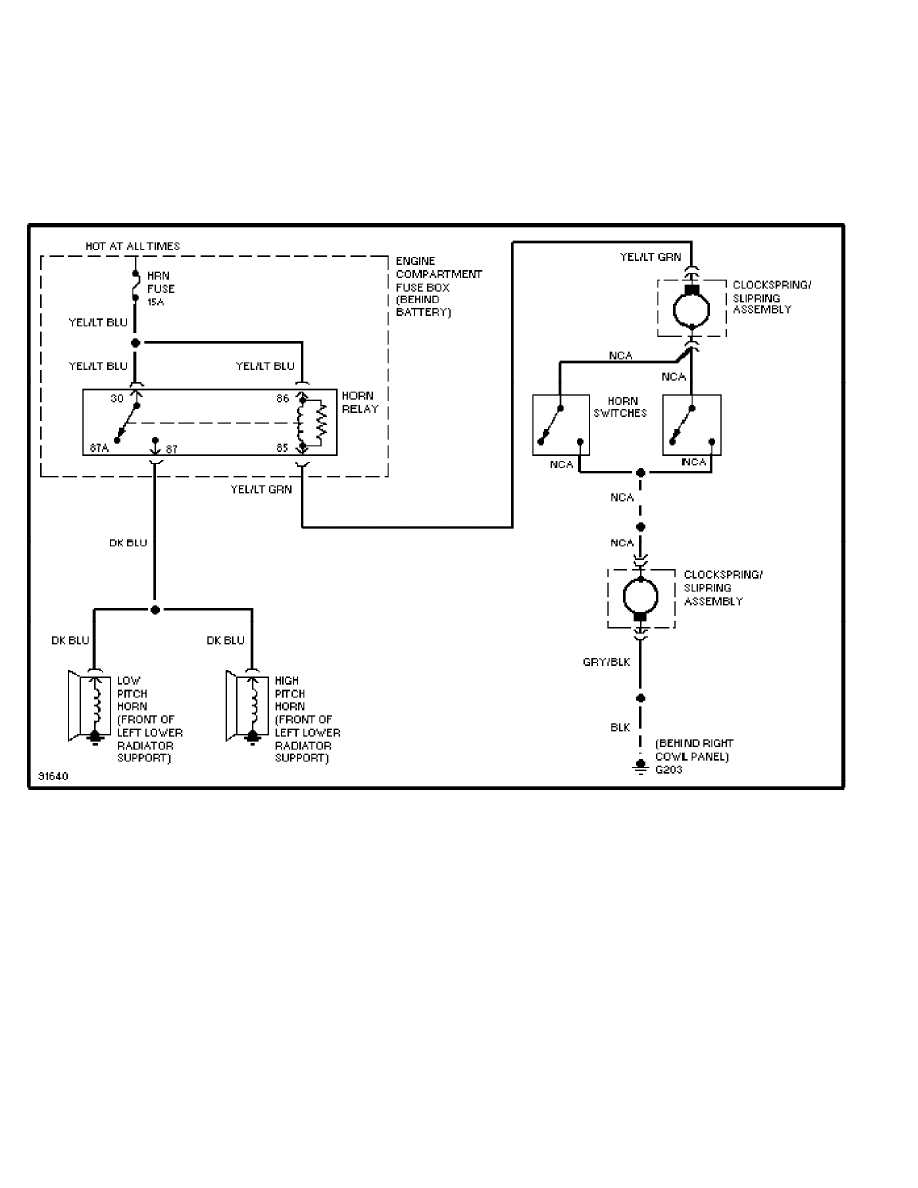

Horn Circuit (p. 2)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
SYSTEM WIRING DIAGRAMS

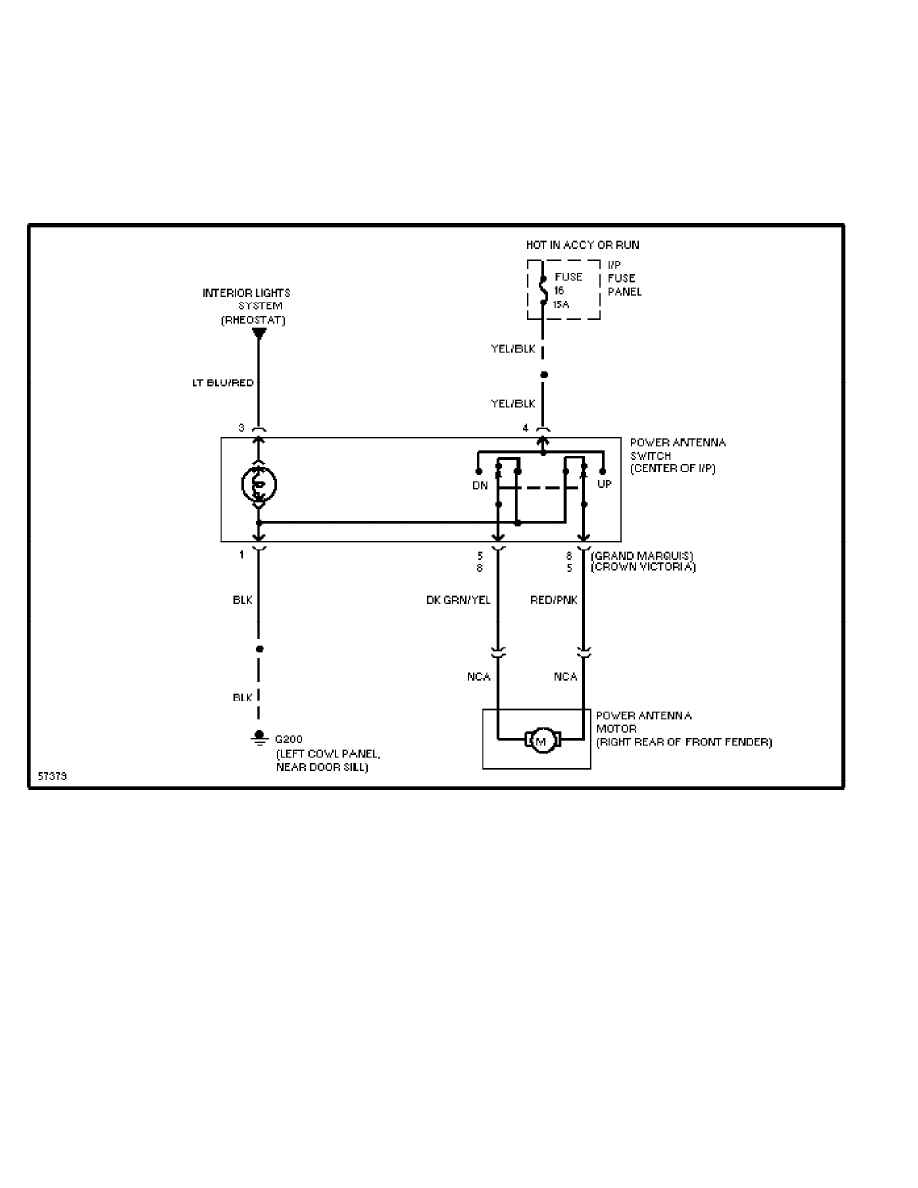

Power Antenna Circuit (p. 3)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
SYSTEM WIRING DIAGRAMS

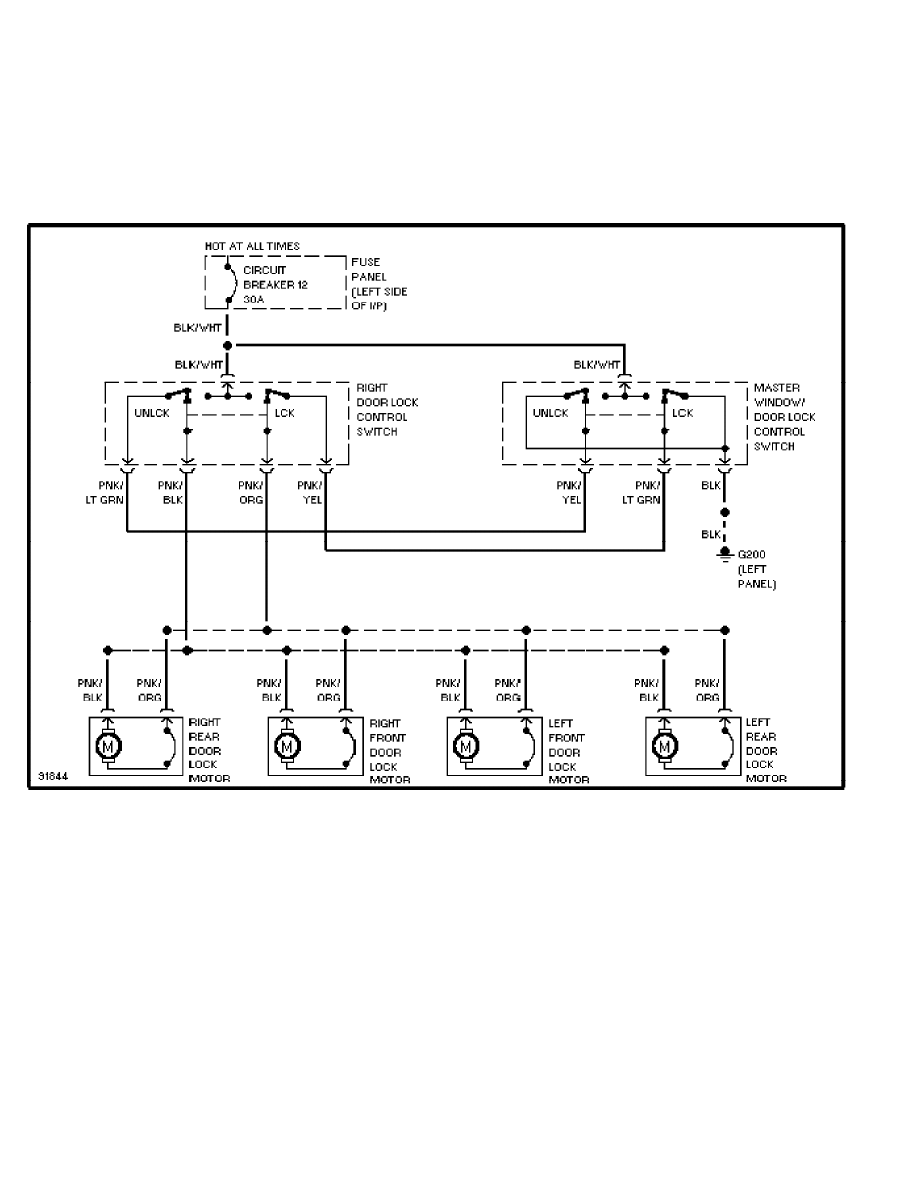

Door Lock Circuit (p. 4)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
SYSTEM WIRING DIAGRAMS

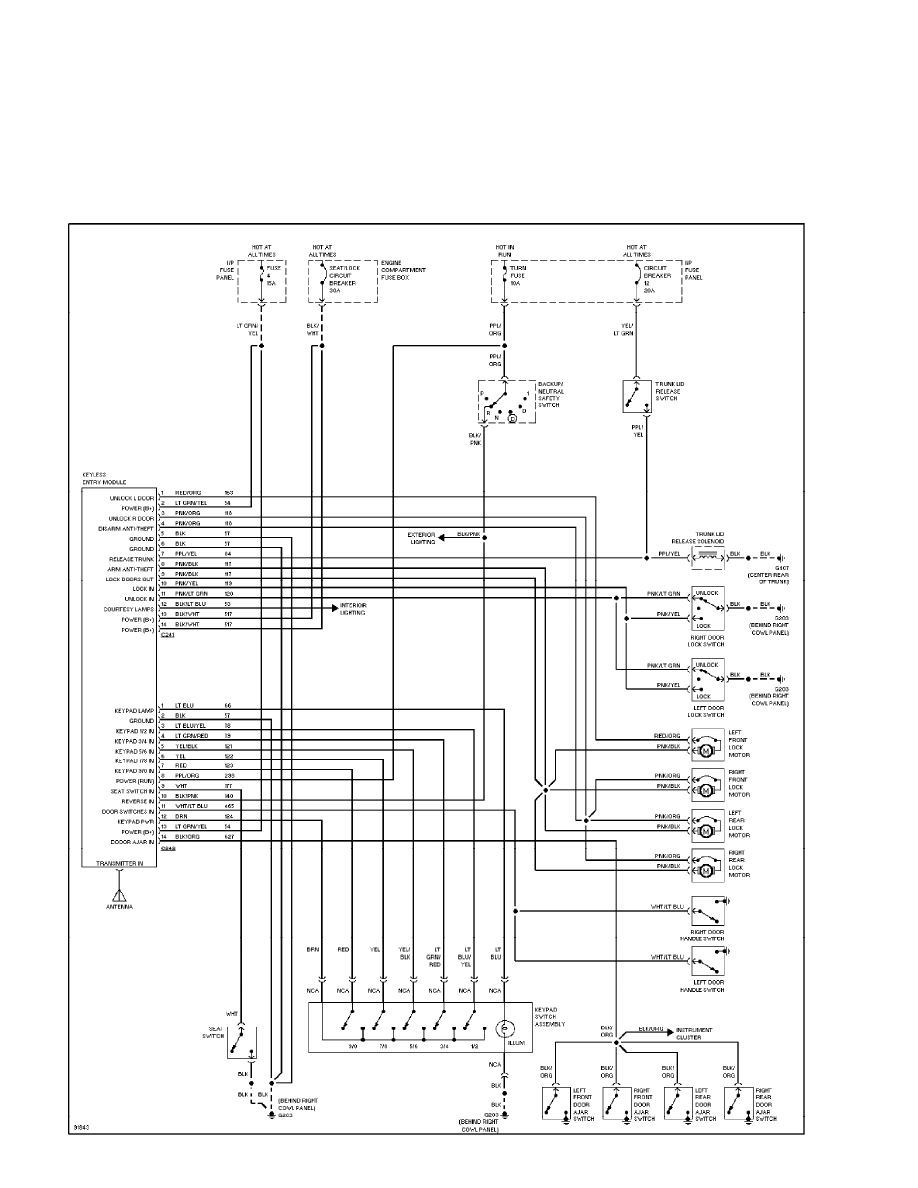

Keyless Entry Circuit (p. 5)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
SYSTEM WIRING DIAGRAMS

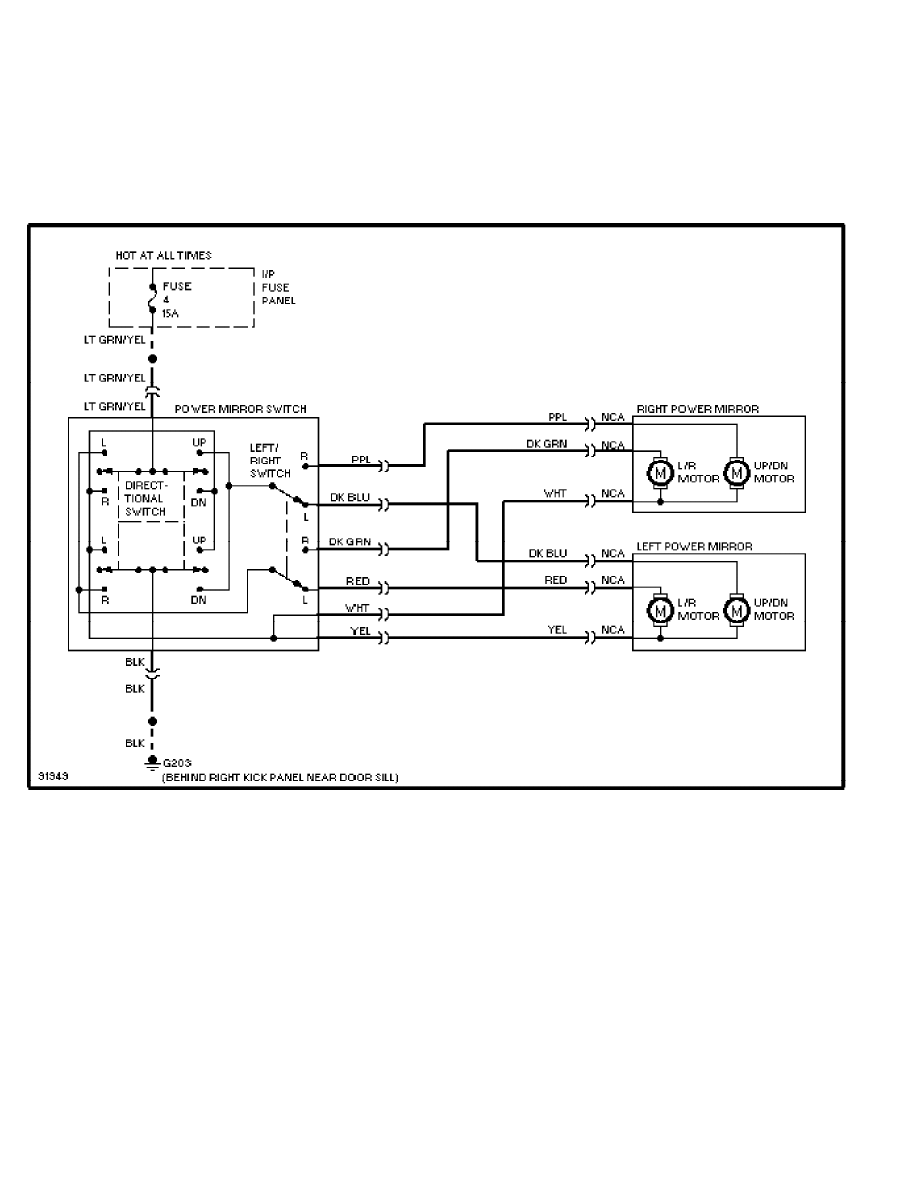

Power Mirrors Circuit (p. 6)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
SYSTEM WIRING DIAGRAMS

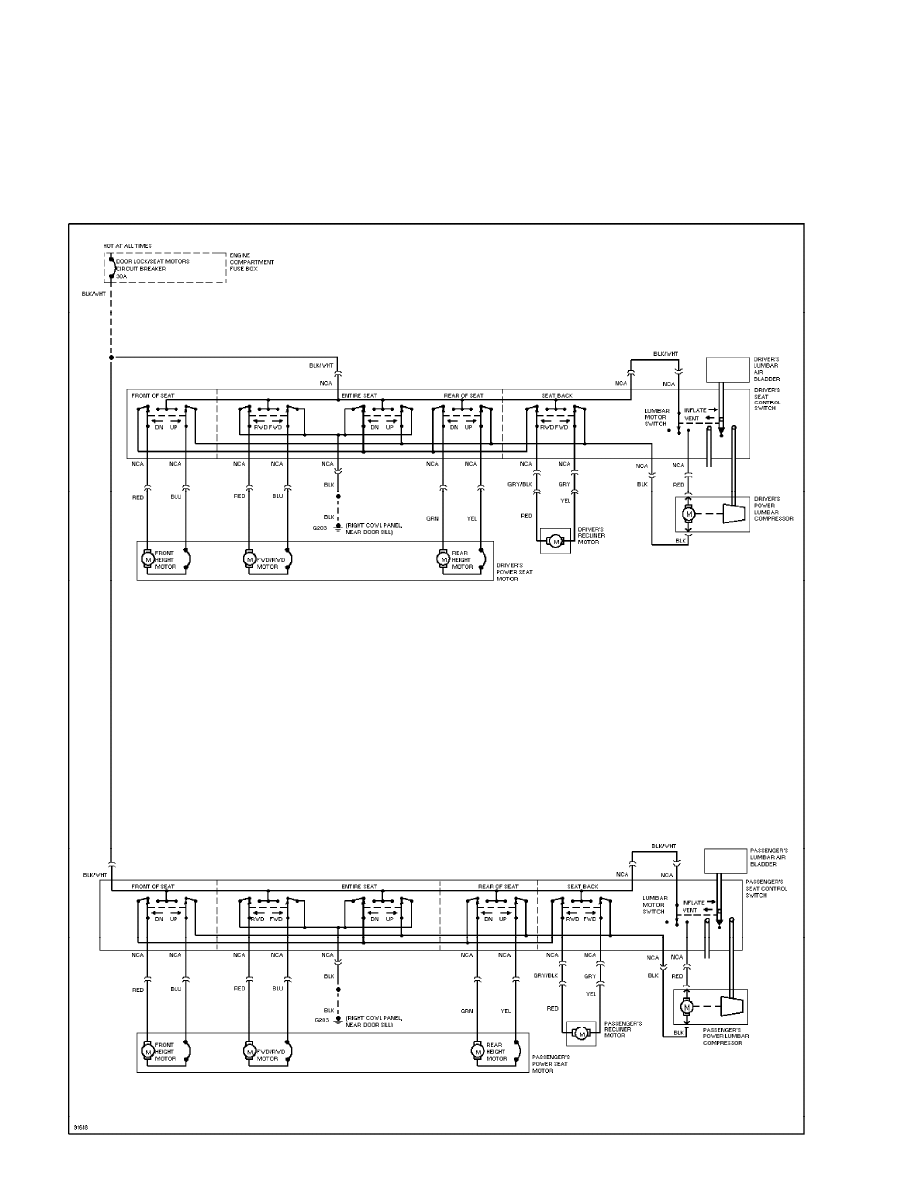

Power Seat Circuit, W/ Power Lumbar/Reclining Seats (p. 7)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
SYSTEM WIRING DIAGRAMS

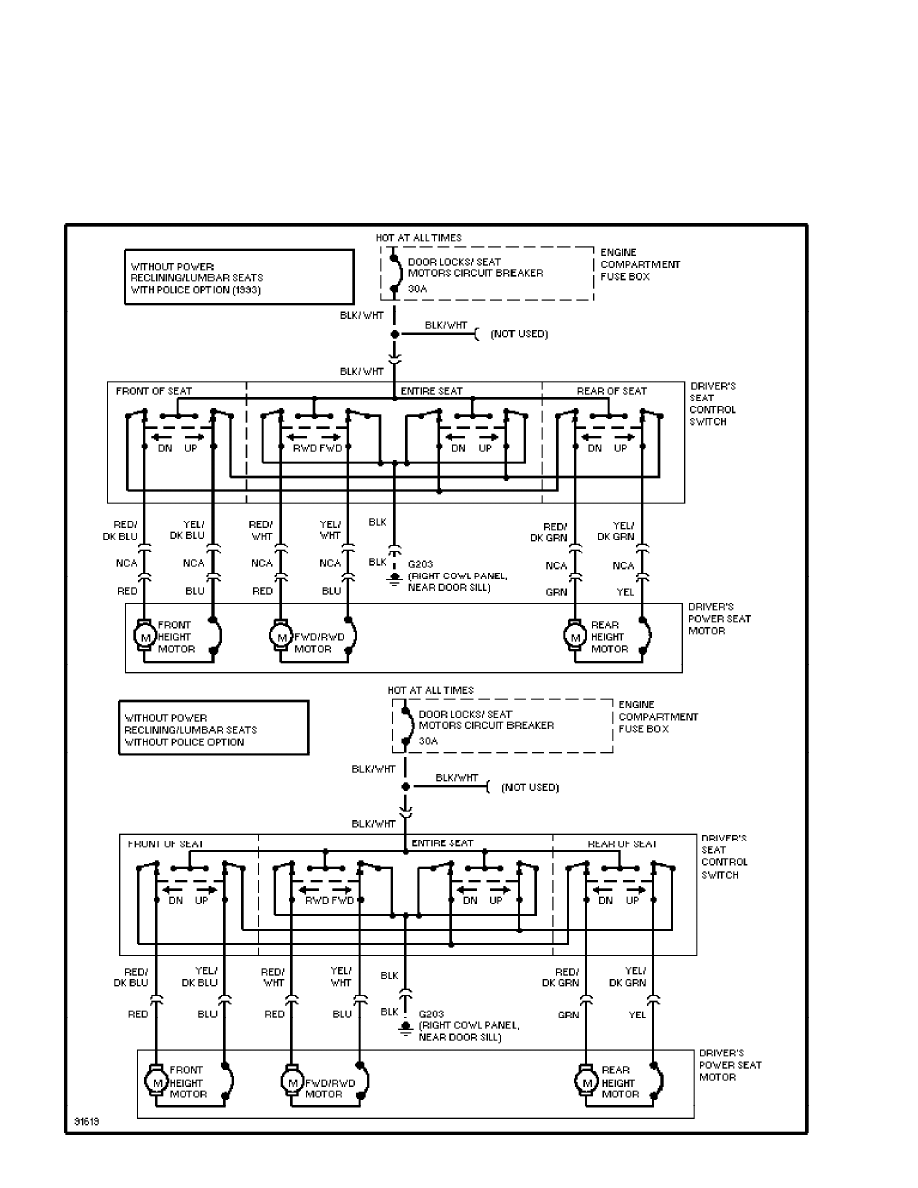

Power Seat Circuit, W/O Power Lumbar/Reclining Seats (p. 8)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
SYSTEM WIRING DIAGRAMS

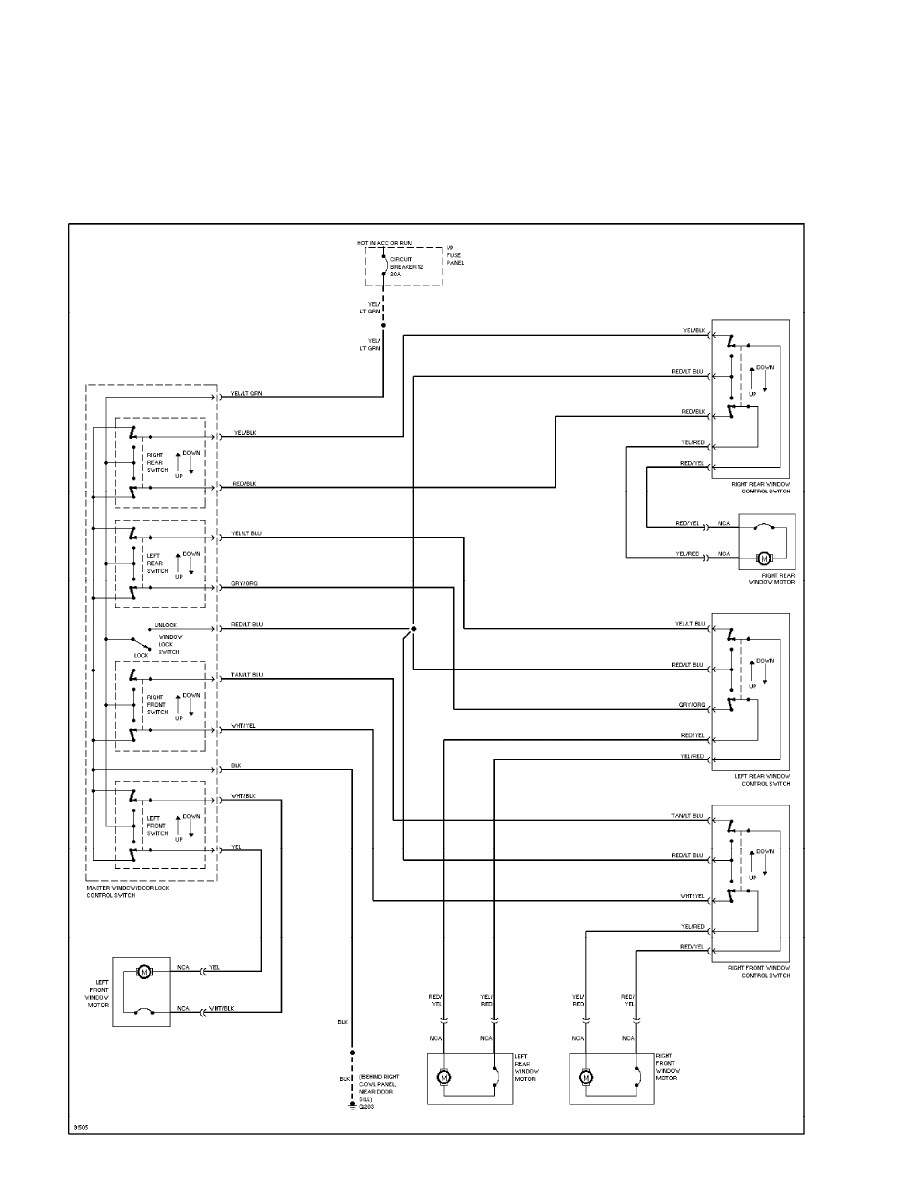

Power Window Circuit (p. 9)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
SYSTEM WIRING DIAGRAMS

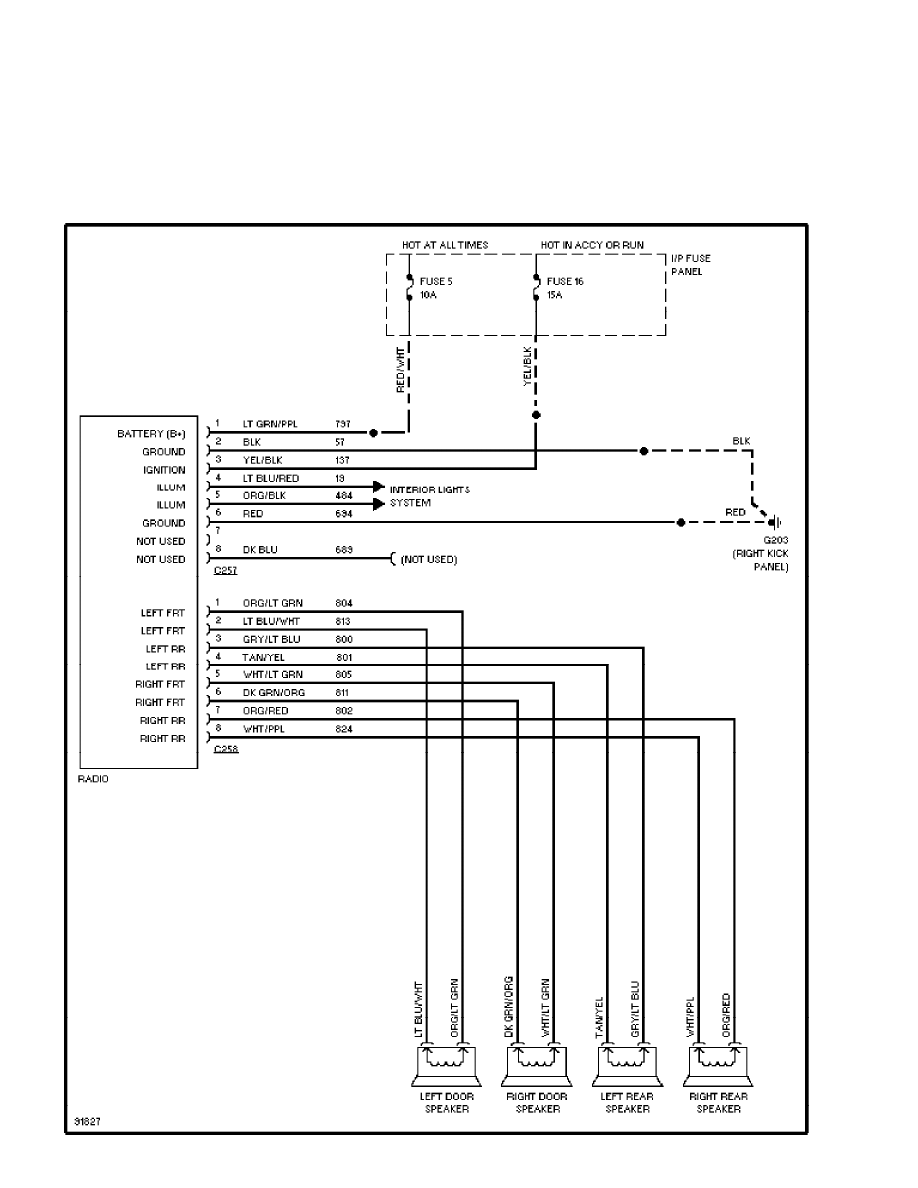

Radio Circuits (1 of 2) (p. 10)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
SYSTEM WIRING DIAGRAMS

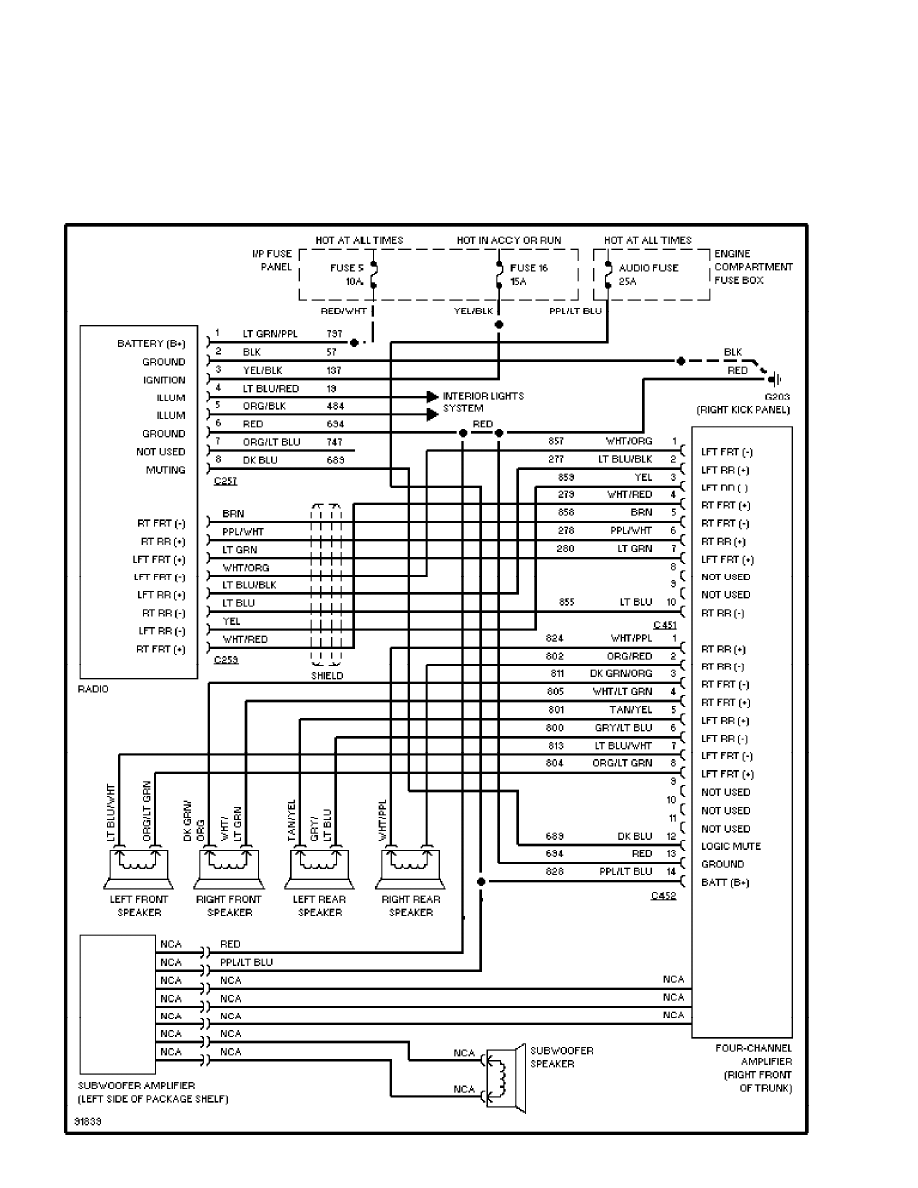

Radio Circuits, JBL System (p. 11)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
SYSTEM WIRING DIAGRAMS

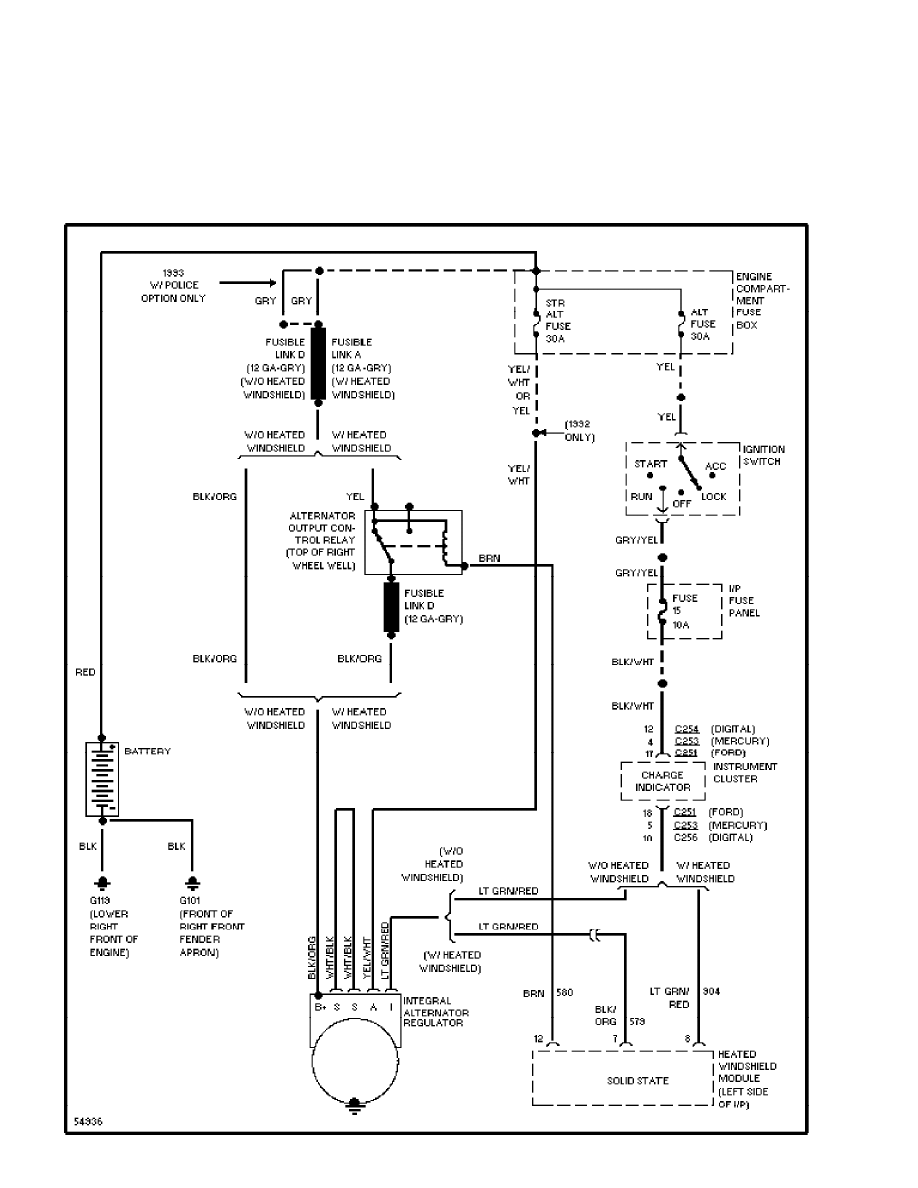

Charging Circuit (p. 12)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
SYSTEM WIRING DIAGRAMS

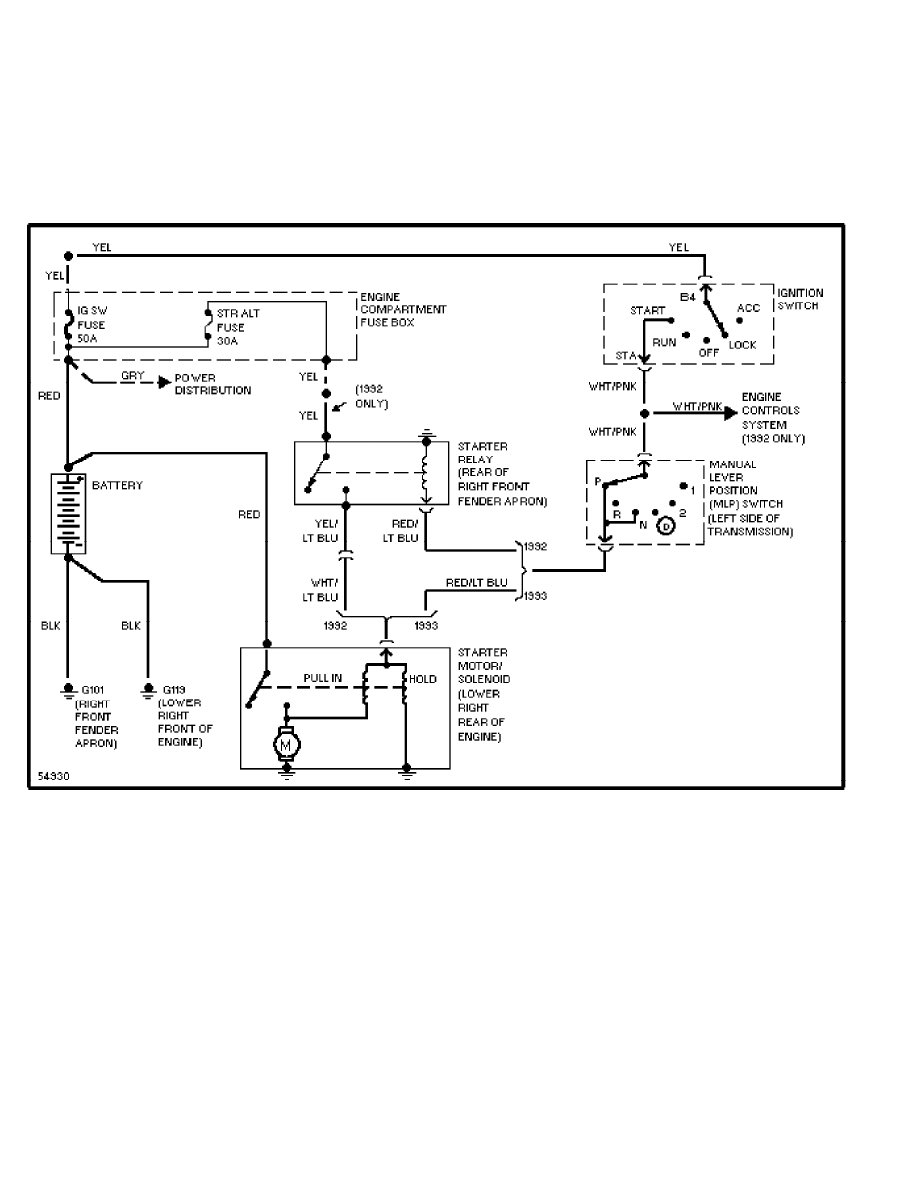

Starting Circuit (p. 13)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
SYSTEM WIRING DIAGRAMS

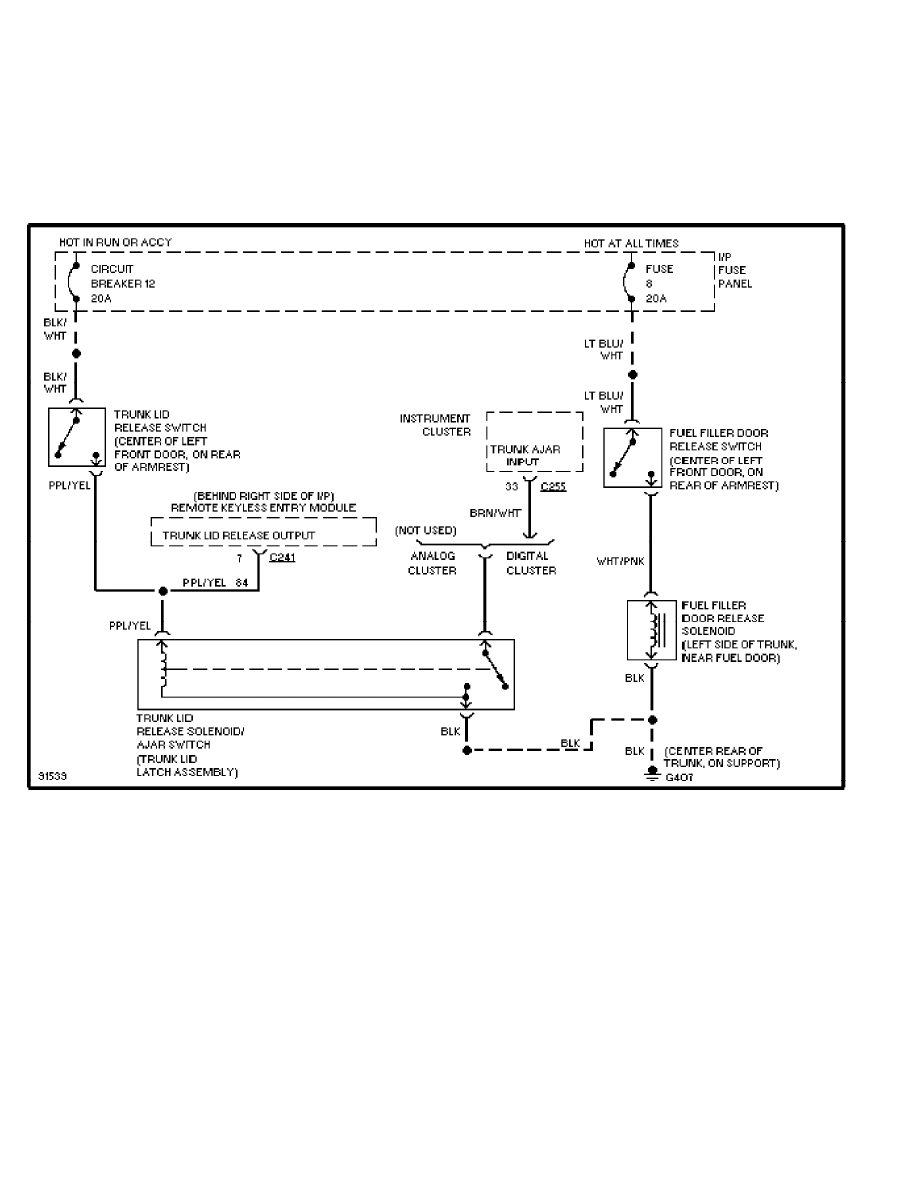

Trunk & Fuel Door Release Circuit (p. 14)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
SYSTEM WIRING DIAGRAMS

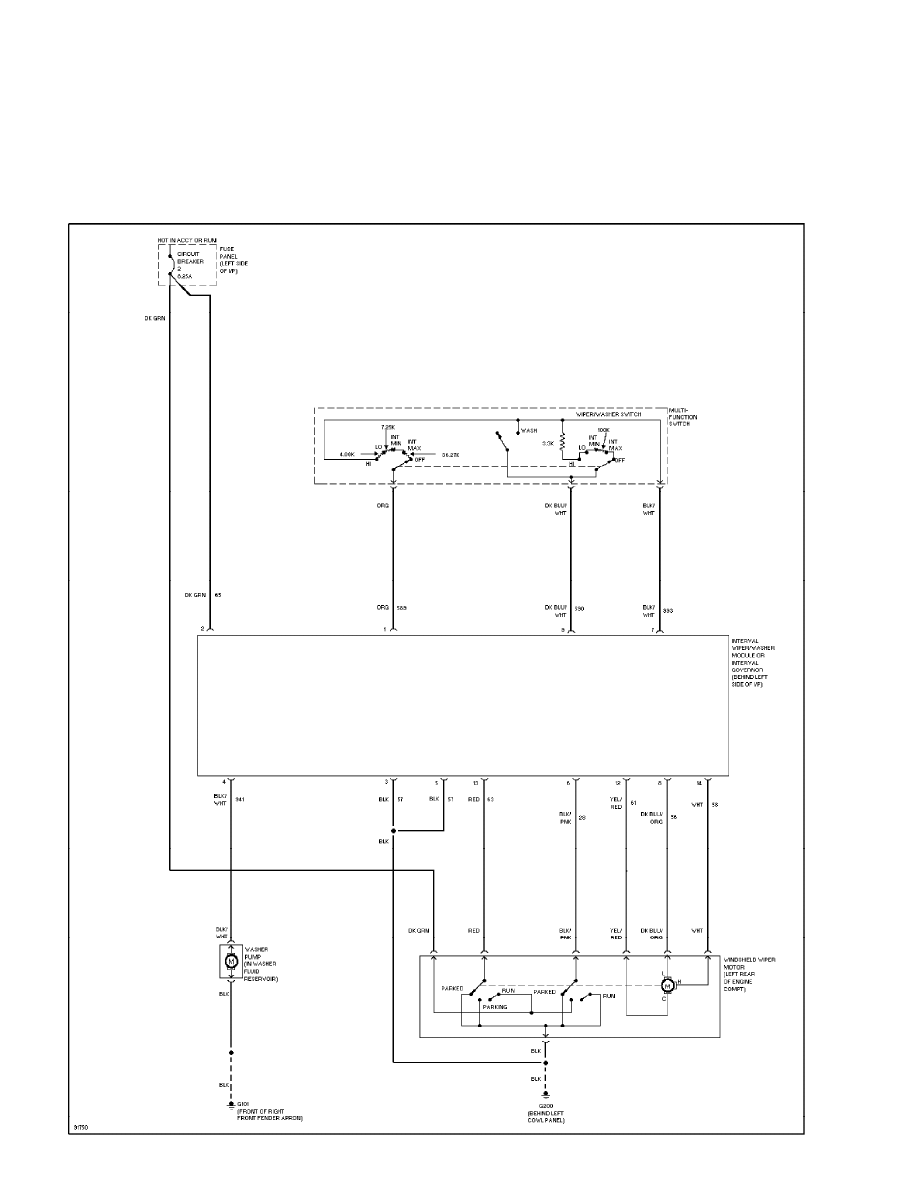

Wiper/Washer Circuit (p. 15)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
WIRING DIAGRAMS

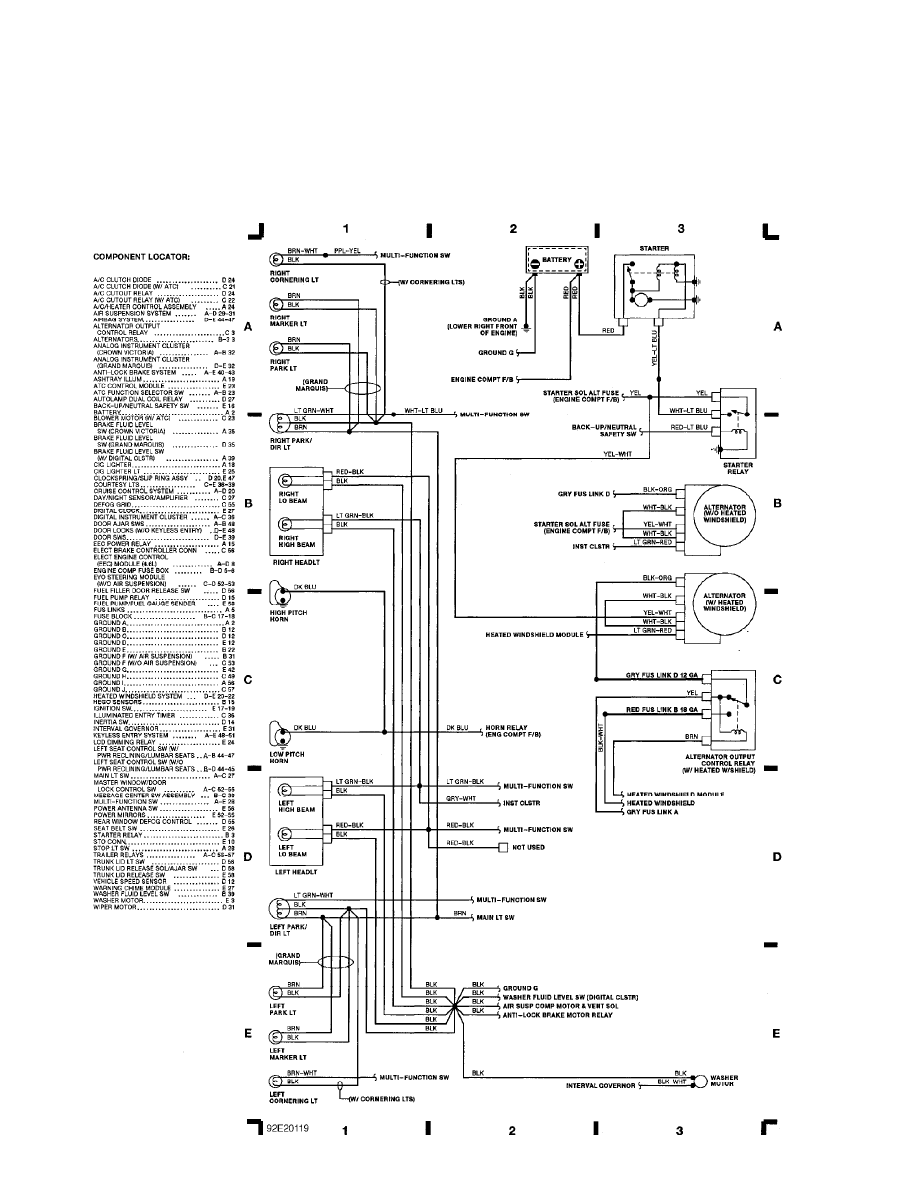

Fig. 1: Engine Compartment & Headlights (Grid 1-3)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
WIRING DIAGRAMS

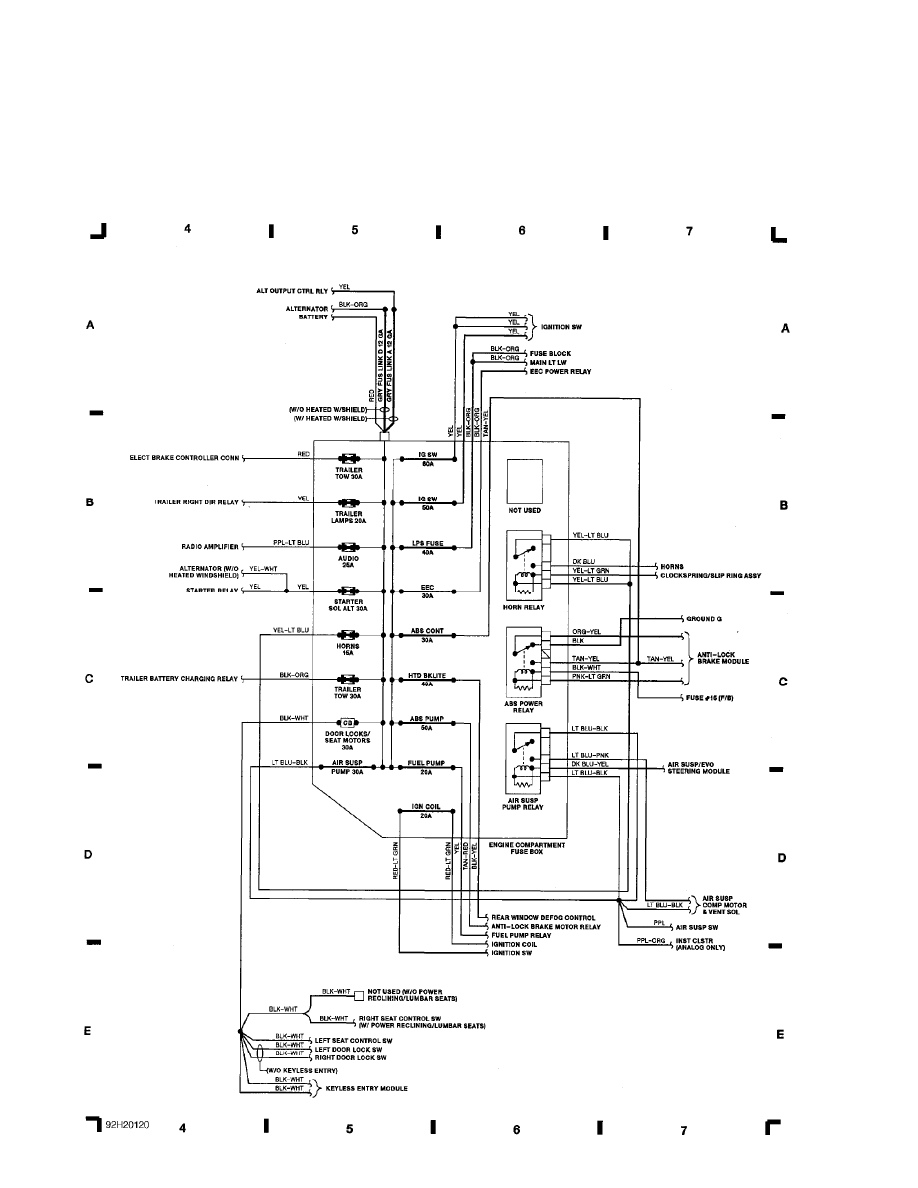

Fig. 2: Engine Compartment Fuse Box (Grid 4-7) (p. 2)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
WIRING DIAGRAMS

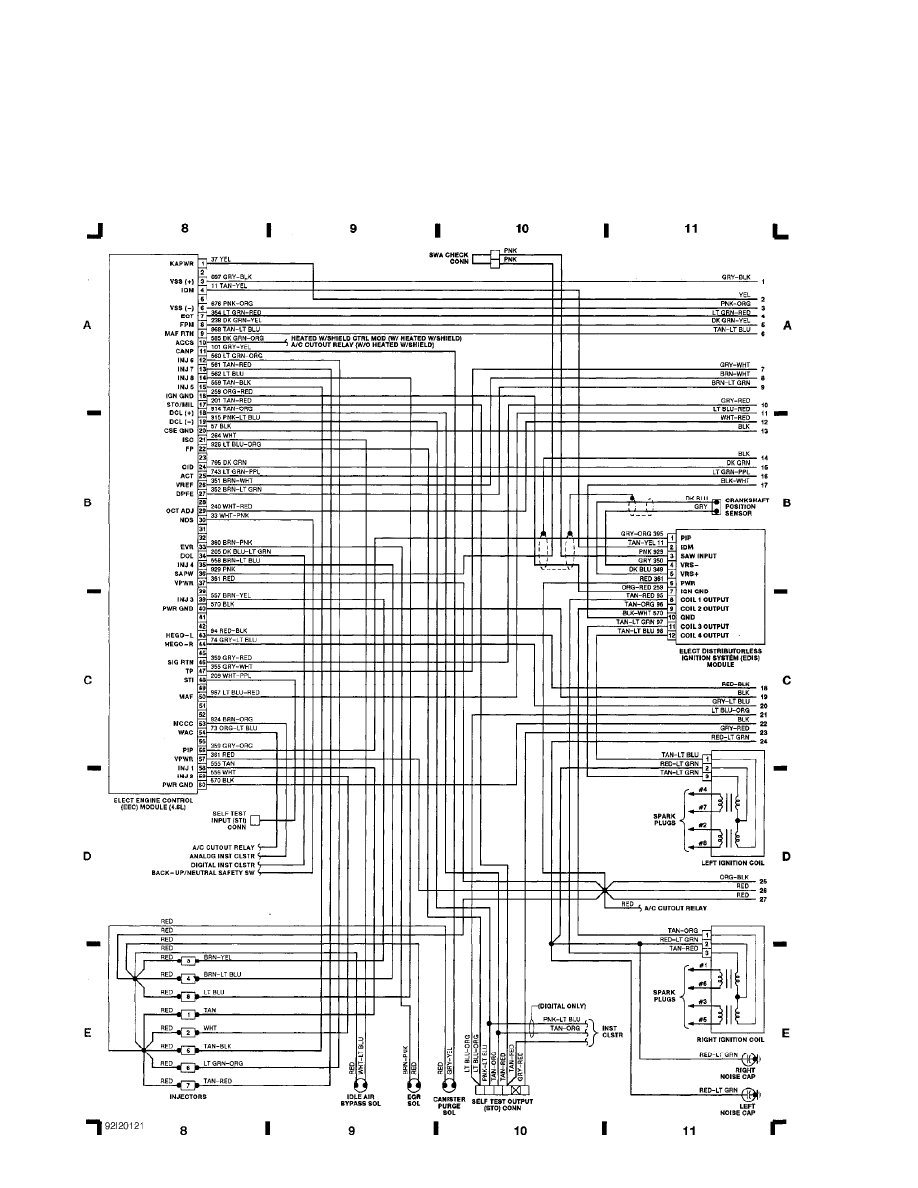

Fig. 3: Electronic Engine Control (EEC) (Grid 8-11) (p. 3)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
WIRING DIAGRAMS

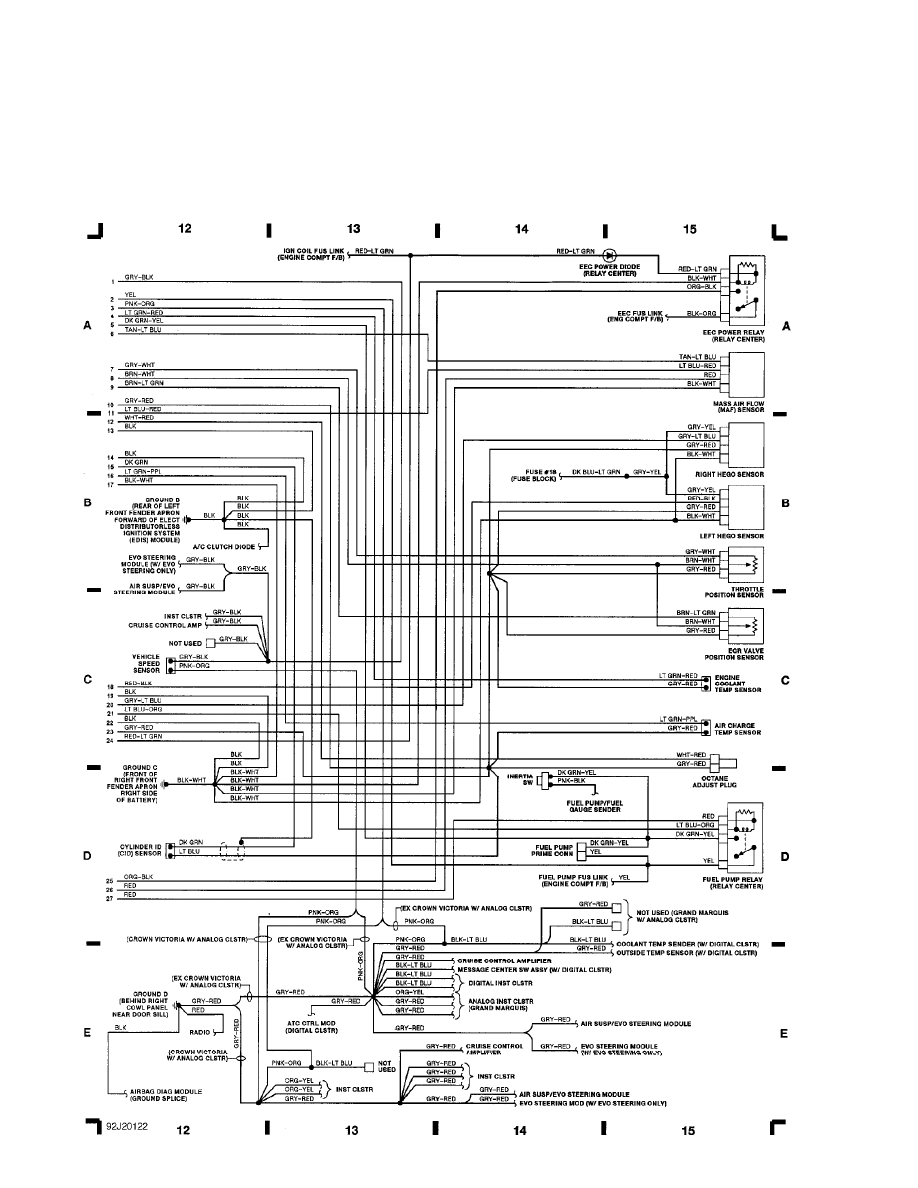

Fig. 4: HEGO Sensors, Fuel Pump Relay (Grid 12-15) (p. 4)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
WIRING DIAGRAMS

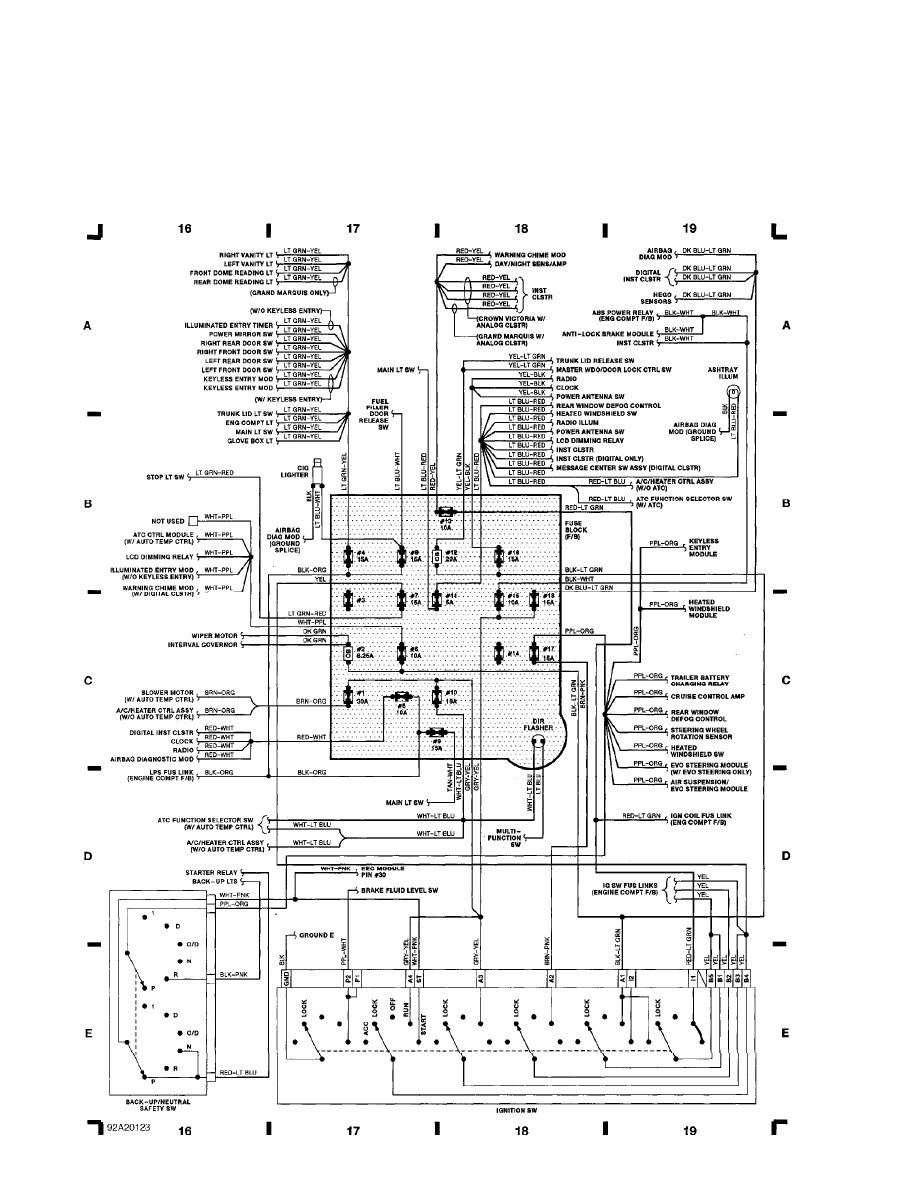

Fig. 5: Fuse Block, Ignition Switch, Neutral Switch (Grid 16-19) (p. 5)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
WIRING DIAGRAMS

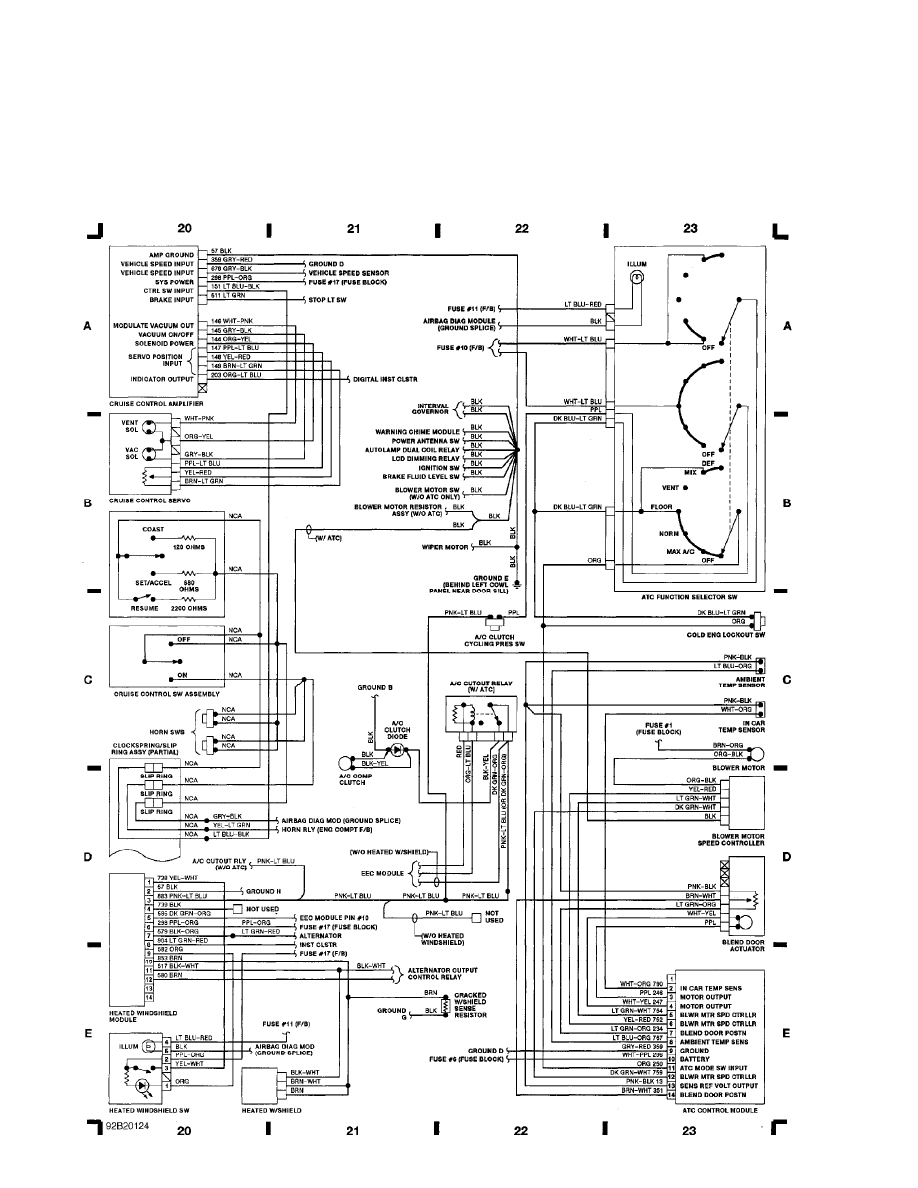

Fig. 6: A/C Heat, Cruise Control, Heated Windshield (Grid 20-23) (p. 6)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
WIRING DIAGRAMS

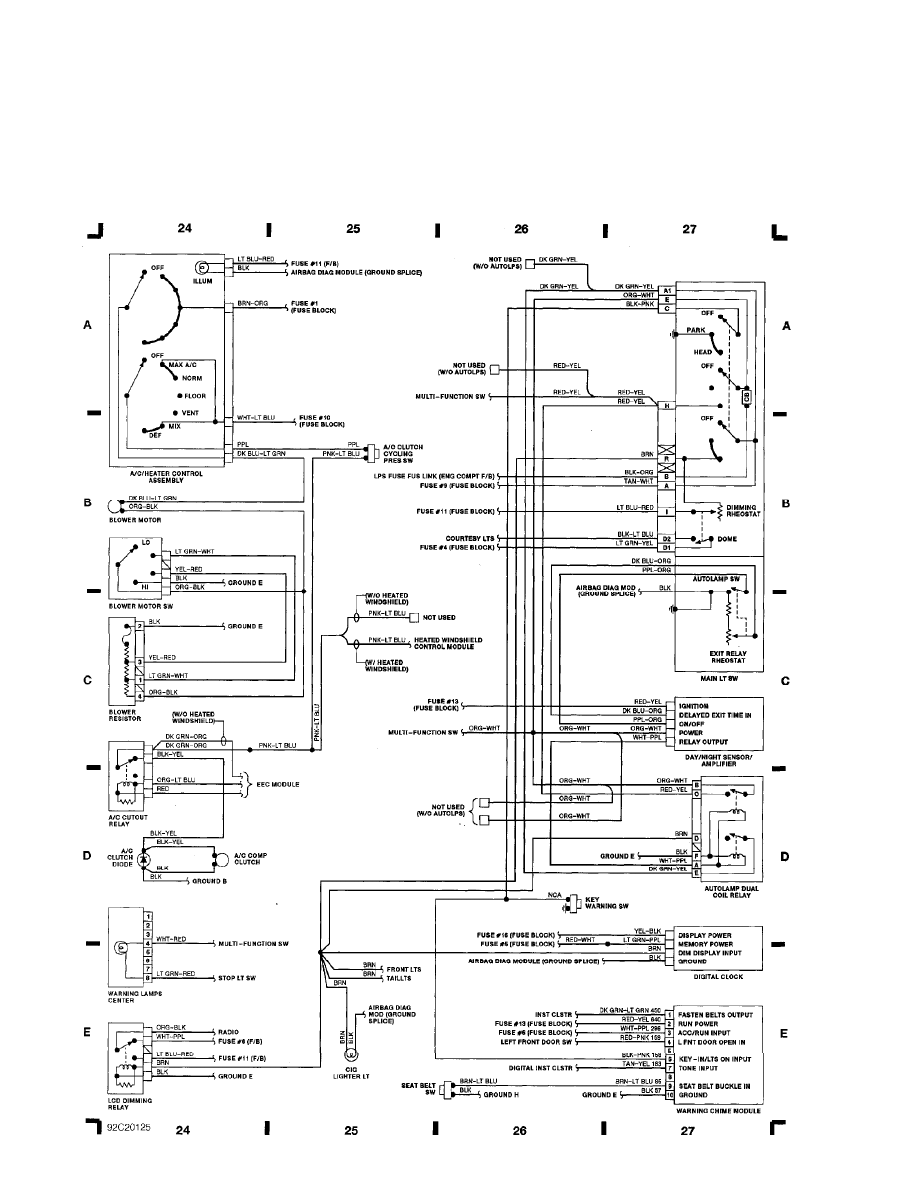

Fig. 7: Main Lt Switch, A/C Heat Control (Grid 24-27) (p. 7)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
WIRING DIAGRAMS

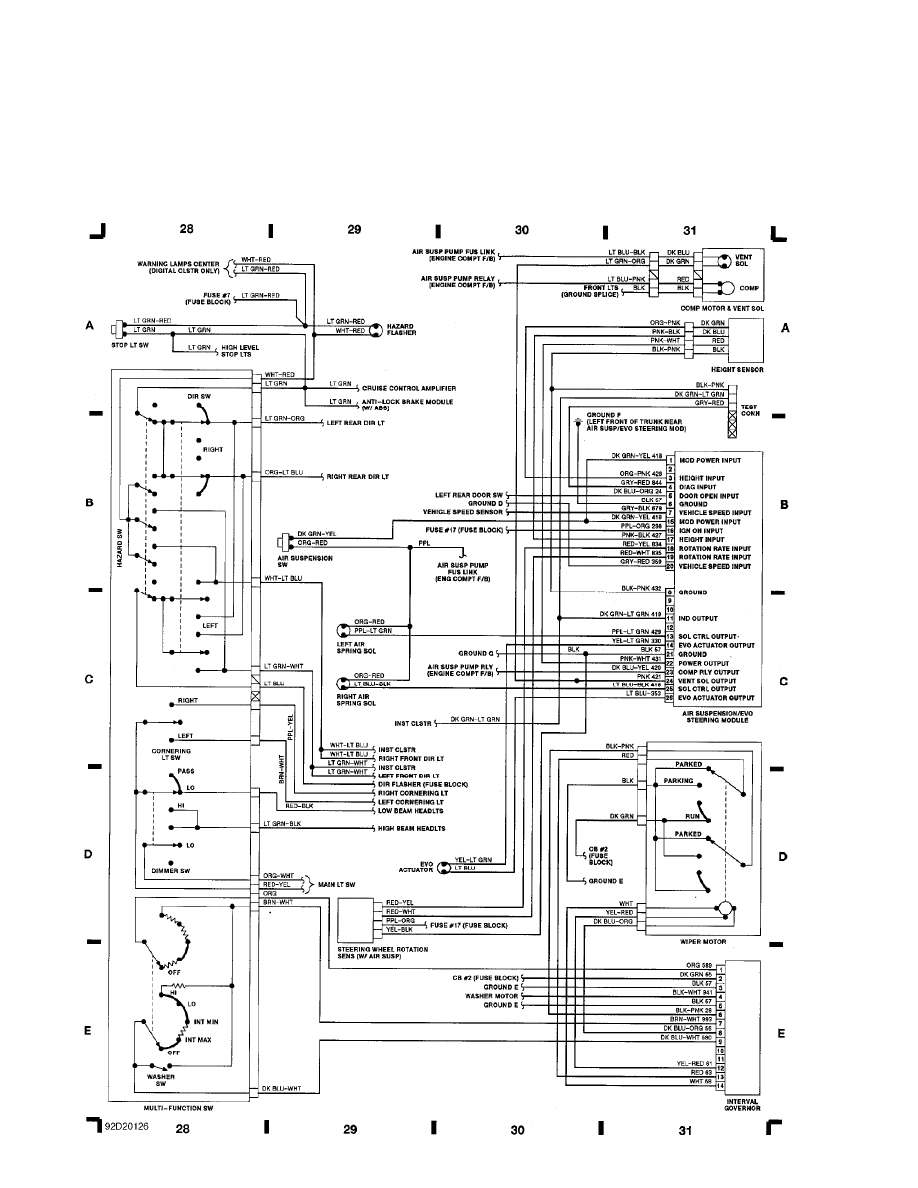

Fig. 8: Multi-Function Switch, Steering Wheel, Air Susp (Grid 28-31) (p. 8)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
WIRING DIAGRAMS

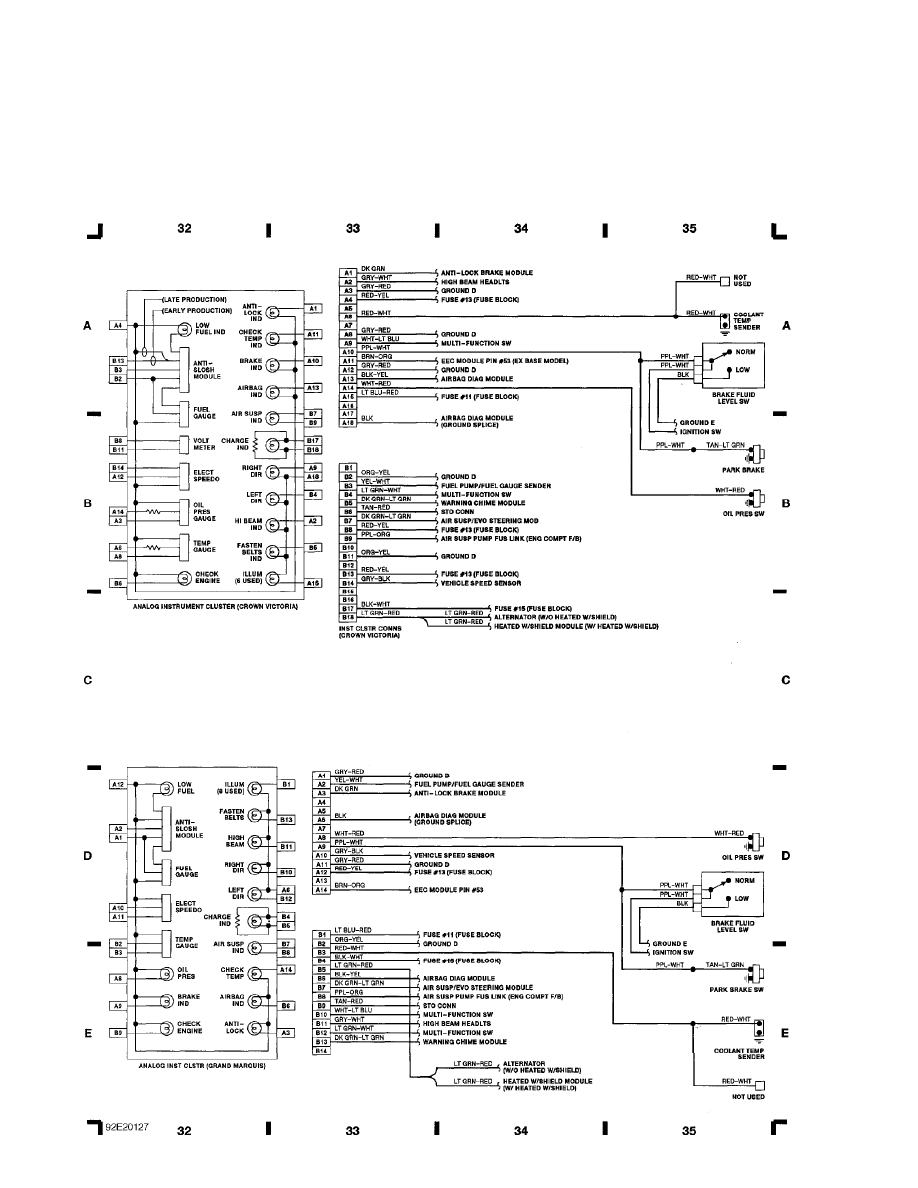

Fig. 9: Analog Instrument Clusters (Grid 32-35) (p. 9)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
WIRING DIAGRAMS

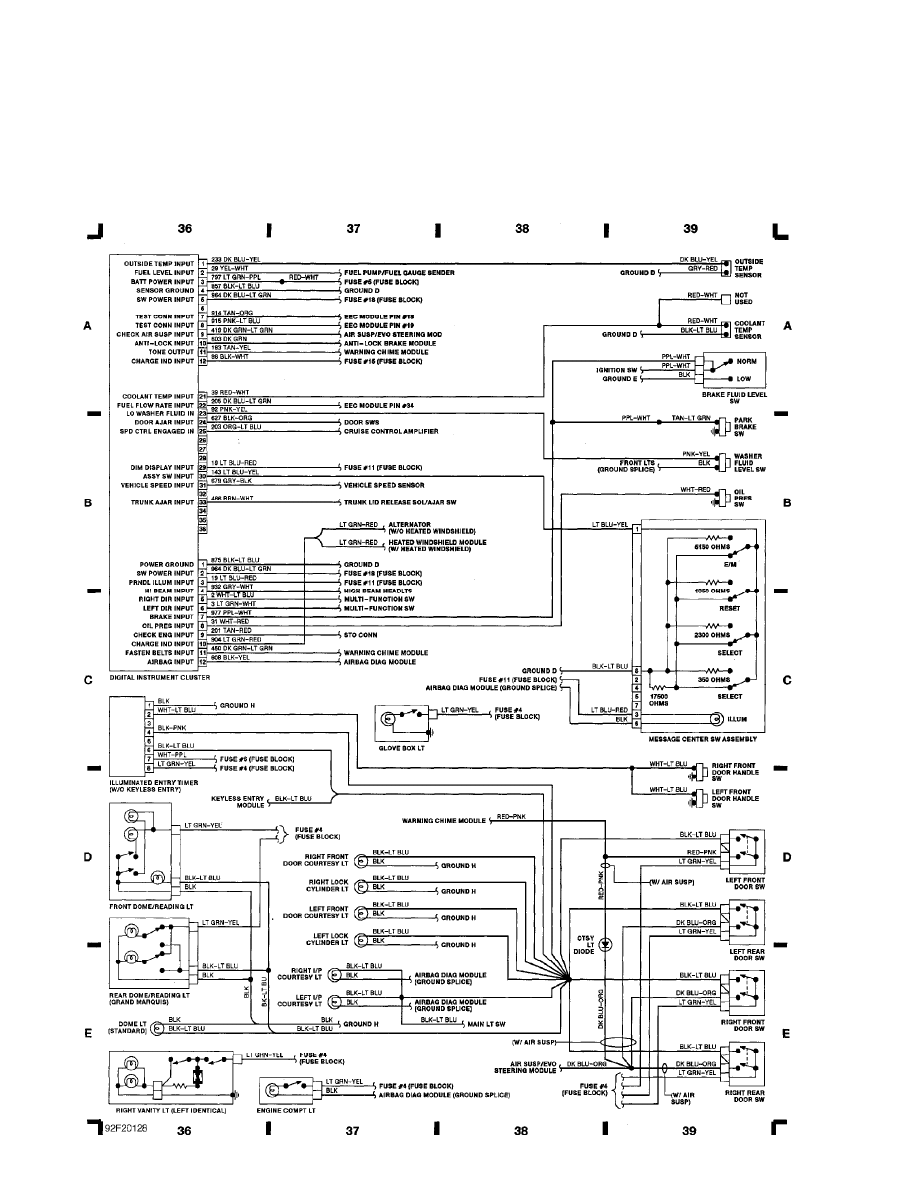

Fig. 10: Digital Instrument Clusters, Message Center (Grid 36-39) (p. 10)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
WIRING DIAGRAMS

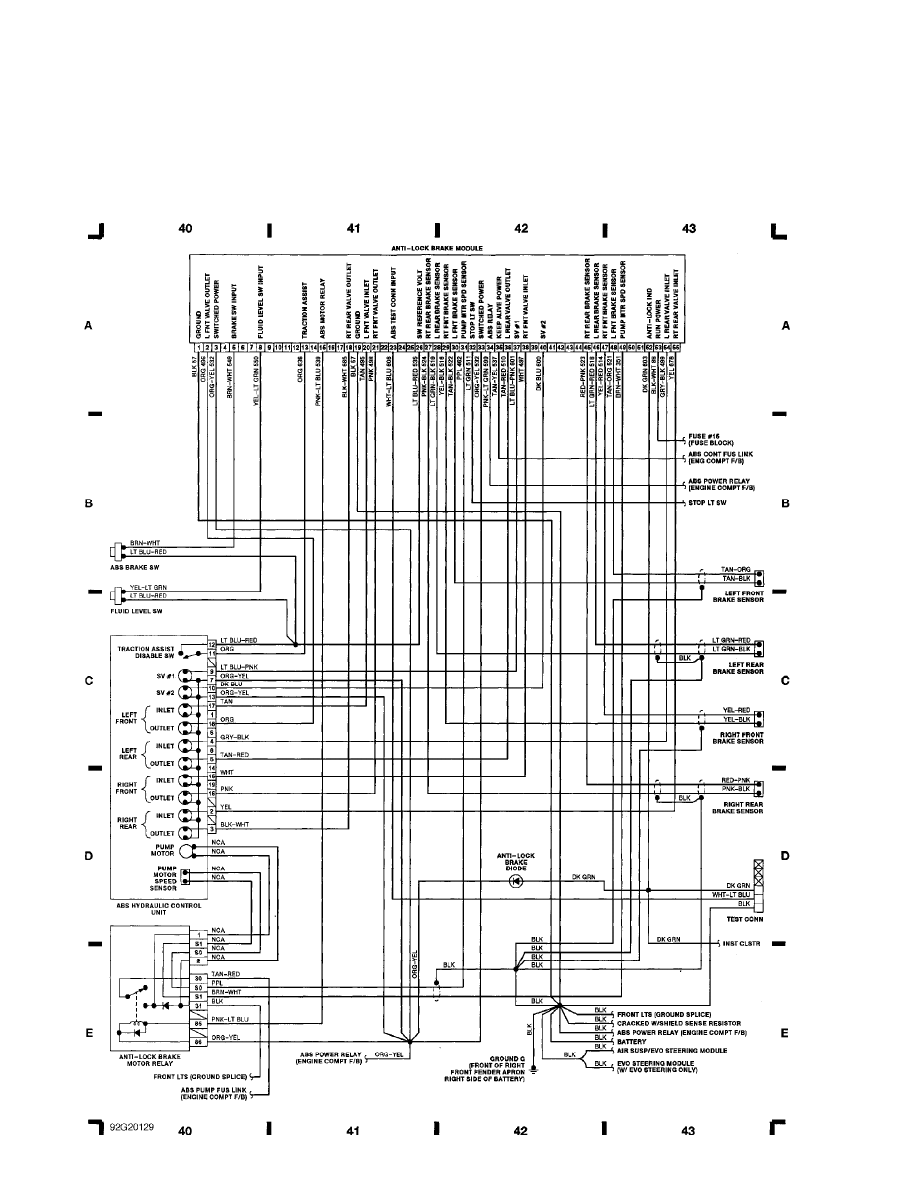

Fig. 11: Anti-Lock Brake System (Grid 40-43) (p. 11)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
WIRING DIAGRAMS

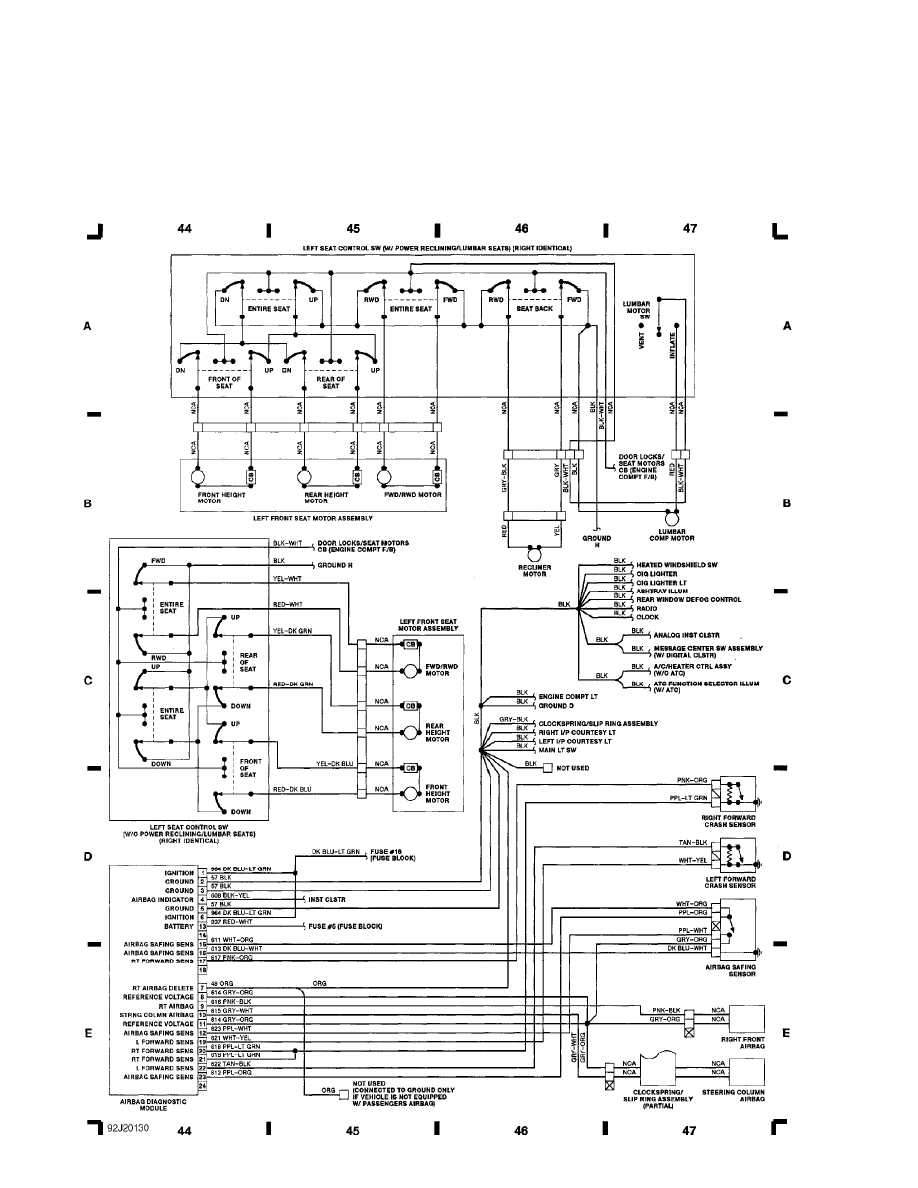

Fig. 12: Power Seat System, Airbag System (Grid 44-47) (p. 12)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
WIRING DIAGRAMS

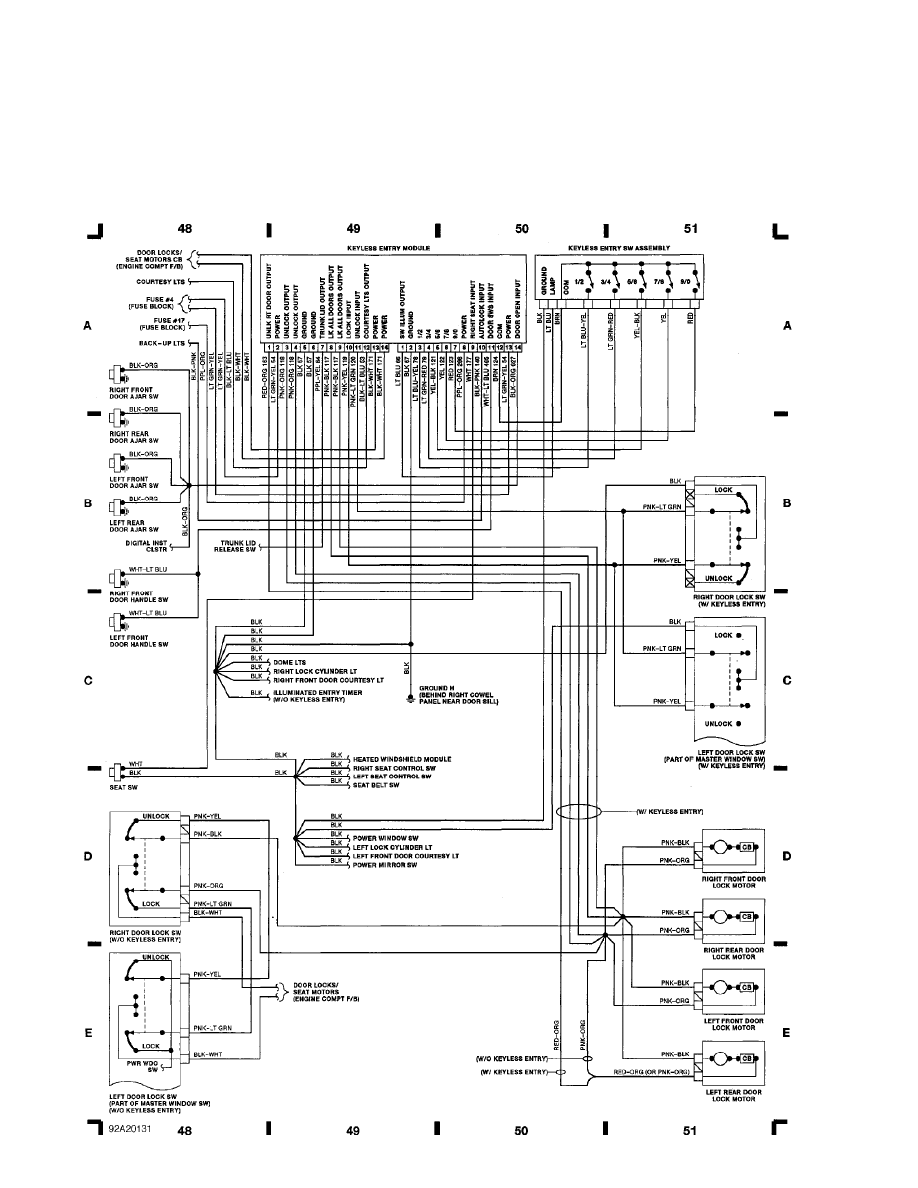

Fig. 13: Keyless Entry, Door Lock Switches/Motors (Grid 48-51) (p. 13)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
WIRING DIAGRAMS

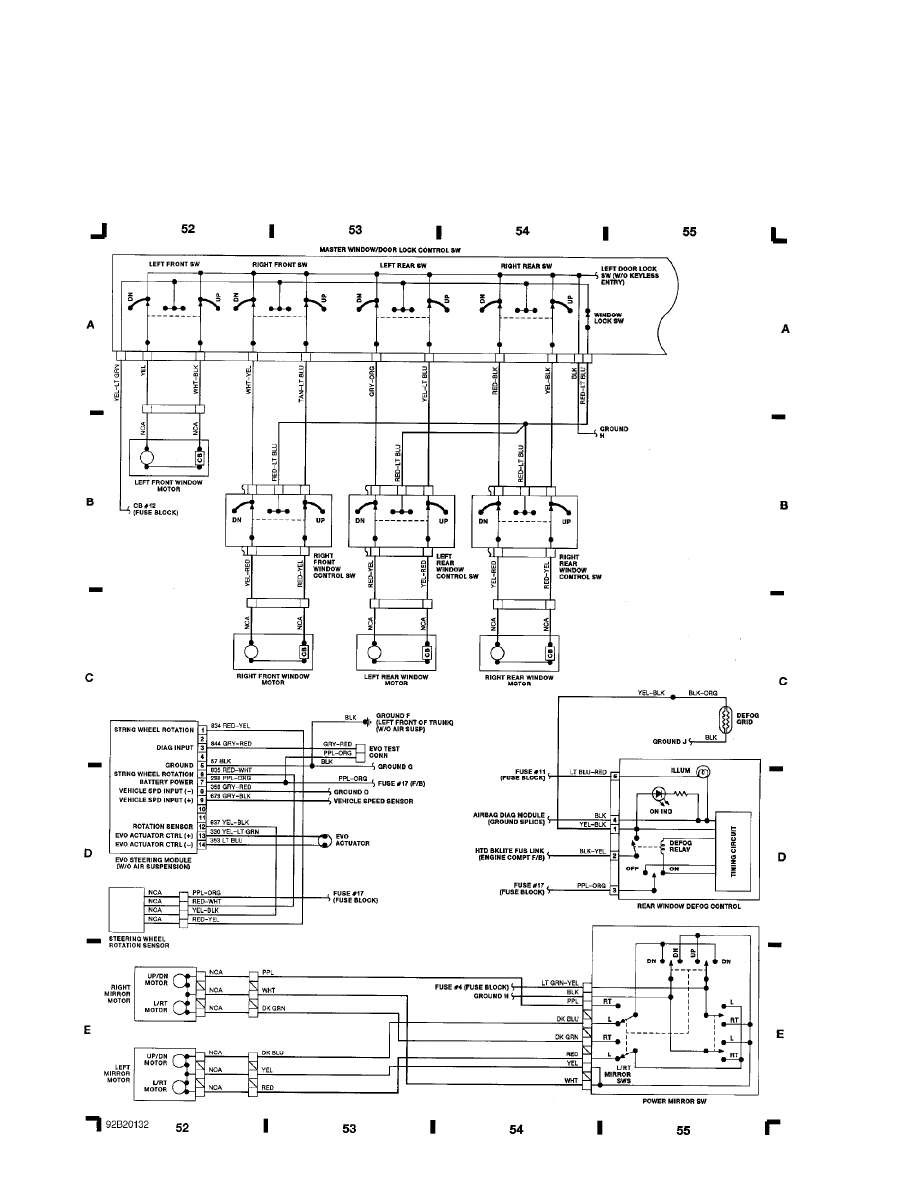

Fig. 14: Power Windows & Mirrors, Rear Defog (Grid 52-55) (p. 14)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
WIRING DIAGRAMS

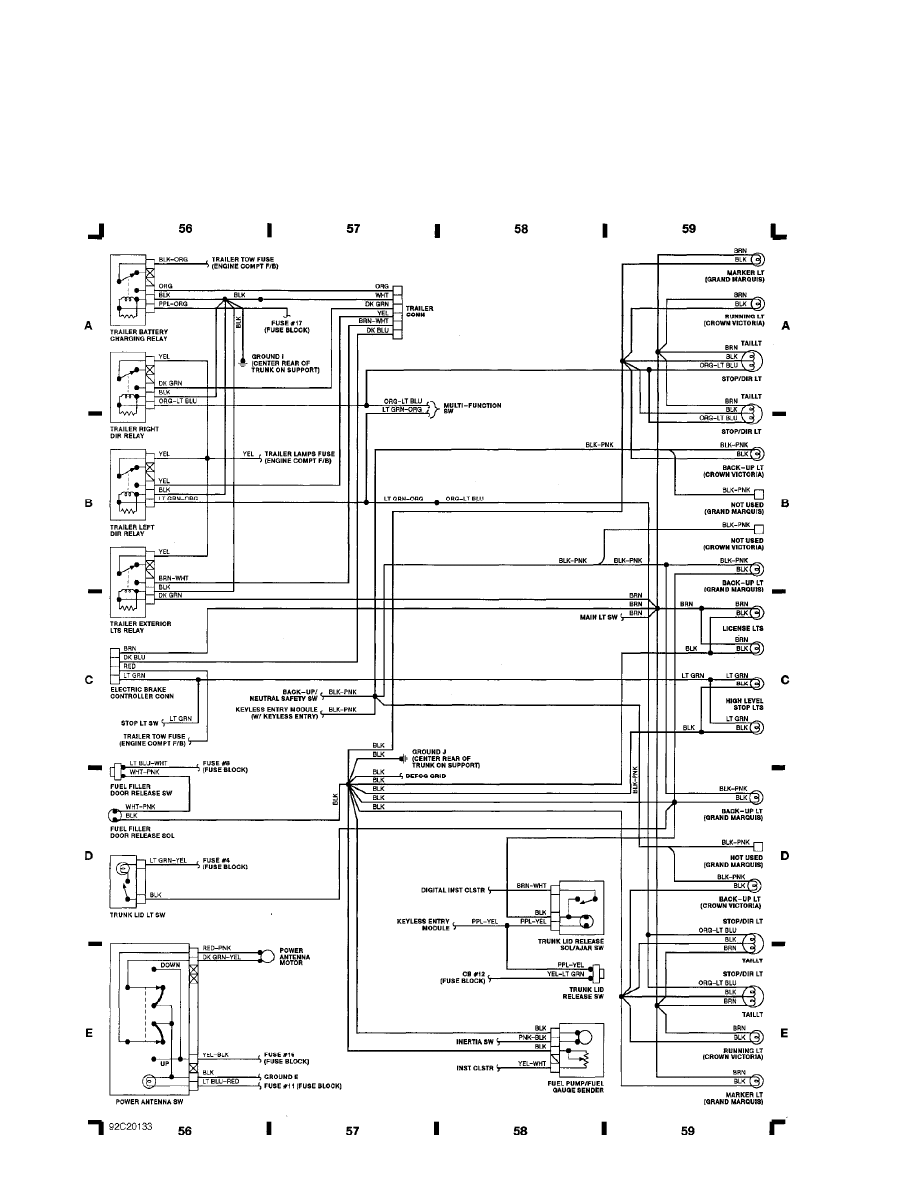

Fig. 15: Trailer Relays, Power Antenna, Rear Lights (Grid 56-59) (p. 15)
1992 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:30PM
