SYSTEM WIRING DIAGRAMS

Defogger Circuit

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

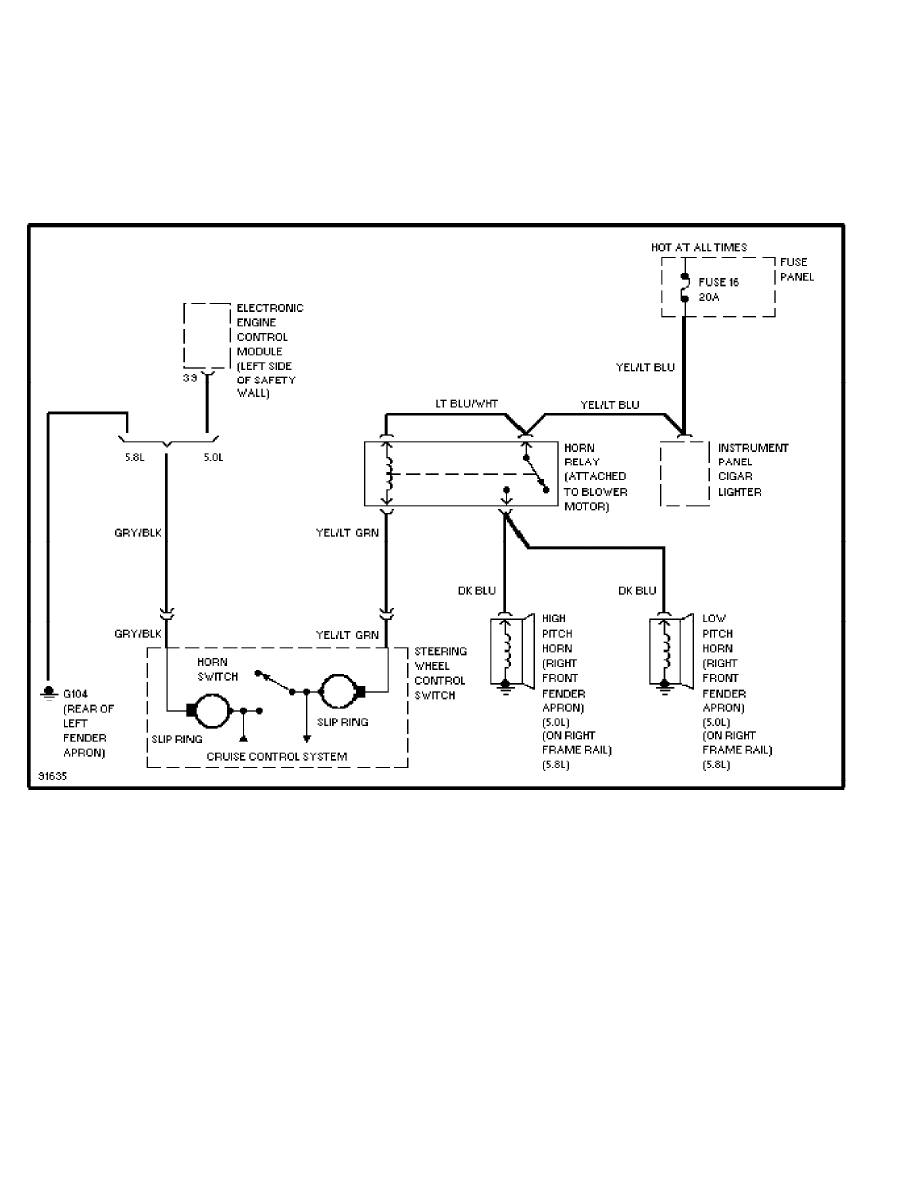

Horn Circuit (p. 2)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

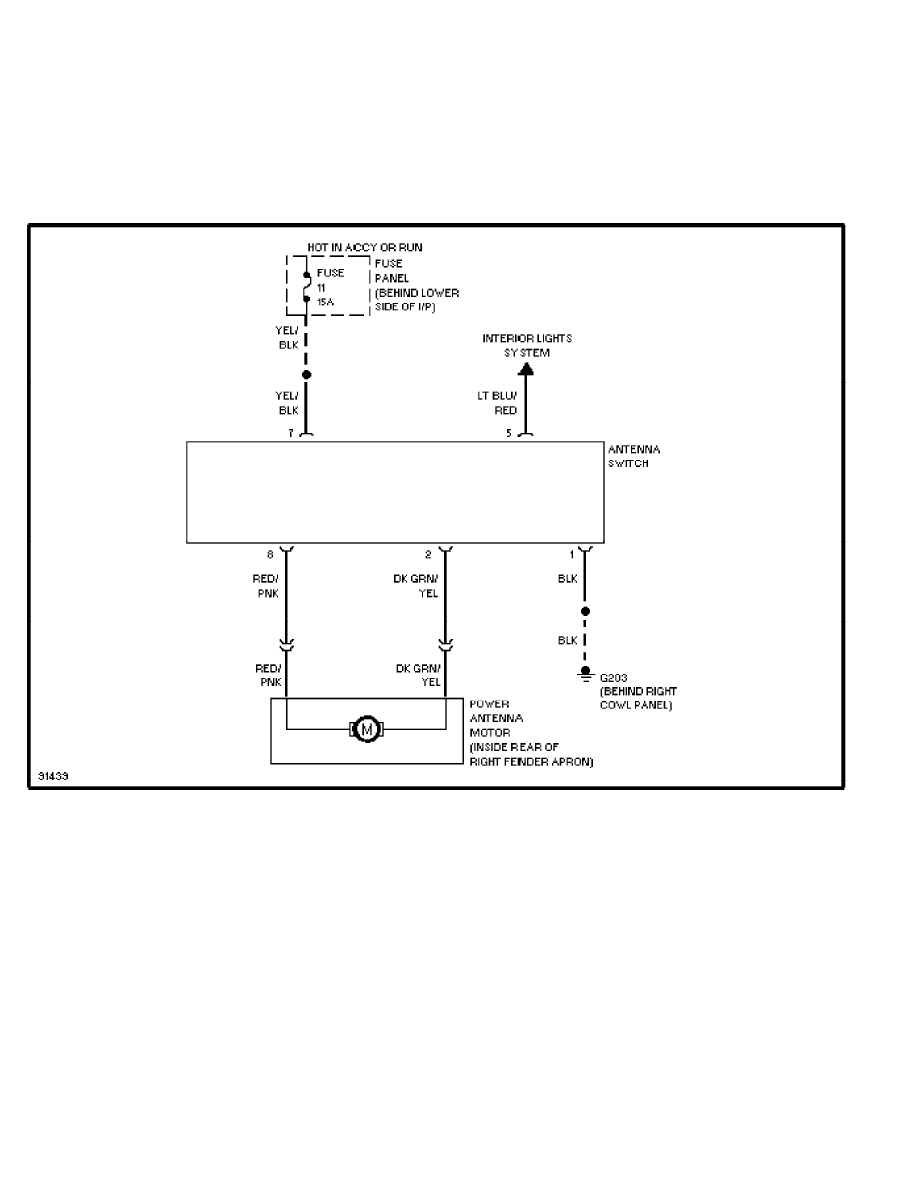

SYSTEM WIRING DIAGRAMS

Power Antenna Circuit (p. 3)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

Power Door Lock Circuit (p. 4)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

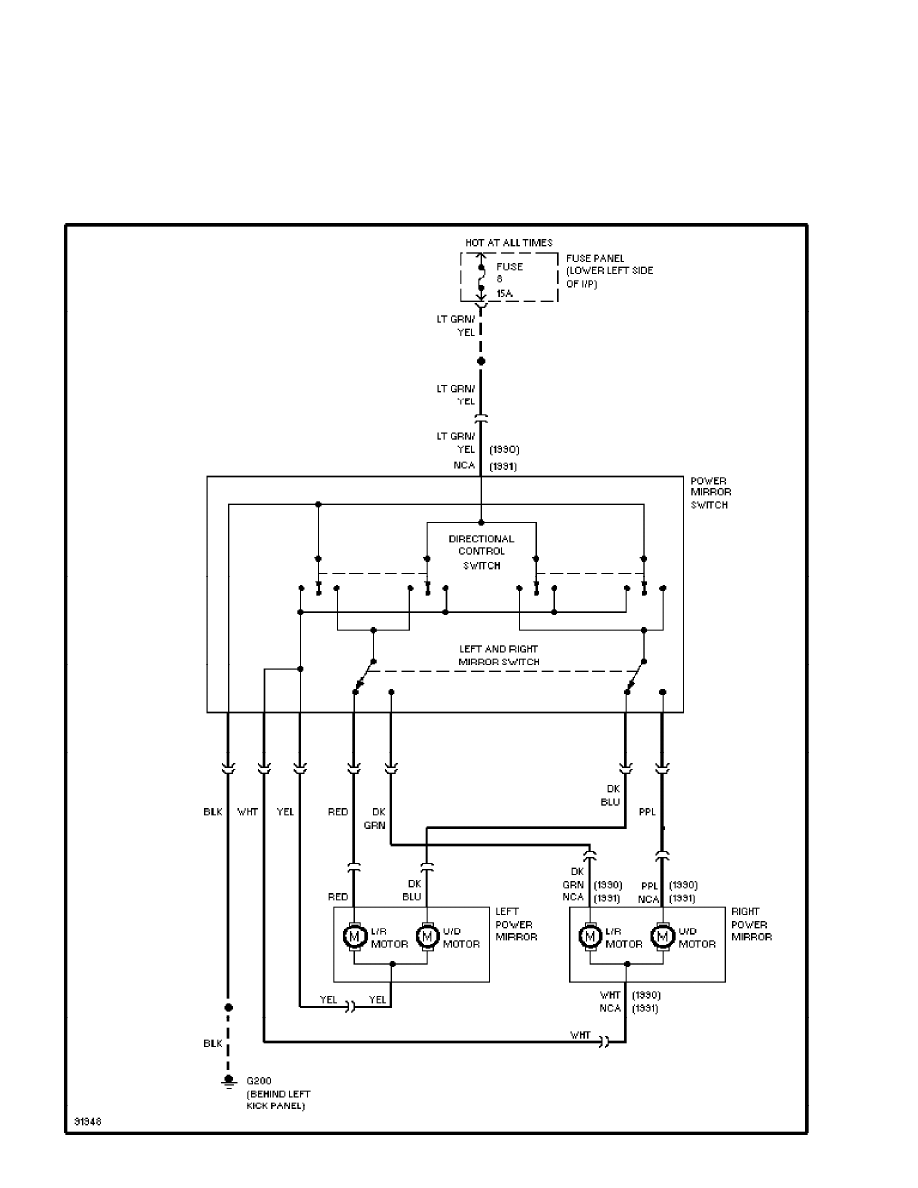

Power Mirror Circuit (p. 5)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

Power Seat Circuits (p. 6)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

SYSTEM WIRING DIAGRAMS
Power Windows Circuit (p. 7)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

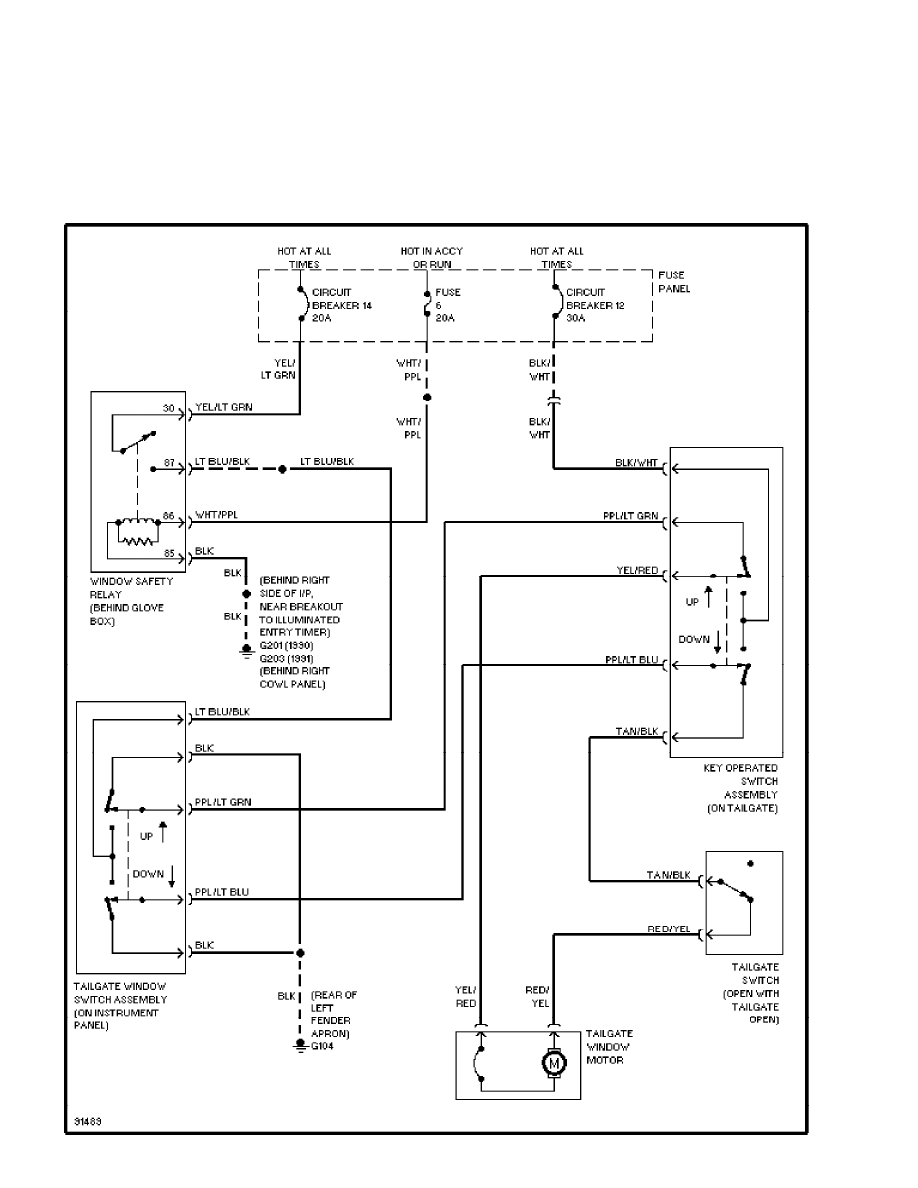

SYSTEM WIRING DIAGRAMS

Tailgate Power Window Circuit (p. 8)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

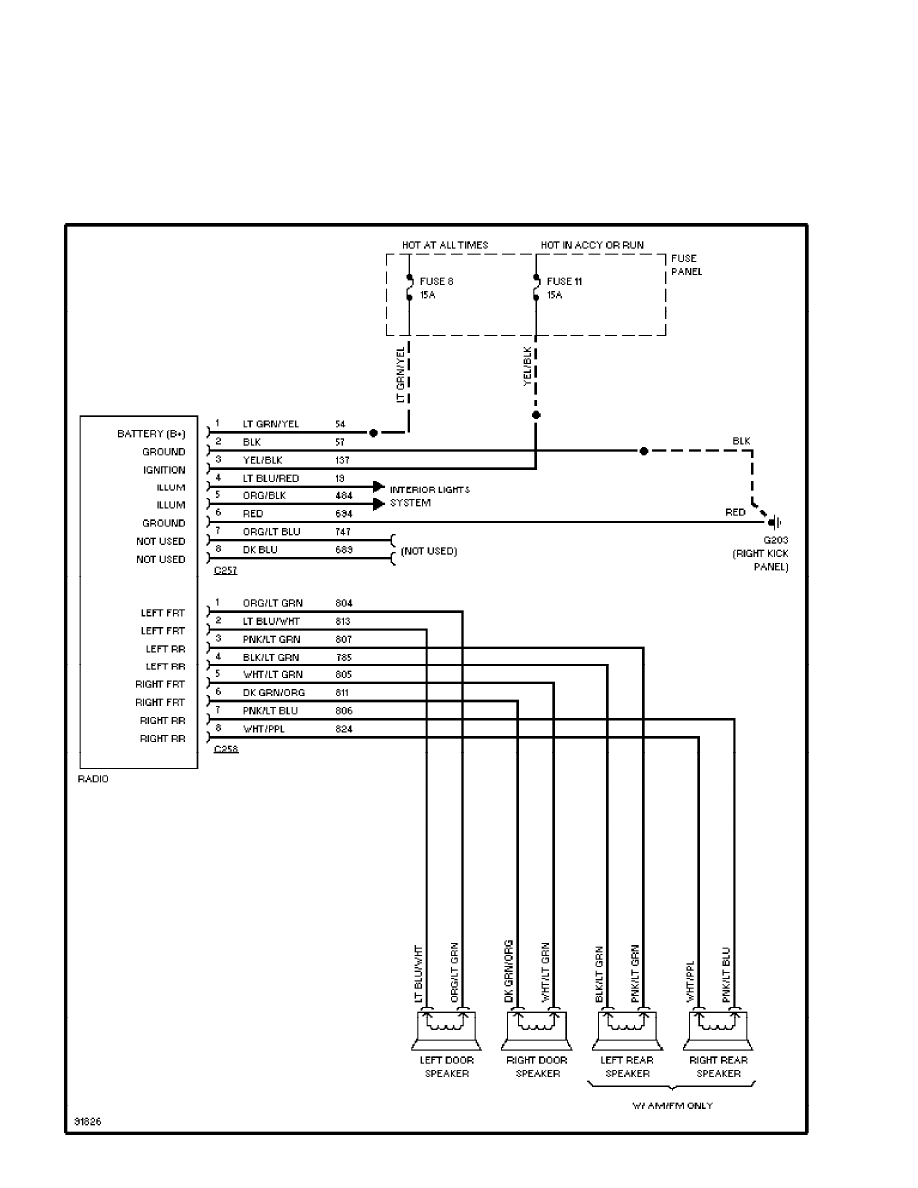

Radio Circuits, Base Radio (p. 9)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

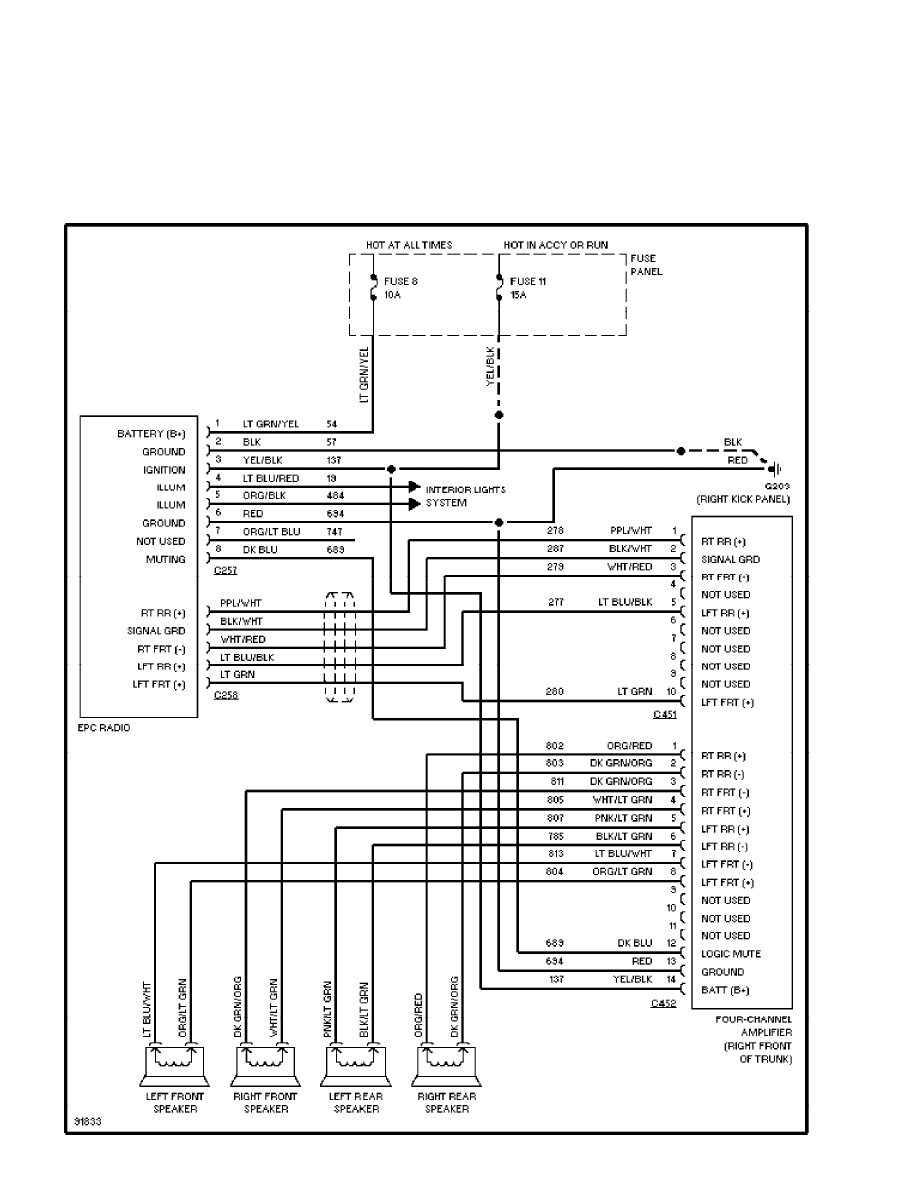

SYSTEM WIRING DIAGRAMS

Radio Circuits, W/ EPC (p. 10)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

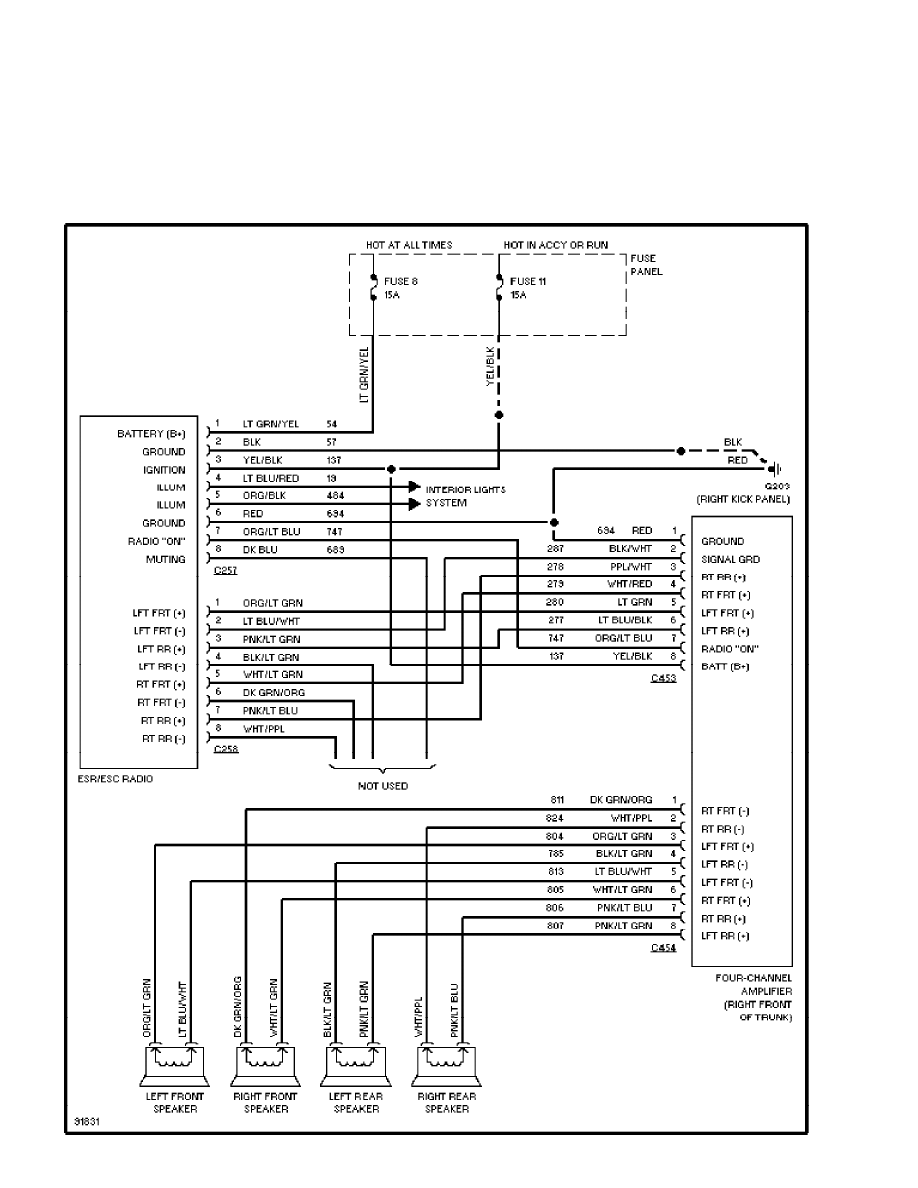

Radio Circuits, W/ ESR & ESC (p. 11)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

Charging Circuit, Police Option (p. 12)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

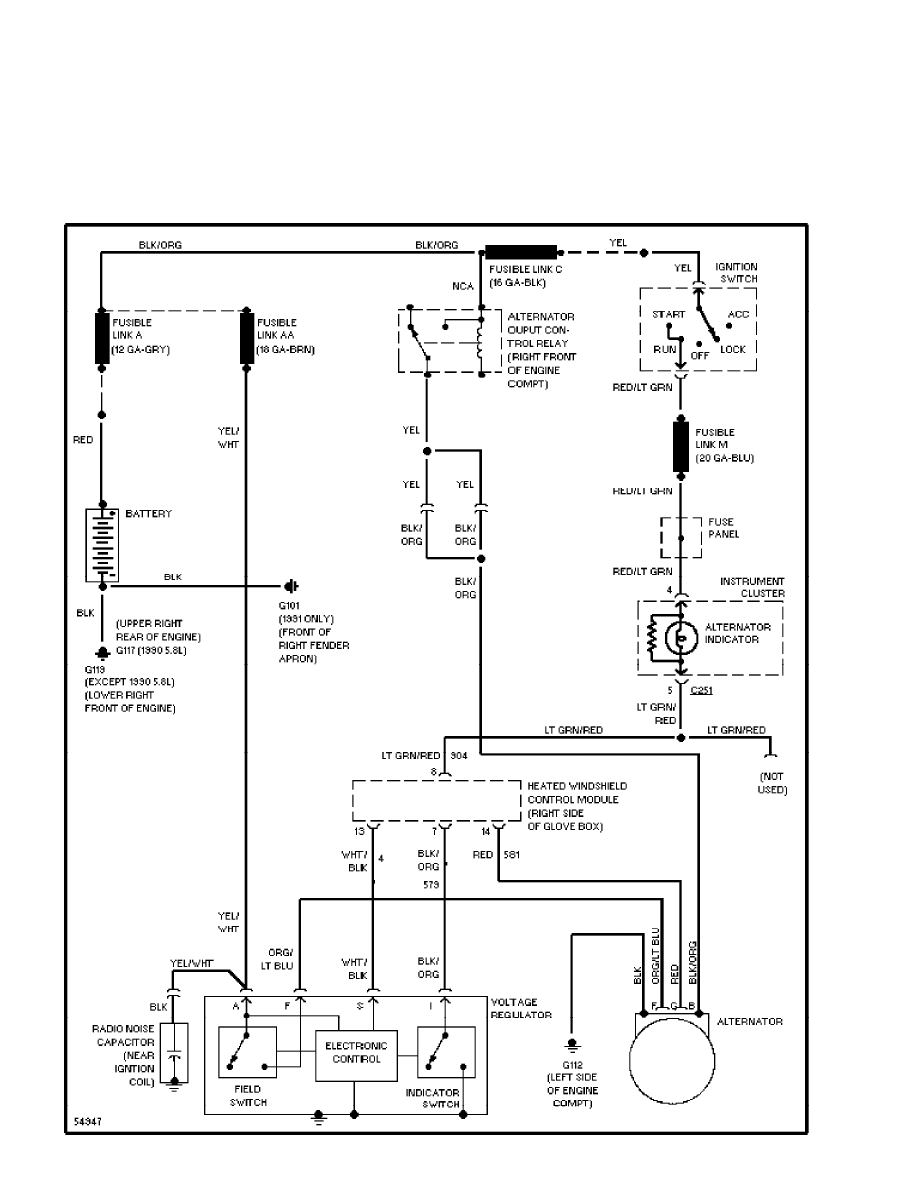

Charging Circuit, W/ Heated Windshield (p. 13)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

SYSTEM WIRING DIAGRAMS

Charging Circuit, W/ Integral Alternator Regulator (p. 14)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

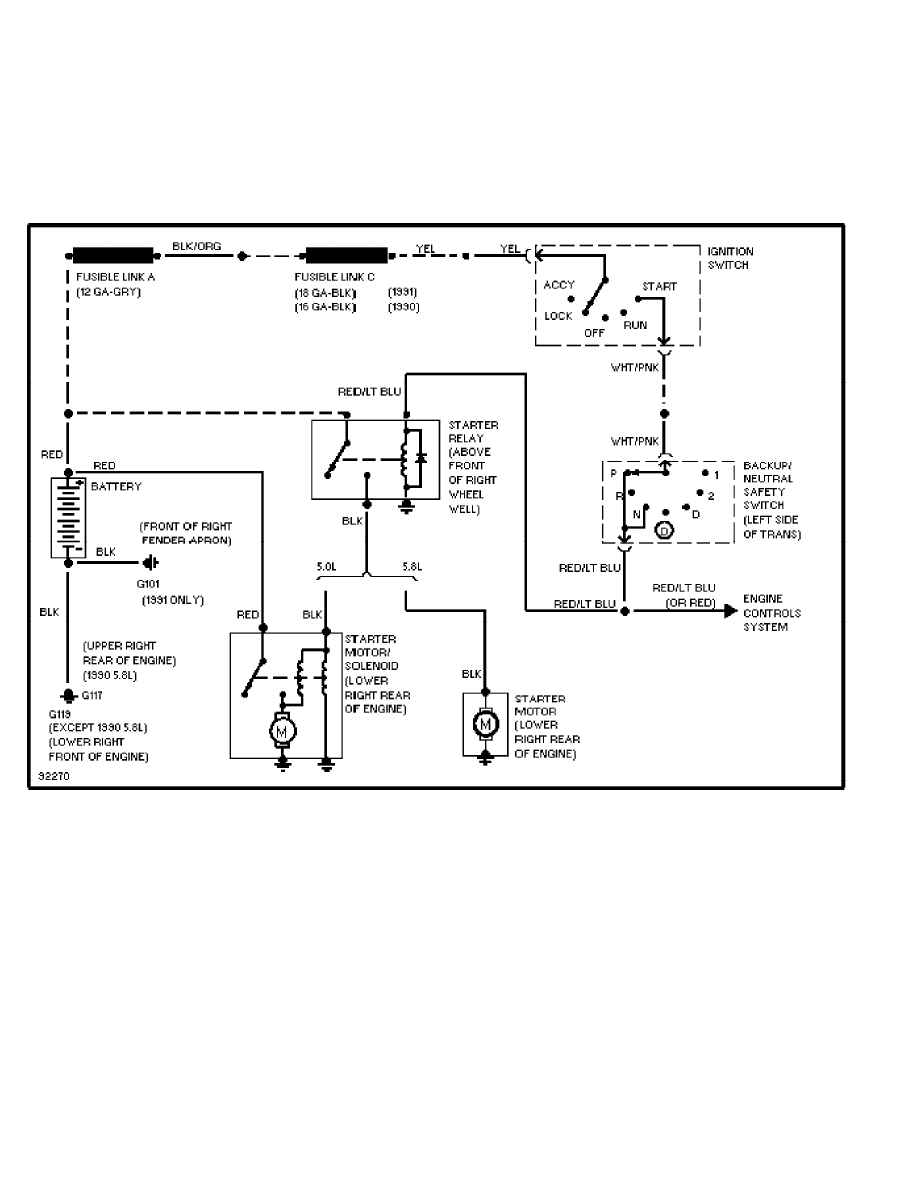

SYSTEM WIRING DIAGRAMS

Starting Circuit (p. 15)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

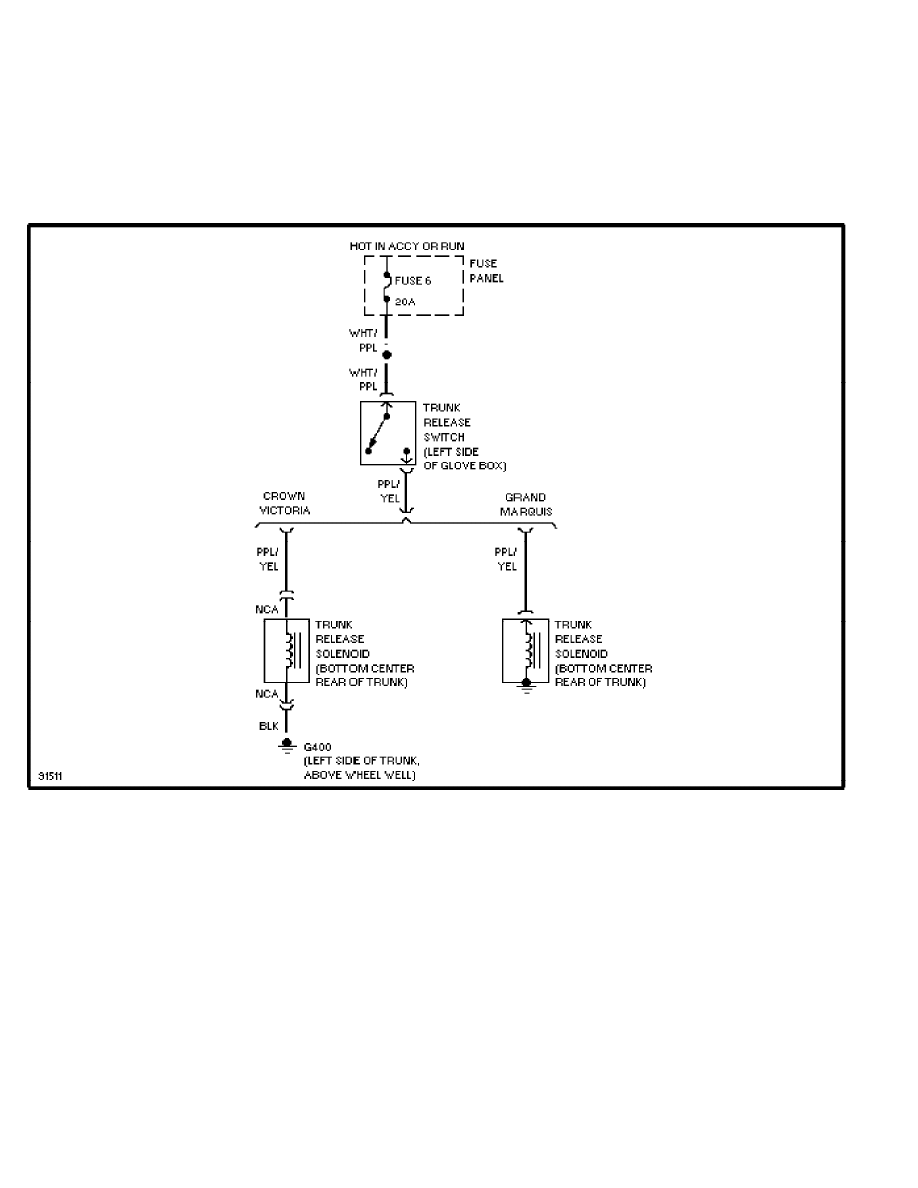

SYSTEM WIRING DIAGRAMS

Trunk, Tailgate, Fuel Door Circuits (p. 16)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

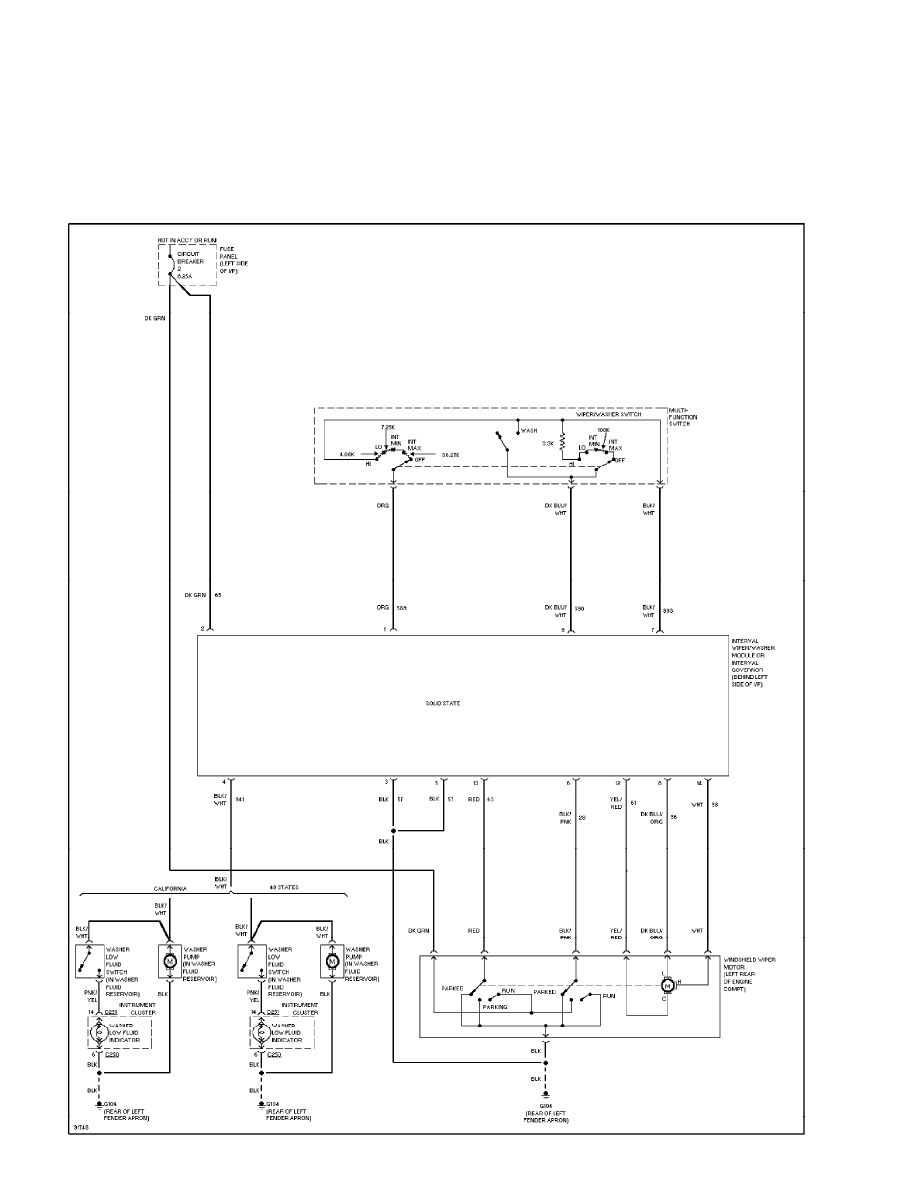

SYSTEM WIRING DIAGRAMS

Wiper/Washer Circuit (p. 17)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

WIRING DIAGRAMS

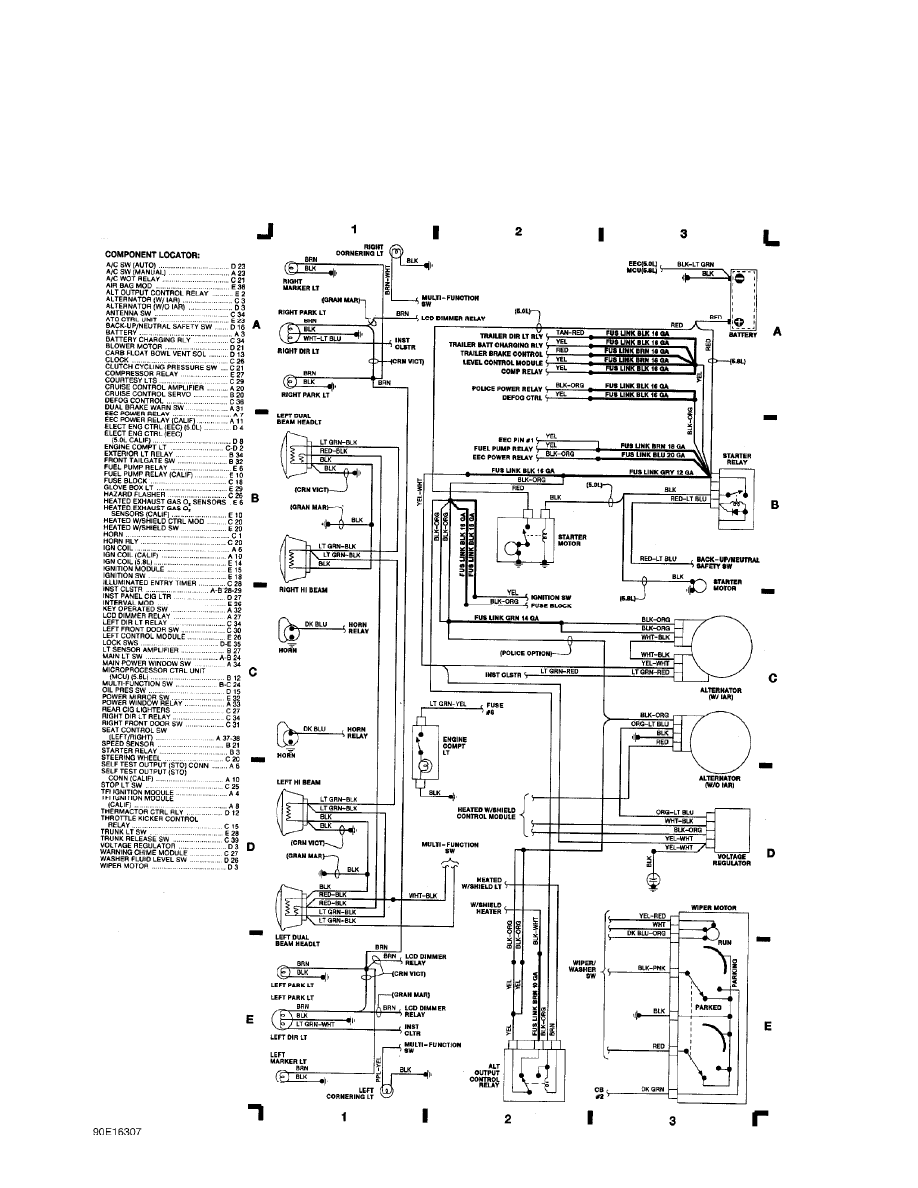

Fig. 1: Engine Compartment & Headlights (Grid 1-3)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

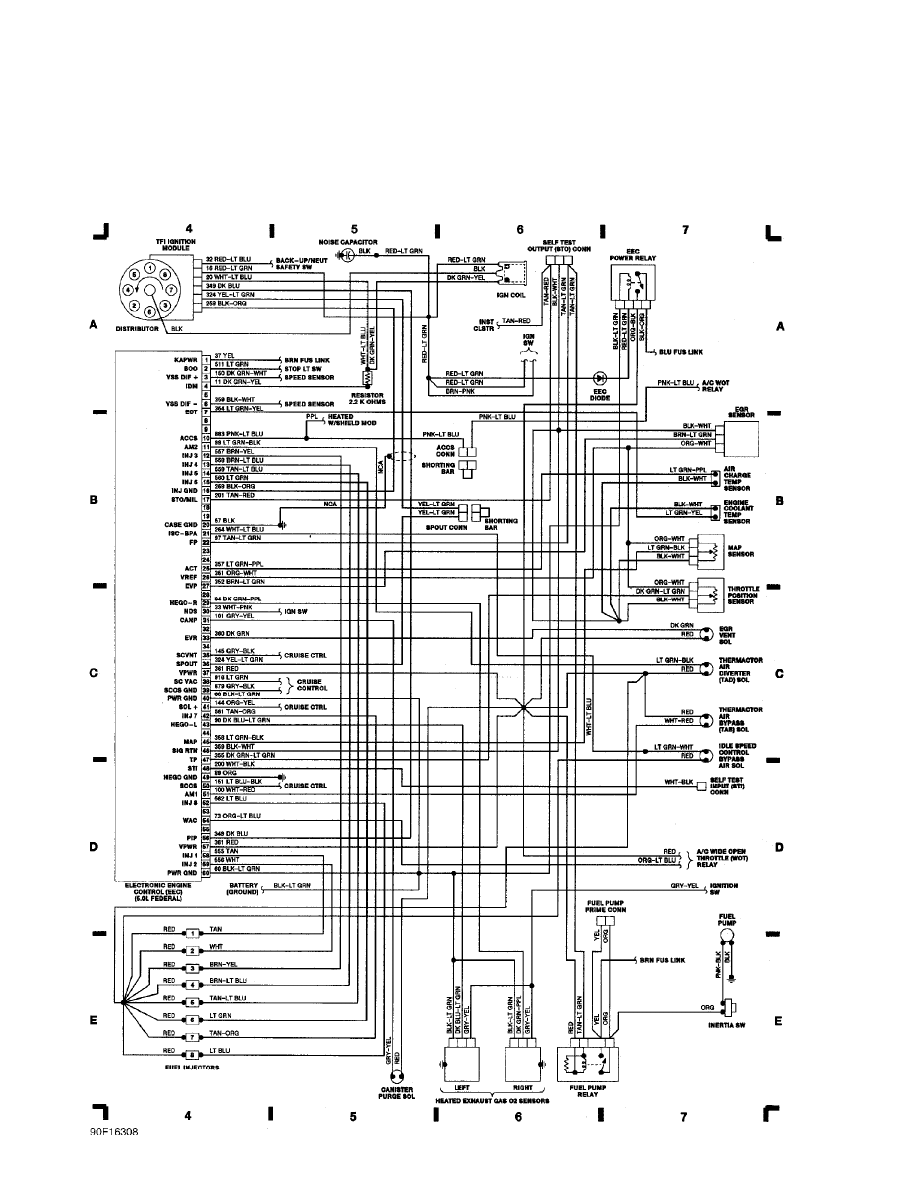

WIRING DIAGRAMS

Fig. 2: Electronic Engine Control (EEC) (5.0L Federal) (Grid 4-7) (p. 2)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

WIRING DIAGRAMS

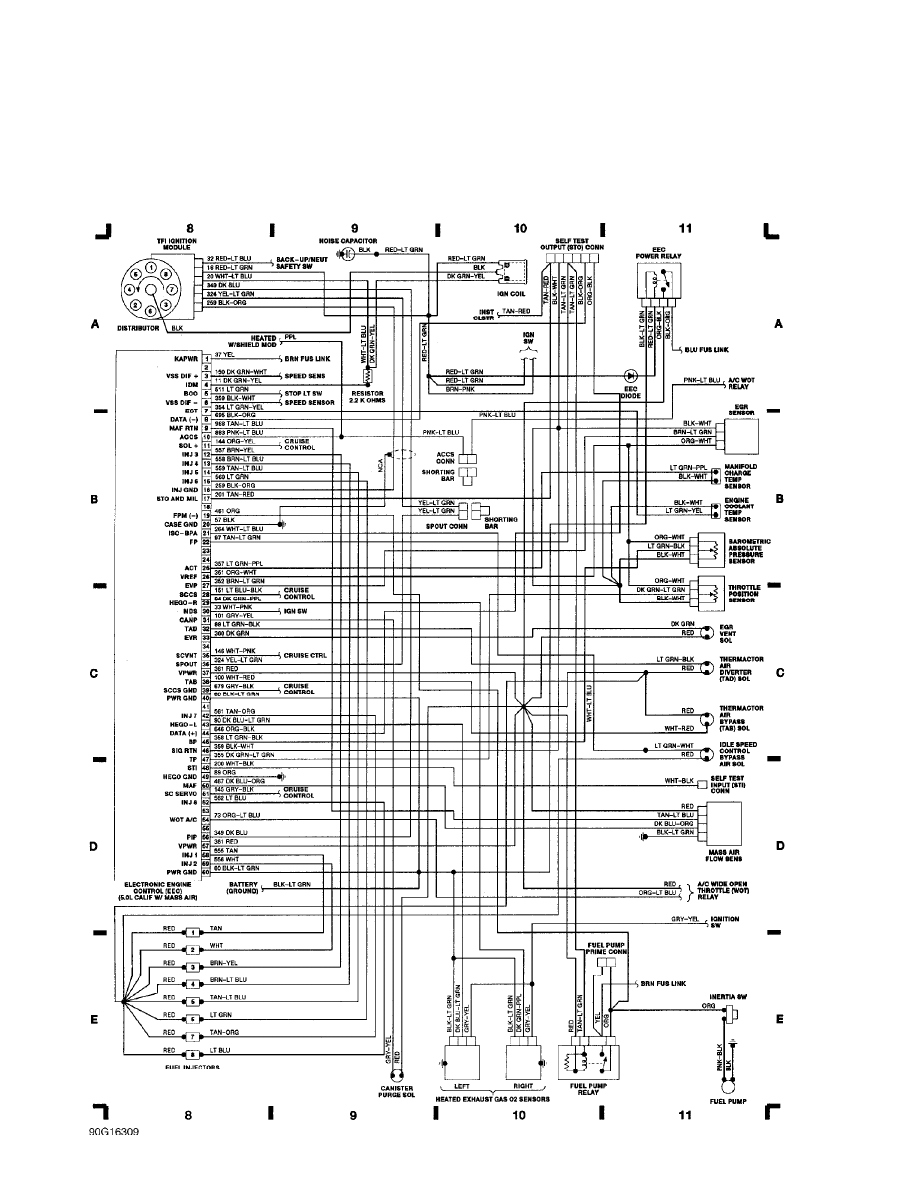

Fig. 3: Electronic Engine Control (EEC) (5.0L Calif) (Grid 8-11) (p. 3)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

WIRING DIAGRAMS

Fig. 4: Microprocessor Control Unit (5.8L) (Grid 12-15) (p. 4)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

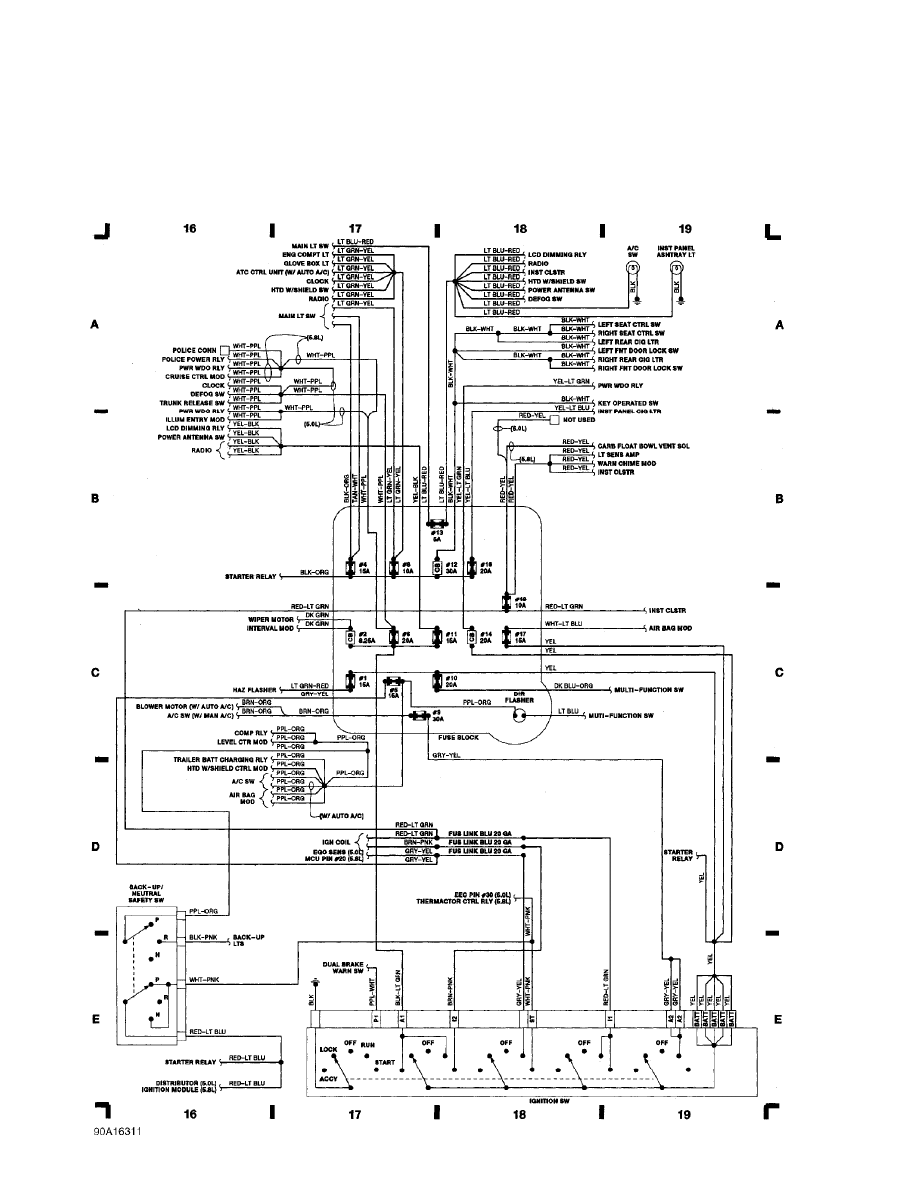

WIRING DIAGRAMS

Fig. 5: Fuse Block (Grid 16-19) (p. 5)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

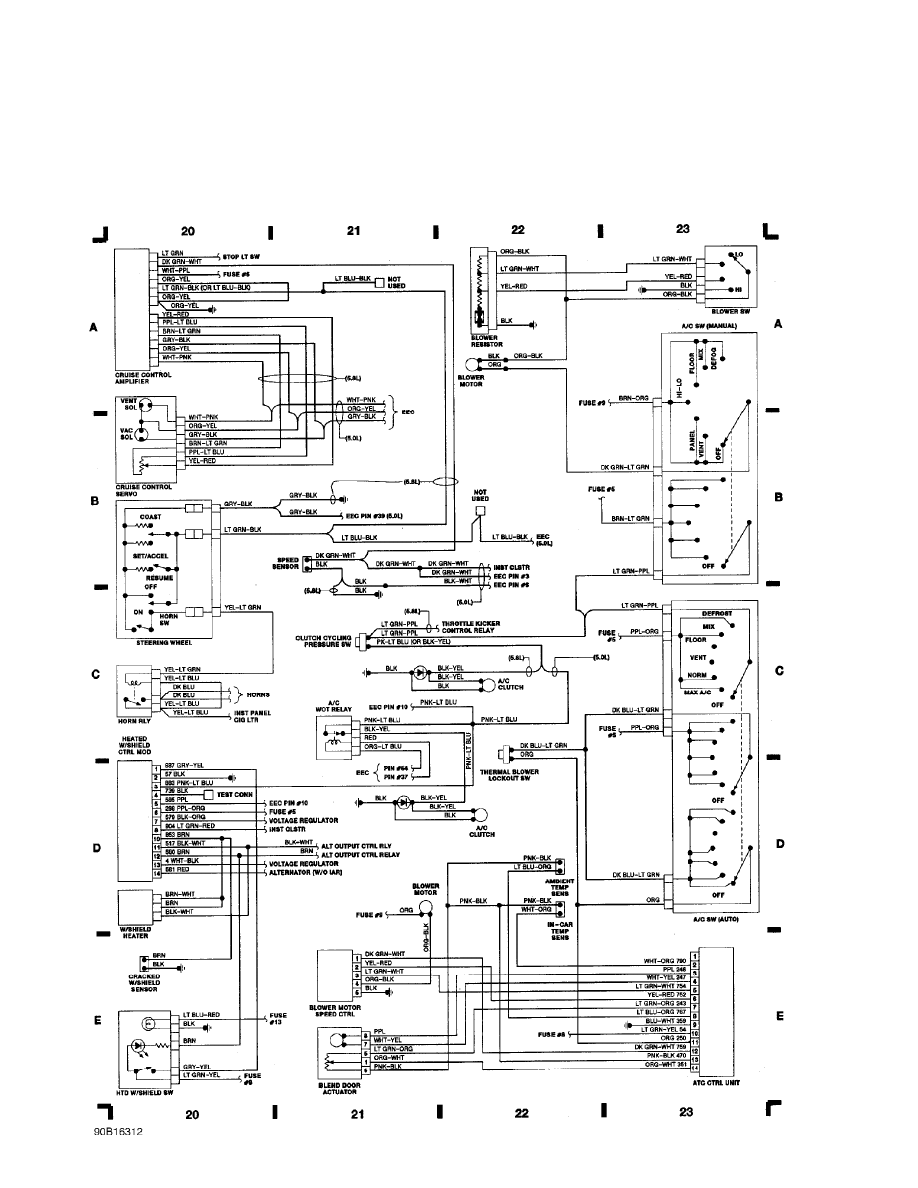

WIRING DIAGRAMS

Fig. 6: A/C-Heating, Cruise Control & Steering Wheel (Grid 20-23) (p. 6)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

WIRING DIAGRAMS

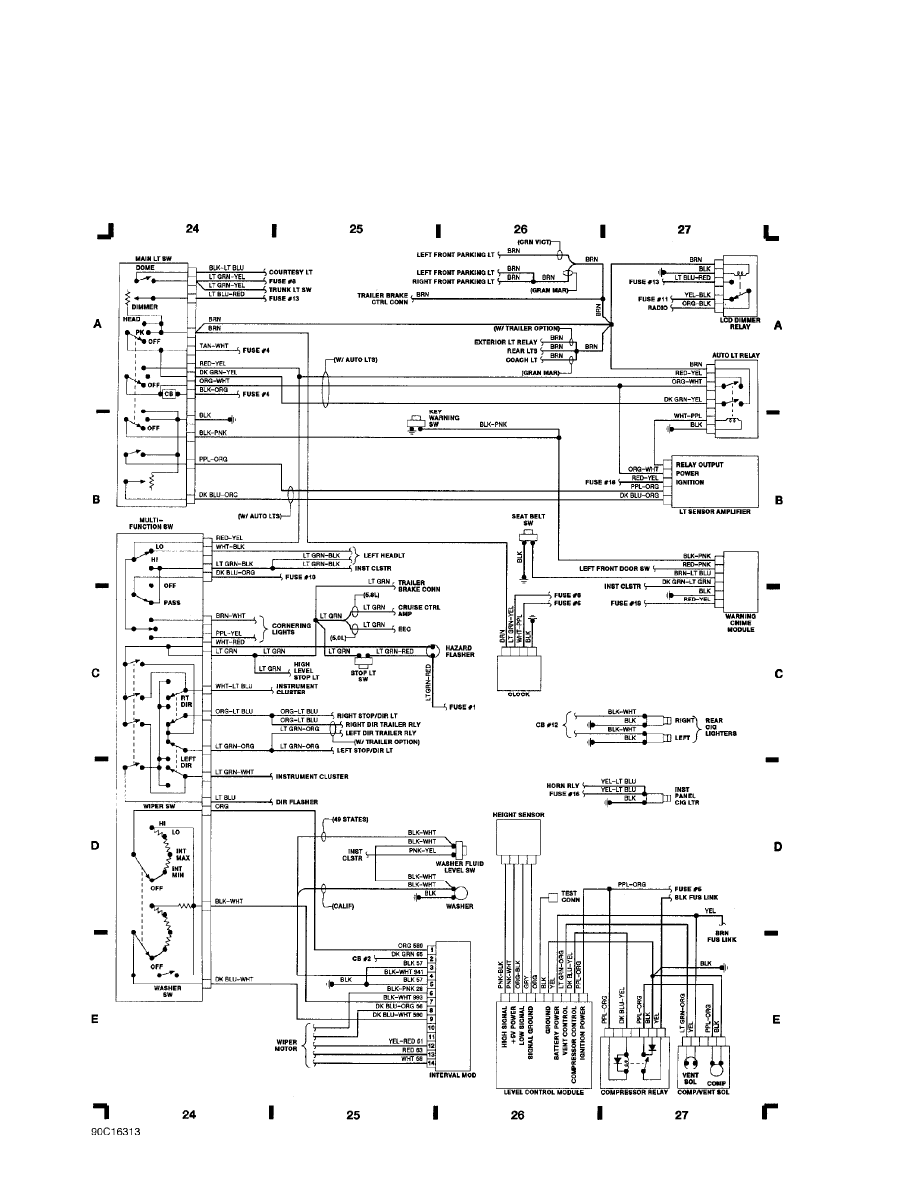

Fig. 7: Washer Wiper (Grid 24-27) (p. 7)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

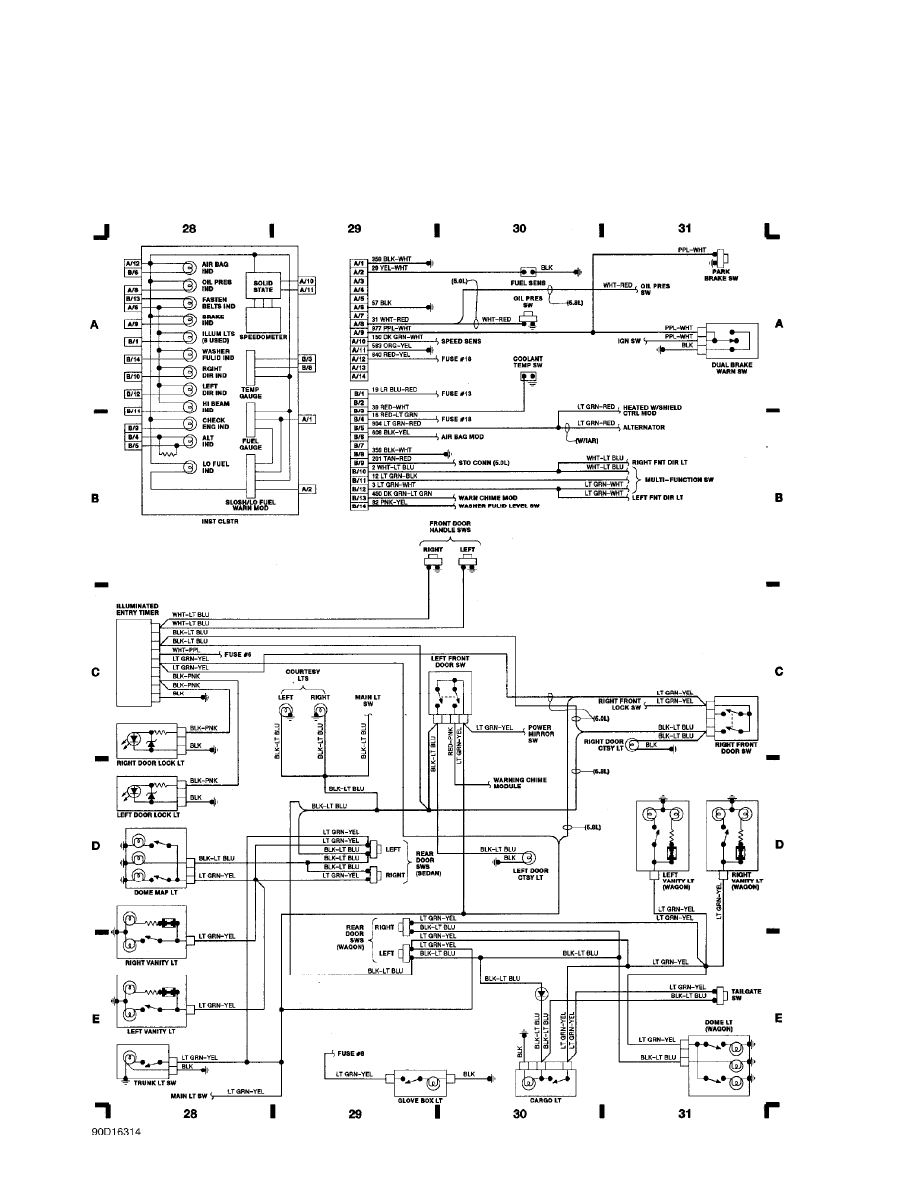

WIRING DIAGRAMS

Fig. 8: Instrument Cluster (Grid 28-31) (p. 8)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

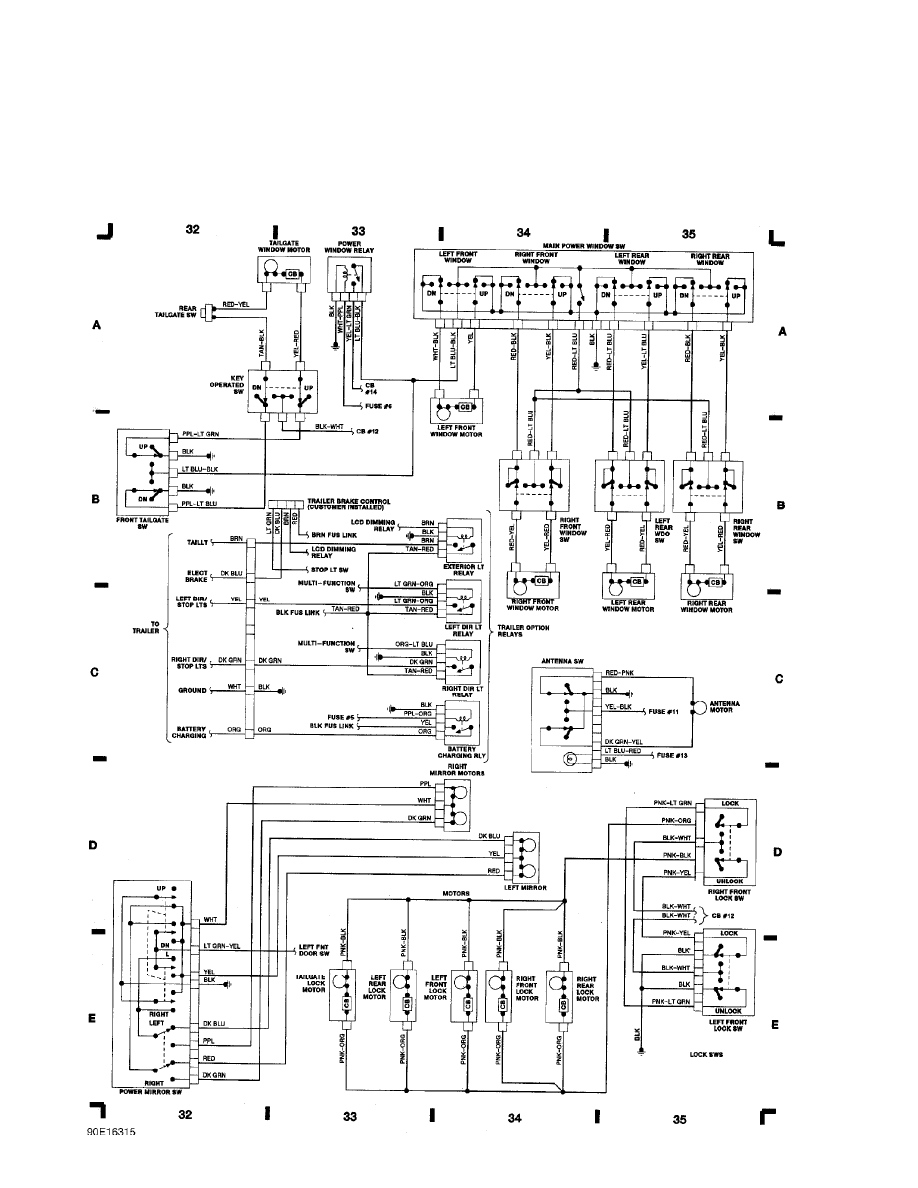

WIRING DIAGRAMS

Fig. 9: Power Window & Power Mirror (Grid 32-35) (p. 9)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

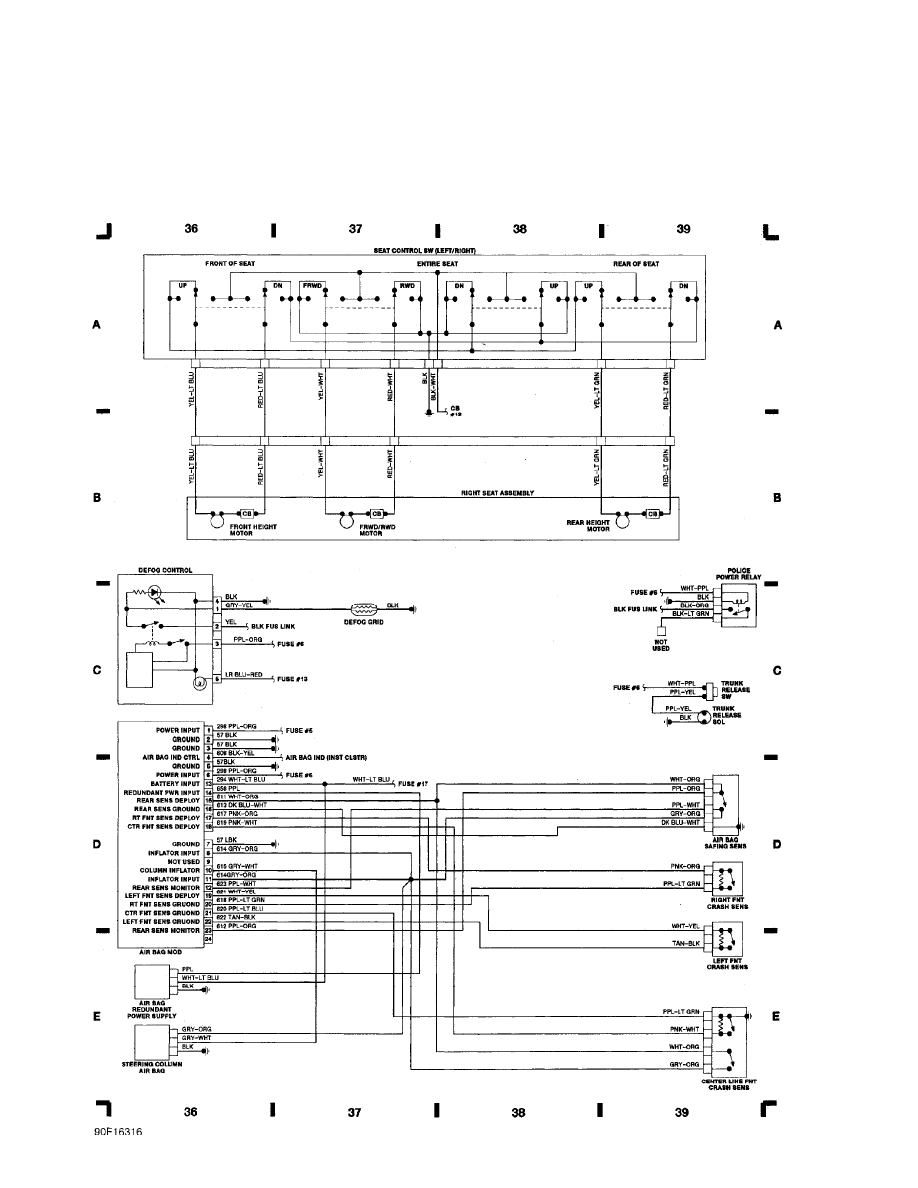

WIRING DIAGRAMS

Fig. 10: Seat Control, Defog Control & Air Bag Module (Grid 36-39) (p. 10)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM

WIRING DIAGRAMS

Fig. 11: Taillights (Grid 40-43) (p. 11)

1990 Ford Crown Victoria
For [e-mail] x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:29PM
